Manufactory Wholesale FTTH 1550nm EDFA WDM 8 Port 16
Port 32 Port Optical Amplifier for CATV and FTTH Networks
Looking for a reliable solution to enhance your FTTH or CATV network performance? The FTTH 1550nm EDFA WDM 8 Port 16 Port 32 Port is a low-noise, high-power optical amplifier designed for seamless integration into FTTx networks. With built-in CWDM (1310/1490/1550) wavelength division multiplexer, it reduces equipment complexity while improving system reliability. Ideal for single-mode fiber amplification, this amplifier supports CATV and FTTH applications, delivering up to 36dBm output power with ±0.5dB stability.
• Low noise figure ≤5.0dB | • High output power up to 36dBm | • Built-in CWDM for efficient multiplexing | • Compact design for easy integration | • Suitable for CATV, FTTH, and FTTx networks
WDM EDFA Amplifier 1550nm is a low noise, high performance, FTTP high power, multi-ports optical amplifier FTTH 1550nm EDFA WDM 8 Port 16 Port 32 Port
1. Product Overview of FTTH 1550nm EDFA WDM 8 Port 16 Port 32 Port
SPA-XX is a low noise high-performance Er Yb co-doped fiber amplifier. Each output built-in CWDM (1310/1490/1550) wavelength division multiplexer. Conveniently multiplex the data stream of OLT and ONU to the fiber amplifier output by 1310nm and 1490nm optical connector. Thus reduced the equipment quantity, improved the system indexes and reliability. It is the ideal equipment for FTTx network, provides a flexible and low cost solution for the integration of three networks and the FTTH.
2. Application
Single-mode fiber 1550 amplification network
FTTH network
CATV network

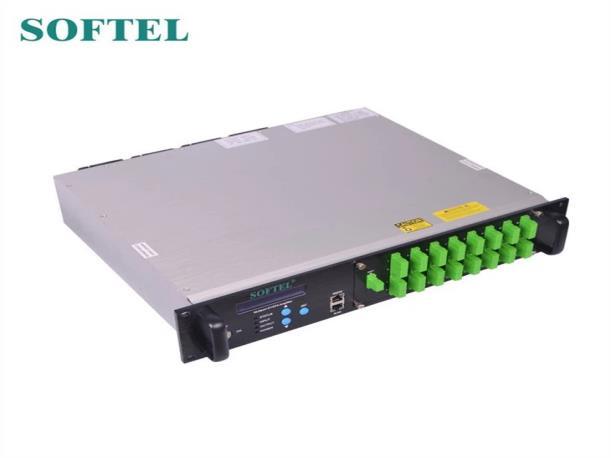

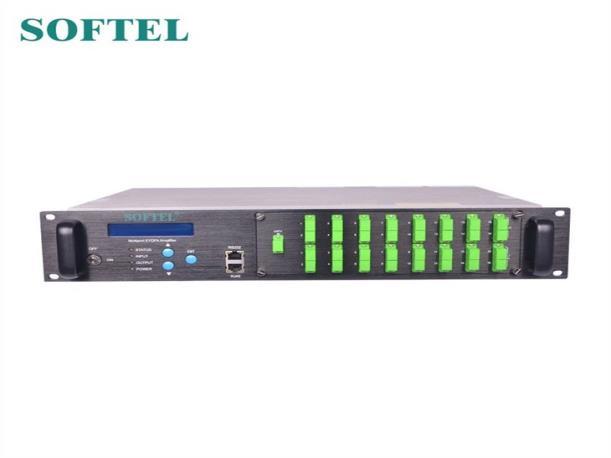

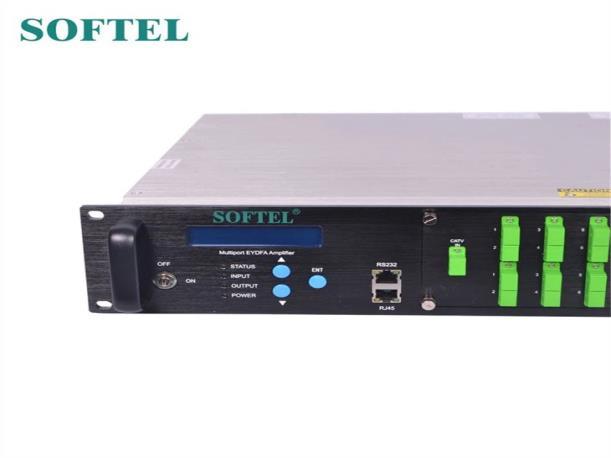

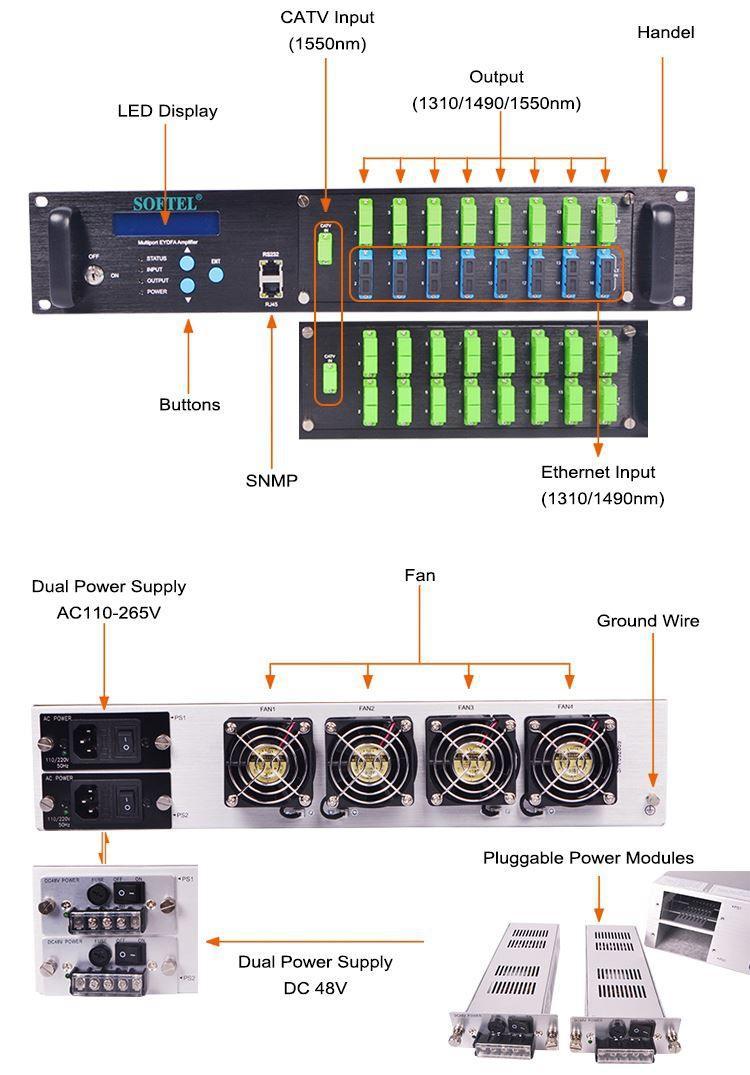

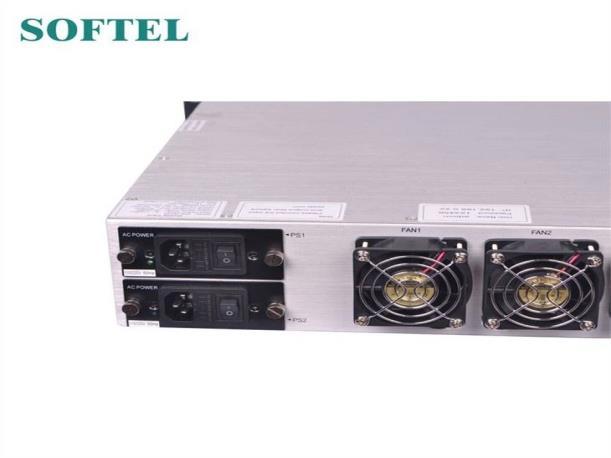

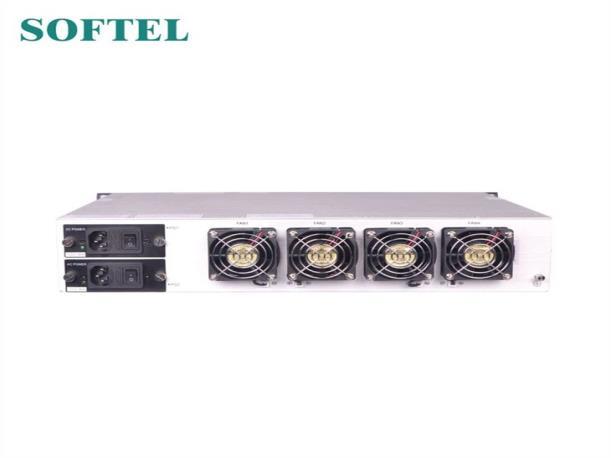

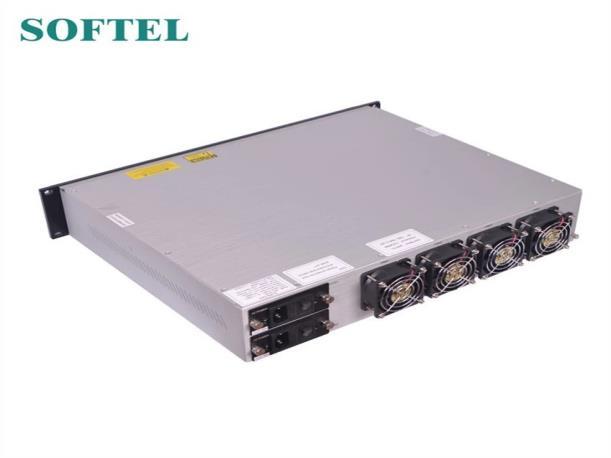

3. Detailed image of FTTH 1550nm EDFA WDM 8 Port 16 Port 32 Port
4. Product parameters of FTTH 1550nm EDFA WDM 8 Port 16 Port 32 Port
Noise figure
Return loss
dB ≤ 5.0 (Optical input power 0dBm, λ=1550nm)
Input dB ≥ 45
Output dB ≥ 45
Optical Connector Type SC/APC
C/N
C/CTB dB ≥ 63
C/CSO
dB ≥ 63
dB ≥ 50 Test condition according to GT/T 184-2002.
Power supply voltage V A: AC160V - 250V(50 Hz); B: DC48V
Consumption W ≤ 70
Operating temperature range °C 0 - +55
Maximum operating relative humidity % Max 95% no condensation
Storage temperature range °C -30 - +70
Maximum storage relative humidity % Max 95% no condensation
Dimension mm 483(L)× 440(W)× 88(H)
