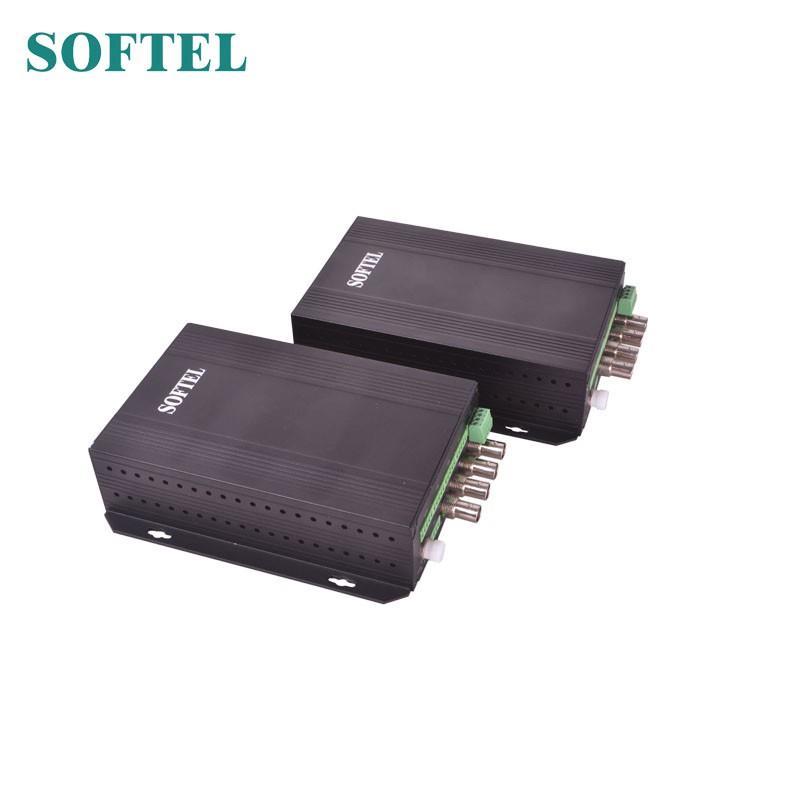

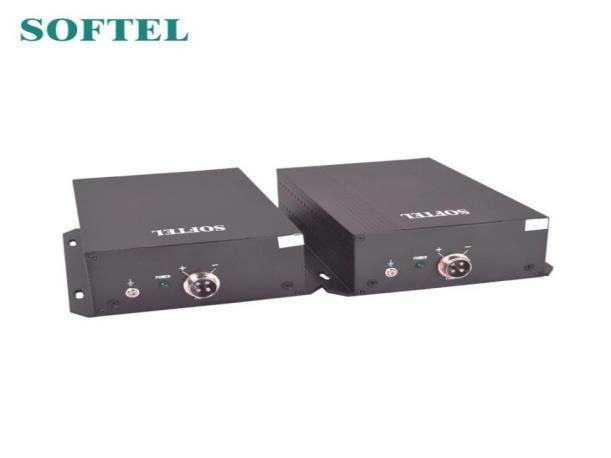

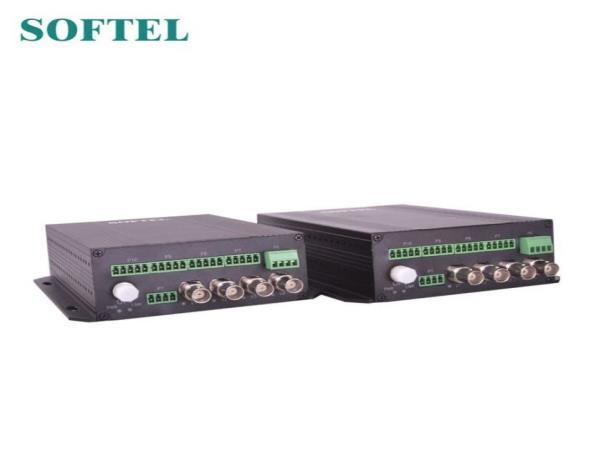

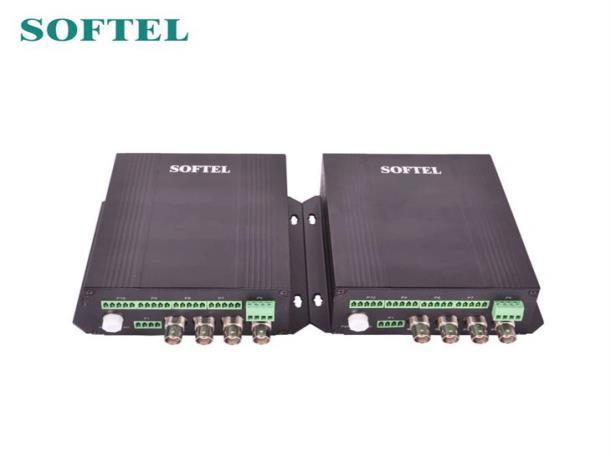

Manufactory Wholesale Ethernet Media Converter for Long-Distance
Non-Distortion Video Transmission up to 100km
Need reliable long-distance signal transmission without distortion? The Ethernet Media Converter is an all-digital fiber transmission device that delivers real-time, non-compressed video, audio, and data signals over a single-core fiber. With world-class Gigabit fiber transmission technology, it supports up to 64 channels of video, audio, Ethernet, and alarm signals, ensuring high-speed synchronous digital transmission. Ideal for CCTV networks, video conferencing, and industrial monitoring, this converter offers a transmission range of up to 100km with optional 1550nm operation.
• Uncompressed 8-bit video & 24-bit audio encoding | • Super optical dynamic range, no adjustment needed |
• Safe transmission in poor electromagnetic environments | • Supports RS232, RS485, and RS422 data interfaces |
• Transmission distance up to 100km
It can transmit long distance, non-distortion and real-time 1~64 channels of video signal (or data, audio, Ethernet, alarm, phone if necessary) by one-core fiber.
This Ethernet Media Converter is an all-digital fiber transmission device,with world class non-compression, all digital video correction technology and Gigabit fiber transmission technology. It can transmit long distance, non-distortion and real-time 1~64 channels of video signal (or data, audio, Ethernet, alarm, phone if necessary) by one-core fiber.
Features
1.Uncompressed 8 bit video and 24bit audio encoding, High-speed synchronous digital transmission technology.
2. Fiber optic transmission of four video signals on one fiber with RS485,RS232 and RS422 data
3. signals(three of each)which may be one way with the video or optionally duplex.
4. Super optical dynamic range, no adjustment needed
5. Status indication for power supply, optical signal and video
6. No electromagnetic interference, radio frequency interference and ground current
7.Safe transmission guaranteed under poor electromagnetic environment
8. Maximum tolerable link loss for single mode single fiber is 18db
9. Range of up to 100km is possible with optional 1550nm operation
10. Optional duplex operation over one fiber
Application
1.CCTV networks
2.video conferencing
3.Industrial monitoring systems
4.Distance learning
Parameters of Ethernet Media Converter
Channel availability (specify at time of order) Forward Path Reverse Path
Number of video channels 1,2 or 4 0
Number of data channels 0 or 1 1
Number of optional audio channels 0,2,4 or 8 0,2,4 or 8
Number of optional data channel 0 to 8 0 to 8
Electrical
Video
Input/Output Impedance 75Ω composite
Input/Output Level 1Vp-p nominal
Video connectors BNC
Bandwidth(±0.5dB) 20Hz-20KHz
Signal to Noise Ratio >63dB
Linearity <1.3%DG<1.3°DP
Audio
Input/Output Impedance 48KΩ/10KΩ
Input/Output Level 2Vp-p nominal
Audio connectors Terminal block
Bandwidth(±0.5dB)
20Hz-20KHz
Signal to Noise Ratio >75dB
Linearity
Data
Optional Data Interface
<0.1% Total harmonic distortion
RS232, RS485 and RS422
Standard data connector Terminal block
Optional Data Rate DC-150Kbps
Data Bit Error Rate
Ethernet
<1×10-9
Ethernet Interface 10/100 Base-T
Standard data connector RJ45
Optional Data Rate 100M%
Contact Closure
Physical interface Industry standard terminals
Input signal
Output signal
Optical
Any active or passive alarm, Contact Closure input, supports TTL,RS-232/422/485 or passive switch buttons
Any active or passive alarm, Contact Closure input, supports TTL,RS-232/422/485 or relay contact input
Transmitter wavelength 1310nm or 1550nm
Transmitter couple power Several options are available from 4dB to -4dB
Receiver sensitivity <-26dB
Optical Connectors ST,FC and SC are optional
Link budget From 22dB to 30dB at 1310nm or 1550nm
Fiber type single mode fiber, Single fiber
Transmission distance single mode 100Km
Note: Many combination of laser types and levels and types and sensitivities are possible.
Contact N-NET for details
*It is also possible to configure the unit as 8 audio,0 data or 0 audio 8 data.
Physical characteristic
Input voltage
Operating temperature
Relative Humidity
AC220/DC+5V
-25°C ~ +75°C
0~95% (non-condensing)
Induction EN50130-5, 1995
Tidal fever BS2011
Dimension
110mm(W)×174mm(D)×47mm(H)firmware for installation no included
Chassis Current Consumption 0.75Amp for 4 channel video and 1 channel data
