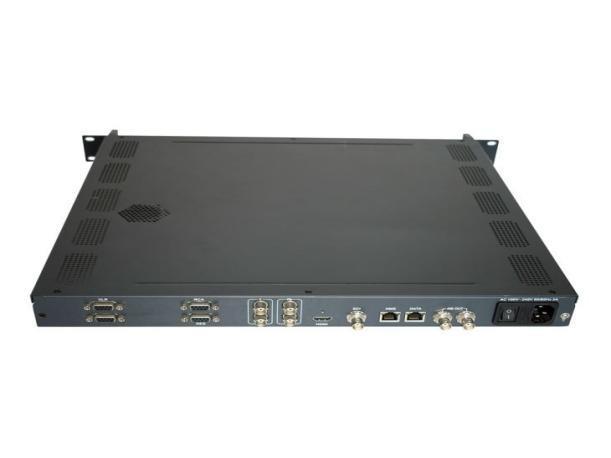

Manufactory Wholesale ENC3411 Plus HD SDI to ASI IP
Encoder for DVB-T ISDB-T Broadcasting
Struggling with high-quality video encoding for DVB-T, ISDB-T, or ATSC applications? The ENC3411 Plus single-channel HD SDI to ASI IP encoder delivers unmatched performance with Magnum D7 Pro ASIC and FPGA technologies, ensuring superior video compression efficiency. Ideal for TV studios, cable, satellite, and IPTV systems, it supports MPEG-4 AVC and MPEG-2 SD/HD encoding, offering 4:2:2/4:2:0 profiles and Dolby Digital AC3 audio. With low latency and native IP output, it’s perfect for bandwidth-efficient HD services. Trusted by global broadcasters, it’s a game-changer for high-end cable TV and ATSC applications.
• Simultaneous MPEG-4 AVC and MPEG-2 SD/HD encoding
• 4:2:2/4:2:0 video profiles for highest quality
• Dolby Digital AC3 audio encoding
• Low latency and native IP output
• Compact 1RU design with low power consumption
Simultaneous MPEG-4 AVC and MPEG-2 SD/HD encoding per chassis 1RU Based on Magnum D7 Pro Newest generation ASIC and FPGA technologies, offers unequalled gains in video compression efficiency 1xHD-HD
Overview
ENC3411 Plus has proven itself as the most advanced encoding platform for TV Studio Station,Cable, Satellite, IPTV, Terrestrial or ATSC applications available
Contact:Tomleequan Email：
today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications with four pairs of Audio inputs. The significant advantage in low latency and Dolby Digital AC3 audio encoding. For telcos and other IP-based service providers, the encoder is highly bandwidth efficient MPEG-4 CBR encoding and native IP output make it possible to deliver exciting and competitive HD services. Espically use in Multi-Audio channel MPEG-2 HD 4:2:2 in High-End Cable TV or ATSC Application.
ENC3411 Plus is the industry’s HD encoder based on ASIC processing technology and provides full 20-30% compression gain over the first generation of DSP-based MPEG-4 HD encoders. Additionally, embedded audio as well as support of closed captions transferred in the HD-SDI and CVBS means efficient routing and simpler back-up system designs. Further more, to the encoding format 4:2:0, also supports 4:2:2 encoding for single channel encoding in contribution applications, and can be combined with LOGO,OSD and QR Code insertion of your customized design.
Features
◆Telco Quality, Highly Reliable, High density 3-RU platform can process up to 200*SD, 96*720P, 48*1080P Full HD(1080P), 16*4K profiles
◆Simultaneous MPEG-4 AVC and MPEG-2 SD/HD encoding per chassis
◆Based on Magnum D7 Pro Newest generation ASIC and FPGA technologies, offers unequaled gains in video compression efficiency
◆1*HD-HD/HD-SDI/YPbPr,Composite video inputs
◆Up to 4 audio stereo or 8 mono channels with Four XLR,Four RCA, Embeded SDI,one AES audio inputs
◆Embedded audio on HD-SDI input
◆MPEG1 Layer II, LC-AAC, HE-AAC v1, HE-AAC v2 and Dolby Digital AC3 (2.0/5.1) audio encoding
◆Dolby Digital AC3 pass through audio encoding (option)
◆Broadcast-grade Video downscale
◆Low resolution channels for applications such as picture-in-picture (PIP) Option
◆Aspect Ratio:4:3, 16:9
◆Low latency mode
◆Operators can insert advertisement picture, own LOGO, QR code,OSD content during encoding picture-Option
◆4:2:2/4:2:0 encoding profiles for highest video quality (4:2:2- MPEG-2 only)
◆Advanced Closed Caption insertion and transmission:CEA 608 and CEA 708
◆Support video buffer, free to switch video sources (all video interface available)
◆Flexible GOP structures with Adaptive I-frame and B-frame insertion
◆Simultaneous outputs via UDP/IP, DVB-ASI
◆MPEG-2 TS/UDP over IP output
◆Bitrate: 0.25-60Mbps, Only CBR control
◆Management via embedded Web server
◆One rack unit high, low-power consumption, stackable
