Manufactory Wholesale AH-860J Economy Agile Analog
Modulator for CATV Systems with High Stability and Low Cost
Looking for a reliable and cost-effective solution for CATV systems? The AH-860J Economy Agile Analog Modulator delivers high stability and precision with its advanced MCU technique and SMT technology. Designed for seamless frequency adjustments and minimal side-band disturbance, it supports a wide output frequency range of 45-870MHz and ensures ±5kHz frequency accuracy. Ideal for broadcast, hospitality, and institutional applications, this modulator offers 113dBmV output level and 60dB side-band suppression.
• MCU technique for high frequency stability | • SMT technology for enhanced security |
• LED display for easy frequency selection | • Wide output range: 45-870MHz | • Ideal for CATV, hospitality, and broadcast systems

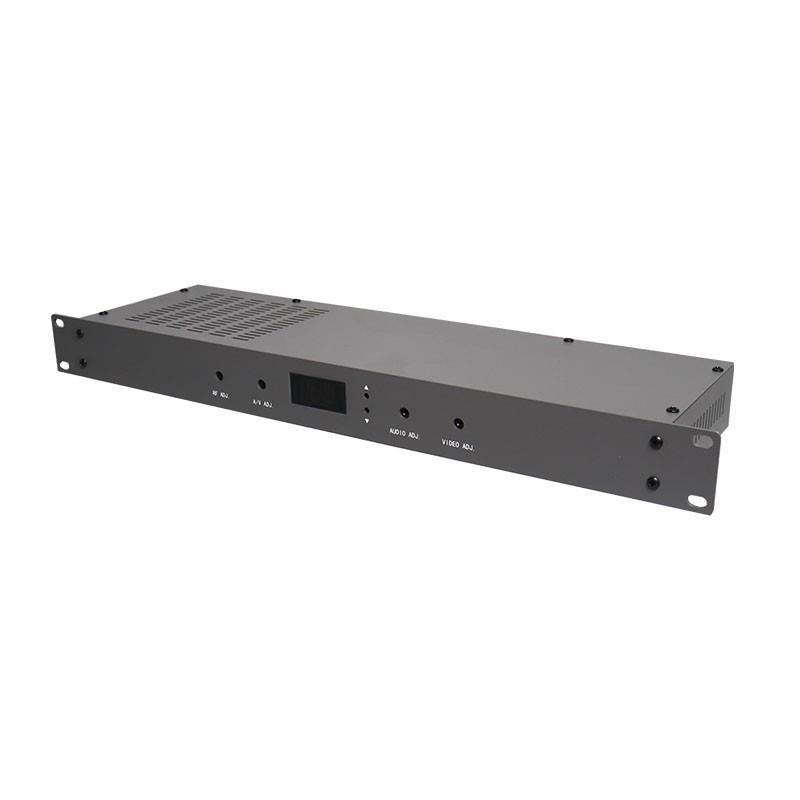

AH-860J Economy Agile Channel Adjacent Frequency Modulator
Product Description
Single channel agile analog modulator is low cost and high stability.
Features of agile analog modulator
1. Intermediate frequency, twice conversion frequency and with saw filter, small disturb side-band.
2. MCU technique is applied to audio intermediate frequency, image high frequency and RF local oscillator, with high frequency stability and accuracy.
3. Integrated circuit is applied to outputs, and each functional circuit of the overall unit adopts SMT technology, with high security.
4. LED display frequency, using up and down button to select any preference frequency.
5. Convenient control, all frequency level adjustments are designed ahead.
6. High dependable and high dynamic powers are applied to part of the source of voltage.
7. We can make different channels according to the customer’s requests.
Parameters
output impedance 75 Ω
video to audio carrier ratio -10dB ~ -20dB
video frequency input level 0.6 ~ 1.5Vp-p
input impedance 75Ω
input reflection 30dB min
K coefficient 4 % max （ 2T pulse ）
video s/n 50dB C/L delay 40nsec
frequency response ± 1dB differential gain ± 4 % （ modulator 87.5 % ） differential phase ± 4° （ modulator87.5 % ）
audio frequency
input level -10 ~ 10 dBm
input impedance 10KΩ min
frequency response ± 1dB distortion 1 %
signal to noise radio -60dB
audio image interval according to the style power supply voltage 110 ~ 245V AC
