Manufactory Wholesale 4 Way Outdoor HFC Optical Node
SR814BR for CATV Networks with 1G Bandwidth and Optical
AGC Control
Struggling with signal distortion and network reliability in outdoor CATV systems? The 4 Way Outdoor HFC Optical Node SR814BR delivers high-performance signal transmission with a 1G bandwidth design and optical AGC control, ensuring stable output levels even with input power fluctuations (-7~+2dBm). Ideal for CATV networks, this node features a high-response PIN photoelectric conversion tube, optimized SMT circuit design, and remote network management compatibility. With a frequency range of 45/87~750/862 MHz and a rated output level of ≥94dBμV, it’s built for durability in extreme temperatures (-40~60°C).
• 1G bandwidth design | • Optical AGC control (-7~+2dBm) | • Remote network management | • High-response PIN photoelectric conversion | • Durable in -40~60°C environments

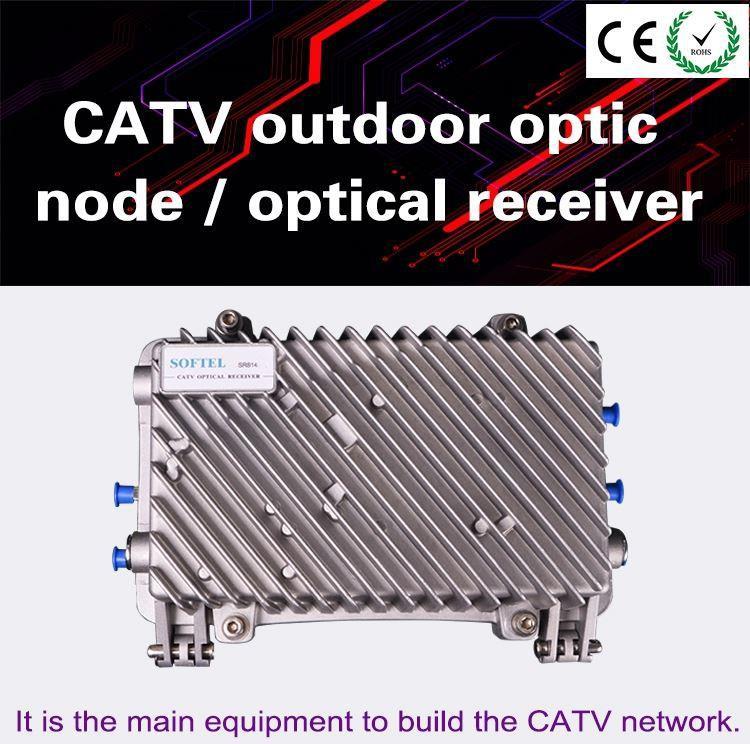

SR814BR is a 4-way output CATV optical receiver. The microprocessor control working status meanwhile LED digital display parameter that makes more convenience operation.

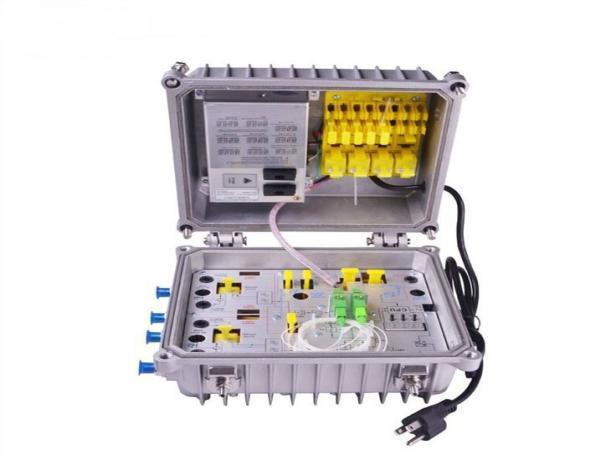

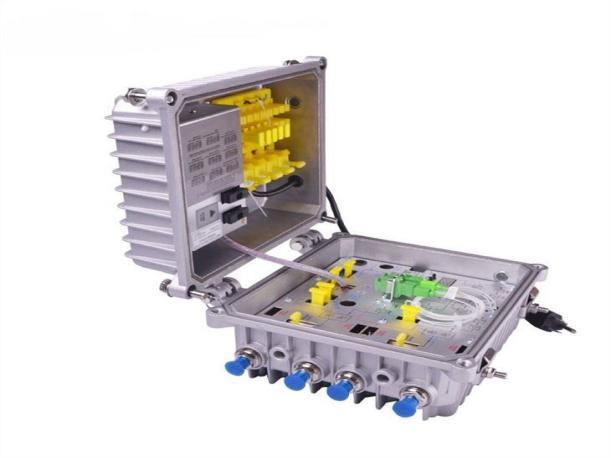

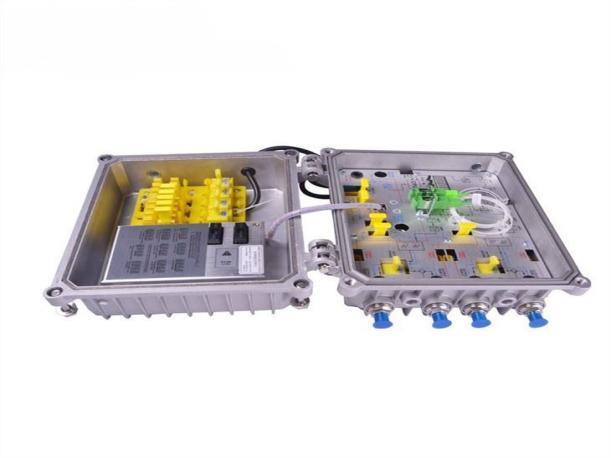

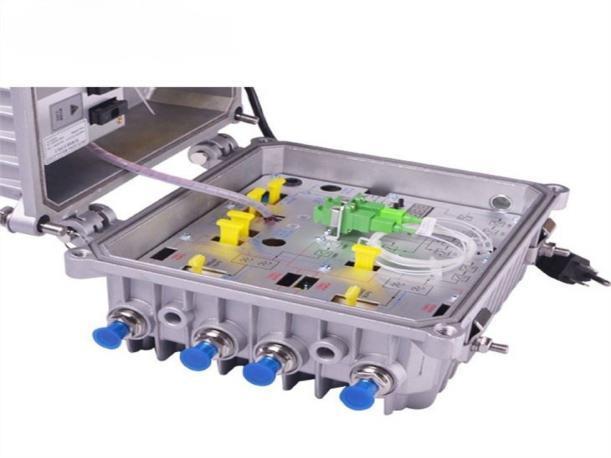

4 way outdoor hfc optical node
Key Features
High response PIN photoelectric conversion tube.
1G bandwidth design.
Ten bar LED optical power indicators, more accurately display the optical power.
Optimized circuit design, the pre-stage adopts SMT processing, while post-stage adopts module amplify typical circuit that makes the photoelectric signal transmission more smooth.
Power double output, high gain and low distortion.
Optical AGC control, when the input optical power range is - 7~+2dBm, the output level, CTB and CSO basically unchanged.
Can be extended with a remote network management, convenient access to the network management system.

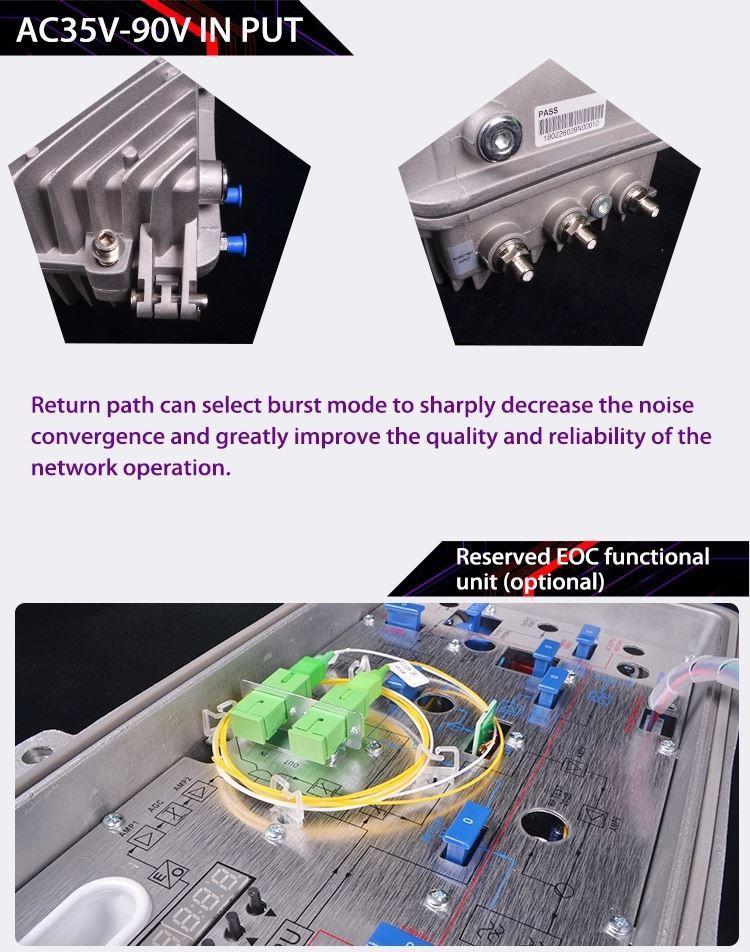

4 Way Outdoor HFc Optical Node can select burst mode to sharply decrease the noise convergence and greatly improve the quality and reliability of the network operation.
Item
Optical Parameter
Receive Optical Power
Propose Use Range
Return Loss
Optical Wavelength
Connector Type
dBm -5 ~ +2
dBm -3 ~ +1
dB >45
nm 1100 ~ 1600
FC/APC SC/APC
Fiber Type Single Mode
Circuit Performance
C/N
dB ≥ 51
C/CTB dB ≥ 69
C/CSO dB ≥ 62
RF Performance
Frequency Range
Flatness in Band
Rated Output Level
Max Output Level
Output Return Loss
Output Impedance
Return Transmit Performance Parameter
Optical Parameter
MHz 45/87 ~ 750/862
dB ±0.75
dBμV ≥ 94
dBμV ≥ 104
dB ≥15
Ω 75
Optical Transmit Wavelength nm 1310±10
Laser Type FP or DFB Laser
Output Optical Power
Connector Type
RF Parameter
Frequency Range
dBm 1 ~ 3
FC/APC SC/APC
MHz 5 ~ 30/65
Flatness in Band
Input Level
Output Impedance
NPR
General Parameter
≥10(NPR≥30 dB)
Supply Voltage V A:AC 135~250;B:AC 35~90 (50Hz)
Operating
+70
