Manufactory Wholesale Dual HD to IP Encoder SKD2110 for HDMI to IP Streaming with H.264 Encoding, 1080P Resolution, and Multi-Protocol Support
Are you struggling to stream high-quality HDMI signals over IP networks seamlessly?
The SKD2110 Dual HD to IP Encoder is here to revolutionize your video transmission experience. This cutting-edge device converts HDMI signals to IP SPTS using advanced H.264 video encoding and AAC audio encoding, ensuring crystal-clear video and audio quality. With support for resolutions up to 1080P_60 and output up to 1080P_30, it delivers exceptional performance for real-time streaming. Whether you're in the broadcasting, corporate, or education sector, this encoder is your go-to solution for reliable and efficient video distribution. Its compatibility with multiple protocols, including RTSP, RTMP, HTTP, HLS, UDP, and RTP, makes it versatile for various applications. Plus, with a low encoding latency of 150~300 ms, it ensures minimal delay for live broadcasts. The SKD2110 is also equipped with a user-friendly WEB UI for quick setup and customization, including text and image overlay functions. Its compact design and low power consumption (<5W) make it ideal for 24/7 operation. Trusted by professionals worldwide, this encoder is your gateway to seamless IP video streaming.
Core Features:
• H.264 Video Encoding & AAC Audio Encoding | 1080P_60 Input & 1080P_30 Output | Multi-Protocol Support (RTSP/RTMP/HTTP/HLS/UDP/RTP)
• Customizable Text & Image Overlay | Low Latency (150~300 ms) | Portable & Energy-Efficient Design
• User-Friendly WEB UI for Easy Setup | RJ45 Output for NMS & DATA (100/1000M)
The SKD2110 is designed to convert the HDMI signals to IP SPTS with H.264 encoding. You can put your HDMI source on a local network and/or internet with it. In this way, you can see your real-time video on the devices like smartphone, tablet, laptop or TV with the free VLC application or by IPTV receivers.

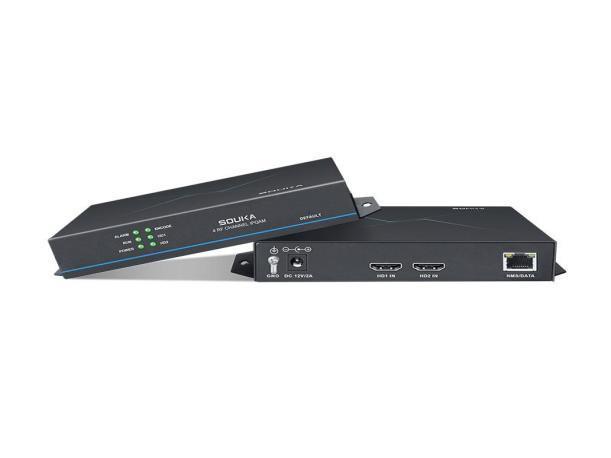

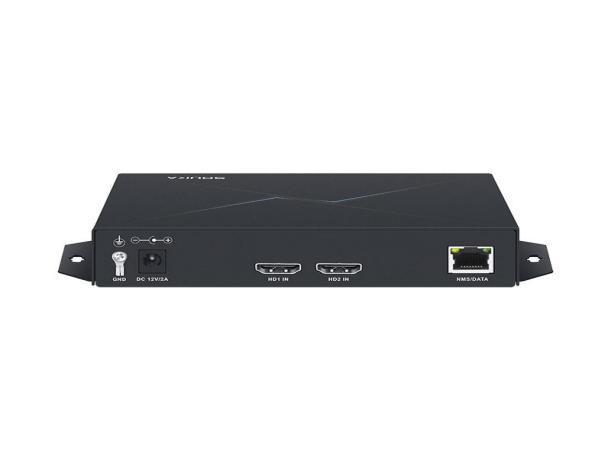

SKD2110
Dual HD to IP Encoder
FEATURES:
1. Supports H.264 video encoding and AAC audio encoding
2. Supports input resolution up to 1080P_60 and output up to 1080P_30
3. Supports various of protocols including RTSP/RTMP/HTTP/HLS/UDP/RTP
4. Capable with customized text and image overlay function, which can be at any position on the screen.
5. Portable and low power consumption makes it 24 hours continuous working available.
6. User friendly WEB UI operation for quick set up
SPECIFICATION:
Input Connector
HDMI *2
Video Resolution Up to 1080P_60
Video Encoding H.264
Audio Encoding AAC Encoding Latency 150~300 ms
Media Protocol
Graphic Overlay
RTSP/RTMP/HTTP/HLS/UDP/RTP
User-defined running text and
Output Stream IP in SPTS
Output Port RJ45 for both NMS and DATA in 100/1000M
Power
Dimensions
TYPICAL CONNECTION:
