Manufactory Wholesale IP65 Distribution Box for FTTx
Networks with 16 Cores Wall/Pole Mounting
Looking for a reliable solution for fiber splicing and distribution in FTTx networks? The IP65 Distribution Box offers a total enclosed structure made of PC+ABS material, ensuring wet-proof, water-proof, dust-proof, and anti-aging properties. With a protection level of IP65, it supports up to 16 cores and integrates fiber splicing, fixation, storage, and distribution in one compact unit. Ideal for both indoor and outdoor use, this box is easy to install and maintain, making it perfect for telecom and network integration projects.
• Total enclosed structure | • IP65 protection level | • Supports 16 cores | • Wall or pole-mounted installation | • Suitable for indoor and outdoor use
This is 16 cores IP65 Terminal box
Distribution box IP65
Production Introduction
Distribution box IP65 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box.
Features of Distribution box IP65
1. Total enclosed structure.
2. Material: PC+ABS， wet-proof、 water-proof、 dust-proof、 anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
4 . Easy for maintenance and installation.
5 . Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

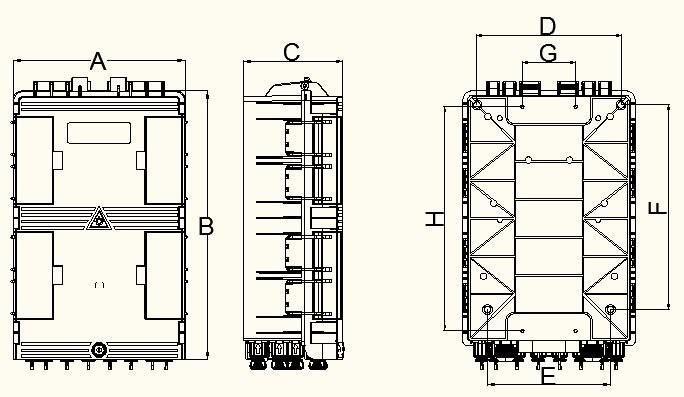

Specification
Configuration

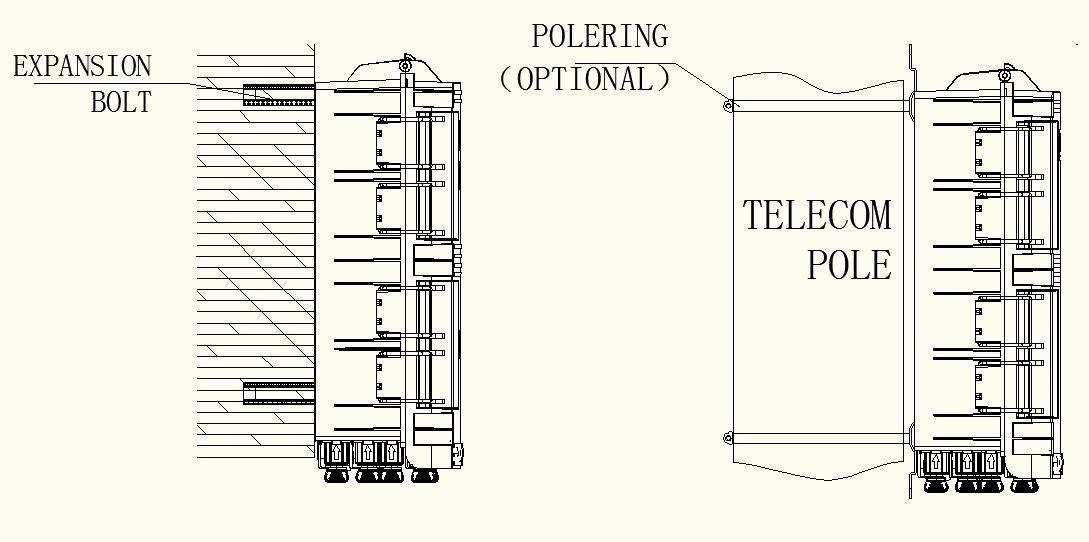

Installation
1. Wall-mounted installation
Drill 3 holes over the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。(Left)
2. Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .（Right）
3. Accessories
Instructions * 1
key * 1
Accessories Bag*1
Pole Ring*2 (Option)
