Manufactory Wholesale ADSS Optical Cable for High-Speed
Data Transmission with FRP Central Strength Member
Need a reliable solution for high-speed data transmission in harsh environments? The ADSS Optical Cable features a loose tube construction with FRP central strength member, ensuring durability and performance. Designed for telecom and power utilities, it supports spans up to 100m, withstands wind speeds of 60-140 km/h, and operates in temperatures from -20℃ to +60℃. With 24 fibers and a 1+6 cable structure, it’s ideal for long-distance, high-capacity networks. Certified by IEC 60794-1-2, it guarantees minimal fiber strain and sheath integrity under extreme conditions.
• Loose tube construction | • FRP central strength member | • 24 fibers, 1+6 structure |
• Operates in -20℃ to +60℃ | • IEC 60794-1-2 certified

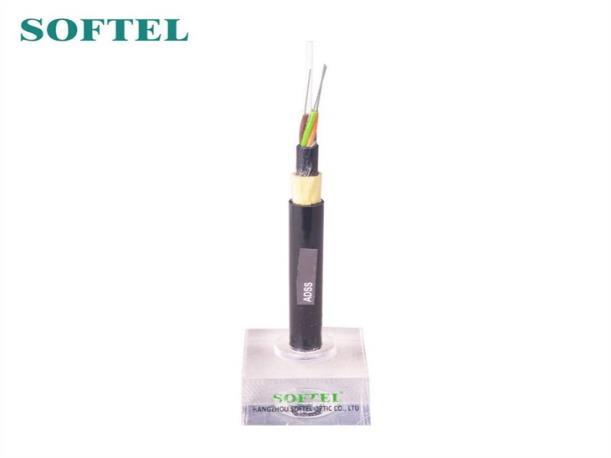

Adss Optical Cable is loose tube style, optical fiber cable with FRP central strength member
Adss Optical Cable
Product overview of Adss Optical Cable
Loose tube construction, tubes jelly filled, elements (tubes and fillers when necessary) laid up around non-metallic central strength member, polyester yarns used to bind the cable core, water blocking tape wrapped the cable core, aramid yarns reinforced, 1 ripcord and PE outer sheath.
Color Red Black Yellow Violet Pink Aqua
Characteristic of Adss Optical Cable
3.1 Min. bending radius for installation
Static: 10 x cable diameter
Dynamic: 20 x cable diameter
3.2 Application temperature range
Operation: -20℃ ~ +60℃
Installation: -10℃ ~ +60℃
Storage/transportation: -20℃ ~ +60℃
3.3 Main mechanical & environmental performance test
Item Test Method
- Load: Maximum allowable tension
Tensile Strength
IEC 60794-1-2-E1
Crush Test
IEC 60794-1-2-E3
- Length of cable: about 50m
- Load time: 1min
Acceptance Condition
- Fiber strain £ 0.33%
- No fiber break and no sheath damage.
- Load: Short term crush - Load time: 1min - Loss change £ 0.1dB@1550nm after test - No fiber break and no sheath damage.
Characteristic of Adss Optical Cable
G652D fiber information
Mode field diameter (1310nm): 9.2mm±0.4mm
Mode field diameter (1550nm): 10.4mm±0.8mm
Cut off wavelength of cabled fiber (lcc): £1260nm
Attenuation at 1310nm: £0.36dB/km
Attenuation at 1550nm: £0.22dB/km
Bending loss at 1550nm (100 turns, 30mm radius): £0.05dB
Dispersion in the range 1288 to 1339nm: £3.5ps/ (nm•km)
Dispersion at 1550nm: £18ps/ (nm•km)
Dispersion slope at zero dispersion wavelength: £0.092ps/ (nm2•km)
Main mechanical & environmental performance test
Item Test Method
Tensile Strength
IEC 794-1-2-E1
- Load: Short term tension
- Length of cable: about 50m
Acceptance Condition
- Fiber strain £ 0.15%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage
Crush Test
IEC 60794-1-2-E3
Impact Test
IEC 60794-1-2-E4
Temperature Cycling Test
YD/T901-2001-4.4.4.1
- Load: Short term crush - Load time: 1min
- Points of impact: 3
- Times of per point: 1
- Impact energy: 5J
- Temperature step: +20oC→-40oC→+70oC →+20oC
- Time per each step: 12 hrs
- Number of cycle: 2
- Loss change £ 0.05dB@1550nm - No fiber break and no sheath damage.
- Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage.
- Loss change £ 0.05 dB/km@1550 nm - No fiber break and no sheath damage.
Package of Adss Optical Cable
