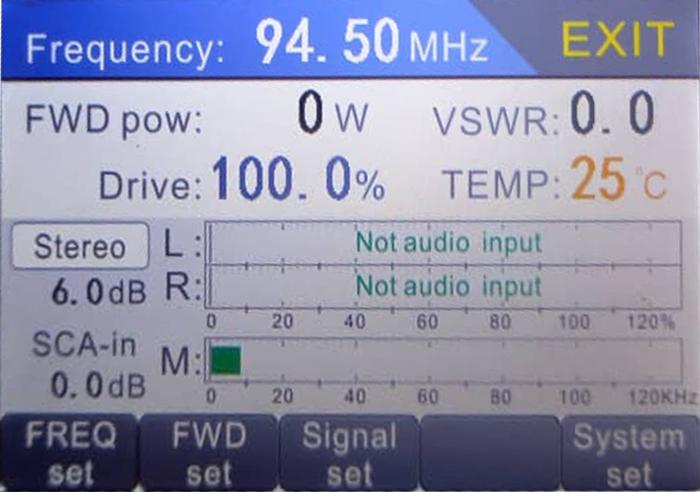

This document provides information about the FMUSER FSN5.0 350W, 600W, and 1000W transmitter models when the screen displays a power of 0. It serves as a guide to identify and troubleshoot any module damage within the transmitter. Additionally, this document also addresses the issue of FWD power being displayed as 0W when the drive reaches 100%, offering a solution to resolve this problem.
The information provided in this manual is for informational purposes only. The author and publisher are not liable for any damages or injuries that may occur as a result of using or misusing the information provided. Users should perform repairs on FM transmitters at their own risk, and it is recommended to consult professionals or qualified technicians when in doubt.
Safety Precautions
Always disconnect the power supply before working on an FM transmitter to avoid electric shock.
Ensure that you are working in a well-ventilated area to prevent inhalation of any harmful fumes or chemicals.
Wear appropriate protective gear, such as safety goggles and gloves, to protect yourself from potential hazards.
Familiarize yourself with the transmitter's manual and follow the manufacturer's instructions for safe operation.
Avoid touching any hot components of the transmitter to prevent burns. Allow sufficient time for cooling before handling.
Use insulated tools to minimize the risk of electrical accidents.
Do not attempt to repair or modify the transmitter beyond your skill level. Seek professional assistance if necessary.
Keep the work area clean and free from clutter to avoid accidents and tripping hazards.
Check all cables and connections for damage before powering on the transmitter.
Regularly inspect the transmitter for any signs of wear or damage, and promptly address any issues to ensure safe operation.
FSN-5 FM Transmitter Family
The FMUSER FSN-5 Series FM transmitters are highly regarded broadcasting solutions known for their exceptional performance and reliability. These transmitters offer a range of impressive features that have garnered global appeal. With a user-friendly touching screen interface, operators can easily monitor and control the transmitter's functions.
The internal fan ensures efficient cooling, effectively minimizing the risk of overheating. The FSN-5 Series is celebrated for its high-fidelity audio output, delivering crystal-clear sound that
Quality Signals, Always
Empowering AM, FM, and TV Stations & Studios
captivates listeners worldwide. Incorporating built-in DSP innovation, these transmitters outperform many competitors in terms of functionality.
Despite their advanced capabilities, the FSN-5 Series maintains a 19-inch 2U & 4U compact design, saving space while enhancing practicality.
Remaining true to FMUSER's commitment to affordability, the FSN-5 Series boasts a costeffective design without compromising on quality or performance. Featuring powerful RF power amplification chips like BLF188XR/MRFE6VP61K25H, these transmitters provide exceptional performance for radio broadcast stations.
With power options ranging from 350W to 5000W, the FSN-5 Series offers flexibility, and the power output can be tuned from a minimum of 0 watts up to 5kW.
In conclusion, the FMUSER FSN-5 Series FM transmitters combine cutting-edge technology, user-friendly design, cost-effectiveness, and superior performance, making them an ideal choice for broadcasters seeking reliable and high-performing FM transmitters.

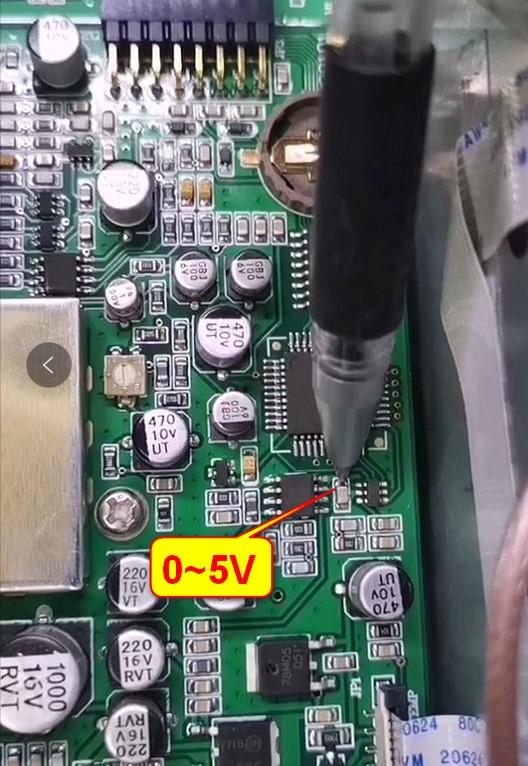

First, test the control panel's tuning voltage. It should be within the normal range of 0 to 5V. If the voltage falls outside this range, it indicates a malfunction in the control panel. In such cases, the control panel needs to be replaced.
Step #2:

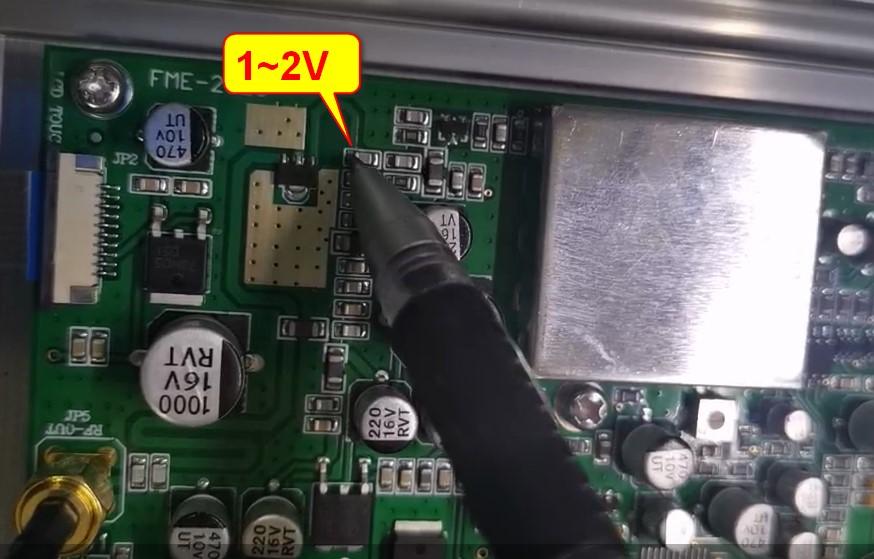

Measure the control panel's first-level drive voltage, which should ideally be around 2V. If it deviates from this value, it indicates a malfunction in the control panel. In such cases, the control panel needs to be replaced.
Step #3:

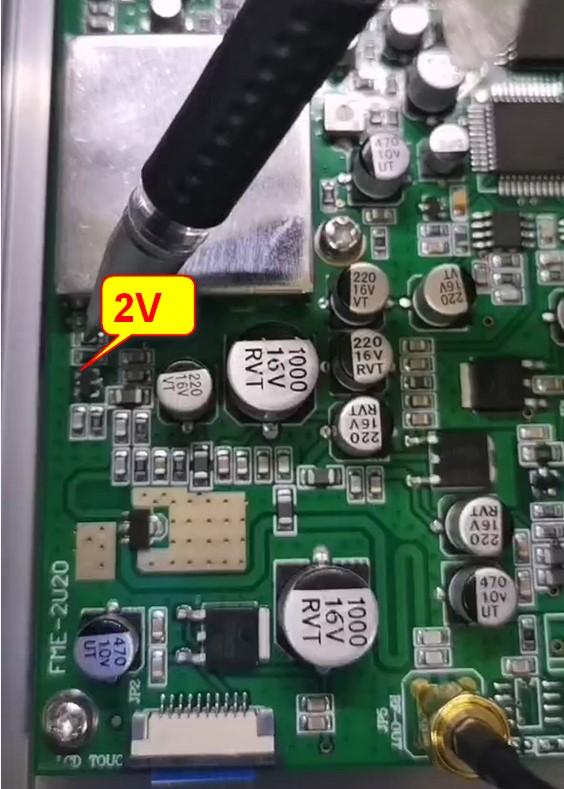

Measure the control panel's second-level drive voltage, which should ideally be between 1V and 2V. If the voltage falls outside this range, it indicates damage to the control board. In such cases, the control board needs to be replaced.
Step #4:

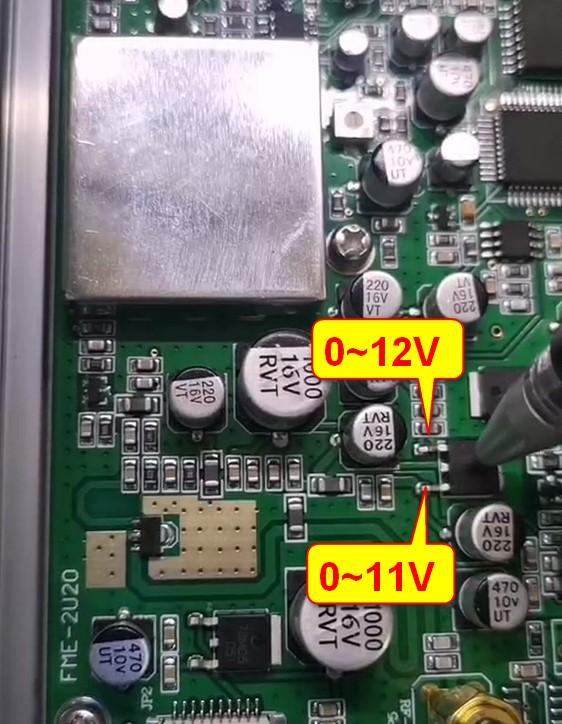

Measure the front drive power supply of the control panel. The normal voltage range should be between 0V and 12V. If the voltage deviates from this range, it indicates damage to the control panel, and it needs to be replaced.
Step #5:

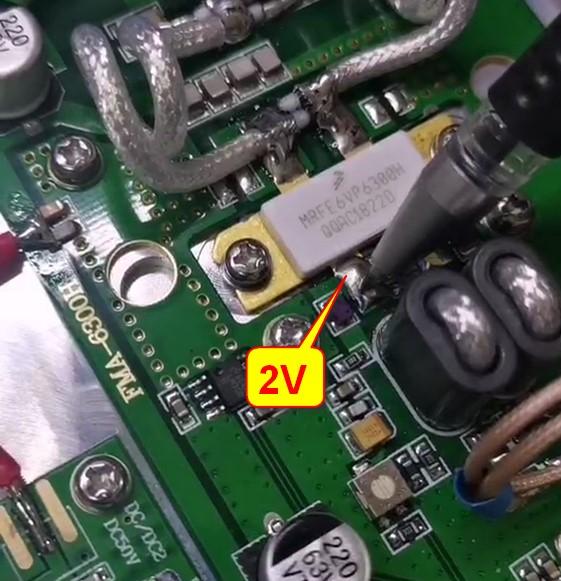

Measure the power input voltage in the power input board, which is typically around 2V. If the voltage deviates from this normal value, it indicates damage to the power input board, and it needs to be replaced
Final Notes
We would like to express our sincere gratitude to you for choosing our manual. We hope that the information and precautions provided will assist you in safely working on FM transmitters. If you have any questions or require further assistance, please do not hesitate to reach out to our support team. Additionally, make sure to check our website for any additional resources or guides that may be available to you. Stay safe and happy repairing!
