ShanPeterson

INTERIOR DESIGN

PORTFOLIO

SHAN PETERSON

Location: Portland, Oregon

The Heart is the central point from which learning and connection emerge. Through the addition of new learning environments and flex spaces, we are starting a conversation about what accessible learning for all user types entails.

-Acknowledging Differences without Impeding Participation

-Create Spaces that Adjust to Each User’s Needs.

Student Work

Revit, Enscape, Adobe Suites

Way Finding

Technical

Human Scale

Classrooms

Classrooms

Multi-Purpose

Computers

Classrooms

Gymnasium

Cafeteria

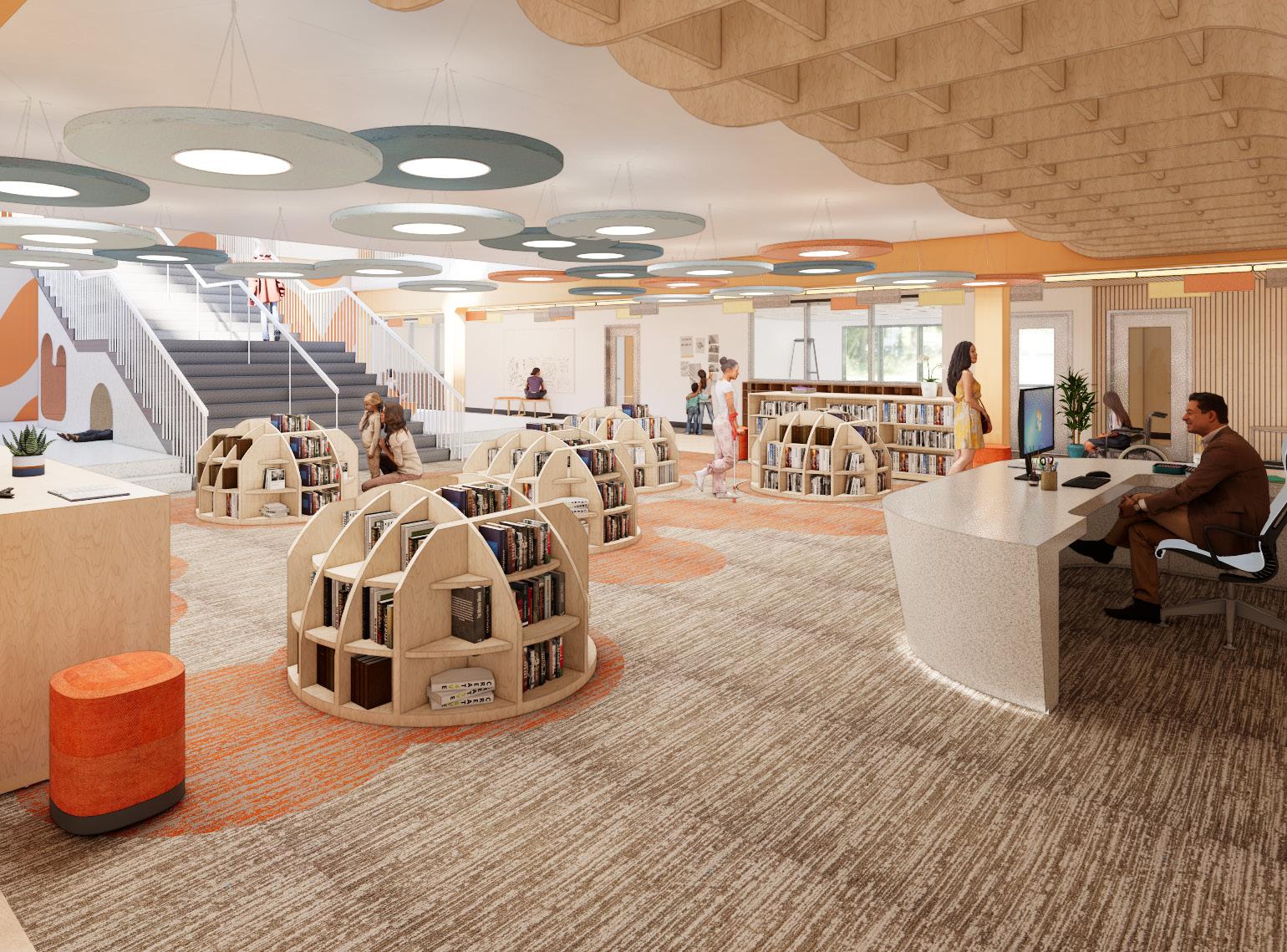

Library

Garden

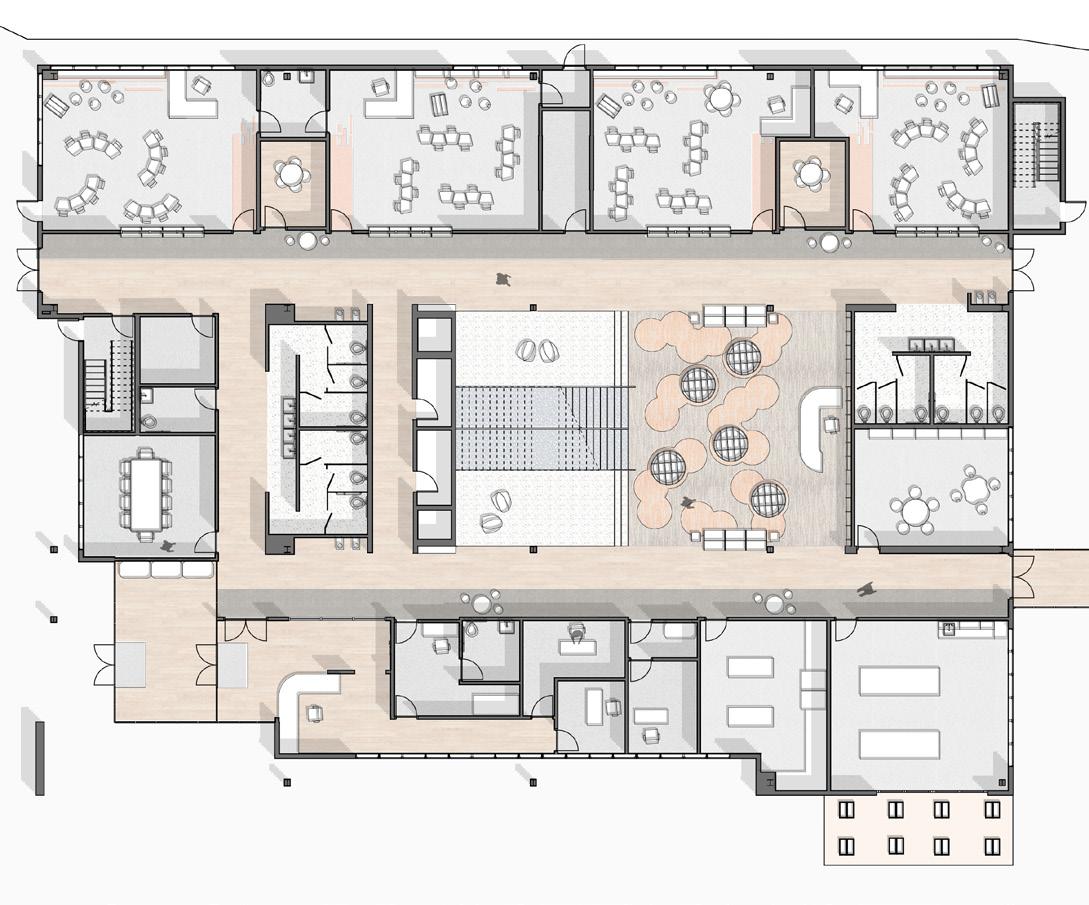

Ground Floor Plan

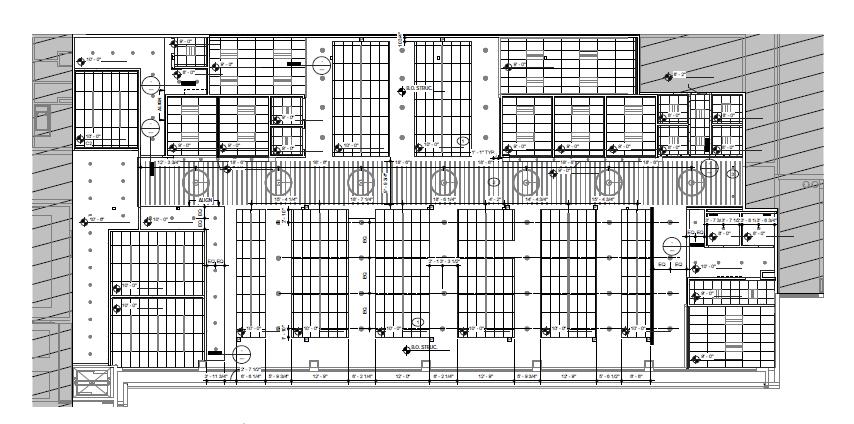

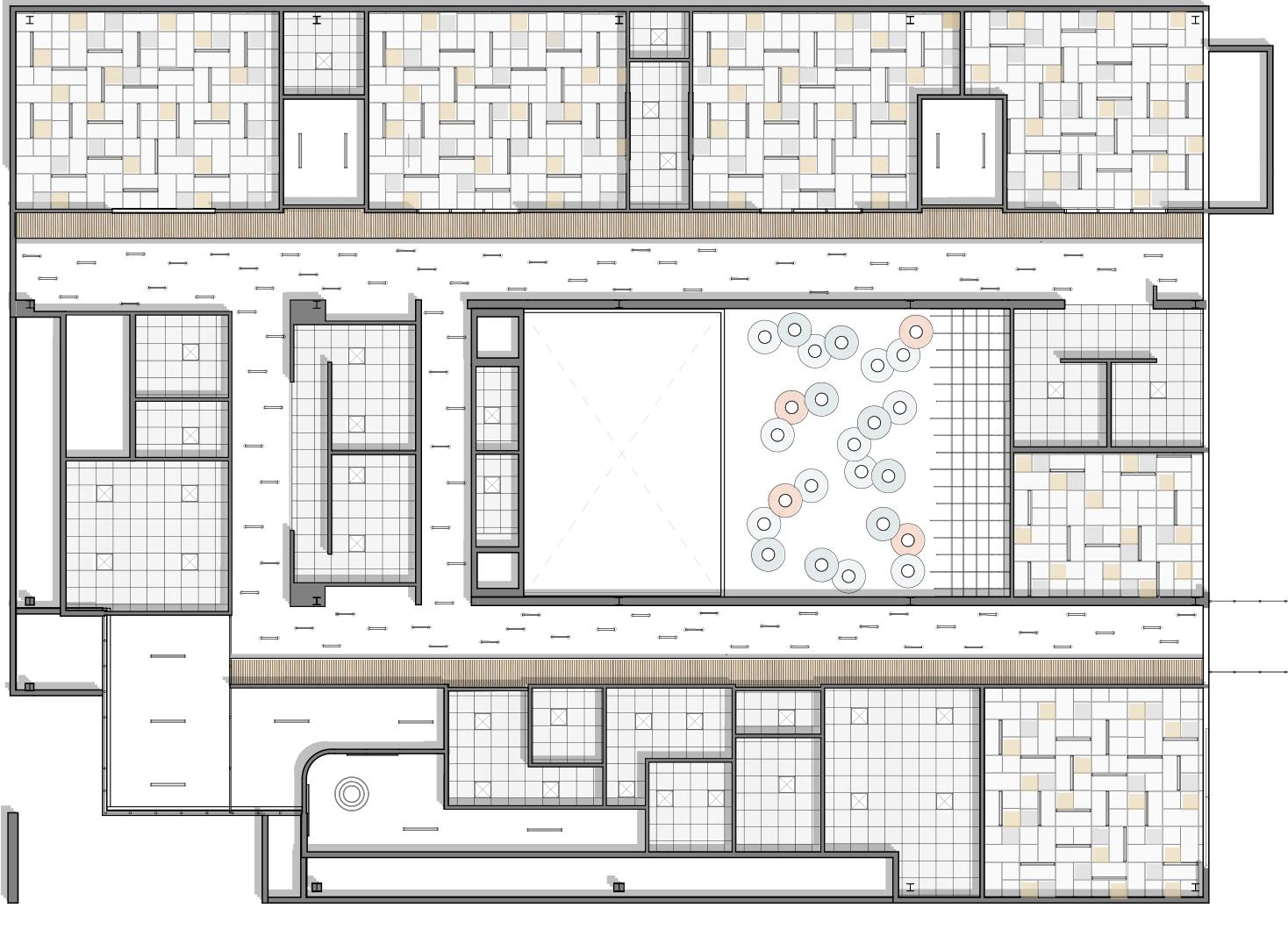

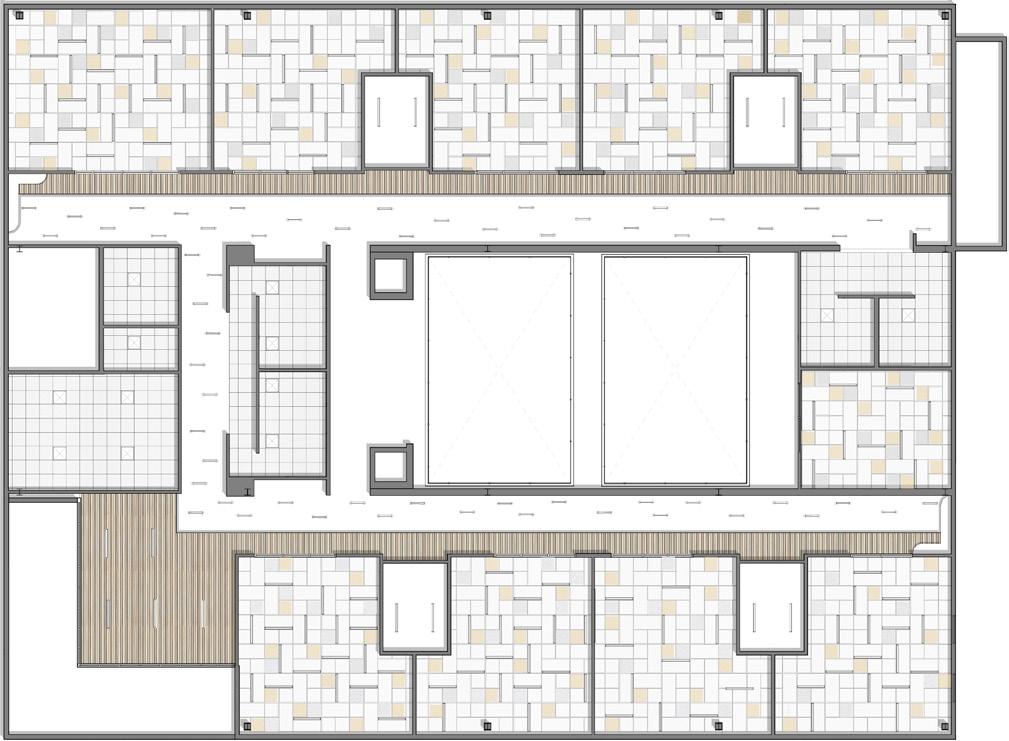

Ground Floor RCP

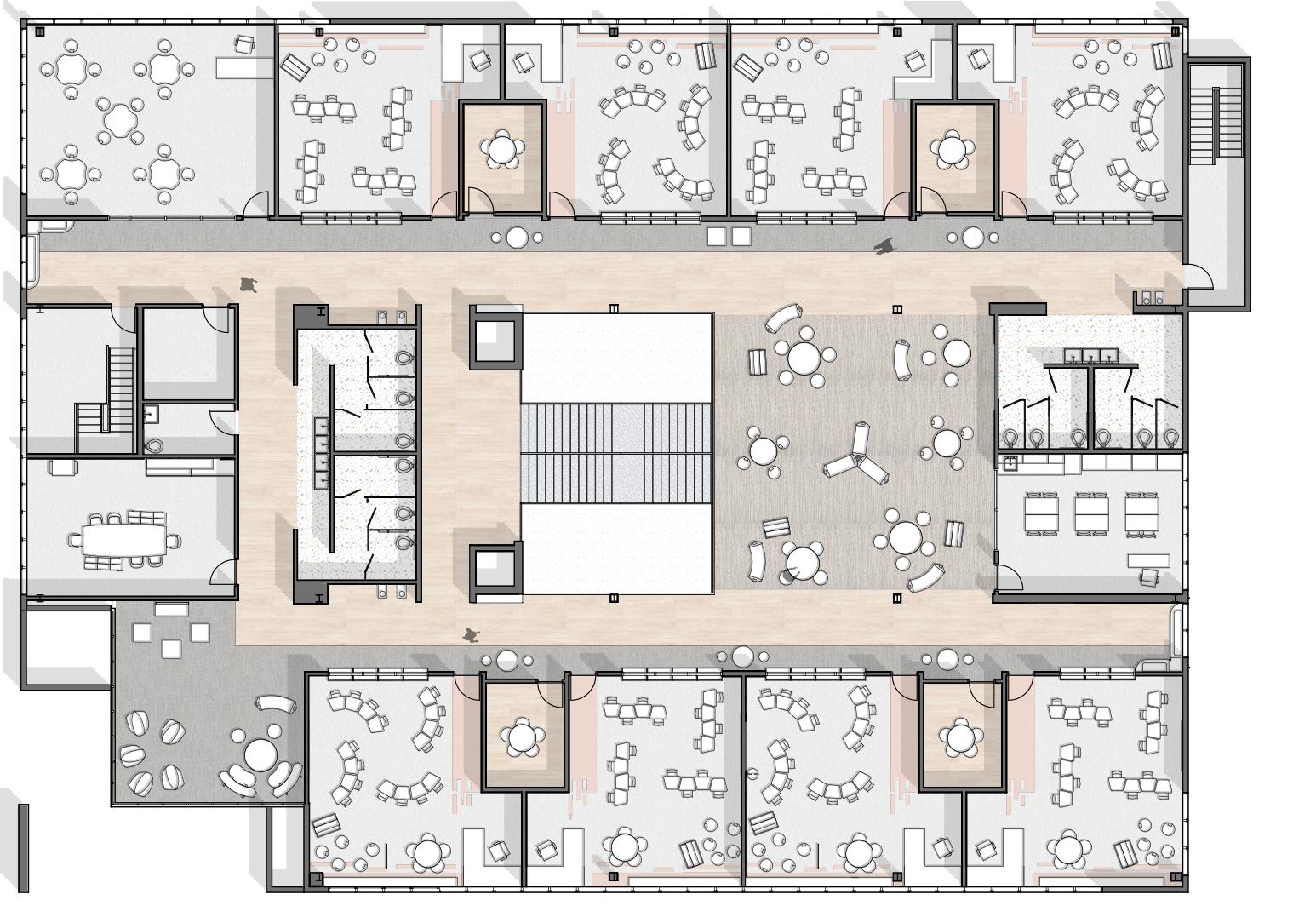

Second Floor Plan

Second Floor RCP

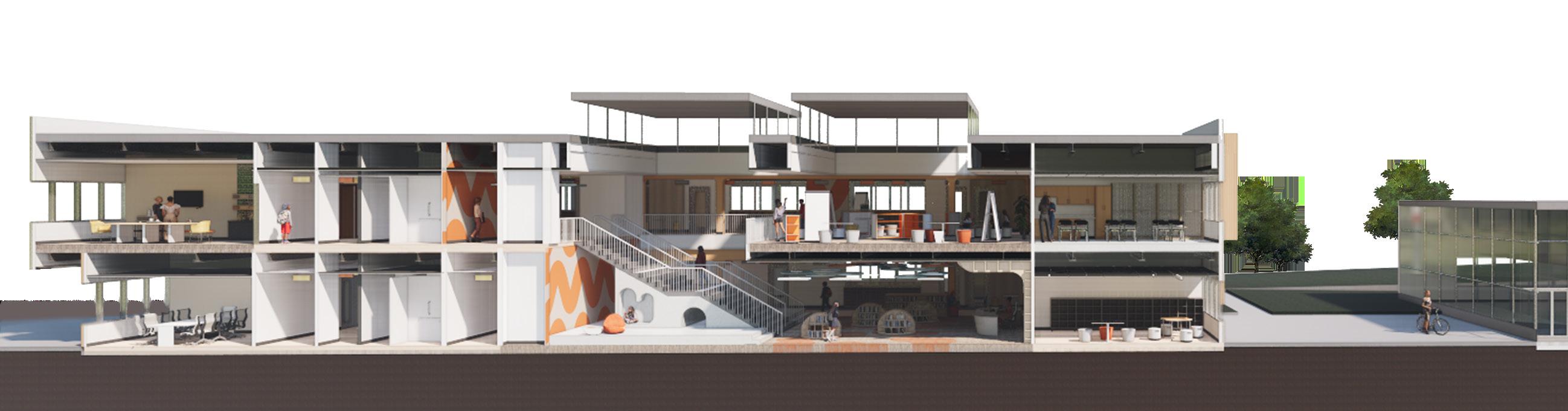

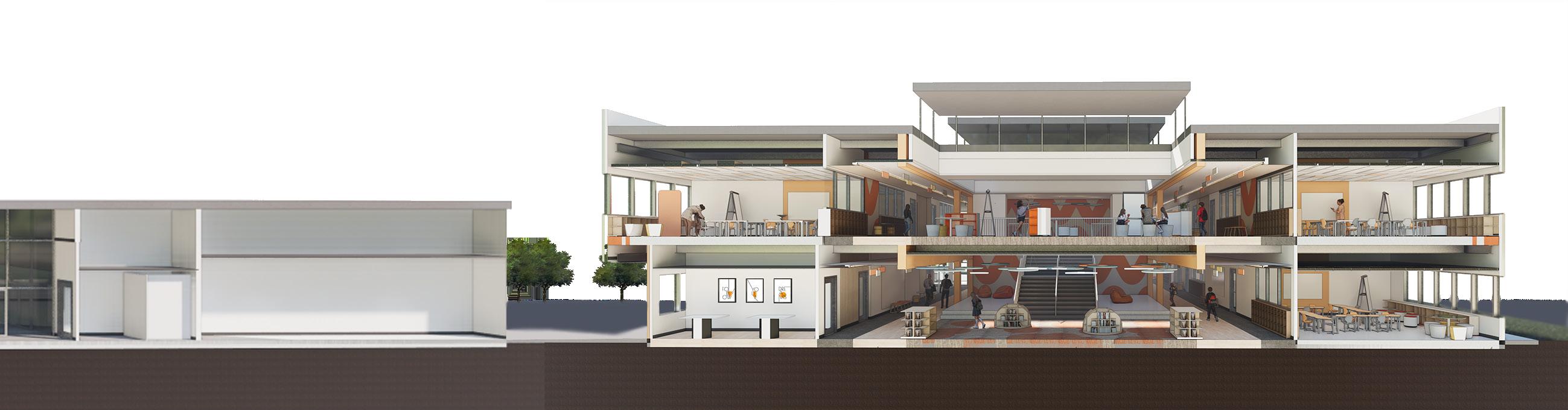

Longitudinal Section Perspective

Hallway

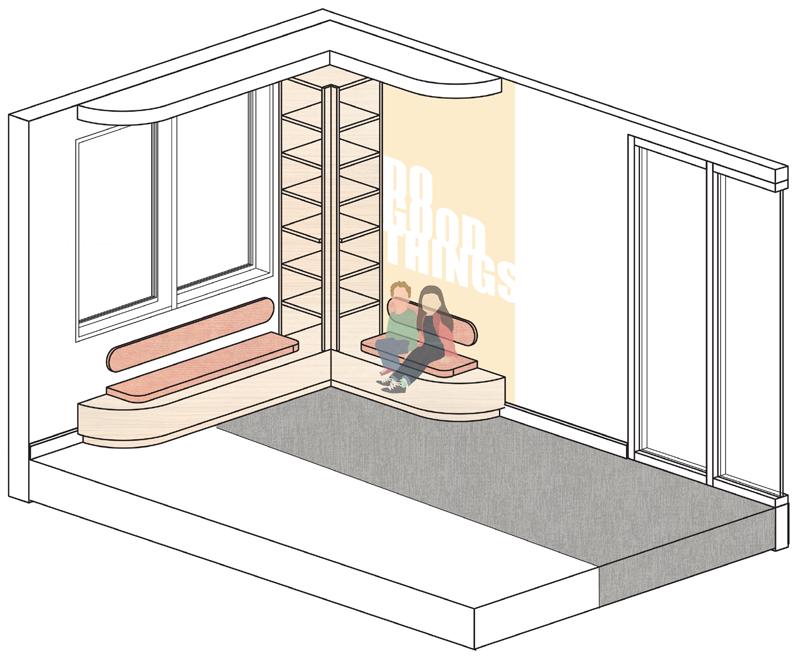

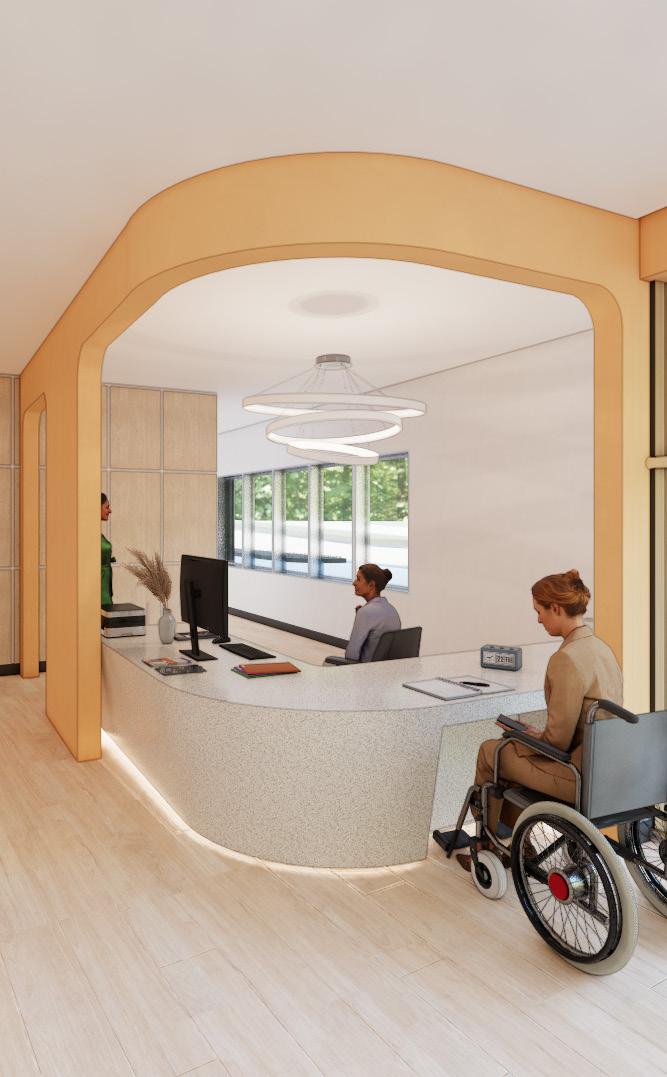

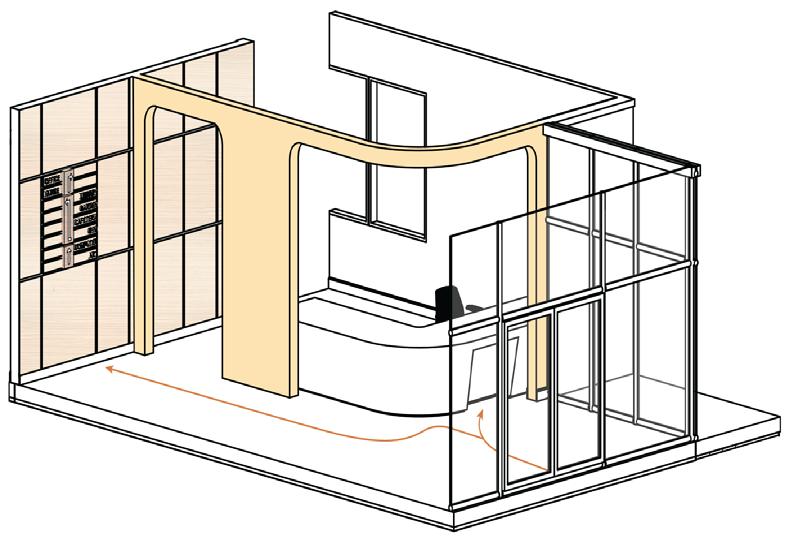

Reception Desk

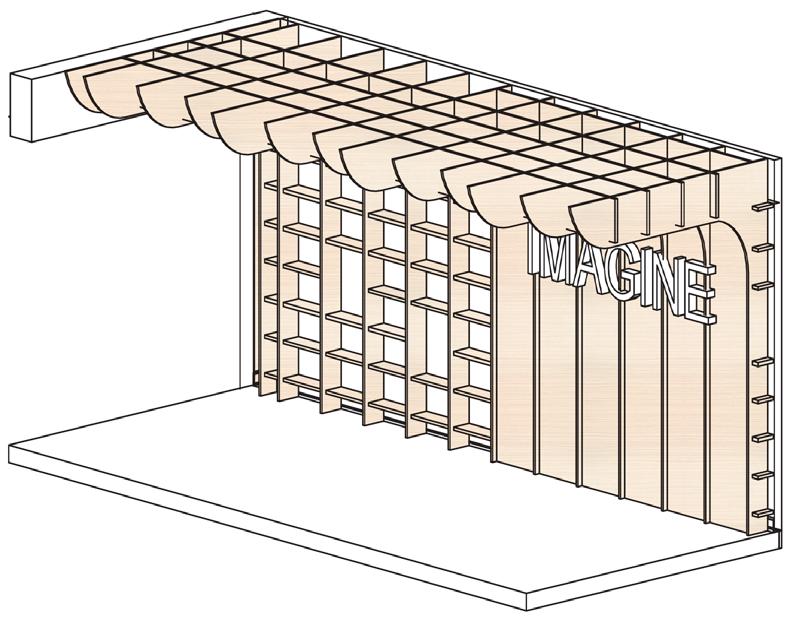

Multi-Purpose Space

Transverse Section Perspective

Scandinavian Roots

ASTORIA

Location: Astoria, Oregon

The design, Symphony, stands to bring people, cultures, and materials together through creating a build-up of space.

-Emphasizing and Celebrating the History

-Fitting in with the Lifestyle of the Locals

-Space to Collaborate, Learn, and Share Experiences

Asian Integration

Dark History

Student Work

Pacific Ocean

Columbian River

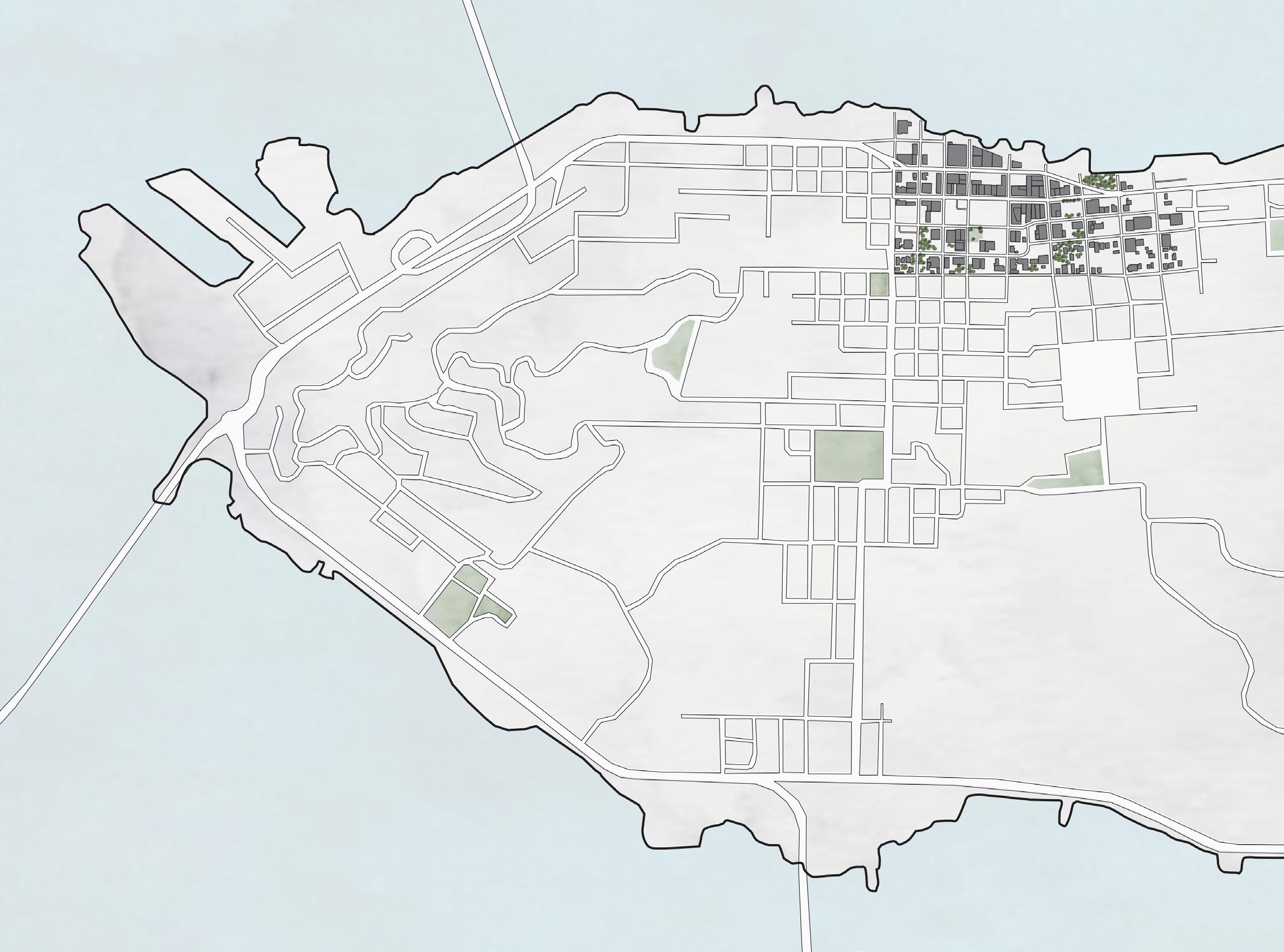

Site Map

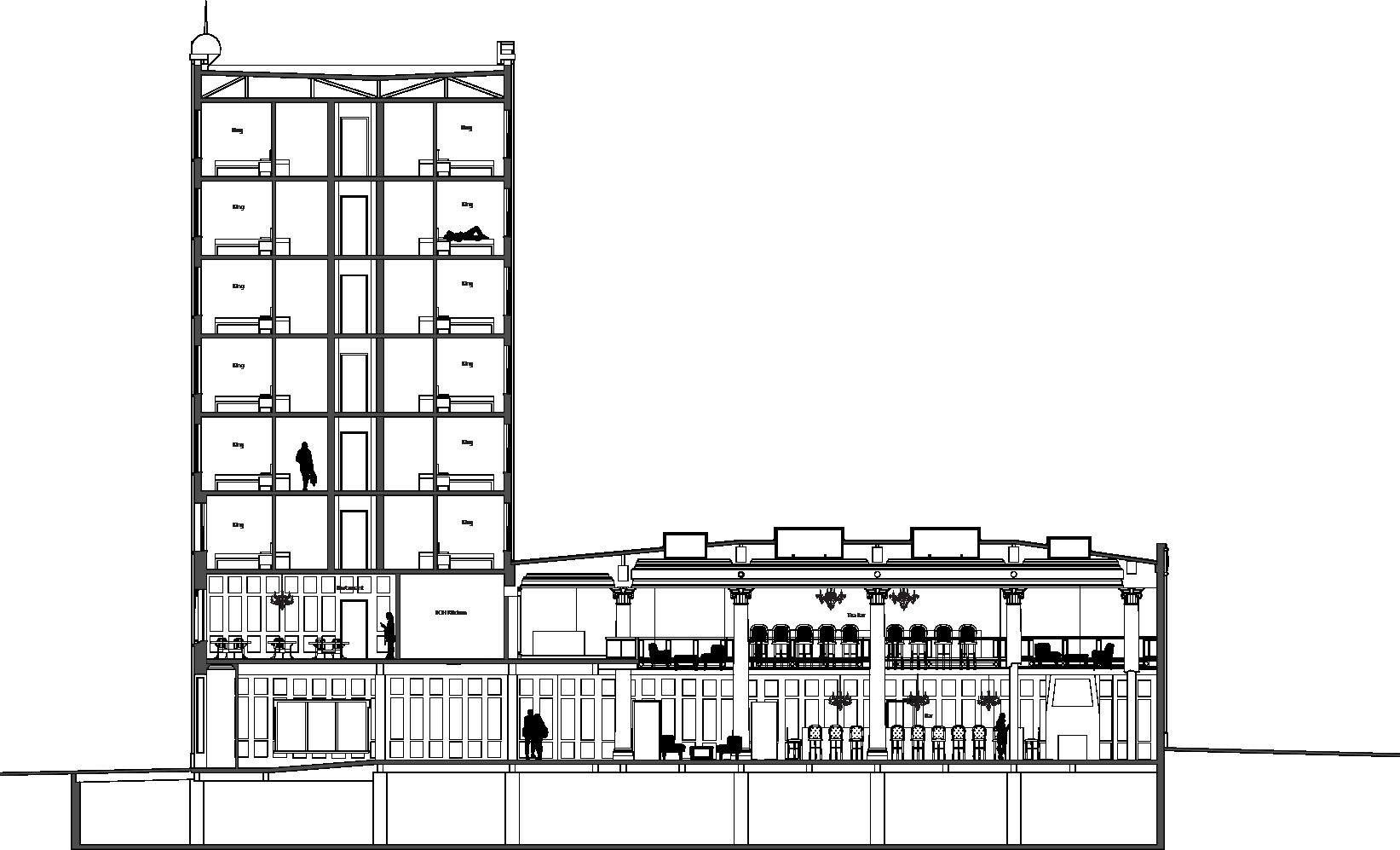

Longitudinal Section

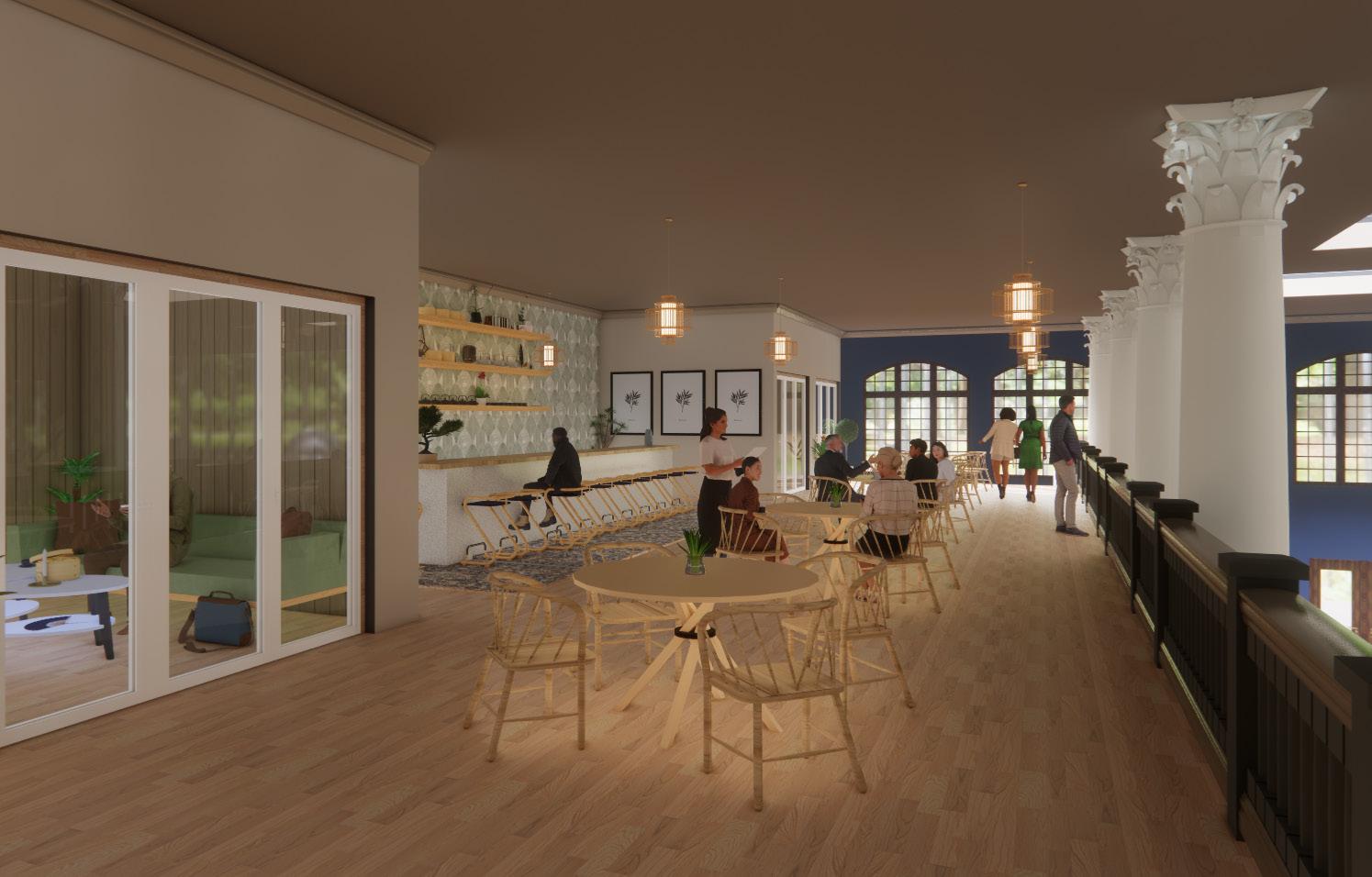

Tea Bar

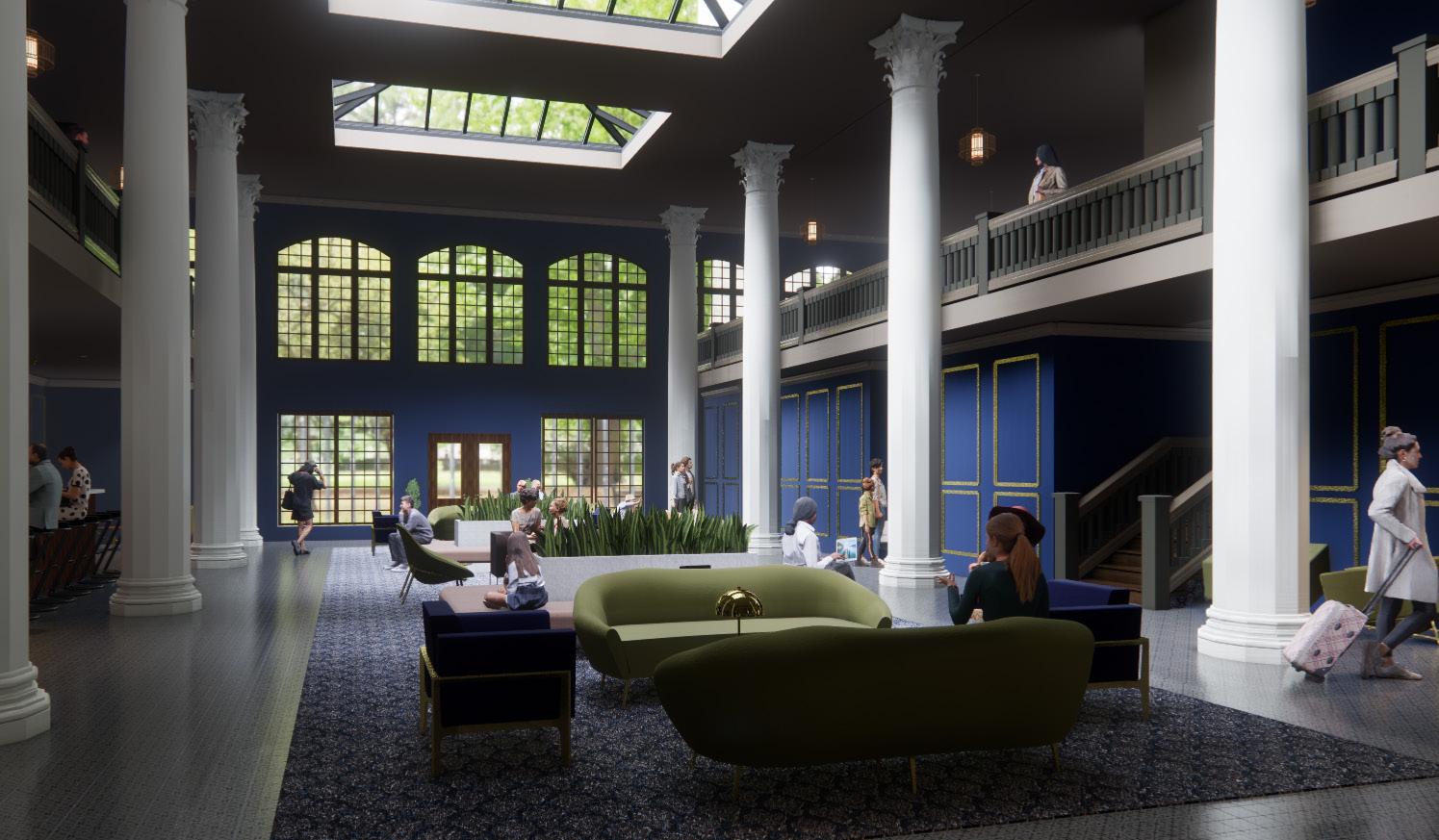

Main Lobby

03 | OFFICE SPACE

Location: Washington

Drawing on the company’s culture and branding the concept for this office space revolves around the idea of Harmonious Balance. We intended to design a space that integrates into the rest of the building while striking the ideal balance of professionalism and comfort.

-Blending Additional Spaces to Existing Building

-Facilitating Collaboration amongst Different Users

Professional Work

Revit,

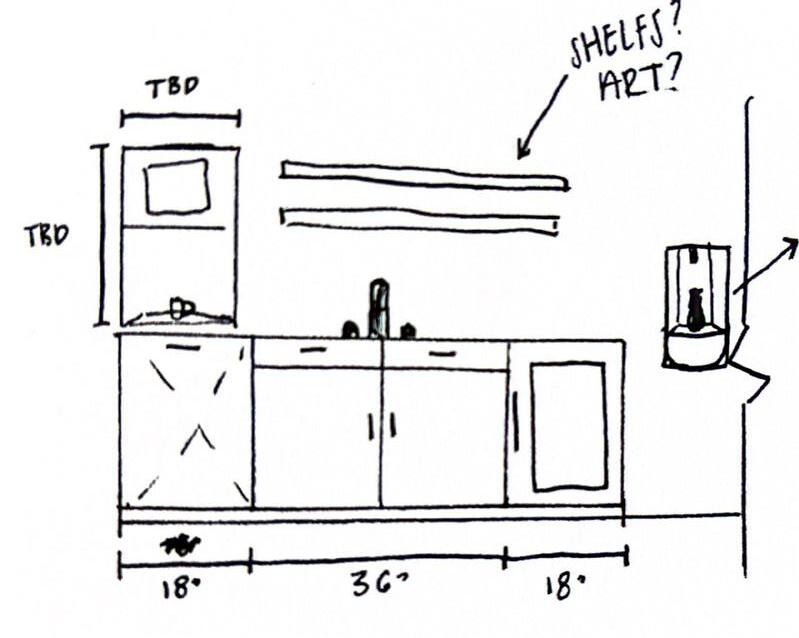

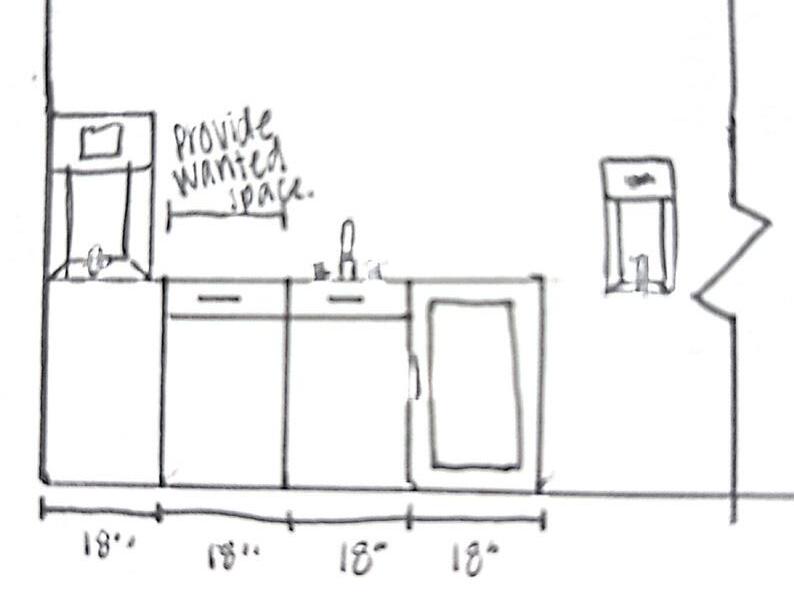

Coffee Bar Option 1

Coffee Bar Option 2

Coffee Bar Option 3

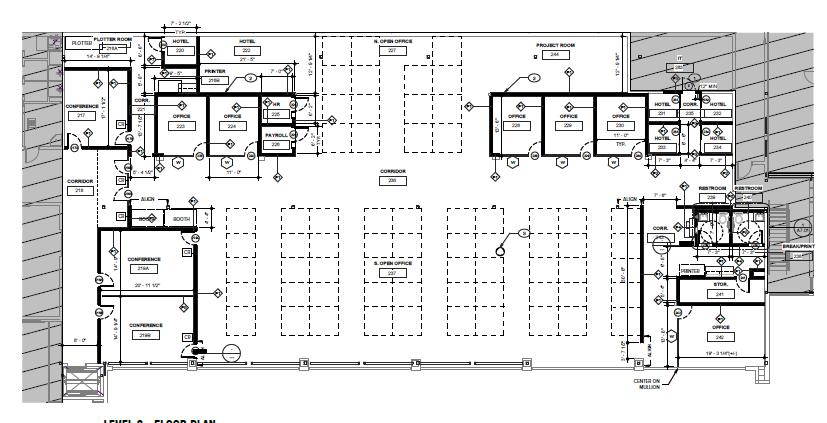

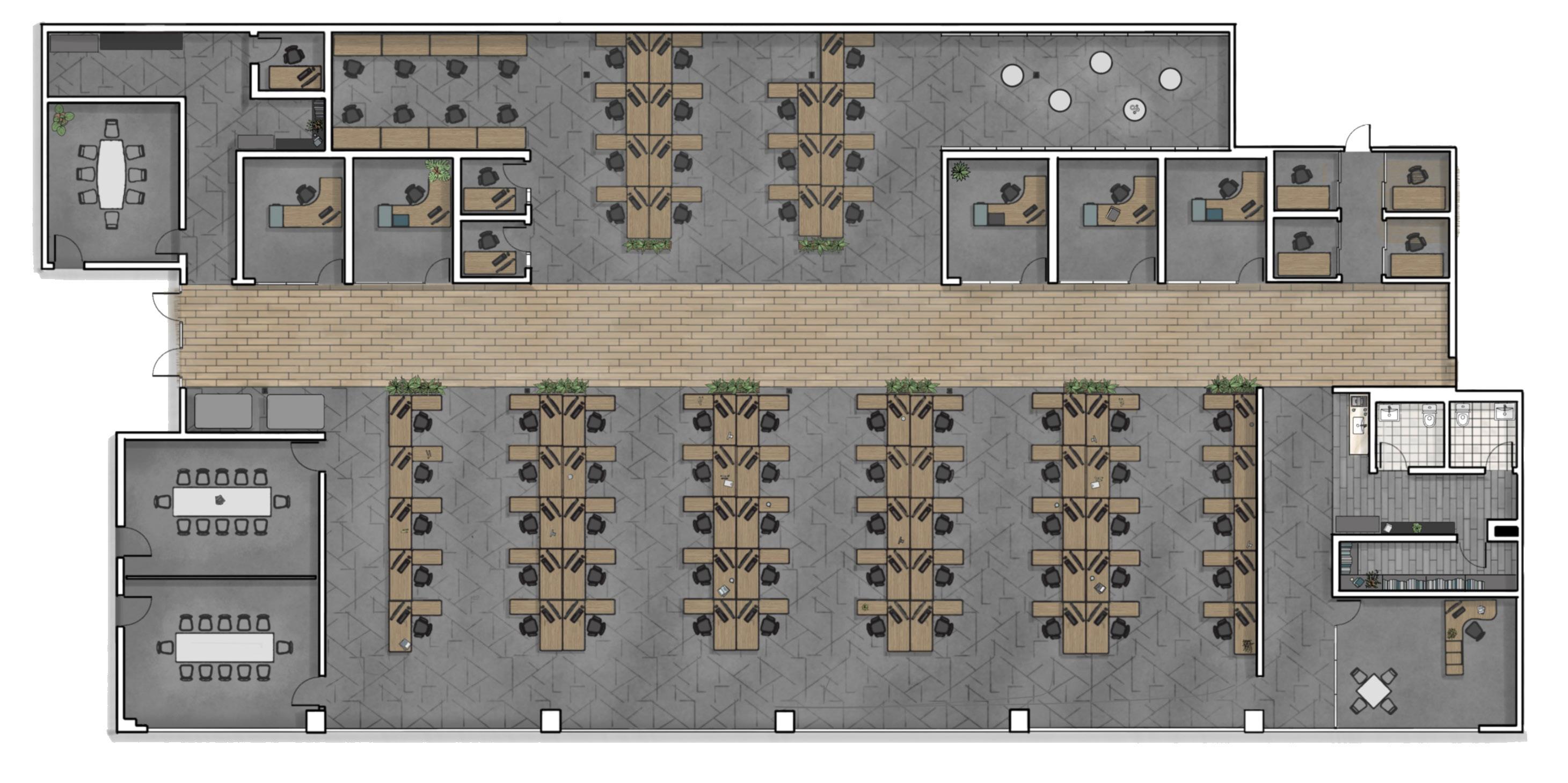

Rendered Floor Plan

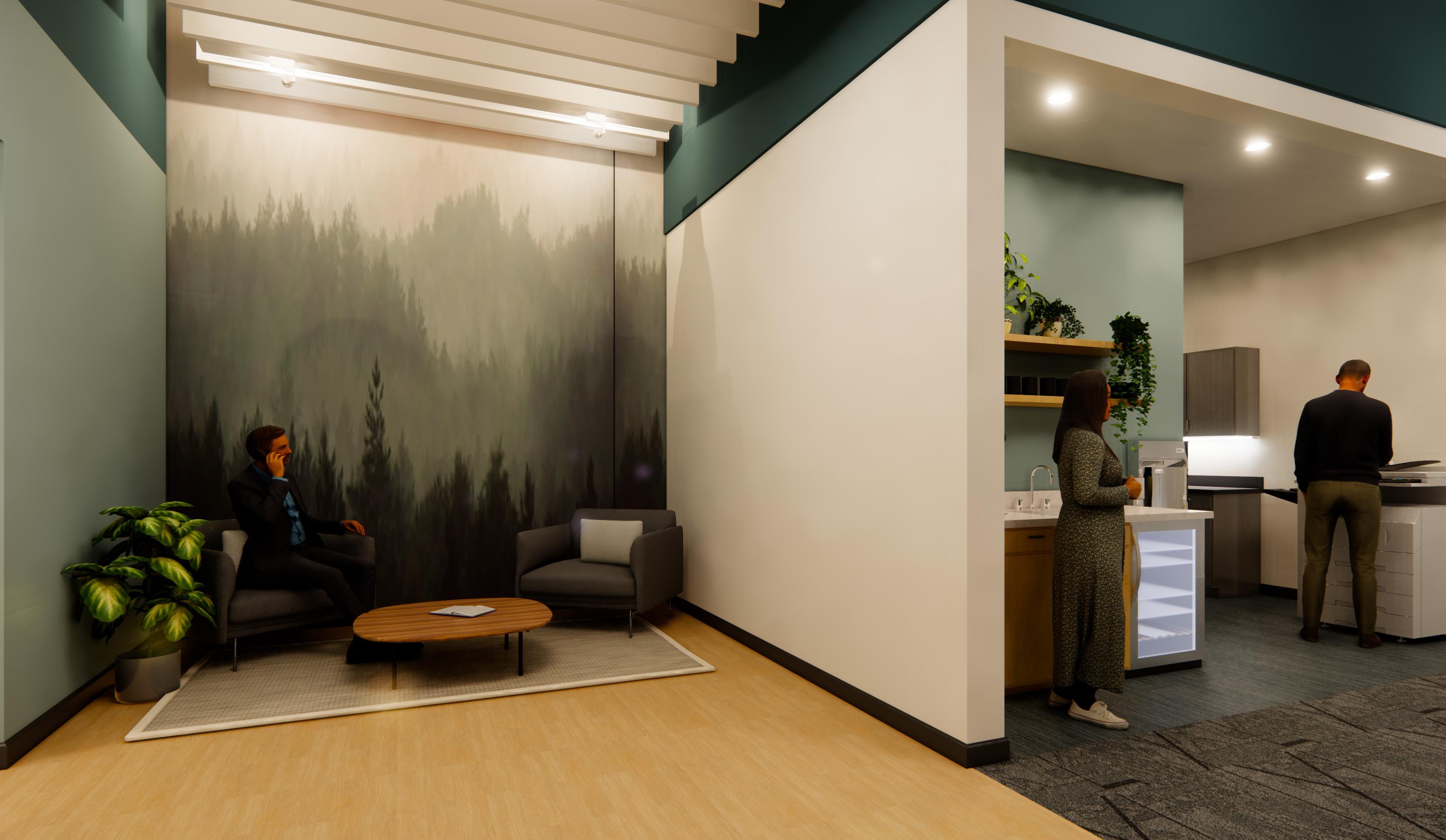

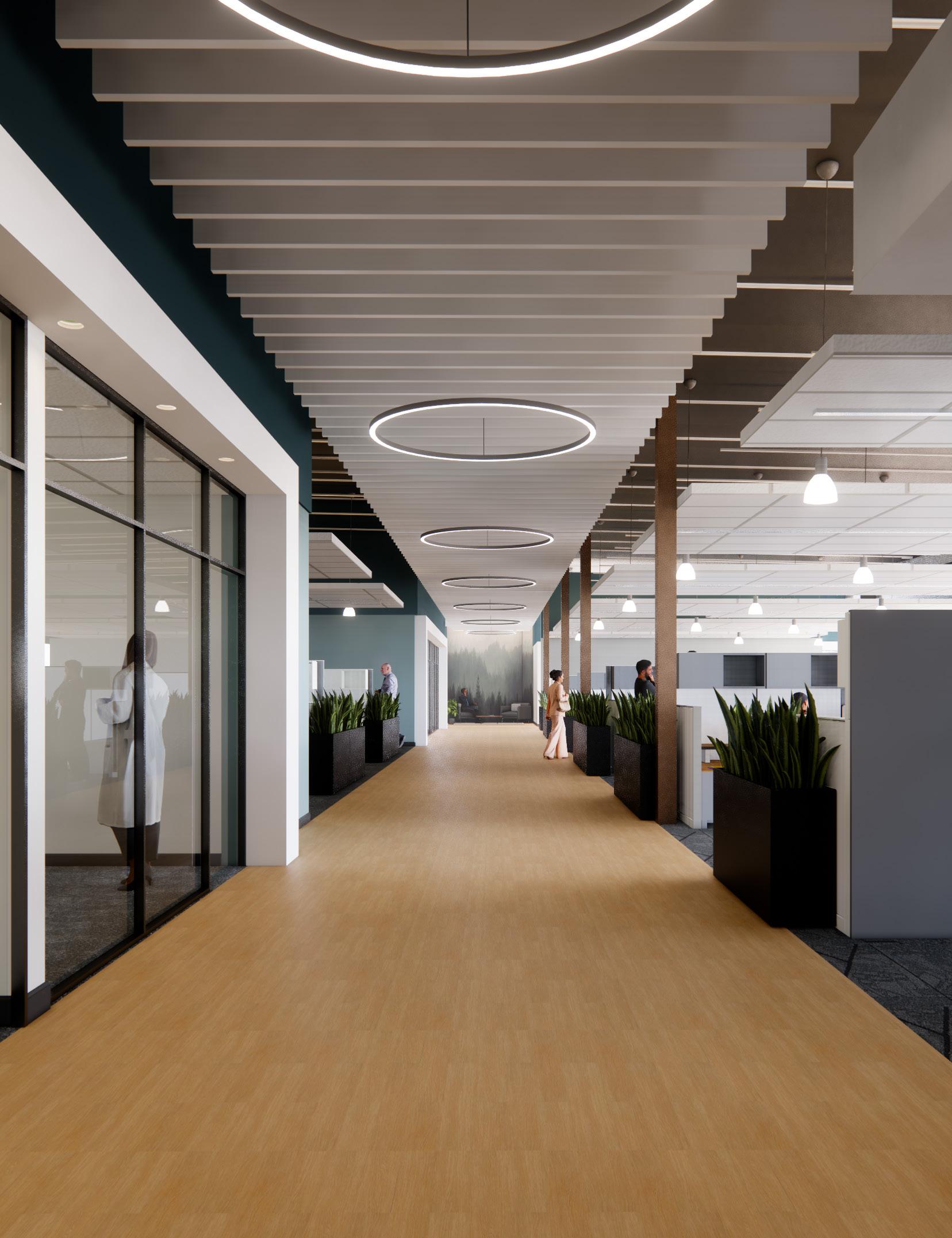

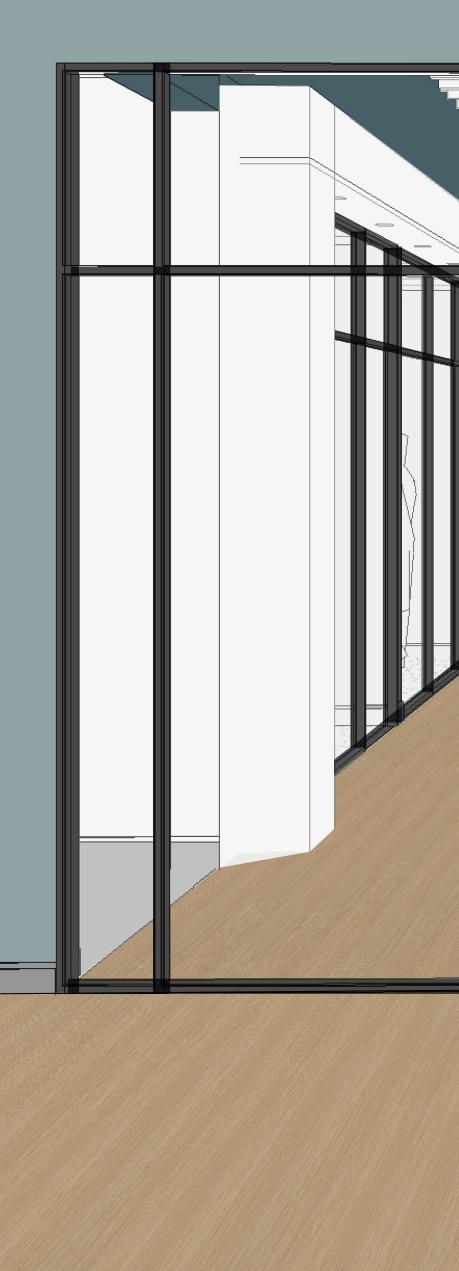

Main Hallway

Coffee Bar

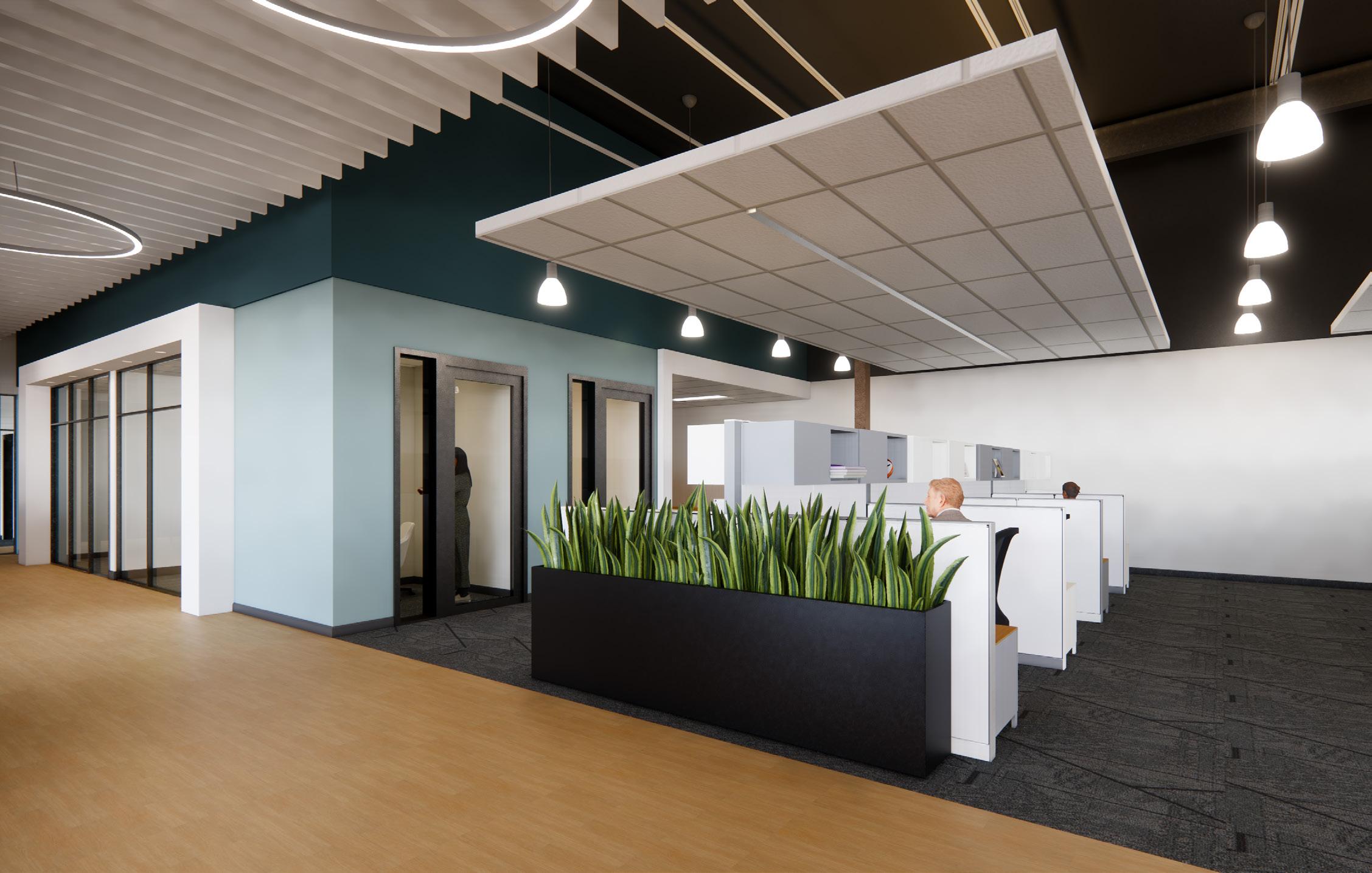

North Open Office

TRASH BIN 0.F.0.I.

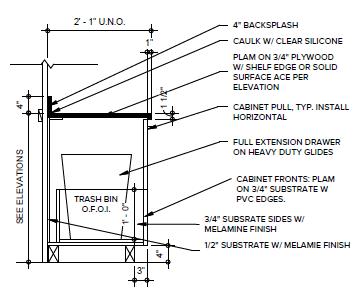

Trash Pullout Detail

4” BACKSPLASH

CAULK W/ CLEAR SILICONE

PLAM ON 3/4” PLYWOOD W/ SHELF EDGE OR SOLID SURFACE AS PER ELEVATIONS

CABINET PULL, TYP. INSTALL HORIZONTAL

DRAWER W/ FULL EXTENSION HEAVY DUTY GLIDES

CABINET FRONTS: PLAM ON 3/4”

SUBSTRATE W PVC EDGES

3/4” SUBSTRATE SLIDES W/ MELAMINE FINISH

1/2” SUBSTRATE W/ MELAMINE FINISH

SEE ELEVATIONS

CLR. INSIDE

SEE ELEVATIONS

4” BACKSPLASH

CAULK W/ CLEAR SILICONE

PLAM ON 3/4” PLYWOOD W/ SHELF EDGE OR SOLID SURFACE AS PER ELEVATIONS

DRAWER W/ FULL DEPTH OR FULL EXTENSION HEAVY DUTY GLIDES

CABINET PULL, TYP.

ADJ. SHELVES, MELAMINE ON 3/4” SUBSTRATE W/ PVC EDGES AND METAL L-SHAPED SHELF SUPPORTS. (SEE ELEVATIONS FOR QTY.)

CABINET FRONTS: PLAM ON 3/4”

SUBSTRATE W PVC EDGES

3/4” SUBSTRATE SLIDES W/ MELAMINE FINISH

1/2” SUBSTRATE W/ MELAMINE FINISH

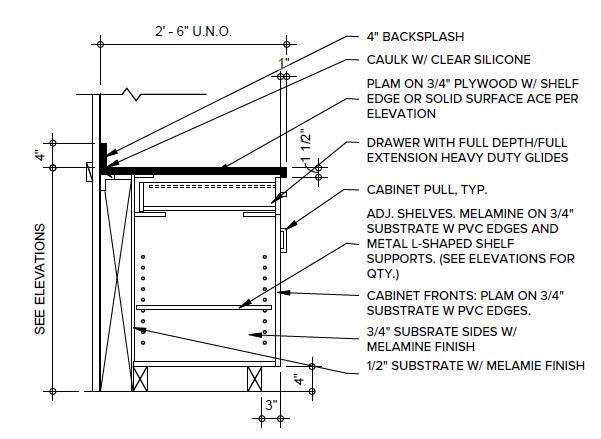

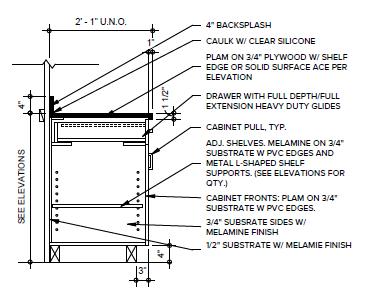

Typical Base Cabinet Detail

ADL. SHELVES. MELAMINE ON 3/4” SUBSTRATE W/ PVC EDGES AND METAL L-SHAPED SHELF SUPPORTS (SEE ELEVATIONS FOR QTY.)

PROVIDE; (1) FOR CAB 2,-0” HIGH (2) FOR CAB 2’-0” TO 2’-10” (3) FOR CAB 3’-0” OR HIGHER

CABINET FRONTS: PLAM ON 3/4”

SUBSTRATE W PVC EDGES

3/4” SUBSTRATE SLIDES W/ MELAMINE FINISH

1/2” SUBSTRATE W/ MELAMINE FINISH

CABINET PULL, MOUNT ABOVE VALENCE TYP.

PLAM LIGHT VALENCE

CONTINUOUS UNDER CABINET LIGHT FIXTURE, TYP.

PLAM ALL EXPOSED SURFACES TYP. @ ALL UPPER AND LOWER UNITS. U.O.N.

Typical Upper Cabinet Detail

4” BACKSPLASH

CAULK W/ CLEAR SILICONE

PLAM ON 3/4” PLYWOOD W/ SHELF EDGE OR SOLID SURFACE AS PER ELEVATIONS

DRAWER W/ FULL DEPTH OR FULL

EXTENSION HEAVY DUTY GLIDES

CABINET PULL, TYP.

ADJ. SHELVES, MELAMINE ON 3/4” SUBSTRATE W/ PVC EDGES AND METAL L-SHAPED SHELF SUPPORTS. (SEE ELEVATIONS FOR QTY.)

CABINET FRONTS: PLAM ON 3/4”

SUBSTRATE W PVC EDGES

3/4” SUBSTRATE SLIDES W/ MELAMINE FINISH

1/2” SUBSTRATE W/ MELAMINE FINISH

Extended Base Cabinet Detail

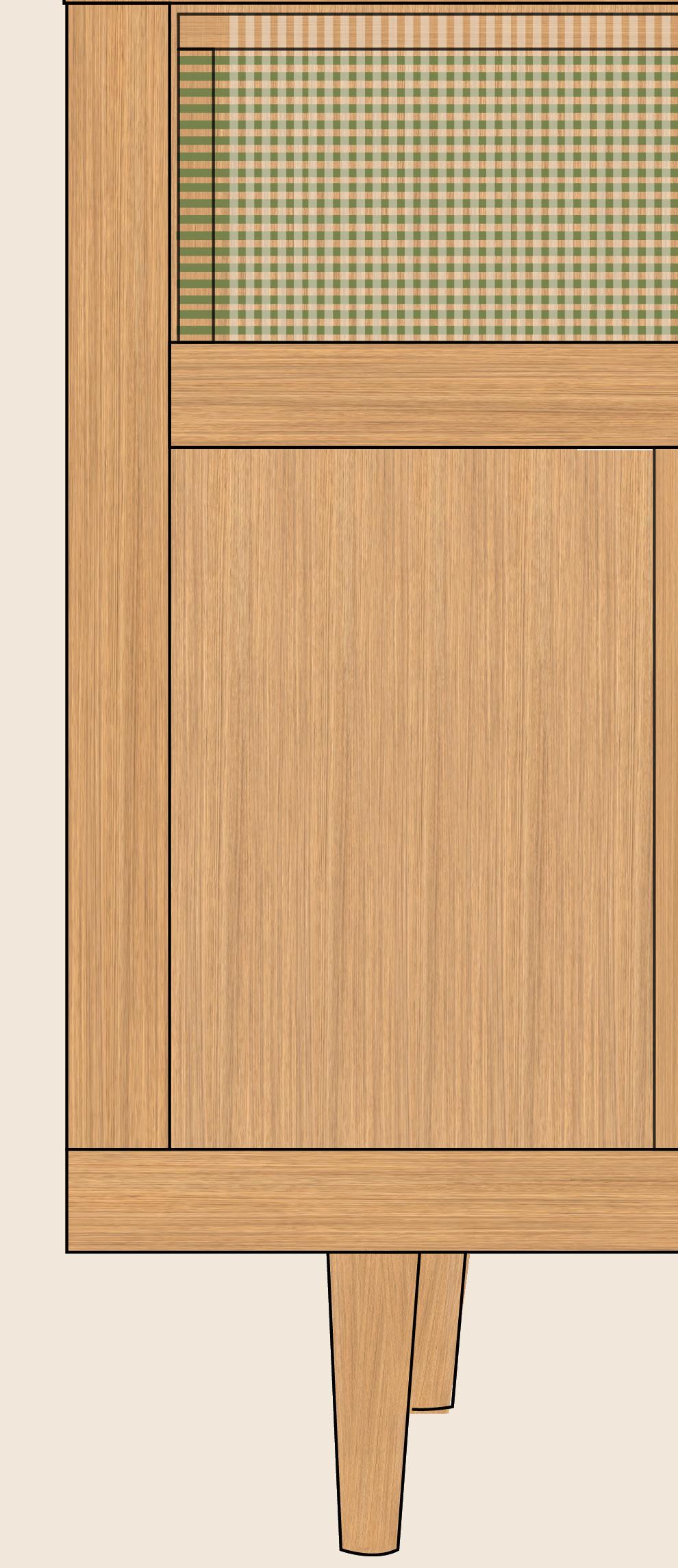

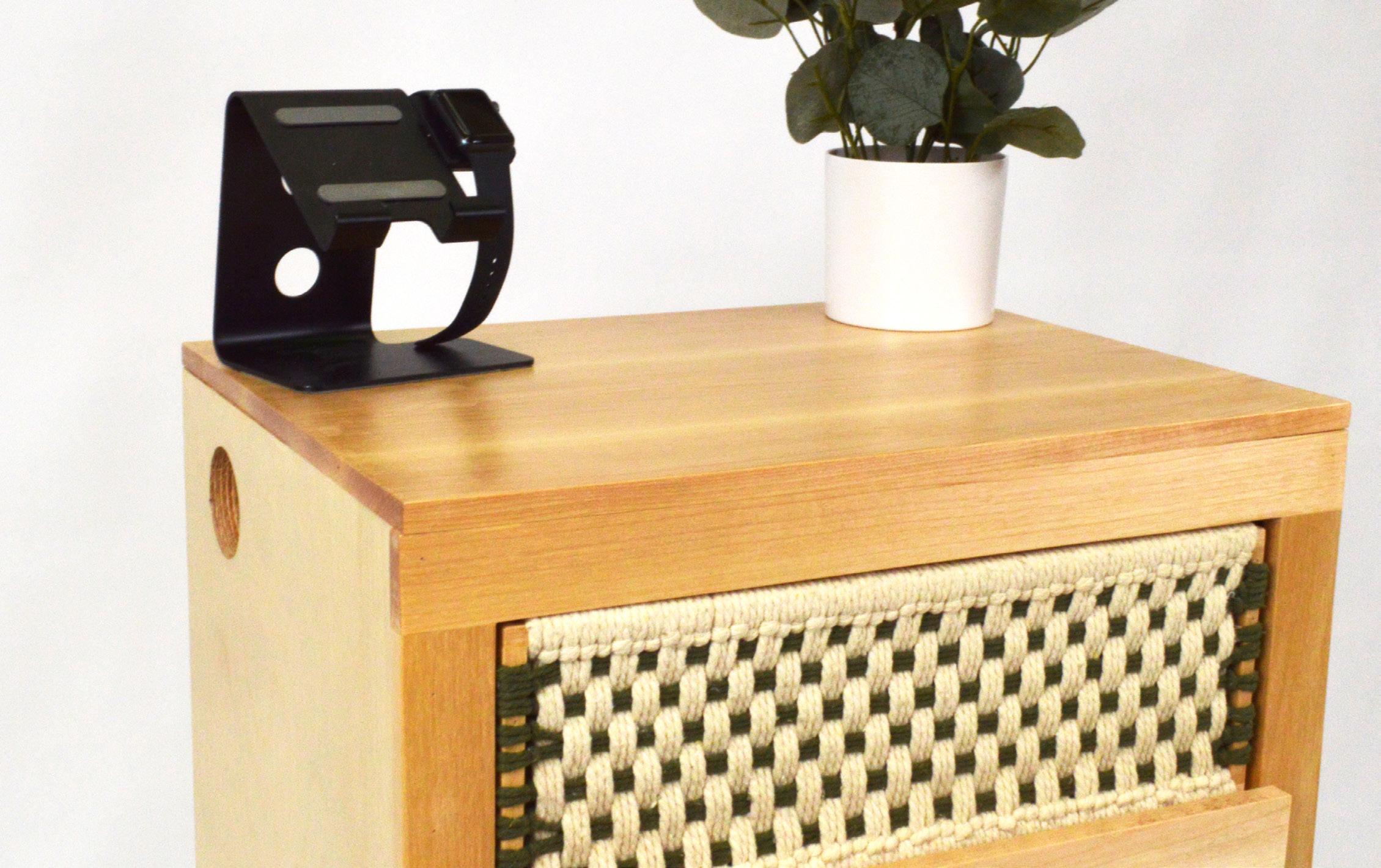

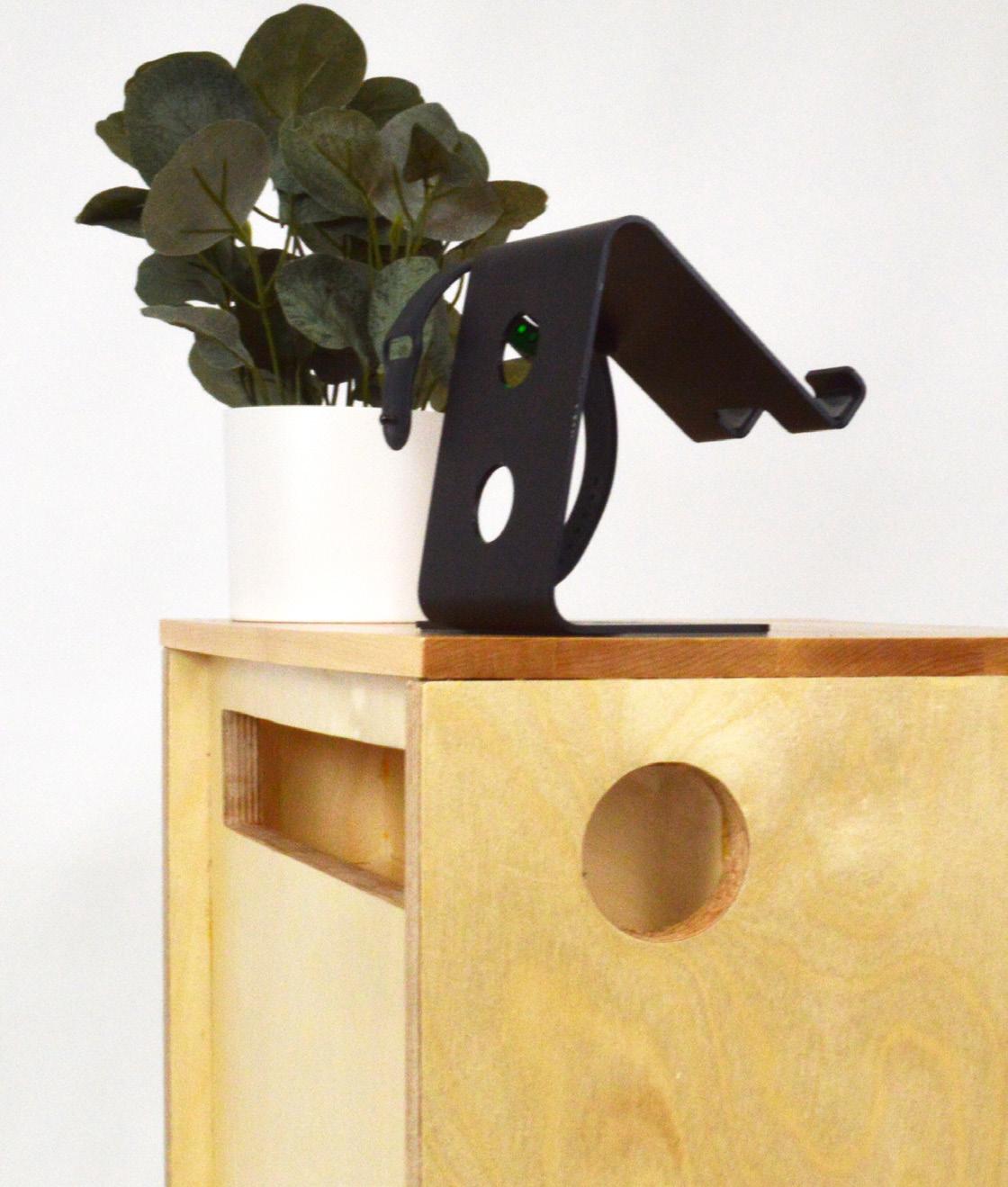

Förhållande means

“relationship” in Swedish. The straightforward design emphasizes the significance of composition in ratios and material blends. The piece functions as a bedside table, with a concealed compartment in the back to disguise cords.

- Beauty in Purpose

- Play on Proportions

Student Work

This was a design-build studio.

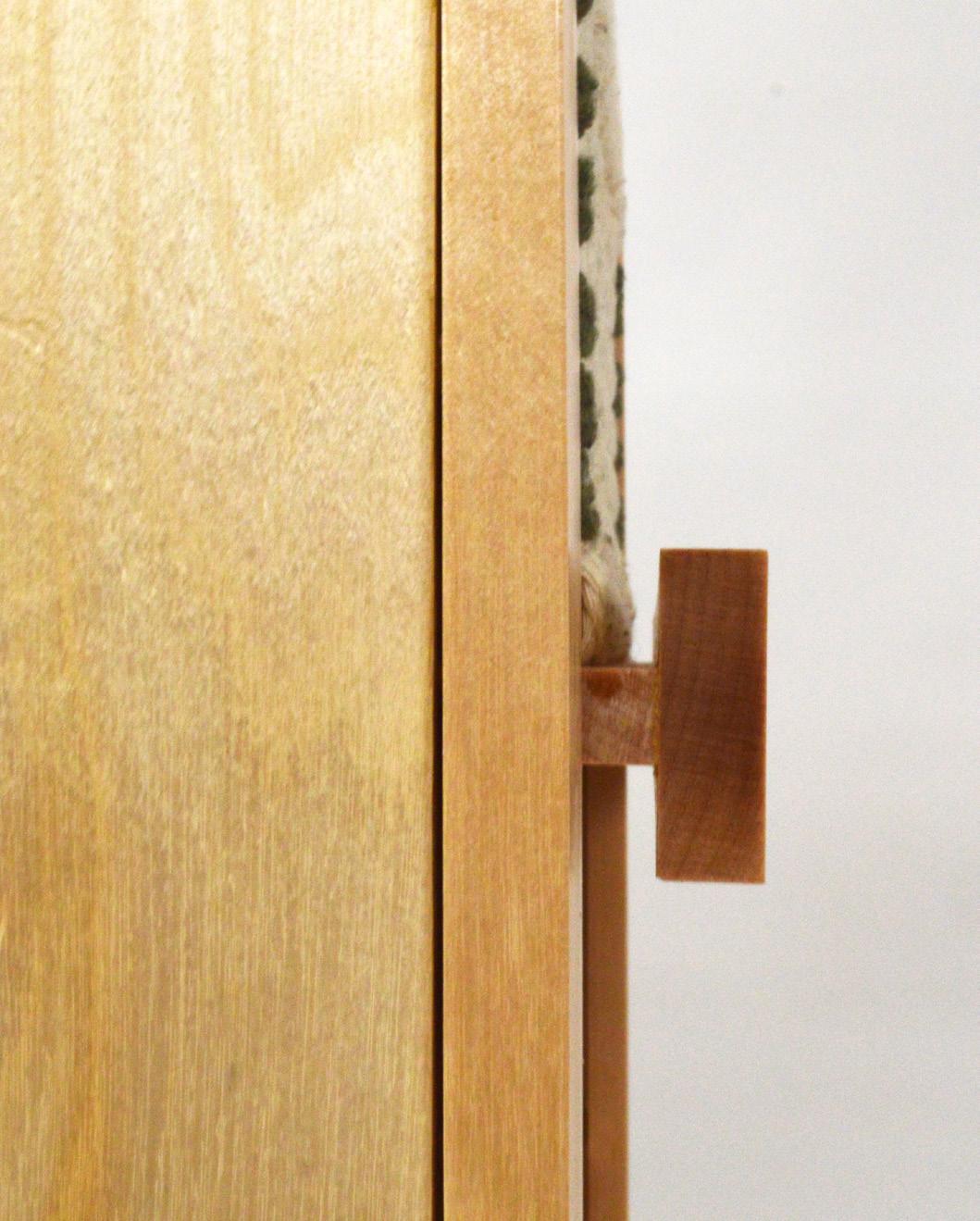

Drawer Option 1

Drawer Option 2

Drawer Option 3

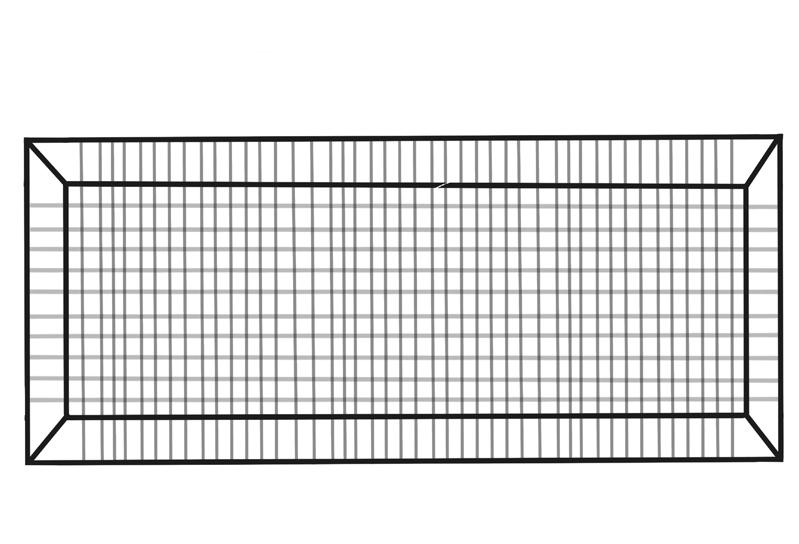

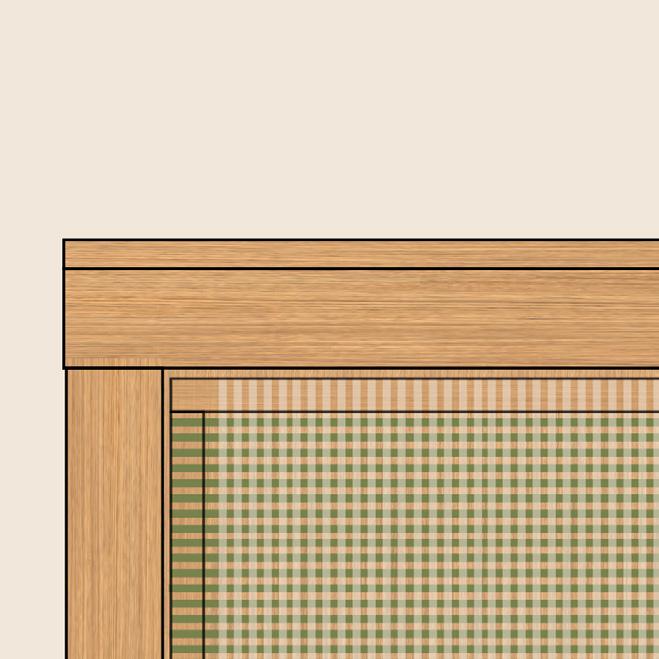

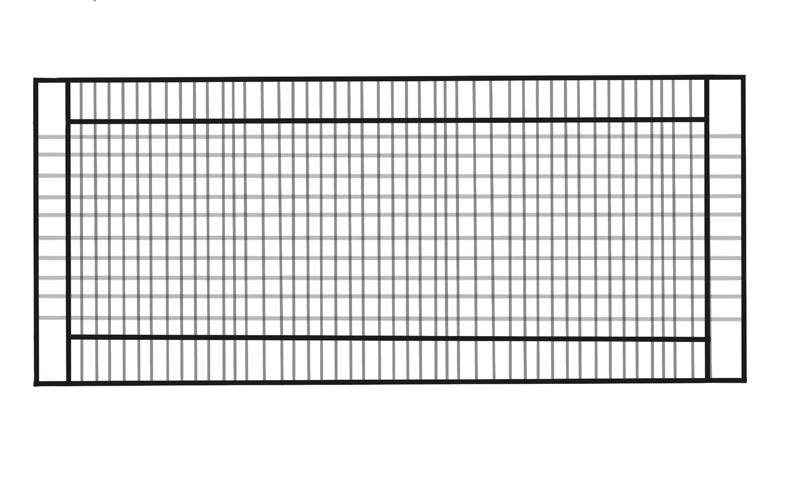

Table Top Detail
