Our Product Range
Introduction
How Sertus can make it simple for you:
We have the best range of fully tested and certified smoke ventilation products, providing easy sign-off for your peace of mind.
We are responsive to your questions and we always answer the phone, meaning you can promptly get any help you need.
We understand product application – we can help you decide which product, help you to integrate it into your project, then advise you how to install it most efficiently.

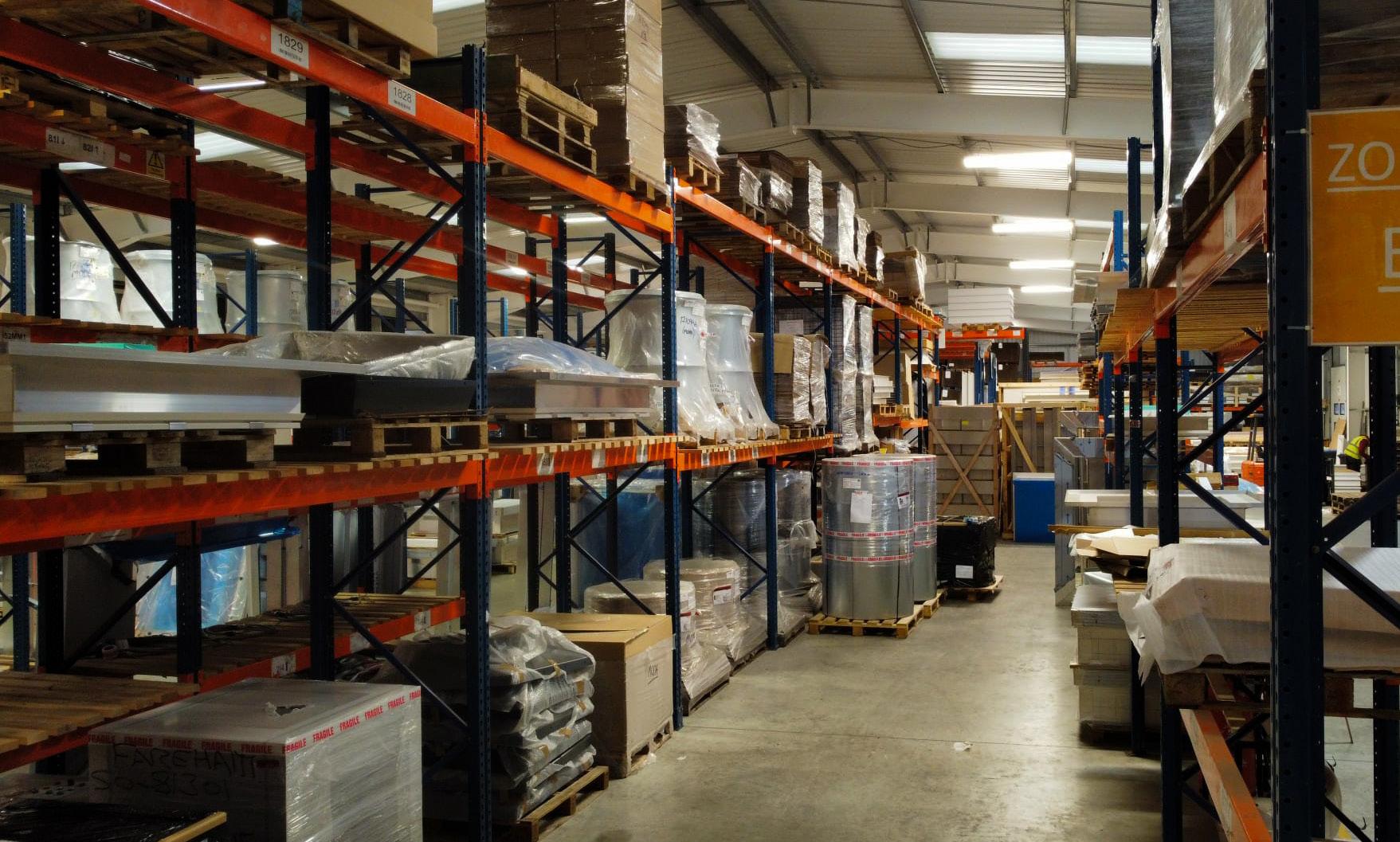

We have high and predictable stock availability, so you can get the products you need when you need them.
We have a dedicated delivery service – our products are carefully delivered, avoiding delays on site.

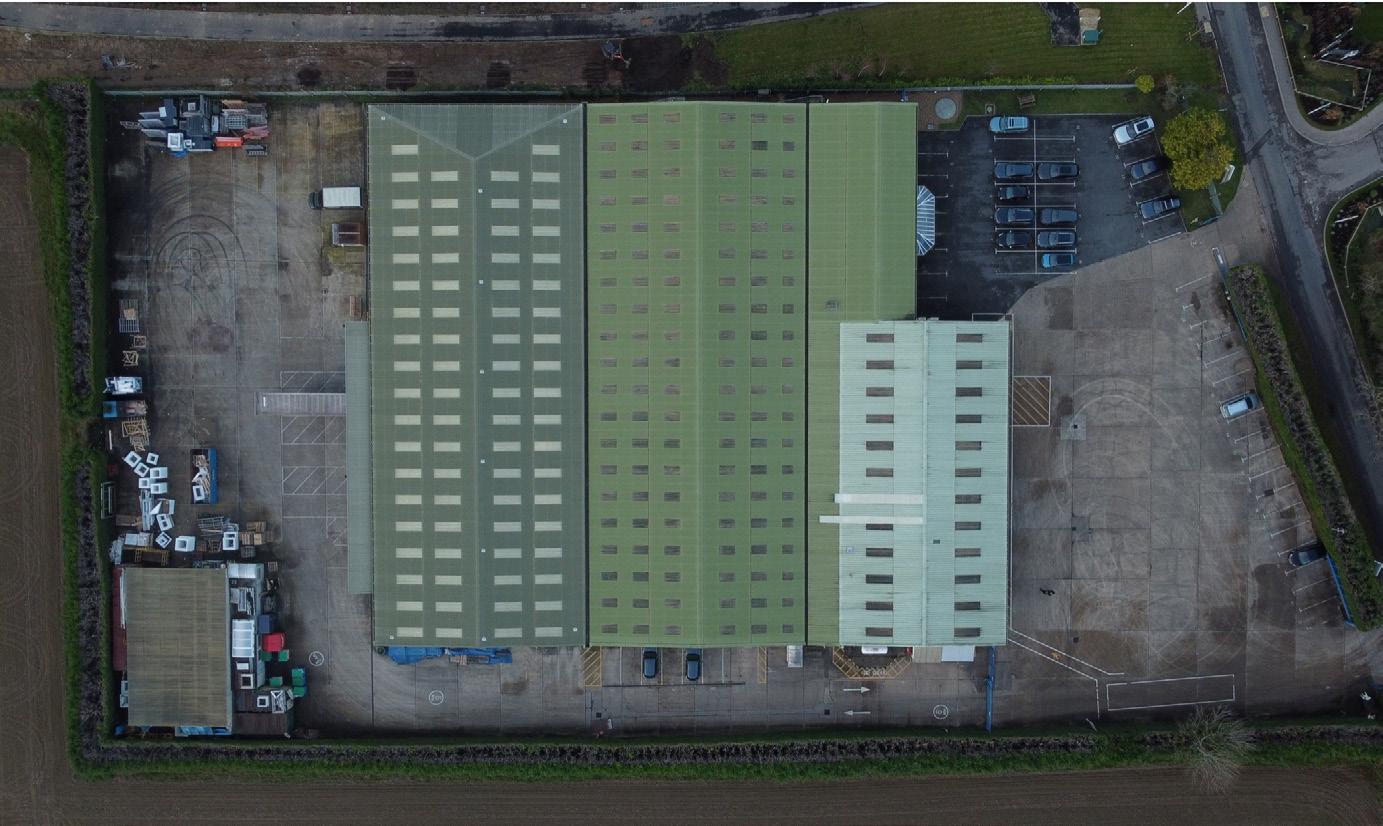

Who We Are
About us.
Sertus was formerly part of the Whitesales Group, a construction supplies company founded in the mid-1980s by Michael White.
During the 2000s, we saw an opportunity to broaden our range of products to help drive positive change in the smoke ventilation area of fire safety.
We’re now an independent company, wholly focused on smoke ventilation and access products.
Timeline.
1983 Michael White formed Whitesales.
2013 Whitesales are the first company in the UK to receive CE certification for smoke vents.
2019 Sertus is formed as a standalone smoke ventilation company, selling whole system solutions.
2021 Sertus stopped contracting, working instead with partner installation contractors.
2023 Sertus realigned focus to customers and products, instead of partners and projects.
Innovation
Charitable
Integrity
Do the right thing
Energetic
React faster

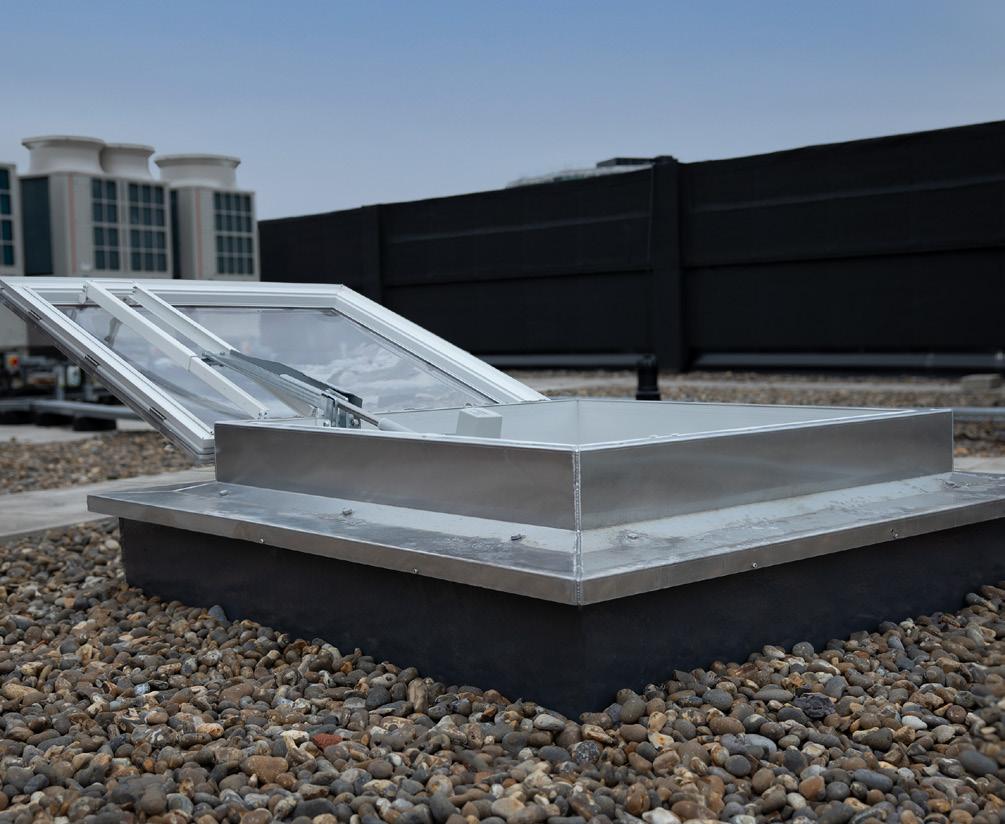

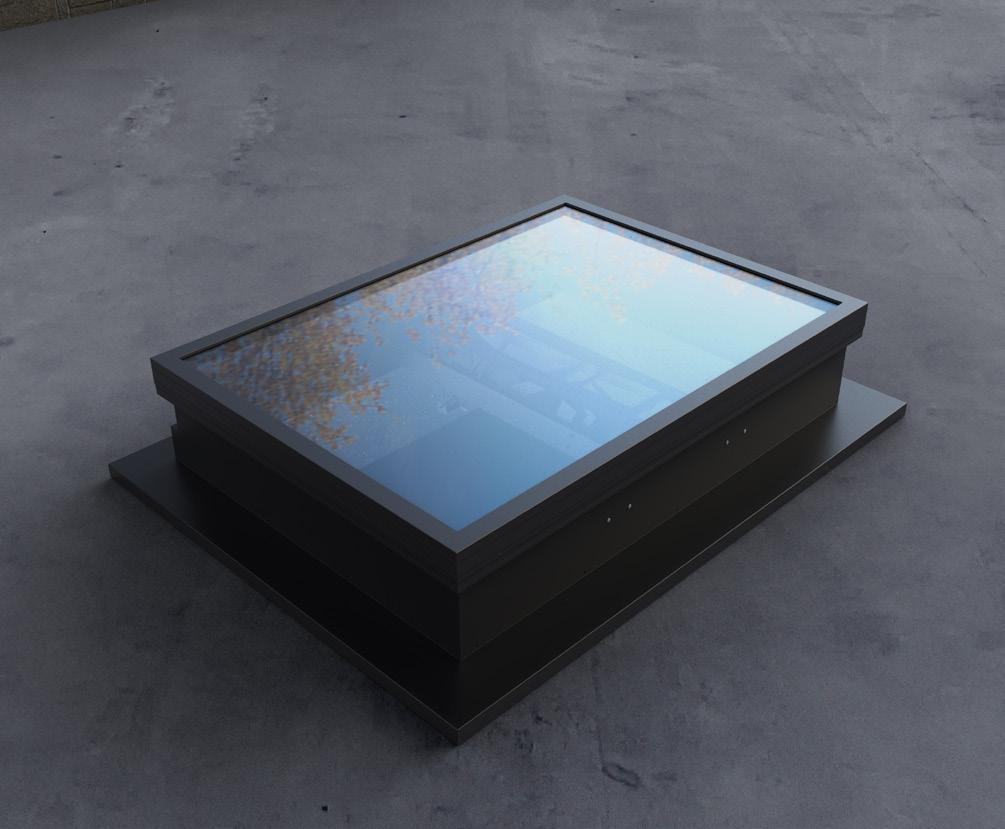

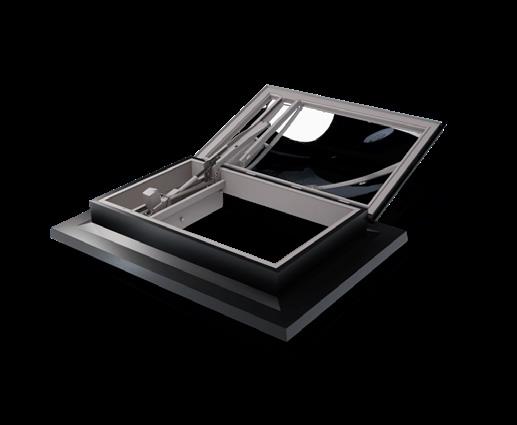

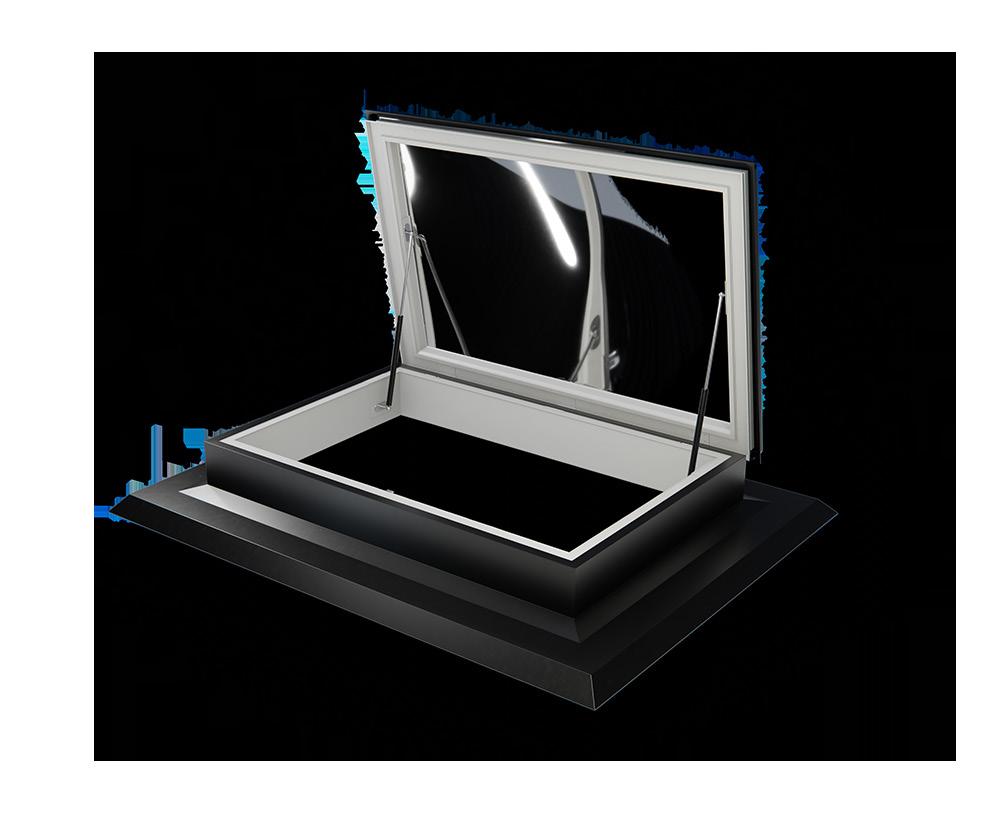

Glass Single Leaf Smoke Vent (RSL)
Overview
A head-of-stair vent designed for smoke and heat ventilation in protected stairwells and corridors. Available with vertical or splayed upstands or can be fitted to a builder’s curb.
Features
– Certified to BS EN 12101-2
– Compliant with Building Regulations Approved Document B and L
– Opens to 160° within 60 seconds
– May incorporate roof access
– Available as square or rectangular
– May be glazed or solid insulated lid
– Available with PVC upstand or direct to builder’s curb
Benefits
– 4 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video:
Product overview
Video: Installation guide

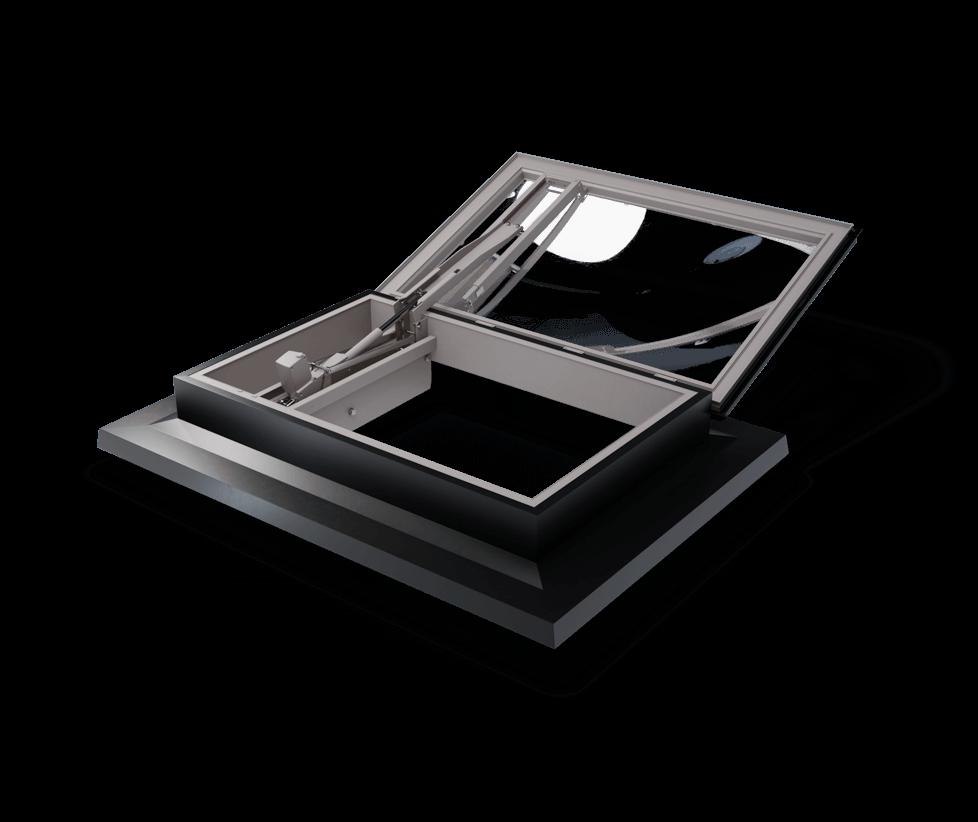

Poly Single Leaf Smoke Vent (RSL-R)
Overview
A head-of-stair vent designed for smoke and heat ventilation in protected stairwells and corridors. Available with vertical or splayed upstands or can be fitted to a builder’s curb.
Features
– Certified to BS EN 12101-2
– Compliant with Building Regulations Approved Document B and L
– Opens to 160° within 60 seconds
– May incorporate roof access
– Available as square or rectangular
– May be glazed or solid insulated lid
– Available with PVC upstand or direct to builder’s curb
Benefits
– 11 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video:
Product overview
Video: Service notes

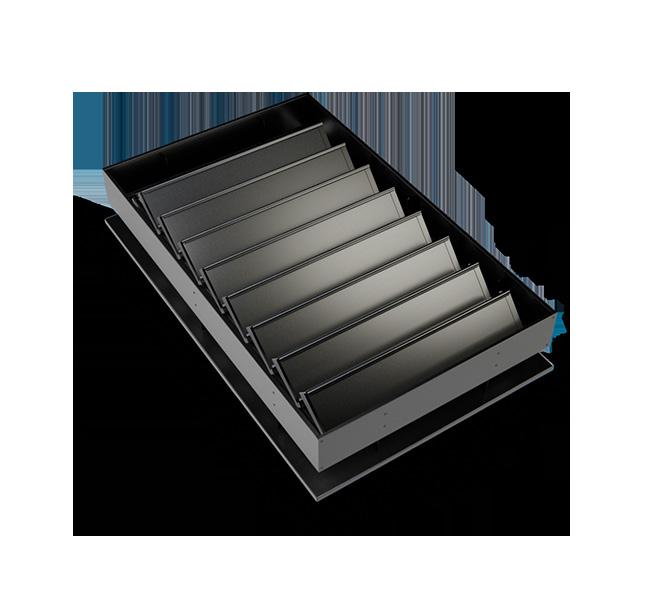

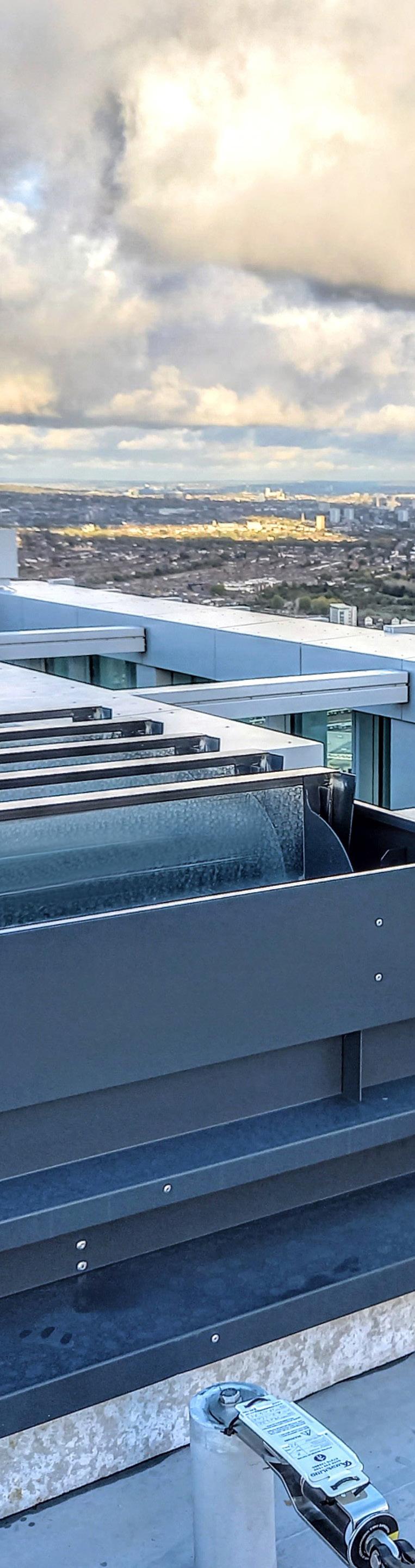

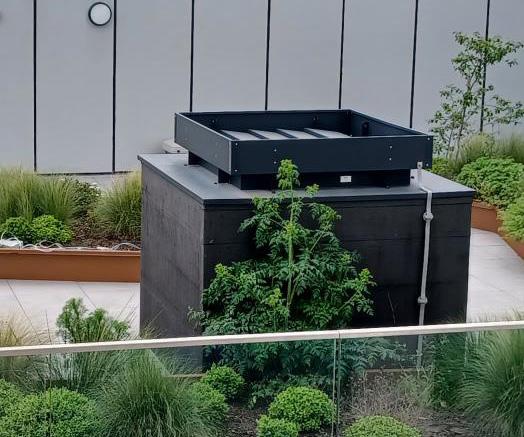

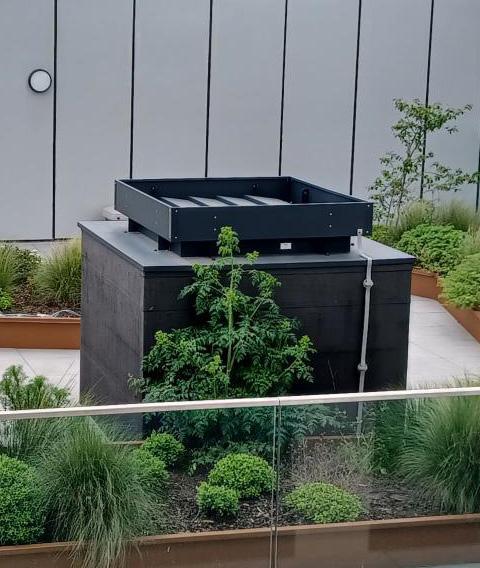

Solid Louvred Smoke Vent (RLB-R)
Overview
A louvred smoke vent, mounted on roofs. Designed to exhaust smoke and heat from a building, allowing low level escape routes to be kept clear of smoke.
Features
– Certified to BS EN 12101-2
– Wide range of sizes from 966 x 500mm to 3826 x 2400mm
– Choice of solid Rockwool insulated aluminium blades or polycarbonate multiwall blades
– Opens to 90° within 60 seconds
– High resistance to weather and wind load
– Not a fall hazard when open
Benefits
– 3 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
overview
Video: Service notes
Video: Product

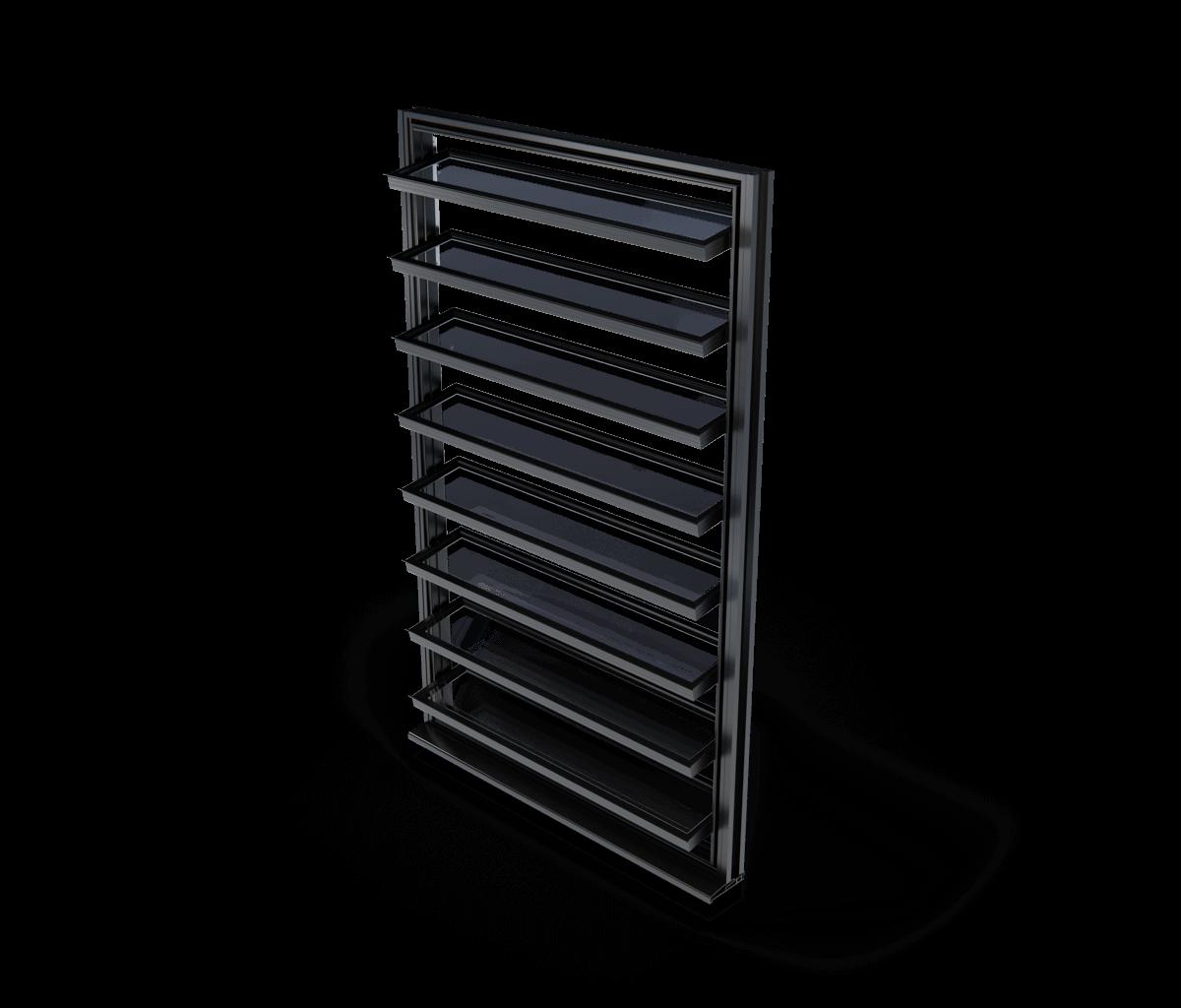

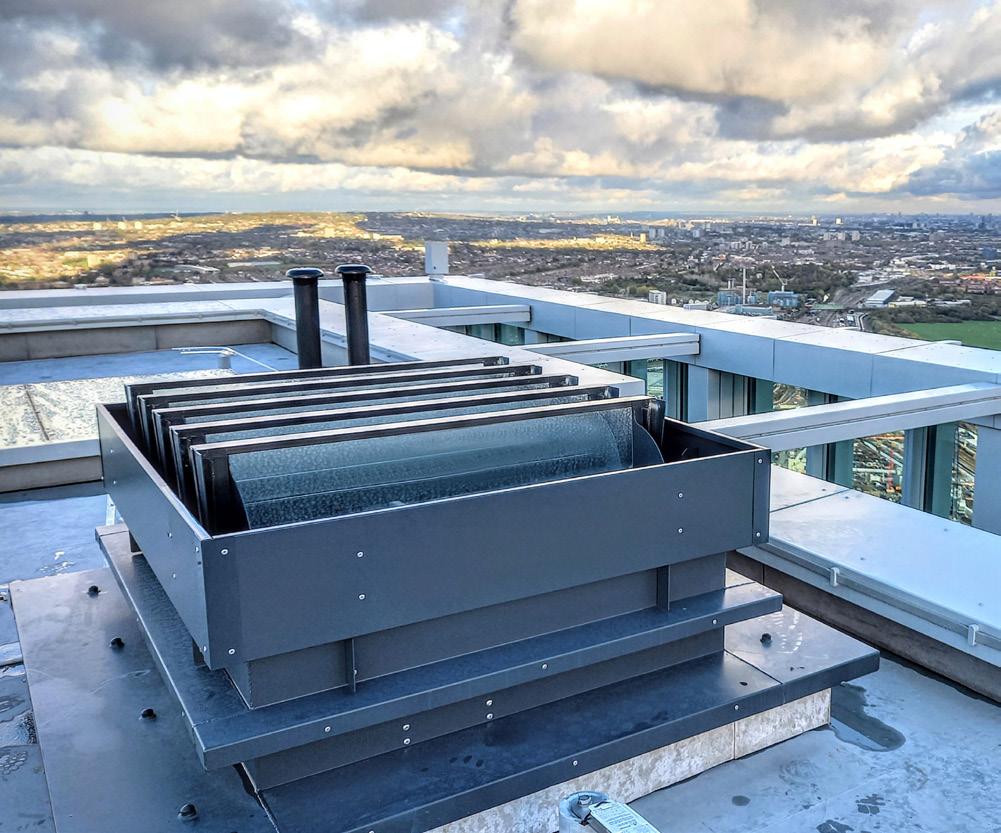

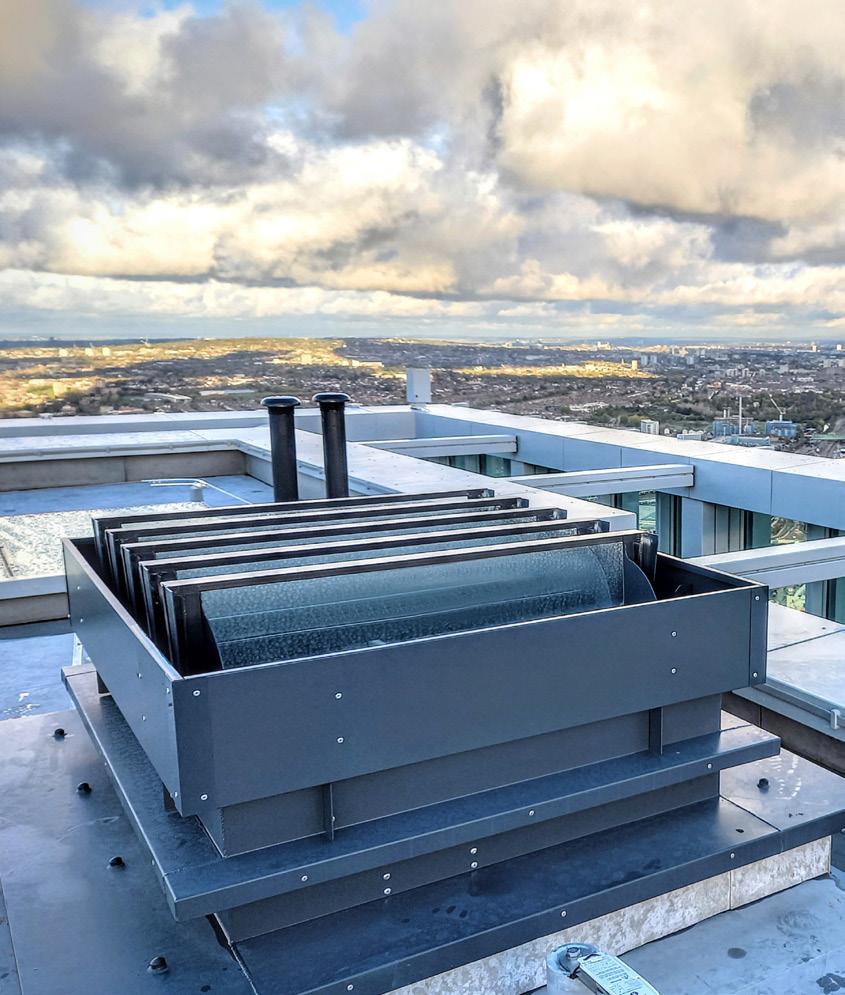

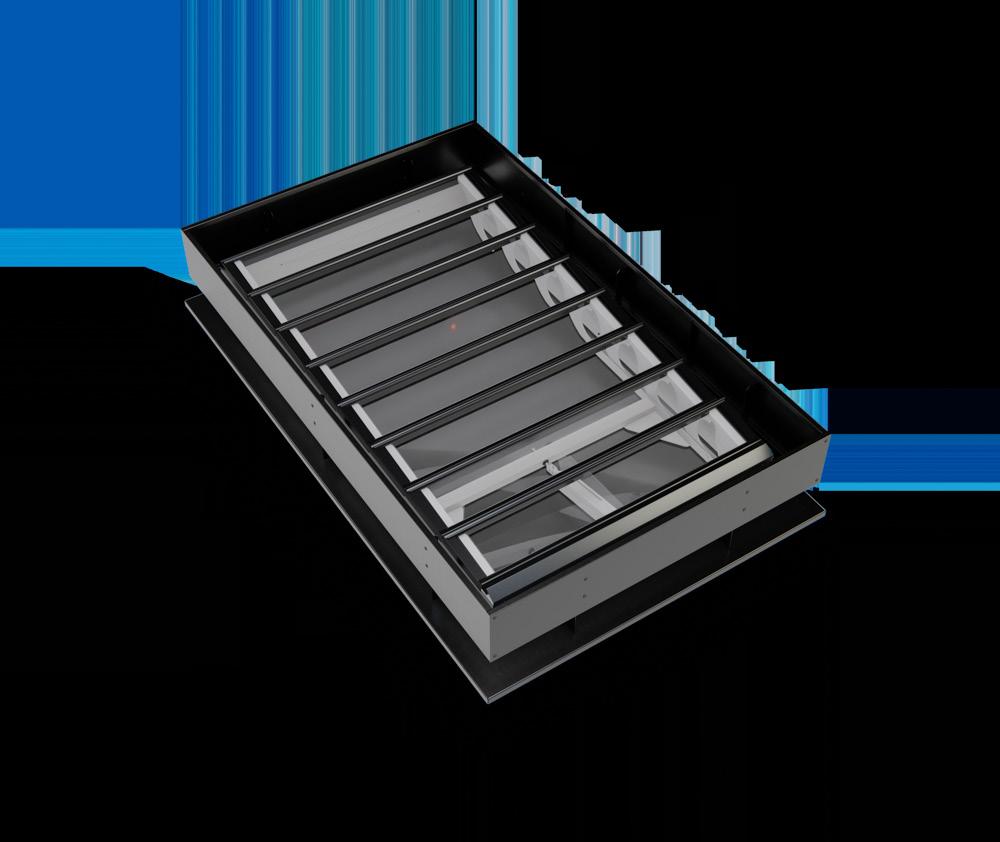

Glass Louvred Smoke Vent (RLB-RG)
Overview
A louvred smoke vent, mounted on roofs. Designed to exhaust smoke and heat from a building, allowing low level escape routes to be kept clear of smoke.
Features
– Certified to BS EN 12101-2
– Wide range of sizes from 966 x 500mm to 3386 x 1100mm
– Double glazed glass blades
– Opens to 90° within 60 seconds
– High resistance to weather and wind load
– Not a fall hazard when open
– Polyester powder-coated internally to RAL 9016 White
Benefits
– Bespoke to your requirements
– 8–11 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
overview
Service notes
Video: Product
Video:

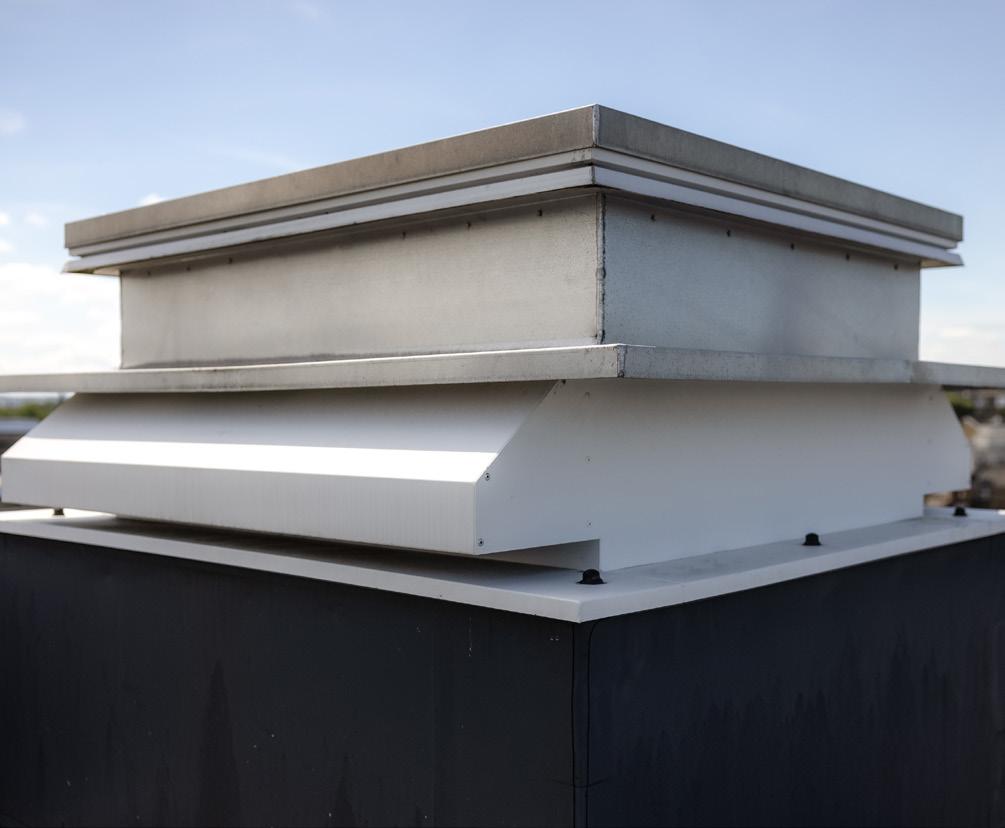

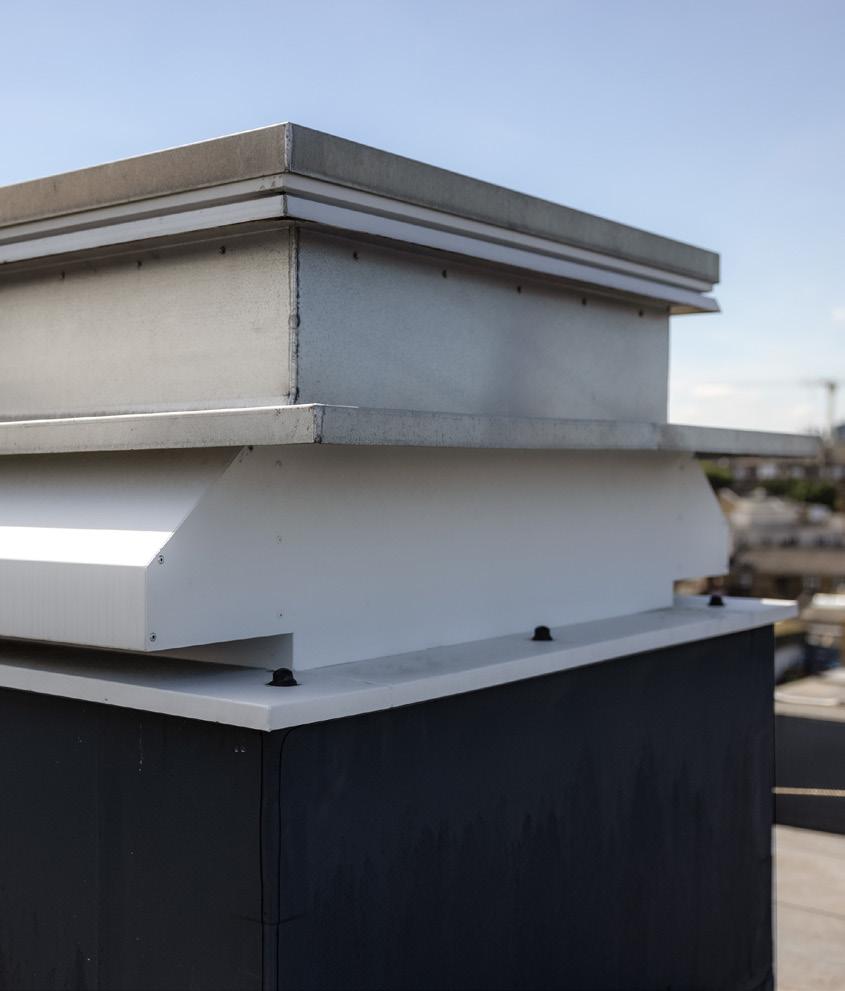

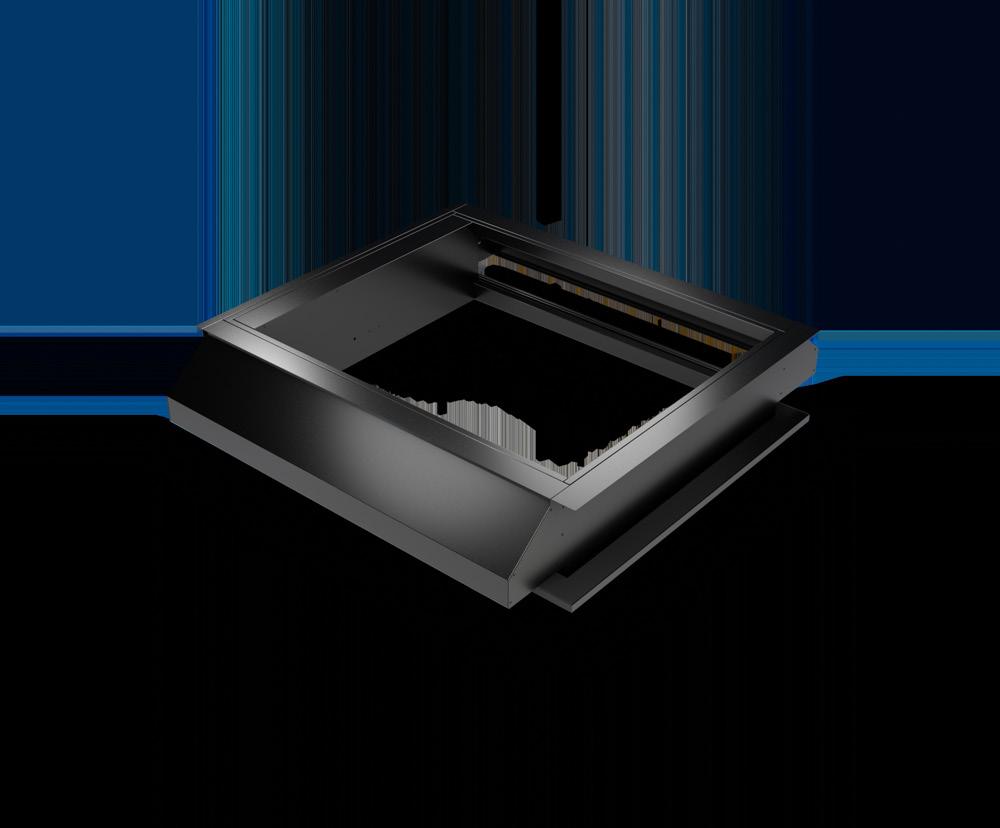

Ventilation Collar (RVC-R)
Overview
An environmental ventilation collar designed to be installed below any smoke and heat ventilation unit. It enables the environmental ventilation to operate in any weather.
Features
– Ventilation flaps can be open in virtually any weather
– Choice of uninsulated or insulated upstands
– Wide range of sizes and heights available giving a choice of ventilation areas
– Mill finish aluminium or polyester powder coated to any RAL colour
– Base flange is supplied to install to builder’s curb or into profile roofs or patent glazed systems
Benefits
– Bespoke to your requirements
– 6–8 week lead time
– Dedicated delivery service
Resources
Video: Product overview
Technical Data Sheet: Including size chart

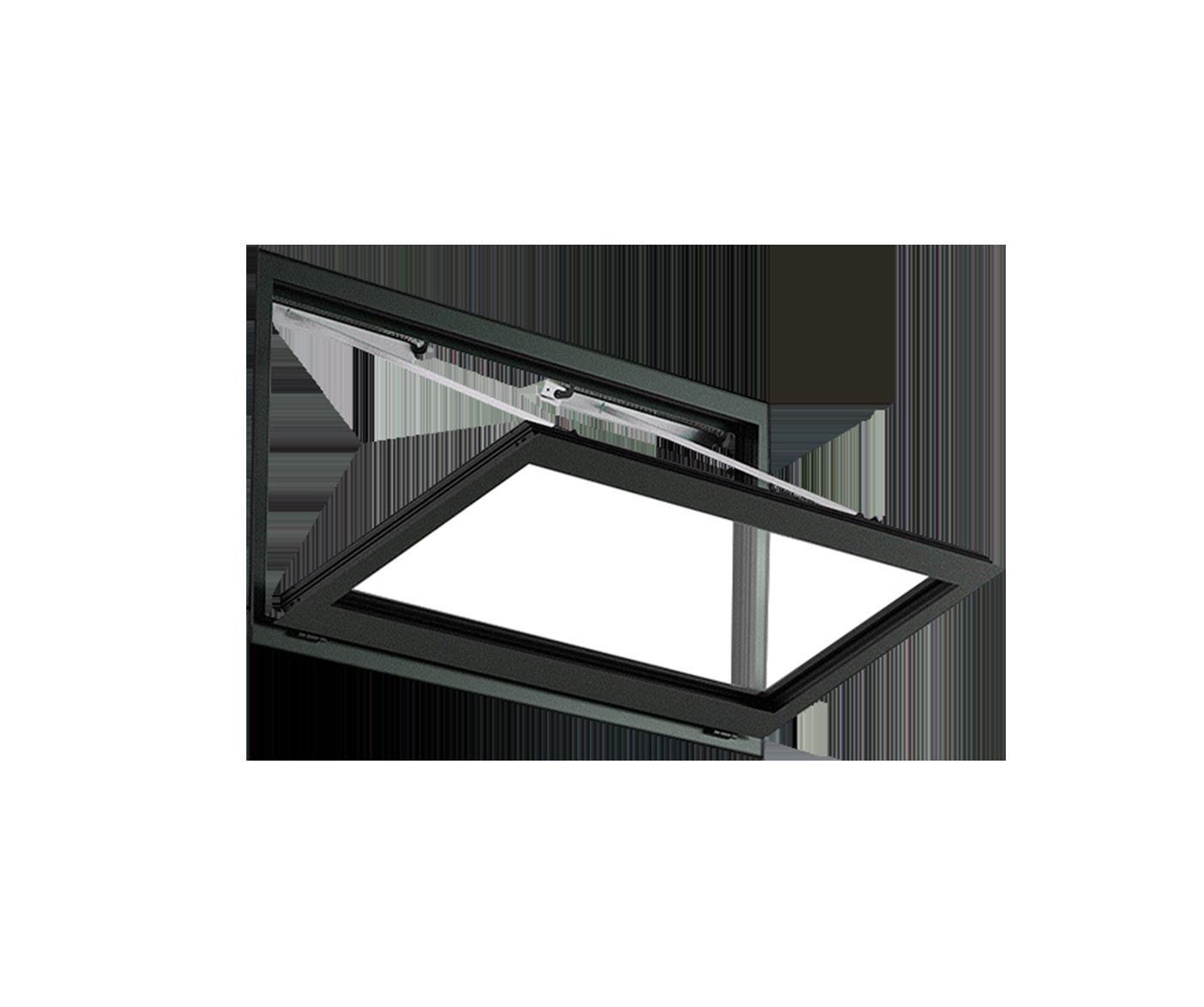

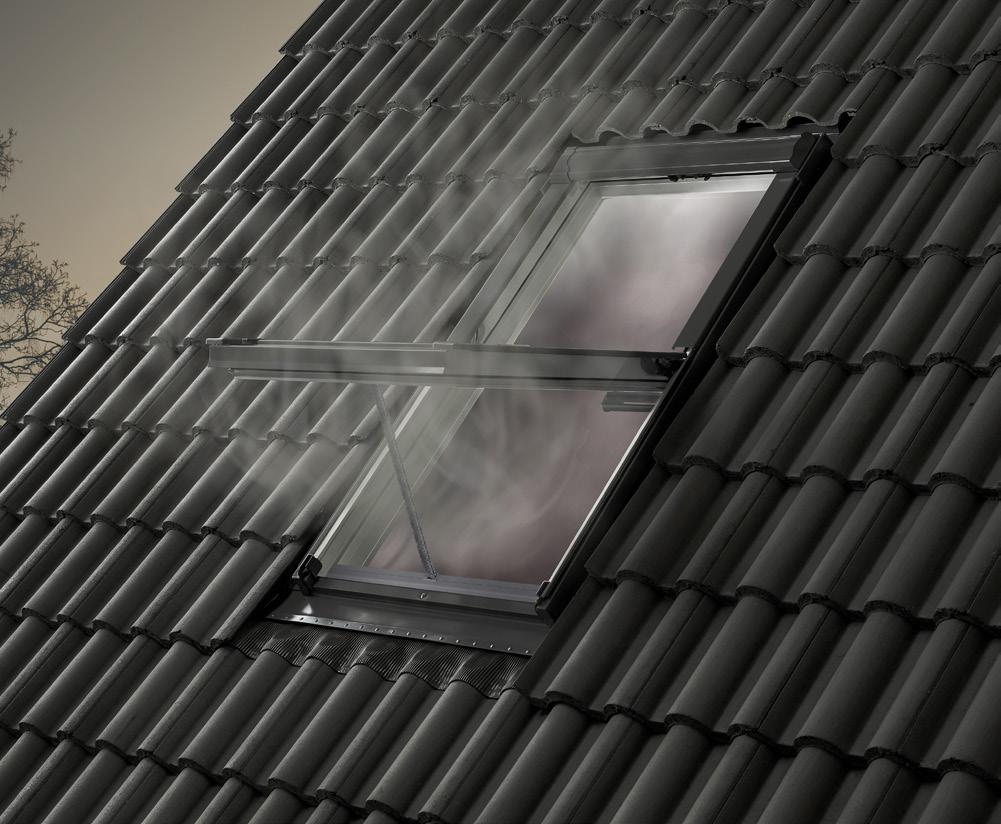

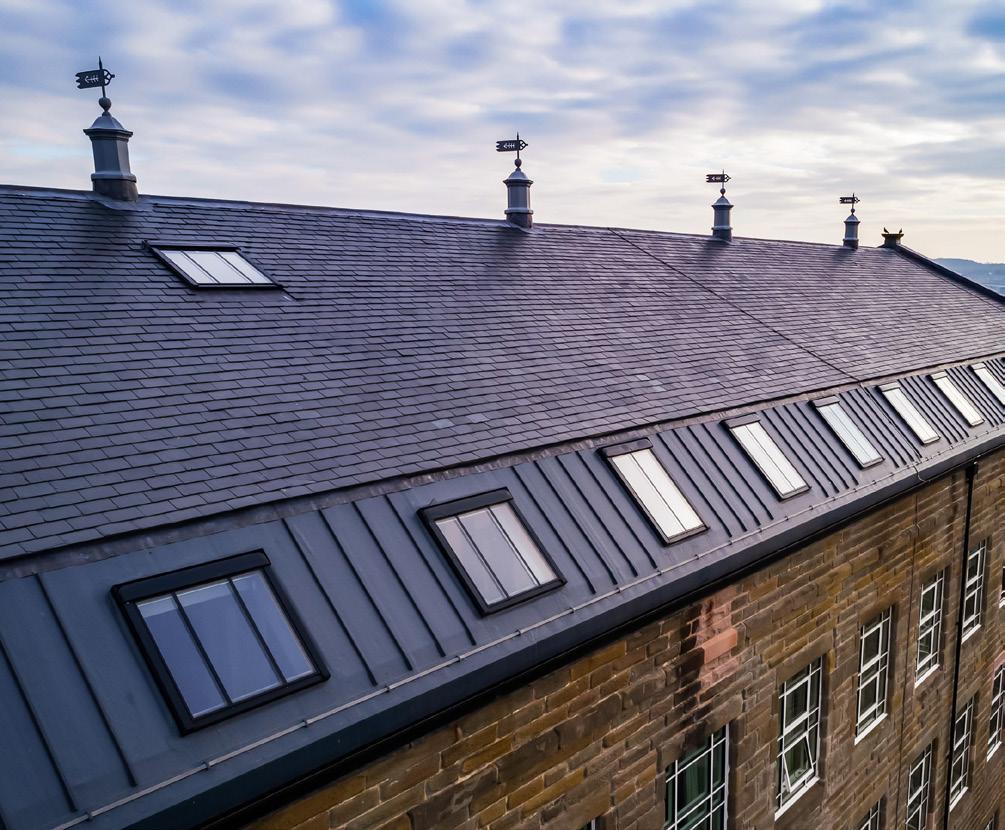

Pitched Window (RPW-R)
Overview
Manufactured by Keylite, and principally designed for smoke and heat ventilation in protected stairwells and corridors within residential apartments.
Features
– Certified to BS EN 12101-2
– Compliant with Building Regulations Approved Document B & L
– Easy to install with preformed flashings for most roof finishes
– Available as a free vent area of 1.0m2 or 1.5m2
– Thermally broken frame and warm edge glazing gives increased thermal performance
– Certified on roof pitches between 15°–90°
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart

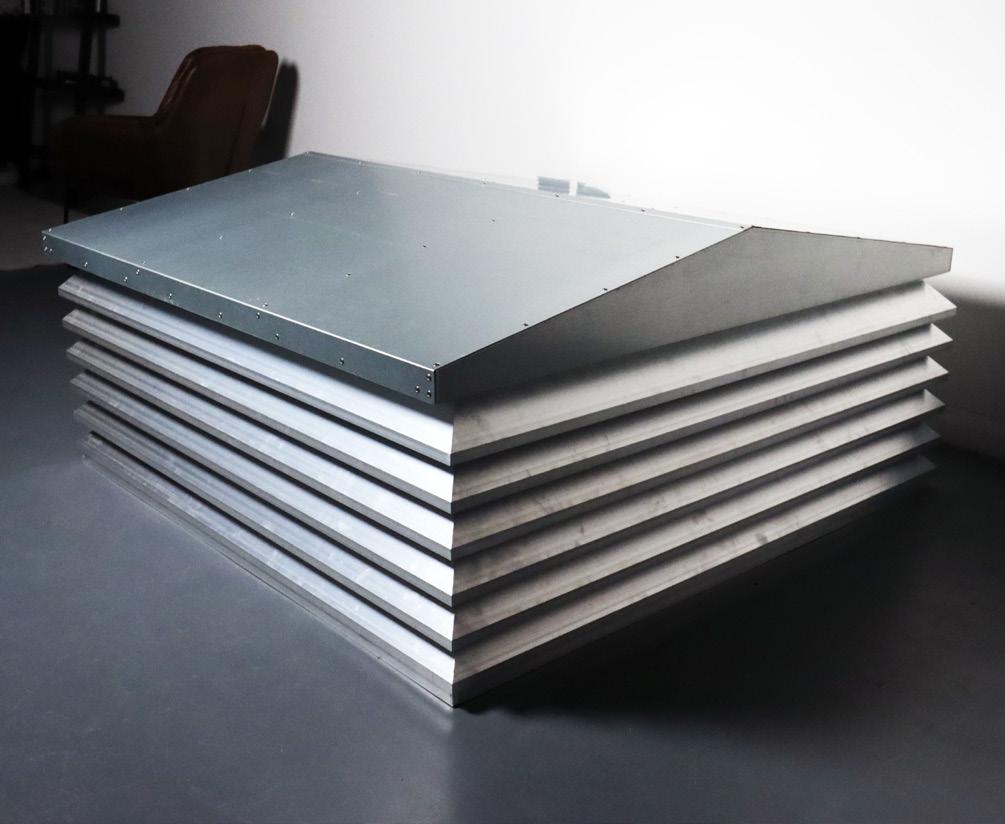

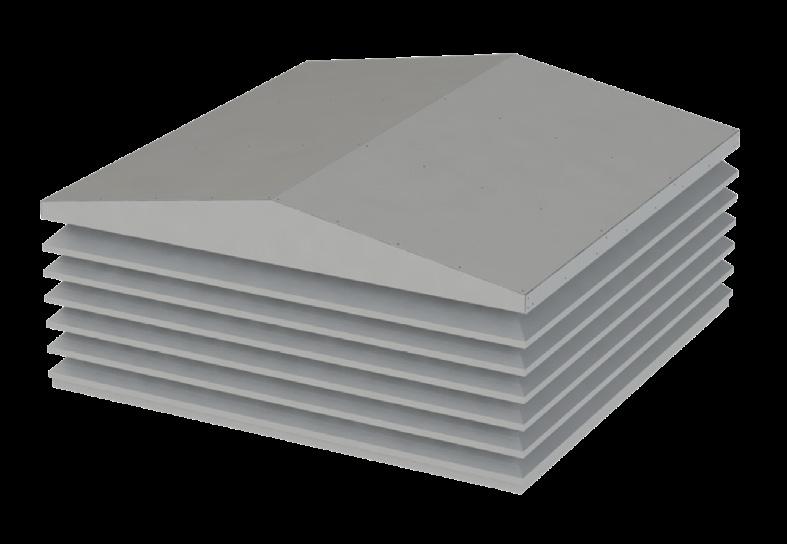

Penthouse Louvre (RPL-R)
Overview
A roof mounted ventilation terminal, also known as turret louvre. It is commonly used in natural ventilation applications and is suitable for performing both intake and exhaust functions.
Features
– Single bank of blades, spaced at a 75mm pitch
– Laser cut apex roof as standard
– Suitable for intake and exhaust applications
– Comprehensive range of options to enhance functionality and appearance
Resources
Benefits
– Bespoke to your requirements
– 6–8 week lead time
– Dedicated delivery service

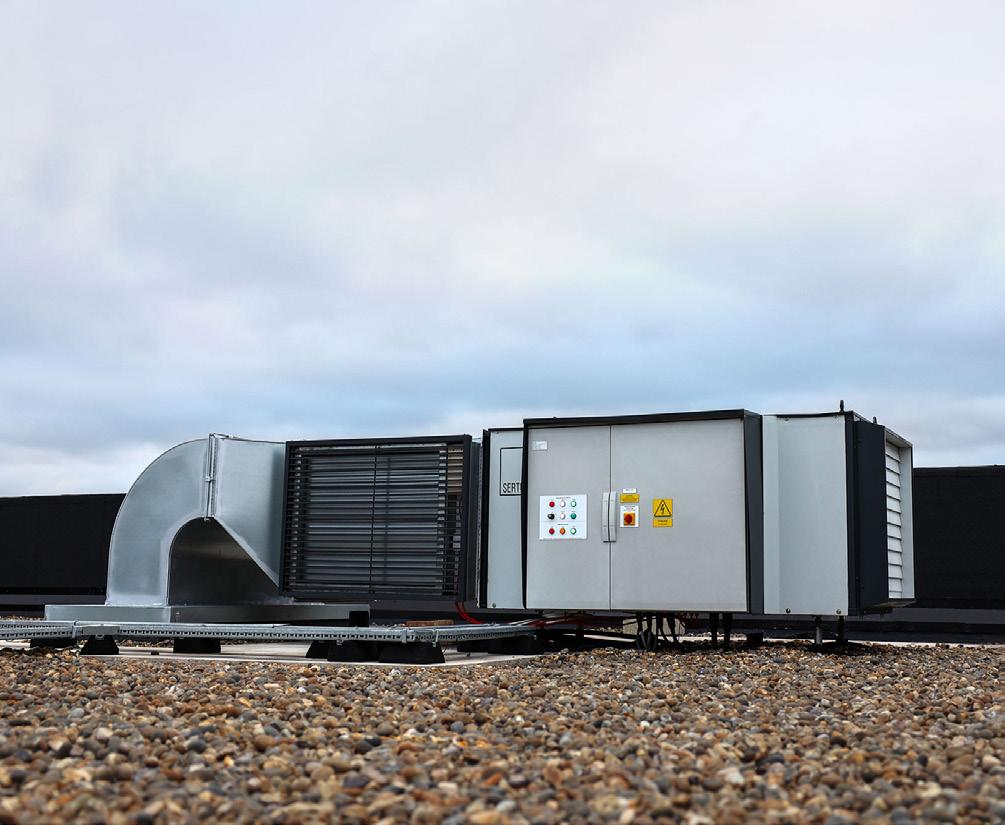

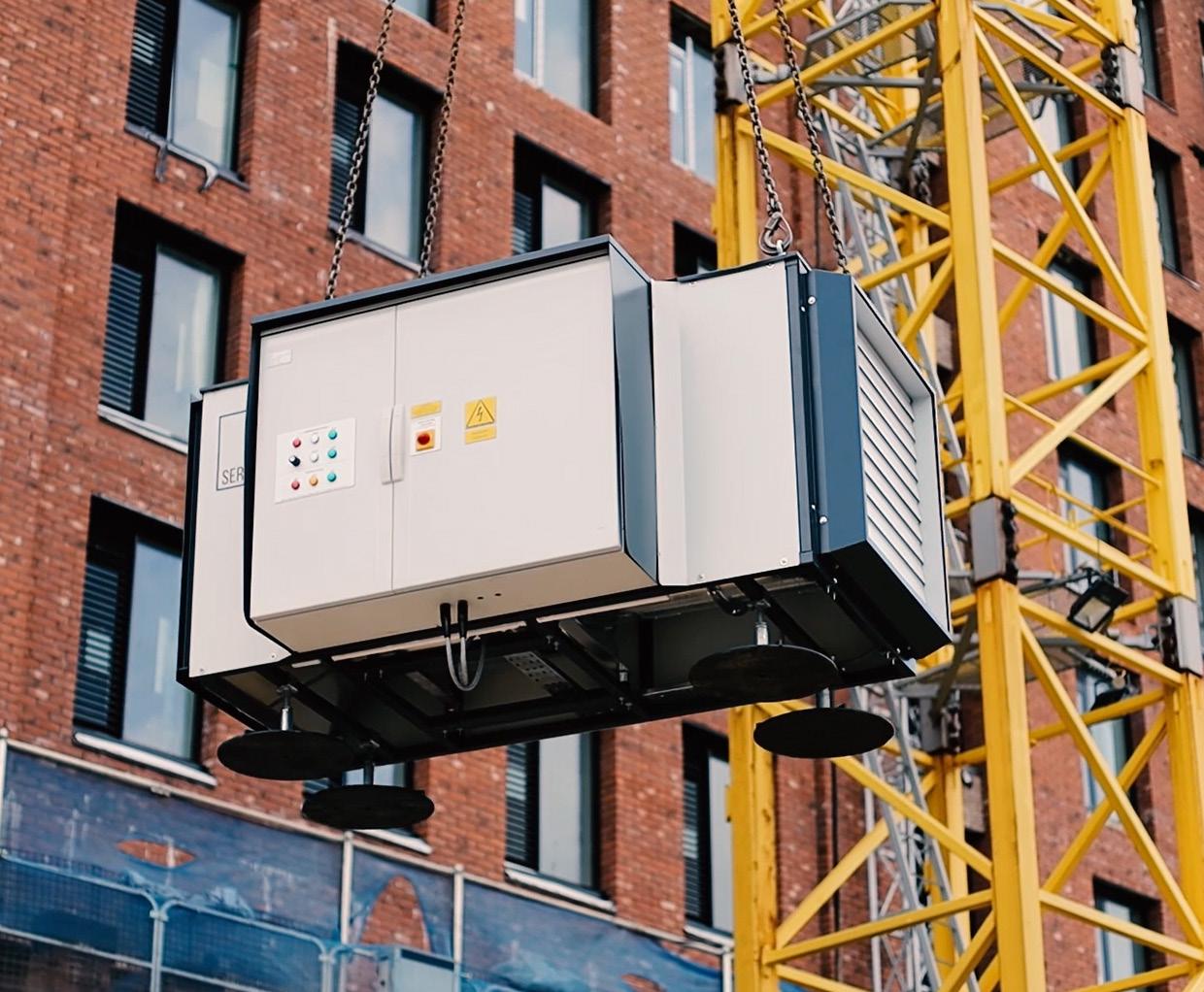

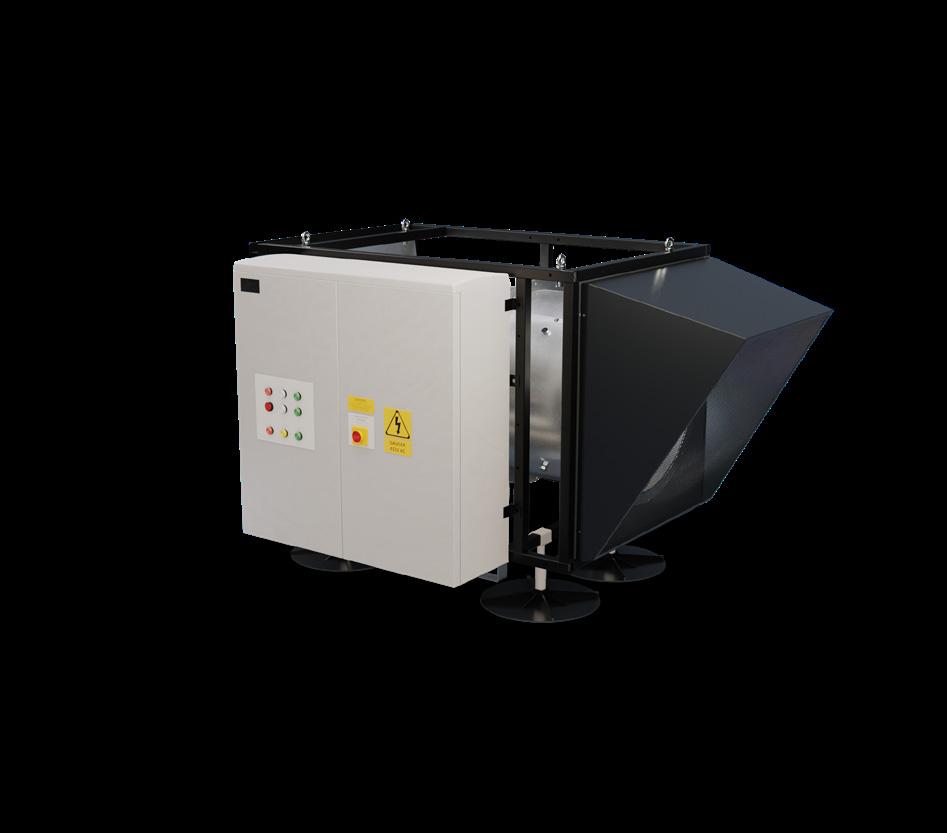

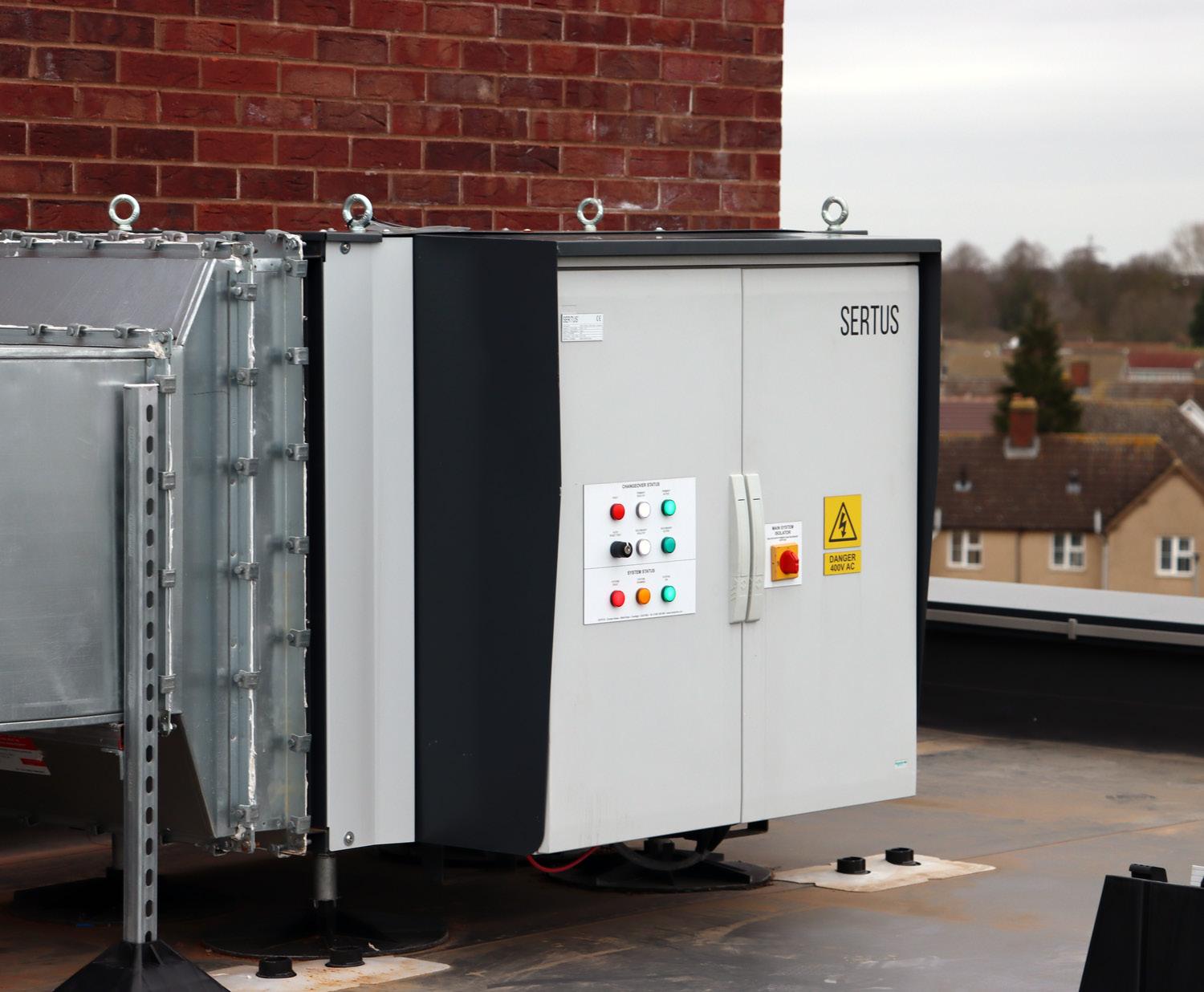

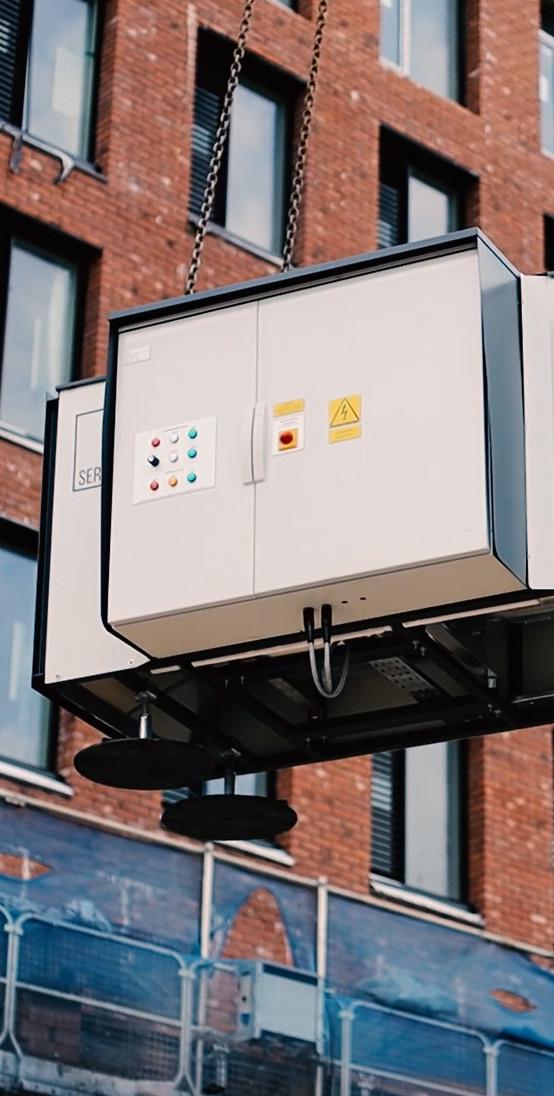

Pod Features Comparison Chart

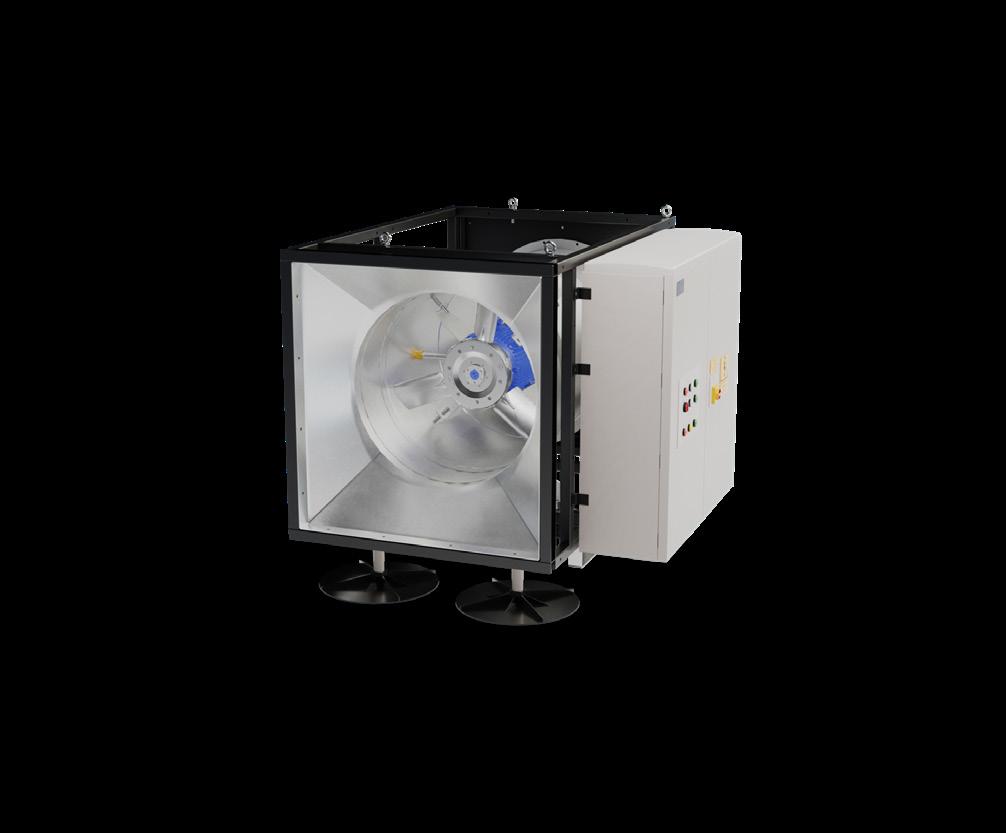

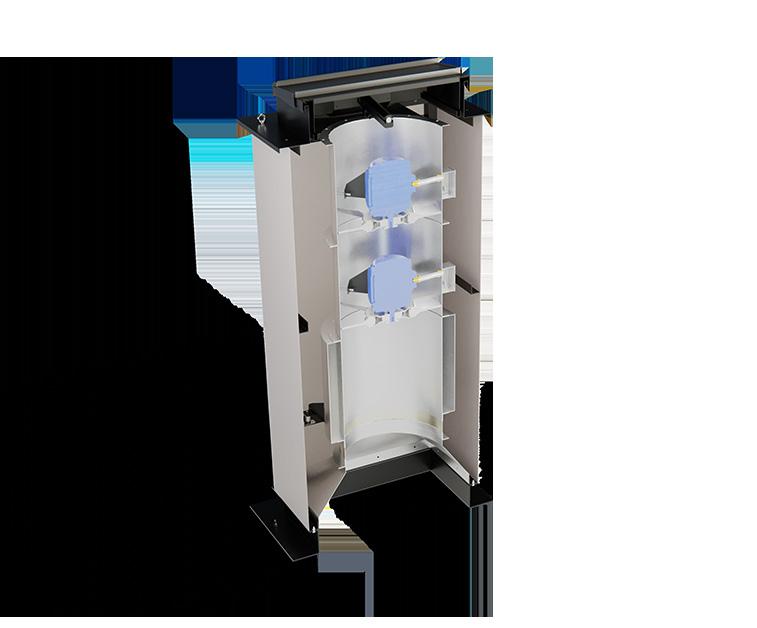

Pod Micro
Overview

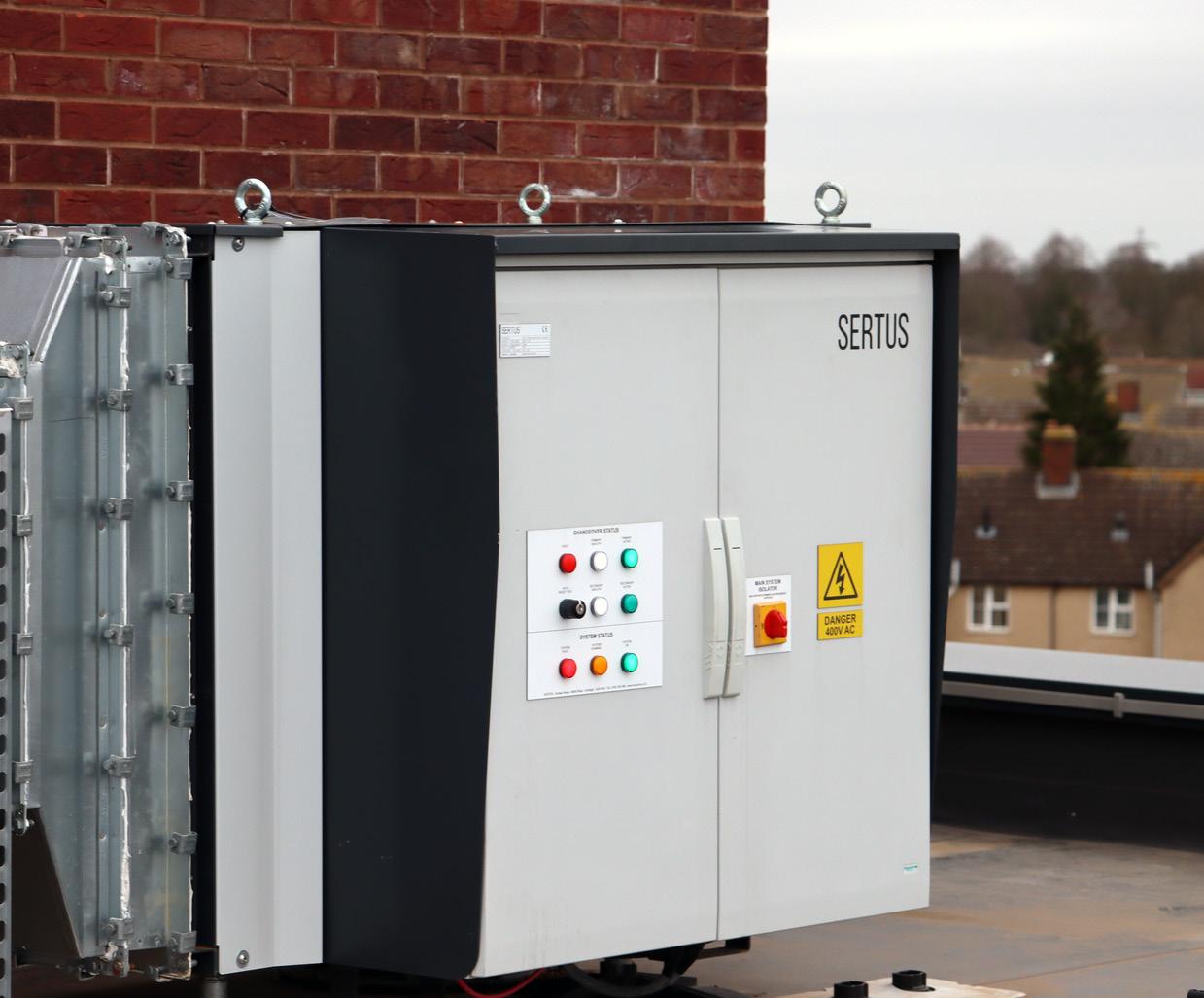

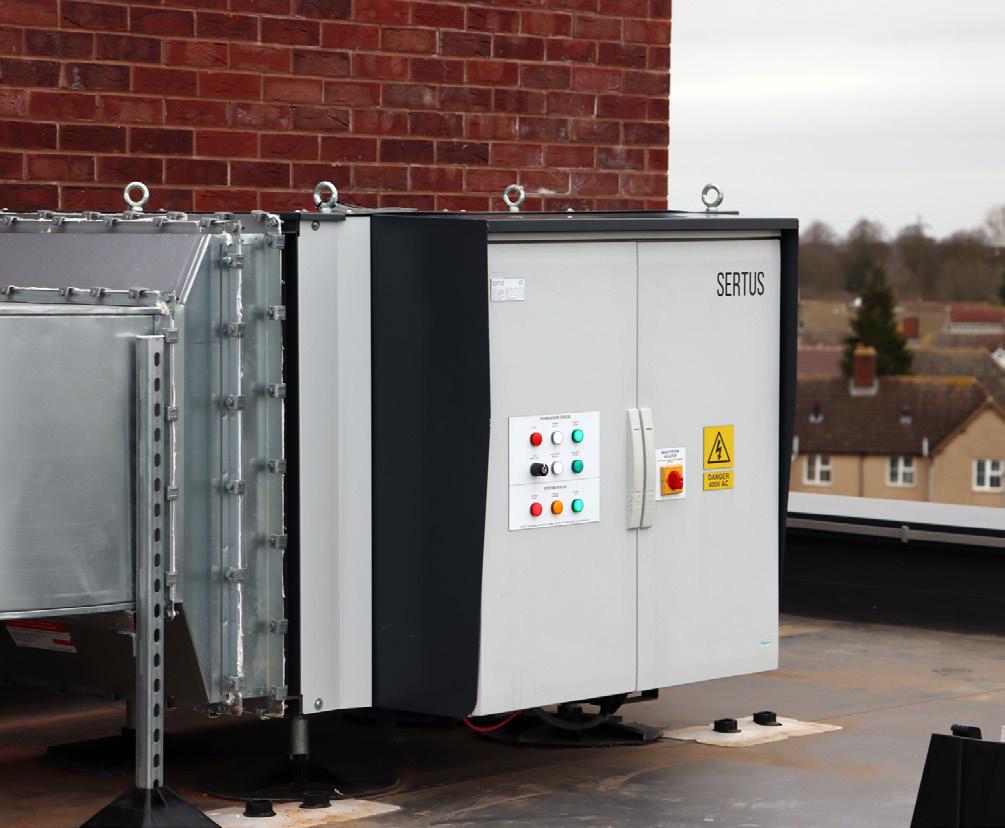

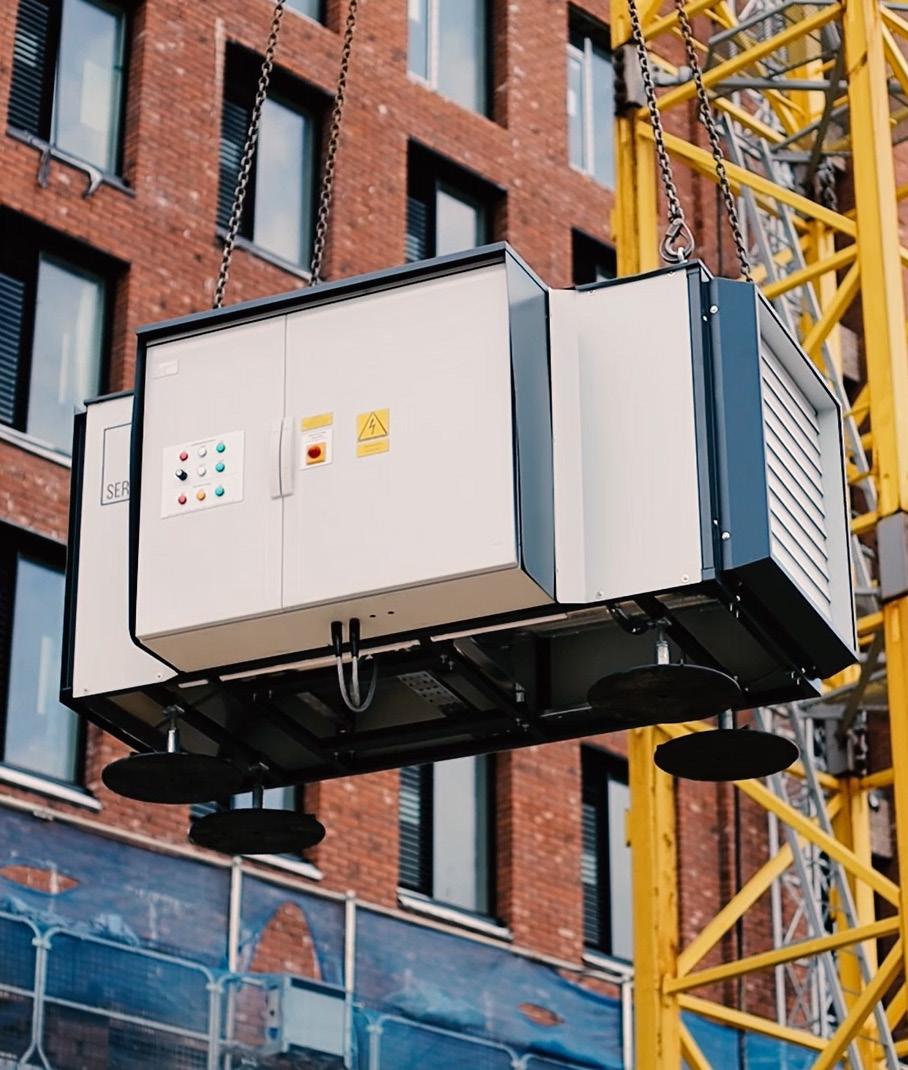

A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Compatible with any control panel system
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System
Type
Resources
Technical Data Sheet: Including size chart
overview
Video: Service notes
Video: Product

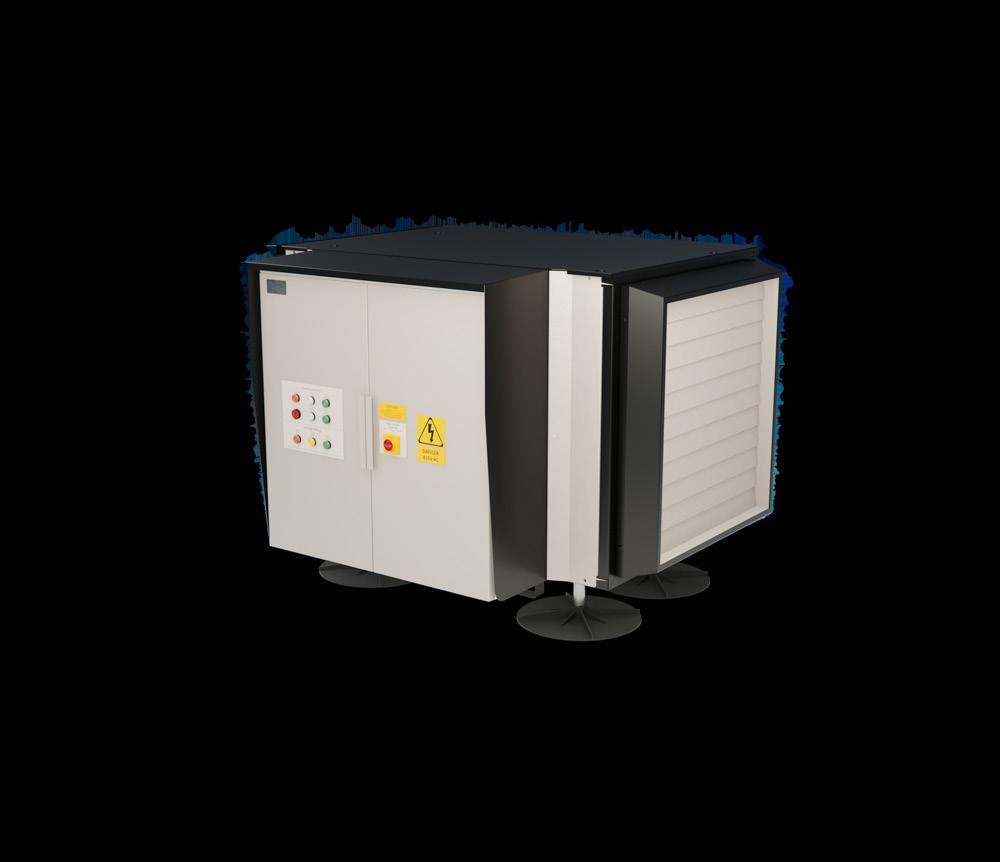

Pod Mini
Overview
A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Compatible with any control panel system
– Integral Automatic Transfer Switch (ATS)
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Product overview
Video: Service notes
Video:

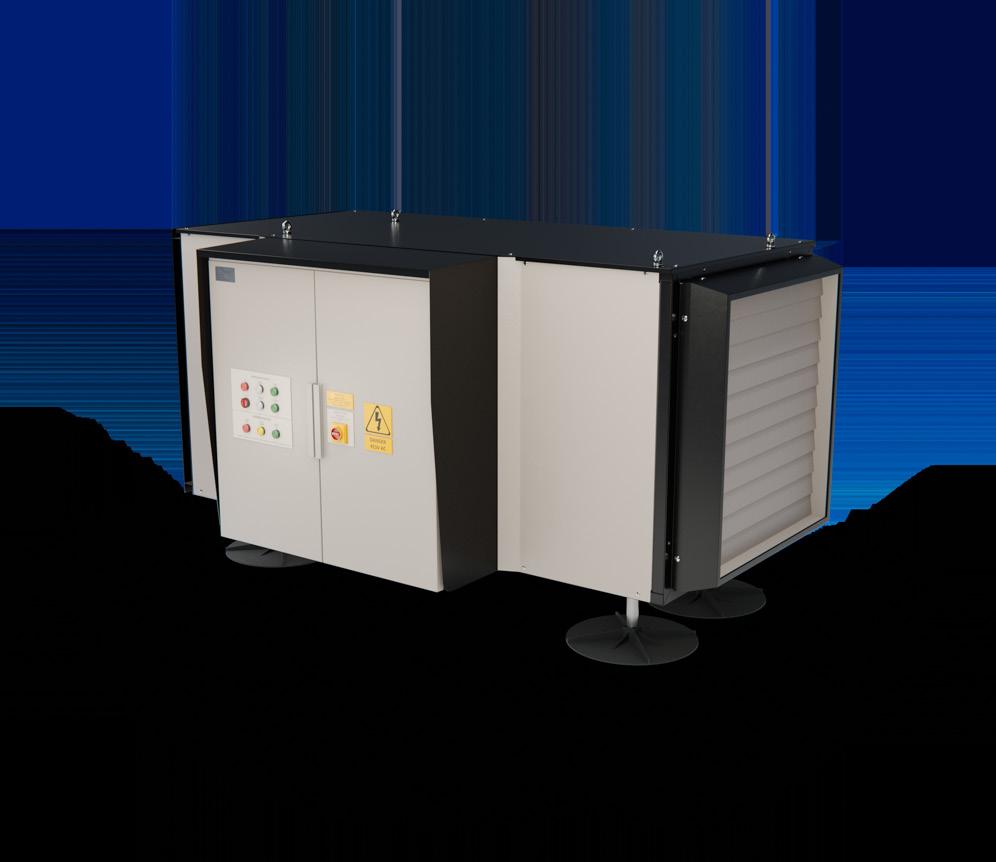

Pod Original
Overview
A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Compatible with any control panel system
– Integral Automatic Transfer Switch (ATS)
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video: Product overview
Video: Service notes
Pod Max
Overview
A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Environmental extract to provide ventilation and cooling is available as an option
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
overview
Video: Service notes
Video: Product

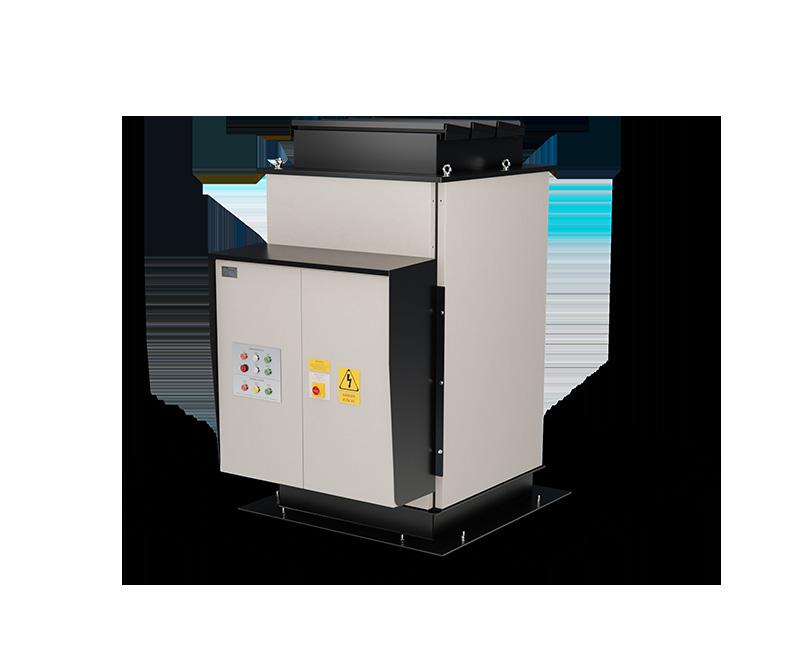

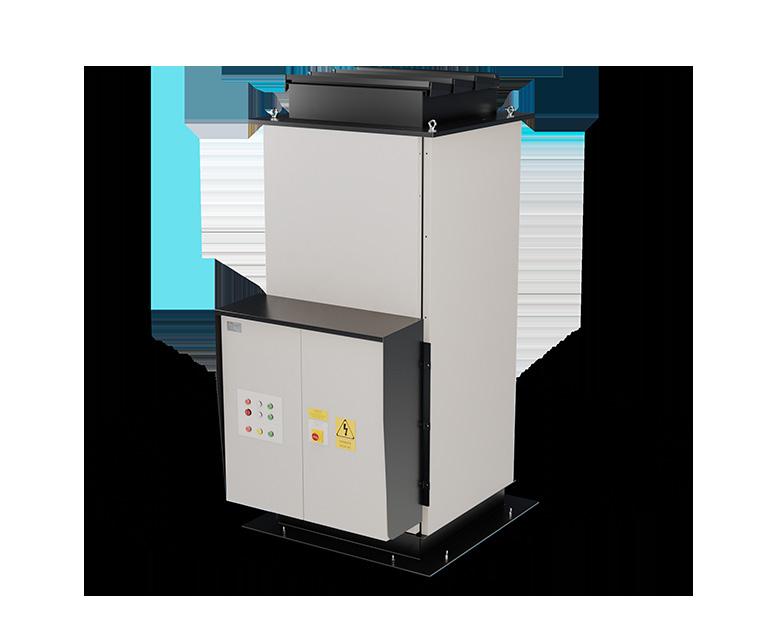

Pod Mini Vertical
Overview
A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Compatible with any control panel system
– Integral Automatic Transfer Switch (ATS)
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video:
Product overview
Video: Service notes
Pod Original Vertical
Overview
A modular smoke extraction Pod providing a pre-commissioned solution for high-rise apartment buildings. Available in a range of sizes giving guaranteed extract rates.
Features
– Fans certified to BS EN 12101-3:2015
– Complete Pod tested to EN 12101-3 Fans and Ancillaries
– Available in a range of standard guaranteed extract rates for short delivery times
– Prefabricated, pre-wired, pre-commissioned smoke extraction Pod ready for a single lift to rooftop
– Compatible with any control panel system
– Integral Automatic Transfer Switch (ATS)
Benefits
– Bespoke to your requirements
– 4–6 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video:
Product overview
Video:
Service notes

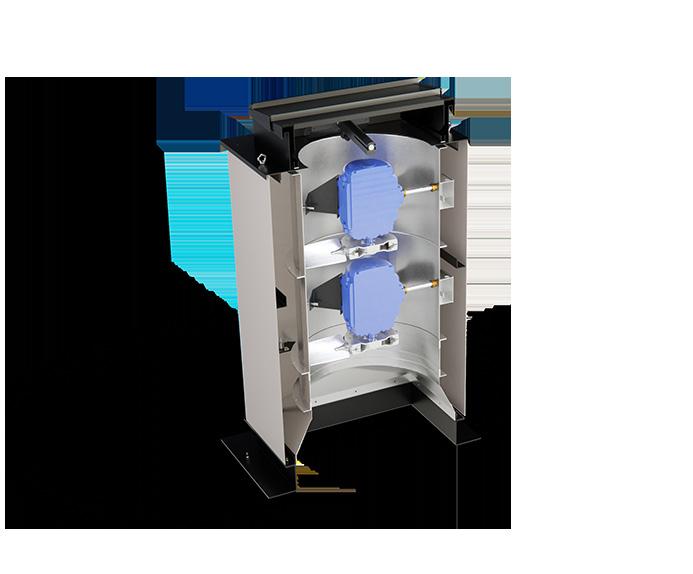

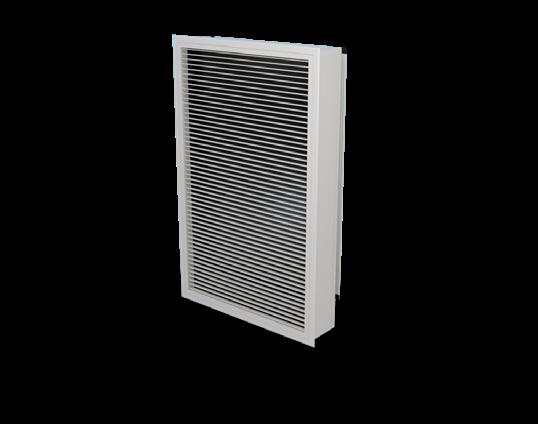

Shaft Dampers
23 Smoke Control Damper (SLD)

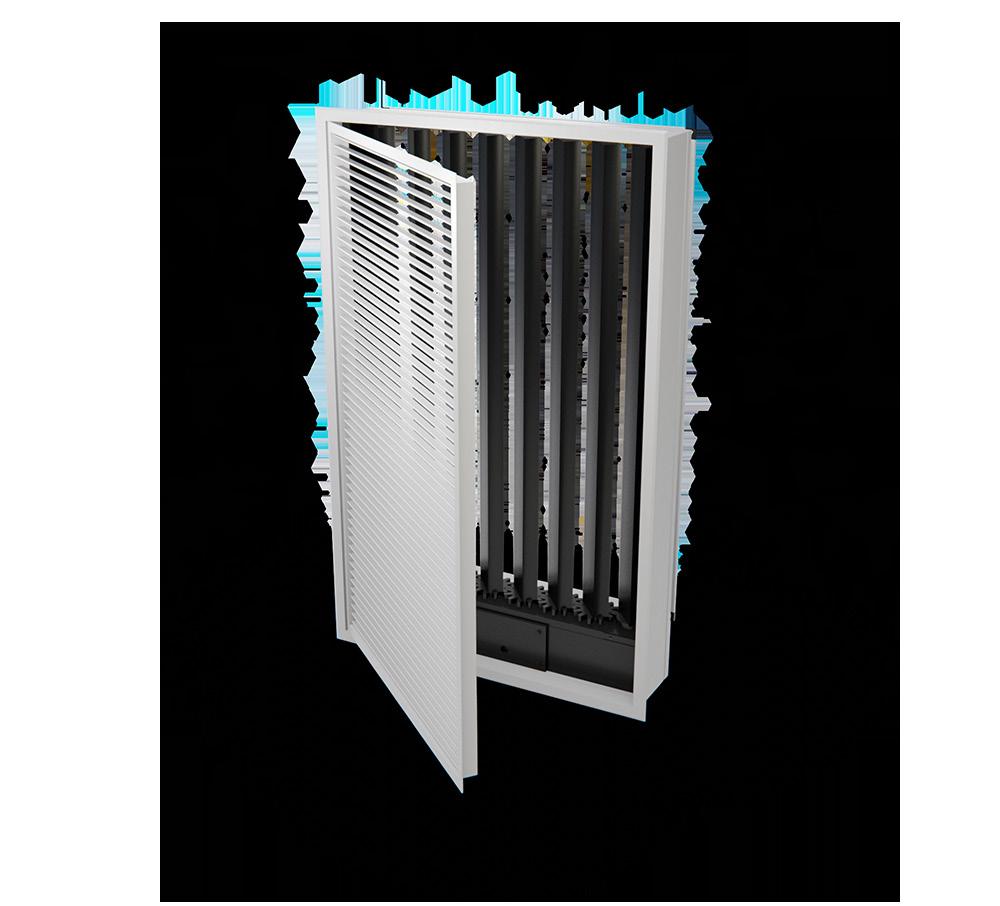

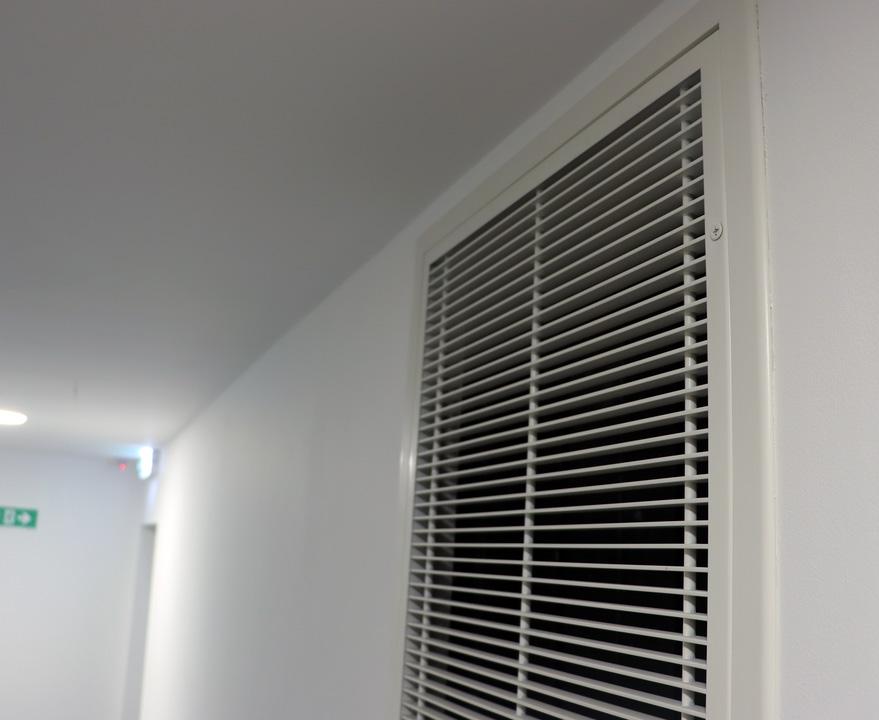

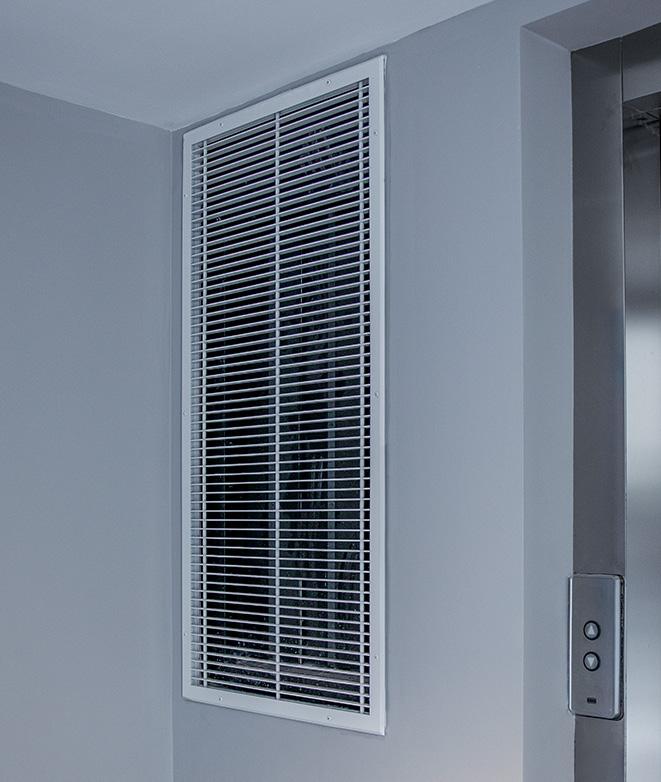

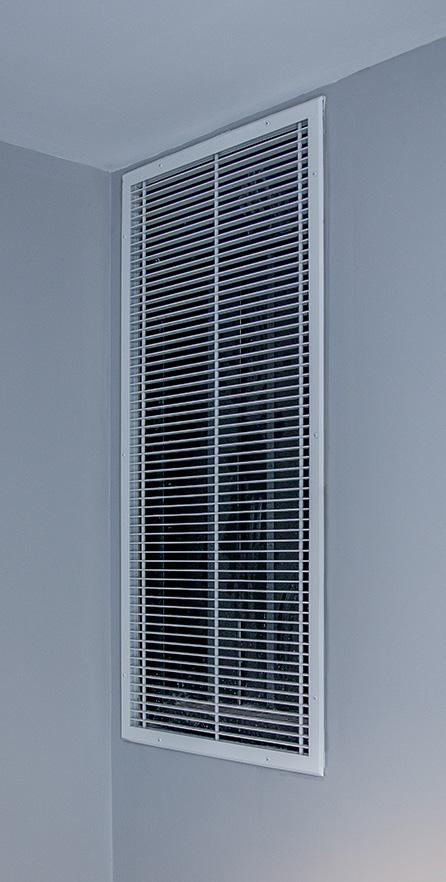

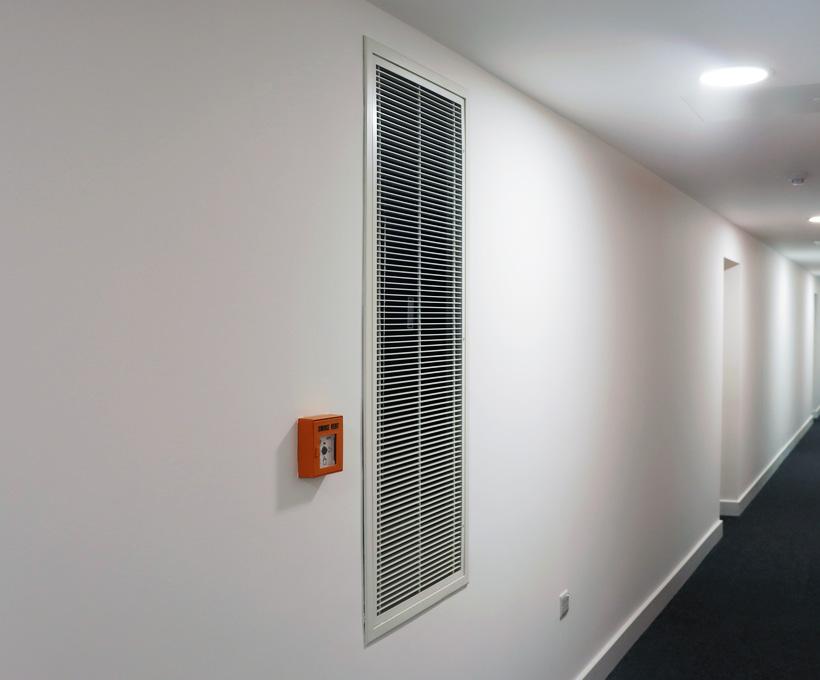

Smoke Control Damper (SLD)
Overview
A multi-zone smoke control damper designed for use in natural and mechanical smoke ventilation systems. Typically installed into shafts and into smoke control ducts.
Features
– Certified to BS EN 12101-8:2011
– Fire resistance class EIS 120
– Available up to 1.20m2 @ 500Pa max. geometric area or up to 0.78m2 @ 1000Pa max. geometric area
– Tested and certified in both directions i↔o
– Impact tested as a complete unit with grille to TN75 & TN76 (with reference to BS 8200)
– Hinged white linear grill internally enables quick access for commissioning and service
Benefits
– 3 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
System
Resources
Technical Data Sheet: Including size chart
25 Roof Access Hatch – Residential (RAH-R) 26 Roof Access Hatch – Commercial (RAH-C)
27 Concertina Ladder (RAL-R | CL)

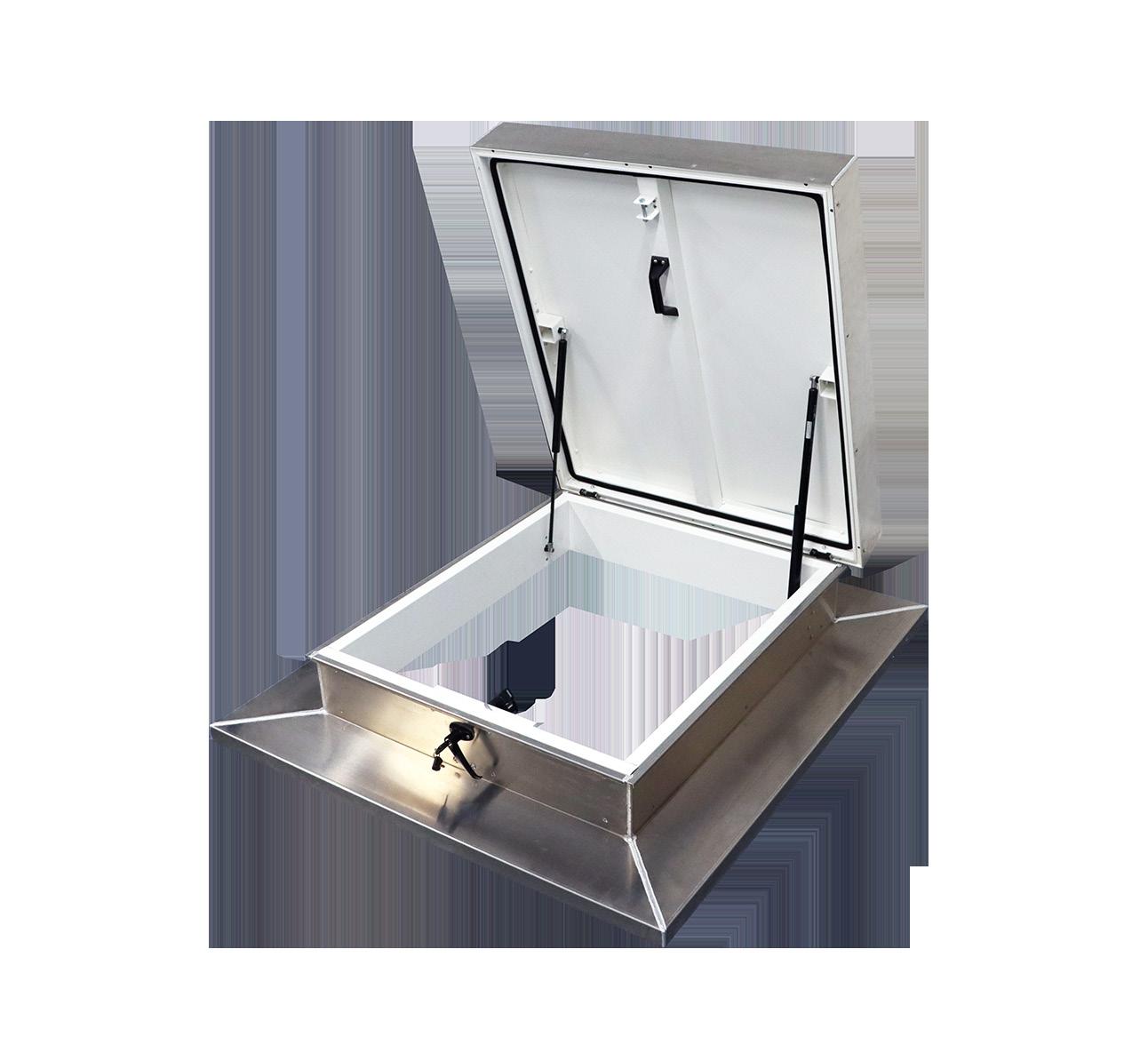

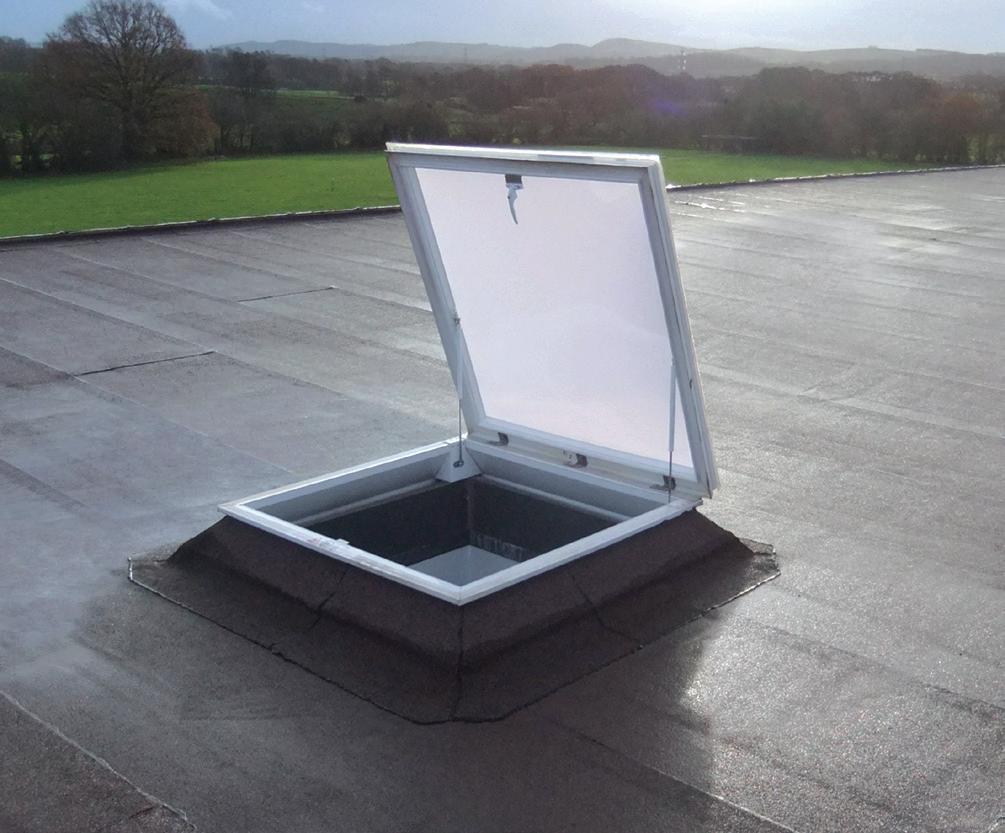

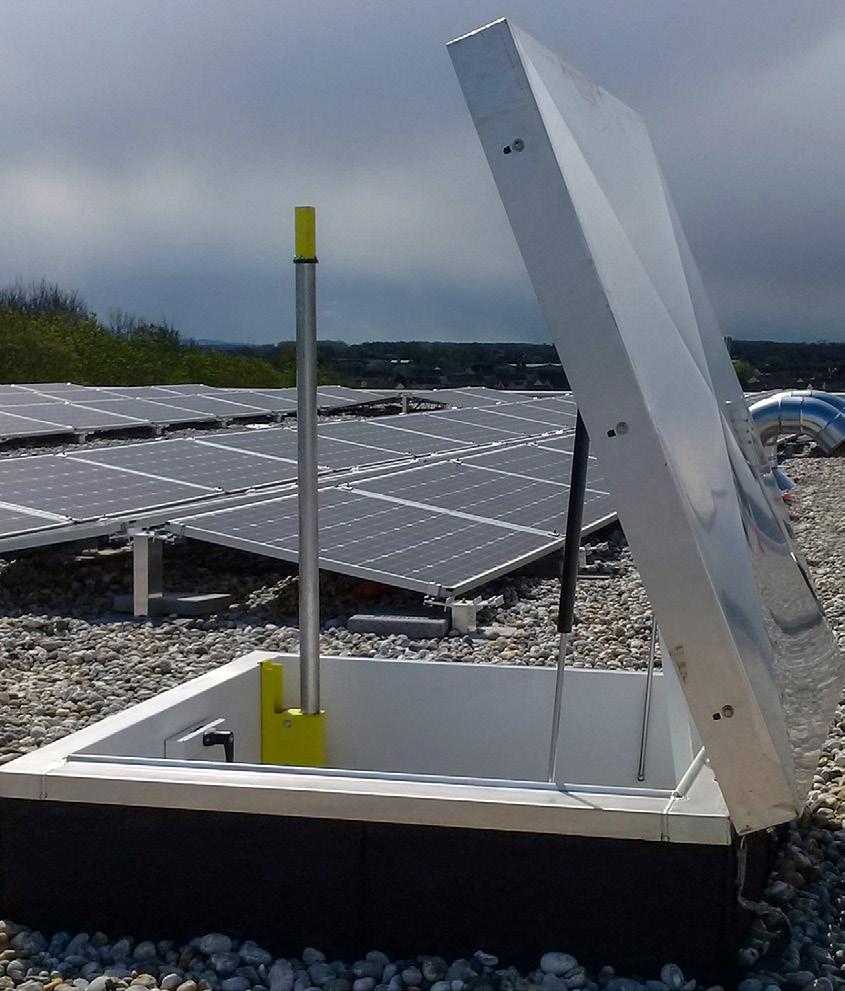

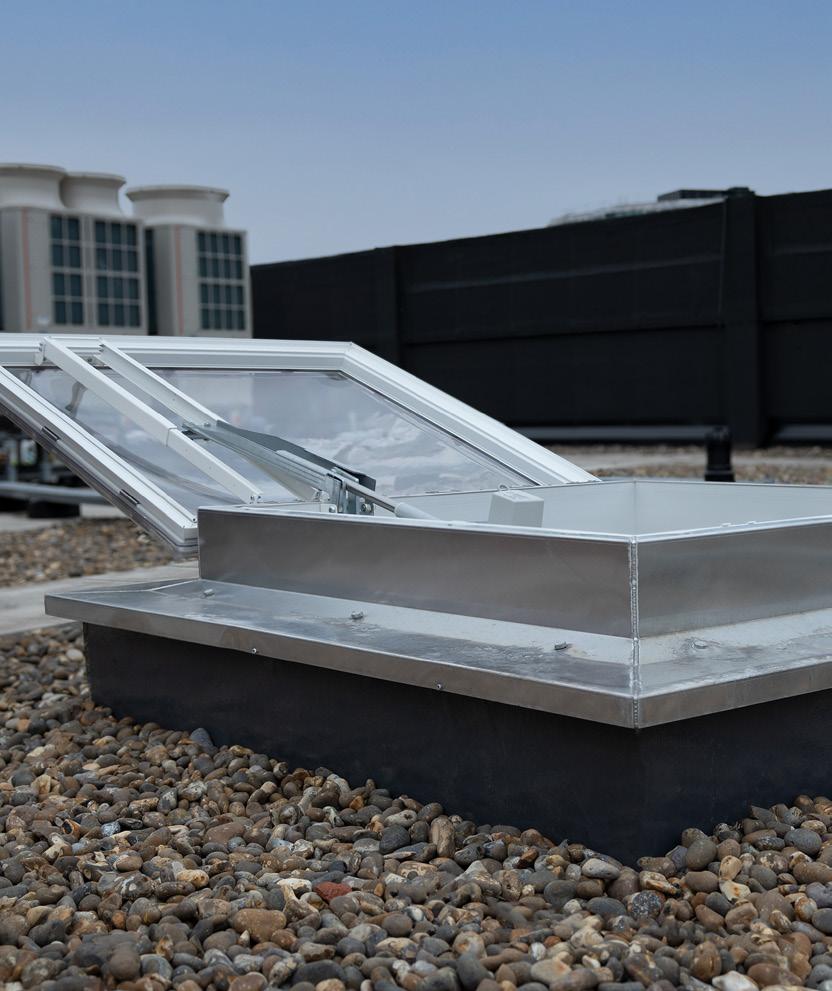

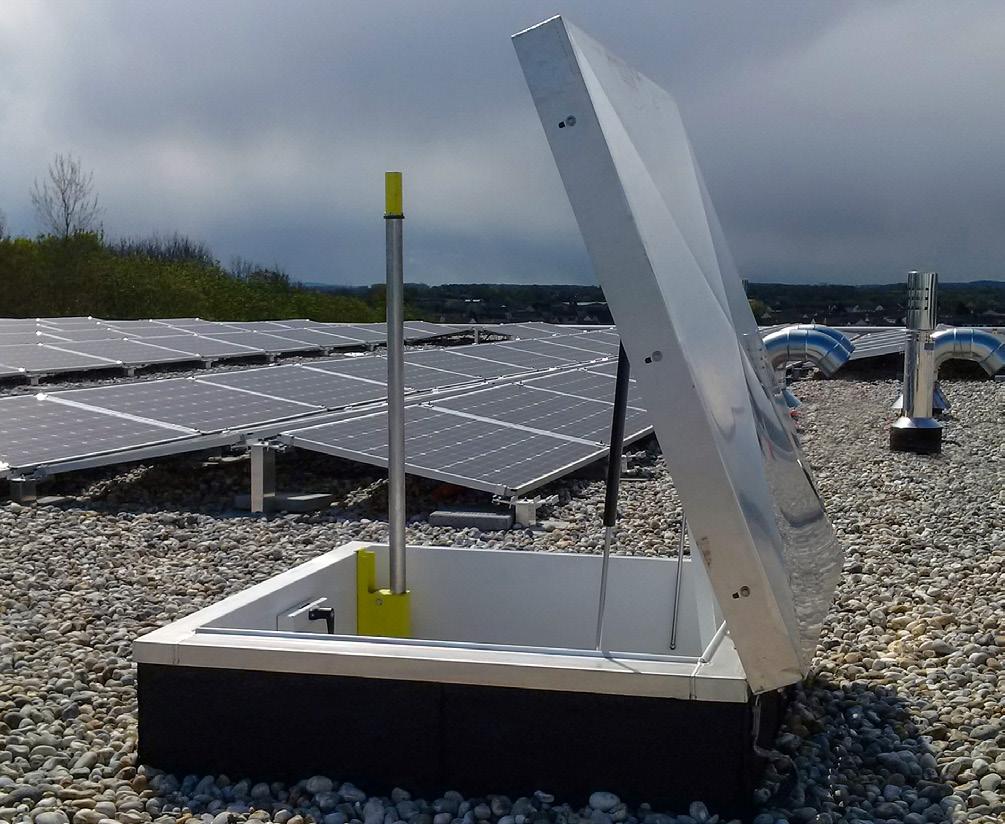

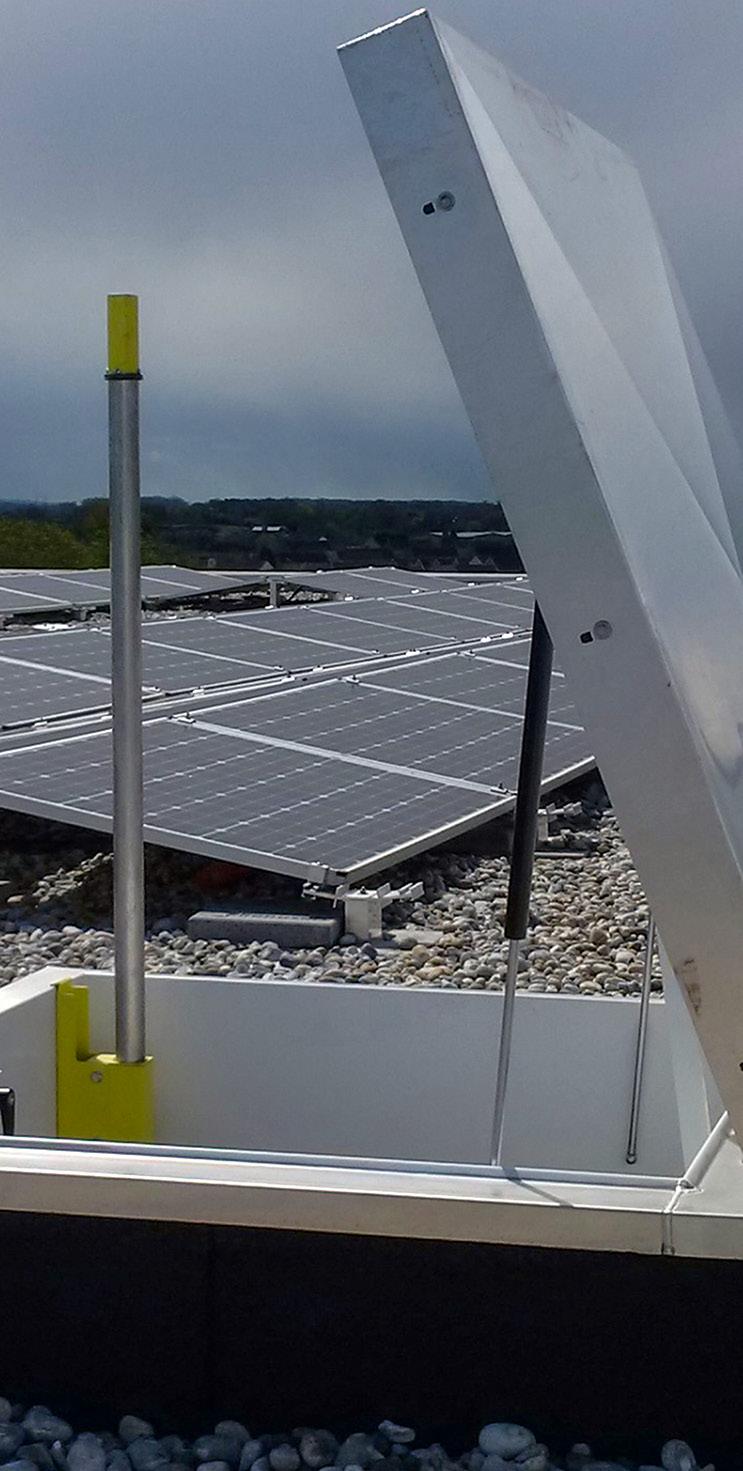

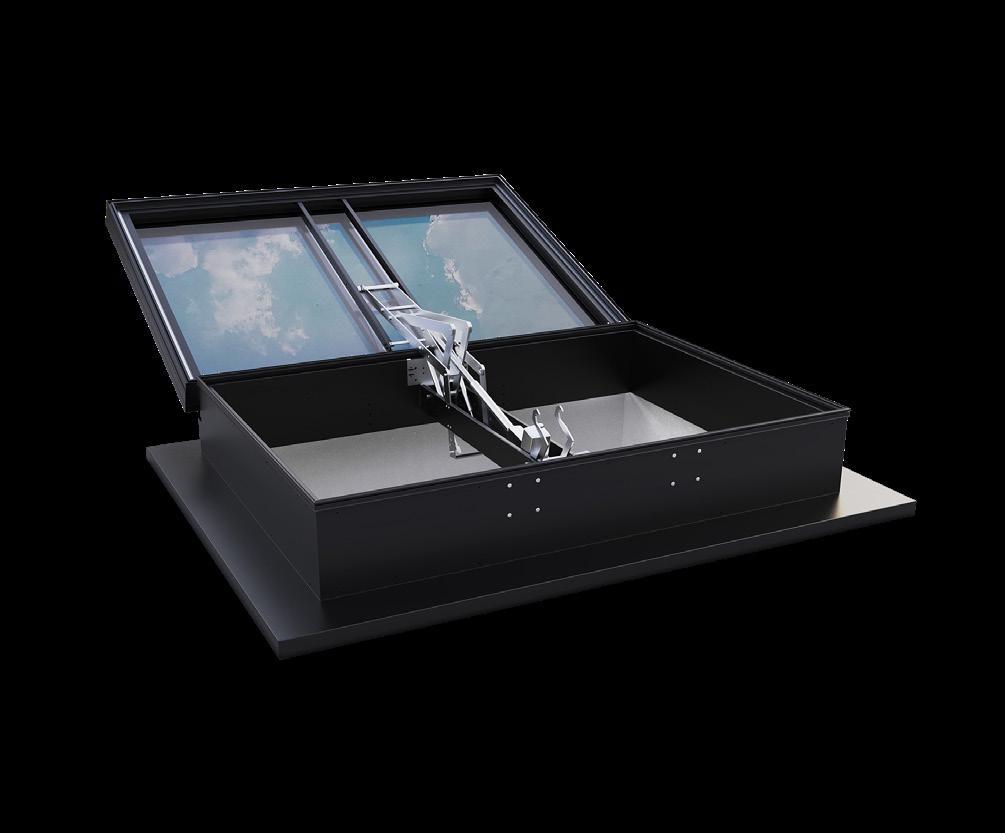

Roof Access Hatch – Residential (RAH-R)
Overview
An access hatch designed for new build or refurbishment of residential and commercial schemes. Its purpose is to allow direct, safe and easy access to flat roofs for maintenance.
Features
– Available in a wide range of sizes (for larger sizes see our RAH-C range)
– Safe, direct access to roofs – no external stairways or ladders needed
– Can be integrated into fire escape and smoke ventilation systems
– Manually or electrically opening
– Accessories include ladders, ladder posts and handrails
System Type
Resources
Benefits
– 10 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
Roof Access Hatch – Commercial (RAH-C)
Overview
An access hatch particularly suited to industrial properties. It may form part of a fire escape route, be used for accessing roof mounted equipment, and for other maintenance tasks.
Features
– Highly insulated upstand 0.36 W/m².K
– Impact resistant to EN1873 – 1200 Joules
– Available in 65 sizes
– Solid insulated cover
– Locking or non-locking from inside and outside
– Open hold and release strut
System Type
Resources
Technical Data Sheet: Including size chart
Benefits
– Bespoke to your requirements
– Dedicated delivery service Video: Product overview Video: Installation guide

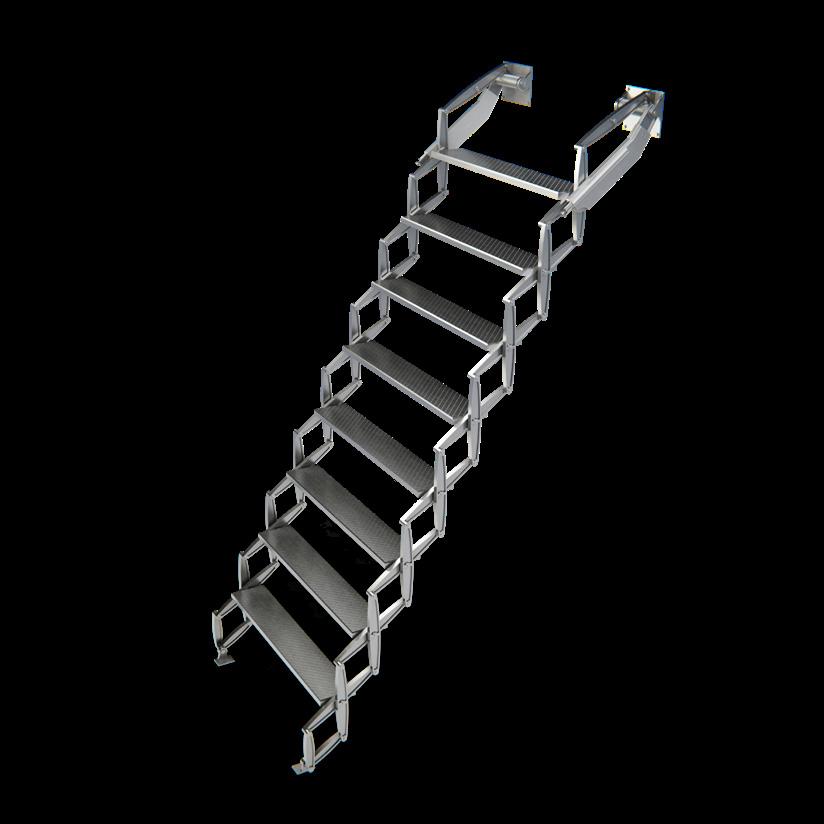

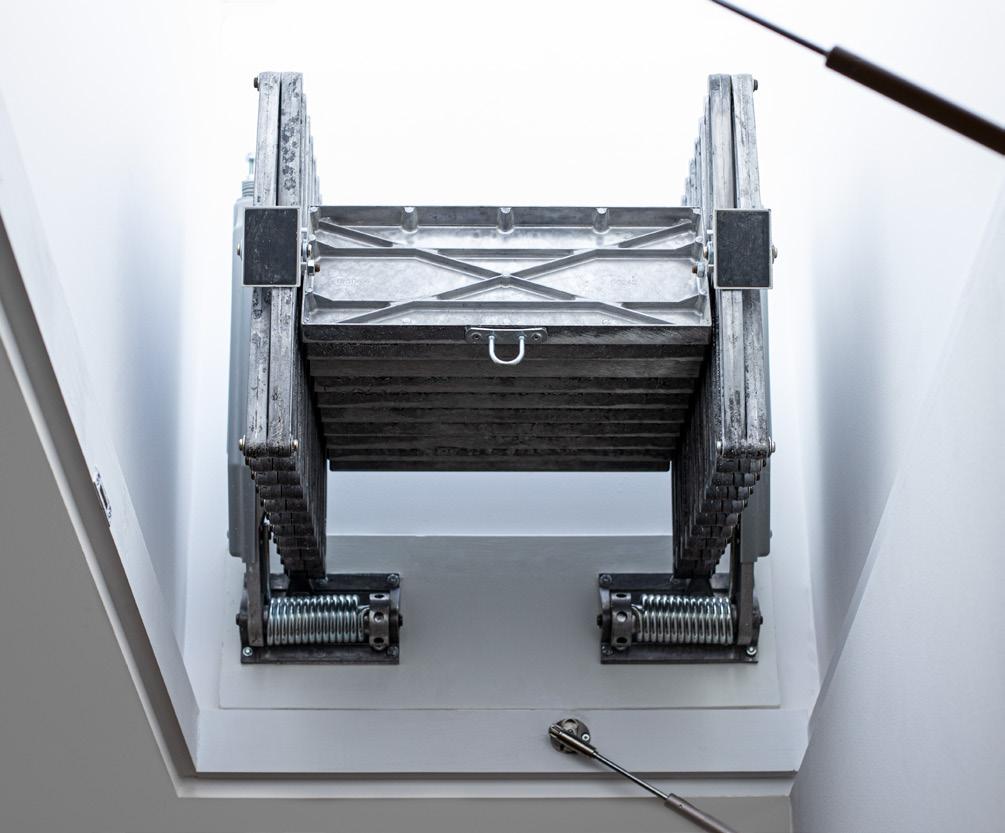

Concertina Ladder (RAL-R | CL)
Overview
An industrial ladder that can support a load of 200kg per tread and 500kg/m2. Manufactured to DIN EN 14975 (DIN 4570) and designed to all industrial site requirements.
Features
– Telescopic handrail
– Fully counterbalanced, self supporting operation
– 4 stock sizes up to 3400mm
– Non-slip treads
– Die cast aluminium construction
– Standard treads 350/300 x 140mm deep
System
Benefits
– 4 sizes available from stock
– 3–7 working day lead time on stock sizes
– Dedicated delivery service
Resources
Technical Data Sheet: Including size chart

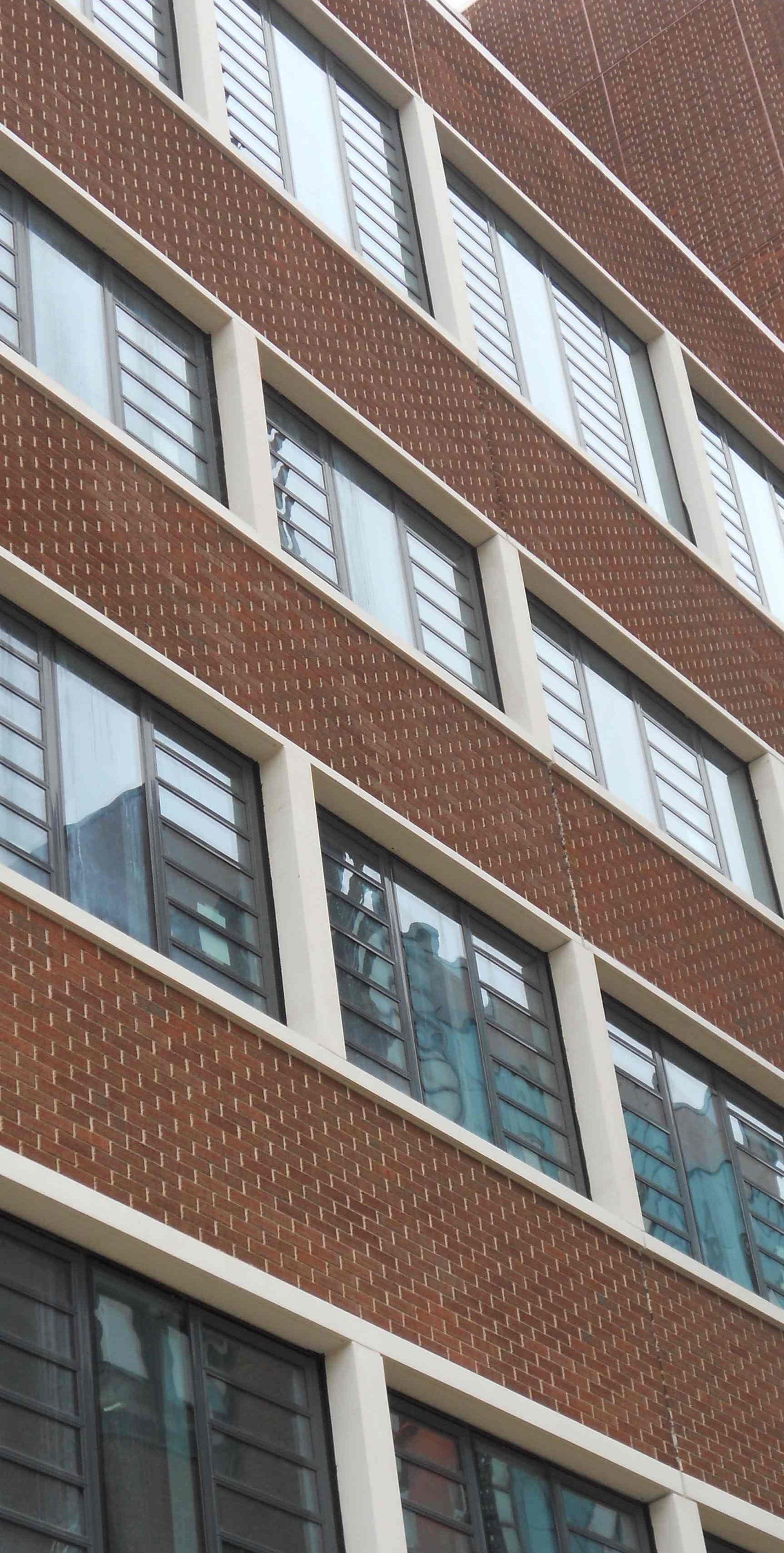

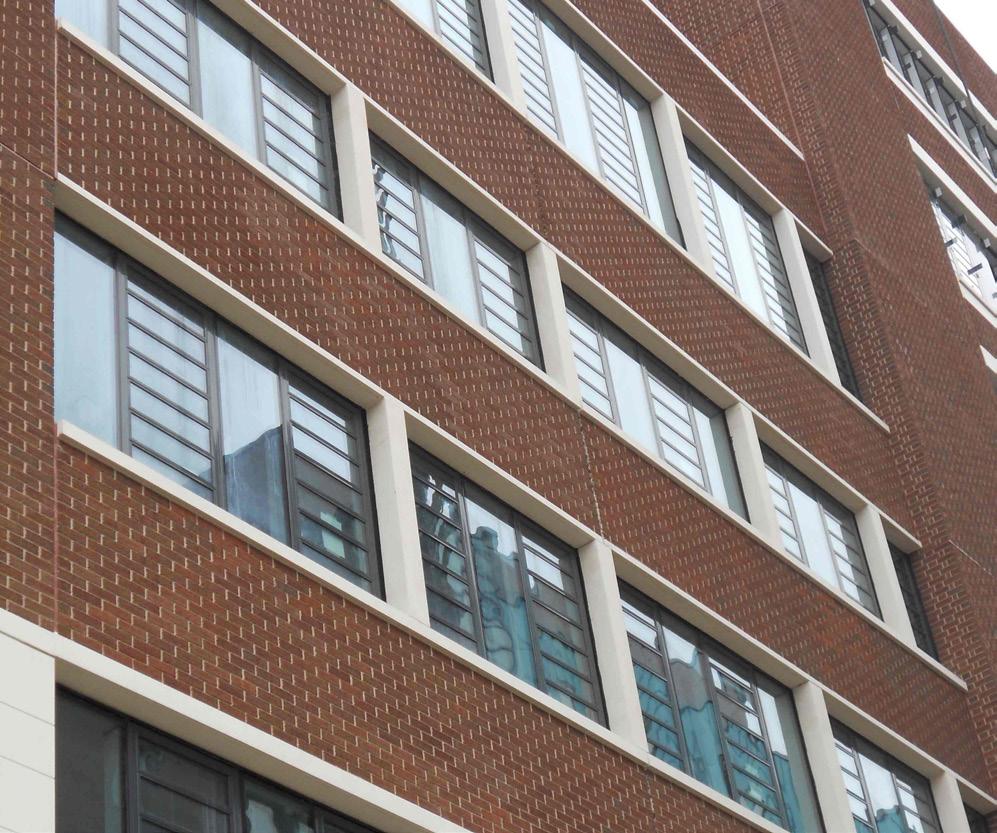

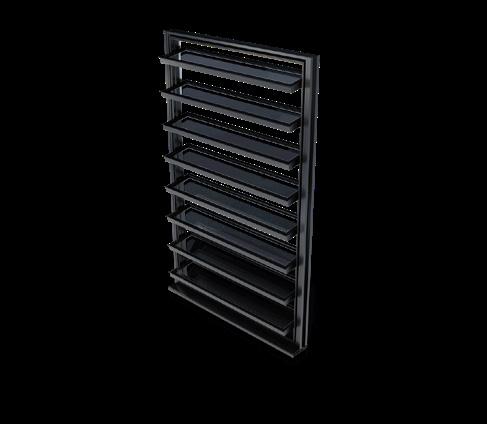

Glass Louvred Smoke Vent (FLB-RG)
Overview
A smoke vent mounted in façades and at the end of corridors. It is designed to exhaust smoke and heat from a building, allowing escape routes to be kept clear of smoke.
Features
– Fully certified to BS EN12101-2
– Available in a wide range of sizes and blade options
– Opens to 85° within 60 seconds
– High resistance to weather and wind load
– When open is not a fall hazard
– Anti-Trapping actuator provides protection from injury
– Consumes minimal energy during operation
Benefits
– Bespoke to your requirements
– 8–11 week lead time
– Dedicated delivery service
System Type
Resources
Technical Data Sheet: Including size chart
Video: Product overview
Video: Service notes

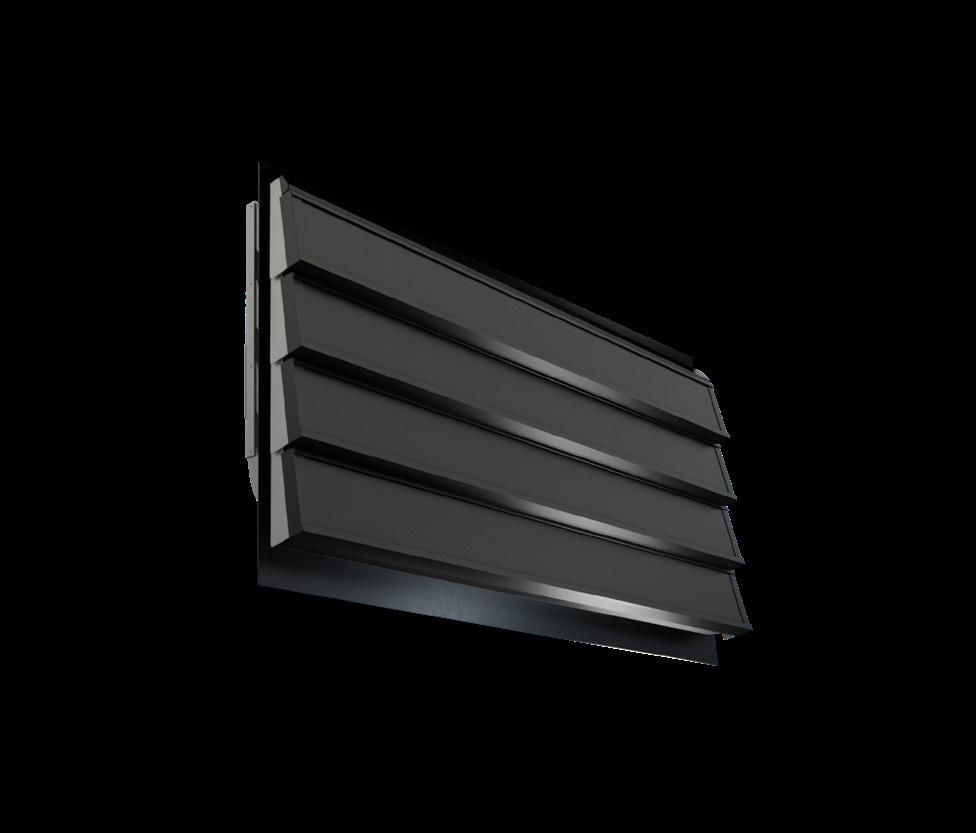

Solid Louvred Smoke Vent (FLB-R)
Overview
A similar smoke vent unit to the roof version (RLB-R); the only difference is that wind deflectors are not required. Largely reserved for commercial applications.
Features
– Certified to BS EN 12101-2
– Available in a wide range of sizes
– Opening angle from 0° to 90°
– Bird or insect mesh available as an optional extra
Resources
Technical Data Sheet: Including size chart
Benefits
– Bespoke to your requirements
– 8–11 week lead time
– Dedicated delivery service

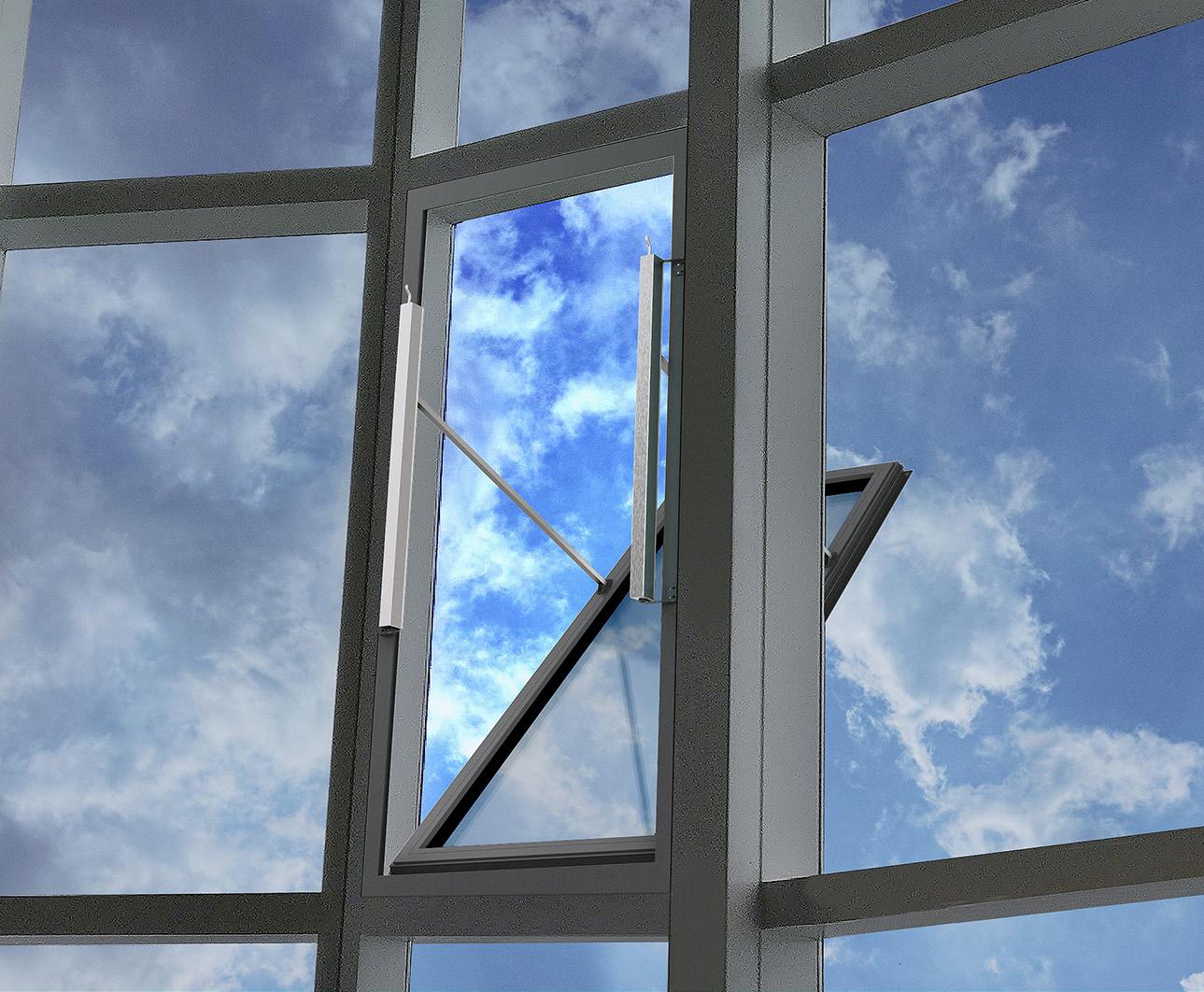

Glass Single Leaf Smoke Vent (FSL-RG)
Overview
A thermally broken natural ventilation window for installation on vertical façades. It is suitable for smoke control and natural day to day ventilation.
Features
– Tested and certified in accordance with EN 12101-2
– The outer frame and flap frame are thermally broken
– Possible glazing from 4 to 32mm
– Various opening systems are available
– Installation/mounting angle of 90°
– Custom dimensions available
– Can be powder-coated to any RAL colour
Benefits
– Bespoke to your requirements
– 8–11 week lead time
– Dedicated delivery service
System
Type
Resources
Technical Data Sheet: Including size chart
Video: Product overview
Video: Service notes
Services
Sertus will make it simple for you! We pride ourselves on offering key services, quickly and efficiently.
Customer Support Manufacture Stock & Service
Our friendly team are responsive to your questions, your business needs, and always answer the phone!
You can reach us via:
Phone: 01483 269999
Email: hello@sertus.uk
Live Chat: sertus.uk
We have the best range of fully tested and certified smoke ventilation products.

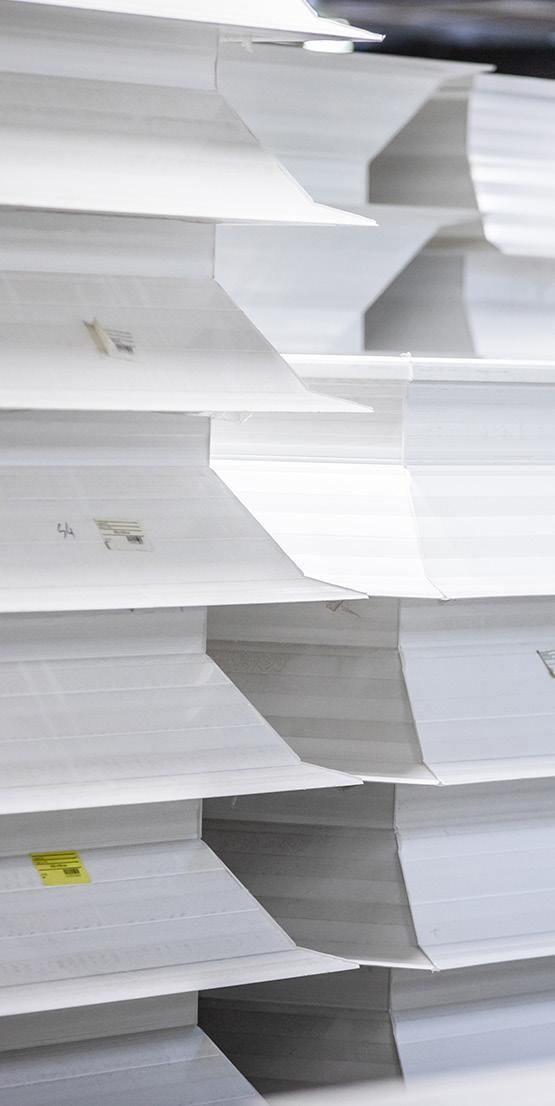

We manufacture all of our own products and assemble them in our factory, pre-wired, pre-tested and ready for site commissioning.
We have high and predictable availability from stock, plus a dedicated delivery service.
You get what you need when you need it, carefully delivered so no delays on site.
Case Studies
Sertus provide products for a diverse range of projects including residential, student accommodation, hotels and commercial buildings.
Scan to see more case studies on our website.
LIV Sheffield
The products we supplied:
Roof Single Leaf
Page 08
Sertus Pod Original Page 18
Smoke Control Damper
Page 23
About this project
Sertus were commissioned to provide mechanical smoke ventilation products for university accommodation.
Project Name LIV Sheffield
Sector
Student Accommodation
Initial brief
Location Sheffield
Client Valeo Management
Sertus were approached to work closely with key stakeholders on the project and deliver smoke ventilation products that answered all the technical specifications.
Outcome
Sertus products were fully commissioned in May 2020, providing the corridors with both environmental and smoke ventilation ready for the fresh intake of students.

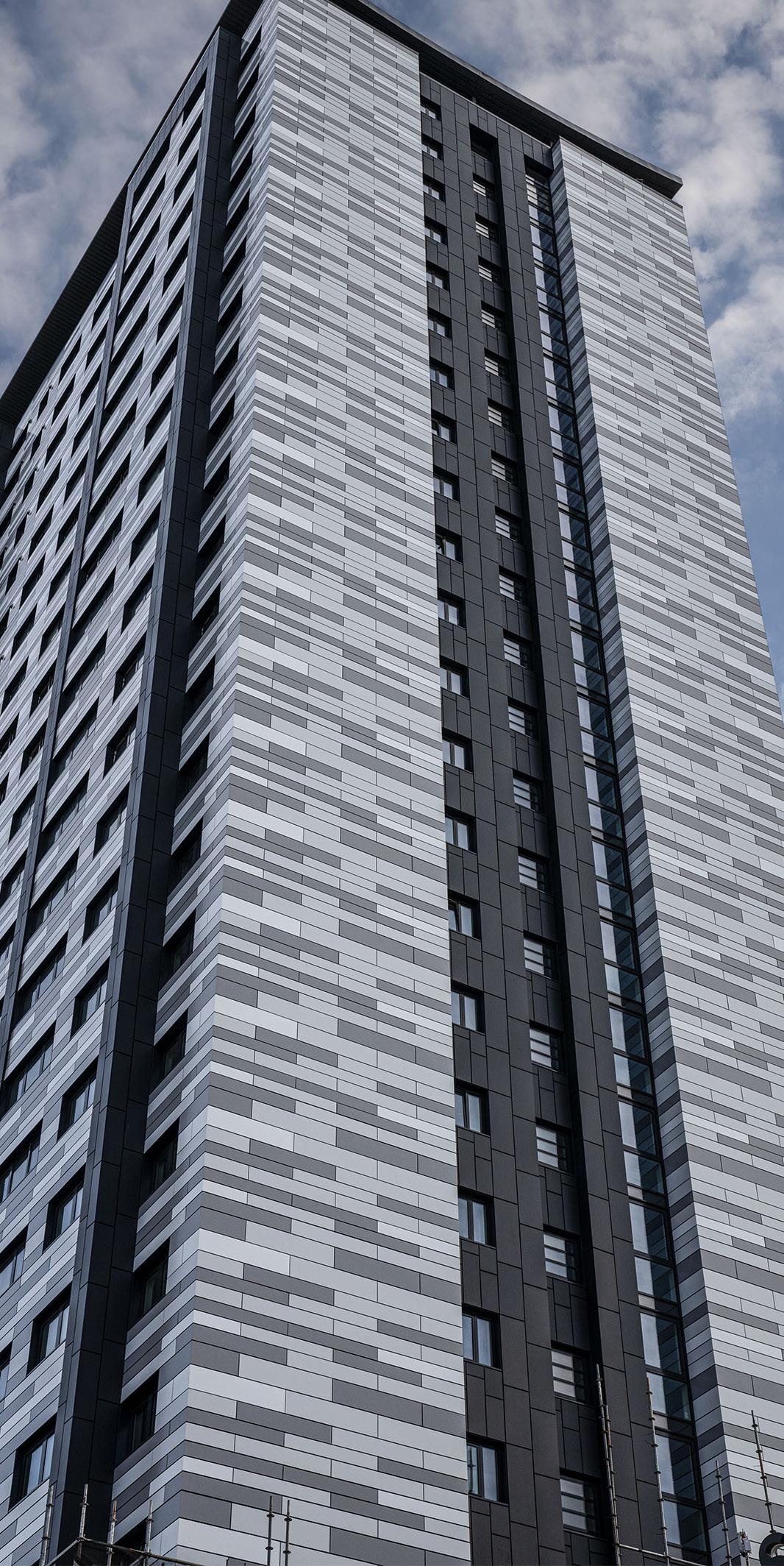

Station Quarter
The products we supplied:
About this project
Sertus worked with Gallico Systems to supply roof vents, smoke control dampers and a mechanical extract Pod.
Project Name Station Quarter
Sector Residential (New Build)
Initial brief
Location Northamptonshire
Client Gallico Systems
As providers of tested and certified smoke ventilation equipment, Sertus were approached to deliver smoke ventilation products of the highest quality to Station Quarter.
Outcome
Gallico Systems had the following to say about working with Sertus:
“ The dampers are good value for their level of performance and specification. Simple and straightforward with great support. ”

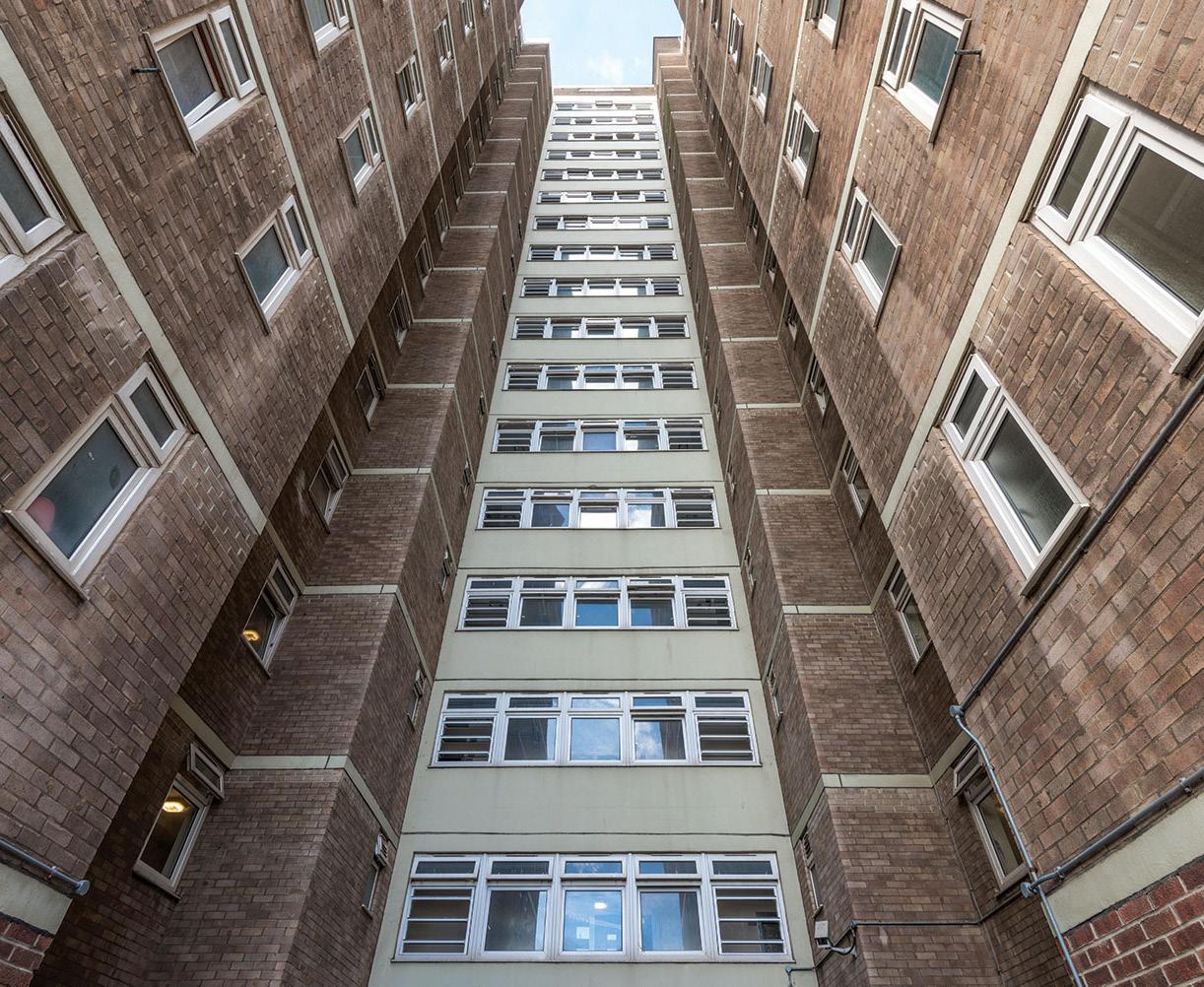

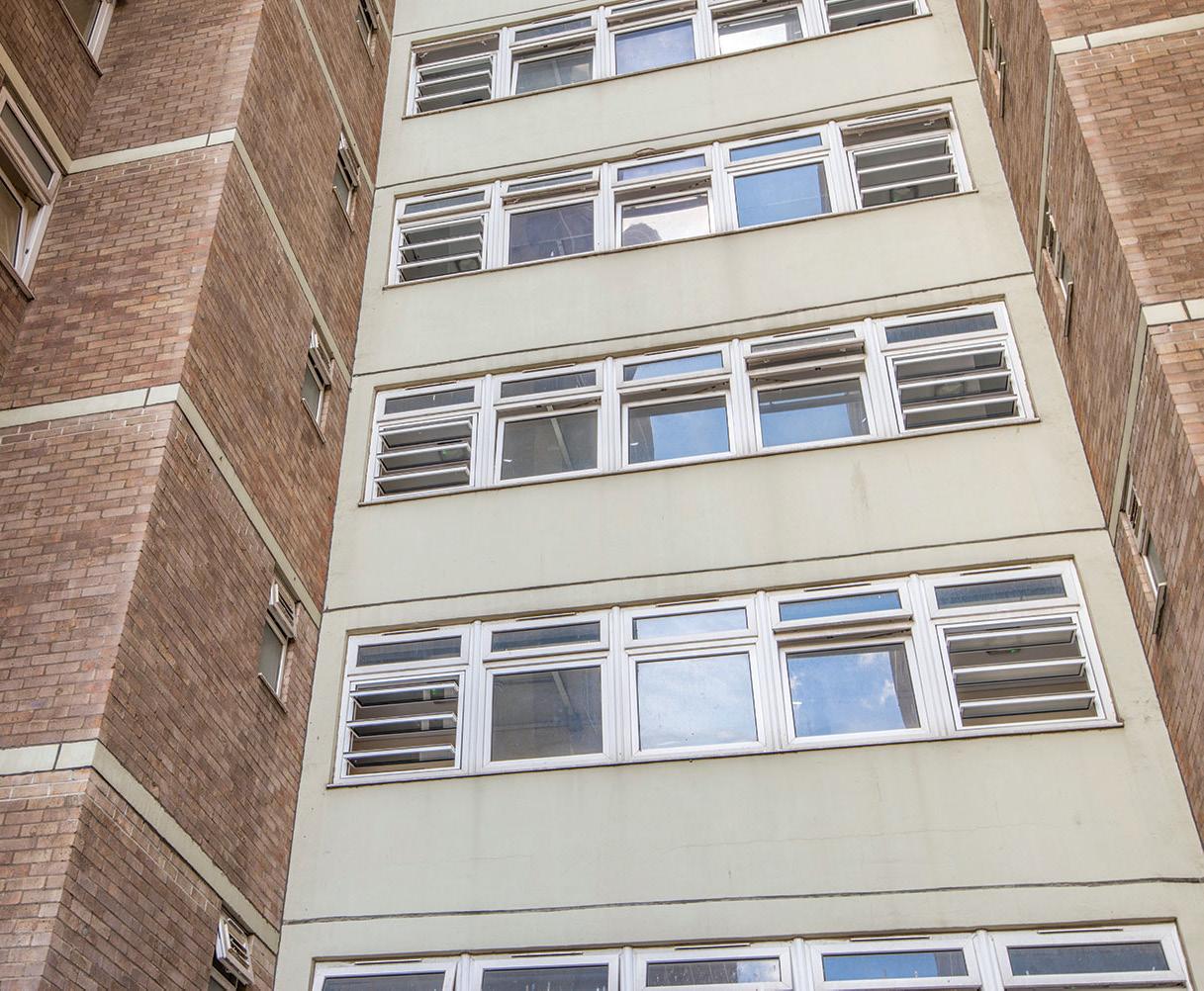

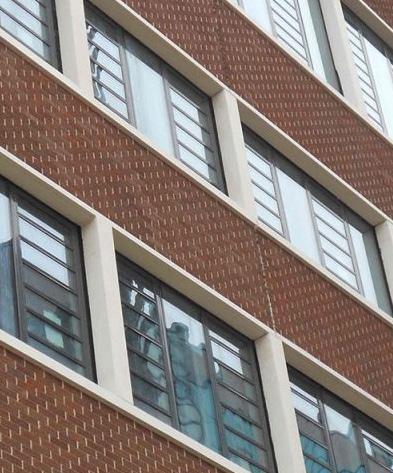

Dagenham Flats
The products we supplied:
Façade Louvre Blade Page 29
About this project
Sertus were approached to supply automatic smoke ventilation products for all seven blocks.
Project Name Dagenham Flats
Sector
Residential (Refurbishment)
Initial brief
Location
East London
Client
London Borough of Barking & Dagenham
The refurbishment of all seven apartment blocks within a 1970s building, where the existing ventilation was identified as less than optimal. Occupied by demographically-diverse residents, including families and the elderly, the requirement for safe escape routes in the event of a fire was clear.
Outcome
The addition of Sertus façade windows improved overall quality of life in the building by introducing more natural light, increasing ventilation, and reducing energy costs.
Testimonials
See what some of our happy customers have to say about us!
Sertus has always been our trusted partner, providing state-of-the-art solutions that ensure optimal safety and ventilation.
Sertus provide good support and a pro-active attitude throughout the entire process from initial enquiry to delivery on site.
When it comes to quality, reliability, and exceptional customer service, Sertus is the name you can trust. Our project is in excellent hands, and we’re excited to see these dampers in action!
Always great feedback for the Sertus team and no project is too big or small.
Useful Resources
If there’s something to know about smoke ventilation, it’ll be in our resources centre or on our YouTube channel.
How to Contact Us
hello@sertus.uk
01483 269999 www.sertus.uk
Mon–Fri | 07:30–16:30 Mon–Fri | 07:30–16:30 Mon–Fri | 07:30–16:30 Mon–Fri | 07:30–16:30
Europa House, Alfold Road, Cranleigh, Surrey, GU6 8NQ
hello@sertus.uk | 01483 269999 | www.sertus.uk
