The Intersection| Spring 2022| L. Carr Tortuga Ranch, Tucson, Arizona
The concept of this project is to foster connectivity among three generations of the tribe by establishing a space where they can engage with one another while partaking in a variety of indoor and outdoor activities. The Yoeme tribe seeks a venue that facilitates intergenerational interaction, enabling the elders to impart their wisdom, beliefs, rituals, artistic expressions, and the vibrant cultural heritage of the tribe to the succeeding generations.
PATTERENED BRICK WALL
Patterned Wall
To provide privacy for elder housing while doesn’t blok and isolate it from the life skill center

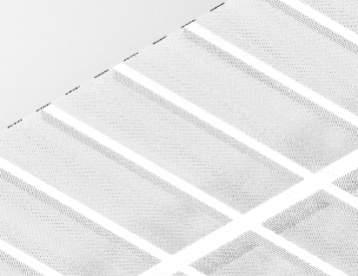

Polycarbonate Shading

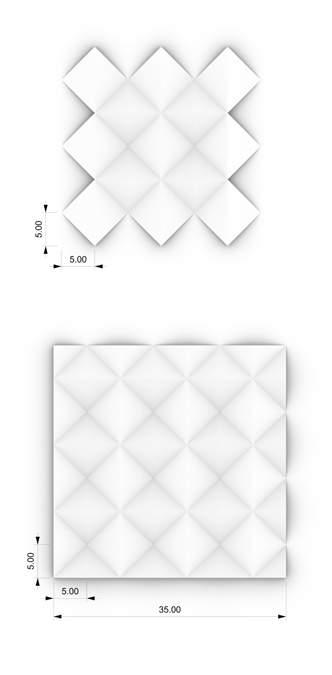

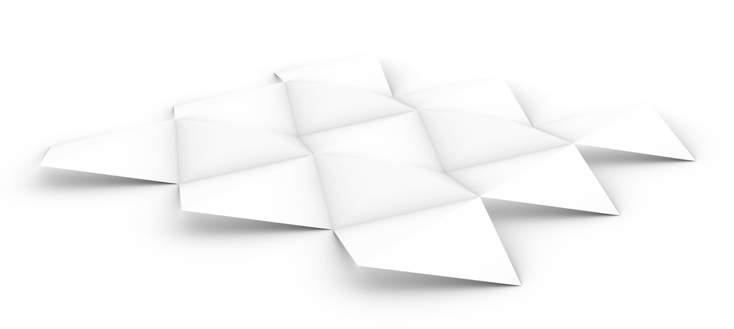

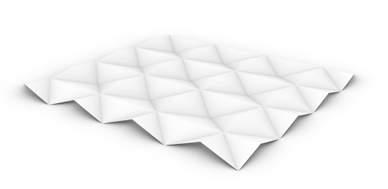

Ramada Patterned Shading
To provide shading for the courtyard while allows for the south facade to benefit from the light.

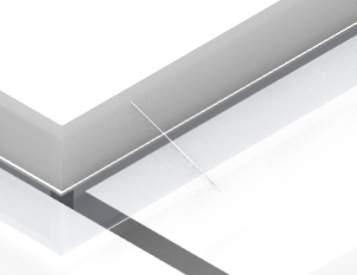

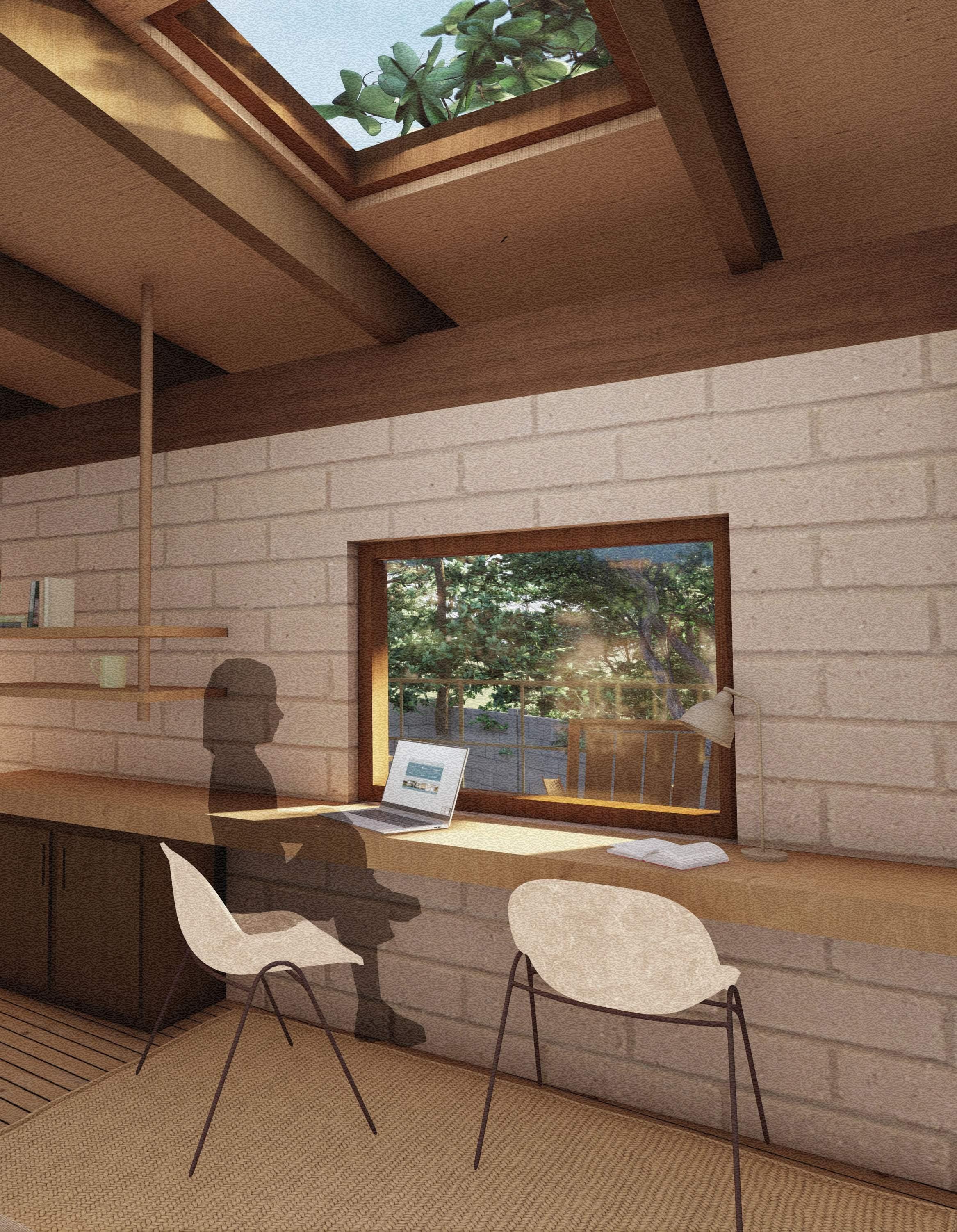

Skylight for Classrooms

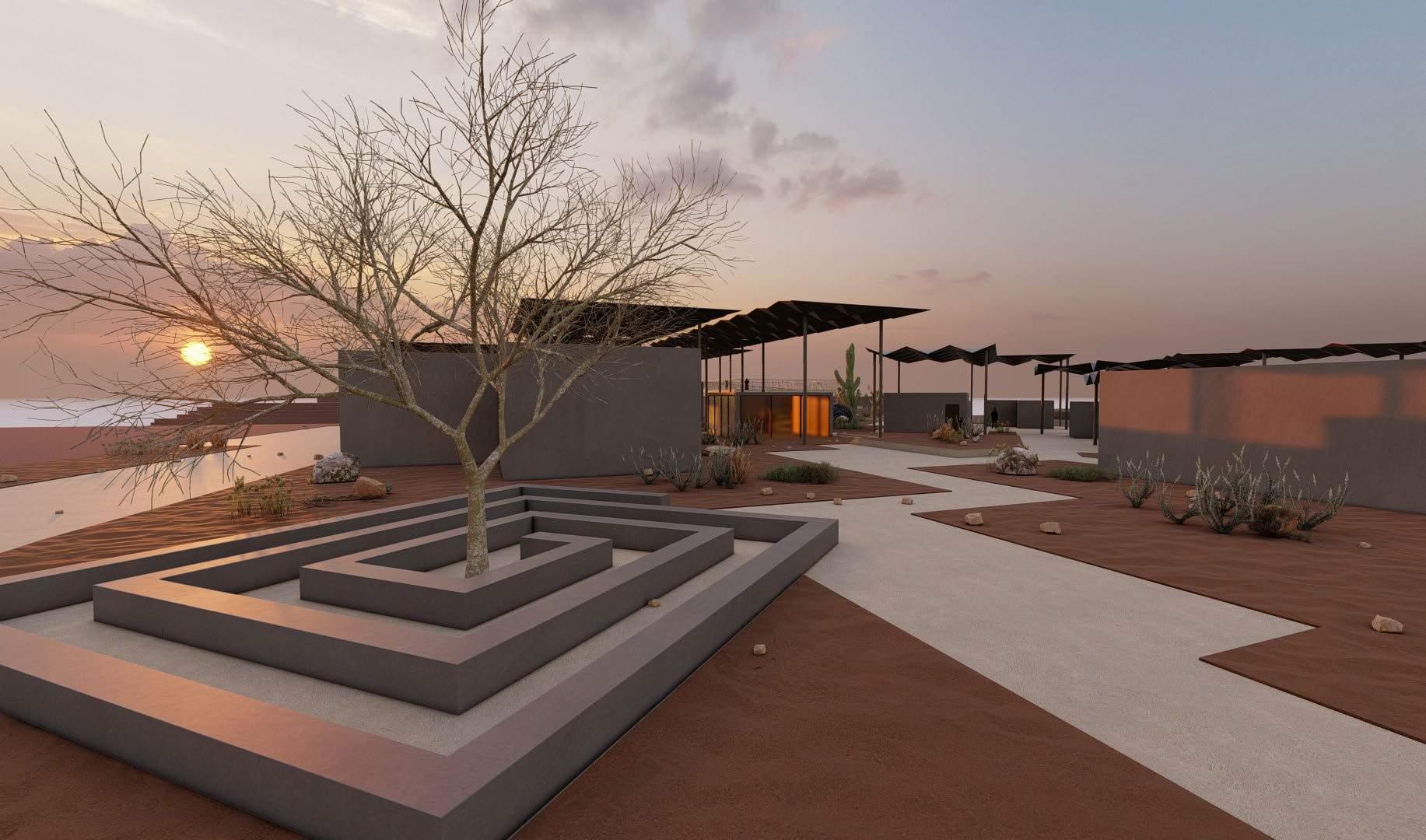

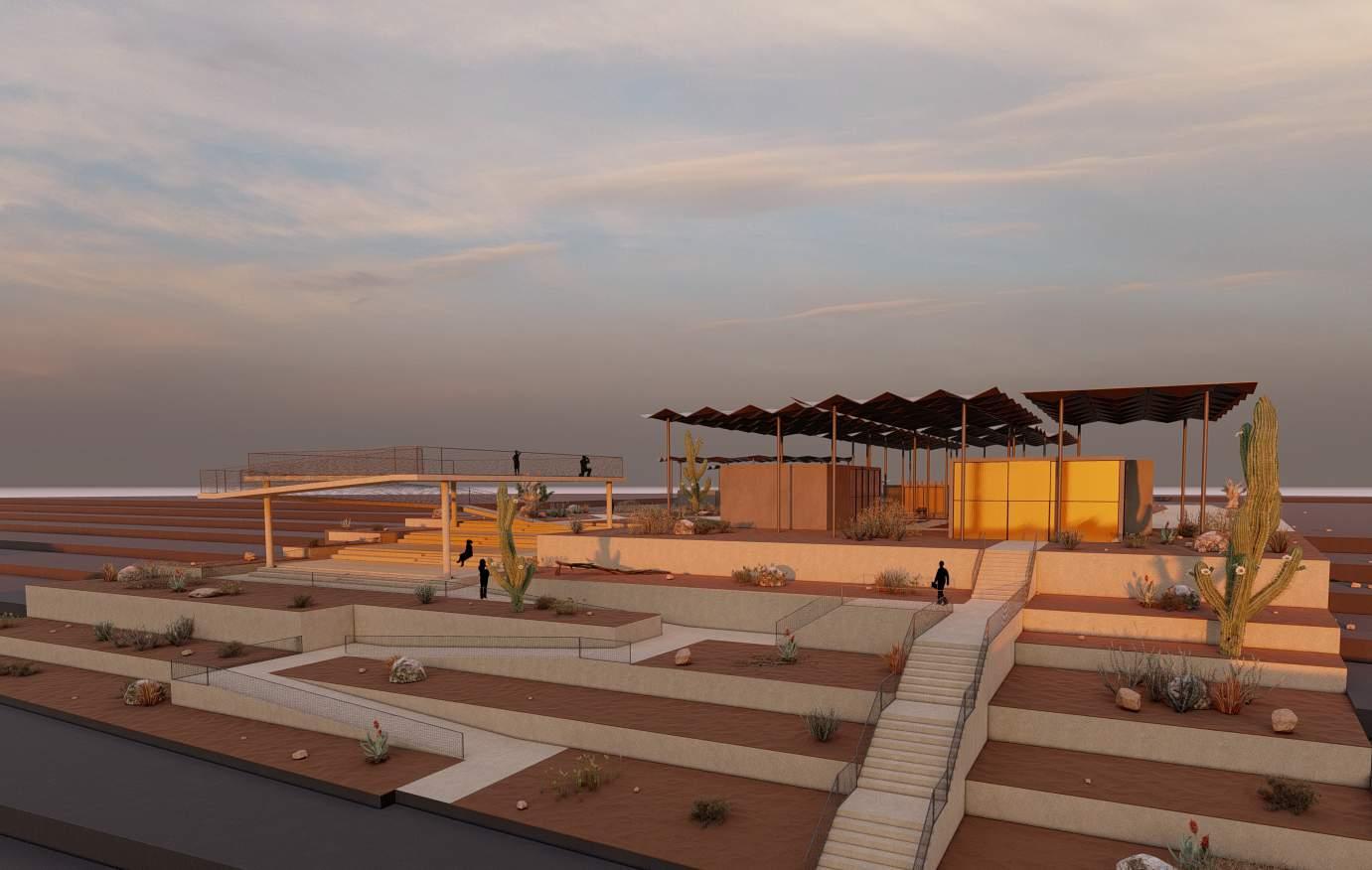

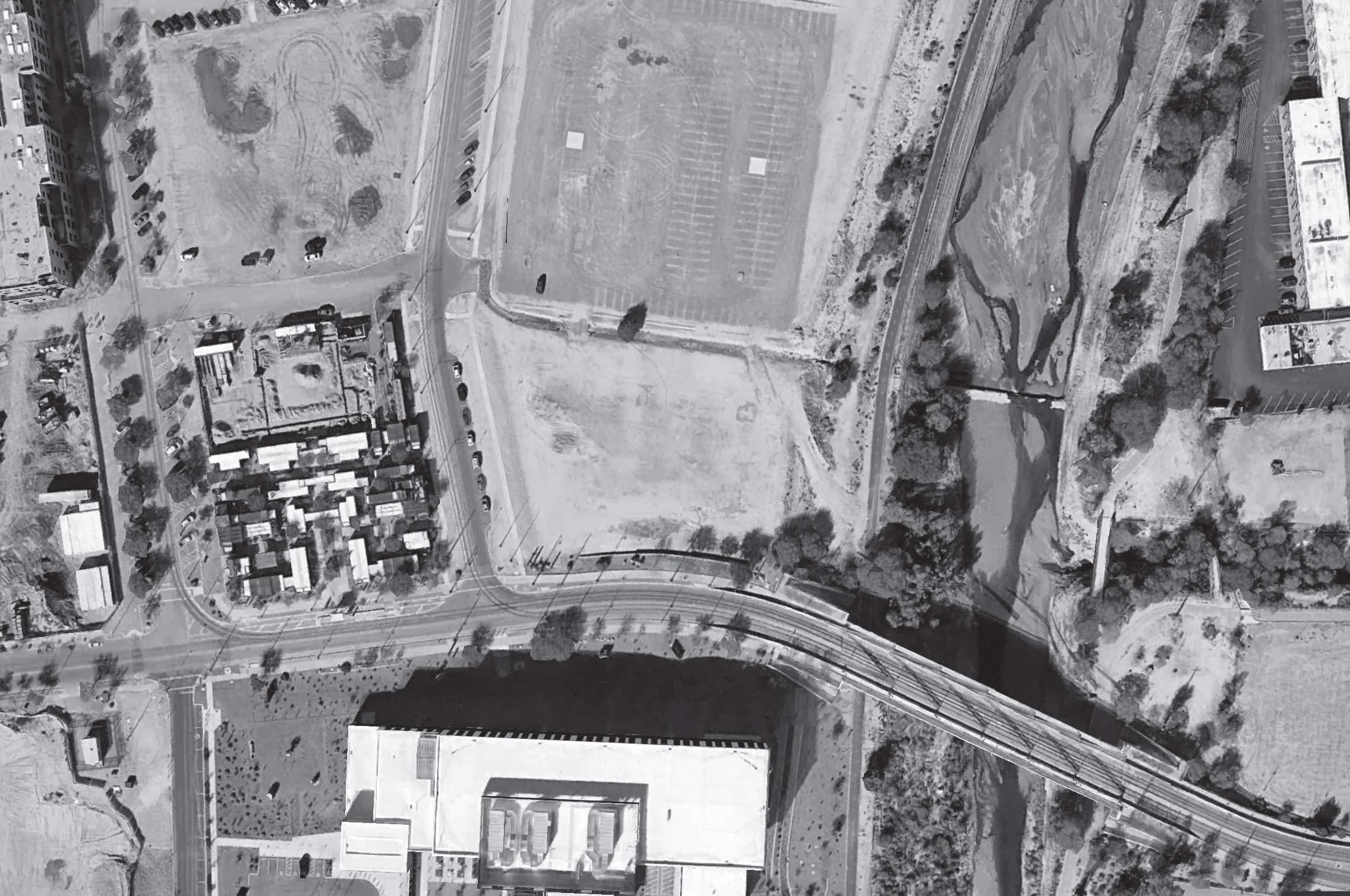

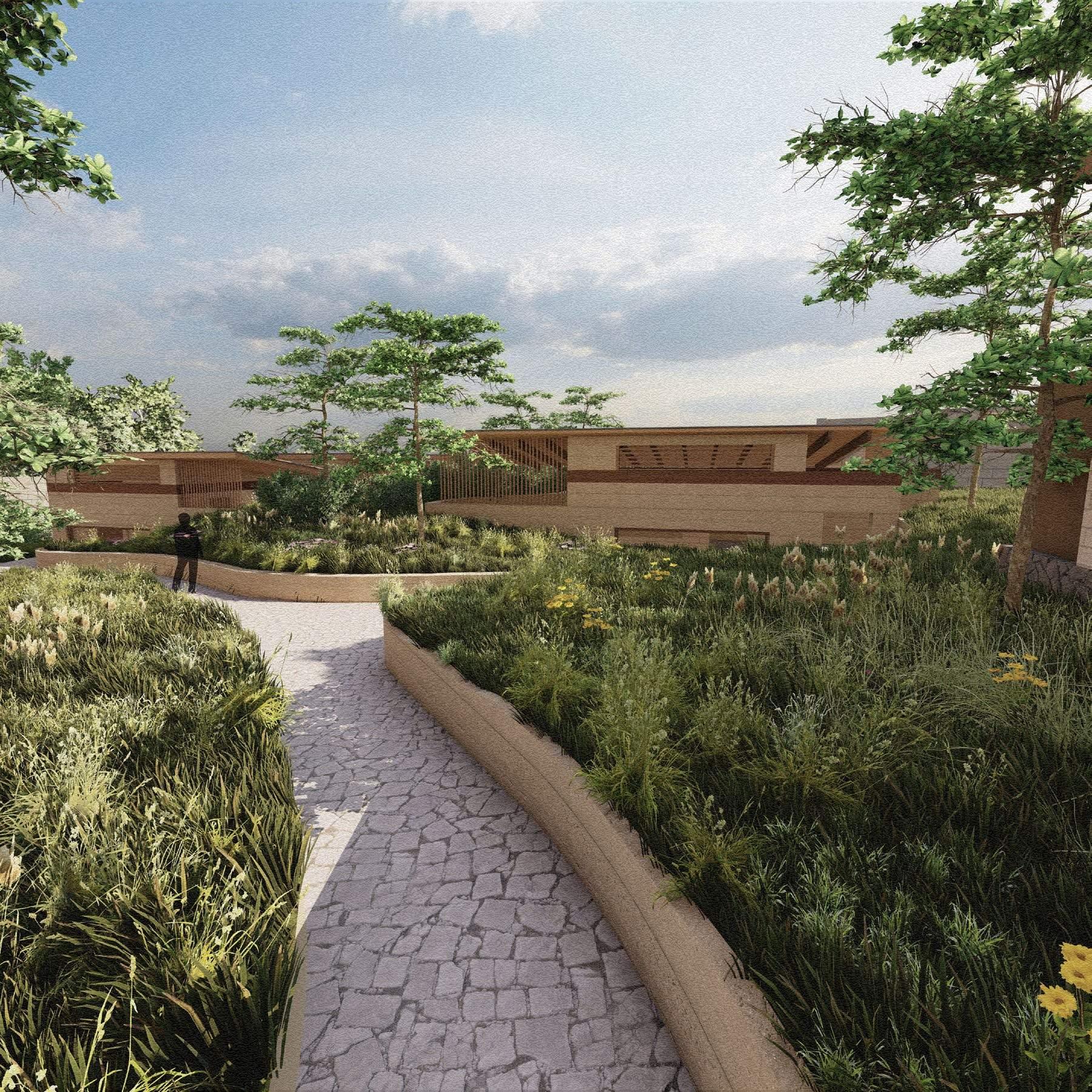

The project features a landscape design that incorporates two distinct entrances. The primary entrance leads from the parking lot to the Life Skill Center, serving as the main point of access. The secondary entrance consists of a narrower road, providing entry to the maintenance building and elder housing. These areas are considered more private spaces within the site, primarily utilized by a limited number of individuals and staff.
Furthermore, the Life Skill Center, the main building of the project, includes an additional pedestrian entrance that connects it to the playground situated on the opposite side of the road.
LIFE SKILL CENTER NO OF STORIES= 1 HEIGHT= 18' AREA= 6946 SF F.F.E.= 0
INSTRUCTORS
SECONDARY ENTRY SECONDARY ENTRY

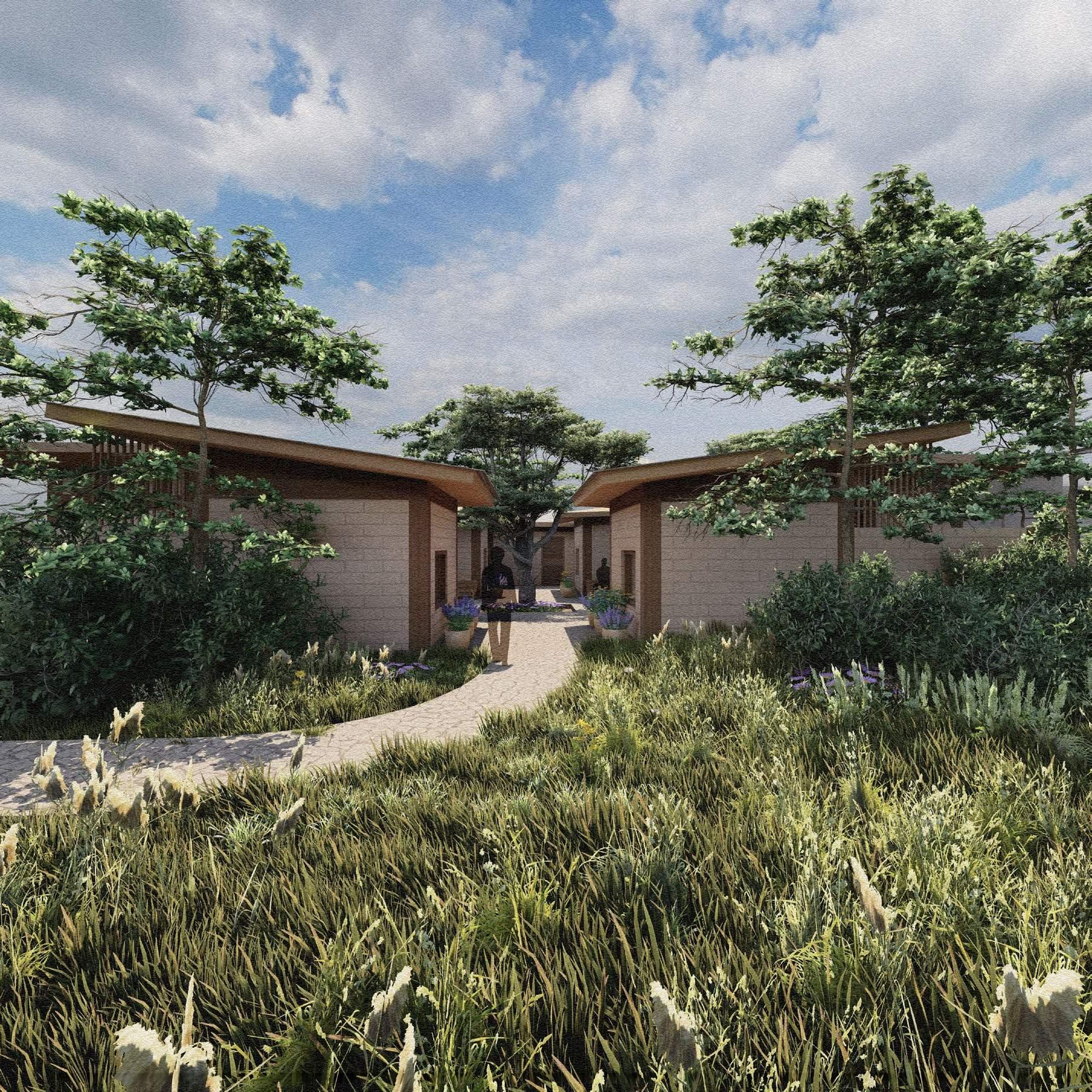

ELDER HOUSING NO OF STORIES= 1 HEIGHT= 10' AREA= 846 SF F.F.E.= 0 MAIN ENTRY COURTYARD AREA= 9540 SF
ELDER HOUSING NO OF STORIES= 1 HEIGHT= 10' AREA= 1610 SF F.F.E.= 0
MAINTENANCE NO OF STORIES= 1 HEIGHT= 14' AREA= 508 SF F.F.E.= 0
AREA= 677 SF

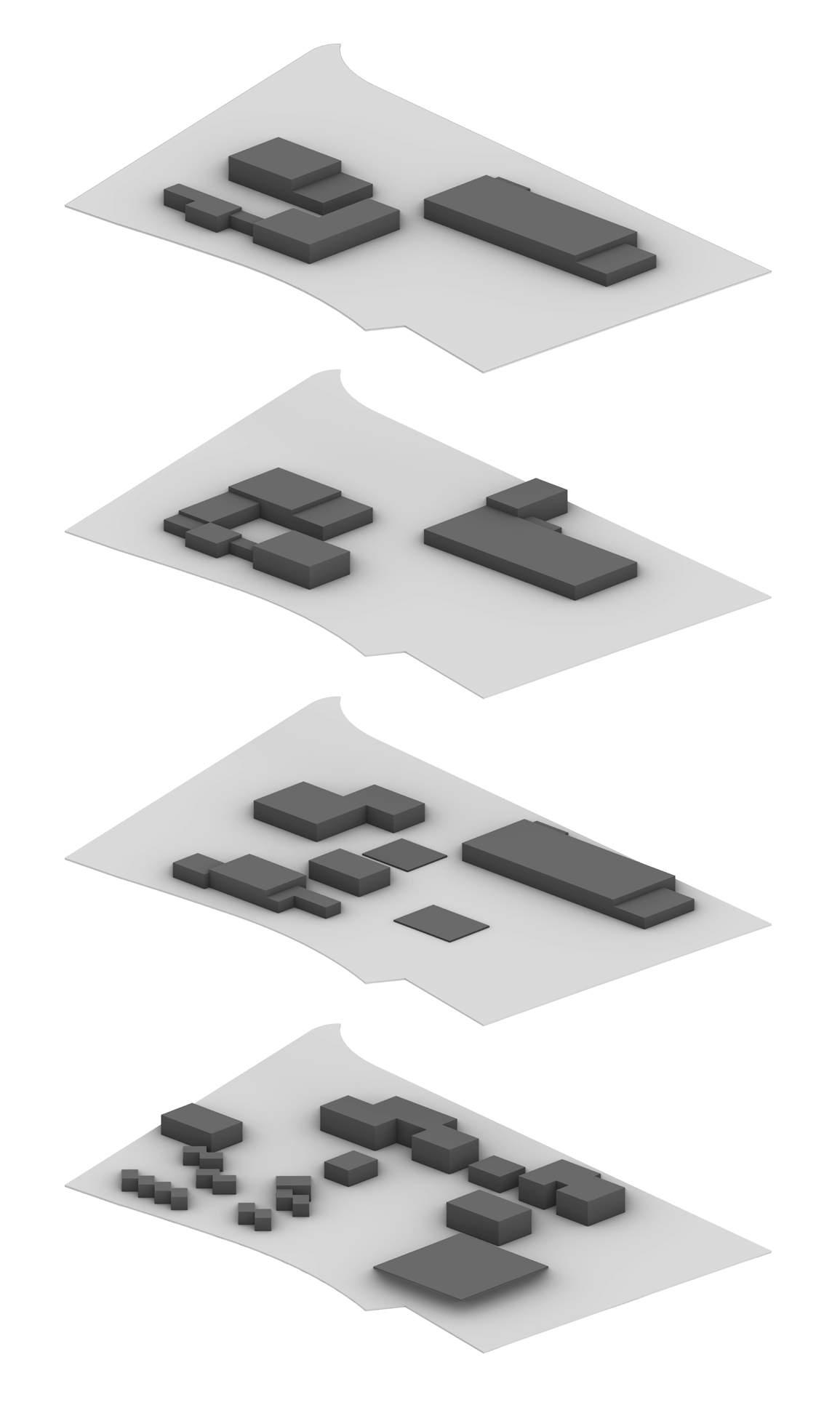

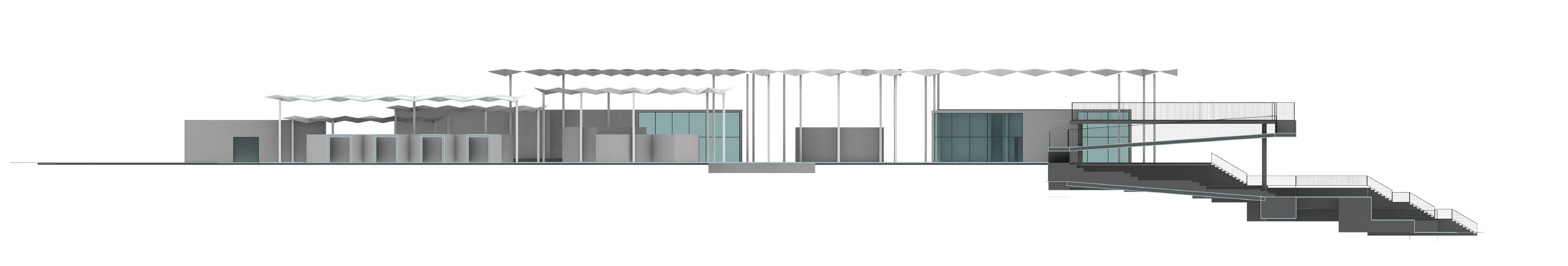

The building is oriented east-west in a rectangular form to allow for maximum use of light in the south and north facades. The window on the east side of the building is located on top of the building and the lower-level window is omitted to avoid the entrance of early morning undesirable lights.

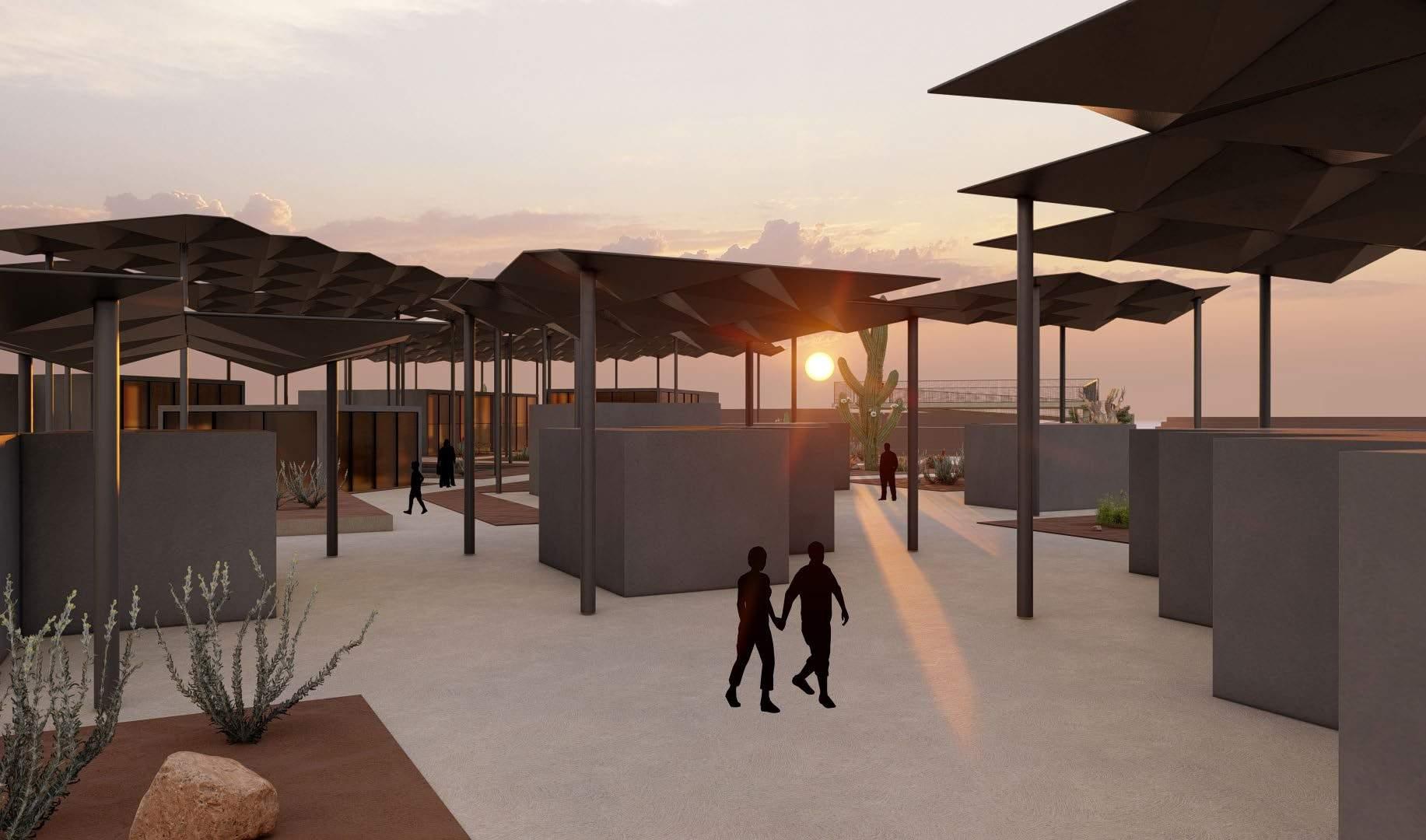

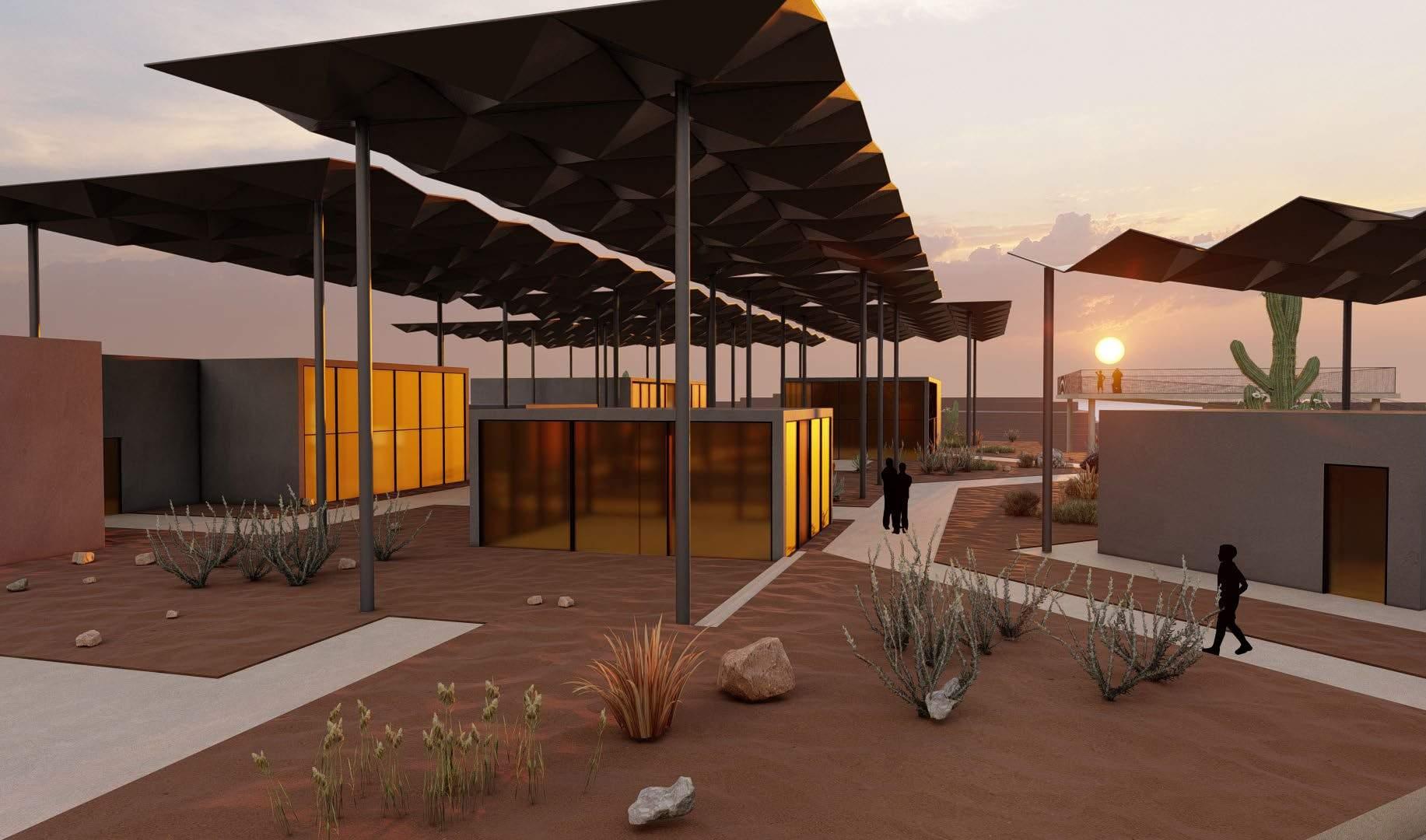

The patterned design of the ramada structure serves a dual purpose: it provides ample shading while also facilitating the upward movement of heat, preventing it from being trapped underneath (utilizing the Stack Effect).

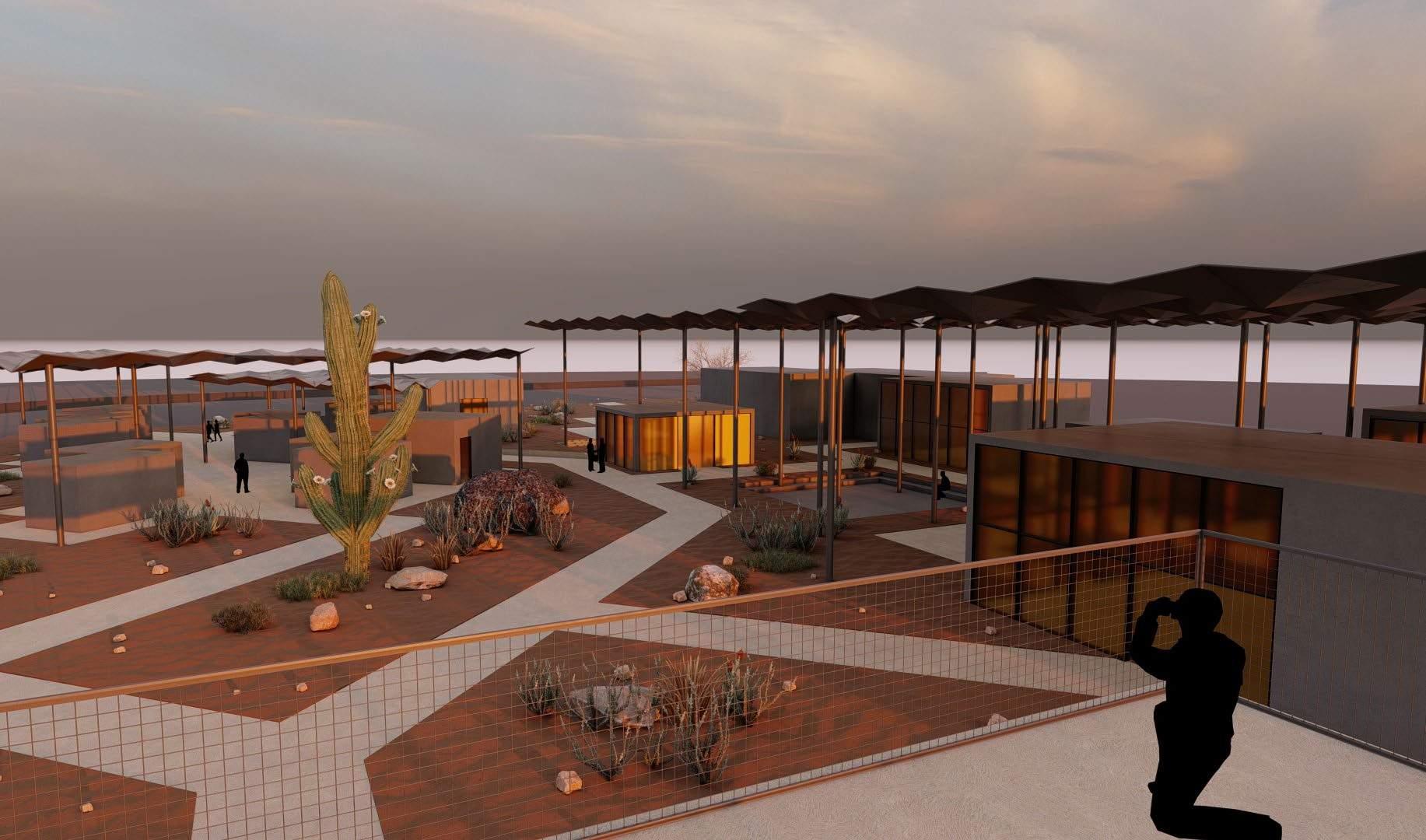

The shaded space beneath the ramada offers a versatile and inclusive environment where various individuals can engage and interact with one another. This area is adaptable to accommodate a wide range of activities and can even serve as a venue for ceremonies.

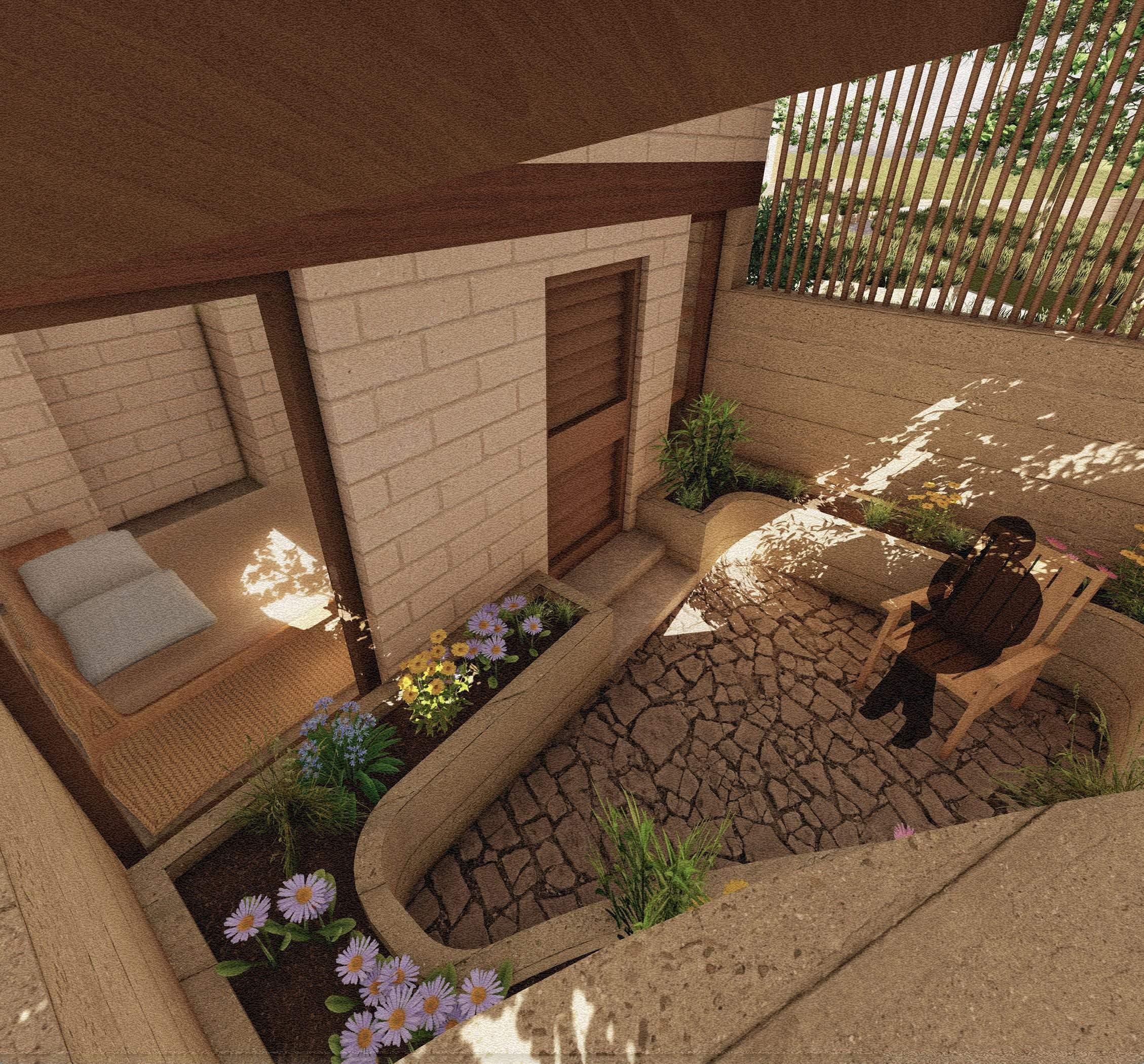

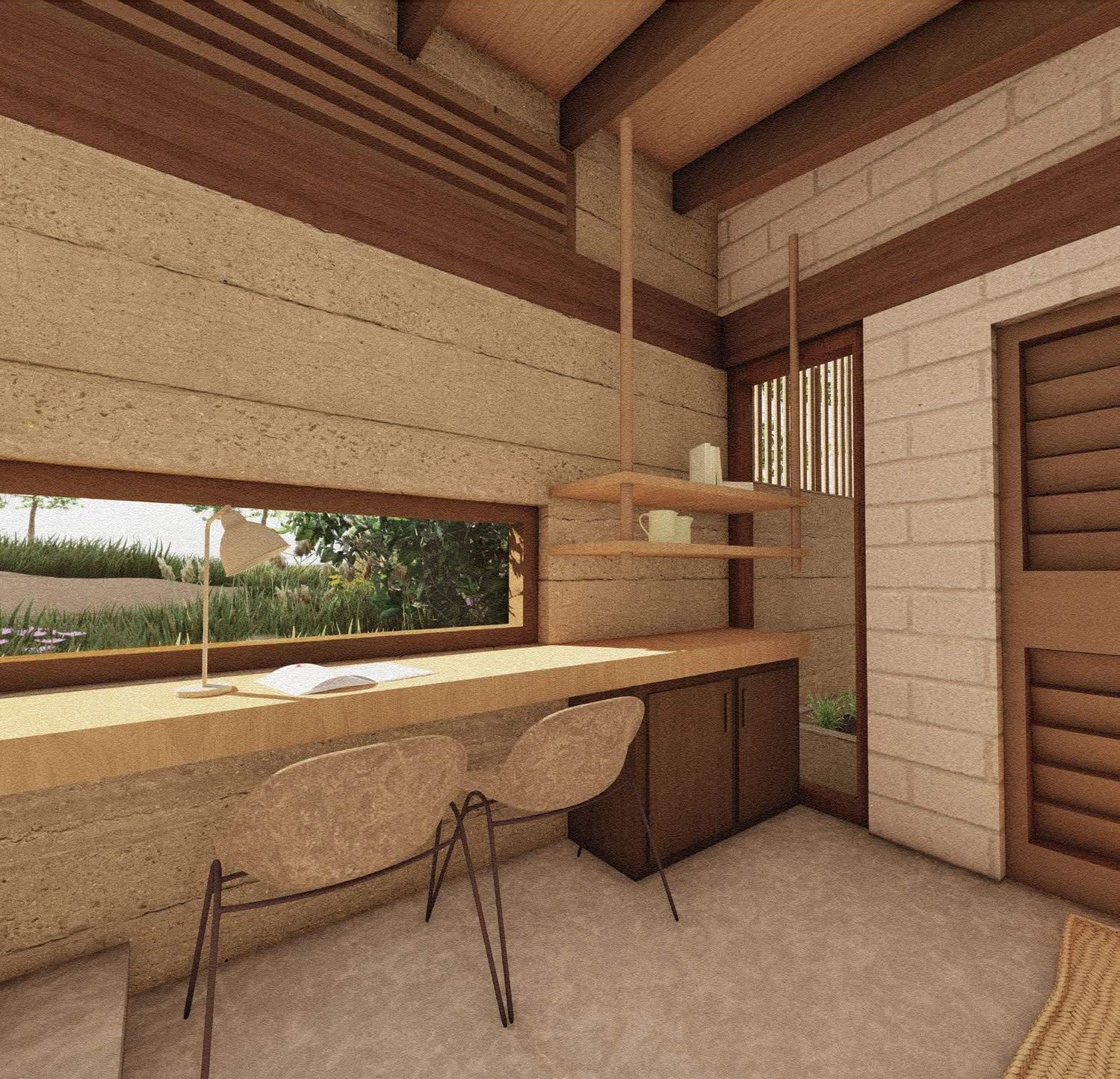

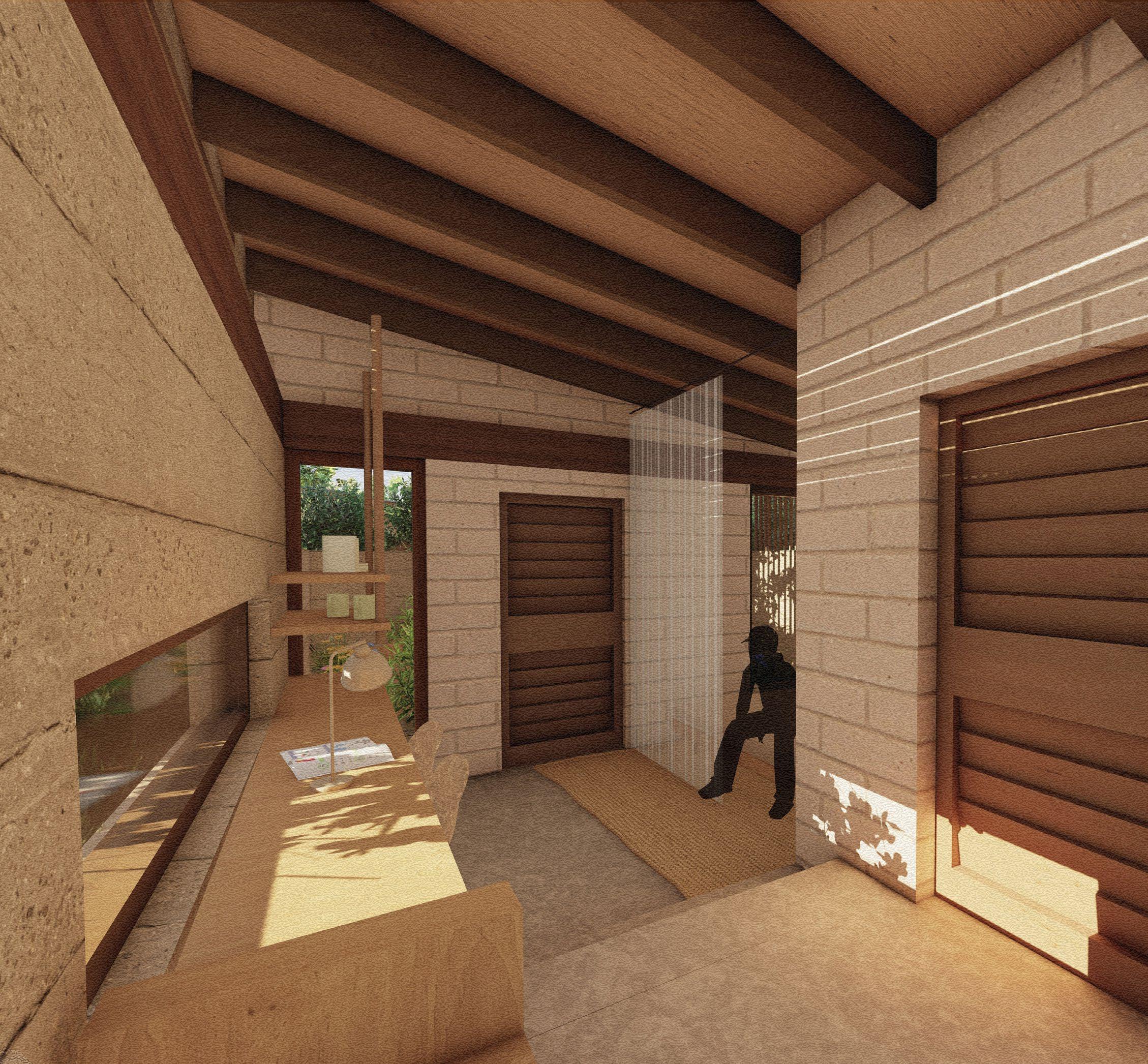

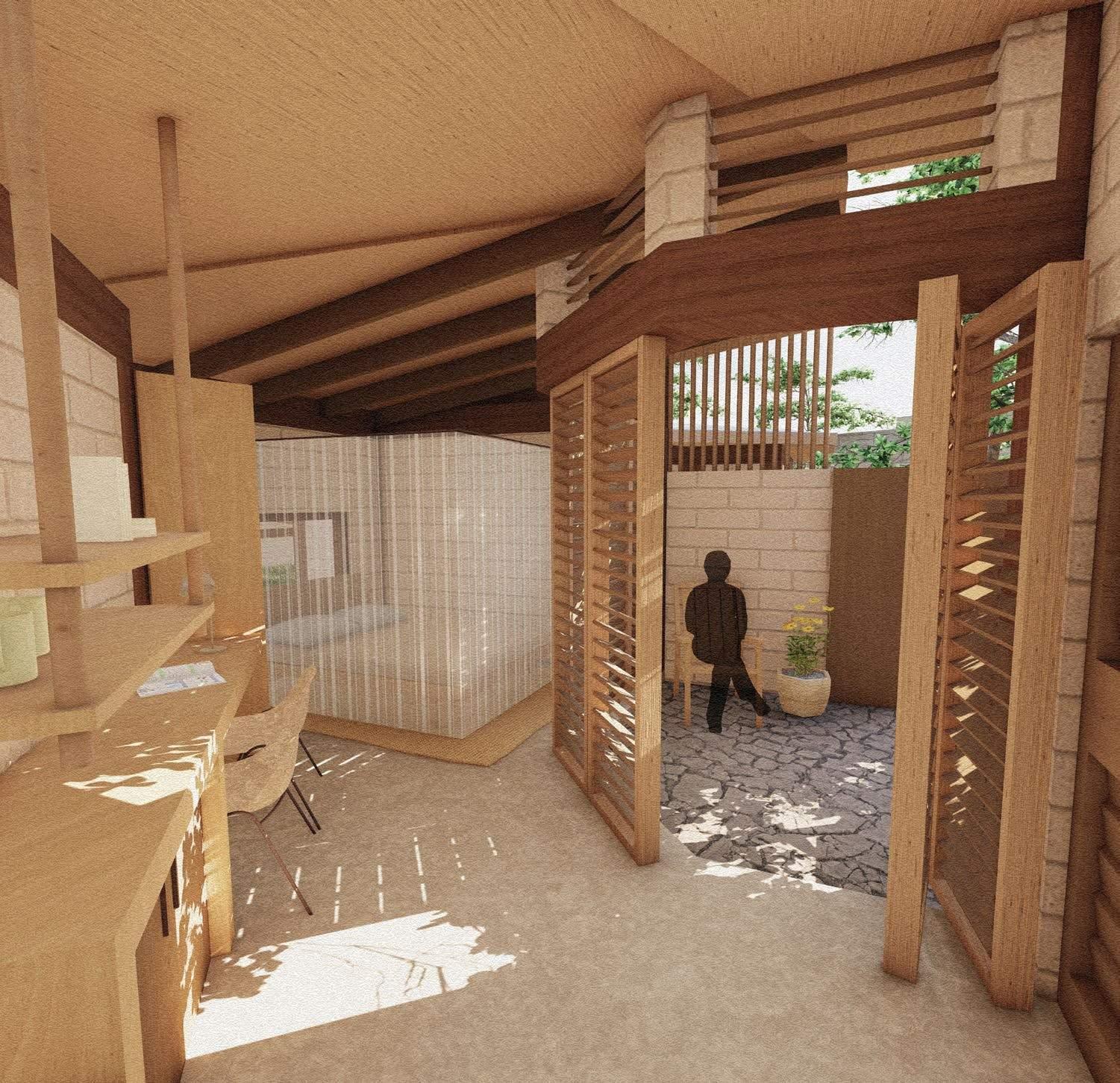

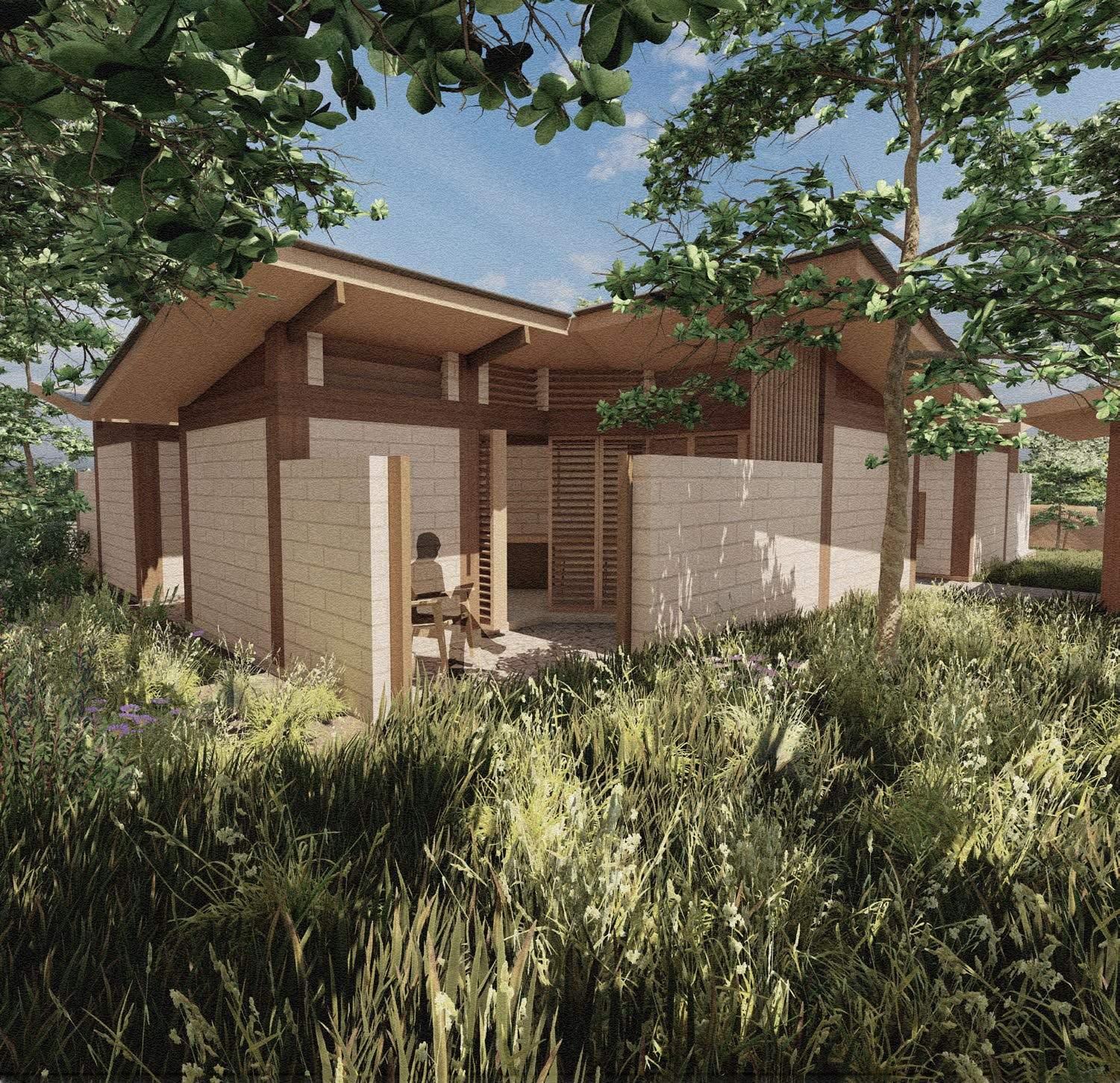

The Elder Housing is constructed using adobe, a traditional material known for its thermal mass properties, making it an ideal choice for the arid climate of the site. On the other hand, the Life Skill Center features a smooth white plaster finish.

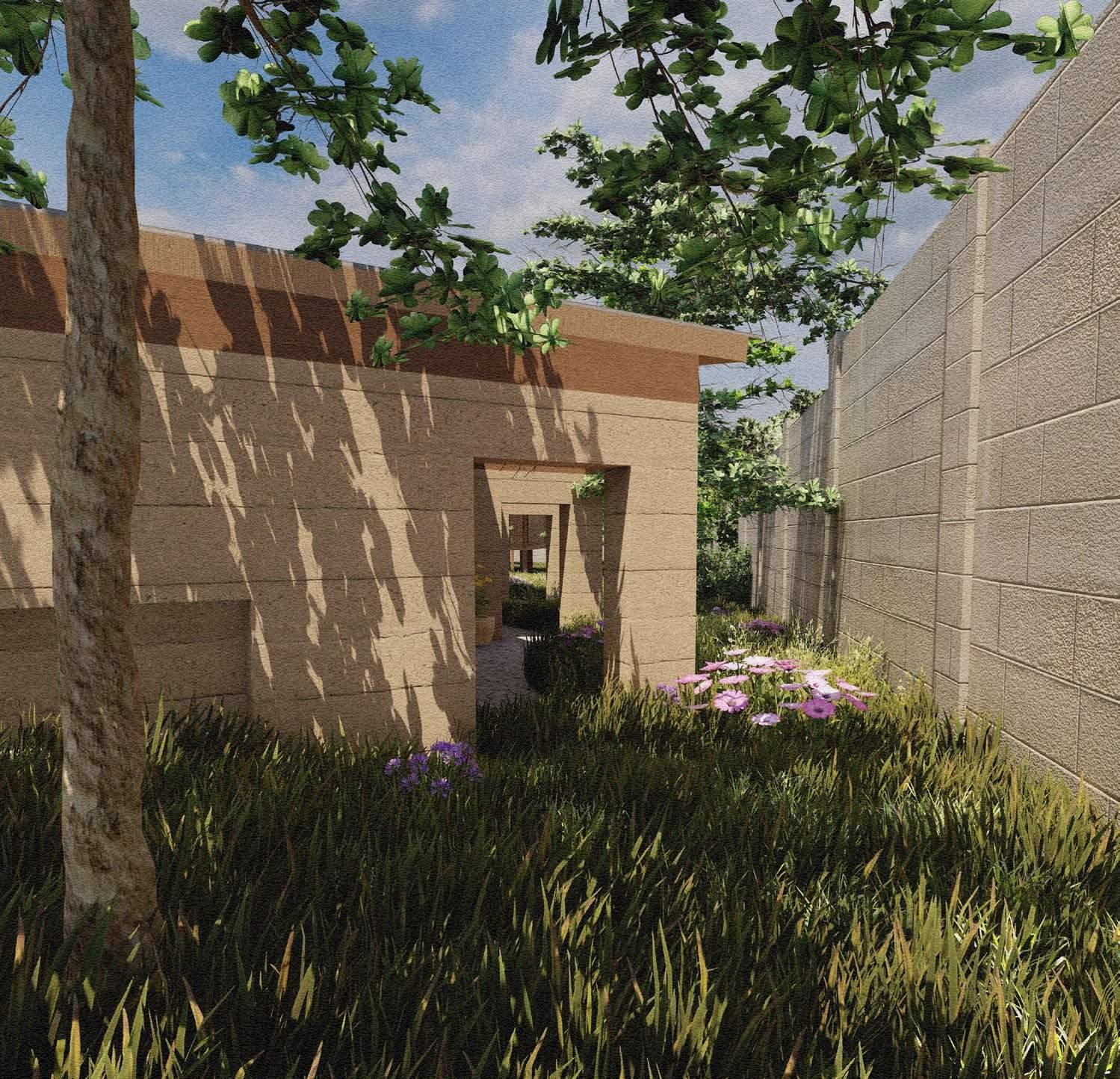

A decorative wall with a pattern serves as a partition between the Elder Housing and the Life Skill Center. This patterned wall not only ensures privacy for the residents of the Elder Housing but also maintains a connection between them and their surroundings, preventing a complete disconnection.

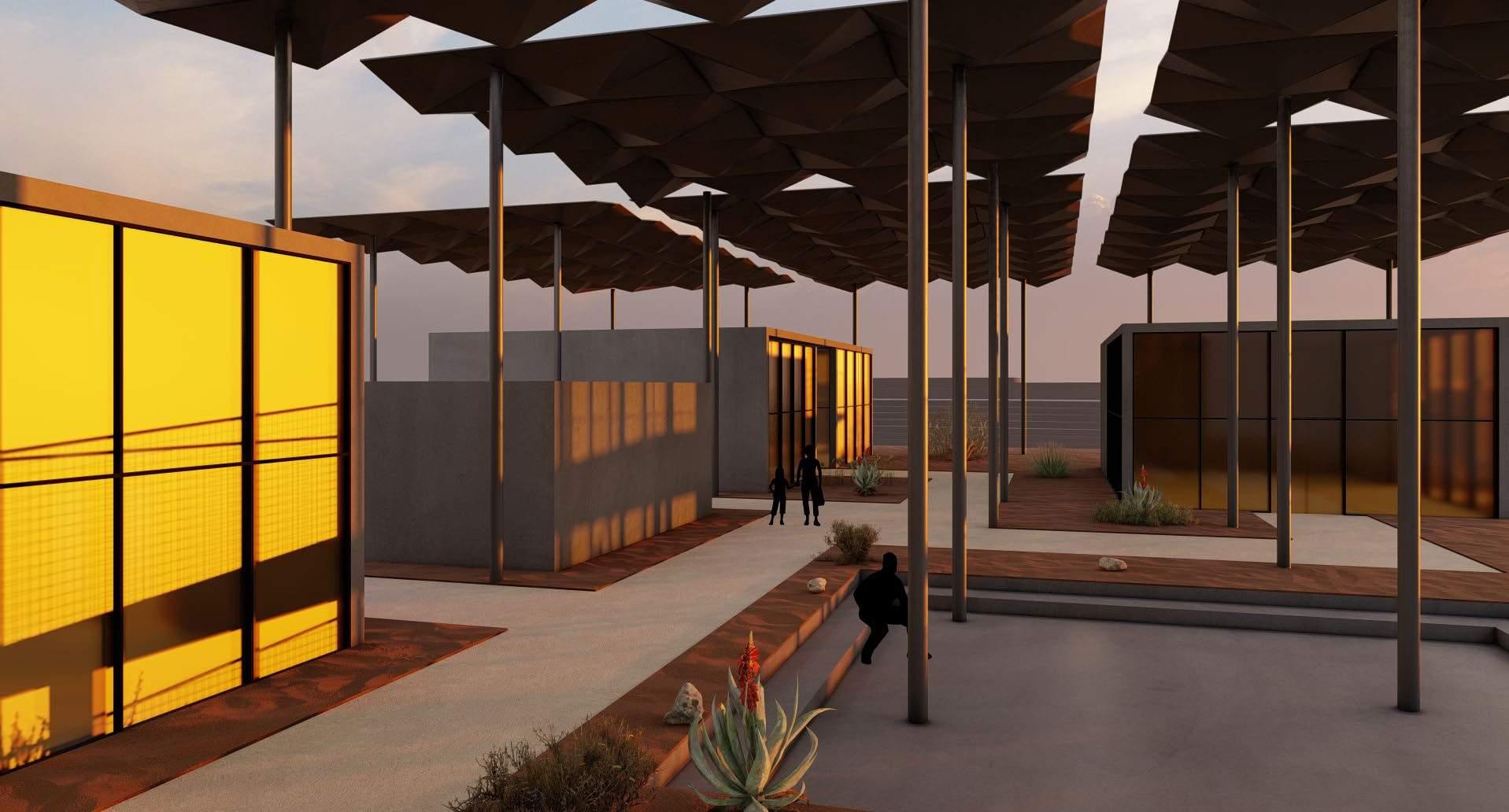

To prevent the common issue of hot air getting trapped underneath the shading structure on the south sides of the building, a deliberate gap has been incorporated between the polycarbonate shading structure and the building itself. This gap facilitates the upward flow of hot air, ensuring that it is not confined beneath the shading and allowing for improved ventilation.
