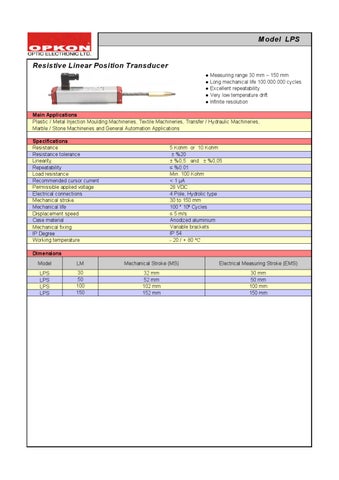

M odel LPS Resistive Linear Position Transducer ● Measuring range 30 mm – 150 mm ● Long mechanical life 100.000.000 cycles ● Excellent repeatability ● Very low temperature drift ● Infinite resolution Main Applications Plastic / Metal Injection Moulding Machineries, Textile Machineries, Transfer / Hydraulic Machineries, Marble / Stone Machineries and General Automation Applications Specifications Resistance Resistance tolerance Linearity Repeatability Load resistance Recommended cursor current Permissible applied voltage Electrical connections Mechanical stroke Mechanical life Displacement speed Case material Mechanical fixing IP Degree Working temperature
5 Kohm or 10 Kohm ± %20 ± %0,5 and ± %0,05 ≤ %0.01 Min. 100 Kohm < 1 µA 28 VDC 4 Pole, Hydrolic type 30 to 150 mm 100 * 106 Cycles ≤ 5 m/s Anodized aluminium Variable brackets IP 54 - 20 / + 80 °C
Dimensions Model
LM
Mechanical Stroke (MS)
Electrical Measuring Stroke (EMS)
LPS LPS LPS LPS
30 50 100 150
32 mm 52 mm 102 mm 152 mm
30 mm 50 mm 100 mm 150 mm
