Pressure, Level & Temperature Transmitters & Transducers

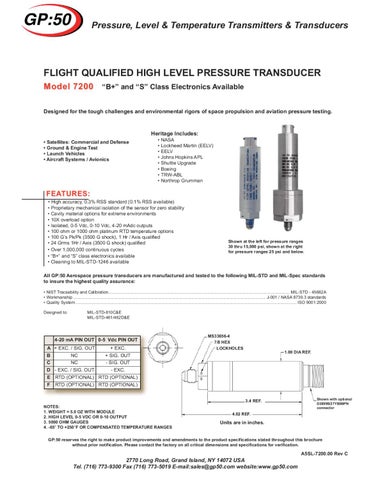

FLIGHT QUALIFIED HIGH LEVEL PRESSURE TRANSDUCER Model 7200 “B+” and “S” Class Electronics Available Designed for the tough challenges and environmental rigors of space propulsion and aviation pressure testing.
Heritage Includes: • Satellites: Commercial and Defense • Ground & Engine Test • Launch Vehicles • Aircraft Systems / Avionics
• NASA • Lockheed Martin (EELV) • EELV • Johns Hopkins APL • Shuttle Upgrade • Boeing • TRW-ABL • Northrop Grumman
FEATURES: • High accuracy, 0.3% RSS standard (0.1% RSS available) • Proprietary mechanical isolation of the sensor for zero stability • Cavity material options for extreme environments • 10X overload option • Isolated, 0-5 Vdc, 0-10 Vdc, 4-20 mAdc outputs • 100 ohm or 1000 ohm platinum RTD temperature options • 100 G’s Pk/Pk (3500 G shock), 1 Hr / Axis qualified • 24 Grms 1Hr / Axis (3500 G shock) qualified • Over 1,000,000 continuous cycles • “B+” and “S” class electronics available • Cleaning to MIL-STD-1246 available
Shown at the left for pressure ranges 30 thru 15,000 psi, shown at the right for pressure ranges 25 psi and below.
All GP:50 Aerospace pressure transducers are manufactured and tested to the following MIL-STD and MIL-Spec standards to insure the highest quality assurance: • NIST Traceability and Calibration.......................................................................................................................................................... MIL-STD - 45662A • Workmanship ................................................................................................................................................................... J-001 / NASA 8739.3 standards • Quality System ........................................................................................................................................................................................... ISO 9001:2000 Designed to:
MIL-STD-810C&E MIL-STD-461/462D&E
4-20 mA PIN OUT 0-5 Vdc PIN OUT A + EXC. / SIG. OUT B NC C NC D - EXC. / SIG. OUT
+ EXC. + SIG. OUT - SIG. OUT - EXC.
MS33656-4 7/8 HEX LOCKHOLES 1.00 DIA REF.
E RTD (OPTIONAL) RTD (OPTIONAL) F RTD (OPTIONAL) RTD (OPTIONAL) 3.4 REF. NOTES: 1. WEIGHT = 5.0 OZ WITH MODULE 2. HIGH LEVEL 0-5 VDC OR 0-10 OUTPUT 3. 5000 OHM GAUGES 4. -65° TO +250°F OR COMPENSATED TEMPERATURE RANGES
Shown with optional D38999/27YB98PN connector
4.02 REF.
Units are in inches.
GP:50 reserves the right to make product improvements and amendments to the product specifications stated throughout this brochure without prior notification. Please contact the factory on all critical dimensions and specifications for verification.
A5SL-7200.00 Rev C
