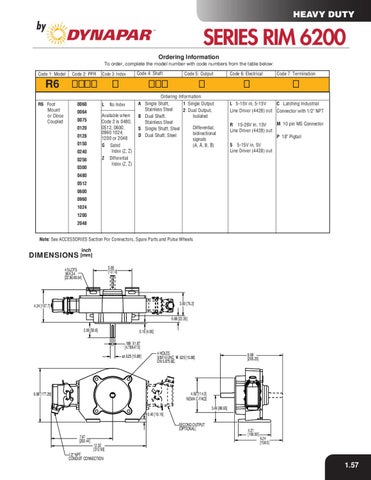

HEAVY DUTY
by
SERIES RIM 6200 Ordering Information To order, complete the model number with code numbers from the table below:
Code 1: Model
Code 2: PPR
Code 3: Index
Code 4: Shaft
Code 5: Output
Code 6: Electrical
Code 7: Termination
R6 R6 Foot Mount or Close Coupled
0060
L
0064
No Index
Available when Code 2 is 0480, 0512, 0600, 0960 1024, 1200 or 2048 G Gated — Index (Z, Z) Z Differential — Index (Z, Z)
0075 0120 0128 0150 0240 0256 0300
Ordering Information 1 Single Output A Single Shaft, Stainless Steel 2 Dual Output, Isolated B Dual Shaft, Stainless Steel Differential, S Single Shaft, Steel bidirectional D Dual Shaft, Steel signals — — (A, A, B, B)
L 5-15V in, 5-15V C Latching Industrial Line Driver (4428) out Connector with 1/2" NPT M 10 pin MS Connector R 15-26V in, 15V Line Driver (4428) out P 18" Pigtail 5 5-15V in, 5V Line Driver (4428) out
0480 0512 0600 0960 1024 1200 2048 Note: See ACCESSORIES Section For Connectors, Spare Parts and Pulse Wheels inch
DIMENSIONS [mm] 5.00 [127.0]
4 SLOTS .90X.34 [22.86X8.64]
3.00 [76.2]
4.24 [107.7]
0.88 [22.35] 2.00 [50.8]
0.16 [4.06] .188 X1.87 [4.78X47.5] ø.625 [15.88]
4 HOLES 3/8X16 UNC .625 [15.88] ON 5.875 BC
8.08 [205.23]
4.50 [114.3] NEMA C-FACE
6.98 [177.29]
3.49 [88.65] 0.40 [10.16] SECOND OUTPUT (OPTIONAL) 7.97 [202.44] 12.32 [312.93]
4.21 [106.93] 6.24 [158.5]
1/2" NPT CONDUIT CONNECTION
1.57
