Since 1965, Equipment Controls Company (ECCO) has been focused on delivering innovative solutions driven by everyday challenges. ECCO’s growth can be attributed to providing complete customer satisfaction with professionalism, ethical standards, and exceptional product knowledge.
Equipment Controls Company represents and distributes quality products from established manufacturers such as Pietro Fiorentini, USG, ROMET®, EAGLE RESEARCH CORPORATION®, and Sensus.
Headquartered in Norcross, GA, ECCO is one of the largest North American distributors of natural gas measurement, control and data acquisition products and services. ECCO has you covered with office and warehouse locations in Houston, TX, Indianapolis, IN, Memphis, TN, and Salt Lake City, UT with additional sales offices in Georgia, Michigan, Florida, Louisiana, and Kansas.
SAFE, SUSTAINABLE, AND PROVEN SOLUTIONS FOR GAS TRANSMISSION AND DISTRIBUTION
We deliver high-volume, high-accuracy solutions built on proven technology, with superior quality, a self-sustained supply chain, and shorter lead times—offering competitive pricing, hydrogen-ready designs, and reliable overpressure protection.
From the main line to the meter, we provide a complete range of gas pressure regulators and related products for both transmission and local distribution companies (LDCs). Our balanced valve designs ensure efficient downstream flow, while superior materials and manufacturing minimize maintenance, reduce emissions, and extend service life. Working exclusively with approved-vendor manufacturers, we deliver solutions that address critical challenges—such as high sulfur content—while maintaining the accuracy, reliability, and safety your operations demand.
Visit our website for detailed product information.
Regulators—Pietro Fiorentini
Overpressure Protection—Pietro Fiorentini

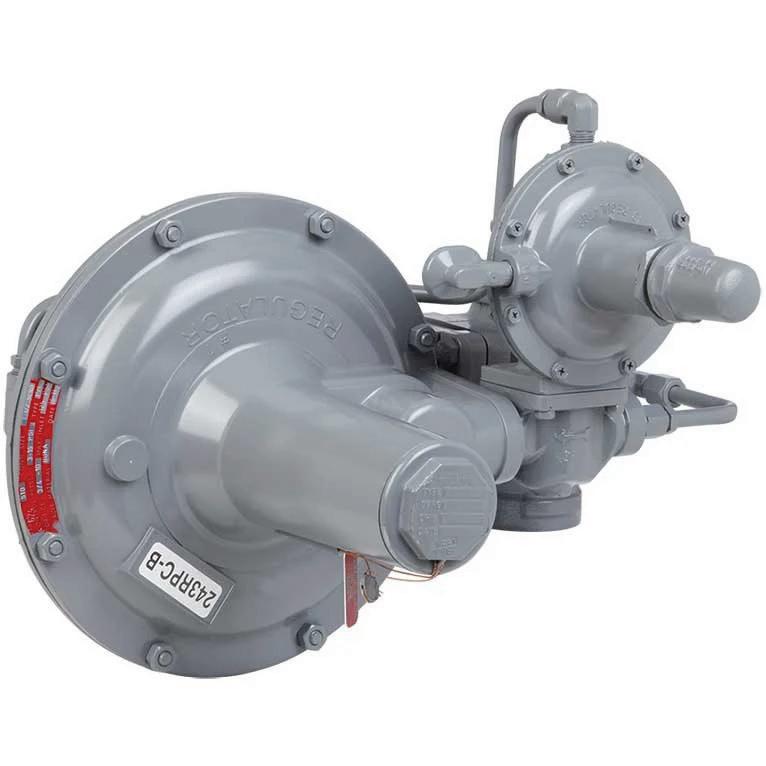

Regulators—USG

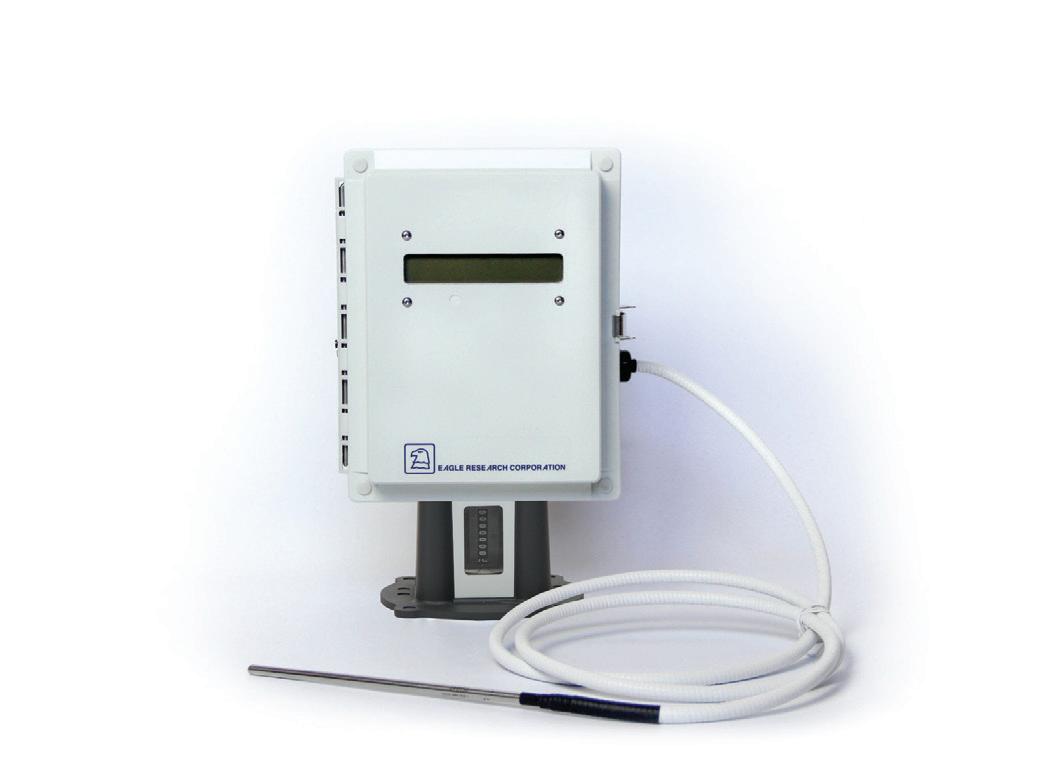

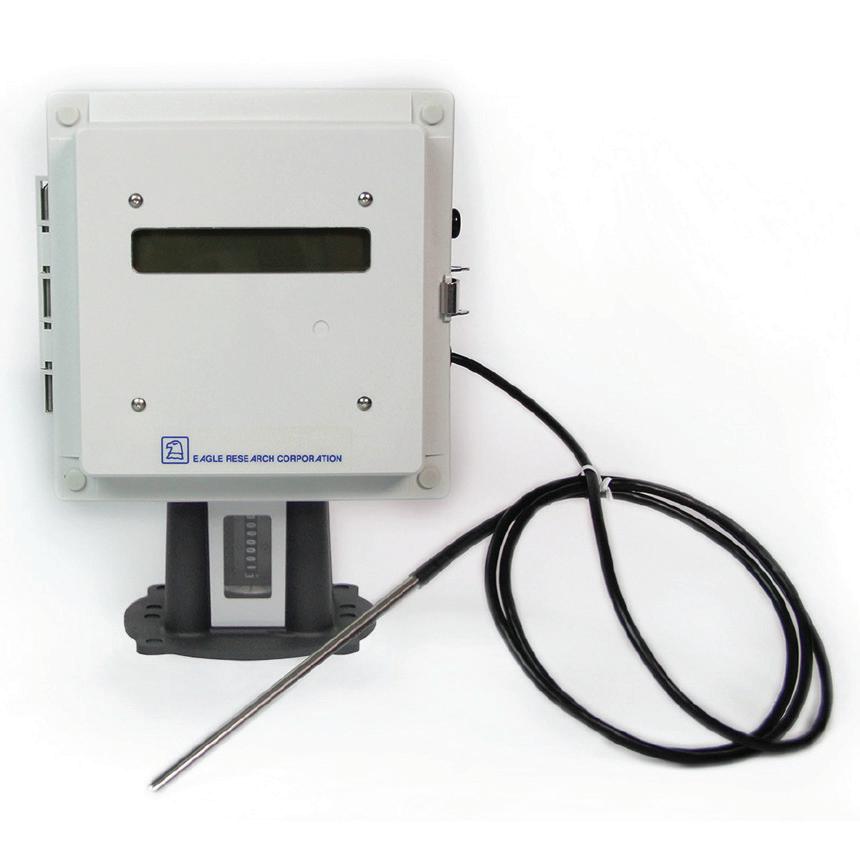

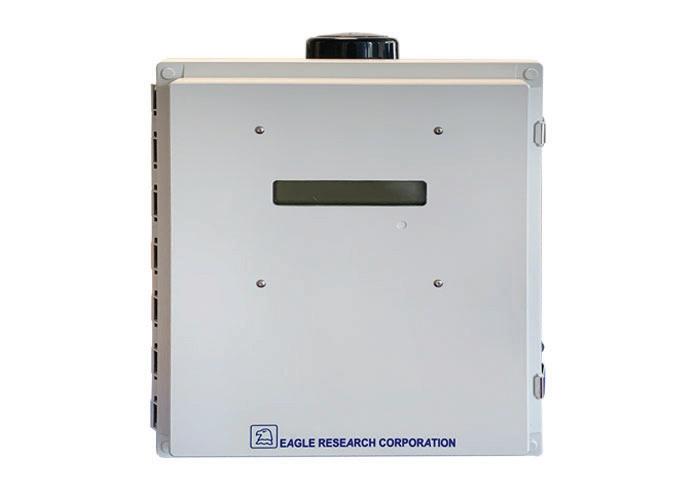

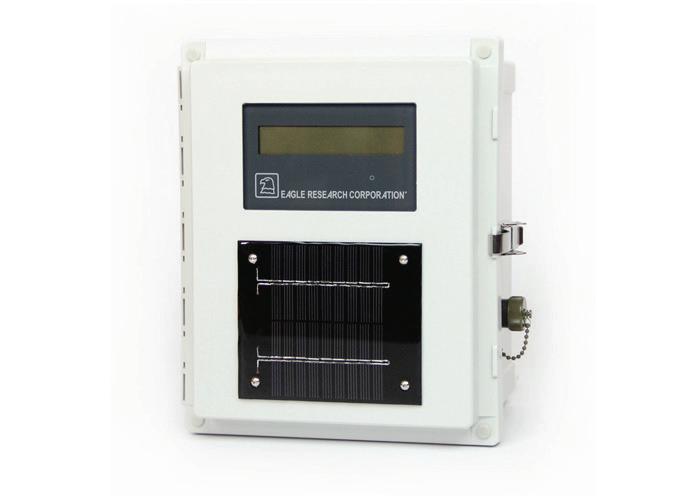

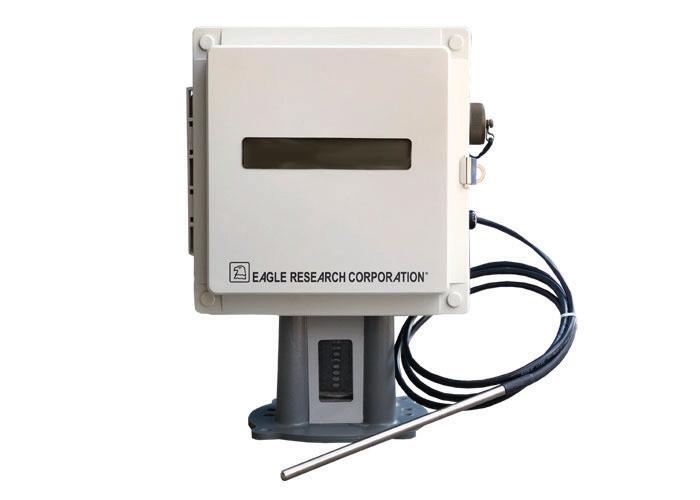

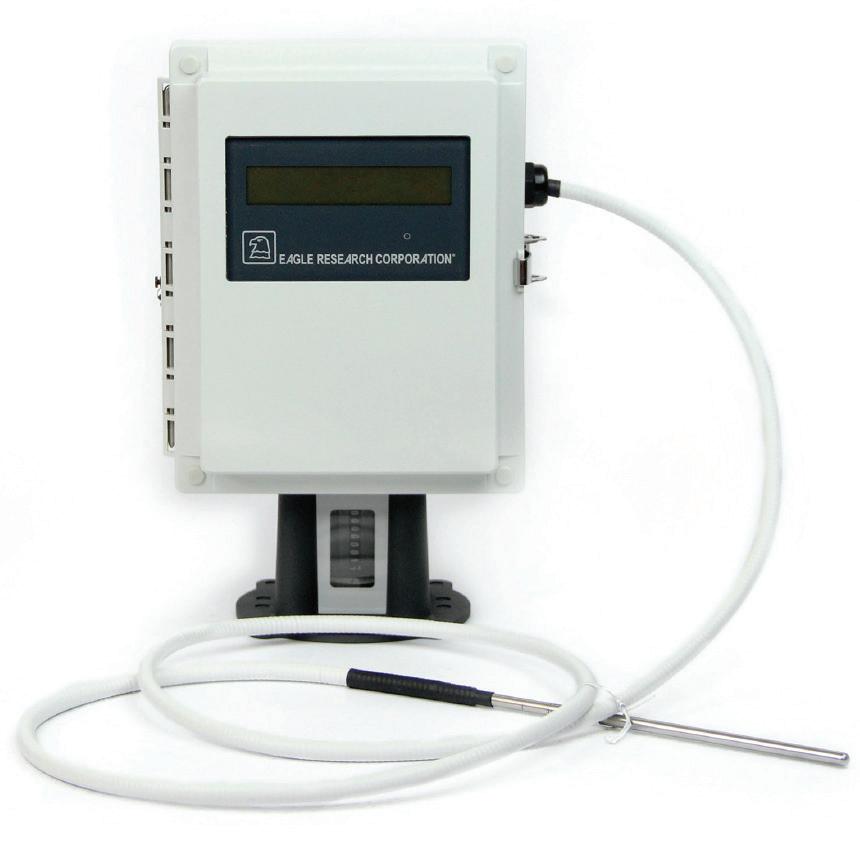

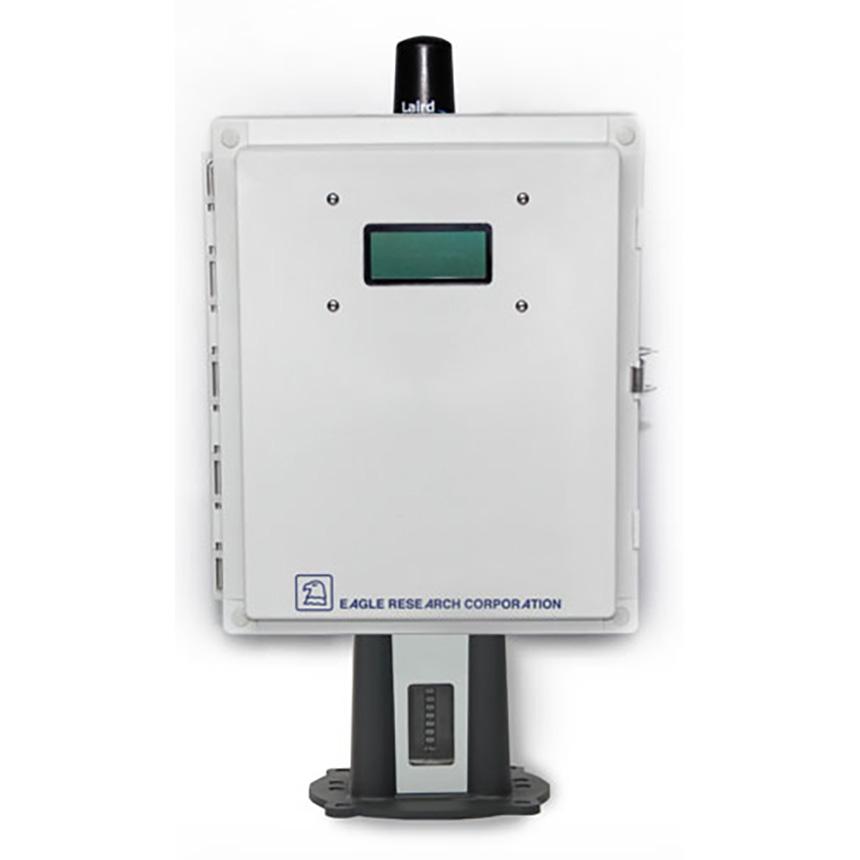

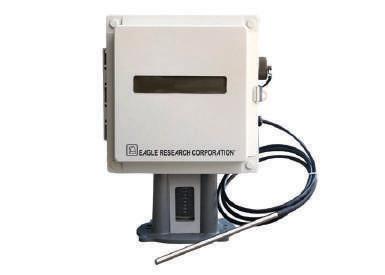

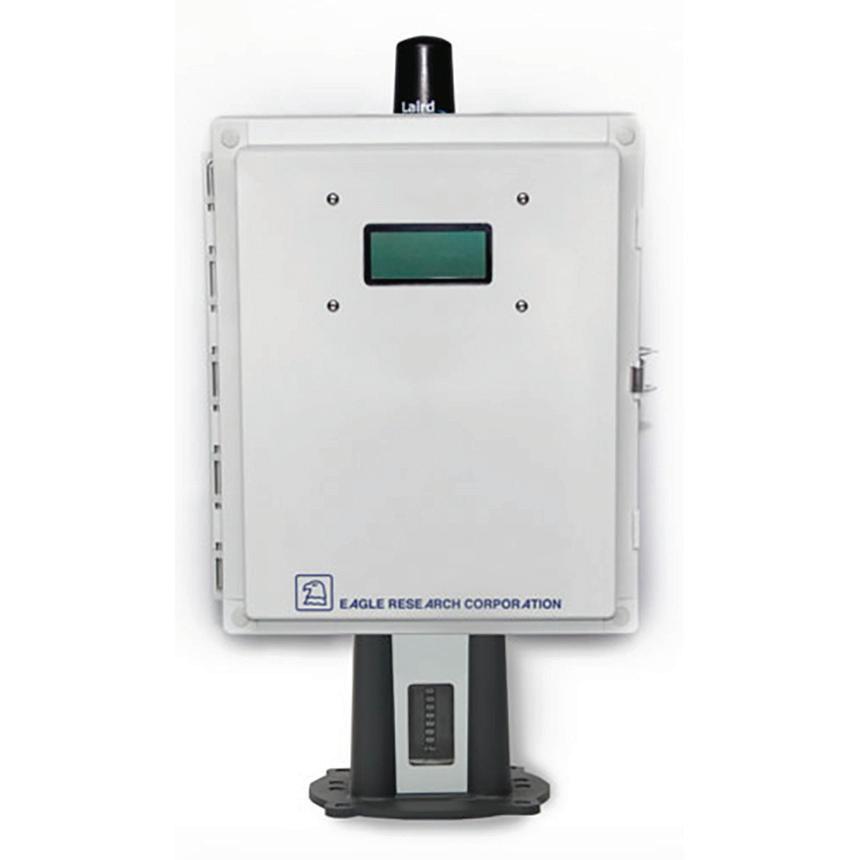

Instrumentation—EAGLE RESEARCH CORPORATION

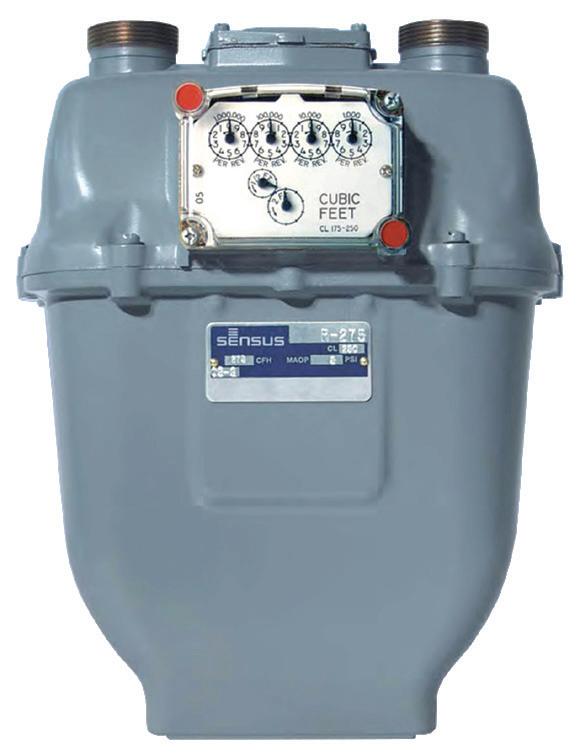

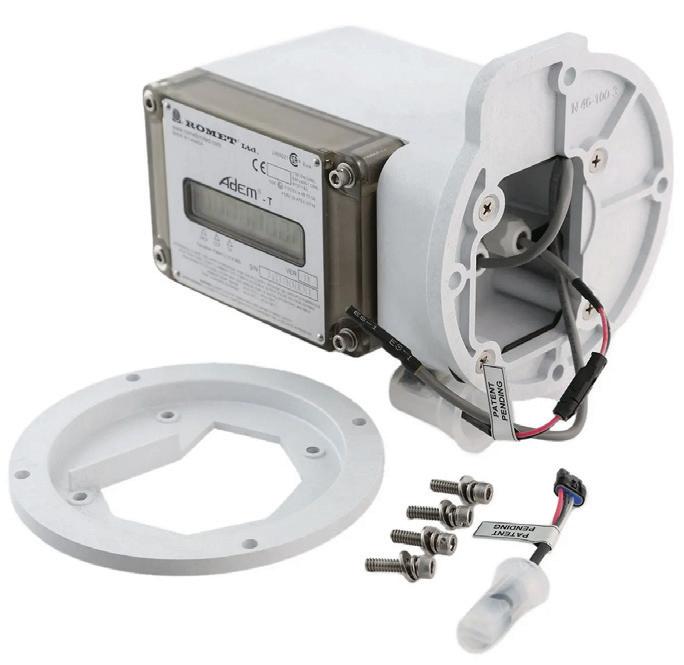

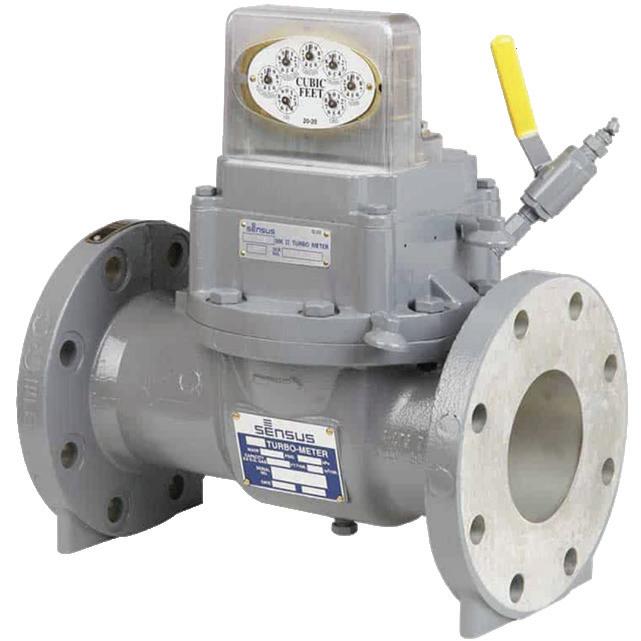

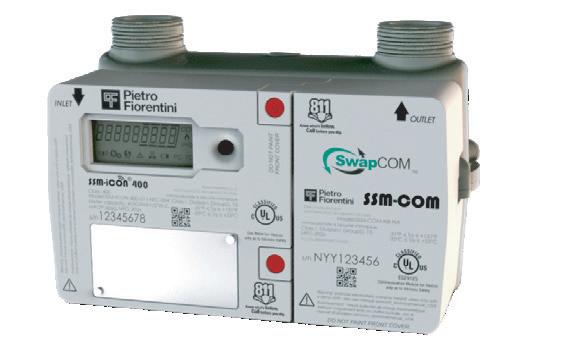

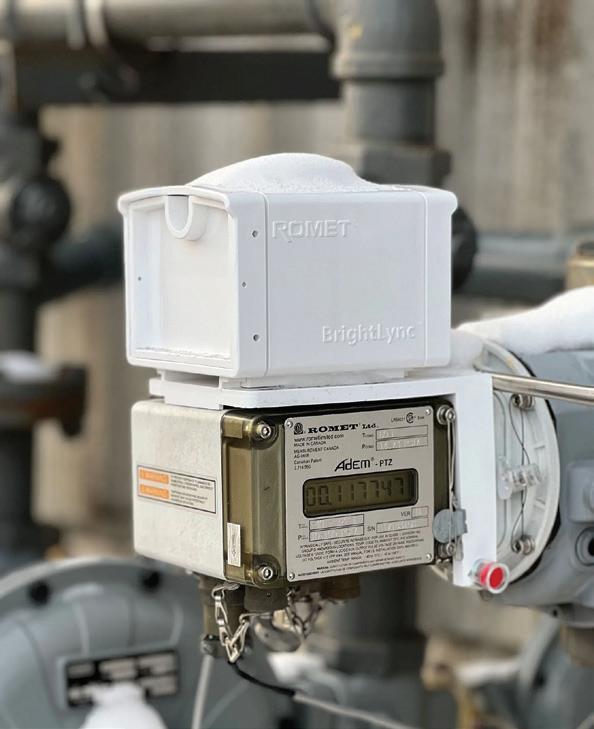

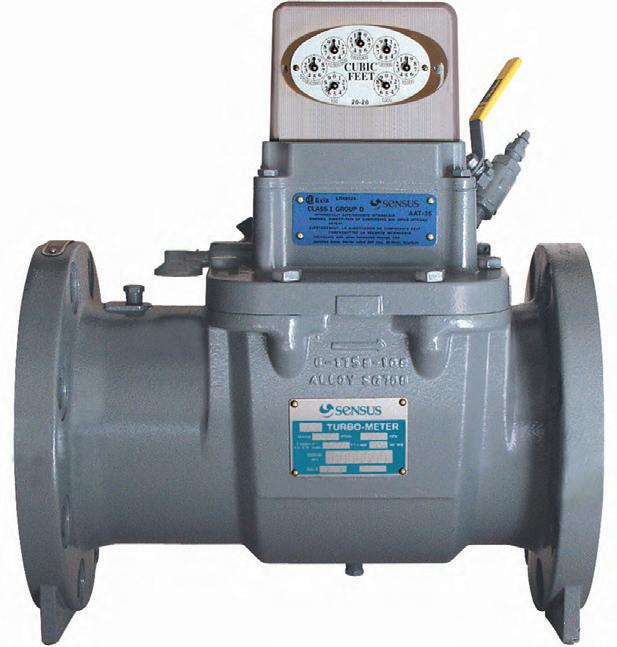

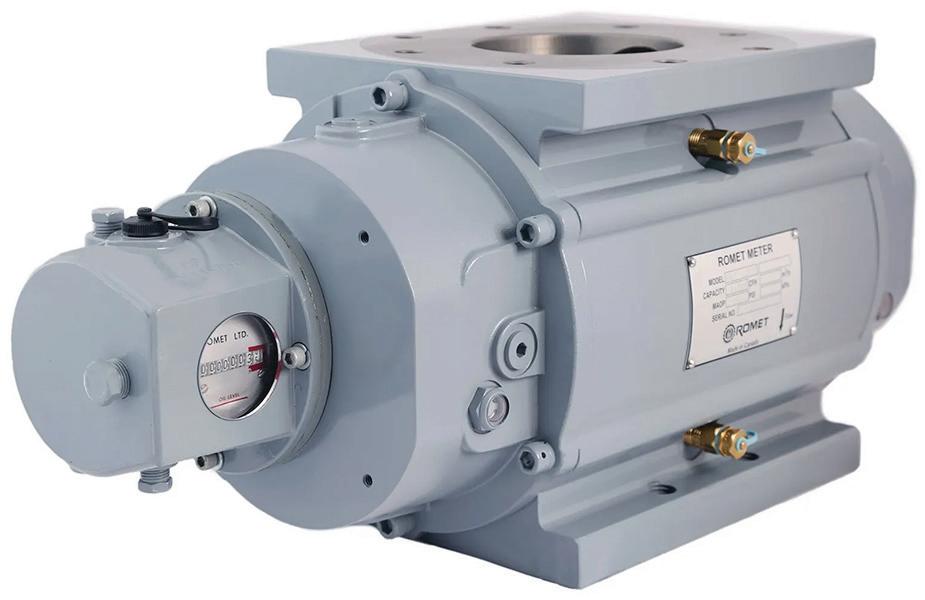

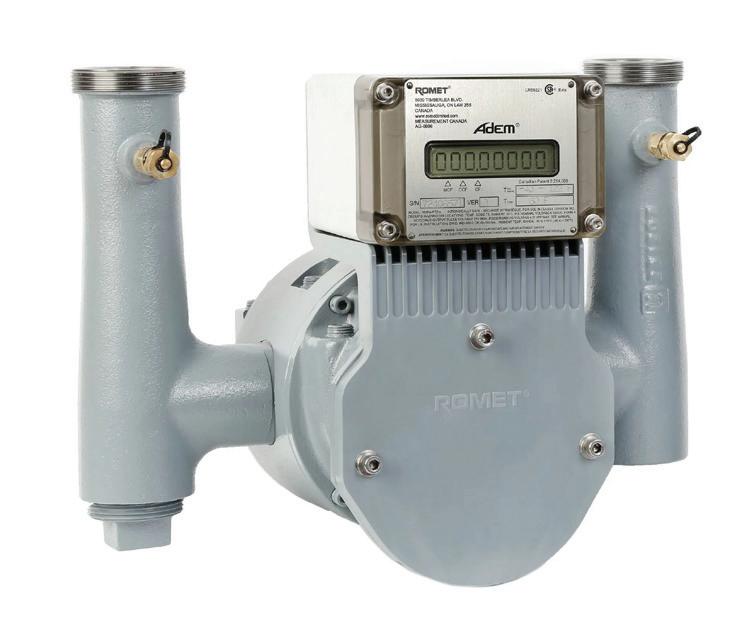

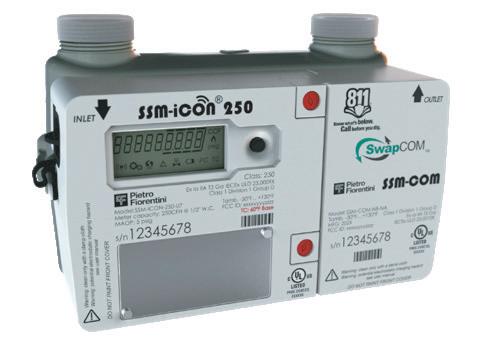

Meters—ROMET, Pietro Fiorentini, Sensus
REGULATORS

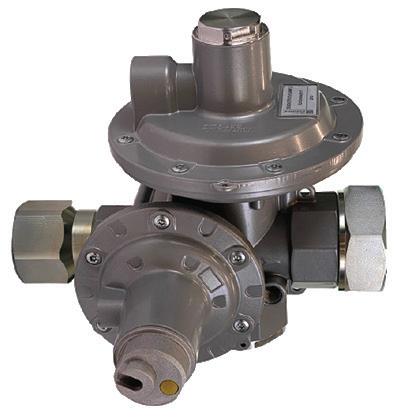

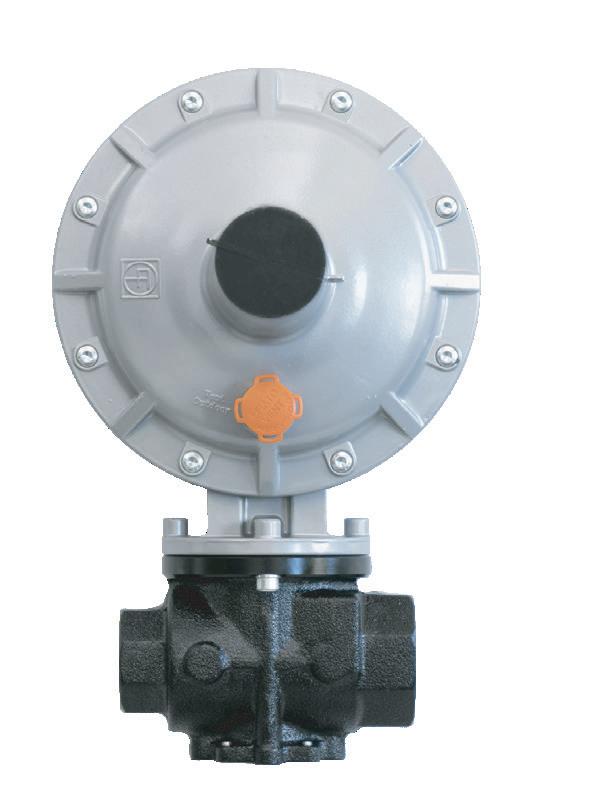

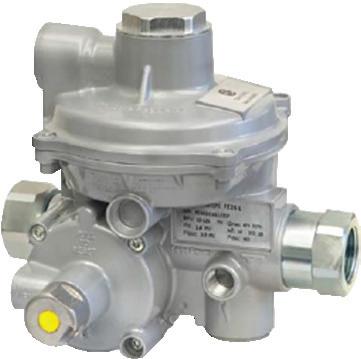

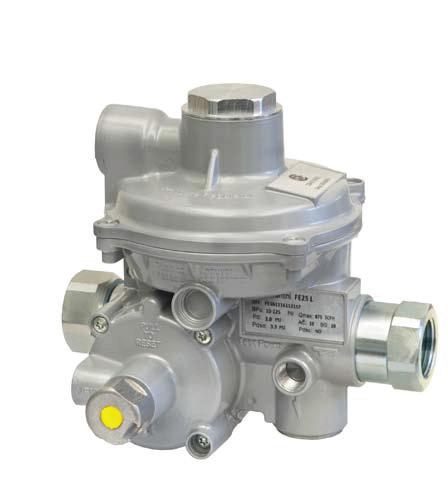

PF FE/FEX
Low Pressure Gas Regulators
The FE is a double-stage self-operated pressure regulator for civil and industrial applications and it is suitable for use with gaseous fluids such as natural gas, LPG and non-corrosive gases.
The two-stage FEX series self-driven pressure regulators are widely used both in civil and industrial installations using natural gas, LPG or non-corrosive gases.
FEATURES
Inlet pressure range bpu: 4.3 – 125 PSIG
Max allowable pressure: PS: 125 PSIG
Outlet pressure range BP: 5 – 72.3” W.C.
TR: 2.6 – 7.2 PSIG
Temperature: Gas Temperature -4°F +140°F and Ambient Temperature -40 to +140 °F

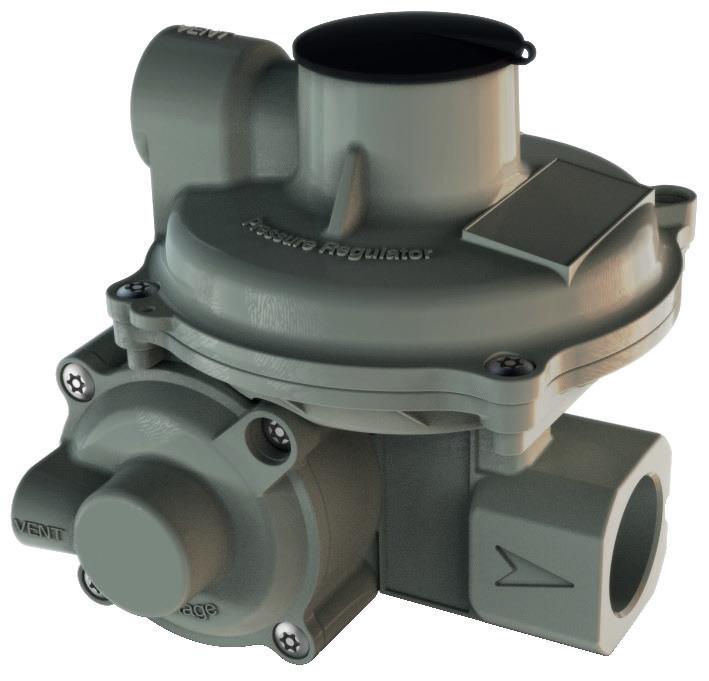

The NeoR is a double stage gas pressure regulator. Designed to ensure continuous gas supply while maintaining a high level of safety with reduced emission. The NeoR is a service regulator without slam-shut device, incorporating a double token relief valve (IRV) with partial relief capacity. It is particularly suitable for low pressure natural gas distribution systems for residential users. The NeoR is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy and lock-up pressure according to ANSI B109.4 and CSA 6.18
Connections: In-line / 90° configuration with 3/4” or 1” NPT according to ANSI B1.20.1
Inlet pressure: from 10 psig to 100 psig | from 69 kPa to 0.69 MPa
Ambient temperature: standard version from -20°F to +150°F / arctic version from -40°F to +150°F
Range of downstream pressure Wds: from 5” w.c. to 2 psig | from 1.3 kPa to 13.8 kPa

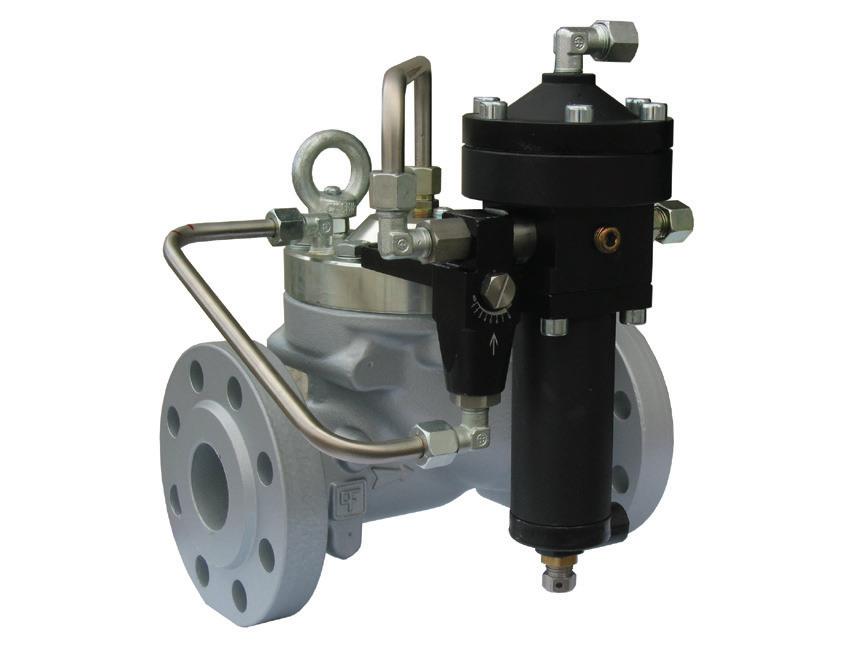

PF Aperval
Medium-Low Pressure Gas Regulators
Aperval is a pilot-operated gas pressure regulator.
Particularly suitable for medium and low pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases.
FEATURES
• Design inlet pressure: 275 PSIG
• Range of inlet pressure: 7.25 to 275 PSIG
• Range of downstream pressure: 2” W.C. to 137.5 PSIG depending on installed pilot
• Minimum working differential pressure: 7.5 PSIG
• Minimum ambient temperature: Execution up -40°F
• Maximum ambient temperature: 140°F
• Flowing gas temperature: -4°F to 140°F
PF Aperval 101
Medium
- Low Pressure Gas Regulators
Aperval 101 is a pilot-operated gas pressure regulator. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for medium and low pressure natural gas distribution networks.
FEATURES
Available size DN: 2”- 3” -4#
Closing pressure class SG: Up to 5
Design temperature: -10°+60° C (higher or lower temperatures on demand)
Flanging: class 125FF-125RF- 150RF according to ASME B 16.1, and PN16 according to ISO 7005-2
Maximum working differential pressure: 19 bar (275,5 PSIG)
Minimum working differential pressure: 450 mbar (7.25 PSIG)
Outlet pressure range of Wd: 5 mbar to 9500 mbar (2”w.c. to 137.5 psig)
PF Reval 182
Medium Low Pressure Gas Regulators
This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for medium and low pressure natural gas distribution networks. Reval 182 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 2.5, up to 1% absolute (depending on working conditions)
Connections: Class 150 RF or RTJ according to ASME B16.5 and PN16, 25 and 40 according to ISO 7005
PF Norval
Medium Low Pressure Gas Regulators
Norval by Pietro Fiorentini is a direct-operated gas pressure regulator. Suitable for use with previously filtered gaseous fluids, it is mainly used for medium and low pressure natural gas distribution networks. Norval is Hydrogen Ready for NG-H2 blending.
FEATURES
Maximum inlet pressure up to:
-284 PSIG for regulators from 1” to 3”
-116 PSIG for regulators from 4” to 8”
-275 PSIG for Steel Body and 246 PSIG for Ductile Iron
Range of downstream pressure:
-from 4.0” W.C. to 63.81 PSIG for regulators from 1” to 4”
-from 4.8” W.C. to 26.10 PSIG for regulators (6”) and (8”)
Minimum ambient temperature: Execution up to -40°F (to specify in the request)
Maximum ambient temperature: +140°F
Flowing gas temperature: up to -4°F + 140°F
PF Dival 500
Medium Low Pressure Gas Regulators
Dival 500 by Pietro Fiorentini is a direct-operated gas pressure regulator controlled by a diaphragm and contrasting regulated spring action. Suitable for use with previously filtered gaseous fluids, it is mainly used for medium and low pressure natural gas distribution networks. Dival 500 is Hydrogen Ready for NG-H2 blending.
FEATURES
Available size DN: 1’’ – 1’’ 1/2
Closing pressure class SG: Up to 10
Design pressure: BP: 10 bar MP / TR: 20 bar
Design temperature: -20°C to 60°C
Outlet pressure range of Wd: BP 13- 100 mbar MP 100 – 300 mbar TR 300 – 2500 mbar
Range of inlet pressure bpu: BP: 0.5÷10 bar MP / TR: 0.5÷20 bar
PF Dival 600
Medium Low Pressure Gas Regulators
Dival 600 is one of the direct-operated gas pressure regulators controlled by a diaphragm and contrasting regulated spring action by Pietro Fiorentini. Mainly used for medium and low pressure natural gas distribution networks, it ca be used with previously filtered gaseous fluids. Dival 600 is Hydrogen Ready for NG-H2 blending.
FEATURES
Design pressure 290 PSIG for all the components
Accuracy (AC): 5% of the pressure set-point for pressure increase; 15% for pressure decreasing
Internal bypass
Intervention for over pressure and/or under pressure
Manual push-button control
Options for pneumatic or electromagnetic remote control
Compact overall dimensions

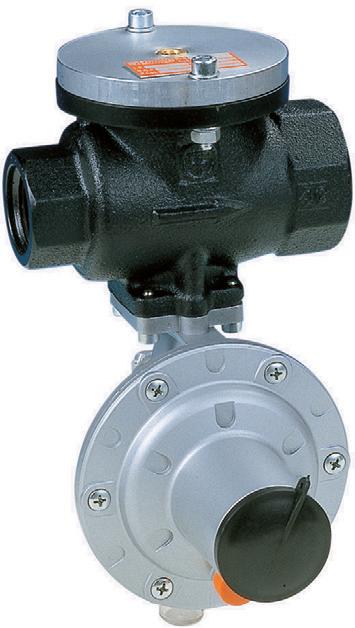

PF Cirval, PF Cirval 300
Medium Low Pressure Gas Regulators
The Cirval is a lever-operated gas pressure regulator controlled by a diaphragm and setting spring which controls the valve. Mainly used for medium and low pressure natural gas distribution networks, as well as commercial applications. It should to be used with previously filtered non-corrosive gases. The Cirval is Hydrogen Ready for NG-H2 blending.
FEATURES
Design pressure*: up go 125 PSIG
Ambient temperature*: from -20°F to +150°F
Inlet gas temperature range*: from -4°F to +140°F
Inlet pressure range bpu (MAOP): from 2 to 75 PSIG
Range of downstream pressure Wd: from 7’’ W.C. to 10 PSIG
Available accessories: LA slam shut, IMD (Independent Monitoring Device), IFM (Integral Full Monitor), built-in strainer
(*) NOTE: Different functional features and/or extended temperature ranges available on request. Stated temperature ranges are the minimum for which the equipment’s full performance, including accuracy, are fulfilled. Standard product may have a narrower range.

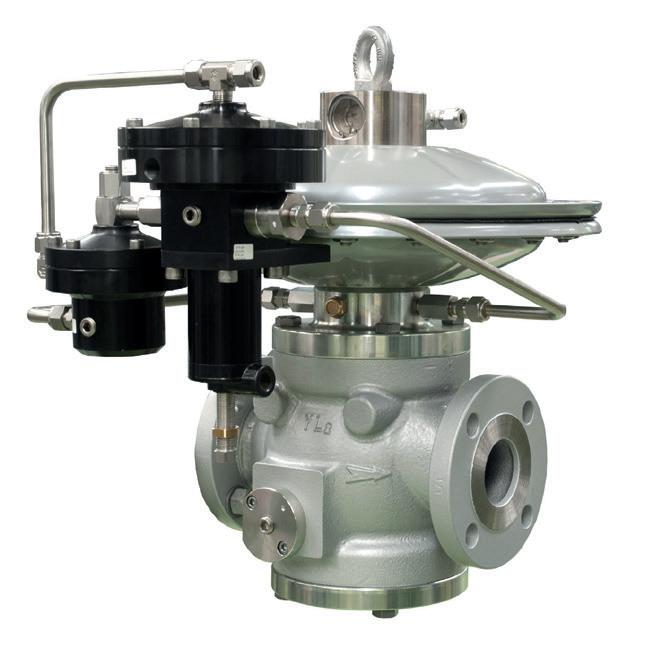

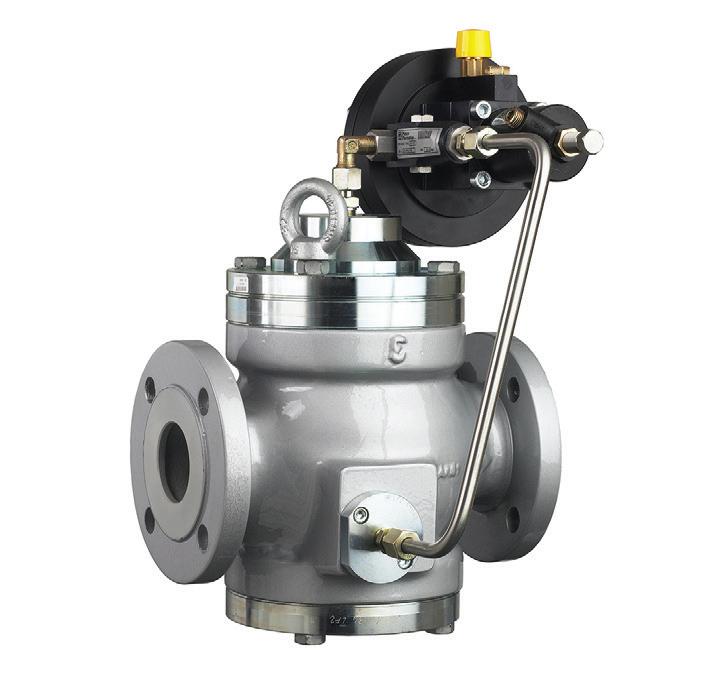

PF Aperflux 851
High Medium Pressure Gas Regulators
Aperflux 851 is one of the pilot-operated gas pressure regulators by Pietro Fiorentini. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks.
Built-in Silencer (DB/851): An optional, additional DB/851 silencer can be incorporated directly into the basic regulator body. This allows noise absorption to occur precisely where it is generated (the throttling stage), preventing further propagation.
FEATURES
Maximum inlet pressure: Up to 1,450 PSIG
Temperature: Suitable for a minimum operating ambient temperature of >- 40°F to 140°F with a carbon steel Body
Range of inlet pressure: 18.8 to 1,230 PSIG
Range of downstream pressure: 18.8 to 1,170 PSIG depending on installed pilot
Minimum working differential pressure: 7.25 PSIG Recommended . 30 PSIG
PF Aperflux 101
High Medium Pressure Gas Regulators
Aperflux 101 is a piloted-operated pressure regulator. Particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases.
FEATURES
Maximum inlet pressure: Up to 1,233 PSIG
Range of downstream pressure: From 1,170 PSIG – depending on installed pilot
Minimum working differential pressure: 14.5 PSIG
Minimum ambient temperature: Execution up -40°F
Maximum ambient temperature: 140°F
Flowing gas temperature: -4°F to 140°F

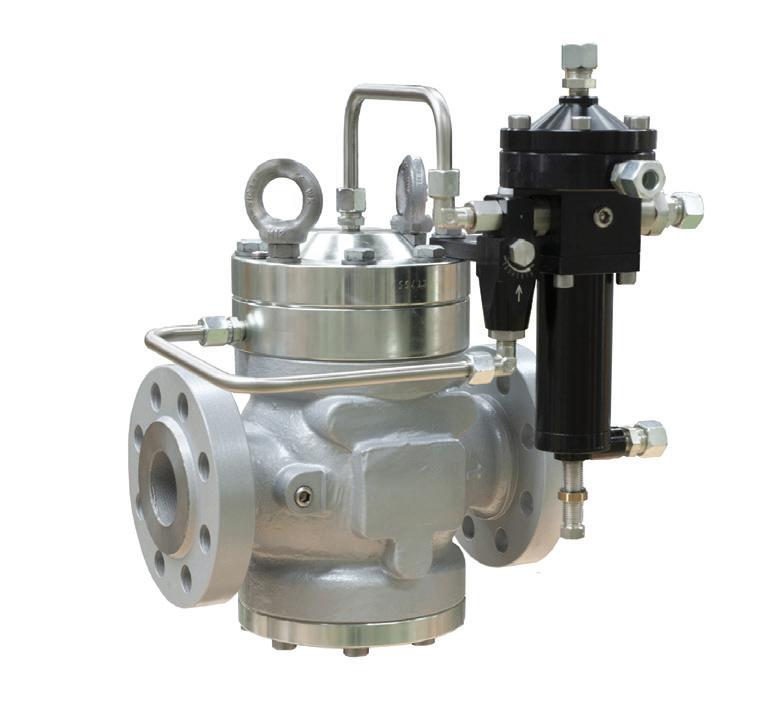

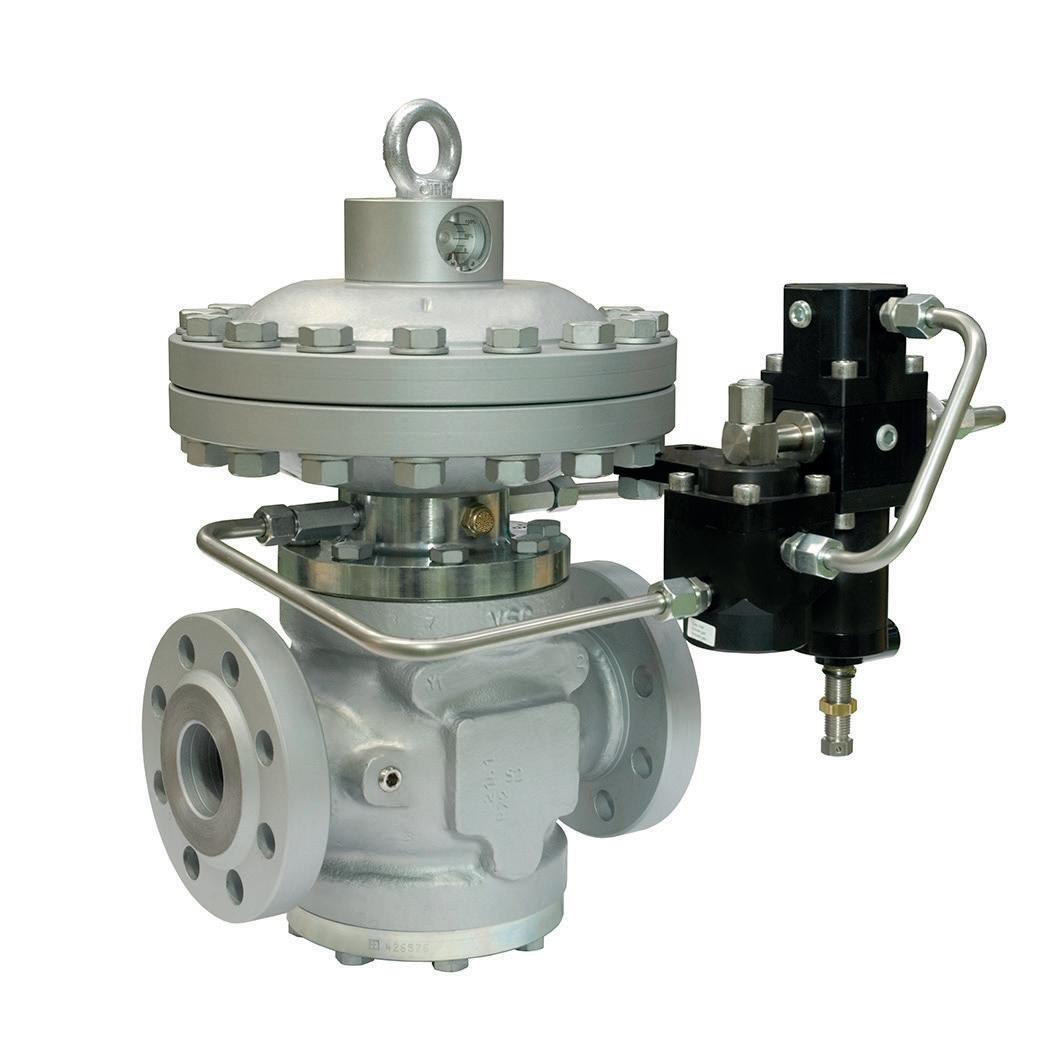

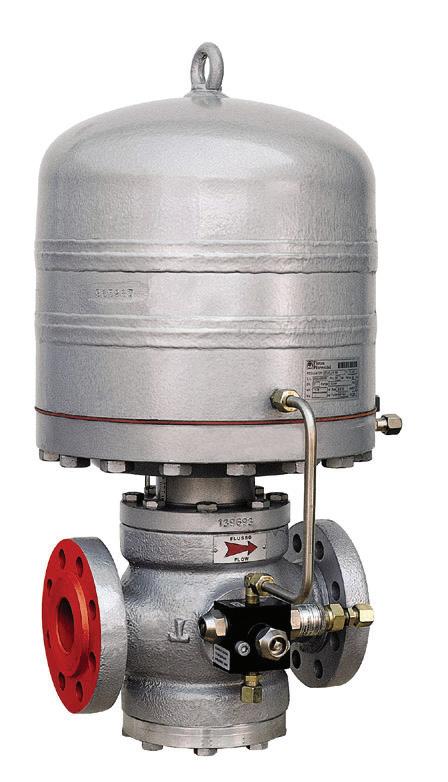

PF Reflux 819, PF Reflux 819/S
High Medium Pressure Gas Regulators
Reflux 819 is a pilot-operated gas pressure regulator. It is particularly suitable for high-pressure transmission systems and for medium pressure natural gas distribution networks, and it can be used with previously filtered non-corrosive gases. Reflux 819 is Hydrogen Ready for NG-H2 blending.
The Reflux 819/S is the new technical solution to address applications characterized by high sulfur concentration in the gas fluid. Thanks to its special design, it enables to achieve perfect lock up even if in case of severe sulfur concentration; in fact, the second actuator plug activates only in case of lock up, being consequently immune from sulfur accumulation during the lamination process.
FEATURES
Maximum inlet pressure: Up to 1,479 PSIG
Range of downstream pressure: from 4.35 PSIG to 1,073 PSIG depending on installed pilot
Minimum differential pressure: 7.25 PSIG
Minimum ambient temperature: Used up to – 40°F
Maximum ambient temperature: 140°F
Inlet gas temperature: Must be -4°F – 140°F
REGULATORS
PF FT 518
High Medium Pressure Gas Regulators
Pietro Fiorentini’s FT 518 is a lever-operated regulator controlled by a diaphragm and setting spring which controls the valve. It is mainly used for farm tap applications, high-pressure transmission systems and for medium pressure natural gas distribution networks with previously filtered non-corrosive gases. According to the European Standard, it is classified as Fail Open.
FEATURES
Accuracy class AC: up to 10 (depending on working conditions)
Nominal sizes DN: 3/4”, 1”, 2”
Lock-up pressure class SG: up to 20 (depending on working conditions)
Design pressure: up to 69.4 bar
Design temperature: from -40 °C to +60 °C
Connections: threaded NPT, flanged or SW (available soon)
PF Staflux 185
High Medium Pressure Gas Regulators
The Staflux 185 is one of the direct-operated gas pressure regulators designed and manufactured by Pietro Fiorentini. This device is suitable for use with previously filtered non-corrosive gases, and it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks. The Staflux 185 is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 5 (depending on working conditions)
Nominal sizes DN: 1”, 2”, 3”
Lock-up pressure class SG: up to 10 (depending on working conditions)
Design pressure: up to 100 bar
Design temperature: from -20 °C to +60 °C
Connections: class 300 and 600 RF or RTJ according to ASME B16.5
PF Staflux Mini
High Medium Pressure Gas Regulators
The Staflux Mini is a direct-operated pressure regulator controlled by a diaphragm and contrasting regulated counter pressure action. Mainly used for CNG trailers, high-pressure transmission systems and for medium pressure natural gas distribution networks, it can be used with previously filtered non-corrosive gases. The Staflux Mini is Hydrogen Ready for NG-H2 blending.
FEATURES
Accuracy class AC: up to 10 (depending on working conditions)
Nominal sizes DN: 1”
Lock-up pressure class SG: up to 10 (depending on working conditions)
Design pressure: up to 250 bar
Design temperature: from -20 °C to +60 °C
Connections: class 1500 RF o RTJ secondo ASME B16.5
OVERPRESSURE PRODUCTS

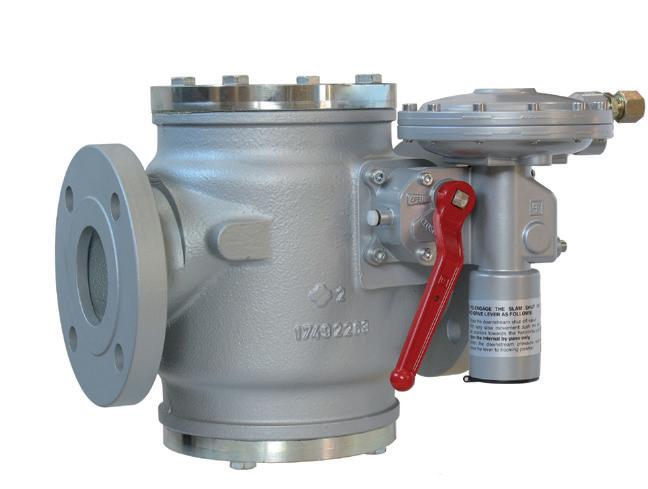

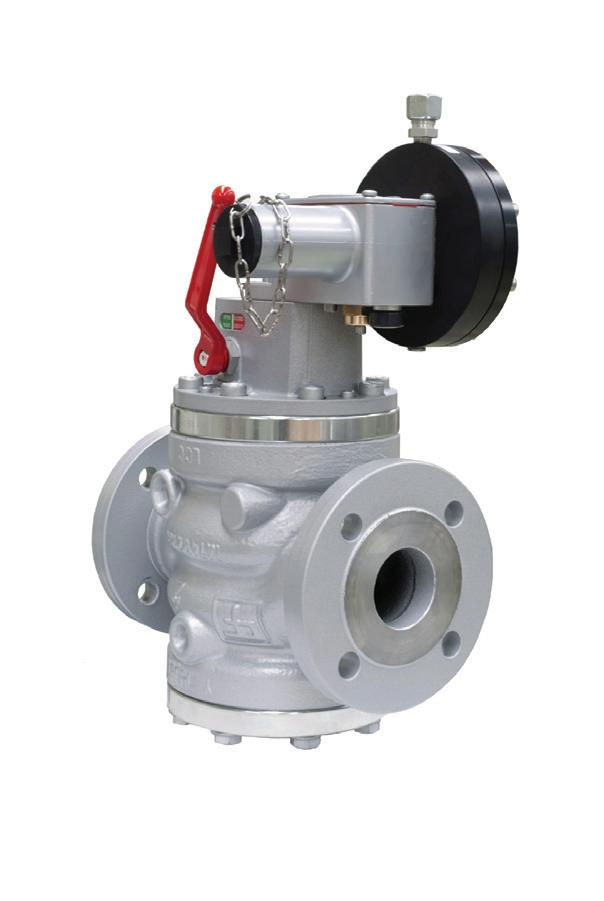

PF SBC 782 Safety Device
Slam Shut Valves
The slam shut valve SBC 782 by Pietro Fiorentini is a safety device which quickly intercepts gas flow when the pressure it is monitoring reaches a pre-set limit due to any anomaly in the system, or when required by the operator at the installation point or from a remote point. Particularly suitable for high-pressure transmission systems and for medium and low pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids. BC 782 is Hydrogen Ready for NG-H2 blending.
FEATURES
Design pressure*: up to 10.2 MPa, up to 1,479 psig
Ambient temperature*: from -20 °C to +60 °C, from -4 °F to +140 °F
Available Accessorie: Limit switch, remote tripping
Accuracy class AG: up to 2.5 for OPSO (depending on working conditions), up to 2.5 for UPSO (depending on working conditions)
Over pressure setting range (OPSO): from 2 kPa to 9 MPa, from 8”w.c. to 1,305 psig
Under pressure setting range (UPSO): from 1 kPa to 9 MPa, from 4”w.c. to 1,305 psig
Connections*: Class 150/300/600 RF / RTJ according to ASME B 16.5 or PN 16/25/40 according to EN 1092-1 End to end dimensions: according to EN 334, EN 14382
(*) Note: Different functional features and/or extended temperature ranges available on request. Stated temperature ranges are the maximum for
PF SCN
Slam Shut Valves
The slam shut valve SCN by Pietro Fiorentini is a compact safety device which quickly intercepts gas flow whenever the pressure under monitoring reaches a pre-set limits, or whenever manually required by operator on-site or through a remote command (optional device). Suitable for use with natural gas and previously filtered non-corrosive gases, this device is strongly recommended for medium and low pressure gas distribution networks. SCN is Hydrogen Ready for NG-H2 blending.
FEATURES
Intervention for overpressure and/or underpressure
Manual push-button control at installation point
3 way solenoid valve for remote control (available on request)
Manual re-setting
Internal by-pass for pressure equalization before resetting
Possible installation in any position although installation on horizontal pipes is recommended
FUNCTIONAL FEATURES
Maximum inlet pressure up to: 275 PSIG for Steel Body and 246 PSIG for Ductile Iron
Range of tripping for overpressure: Who: 4’’ W.C. to 72.5 PSIG
Minimum ambient temperature: Execution up to -40°F (to specify in the request).
Maximum ambient temperature: +140°F
Flowing gas temperature: up to -4°F + 140°F
Accuracy class AC: AG: ± 5% to 10% for over pressure, ± 10% to 20% for under pressure
The slam shut valve Dilock by Pietro Fiorentini is a safety device which quickly intercepts gas flow when the controlled pressure reaches a pre-set limit due to any anomaly in the system, or when required by the operator at the installation point or from a remote point. Strongly recommended for medium and low pressure gas distribution networks, this device can be used with natural gas and previously filtered non-corrosive gases.
FEATURES
Max. inlet pressure Pe max: 274 PSIG
Gas Operating temperature: – 4 °F to + 140 °F
Ambient temperature: – 40 °F to + 140 °F
Range of outlet pressure Wh: .43 to 79.77 PSIG
Accuracy: AG ± 5% on the value of the pressure setting
Intervention on pressure increase and/or decrease

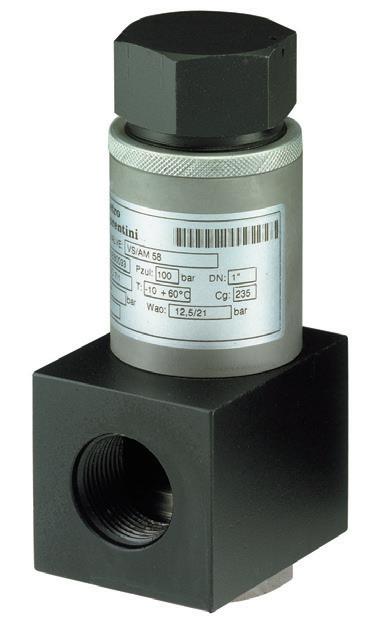

PF VS/AM 58
Spring Relief Valves
The direct-operated relief valve VS/AM 58 by Pietro Fiorentini is a safety device which vents gas when the system pressure exceeds the set value due to temporary events, such as expansion due to rise in gas temperature or downstream pressure shocks caused by sudden changes of flow rate.
Particularly suitable in high-pressure transmission systems and in medium pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids.
Click here to see the product page in the 100% hydrogen version.
FEATURES
Reduced overpressures, even with quite high flow rates.
Fast response.
Easy maintenance.
Internal impulse.
Access to the setting spring adjustment can be sealed if required.
PVS 803
Safety Relief Valves
PVS 803 is the pilot-operated relief valve by Pietro Fiorentini in which the opening and the closing of the main plug is controlled by a pilot device which is very sensitive to the variations of the in-line pressures. Mainly used in high-pressure transmission systems and in medium pressure gas distribution networks, this device can be used with natural gas and previously treated, non corrosive gaseous fluids.
FEATURES
Design temperature: from -4° F to +140° F
Rangeability: 200:1
Nominal sizes DN: up to 6”
Connections: ANSI 150, 300 and 600 according to ASME B16.5 and PN 16 according EN 1092 Very high accuracy and rapidity of intervention (only 2% pressure); Perfect seal up to pressures very close to the setpoint (contrary to what happens for the spring valves, the force on the plug in this slam shut valve increases when approaching the setpoint)

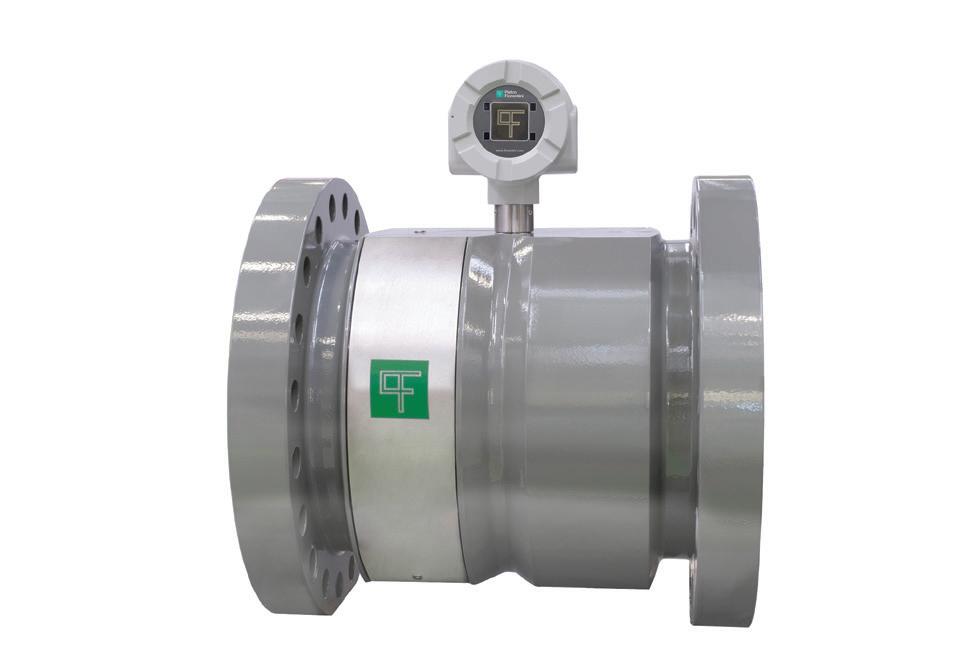

FioSonic
Industrial Metering
FioSonic, the Ultrasonic Flow Meter for gas transmission networks, completes Pietro Fiorentini range of products dedicated to the industrial sector. With its multi path-chordal technology, it provides real time diagnostics, high accuracy and redundancy for fiscal gas flow measurement.
Suitable for use with dry, wet, corrosive and abrasive gases, but also with gas such as sour gas or biogas with H2S, it is mainly used for high-pressure transmission systems and for medium pressure natural gas distribution networks. FioSonic is Hydrogen Ready for NG-H2 blending.
FEATURES
Body: forged steel ASTM A350 LF Cl.1, other materials on request
Pressure range: up to 153 bar
Working gas temperature: from -30 °C to +80 °C
Connections: ANSI 150/300/900 RF/RTJ according to ASME B16.5, PN16/25/40 according to EN 1092-1
Accuracy: up to 0.5% with factory calibration, up to 0.2% with high pressure flow calibration

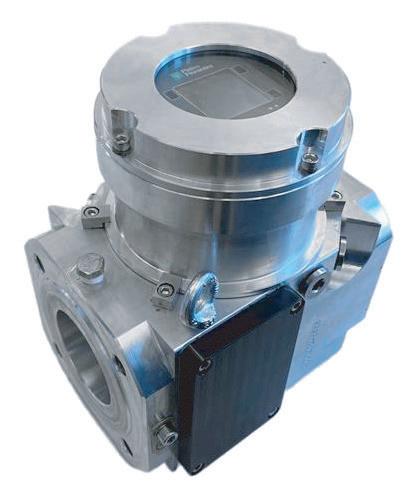

FioSonic Mini
Industrial Metering
Fiosonic Mini is Pietro Fiorentini’s industrial ultrasonic gas flow meter designed for custody transfer applications in gas distribution networks. Its multi-path chordal technology provides real-time diagnostics, high accuracy, and redundancy. Fiosonic Mini is suitable for use with dry gases and is also Hydrogen Ready for NG-H2 blending up to 30%.
FEATURES
Body material: Aluminium 6082
Design pressure: 20 bar(a)
Working gas temperature: from -30 °C to +75 °C
Ambient temperature:
Non custody Transfer from -40 °C to +60 °C
Custody Transfer (MID and OIML certified) from -25 °C to +55 °C
Connections: ANSI 150 RF/RTJ according to ASME B16.5, PN16 according to EN 1092-1
REGULATORS

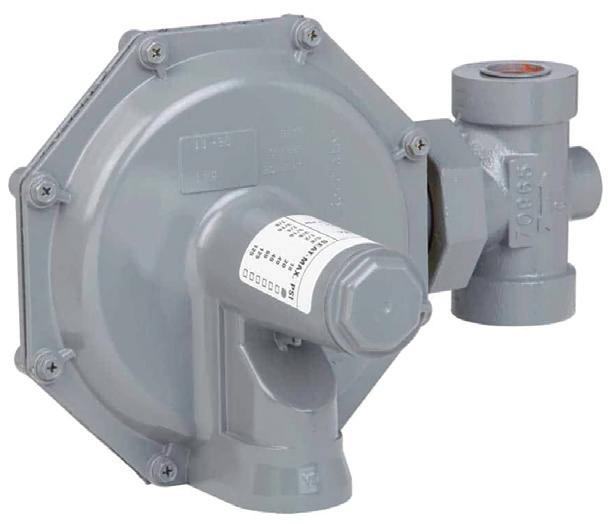

USG 143-80
Domestic Gas Regulators
Like others in our family of service regulators, our Domestic 143-80 models are built to perform. They feature precise pressure control and outstanding performance and dependability. These residential gas regulators are also available with a low-pressure cut-off. The Domestic 143-80 design offers smart features, including an internal relief valve as well as union nut connection, which does not require bolts or screws to connect the body to the diaphragm assembly. This enables the regulators to be set in virtually any position for excellent field versatility. They are simple, rugged and precise residential gas regulators that deliver outstanding performance.
USG/Sensus Domestic 143-80 service regulators are used for both residential and small commercial and industrial applications, such as burners, furnaces, ovens, heaters, gas engines and others. They are available with a variety of body sizes, loading springs and orifice sizes. These compact regulators provide the outlet pressure ranges and the capacities to fit most applications for a 6’’ service diaphragm regulator.
BENEFITS
Installs in numerous mounting positions
Delivers precise pressure control
FEATURES
Low-pressure cut-off available
Internal relief valve available
Seven outlet pressure ranges

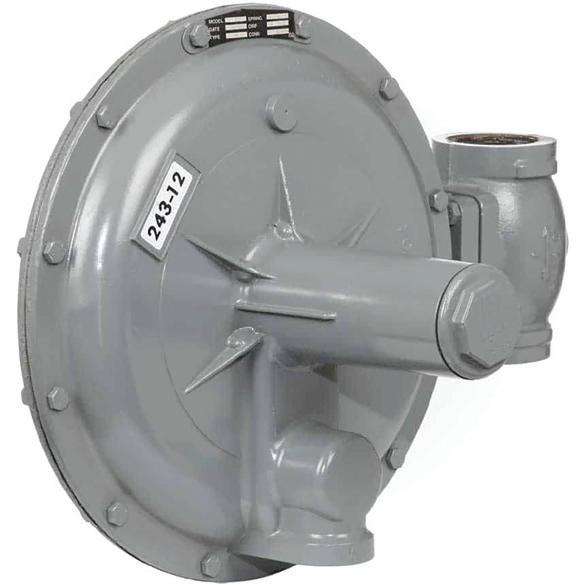

USG 243
Commercial Gas Regulators

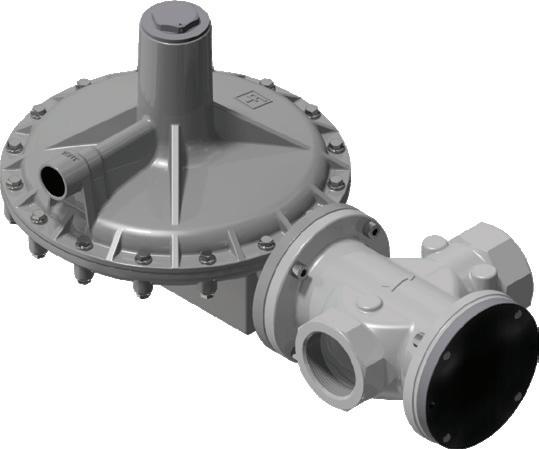

243 commercial industrial service regulators are large capacity and designed for a wide range of commercial, industrial and gas distribution applications. They are ideal for pressure factor measurement, pressure compensated metering, fixed-factor billing and more. Their smart design offers great field versatility. With a union connection between the fully interchangeable bodies and the diaphragm case, these natural gas regulators are easy to install, adjust, inspect and service in all piping arrangements.
243 commercial regulators can be found in factories, foundries, district regulator stations, commercial laundries and laundromats. These versatile natural gas regulators are ideal for commercial use such as apartments, restaurants, schools and hospitals. Their design works well for all types of gas-fueled equipment, too. This includes: boilers, burners, furnaces, ovens, heaters, kilns and engines.
BENEFITS
Installs and adjusts easily
Allows for pressure factor measurement, pressure compensated metering and fixed factor billing.
FEATURES
Special material available for certain corrosive gases
Available with low-pressure cut-off
Available with internal relief valve
Interchangeable bodies and diaphragm-case assemblies
High-pressure model available
Pilot-operated model available
USG 243-RPC
Commercial Gas Regulators
The Model 243-RPC regulators are based on our rugged Model 243 regulator with a smaller, secondary control regulator that senses regulated pressure and then operates the main valve to control the overall flow of gas. They offer exceptionally precise regulation and are accurate to within ± 0.5% (absolute outlet pressure) from minimum to wide-open flow.
The 243-RPC pilot-operated regulator is designed for fixed factoring, pressure factor measurement, pressure compensated metering and other applications requiring exceptionally precise pressure control. Although these regulators are used mainly for natural gas service, they perform equally well with LP gas, nitrogen, air, dry CO2 and other inert gases.
FEATURES
Available Pipe Sizes: 1-1/4”, 1-1/2”, 2” NPT Screwed and 2” Flanged
Interchangeable Orifices: 1/4” – 1-1/4”
Body: Cast Iron (ASTM A126 Class B)
Diaphragm case: Die Cast Aluminum Alloy
Orifice and Stem: Brass

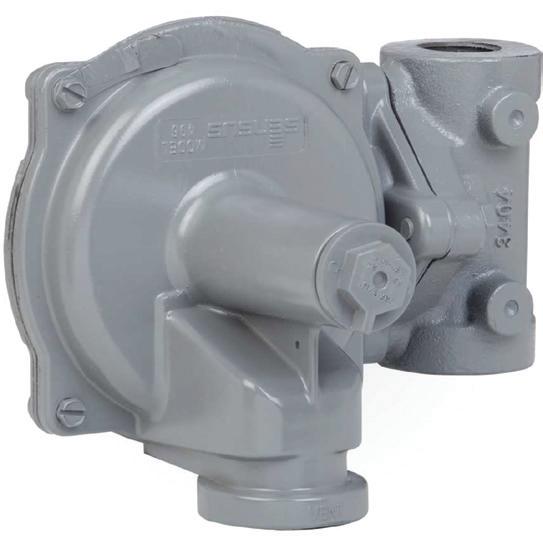

USG 496
Domestic Gas Regulators
Like others in our family of service regulators, our 496 Domestic service regulators offer rugged construction for a lifetime of reliable service. They feature precise pressure control and outstanding performance and dependability.
496 Domestic service regulators can be used for residential meter sets as well as small commercial and industrial applications, including burners, furnaces, ovens, heaters, gas engines and others. They offer a variety of body and orifice sizes and load springs settings. The 4” roll-out diaphragm offers exceptional performance, and it provides capacities that normally require 6” diaphragm regulators. This domestic gas regulator is available with an internal relief valve as a standard feature.
Designed for Broad Output Pressure Ranges
BENEFITS
Installs in numerous mounting positions
Delivers precise pressure control
FEATURES
Five different outlet pressure ranges
Angled or straight configuration
REGULATORS

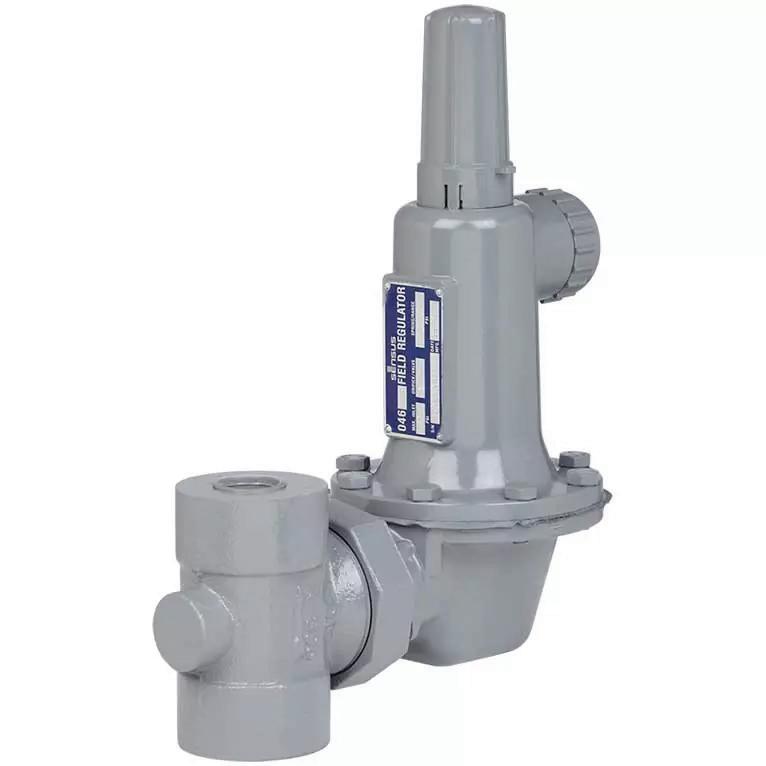

USG 046
Industrial Combustion Regulators

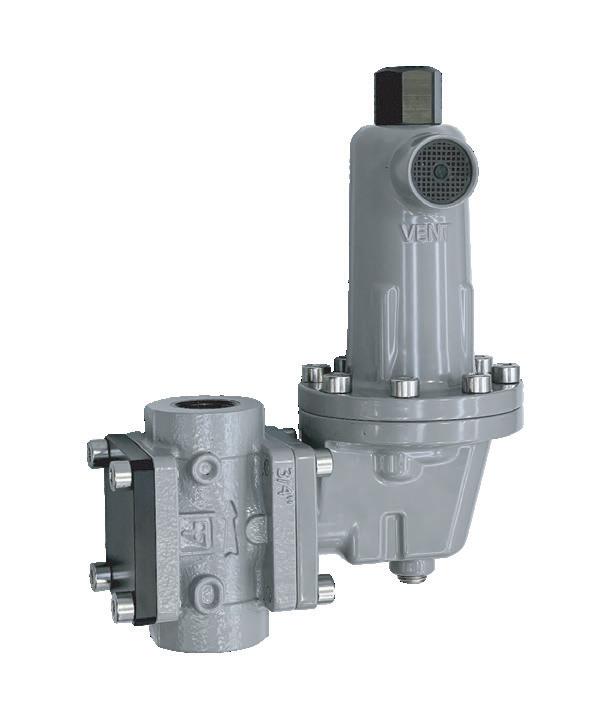

Our 046 field and high-pressure gas regulators combine simple design and rugged construction for exceptional performance and operational safety. They feature dependable, flexible and economical answers for pounds-to-pounds pressure regulation applications.
The 046 family of high-pressure gas regulators are easy to install, adjust, inspect and service in all piping arrangements. Typical applications include farm taps, field regulator applications, high-pressure industrial air or gases and gas blanketing systems.
Model 046 regulators are available with standard construction, an internal relief valve, blocked throat and a control-line tap for remote monitoring. They are available with aluminum or cast iron diaphragm cases.
Although these regulators are used mainly for natural gas service, they perform equally well with nitrogen, air, dry CO2 and other inert gases.
BENEFITS
Supports a variety of pressure settings and mounting positions
Compatible with indoor or outdoor environments
Quick installation and simplified service access
Available with internal relief and remote monitoring options
Wide range of configurations for diverse field conditions
FEATURES
Aluminum or cast iron diaphragm cases
Ductile iron body with increased capacity boost tube (standard model)
Optional internal relief valve (IRV) models
Remote sensing/monitoring variants available
Integral union connection for easy mounting and servicing
Pressure control range: 3–200 psig
Inlet pressure range: 5–1000 psig
Operating temperature: -20°F to +150°F

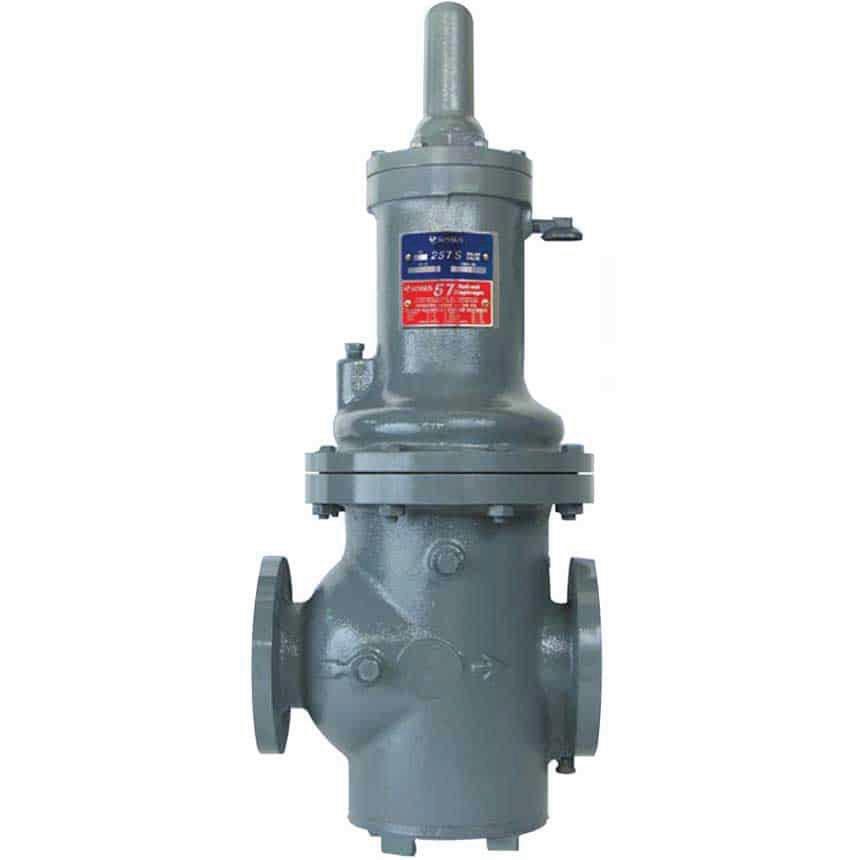

USG 250-S, 257-S
Safety Relief Valves
Our Safety Relief valves offer an economical installation for large capacity relief applications. And that’s exactly the solution you need when other devices in the system don’t relieve dangerous overpressure in the transmission, distribution and use of gas. Leaking bypass valves can sometimes permit pressure to build during off-peak hours. Pressure regulators with damaged valves or seats are not able to effectively shut off when required, possibly leading to dangerous conditions.
Our mechanical safety relief valves are an economical solution with large relieving capacity. The Model 257-S features a “roll-out” diaphragm with a double-ported single valve in which diaphragm action is constantly matched with spring action. This design offers large capacity, tight seating and reseating, sturdy construction and easy servicing with no adjustments needed.
The Model 250-S valves incorporate a deep molded diaphragm and offer an angled body with a large exit area for a high flow rate.
BENEFITS
Increases safety Installs easily
Applies to gas distribution systems, metering sets and C&I
FEATURES
Performs on natural gas, LP gas, nitrogen, dry CO2 and air
Weatherproof
Watertight
INSTRUMENTATION
Eagle E-Series EPR
Electronic
Pressure Recorders
BENEFITS
Live pressure and temperature
Multi pressure capable
Battery, solar, and ups options
Small footprint for easy locating
Live, Min/Max, and historical archiving
APPLICATIONS
Circular charting with Field Manager Plus
Flexible configuration & ease of operation
Simple start-up for fast ROI
Cross platform compatible and programmable
Regulator station monitoring chart replacement
System end point monitoring for load study
Pressure control at critical points
System alarming for pressure and temperature
Automated pressure control from one station to another using TALON™ family software and point transfer feature
MPplusII Series MPM
Pressure Monitors
The MPplus II MPM Pressure Monitor, with an ultra-low power processor and high accuracy digital transducer, makes the MPM the most efficient and accurate pressure monitoring device ever produced by Eagle Research Corporation. With multiple enclosure sizes the MPM’s capabilities range from a single pressure chart recorder to a four pressure, one temperature chart recorder with remote communications for monitoring stations in real time.
BENEFITS
Live, Min/Max, and Historical Archiving
Ultra-Low-Power processor for extended battery life (Up to 10 years – life based on configuration)
High-Accuracy digital pressure transducer(s)
Optional Low-Power cellular modem or other IoT connectivity
Versatile IoT sockets for a future-proof design
Simple start-up for fast ROI
Circular Charging with Field Manager™
Flexible mounting options: Pole or Wall Mount
BENEFITS
Ultra-Low-Power processor for extended battery life (Up to 10 years - life based on configuration)
High-Accuracy digital pressure transducer(s)
Optional Low-Power cellular modem for IoT connectivity
Versatile IoT sockets for a future-proof design
Fully programmable
Simple start-up for fast Return on Investment (ROI)
AMI/AMR compatibility with industry leading companies
Measurement based on AGA and API standards
Support for ERC-HexASCII and MODBUS protocols without adding additional hardware
XARTU1 AAT
Volume Correctors
The XARTU/1™-LDVI-AAT Volume Corrector is applicable to the Sensus Auto-Adjust™ Turbine meter. Features of this configuration include: Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
The XARTU/1™-LDVI-AAT Volume Corrector is applicable to the Sensus Auto-Adjust™ Turbine meter.
FEATURES
Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
Live GC inputs
AGA 5, AGA 7, AGA 8 Detailed and Gross Methods I & II, & NX-19 Calculation When Required
Optional live 4-20mA or Frequency Output for Instantaneous Flow Rate
Live Graphing of Main/Sense Frequencies in Field Manager™
XARTU1
Volume Correctors
The XARTU/1-LDVI™ Volume Corrector is the core product in the volume corrector line. This unit runs on the proven XARTU/1™ SBC61 circuit board, heart of all products in the Eagle XA/1 series. The VC-LDVI includes an internal pressure transducer, an internal RTD (resistance temperature detector), external display and 2400 bps modem in the standard product offering. An optional Low Drag Vertical Index (LDVI™) provides the user with a low cost mechanical backup to the electronic device.eds
FEATURES
Low Drag Vertical Index (LDVI)
Single and Bi-Directional Versions Available AGA 7, AGA 8 (Detail & Gross Method I & II), & NX-19
Digital Outputs for Corrected/Uncorrected Volumes
Configurable for Forward, Reverse and Net Volumes
Multi-Run Configurations Available Using a Transducer Interface or XDI
INSTRUMENTATION
XARTU1
Cathodic Prote4ction Monitors
The XARTU/1-CP™ is designed to provide pipeline operators with a complete range of functions for remote monitoring, data acquisition, and control of cathodic protection systems used on buried steel pipelines.
The XA™ Series Cathodic Protection Monitor provides for reliable monitoring and control of CP rectifiers and test points. The XARTU/1-CP™ greatly reduces me spent doing periodic checks of rectifiers by allowing remote monitoring of rectifier station voltage, rectifier current, pipe/structure-to-soil potentials and critical bonds. Monitor status is reported using any of today’s wide variety or wireless methods of communications including LEO Satellite, CDMA, GPRS/GSM Cellular, Spread Spectrum Radio or Cellular. An optional on-board modem is available as well for land-line telephone service.
FEATURES
Embedded Sensus Auto-Adjust™ Algorithms certified by Sensus™
Live GC inputs
AGA 5, AGA 7, AGA 8 Detailed and Gross Methods I & II, & NX-19 Calculation When Required
Optional live 4-20mA or Frequency Output for Instantaneous Flow Rate
The MPplus™ Volume Corrector is a cost reduced version of the XARTU/1™-LDVI series of volume corrector products. It is an intelligent, compact, rugged, and reliable industrial microprocessor-controlled computer designed for measurement applications. It can execute multiple processes including complex math functions or control algorithms without host intervention. TM
FEATURES
Large Easy-to-Read LCD Display with Magnetic Scroll
Optional Pulse Output Board for AMR—AMI Applications to Extend Battery Life
Electronic Recording Solution
Historical Archiving and Trending
Easy Graphical Viewing of Pressure Fluctuations at Regulator Stations
Load Analysis of the System Used by Engineering Departments
POWER OPTIONS Eagle MPlus
1 Watt Solar Panel with 6V 4.5Ah rechargeable battery
6 C-Cell replaceable battery pack
Tri “D” Lithium battery pack
Other power options available as user needs dictate
Eagle E-Series EFC
Electronic Flow Correctors
FEATURES
Measurement based on AGA & API standards
Universal Meter Mounting Plate
Uni & Bi Directional Flow Accumulation
Live pressure and temperature
Multi-Meter run capable
Battery, solar, and UPS options
Live, Min/Max, and historical archiving
Flexible configuration and ease of operation
simple start-up for fast ROI
APPLICATIONS
Custody Transfer Integrity
Commercial & Industrial Metering
Flow, Pressure, and Sequencing Control
Complete Gate Station Automation
System Alarming for Pressure, Flow, Volume
Fully Programmable Process Library Support
ROMET ® Hub Configuration
Rotary Gas Meters
The Romet Hub Configuration is designed to fit any application where an eleven inch (11") centre-to-centre hub connection meter would be utilized (800/1000 class diaphragm, ultrasonic, enclosed rotary cartridge). The Romet Hub Configuration leverages the robust and accurate measurement capabilities of Romet's trusted and proven rotary meter technology.
Seamless integration with Adem and BrightLync provides a wealth of serial data for gas volume, flow, pressure, temperature, and alarm limits — all communicated wirelessly in near real-time. This configuration setup is a small, lightweight package that can easily be installed by a single technician.
FEATURES
Integrated Adem-T or Adem-PTZ
Serial communications
BrightLync compatible
4 available pulse outputs
Full audit trail data log
11" centre-to-centre connection (45Lt.)
175 PSIG MAOP
Built-in debris sump
Inlet and outlet pressure plugs
Reverse flow option (right/left meter set)
ROMET ® AdEM-PTZ
Advanced Electronic Modules
An electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z). The AdEM-PTZ is a direct mount module for seamless integration with ROMET® and other popular rotary meters. Some features of the AdEM-PTZ include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life. This state-of-the-art corrector is also available as a remote mount variation- AdEM-PTZ-r.
The AdEM-PTZ is an electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z). The AdEM-PTZ is a direct mount module for seamless integration with ROMET and other popular rotary meters. Some features of the AdEM-PTZ include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life. This state-of-the-art corrector is also available as a remote mount variation- AdEM-PTZ-r.
One Size Fits All- upgrade your rotary meters with the latest electronics in a matter of a click.
ROMET has developed a single adapter plate that will allow our AdEM-PTZ to be installed on ROMET RM 600-56000 rotary meters and RMT 600-23000 rotary meters. We also offer a single adapter plate for Dresser B3 meters ranging from 8C to 56000 and LMMA meters ranging from 1500-16000. The AdEM-PTZ comes standard with ROMET’s patented AdEM Click technology allowing for seamless installation between Romet and Dresser rotary meters.
With the AdEM Click you can carry one electronic corrector to fit all sizes and brands of rotary meters in your system.
ROMET ® RMT
Rotary Gas Meters
The RMT meter is ROMET’s most advanced meter body. The extruded aluminum body along with our proprietary impeller profile provides improved rangeability while maintaining the highest levels of accuracy and precision through our patented pinned timing gear design. An integral mechanical backup counter comes standard on the entire RMT size range providing our customers with the peace of mind that accurate and reliable measurement will be maintained throughout the life of the meter.
RUGGED
All meters are pressure tested up to 4x MAOP to ensure only the toughest meters leave our facility.
RESPONSIVE
Each meter is individually factory tested and certified for measurement accuracy meeting or exceeding ANSI B109.3 rotary gas meter requirements.
RELIABLE
RMT meters come standard with an integral mechanical backup counter to give our customers confidence that reliable measurement will always be achieved.
In a world where operational efficiency and energy cost control are paramount, Romet’s BrightLink™ Energy Management System delivers a cutting-edge, turnkey solution to help commercial and industrial facilities take control of their energy usage and performance.
KEY BENEFITS AND CAPABILITIES

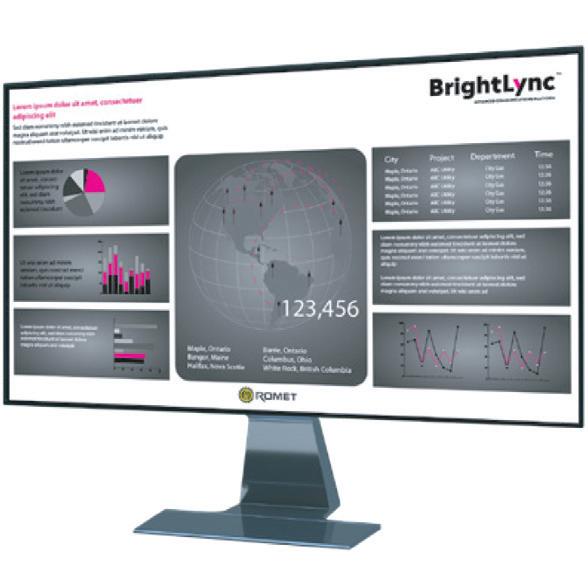

BrightLink™ seamlessly integrates gas measurement, real-time monitoring, data acquisition, and intelligent analytics into a unified platform designed for today’s energy-intensive environments. Whether you're managing a single facility or a multi-site operation, BrightLink™ empowers your team with actionable insights and tools to:
• Monitor Natural Gas Flow & Pressure in real time with precision and reliability.
• Track Energy Consumption Trends across multiple sites, departments, or equipment types.
• Automate Data Logging and Compliance Reporting to meet regulatory requirements with ease.
• Identify Cost-Saving Opportunities through smart analytics and custom alerts.
• Enhance Operational Efficiency by integrating with SCADA, DCS, or building automation systems.
Built on Romet’s proven legacy of measurement and control, BrightLink™ supports a full suite of hardware and software tools tailored to your facility’s needs, including remote telemetry units (RTUs), cloud dashboards, and API integration for enterprise-level energy management.
Whether you're looking to reduce energy waste, optimize load management, or enhance sustainability metrics, Romet BrightLink™ offers the clarity, control, and confidence to power smarter decisions.
YOUR FACILITY. YOUR DATA. YOUR ADVANTAGE.
Choose Romet BrightLink™ and unlock the full potential of your energy infrastructure.
SSM iCON
Smart Gas Meters
The SSM-iCON 250 and 400 model smart meters incorporate the latest ultrasonic technology to measure gases plus a variety of network connectivity options. Suitable for use with natural gas, biomethane and hydrogen blends (up to 20%), these devices are used for residential applications as well as light commercial applications in low pressure gas distribution networks.
FEATURES
Body: zinc-coated pressed steel plate
Electronic enclosure: plastic polycarbonate
Working temperature: from -13° F to +131° F
Connections: 7/8’’ ISO 228, 1’’ ISO 228, 1” 1/4 ISO 228
Emergency shut-off for fire, pressure, or seismic events
Compatible with natural gas, biomethane and up to 20% hydrogen
Swappable communication module for cellular or fixed networks
IP67 / NEMA 4X — built tough for outdoor installations
Simple LCD interface with single-button operation
Sensus R-275
Residential Gas Meters
The R-275 and R-315 are Class 250 residential diaphragm gas meters that combine the latest design concepts and modern engineering materials. Lighter weight and easy to handle, they are more durable, require less maintenance and offer greater life expectancy than previous meters in this class.
The temperature compensation element has increased strength to minimize deflection from valve drag. A simplified crank bracket provides accurate positioning of the crank support, and its low-friction polymer material eliminates the need for lubrication. Close tolerances and molded phenolic construction of the valve seat provide smoother operation and minimize wear. The R-275 and R-315 meters also accommodate external valve guides, which are easily installed in these meters.
Our revolutionary, patented accuWAVE diaphragm is now standard on the R-275 and R-315 meters. This design has a longer life expectancy, improved long-term performance—even in extreme conditions—exceptional proof stability and a lower overall lifetime cost.
FEATURES
accuWAVE diaphragm
Operating temperature range: -30° F to 150° F
Larger volume applications
BENEFITS
Lowers total cost of ownership
Reduces repair time and cost
Increases efficiency
Extends life span
Sensus Auto Adjust II Turbo Meters
Gas Meters
Deliver unparalleled high volume gas measurement with the Auto-Adjust® II turbo meter (AAT). It features dual sensing rotors and patented algorithms that work in partnership to detect and adjust for changes in gas flow conditions, such as jetting, pulsation and swirl. They can also adjust for drag caused by component wear or contamination. In fact, Auto-Adjust II meter accuracy is +/- 1.0% over the entire operating range of the gas turbine meter.
Using the same top-entry design of our Mark II turbo meters, the measuring module of the AAT can be changed, recalibrated or upgraded without removing the meter body from the line. This helps prevent costly downtime and lost revenue. The AAT meter has unique self-checking features. So you can provide constant accuracy monitoring and in-line field diagnostics—a good way to save significant maintenance dollars.
FEATURES
Dual turbine technology
Removable measuring module
Accuracy savings
Maintenance savings
Auto-adjusting design
Self-checking and self-adjusting algorithm
Easy upgrades and customization
BENEFITS
Alerts users to unstable upstream conditions and unacceptable installations
Allows for remote monitoring of measurement system accuracy
Allows for remote totalization of adjusted and corrected volumes
Reduces the number of maintenance and testing site visits
Sonix IQ
Ultrasonic Gas Meters
Sonix IQ provides the pinpoint accuracy of ultrasonic measurement for residential gas metering. Designed to meet rigorous standards required for outdoor installations in North America, this solid state meter has no moving parts to replace or wear out over time. It boasts dual-class metrology; the same size meter can cover either 250 CFH or 425 CFH needs. And with an available FlexNet radio integrated inside the meter housing – the Sonix IQ packs in value within a compact size.
FEATURES
Dual-class metrology: 250 CFH or 425 CFH
90-day hourly data logs
Built-in theft and tamper detection
Available pulse output
Optional FlexNet capability
BENEFITS
Compact footprint to fit anywhere
Two-way communications when used with a Sensus FlexNet communication network
Supports third party radios
Continuous health checks through safety alerts and alarms
Streamlined asset management planning and reduced costs due to solid-state construction, integrated communication module and extended 20-year battery life
LEAK DETECTION
Sensus 415
Diaphragm Meters
The 415 is a Class 400 residential, commercial and industrial diaphragm meter that combines the latest design concepts and modern engineering materials. Lighter weight and easy to handle, the 415 is more durable, requires less maintenance and offers greater life expectancy than previous meters in this class.
The temperature compensation element has increased strength to minimize deflection from valve drag. A simplified crank bracket provides accurate positioning of the crank support, and its low-friction polymer material eliminates the need for lubrication. Close tolerances and molded phenolic construction of the valve seat provide smoother operation and minimize wear. It accommodates external valve guides, which are easily installed in this meter. Our revolutionary, patented accuWAVE diaphragm meter is now standard on the 415 meter. This design has a longer life expectancy, improved long-term performance—even in extreme conditions—exceptional proof stability and a lower overall lifetime cost.
FEATURES
accuWAVE diaphragm
Operating temperature range: -30º F to 150º F
Larger volume
BENEFITS
Lowers total cost of ownership
Reduces repair time and cost
Increases efficiency
Extends life span

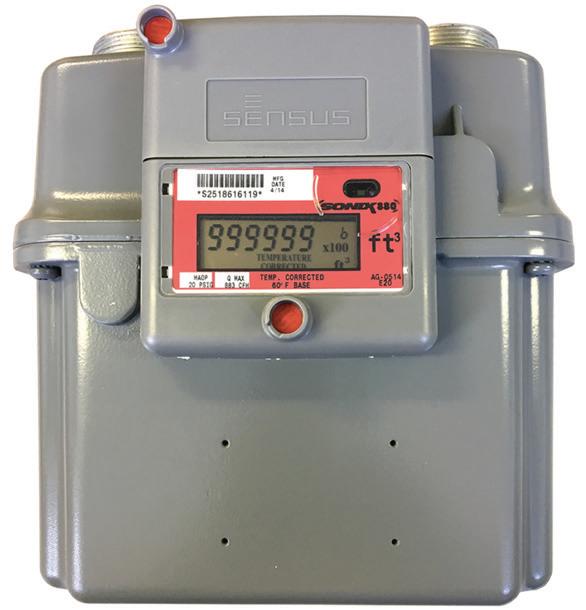

Sonix 600/800
Ultrasonic Meters
Using digital ultrasonic technology, our Sonix ultrasonic meters are designed with no moving parts, virtually eliminating the cost of repairs. These meters retain their calibration. They also provide alerts for tampering and for malfunctions. Their compact design affords flexible installation options. The electronic platform allows you to include automatic meter reading more cost effectively and to upgrade the meter with the latest options while it is still in service.
For remote data collection and storage, Sonix meters feature a pulse output option. The two-wire pulse output enables them to send data to any Form A pulse accumulation hardware. The combination of Sonix meters and remote data collection devices provide a sound solution for today’s growing need for measurement accuracy and lowest total cost of ownership.
FEATURES
10-year battery life warranty/15-year meter warranty
No moving parts
60 days of hourly data
Built-in diagnostics
BENEFITS
Provides highly accurate measurement and reliability
Reverse flow
Air in the meter
Temperature compensation
Fixed factor pressure compensation
Increases functionality while using significantly less material
Performs more efficiently
Increases savings with reduced installation and labor costs
Sonix 2000/3000
Ultrasonic Meters
Using digital ultrasonic technology, our Sonix ultrasonic meters are designed with no moving parts, virtually eliminating the cost of repairs. These meters retain their calibration. They also provide alerts for tampering and for malfunctions. Their compact design affords flexible installation options. The electronic platform allows you to include automatic meter reading more cost effectively and to upgrade the meter with the latest options while it is still in service.
For remote data collection and storage, Sonix meters feature a pulse output option. The two-wire pulse output enables them to send data to any Form A pulse accumulation hardware. The combination of Sonix meters and remote data collection devices provide a sound solution for today’s growing need for measurement accuracy and lowest total cost of ownership.
FEATURES
10-year battery life warranty/15-year meter warranty
No moving parts
60 days of hourly data
Built-in diagnostics
BENEFITS
Provides highly accurate measurement and reliability
Reverse flow
Air in the meter
Temperature compensation
Fixed factor pressure compensation
Increases functionality while using significantly less material
Performs more efficiently
Increases savings with reduced installation and labor costs
Sensus
Mark-II
Turbo Meters
Sensus Mark-II turbo meters offer high-performance gas measurement capabilities with thoughtful design features that make them easy to install and maintain. The 4-12’’ turbos feature a top-entry design that allows the measurement module to be removed from the meter body without disassembling the pipeline. They provide accurate and reliable measurement data over a wide range of operating flows and conditions. Mark II meters are ideally suited for meter-mounted volume correctors, and they are easily adapted to many flow computers.
All moving parts are housed in a sealed chamber, protected from line contaminants. The unique design of the 45-degree or 30-degree blade angle rotor allows the meter to extract the maximum amount of kinetic energy from gas as it flows parallel to the blades. Mark II turbo meters accept a multitude of meter-mounted readout devices and provide calibrated pulse outputs for electronic measurement.
FEATURES
30-degree and 45-degree rotor blade angles available
One or two pulse outputs via blade tip sensors
Top-entry design
Calibrated measuring element is an interchangeable module
Improved gas flow conditioning with integral straightening vanes
Robust rotor-shaft ball bearings
Optional automatic oiler
Easily upgrade to Auto-Adjust turbo meter without removing the meter body
