2026
BI KE S & COMPO NENTS I NTERSPORT
HARDTAIL LINE-UP
Our Hardtail mountain bikes are suitable for anything from racing at the highest level, to allowing you to make your first forays into the world of MTB When it comes to efficiency, these bikes are tough to beat!

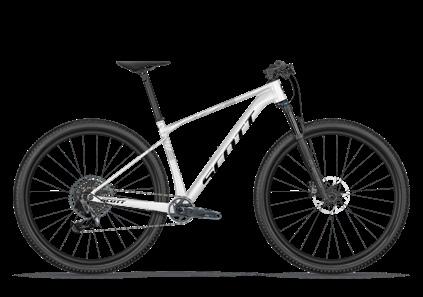

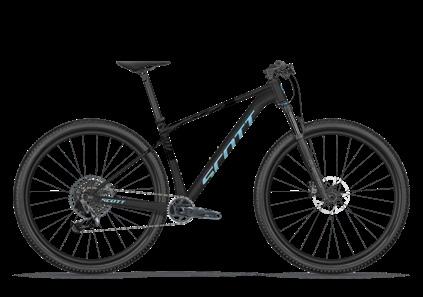

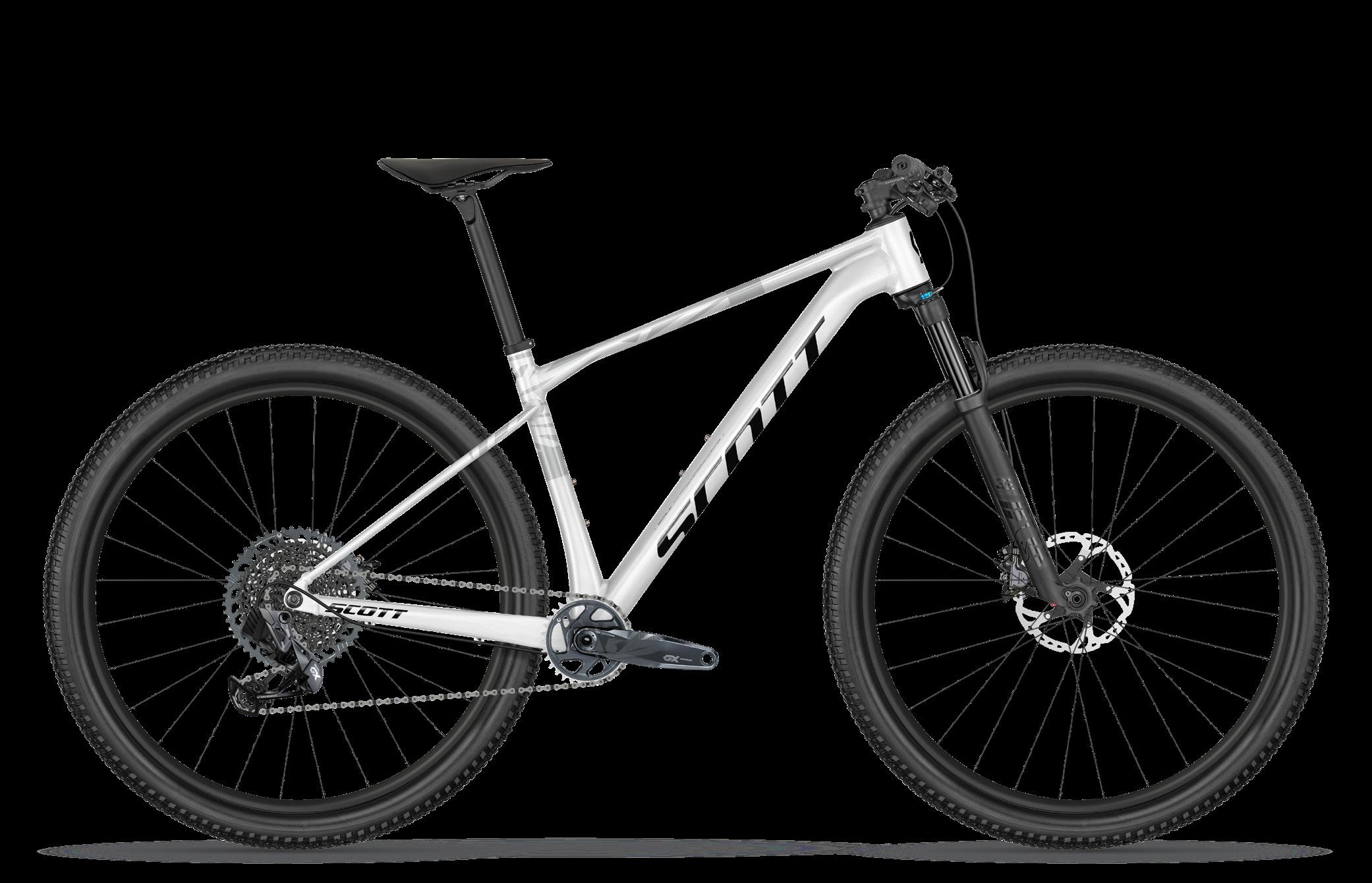

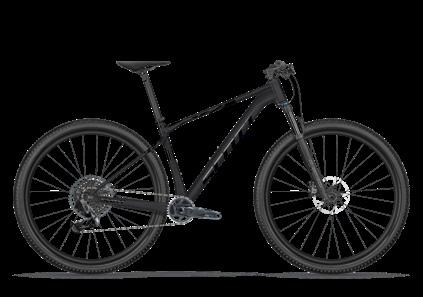

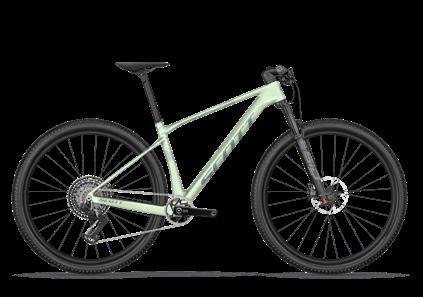

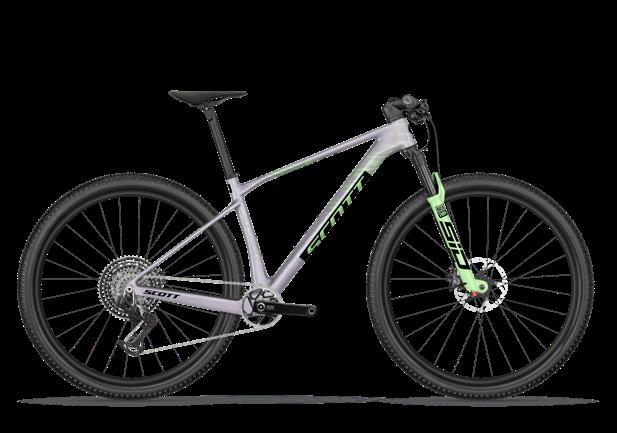

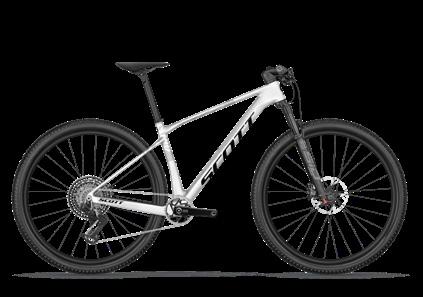

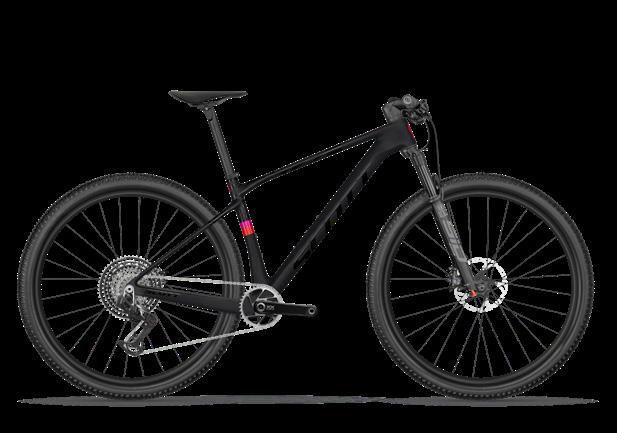

SCALE RC
The Scale RC is the perfect blend of stiffness, light weight, and 30 years of carbon expertise T hese characteristics, encompassed in an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke
CONTRAIL
Step into the World of mountain bikes with the all-new Contrail family of bikes, your versatile companion and ticket to explore the outdoors Featuring a modern trail inspired geometry, carefully curated components that back you up at every opportunity as well as a selection of colors and models that leaves nothing to be desired
T he Scale family of bikes takes inspiration from their race bred cousins, and focus more on ride comfort and affordability Available in both Carbon and Alloy frame materials, these bikes are used around the world as race bikes, adventure bikes, and for everything in between

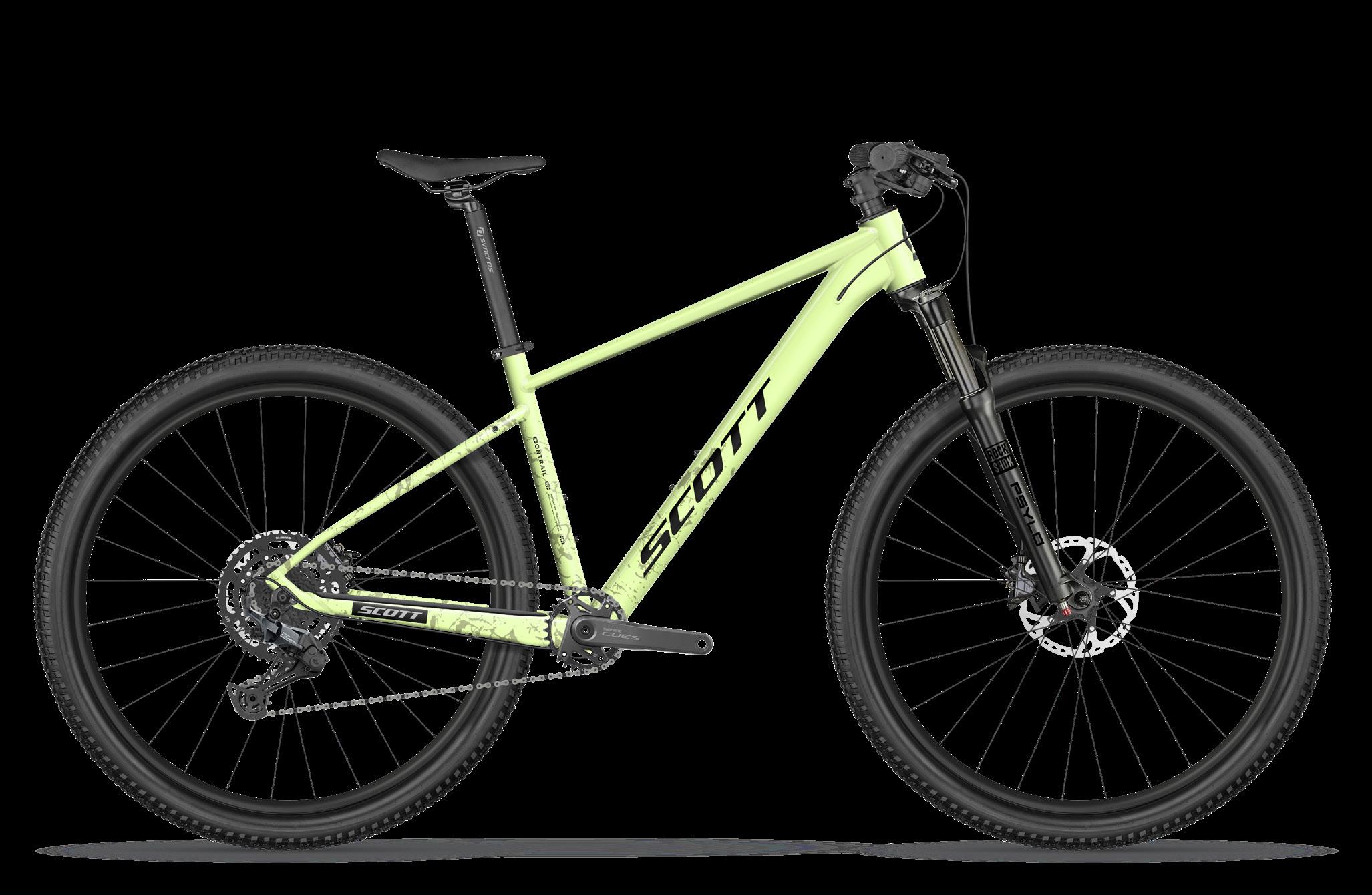

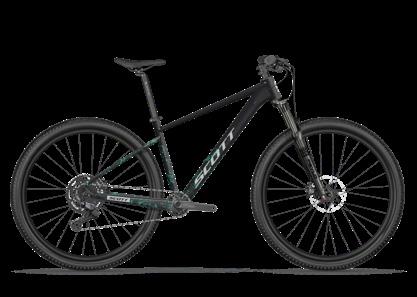

SCALE

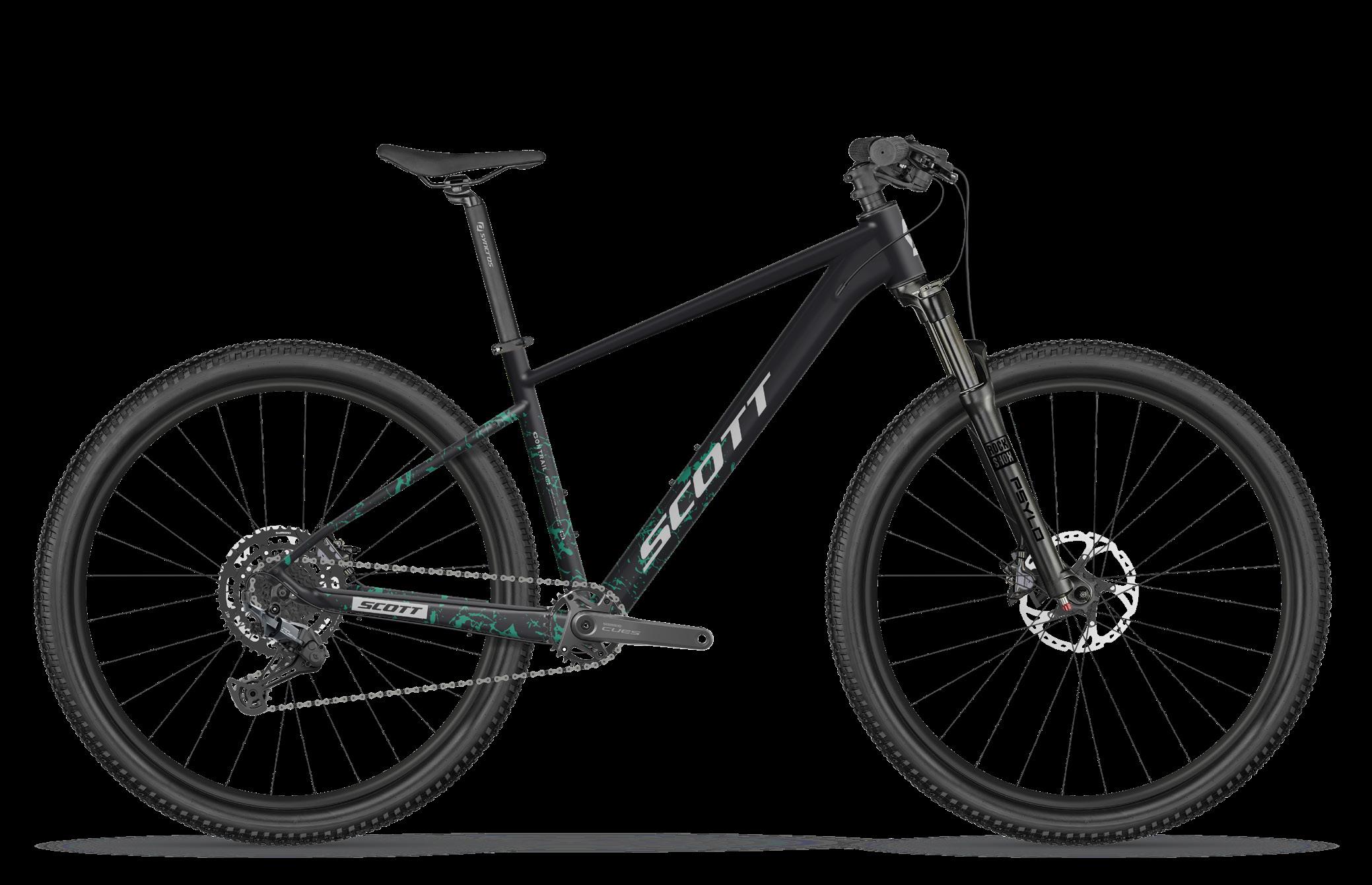

SCALE OVERVIEW
FRAME Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System, BB92, UDH Interface, 12x148mm with 55mm Chainline
FORK RockShox Judy Silver TK Solo Air, 15x110mm QR axle, 51mm offset, Tapered Steerer, Reb Adj , Lockout, 110mm travel
REMOTE SYSTEM RockShox PopLoc Remote
REAR DERAILLEUR Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
SHIFTERS Shimano Deore SL-M6100-R, Rapidfire Plus
CRANKSET Shimano FC-MT512-1, 55mm CL, 32T BB-SET Shimano BB-MT500, shell 41x92mm
CHAIN Shimano CN-M6100
CASSETTE Shimano Deore CS-M6100-12, 10-51 T
BRAKES Shimano MT200 Disc Brake, Shimano SM-RT10 CL, 180/F and 160/R
HANDLEBAR Syncros Alloy 6061, T shape Flat, 9°, 740mm, Syncros Performance XC lock-on grips
HANDLEBAR STEM Syncros Alloy 6061, oversized 31 8mm, 1 1/8”, 6° angle
SEATPOST Syncros Duncan Dropper, 31 6mm, XS&S size 100mm, M size 130mm, L &XL size 150mm
SEAT Syncros Belcarra Regular 2 5
HEADSET Syncros - Acros OE Cable Routing HS System, OD 50/62mm, ID 42/56mm
HUB (FRONT) Formula CL-811, 15x110mm
HUB (REAR) Formula CL-548M, 12x148mm, Micro Spline
SPOKES Stainless Black 15G, 1 8mm
RIMS Alex X-25/ 32H, 25mm, Tubeless ready
FRONT TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready
REAR TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready
APPROX
WEIGHT kg lbs
SCALE 940
FRAME Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System, BB92, QR Axle 5x141mm with 55mm Chainline
FORK RockShox Judy Silver TK Coil, QR, 51mm offset, Reb Adj Lockout, 100mm travel
REAR DERAILLEUR Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
SHIFTERS Shimano Deore SL-M6100-R, Rapidfire Plus
CRANKSET Shimano FC-MT512-1, 55mm CL, 32T BB-SET Shimano BB-MT500, shell 41x92mm
CHAIN Shimano CN-M6100
CASSETTE Shimano Deore CS-M6100-12, 10-51 T BRAKES Shimano MT200 Disc Brake, Shimano SM-RT10 CL, 180/F and 160/R
HANDLEBAR Syncros Alloy 6061, T shape Flat, 9°, 740mm, Syncros Performance XC lock-on grips
HANDLEBAR STEM Syncros Alloy 6061, oversized 31 8mm, 1 1/8”, 6° angle
SEATPOST Syncros Duncan Dropper, 31 6mm, XS&S size 100mm, M size 130mm, L &XL size 150mm
SEAT Syncros Belcarra Regular 2 5
HEADSET Syncros - Acros OE Cable Routing HS System, OD 50/62mm, ID 42/56mm
HUB (FRONT) Formula CL-51
HUB (REAR) Formula CL-541M, 5x141mm, Micro Spline
SPOKES Stainless Black 15G, 1 8mm
RIMS Alex X-25/ 32H, 25mm, Tubeless ready
FRONT TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready REAR TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready
APPROX
WEIGHT kg lbs
SCALE 940
FRAME Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System, BB92, QR Axle 5x141mm with 55mm Chainline
FORK RockShox Judy Silver TK Coil, QR, 51mm offset, Reb Adj, Lockout, 100mm travel
REAR DERAILLEUR Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
SHIFTERS Shimano Deore SL-M6100-R, Rapidfire Plus
CRANKSET Shimano FC-MT512-1, 55mm CL, 32T BB-SET Shimano BB-MT500, shell 41x92mm
CHAIN Shimano CN-M6100
CASSETTE Shimano Deore CS-M6100-12, 10-51 T BRAKES Shimano MT200 Disc Brake, Shimano SM-RT10 CL, 180/F and 160/R
HANDLEBAR Syncros Alloy 6061, T shape Flat, 9°, 740mm, Syncros Performance XC lock-on grips
HANDLEBAR STEM Syncros Alloy 6061, oversized 31 8mm, 1 1/8”, 6° angle
SEATPOST Syncros Duncan Dropper, 31 6mm, XS&S size 100mm, M size 130mm, L &XL size 150mm
SEAT Syncros Belcarra Regular 2 5
HEADSET Syncros - Acros OE Cable Routing HS System, OD 50/62mm, ID 42/56mm
HUB (FRONT) Formula CL-51
HUB (REAR) Formula CL-541M, 5x141mm, Micro Spline
SPOKES Stainless Black 15G, 1 8mm
RIMS Alex X-25/ 32H, 25mm, Tubeless ready
FRONT TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready REAR TIRES Maxxis Rekon Race, 29x24”, EXO, Tubeless Ready
APPROX WEIGHT kg lbs

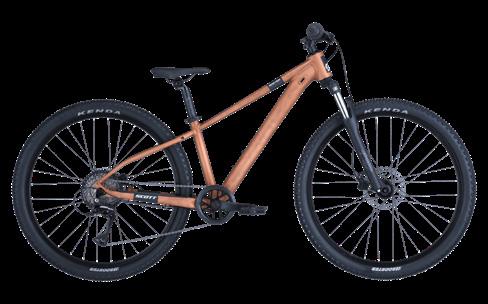

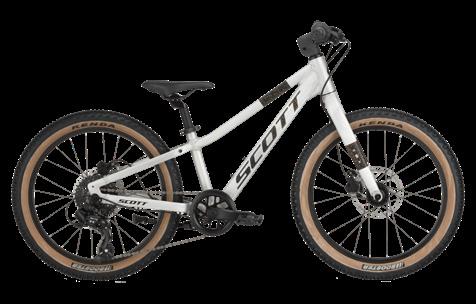

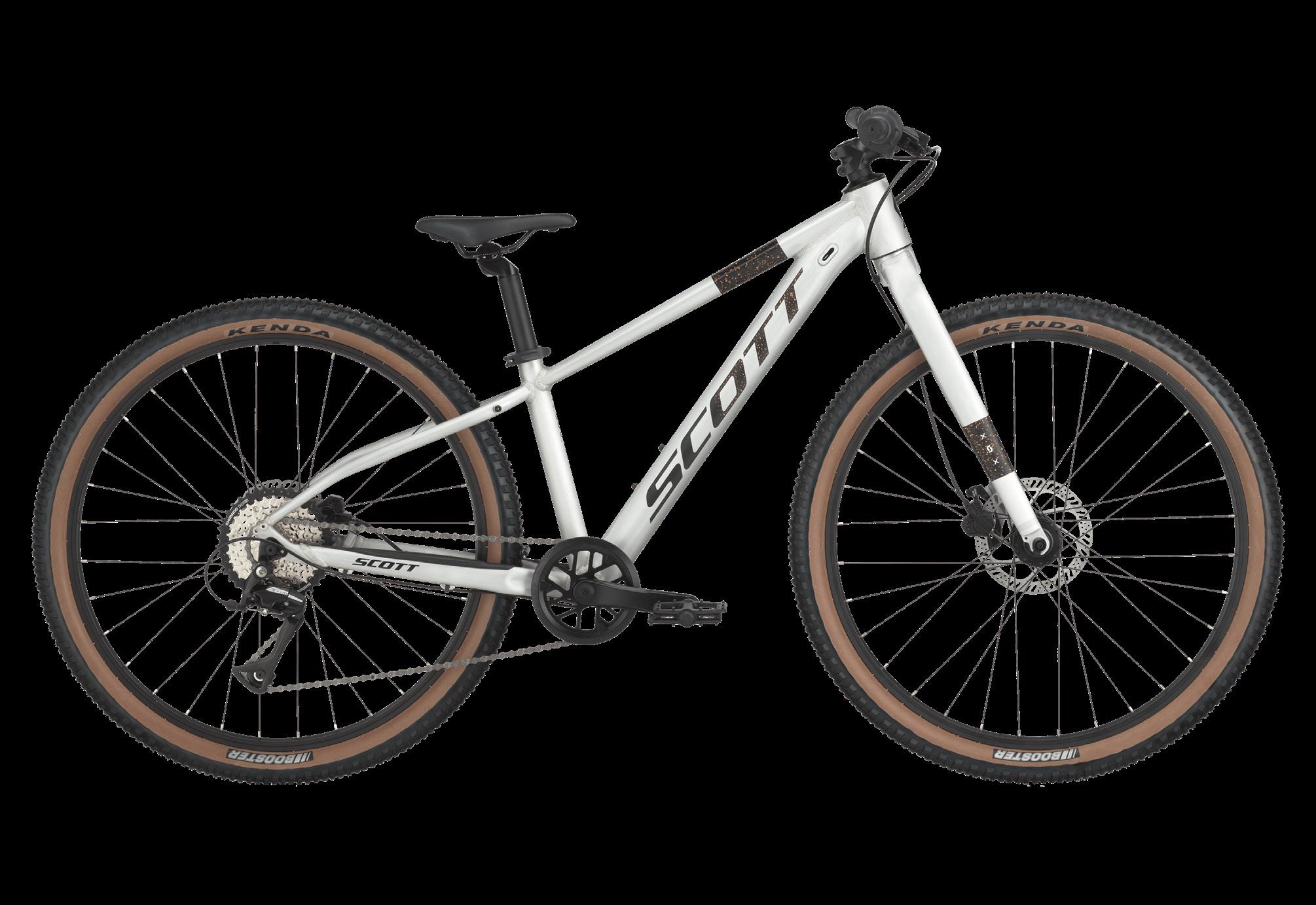

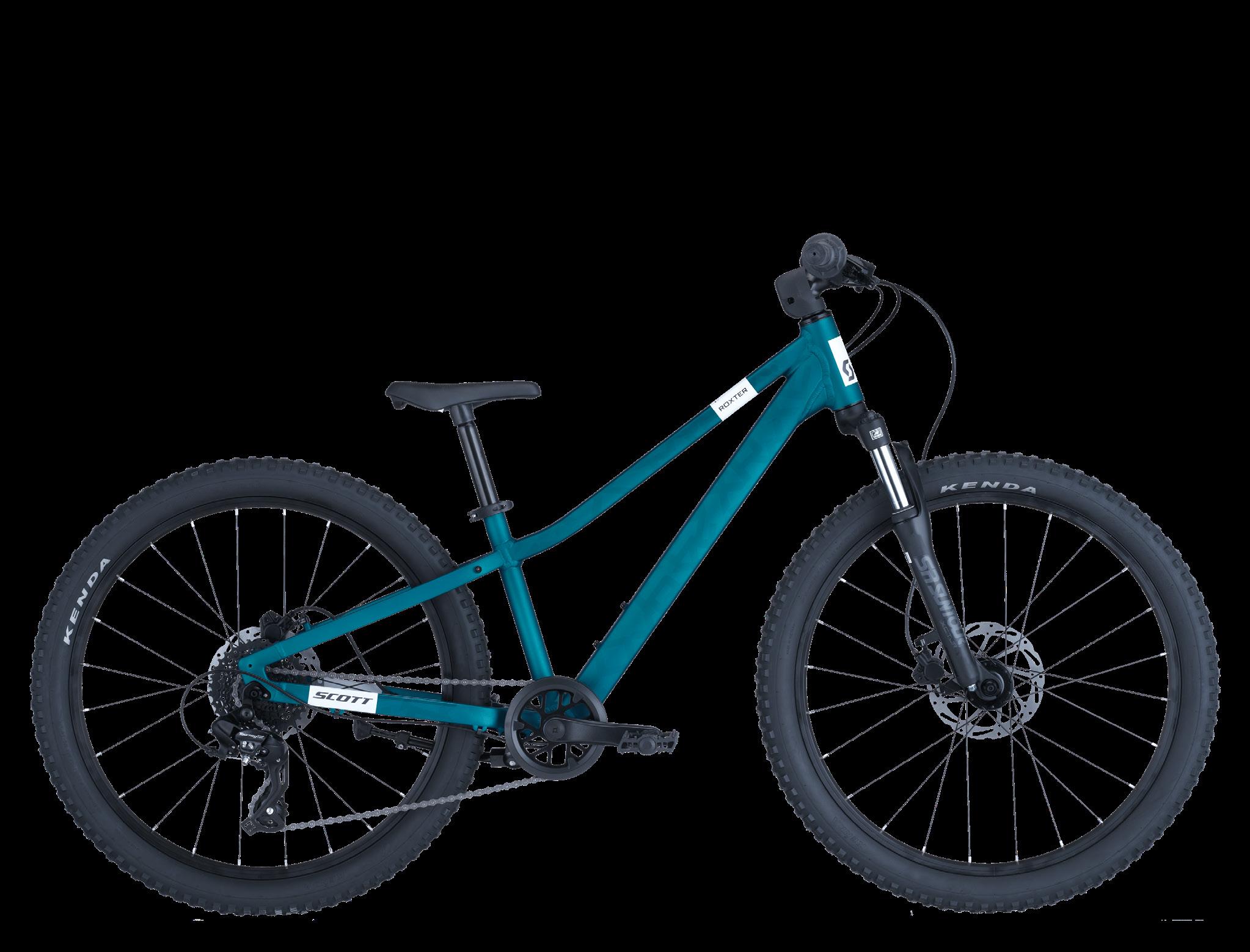

CONTRAIL OVERVIEW
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK RockShox Judy Silver TK Coil, QR, 46mm offset, Reb Adj Lockout, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Shimano CUES FC-U4000-1, 30T BB-SET Feimin FP B908N, BB73, square taper CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Shimano MT200, Hydr Disc Brakes, Shimano SM-RT10 CL, 180/F and 160/R
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 31 8, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula CL51
HUB (REAR) Shimano FH-QC300-HM
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI REAR TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI PEDALS Feimin FP-803
APPROX
WEIGHT kg lbs
425632 -8087
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK RockShox Judy Silver TK Coil, QR, 46mm offset, Reb Adj Lockout, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Shimano CUES FC-U4000-1, 30T
BB-SET Feimin FP B908N, BB73, square taper CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Shimano MT200, Hydr Disc Brakes, Shimano SM-RT10 CL, 180/F and 160/R
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 31 8, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula CL51
HUB (REAR) Shimano FH-QC300-HM
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI REAR TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI PEDALS Feimin FP-803
APPROX WEIGHT kg lbs
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK Suntour XCT30-HLO, Black Stanchions, Reb Adj Lockout, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 30T
BB-SET Feimin FP B908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, DDK Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 31 8, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI REAR TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI PEDALS Feimin FP-803
APPROX
WEIGHT kg lbs
425633 -8349
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK Suntour XCT30-HLO, Black Stanchions, Reb Adj Lockout, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 30T BB-SET Feimin FP B908N, BB73, square taper CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, DDK Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 31 8, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black FRONT TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI REAR TIRES Maxxis Rekon Race, 24”, DUAL, 60PTI PEDALS Feimin FP-803
APPROX WEIGHT kg lbs
-0001
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK Suntour XCE28, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U4000-GS, Shadow Type, 9 Speed
SHIFTERS Shimano CUES SL-U4000-9, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 30T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-9, 11-46T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, DDK Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 316mm, 350mm, Black
SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
REAR TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
PEDALS Feimin FP-803
APPROX
WEIGHT kg lbs
425634 -8177
Pris: 8 995 kr
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK Suntour XCE28, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U4000-GS, Shadow Type, 9 Speed
SHIFTERS Shimano CUES SL-U4000-9, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 30T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-9, 11-46T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, DDK Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 316mm, 350mm, Black
SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
REAR TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
PEDALS Feimin FP-803
APPROX WEIGHT kg lbs
425634 -8352
FRAME Contrail Alloy 6061 Custom Butted Tubing, BSA73, Internal Cable Routing, QR Axle 5x135mm, replaceable hanger
FORK Suntour XCE28, 100mm travel
REAR DERAILLEUR Shimano CUES RD-U4000-GS, Shadow Type, 9 Speed
SHIFTERS Shimano CUES SL-U4000-9, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 30T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-9, 11-46T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, DDK Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 316mm, 350mm, Black
SEAT DDK Saddle
HEADSET Syncros OE Press Fit, 1 1/8”, ZS56-62mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
REAR TIRES Maxxis Rekon Race, 2 4”, DUAL, 60PTI
PEDALS Feimin FP-803
APPROX WEIGHT kg lbs

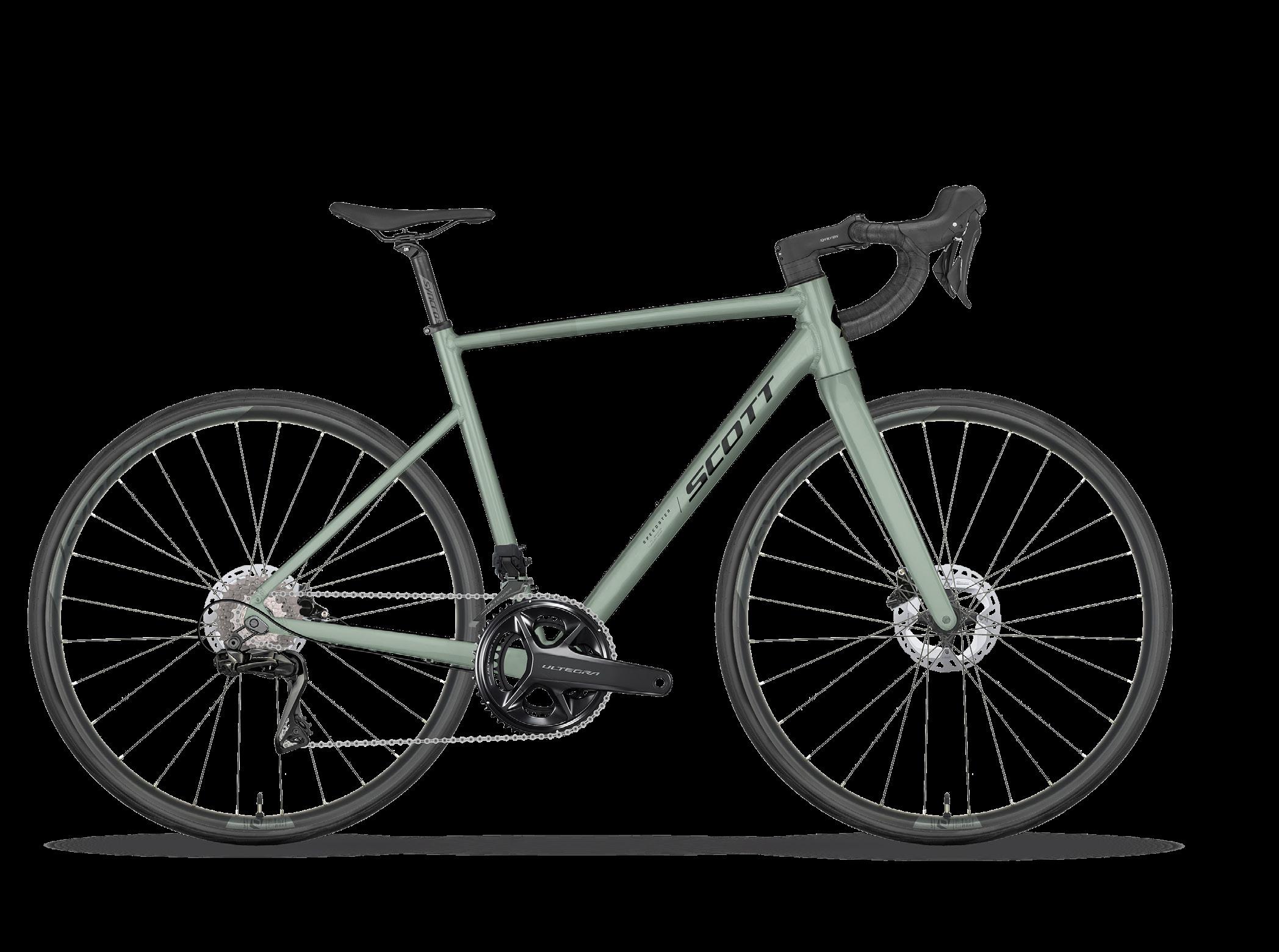

SPEEDSTER OVERVIEW
SPEEDSTER 10
423303 -7965
CHAMPION
FRAME Speedster Disc, 6061 D Butted Alloy, Endurance geometry, int cable routing, Syncros fender kit ready
FORK Speedster HMF Disc, 1 1/4”-1 1/2” Eccentric Carbon steerer
REAR DERAILLEUR Shimano 105 RD-R7100, 24 Speed
FRONT DERAILLEUR Shimano 105 FD-R7100
SHIFTERS Shimano 105 ST-R7120 Disc, Dual control 24 Speed
CRANKSET Shimano FC-RS520, 50/34
BB-SET Shimano BB-RS500-PB
CHAIN Shimano CN-M6100-12
CASSETTE Shimano CS-R7101, 11-34
BRAKES Shimano BR-R7170 HydDisc, Shimano RT-CL700 rotor 160/F and 160/R HANDLEBAR Syncros Creston 2
SEAT Syncros Tofino Regular 25 HEADSET Acros AIF-1133
Black 2mm RIMS Syncros Race 25 Disc, 28 Front, 28 Rear FRONT TIRES Schwalbe Lugano, 700x32C REAR TIRES Schwalbe Lugano, 700x32C APPROX
SPEEDSTER 10
APPROX WEIGHT 10 2 kg 2249 lbs 423303 -8087
FRAME Speedster Disc, 6061 D Butted Alloy, Endurance geometry, int cable routing, Syncros fender kit ready
FORK Speedster HMF Disc, 1 1/4”-1 1/2” Eccentric Carbon steerer
REAR DERAILLEUR Shimano 105 RD-R7100, 24 Speed
FRONT DERAILLEUR Shimano 105 FD-R7100
SHIFTERS Shimano 105 ST-R7120 Disc, Dual control 24 Speed
CRANKSET Shimano FC-RS520, 50/34
BB-SET Shimano BB-RS500-PB
CHAIN Shimano CN-M6100-12
CASSETTE Shimano CS-R7101, 11-34
BRAKES Shimano BR-R7170 HydDisc, Shimano RT-CL700 rotor 160/F and 160/R
HANDLEBAR Syncros Creston 2 0 Compact, 31 8mm
HANDLEBAR STEM Syncros RR25, 1 1/4”, four Bolt 318mm
SEATPOST Syncros RR25 272/350mm
SEAT Syncros Tofino Regular 25
HEADSET Acros AIF-1133
HUB (FRONT) Formula Team II CL Disc 28 H HUB (REAR) Formula Team II CL Disc 28 H
SPOKES Black 2mm
RIMS Syncros Race 25 Disc, 28 Front, 28 Rear
FRONT TIRES Schwalbe Lugano, 700x32C
REAR TIRES Schwalbe Lugano, 700x32C
SPEEDSTER 20
FRAME Speedster Disc, 6061 D Butted Alloy, Endurance geometry, int cable routing, Syncros fender kit ready
FORK Speedster HMF Disc, 1 1/4”-1 1/2” Eccentric Carbon steerer
REAR DERAILLEUR Shimano Tiagra RD-4700-GS, 20 Speed
FRONT DERAILLEUR Shimano Tiagra FD-4700
SHIFTERS Shimano Tiagra ST-4720, Dual control 20 Speed
CRANKSET Shimano Tiagra FC-R4700, 50/34
BB-SET Shimano BB-RS500-PB
CHAIN KMC X10
CASSETTE Shimano CS-HG500, 10 Speed 11-34 BRAKES Shimano BR-R4770 HydrDisc, Shimano RT-CL700 rotor 160/F and 160/R
HANDLEBAR Syncros Creston 2 0 Compact, 31 8mm HANDLEBAR
SEAT Syncros Tofino Regular 25
HEADSET Acros AIF-1133 HUB (FRONT)
SPOKES Black 2mm
RIMS Syncros Race 25 Disc, 28 Front, 28 Rear
FRONT TIRES Schwalbe Lugano, 700x32C
REAR TIRES Schwalbe Lugano, 700x32C
APPROX
WEIGHT kg lbs
FRAME Speedster Disc, 6061 D Butted Alloy, Endurance geometry, int cable routing, Syncros fender kit ready
FORK Speedster HMF Disc, 1 1/4”-1 1/2” Eccentric Carbon steerer
REAR DERAILLEUR Shimano Tiagra RD-4700-GS, 20 Speed
FRONT DERAILLEUR Shimano Tiagra FD-4700
SHIFTERS Shimano Tiagra ST-4720, Dual control 20 Speed
CRANKSET Shimano Tiagra FC-R4700, 50/34
BB-SET Shimano BB-RS500-PB
CHAIN KMC X10
CASSETTE Shimano CS-HG500, 10 Speed 11-34
BRAKES Shimano BR-R4770 HydrDisc, Shimano RT-CL700 rotor 160/F and 160/R
HANDLEBAR Syncros Creston 2 0 Compact, 31 8mm
HANDLEBAR STEM Syncros RR25, 1 1/4”, four Bolt 318mm
SEATPOST Syncros RR25 272/350mm
SEAT Syncros Tofino Regular 25
HEADSET Acros AIF-1133
HUB (FRONT) Formula Team II CL Disc 28 H HUB (REAR) Formula Team II CL Disc 28 H
SPOKES Black 2mm
RIMS Syncros Race 25 Disc, 28 Front, 28 Rear
FRONT TIRES Schwalbe Lugano, 700x32C
REAR TIRES Schwalbe Lugano, 700x32C
APPROX
WEIGHT kg lbs
SUB CROSS
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX HLO, Hyd Lockout, 63mm travel
REAR DERAILLEUR Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
SHIFTERS Shimano Deore SL-M6100-R, Rapidfire Plus
CRANKSET Shimano FC-MT510-1, 52mm CL, 34T
BB-SET Shimano BB-MT501, BSA68
CHAIN Shimano CN-M6100
CASSETTE Shimano Deore CS-M6100-12, 10-51 T
BRAKES Shimano MT200, Hydr Disc Brakes, Shimano SM-RT10 CL, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula CL51
HUB (REAR) Shimano FH-QC500-MS
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX HLO, Hyd Lockout, 63mm travel
REAR DERAILLEUR Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
SHIFTERS Shimano Deore SL-M6100-R, Rapidfire Plus
CRANKSET Shimano FC-MT510-1, 52mm CL, 34T BB-SET Shimano BB-MT501, BSA68
CHAIN Shimano CN-M6100
CASSETTE Shimano Deore CS-M6100-12, 10-51 T
BRAKES Shimano MT200, Hydr Disc Brakes, Shimano SM-RT10 CL, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula CL51
HUB (REAR) Shimano FH-QC500-MS
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX, 63mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 36T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN Shimano CN-LG500
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black
RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
FJORD GREY S, M, L, XL, XXL
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX, 63mm travel
REAR DERAILLEUR Shimano CUES RD-U6000-SGS, Shadow Type, 11 Speed
SHIFTERS Shimano CUES SL-U6000-11, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 36T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN Shimano CN-LG500
CASSETTE Shimano CUES CS-LG400-11, 11-50T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
SUB
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX, 63mm travel
REAR DERAILLEUR Shimano CUES RD-U4000-GS, Shadow Type, 9 Speed
SHIFTERS Shimano CUES SL-U4000-9, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 36T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-9, 11-46T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
SUB CROSS 30 SLOPE
FRAME Sub Cross Alloy 6061, Custom butted tubing, internal Routing, Sub Cross Men/Lady geometry, SCOTT urban kit ready
FORK SR Suntour NEX, 63mm travel
REAR DERAILLEUR Shimano CUES RD-U4000-GS, Shadow Type, 9 Speed
SHIFTERS Shimano CUES SL-U4000-9, 2 way release
CRANKSET Prowheel C10Y-NW Steel, 36T
BB-SET Feimin FPB908N, BB73, square taper
CHAIN KMC Xglide
CASSETTE Shimano CUES CS-LG400-9, 11-46T
BRAKES Tektro HDM275 Hydr Disc Brakes, Tektro, 6 bolt, F&R 160mm
HANDLEBAR HL MTB-AL-312BT, 720mm, black, 12mm rise, Syncros Comfort lock on Grip
HANDLEBAR STEM HL TDS-C342-8FOV, 10°, 318, Black
SEATPOST HL SP C212, 31 6mm, 350mm, Black
SEAT Syncros Capilano Sport
HEADSET Syncros OE Press Fit, 1 1/8”, OD 50mm, ID 44mm
HUB (FRONT) Formula DC-19 FQR Disc
HUB (REAR) Formula DC-25 8s RQR Disc
SPOKES 14 G, stainless, black RIMS Alexrims X-20 Disc, 32H, black
FRONT TIRES Kenda Booster, 700x45C, 30 TPI
REAR TIRES Kenda Booster, 700x45C, 30 TPI
APPROX
WEIGHT
URBAN
KIDS
ROXTER
ROXTER
SCALE
SCALE
FRAME KIDS24 V-Brake, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS24, AL6061 rigid fork, V-Brake
REAR DERAILLEUR Shimano Tourney RD-TY300, 7 Speed SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 130mm, 30T, narrow QF, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE Shimano CS-HG200-7, 12-32T, 7-Speed
BRAKE LEVERS Tektro TS325A, KIDS specific BRAKES Tektro V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 540mm, 20mm Rise, Syncros Grips Kids100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 254 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int
HUB (FRONT) Formula, 20H, 5x100mm
HUB (REAR) Formula, 24H, 5x135mm
SPOKES 15G, UCP, black
RIMS Alloy 21mm anodized black, V-Brake
FRONT TIRES Kenda K1227 Booster, 24x1, 75”, 30TPI
REAR TIRES Kenda K1227 Booster, 24x1, 75”, 30TPI PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector APPROX WEIGHT 89 kg 19 62 lbs
PROVENCE PURPLE ONE SIZE
425200 -8269
FRAME KIDS24 V-Brake, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS24, AL6061 rigid fork, V-Brake
REAR DERAILLEUR Shimano Tourney RD-TY300, 7 Speed SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 130mm, 30T, narrow QF, w/CG PVG double cover BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE Shimano CS-HG200-7, 12-32T, 7-Speed BRAKE LEVERS Tektro TS325A, KIDS specific BRAKES Tektro V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 540mm, 20mm Rise, Syncros Grips Kids100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int HUB (FRONT) Formula, 20H, 5x100mm HUB (REAR) Formula, 24H, 5x135mm
SPOKES 15G, UCP, black
RIMS Alloy 21mm anodized black, V-Brake
FRONT TIRES Kenda K1227 Booster, 24x1, 75”, 30TPI REAR TIRES Kenda K1227 Booster, 24x1, 75”, 30TPI PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector APPROX WEIGHT 89 kg 19 62 lbs
Rekca Pris:5 995kr
FRAME KIDS20 V-Brake, Alloy 6061, custom tubing, semi int CBR /BB68, SCOTT dropout, PM FORK KIDS20, AL6061 rigid fork, V-Brake
REAR DERAILLEUR Shimano Tourney RD-TY300, 7 Speed SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 115mm, 28T, narrow QF, w/CG PVG double cover BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE Shimano CS-HG200-7, 12-28T, 7-Speed
BRAKE LEVERS Tektro JL510, KIDS specific BRAKES Tektro V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 520mm, 20mm Rise, Syncros Grips Kids100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 254 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int
HUB (FRONT) Formula, 20H, 5x100mm
HUB (REAR) Formula, 24H, 5x135mm
SPOKES 15G, UCP, black
ACCESSORIES Syncros Stem Protector APPROX WEIGHT 7 9 kg 17 42 lbs 425201 -8268
RIMS Alloy 21mm anodized black, V-Brake
FRONT TIRES Kenda K1227 Booster, 20x1, 75”, 30TPI
REAR TIRES Kenda K1227 Booster, 20x1, 75”, 30TPI PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
Rekca Pris:5 995kr
FRAME KIDS20 V-Brake, Alloy 6061, custom tubing, semi int CBR /BB68, SCOTT dropout, PM FORK KIDS20, AL6061 rigid fork, V-Brake
REAR DERAILLEUR Shimano Tourney RD-TY300, 7 Speed SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 115mm, 28T, narrow QF, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE Shimano CS-HG200-7, 12-28T, 7-Speed BRAKE LEVERS Tektro JL510, KIDS specific BRAKES Tektro V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 520mm, 20mm Rise, Syncros Grips Kids100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int HUB (FRONT) Formula, 20H, 5x100mm
HUB (REAR) Formula, 24H, 5x135mm
SPOKES 15G, UCP, black
RIMS Alloy 21mm anodized black, V-Brake
FRONT TIRES Kenda K1227 Booster, 20x1, 75”, 30TPI
REAR TIRES Kenda K1227 Booster, 20x1, 75”, 30TPI PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector APPROX WEIGHT 79 kg 17 42 lbs
FRAME KIDS26, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS26 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano Tourney RD-M3020, 8 Speed
SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 140mm, 32T, w/CG PVG single cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z8 3
CASSETTE Shimano CS-HG400-8, 11-40T, 8-Speed
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 580mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEATPOST Alloy, 31 6mm, 300mm
SEAT Syncros Future Pro
HEADSET Feimin SCT Syncros HS OE Pressfit, ZS56-62mm
HUB (FRONT) Formula 5x100mm, 32H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 32H, disc 6 bolt
SPOKES 15G, stainless, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 26x22”, 30TPI
REAR TIRES Kenda K1227 Booster, 26x22”, 30TPI
PEDALS Feimin FP-803, w/Reflector
APPROX
WEIGHT 10 5 kg 2315 lbs
FRAME KIDS26, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS26 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano Tourney RD-M3020, 8 Speed
SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 140mm, 32T, w/CG PVG single cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z8 3
CASSETTE Shimano CS-HG400-8, 11-40T, 8-Speed
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever,
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 580mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEATPOST Alloy, 316mm, 300mm
SEAT Syncros Future Pro
HEADSET Feimin SCT Syncros HS OE Pressfit, ZS56-62mm
HUB (FRONT) Formula 5x100mm, 32H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 32H, disc 6 bolt
SPOKES 15G, stainless, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 26x22”, 30TPI
REAR TIRES Kenda K1227 Booster, 26x22”, 30TPI
PEDALS Feimin FP-803, w/Reflector
APPROX
WEIGHT 10 5 kg 2315 lbs
FRAME KIDS24 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS24 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano RD-TX800 Tourney, 8 Speed SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 127mm, 30T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z8 3
CASSETTE SunRace CSM55, 8 Speed, 11-34T
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 560mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM
LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/286/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 24x22”, 30TPI
REAR TIRES Kenda K1227 Booster, 24x22”, 30TPI
PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector
APPROX
WEIGHT 9 80 kg 21 61 lbs
FRAME KIDS24 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS24 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano RD-TX800 Tourney, 8 Speed SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 127mm, 30T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z8 3
CASSETTE SunRace CSM55, 8 Speed, 11-34T BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever,
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 560mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 24x22”, 30TPI
REAR TIRES Kenda K1227 Booster, 24x22”, 30TPI
PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector
APPROX
WEIGHT 9 80 kg 21 61 lbs
FRAME KIDS20 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS20 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano RD-TY300, 7 Speed
SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 114mm, 28T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE SunRace CSM40, 7 Speed, 11-34T
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 540mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/286/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 20x22”, 30TPI
REAR TIRES Kenda K1227 Booster, 20x22”, 30TPI
PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector APPROX WEIGHT 8 80 kg 19 40 lbs
RekcaPris:6495kr
FRAME KIDS20 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM FORK KIDS20 Disc, AL-6061 rigid fork, IS
REAR DERAILLEUR Shimano RD-TY300, 7 Speed
SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 114mm, 28T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper CHAIN KMC Z7
CASSETTE SunRace CSM40, 7 Speed, 11-34T
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 540mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 20x2 2”, 30TPI
REAR TIRES Kenda K1227 Booster, 20x2 2”, 30TPI
PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector
APPROX WEIGHT 8 80 kg 19 40 lbs
FRAME KIDS26, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM
FORK SR Suntour XCE28, 80mm travel, Softer spring setup
REAR DERAILLEUR Shimano Tourney RD-M3020, 8 Speed
SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 140mm, 32T, w/CG PVG single cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z8 3
CASSETTE Shimano CS-HG400-8, 11-40T, 8-Speed
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever,
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 580mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEATPOST Alloy, 316mm, 300mm
SEAT Syncros Future Pro
HEADSET Feimin SCT Syncros HS OE Pressfit, ZS56-62mm
HUB (FRONT) Formula 5x100mm, 32H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 32H, disc 6 bolt
SPOKES 15G, stainless, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1227 Booster, 26x2 2”, 30TPI
REAR TIRES Kenda K1227 Booster, 26x2 2”, 30TPI
PEDALS Feimin FP-803, w/Reflector
APPROX
WEIGHT 12 3 kg 2712 lbs
-8265
Pris:6995kr
FRAME KIDS24 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM
FORK SR Suntour XCT-JR, 50mm travel, Softer spring setup
REAR DERAILLEUR Shimano RD-TX800 Tourney, 8 Speed
SHIFTERS Shimano SL-RV400-8R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 127mm, 30T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z83
CASSETTE SunRace CSM55, 8 Speed, 11-34T
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever
HANDLEBAR LEADTEC Kids riser bar alloy D:19, 560mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/28 6/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1237 Karma2, 24x2 2”, 30TPI
REAR TIRES Kenda K1237 Karma2, 24x2 2”, 30TPI
PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector
APPROX WEIGHT 10 8 kg 2381 lbs
FRAME KIDS20 disc, Alloy 6061, custom tubing, semi int CBR, BB68, SCOTT dropout, PM
FORK SR Suntour XCT-JR, 63mm travel, Softer spring setup
REAR DERAILLEUR Shimano RD-TY300, 7 Speed
SHIFTERS Shimano SL-RV300-7R, Revo Shifter
CRANKSET Prowheel, Alloy Crank 114mm, 28T, w/CG PVG double cover
BB-SET Feimin, BB68, cartridge, square taper
CHAIN KMC Z7
CASSETTE SunRace CSM40, 7 Speed, 11-34T
BRAKE LEVERS Tektro HD-M276
BRAKES Tektro HD-M276, Hydr Disc, 160F/160R rotor, short reach lever,
HANDLEBAR
LEADTEC Kids riser bar alloy D:19, 540mm, 20mm Rise, Syncros Grips Kids 100/80
HANDLEBAR STEM
LEADTEC Alloy 50mm, +10°, 25 4 clamp
SEAT Syncros KIDS III incl Seatpost 27, 2mm
HEADSET Feimin, 48/286/44/30, semi int
HUB (FRONT) Formula 5x100mm, 24H, disc 6 bolt
HUB (REAR) Formula 5x135mm, 24H, disc 6 bolt
SPOKES 15G, UCP, black
RIMS Alloy anodized black, disc
FRONT TIRES Kenda K1237 Karma2, 20x22”, 30TPI
REAR TIRES Kenda K1237 Karma2, 20x22”, 30TPI PEDALS Kids pedal, w/Reflector
EXTRAS Kickstand
ACCESSORIES Syncros Stem Protector
APPROX
WEIGHT 9 9 kg 21 83 lbs
SMALLER KIDS OVERVIEW
CONTRAIL 160
RekcaPris:4995kr
FRAME JR16 V-Brake, Alloy 6061, Bended TT, Semi int HT, Rigid Fork
FORK Rigid Fork, Alloy 6061, 16”, V-Brake Pivot
CRANKSET Prowheel, 26T, 90mm
BB-SET BB68 threaded square type
CHAIN KMC S1
CASSETTE Freewheel Sprocket 16T
BRAKE LEVERS Tektro Kids’ Lever
BRAKES Tektro J-310 V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 460mm, 20mm Rise, Syncros Grips Toddler
HANDLEBAR STEM Ahead, Alloy, 30mm, 25 4mm clamp
SEAT Syncros KIDS II incl Seatpost 26 8mm
HEADSET Semi integrated 1 1/8”
HUB (FRONT) Alloy, sealed bearing, bolt type, 16H
HUB (REAR) Alloy, sealed bearing, bolt type, 16H
SPOKES 15G UCP, black RIMS Alloy, black, 16H
FRONT TIRES Kenda K1227 Booster, 16x2 0”
REAR TIRES Kenda K1227 Booster, 16x2 0”
PEDALS Kids Pedals w/reflector
EXTRAS Kickstand, Full-chainguard
ACCESSORIES Syncros Stem Protector
APPROX
WEIGHT 61 kg 13 45 lbs
CONTRAIL 160
RekcaPris:4995kr
FRAME JR16 V-Brake, Alloy 6061, Bended TT, Semi int HT, Rigid Fork
FORK Rigid Fork, Alloy 6061, 16”, V-Brake Pivot
CRANKSET Prowheel, 26T, 90mm
BB-SET BB68 threaded square type
CHAIN KMC S1
CASSETTE Freewheel Sprocket 16T
BRAKE LEVERS Tektro Kids’ Lever
BRAKES Tektro J-310 V-Brake, HANDLEBAR LEADTEC Kids riser bar alloy D:19, 460mm, 20mm Rise, Syncros Grips Toddler
HANDLEBAR STEM Ahead, Alloy, 30mm, 254mm clamp
SEAT Syncros KIDS II incl Seatpost 26 8mm
HEADSET Semi integrated 1 1/8”
HUB (FRONT) Alloy, sealed bearing, bolt type, 16H
HUB (REAR) Alloy, sealed bearing, bolt type, 16H
SPOKES 15G UCP, black RIMS Alloy, black, 16H
FRONT TIRES Kenda K1227 Booster, 16x2 0”
REAR TIRES Kenda K1227 Booster, 16x2 0”
PEDALS Kids Pedals w/reflector
EXTRAS Kickstand, Full-chainguard
ACCESSORIES Syncros Stem Protector
APPROX
WEIGHT 61 kg 13 45 lbs
PHOTOGRAPHY
STYLE PHOTOS: SCOTT SPORTS
ACTION PHOTOS: Nils Laengner, Brazo de hierro, Maxime Rambaud, Simon Ricklin, Woujow, Kifcat, Thomas Marzusch, Roo Fowler, Matteo Challe, Michal Cerveny, Richard Bord, Sven Martin, Chris Casal, Markus Greber, Sebastian Sternemann
Printed and bound in Austria by SAMSON DRUCK GMBH
Samson Druck Straße 171, AT-5581 St. Margarethen in Salzburg, Österreichn
The information contained in this workbook is in various languages but only the English version will be relevant in case of conflict.
Although SCOTT Sports SA has published all information contained in this workbook after careful examination, SCOTT Sports SA assumes no liability for being up-to-date, correct, reliable or complete. SCOTT Sports SA reserves the right to change the content of this workbook, particularly colors, materials and specifications, at any time without prior notice. Any liability shall be exempted. Products shown may not be available in all regions, please check with your local SCOTT retailer for availability.
EDITOR
SCOTT Sports SA
Route du Crochet 11 1762 Givisiez
Switzerland
www.scott-sports.com/contact
Commercial register: Fribourg
IDE/UID: CHE-103.535.982
WORKBOOK OFFERING: APPAREL & EQUIPMENT
