100% eléctrico

Urban Mobility 2024 USA version

Scoobic “The Last Mile Solution”

At Scoobic we design, manufacture and market light electric vehicles for sale, rental and pay-per-use for the last mile delivery. Our vehicles are economical, safe and increase the number of deliveries per hour.

We want to listen to your needs and offer you adapted vehicles (volume, load, autonomy, controlled temperature, etc.). Tell us what you need and we will give you the solution.

We guarantee the best after-sales services in any country of the world, with our partner Bridgestone. More than 700 workshops in Spain, more than 3000 in Europe and more than 30,000 in the world. Perfectly trained to maintain and repair your Scoobic and keep your fleet running.

Our vision is to clean up cities from smog, traffic jams and noise with more friendly and efficient vehicles, focusing on people, citizens and drivers.

Scoobic is here to help you meet your last mile logistics needs, that's our mission. Trust us, we are waiting for you.

Deliver more packages per hour because you park at the customer's door.

At Scoobic we are committed to the current logistics market, and that is why we provide our customers with simple solutions for last mile delivery, with the Scoobic Light being the best option.

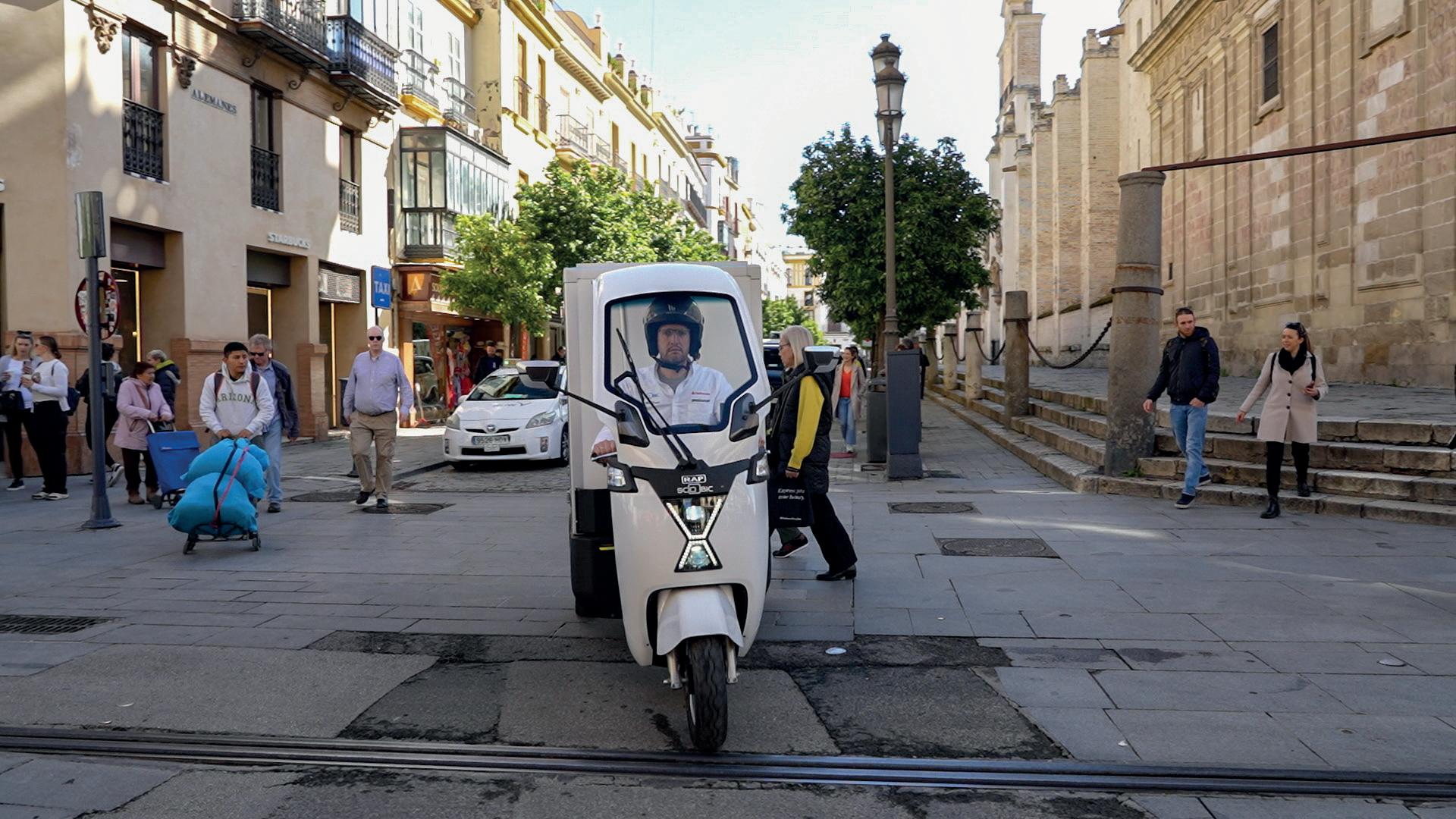

This three-wheeled vehicle will be your best ally in transporting parcels and couriers, as well as in delivering to stores or supermarkets. It offers multiple box configurations with a volume of up to 1,400 L (49.42 cubic feet) and a load capacity of 250 kg (551 pounds). The Scoobic Light presents great features in its design, a safe and light vehicle, with a carbon steel structure and an aluminum alloy box and honeycomb panel that provides great safety. It has great versatility since the front axle can tilt freely up to 18 degrees, while the rear axle that supports the box remains fixed and stable. In addition, we offer different box solutions adapted to your needs, whether packaged, refrigerated or open pickup mode.

It has a LiFePO4 battery with a useful life of 4000 charges and can be charged freely since it has no memory effect. Our lithium phosphate batteries are a stable and safe option, and are exceptionally safe for long-term use.

49 cu ft (1.400 L) Up to 57 mi 28 mph 551 lb (250 kg) 2,5 - 3 h 114x72,8x38,5 in 72 V - 7 kW/h 3,7 kW LOAD VOLUME RANGE MAX SPEED LOAD CAPACITY CHARGING TIME DIMENSION VOLTAGE & POWER ENGINE POWER

Mobility

The Scoobic Light features excellent driving and parking mobility, with a width of only 980 mm (38.58 inches), almost half that of an ordinary sedan. Due to its small size, this three-wheeled cargo vehicle moves easily through narrow streets.

Fast charge

The Scoobic Light has a fast charging system that allows you to optimize the use of the vehicle, since it can be charged from 20% to 80% in just 1.5 hours.

The vehicle comes equipped with a fast-charging charger, which will allow you to plug it in both your business and garage, as it plugs into a 16A outlet.

Power

The Scoobic Light complies with EEC standards with an initial speed of no more than 45 km/h (27.96 mph). This not only meets urban speed needs, but also saves unnecessary energy consumption.

The drive motor is an AC asynchronous motor that offers stable and reliable power.

Stability

The Scoobic Light is made of high-strength Q235 carbon steel and welded with a CO2 electric arc welder, to withstand road impacts and vibrations during prolonged driving.

Security

The front and rear are split to ensure flexible turning.

The cabin is controlled by the front wheel of the scooter, and tilts freely within 18 degrees to effectively prevent rollover when cornering. This ensures the safety of both the load and the driver, and provides the same fun riding experience as a two-wheeled scooter.

Comfort

The cabin seat is soft and comfortable because it is made of PU and ergonomically designed.

It is easy to find a comfortable position in the seat, as it has a headrest on the backrest, and it can be adjusted and fixed freely using 4 clips.

Intelligence

The Scoobic Light uses a 7-inch TFT liquid crystal display, with a full range of functions and a completely intuitive information display.

This scooter features audio and visual capabilities by simply connecting the mobile phone's bluetooth services.

In addition, it has a reversing camera system to guarantee safe maneuvers.

Setting

The Scoobic Light allows you to adapt to the transportation needs of each client. You can choose your box according to the product to be transported (parcels, perishable and refrigerated foods...) and configure it by adding shelves, divisions. Just tell us what you need and we will give you a solution.

18º

Deliveries of refrigerated products? No problem.

With our new refrigerated boxes, you will be able to transport your refrigerated products to your customers' door, without reducing autonomy and load capacity.

Depending on your needs, we offer reinforced isothermal boxes, suitable for the transport of perishable foodstuffs, and refrigerated boxes, adapted for the transport of refrigerated foodstuffs.

Our boxes are approved for circulation and are ATP certified.

In addition, you can customize the configuration of the box.

LOAD VOLUME 32 cu ft (900 L) RANGE Up to 57 mi MAX SPEED 28 mph LOAD CAPACITY 485 lb (220 kg) CHARGING TIME 2,5 - 3 h DIMENSION 114x72,8x38,5 in VOLTAGE & POWER 72 V - 7 kW/h ENGINE POWER 3,7 kW
Up to 0ºC Certificate ATP Refrigerated products 46,4x31,9x36,6 in Inside Dimensions

The cleaning solution in urban environments.

With the Scoobic Light Hydro you will have the best tool for cleaning in urban areas, thanks to its reduced size you will be able to enter areas that are difficult to access.

It is equipped with a pressure washer with a tank of 4.23 cu ft and a flow rate of 0.35 cu ft/min, as well as a compartment for waste storage and space for transporting work tools.

It will be a great ally for cleaning services, both municipal and private, thanks to its autonomy and ease of recharging.

30 – 130 bar Hidro pressure 0,35 cu ft/min Hidro flow rate 4,23 cu ft Hidro tank capacity 80 min Hidro autonomy LOAD VOLUME 28 cu ft (700 L) RANGE Up to 57 mi MAX SPEED 28 mph LOAD CAPACITY 220 lb (100 kg) CHARGING TIME 2,5 - 3 h DIMENSION 114x72,8x38,5 in VOLTAGE & POWER 72 V - 7 kW/h ENGINE POWER 3,7 kW

The best solution for the hospitality industry.

The Scoobic Light pick-up is our answer to the delivery needs of the hospitality industry. With a system of doors on both sides of the vehicle that facilitates loading and unloading and the possibility of covering the merchandise since it has a specially designed tarpaulin to close the box.

It has a reinforced structure that increases the load capacity up to 1100 lbs, but with the same safety and driving comfort as the normal Scoobic Light. This will allow you to optimize your delivery routes, as you will be able to access up to the door of the establishment, as well as access areas where a conventional van cannot.

Thus, they are the right choice for your business as they are more economical per kilometer than a diesel or gasoline.

8 barrels LOAD VOLUME RANGE Up to 57 mi MAX SPEED 28 mph LOAD CAPACITY 1100 lb (500 kg) CHARGING TIME 2,5 - 3 h DIMENSION 114x72,8x38,5 in VOLTAGE & POWER 72 V - 7 kW/h ENGINE POWER 3,7 kW

Box configuration

Light Inside Dimensions Load volume Payload Temperature Sensor Parcel XL Pasive Cooling Pick up Standard 49,6x34,2x48,0 in 53,9x34,6x38,5 in 53,54x34,6x11,8 in 49,44 cu ft 42,37 cu ft 551 lb 485 lb 1102 lb No Yes Active Cooling 46,4x31,9x36,6 in 31,78 cu ft 485 lb Yes No Cool box No No Yes (Up to 0ºC) No

Technical details

Model

Category

Length x Height x Width

Load volume

Distance between front and rear axle

Empty weight of the vehicle

Maximum Technically Admissible Mass (MMTA)

Payload (scoobic light standard)

Autonomy

Nominal Engine Power

Batteries (LiFePO4)

Nominal Battery Voltage (Capacity )

Charger Type

Charger On board

Charger power

Maximum speed

Charging time

L2e - U Light 114x72,8x38,5 in 49 cu ft 88,1 in 591 lb 1510 lb 551 lb 57 mi approved 3,7 kW 1 uni t 72 V ( 7 kWh) Yes 3000 W 28 mph 3,5 h ( fast charge) European type 2 1510 lb 551 lb 74 mi approved 5 kW 1 uni t 73,6 V ( 7 kWh) Yes 3000 W 40 km/h 3,5 h ( fast charge) European type 2 L5e - B Light L5 114x72,8x38,5 in 49 cu ft 88,1 in 591 lb
51,18 in 38,58 in 72,83 in 49,21 in 114,96 in
Dimensions

At Scoobic, we offer a comprehensive suite of high-quality services designed to let you enjoy your vehicle freely and for the long haul.

We provide various financing options, rental vehicle insurance, access to our fleet management system, a network of maintenance and repair workshops, vehicle customization, and much more.

Choosing a Scoobic vehicle marks the beginning of a long and beneficial relationship, offering you peace of mind with every product.

Your Vehicle Always Ready

We maintain a pan-European network of over 2,000 mechanical workshops across 25 countries, dedicated to the maintenance and recharging of vehicles.

Fleet Management

With our Webfleet app*, manage your fleet from anywhere and on any device, ensuring real-time, precise tracking of your vehicles, whether they're parked or on the move.

* Optional service.

Comprehensive Insurance

There’s no one better than Scoobic to insure your Scoobic rental vehicle. Our service is swift and effective, backed by a repair guarantee at official Bridgestone workshops. With Scoobic insurance, you'll have the confidence of being in great hands and the peace of mind that comes from knowing that, whether it’s routine maintenance or an accident, your vehicle will always be repaired by professionals specifically trained to look after it.

Key Management

Simplify key management with our advanced electronic locking systems. Drivers can effortlessly access the vehicle's storage compartment using PIN codes, NFC tags, &/or directly through their smartphones.

* Optional service.

Customization

Tailor your vehicle to meet your business needs.

Customize the body with your corporate colors or brand the box with your logo. Choose or personalize the vehicle's box to suit your business requirements.
