Landscape & Plantation

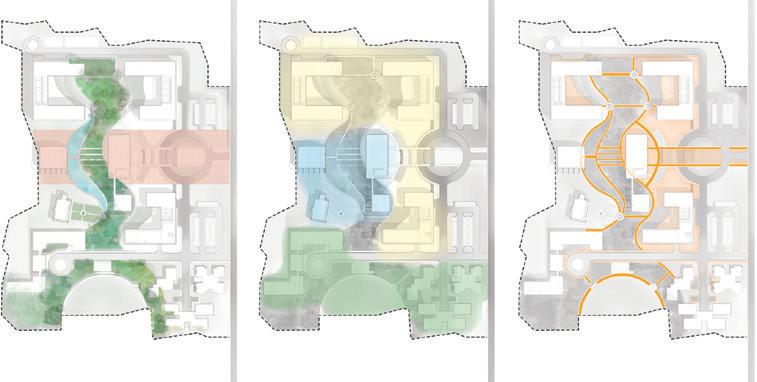

Master Plan Development

These arbitary development will generate a wave in the overall streetscape, that eventually break the spacial and visual of the entire area.

Admin

Institute

Sectional Perspective Diagram through main axis

Library Building

Water reservoir

Adiministration Block

Vehicle drop off point

IICT Building

Ecological Buffer

Student plaza

IAT Building

Parking Zone

Fitness Center 04

Design of research institute complex of BUET

Studio VI I 2013

Supervisor : Dr. Nasreen Hossain,Dr. S M Najmul Imam, Asst. Prof. Tasneem Tariq, Site : Shahbagh, Dhaka

Site Area : 3.5 Acres

Shahbag is one of the prime node of Dhaka. The propsed site for the project is only 250 m away from the node and sorrounded by Ramna park on three sides of it. The initial idea behind the project was to propose a form creates a barrier between the noisy road on the south and the park on the north. So, the linear mass is itroduced throughout the site and a portion of it is burried under ground to blend it with natural canopy level. A series of exposed column is used to regain its verticality and resemble with the sorrounding vertical lines of trees. The swimming is placed to devide the north side of the linear mass into two courts. A entry court was designed towards the park to create a inviting entry for the park users on one side. while the other court is reserved as meditation court which has a restricted entry from the building itself.

Bangabandhu Sheikh Mujib Medical University Hospital

BIRDEM General Hospital

Bangladesh National Museum

Shahbagh Node

Bangladesh Tenis Federation

Shahid Zia Shishu Park

Fitness Center

Ramna Lake
