01 Bkra Shis

Location : Sikkim, India

Sem V Design Project

Rhino 3D, Revit, Lumion, Photoshop, Illustrator

The task was to establish a wellness center in Sikkim, India, amidst its rugged terrain. The site’s steep incline, frequent rainfall, and geological instability presented formidable challenges. Our design approach emphasized integrating structures with the natural contours of the land and utilizing locally-sourced materials. This encompassed crafting accommodations comprising 60 rooms and cottages, alongside essential wellness amenities such as OPD, therapy rooms, and acupuncture facilities. The complexity arose in seamlessly connecting these components while navigating the site’s constraints. Through innovative design solutions and careful planning, we aimed to create a space where guests could find solace and rejuvenation amidst the captivating landscape of Sikkim.

pg no. 10

Bkra Shis pg no. 11

Plan at Lvl +542

Splitting the layout into two zones, guests can check in at either the wellness center or residential area. They can also dine in the hall with a mountain view or attend social functions at the Open Air Theater (OAT).

pg no. 12

PLAN

Bkra Shis pg no. 13 Render: View A pg no. 13

pg no. 14 SECTION

Bkra Shis pg no. 15 DETAIL B DETAIL A

pg no. 16

AXO

Exploded

The initial layout features a central space for easy navigation, alongside three distinct blocks: two for wellness and one for residential.

Expanding the residential area involves splitting the block into two, thereby increasing space, and linking them with golf cart roads.

By mirroring the blocks, a courtyard is formed, generating additional central spaces interconnected with the main center for enhanced accessibility.

Arranging blocks in a staggered formation enlarges the roof area, facilitating outdoor activities, while ensuring consistent views and ample sunlight for all rooms.

Implementing a staggered layout enhances usable open spaces for gatherings and outdoor activities, fostering a more dynamic and engaging environment.

Incorporating openings in the structure to admit sunlight enhances well-being and encourages increased participation in outdoor activities for residents.

Bkra Shis pg no. 17

Form Development

Bkra Shis pg no. 19

02 Nuovo Lignano

Location : Lignano Sabbiadoro, Italy

Competition Entry (Group of 4) Finalist

Rhino 3D, Revit, Lumion, Photoshop, Illustrator

The design challenge centers on enhancing the connectivity between a relatively underutilized Commercial Plaza, Via delle Arti, and an undeveloped parcel of land designated for an eco-hotel.

The complexity lies in seamlessly integrating these spaces to enrich the tourist experience, particularly during the bustling summer months. Additionally, the design brief entails establishing eco-friendly walking trails and essential amenities to improve access to the Pinewood forest without compromising the environment. Central to the design process is the creation of a central spine linking Via Delle Arti, the commercial plaza, the seafront, and the proposed eco-hotel. This approach aims to encourage congregation in these areas, fostering a vibrant atmosphere and revitalizing the town’s energy.

pg no. 20

Nuovo Lignano pg no. 21

pg no. 22

Nuovo Lignano pg no. 23 Site Plan

Concept

The area, shaped by architect Luigi Piccinato’s 1957 plan, lacks connection due to its implementation solely in town planning, leaving the forest abandoned. Our proposal involves revitalizing this neglected space with a masterplan, reinstating connections from the coast to the forest. Via Delle Arti serves as a central axis, linking a commercial plaza to the pinewood forest, fostering tourism and transforming Lignano into an urban oasis.

Commercial Plaza

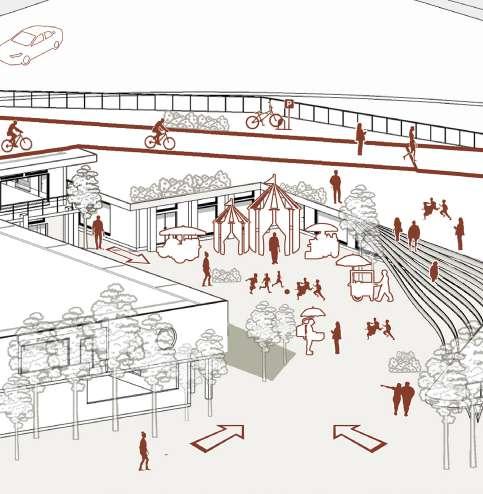

A revitalized commercial plaza bustling with activity, linking the beach to the eco hotel.

Watchtowers

Bird watching towers along the pinewood forest trail offer refuge during forest walks.

pg no. 24

Site Plan Eco Hotel

The hotel blocks line the horizontal vicinity of the site, with a central point for common functions connecting the apartment blocks via a pedestrian and bicycle path in a double helical fashion.

Site Plan Eco Hotel

A single block consists of 2 single, 3 double, 2 triple, and 2 multi-occupancy units.

Nuovo Lignano pg no. 25

Single occupancy units Triple occupancy units Double occupancy units Bicycle path Pedestrian path Multi occupancy units

Nuovo Lignano pg no. 27

03 New Educational and Research Centre for the Birdlife Hungary Association

Location : Budapest, Hungary

Under Construction

Revit, Lumion, Photoshop

Situated just outside the vibrant city of Budapest, this site offers a unique setting with minimal contextual influence and a stunning backdrop of natural landscapes. Joining the project in its final stages, I closely collaborated with the head architects to further my understanding of architecture at a professional level. My responsibilities primarily revolved around creating renders of the design.

pg no. 28

NERC Birdlife Hungary pg no. 29

pg no. 30 PLAN

NERC Birdlife Hungary pg no. 31

pg no. 32 SECTION

NERC Birdlife Hungary pg no. 33

04 GSEN

Location : Pushkar, India

Competition Entry (Group of 6) Top 4

Rhino 3D, Blender, Revit, Lumion, Photoshop, Illustrator

The project involved the urban redevelopment of a pilgrimage site, breathing new life into its historical significance. Our journey took us to the site itself, where we delved into the intricacies and challenges it presented, ultimately crafting solutions to rejuvenate this revered town. Central to our design is the ambition to nurture a thriving ecosystem within the confines of Pushkar Lake, while also alleviating congestion by implementing restricted usage times for the roads encircling the lake. This intervention operates on an urban scale, with a vision to catalyze the emergence of cleaner, more ecologically sustainable pilgrimage destinations across India.

pg no. 34

Gsen pg no. 35

STRATEGIES

Connectivity

The proposal aims to improve crowd management and connectivity around Pushkar Lake through the creation of additional public spaces and the implementation of a tram network, fostering accessibility and alleviating congestion.

Spaces

The proposal seeks to enhance spatial quality by introducing elevated decks for crowd segregation based on space utilization.

Sustainibility

The proposal aims to improve the lake ecosystem by demolishing concrete ghats, fostering the lake’s self-purification and rejuvenation.

Diurnal Variation

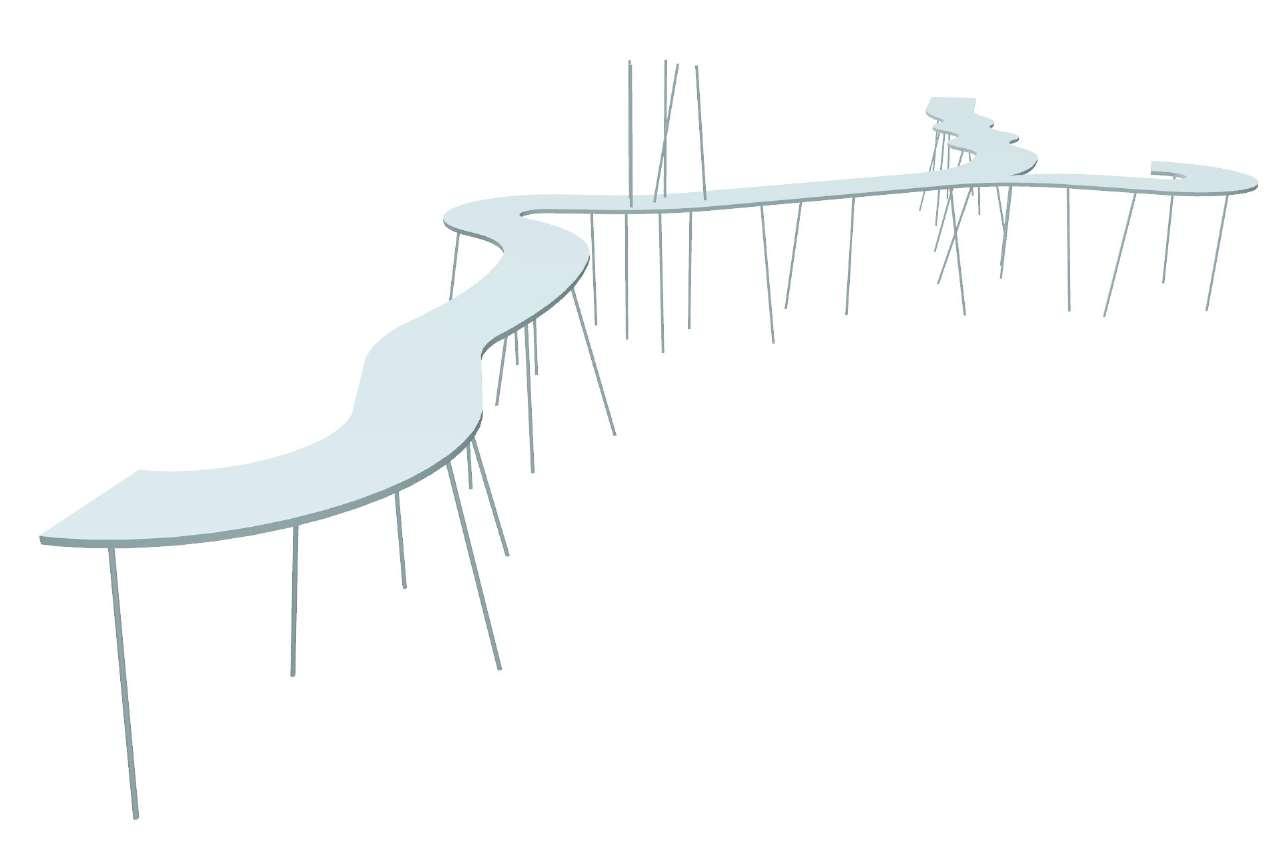

The pilgrimage involves circumambulating the 52 ghats surrounding Pushkar Lake, prompting the creation of a floating Parikrama (surrounding path) made of pontoon structures for year-round accessibility.

Innovation

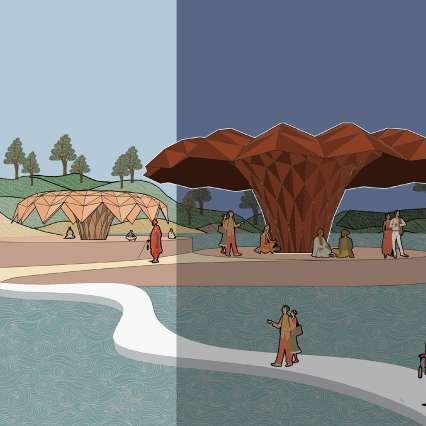

The proposal aims to establish a dedicated area for pilgrims to meditate near the sacred lake, introducing meditation pads with kinetic roofs that offer adaptive shade throughout the day.

Adaptive Reuse

Converting unused land into a green park to relieve the city of its dense urban environment, with designated areas for public functions, thereby addressing street congestion.

pg no. 36 Demolishing concrete ghats to rejuvenate lake ecosystem by self purification. Green oasis amidst dense urban setting.

ELevated decks for crowd segregation as per space usage. Meditation pods with kinetic roof providing adaptive shade through the day. Public spaces and tram network to enhance crowd management and connectivity around Brahma Lake. Floating Parikrama path accessible throughout the year.

01 04 02 05 03 06

Gsen pg no. 37 01 02 03

04 05

05 Hydra

Location : Lake Balaton, Hungary

Installation for Ecological Weekend

Hands-on Work

As a team member of the BALATORIUM Ecological and Cultural Weekend program, a component of the Veszprém-Balaton 2023 European Capital of Culture initiative, I contributed to setting up an installation with ecological aims. The installation utilized hay bales as building blocks, providing seating and encouraging visitors to create their own structures. The centerpiece was a fluid-shaped wooden station housing books on Lake Ecology, aimed at educating both locals and tourists. My responsibilities included painting the pre-cut wood and arranging it on-site. This experience was immensely rewarding, fostering a passion for hands-on construction.

pg no. 38

Hydra pg no. 39

játszótér

d=0.35md=050m d=050m d=0.55m d=050m d=0.25md=030m d=030m d=100md=035m d=050m d=030m d=050m n á ad s d=055m d=030m d=040m d=040m d=040m d=050m d=060m d=045m d=0.45m d=060m d=0.50m d=035m d=055m d=045m d=050m d=0.45m d=050m d=055m n á d a s d=045m d=120m d=045m d=045m d=070m zöldterület d=070m díszkertd=015m d=080m nád as d=100m n á ad s d=050m d=040m d=060md=030m n sadá d=070m b c R R6 R 6 b b murvás , füvestrület murvás füvestrület

part part part d=020m d=040 d d=030m d=060m d=030m

The yellow blocks on the site plan indicate the locations for interactive hay bales, allowing users to create their own structures. On the left side, the blue structure represents the main installation, constructed from painted pre-cut wood pieces.

pg no. 40 GSPub she Ve s on 0 0 1 0 100 G U B A H Á M O R I Öko ógia hétvége 2023 2023 08 22 he yszínrajz 1000 1 145 2 480 1 305 2 480 9dbx2,60=23,40 m 8dbx2,60 2 862 5 110 6 8 2800 8 00 5952 5774 101041 1 850 8 3-----9/761 1 6 8 / 1 3 41/861 3/961 9/761 31/670 3/40 04/5 1 6 6 )56/161( b c R R R6 R6 aszfalt burkolat tlafzsa talokrub gk bejáró kapu kapu g k b e á r ó gk be áró gk bejáró gk bejáró bemért kerítés tú tú túzök

bemért épüle bemért épüle bemért épüle bemért épület bemért épület bemért épüle bemért épü

csónak kikötő

burk é kő bu k é r k ő b u k érkő burk é kő bu k érkő b b b b partvédmű pa tvédmű

burk érkő bu k térkő

b pa tvédmű

é kő bu

b b par védmű svtiszt sv sv sv őlemetázívynnezs szeme es pad pad v h a e z ő pad szeme es pad pad szemetes pad szeme es pad pad pad szeme es pad bár homokozó átszó é p a d p a d spor pá ya áptrops ay gétsaf kapu bemér ker és földút csónak k kötő bemér épü e bemé t épü et gk be á ó part part part 10485 b b 4P 4P 4P 9P 41P 4P %500,8 00,42 o%5 12o%507, 03,11 o%5 31,5011 20,50 1 ,5 % 59,4011 09,40 1-sC z é s i h a t á r %5,0 31,5011 20,50 díszkertd=015m 01,61 06,46 31,5011 20,50 31,5011 20,50 81,501 70,501 81,501 70,501 17 ,00 5% o K i t o r k o l ó f e j 1 0 4 ,5 8 00,501 05,401 1 0 , 70,501 00,501 17,401 81,501 31,5011 20,50 EE Co c T oub e pro c or hang U be Ádám e tmények ns a M r & N c o p o e c o Ana B otas ab Fuz y Ear h szőny g fü ön Sü ege R a s obor Co n am MOME FOL OR UM MOME K ÁLL TÓ PAV LON STAFF ak á C N P BÁR STRAND KÖNYVTÁR DRUKKER SZ TA WS DJ PULT BOR + gyéb BABAKO NFO MOL NO B LOGÓ zász ó z sz ó zás ó zász ó zás ó ász ó ász ó zász ó zás ó zás ó zás ó ász ó ász ó ás ó zász ó g é á ó agór sá o 3 x 3 m s z á m ö özőbő angu v ág á hű ő x r as a zás ó zá z ó

d=0

zöldterület b b. térkő

es szemetes d pad szemetes pad

+ ha STAFF

STRAND KÖNYVTÁR DRUKKER DJ PULT

zászló

térkő

é k

b u k térkő

burk térkő burk

kő burk térkő b b par védmű

kő bu k b b b

b b

bemé

.50m d=0.35m d=0.55m d=0.45m d=0.50m d=0.45m d=0.50m d=0.55m d=1.20m d=0.45m d=0.45m

burk

homokozó,

sportpálya bemért é Collectif Troub projector

raktár

zászló zászló

zászló "agóra" hangulatvilágítás Plan

Intent

Educating locals of Lake Balaton, Hungary about lake ecology is crucial, especially considering the recent cement fixing along the lakefront. The installation adopts a fluid form, symbolizing the merging of nature with its surroundings. As a volunteer team member, I participated in cleaning and setting up hydra, gaining valuable exposure and connecting with professionals passionate about ecological conservation.

Paint

Pre-cut wood pieces are painted with blue-tinted wood paint and left to dry.

Fabricate

Painted wood pieces dry and mark screw placements.

Assemble

Wood pieces are assembled on-site and interconnected to form the installation.

Hydra pg no.

0=20,80 m m =030m K i t o r k o l ó f e j 1 0 4 ,8 5
