Smart Frame

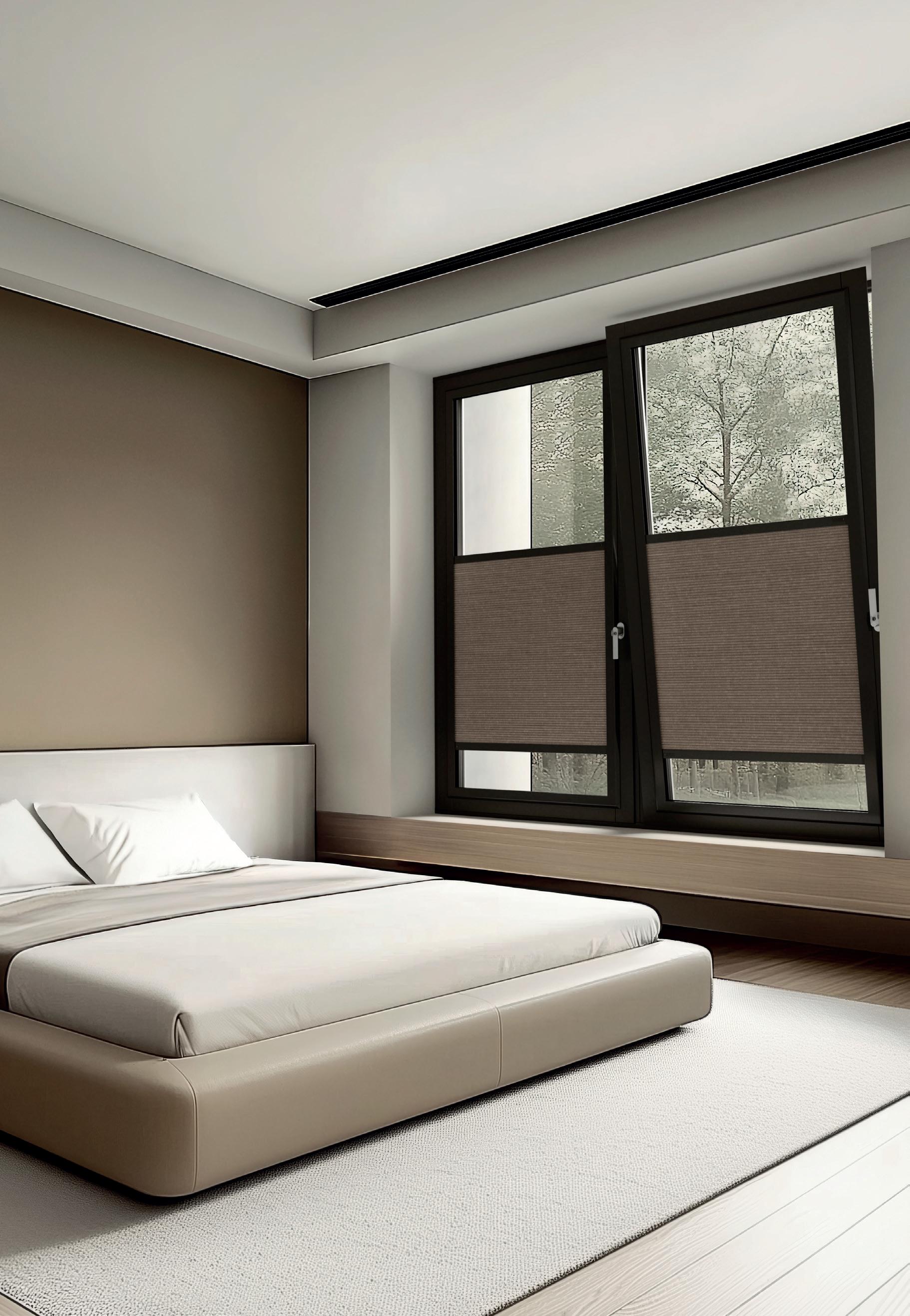

Smart Frame is a tensioned system designed for tilt-andturn windows and doors, offering effortless installation with magnetic tape—no drilling required. It supports both pleated and honeycomb fabrics, giving you flexibility in style and performance.
Choose from dual motor, single motor, or manual operation, all powered by solar energy or USB-C. Whether as a custommade kit or separate components, Smart Frame adapts to your needs with elegance and ease.
Smart Frame at a glance

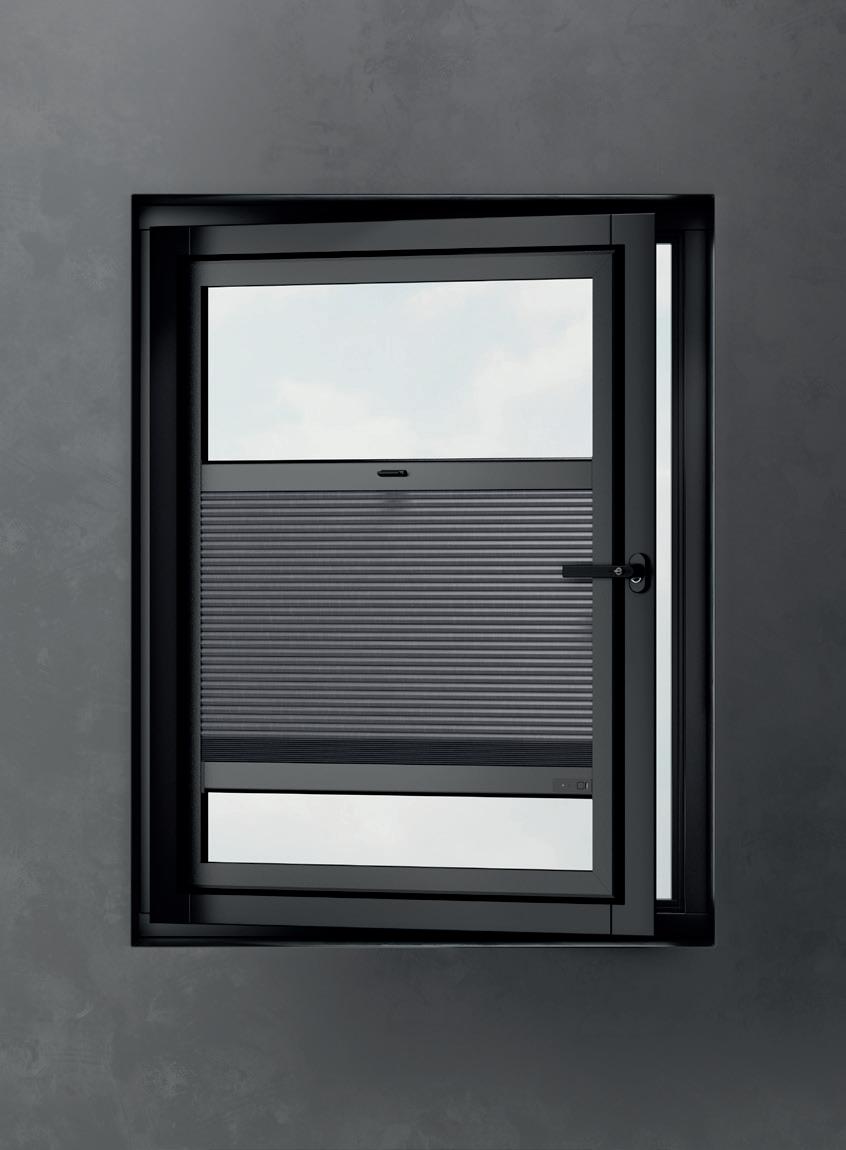

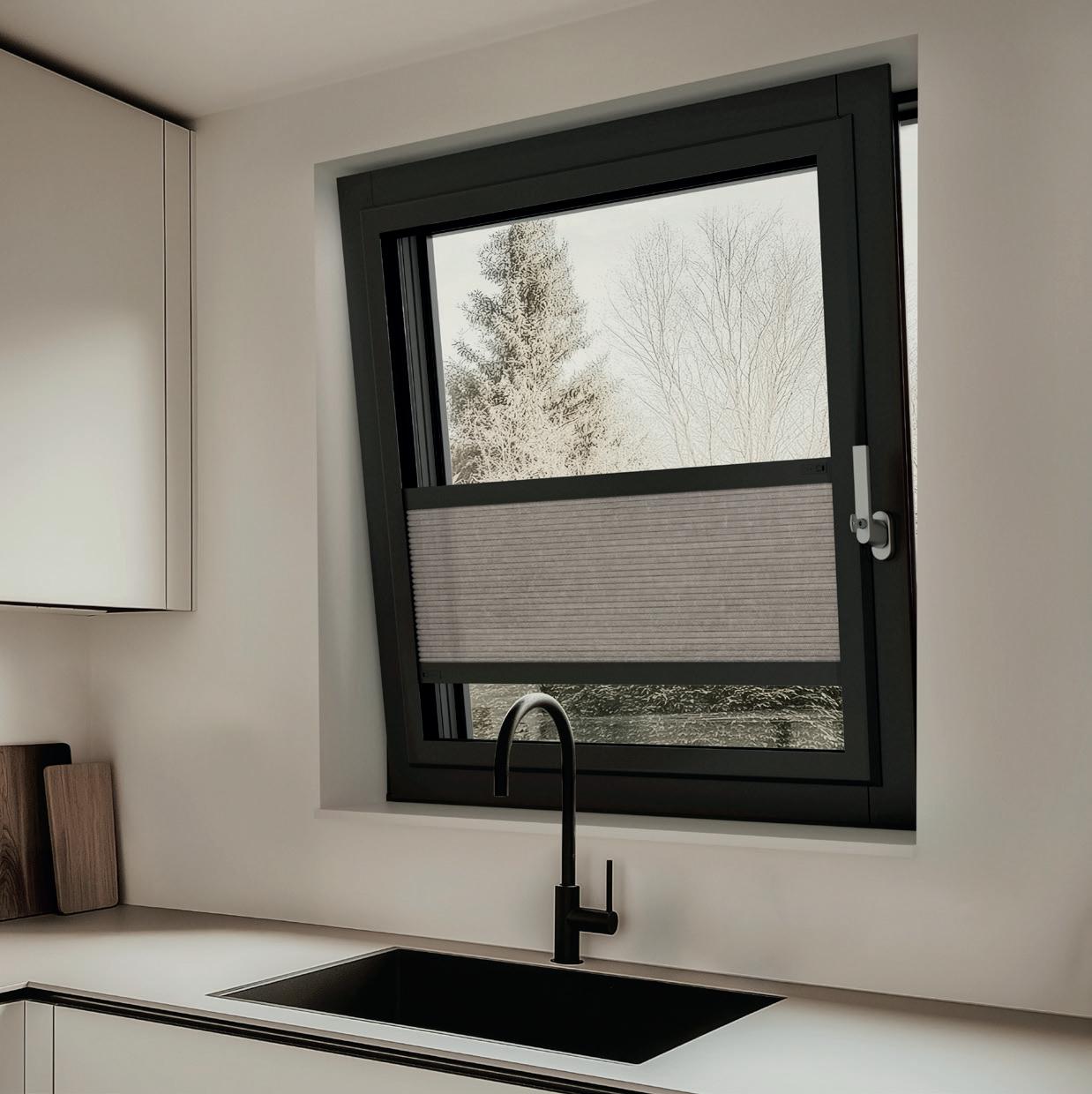

• Specially designed for tilt and turn windows (approx. 150x150 cm) and doors (approx. 80x200 cm)
• Drill-free installation with magnetic tape on aluminum, plastic, and wooden surfaces
• Available with double motor, single motor, and manual operation
• Solar powered and rechargeable with a USB-C cable
• Available as a custom-made kit or components
Motionblinds
Smart Frame is powered by the specially developed Motionblinds motor CM-52, enabling effortless setup, smart control, and seamless integration with smart home platforms. Whether operated via app, remote, or voice assistant, Motionblinds technology brings comfort and connectivity to every space.

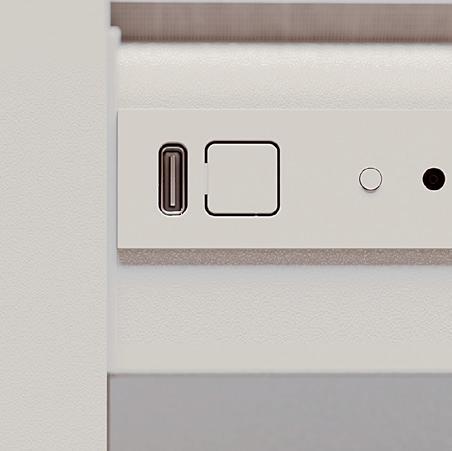

USB-C charging port and manual control buttons.

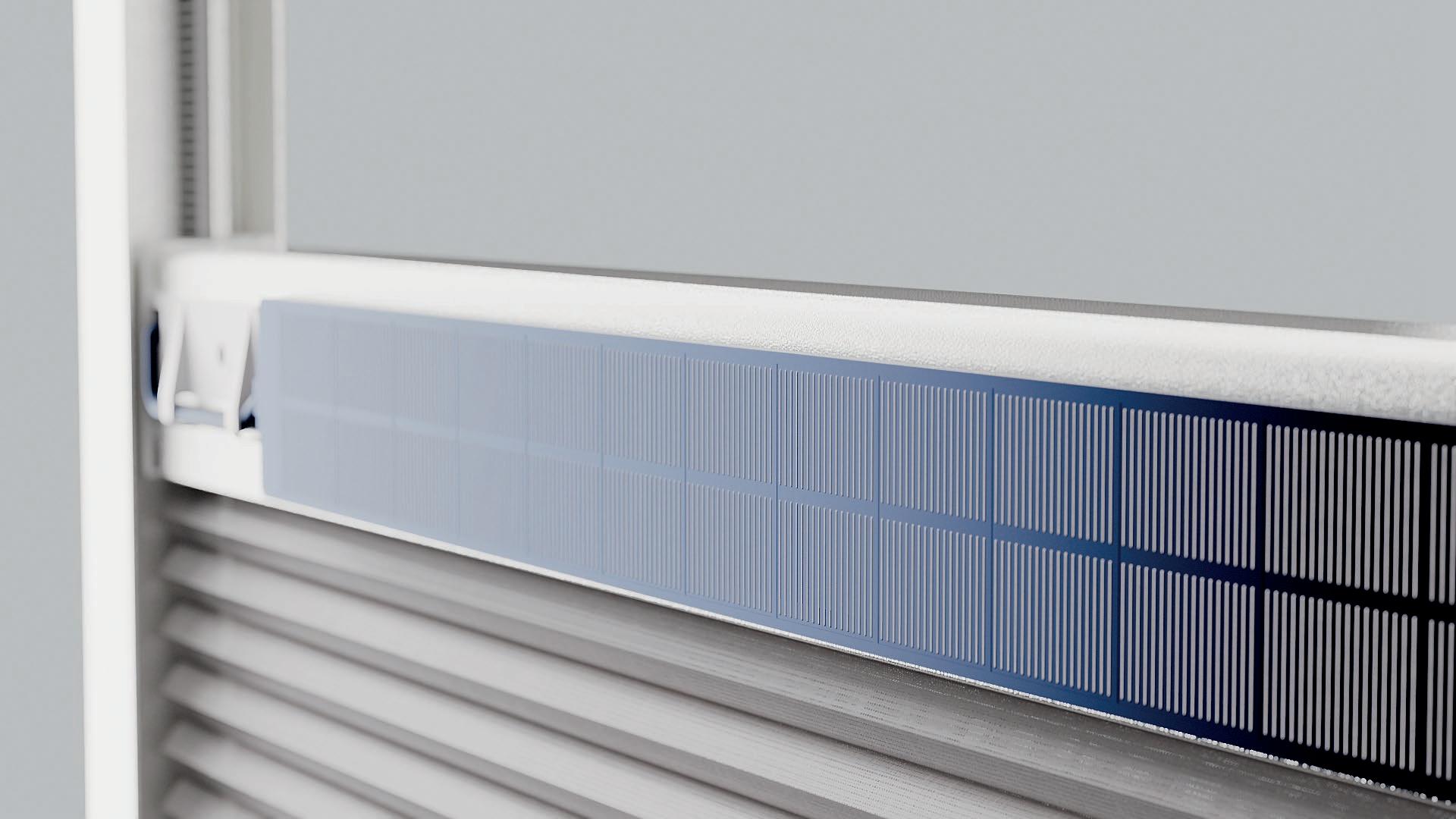

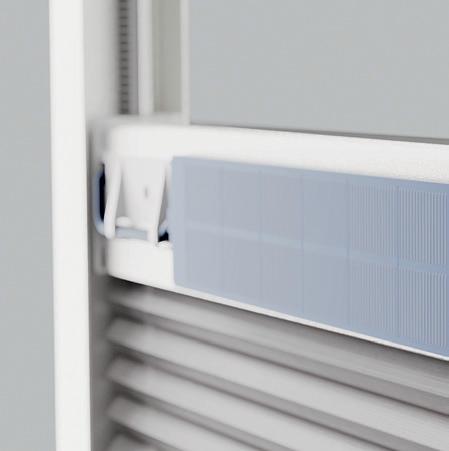

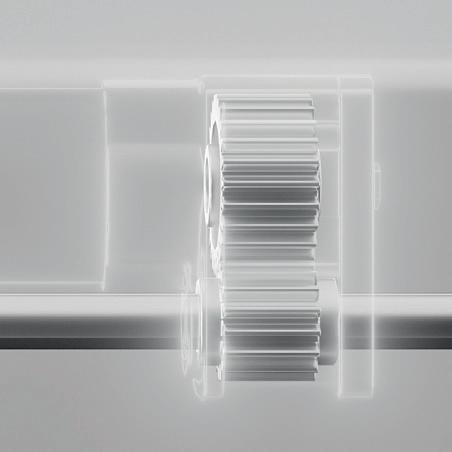

Solar panel for automatic solar energy charging. Built-in bi-directional motor with integrated battery.
CM-52 Smart Frame motor features
• Built-in lux sensor for measuring light intensity
• Integrated temperature sensor for protection
• Rechargeable via solar panel (CM-64) or USB-C

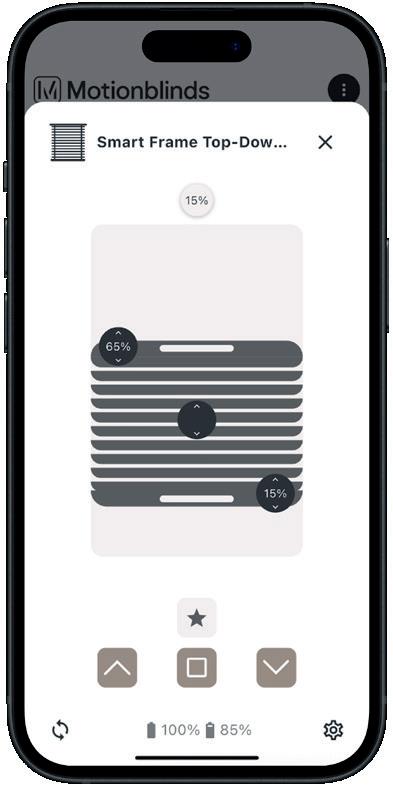

• Bluetooth technology built-in for easy setup and control by smartphone app and automation with timers
• Smart home connectivity via the Motionblinds bridge for control from Apple Home, Google Home, Amazon Alexa, SmartThings, and others
Colors

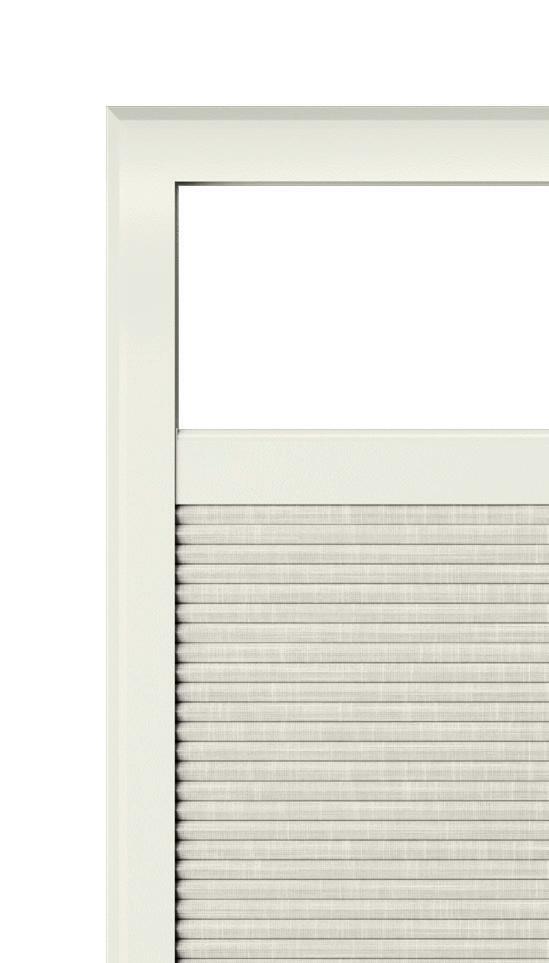

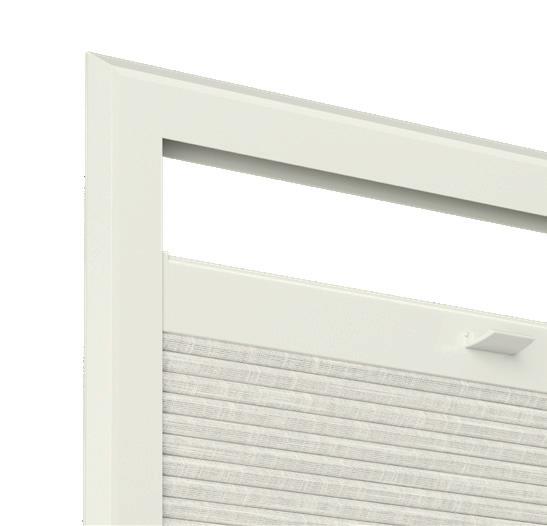

Smart Frame is available in three timeless finishes: White, Off-White and Black. All visible components are perfectly color-matched for a seamless and elegant appearance. The aluminum profiles feature a premium structured finish and are designed to be slim, making them suitable for a wide range of window frames and doors.

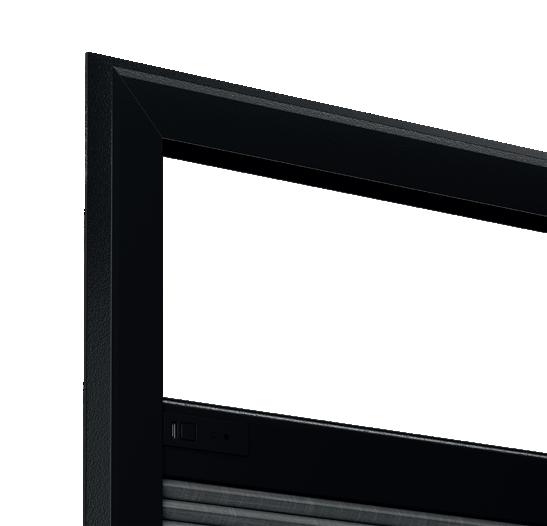

Black

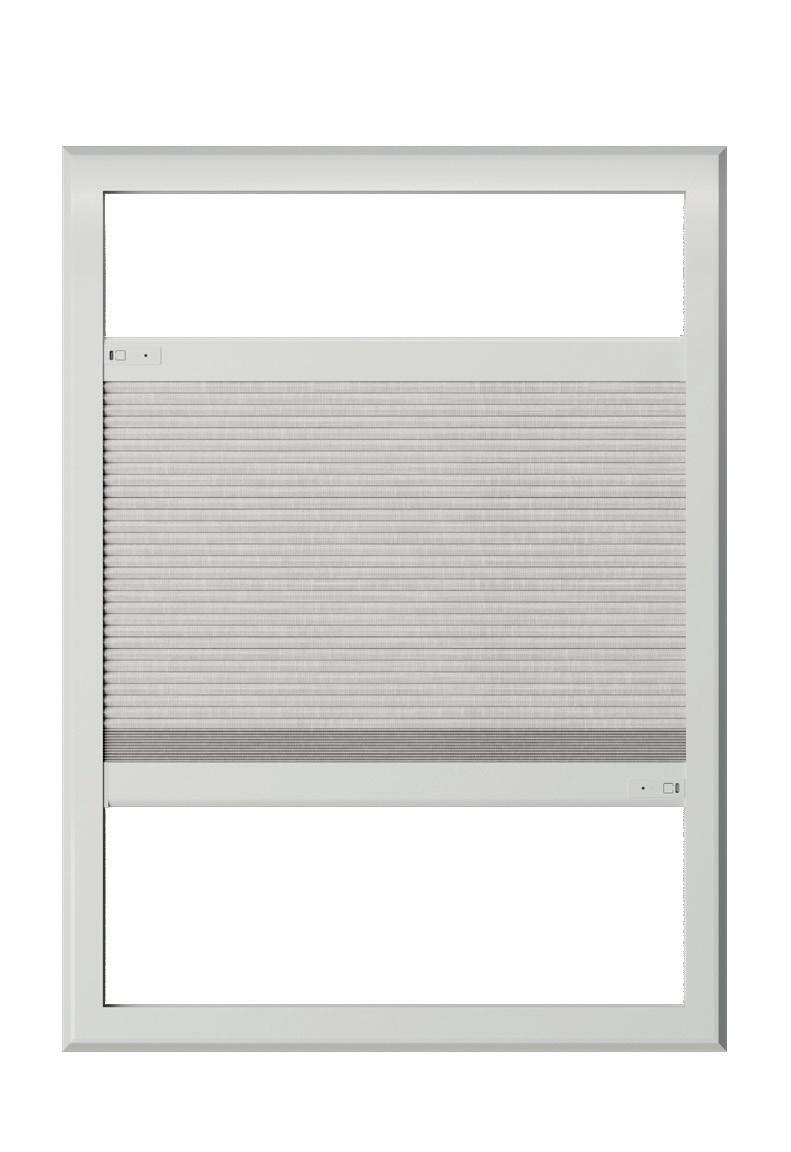

Off-White
Fabrics

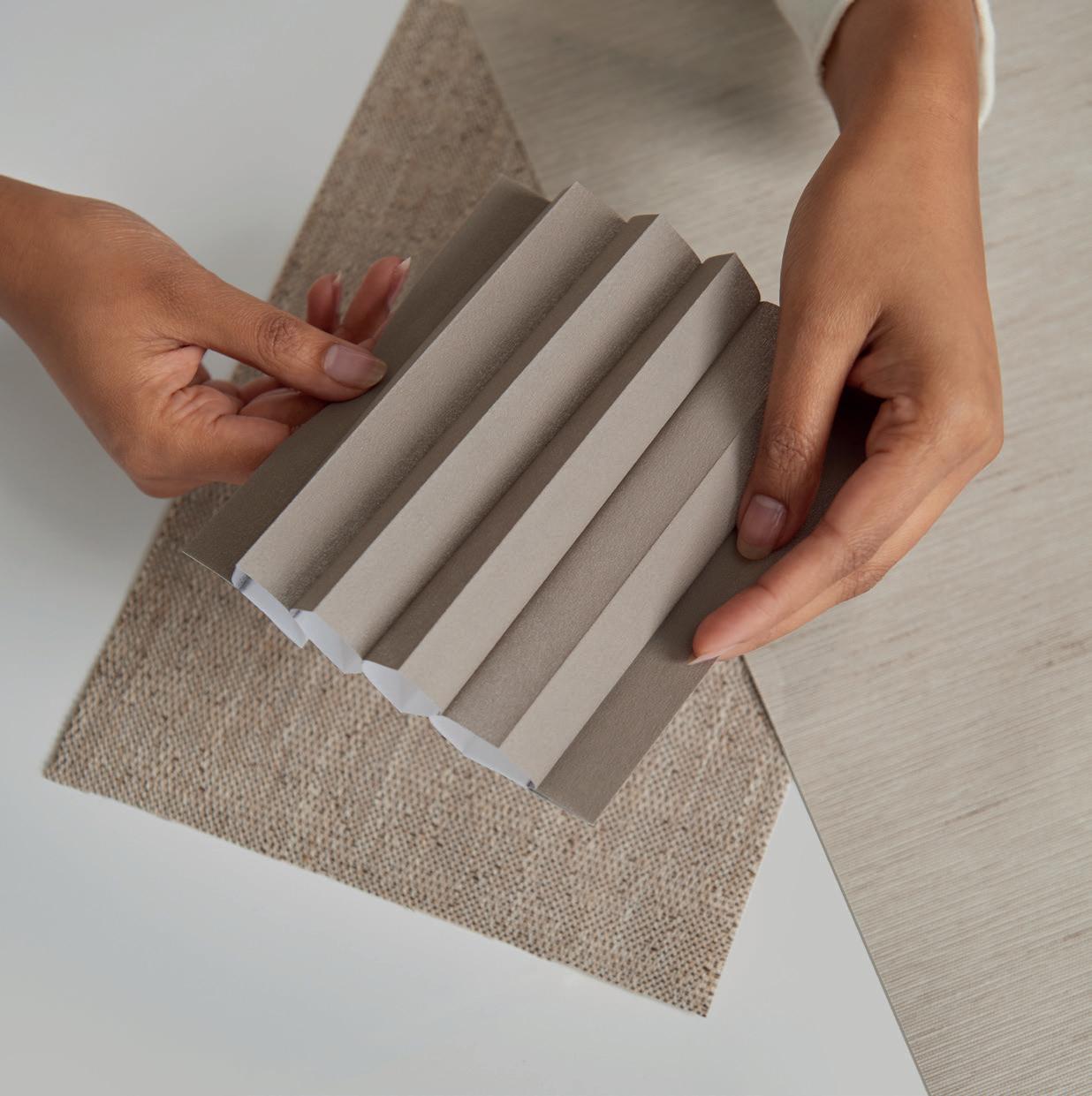

Smart Frame is compatible with both pleated and honeycomb fabrics, available in widths of 20 mm and 25 mm. Choose between light-filtering and blackout options to match your desired level of privacy and light control. Cellular fabrics offer excellent insulation and energy-saving benefits, while blackout fabrics provide optimal darkening for restful environments.
Honeycell book
Pleated book
Configurations
SMF-B15 single motor
SMF1010
SMF1008
SMF1003
SMF1011
SMF1007 SMF1009
PLC38-38 CM-52
SMF1002
SMF1004 CM-64*
PLC20-24
PLC20-24
FS4001
FS4001
PLC20-24
PLC20-24
PCRD-1001
SMF1005
SMF1008 SMF1009
* Optional
PLC20-18
SMF1007 SMF1009
Fabric
PCRD-1001
SMF1009
SMF1001
SMF1003
SMF1001
SMF1001
SMF1002
SMF1010
SMF1011
SMF1001
SMF1011
SMF1004
SMF1005
SMF1010
SMF1008
SMF1008
SMF1010
SMF1011
SMF1006
SMF1006
