ENZYMESTOWER HONGKONG

Thegoalofthisprojectistobuildaniconiclandmarkattheintersectionof WellingtonStandQueensRoadCentral,intheheartofHongKongIsland’s centraldistrict.Theaimistodesignabuildingthatnotonlystandsasan architecturalmarvel,butalsosymbolizesprogressandmodernitytotheentire city.Thecurrentbuildingontheprojectsitehasbecomeoutdatedand inefficientintermsofspaceutilization.Theclientunderstandsthattheprime locationnecessitatesamoreambitiousapproachtomaximizethepotentialof thesite.Byexploringtheoptionofconstructinganotherbuildingvolume,the clientaimstoaddresstheunderutilizedarea,optimizingtheGFAavailableon thesite.

Fig:02/SiteLocation

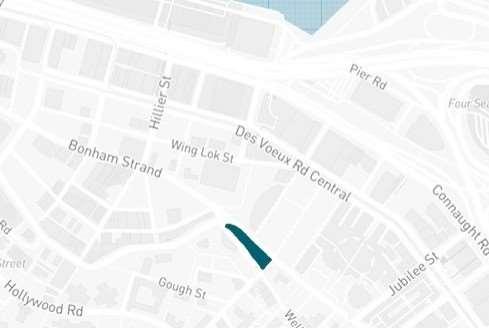

Site: Theprojectsite’slocationatthe intersectionofWellingtonSt.and QueensRoadCentralis undeniablyoneofthemost strategicand covetedspotsinHongKong Island’scentraldistrict.

SoftwareUsedforProject:Modeling:Revit

ClashDetection:Navisworks

Render:Revit,Twinmotion&AITools

LevelofDetail: LOD350

Fig:01/RenderImageofEnzymesTower

ClientInformation:EnzymeAPDLtd

ProjectCoordinates:(E114°9’12.12’’N22° 17’5.40’)

BuildingType: Office

SiteArea: 203.7sqm

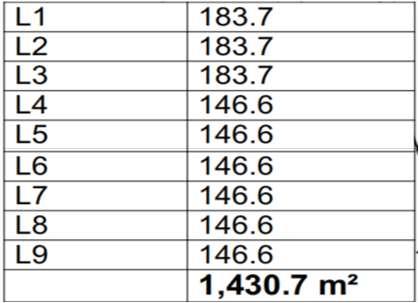

CurrentUtilizeGFA:1430.7sqm

MaximumSiteOccupation:162.7sqm

HeightRequirement:21Floors

FAR: 13.8

ConceptDevelopment&Massing

ExistingBuilding Envelopatthe intersectionof WellingtonSt. andQueens RoadCentral.

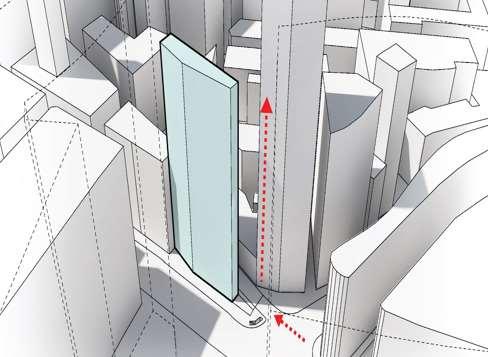

Extrudetothe maximum allowednumber ofstories.

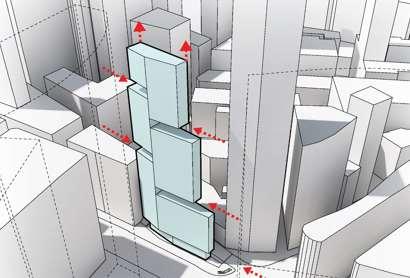

Creatingaseries ofsetbacks allowedasperthe localregulationthe additionofextra stories,inorderto makeupforthe lostGFA.

Thecreationofsky gardensandpublic spaces,alsoallows thevolumetogrow higherrecovering GFA,increasingthe finalnumberofstories.

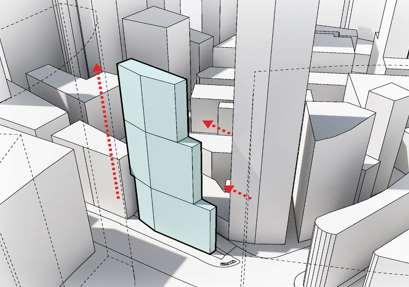

MASSINGSTUDY

•Toincreasethenumberofstories,extrudethebuilding upwardtomaximizeheightandaccommodateadditional floors.

•Tooffsetanylossofgrossfloorarea,addextrastoriesin compliancewithlocalregulationsbyincorporatingrequired setbacks.

•Addskygardensandpublicspacestoexpandthebuilding's volume,recoverthelostgrossfloorarea,andincreasethe numberofstories.

•Groundlevelisapublicareawithaprivatelobbyforoffices.

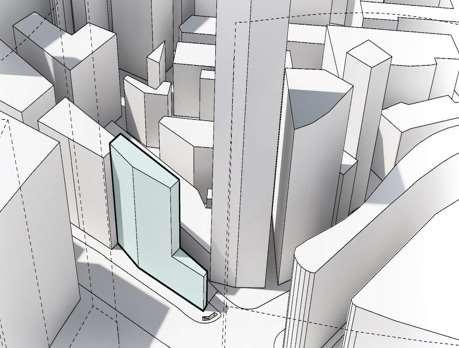

Fig:08/RenderofMassing

Fig:03

Fig:04

Fig:06

Fig:05

Fig:07/FinalMassing

ExistingGFA

Fig:09/RenderofMassing

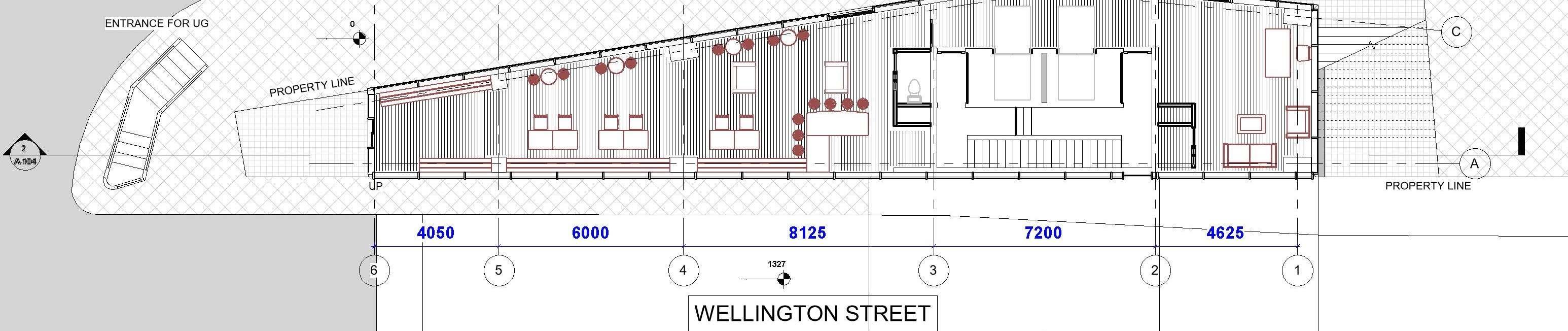

Fig:10/SitePlanScale1:100

SitePlan

Thesiteplanshowscompliancetoregulationsby incorporatingampleopenspacesurroundingthe building.Thegroundfloorisconceivedtoserveas boththebuilding'sentrancelobbyandapotential publicarea.Moreover,theplanencompasses basementparkingspacestoelevateconvenience forbothoccupantsandvisitors.

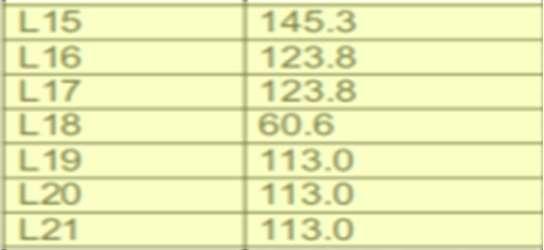

Zone3AreaSchedule

CoordinationDiagram

CoordinationProcess

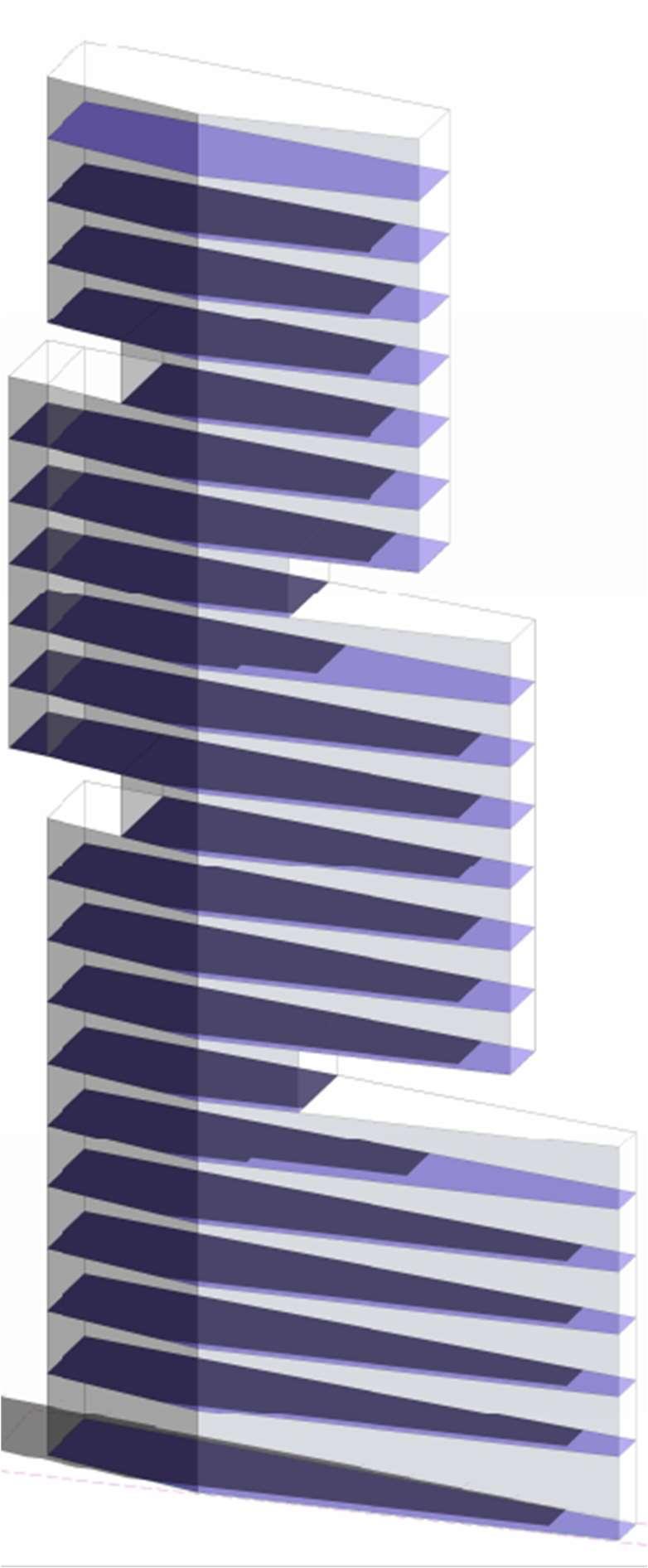

Thevisualrepresentationdisplaystheincorporationofvarious workzones,followingasimulatedBIMexecutionstrategy,for theconstructionofa21-storybuilding.Thisimageoffersa partialviewofthecomplete3Drenderingofthestructure.The showndiagramconsistZone3i.e.Level15toLevel21

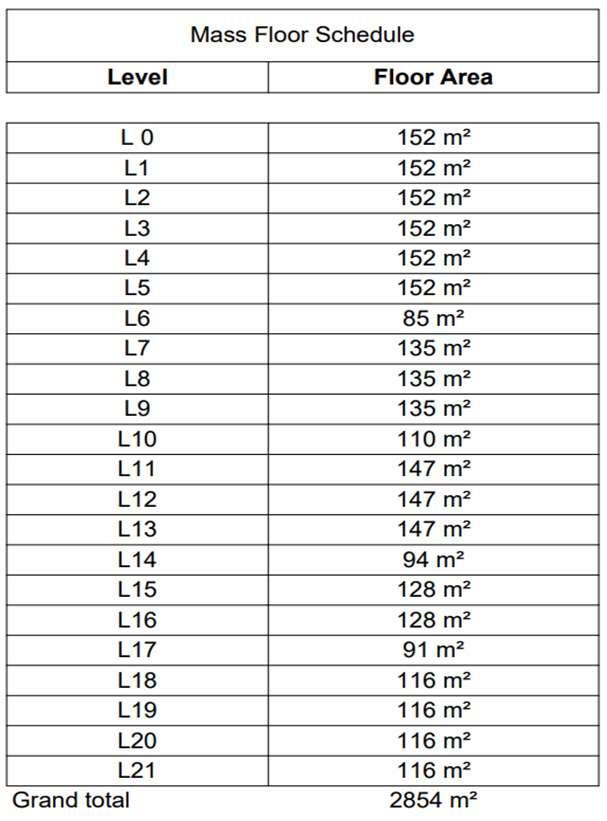

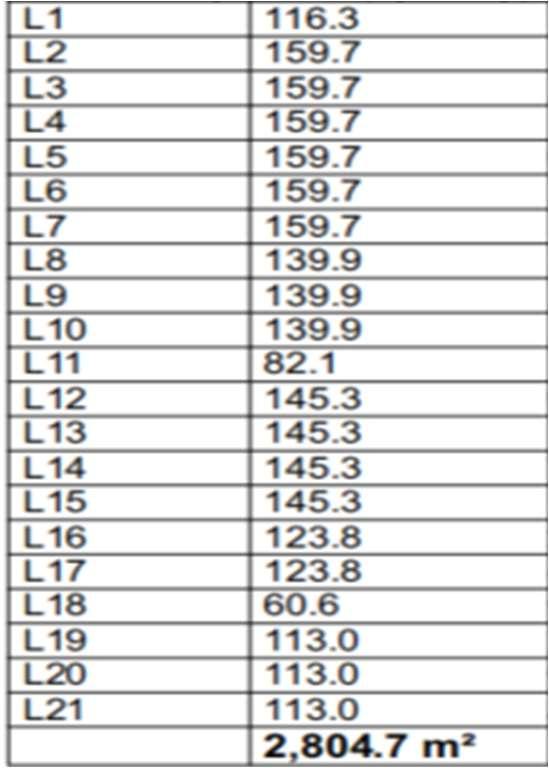

Fig:11/FloorAreaforlevel15to21

Fig:15/RenderedImage

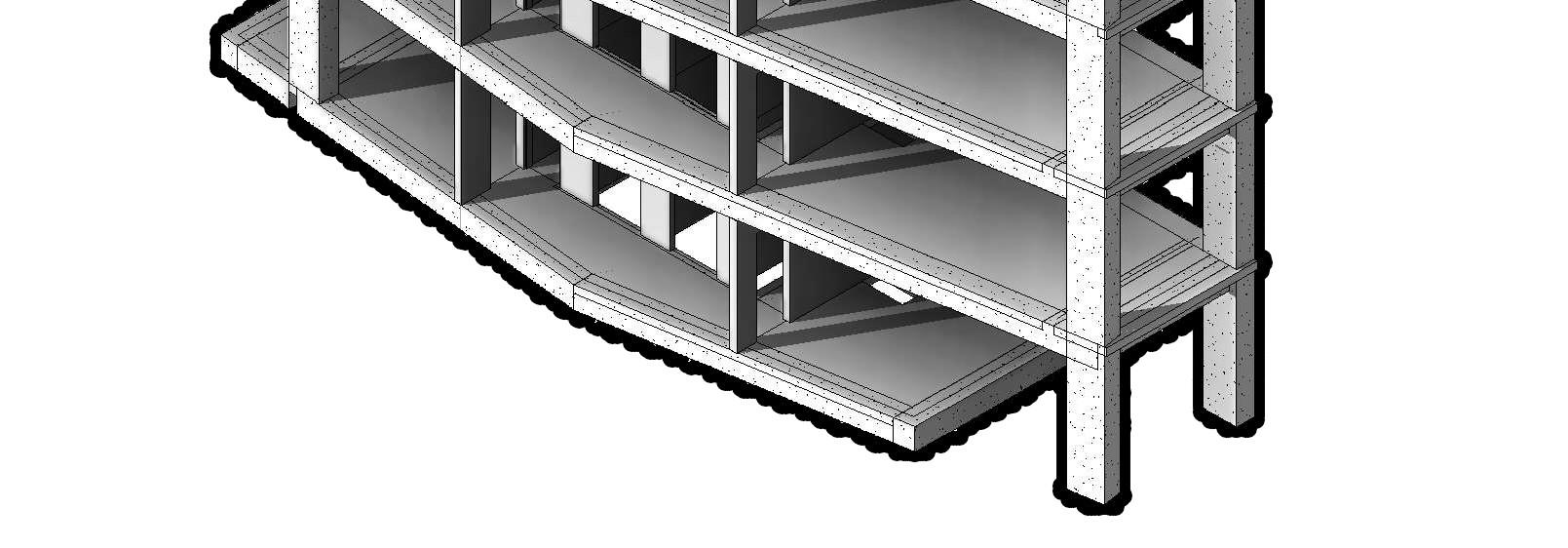

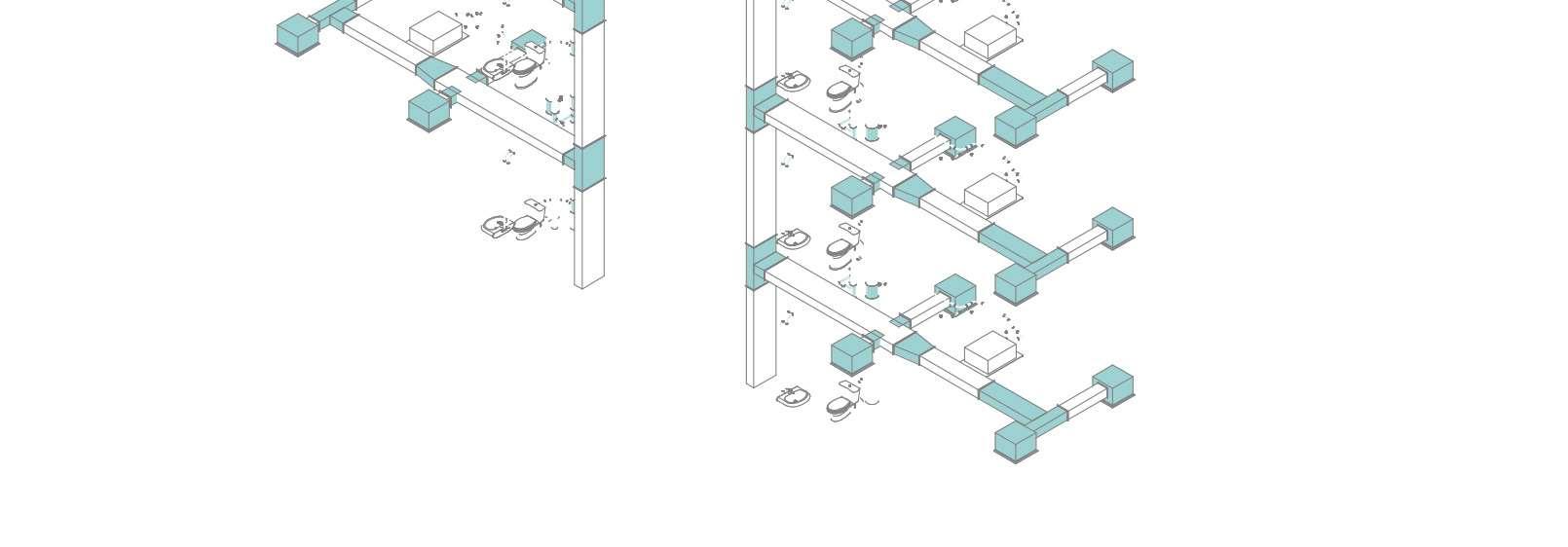

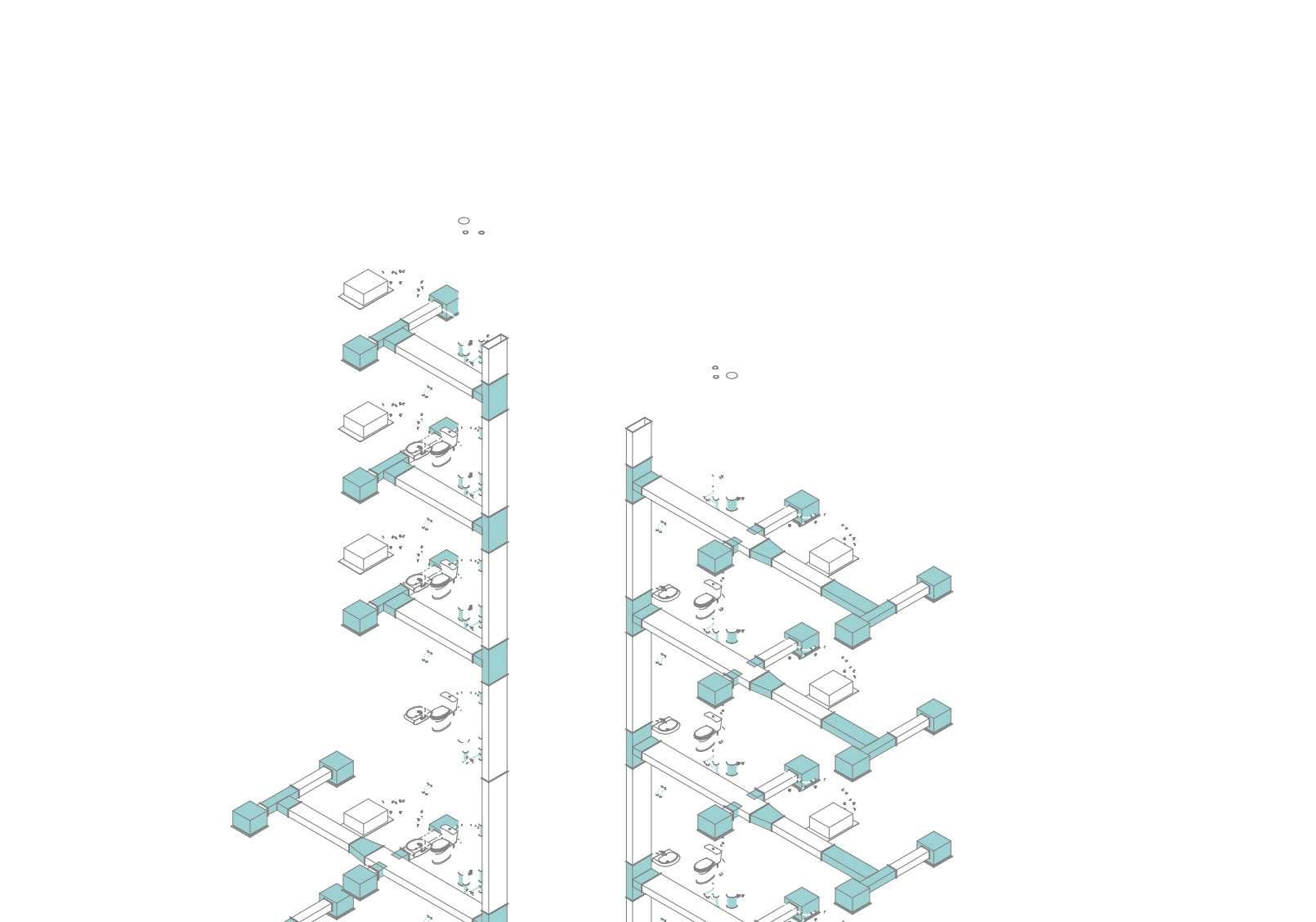

Fig:12/ArchitecturalModelFig:13/StructuralModelFig:14/MEPModel

AtypicalFloorPlan&Schedule

FloorPlanLevel17

Fig:16/AtypicalPlanScale1:50

Level17Details

•PlanandDetailsofAtypicalFloor.

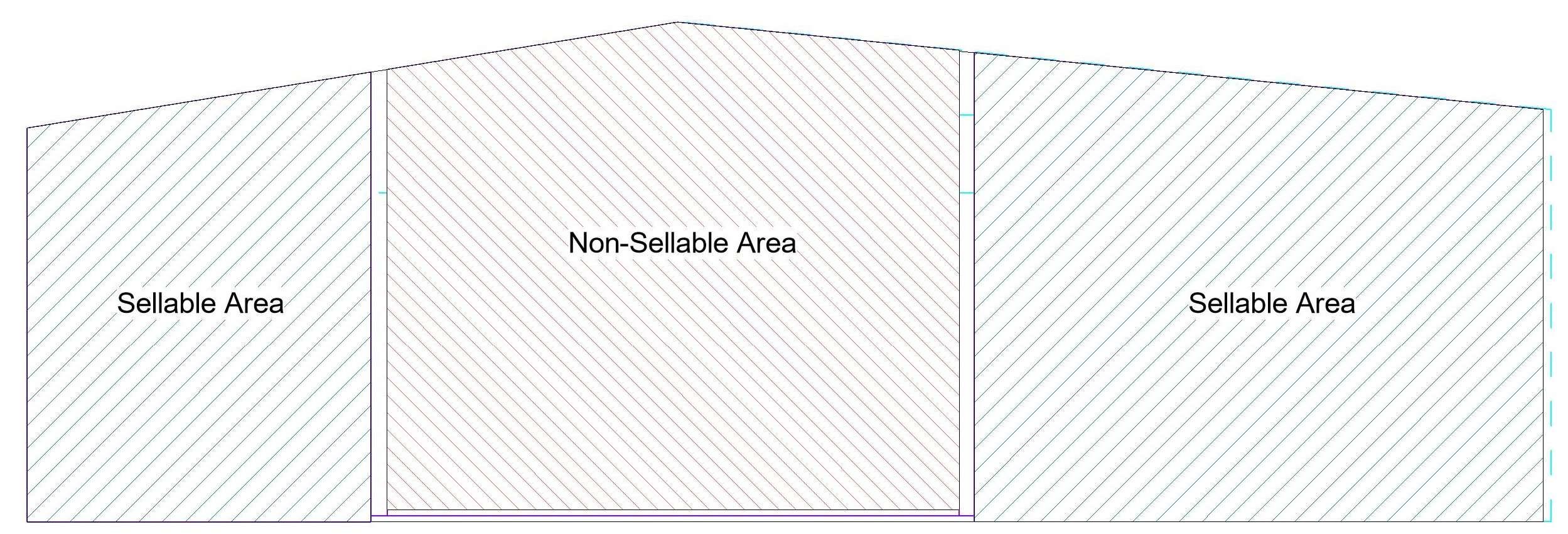

•AreaPlanshowingtheSellableandNonsellableArea.

•Roomschedules

•DoorSchedule

•AxonometricView

Fig:17/AreaPlanNTS

SchedulesLevel17

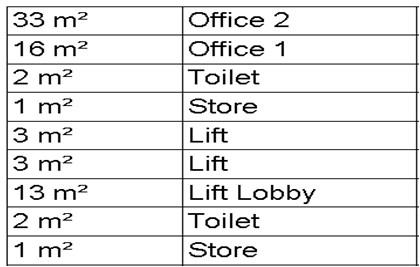

RoomSchedule

SellableArea

Non-SellableArea

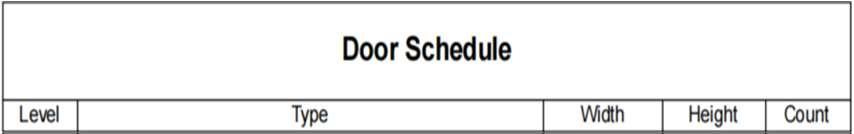

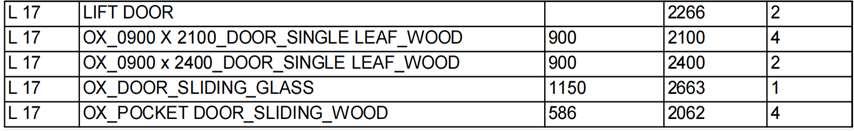

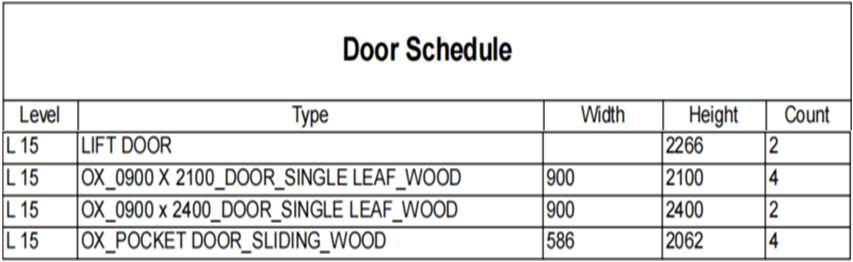

Fig:18/Room&DoorScheduleLevel17

Office-1

Staircase

LiftLobby

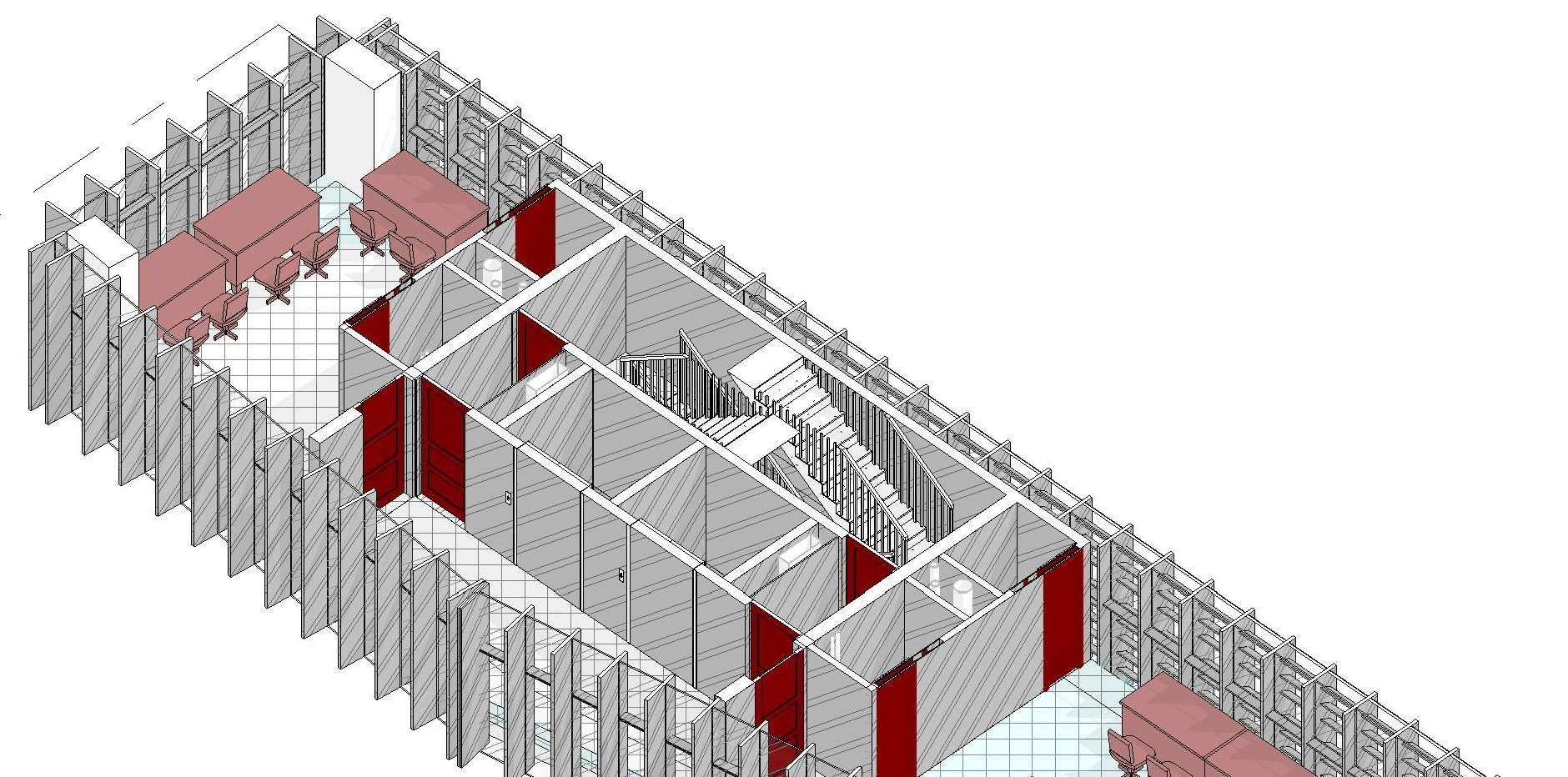

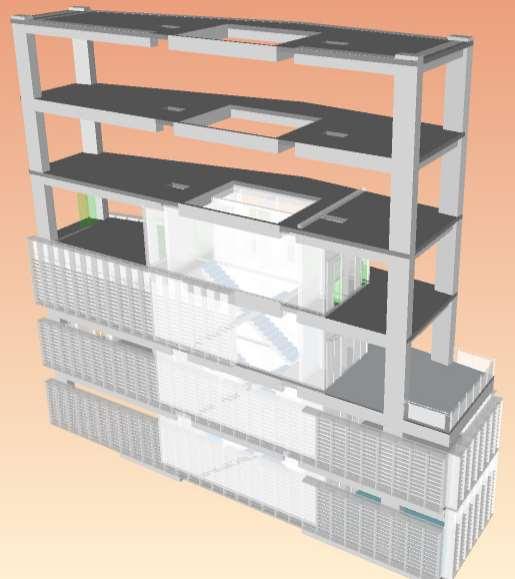

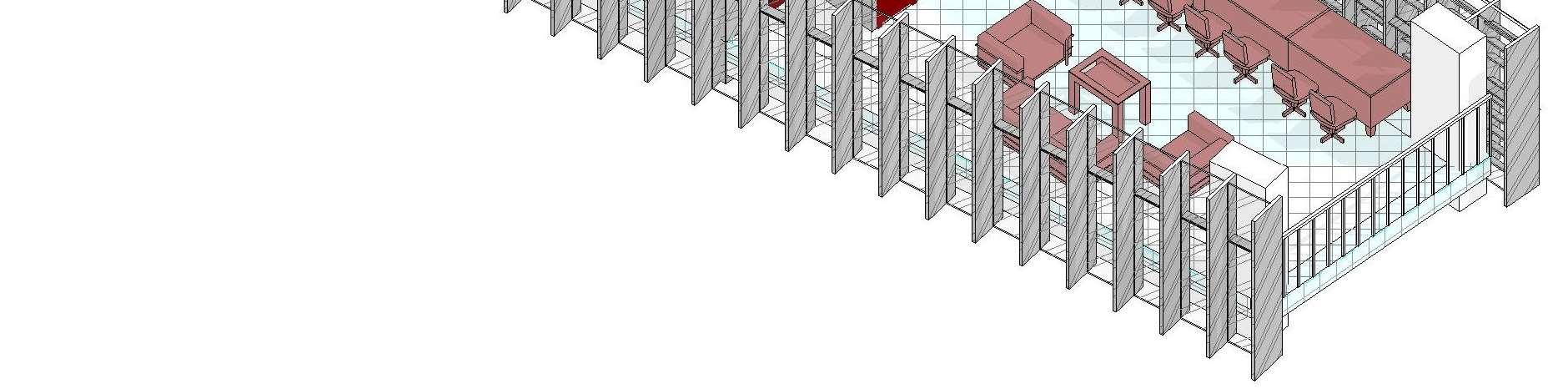

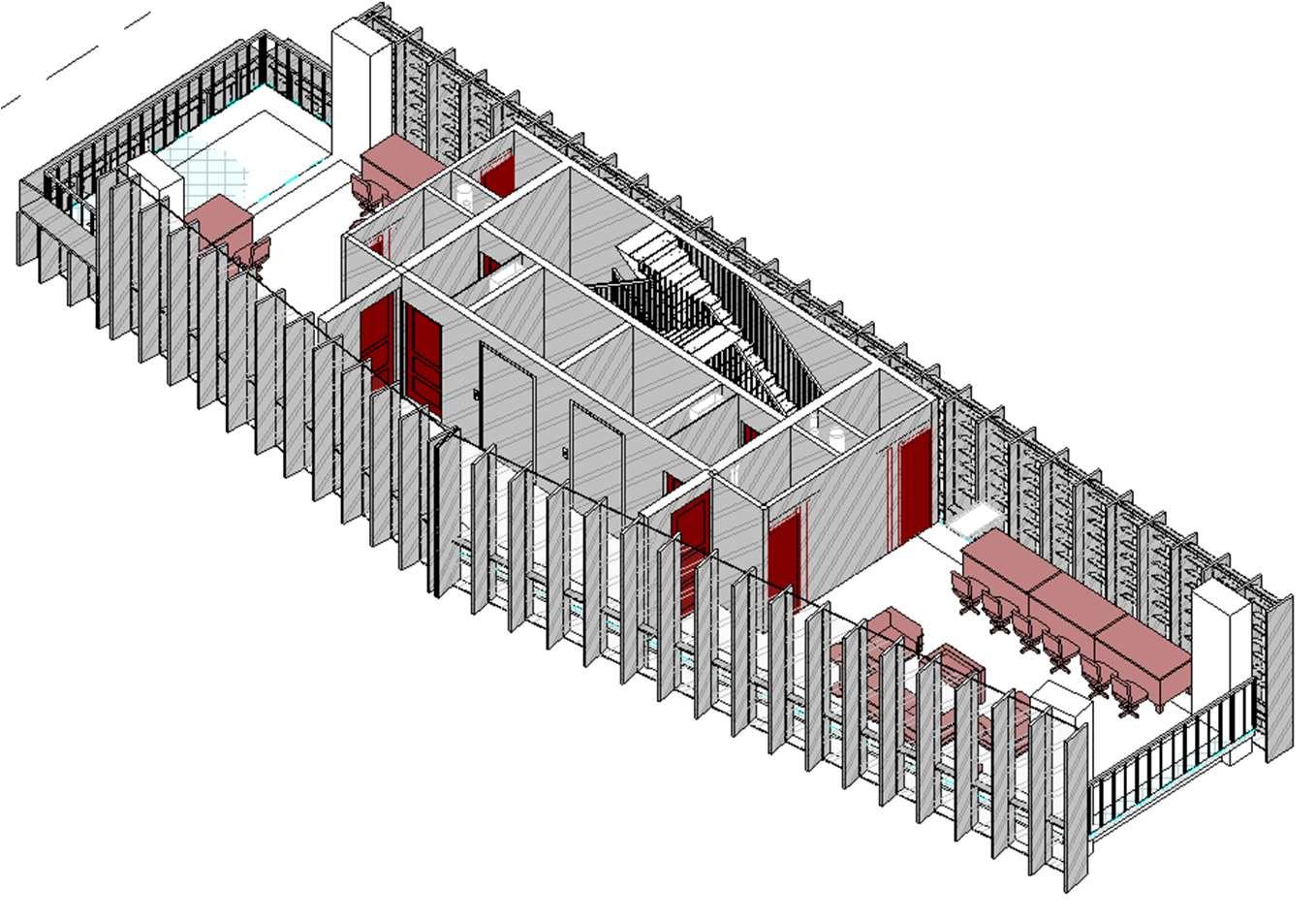

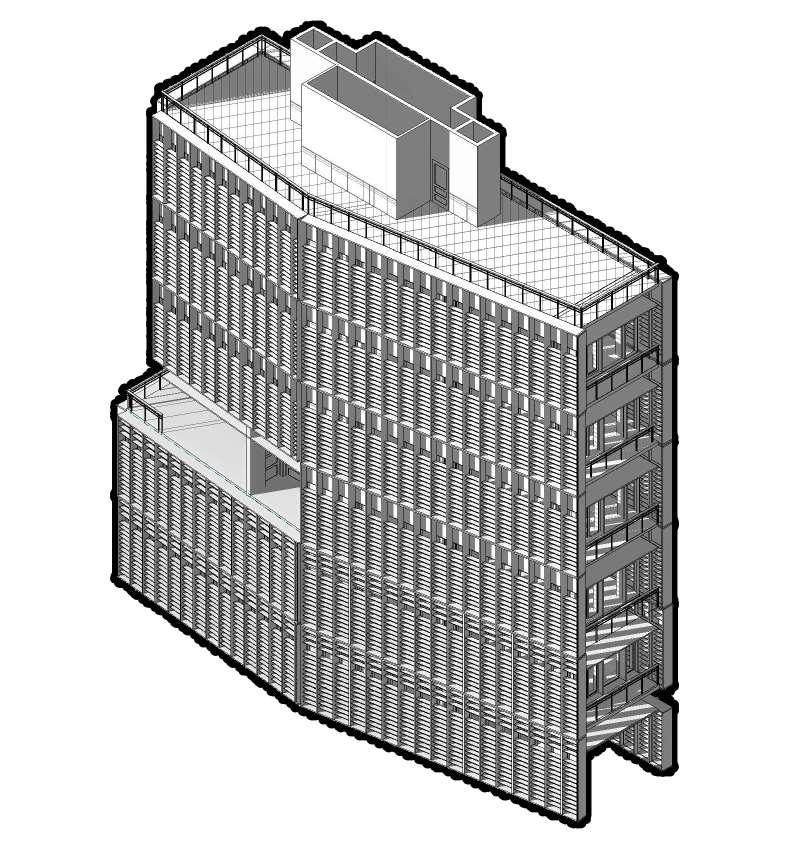

Fig:19/Level17AxonometricView

Office-2

TypicalFloorPlan&Schedule

FloorPlanLevel19

Level19Details

•PlanandDetailsofTypical.

•AreaPlanshowingtheSellableandNonsellableArea.

•Roomschedules

•DoorSchedule

•AxonometricView

SchedulesLevel19

RoomSchedule

Office-1

SellableArea

Non-SellableArea

Staircase

LiftLobby

Office-2

Fig:19/TypicalPlanScale1:50

Fig:20/AreaPlanNTS

Fig:22/Level19AxonometricView

Fig:21/RoomScheduleLevel19

SectionalView

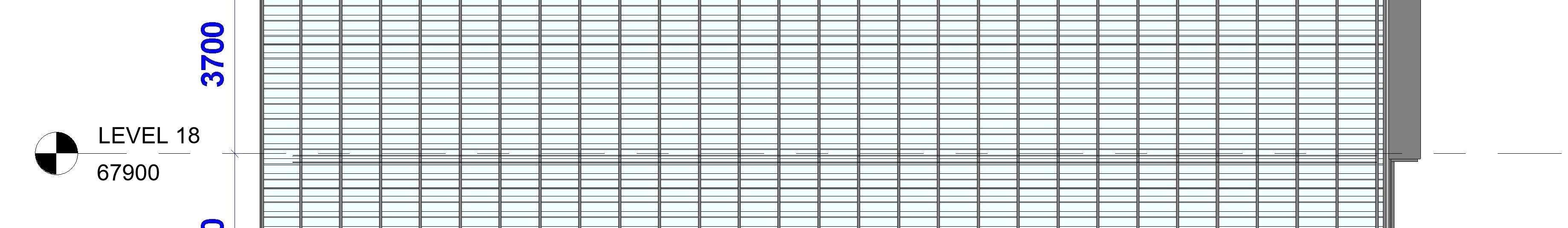

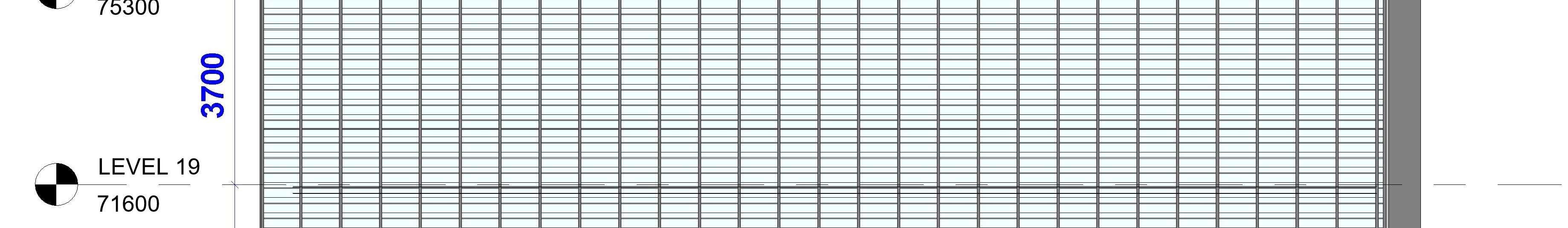

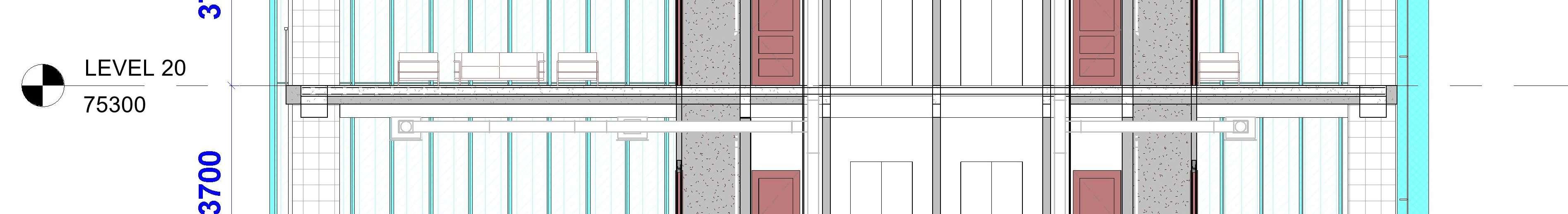

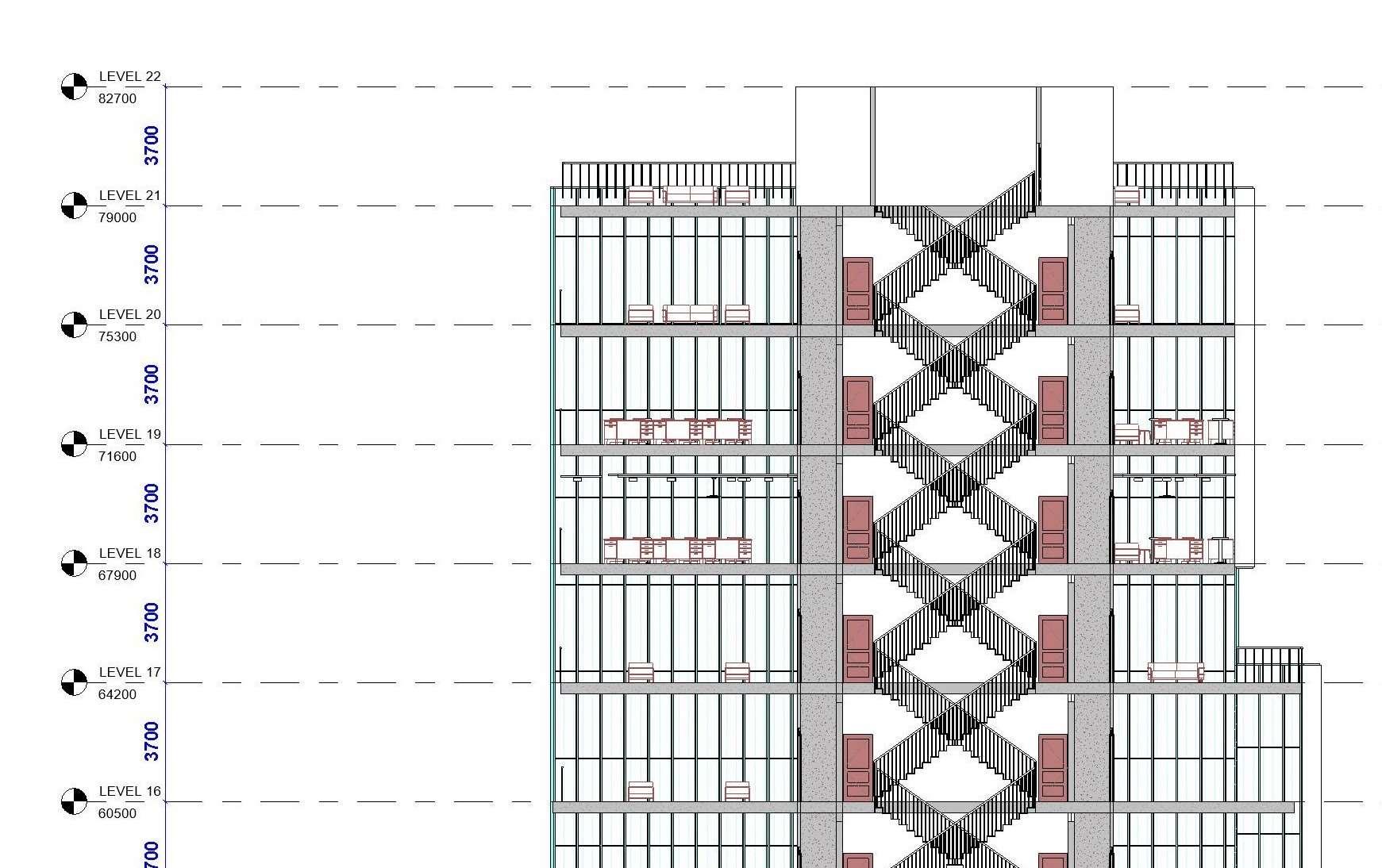

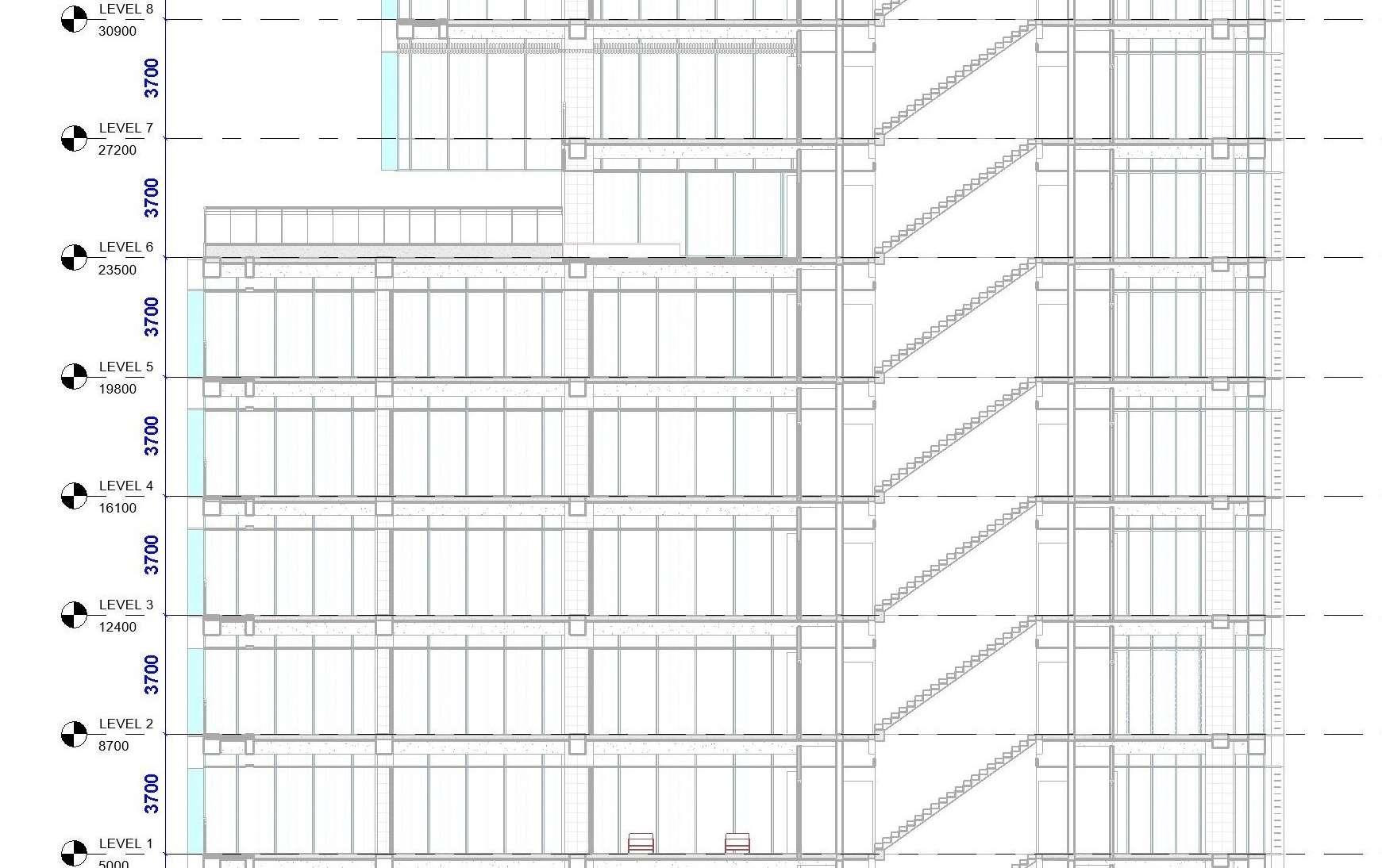

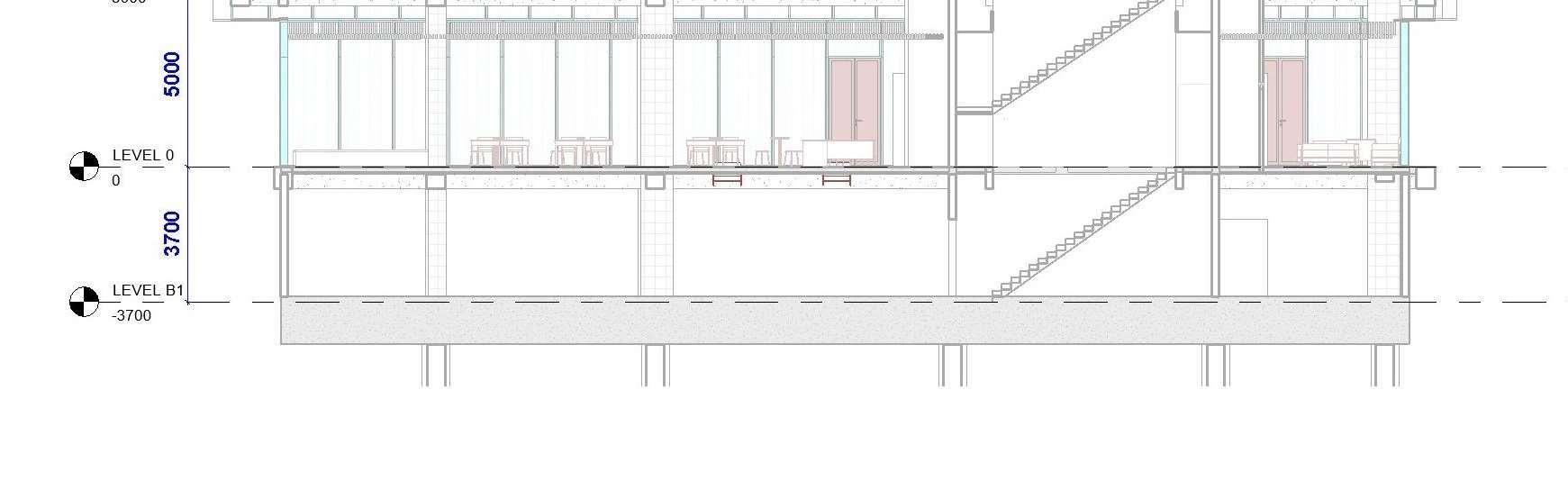

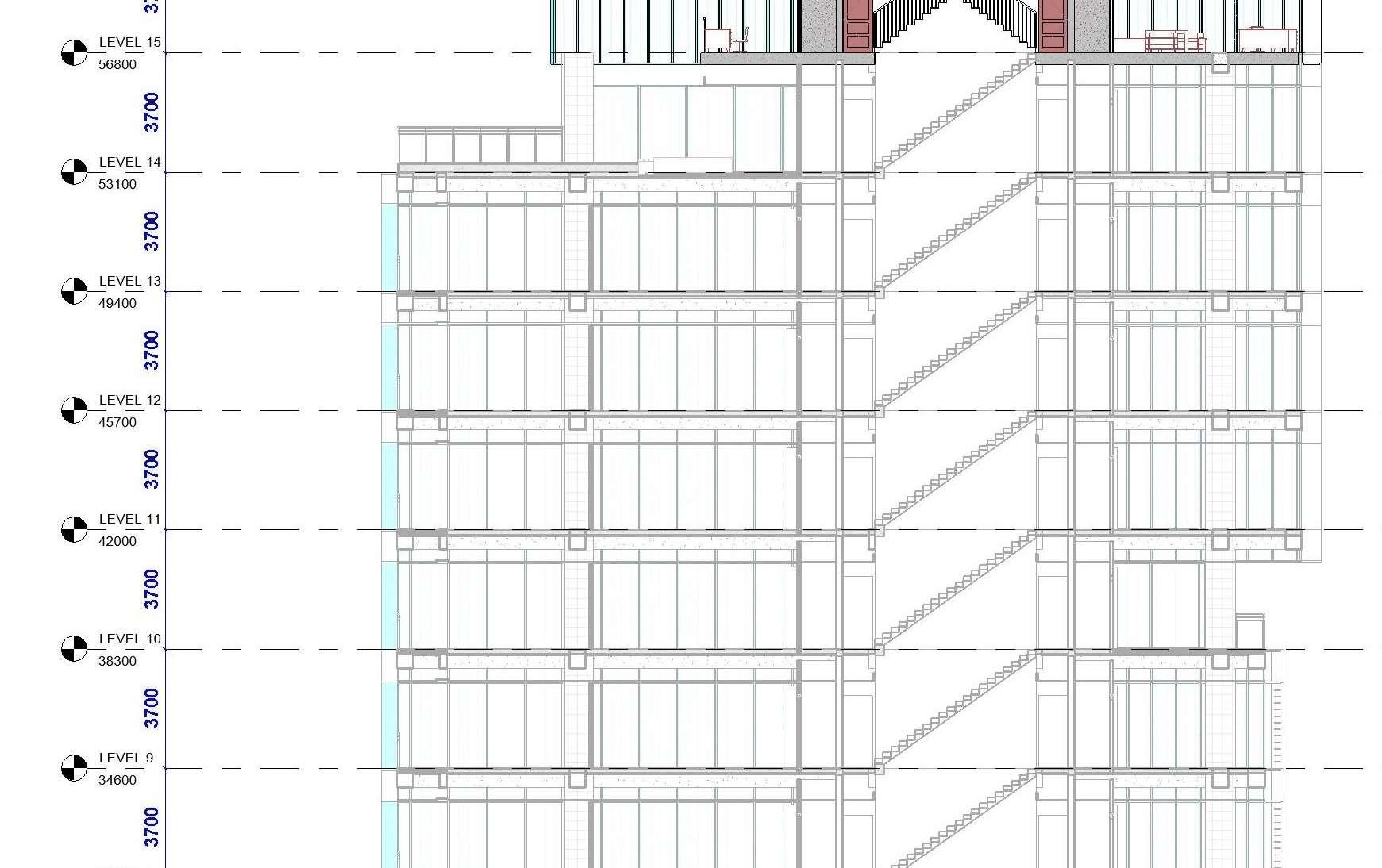

Fig:23/SectionA-Scale1:200

Section

Theprojecthasatotalheightof 82700MMfromGroundlevel.It comprises21floors,includinga basement.

In(Fig.23),Zone3hasbeen highlighted,whileZone-1andZone-2 havebeenshowninhalftone.Zone3 encompassesfloorsfromLevel15to Level21.

SectionB(Fig.24)representsa partialsectionofZone-3,while SectionCandD(Fig.25&Fig.26) displaycalloutsforLevel15and Level18.

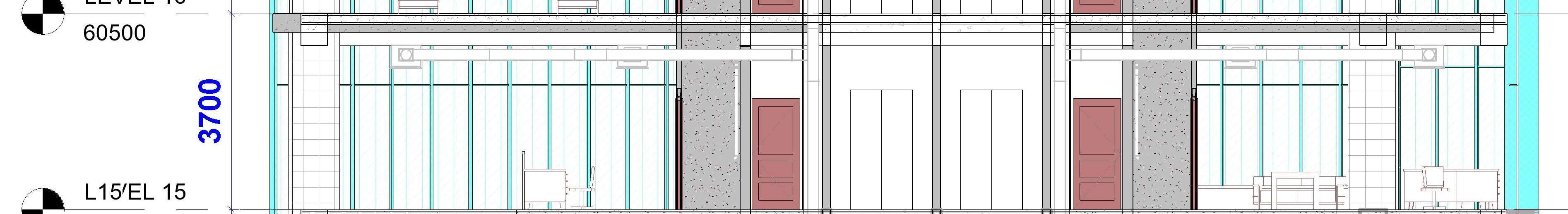

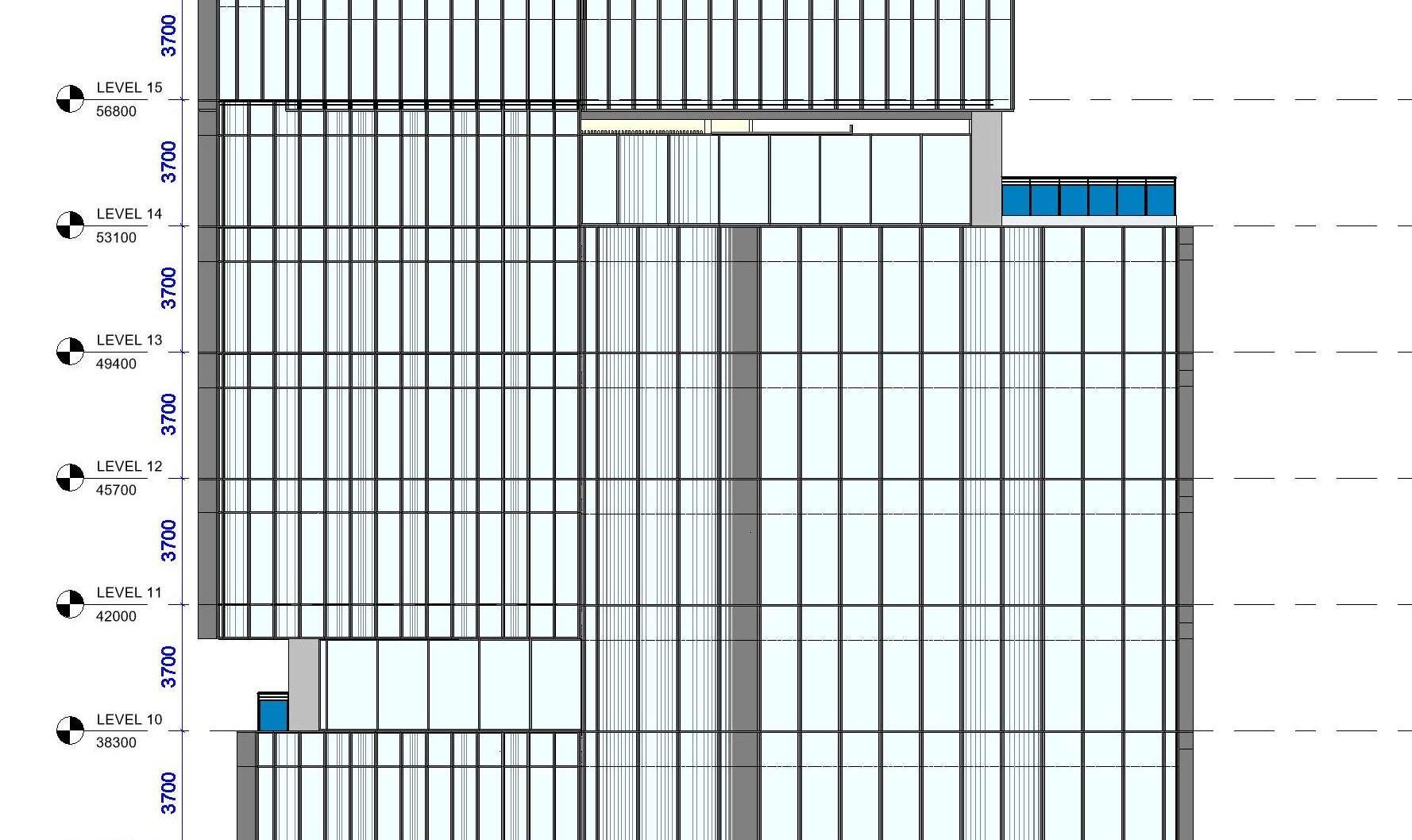

Fig:24/SectionB-Scale1:100

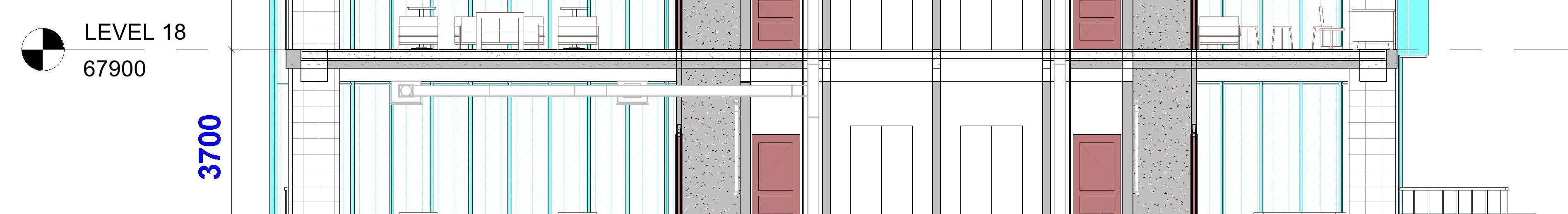

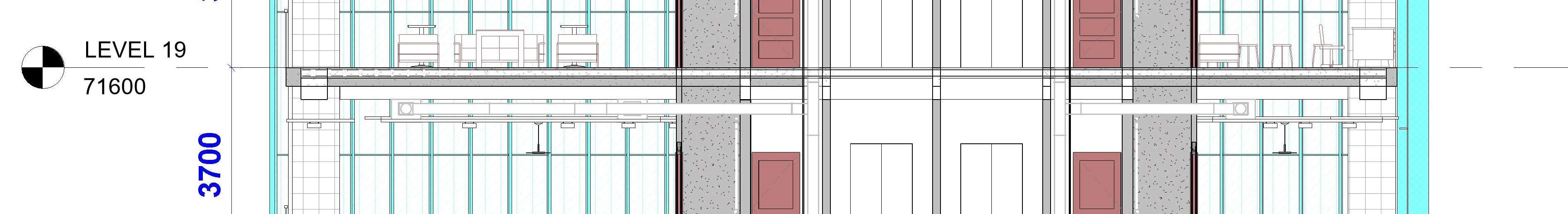

Fig:25/SectionC-Scale1:50

Fig:26/SectionD-Scale1:50

ElevationalView

Elevation

Theprojecthasatotalheightof82700MMfrom Groundlevel.Itcomprises21floors,includinga basement.

Façadeofthebuildingconsistsofcurtainpanelof GlasssupportedwithAluminummullions.Thesouth sidepanelsconsistsofrotatingLouverswhichcan beangledaccordingtothesundirection.

AluminumMullion 50MMX500MMthk.

GlassPanel 20MMthk.

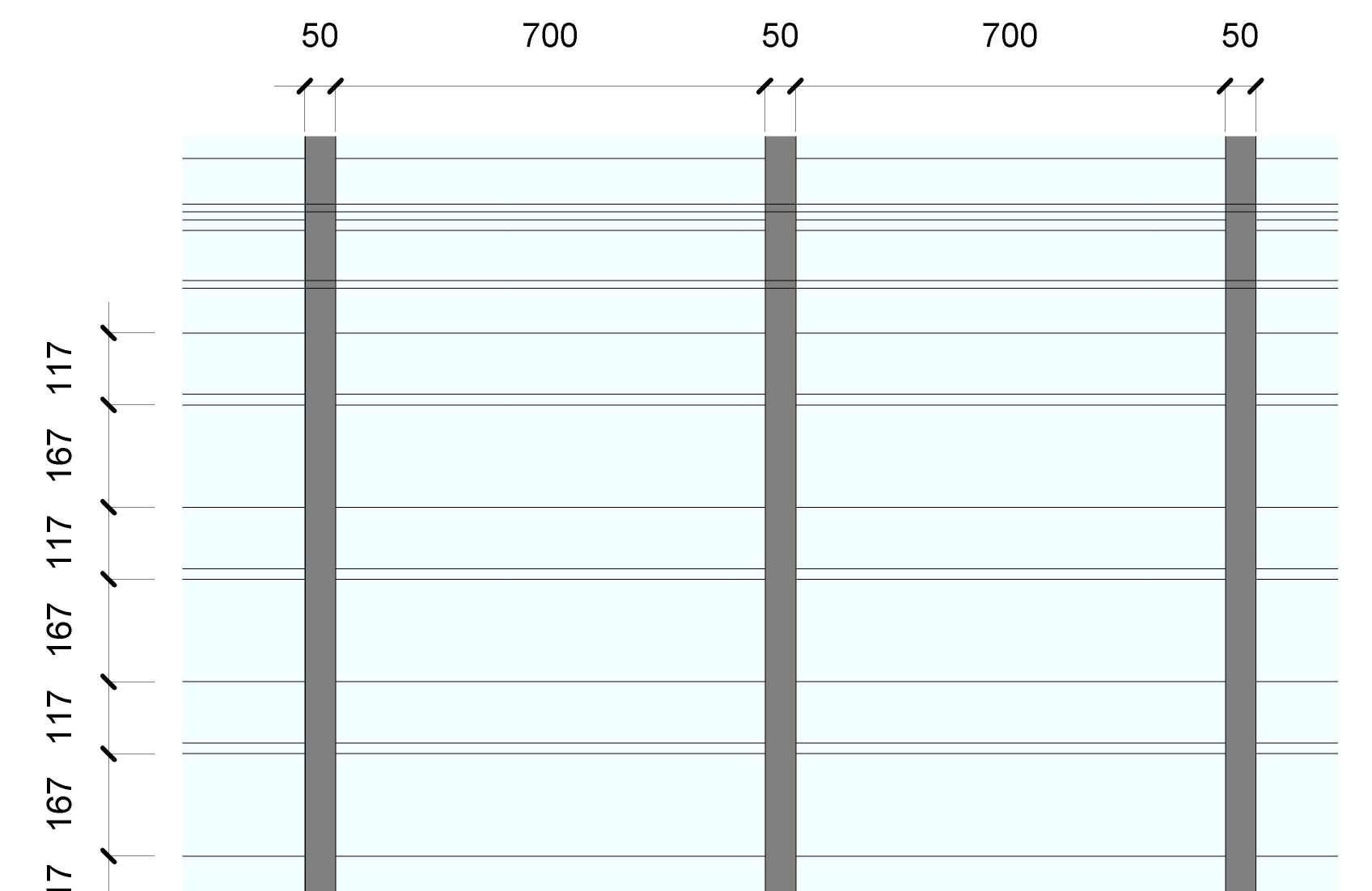

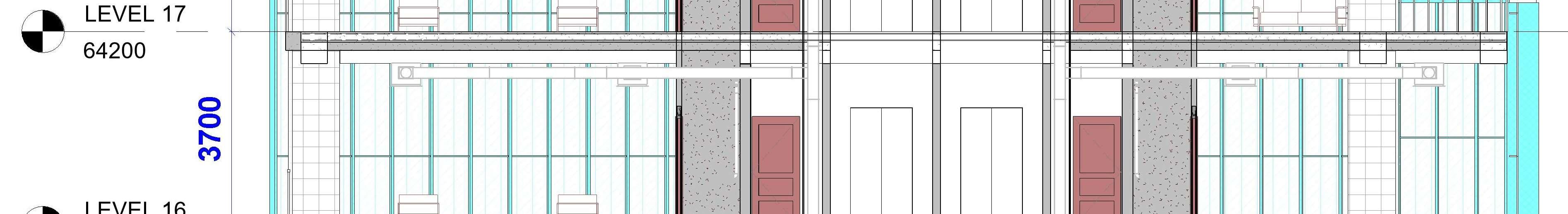

Fig:29/CalloutDetail-Scale-1:20

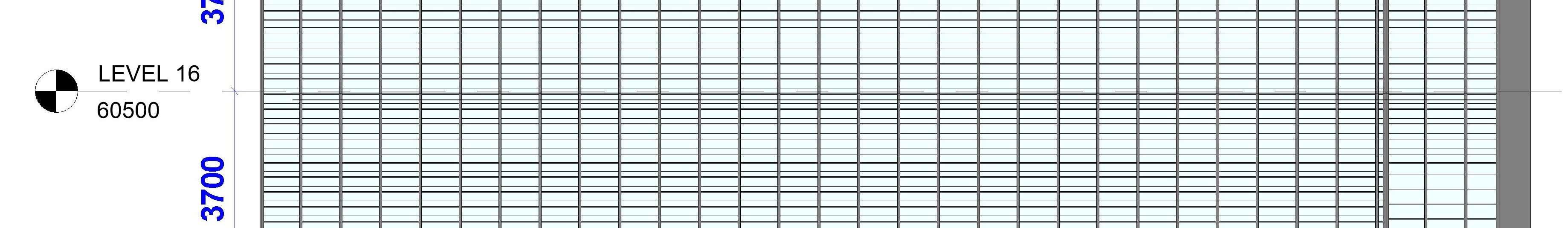

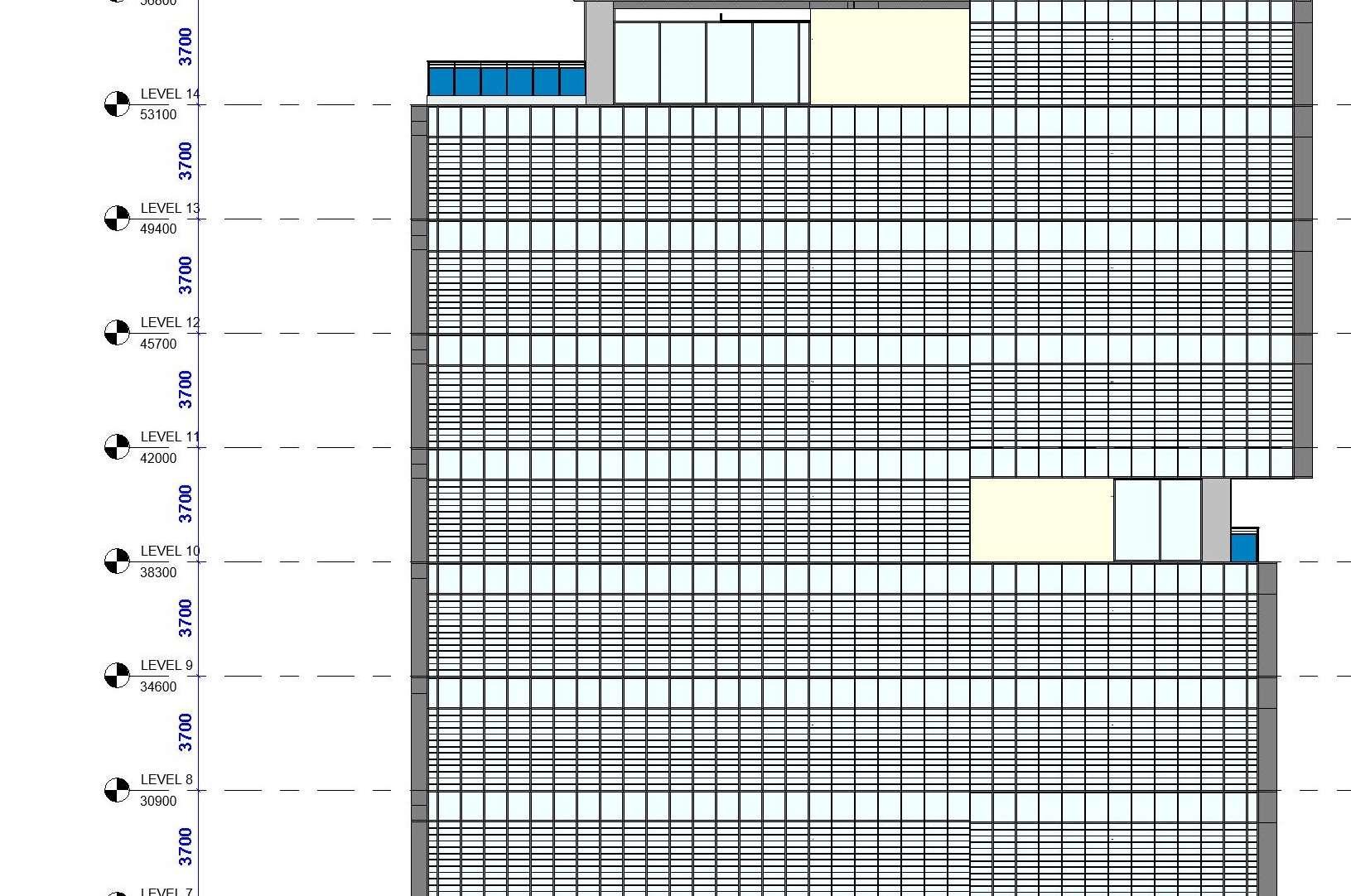

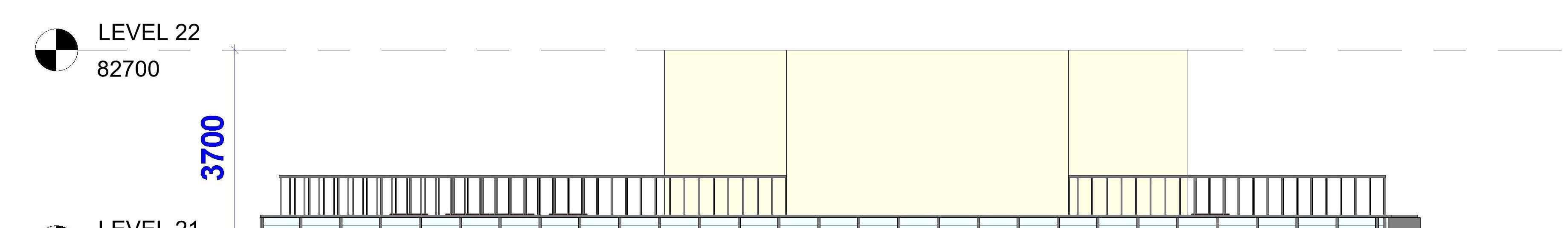

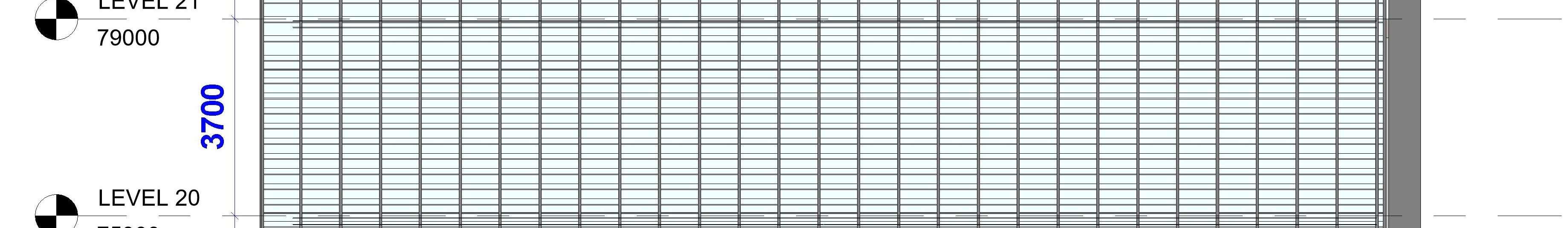

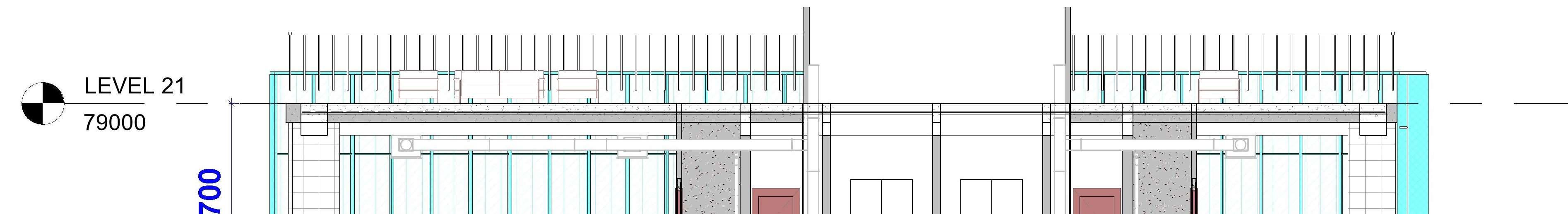

Fig:28/ElevationB-Scale1:200Fig:30/PartElevation-Scale1:200

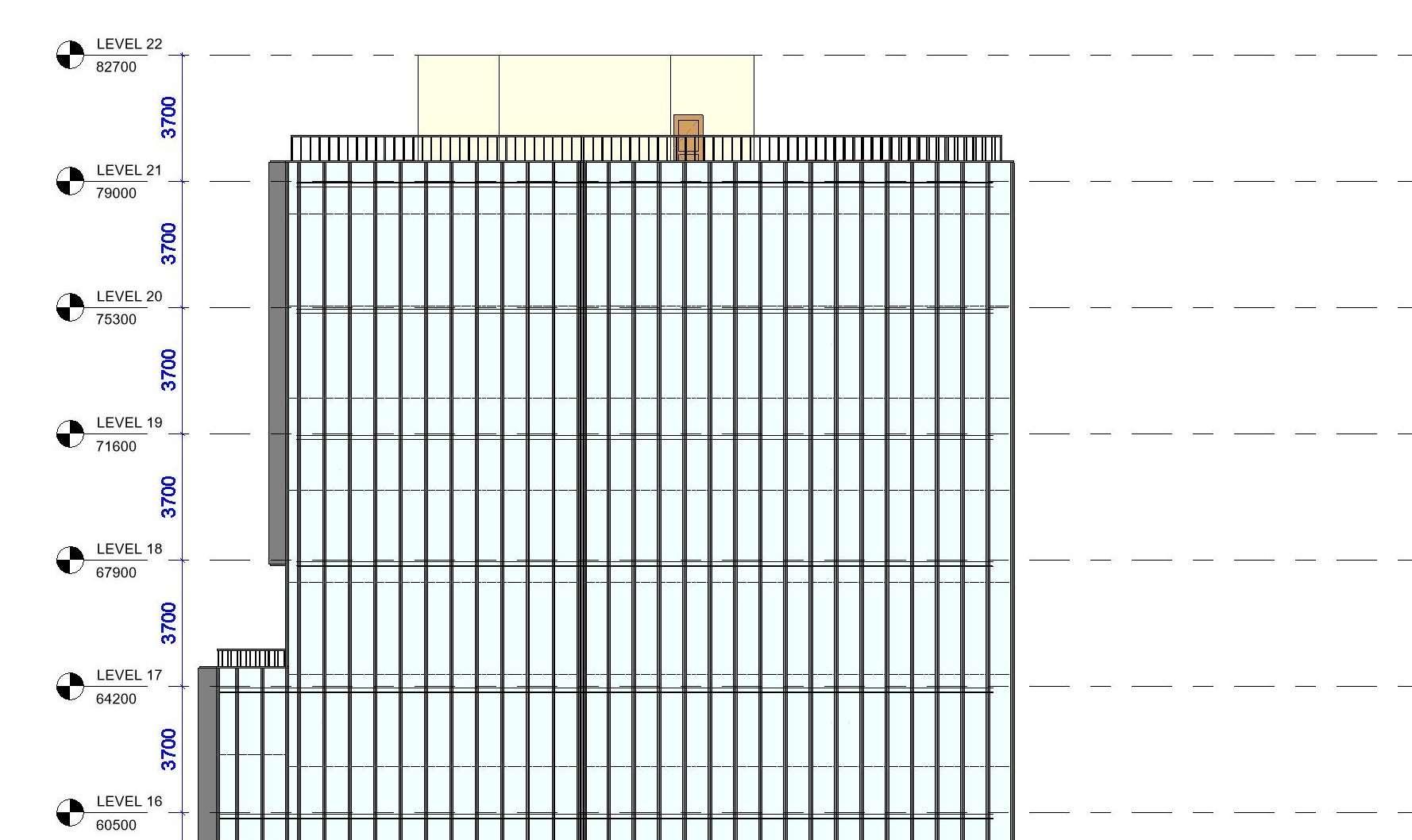

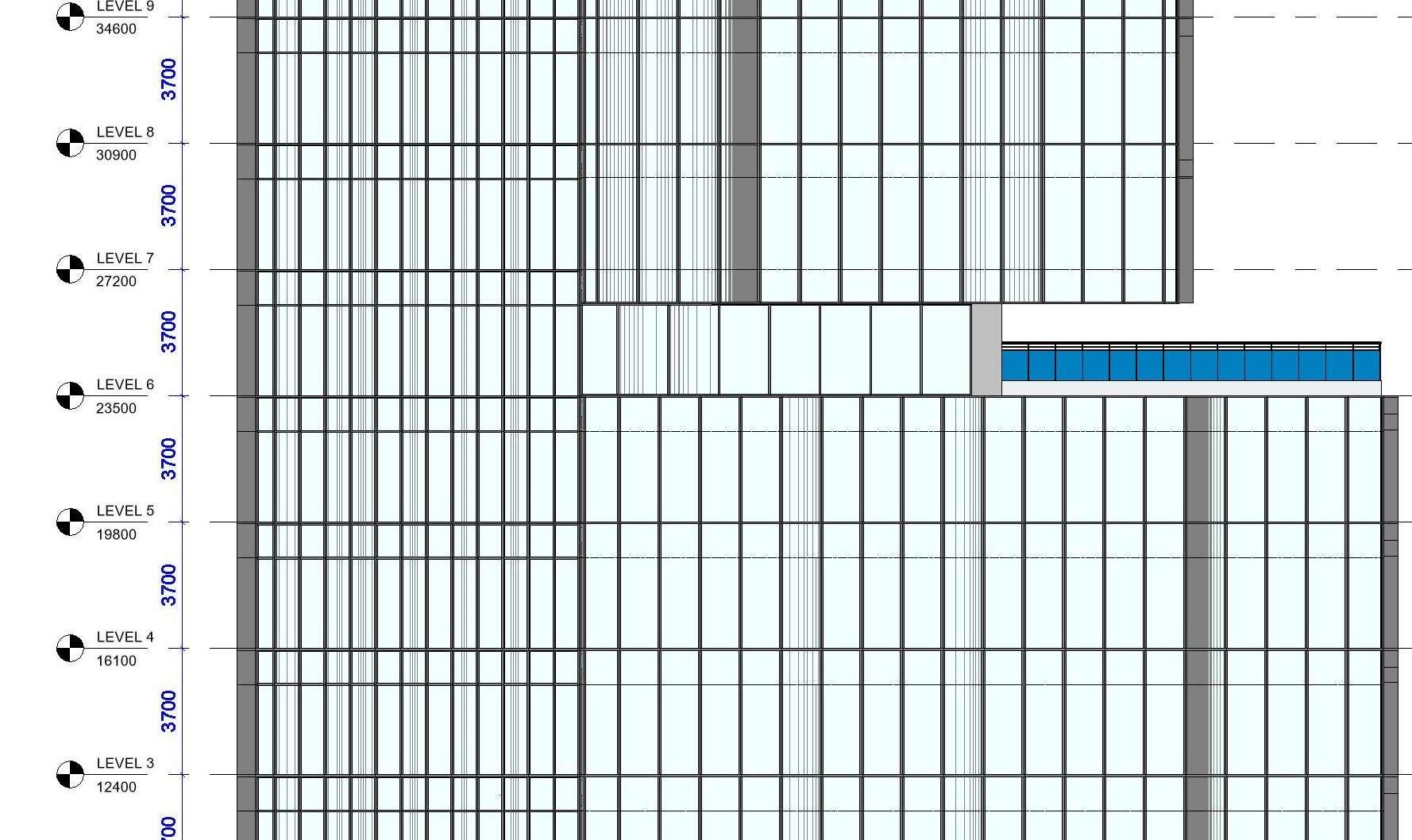

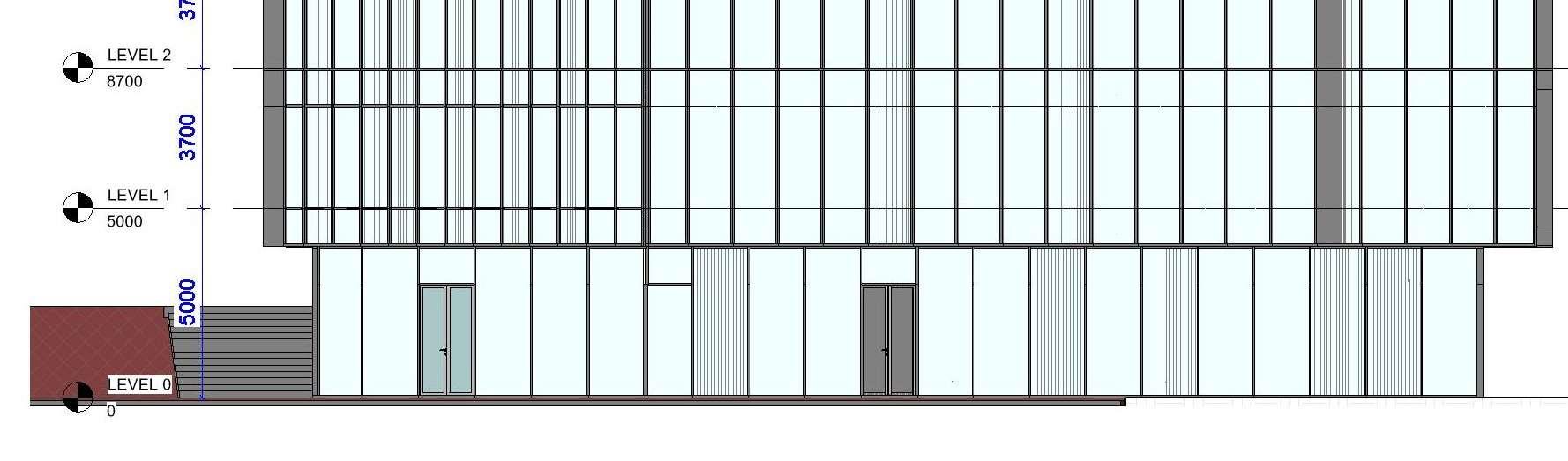

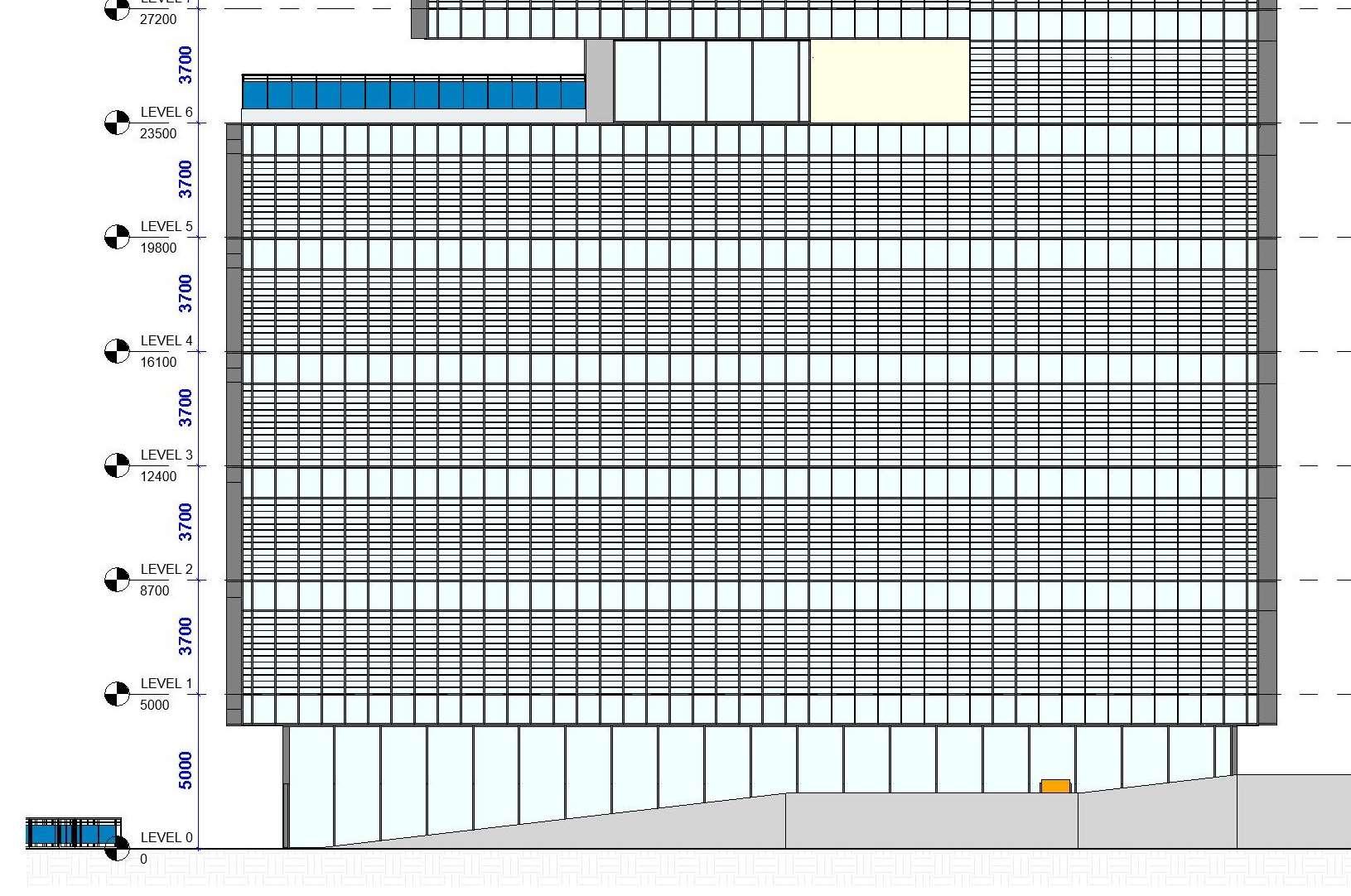

Fig:27/ElevationA-Scale1:200

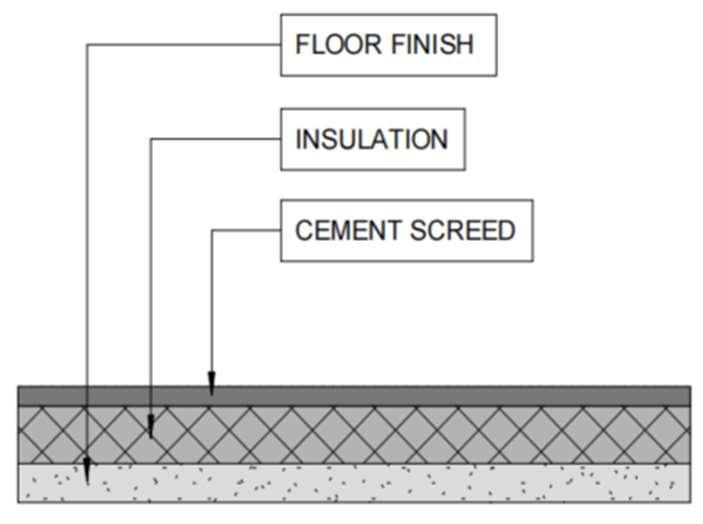

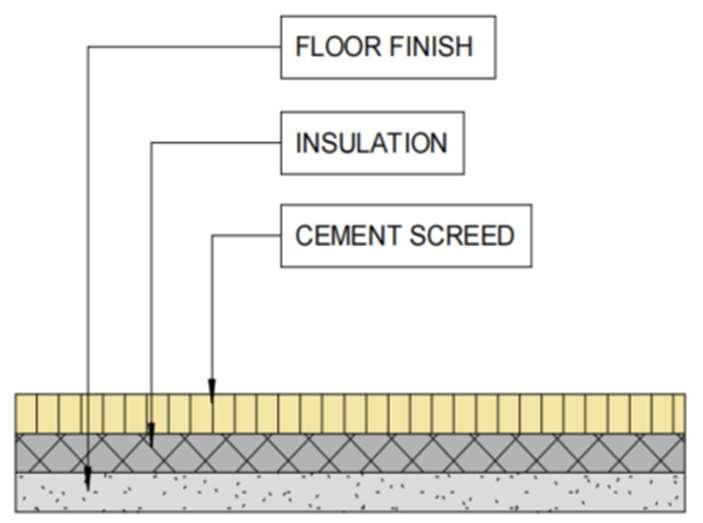

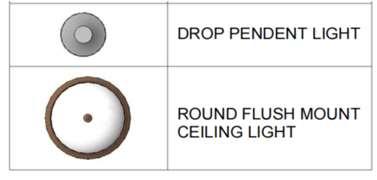

CeilingLegend

Fig:31

Fig:32Fig:33Fig:34

StructuralFramingPlan&Details

AtypicalFloorFramingPlan

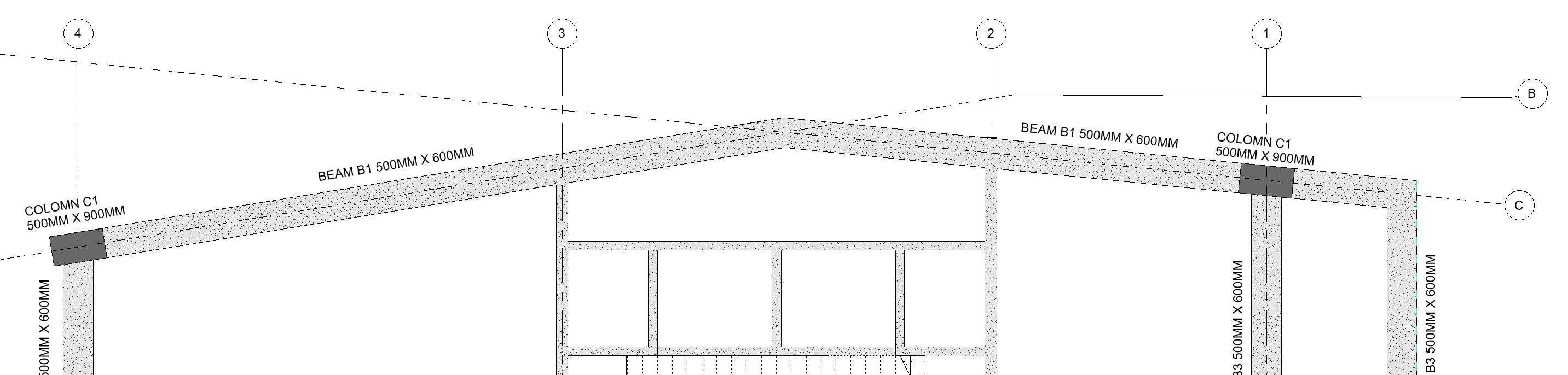

Fig:39/FramingPlan-Scale1:50

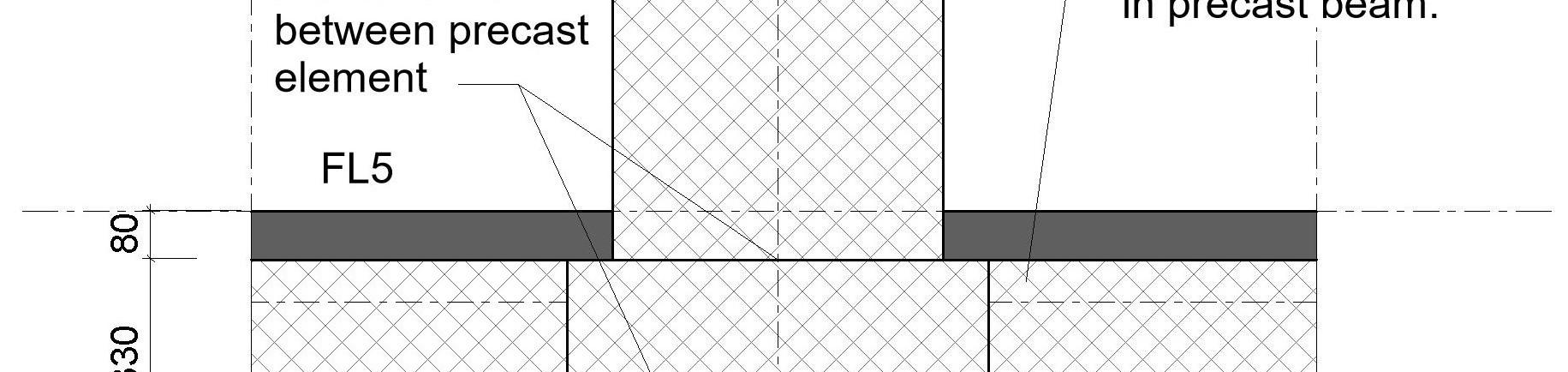

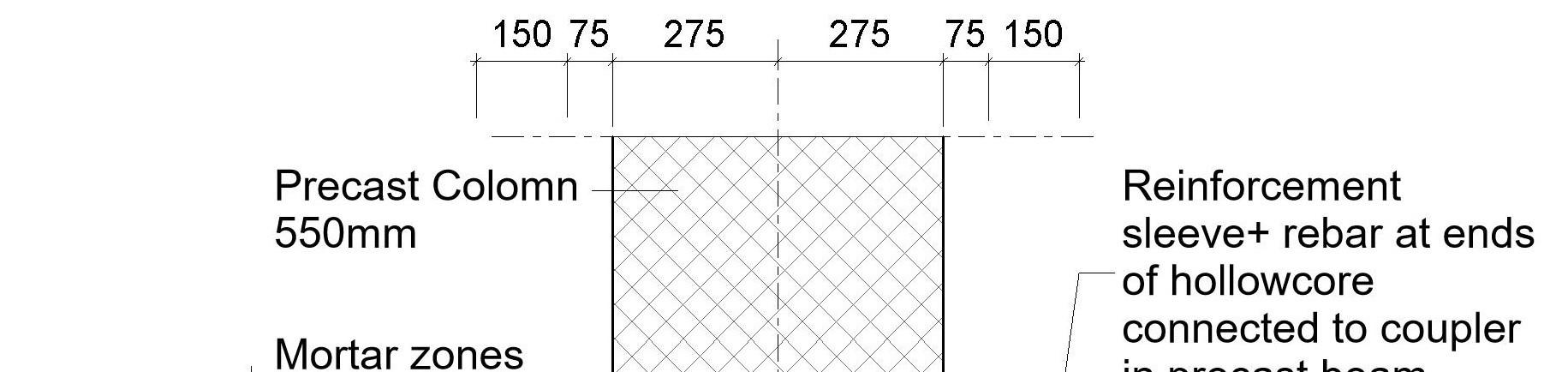

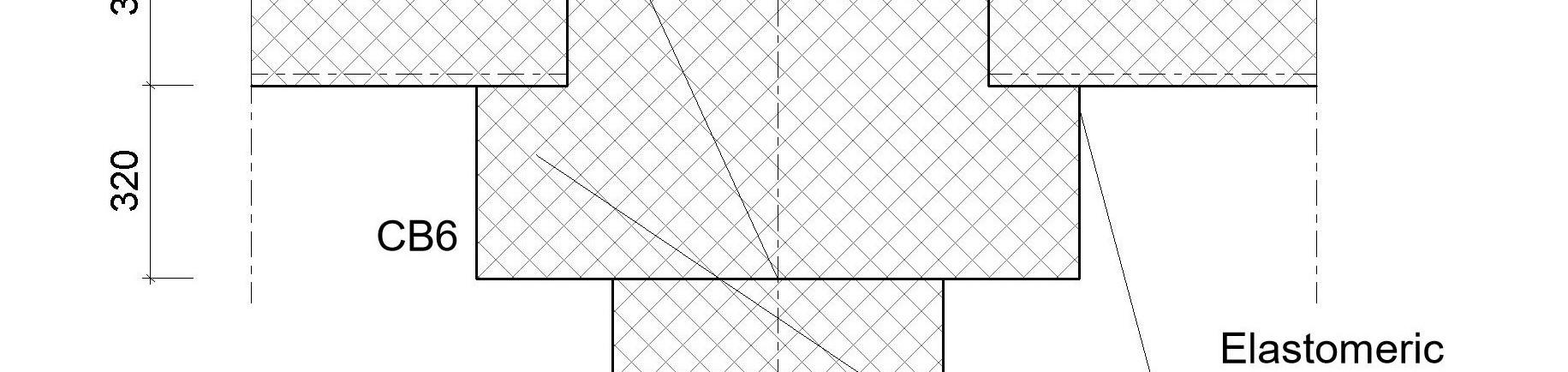

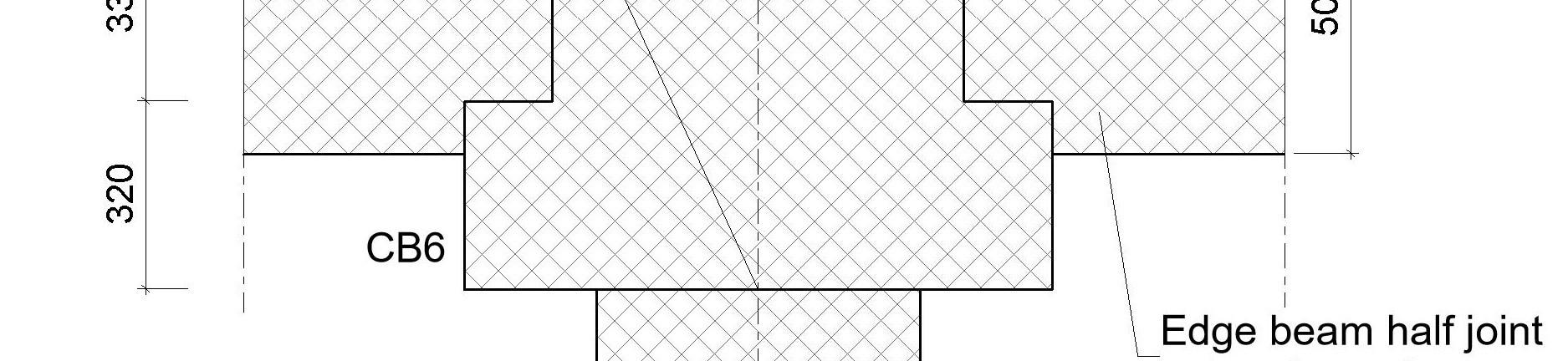

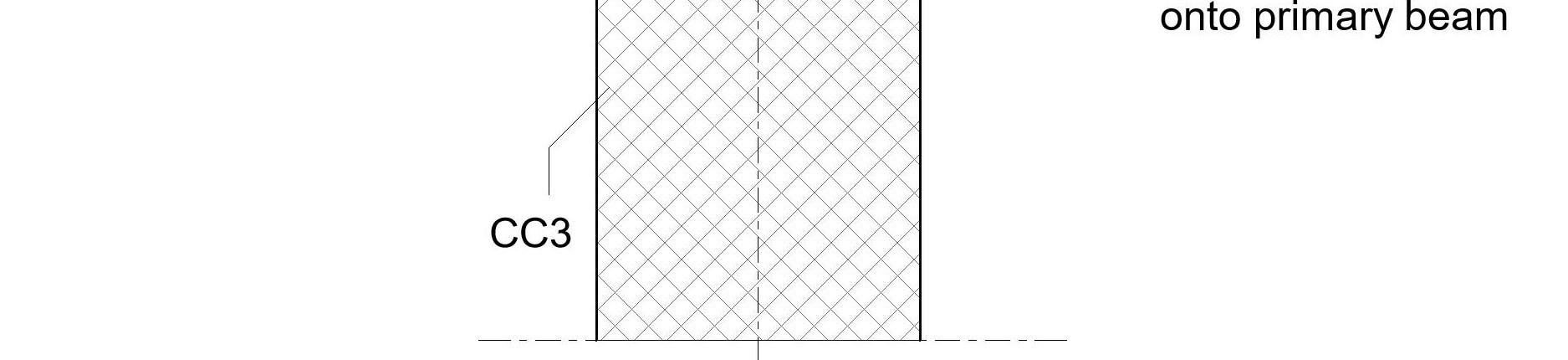

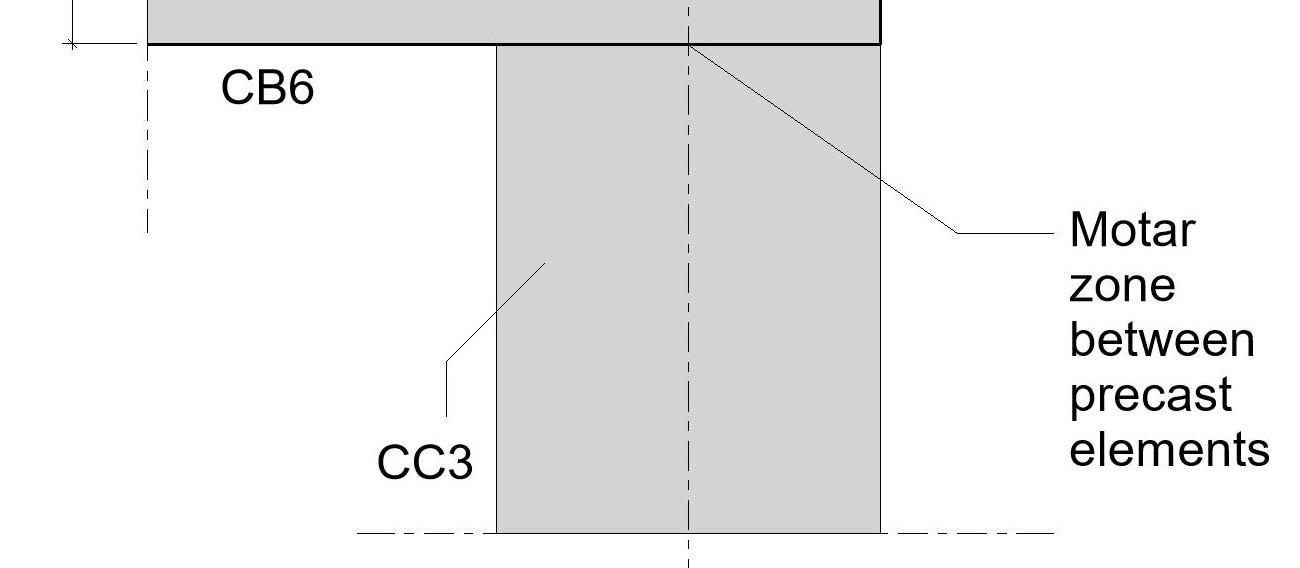

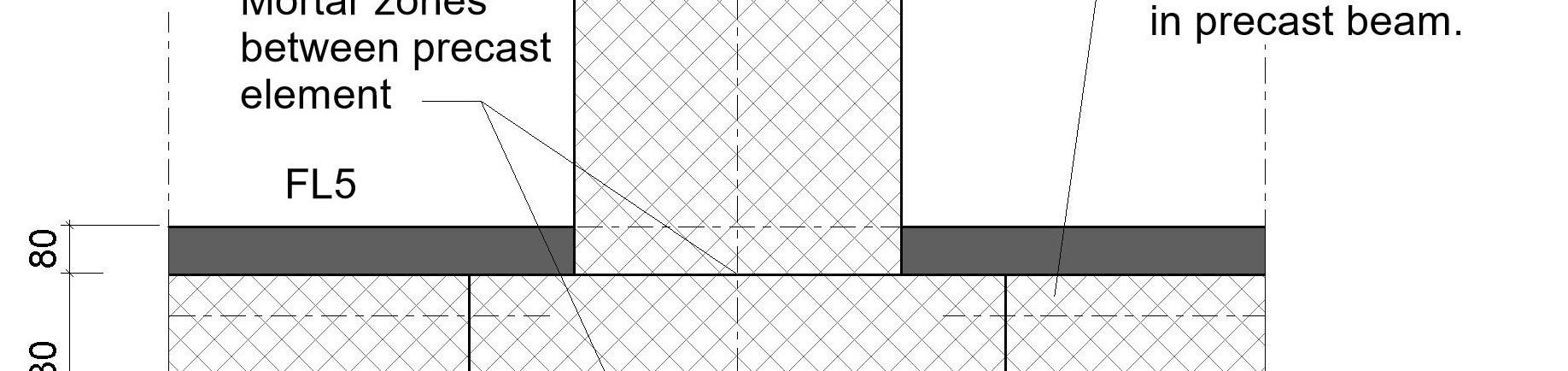

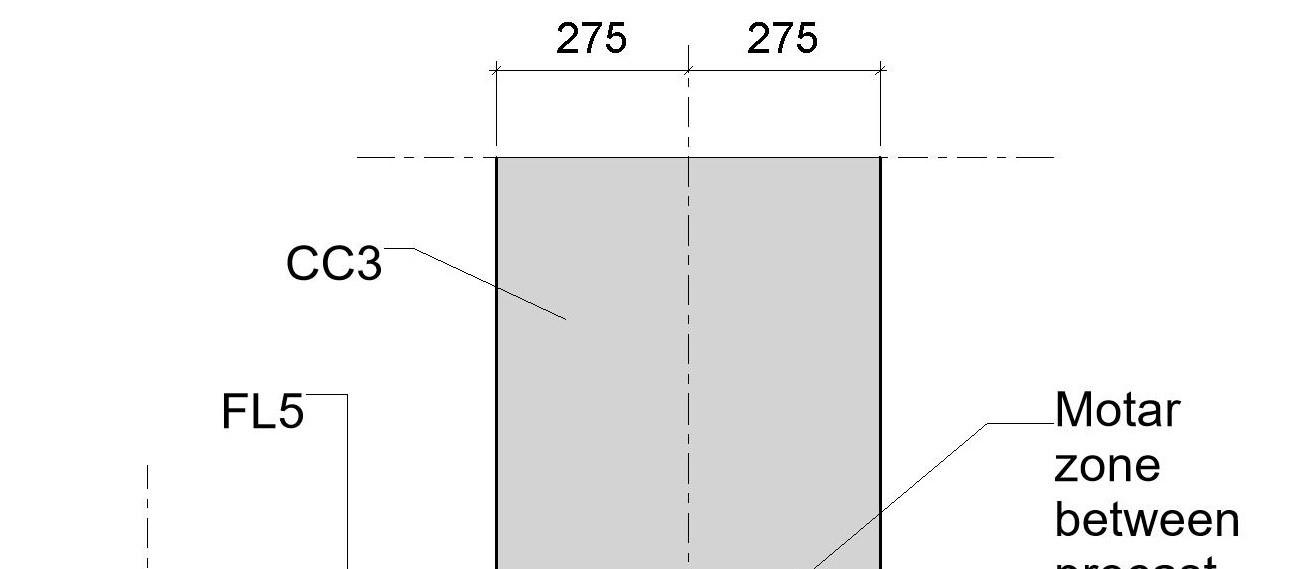

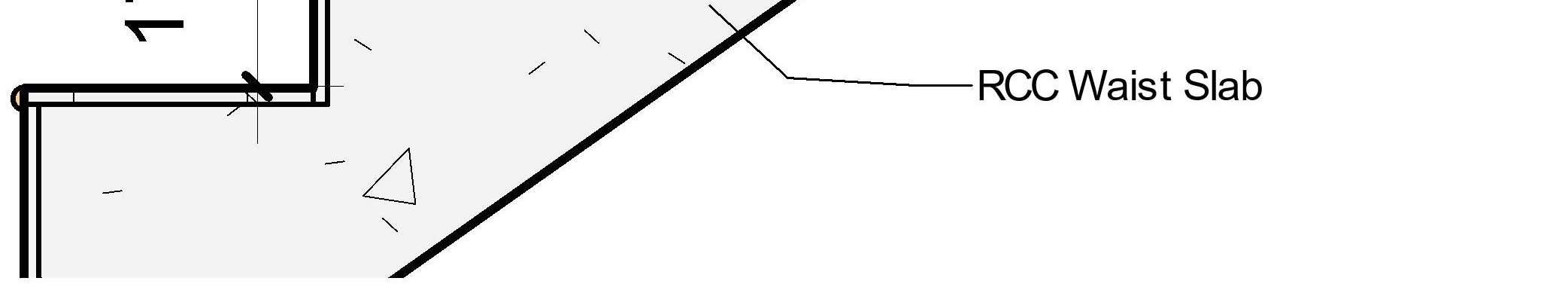

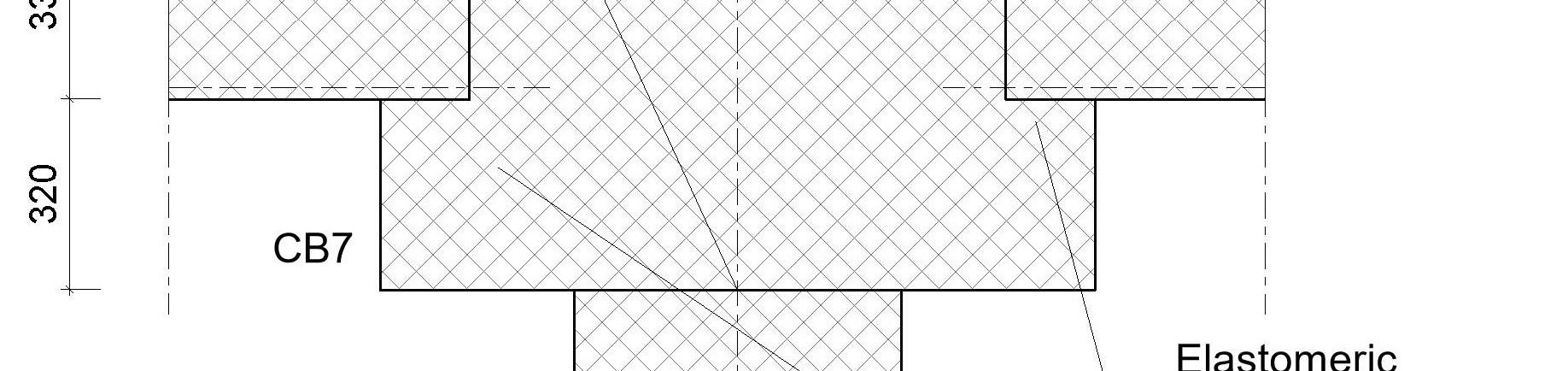

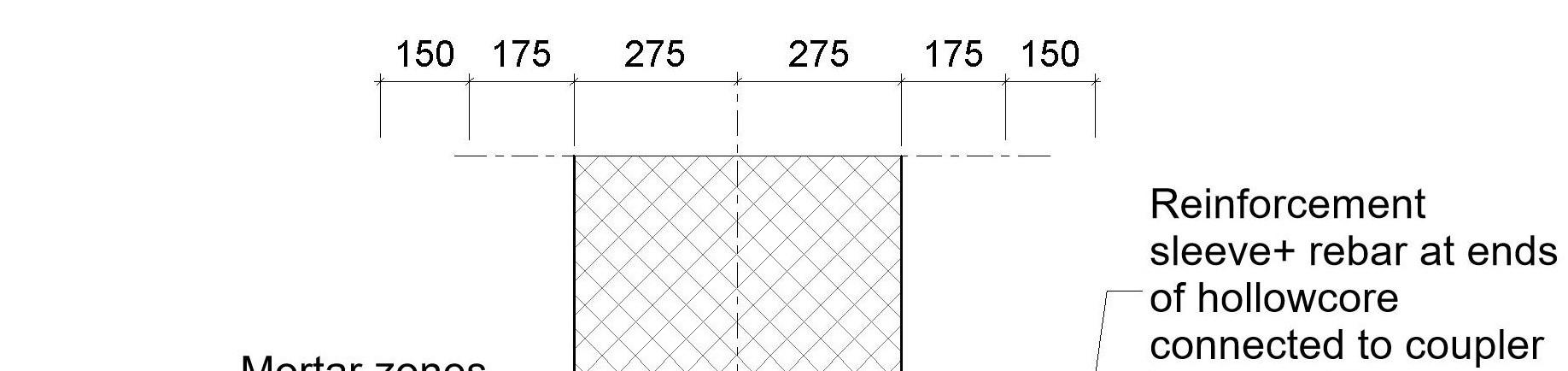

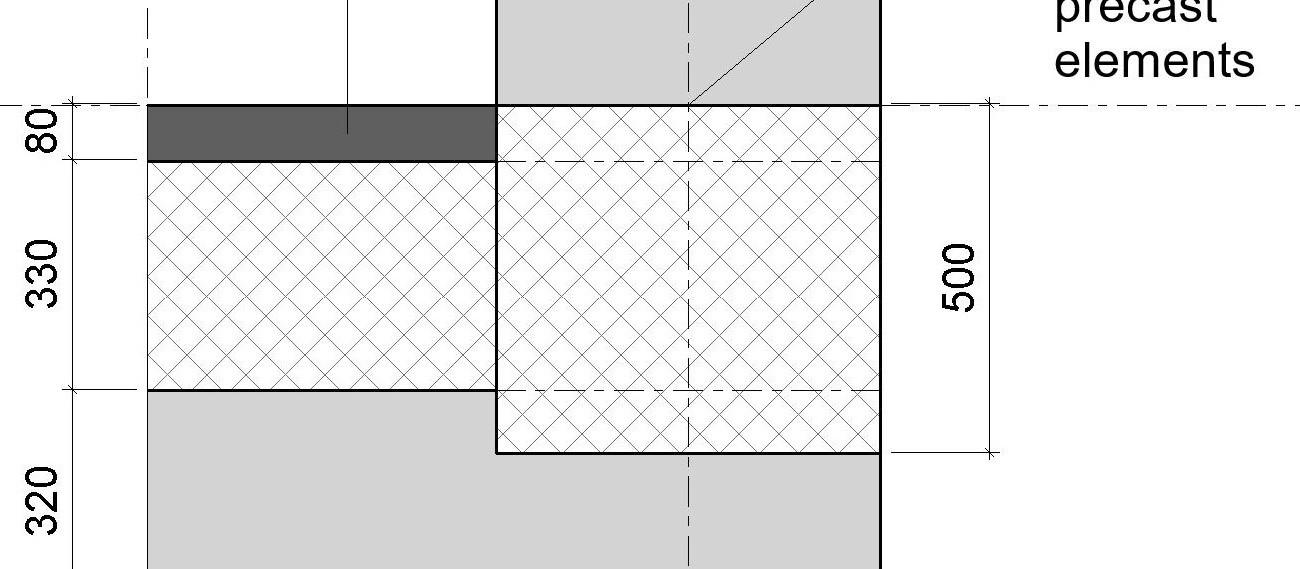

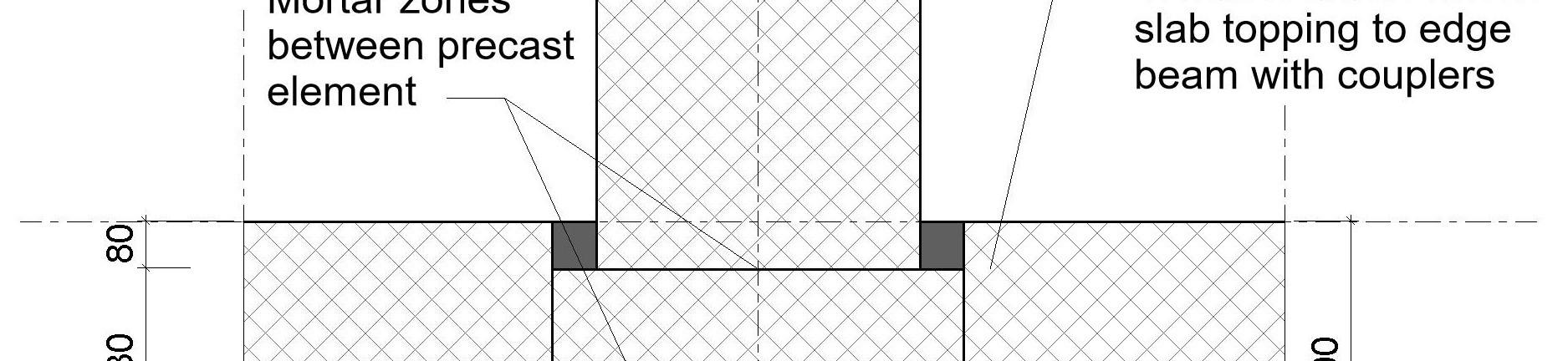

Fig:35/StructuralDetail1-Scale1:20Fig:36/StructuralDetail2–Scale1:20

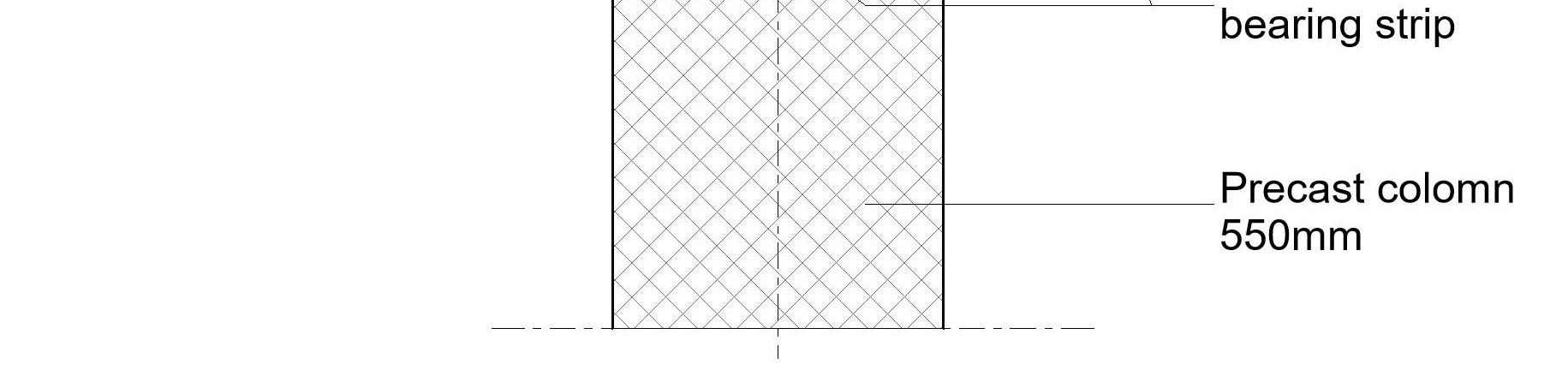

Fig:37/StructuralDetail3-Scale1:20

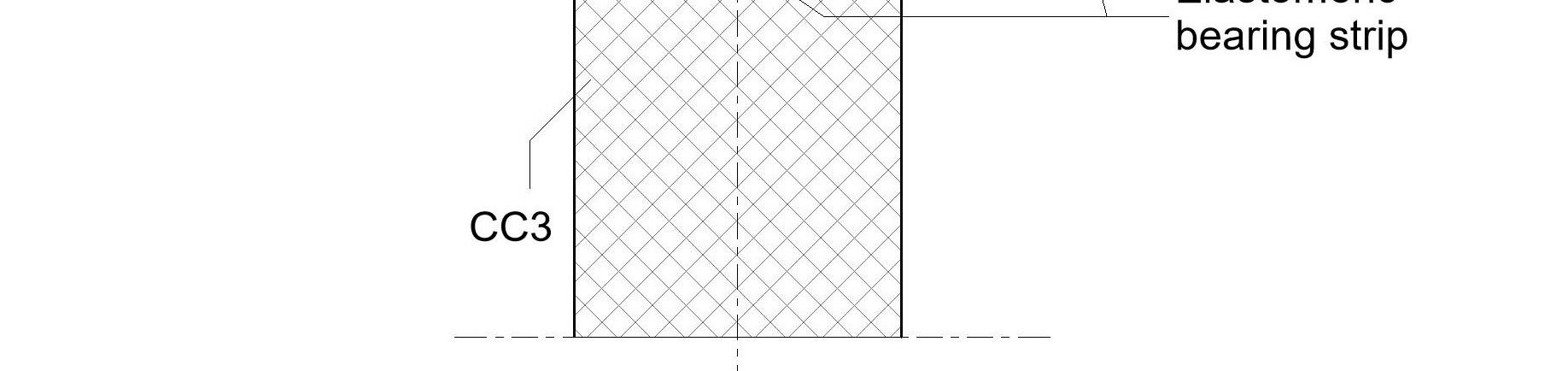

Fig:38/StructuralDetail4-Scale1:20

StructuralPlan&FireSafetyPlan

EdgeofSlabPlan

Fig:40/EdgeofSlabPlan-Scale1:50

FirePlan ReinforcementPlan

Fig:41/ReinforcementPlan-ScaleNTSFig:42/FirePlan-ScaleNTS

ParameterFamily&Schedule

FamilyCreation-Wall

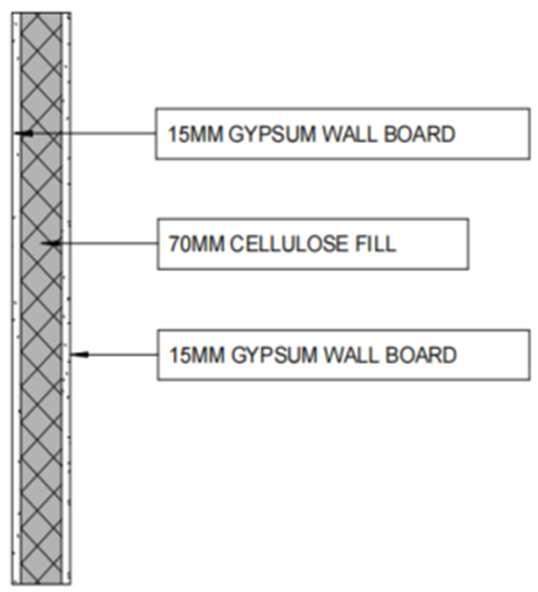

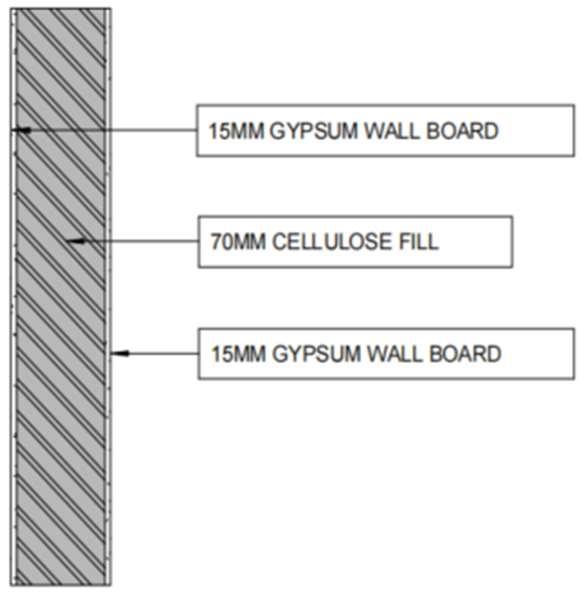

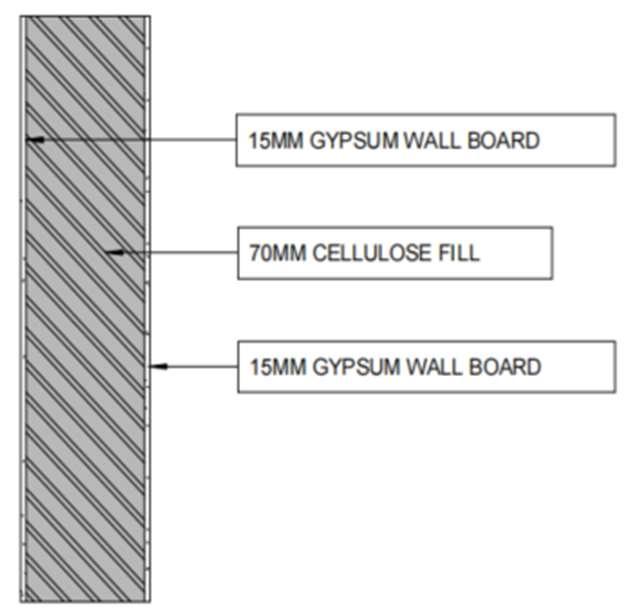

WallW1100MMThk.WallW2100MMThk.WallW3200MMThk.

FamilyCreation-Floor

FloorF1150MMThk.

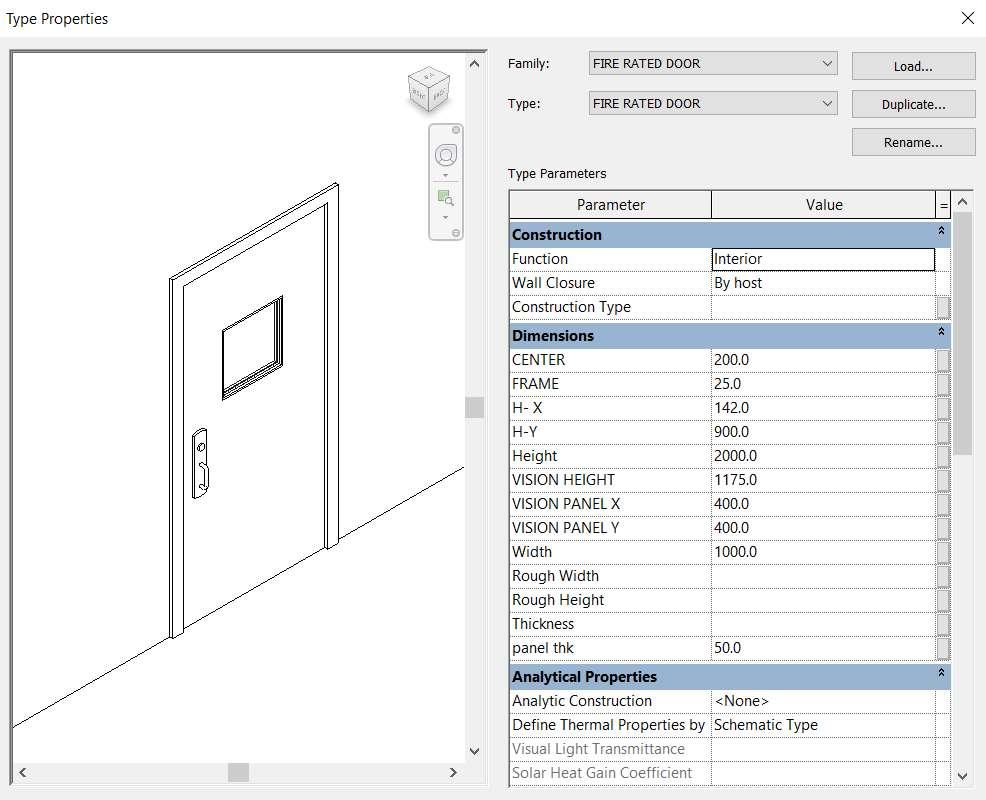

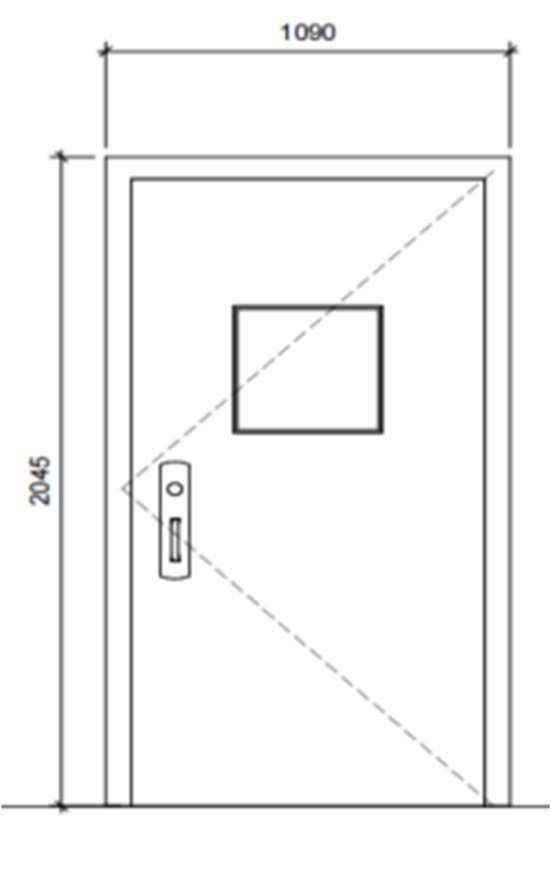

FamilyCreation-Door

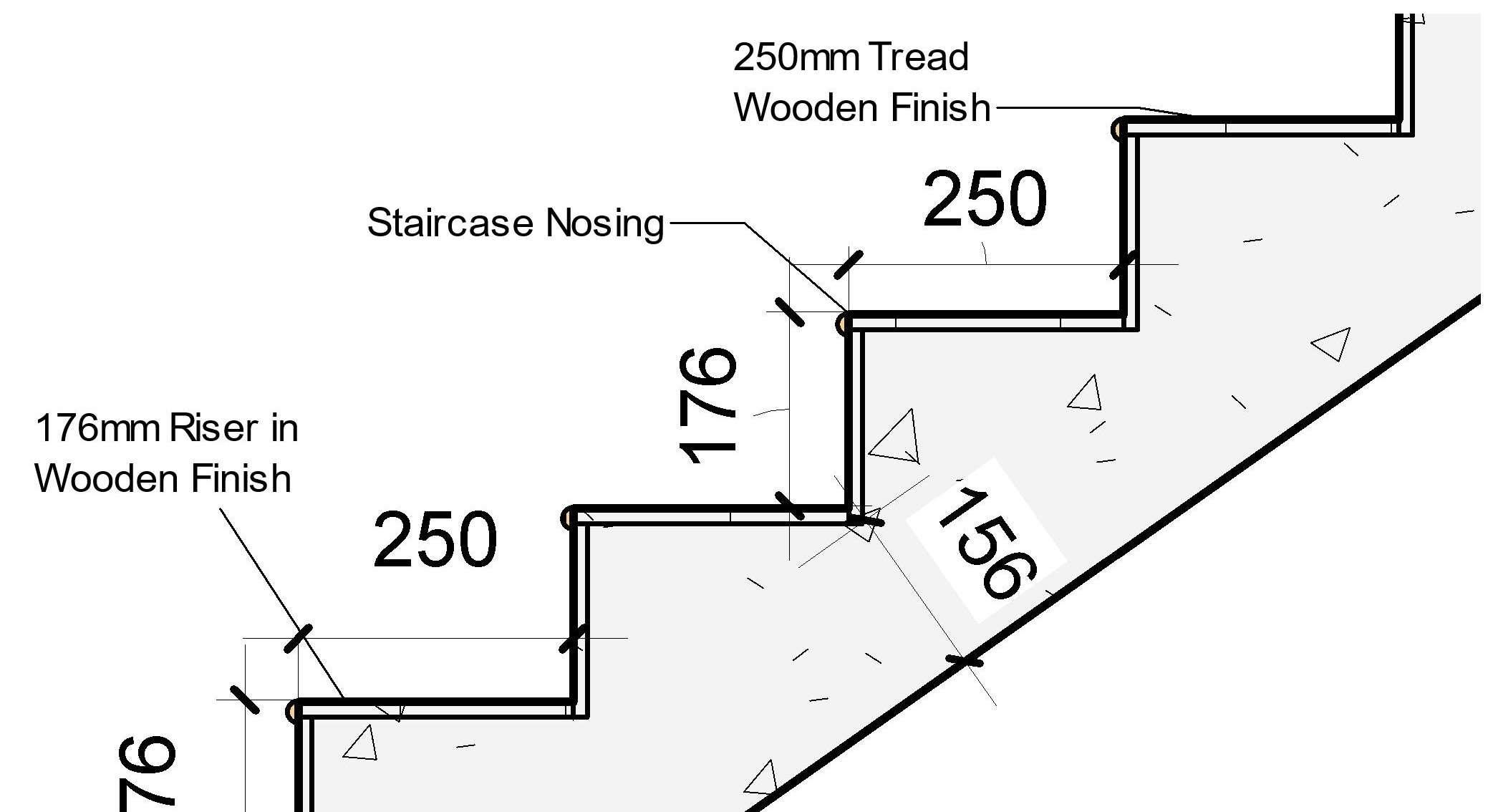

StaircaseDetail

FloorF2150MMThk.

Fig:43Fig:44

Fig:45

Fig:46

Fig:47

Fig:49

Fig:48

Fig:51

Fig:50

Fig:52

Dynamo

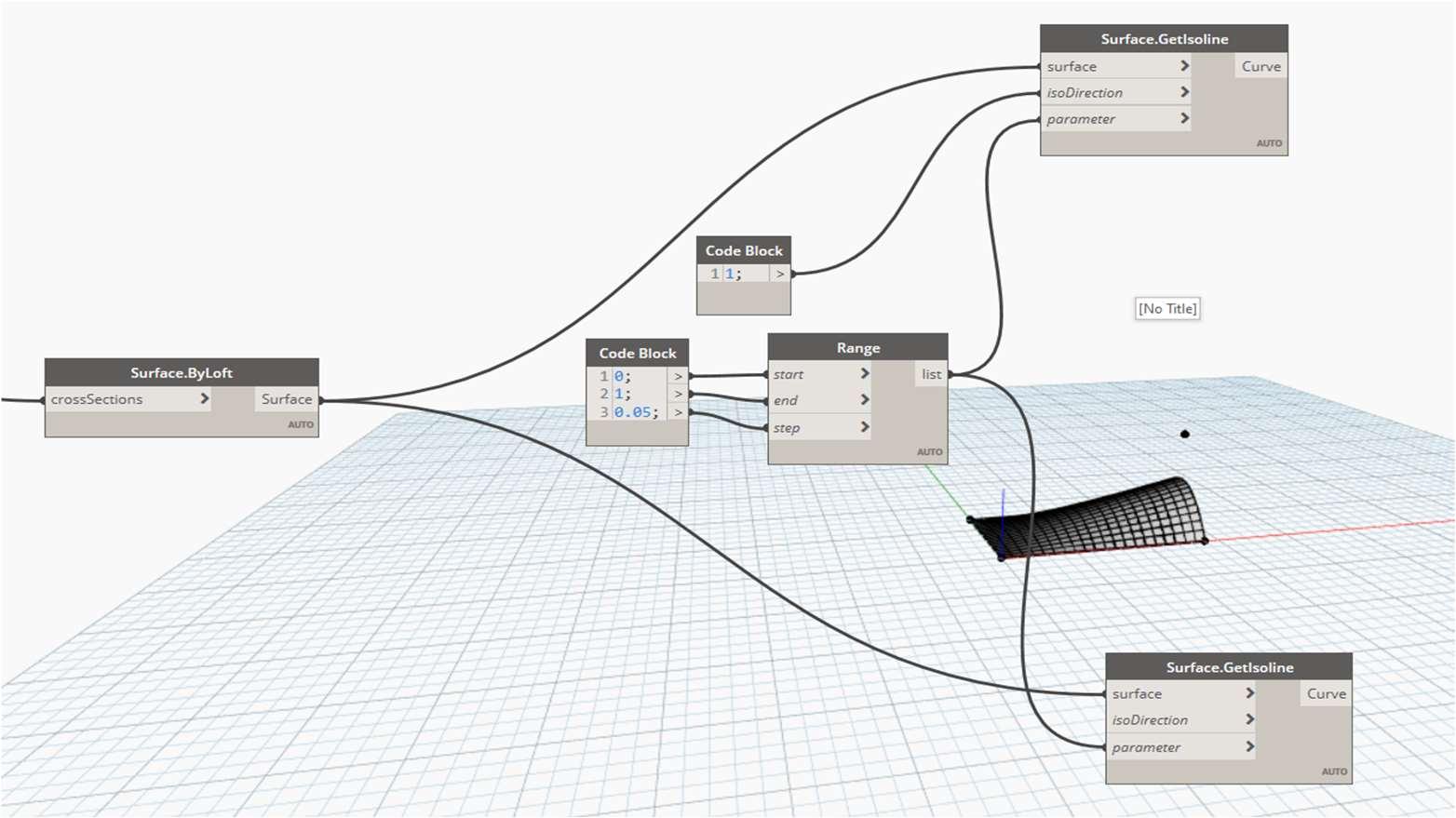

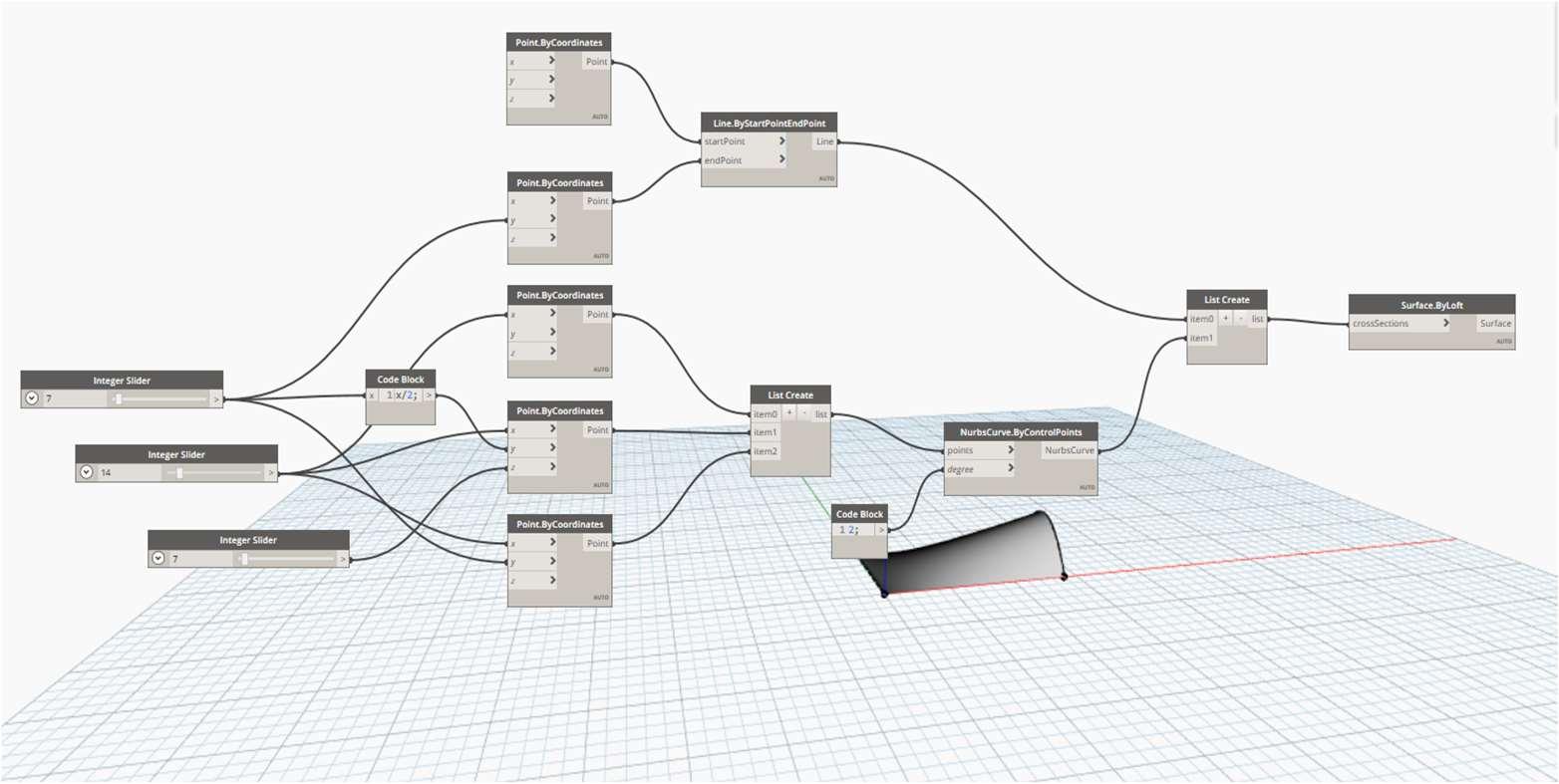

DynamoScriptforSurfaceofCurves

DynamoScriptforPanelizedtheSurface

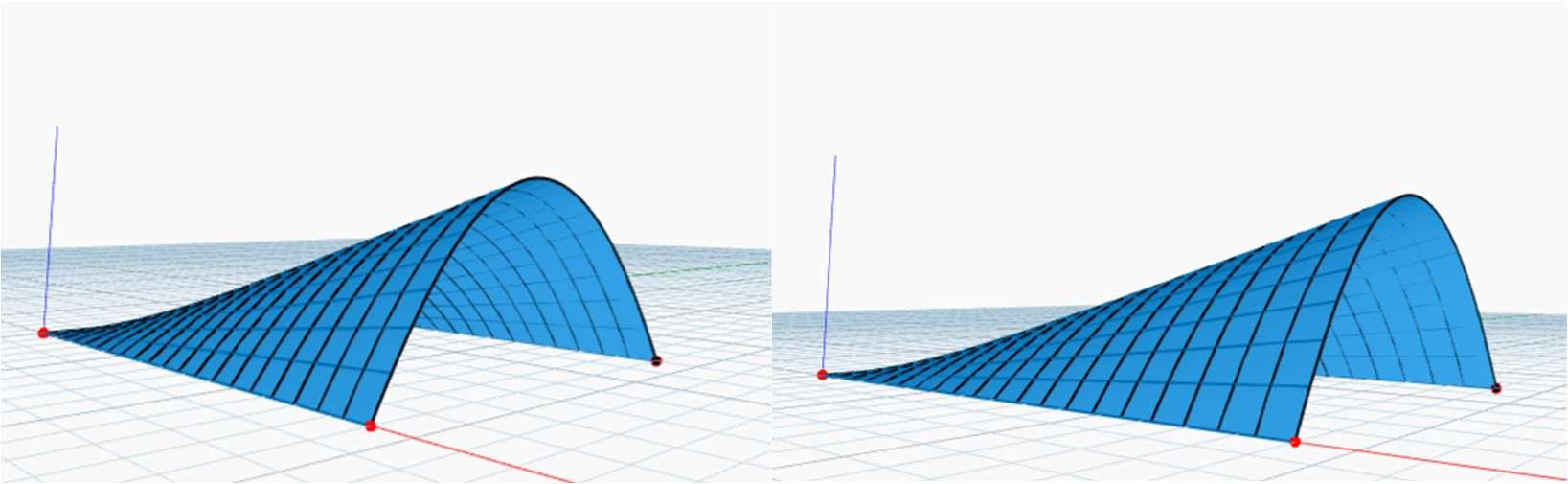

SurfaceofCurves

1.Createdpoint

2.Created3pointsforNurbs

3.CreatedNurbs

4.CreatedSurface

PanelizedtheSurface

Result

Fig:53

Fig:54

Fig:55/Renderedimageoftheresult

Fig:56

NavisworksCoordination

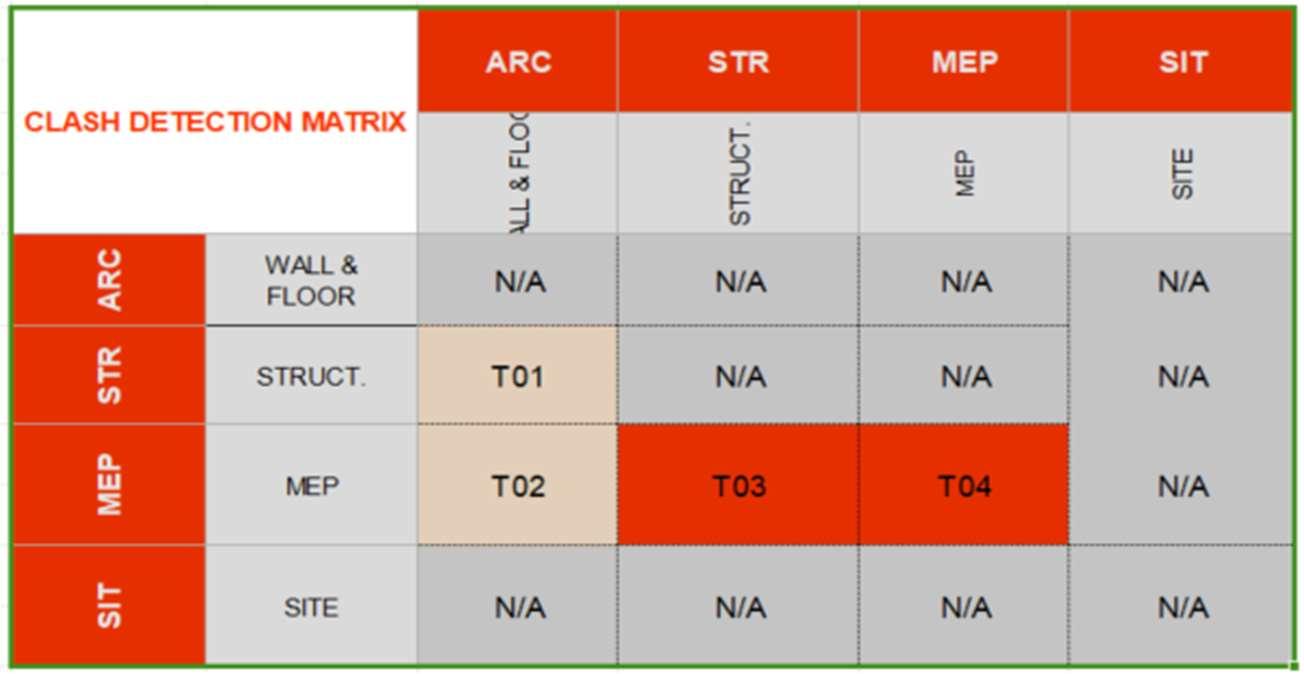

NavisworksCoordination&ClashDetection

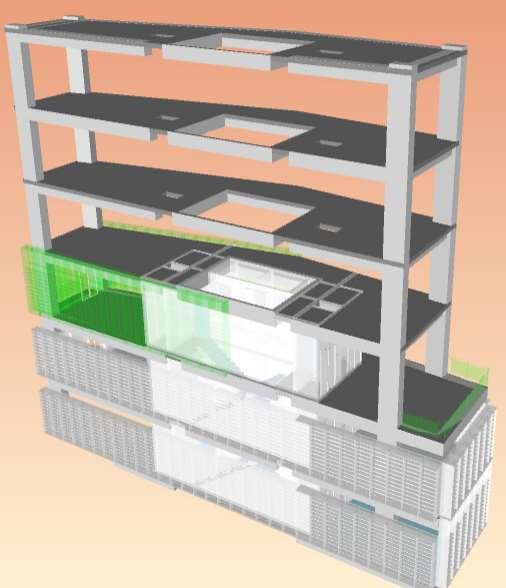

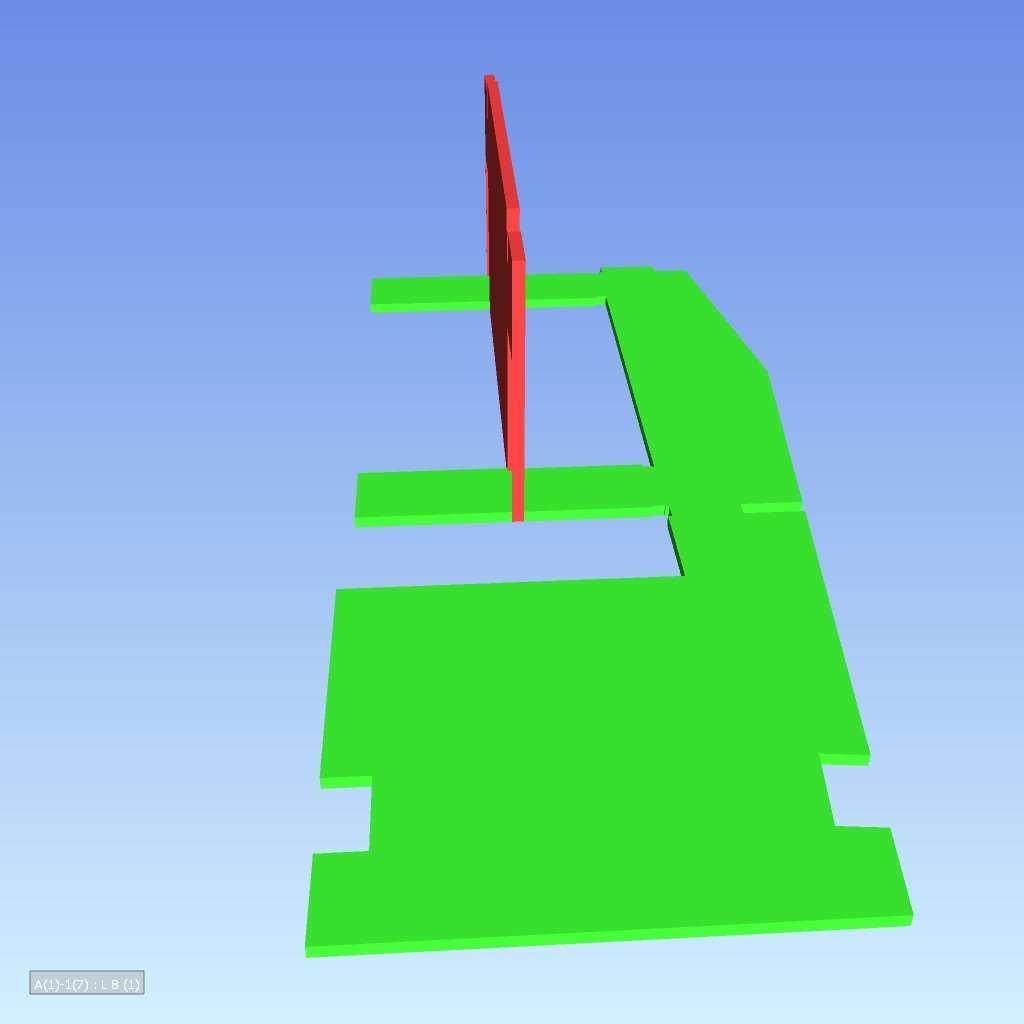

ClashdetectionhasbeenperformedinNavisworksManage,whereboththestructural andMEPfileswerecoordinatedforclasheswiththearchitecturalmodel.Theclash reportshavehelpedforresolutionthroughtheswitchbackoptionorbytheclashID.To enhancevisualcomprehension,coordinationmodelelementshavebeenvisually highlightedbyoverridingtheircolors.

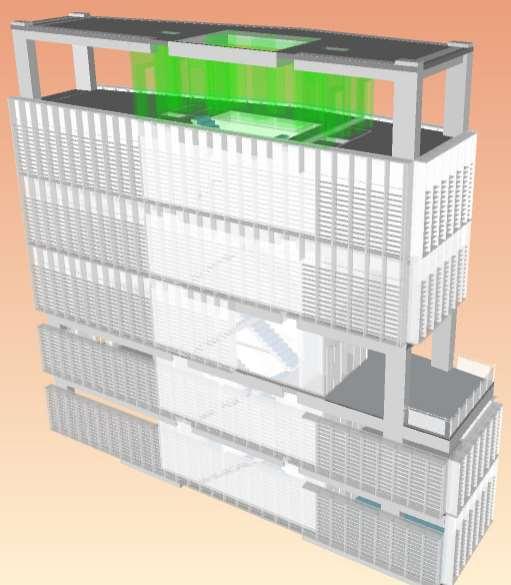

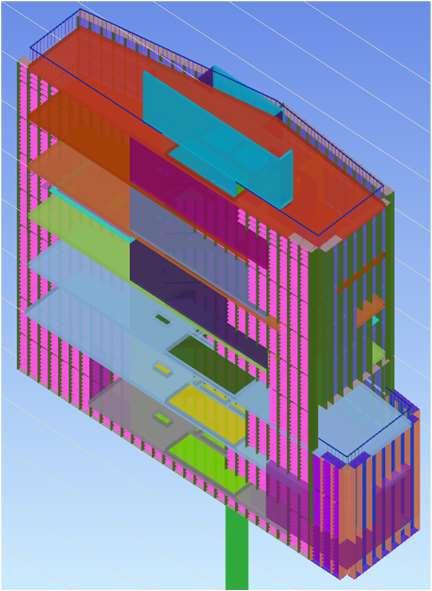

ArchitectureModel StructureModel Coordination Model

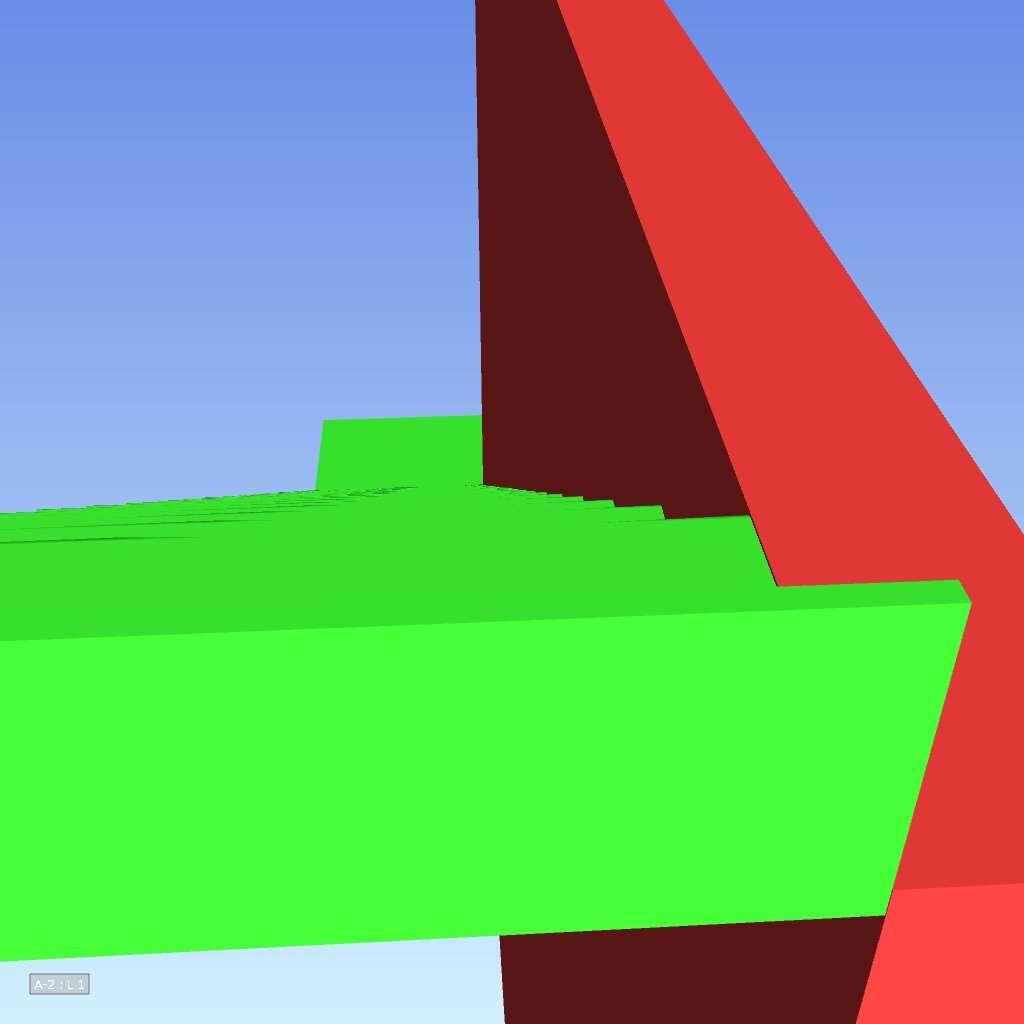

Fig:57

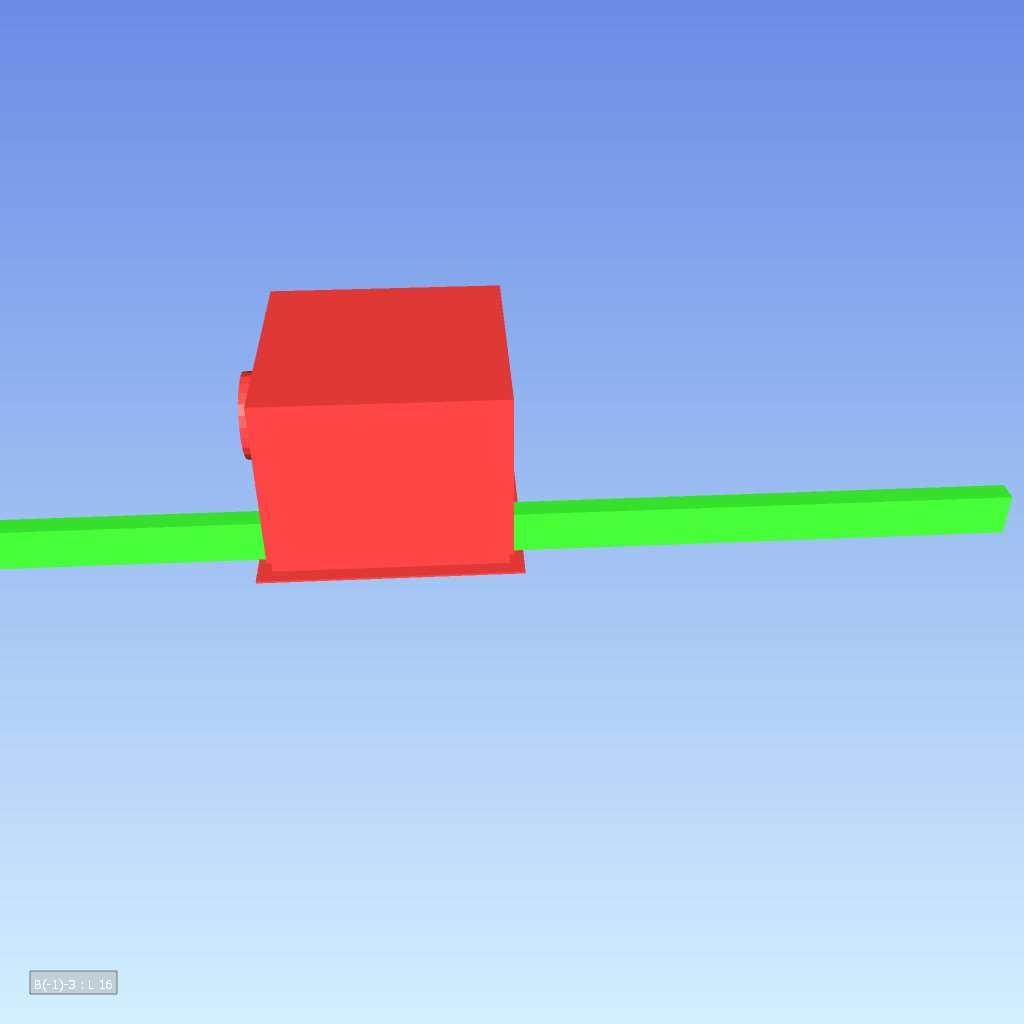

Fig:58/T01

Fig:59/T02

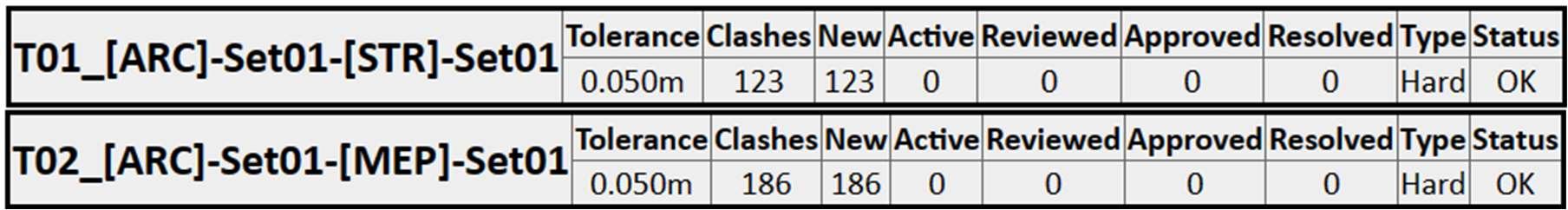

Fig:60/T03&T04

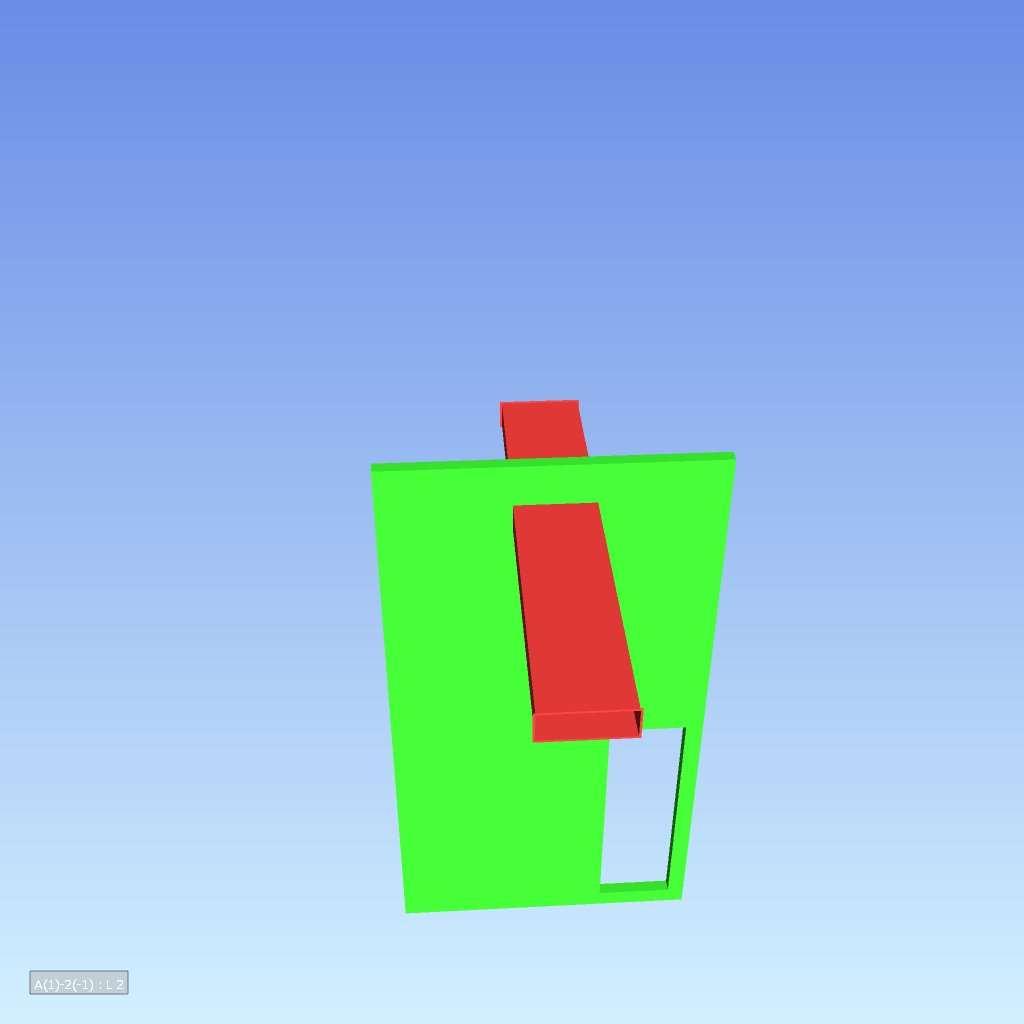

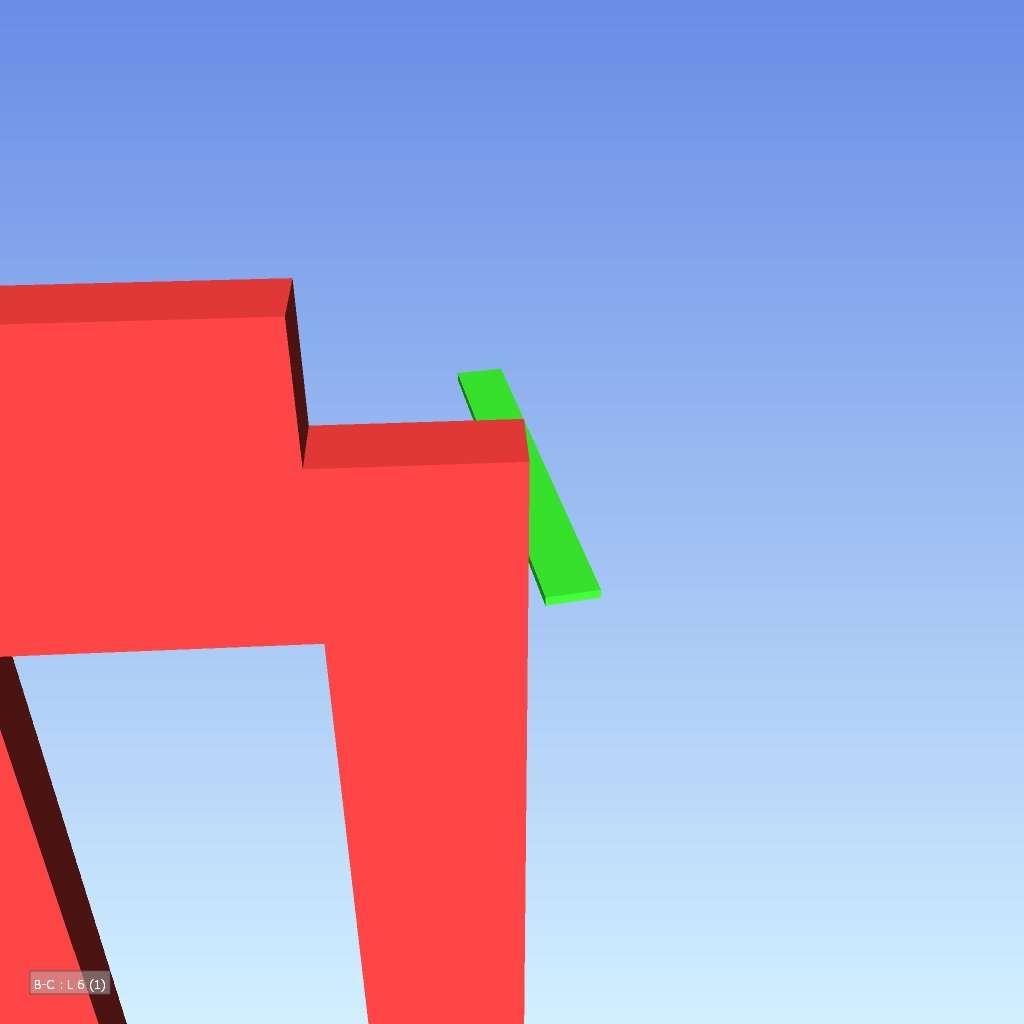

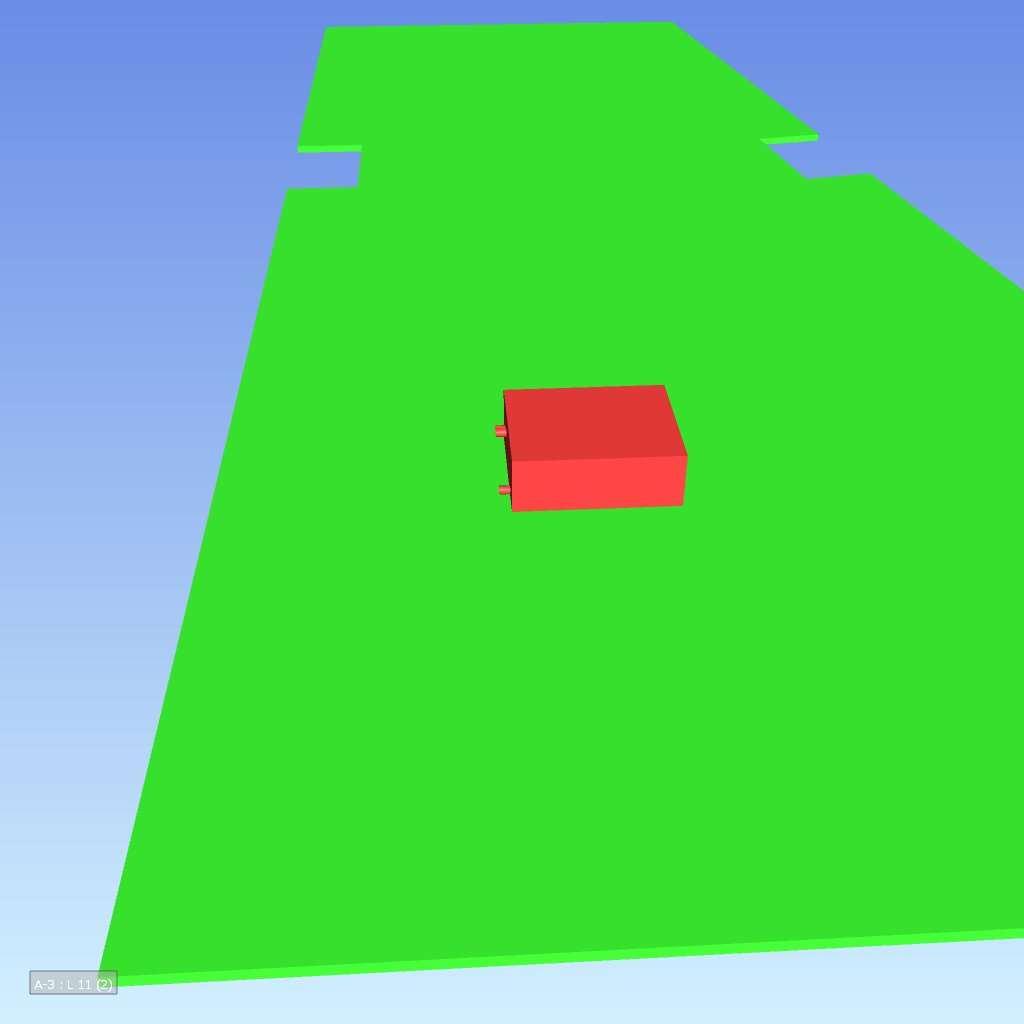

Fig:61/ResolvedClashesT01&T02 ClashResolved

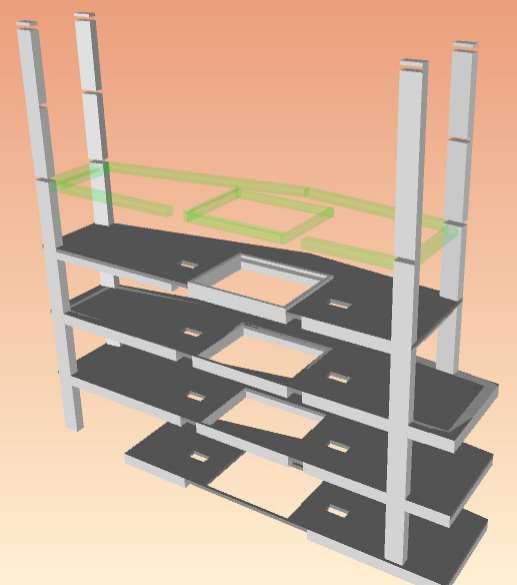

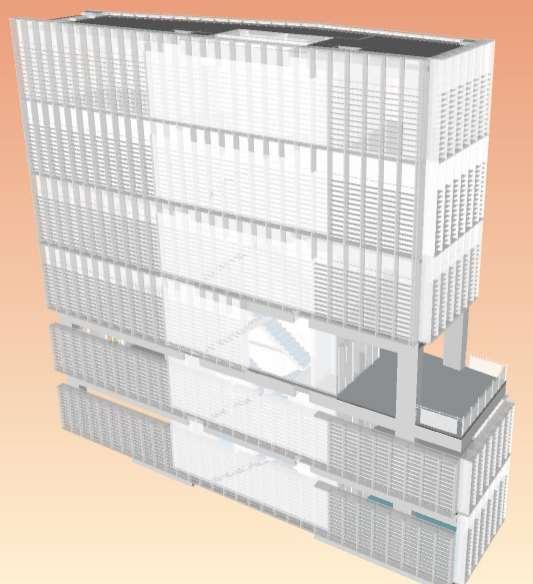

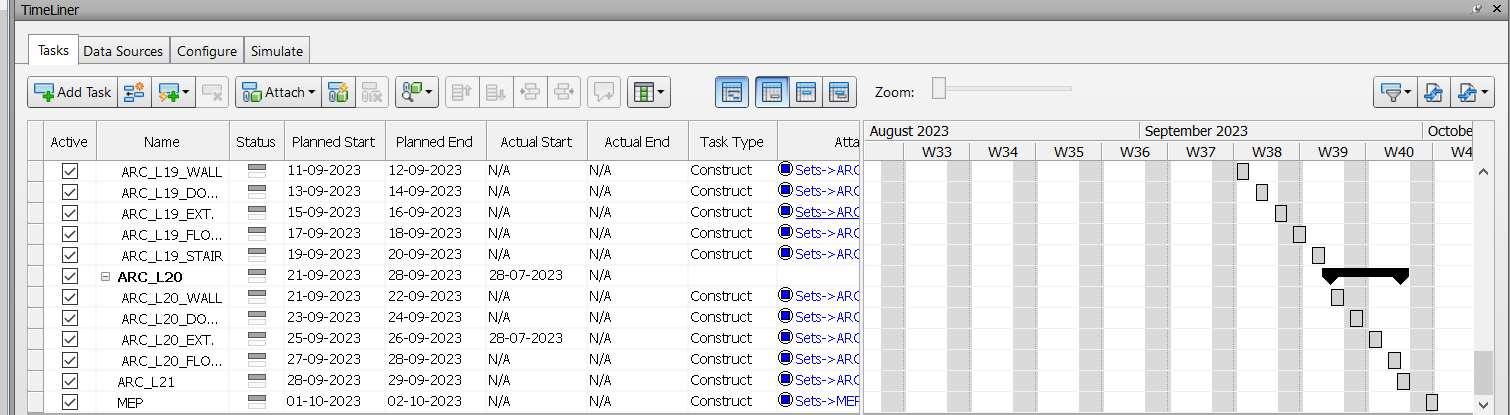

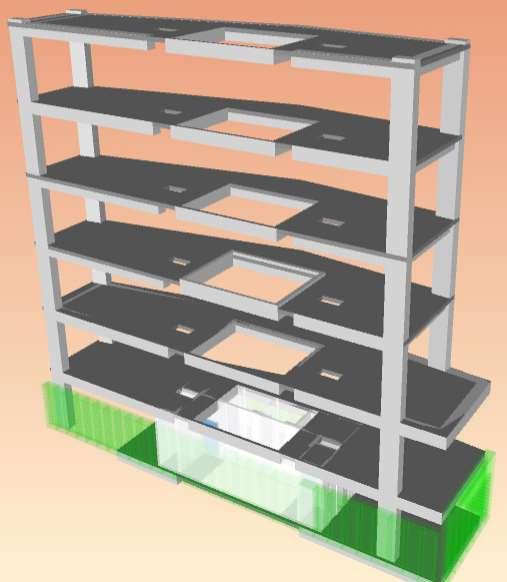

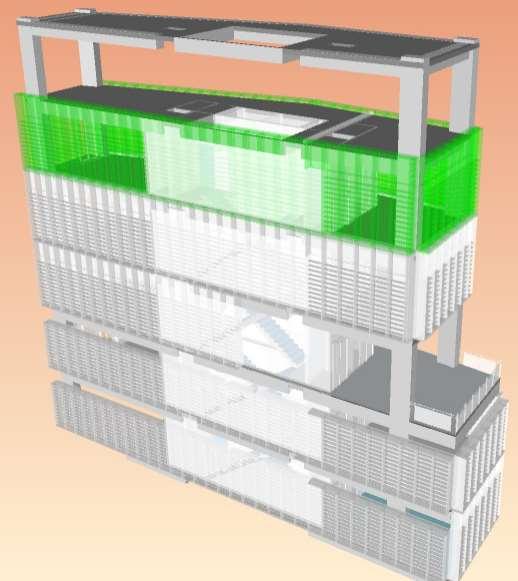

4DSimulation&5DCostPlanning

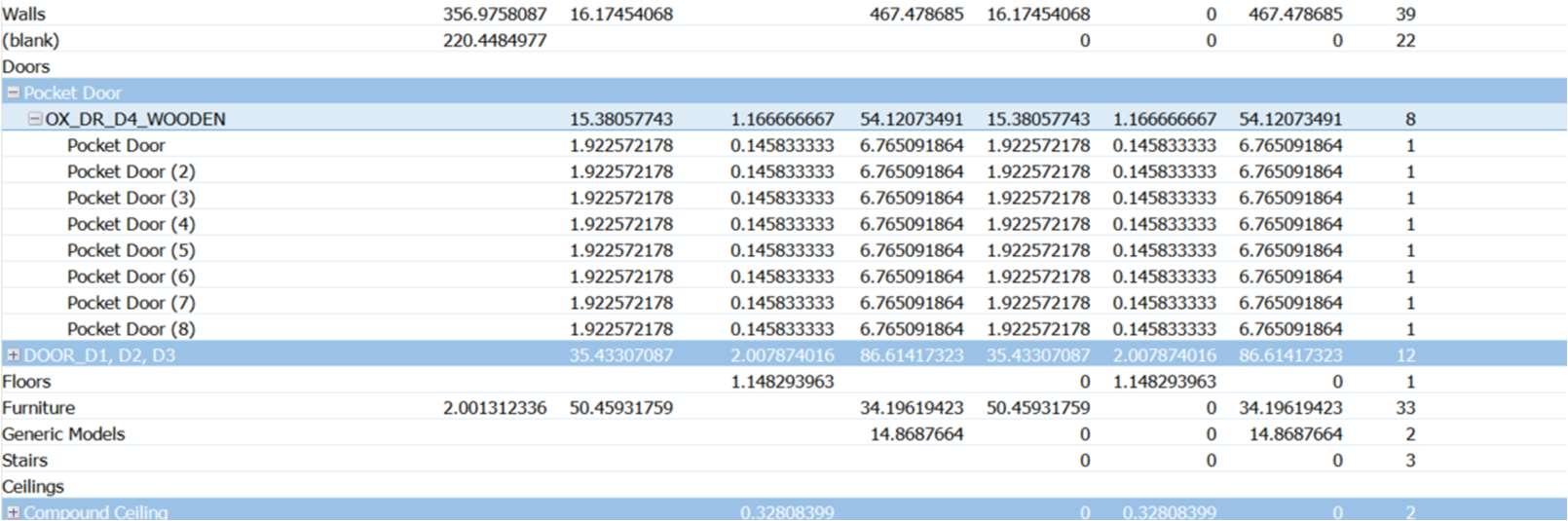

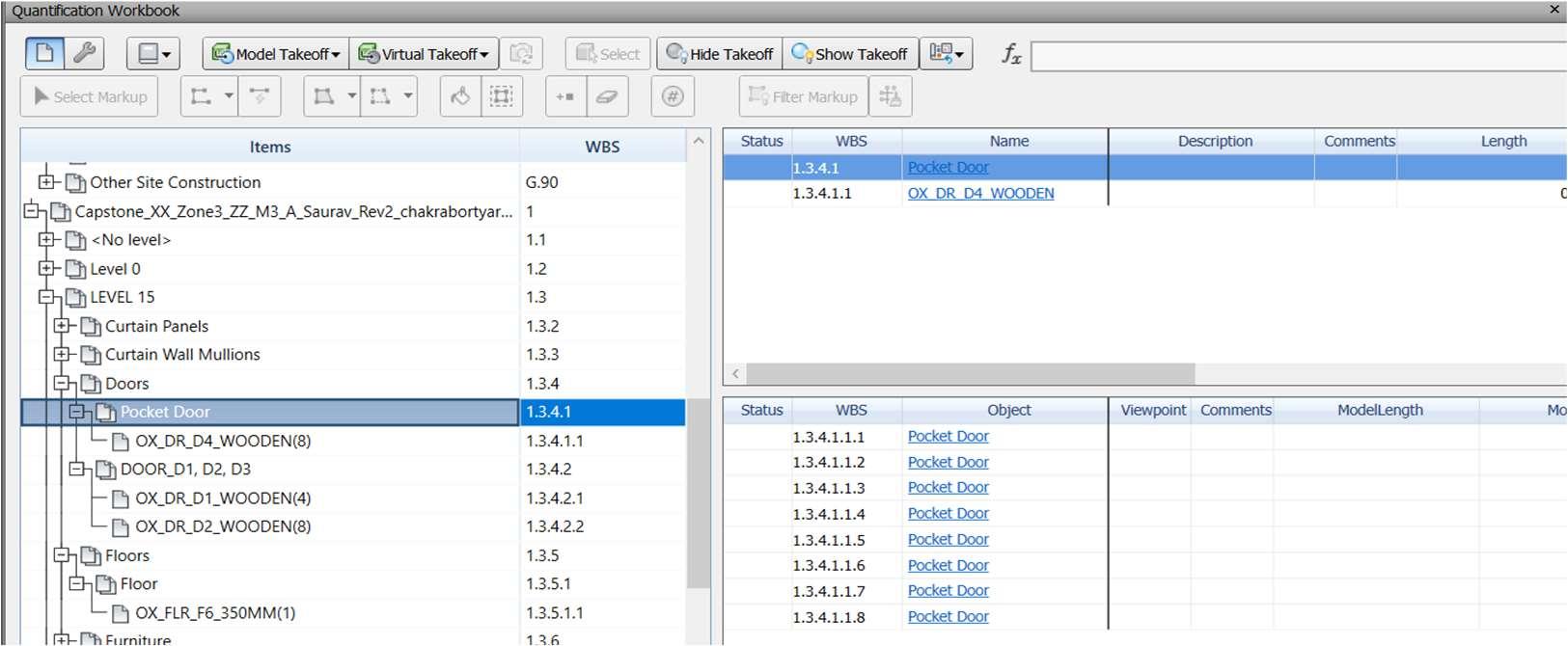

ExportedQuantities
