01. AQUATIC CENTRE

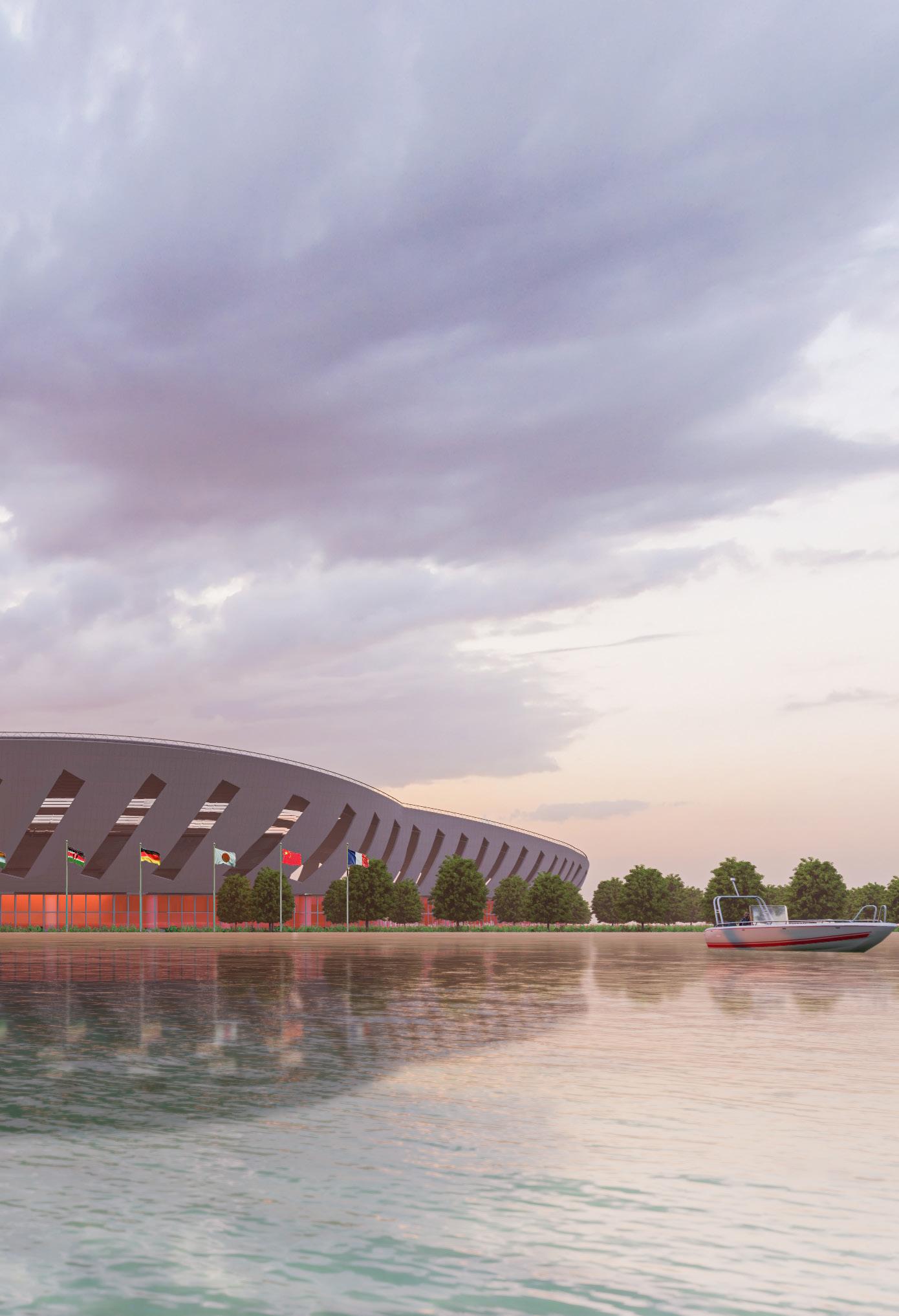

Olympic Aquatic Centre

PROJECT: Olympic Aquatic Centre

LOCATION: Motera, Ahmedabad, Gujarat

SITE AREA: 72600.60 Sq.m

TOTAL BUILT UP: 67200Sq.m

Olympic Aquatic Centre is a multifaceted asset that offers numerous benefits at both natio nal and local levels. It enhances sports infrastructure, drives economic growth, promotes health and wellness, and fosters community spirit. By incorporating sustainable design and flexible usage strategies, such a facility can serve the needs of a city and its residents for decades, creating a lasting positive impact on the community. The project is proposed at Motera, Ahmedabad The Sardar Vallabhbhai Patel Sports Enclave, which will come up over an area of 35 acres at Motera and will have infrastructure to host Olympics.

The project aims to be a state-of-the-art facility in India, designed to host international competitions and provide world-class training facilities for swimming, diving, kayaking, canoing, and surfing. The Centre will be a benchmark in environmental sustainability, inclusive, and flexibility, catering to athletes, spectators, and the broader community.

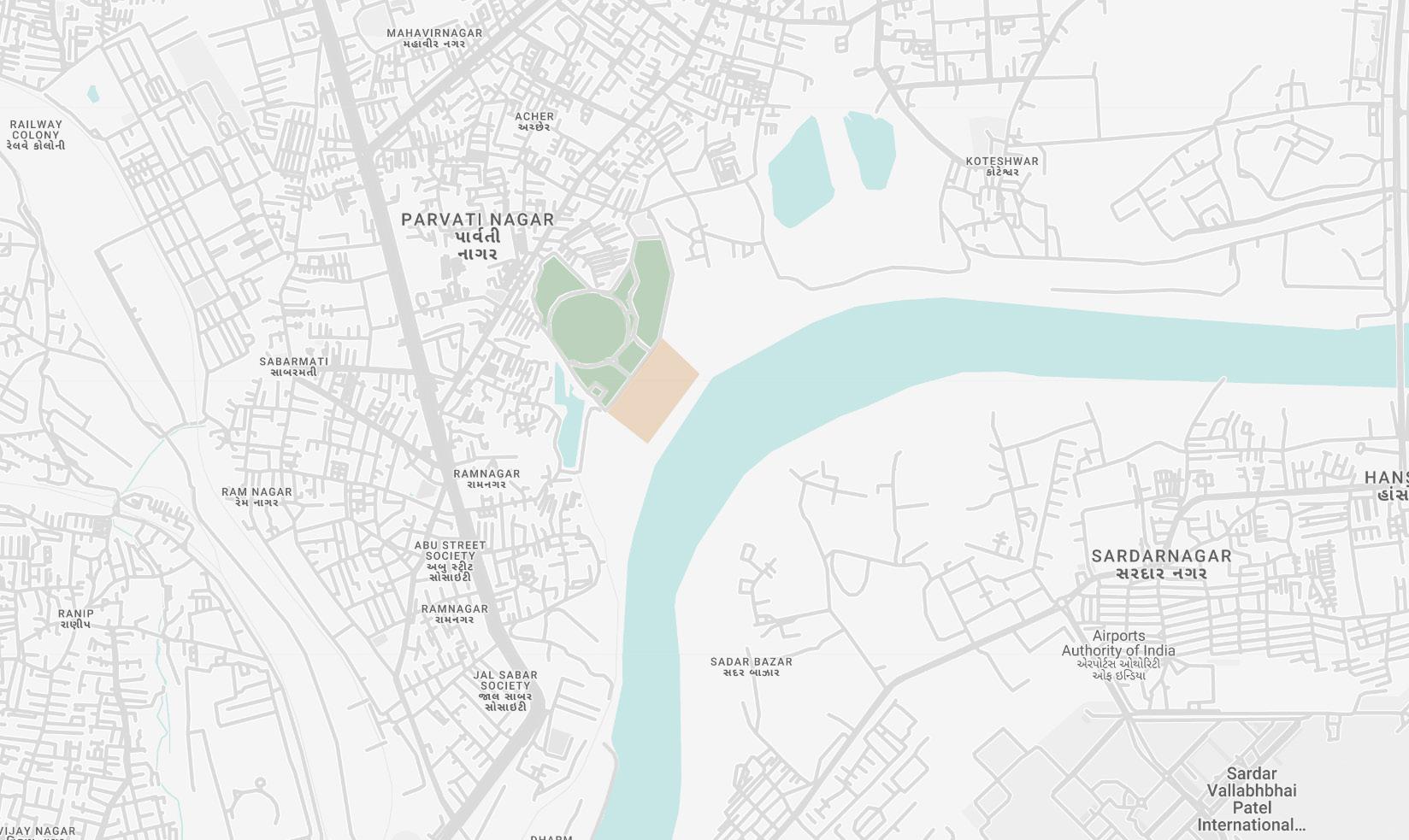

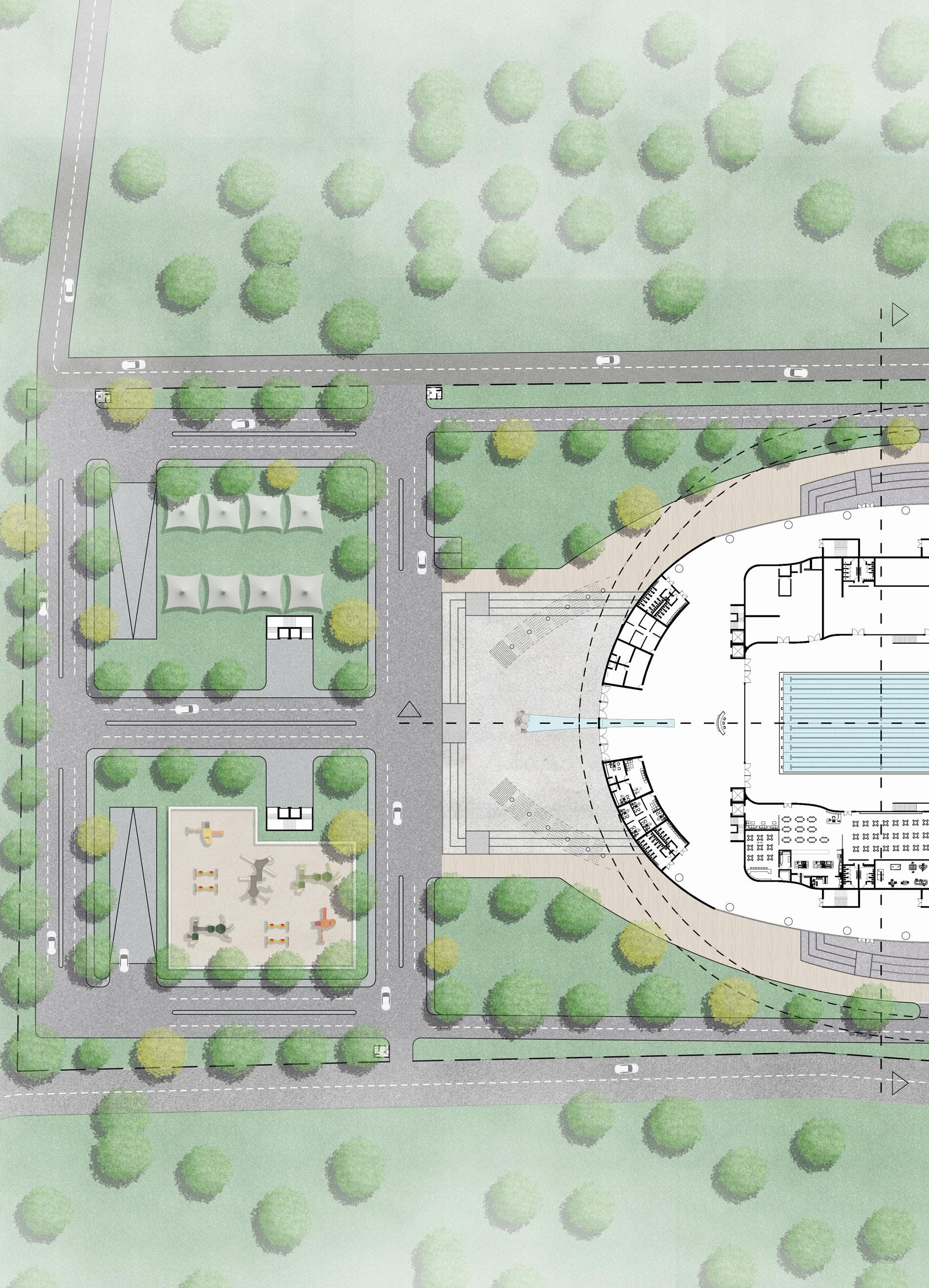

Site

Proposed Site

Metro Station (1km)

Narendra Modi Stadium

Sardar Patel International Airport (9km)

The Union government and the state government are jointly involved in planning and execution of the project where Ahmed-abad will bid for hosting the 36 Olympic games.

The Sardar Vallabhbhai Patel Sports Enclave, which is being developed around the Narendra Modi Stadium and the Naranpura Sports Complex, will have facilities folyarious Olympic sports as Ahmedabad readies to make a bid to host the 36 Summer Olympics.

CONTEXT

Topography: The site is predominantly flat.

Connectivity: Existing 8m wide road to the North-West of the site

The site is located in Ahmedabad, with the Narendra Modi Cricket Stadium to its northwest, the Sabarmati River to its southeast, two metro stations 3 km away, and excellent road connectivity, all within a heritage city context

CONCEPT

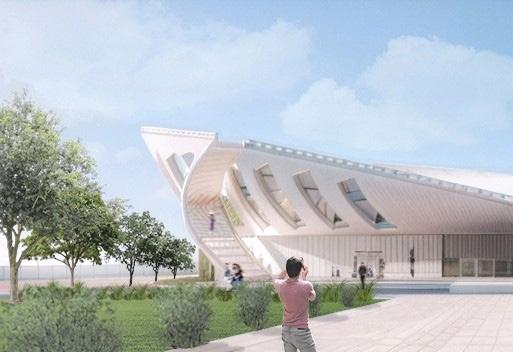

The Water's Journey concept for the Olympic aquatic center is a design approach that draws inspiration from the natural journey of water, from its source in the mountains to its ultimate destination in the ocean. This concept is not only a metaphor for the physical journey of water but also symbolizes the journey of a swimmer, from the early stages of training to the pinnacle of competition.

Just as water flows through various landscapes and ecosystems, design incorporates elements that reflect the different stages of this journey. From the moment visitors enter the aquatic center, they are greeted by a prominent water feature that symbolizes the start of the water's journey. As they move through the center, they encounter curved pathways and corridors that mimic the winding path of a river, creating a sense of movement and flow.

The Water's Journey concept not only provides a visually striking design but also serves a functional purpose. The flexible spaces that can be reconfigured for different events and activities mirror the adaptability of water, while sustainable features such as rainwater harvesting and energy-efficient systems align with the environmental aspect of the concept.

Sabarmati River

Railway Station(3KM)

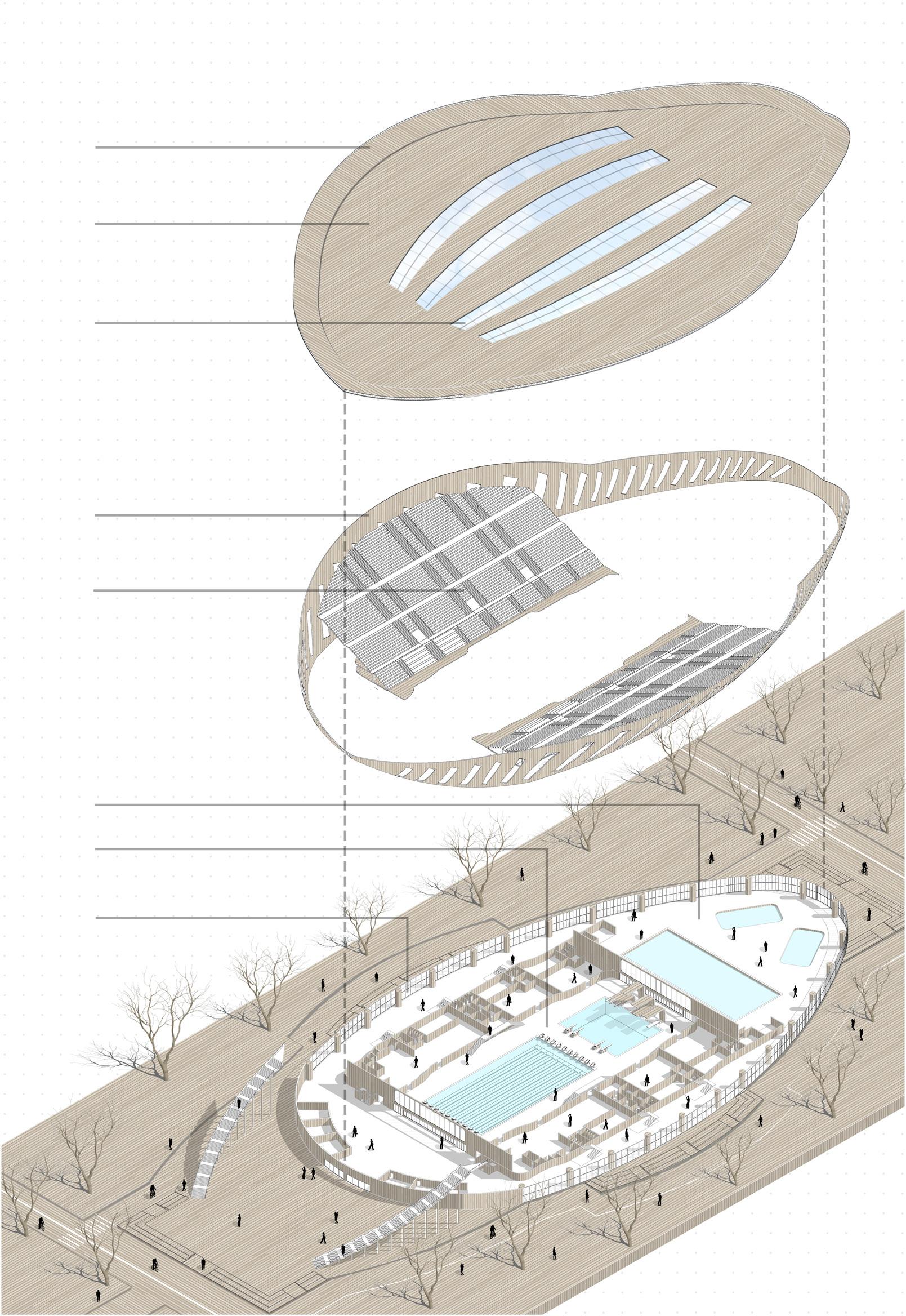

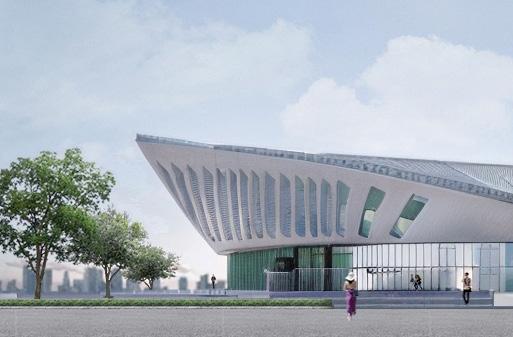

AXONOMETRIC VIEW

Ring Beam Truss

Cable Net Roof

Polycarbonate Sky Light

Aluminium Perforated Panel

VIP And General Seating

Training Area

Compitition Area

Glass Curtain wall

Entrance

Main Competition Pool

Diving Pool

Restaurant

Interview Room

Changing Room Men

16. Changing Room Women

Warm Up Pool

Surfing Pool

Kids Pool

Filtration Room

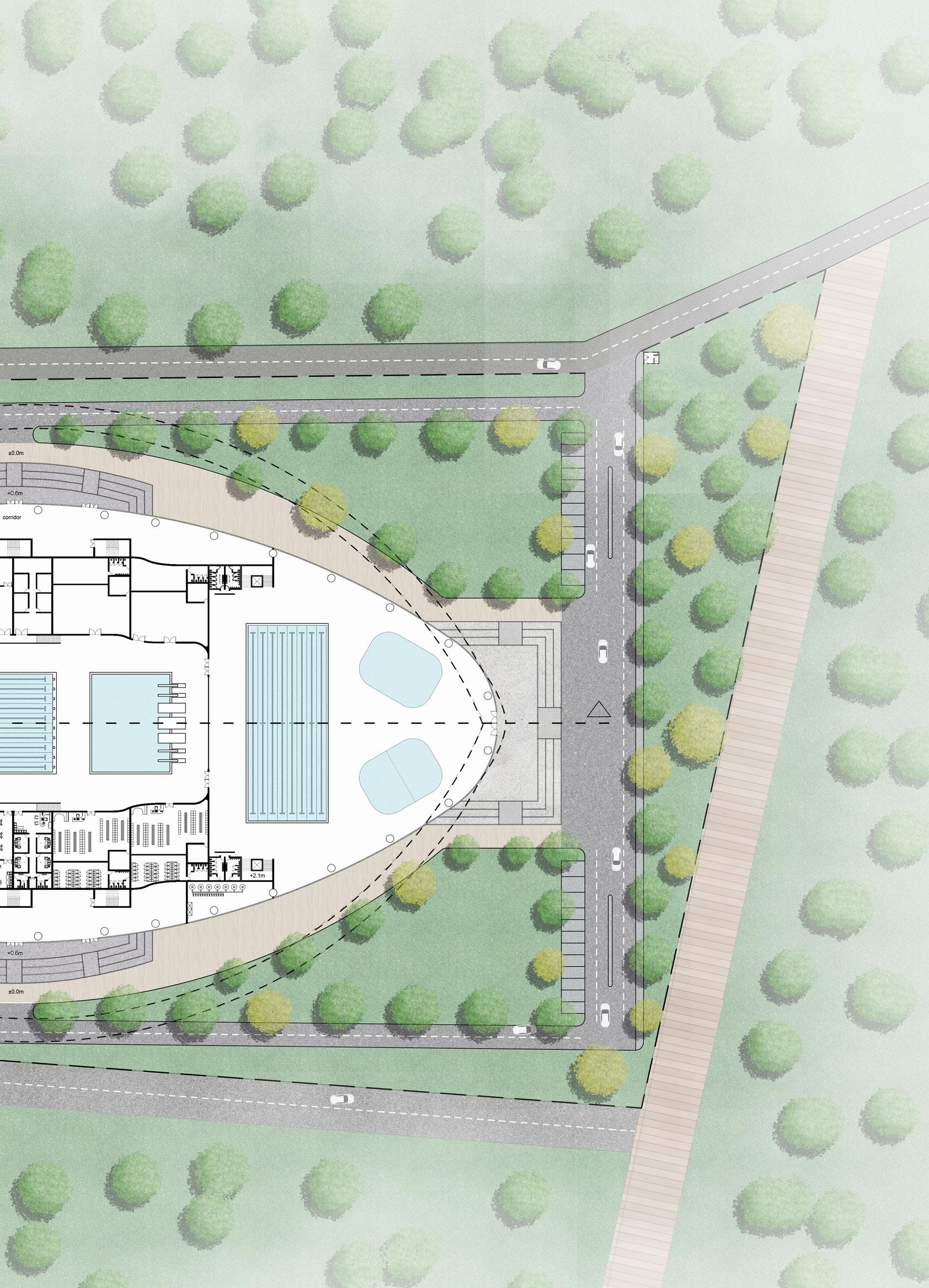

FIRST FLOOR PLAN SECOND

LEGEND

01. Athletes Family Lounge

02. Stratergy Room

03. VIP Room

04. Concessions

05. General Specatotor Stands

06. VIP Stands

07. Main Competition Pool

08. Diving Pool

09. Athletes Body Assessemet Room

10. Training Area`

LEGEND

01. Athletes Family Lounge 02. Reception And Lobby 03. Water Storage

04. Competition Pool 05. Vario Pool Movable Floor

LEGEND

01. Competition Pool 02. Vario Pool Movable Floor 03. Water Storage 04. Physio And Massage Area

Corridor And Emergency Exit

Practice Area

Toliet

Diving Stand

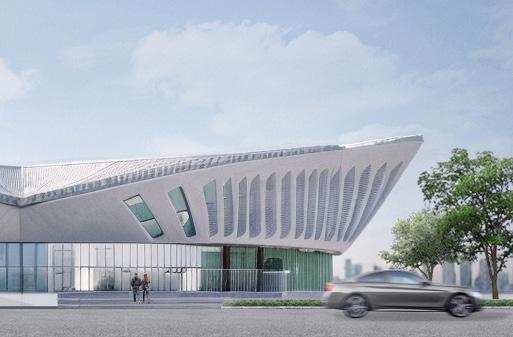

FRONT ELEVATION

REAR ELEVATION

02.Campus Planning

Campus Planning National Institute Of Technology

PROJECT: National Institute Of Technology

LOCATION: Patna, Bihar

SITE AREA: 480883 Sq.m

PHASE 1: 202342 Sq.m

TOTAL BUILT UP: 84000Sq.m

The "Campus Planning NIT" proposal in Patna, Bihar, India, is a visionary project designed to create a holistic and enriching educational environment. The campus will encompass six academic departments, a state-of-the-art library, staff housing, indoor and outdoor stadiums, and extensive recreational facilities. The design is deeply rooted in the principles of biophilic design, emphasizing the integration of natural elements to enhance learning and well-being.

The project aims to create spaces that stimulate cognitive function, reduce stress, and improve overall well-being. Natural light, green spaces, and elements of nature will be integrated throughout the campus to create an inspiring and healthy learning environment.

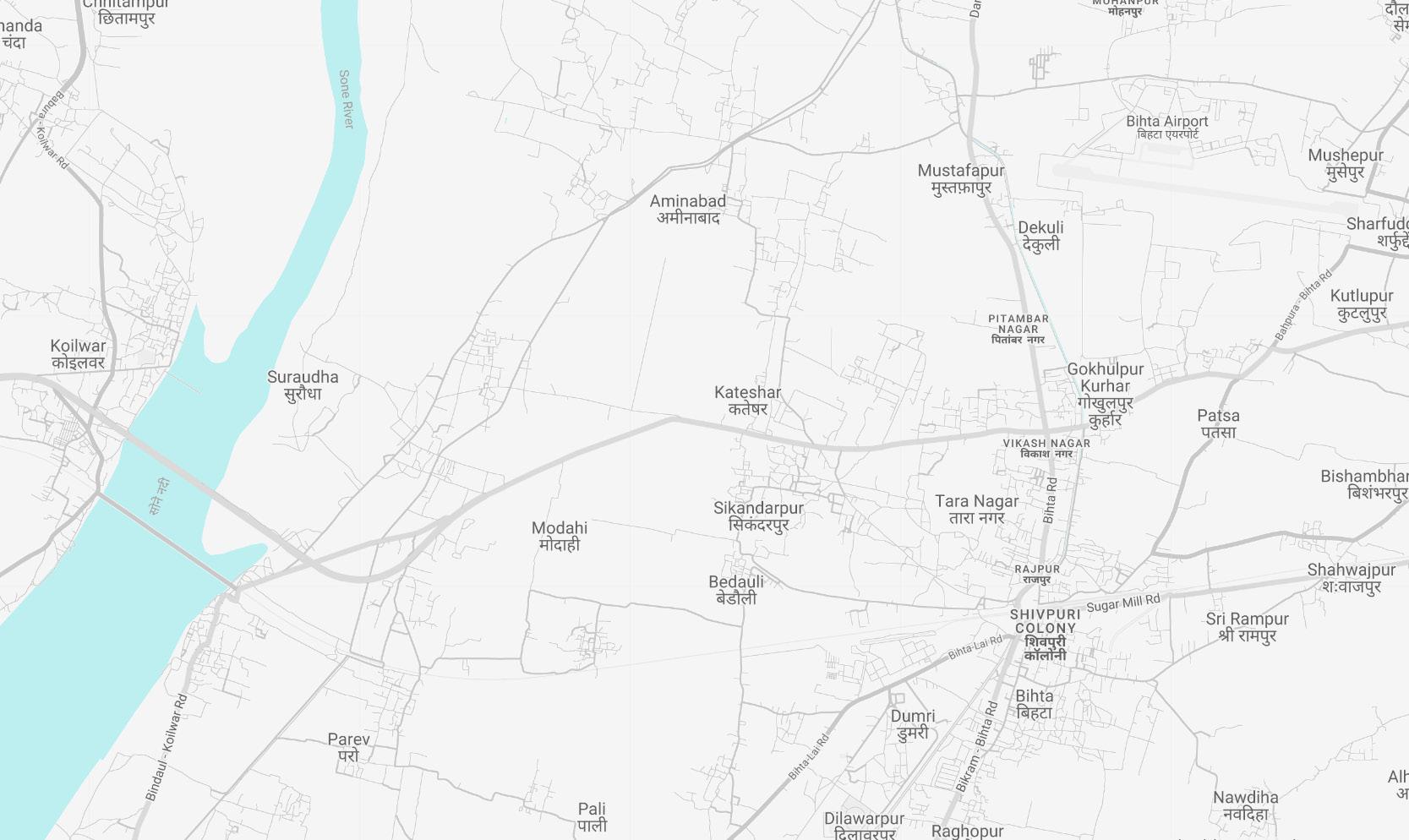

Site

Proposed Site

Bhita Airport (8km)

Bita Railway Station(4.KM)

For our 7th semester architecture design project, we have been tasked with designing the NIT campus in Patna.

In the year 16, Bihar government has provided 15 acres of land at Bihta for the development of its additional campus. The land has been fully acquired, and its boundary wall has been already completed with the support of the district administration

CONTEXT AND ANALYSIS

Topography: The site is predominantly flat.

Connectivity: Existing 6m wide road to the South And East of the site Climate: humid subtropical climate.

Windrose of Patna shows that dominant wind blow from the East much of the time - about 3.89%.

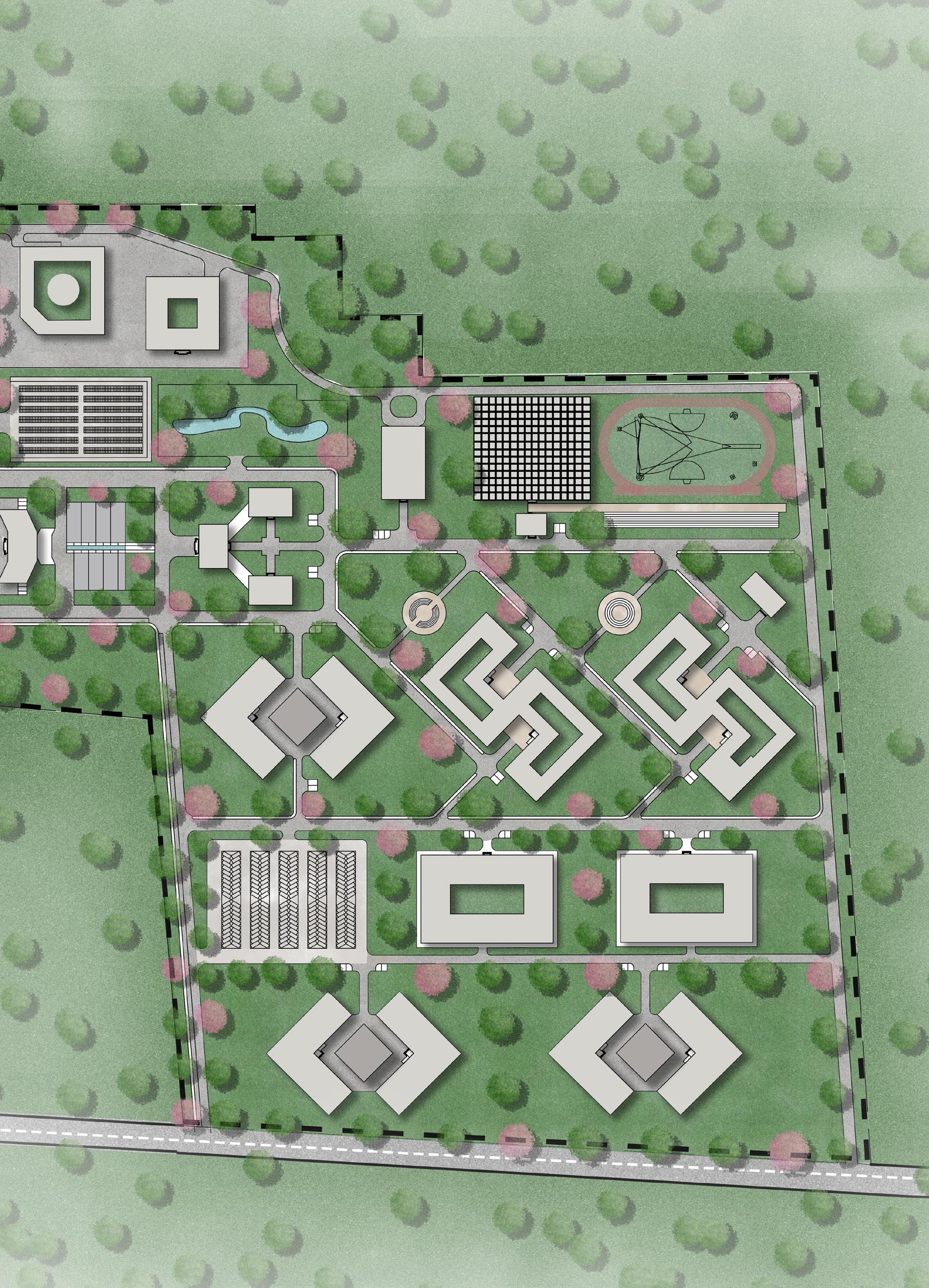

CONCEPT

The concept of biophilic design is a central tenet of the "Campus Planning NIT" proposal in Patna, Bihar, India. This approach to architecture emphasizes the incorporation of natural elements and processes into the built environment, fostering a connection between people and nature. By integrating biophilic design principles, the project aims to enhance the educational experience, promote well-being, and support sustainability.

The design prioritizes the use of natural light and ventilation in all buildings. Large windows, skylights, and open spaces will allow ample sunlight to penetrate interior spaces, reducing the need for artificial lighting and improving indoor air quality. This natural illumination enhances mood and productivity while minimizing energy consumption.

Studies have shown that exposure to natural environments can improve concentration, memory, and overall cognitive function. By integrating biophilic design, the campus will create an environment conducive to learning and academic success.

Sone River

Pali Halt Station(3KM)

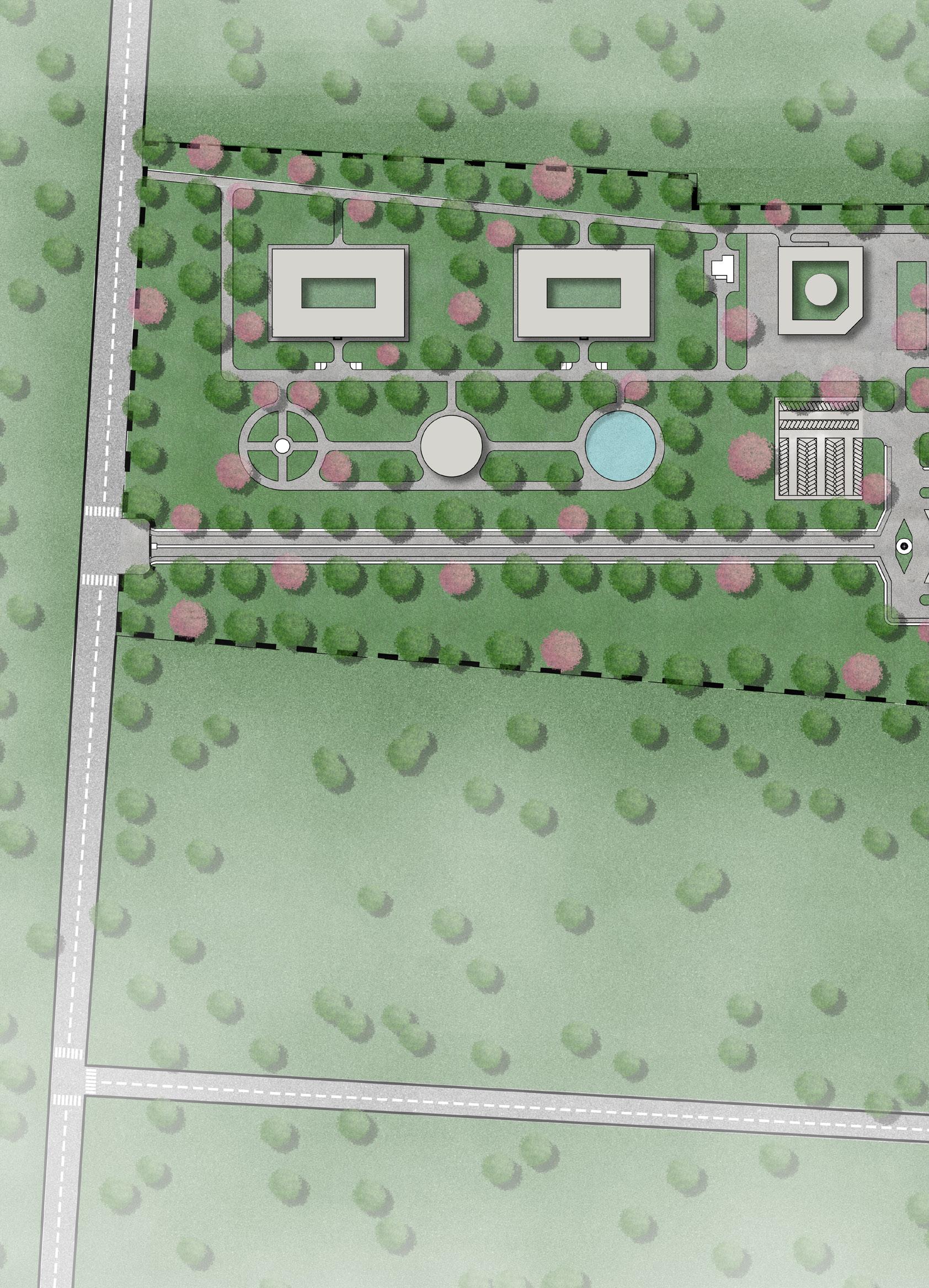

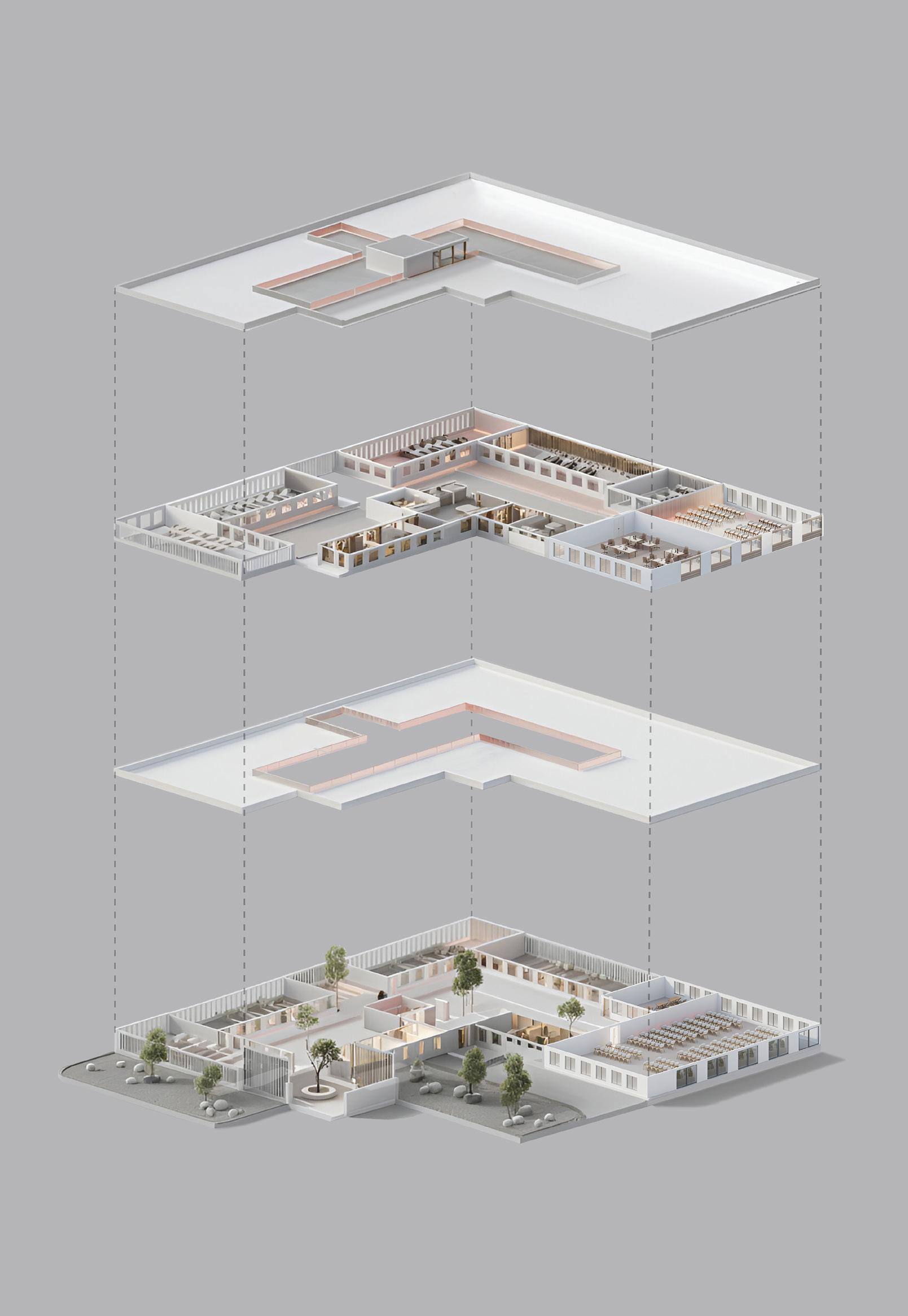

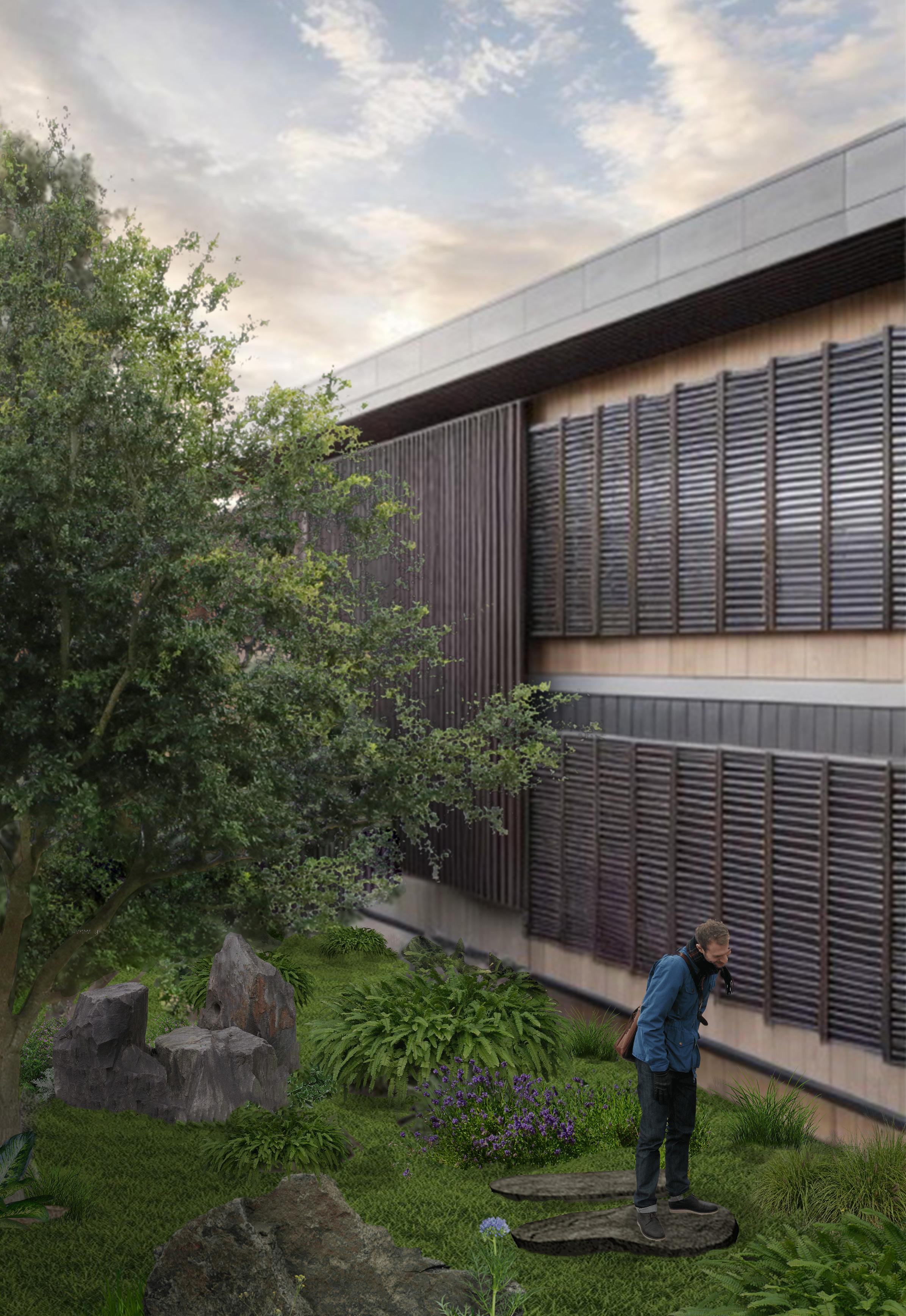

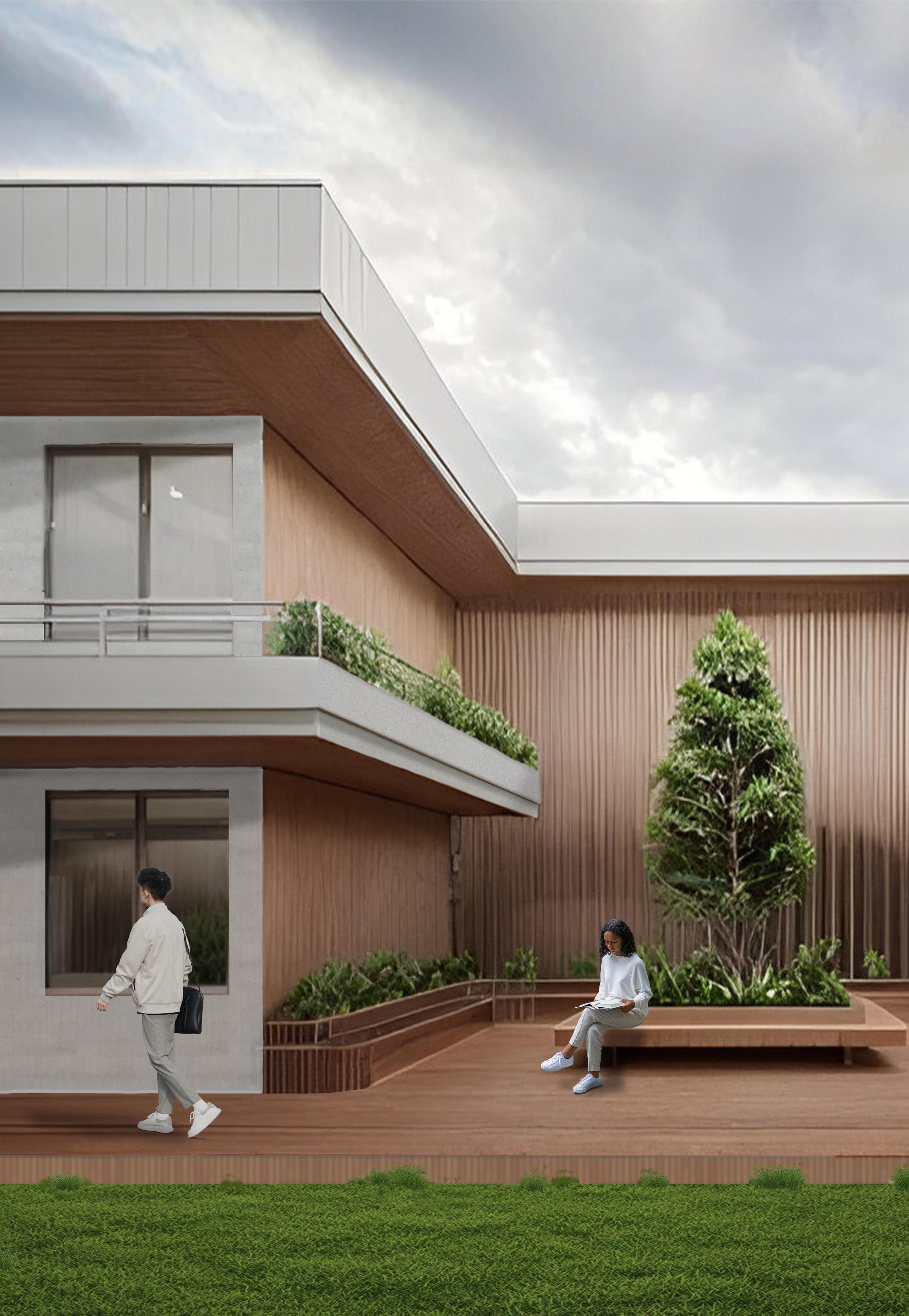

AXONOMETRIC VIEW I ACADEMIC BLOCK

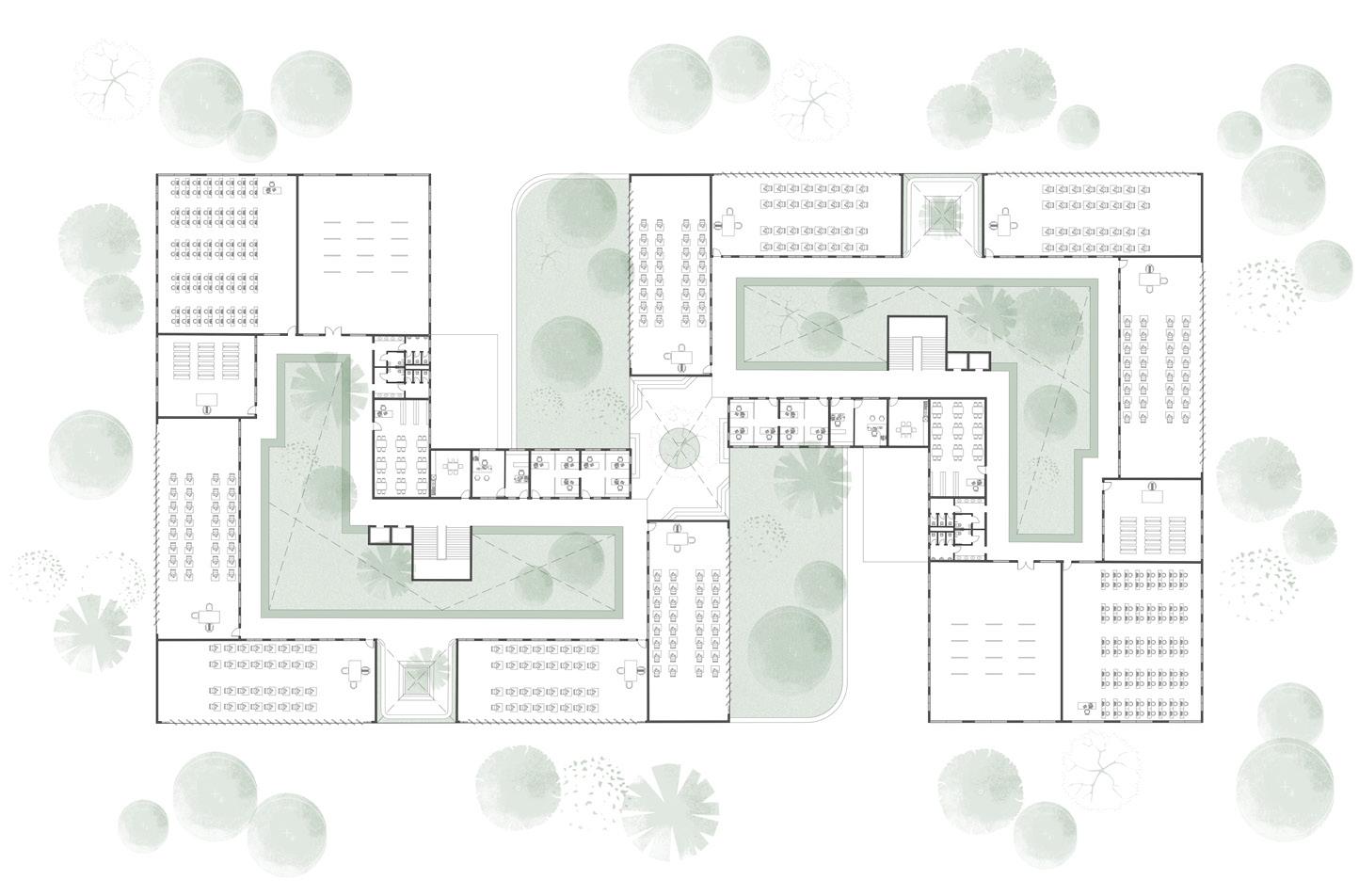

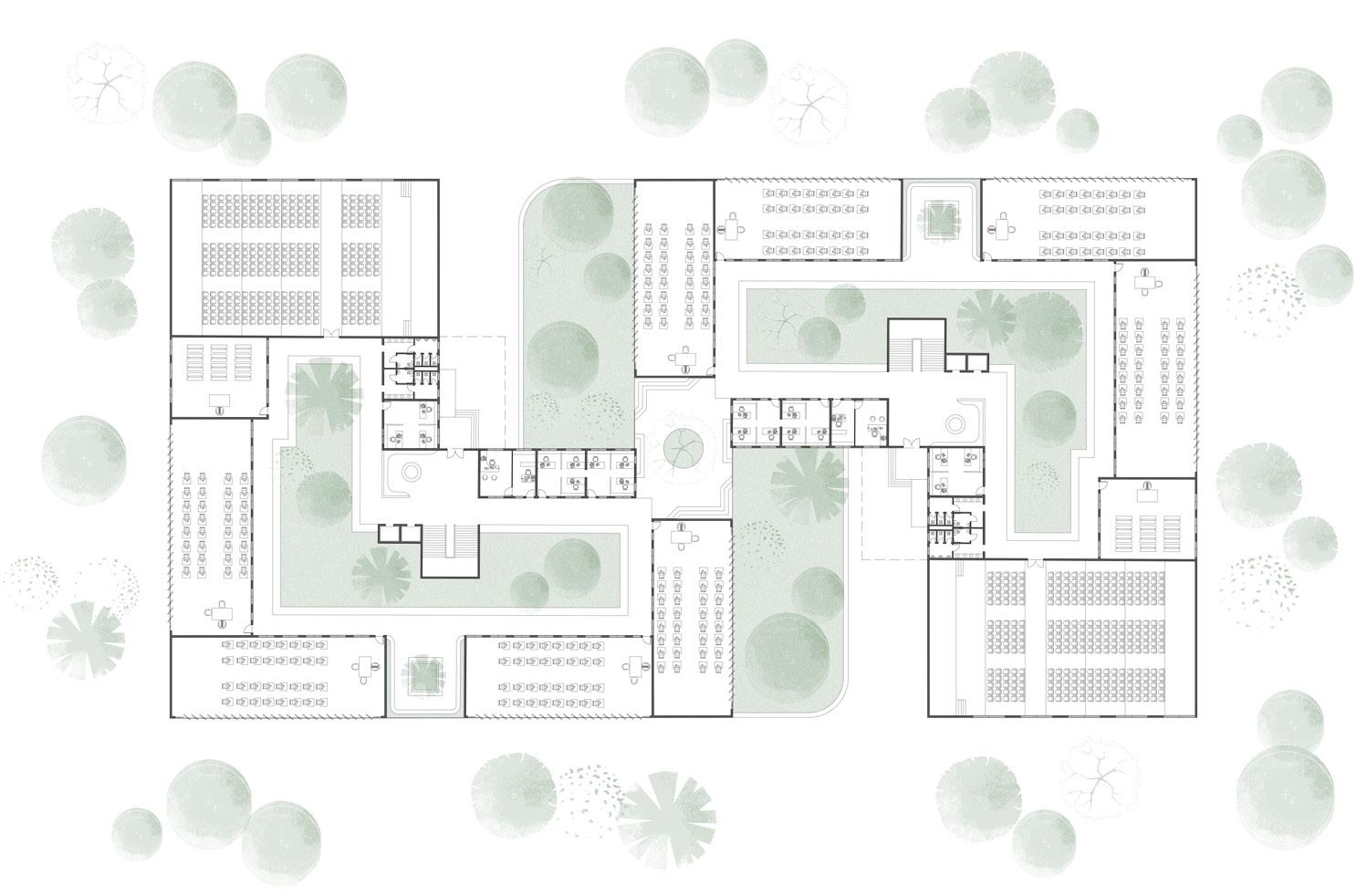

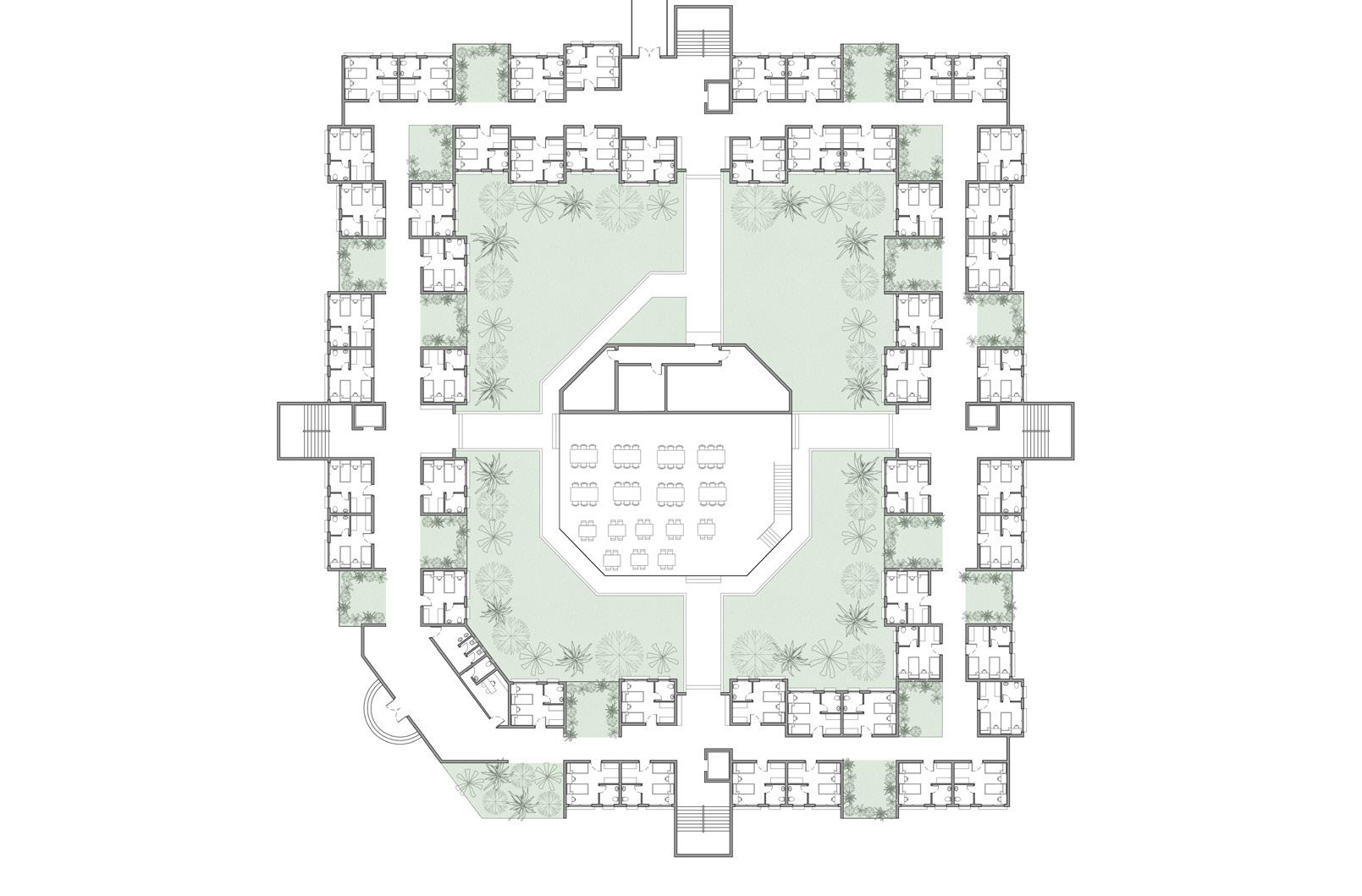

BLOCK I TYPICAL FLOOR

ACADEMIC BLOCK I GROUND FLOOR

ACADEMIC BLOCK I FIRST FLOOR

HOD Cabin

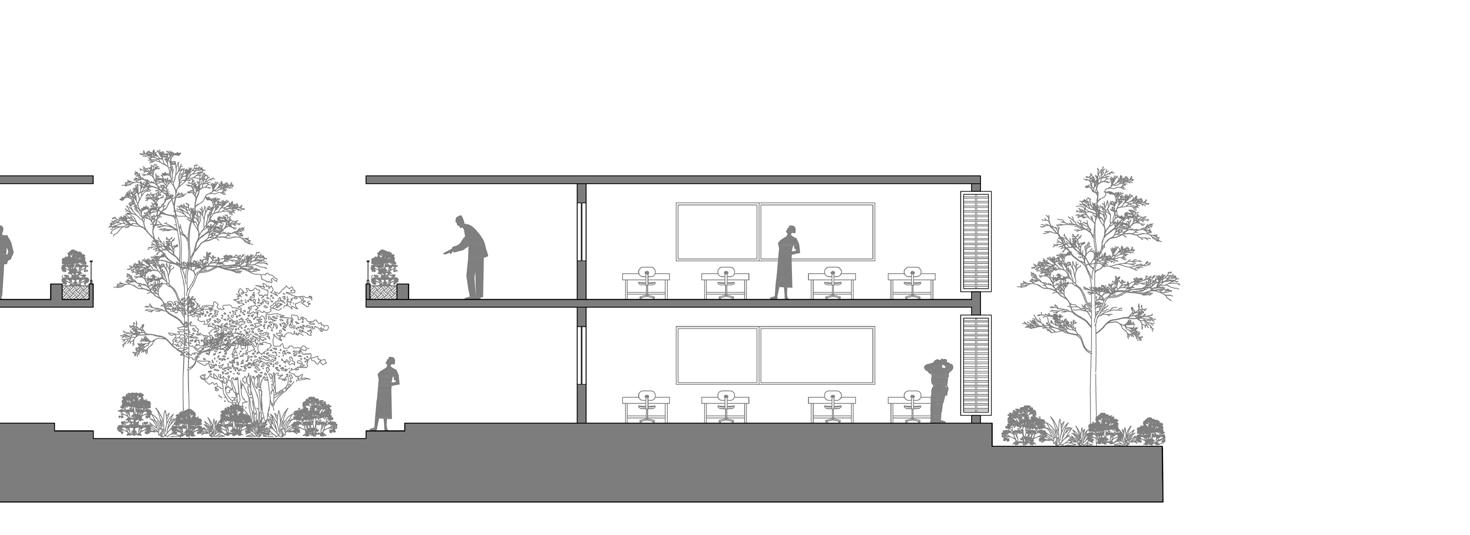

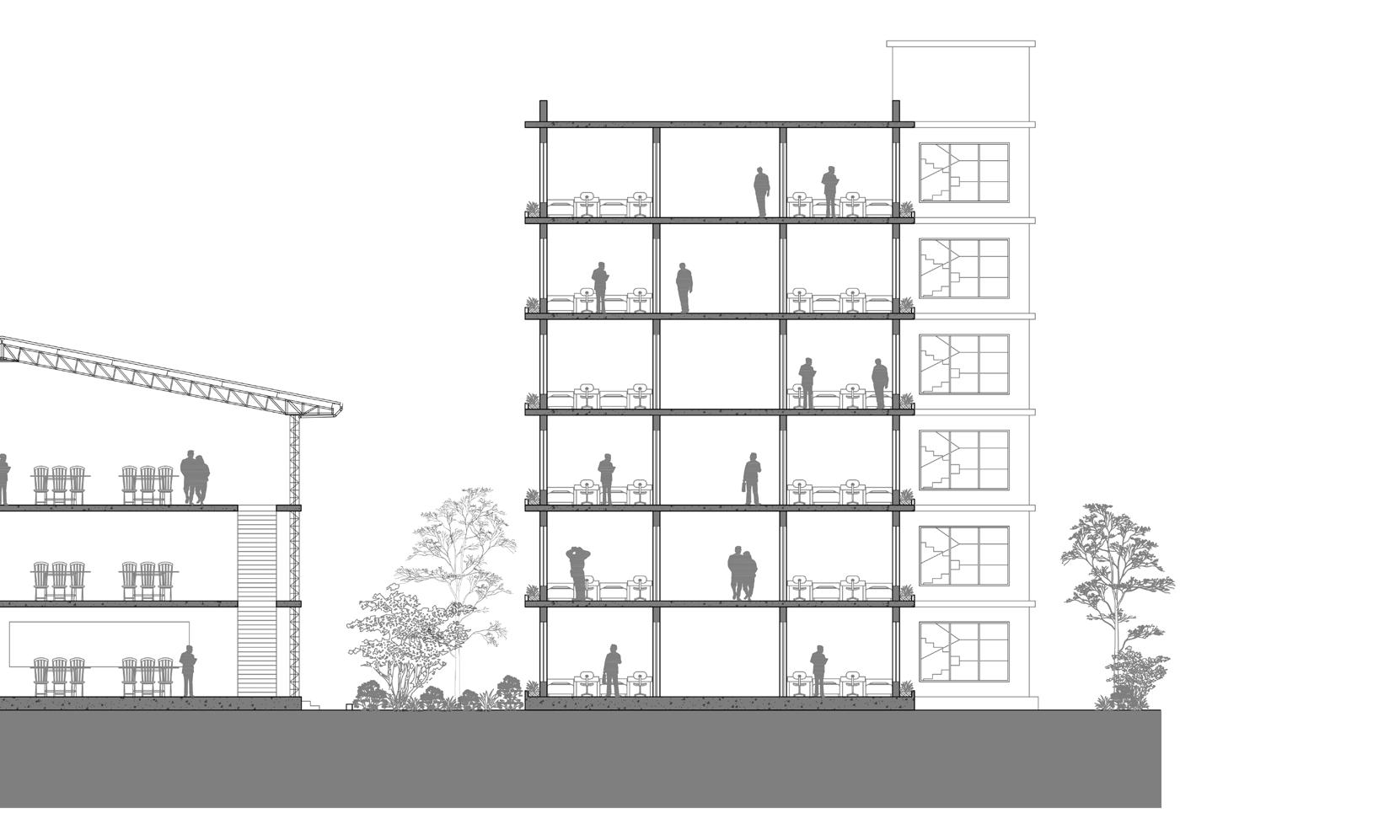

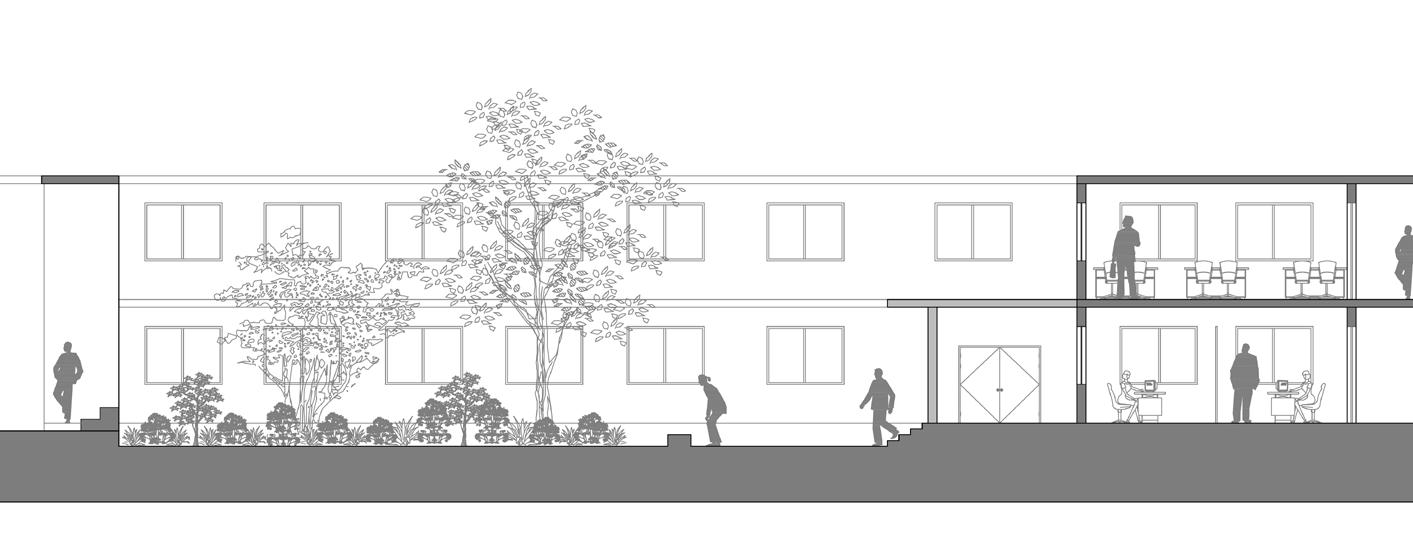

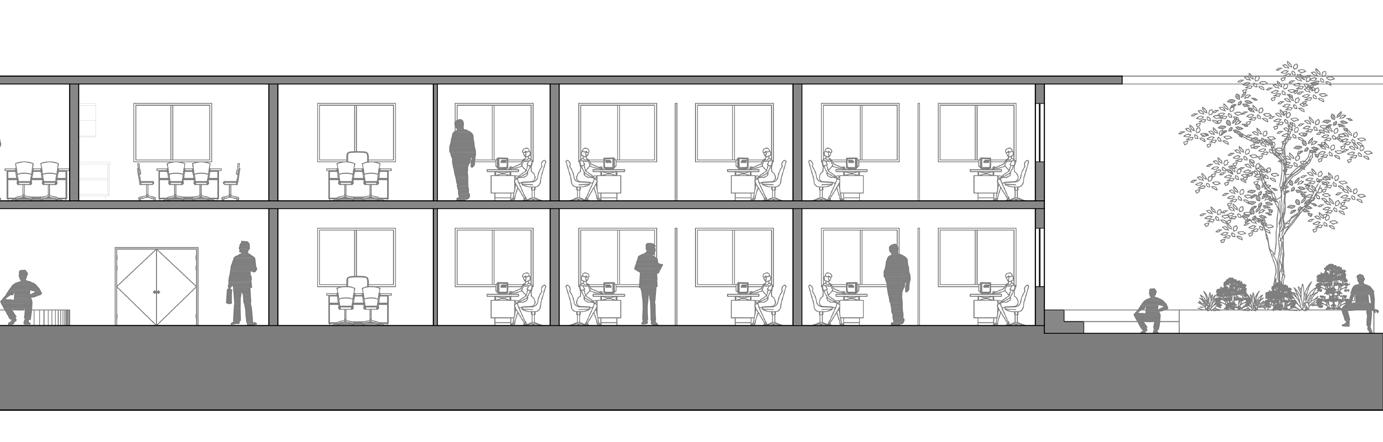

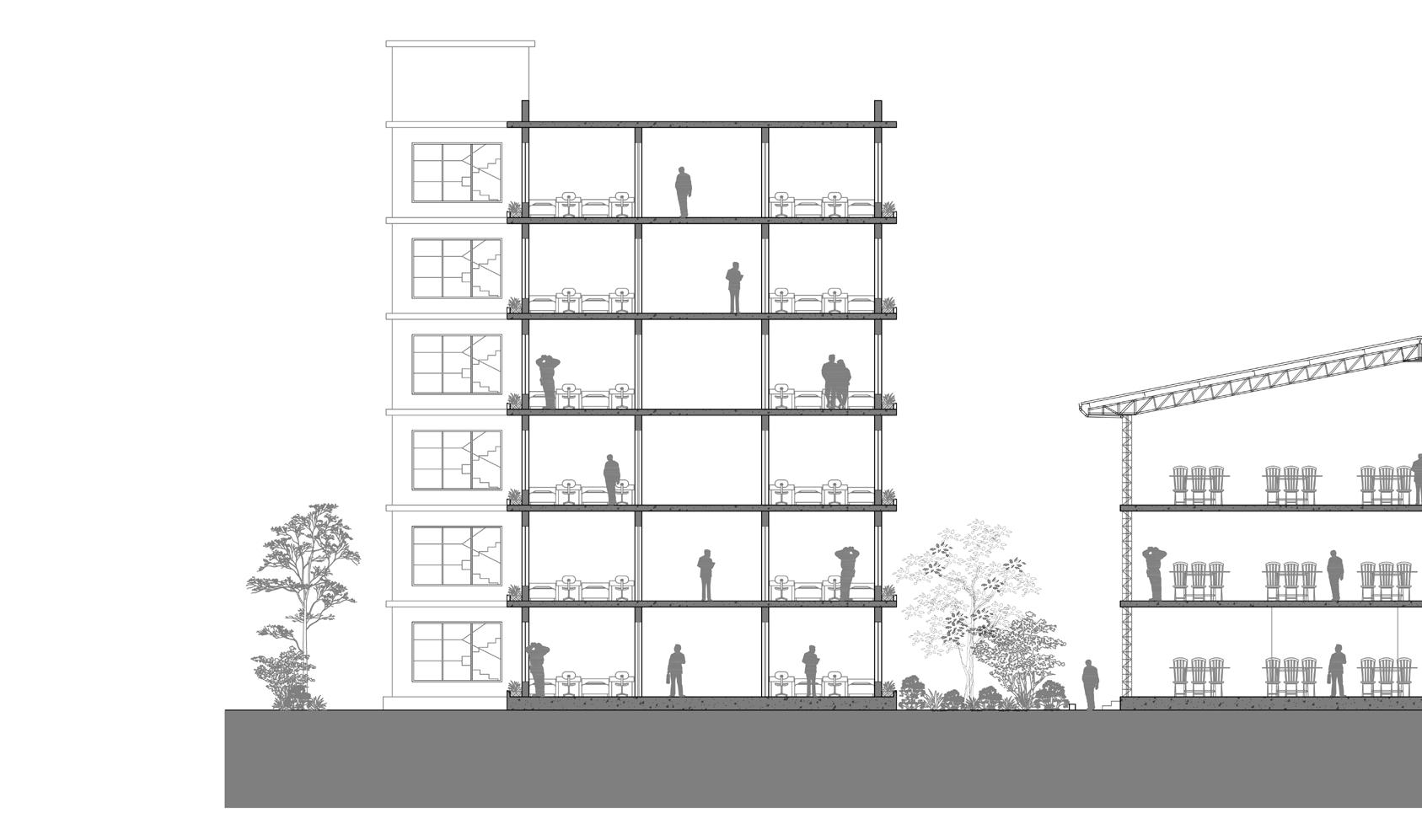

ACADEMIC BLOCK I SECTION BB’

03. Housing

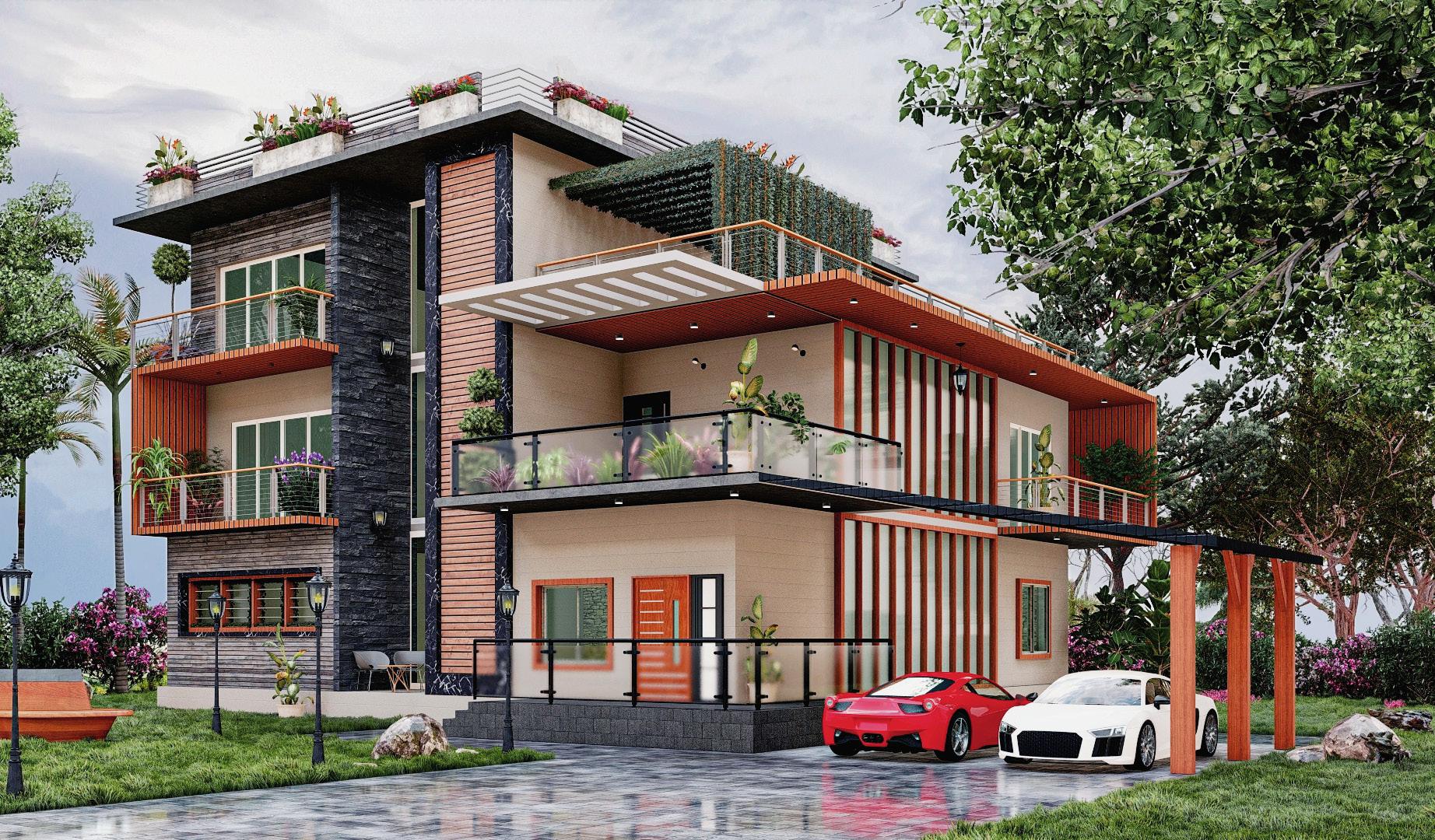

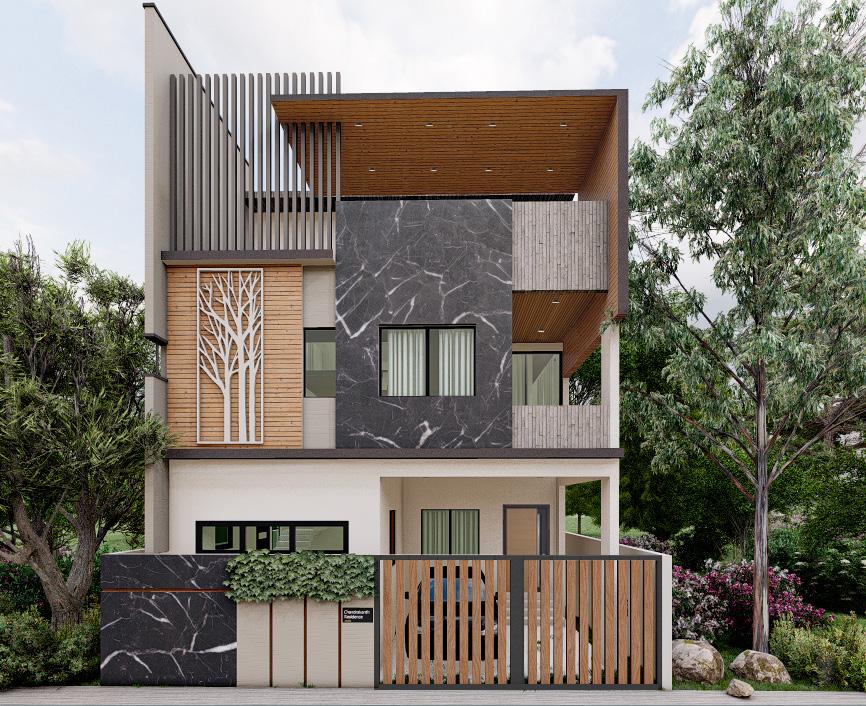

Luxury Housing

PROJECT: Luxury Housing

LOCATION: Udupi, Karnataka

SITE AREA: 42164 Sq.m

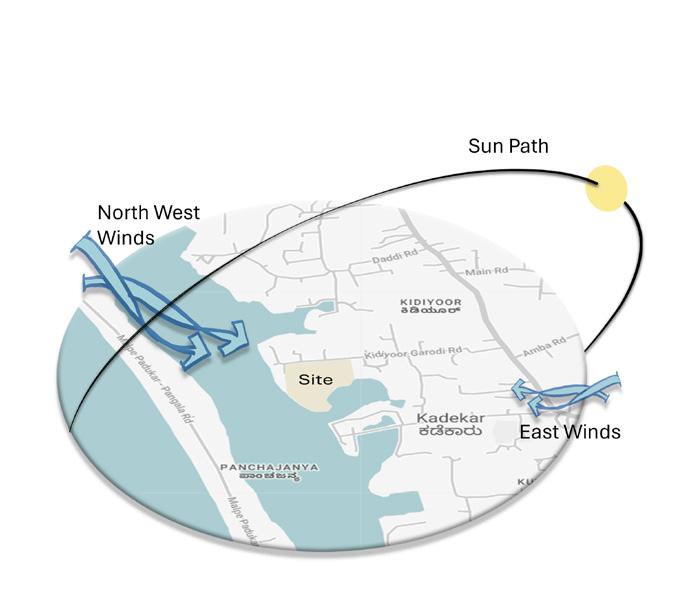

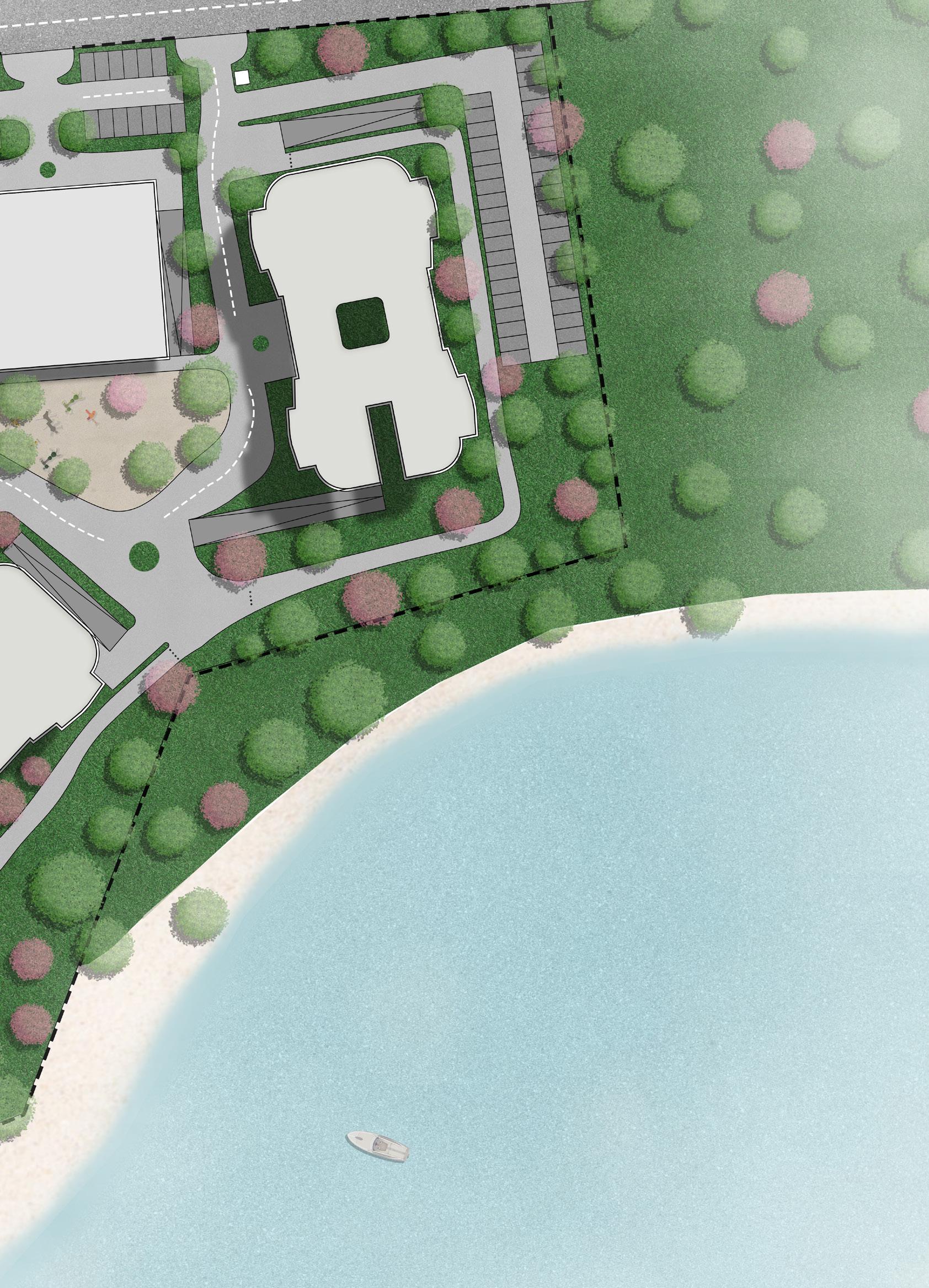

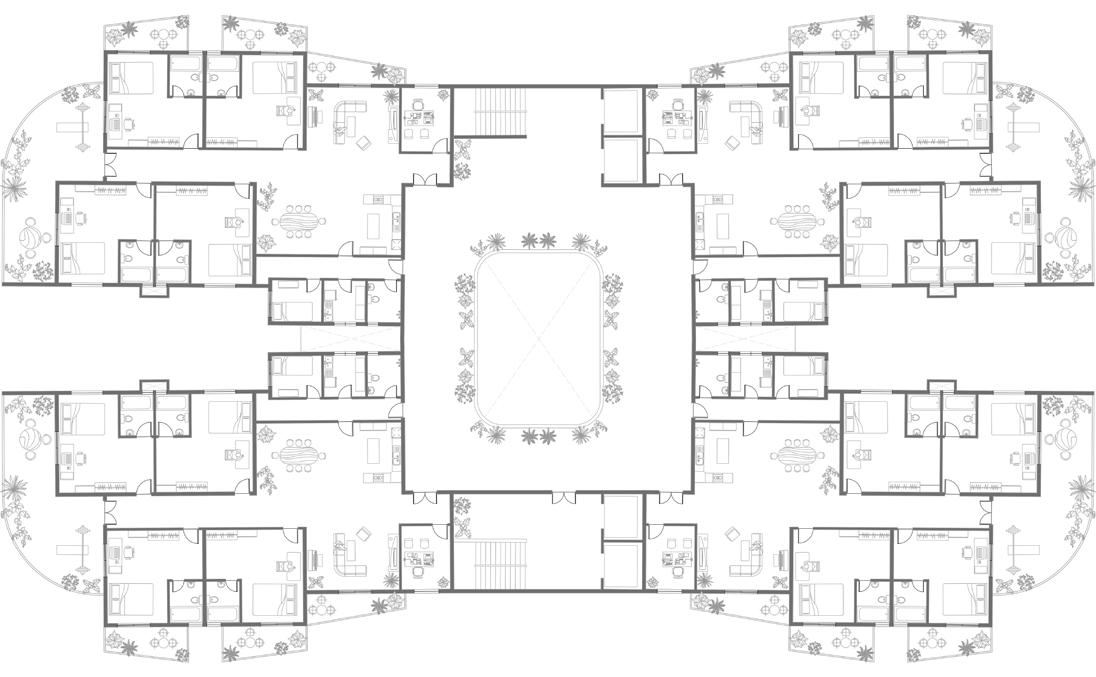

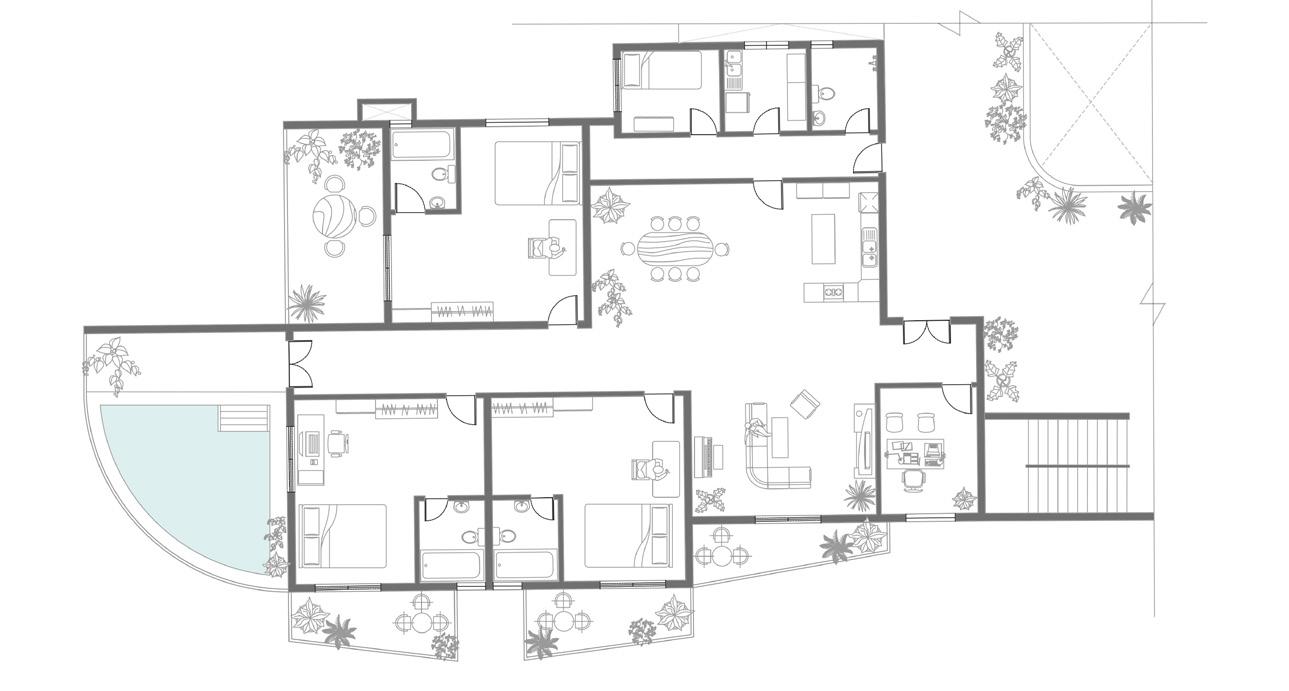

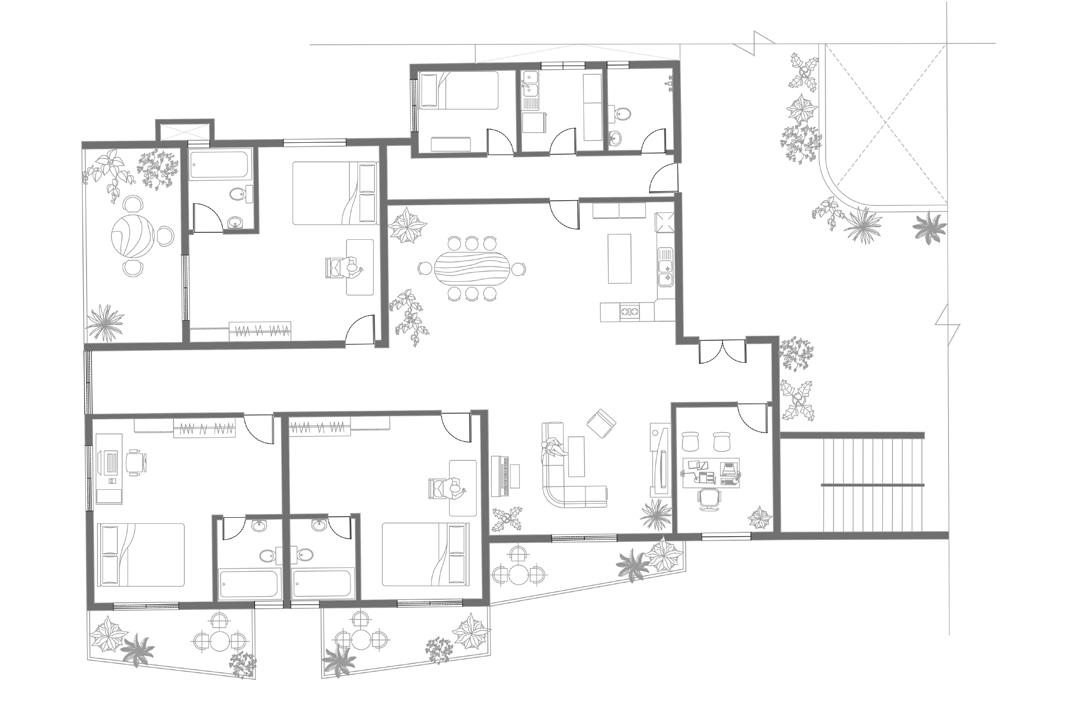

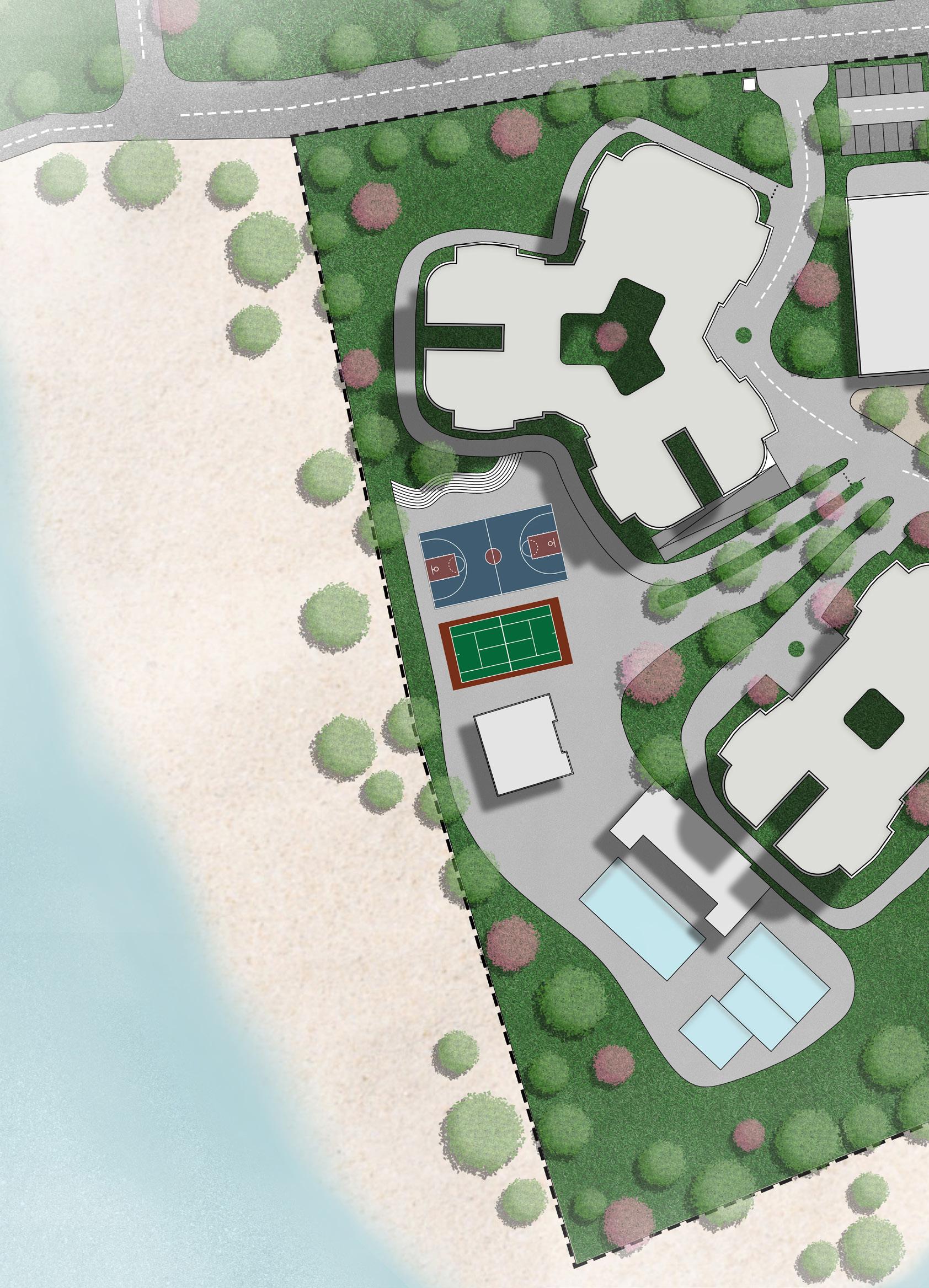

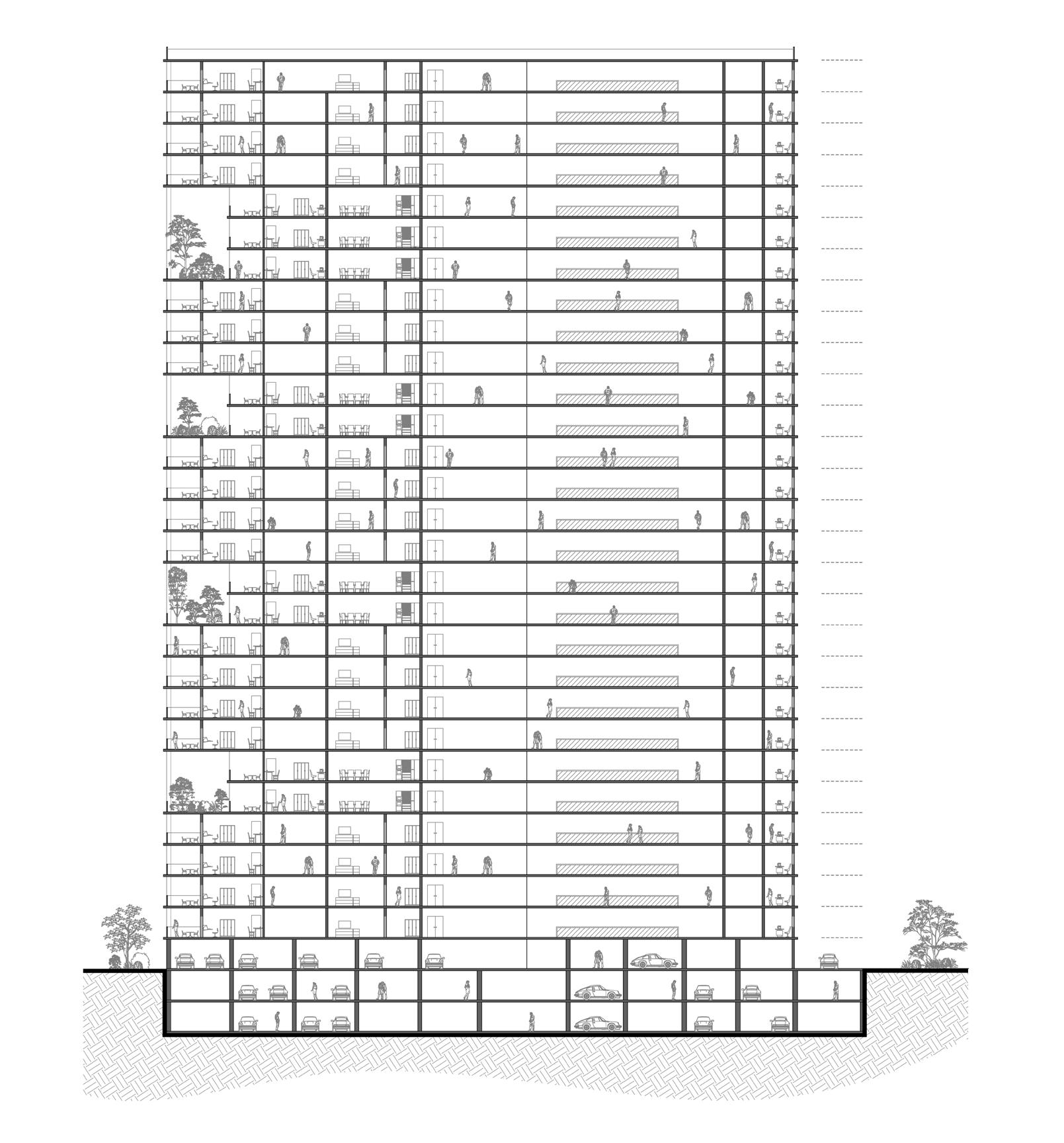

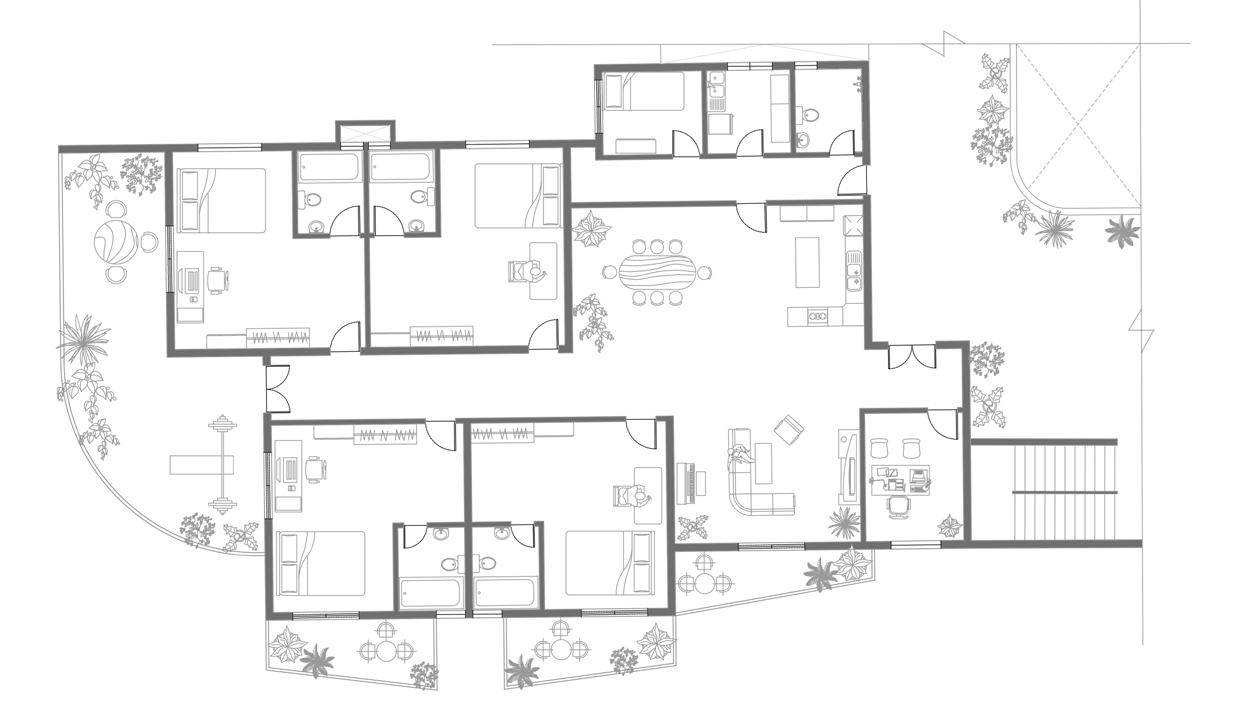

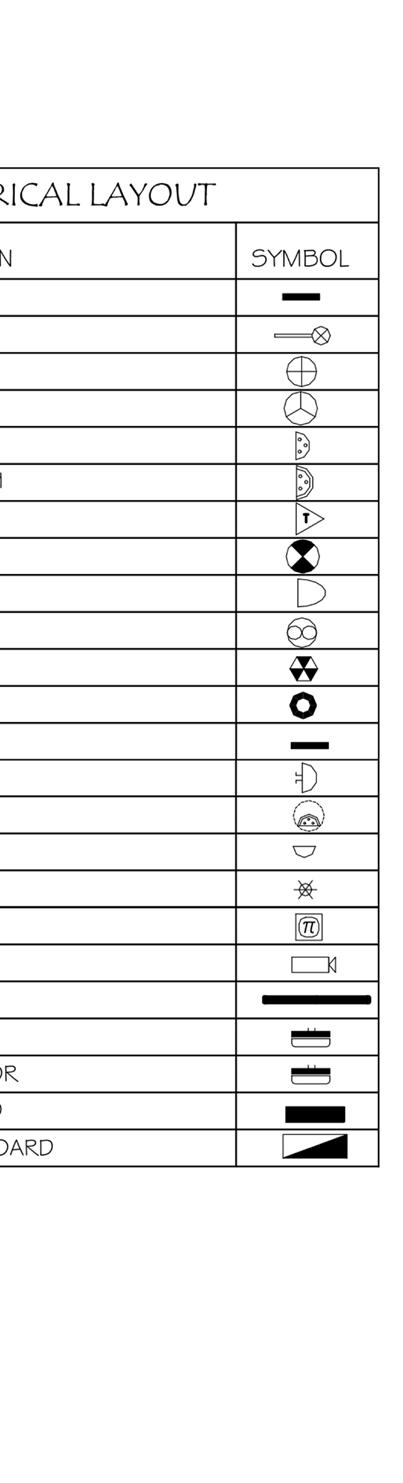

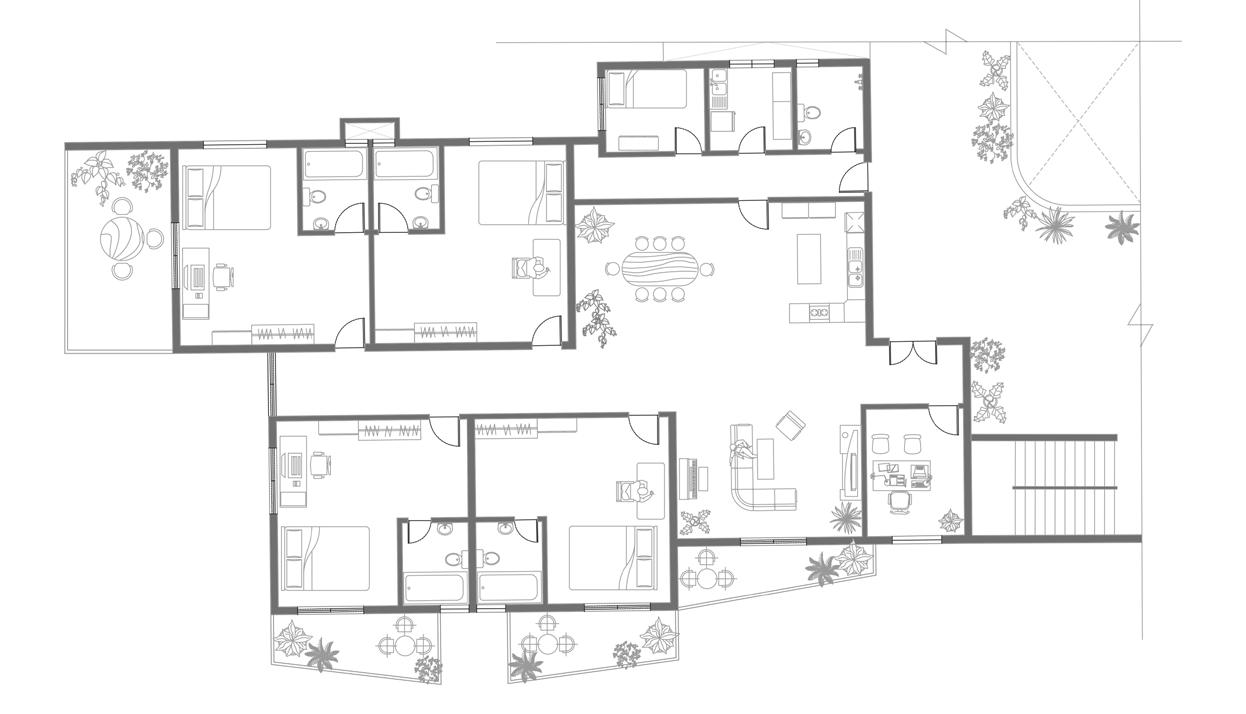

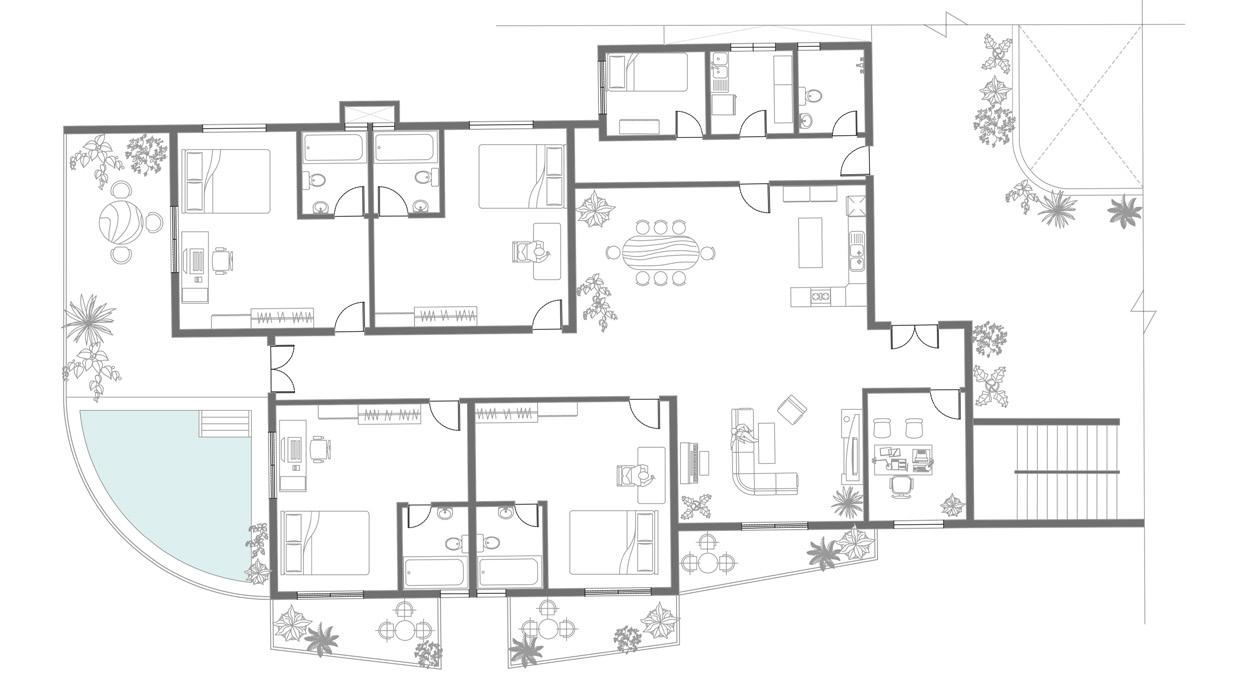

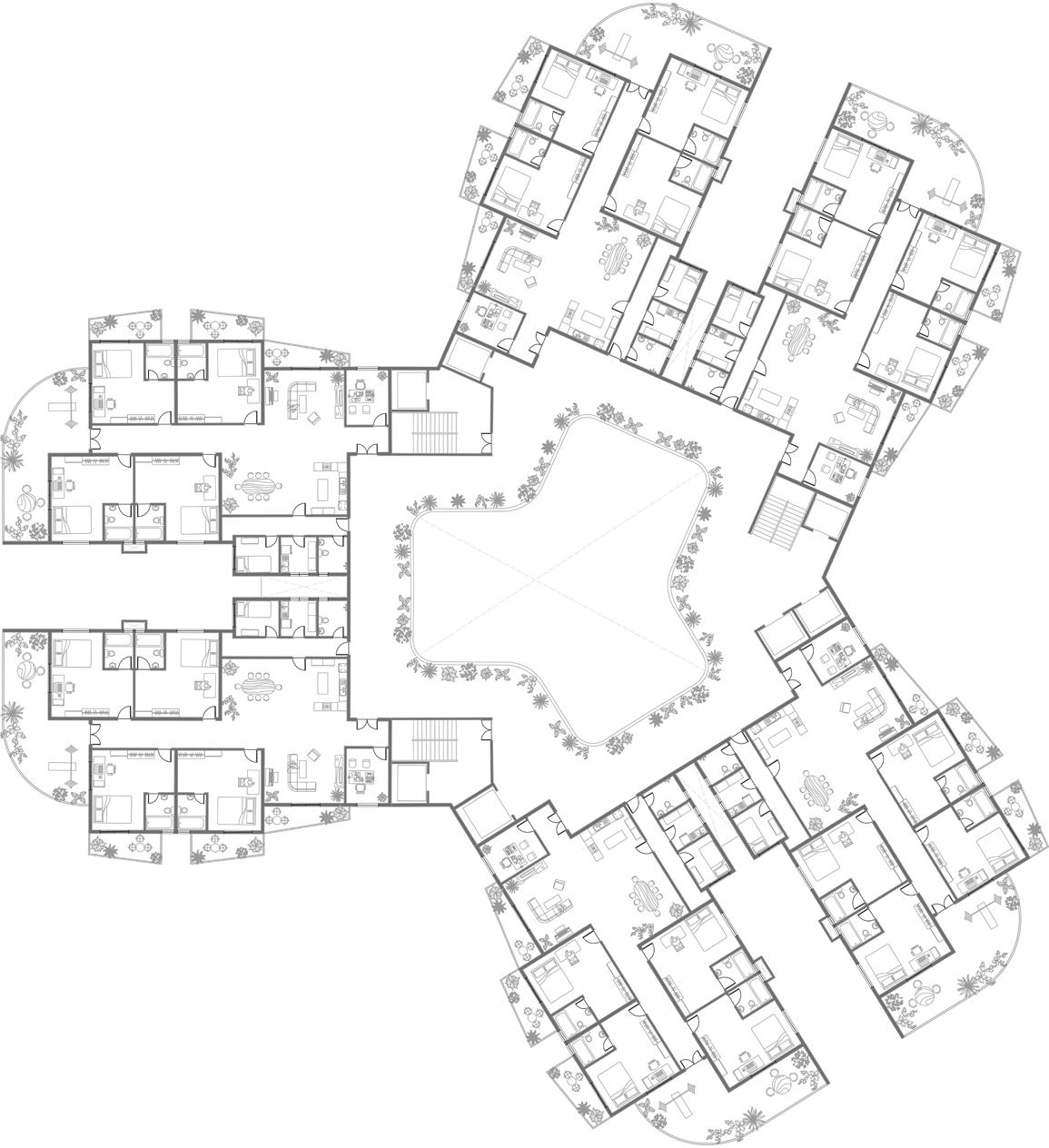

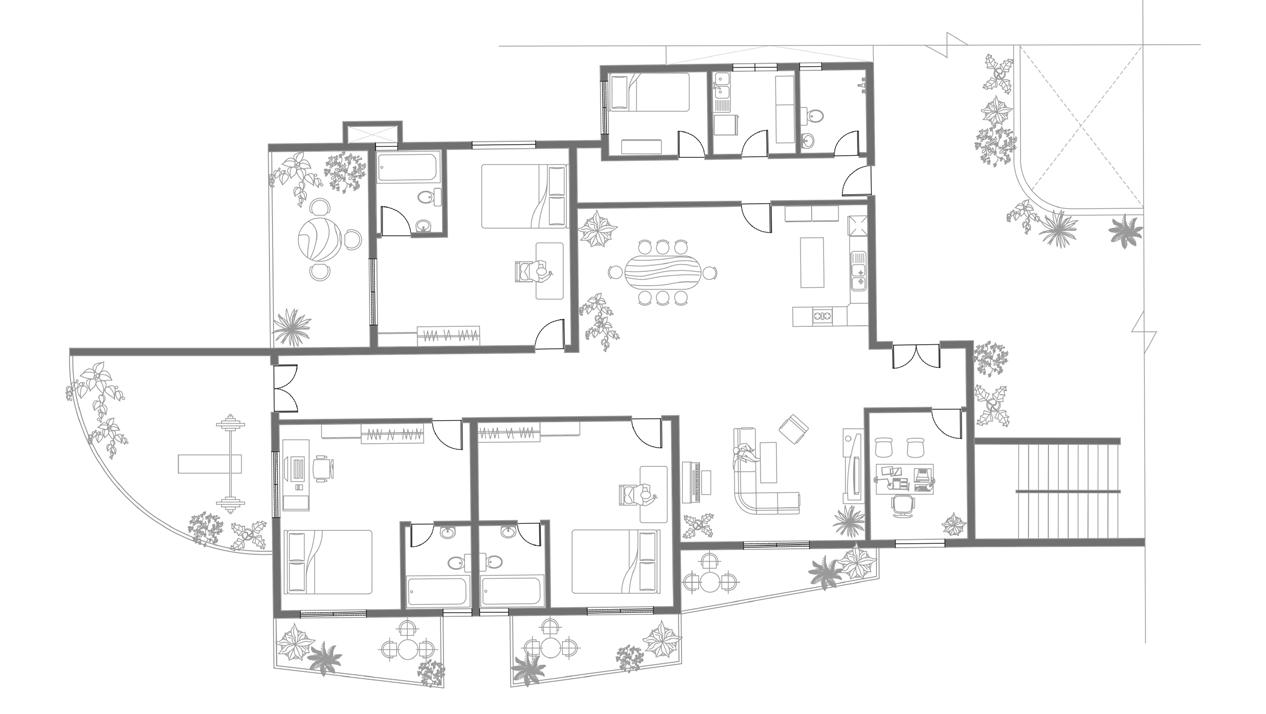

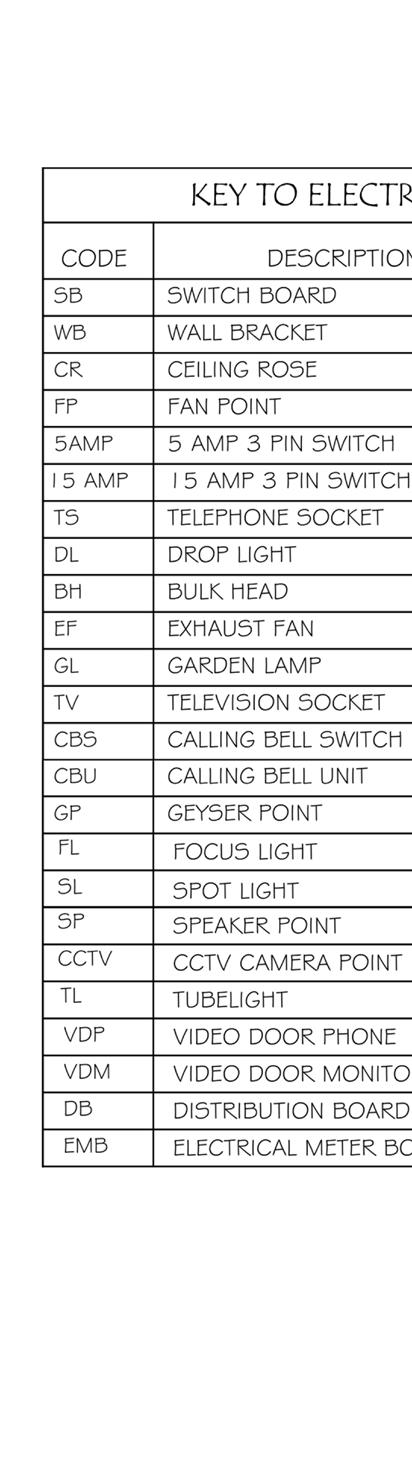

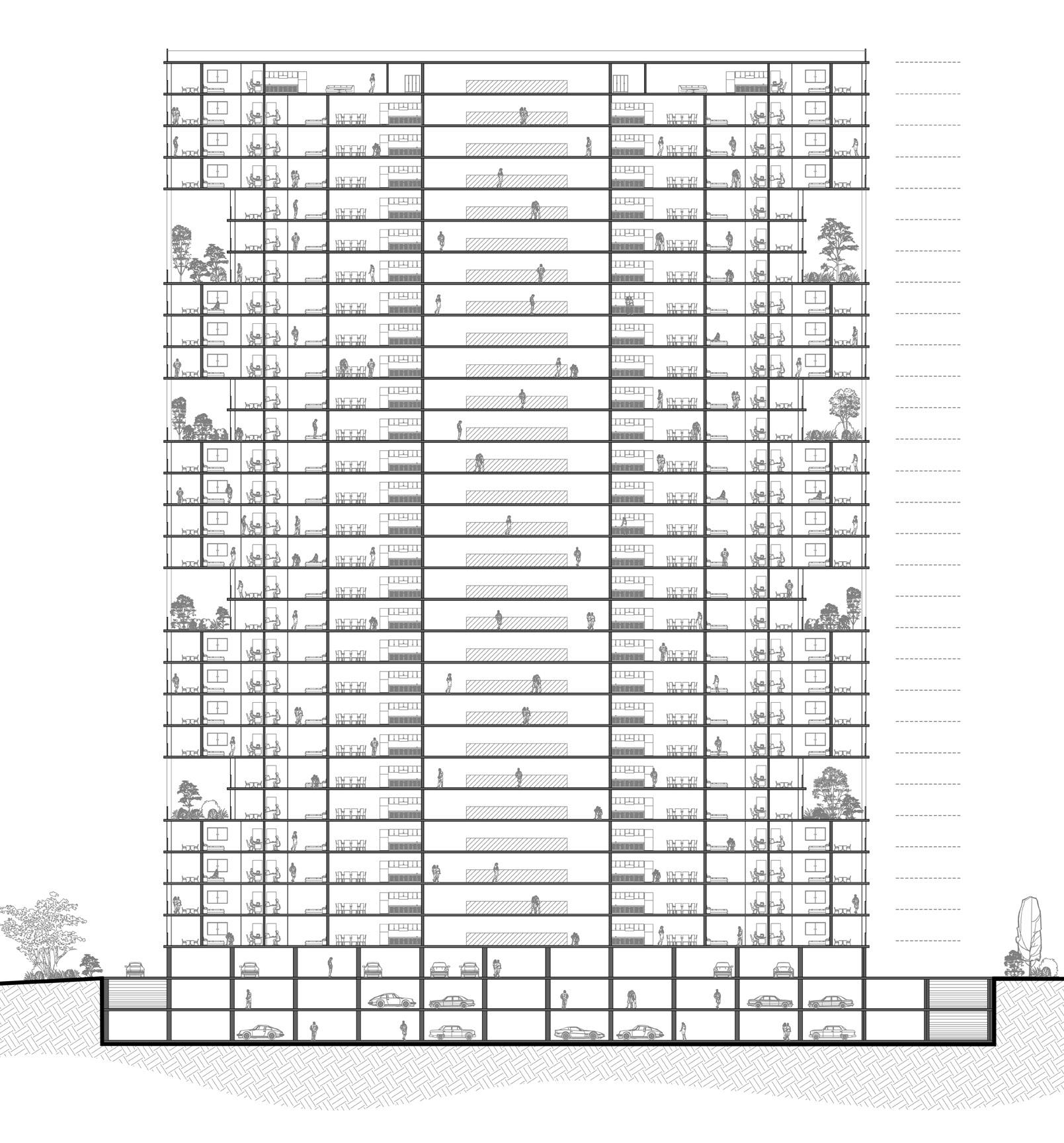

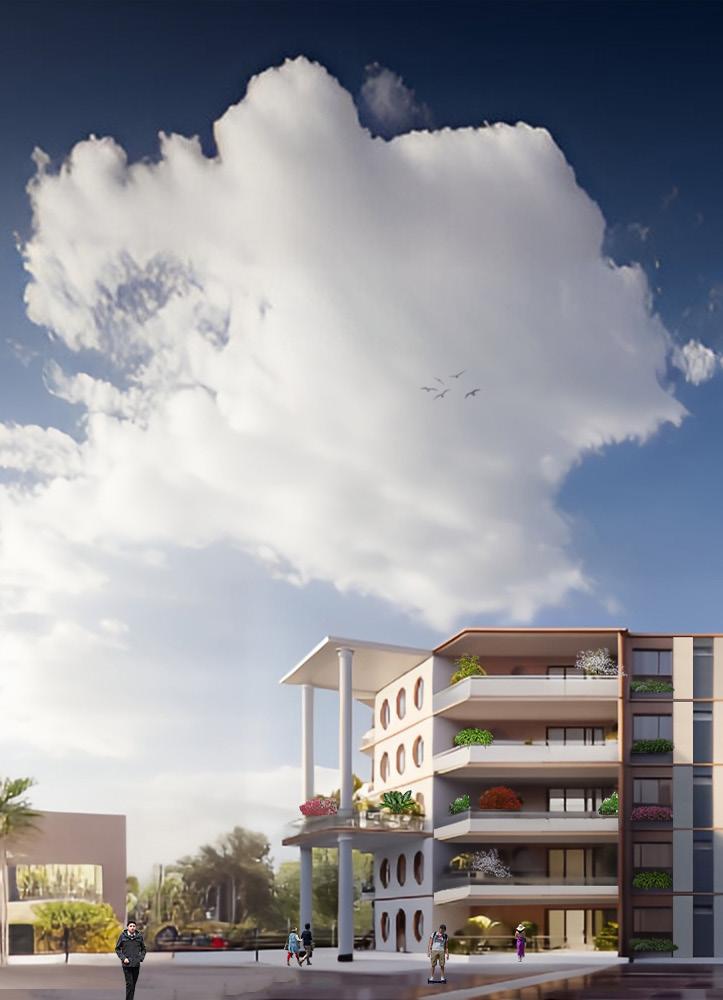

Design aims to provide luxury condos for nearly 4 families along with other amenities, The proposed scheme consists of three types of units

Idea behind the design of these 3 luxury apartment is to create an interactive space between nature and human, The apartments are designed in a way each and every flat receive natural day light and cool breeze from the balconies, every angle in the apartment designed to reduce consumption of electricity where it follows sustainable design, at every 3 floors there is a terrace garden where main idea is to provide air purifying plants which helps in maintaining clean space and also acts as interactive space
