SATA Wood Finishing

The Complete Product Line for Wood Finishing

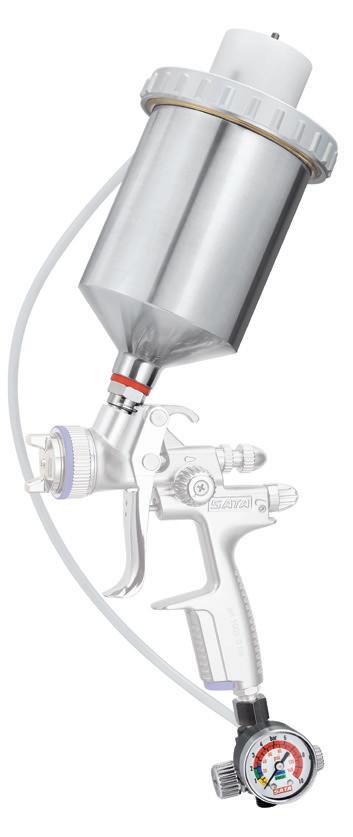

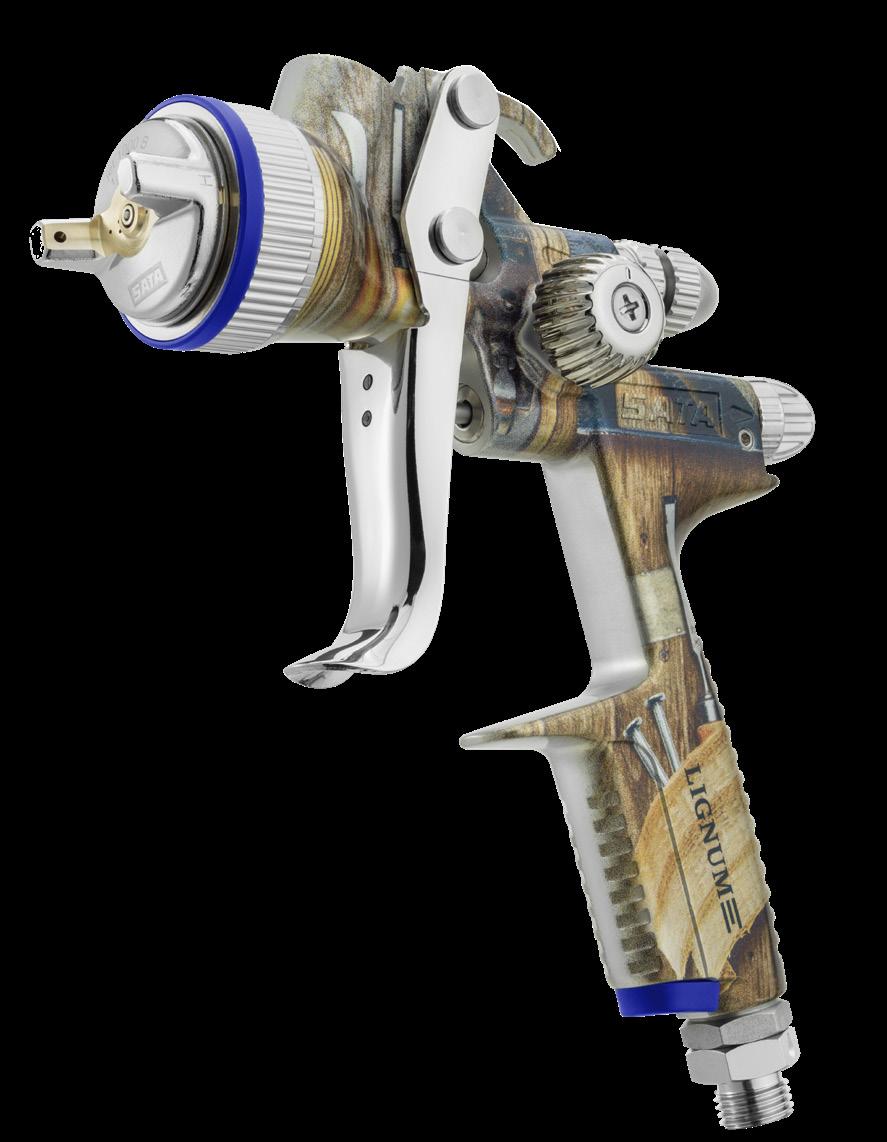

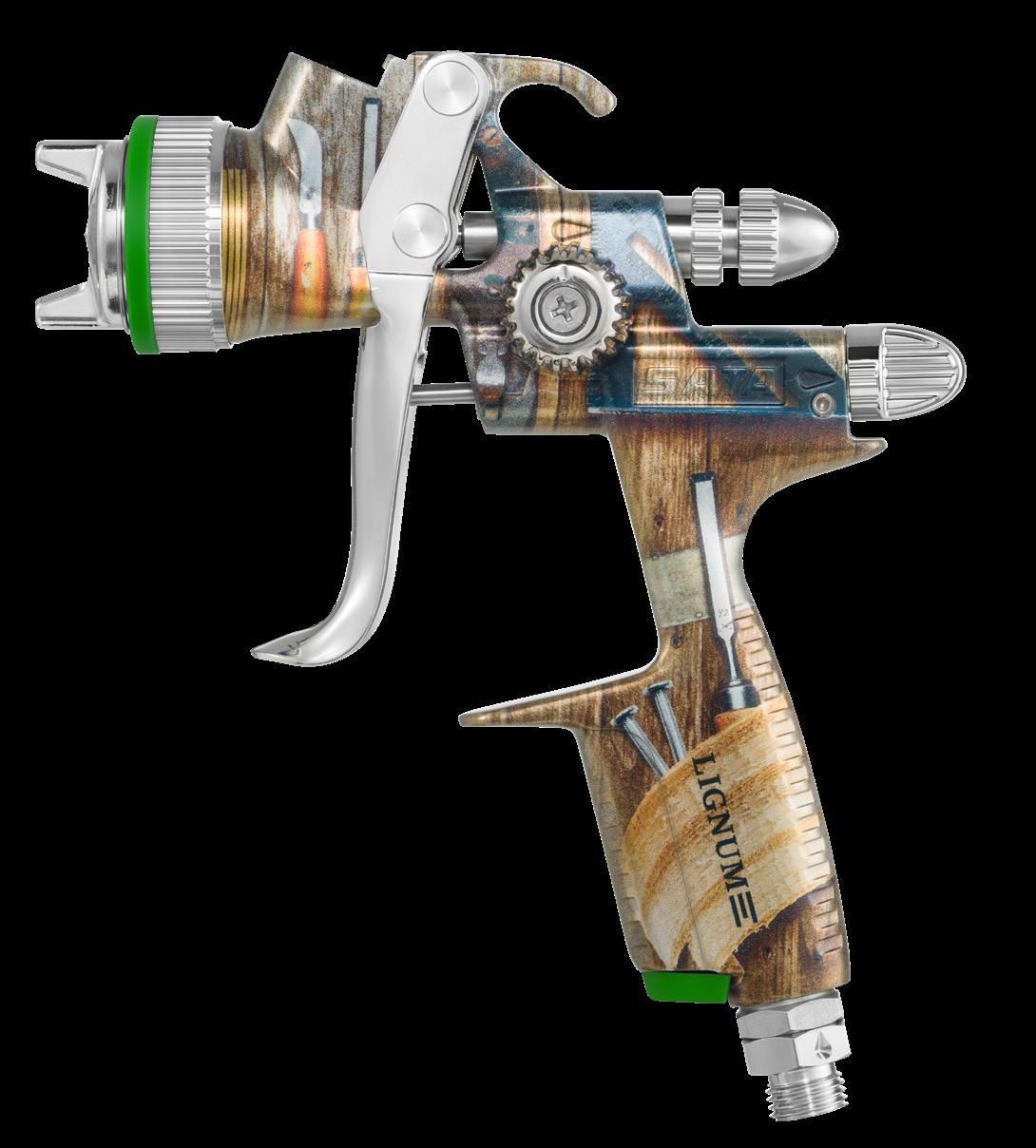

SATAjet 1000 B LIGNUM 3

– the all around spray gun

The SATAjet 1000 B LIGNUM 3 is a must for every woodworker. Due to its comprehensive range of available nozzle sizes and its versatile selection of accessories, such as pressurized and agitator cups, a host of many different spray media can be perfectly applied: from low-viscosity wood stains and clearcoats to glues and other thixotropic materials. With extensions available in various executions, even areas of difficult access can be easily coated.

PRODUCT BENEFITS

Perfectly suitable for typical applications in the wood finishing industry − in special wood optics.

„ Robust spray gun with anodized spray gun body, lightweight and optimized ergonomics

„ Fully equipped with round/flat fan control and material flow control as well as air micrometer

„ Low cleaning and maintenance effort

„ Special air passages on the air cap horns prevent material accumulations caused by overspray

„ Large and smooth material passages for improved material flow − makes the paint job safe and minimizes cleaning efforts

„ Extensions for SATAjet 1000 B RP upon request

Note: The model SATAjet 1000 B LIGNUM 3 is technically identical to the SATAjet 1000 B. The sophisticated refining process of the spray gun surface may entail slight color shade differences. Color changes, e.g. by the influence of light, are also possible.

SATAjet 1000 B Lignum 3

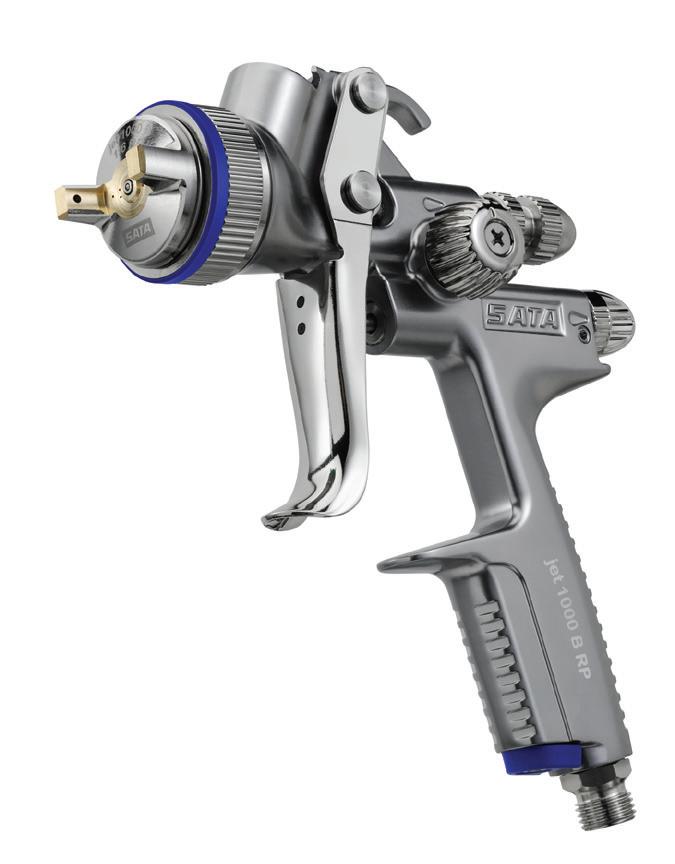

SATAjet 1000 B

For Universal Coatings

The SATAjet 1000 B is the multi application choice amongst gravity flow cup spray guns for craft and industry. Due to the wide range of nozzle sizes and accessories available, such as pressurized and agitator cups, various materials can be perfectly applied: low-viscosity stains, clear coats, texture finishes and glazes as well as spray-on glues and other thixotropic products.

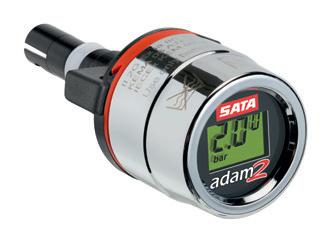

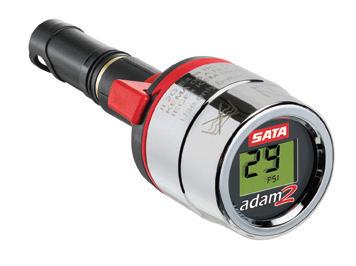

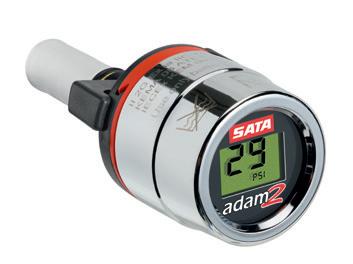

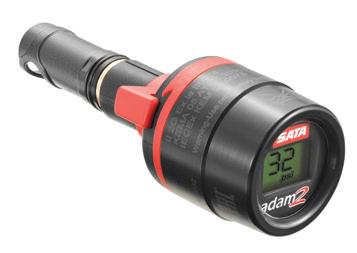

adam 2

To upgrade non-digital spray guns to "DIGITAL" –the version for retrofitting the SATAjet 5000 B and SATAjet X 5500 Standard without integrated digital pressure gauge. Ensures correct setting and display of the gun inlet pressure for highest reproducibility.

Turns a non-digital spray gun into a "DIGITAL" - for retro-fitting SATA spray guns without integrated digital pressure gauge. Ensures correct setting and display of the gun inlet pressure for highest color match precision.

„ For the application of a wide range of materials, from primer and paint to glue and separating agents.

„ Universally adjustable spray pattern with fine atomization for a high work speed.

„ Large range of accessories available, including extensions, slit nozzles and nozzle set-ups for glue application.

SATA adam 2 with dock and display Fits SATA standard size spray guns, excluding minijet and jet 5000 series Art. No. 160853

SATA adam 2 U air micrometer with dock and adam 2 display Art. No. 195222

SATA adam 2 mini with dock and display

SATAminijet 4400 B

SATAminijet 3000 B

SATAminijet 4 Art. No. 160887

SATA air micrometerr with gauge, 1/4 " (male thread and G 1/4" (female thread) Art. No 27771 Micrometer

Top coat spray guns for perfect high gloss finishes

Wood finishers achieve high gloss surfaces with SATA high performance spray guns. Their nozzle sets have been designed to allow perfect application of modern stains, glazes, single-stage materials and clearcoats. Due to a special SATA "Tuning" during the final inspection, they meet highest demands in terms of color match, brilliance, color effects, material distribution and gloss level.

„ SATA high performance spray guns are made of forged aluminum and finished with a high-quality chrome plating

„ With their fluid tips and paint needles being made of stainless steel, they can be used for the application of both solvent-based and waterborne paints

„ Round/flat fan control and air micrometer are standard features.

„ The gun handle as well as all control elements are ergonomically formed for perfect gun control

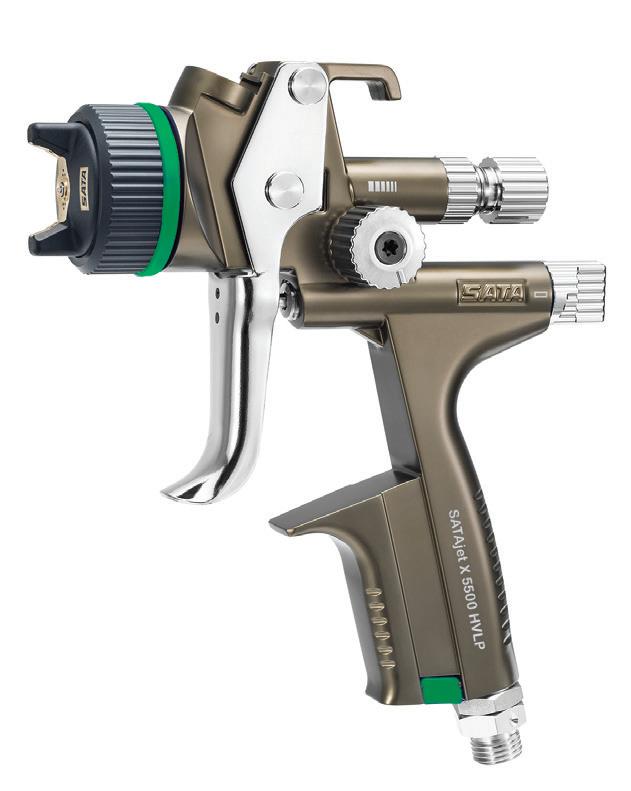

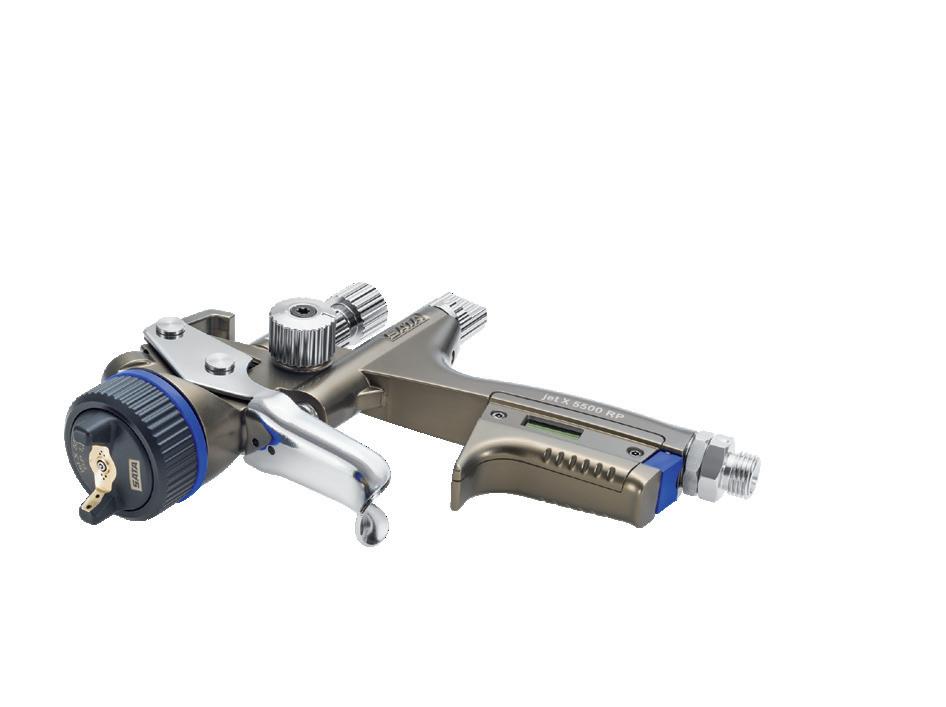

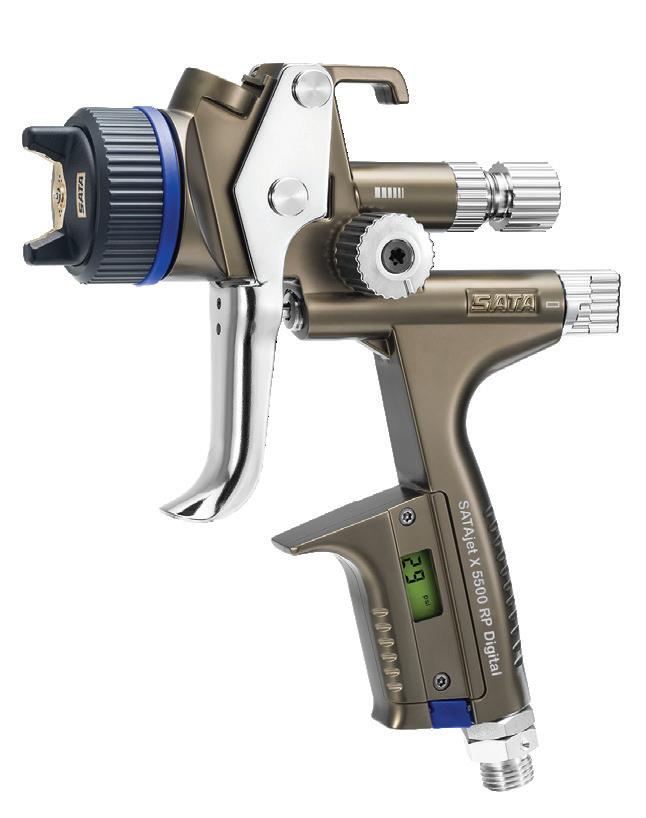

SATAjet X 5500

Revolutionary. Efficient. Silent. Consistent.

The SATAjet X 5500 featuring the new X-nozzle system now defines a wholly new application standard for the future.

„ Choice between "I" and "O"-nozzle sets

„ Noticeably quieter: Whispering nozzle™ reduces noise level

„ Matches each application requirement, such as specific characteristics of the paint system, climatic conditions and application method (application speed/ application control)

„ Optimized material distribution for enhanced spraying uniformity and atomization with both spray fan shapes

„ Low maintenance: No air distribution insert required

„ Constant fan size across the entire nozzle spectrum

„ Robust in their design, SATA spray guns are low in weight

„ The spray guns are easy to clean and maintain, due to self-adjusting seals, paint needles protected from paint mist, sturdy air cap threads and short material passages

„ The inlet pressure can be precisely adjusted and controlled either with an integrated or a retrofit electronic pressure gauge

The SATAjet X 5500, achieving brilliant finishes:

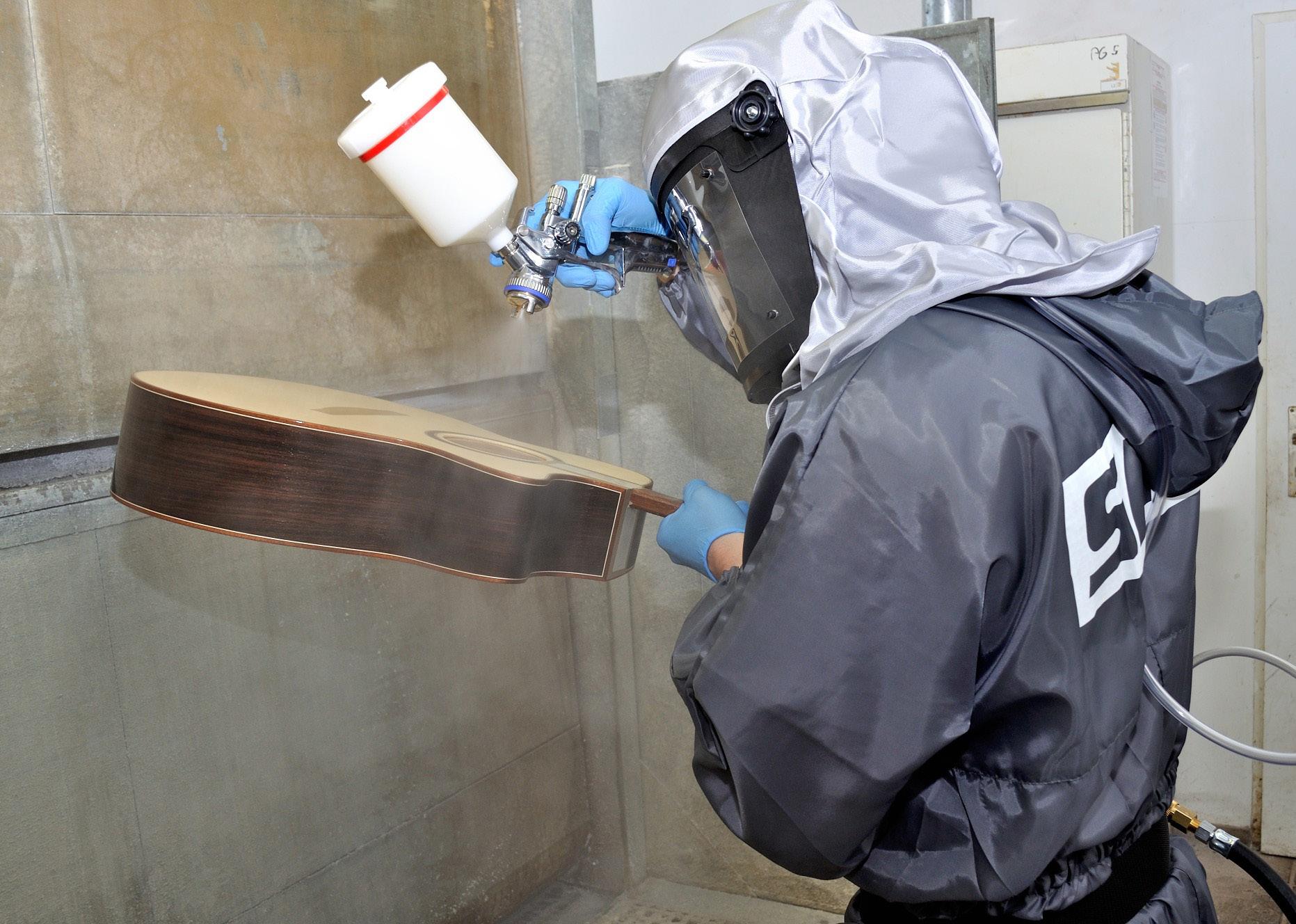

Whether it be in coating furniture, marine yachts or high quality musical instruments– regardless of the paint system being used.

„ The optimized atomization concept allows for considerable material savings

Optimized atomization well suited to glazing and shading.

Whether for basecoat, clear coat or single stage material, please ask your SATA dealer or consult our website for the correct nozzle size: www.sata.com/SATAjetX5500

SATAjet 1000 K

The lightweight universal pressure-fed gun for large surface applications

„ Allows connection to all sorts of material supply systems, such as pressure pots, double diaphragm pumps and central paint supply systems

„ Suitable for the application of various materials –waterborne or solvent-based

„ Sturdy, easy clean surface

„ Special air flow at the air cap horns reduces overspray settling at the air cap

„ Optional: fluid tip and paint needle with lifetime prolonging surface

„ RP: 14.5 cfm at 35 psi; HVLP: 19 cfm at 35 psi

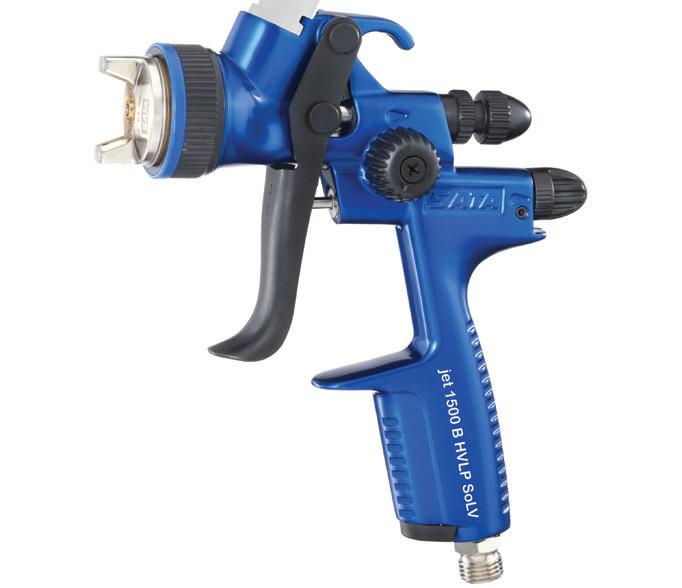

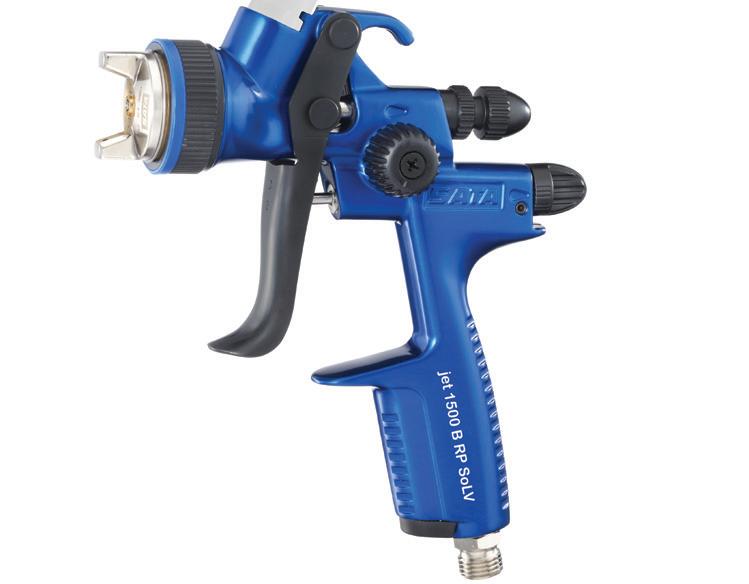

SATAjet 1500 B SoLV

For High-end Wood Coatings

The SATAjet 1500 B provides fine finishes with cost saving transfer efficiencies. This spray gun is ideal for high solids urethane topcoats, as well as ultra-high end metallic or pearl finishes, allowing you to achieve a smooth, automotive type finish with ease.

„ Designed for Full System Application: solvent-based basecoats, either Low VOC or National Rule as well as sealer and clearcoat

„ Nice-sized, even spray pattern

„ Wide air pressure range from 7 – 35 psi. HVLP compliant 26 psi, RP compliant 29 psi

„ Fast working speed

„ Excellent value spray gun

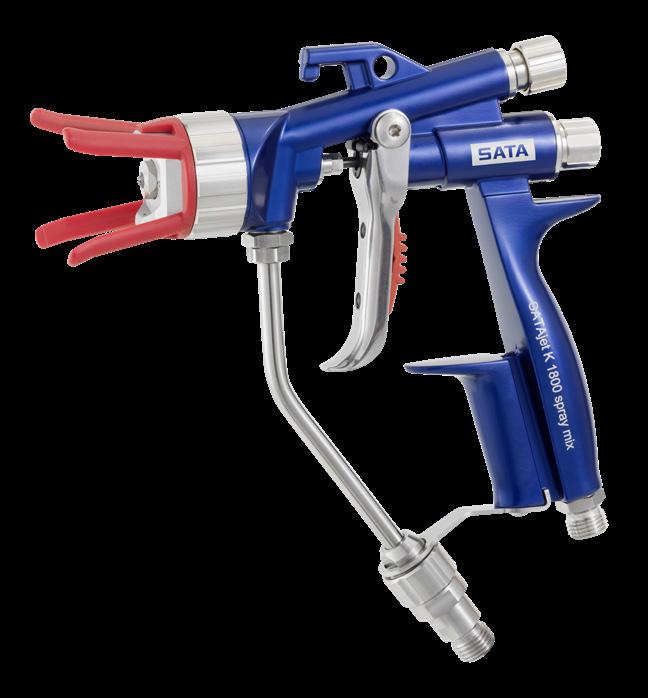

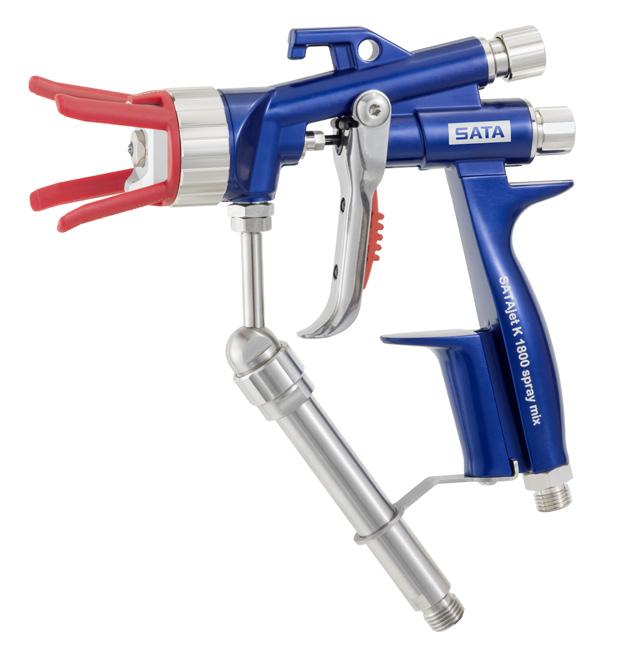

SATAjet 1800 K spray mix

Ultra-high pressure coating has never been easier

The new lightweight gun in this spray gun class with its well-balanced gun body combines an optimised ergonomic design with a finely-tuned nozzle range and with the innovative clampLock paint needle system.

„ Ergonomic design with a well-balanced gun body

„ Low spray gun weight

„ Single-axis trigger system for low trigger forces and fatigue-free working

„ Innovative, two-part clampLock paint needle system

„ Material connection system for the sieve or insert filter

„ High surface quality at a pressure, range of 500-3625 psi

„ Water - and solvent-based paint systems

Call for part numbers on spray mix spray guns

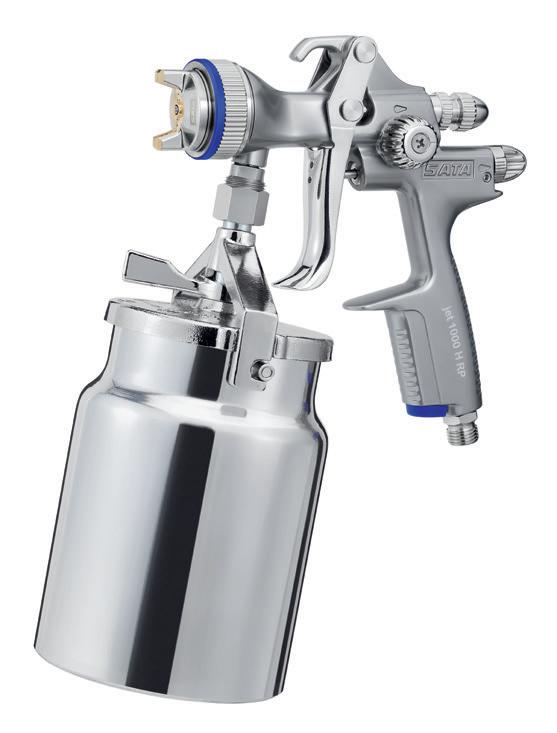

SATAjet 1000 H RP

„ Spray gun with 1.0 l suction cup

„ High work speed and surface efficiency due to optimized high pressure technology

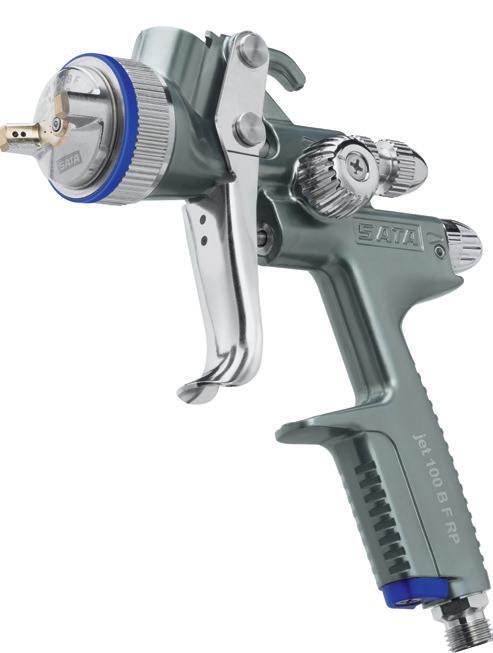

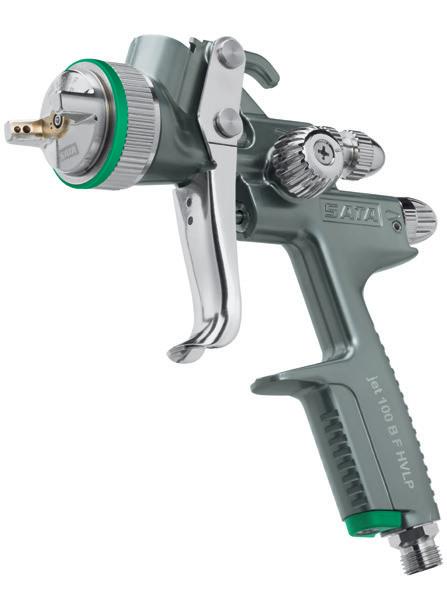

SATAjet 100 B F

Thrifty. Low maintenance. Economical.

The SATAjet 100 B can be used for a wide range of applications due to its extreme flexibility in setting the atomi sation pressure. Due to the wide spray fan and fine ato misation, sealers and top coats can be applied in a continuous flow despite the higher material viscosity. This saves valuable working time due to less grinding effort.

„ The SATAjet 100 B F RP and SATAjet 100 B F HVLP lend themselves perfectly for the application of waterborne as well as solvent based primer and sealer materials.

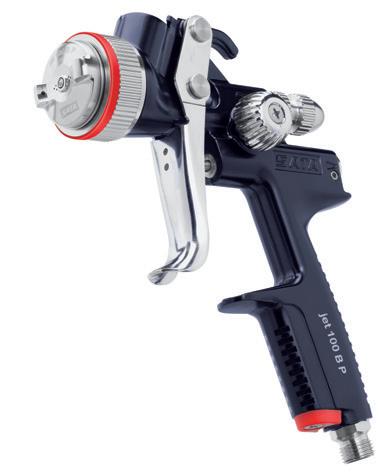

„ The SATAjet 100 B P is specially designed for the application of polyester spray putty/filler.

„ The SATAjet 100 B F RP is the perfect choice for the application of UV primer, using a 1.1 UV nozzle.

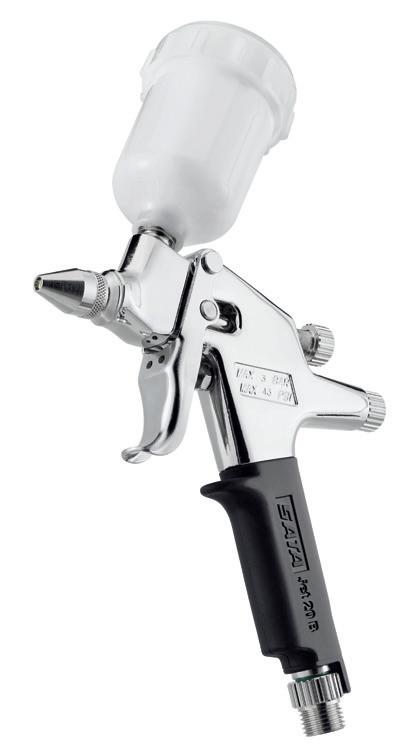

SATAjet 20 B

The SATAjet 20 B can greatly help to speed the application of the glaze to the different profiles of cabinet doors during the finishing process. Not only does it save time, it can also save a large amount of glaze and wiping rags.

designed for use in all areas of creative wood finishing:

„ Airbrush with round fan in exceptional spray gun design – ergonomically shaped for fatigue-free working

„ Durable and low maintenance

„ Material flow control

„ Low maintenance due to self-adjusting seals

„ Flexible air supply - inlet connection available at the base and at the rear of the gun.

SATAminijet 4400 B /1000 K small size - big performance

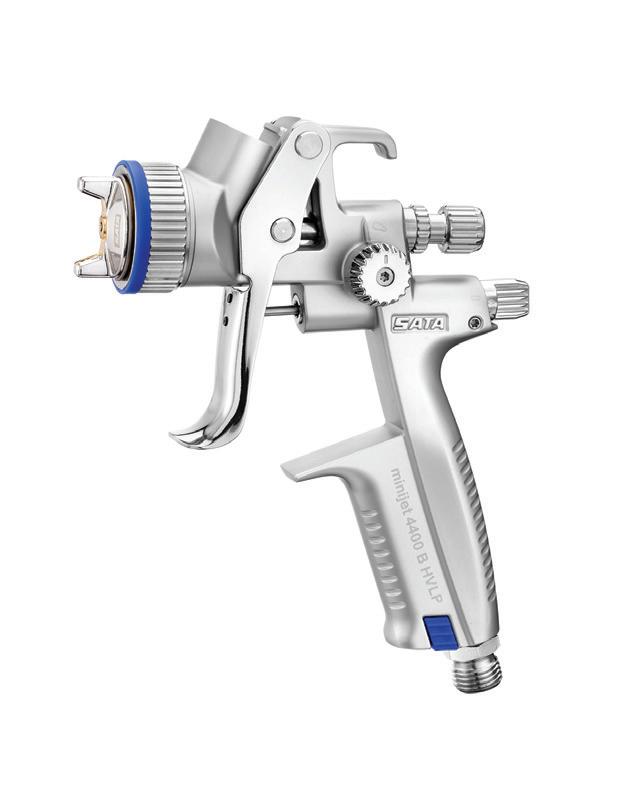

SATAminijet 4400 B

Brilliance in Miniature

Compact, lightweight gravity spray gun. Low pressure and CFM with a wide spray pattern range (from approx. ¼”-8”) makes the 4400 B an excellent choice for touch-up/ repair at the factory or in the field.

„ Easy to clean, corrosion-resistant pearlodized TM surface

„ Special "SR" nozzle sets for spot repairs

„ This spray gun allows the application of all modern paint systems - including waterborne

„ Large QCC cup connection for all cup sizes

„ RP: 7.0 cfm at 36 psi; HVLP: 4.1 cfm at 29 psi

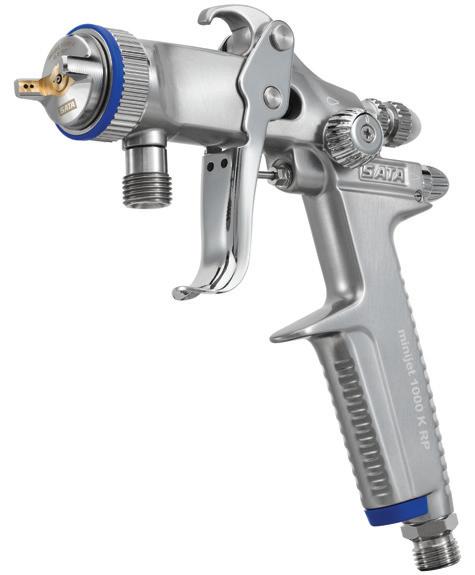

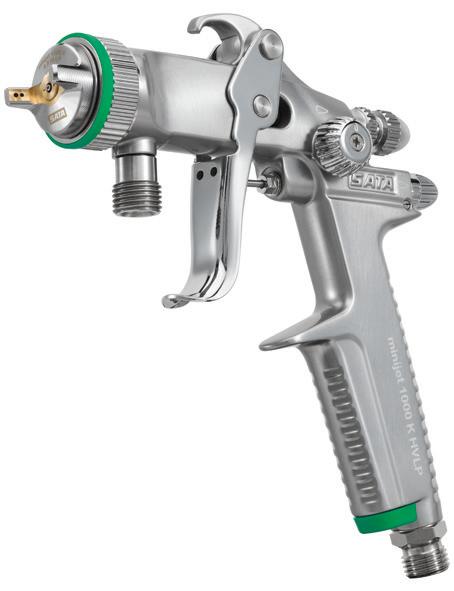

SATAminijet 1000 K

The compact industrial gun

Compact, reduced size spray gun with full size attitude! Great for specialty applications.

„ Special spray gun for areas of difficult access, such as drawers, or when painting in overhead positions

„ Excellent for spray only stains, uses low pressure which reduces bounce back in profiles

„ Sturdy, easy-to-clean anodized surface

„ Designed for less hand fatigue and longer continuous work

„ Also available in siphon cup version, SATAminijet H, 1.4 nozzle

„ RP: 7 CFM at 36 psi; HVLP: 4.2 CFM at 29 psi

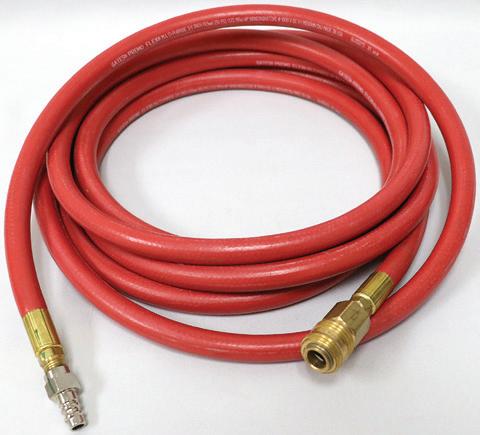

Air Hoses

with nipple and quick connect coupler (brass) sealed with Loctite

Art. No. 676035 Breathing hose 3/8" x 35 ft

Art. No. 676050 Breathing hose 3/8" x 50 ft

Art. No. 676100 Breathing hose 3/8" x 100 ft.

SATA Cleaning Systems for spray guns

Spray gun cleaning is an important yet unpopular task amongst painters. SATA cleaning devices reliably help achieve correct gun cleaning which is of vital importance not only in order to maintain proper function of the spray gun, but also to increase the process security in the shop.

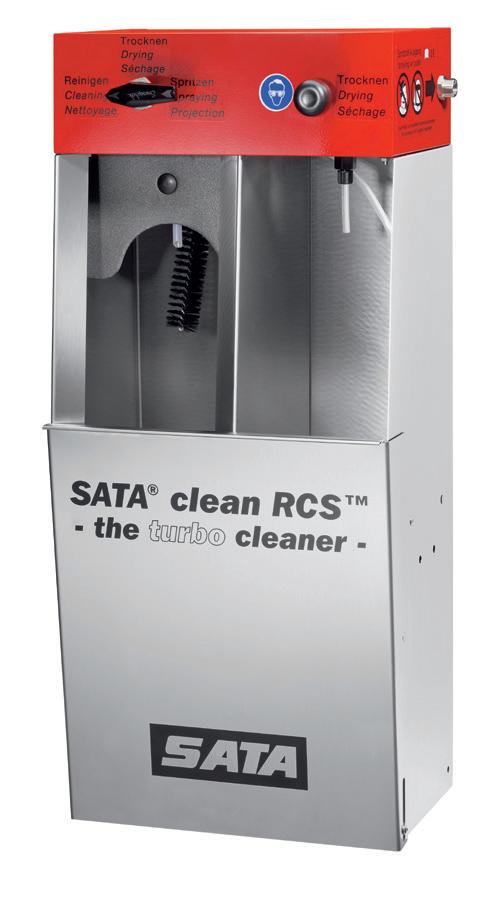

SATA clean RCS

the turbo cleaner

For body shops with high output and many color changes.

„ Rapid and safe color change when using disposable cups, such as SATA RPS

„ Thorough cleaning of the material passages

„ Eliminates the need for trips in and out of the booth, as it can be mounted inside the spray booth

„ Increases body shop productivity

Art. No. 145581

Specialty Gravity Cups

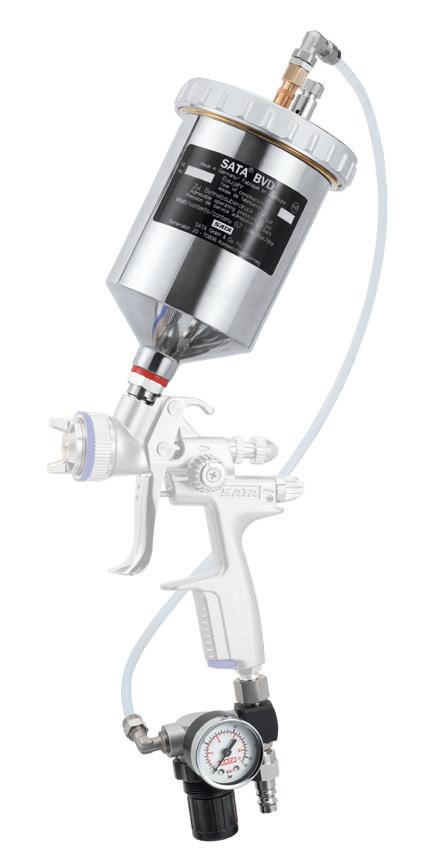

SATA BVD

„ 0.7 l QCC pressurized cup to retrofit your spray guns

„ For the application of high viscosity materials

„ Max. material pressure: 24 psi

SATA agitator cup (RWB)

„ Pneumatically operated, adjustable mixing of materials that tend to settle, such as emulsions or paints / colors with metallic or mineral components.

„ Suitable for all SATA spray guns with QCC cup connection

„ Size: 0.7 l

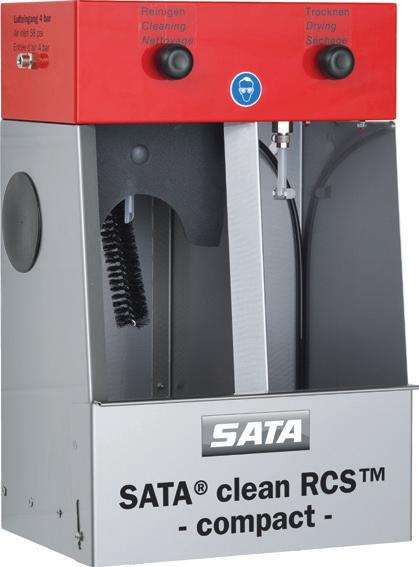

SATA clean RCS compact

„ To connect large cleaning agent containers

„ Recommended for wall-mounting inside the mixing room, as there is no need for spray air supply

„ Optional: Hose for extracting solvent fumes

Art. No. 192518

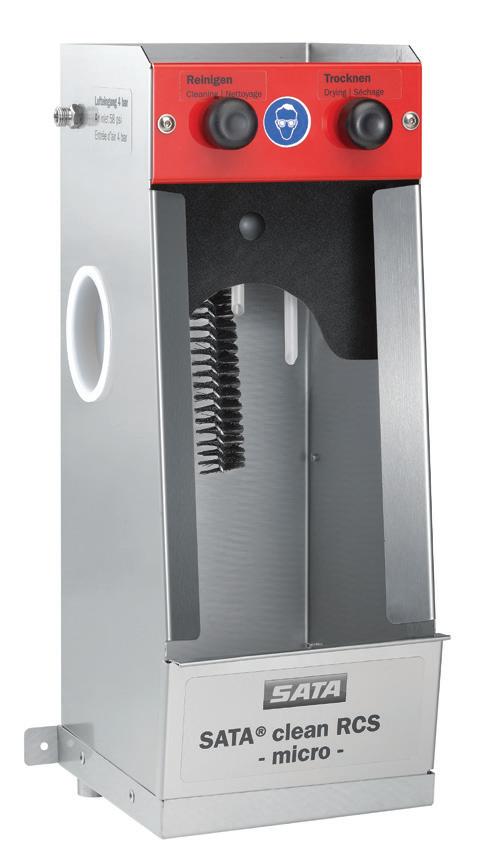

SATA clean RCS micro

The compact version is also available as space-saving option with a one-chambersystem.

„ To connect large cleaning agent containers

„ Recommended for wall-mounting inside the mixing room, as there is no need for spray air supply

„ Space-saving one-chamber system

„ Optional: Hose for extracting solvent fumes

Art. No. 202564

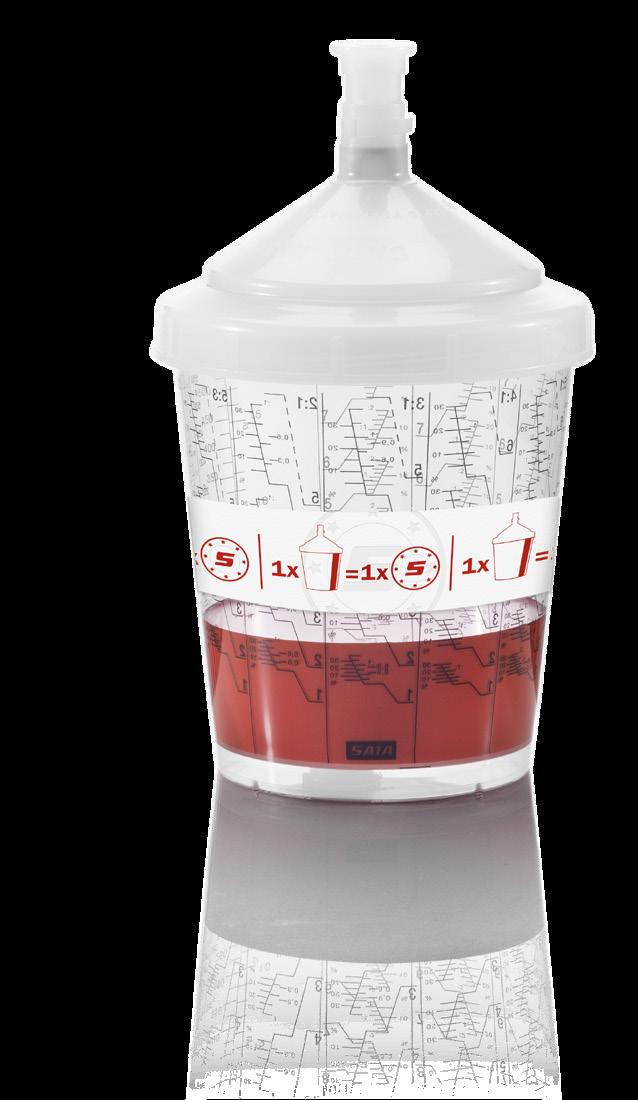

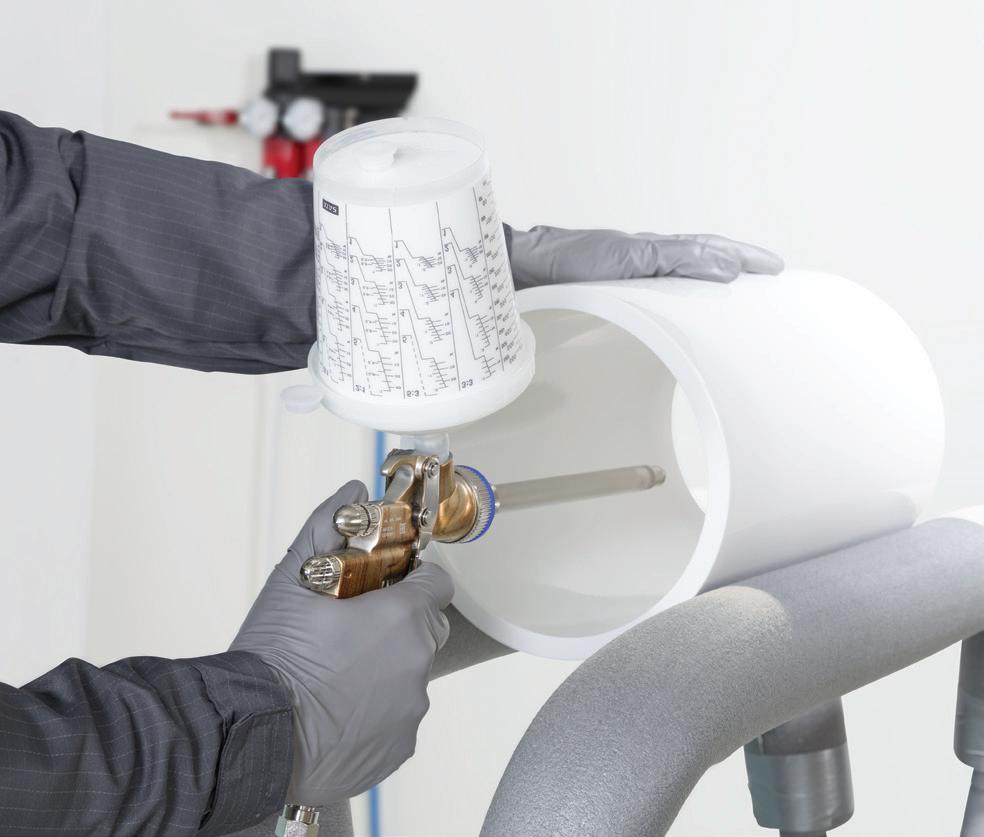

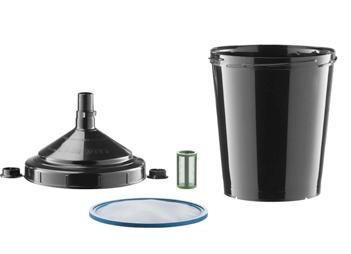

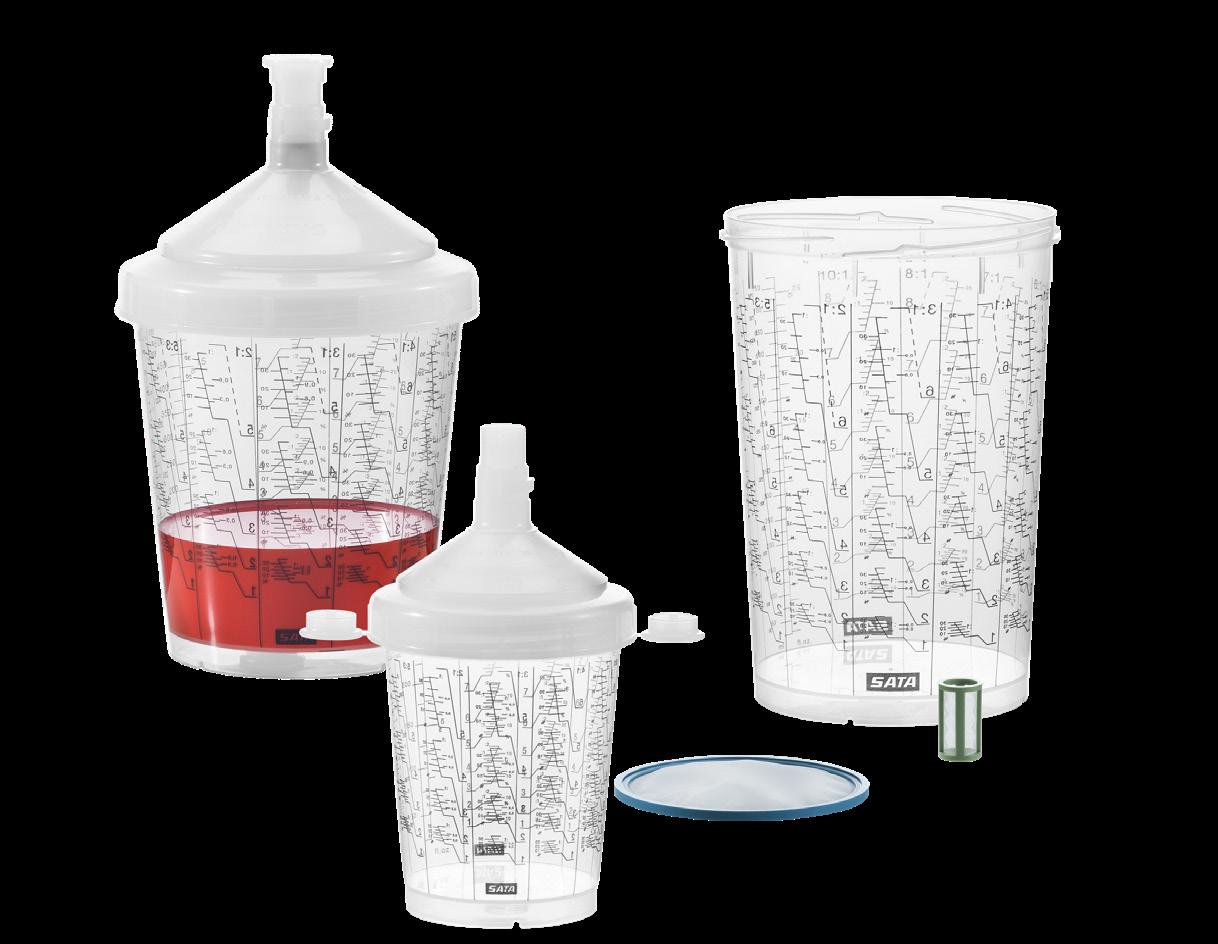

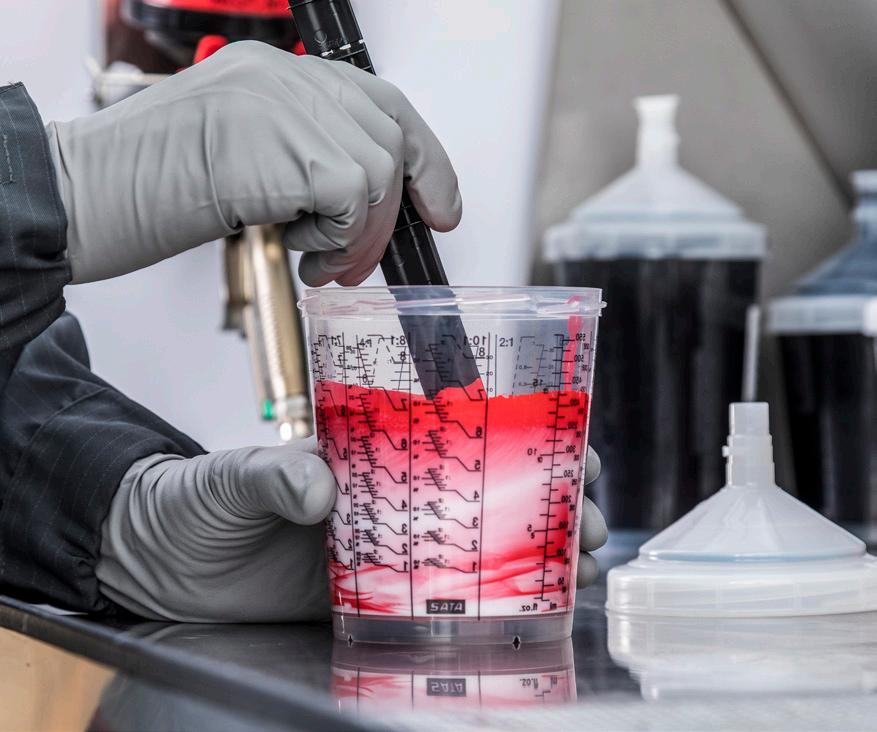

SATA RPS – The Original.

The safe, refillable cup system for professionals: easy, perfect, economical

SATA RPS (Rapid Preparation System) is the ideal cup system for shops focusing on perfect finishes and high profitability. It makes a painter's life much easier, considerably increases productivity and drastically reduces the consumption of cleaning solutions and solvents.

SATA RPS RPS 0.6 I

Content: SATA RPS 0.6 l cup, lid and filter

Art. No. 1010438 (125 µ, flat) pk of 60

Art. No. 1010488 (200 µ plug-in) pk of 60

Art. No. 1010545 (200 µ, flat) pk of 60

SATA RPS RPS 0.9 I

Content: SATA RPS 0.9 l cup, lid and filter

Art. No. 1011973 (125 µ, flat) pk of 40

Art. No. 1011981 (200 µ, plug-in) pk of 40

Art. No. 1012004 (200 µ, flat) pk of 40

SATA RPS RPS 0.3 I

Content: SATA RPS 0.3 l cup, lid and filter.

Art. No. 1010389 (125 µ, flat) pk of 40

Art. No. 1010397 (200 µ plug-in) pk of 40

Art. No. 1010420 (125 µ, flat) pk of 100

Art. No. 1010404 (200 µ plug-in) pk of 100

SATA RPS RPS 0.3 I for SATAminijet

Art. No. 1010553 (125 µ, flat) pk of 60

Art. No. 1010561 (200 µ plug-in) pk of 60

SATA RPS RPS 0.6 I UV

Art. No. 1010496 (125 µ, flat) pk of 60

Art. No. 1010503 (200 µ plug-in) pk of 60

CHARACTERISTICS

J Easy to use – only 3 parts

J Constant material flow, helping the painter to achieve perfect coating results just like child's play

J Allows very quick color changes - cleaning becomes almost irrelevant

J The special lid shape ensures complete consumption of the paint contained in the cup

J Large number of mixing ratios (up to 100 variations)

J Fits directly on all SATA spray guns

J Stable cup ensures safe storage of leftover material

J Reduces cleaning efforts and solvent consumption

J Available in the 3 cup sizes 0.3 l, 0.6 l and 0.9 l

J Different strainer types available

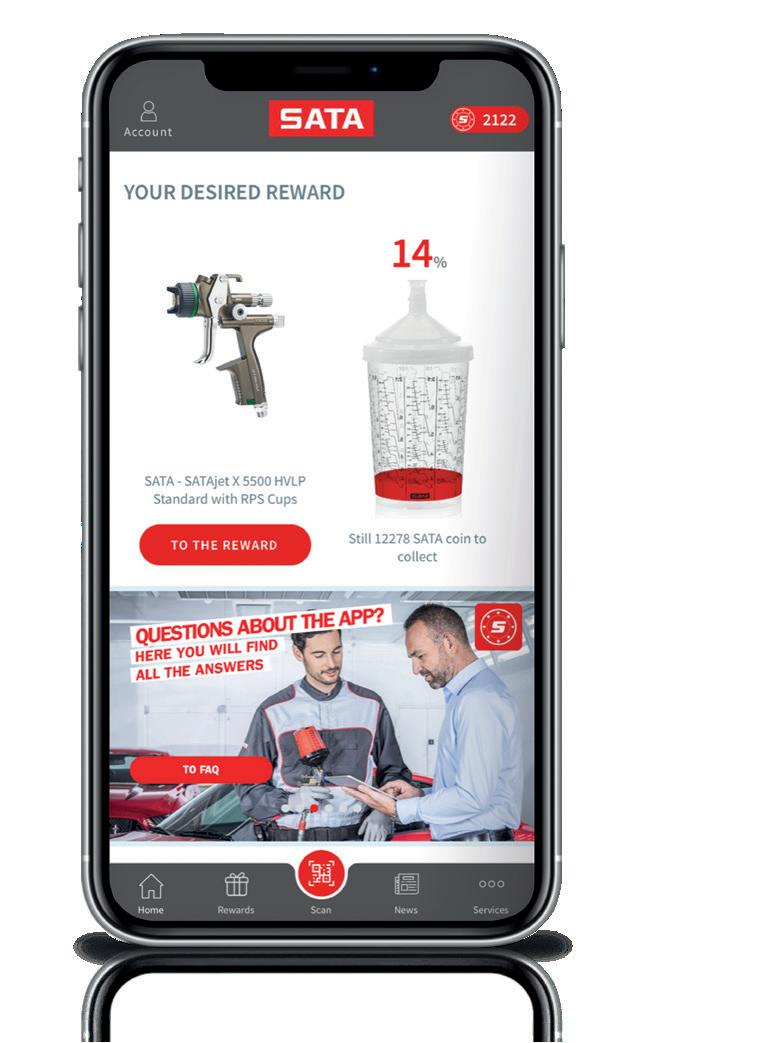

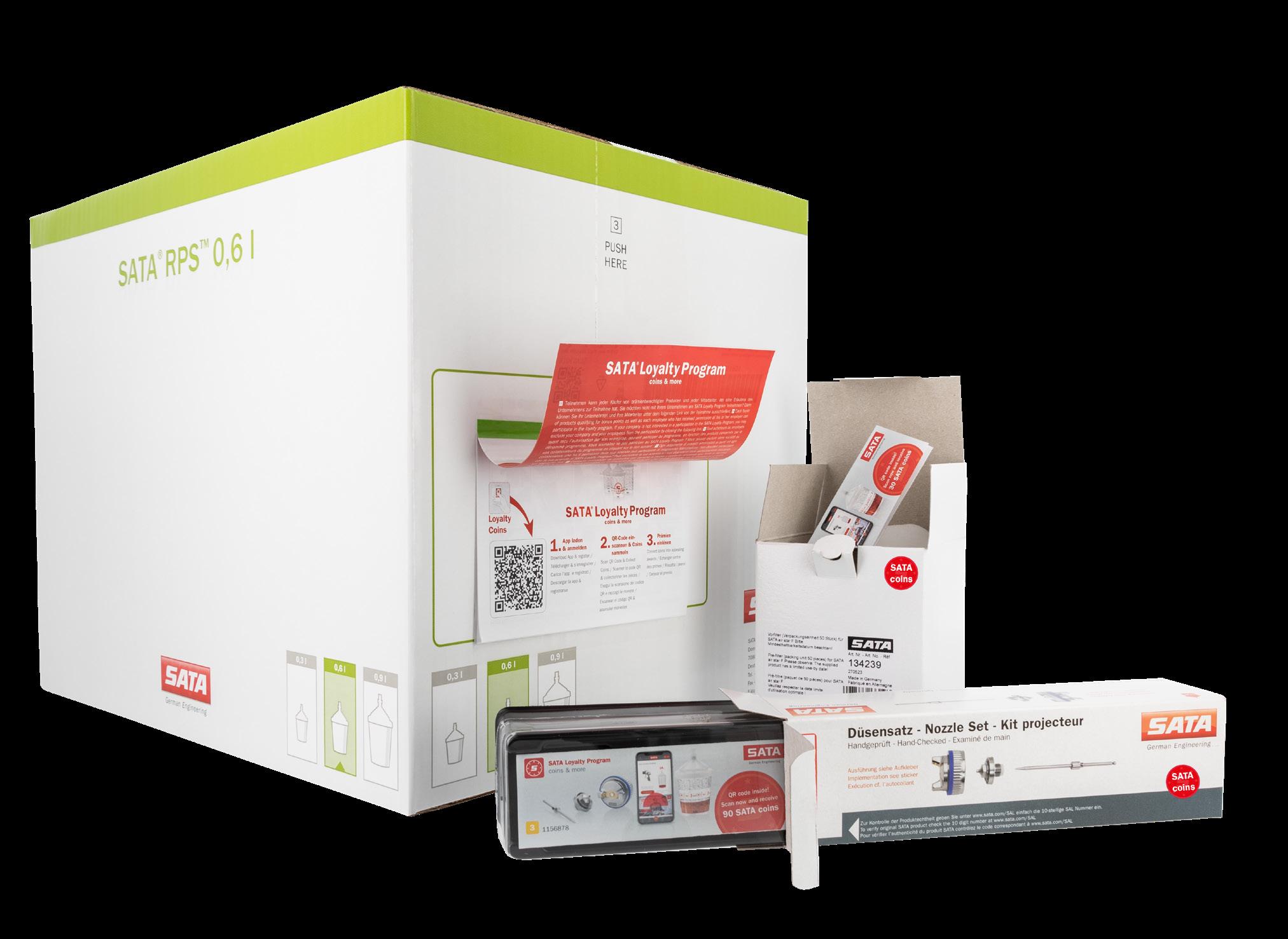

SATA Loyalty Program

coins & more

With the SATA Loyalty Program coins & more, SATA rewards its loyal customers with SATA coins, which can be exchanged for valuable rewards.

You can collect the coins by scanning Loyalty QR codes with the SATA Loyalty App.

You will find the QR code on the outside packaging of SATA RPS multi-purpose cups and inside SATA nozzle sets.

It's simple! Register directly online for the SATA Loyalty Program then download the SATA Loyalty App to your smartphone and start scanning!

INFO ABOUT THE PROGRAM

www.sata.com/coins-and-more

REGISTER

www.sata.com/register-now

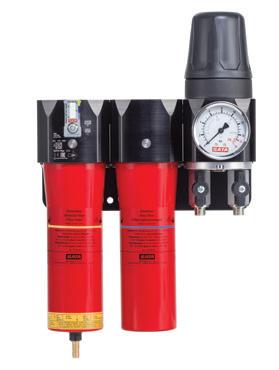

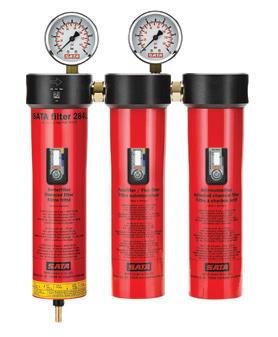

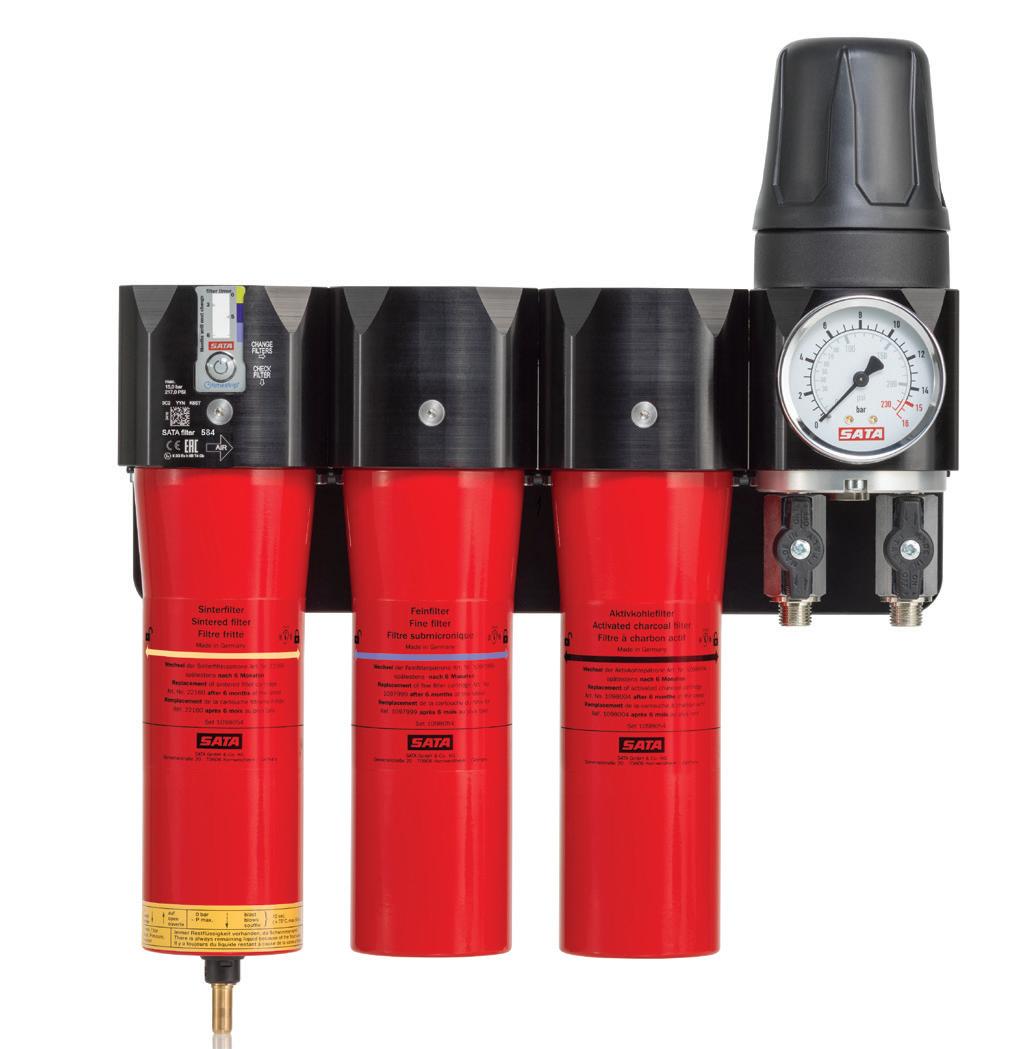

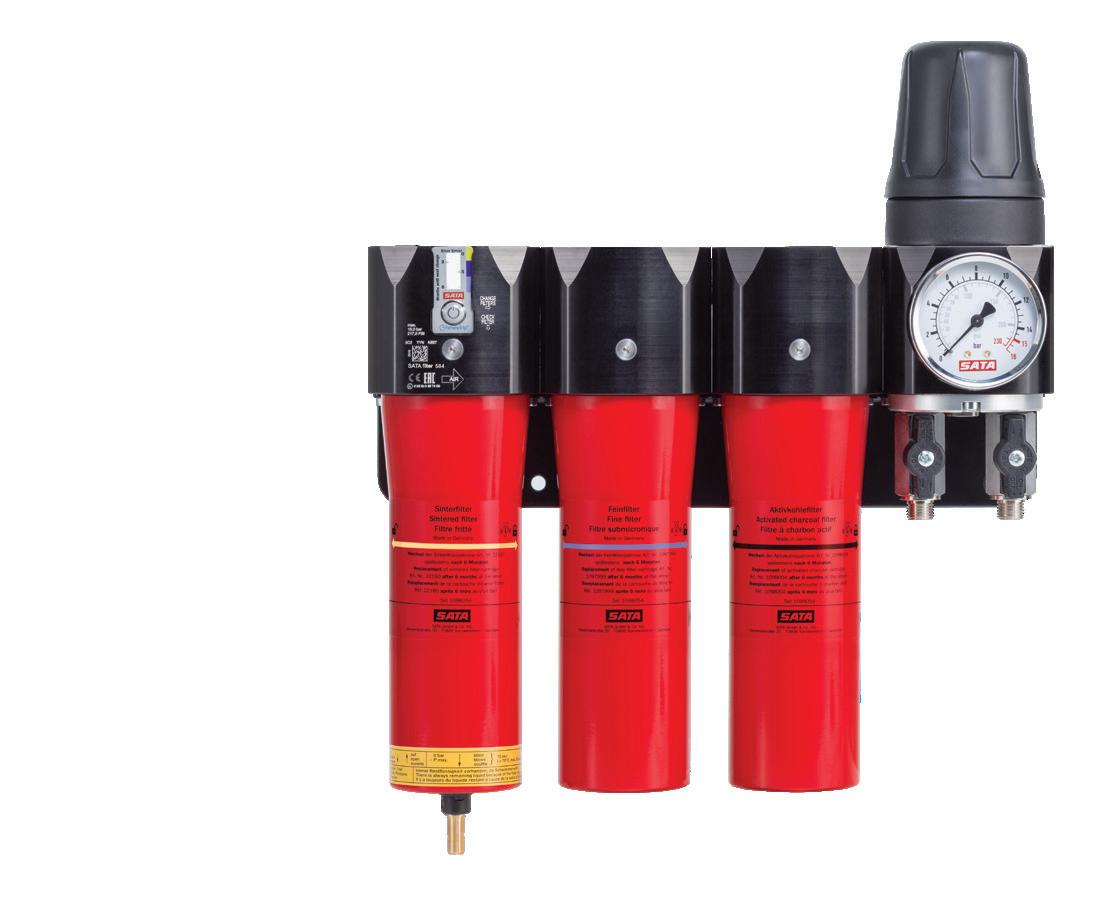

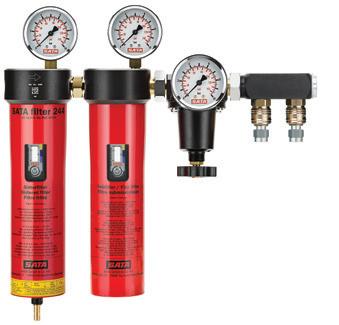

Filter Regulators and Breathing Protectionfor Perfect Finishes and Health Protection

The SATA air vision 5000 focus is on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely re-designed breathing air supply system. With its modern, ergonomic design, the hood can be adapted to fit almost any head shape, allowing the individual adjustment of its circumference, height and position.

w/carbon reg. set Art. No 214718

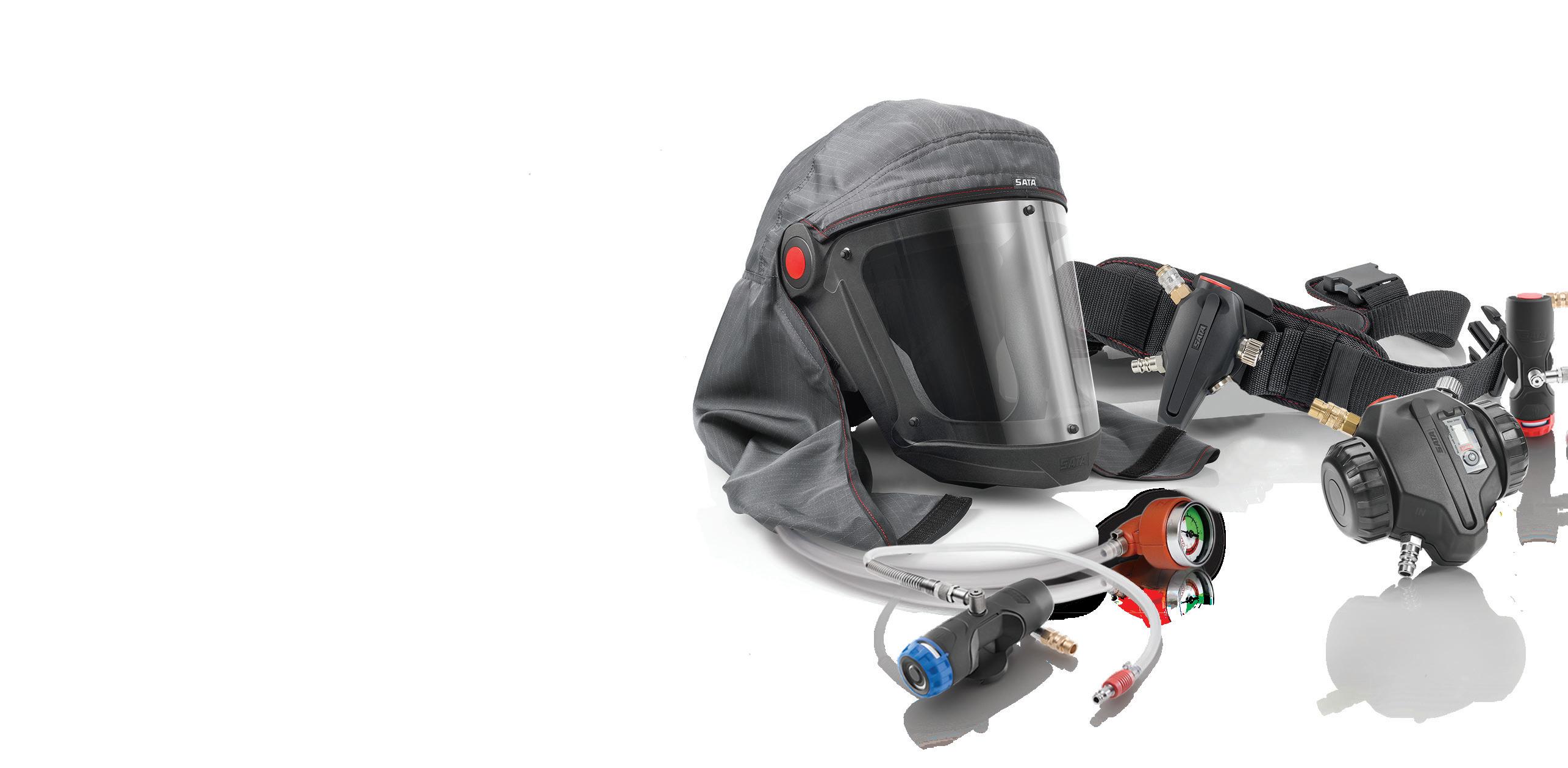

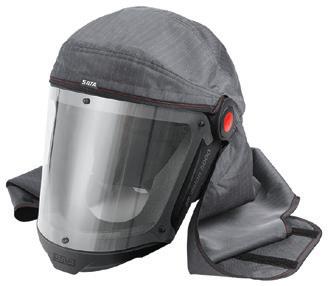

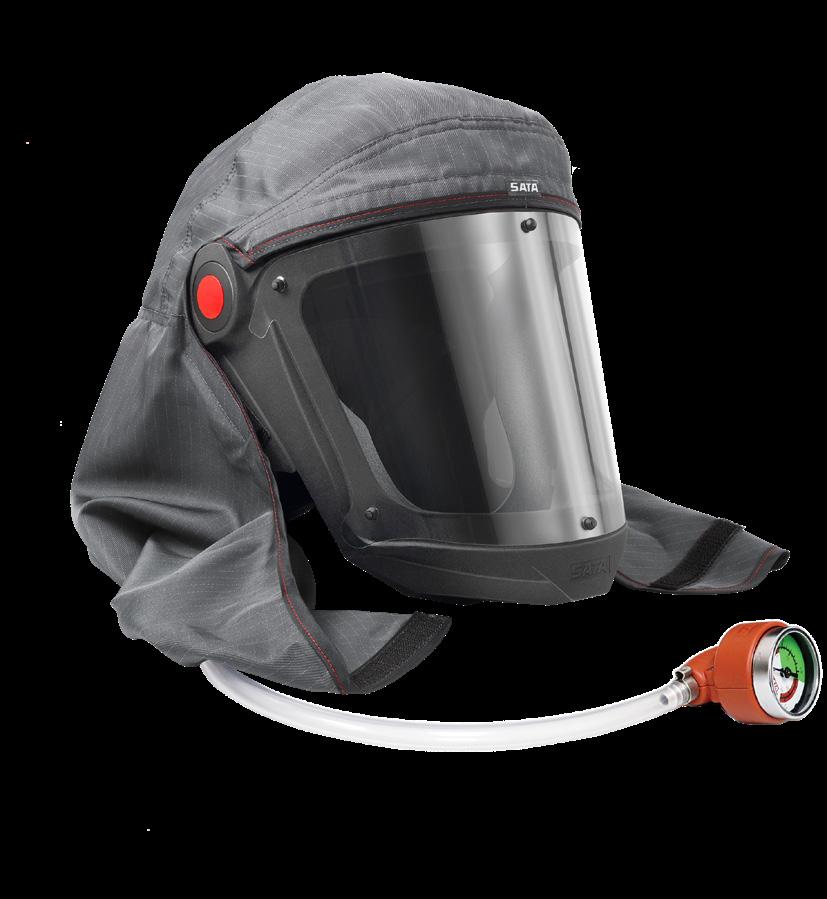

SATA air vision 5000

w/air regulator set Art. No 1005603

For the ultimate safety and protection

Whatever environment you are working in: Whether you want cooled or heated breathing air or simply looking for absolute safety from particle contamination – with the new add-on modules complementing the SATA air vision 5000 breathing protection system, you can be sure your health and comfort are both efficiently catered to.

„ Rigid bump cap for safer work conditions

„ Large field of vision: approximately 116" at a maximum possible angle of 220°

„ Replaceable visor foils allow unchanging clear view

„ Soft-stream flow-optimized air distribution in the hood

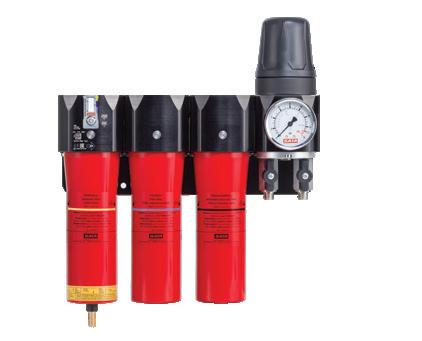

SATA air vision 5000 system design with SATA filter systems

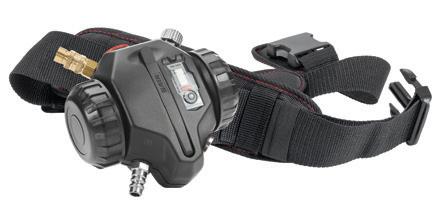

SATA air carbon regulator set

Includes SATA air regulator belt, SATA air carbon regulator Art. No 1000075

SATA air carbon regulator only

Can be swiveled and adjusted on belt unit by up to +/-45°. To be used with two stage filter unit Art. No 1000182

SATA air regulator set

Includes SATA air regulator belt, SATA air regulator (no charcoal) Art. No 1000116

SATA air regulator only

Can be swiveled and adjusted on belt unity by up to +/-45°. To be used with three stage filter unit Art. No 1000207

PRODUCT BENEFITS

„ High breathing air quality: The air supply, independent of the ambient air, eliminates all potential risks for the painter by contaminated spray booth air.

„ No inhalation resistance, very comfortable breathing

„ High level of protection, suitable for prolonged application intervals

„ Visor allows one-hand operation

Non-reflecting view due to solvent-resistant special foil

Little operating costs, quick pay-off of purchase costs

Ergonomic design with a host of options for individual

Soft-stream flow-optimized air distribution in the hood

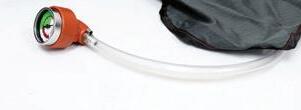

Safety gauge with green zone notifies user of adequate air pressure, to maintain a constant positive pressure inside the hood, which prevents overspray

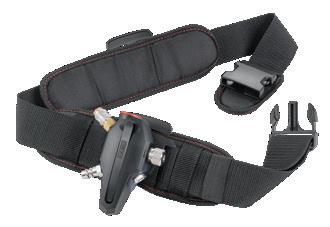

SATA air regulator belt Plus

Accessory, added length, thicker, larger 1030668

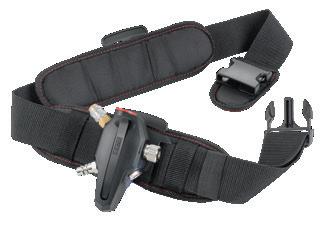

SATA air regulator belt

Comfortably cushioned belt allowing the individual adaptation and upgrade for modules 1000223

SATA air vision 5000 hood

SATA air vision 5000 hood only with pressure gauge

The ergonomic design with a host of options for individual adaptations and soft-stream flow-optimized air stream provides highest wearer comfort Art. No. 1005596

„ Large field of vision

„ Reduced sound level: 64dB (like a conversation in 3' distance)

„ Rigid bump cap for safer work conditions

„ Replaceable visor foils allow unchanging clear view onto the workplace

„ The SATA CCS Disks (Color Code System) allow to personalize hood, SATA air regulator and SATA air carbon regulator

„ To be used in conjunction with a recommended SATA filter unit, air supply to be effected via approved breathing hose

SATA air vision 2000 and SATA air star C options:

SATA vision 2000

The complete health protection system

Supplied-air respirator hood with very high wearing comfort and optimum hygiene. The system perfectly complies with painters' requirements and protects their respiratory tracts, eyes, skin and hair (especially important for the application of waterborne paints).

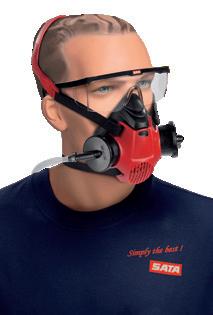

SATA air star C

The supplied-air half mask

S kin-friendly mask made of TPE* with anatomically shaped sealing frame, solvent-resistant.

„ Safe seat, free field of vision (protective goggles Part No. 97485 required, not included in delivery)

„ No accumulation of heat and humidity inside the mask

w/charcoal filter

No. 36384

belt valve

No. 60707

w/charcoal filter Art. No. 137547

w/Ind. belt valve Art. No. 137570

SATA Filter System 500 and 200 Series

Every shop requires compressed air for many different applications, such as for painting, operation of supplied-air respirator systems, paint pressure tanks, material pumps, blow guns or cleaning devices. According to the field of application, there are different requirements concerning air purification: In any case, SATA offers the appropriate solution.

SATA Filter 500 series

„ Higher adsorption of contaminations (compared to SATA filter 484) due to the new sintered activated charcoal filter

„ Air flow with approx. 135 cfm

„ SATA filter timer to monitor the exchange intervals of all filter cartridges

„ Synchronized maintenance: Filter maintenance only necessary every 6 months for all stages

„ Bayonet lock with haptic and acoustic feedback

„ Fine filter and activated charcoal filter cartridges fit perfectly, simply insert – without screw fittings or additional seals

„ CCS color coding of filter housing and filter cartridges for safe maintenance.

„ Upgrade of a SATA filter 544 to a 584 possible through a simple connector system

„ Maintenance-free sealing elements

„ Reverse air-flow options available

„ Flow-optimized cyclone separator with enhanced particle separation efficiency of particles > 5 µm

SATA Filter 544

Dual-stage filter (without activated charcoal) – suitable for the application of solvent-based paints. Art. No. 1100990

SATA Filter 584

Triple-stage filter (with activated charcoal) – to apply VOC-compliant paints, such as waterborne or high-solid paints. Art. No. 1099953

SATA Filter 544L

Dual-stage filter in-line (without activated charcoal) – suitable for the application of solvent-based paints.

Art. No. 1124932

SATA Filter 584L

Triple-stage filter in-line (with activated charcoal) – to apply VOC-compliant paints, such as waterborne or high-solid paints. Art.No. 1101716

SATA Filter 200 series

Along with the 500, the 200 filter series is the most versatile modular filter system currently on the market but at an unbeatable price.

„ Air flow 72 cfm at 90 psi

„ Fine filter filtration to 0.01 micron

„ Maximum protection for the painter

SATA Filter 244

Double-stage sinter filter/fine filter with pressure regulator and outlet module Use to connect regulated air to air tools and breathing air

Art. No. 44404 with 2 drop manifold

Art. No. 44404-4 with 4 drop manifold

SATA Filter 284

Triple Stage (in-line) An economical three-stage filter unit. Stages include a 5 micron filter with automatic condensation discharger, a 0.01 micron fine filter and an activated charcoal filter for breathing air or spraying waterborne. Used with the SATA supplied air respirator industrial belt valve or ensuring removal of oil residue when spraying water borne paint. Art. No. 189290

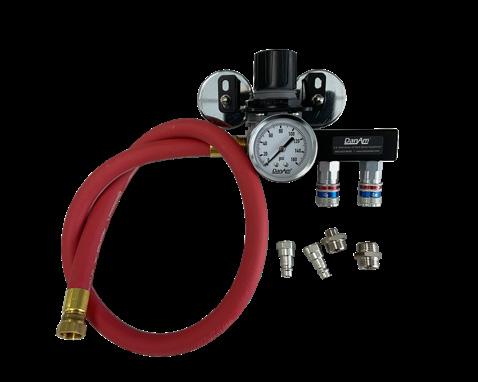

Tech Rep Demo Regulator

Use for demos or troubleshooting portable. magnetic. easy to plumb in 2 high flow couplers and fittings for gun and hose 1/2" adapter and 1/4" adapter Art. No. 675652D

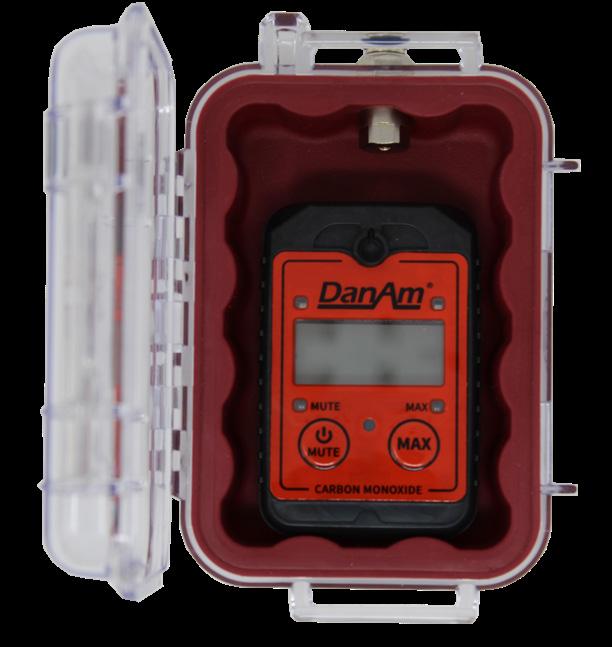

Carbon Monoxide Monitors

Ensures grade D air quality for personal protection

Carbon monoxide is an odorless, colorless, highly poisonous gas caused by partial combustion. Com bustion does not take place in a compressor. Yet an overheated compressor could convert lubricating oil to carbon monoxide, or contaminated air could be drawn into the compressor intake from an outside environment.

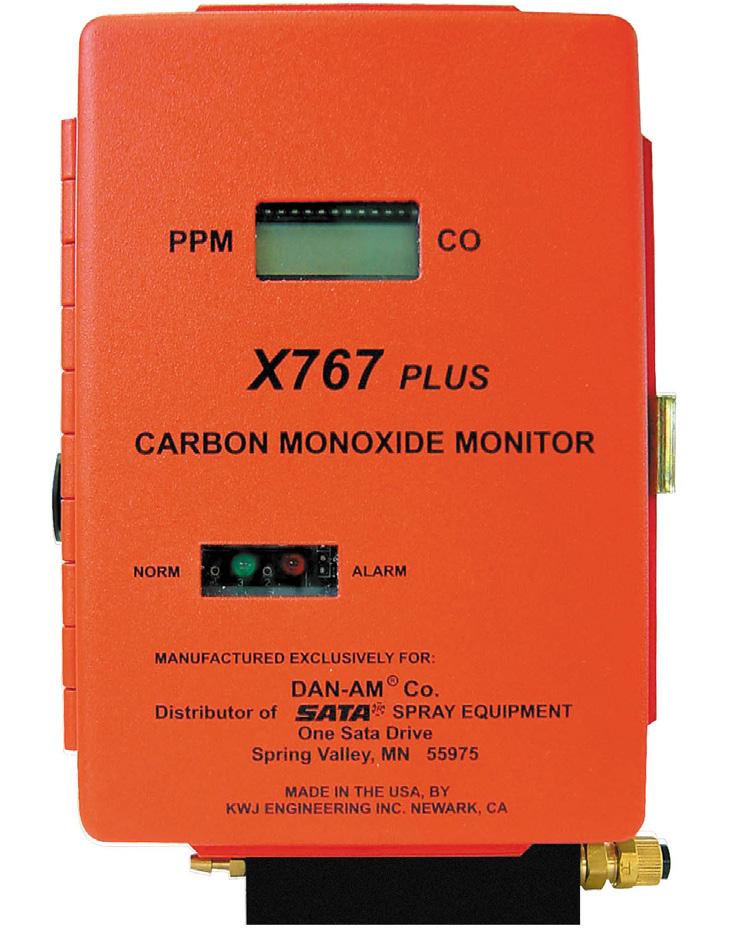

Technical Data: X767 Co Monitor

110 volt AC Carbon Monoxide Monitor.

Alarm set at 5 ppm with an LCD Display

Meets 29 CFR 1910.134 requirements for CO monitoring of compressed breathing air. Audible and visual alarms for high CO or sensor failure.

RFI filtered from interference of cell phones, two-way radios, etc.

LCD digital reasdout in 1 ppm increments with response time of 10 seconds to 95% proven reliable performance electrochemical sensor. Calibration recommended every 6 months. Remote alarm options available

Art. No. X767_PLUS

Gas detected: CO in compresses air

Detection Principle: 3 electrode electrochemical

Alarm: preset to 10 ppm

Warranty: 1 Year

Technical Data: X288 Co Monitor

Sentinel Carbon Monoxide Monitor and Alarm

Power: 110 volt AC

Operating Temp: 30° - 120°

Dimensions: 4” x 6” x 3.5”

Powered coated metal housing

Alarm set at 10 ppm (adjustable between 5-10 ppm) with an LCD Display

Battery-operated, can be surface mounted on outer wall of paint booth or close to air supply

Alarms: audible, visual and vibrating (battery life 2 years depending on alarm conditions

Operating temperature: - 4° - 122°

Display: LCD digital reasdout in 1 ppm increments, initial response time < 5 seconds, response time < 20 seconds

Dimensions: 5.88" x 4.06" x 2.12"

Device conforms to UL STD 913; Certified to CSA STD C22.2 No. 157 Intertek/ETL control number 4004813

Art. No. X288

Carbon Monoxide Monitor Accessories

Art. No. X81-1231K

Calibration kit for Carbon Monoxide Monitor

Art. No. XA176

Standard 85 db remote alarm for Carbon Monoxide Monitor

Art. No. XA176A

Extra loud 100 db remote alarm for Carbon Monoxide Monitor

Art. No. XA176B

Extra loud 120 db air horn w/regulator for Carbon Monoxide Monitor

Call for availability (this alarm only)

Art. No. XA166

Siren alarm with strobe light

NEW

1+2 = 3 3 YEAR WARRANTY EXTENSION

PREMIUM WARRANTY

• Spray guns

• Filter

• Supplied-air breathing protection systems

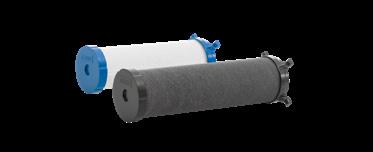

SATA Filter Cartridge Maintenance

Filter cartridges for SATA filter series

Art. No. 22160 Sintered filter for all SATA filter series

Art. No. 1097999 Fine filter cartridge for SATA filter series 500

Art. No. 81810 Fine filter cartridge for SATA filter series 200, 300 and 400

Art. No. 1098004 Activated charcoal cartridge for SATA filter series 500

Art. No. 85373 Activated charcoal cartridge for SATA filter series 200 and 400

Exchange interval every 3 months

Art. No. 1098054 Service kit for SATA filter series 500: with fine filter and activated charcoal cartridge

Exchange interval every 6 months

learn how to replace each filter stage in this official SATA application video

SATA Maintenance and Repair

Spray Gun Cleaning - all models

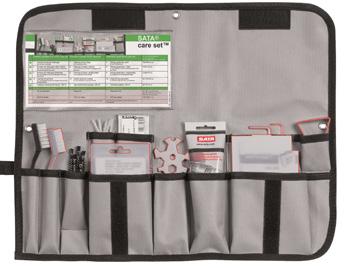

162628 SATA care set [spray gun care bag containing 1 large cleaning brush, 5 medium-sized cleaning brushes, 5 double-sided cleaning brushes, 12 nozzle cleaning needles, 1 tube high performance grease, silicone-and acid-free, 100 g]

64030 SATA cleaning kit [2 cleaning brushes, medium and 12 nozzle cleaning needles]

48173 SATA high performance grease [silicone-and acid-free, 100 ml for spray guns]

62174 SATA nozzle cleaning needles (pack of 12 pieces) 6007 Cleaning brush (packing unit 10 pieces) [for spray guns]

9209 Cleaning brush, double-sided (pack of 10 pieces) [for spray guns] 158840 Cleaning brush, large (packing unit 5 pieces) [for spray guns]

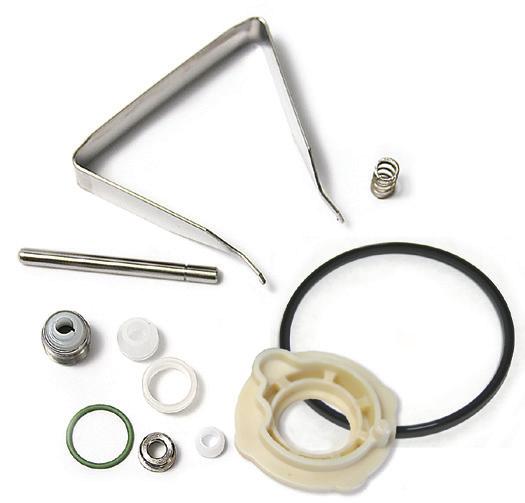

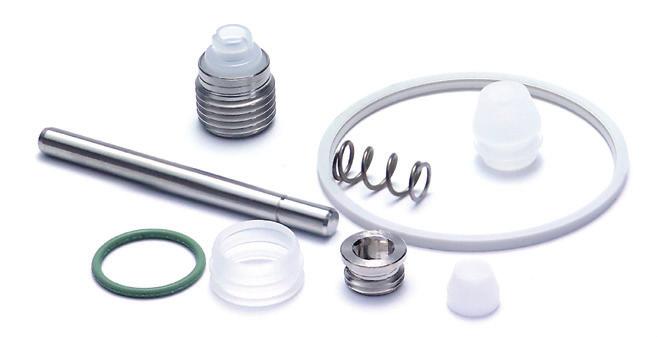

SATAjet X 5500

Maintenance Set

Art. No. 1173286

For SATAjet X 5500 and X 5500 PHASER Includes:

• 1 Air distribution ring/ extraction tool

• 1 sealing ring for air cap ring 211508

• 1 Sealing element for fluid tip 140582

• 1 Air piston rod 86483

• 1 Seal retainer 133942

• 1 Spindler seal 133934

• 1 Teflon seal for air piston

1 Paint needle packing 15438

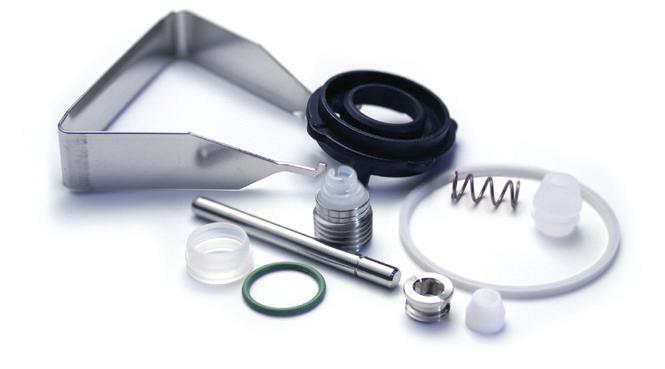

SATAjet 5000 B

Maintenance Set

For SATAjet 5000 B and 5000 B PHASER Includes:

•Air distribution ring/extraction tool 165951

•1 Sealing ring for air cap ring 172429

•1 Sealing element for fluid tip 140582

•1 Air piston rod 86843

•1 Seal retainer 133942

•1 Spindle seal 133934

•1 Teflon seal for air piston 133991

•1 Paint needle packing 15438

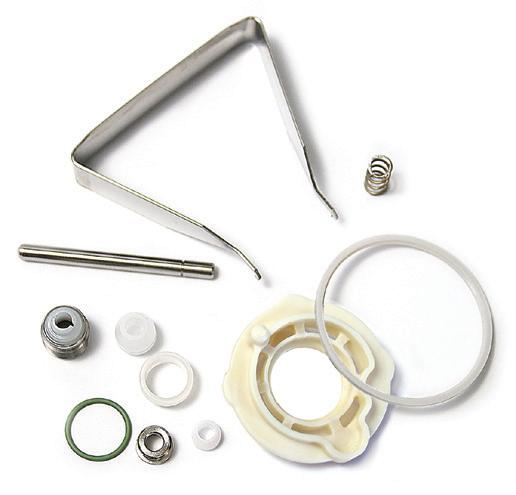

SATAjet 100 B & 1000 B

Maintenance Set

Art. No. 1173260

Includes:

•Air distribution ring/extraction tool 143230

•1 Sealing ring for air cap ring 130393

•1 Sealing element for fluid tip 140582

•1 Air piston rod 91959

•1 Seal retainer 133942

•1 Spindle seal 133934

•1 Teflon seal for air piston 133991

•1 Paint needle packing 15438

SATAjet 1500 B SoLV

Maintenance Set

Art. No. 1173278

Includes:

•Air distribution ring/extraction tool 143230

•1 Sealing ring for air cap ring 172429

•1 Sealing element for fluid tip 140582

•1 Air piston rod 91959

•1 Seal retainer 133942

•1 Spindle seal 133934

•1 Teflon seal for air piston 133991

•1 Paint needle packing 15438

SATA Business Development Specialists (BDS)

JP Kleniewski

BDS Ontario & Maritimes

Cell: 647 549 SATA (7282) jeanpaul.kleniewski@sata.ca

Todd Marshall

BDS

Ontario Cell: 437 350 SATA (7282) todd.marshall@sata.ca

Kyle Olson

Western Regional Manager Cell: 431 374 SATA (7282) kyle.olson@sata.ca

Donald Hall

BDS

Alberta & Saskatchewan Cell: 587 435 SATA (7282) donald.hall@sata.ca

Thomas Gierens

BDS

Alberta & Saskatchewan, industrial and automotive Cell: 587 582 SATA (7282) thomas.gierens@sata.ca

Michael Murphy

BDS

British Columbia Cell: 778 956 SATA (7282) michael.murphy@sata.ca

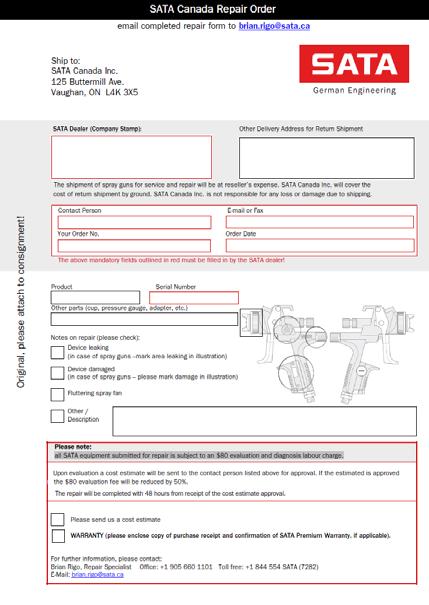

SATA Service & Repair

Patrick Creaney

BDS

Quebec Cell: 514 915 SATA (7282) patrick.creaney@sata.ca Service & Repair Manager Brian Rigo
