SATA Canada Equipment Statement of Procedure
jet X - it's a SATA
Fluid tip seal ensuring minimal cleaning effort and safe colour change.
Fluid tip and paint needle made of corrosion-resistant stainless steel.
Robust air cap made of anodised brass
Low maintenance, self-tensioning air piston and paint needle packings.
QCC™ - Quick Cup Connector. Cup connection with bayonet. For quick, clean cup changes and easy cleaning
Spray fan control allowing fine adjustment with a half turn only.
Gun suspension hook for convenient storage.
Trigger with integrated tool for the fluid tip - can be removed without tools.
(Excludes: jet X BASIC*)
Air connection with swivel joint combined with a new, innovative air micrometer for even more precise adjustment of the inlet pressure.
CCS™ - Colour Code System. For easy identification of your paint spray guns.

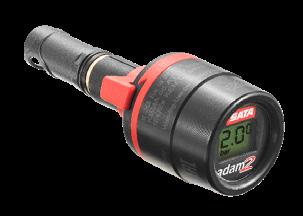

Option: SATA adam X pro or SATA adam X - digital pressure measuring device for setting the exact dynamic inlet pressure for maximum colour accuracy and reproducibility of the painting result.
(Excludes: jet X BASIC*)
Ergonomically shaped gun handle.
our innovation in detail
There are four options to choose from to fit your needs. The jet X Basic and jet X Digital Ready will be available in the US, with the jet X Digital and jet X Digital Pro coming later pending approvals.
IN BOOTH SOLUTIONS
• Spray Guns
• Cup Systems
• Loyalty Program
• Filter Technology
• Breathing Protection
• Hoses • Accessories • Gun Cleaning
• Training
SATA Spray Guns cont.
Filter Technology
SATA filter 500 series - Compressed air treatment system
The SATA filter series 500 is available as a three-stage filter unit with sintered, fine filter and additional sintered activated charcoal filter.
The SATA filter 584 is required when applying waterborne paints, as the activated charcoal stage eliminates the critical oil vapours that can cause coating flaws with waterborne materials.
A flow-optimised cyclone separator minimises pressure drop in the filter system and ensures a constant air flow of approx. 3.800 Nl/min (with four connections).
SATA filter 500 – modular filter series for highest demands
Every six months, all filter stages are maintained together in a procedure that takes just a few minutes without the need for tools, thanks to the bayonet lock and defined position of the filter cartridges, which are replaced simply by inserting them.
The combination units SATA filter 544 and 584 are defining the standard in paint booths - also for breathing air treatment.
SATA®filter 584®| 3-stage combination filter
100 % technically particle-free air
Filter fineness:
Sintered filter: 5 µm
Fine filter: 0.01 µm
Activated charcoal filter: oil vapours
Air flow at 87 psi approx. 135 cfm
Ambient temperature:
120 °C; with activated charcoal filter up to 60 °C
Connection:
Air inlet: G 1/2" female thread
Air outlet: 1/4" male thread
Recommended for:
solvent-based paints, waterborne paints, breathing protection equipment
Part number 1099953
SATA filter timer with 6 month maintenance interval
SATA equips all filter units the SATA filter timers to remind users to regularly change the filter cartridges.
First filter stage: Sintered filter to separate particles > 5 µm
Second filter stage: Fine filter cartridge to separate particles > 0.01 µm; separation efficiency 99.998 %;
Third filter stage: Sintered activated charcoal cartridge with higher separation efficiency of oil vapours.

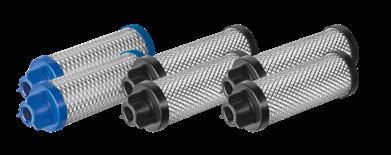

SATA Filter cartridges
Filter Cartridges for SATA filter 200 & 400 series
First stage 1: sintered filter for all SATA filter series
the sintered filter eliminates particles > 5 µm
Exchange interval: every 6 months
Art. No. 22160
Filter stage 2: fine filter cartridge for SATA filter series 200 and 400
the fine filter eliminates particles > 0.01 µm
Exchange interval: every 6 months
Art. No. 81810
Filter Cartridges for SATA filter 500 series
First stage 1: sintered filter for all SATA filter series
the sintered filter eliminates particles > 5 µm
Exchange interval: every 6 months
Art. No. 22160
Filter stage 2: fine filter cartridge for SATA filter series 500
the fine filter eliminates particles > 0.01 µm
Exchange interval: every 6 months
Art. No. 1097999
Filter stage 3: activated charcoal cartridge for SATA filter series 200 and 400
activated charcoal seperates oil vapours
Exchange interval: every 3 months Art. No. 85373
Filter stage 3: activated charcoal cartridge for SATA filter series 500
activated charcoal seperates oil vapours
Exchange interval: every 6 months Art. No. 1098004
Carbon Monoxide Monitors
Ensures grade D air quality for personal protection
SATA filter packs –Save 10 - 12% on a one year supply
SATA six pack with #81810 (packing unit 2 pieces) and #85373 (packing unit 4 pieces) for SATA filter 484
Art. No. 214270
kit for
and activated
Art. No. 1098054
Part number X767-PLUS
110 volt AC Carbon Monoxide Monitor
Technical details:
Gas detected: CO in compressed air
Alarm: set at 5 ppm with an LCD display
Operating Temp: -1° C to 48° C
Dimensions: 10.2 x 15.2 x 8.9 cm
Weight: 1.9 kg
Meets 29 CFR 1910.134 requirements for CO monitoring of compressed breathing air
Proven reliable performance electrochemical sensor
Calibration recommended every 6 months
Service
SATA filter series 500: with fine filter
charcoal cartridge

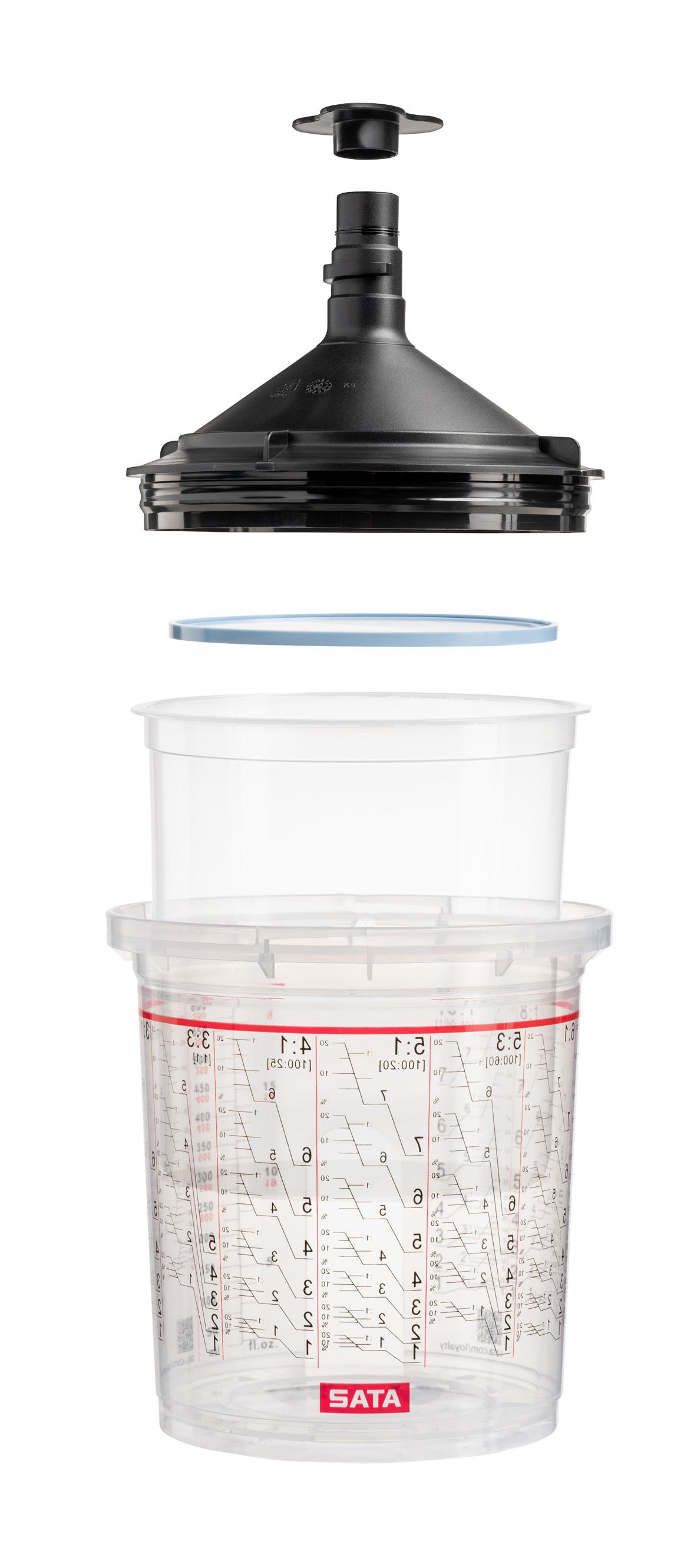

LCS - Liner Cup System
Do you have highest expectations concerning the performance of your paint spray gun, but prefer working with liner cups? In this case, you need an adapter to mount it on your SATA spray gun. We have now eliminated the need for this interim solution - and offer you even more on top.
The Liner Cup System from SATA fits onto the QCC connection of your paint spray gun. The adapter is no longer required, and there are many additional advantages:
• More favourable centre of gravity
• Easier cleaning
• Low weight
• Less damage to your paint spray gun
LCS is available in three cup sizes: 0.40 litre, 0.65 litre and 0.85 litre.
The liner - in a new design
The advantages
Particle-free: the premium strainers
Quality is evident in the detail: The strainers of the LCS are manufactured separately in top quality - and tested. They are only clicked into the lid just before painting. This ensures that no paint-disturbing particles impair the final result.
Stays in place: the safety lock
The lid on your LCS cup closes extremely securely: the quadruple bayonet reliably locks in place - and shows at a glance that it is correctly secured.
In the flow - down to the last drop: extra soft liner
The liner itself, i.e. the inner cup, is made of extra soft and thin material. It collapses particularly easily and thus enables an easy and even material flow.
For easy mixing: the SATA scale system
SATA as we know it: the complete and detailed scale system. Tried and tested - and precise. An upside-down scale shows the remaining quantity during painting.
CUP 0.40L 125 Um (400ML) Part number 1195818
CUP 0.40L 200 Um (400ML) Part number 1195826
CUP 0.65L 125 Um (650ML) Part number 1195834
CUP 0.65L 200 Um (650ML) Part number 1195850
CUP 0.85L 125 Um (850ML) Part number 1195868
CUP 0.85L 200 Um (850ML) Part number 1195876
SATA RPS Cup System
SATA RPS 0.3 liter cup with 125 µm flat sieve (box of 40)
SATA RPS 0.3 liter cup with 125 µm plug sieve (box of 100)
SATA RPS 0.3 liter cup with 200 µm flat sieve (box of 40)
SATA RPS 0.3 liter cup with 200 µm flat sieve (box of 100)
SATA RPS 0.6 liter cup with 125 µm flat sieve (box of 60)
SATA RPS 0.6 liter cup with 200 µm flat sieve (box of 60)
SATA RPS 0.6 liter cup with 200 µm plug sieve (box of 60)
SATA RPS 0.9 liter cup with 125 µm flat sieve (box of 40)
SATA RPS 0.9 liter cup with 200 µm flat sieve (box of 40)
SATA RPS 0.9 liter cup with 200 µm plug sieve (box of 40)
MORE CUPS
Prefer the original? RPS is not only BENDABLE, CLEAN, SAFE and REFILLABLE, its scaling also enables exact mixing ratios! Nothing is left to chance.
number 1010389
number 1010420
number 1010397
number 1010404
number 1010438
number 1010545
number 1010488
number 1011973
number 1012004
RPS UV 0.6 liter cup with 125 µm flat sieve (box of 60) Part number 1010496 SATA RPS UV 0.6 liter cup with 200 µm plug sieve (box of 60) Part number 1010503
SATA RPS Dispenser System
SATA RPS wall dispenser standard version
Part number
2x cup tubes / 2x lid tubes / 2x sieve tubes and 2x aluminium slats
SATA RPS extension kit add-on kit
1x cup tube / 1x lid tube / 1x sieve tube for flat sieves, aluminium slat SATA RPS depot, stores RPS boxes
Part number
Breathing Protection
SATA vision 2000 (CSA Z180-1-00 and NIOSH approved)
SATA vision 2000 Hood and charcoal belt unit
SATA vision 2000 Hood and industrial belt valve
SATA vision 2000 Breathing air warmer
SATA vision 2000 Breathing air humidifier
SATA air vision 5000 set (NIOSH approved)
SATA air vision 5000 set (NIOSH)*
SATA air vision 5000 carbon set (NIOSH) **
SATA air vision 5000 air warmer
Part number 36384
Part number 60707
Part number 61242
Part number 89086
Part number 1005603
Part number 214718
Part number 1007021
SATA air vision 5000 air cooler Part number 1006990
SATA air vision 5000 set (NIOSH) includes air vision 5000 hood, SATA air regulator belt and SATA air regulator
(NIOSH)
SATA air cooler (NIOSH)
SATA air warmer (NIOSH)
Belt unit with industrial valve
SATA Breathing air warmer
SATA Breathing air humidifier
SATA air regulator
SATA air regulator carbon
SATA trueSun™
SATA trueSun (incl. battery charger and battery)
Part Number 1012129
Technical details:
Total weight approx. 470 g
Light intensity (lux) 22,000 lx at 30 cm
Lux (lx) indicates the illumination intensity of a light source. Daylight lux value = up to 1000,000 lx
Battery life approx. 70 mins. @ full intensity
Charging time approx. 50 mins.
Operating temp. 0° C - 60° C
SATA trueSun - the daylight Solution
Light cone of the SATA trueSun @ maximum light power, uniform distribution of light intensity - colour temperature neutral.
SATA RCS
SATA clean RCS
For body shops with high output and many colour changes.
Technical details:
Dimensions (w x h x d)
310 x 705 x 225 mm
Inlet pressure 87 - 116 psi
Air connection 1/2' male or G 1/4' female thread
Air consumption 5 cfm (approx.) (cleaning process)
Required time per cleaning 25 sec (approx.) process
SATA multi clean 2
The automatic spray gun cleaner
Technical details:
Dimensions (w x h x d) 660 x 1000 x 380 mm
Inlet
Air
Air consumption 9.5 cfm (approx.) (cleaning process)
Required time per cleaning max. 3 min process
jet 2
Part
Practical, lightweight blow gun makes quick work of drying waterborne material. A special nozzle design multiplies air volume from ambient air using the Venturi injection principle. An air intake filter prevents contamination of the paint.
Technical details:
SATA Cert & Care Set
SATA air tester, atomisation air quick tester
SATA cert, with archive, spray pattern block, single sheet
Part Number 156299
Part Number 161596 holder and distance marker
Spray pattern blocks 25 sheets for SATA cert
Part Number 161646

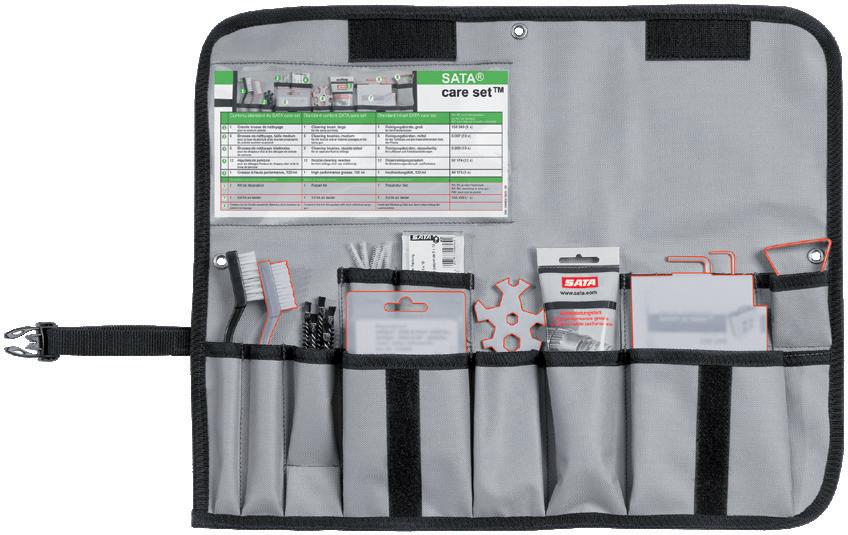

SATA care set for proper gun maintenance and cleaning Part Number 162628
SATA care set spray gun care bag contains 1 large cleaning brush, 5 medium-sized cleaning brushes, 5 double-sided cleaning brushes, 12 nozzle cleaning needles, 1 tube high performance grease, silicone and acid free 100g.
SATA black air hose
- for use with SPRAY GUNS and supplied air respirators.
Hose Assembly, 3/8 ID, 145 psi hose
CSA approved meets Class D level 1 CSA, NIOSH mandatory requirements
No nipple or quick connector
Breathing hose - 3/8" x 25 ft ID Part number 669025
Breathing hose - 3/8" x 35 ft ID Part number 669035
Breathing hose - 3/8" x 50 ft ID Part number 669050
With nipple and quick connector coupler (brass) sealed with Loctite
Breathing hose - 3/8" x 25 ft ID Part number 679025
Breathing hose - 3/8" x 35 ft ID Part number 679035
Breathing hose - 3/8" x 50 ft ID Part number 679050
Recommendation: High flow coupling for easy connection and disconnection
