Architecture Undergraduate Portfolio ( Selected works ) by saran kumar

p.2 - Introduction p.3

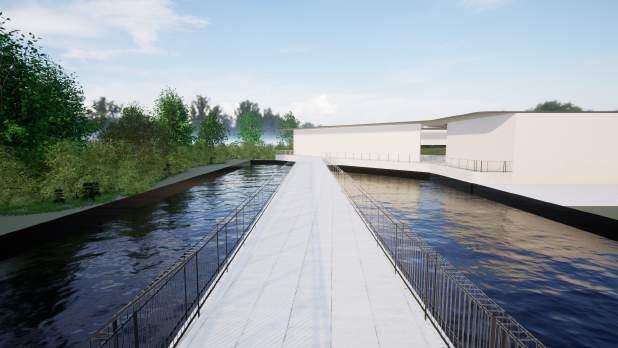

To the museum of remembrance.

Museum of remembrance

Experiential museum

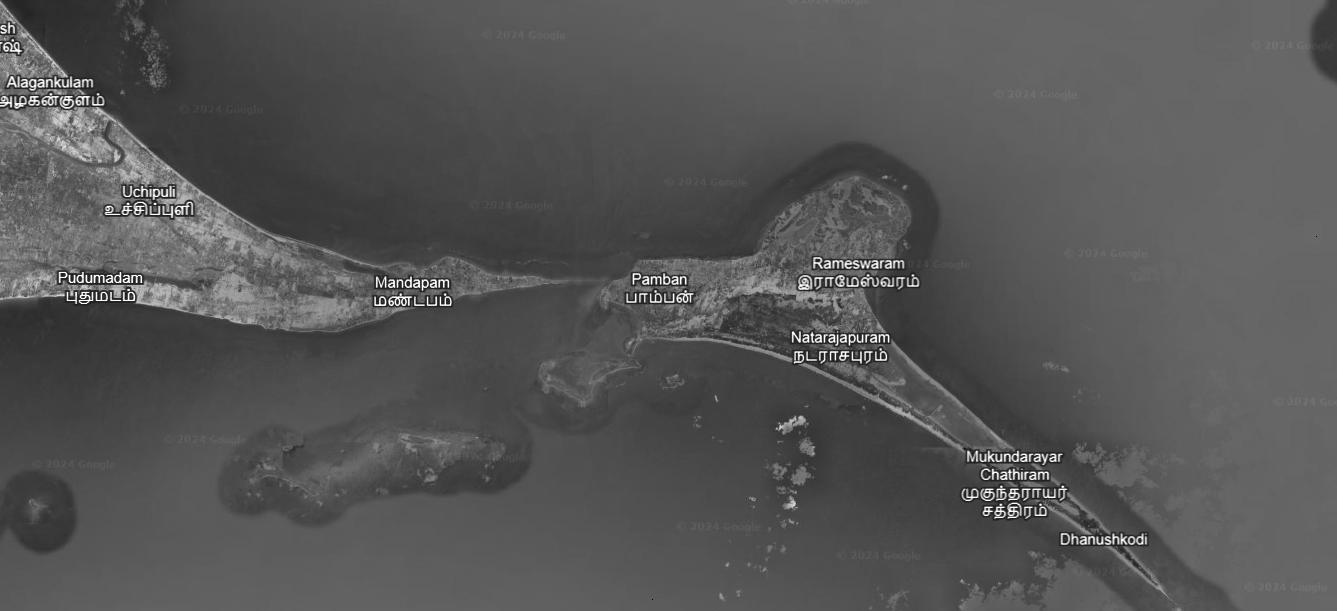

Site location Mandapam camp Ramanathapuram.

Site area : 1,04,419 sqm (25 Acres).

INTRODUCTION

Ever wondered that whether it is possible to visit back certain timelines , and we know that it is impossible.But certain things can help , architecture which is the most efficient tool that can help us to visit certain timelines ,with the help of its experiential quality.

AIM

The focal area of the project is to design a museum which can take the visitors back to the timeline of the war and experience the pain that people went through during the course of the moment.Not just a museum , but a space of experience of the whole course of event.

Timebound is timeless - architecture

Using architecture as a tool timebound events can be made into timeless. Allows people from different regions to experience the emotions of the event went through by the people and its impact with the help of architecture. The tool is powerful that it will be possible to bring back the emotions of the people through the builtforms.

p.4 - Introduction p.5

p.7 p.6 - School design

MANDAPAM Camp

MANDAPAM Camp

SITE ZONING

Strength

-The site which is not just other site but a site with backdrop (Refugees living nearby).

-Geographically near to sri lanka.

Abutting the national highway provides exposure to large number of peoples.

-Strong character related to theme of the project.

Threats

-There can also be a point where less exposure can happen through the site.

Weakness

-The Place has lesser convergence point.

-The place has lack of activation points, which makes the space less social.

Oppurtunities

-Can reach wider range of people (Tourist)

Oppurtunity of becoming a marker.

-Chance of making the context as a sense of place.

Layer of specifics

To experience the authenticity , the particular zone is inspired from the shape of the tamil eelam province from srilanka where major parts of war had happened. Like a documentation of war is built structure and peoples were meant to be the interpretation.

Built area /Building block

Water body

Supplement spaces

Service spaces Zoning process

Characterstics map

GROUP Rameshwaram Visitors15-20,000/day Visitors2-3,000/day Mandapam Dhanushkodi Site

zoning selection

USER

Rameswaram Dhanushkodi

with the charac-

or essence of the project.

Site character The site which has the desired character of sorrow which can easily co-exist

ter

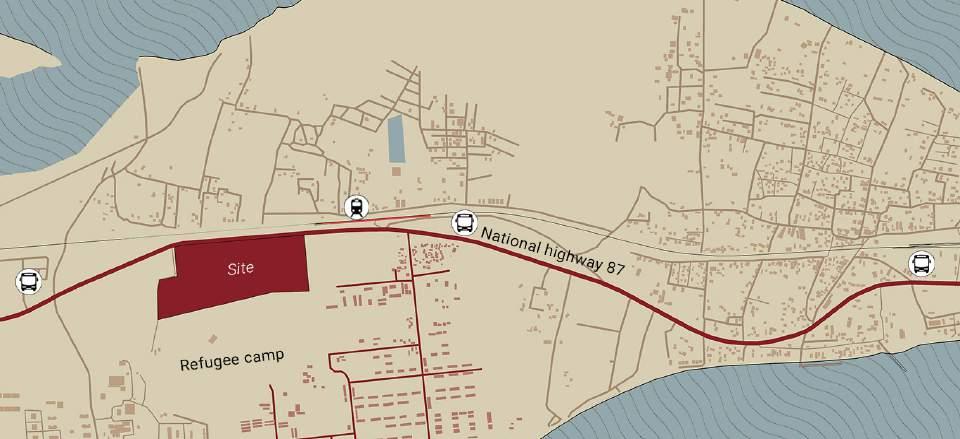

Context map

Essence of the space

p.9 p.8 - School design

expanse

Concise Chapters

Narrative Gist - abstract

Void

Organisation

Voids

In the specifc structres the void are sudden interruption or the formation by narratives. Which helps the user to absorb the situation.

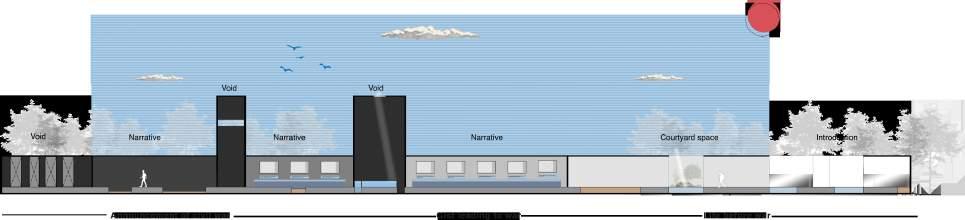

Narrative

Treating each narrative as a seperate world which has its own characterstics. Also associated with other narrative with a harmonical elements.

The

Layers

Layer 1 - Functionality

Layer 2 - Specifics Metaphor

Layer 3 - Emotion / Psychology

Evolution of supplement spaces

The open narrative which narrates the current developed status ,Follows the pattern of grid style street reflects present situation

The built space which doesn’t hold any particular form represent harder and painful events reflects the situation happened in the past

form).

of core structure

Core /Base structure

core structure of the museum which had fusion of narrative and voids, will adapt to its site conditions and the narrative sequence’s postion (Zoning &

Formation

Single Module

1.Present Layers 1.Cognitive 1.Past 2.Vibrant 2.Emotion 2.Sadness 3.Convergence point of context 3.Functionality 3.Museum of remembrance 1.War zone Layers 1.Metaphor 1.Spectator of war 2.Uncomfort 2.Functionality 2.Comfort 3.Interative zone 3.Intent 3.Narrative zone

Documentation and interpretation

Design overlay. Baseline intent. The The

p.11 p.10 School design

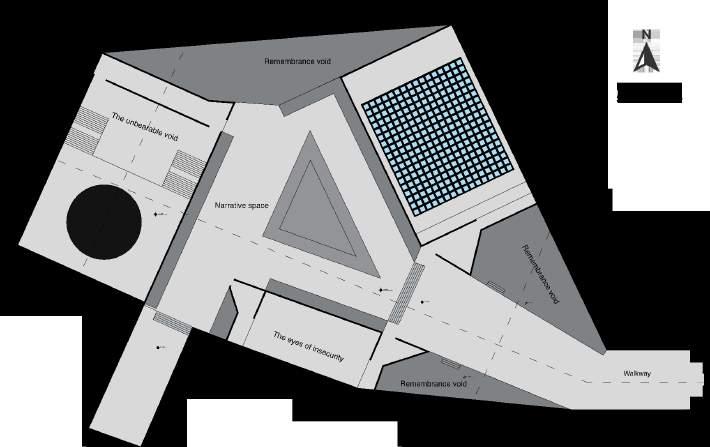

Masterplan p.13 p.12 School design

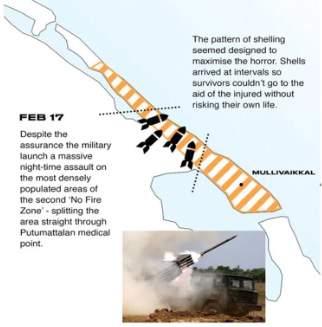

Grid gets disrupted by shelling Disrupted safe zone grids forms a pattern with significant markers.

Chapter 2 Chapter 1 Chapter 5

Chapter 4

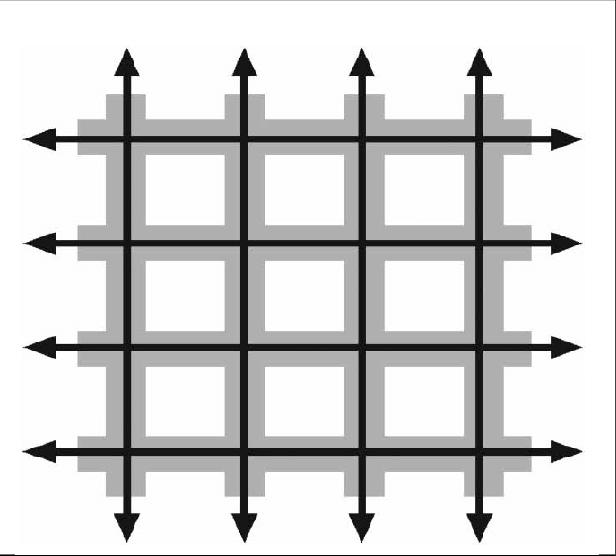

Safe zone represented by grid Presence of absence Intimate space (Space of grief) (Monument) (Void) Absence Nothingness

The

Travel Moment Travel Space Intervention of conflict (Distracted pathway ) Expanded pathway Regular life ( Linear path) p.15 p.14 School design

Deceasing safe zone Chapter 3 Baseline intent.

Material palette

phase 1

As life and narrative are always different and doesn‘t demands to be same.Narrative is something that always demands Important events one after another which are related to one another. A life can contain the important events but doesnt demand any connection between them.Narrative is more constructed where life is more random (Statement made comparitively)

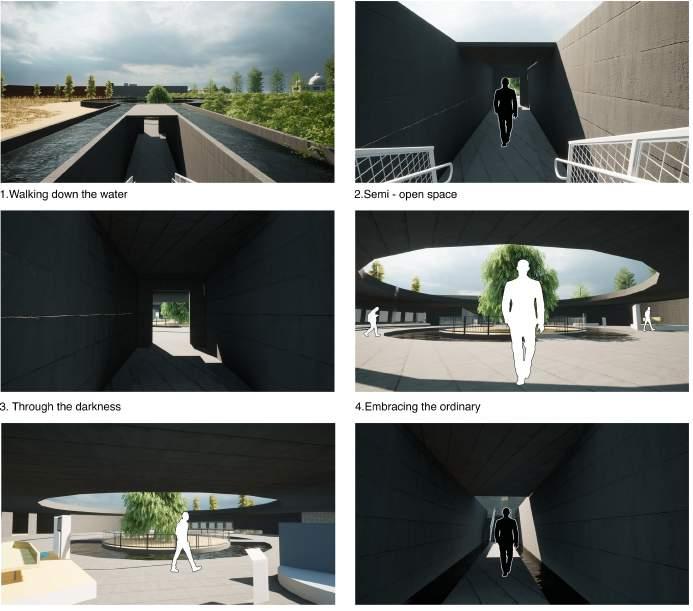

Narrative - Phase 1

p.17 p.16 School design

GROUND FLOOR PLAN

Describing the life of the people who gone through the civil war will be more thoughtful and can give the impactful experience.

phase 2

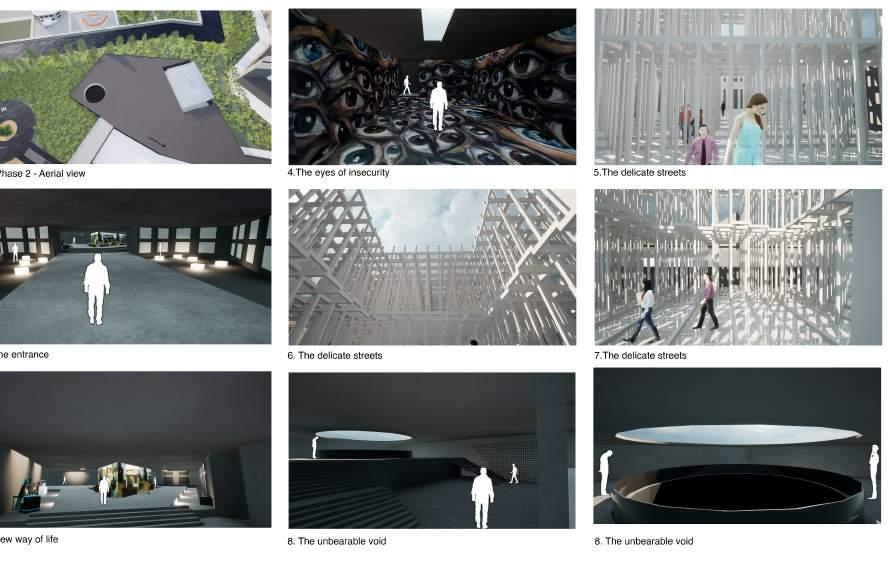

Narrative - Phase 2

p.19 p.18 School design

GROUND FLOOR PLAN

phase 3

The idea is that the space is concieved as a space of reunison and convergence. People who had been fighting for the war for their land and rights had forgot the environment around them, the simple things which gave them happiness before coming to their war life.People during the peace process actually embraced the little things around us but this time with a

Narrative - Phase 3 ROOF PLAN

p.21 p.20 School design

GROUND FLOOR PLAN

phase 4

The whole space is concieved as a space of chaos which is meant to be a safer space. When the chaos and safety collides, the resulted pattern which can make the user confuse in the movements

Narrative - Phase 4

p.23 p.22 School design

GROUND FLOOR PLAN

The Core idea of the phase 5 is that which has a more unique essence in it where people who fought for the land is leaving it to stay as a refugee in other countries..Allowing the people to feel the absence also making one of the biggest voids where the last phase will be a space of mourning absence just a experiential zone but not in zone of educating

phase 5

Narrative - Phase 5

p.25 p.24 School design

GROUND FLOOR PLAN

2 Campus design

The concrete jungle

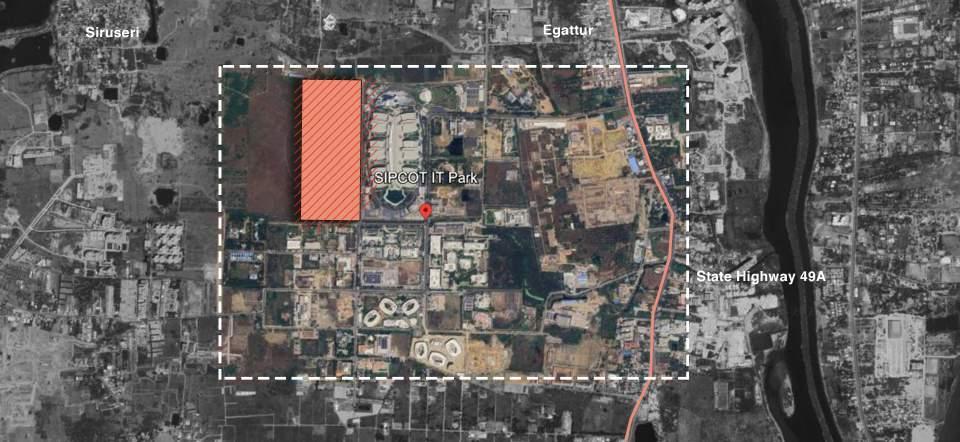

Site location : Siruseri

Site area : 70 acres (2,83,280 sqm )

BRIEF

The brief is to design an interdisciplinary campus with multidisciplinary courses, with desired programs.

INTERPRETATION

As it is an interdisciplinary college , the design thinking started with the courses and programs. A composite design programs as all the courses have their own majors and then can also mixed.

The design idea started with using architecture as a tool how can we enhance the program ? or integrate things to support the program indirectly. As academic is compulsory for students ,apart from academic what can we design in order to help the students in the courses they learn

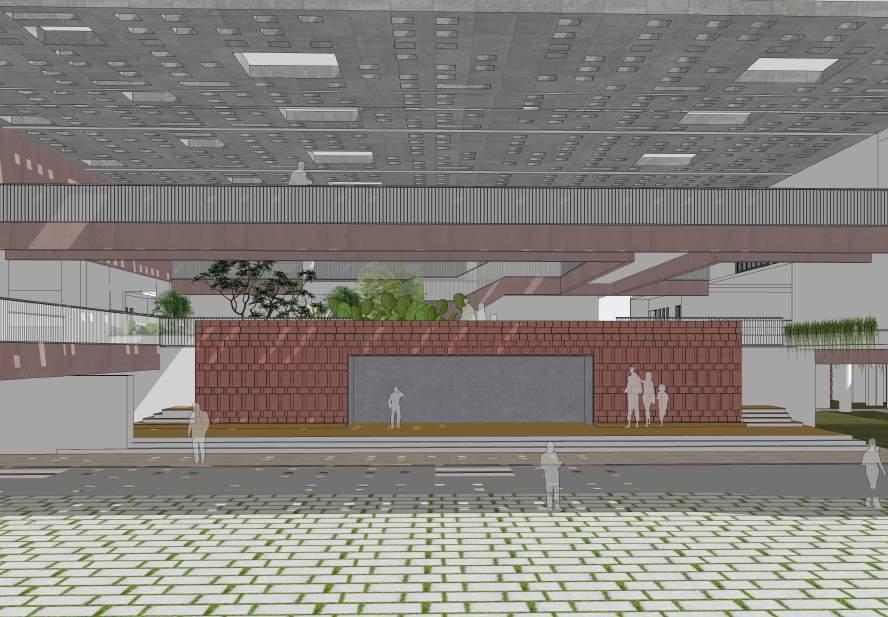

View - Entrance of business block

p.26 Campus design p.27

p.28 Campus design p.29

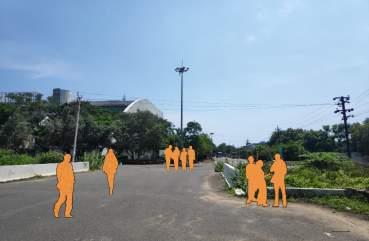

Site selection factors

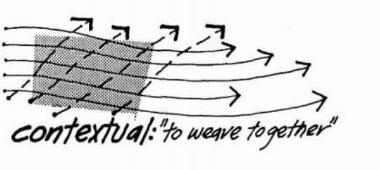

Site is always percieved as a product of its surroundings , a knitted cloth.

from from from Site context Programs

context

Redacting (visual redaction)the qualities of formal and large structures , inactivation , formalism from the surroundings.

Creating a space of its own , exploring unique characterstics , taking site into consideration and providing the needed wholistically to the site

Finding academical characterstics ,opinions , approach based on it and implementing it to only the academic core.

Biology Computer science Humanities Business Smart facilities Rural space Classroom Library Botanical garden Interactive Core Interactive Core Street space Multipurpose hall Sub urban Office space Developing area Transportation

Program redact Site

world Context Program core

p.30 Campus design p.31

Inactivation

redact !

The whole redaction is about the negotiation of the redaction of site context and should support the program in a whole way. The redaction gives us a way or leading us to creation of seperate sense of place , which is what we term here as world. Wholistically we want to nullify the unecessary qualities with respect to the project and also implement the qualities which will support the interdisciplinary program.

4 Different disciplines share a similar programs with few distinctive activities in it. Utilizing it for shared communication for different students from different disciplines .

The 4 disciplines sharing a common program later forms a square within , which acts as a multipurpose space specifically as connection spaces.

The interactive core , which transforms into a dynamic core , which not only acts as a square for connecting people but also a pathway.

Scale Voids

Redacting influences

Private Playfield Dispersion Housing Semi - public Academic Concentration Public Public spaces

Site Zoning Process

Morphology of Academic core Zoning with respect to various layers

p.32 Campus design p.33

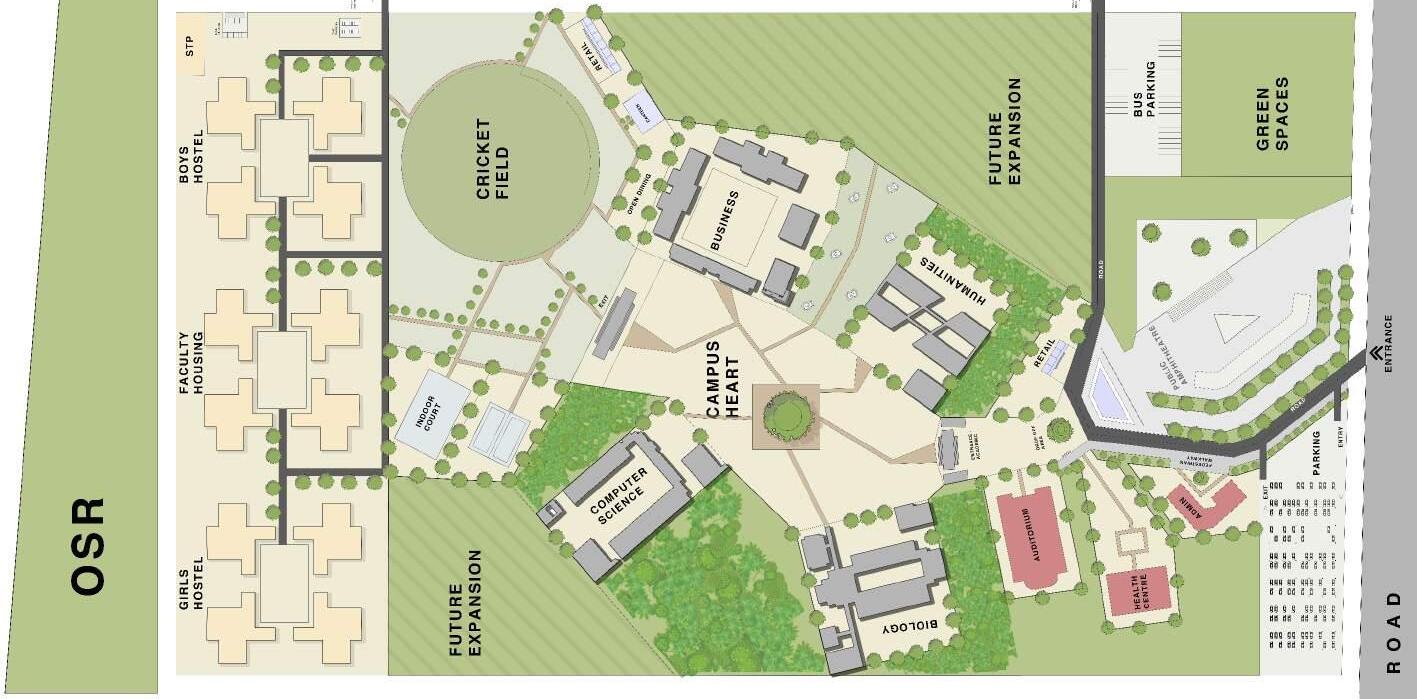

Masterplan p.34 Campus design p.35

INTER-RELATIONSHIP BETWEEN SCHOOLS

p.36 Campus design p.37

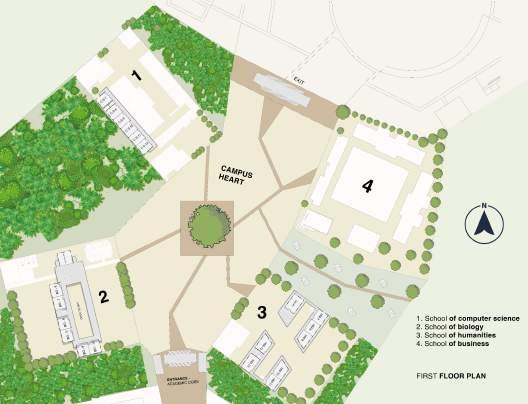

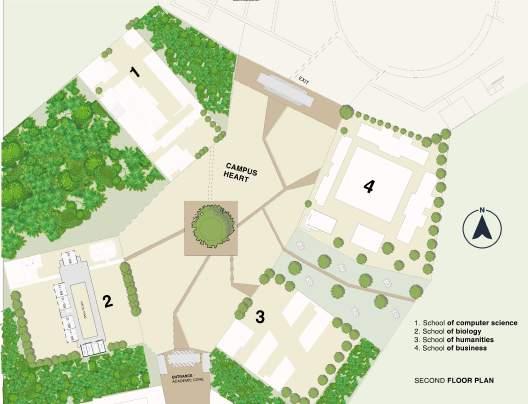

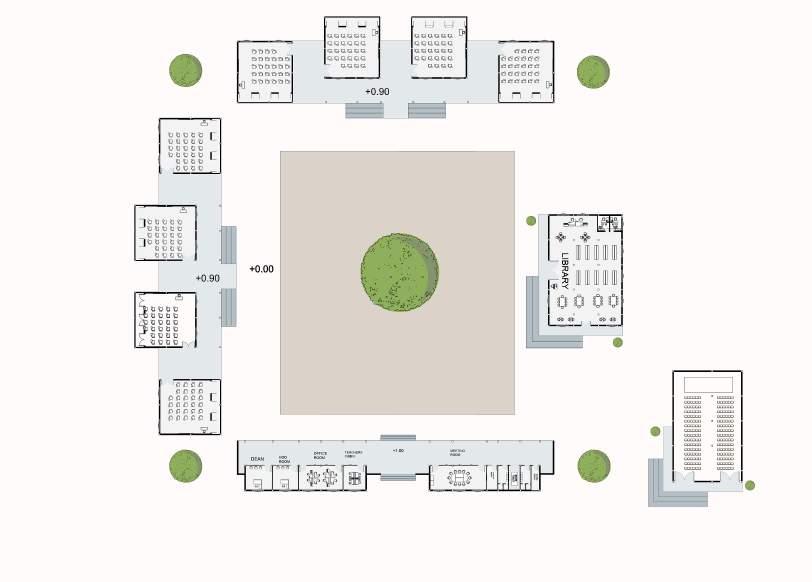

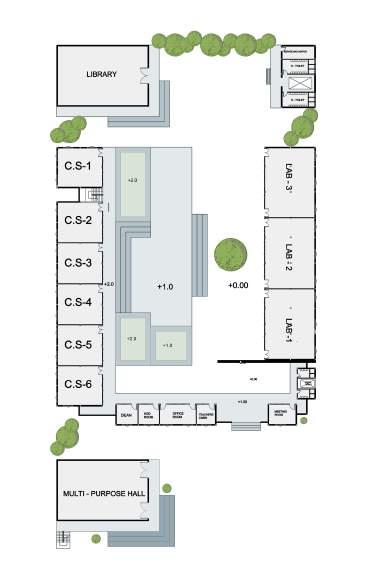

FLOOR PLANS Ground floor plan First floor plan Second floor plan

SCHOOL OF COMPUTER SCIENCE

A school with a interactive environment !

Many students in this realm will be dealing with something non-existent they will be spending lots of time in their works so to relieve them form this occupied space , an interactive environment created Where students will connect with themselves , interact with the natural environment unconsciously

Using the rule of pomdoro technique the school of computer science is divided into two parts classrooms and courtyard area. As the program is more focused and research oriented , the architecture tries to enhances the academic part and also providing a enhanced venting space for the students to a proper balance.

For the students to engage in the venting out space such as courtyards there comes the play of levels instead of a boring corridor / courtyard space.

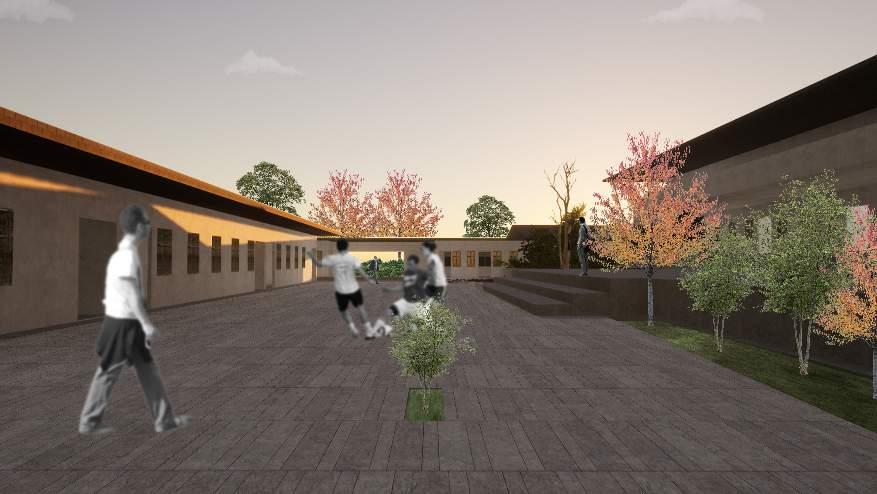

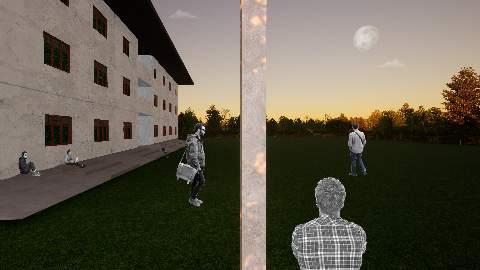

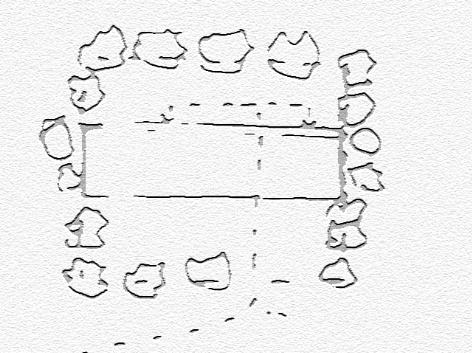

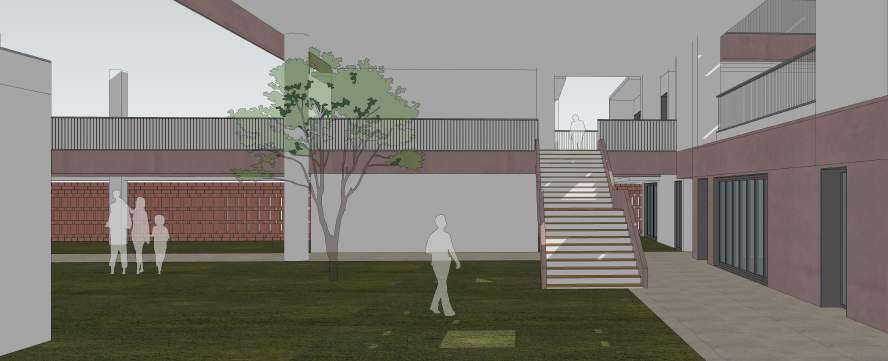

Morphological sketch View of interactive courtyard GROUND FLOOR PLAN Isolation through Protection Typical classrooms alongside corridor Congregation of major and supplement spaces “Protection through isolation” by administration block

p.38 Campus design p.39

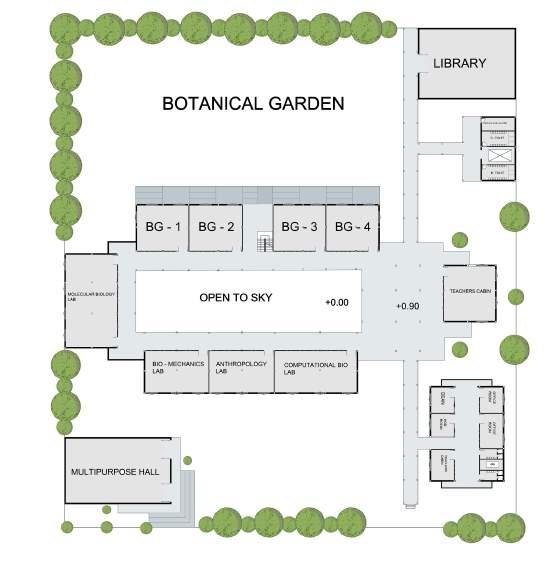

SCHOOL OF BIOLOGY

An introverted space ,as the program is more focused , the school is visioned as a introverted space, no disturbance from the dynamic core of the academic block . School of computer science and biology shares the same startegies which is 50 : 50 adjacent program zoning. A un disturbing environment will help Conscientiousness GROUND FLOOR PLAN

Morphological sketch

Easily accesible from major circulation area Isolation through distance Building block isolated from the major circulation area - avoiding Noise and disturbances Blocks arranged in the way of community Public , private and semi-private zones

p.40 Campus design p.41

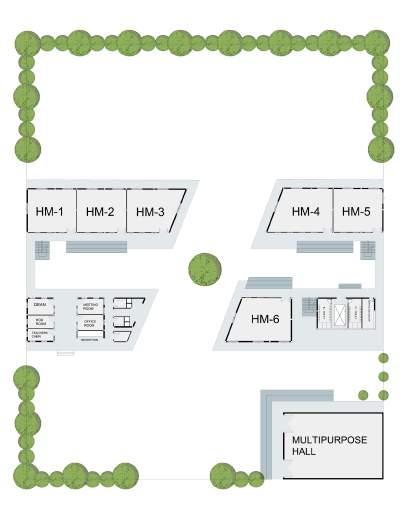

SCHOOL OF HUMANITIES

A more organic space like a street. A expressive space !

Where a man can learn many things in a street which is open to everyone and there is no barrier to learning in a streets and dialogue between street-corridor gives life to the space.

As apart from the academic program , the students can learn from the streets ,specifically in an streets of india where one can understand the whole essence of the country, and when it comes to street , it is an unconsious observation process and many connections can happen between people , just like a market street. Humanities can be more learnt from the peoples outside but the values can be learned inside the classrooms.

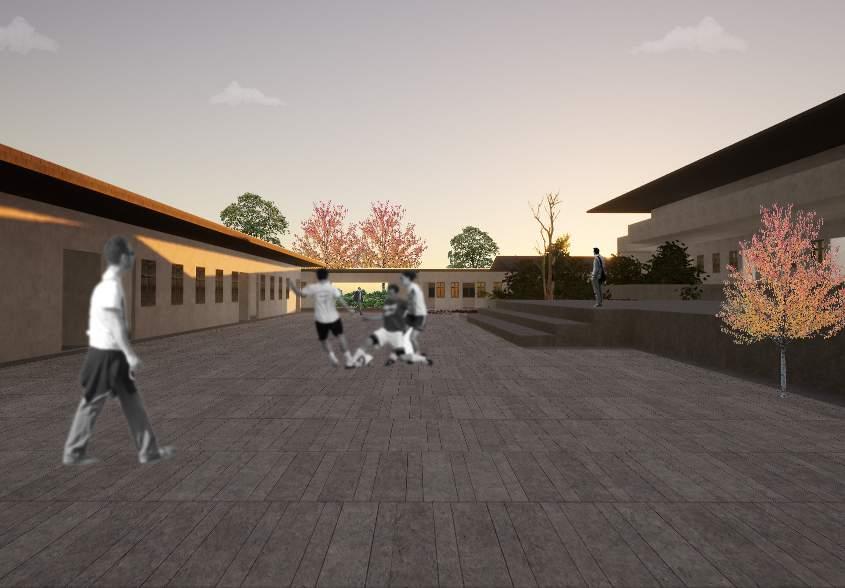

Morphological sketch View of Formal streets - Humanities Block

p.42 Campus design p.43

GROUND FLOOR PLAN

SCHOOL OF BUSINESS

A more open and interactive space which have much more connection with the composite realm (Academic core ),a more extroverted space. The process had been carried out in order to get an effective communication between the students irrespective of years. As communication plays an important role in business program / career

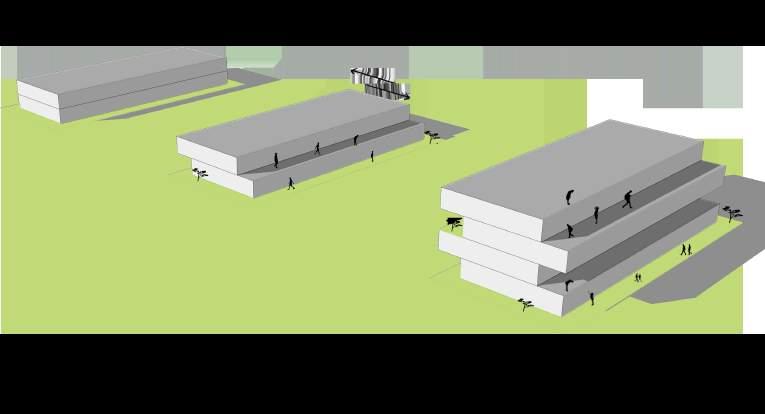

Morphological sketch Juxtaposed for accidental connections Single unit Streched alongside for free flowing movements

GROUND FLOOR PLAN p.44 Campus design p.45

Typical classroomConstraint of freedom

INTERNSHIP WORKS (MAR 2022 - JUN 2022)

Professional work

- Worked on the design of residential , commercial projects – both interior & exterior.

-Worked on detail drawing such as joinery detail , staircase, gate for residence and housing project.

- Using sketchup , twinmotion to render photorealistic visualisations for presentation and marketing purposes. Poppy’s

Shanmugam Associates Trichy Inow Studios | Interiors Chennai

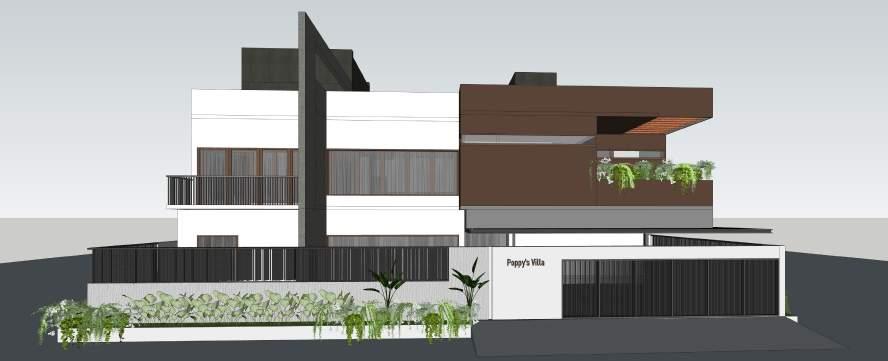

Farm House, Trichy. 3D Model -Exterior.

Front View of Farmhouse

p.46 Apartment design p.47

Rear View of Farmhouse.

01.

North Star School (Phase2), Rajkot. 3D Modelling - Exterior. View From Courtyard of the school. View From Central Garden of the school.

02. p.48 Apartment design p.49

View From Garden Area of the school.

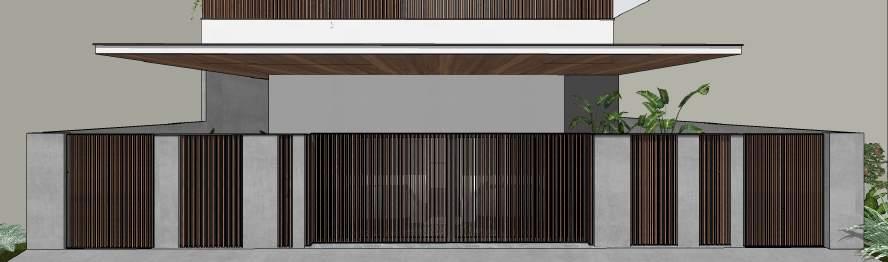

Nagar Residence, Trichy. Main Gate - Detail Drawing. 3D Model.

POWDER COATED ALUMINIUM

PRODUCED BY AN AUTODESK STUDENT VERSION

C/C 75MM

25 X 6MM SS FLAT

POWDER COATED ALUMINIUM

1 2 IN OUT House Name and Address Board 150 450 1550 2920 5260 2920 1550 450 150 Milk Letter Box concealed in Wall 15400 600 1550 2920 5260 2920 1550 600 600 1550 450 1320 600 320 230 2630 2630 600 1110 380 600 230 1550 600 15400 SHANMUGAM ASSOCIATES NO. DATE XXXXXXXXXXXXXXXXXXXXX STRUCTURAL ELECTRICAL MAIN GATE DETAIL SHEET TITLE: SHEET NUMBER: THIS DRAWING NOT A3 REDUCED TO PRINT REFER TO GRAPHIC SCALE ADVANCE COPY ISSUE DATE NO. B-13, 2ND CROSS,W.E.THILLAI NAGAR,TRICHY-620018 TEL:0431-2760010 NEW NO:3,SINGARAM STREET,T.NAGAR CHENNAI-600017 TEL:044-42605480 EMAIL CONTACT@SHANMUGAMASSOCIATES.IN WEBSITE WWW.SHANMUGAMASSOCIATES.IN ARCHITECT: XXXXXXXX XXXXXXXX 31/05/2022 XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX PLAN AT 500 MM LEVEL | SCALE- 1:50 | 01 ELEVATION | SCALE- 1:50 | 02 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION KK

75 1820 AR40703 3D VIEW | SCALE- NTS | 10 50 X 25 MM POWDER COATED ALUMINIUM 75 X 75MM L ANGLE 50 X 25 MM POWDER COATED ALUMINIUM DETAIL D | SCALE- 1:5 | 08 75 X 75MM L ANGLE 25 X 6MM SS FLAT 50 X 25 MM POWDER COATED ALUMINIUM 75 X 75MM L ANGLE PLAN AT 500 MM LEVEL | SCALE- 1:50 | 07 DETAIL | SCALE- 1:5 09 OUT IN 75 X 75MM L ANGLE 75 75 75 50 KK NAGAR RESIDENCE SHANMUGAM ASSOCIATES NO. DATE CLIENT: XXXXXXXXXXXXXXXXXXXXX STRUCTURAL PLUMBING ELECTRICAL MAIN GATE DETAIL SHEET TITLE: SHEET NUMBER: THIS DRAWING NOT A3 REDUCED TO PRINT REFER TO GRAPHIC SCALE 2X KEY PLAN / NORTH SIGN PHASE/ARCHITECT'S SEAL ADVANCE COPY ISSUE DATE NO. B-13, 2ND CROSS,W.E.THILLAI NAGAR,TRICHY-620018 TEL:0431-2760010 NEW NO:3,SINGARAM STREET,T.NAGAR CHENNAI-600017 TEL:044-42605480 EMAIL CONTACT@SHANMUGAMASSOCIATES.IN WEBSITE WWW.SHANMUGAMASSOCIATES.IN DRAWING SCALE ARCHITECT: MR.RENGANATHAN RESIDENCE, TRICHY XXXXXXXX XXXXXXXX 31/05/2022 XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX XXXXXXXX 75 X 75MM L ANGLE 50 X 25 MM POWDER COATED ALUMINIUM 75 X 75MM L ANGLE DETAIL D AR40703 DETAIL AR40703

PRODUCED

AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSION DETAIL C | SCALE- 1:5 | 06

PRODUCED BY AN AUTODESK STUDENT VERSION

75 X 75MM L ANGLE

25 X 6MM SS FLAT 50 X 25 MM

50 X 25 MM

75 X 75MM L ANGLE

SCALE-

25 X 6MM SS FLAT 50 X 25 MM POWDER COATED ALUMINIUM DETAIL B |

1:5 05 DETAIL A |

1:5 | 04

AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT 03. p.50 Apartment design p.51

Oxina Castle Apartments, Trichy. Staircase Section. 04. Flight Stilt Floor To First Floor Riser 152.22mm Tread 1500mm Width of Steps 300mm Number of steps 19 Stilt Floor Stairs Mid Landing Lvl 1520mm 2666 X 1850 LIFT UP 02 05 07 15 13 11 17 01 03 05 07 17 15 13 11 09 B Mid Landing Level 1520mm Sill 450mm Lintel 2100mm From Stilt floor Mid Landing PLAN | SCALE: 1:75 |01 PLAN | SCALE: 1:75 |02 SECTION| SCALE: 1:100|03 SECTION| SCALE: 1:100|04 Lvl +150mm 03 09 Lvl ±0mm 01 03 05 07 09 11 15 17 23 25 27 21 31 33 35 37 39 19 43 45 47 41 49 51 53 55 57 59 63 65 67 61 69 71 73 75 77 79 83 85 87 81 89 91 93 95 97 99 103 105 107 101 109 111 113 115 117 119 A 01 2666 X 1850 LIFT UP 230 2100 1129 3694 370 1925 600 1329 824 B B 230 2100 1129 4123 2896 2309 705 900 705 2309 6427 6427 FIRST FLOOR LEVEL +3040mm SECOND FLOOR LEVEL +6060mm THIRD FLOOR LEVEL +9080mm FOURTH FLOOR LEVEL +12100mm FIFTH FLOOR LEVEL +15120 mm TERRACEFLOOR LEVEL +18140 mm STILT FLOOR LEVEL ±0mm First Floor Mid Landing Level +4550mm Stilt Floor Mid Landing Level +1520mm Stilt Floor Sill Level +1970mm Stilt Floor Lintel Level +3620mm First Floor Sill Level +5000mm First Floor Lintel Level +6650mm Second Floor Mid Landing Level +7570mm Second Floor Sill Level +8020mm Second Floor Lintel Level +9670mm Third Floor Mid Landing Level +10590mm Third Floor Sill Level +11040mm Third Floor Lintel Level +12690mm Fourth Floor Mid Landing Level +13610mm Fourth Floor Sill Level +14060mm Fourth Floor Lintel Level +15710mm Fifth Floor Mid Landing Level +16630mm Fifth Floor Sill Level +17080mm Fifth Floor Lintel Level +18730mm LIFT & HEAD ROOM LEVEL +21160mm 1520 450 1650 930 450 1650 930 450 1650 930 450 1650 930 450 1650 930 450 1650 2430 1050 3040 3020 3020 3020 3020 3020 3020 1520 1520 1510 1510 1510 1510 1510 1510 1510 1510 1510 1510 3020 1050 21160 19 LIFT LIFT LIFT LIFT LIFT LIFT LIFT 13 19 29 120 Flight Typical Floors Riser 151mm Tread 1500mm Width of Steps 300mm Number of steps 19 Handrail Height 1050 mm Lift headroom and Water Tank yet to be Detailed Sill 450mm Lintel 2100mm From Stilt floor Mid Landing A' A A' B' SHANMUGAM ASSOCIATES NO. DATE CLIENT: STRUCTURAL LANDSCAPE XXXXXXXXXXXXXXXXXXXXX MEP : SHEET TITLE: SHEET NUMBER: THIS DRAWING IS NOT A3 IT IS REDUCED TO PRINT REFER TO GRAPHIC SCALE 2X KEY PLAN / NORTH SIGN PHASE/ARCHITECT'S SEAL ISSUE DATE NO. XXXXXXXXXXXXXXXXXXX B-13, 2ND CROSS,W.E.THILLAI NAGAR,TRICHY-620018 TEL:0431-2760010 NEW NO:3,SINGARAM STREET,T.NAGAR CHENNAI-600017 TEL:044-42605480 EMAIL CONTACT@SHANMUGAMASSOCIATES.IN WEBSITE WWW.SHANMUGAMASSOCIATES.IN DRAWING SCALE ARCHITECT: OXINA APARTMENTS ,TRICHY. 2019 SHANMUGAM ASSOCIATES D:\OFC\OXIANA TRICHY\AMDL_02112021.jpg STAIRCASE DETAIL 13-04-2022 13-04-2022 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED

AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSIONFlight

Floors Riser 151mm Tread 1500mm Width

300mm

19 Handrail

1050 mm Flight Stilt Floor To First Floor Riser 151mm Tread 1500mm Width of Steps 300mm Number of steps 19

Floor Stairs Mid Landing Lvl 1530mm FIRST FLOOR LEVEL +3040mm FIFTH FLOOR LEVEL +15120 mm SECOND FLOOR LEVEL +6060mm THIRD FLOOR LEVEL +9080mm FOURTH FLOOR LEVEL +12100mm First Floor Mid Landing Level +4550mm TERRACEFLOOR LEVEL +18140 mm STILT FLOOR LEVEL ±0mm Stilt Floor Mid Landing Level +1530mm Stilt Floor Sill Level +1970mm Stilt Floor Lintel Level +3620mm First Floor Sill Level +5000mm First Floor Lintel Level +6650mm Second Floor Mid Landing Level +7570mm Second Floor Sill Level +8020mm Second Floor Lintel Level +9670mm Third Floor Mid Landing Level +10590mm Third Floor Sill Level +11040mm Third Floor Lintel Level +12690mm Fourth Floor Mid Landing Level +13610mm Fourth Floor Sill Level +14060mm Fourth Floor Lintel Level +15710mm Fifth Floor Mid Landing Level +16630mm Fifth Floor Sill Level +17080mm Fifth Floor Lintel Level +18730mm Lift & Head Room Level +21160mm 1715 X 1800 LIFT 1715 X 1800 LIFT UP 02 05 07 15 13 11 17 UP 01 03 05 07 17 15 13 11 09 B Mid Landing Level 1520mm Sill 450mm Lintel 2100mm Note From Stilt floor Mid Landing 230 1830 230 PLAN | SCALE: 1:75 |01 PLAN | SCALE: 1:75 |02 SECTION AA'| SCALE: 1:100|03 SECTION BB'| SCALE: 1:100|04 Lvl +171mm 01 03 09 19 Sill 450mm Lintel 2100mm Note: From Mid Landing lvl Stilt Floor Lvl ±0mm 19 Lift Well A A' 22640 3040 4500 4500 3020 3020 3020 3020 3020 3040 1510 1510 1510 1510 1510 1510 1510 1510 1510 1510 1510 4500 1600 1200 430 1600 230 4423 1845 5290 2631 1468 1727 1600 1200 430 1600 230 5069 5144 1200 01 03 05 07 09 11 15 17 23 25 27 21 31 33 35 37 39 43 45 47 41 49 51 53 55 57 59 63 65 67 61 69 71 73 75 77 79 83 85 87 81 89 91 93 95 97 99 103 105 107 101 109 111 113 115 117 119 13 19 29 120 3760 1950 1070 1950 1070 1950 1070 1950 1070 1950 1070 1950 1830 3020 3020 3020 3020 3020 1630 1830 18140 2138 1130 1050 Lift headroom and Water Tank yet to be Detailed 1050 3000 1500 1500 1500 112500 SHANMUGAM ASSOCIATES NO. DATE CLIENT: STRUCTURAL LANDSCAPE XXXXXXXXXXXXXXXXXXXXX MEP SHEET TITLE: SHEET NUMBER: IF THIS DRAWING NOT A3 REDUCED TO PRINT REFER TO GRAPHIC SCALE 2X KEY PLAN / NORTH SIGN PHASE/ARCHITECT'S SEAL ISSUE DATE NO. XXXXXXXXXXXXXXXXXXX B-13, 2ND CROSS,W.E.THILLAI NAGAR,TRICHY-620018 TEL:0431-2760010 NEW NO:3,SINGARAM STREET,T.NAGAR CHENNAI-600017 TEL:044-42605480 EMAIL CONTACT@SHANMUGAMASSOCIATES.IN WEBSITE WWW.SHANMUGAMASSOCIATES.IN DRAWING SCALE ARCHITECT: OXINA APARTMENTS ,TRICHY. 2019 SHANMUGAM ASSOCIATES D:\OFC\OXIANA TRICHY\AMDL_02112021.jpg STAIRCASE DETAIL 13-04-2022 B B A A' B 1600 200 13-04-2022 1530 17104 15111 30000 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION p.52 Apartment design p.53

PRODUCED BY AN AUTODESK STUDENT VERSION

Typical

of Steps

Number of steps

Height

Stilt

Interior

Client expectation and scope on interior was less compared to architectural aspects, where the clients expected a very minimal ,calm and neat interior with slight religious touch in it. A light and creamy interior is envisioned and designed accordingly.

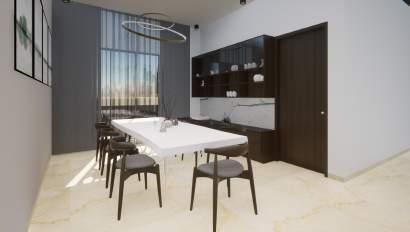

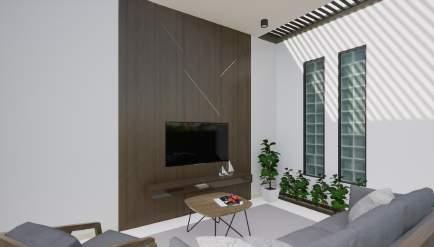

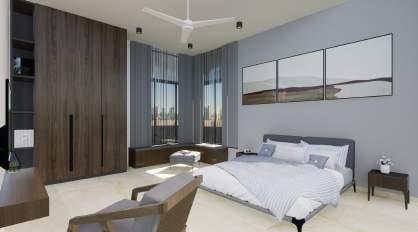

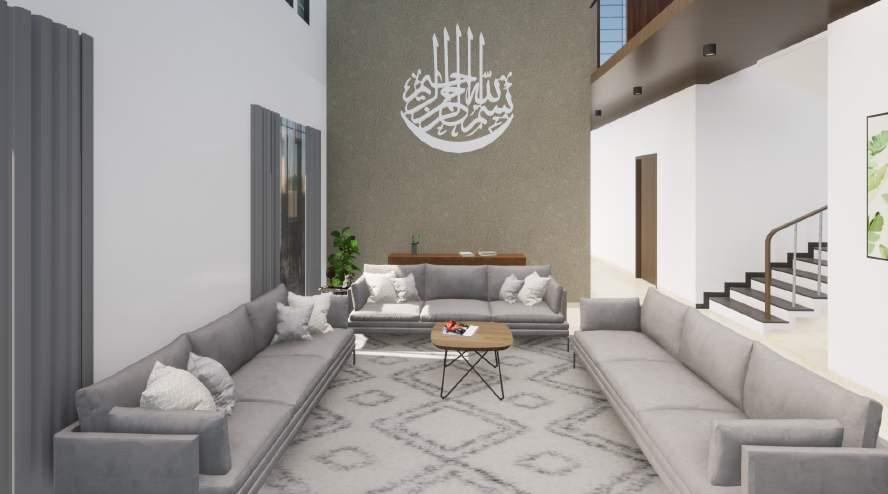

05. Hakkim’s Residence, Perambalur . Interior Design - 3D Model. Render. Interior Design - 3D Model + Render 01. Living Room. 03. Bedroom. 05. First Floor - Formal Living. 04. First Floor. 02. Dining Room. design

p.54 Apartment design p.55

06. Pravin Residence, Trichy. Joinery schedule.

FFL IN OUT

[2'] 1200[3'-11"]

[1'-9"] 525 [1'-9"]

[3'-11"] 1950[6'-5"] IN OUT FFL 450[1'-6"] FFL

[4'-11"] 675 [2'-2"] 675 [2'-2"] IN OUT 1950[6'-5"] 450[1'-6"]

1200[3'-11"] 1200[3'-11"] 600

525

1200

1500

490

Inow Studios Interiors Chennai

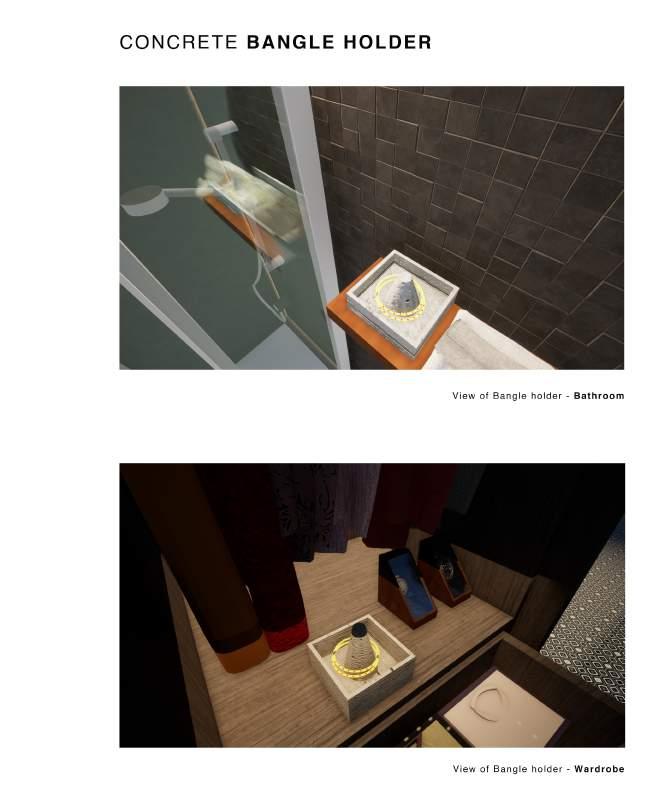

07.Concrete Bangle holder Product Design.

p.58 Apartment design p.59

08. Gitalakshmi residence, Chennai. Detail drawing.

The social edge 4 Apartment design

BRIEF

The design brief is to design an apartment in the centre of an urban city.

INTERPRETATION

As the urban pace is growing very fast but in this fast pace urban area there is lot of disconnection between peoples , everyone is busy with what they are accumlated.Specifically in an apartment it is rare to see more connections between peoples.

The spark which had been brought me is what can i change in the traditional apartment design in order to enhance an communication between the people. Not a sudden and a big change but a change which can have higher possibility in real life.

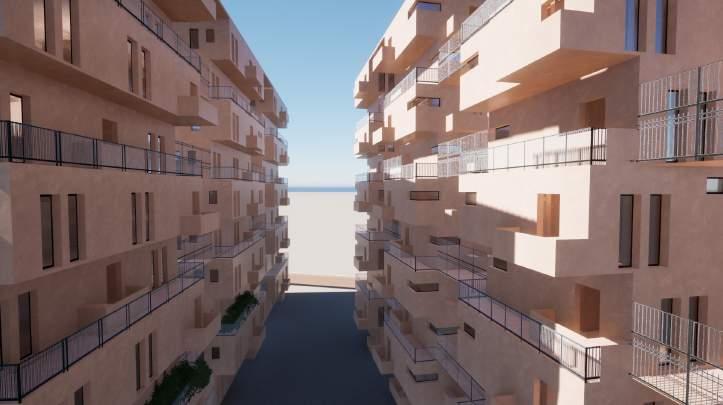

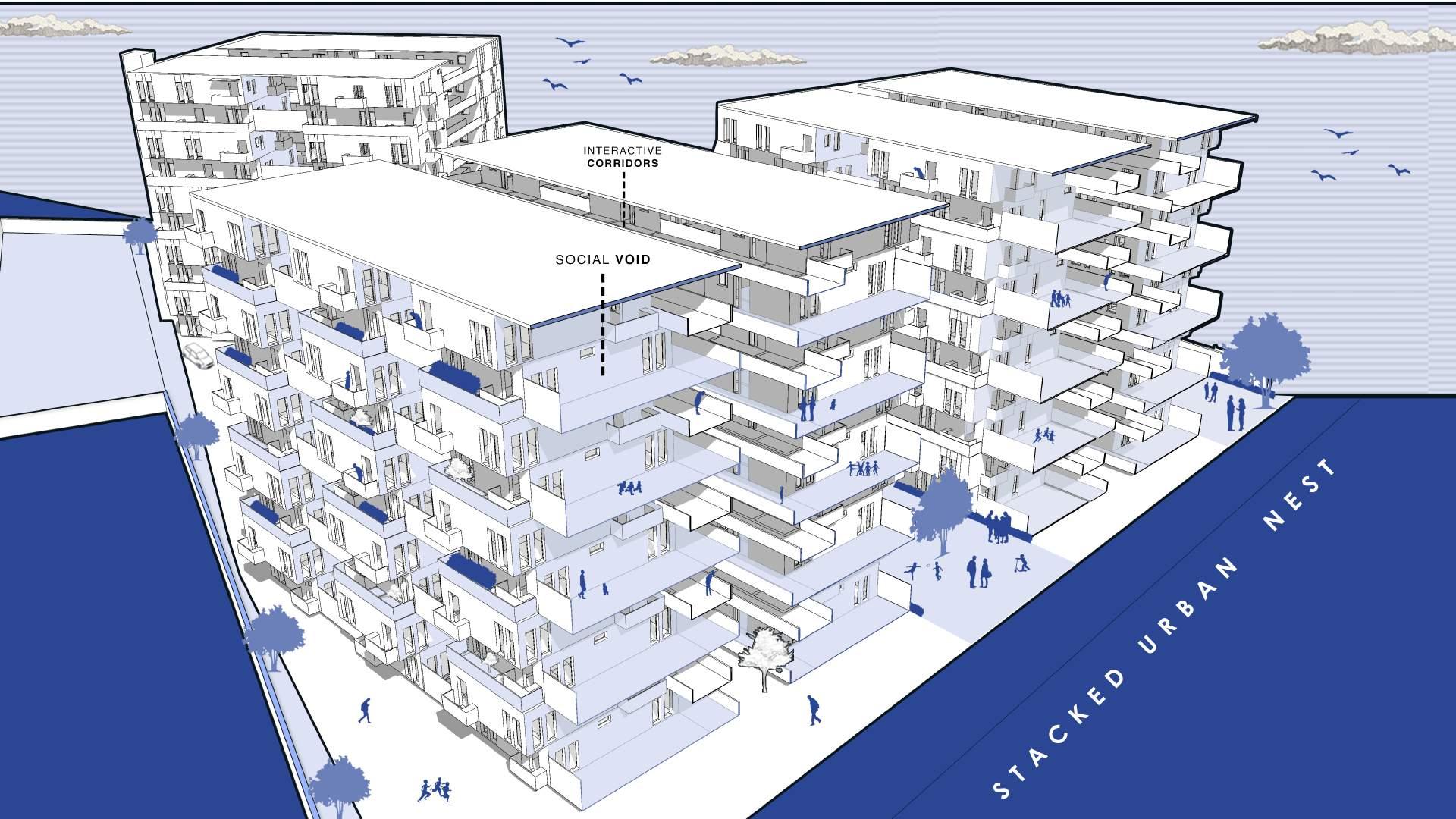

View - Social edge apartment

p.60 Campus design p.61

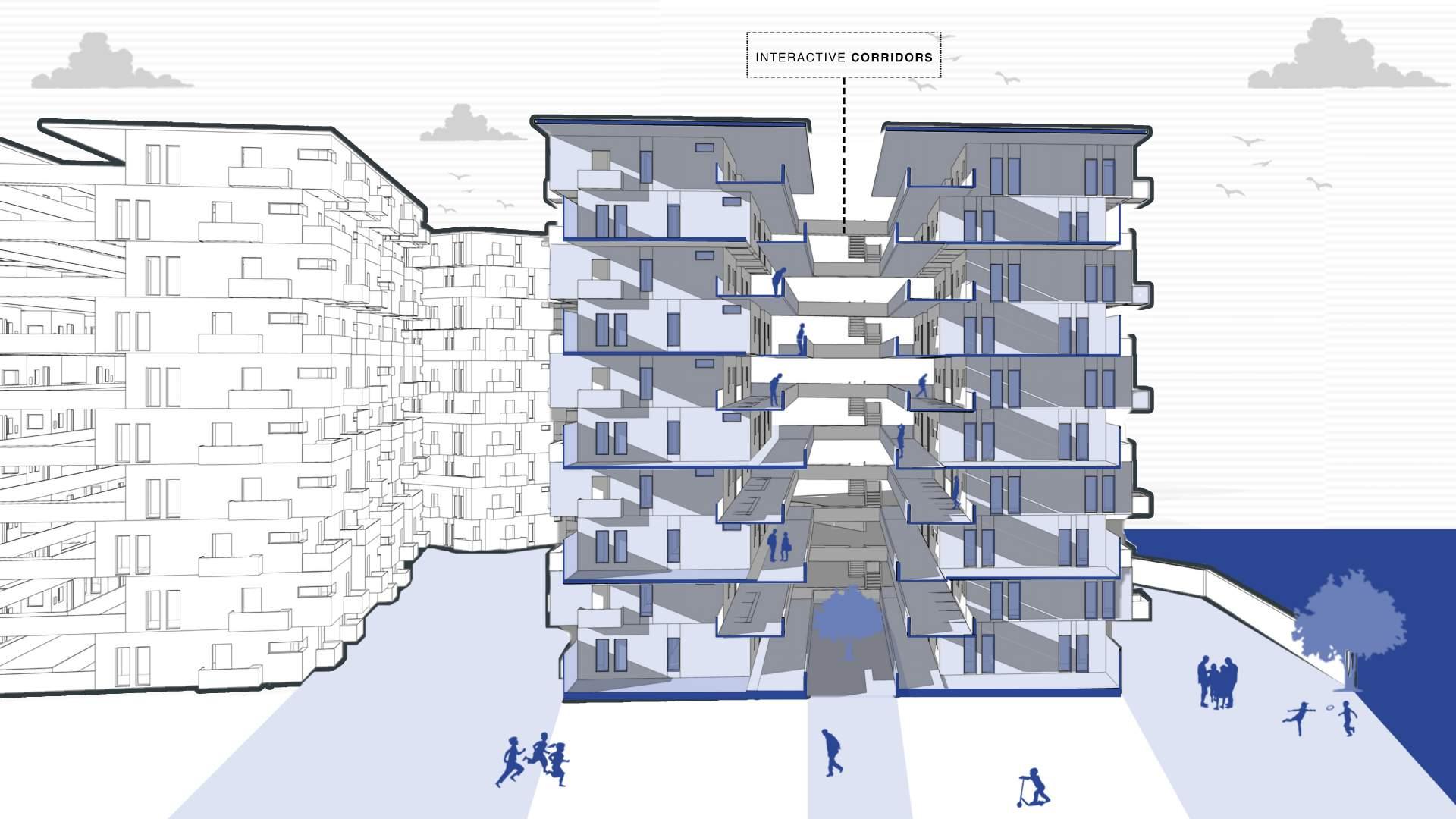

Interaction Between Corridors

Intent applied wholistically

Design Process

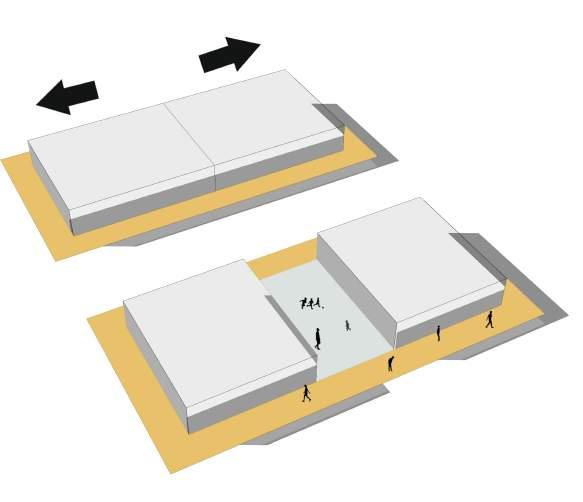

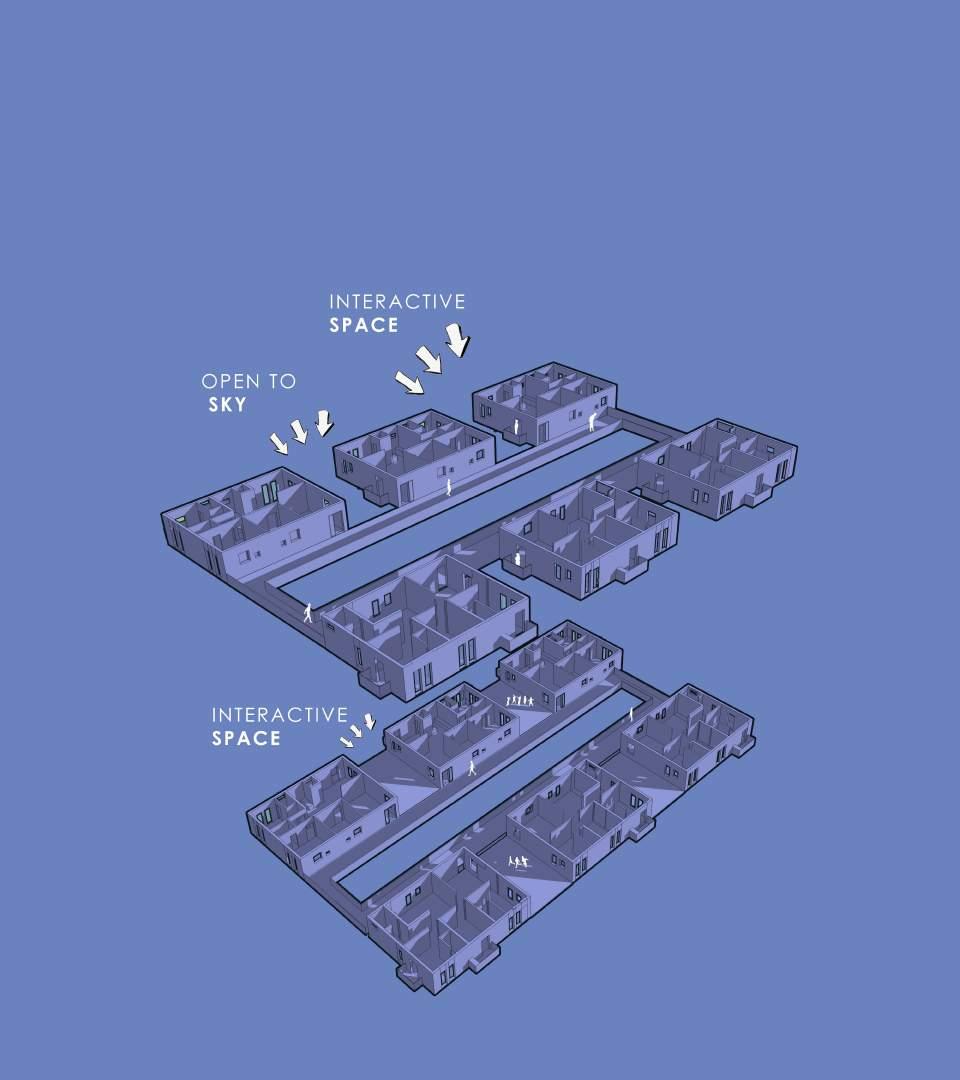

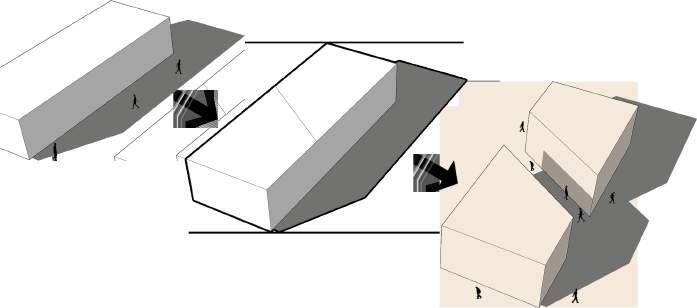

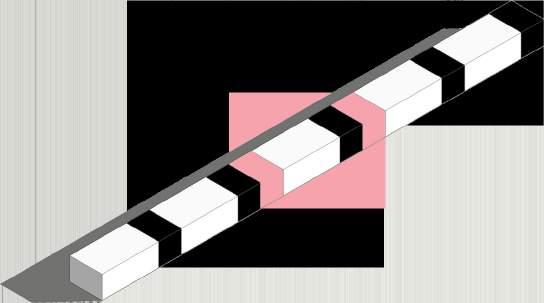

Moving the upper unit backward providing a interacting corridor between two floors.

Will act as a ideal communication space for the user groups in the evenings visually connected to each other and unexpected encounters.

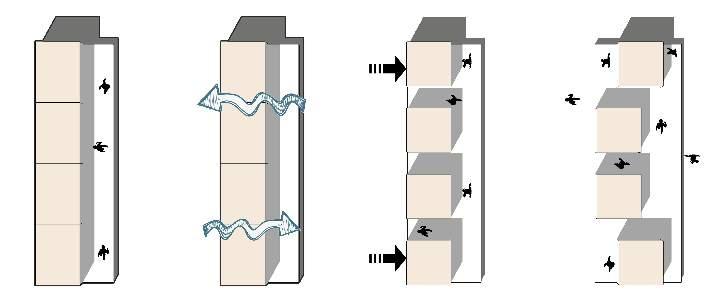

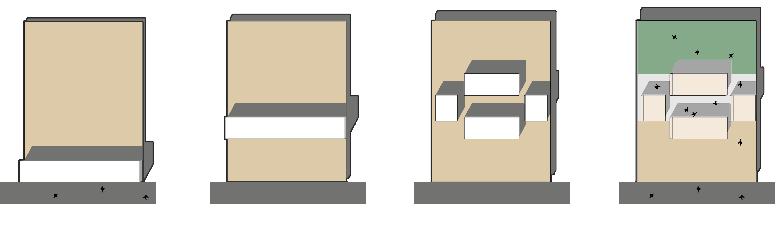

Traditional apartment design Upper entity pushed back for better interaction

p.62 Campus design p.63

TRADITIONALAPARTMENTDESIGN

INTRODUCINGVOIDBETWEENDWELLINGUNITS

Social space bounded by two dwelling units - introducing a social void in - between two dwelling units in order to ensure a communication between the dwelling units.

An ideal space for user groups to experience in the evening time and users can also connect through balcony and windows.

Design Process View of social space bounded by dwelling units p.64 Campus design p.65

Interaction Between Dwelling Units

p.66 Campus design p.67

p.68 Campus design p.69

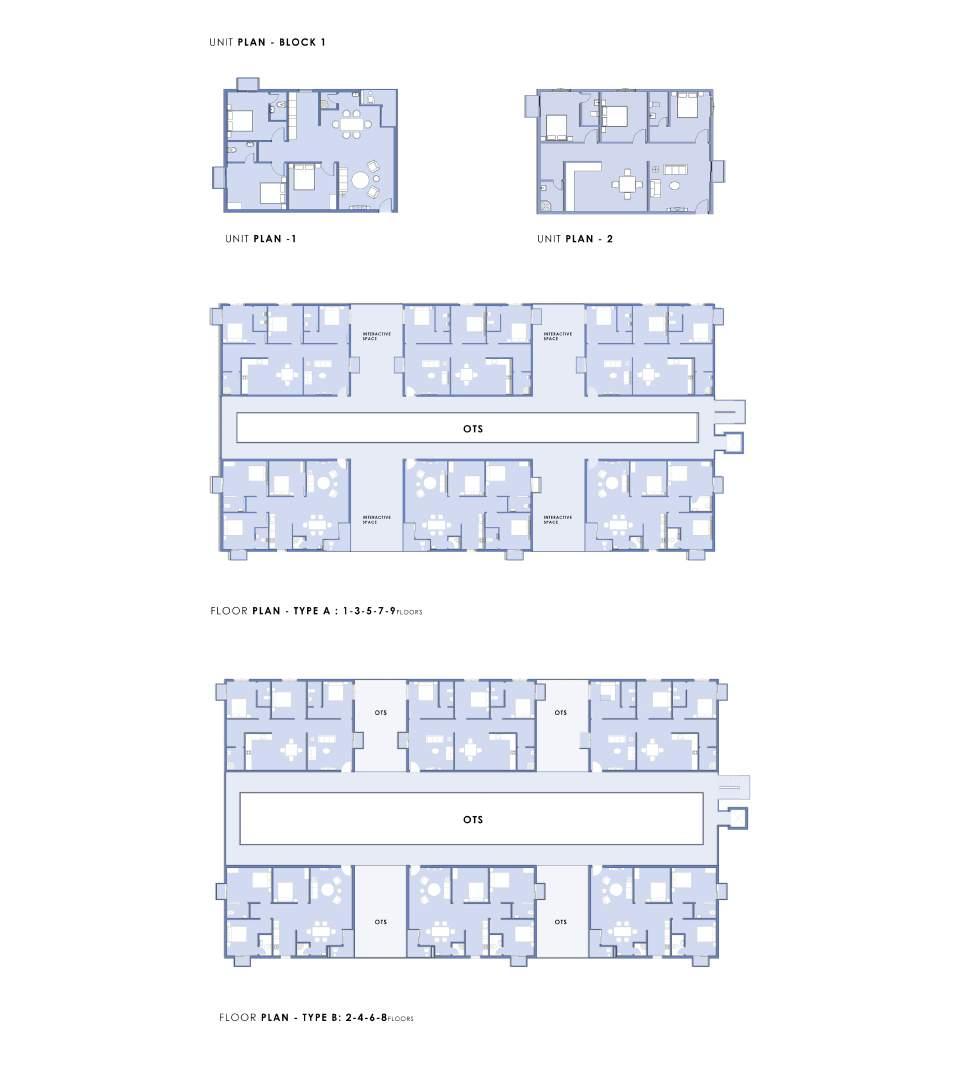

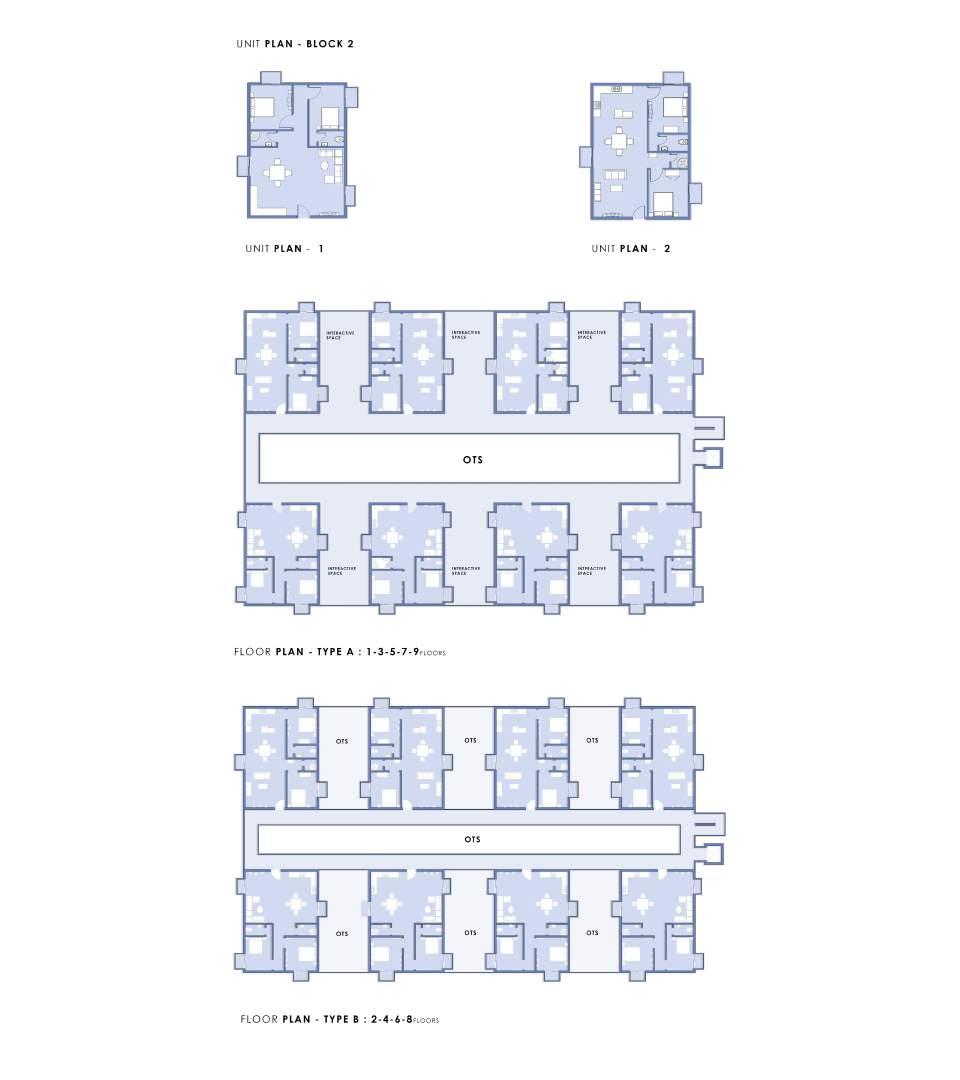

FLOOR PLANS

p.70 Campus design p.71

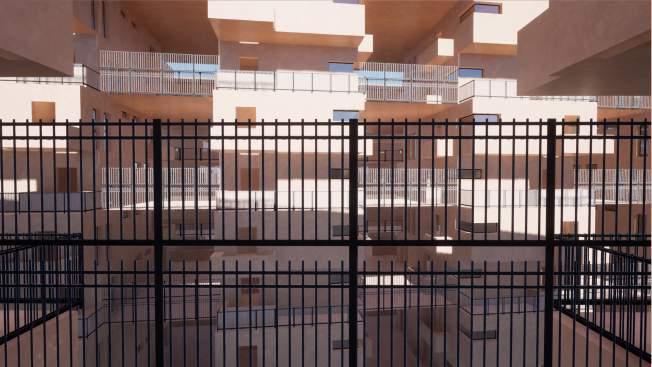

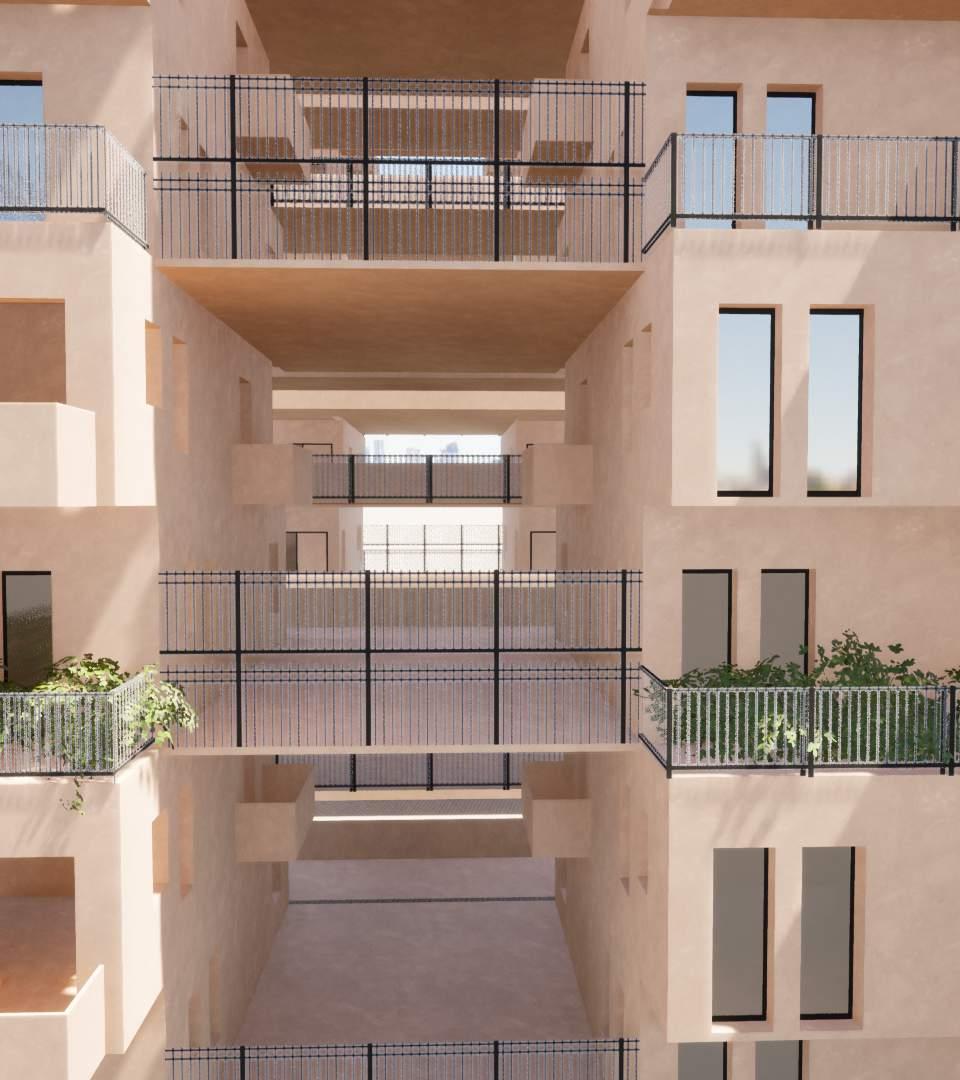

View - From social void towards other block

View - Towards social void

p.72 Campus design p.73

MISCELLANEOUS

Objective

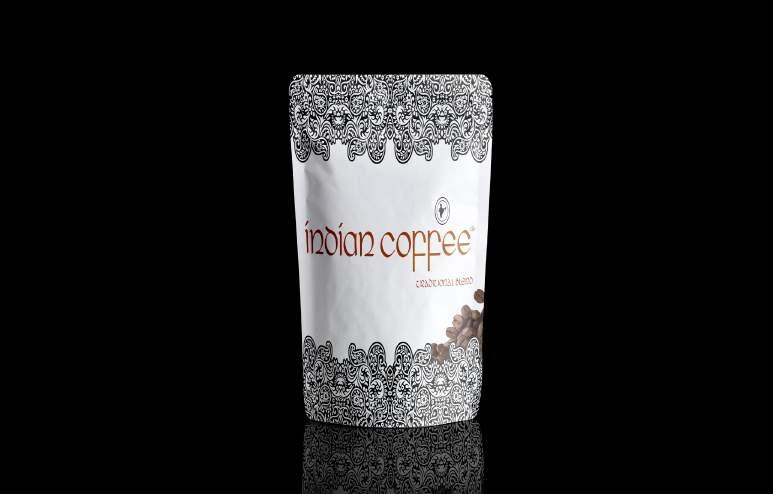

The project is to design a coffee pouch/ tin cover with a specific target audience in mind

Intent

As it is not suppose for a particular class so it belongs to every people so traditional indian text is used.People can relate it to their context as it is not any foreign brand.To give a retro look.A blend of old and modern style
