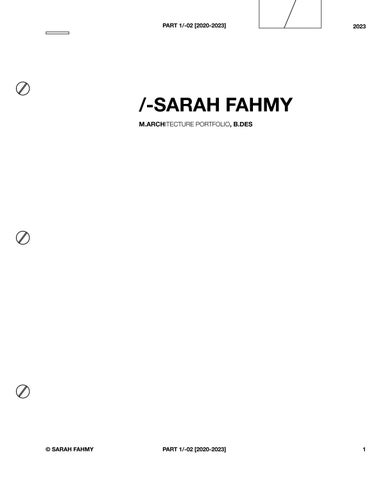

Architecture Portfolio 1

PART 1/-02 [2020-2023]

2023

/-SARAH FAHMY M.ARCHITECTURE PORTFOLIO, B.DES

© SARAH FAHMY

PART 1/-02 [2020-2023]

1

PART 1/-02 [2020-2023]

/-01

Building Hope | Masterplan, Mixed-use Utility

/-02

Our Social Future | Master Plan, Commercial, Residential

/-03

Threshold Landscape | Master Plan, Landscape Architecture

/-04

Around Us | Study

PART 2/-02 [2016-2019]

/-05

The Collective | Mixed Use Residential

/-06

Lot Hotel | Retail, Hospitality

/-07

The Rear Studio | Residential

/-08

Shops on Queen | Mixed-Use Residential, Commercial

/-09

Push | Experiential

/-10

Professional Work | Commercial, Residential

3

/01.3 destruction

/01.1 blockade

/-01

Building Hope

/01.4 water infrastructure

/01.2 water bodies

ACADEMIC

/01.5 electrical deficits

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023 Awarded

2023 CASAACÉA Student Work Showcase Top 5 Masters projects Exhibited in

2023 RAIC Conference Published in

Building 22 Edition 23

/-01

Exhibited in

Building 22 Ed 22 Gallery Exhibit

Building Hope [Academic] Masterplan, Mixed-use Utility

Location Wadi Gaza, Gaza Strip, Palestine Size 132,000 msq Programs Rhino, Photoshop, Illustrator

Since 2007, the Gaza Strip, an occupied Palestinian territory, has been under an Israeli and Egyptian siege. Terrestrial and nautical blockades, in addition to incessant militaristic onslaughts by the Israeli Defence Forces have had devastating impacts on the Gazan people, infrastructure and ecology. The resulting destruction, resource scarcities, utility and service deficiencies have produced an urgency for intervention.

This work illuminates opportunities for design to be utilized as an agent of empowerment, amelioration, and hope. In an effort to interrupt compounding systems of oppression, an exploration of novel hydro-electric and ecological pavilions of refuge are proposed as speculative models of stable utilities and service provisions. Situated among ongoing UNDP rehabilitation efforts in Gaza’s main socio-cultural and ecological spine, Wadi Gaza, these speculative models aim to provide sustenance, support and hope for the people of Gaza.

/01.6 transitory shelter mock up

5

/01.7 wadi gaza site and context Overlay of existing Wadi Gaza site, context and UNDP plans demarcate future nodes of interest and possible sites.

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

Seige + Blockade

Fuel Import + Offshore Reserves

Fuel-Powered Generators

/01.8 compounding conditions Compounding conditions illustrate the impact of loss of resources stemming from the Israeli and Egyptian blockade.

Gaza Power Plant

Wastewater Treatment Centre

Waste

Desalination Plant

Water Bodies

Water Availability

/01.9 building hope

sustenance

support

hope

Fundamental aspects of Building Hope proposal include sustenance, support, and ultimately hope.

7

/01.10 modular buoys

Modular buoys designed to accommodate variable site conditions and configurations harvest electricity and transmitted to terminals.

/01.11 terminal

Terminal harvest water and supply services to surrounding communities.

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

/01.12 transitory shelter

Transitory shelters adapt to serve community needs and provide lacking washroom facilities.

9

/01.13 terminal and transitory shelter envelope Humidity collection panel framing. Standardized frames are utilized as the base of all systems to ensure gravitational funneling of water into terminals.

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

/-01

The Rear Studio Residential

Location Toronto, Ontario Size ..

Collaborators NA

njknkjnkjnkjn

/01.14 terminal and transitory shelter Spaces of play surround the terminal and transitory shelter to promote a sense of normalcy and hope.

11

/01.15 sea gate buoy piers perspective

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

/01.16 sea gate site plan

/01.17 sea gate section

Sea Gate Estimated Energy and Water Harvest Kinetic Energy Solar Energy Filtered Water Unfiltered Water

44.6 mw/day 9.97 mw/day 1,218 to 2,434 L/day 1,154 to 2,310 L/day 13

/01.18 visitors’ centre bridging buoys perspective

ACADEMIC

/-01

BUILDING HOPE

NAME BUILDING HOPE

/-01

2023

/01.19 visitors’ centre site plan

/01.20 visitors’ centre section

Visitors’ Centre Estimated Energy and Water Harvest Kinetic Energy Solar Energy Filtered Water Unfiltered Water

29.37 mw/day 486 kw/day 1,827 to 3,651 L/day 1,731 to 3,465 L/day

15

/-01 The Rear Studio

/01.21 visitors’ centre terminal and transitory shelter perspective

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

/-01

The Rear Studio Residential

Location Toronto, Ontario Size ..

Collaborators NA

njknkjnkjnkjn

17

/01.22 upper gate transitory shelter perspective

ACADEMIC

/-01

BUILDING HOPE

BUILDING HOPE

/-01

2023

/01.23 upper gate site plan

/01.24 upper gate section

Upper Gate Estimated Energy and Water Harvest Kinetic Energy Solar Energy Filtered Water Unfiltered Water

10.27 mw/day 14.82 mw/day 1,827 to 3,651 L/day 1,731 to 3,465 L/day 19

/-02 Our Social Future

/02.1 moosonee relocation

ACADEMIC

/-02

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

2022 Published in

The People Have Moved Camp Published in

Building 22 Edition 22 Featured on

Carleton Uni. Website “Centering Indigenous Knowledge”

/-02

Our Social Future [Academic]

Masterplan, Commercial, Residential

Location Moosonee, Ontario Size ..

Programs Rhino, Photoshop, Illustrator

Our Social Future is a conceptual design presented to the MoCreebec Eeyoud people for their potential relocation from the flood-imminent Northern Ontario Moose Factory Island to the mainland Moosonee. Through community consults, the designs take into consideration the MoCreebec Eeyoud Comprehensive Community Plan recommendations and are designed with Indigenous values and contemporary technologies in mind. The plan is intended to create an economically and socially resilient future for the MoCreebec Eeyoud People, to built by the people, for the people.

This site was selected out of four viable sites for its strategic proximity to the Moosenee core, existing utilities, vehicular infrastructure, railroad, close relationship with water and natural division within the site offering natural fire buffers and low initial infrastructure costs.

1

Socio-economic Opportunity and Social Interaction

2

Respect the Land and Water

- Incorporate traditional community pillars of the seven grandfather teachings and clan structure - Encourage traditional, modern and age specific activities - Encourage community-built housing through skills training - Create micro-economy of self-sufficiency

- Lead with landscape-based interventions, - Emphasize connection with water - Maintain sight lines to water and land - Create a connection to the land - Utilize passive design

3

4

Food Security, Traditional Diet and Food from the land

- Create food security and resiliency - Encourage individual and communal economic opportunity - Provide alternative food and medical procurement - Provide the groundwork for addressing health concerns

The Environment, Technology and Tradition

- Use of natural materials for energy conservation - Integrate traditional building practices with modern technology to uphold cultural values and increase efficiency - Provide space for land-based activities

/02.2 design principles

21

/-01 The Rear Studio

/02.3 master plan

Residential

Commercial

Wildlife Corridor/ Eco-Sanctuary

Community Enrichment

Industrial

River

Trade/ Commerce, Interpretive Centre, Eco Lodge

Modular Homes

Gathering & Resiliency Centre, Communications and Governance Center, Elders Lodges, Public Services, Tech Hub, Health Zone

1

Abstract linework of Moose River and Benjamin Chee Chee art

/02.4 design language

ACADEMIC

2

Construction Warehouse, Storage, EV Charging Station

3

Merge Moose River form to create eco-corridor through the site

/-02

Centralize neighborhood with radial nodes

4

Fragment and manipulate radial nodes to form plan

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

10 7 6 255+

2022

Roof Modules [x2 Mirrored]

ELDER SUITE + BATH MODULE

Base Modules [x2 Mirrored]

Configurable for Elder Village caretaker housing or elder addition to housing

Modification Modules [x2 Mirrored] Housing Configurations

ELDER SUITE

TWO BEDROOM + BATH MODULE

TWO BEDROOM MODULE CARPORT

LIVING + CORE MODULE

Space for gathering and maintaining cultural practices

/02.5 modular housing

FLEXIBLE SPACE

GREENHOUSE

Food security from harvests

Economic opportunity through live/ work spaces

Modular housing typology was selected in order to best suite Comprehensive Community Plan [CCP] Recommendations. Nominally sized modules are to be locally manufactured in onsite warehouse facility and easily transported to final site.

CCP recommendation: #20. Invest in rental housing and/or housing that is easily transportable

/02.6 configuration 5 front elevation

/02.7 configuration 5 side elevation

23

/-02

/02.8 configuration 5 section

STORAGE SM

STORAGE LRG

CARPORT

ELDER SUITE + BATHROOM

ENTRY W/ CLOSET

TWO BEDROOM MODULE

LIVING + CORE MODULE

TWO BEDROOM + BATH MODULE

GREENHOUSE

/02.10 housing layouts The typology allows for semi-detached or detached clusters while dually allowing for individualization and consistent community appearance. Accessible for first time home owners, the typology is available in a variety of sizes, allowing room for expansion as families grow. This typology allows for site specific orientation including eastern entry and southern exposure as per MoCreebec preference.

FLEXIBLE SPACE

/02.9 housing modules floor plan

ACADEMIC

ELDER SUITE

/-02

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

1

Tiny Home

2

3

2 Bedroom with Greenhouse + Carport

4

5

4 Bedroom with Elder Suite + Business + Greenhouse + Carport

6

2022

Elder Suite with Carport + Business

4 Bedroom with Carport

5 Bedroom with Elder Suite + Business + Greenhouse

/02.11 alternative housing configurations sampling

25

/02.12 community centre aerial perspective

ACADEMIC

/-02

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

2022

/-01

The Rear Studio Residential

Location Toronto, Ontario Size ..

Collaborators NA

njknkjnkjnkjn

27

/02.13 from loom to structure Inspired by traditional beading loom, solar tubes are stretched such as pulled threads to the edges of the structure to form the roof.

/02.14 rear elevation [west]

/02.15 side elevation [south]

/02.16 community centre section

ACADEMIC

/-02

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

2022

/-01

The Rear Studio Residential

njknkjnkjnkjn

/02.17 community centre perspective

/02.18 community centre - above ground level

/02.19 community centre - ground level

29

/02.20 community centre perspective

ACADEMIC

/-02

OUR SOCIAL FUTURE

OUR SOCIAL FUTURE

/-02

2022

The Rear Studio Residential

Location Toronto, Ontario Size ..

Collaborators NA

njknkjnkjnkjn

31

/-03

Threshold Landscapes

/03.1 threshold landscape site perspective

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022 Exhibited in

10th Architecture Biennale Rotterdam Published in

Building 22 Edition 22 Featured on

Foundation for Achieving Seamless Territory Web

/-03

Featured on

Carleton Uni. Website Featured on

Architecture Next

Threshold Landscapes [Academic] Masterplan, Landscape Architecture

Location Naqab / Nagev Desert, Palestine / Israel Size 245 km Programs Rhino, AutoCAD, Photoshop, Illustrator

Through mapping, various levels of flows at the Egyptian, Israeli and Palestinian border, several scales of biotic interruption were uncovered including, human, flora and fauna paths of travel. The divisive border has thus created stresses on both sides of the border, resulting in overgrazing, scarce resources, and loss of biodiversity.

Threshold Landscapes explores landscape and architectural interventions to reconcile and revive the barren land. Interventions include retrofit and new structural additions utilizing recycled and natural elements in order to rehabilitate the desert.

33

/03.2 site - holot agur typical plot

This diagram of a hybrid section and plan underscores the topology of the land in terms of desertification.

The formations and adaptive nature of the desert has been documented to gain insight on the site's existing conditions. Notabily the deserts undergo constant changes in topology from wind formed dune creation.

An assemblage of geological layers add to this shift in formation as well. As a whole, this creates a dynamic environment with deep history in anthropogenic and geological significance.

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/03.3 humans interrupted

/-03

2022

/03.4 flora interrupted

Border infrastructure can alter and inhibit water flows as evident in the case of Lake Tiberias and the Jordan River due to the Israeli/ Jordanian border. In turn, this can impact the state of surrounding flora species as well.

Outlined are the rivers and natural basins in the region that are interrupted by the border along with the surrounding flora. One can hypothesize with time, the interrupted rivers may dry up and alter the flora similar to what is occuring in Lake Tiberias.

Another threat to flora as well is vehicle traffic along Road 10 to outposts along the border damaging slowgrowing desert plants while inherently damaging the land it‘s built on. The interrelation and reliance of flora and fauna means that the reduction of the animals tending and grazing in the region leads to dwindling vegetative masses.

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022

/03.5 fauna interrupted

Through tracing the paths between the fauna’s habitats, it is clear that the border infrastructure may have impeded the migratory paths of all the large native fauna in the region including those that have become extinct and endangered over the years.

According to a study funded by the Natural Environment Research Council, it has been noted that borders can reduce species migration. The borders can also impact fauna’s capacity for adaptation to climate changes by inhibiting relocation and in turn reduce their lifespan. Lack of prey due to border segregation can lead to dwindling fauna populations.

37

/03.6 threshold landscape conceptual perspective The border region retrofit takes into consideration the military requirements of the area, while prioritizing the biotic. The resultant is a flip of the military buffer zone into an ecological buffer zone, providing opportunities for the biotic to flourish through the existing border infrastructure at various scales, and thus rewilding the barren landscape the border infrastructure had created. Interventions are explored at the scale of the border wall, the outpost and the dune in order to foster and stabilize the ecosystems that exist within the threshold landscapes.

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022

/03.7 mycellium tower The mycelium tower is assembled from fired bricks of fungi and rice/ wheat harvesting by product - straw.

When assembled the tower provides shelter and shade for small animals and birds while functioning as a pigeon gauna cultivator that aids in the growth and fertilization of surrounding flora.

Mycellium Brick Tower provides shelter for small animals and harvest pigeon guano for soil revitalization

39

/03.8 water tower The water tower functions as a water harvesting tower, collecting water particles from the humid desert air, condensating it on its screen surface and percolating down into a water basin below for the fauna population to drink from. The water tower also works to provide cool shading below its parabolic surface.

Removable railings surrounding both the water and mycelium tower work to harvest mycelium in order to further fertilize the land and grow structural material to expand the ecological border infrastructure.

Water collection basin below allows for flora growth and provide water for fauna

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022

/03.9 lookout The look out is a combination of the processes found in the mycelium and water tower. Mycelium harvest occurs in enclosed removable railings while a surrounding water collection screen percolates water to growing flora below.

The lookout path is fundementally a deconstructed shipping container structure utilizing metal decking as the base of the path and overlaid with fired mycelium brick. Recycled shipping container beams are utilized to elevate the structure to provide views over the border fencing and surrounding areas.

The lookouts incorporate people into the landscape on the few occasions a year it is open. It creates opportunities of refuge below it, casting shade, delivering irrigation to the vegetation below and integrating the community through the tending of the cultivation and harvestation of mycelium, further building of the connective elements of the interventions.

People are in turn connected to the landscape and each other, witnessing the fauna and flora, the lookout and other interventions have fostered.

Water collection and harvested mycellium used for flora growth

41

/03.10 fauna tower retrofit Performing a similar function to the mycelium tower, the fauna tower uses the existing observation towers located along both the Egyptian and israel/Palestine border. Spaced mycelium bricks added within the steel structure of the tower provide additional structural support while allowing penetration by birds, insects and bats in order to hibernate and nest and feed on the mycelium.

Rather than a tower isolated from the landscape, keeping watch over it, the fauna tower is conceived as an element of the landscape.

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022

/03.11 living threshold wall retrofit

The border wall, originally conceived to divide the landscape as impermeable, is retrofitted to foster life on both sides of the border, while still maintaining its function. The existing rebar becomes a growing medium for climbing plants. A water catchment system is added within the structural framework of the wall with a polypropylene mesh set within that framework, which capturess moisture from the air. The water is then delivered to water basins spread along the wall and soil beds, with biochar and mycelium added to the soil to increase its moisture content and nutrient retention. The living threshold creates opportunities for shading, drinking and grazing through low cost, low tech intervention. This logic extends throughout the ecological buffer zone by creating opportunities for the biotic to flourish and take over the border region, where it had originally contributed to its destruction and division. A reversal in claim over the threshold landscape.

43

/03.12 dune cavarenes With the sand dune habitats created, the bacteria bacillus pasteurii can be injected into the dunes alongside the framework. This bacteria has an interesting property of turning sand into sandstone with just oxygen and environmentally abundant nutrients.

The structures could take on a dome like structure that follows the framework previously laid down. Further layers and iterations could be added to the caverns in which the domes are created to further add structural support or increase internal space. These domes could act as an oasis within the desert for migratory species or shaded rest spots for migrating peoples.

ACADEMIC

/-03

THRESHOLD LANDSCAPES

THRESHOLD LANDSCAPES

/-03

2022

/03.13 dune framework As part of the desert infrastructure, the dunes can be used to create a more suitable environment around the border. First, sticks can be planted into the ground to mark out dune borders before they shift. Once the dunes have shifted into the sticks, a more structural framework can be implemented to secure the dune.

This framework can be created from decommissioned border fence posts and wooden posts. From this stable point, the adjacent dune can be stabilized using the same framework system. The system can be enhanced with fencing or geotextile material to provide a more suitable surface for vegetation which further provides structure to the system. The vegetation also provides shade which helps with the creation of ponds and provides habitat for desert species.

45

/-04 Around Us

/04.1 the neighbourhood surrounding

ACADEMIC

/-04

AROUND US

AROUND US

/-04

2020 Published in

Building 22 Edition 21

/-04

Around Us [Academic]

Sketch Study

Location Ontario Size NA Programs NA

A series of sketchbook investigations exploring methods of mapping and documenting.

/04.2 neoclassical surrounding

47

/-SARAH FAHMY M.ARCHITECTURE PORTFOLIO, B.DES sarah.fahmy809@gmail.com issuu.com/sarah.fahmy

© SARAH FAHMY
