“Architecturecannotbetotallyexplained,it mustbefelt,experiencedandmusthavea purpose”

CONTENT 01. HOUSING SCHEME 03. KINDERGARTEN 04. TREE HOUSE 05. LANDSCAPE DESIGN 06. WORKING DRAWING 07. MISCELLANEOUS 02. INSTITUTE OF DESIGN

|HOUSING SCHEME

01

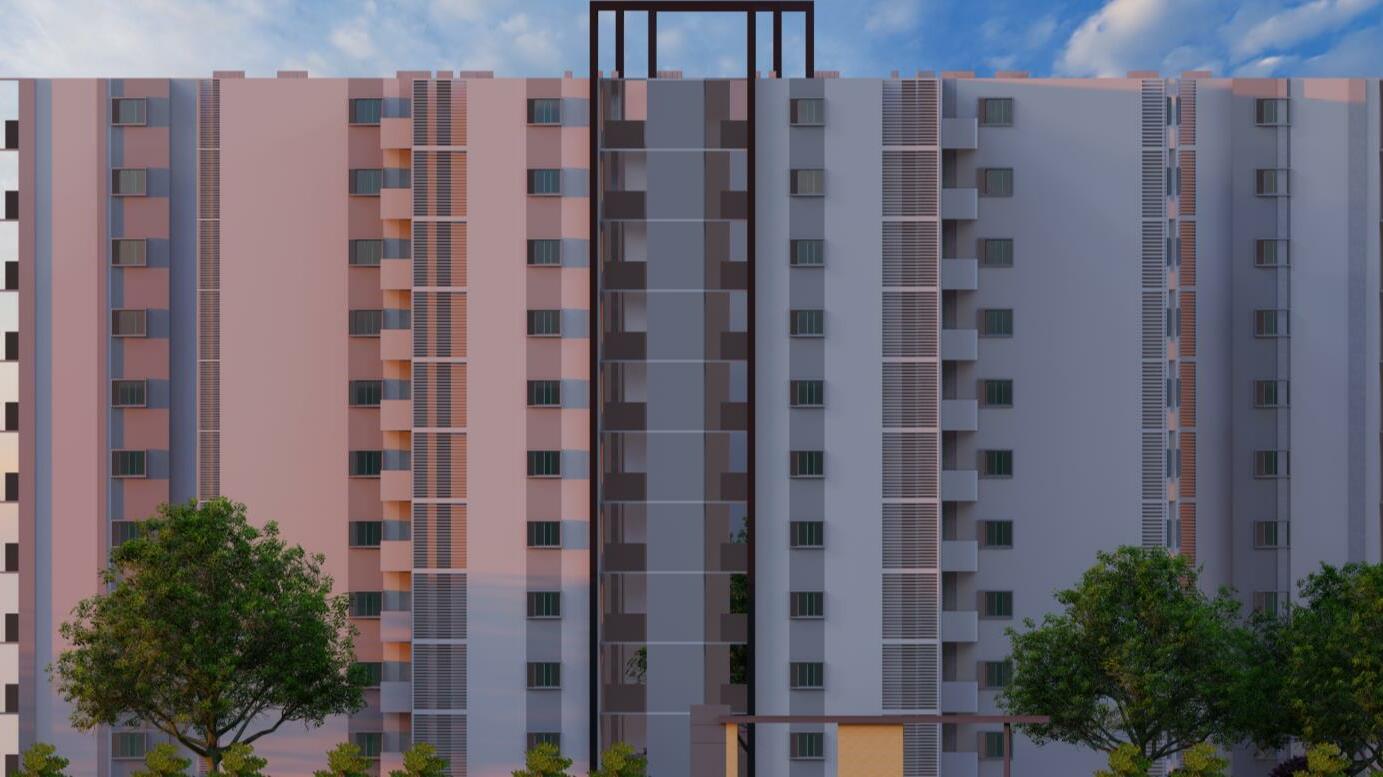

Celestial Heights Site Area 5.90 Acres (23878 sq.m.) Landscape - 9,000 sq.m. 6 Towers | 280 Flats Location Wathoda, Nagpur KEY A ENTRANCE B TOWER (1 BHK) C TOWER (2 BHK) D TOWER (3 BHK) E SLIT PARKING F PLAY AREA G TEMPLE H BADMINTON COURT I VOLLEYBALL COURT J BASKETBALL COURT K SUPER MARKET L CELEBRATION HALL M CLUBHOUSE A X’ X B C C D D D E E E E F F G H I J K L M E Master Plan Section XX’

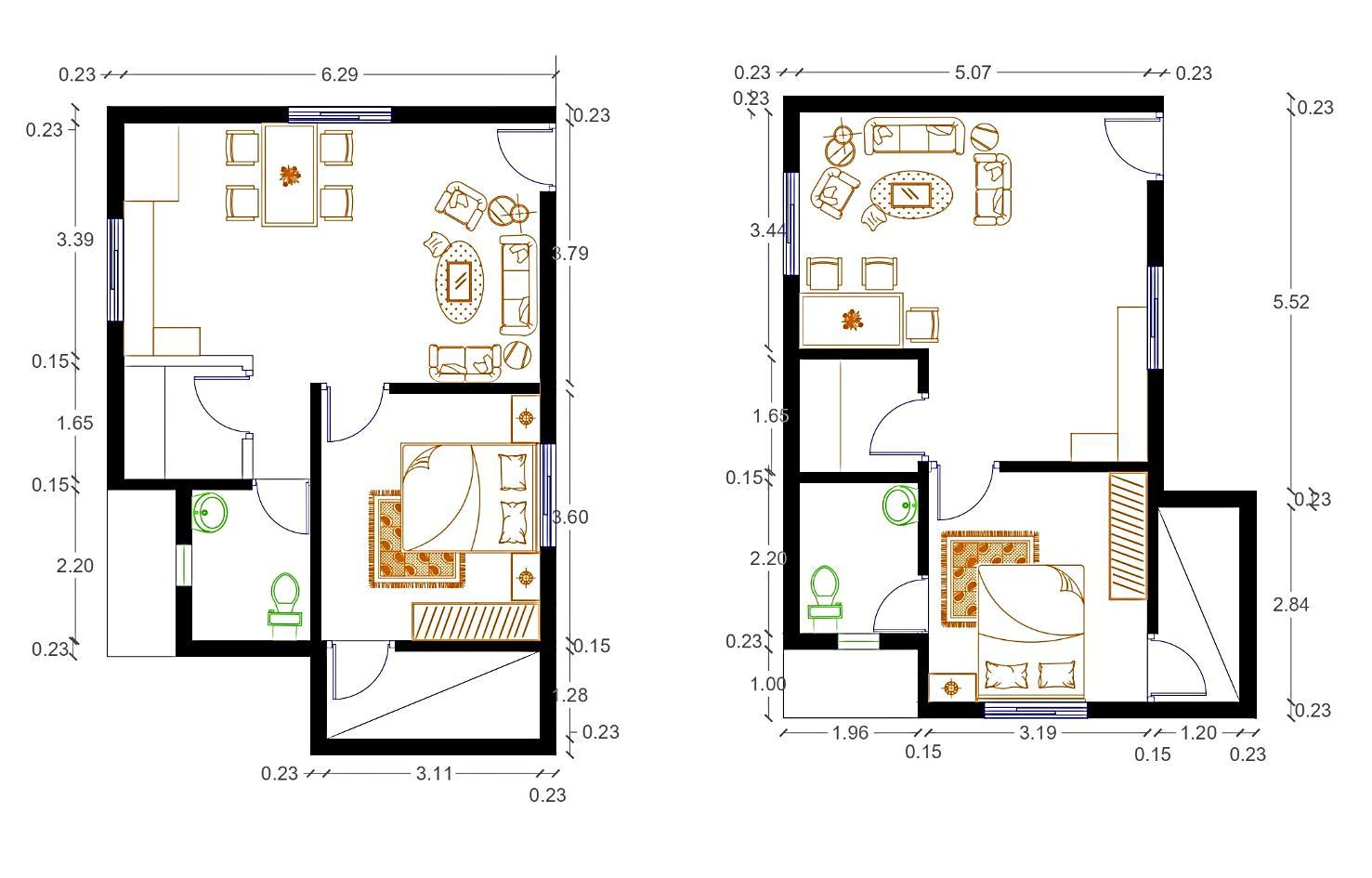

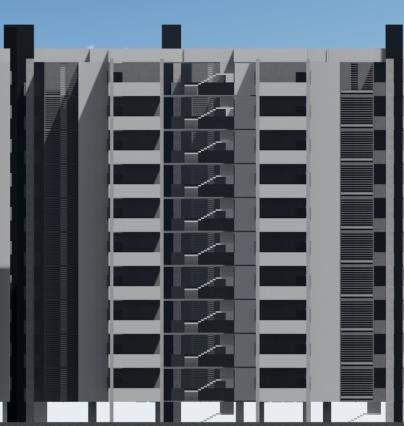

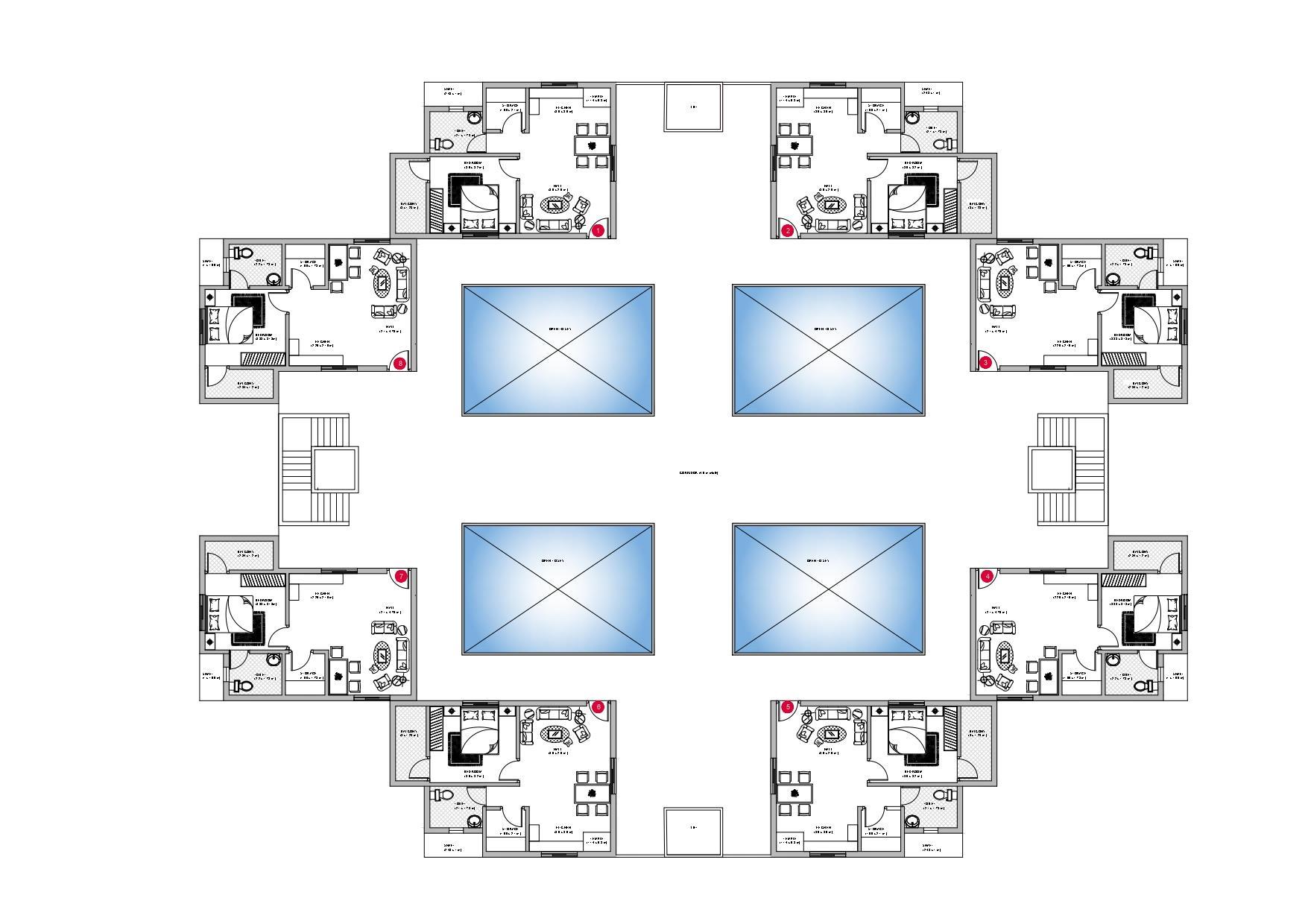

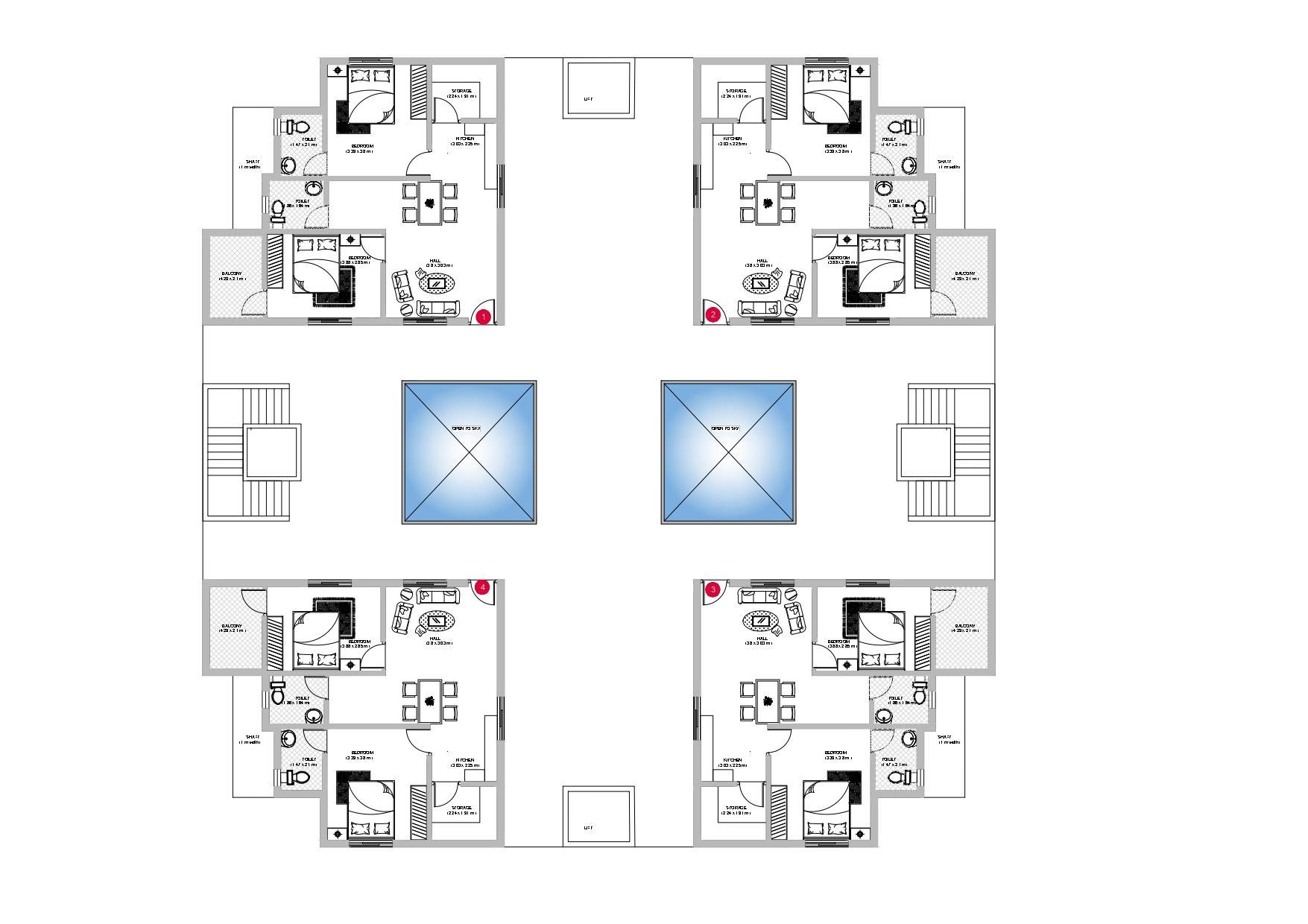

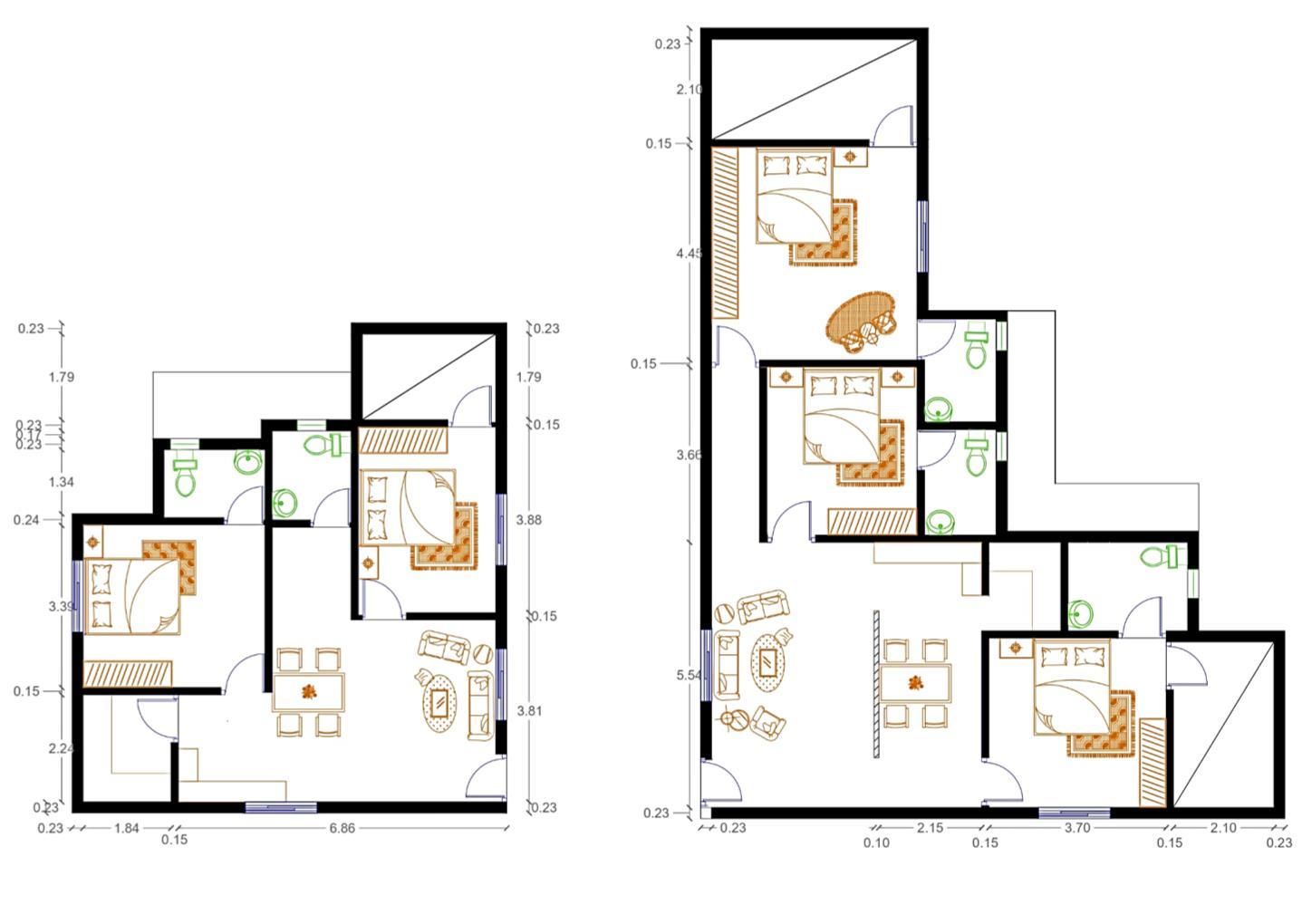

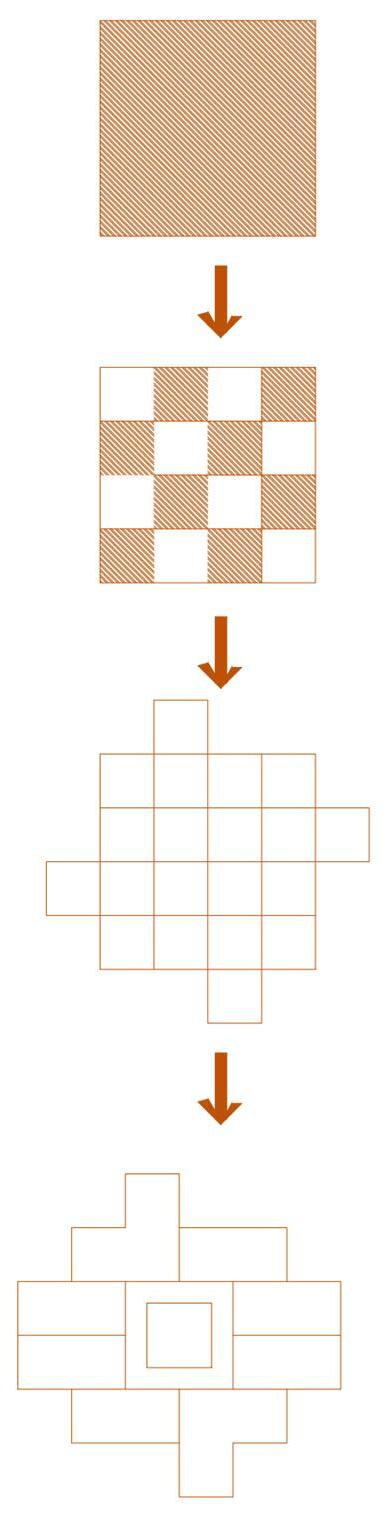

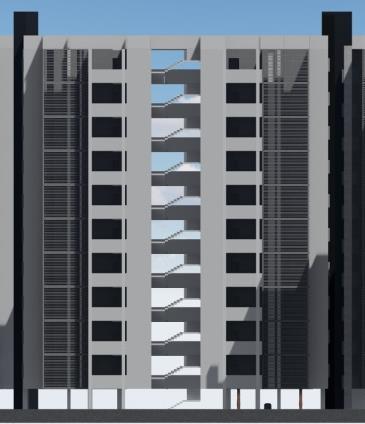

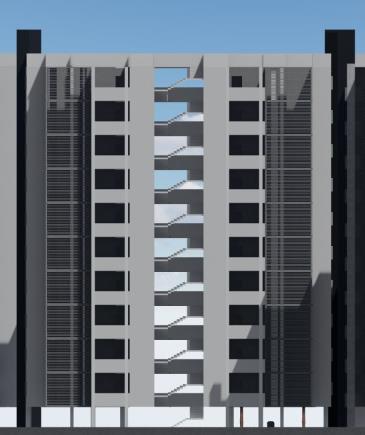

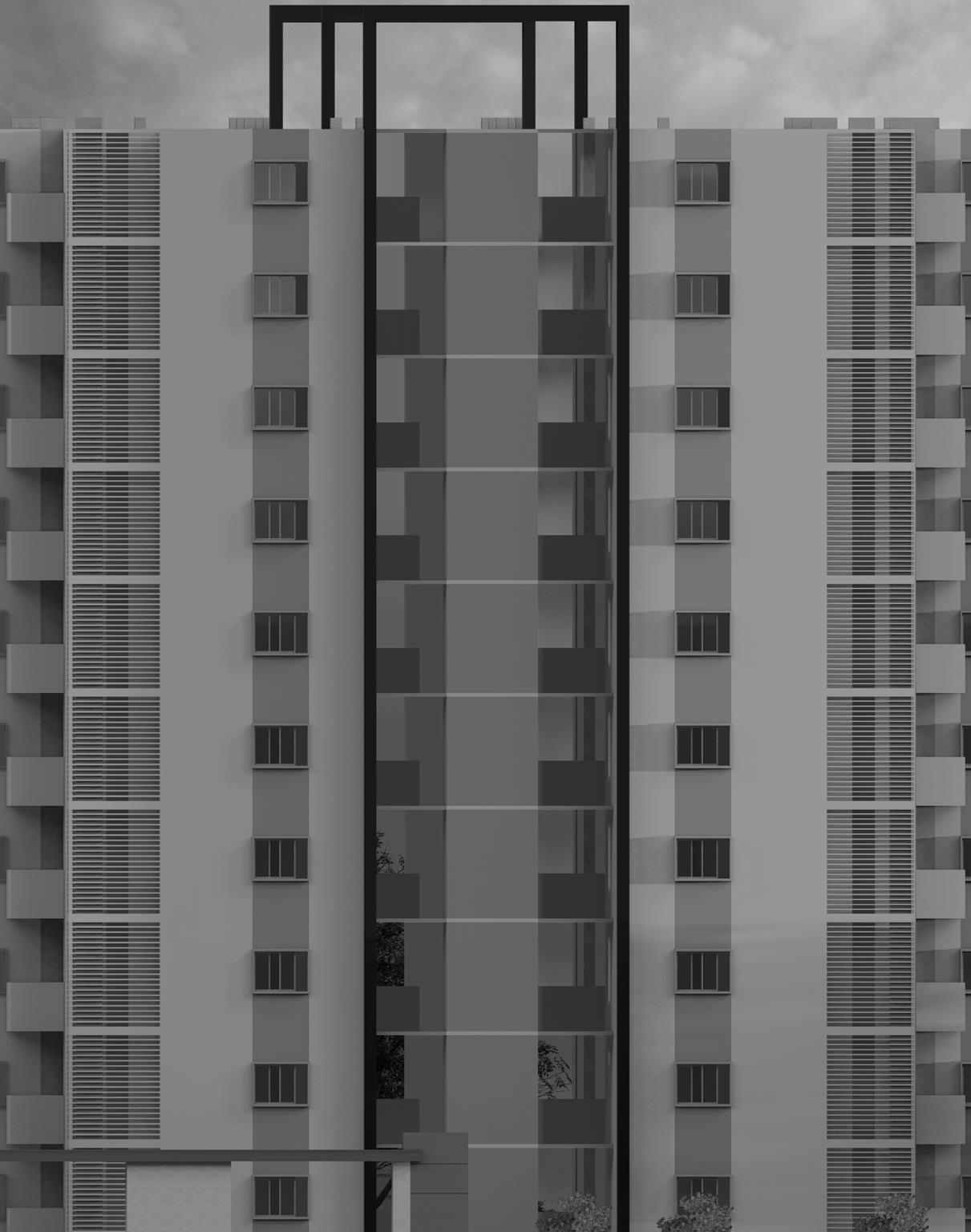

Concept Tower (2BHK) Tower (1BHK) Tower (3 BHK) Unit plans Dwelling Types Standard Area Provided Area No. Of Units Per Floor No. Of Floors No. Of Tower Total Units 1 BHK 37 46 sq.m. 49.4 sq.m. 8 10 01 80 2 BHK 65 - 74 sq.m. 70.3 sq. m. 4 10 02 80 3 BHK 92 104 sq.m. 107 sq.m. 4 10 03 120 Area Calculations Floor plans LIG UNIT PLAN 1 BEDROOM + HALL + KITCHEN (BU Area 49.4 sq.m.) MIG UNIT PLAN 2 BEDROOM + HALL + KITCHEN (BU Area 70.3 sq.m.) HIG UNIT PLAN 3 BEDROOM + HALL + KITCHEN (BU Area 107 sq.m.) x X’ Y Y’ Z Z’ Section XX’ Section YY’ Section ZZ’

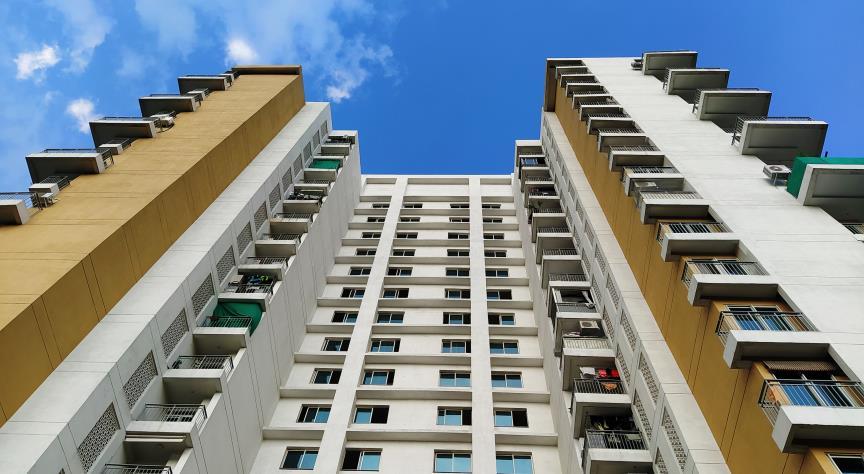

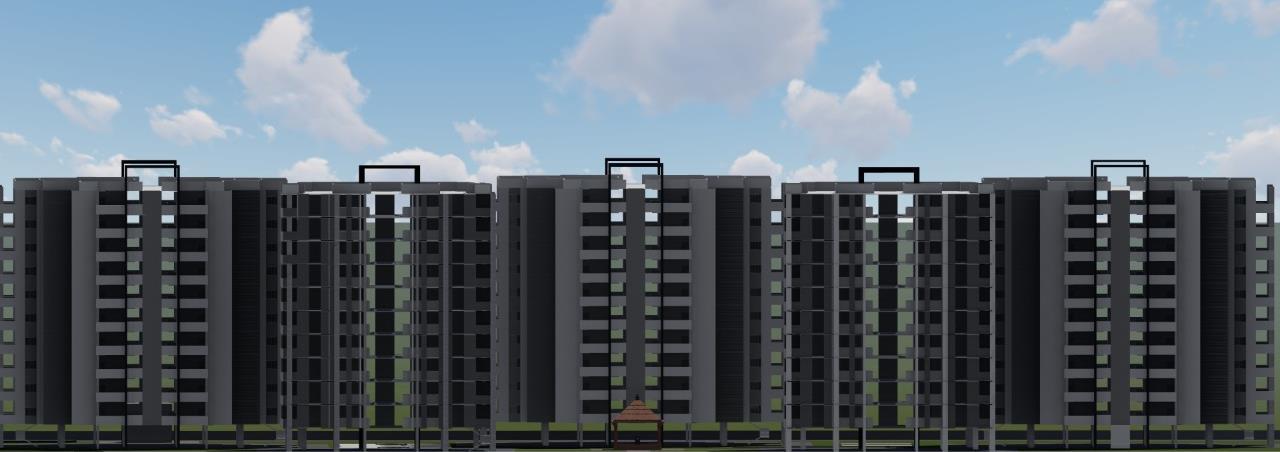

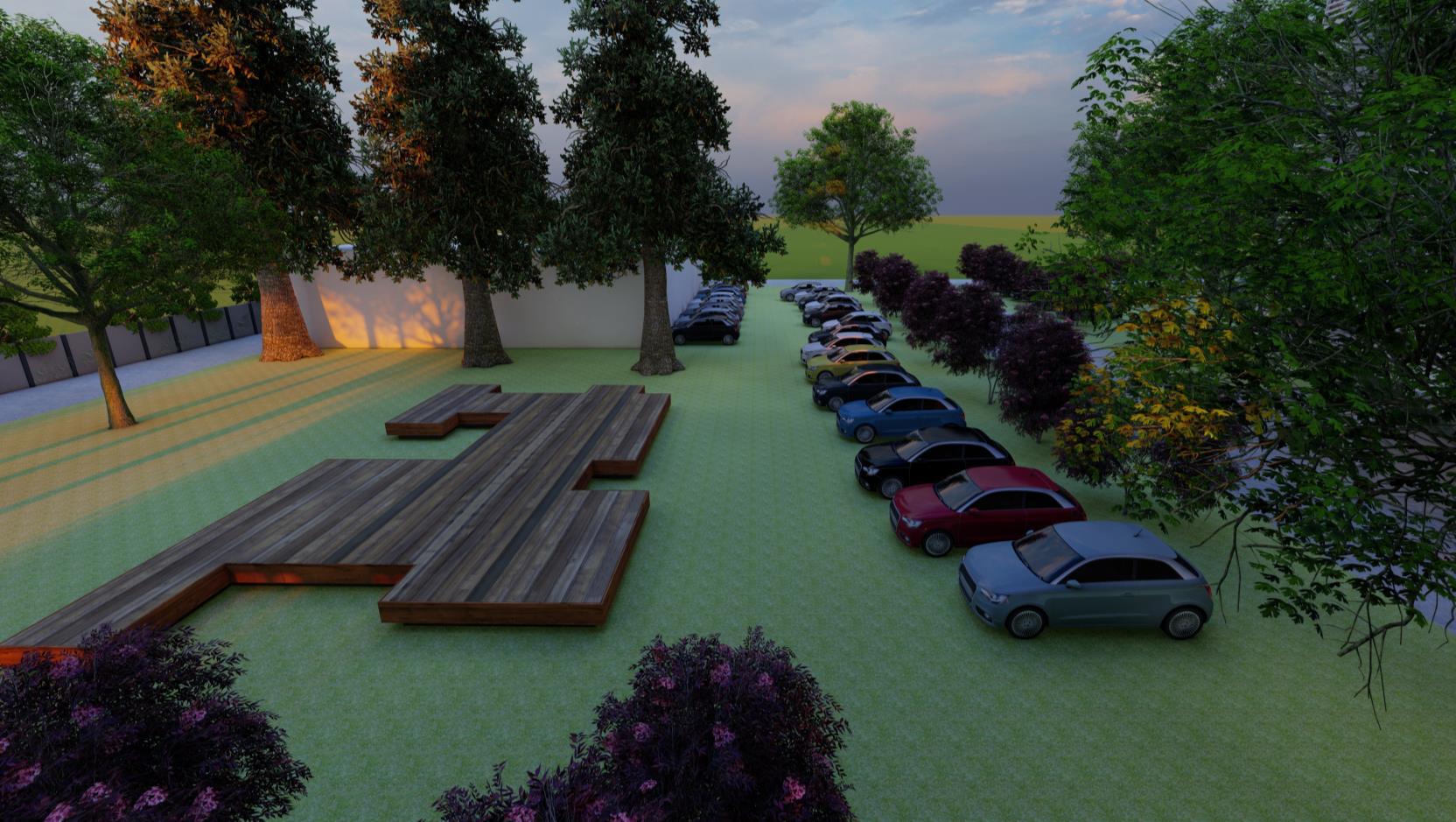

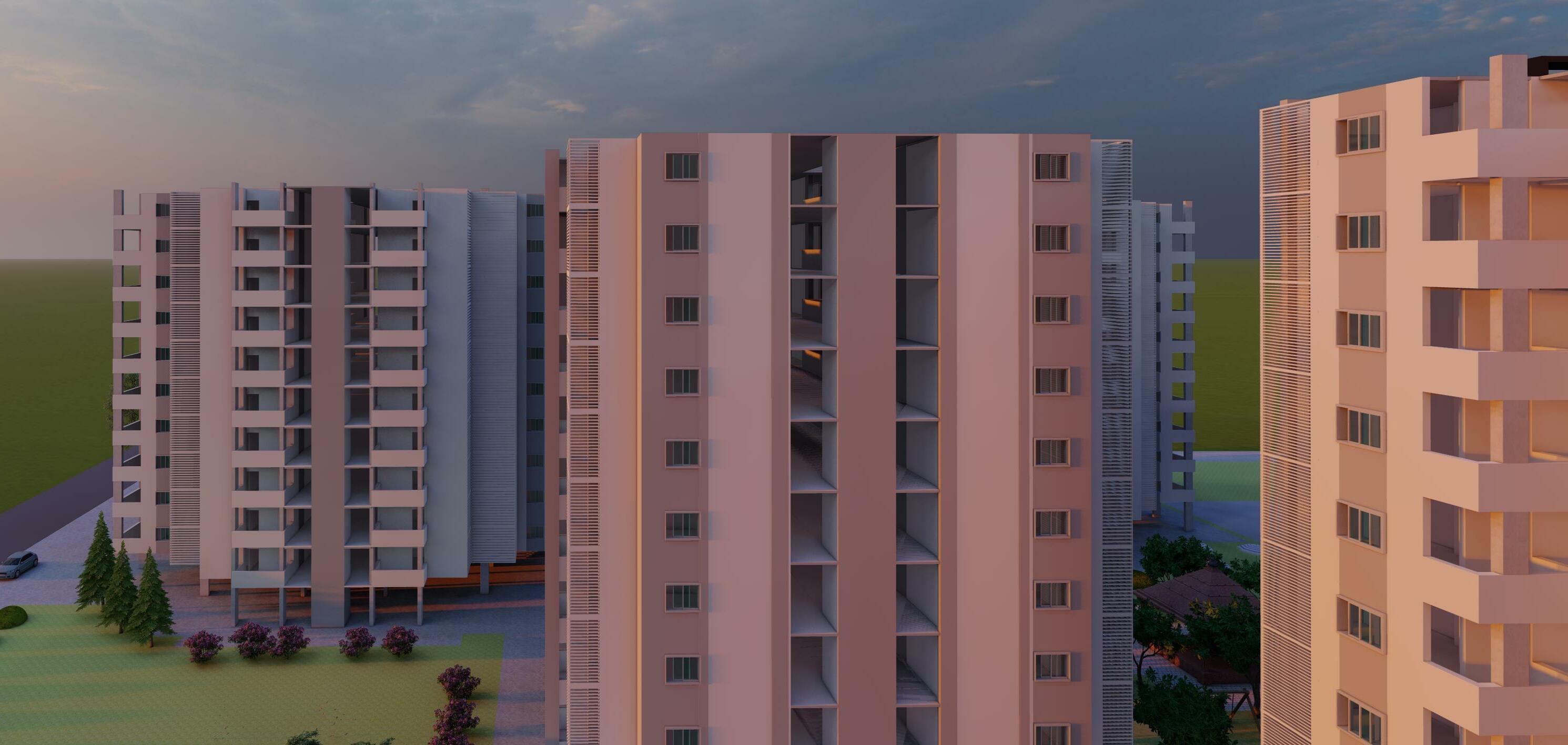

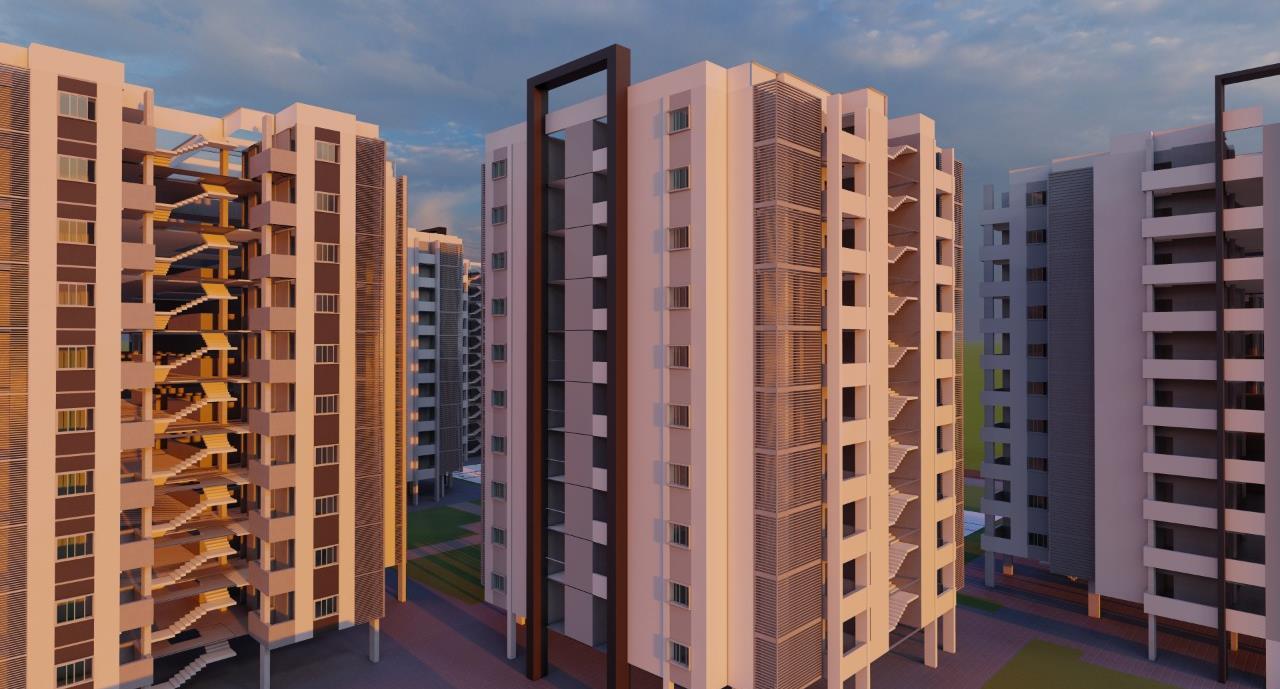

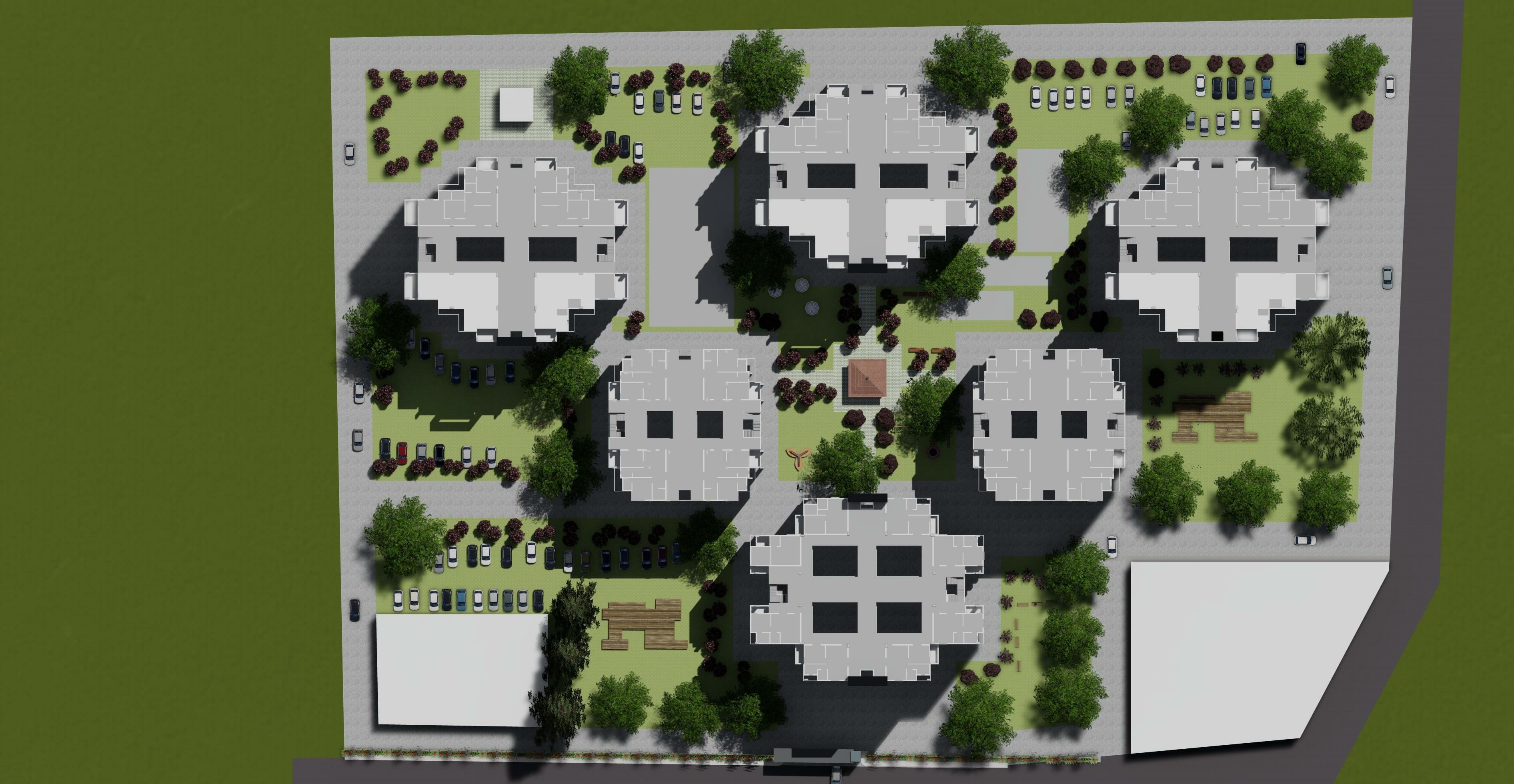

SLIT PARKING AND PLAY AREA MAIN ENTRANCE Celestial Heights

PLAY AREA SHIV MANDIR AT THE CENTRE OF THE SITE

|INSTITUTE OF DESIGN 02

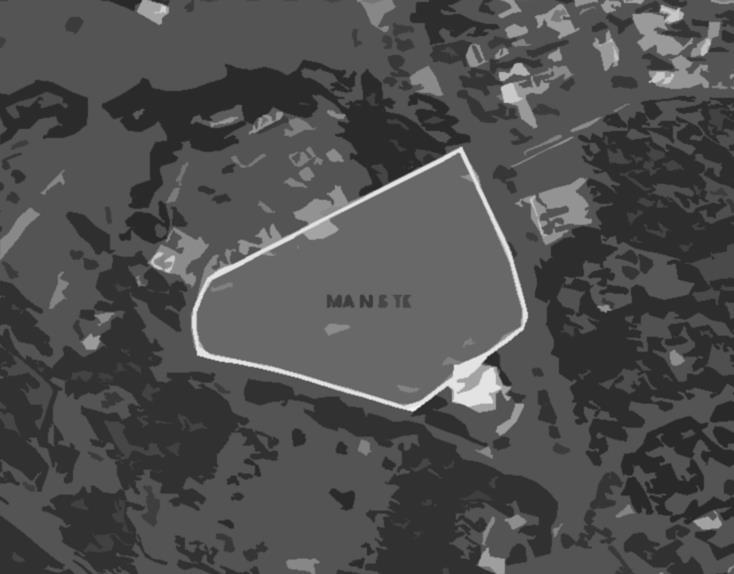

A Design Institute was Designed on 4.4 Acre Contour Site.

The Institute offers 3 graduation courses Graphics, Interior, UX & UI Design, the aim was to create creative explorative spaces and achieve a high degree of Innovation and Quality The main challenge was the contoured site because it was our first time dealing with it

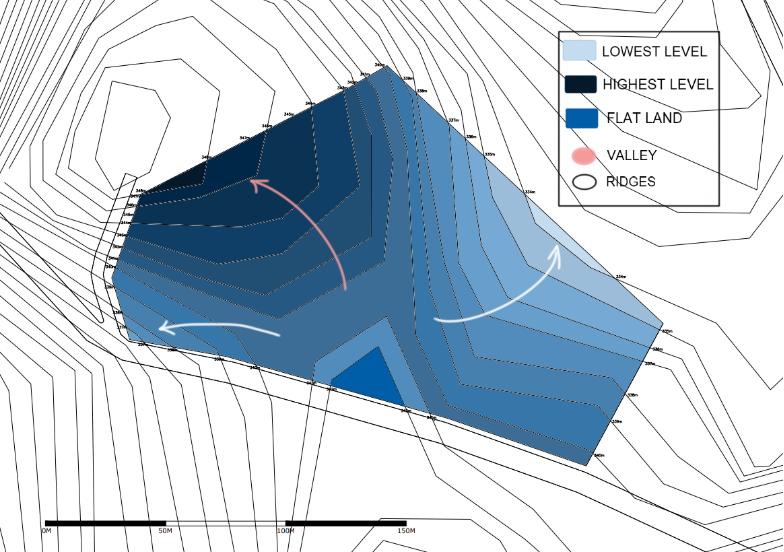

Slope Gradient

The lowest contour level is 334 m

The highest contour level is 348 m

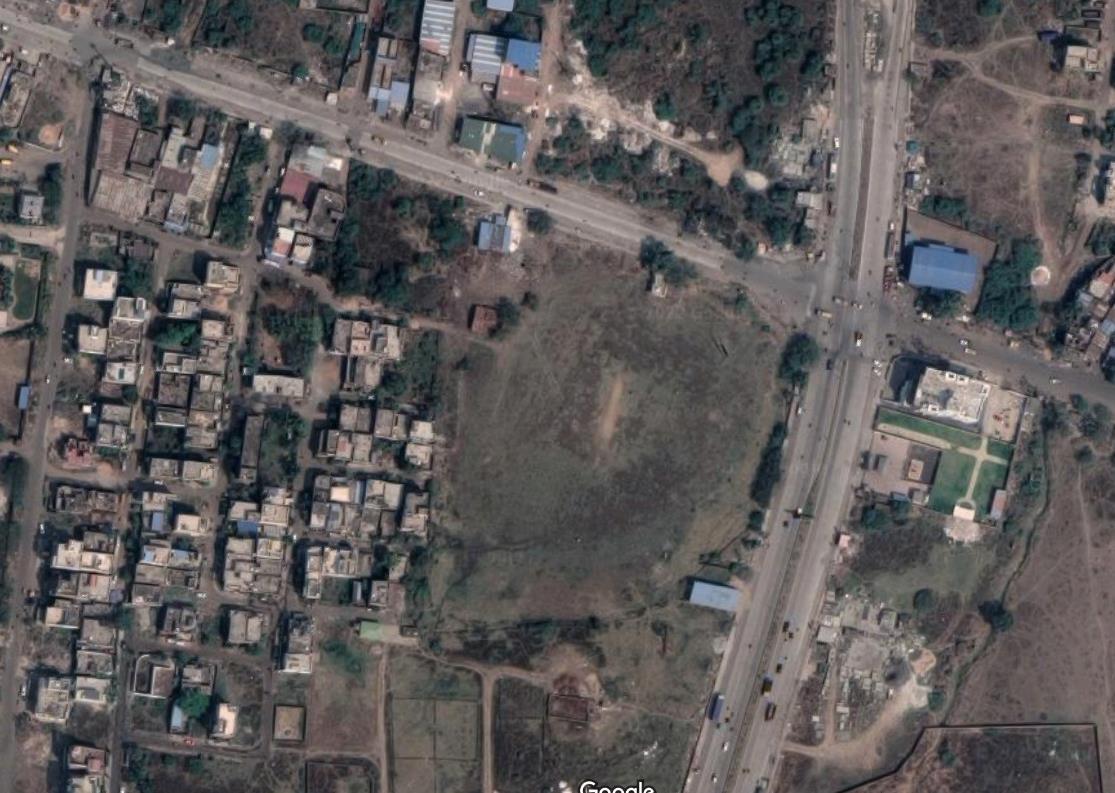

Location Seminary Hills, a small hillock, 6 km away from the Nagpur city

Graphic Design - 1150 sq.m.

Interior 780 sq.m.

UX/UI 780 sq.m.

Admin Office 520 sq.m.

Residential 4000 sq.m.

Sports complex - 1000 sq.m.

Multi- Purpose Hall - 400 sq.m.

Open Air Theatre 400 sq.m.

Auditorium 800 sq.m.

General Shop 50 sq.m.

Circulation 1442 sq.m.

Food Court - 100 sq.m.

Area Program

Graphics (1150 sq. m.)

Interior (780 sq. m.)

UX/UI (780 sq. m.)

Circulation (1442 sq.m.) Admin (520 sq. m.)

Sports (1000 sq.m.)

Residential (4000 sq.m.)

Multipurpose (400 sq.m) OAT (400 sq.m.)

Auditorium (800 sq.m.)

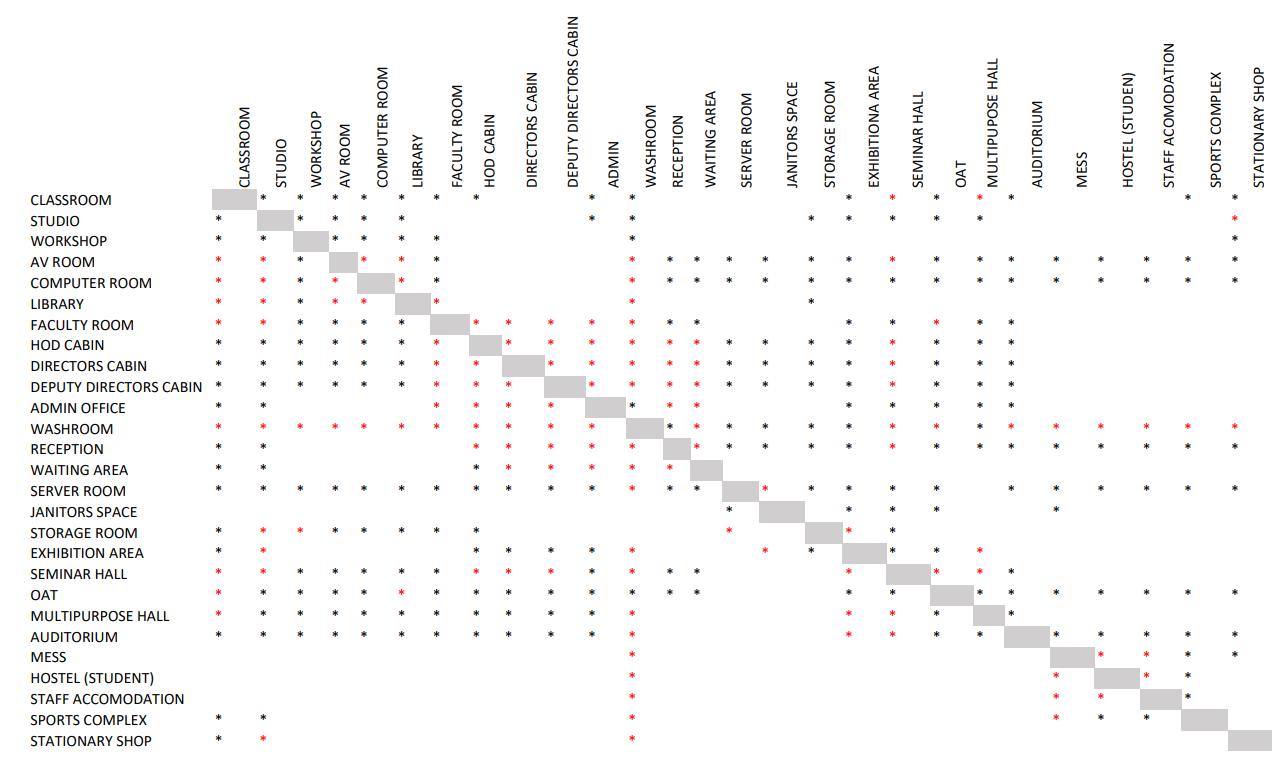

Function Space Relationship Matrix

Shop (50 sq.m.) Food court (100 sq.m.)

A Design Institute was Designed on an almost 4 acre Contour Site.

The Institute offers 3 graduation courses Graphics, Interior, UX & UI Design, the aim was to create creative explorative spaces and achieve a high degree of Innovation and Quality.

Planning is such that Admin Block is at the center and other academic blocks such as Graphic and Interior Blocks are adjoining. While Interior Block is placed where we can have maximum sunlight. All the Academic Blocks are placed on a high contoured level. There is a Food court between the. Academic and Admin Block and Mess are at the Right corner above the Residential block, So Staff can have some breakfast nearby. After having lunch, Students can chill at OAT in a way coming back from Mess

The library is at the top corner, near Graphic Design Block

The campus is Pedestrian Friendly. Also, vehicular circulation is at the periphery

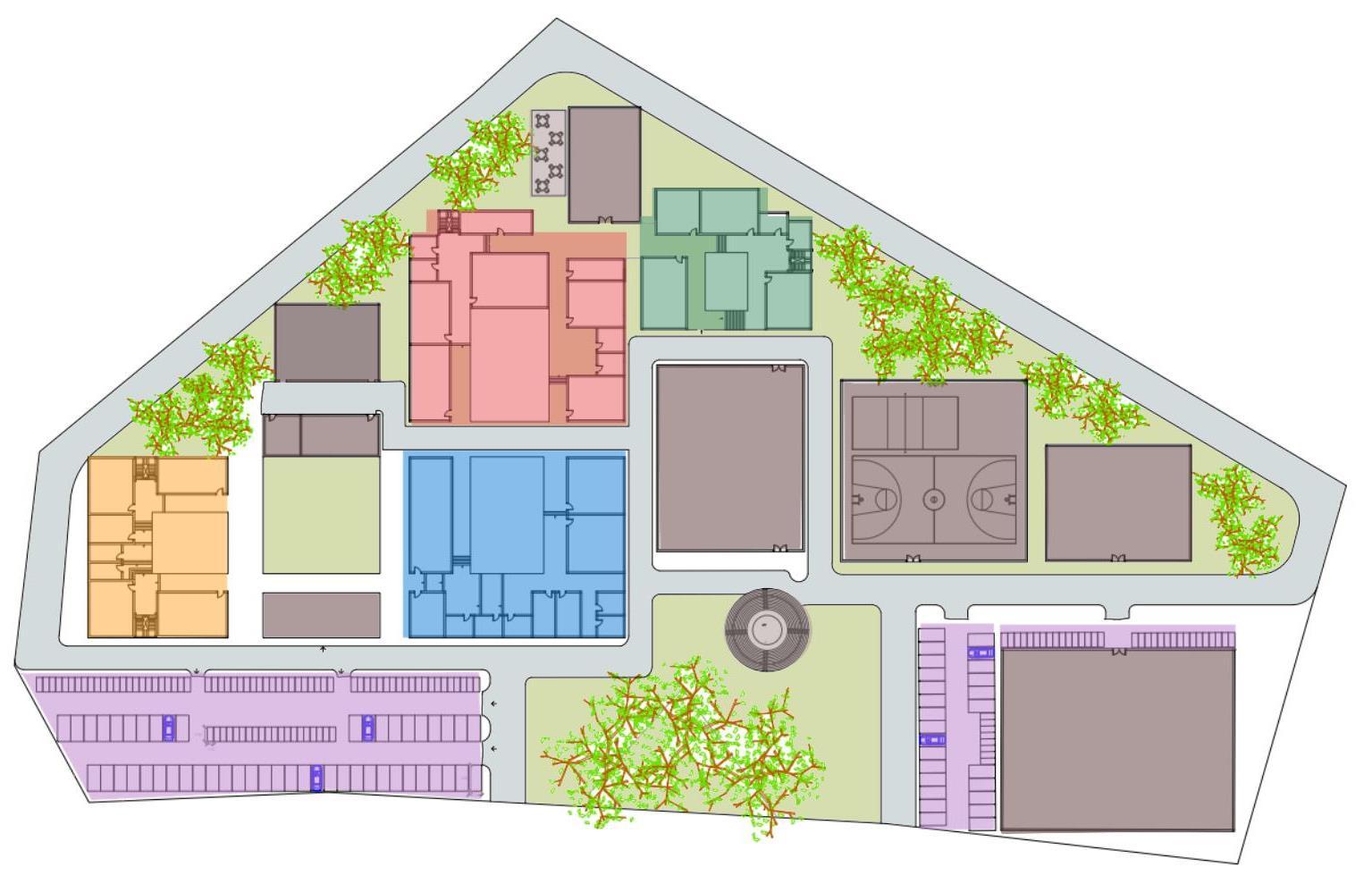

Master Plan KEY A - ENTRANCE B ADMIN BLOCK C GRAPHIC DESIGN BLOCK D INTERIOR BLOCK E UX/ UI BLOCK F LIBRARY G - FOOD COURT H GENERAL SHOP I MESS J AUDITORIUM K MULTI PURPOSE HALL L SPORTS COMPLEX M - RESIDENTIAL N PARKING O OPEN AREA THEATRE K A A B D C E F G H I J L M O P P

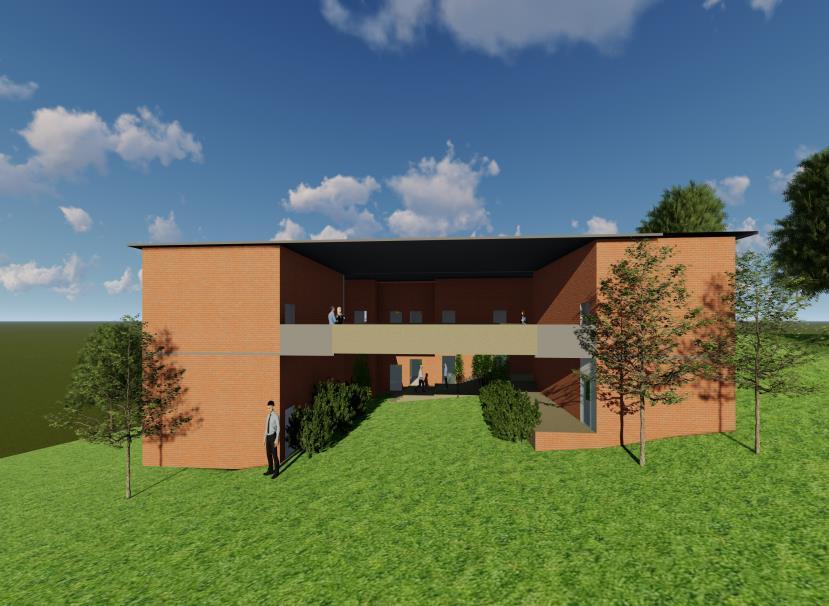

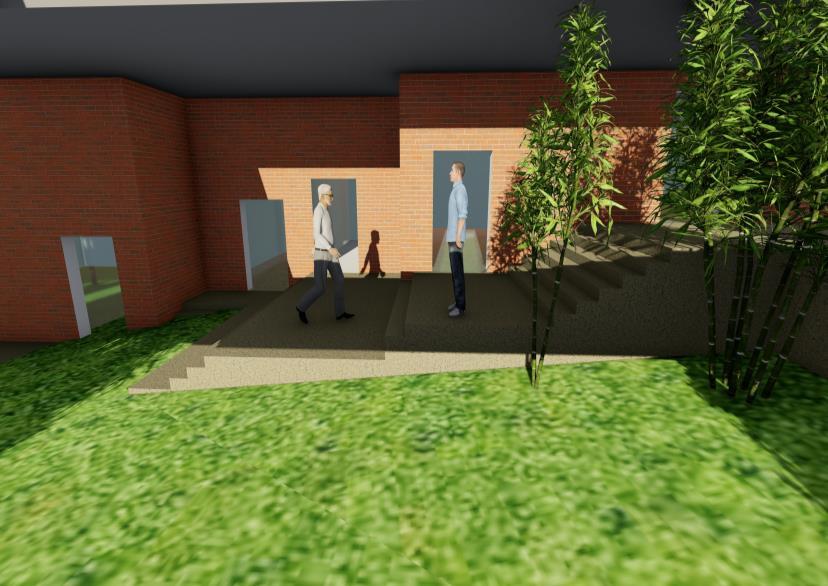

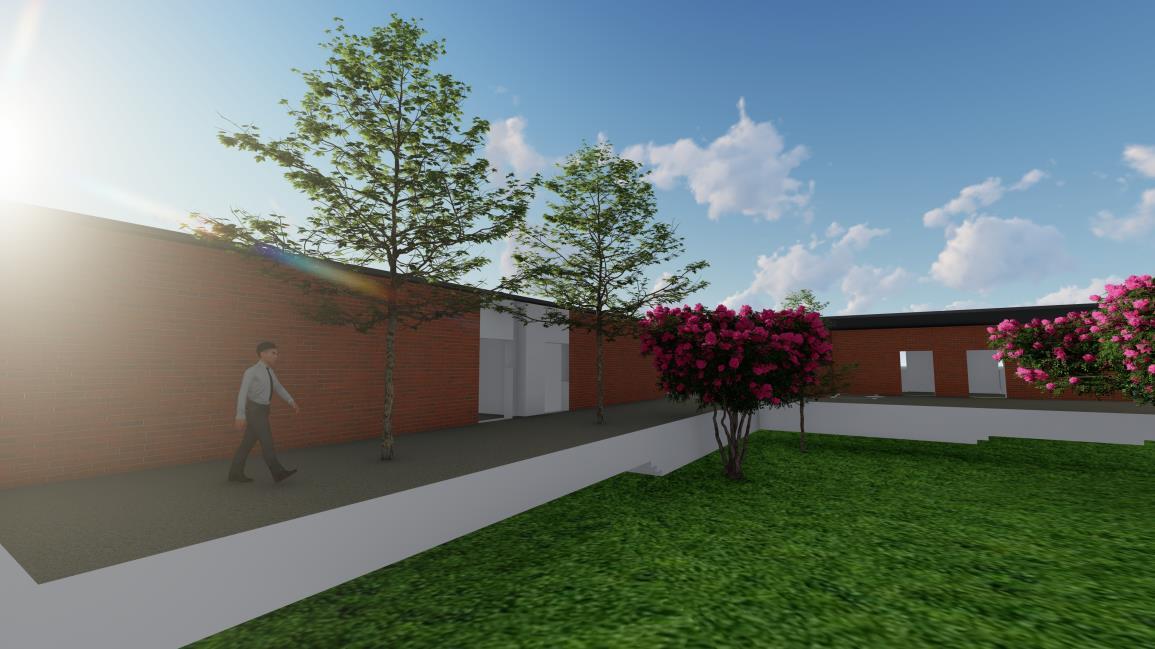

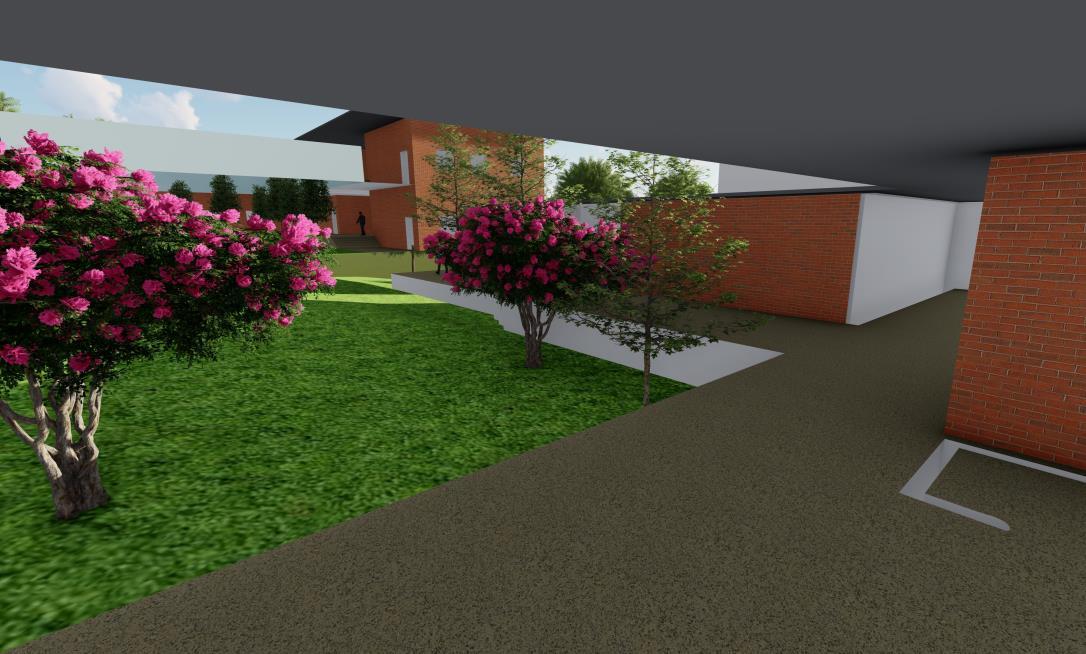

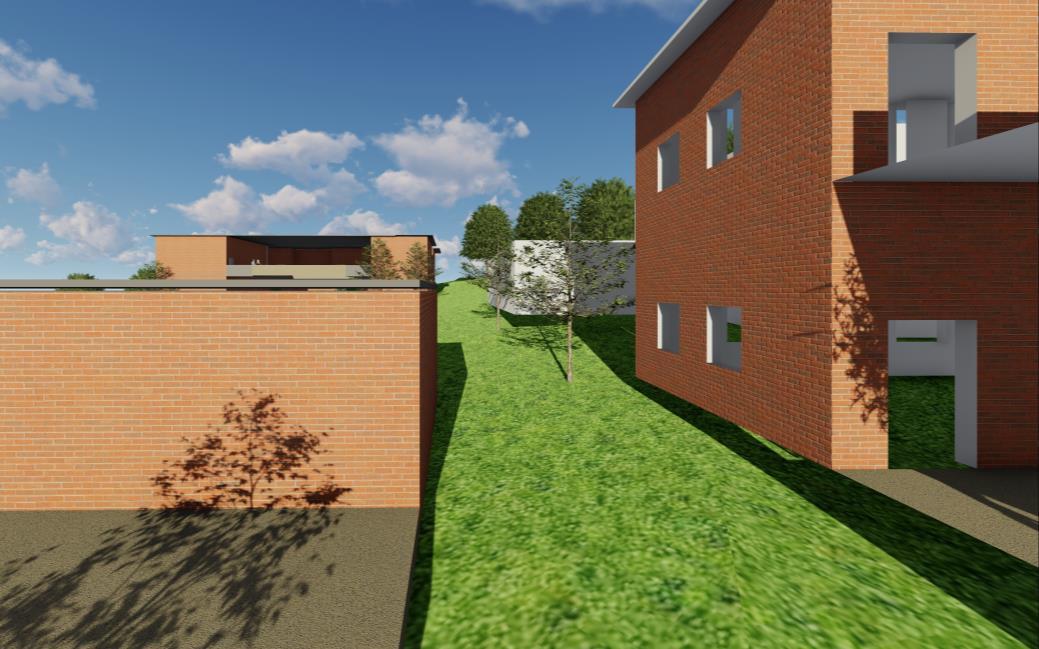

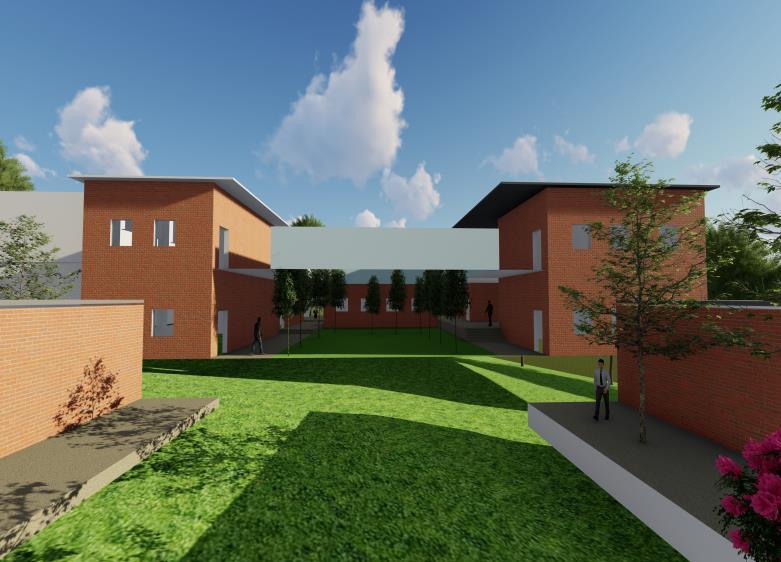

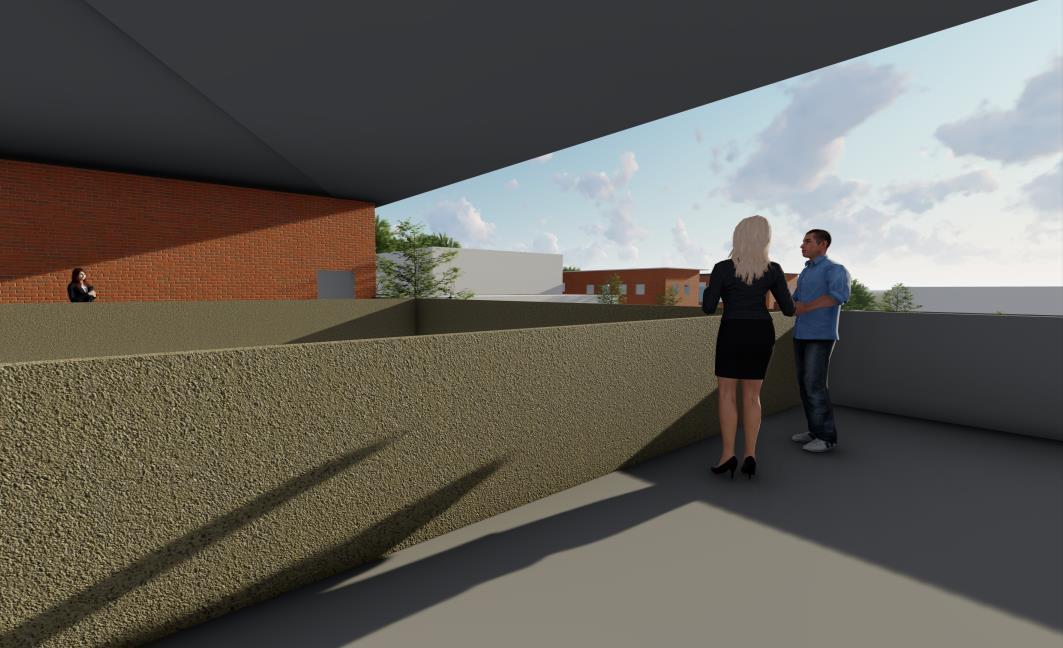

Design UX/ UI

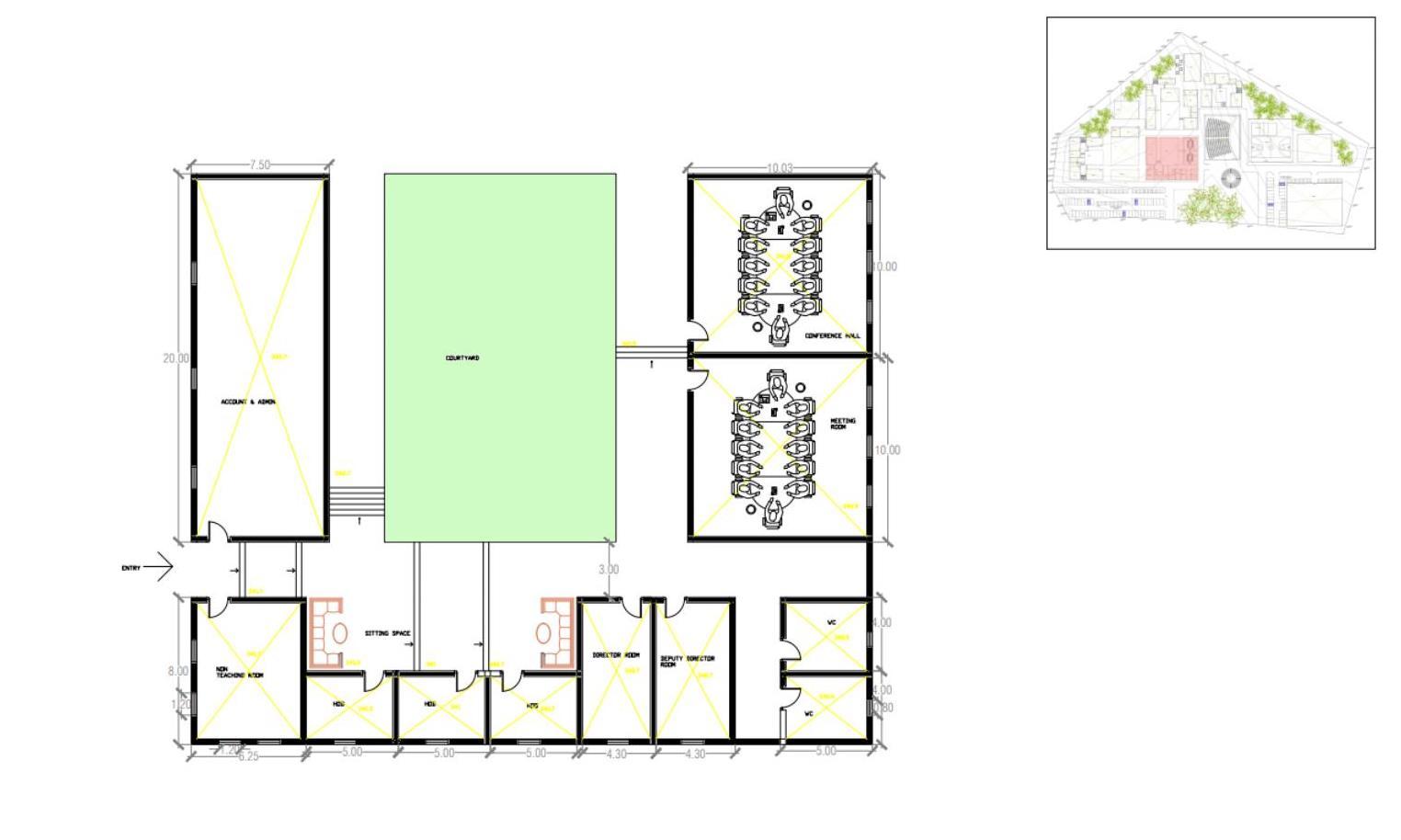

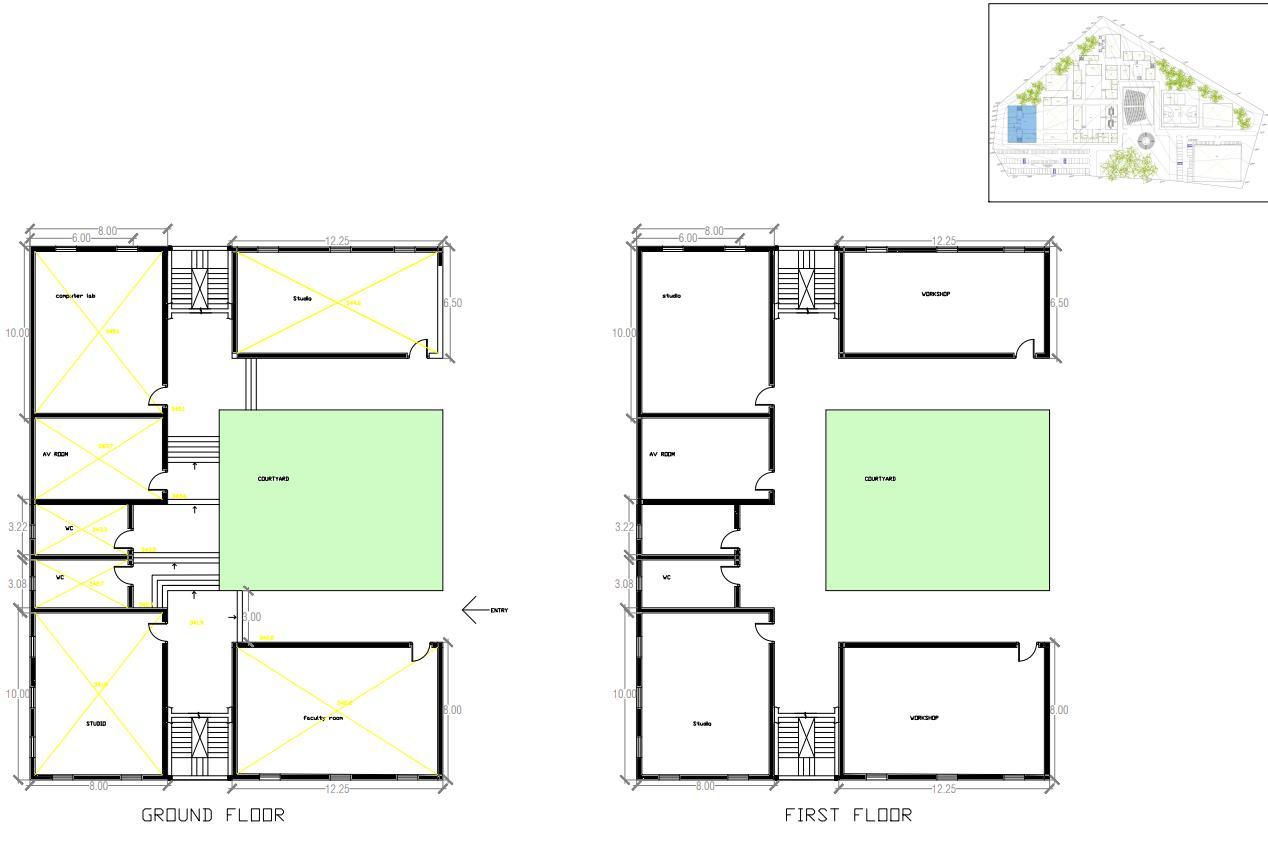

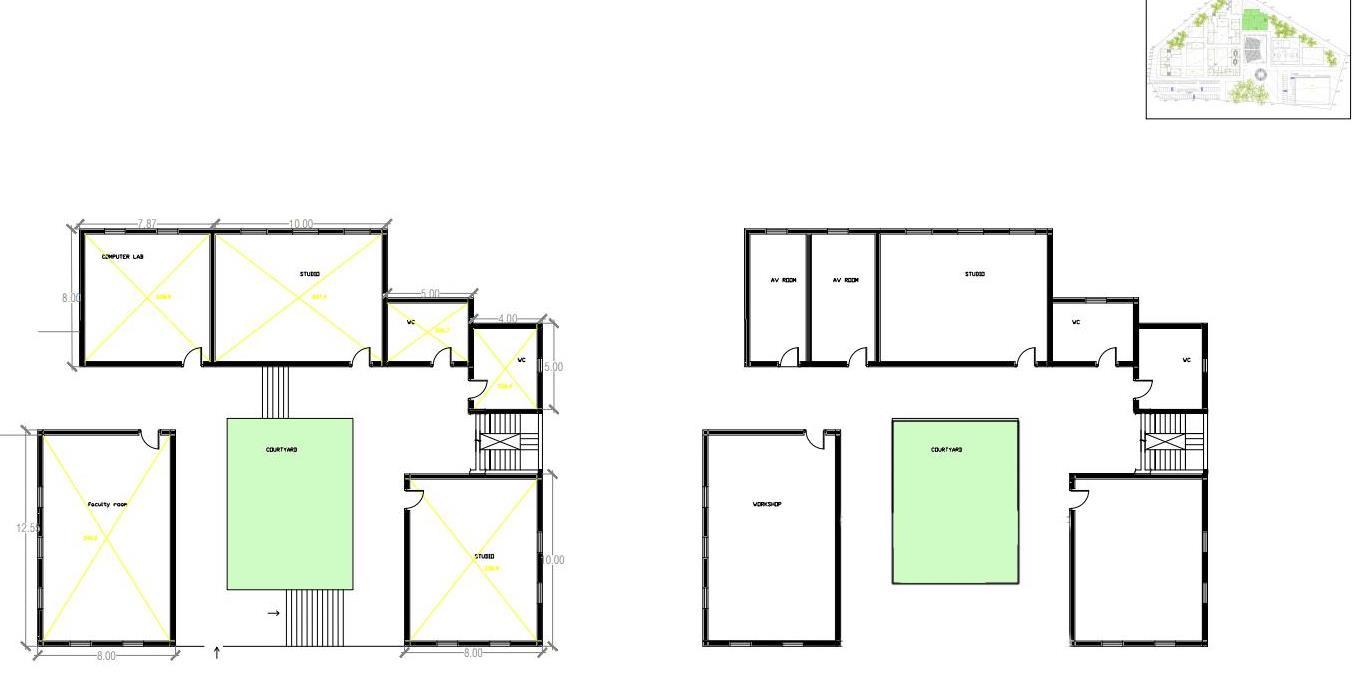

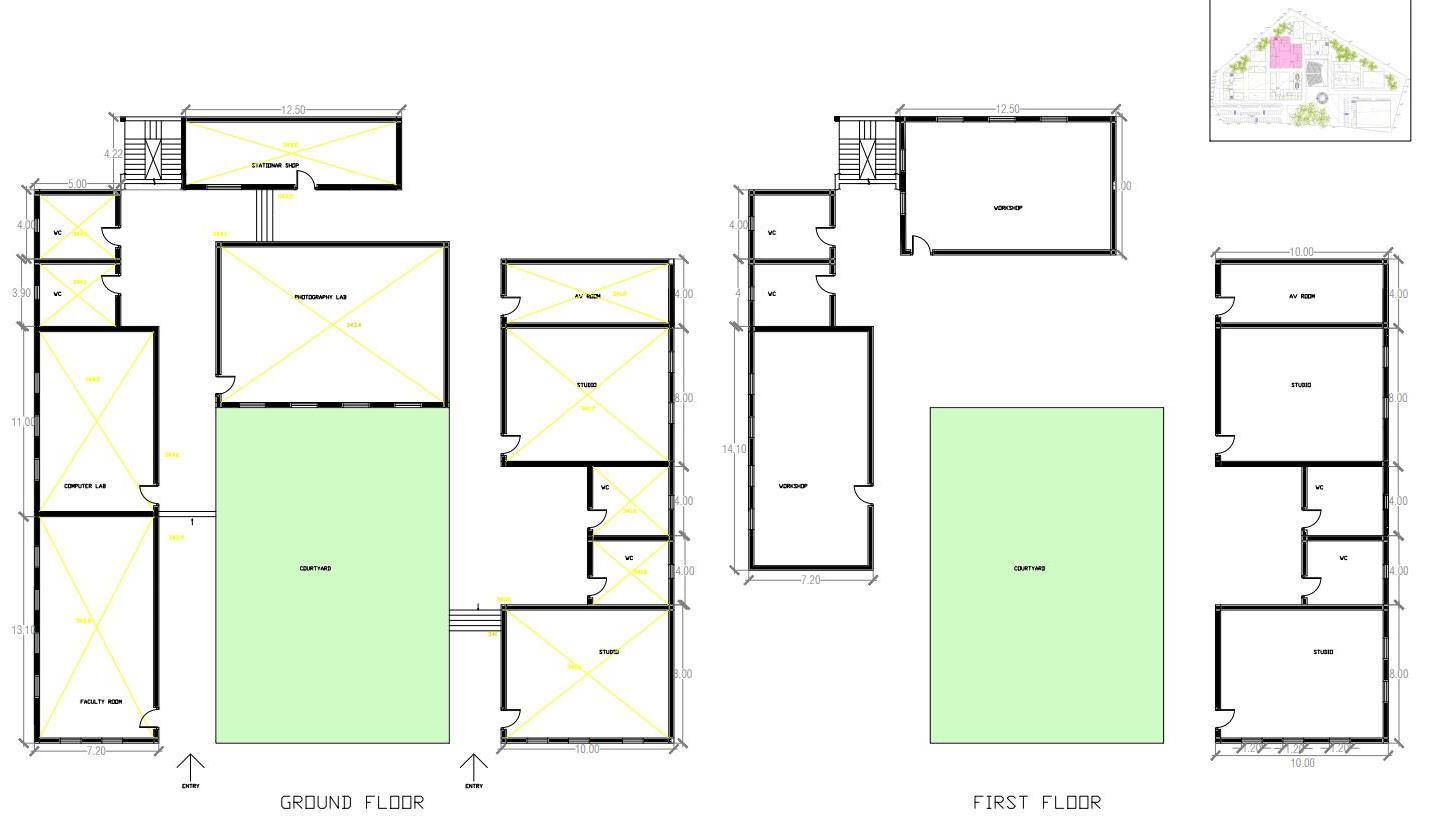

Ground Floor First Floor

Office Ground Floor

Graphic

Design Interior Design

Admin

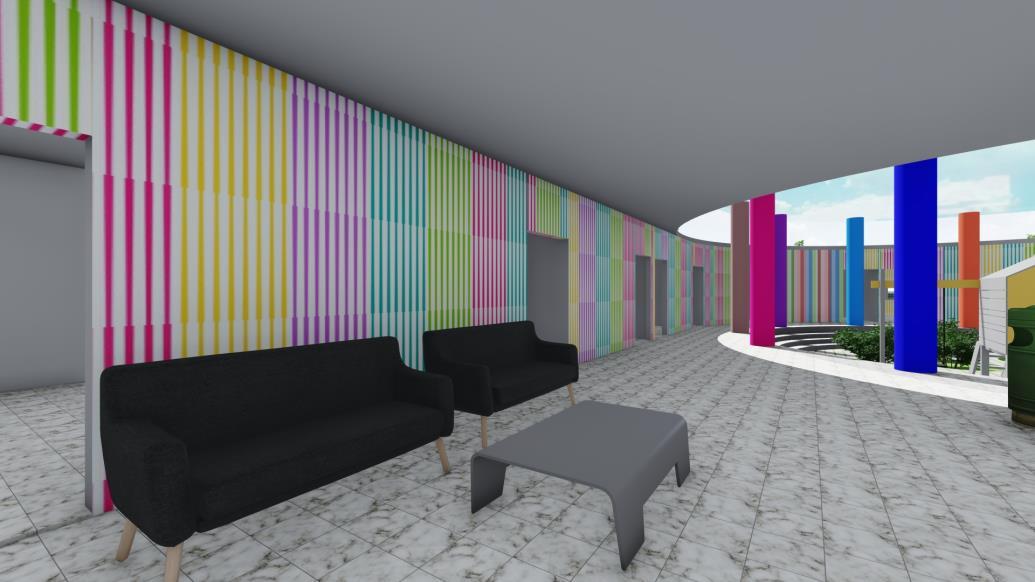

|KINDERGARTEN

03

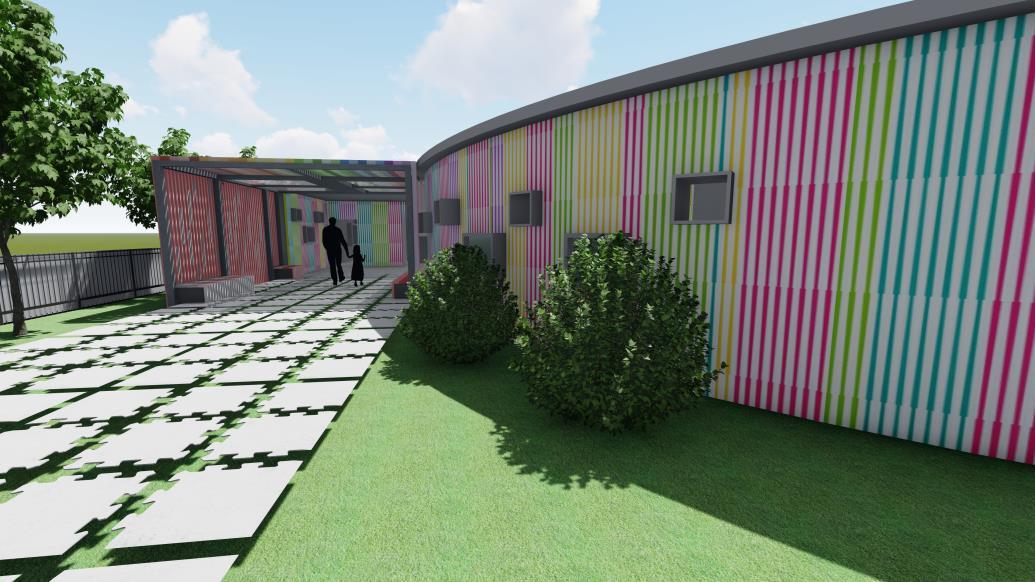

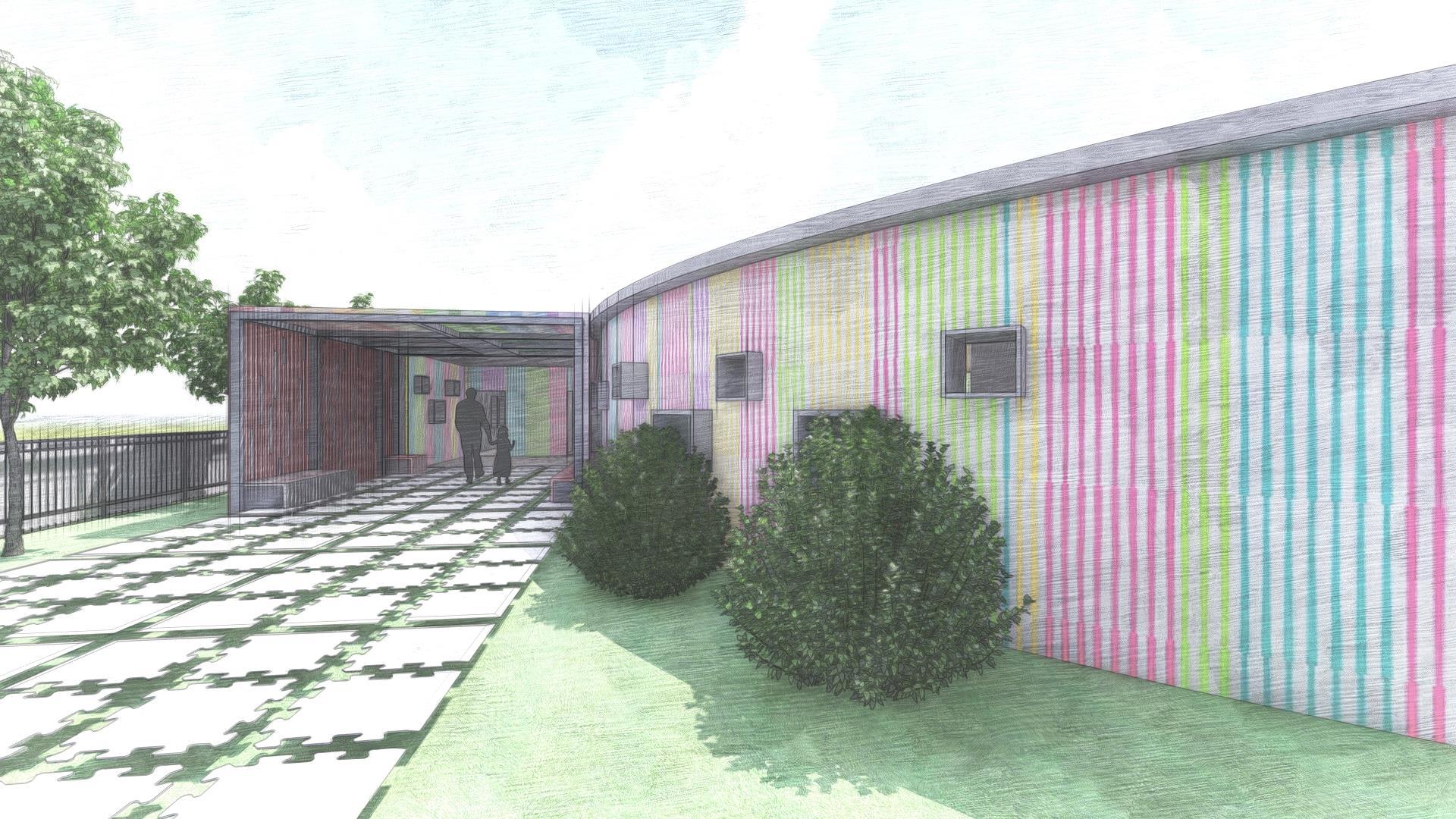

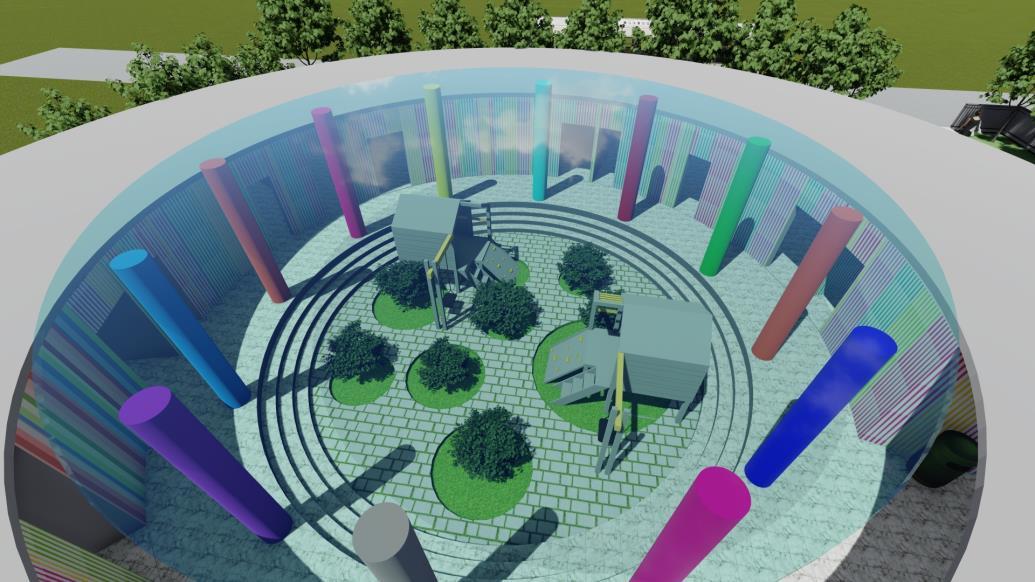

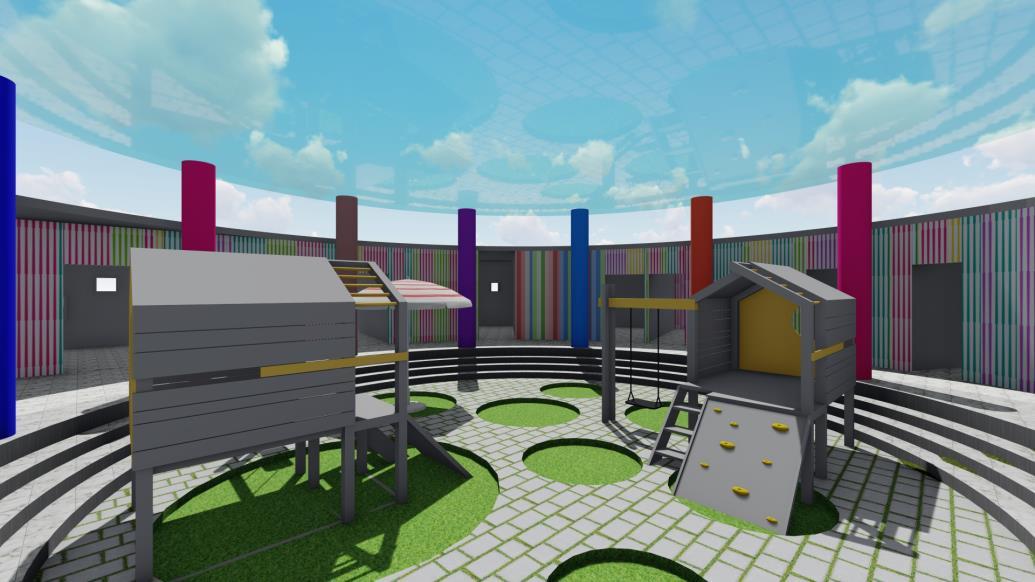

A kindergarten is an informal kind of school for very young children

where they learn things by play way method.

the Concept is

by the shell Like the waves come and embrace it, I imagine tiny toes walking towards this in excitement. And

waves will take away and drop them

somewhere else this school will provide kids with a wide space to explore. Like the pearls growing inside the shell kids will be cared for

precious stones and will shine like pearls with soft smiles, From the waves, the shell learns gratitude,

which will

reflected

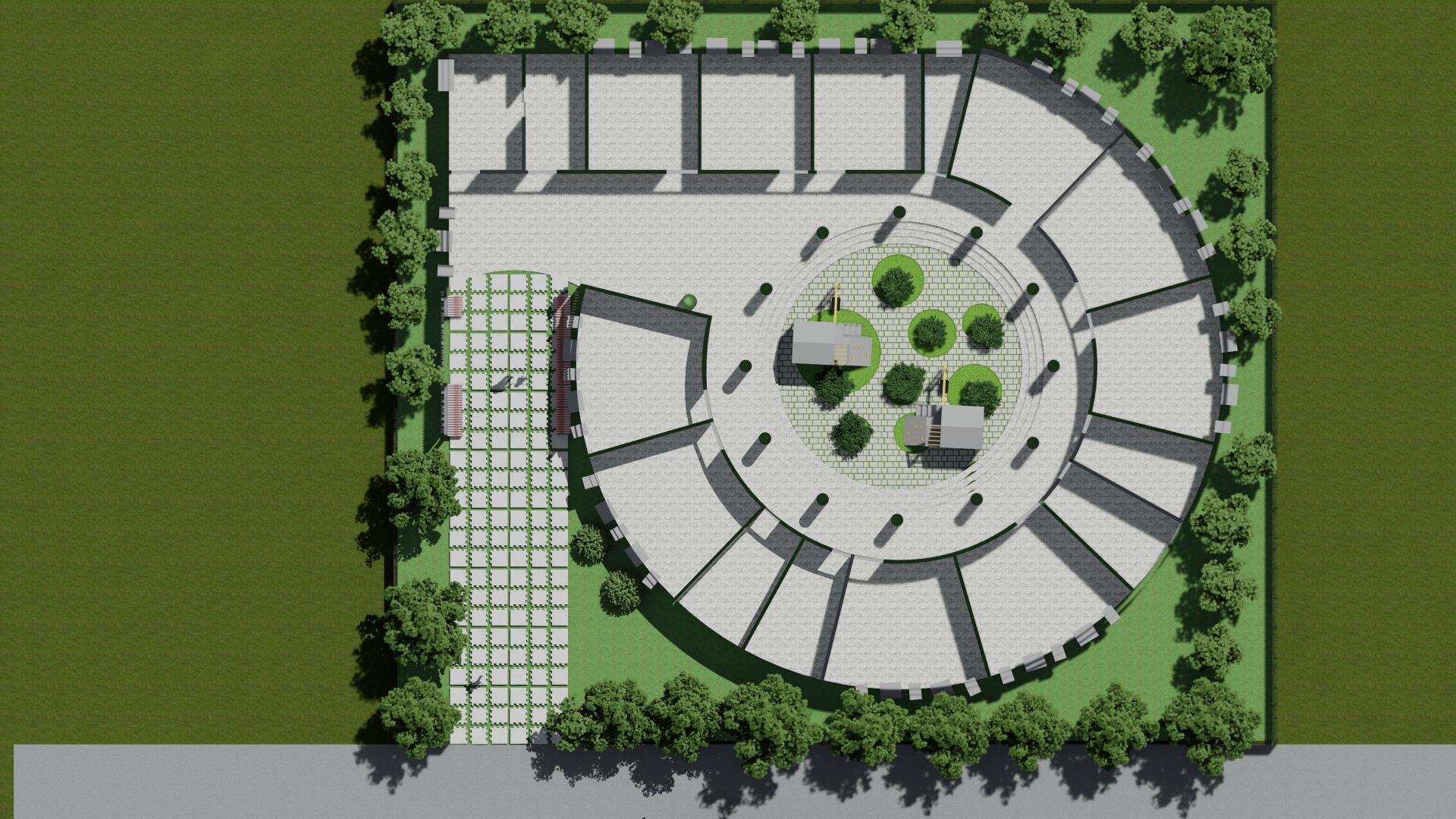

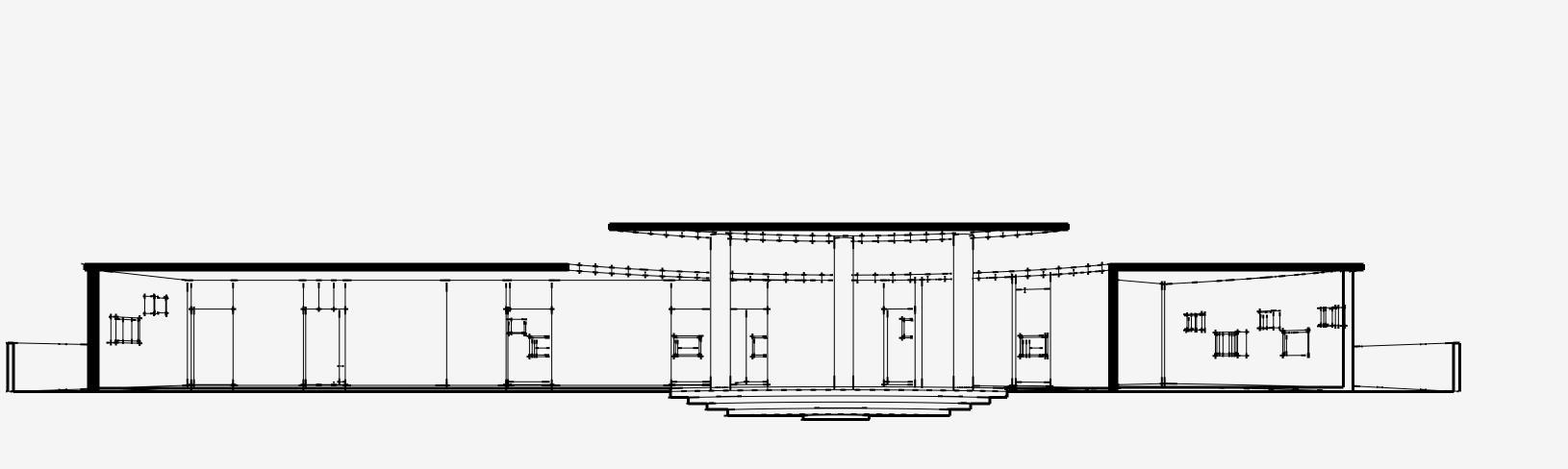

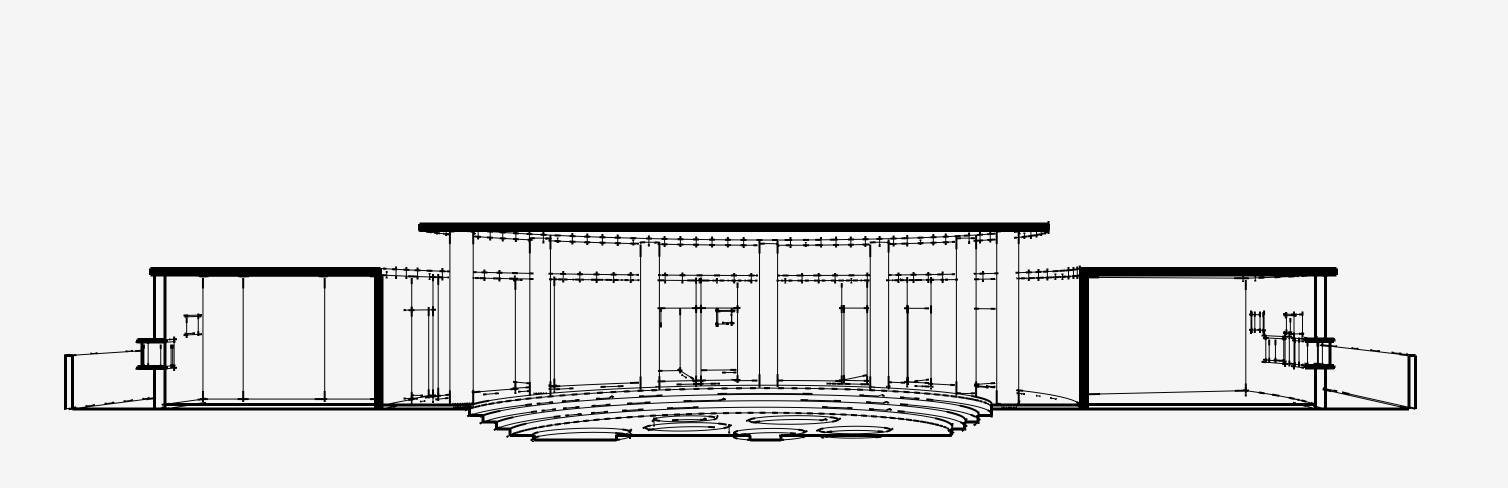

the kids here. KEY A ENTRANCE B - WAITING AREA C - ADMIN BLOCK D OFFICE E ACTIVITY AREA F PANTRY G COURTYARD H STAFF ROOM I - GIRLS WASHROOM J BOYS WASHROOM K REST ROOM L KG I M KG II N NURSERY D A B C E N N K P I J M M J I M L L L Master Plan X X’ Y Y’ Section XX’ Section YY’ Site area 1087 sq.m. |Bu. Area 635 sq.m. |Location Pune X

(usually 4yrs 6yrs),

So

inspired

like

to

as

promising behavior to return what it takes

be

on

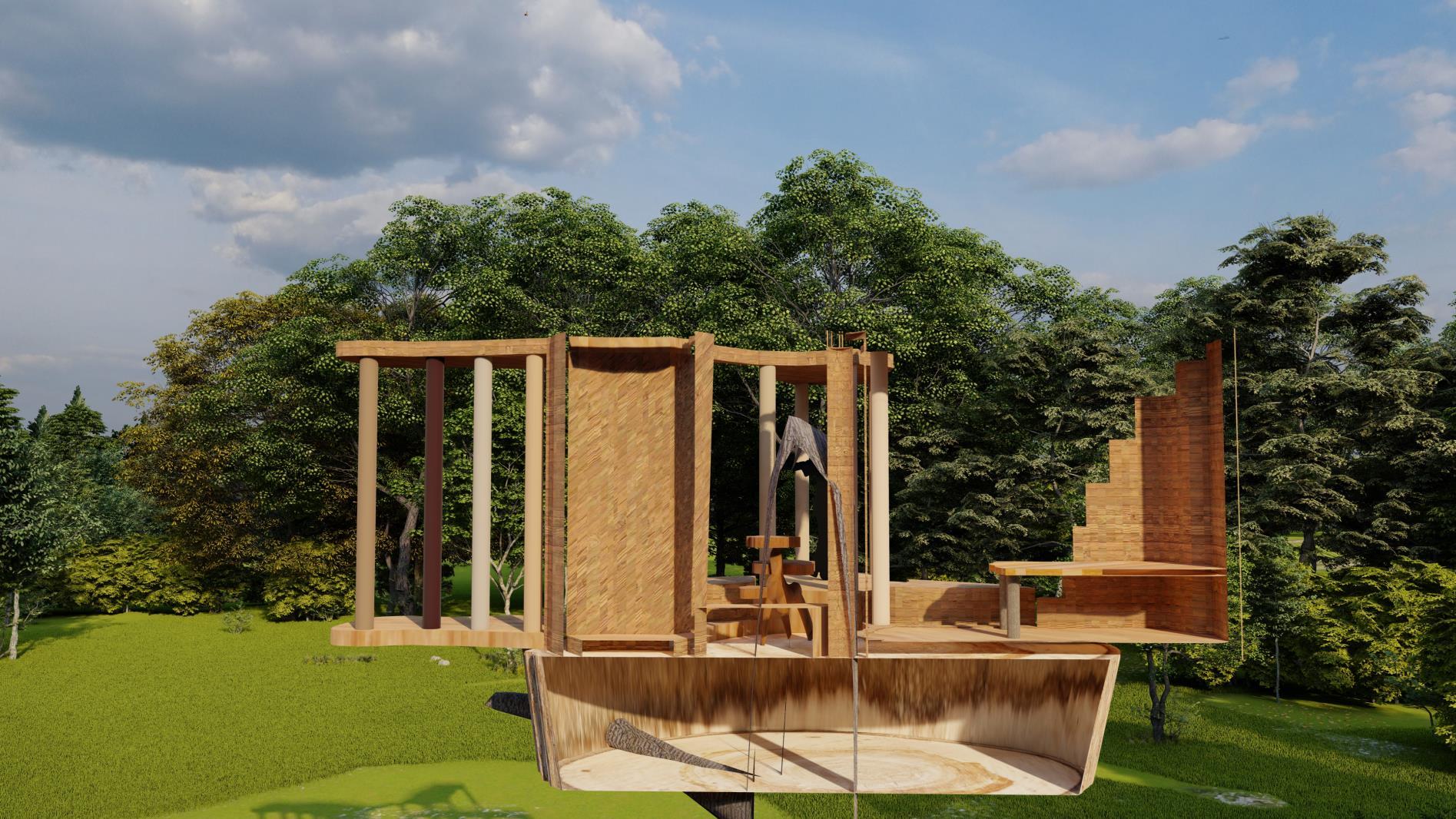

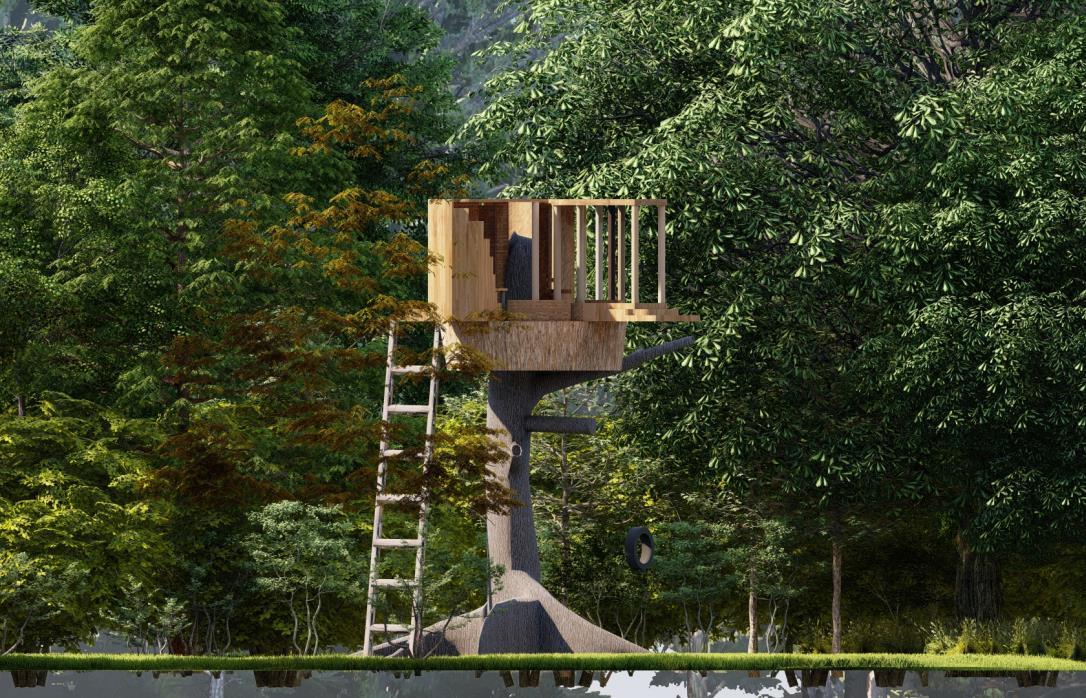

04 | TREE HOUSE

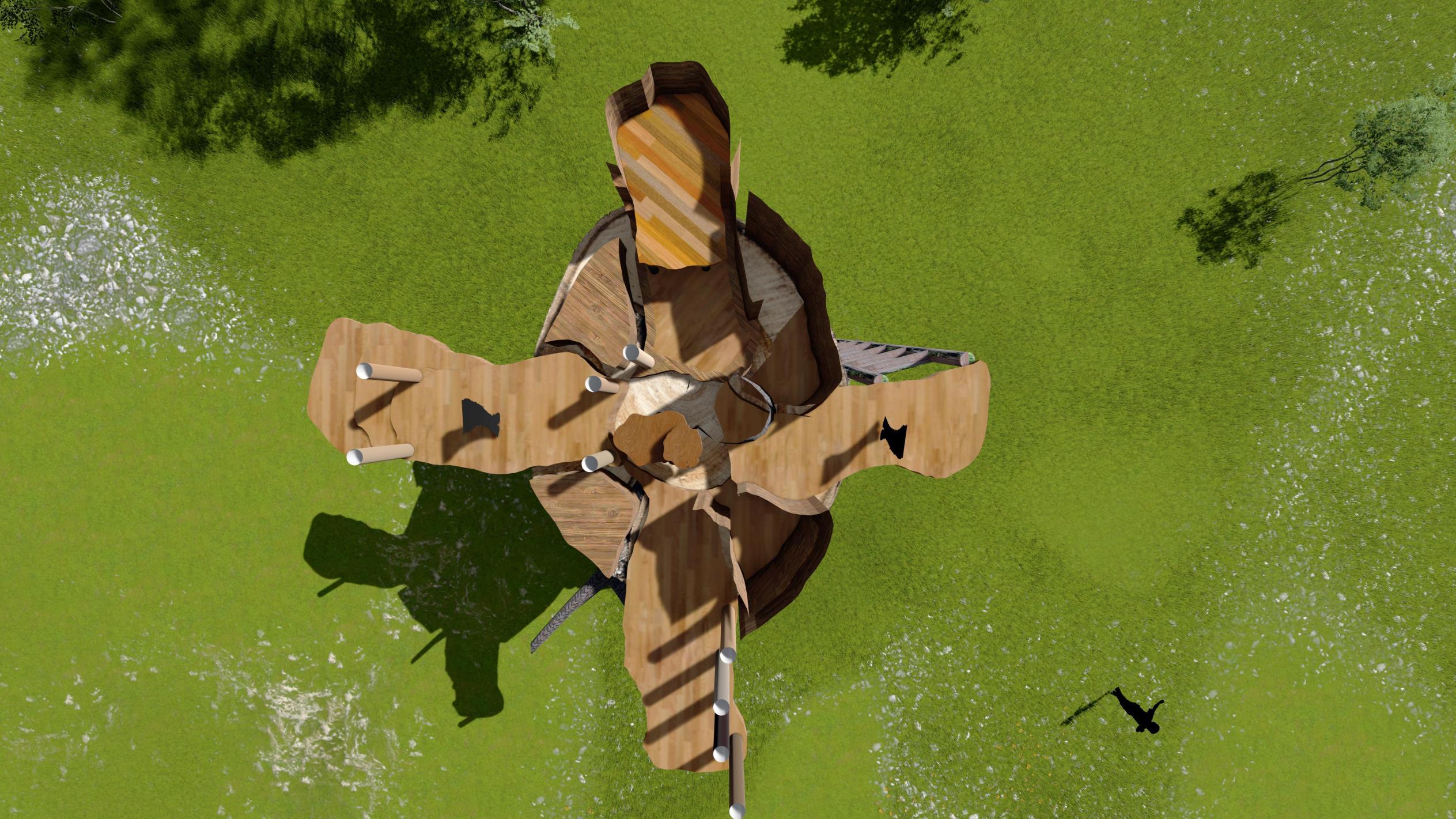

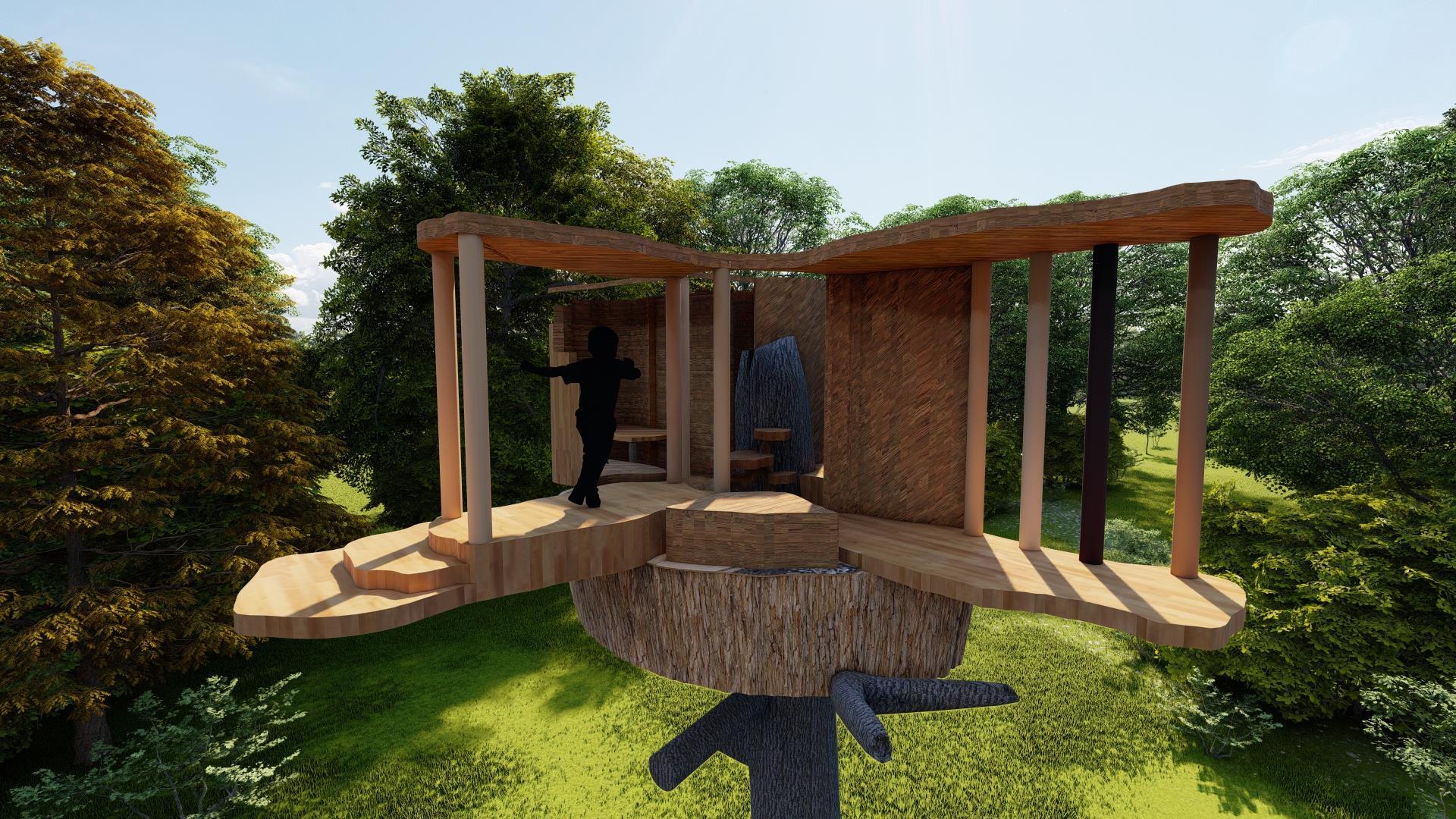

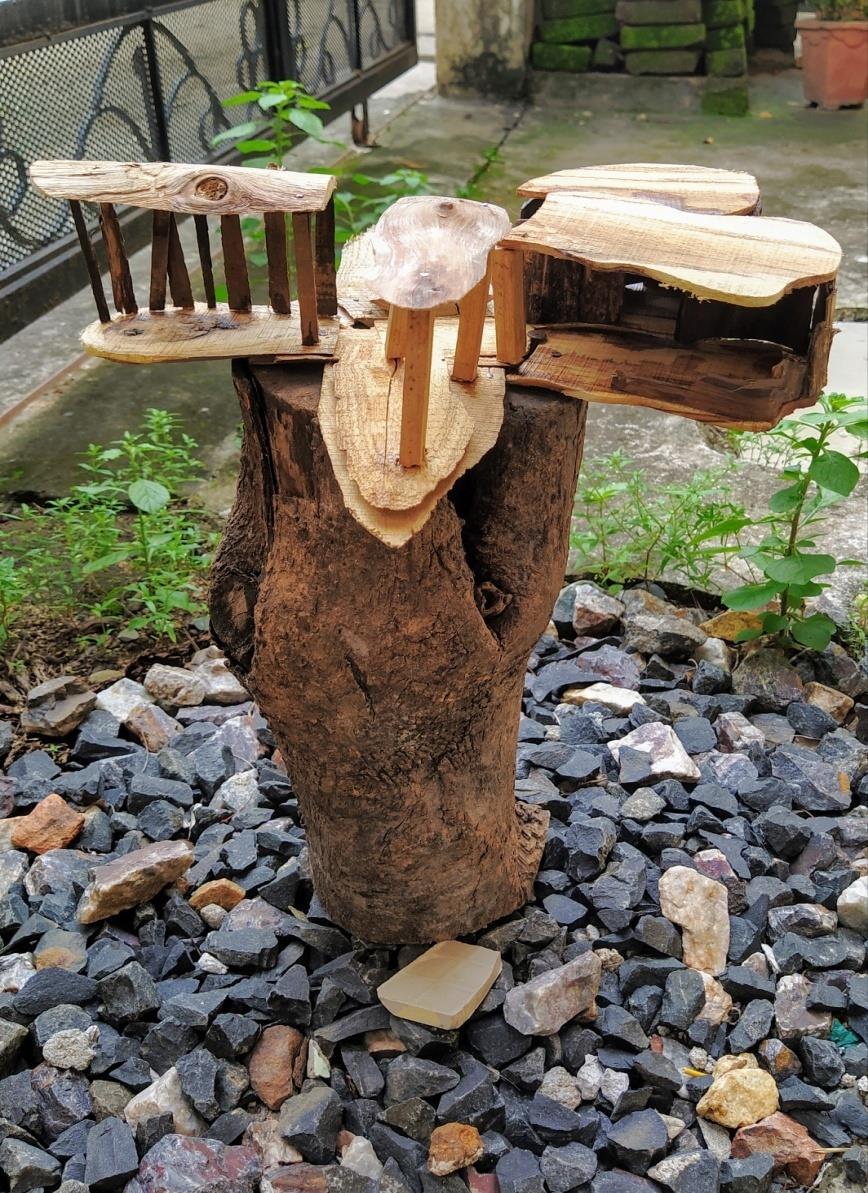

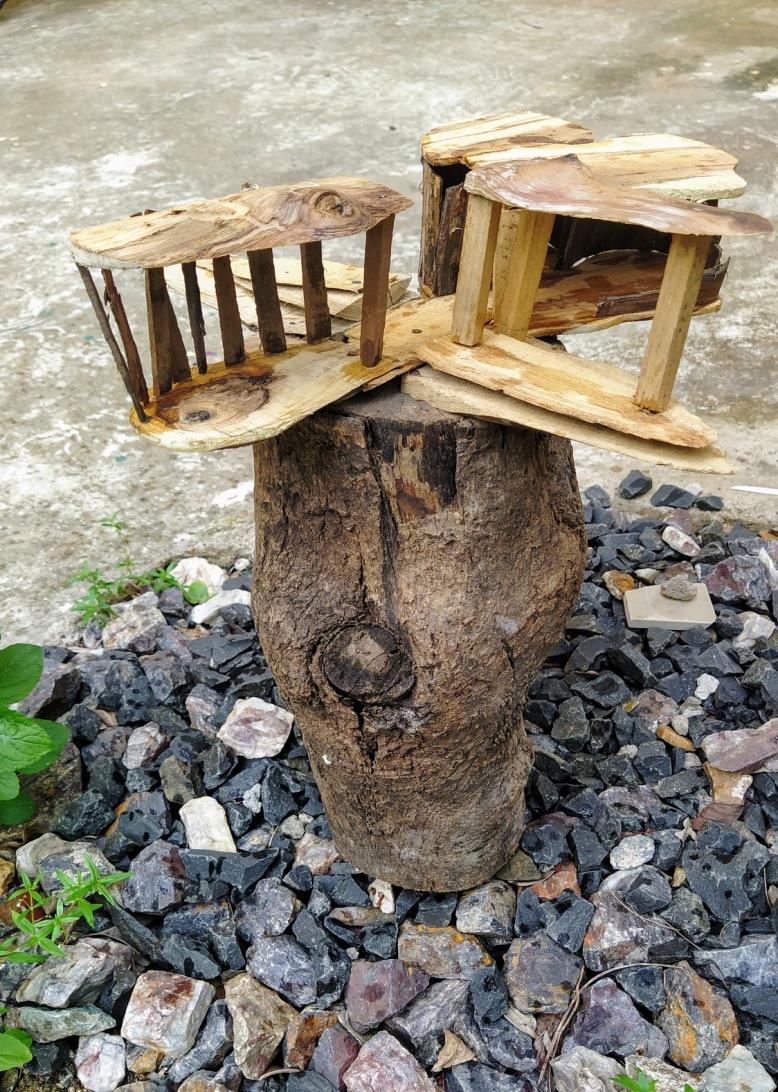

Tree House was built for Mowgli, a fictional character, an Indian boy raised by wolves who is the main character in Rudyard Kipling's collection of children's stories included in The Jungle Book. According to the anthropometry of Mowgli, Height is reduced to 2m And spaces are assigned according to his activity.

Concept - Boomerang, the tool or the weapon could used for Hunting

Bedroom Semi Open Space Open Space Storage Kitchen SemiOpen Space x X’

Master Plan Section XX’ Location - Seoni, Madhya Pradesh

05

|LANDSCAPE

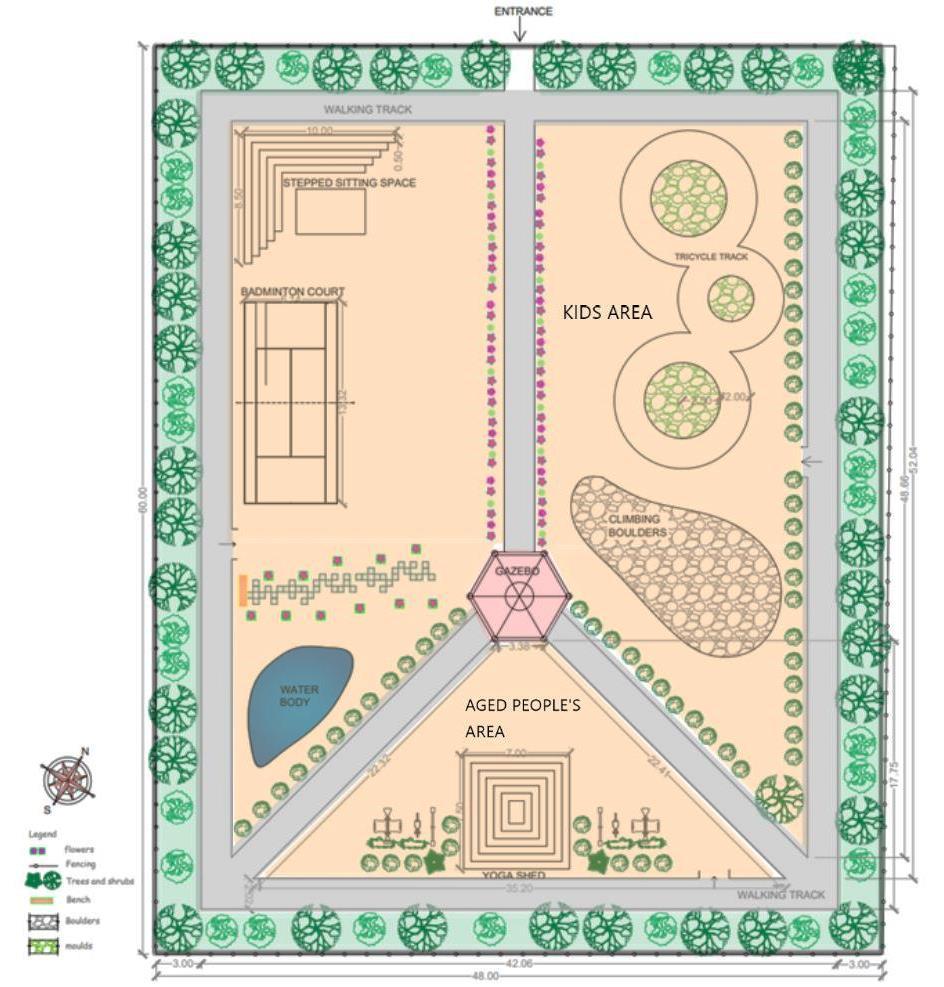

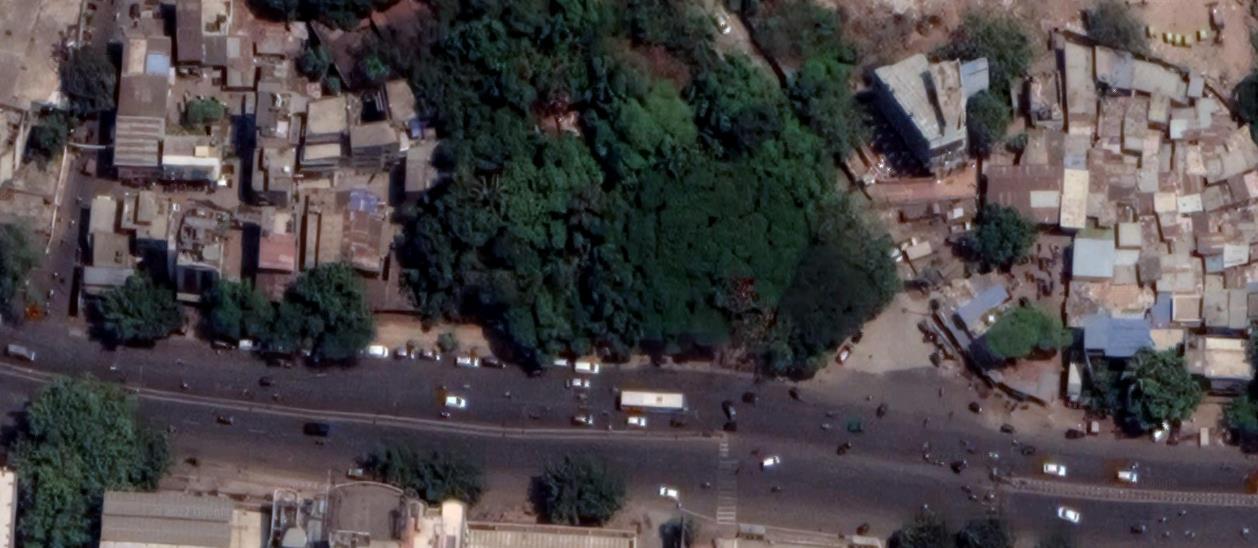

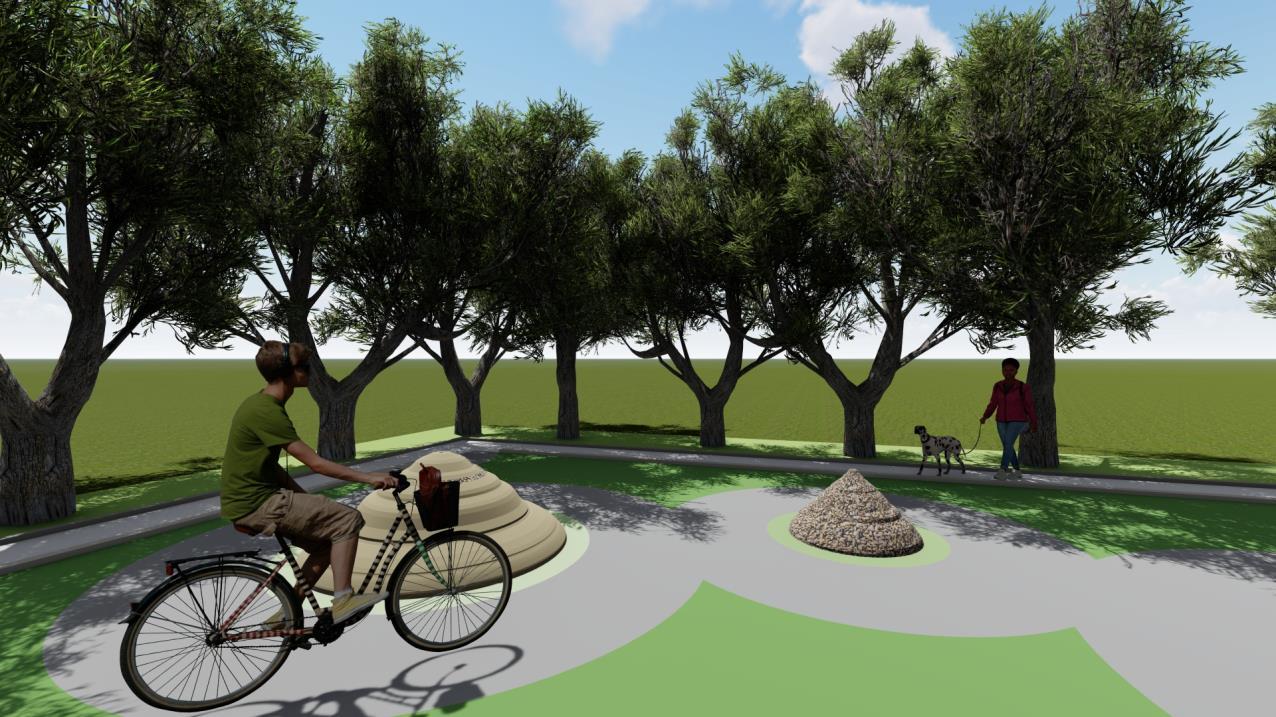

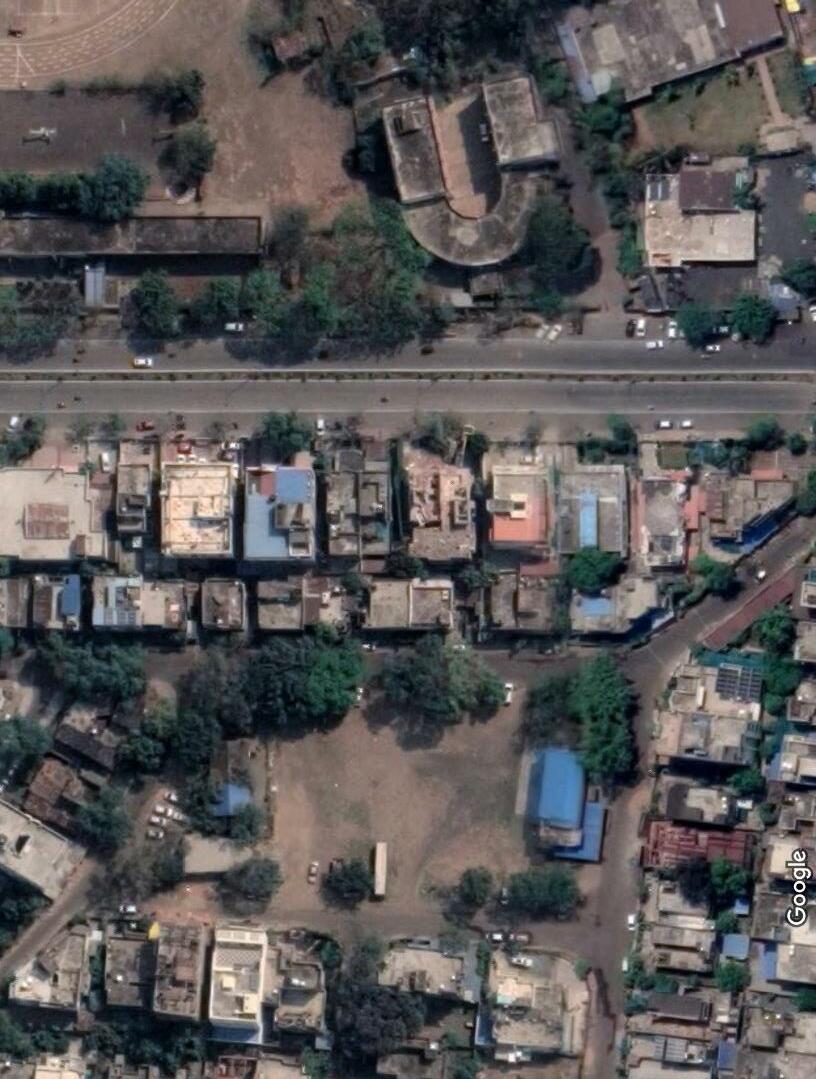

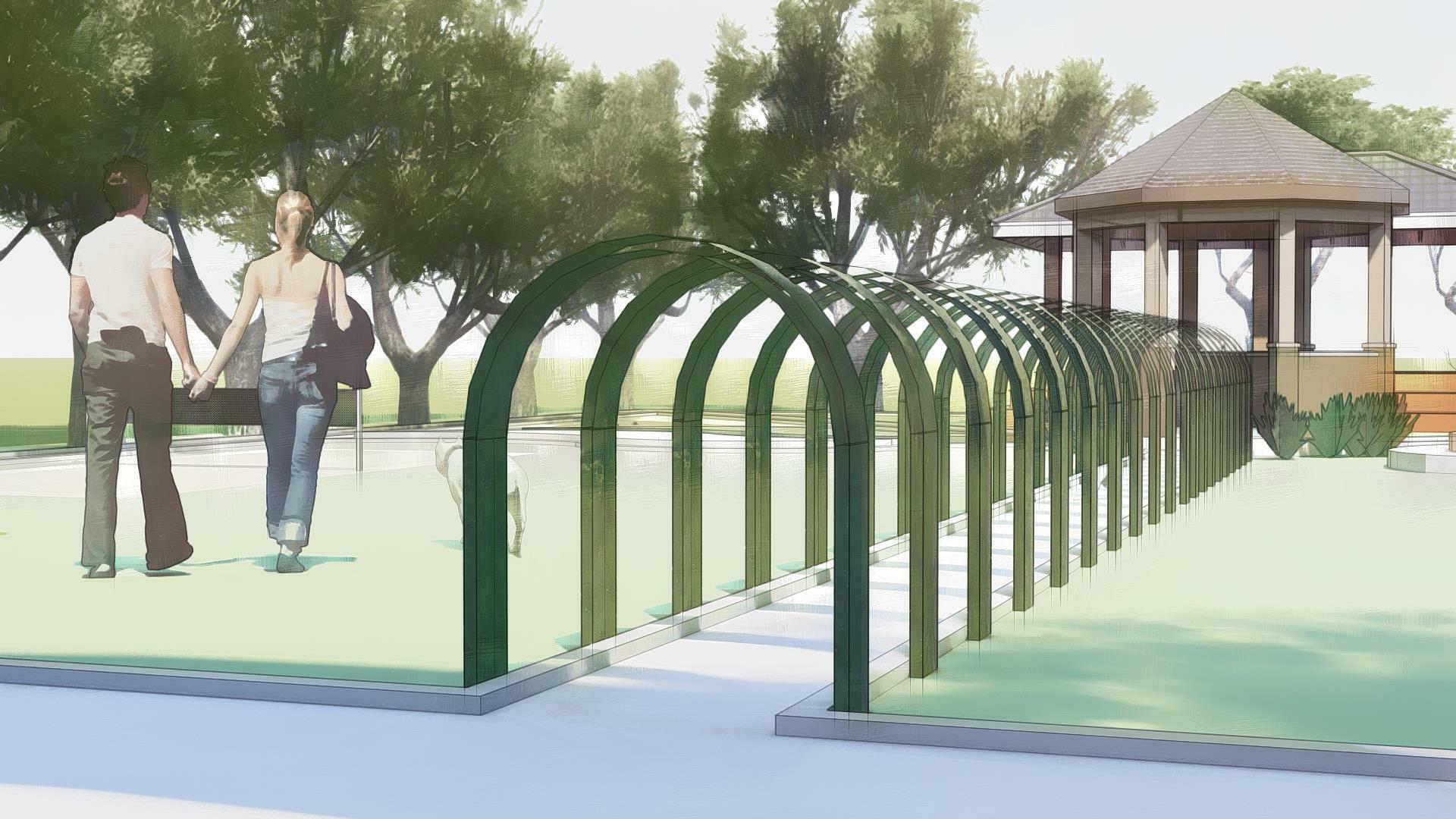

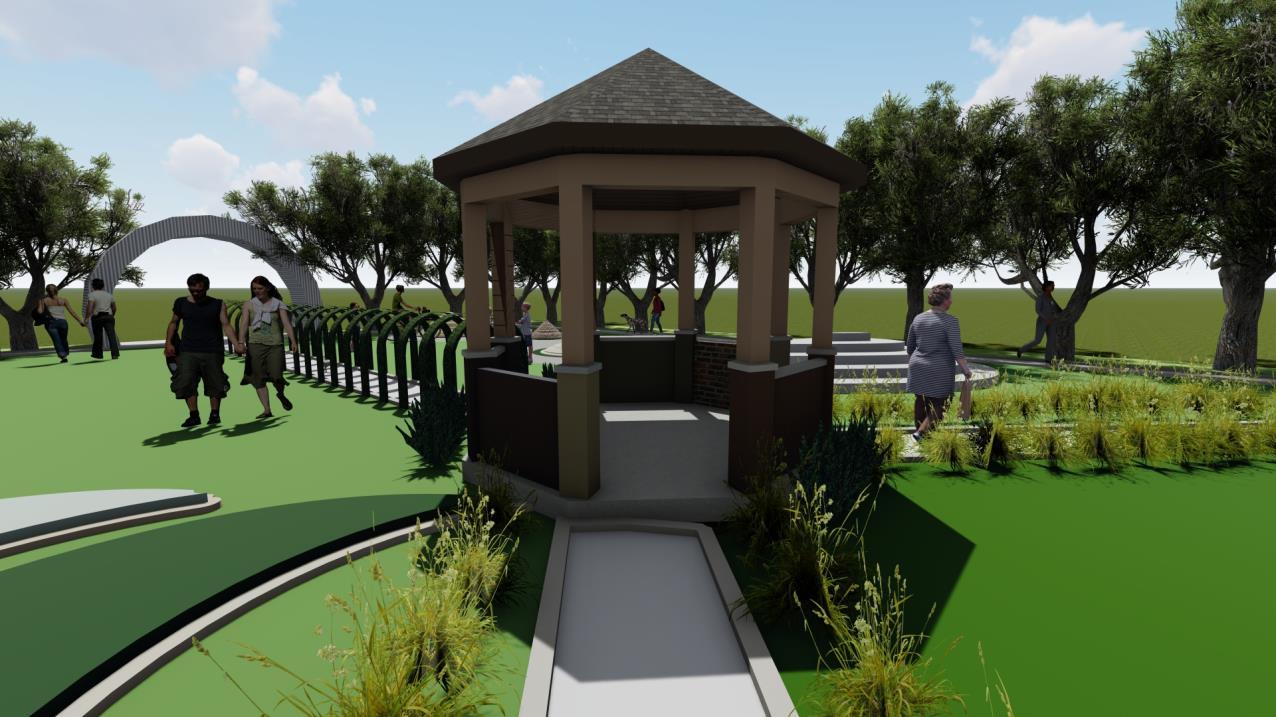

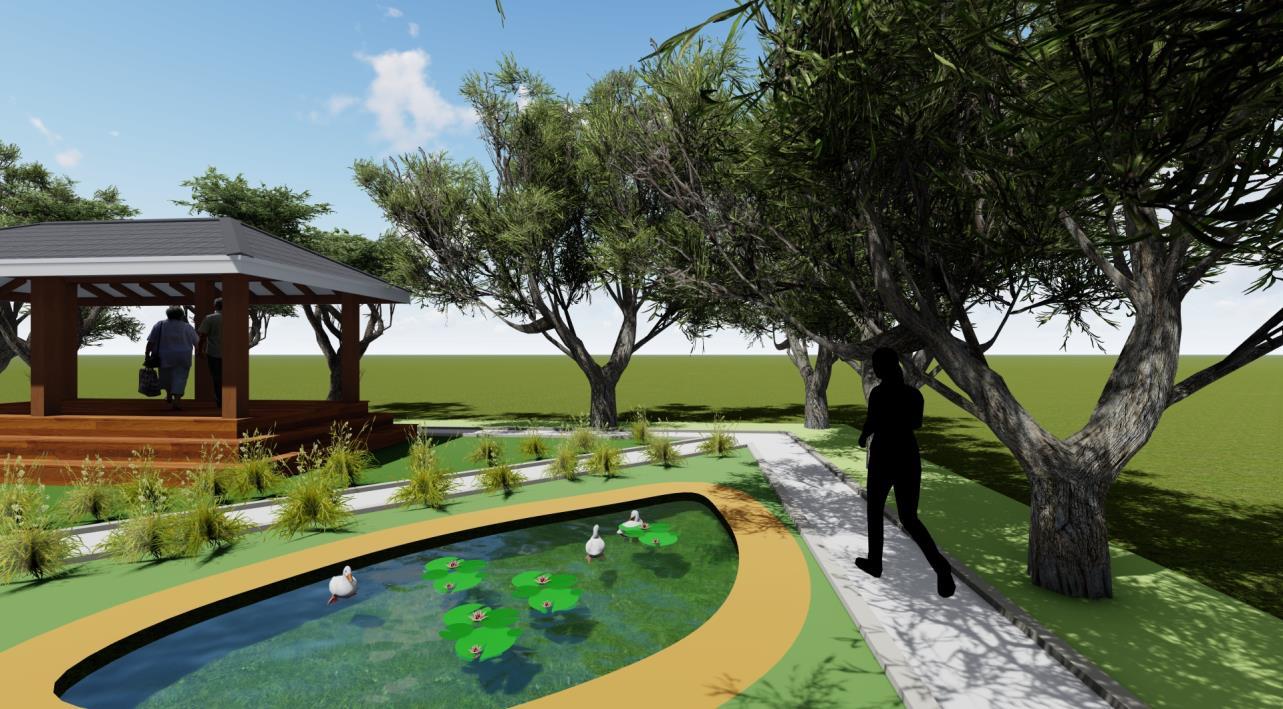

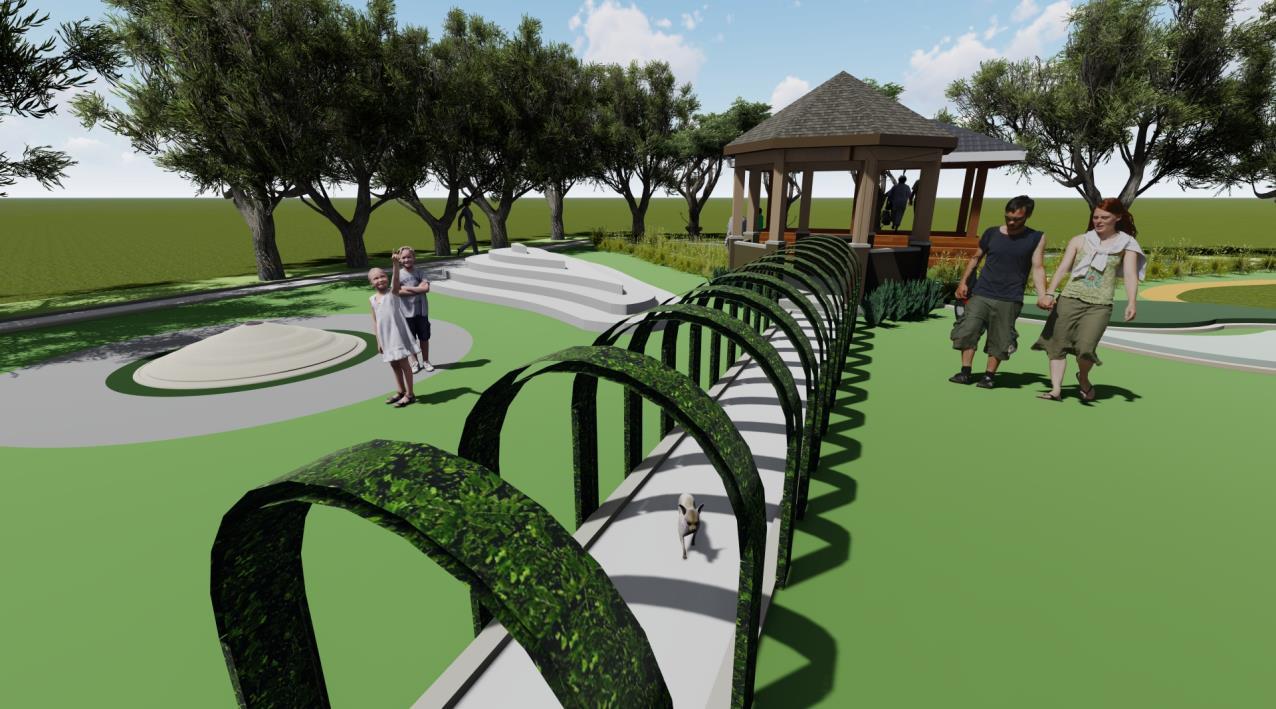

The Landscape was designed for Corporation Ground, Hanuman Nagar in Nagpur

Its area is about 2630 m2 The site is divided in three different parts for 3 age groups i.e., Kids, Adults & Senior citizen And accordingly, vegetation is placed keeping in mind the climate of Nagpur.
