Undergraduate portfolio

SANGAVI

ABOUT ME

Born in 2000 from french heritage city, pondicherry. Iam currently studying architecture in sri manakula vinayagar school of architecture. I especially enjoy the art of architecture and i like to explore all the creativity and elixir of architecture designs and try my best to master the domicile. Im actively seeking opportunities and looking forward to work at your firm. I hope my portfolio express the inner craftmanship and finesse of my work.

HELLO!

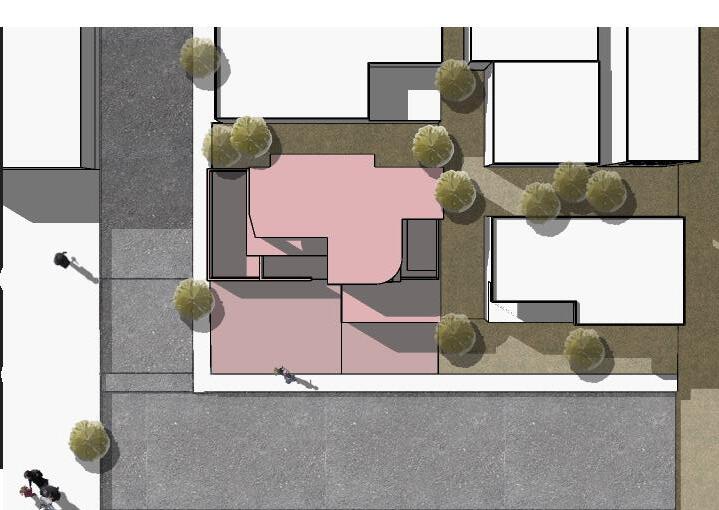

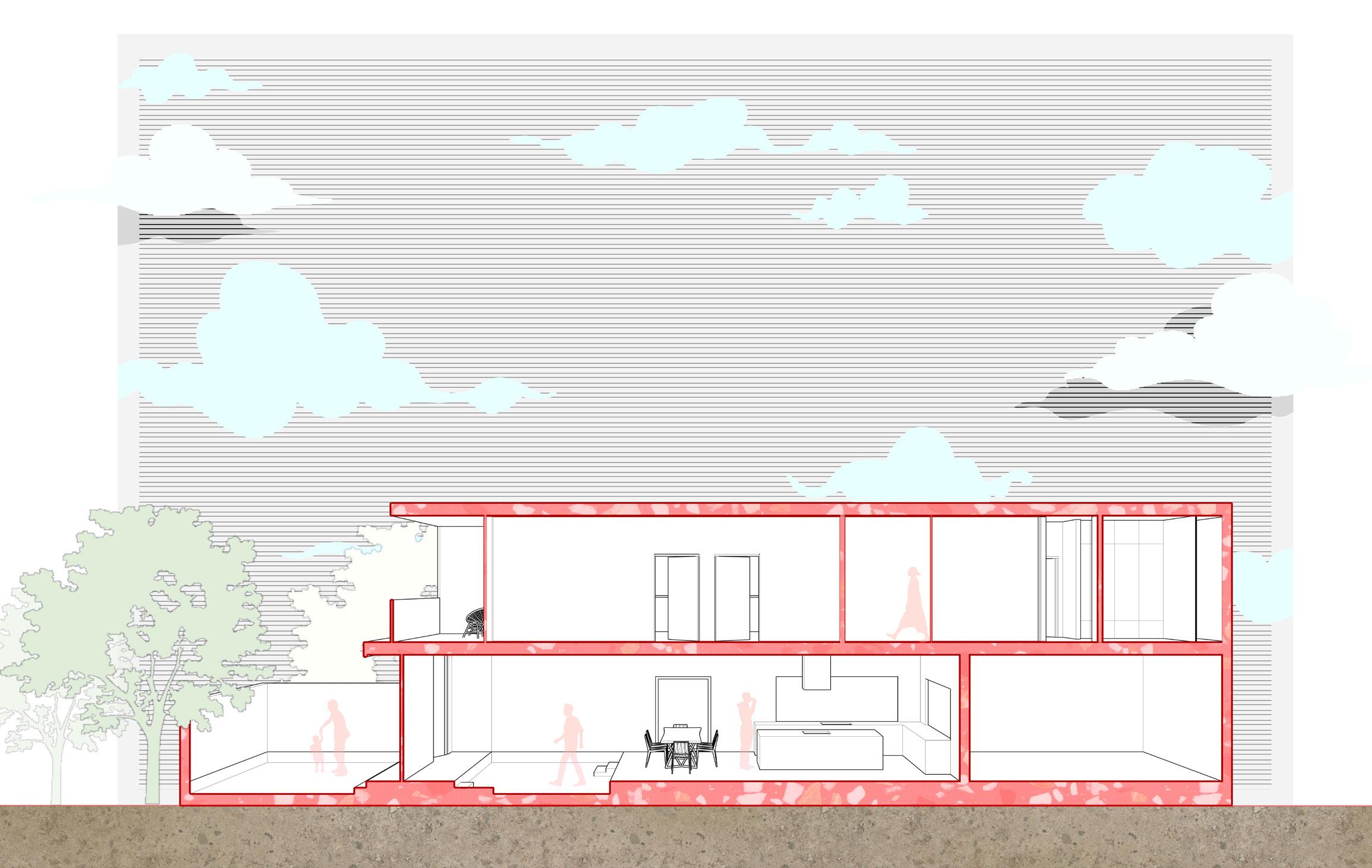

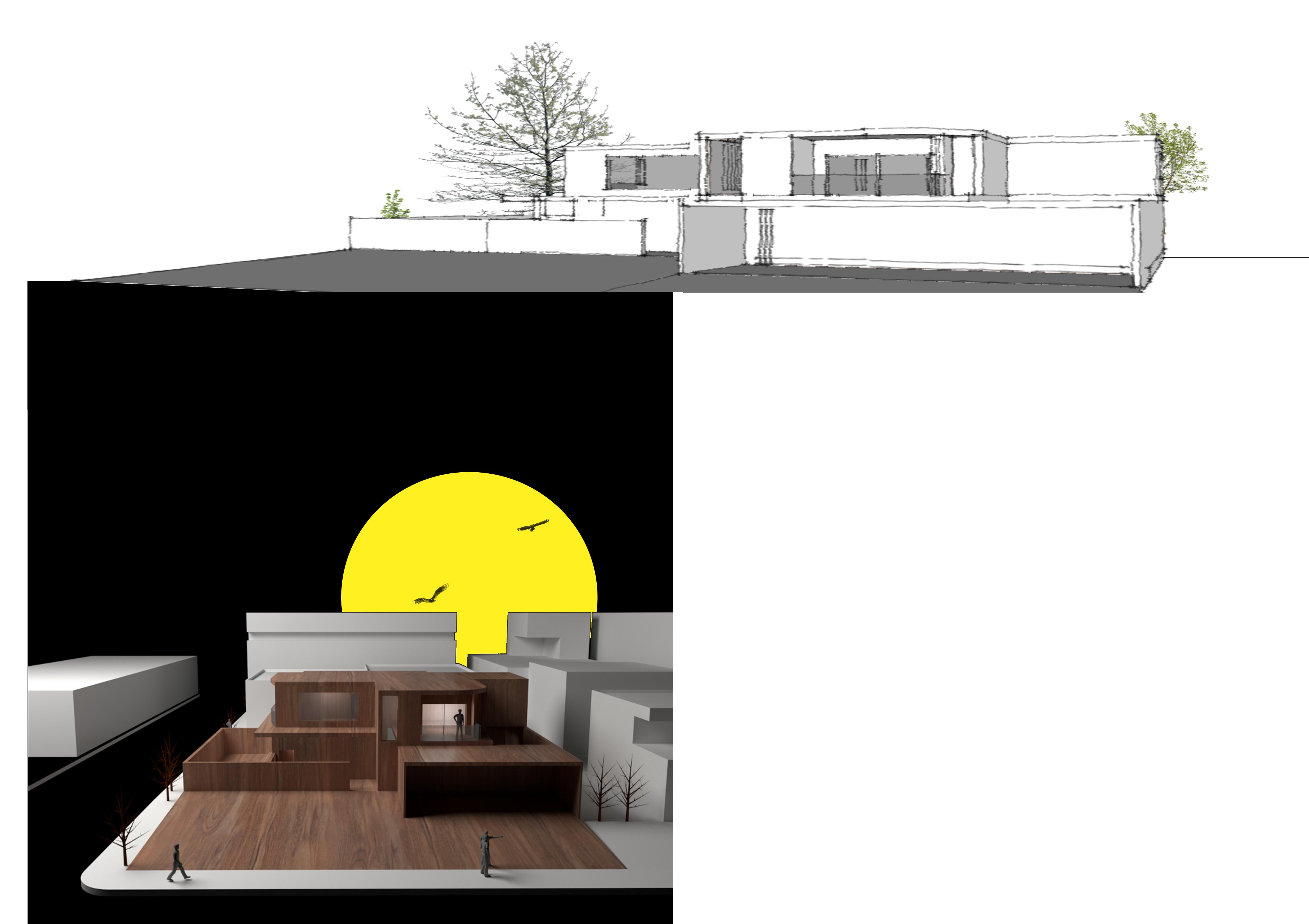

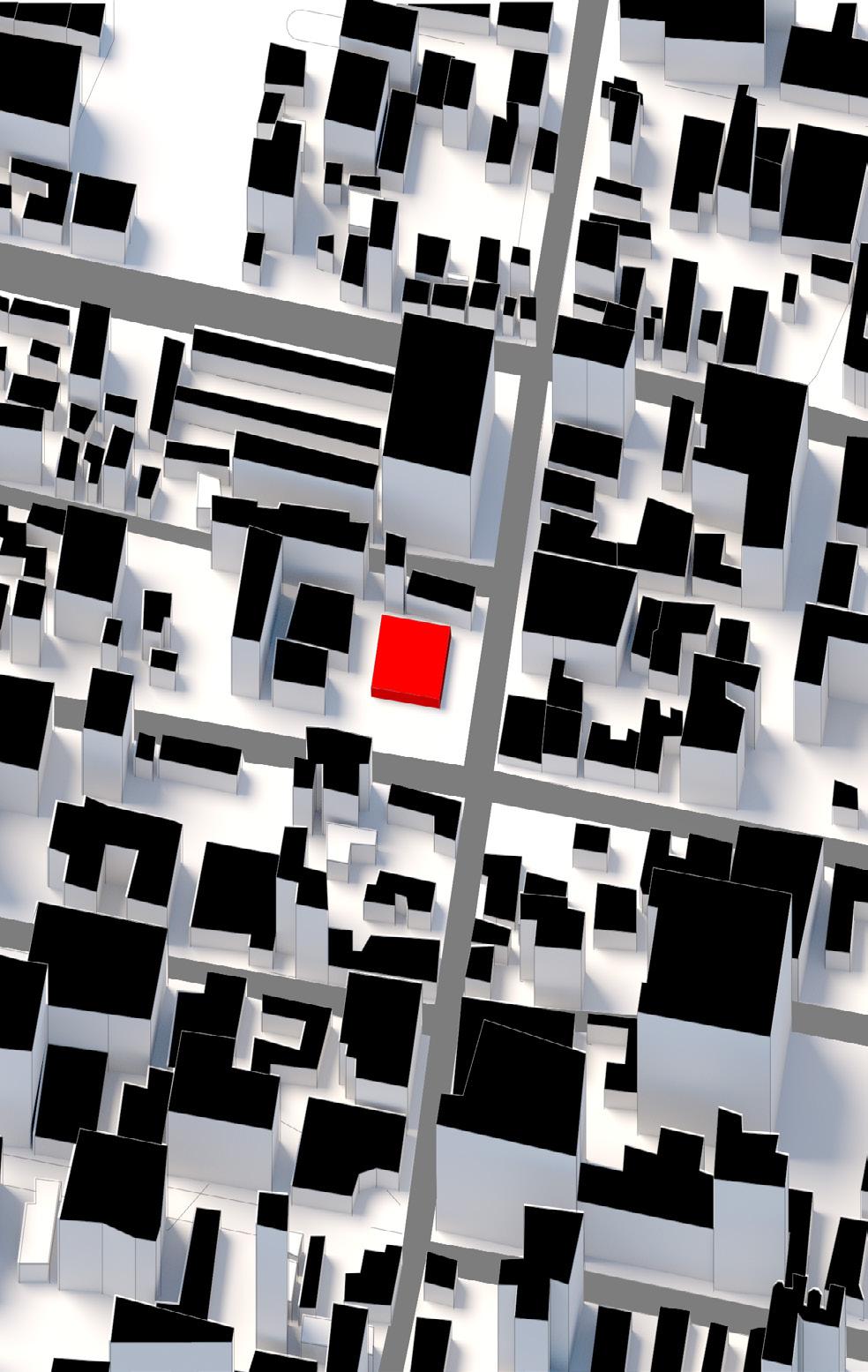

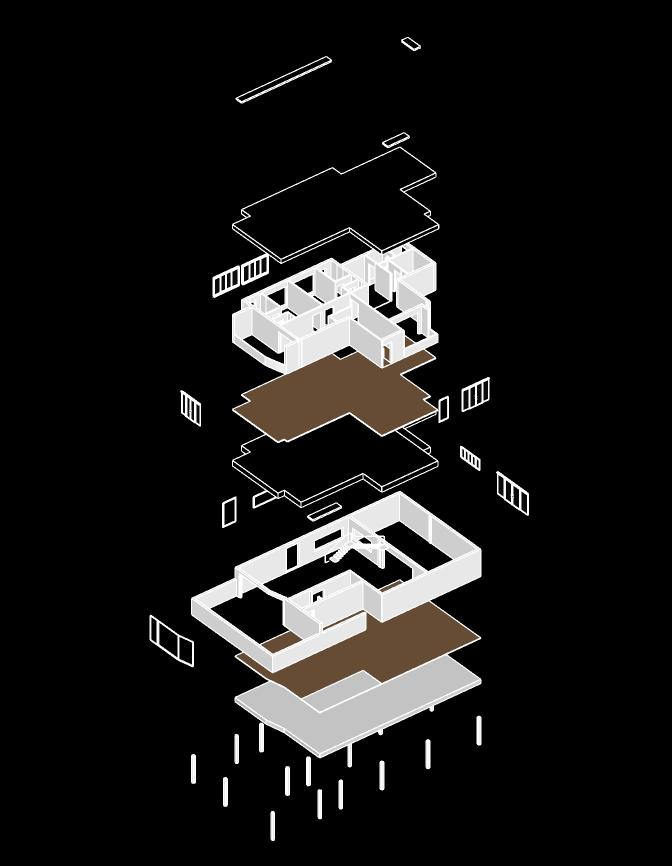

The site is located in main area of pondicherry near the wonderful seashore.This home has been sub-diving into two small flats, one on the ground floor and one on the first floor, linked by a long passage of stairs. The views and atmosphere was achieved by eliminating small portions from wall with large openings. Both verticality and a sensation spaciousness were gained by opening up the staircase. The long and elegant garden space gives the beautiful sunrise and sunset view.

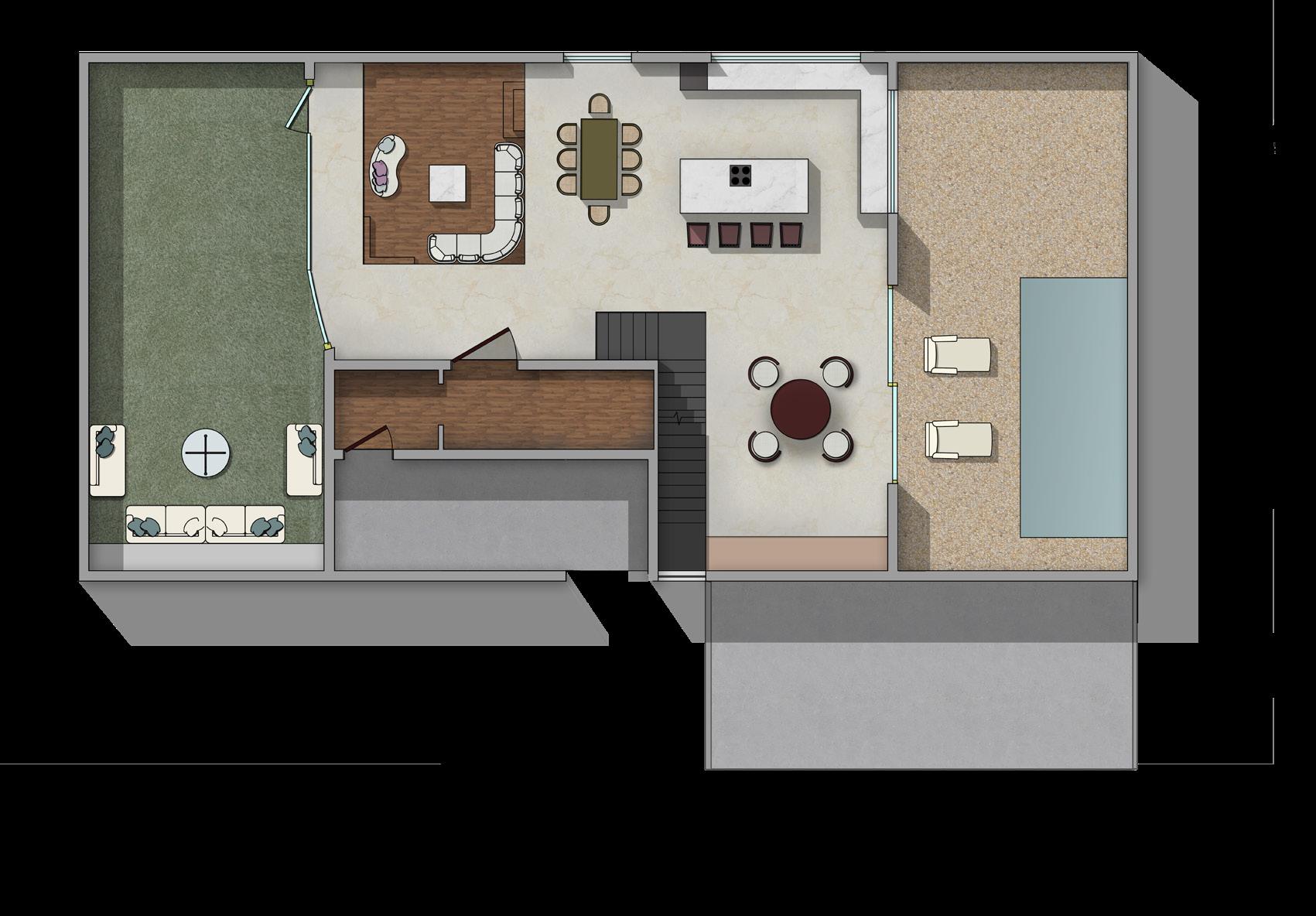

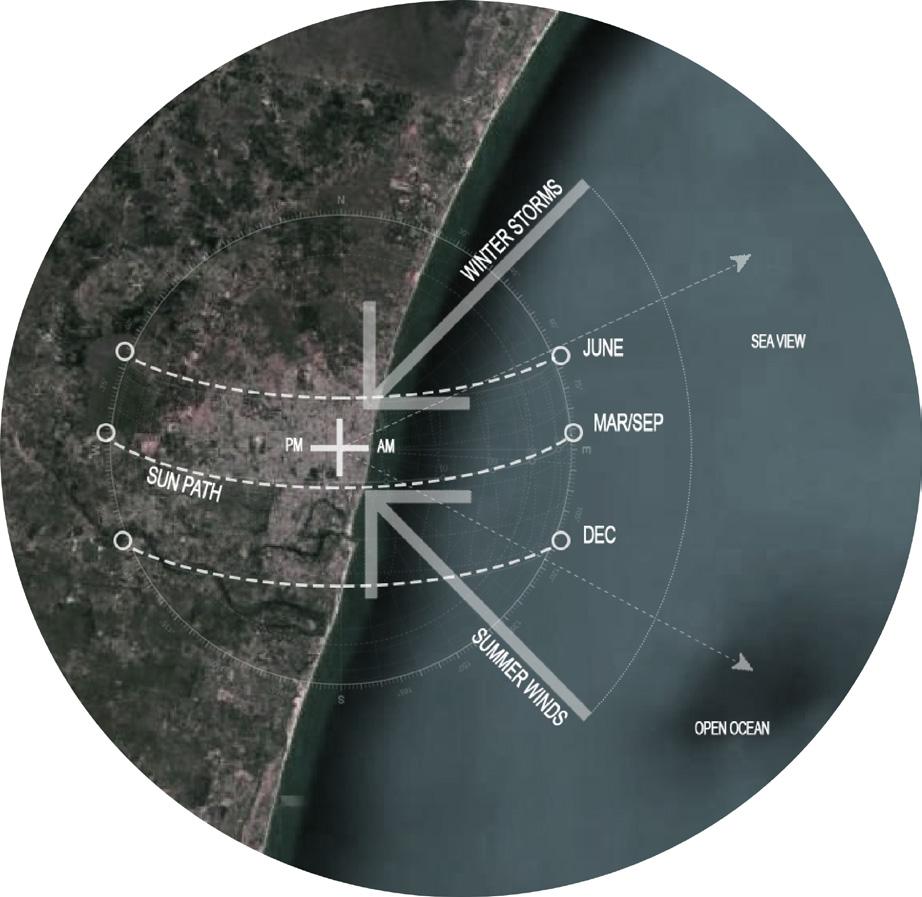

The main floor consists of a central living space with kitchen, dining and relaxation areas. The aim was to create large living room that would be directly linked to partly open kitchen. The site, has the private access to the garden ,the outdoor set built in consideration of the sun’s direction were the longitudinal garden space gives a clear view of sunrise at the east and sunset at the west and the full breeze all the time.

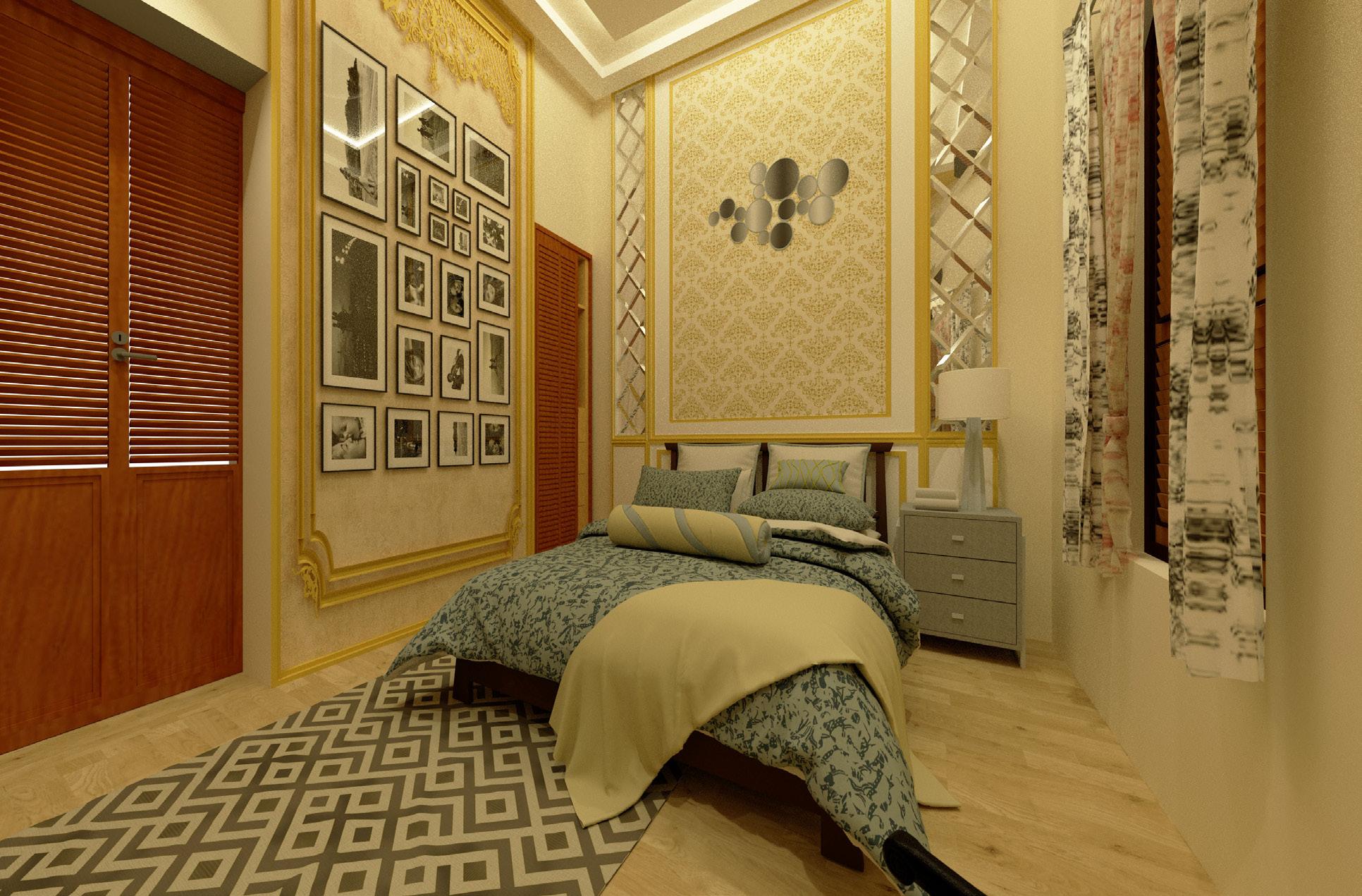

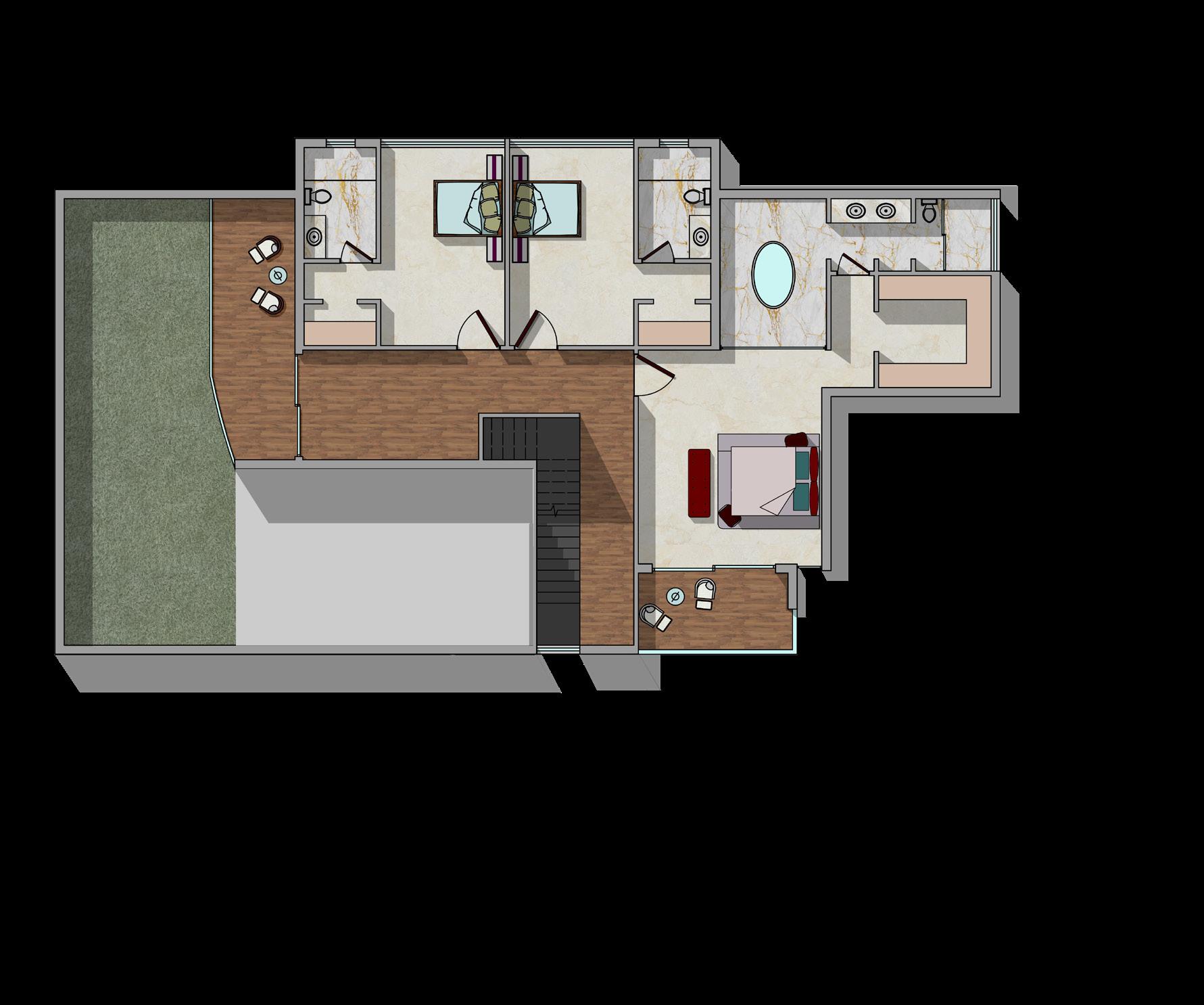

The rooms in the first floor are large and spacious with full height glass glazed window. The master bedroom has the unique feature, bedroom is connected to the bed by means of a large window which exposes the bathtub. The shower and the toilet are discretely hidden in a chamber.

Massive full height glass windows flood the interior spaces with light and provide visibility that unifises the house. The colors, the landscpaed garden and the swimminng pool are part of the strategy to improve the quality of professional and family life by allowing the mind and body to be inspired and rejuvenated.

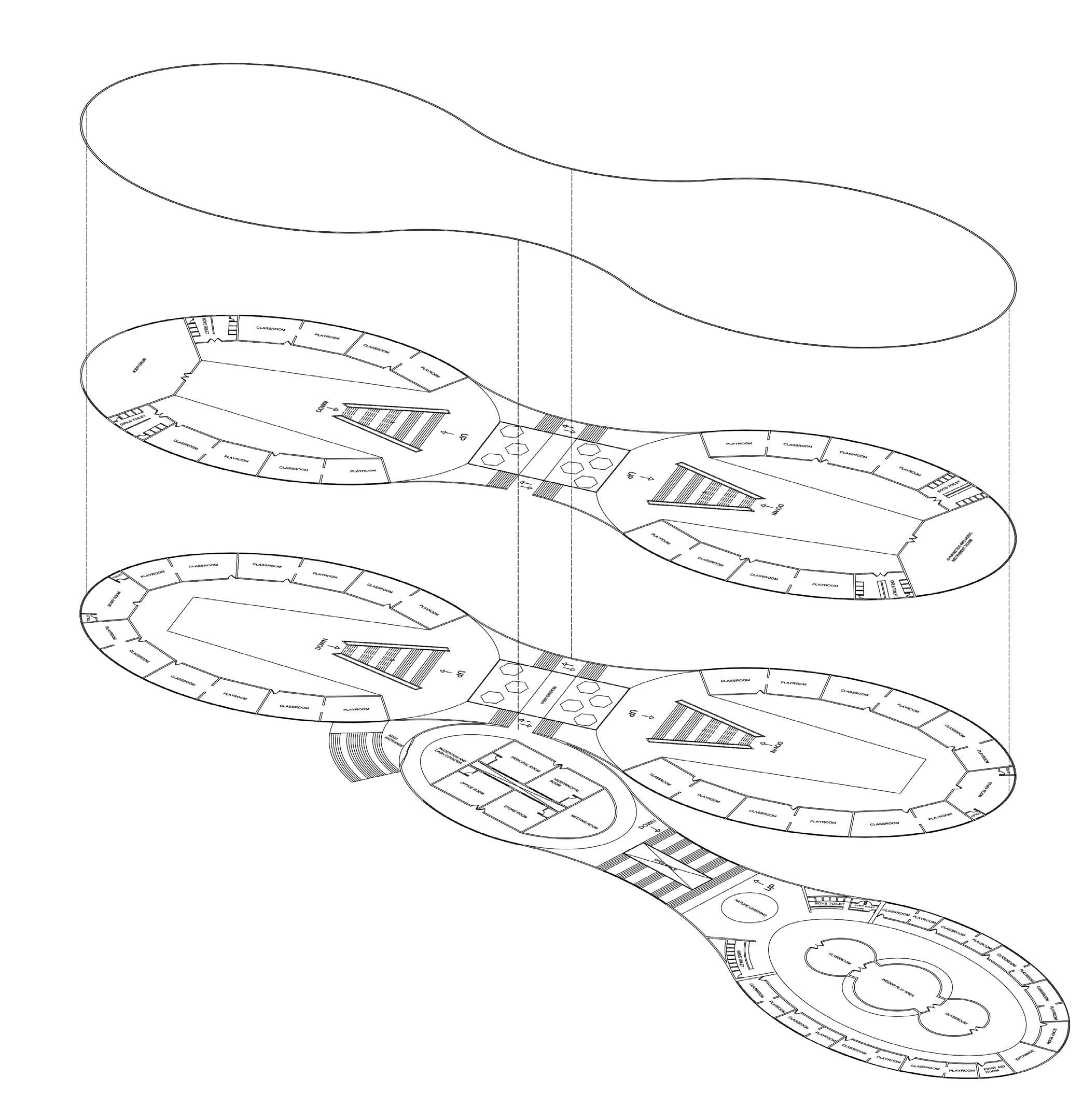

The school is designed with the functional architecture support and spacious classroom and playroom. The design of the school. School,, which combines five-year system primary with kindergarten, is located in Pondicherry, auroville. The building has oriented along the axis points, they are also leveled with steps inbetween and that divides as two parts. the whole campus divided into four parts, areas from north to south (x axis), namely, kindergarten department and administration office. Areas from northwest to south west direction, namely, primary school department. For kindergarten department, an indepentent entrance is set up in the north, while main entrance of the primary and school administration is located on the south, intersecting part of the building. The entrance for the primary school loacted inside the block. As a whole, the campus adopts a unified white tone and concise volume to create a unified form full od indentification, but in the key parts, special materials are used to express spatial intentions.

Green roof with terrace playground.

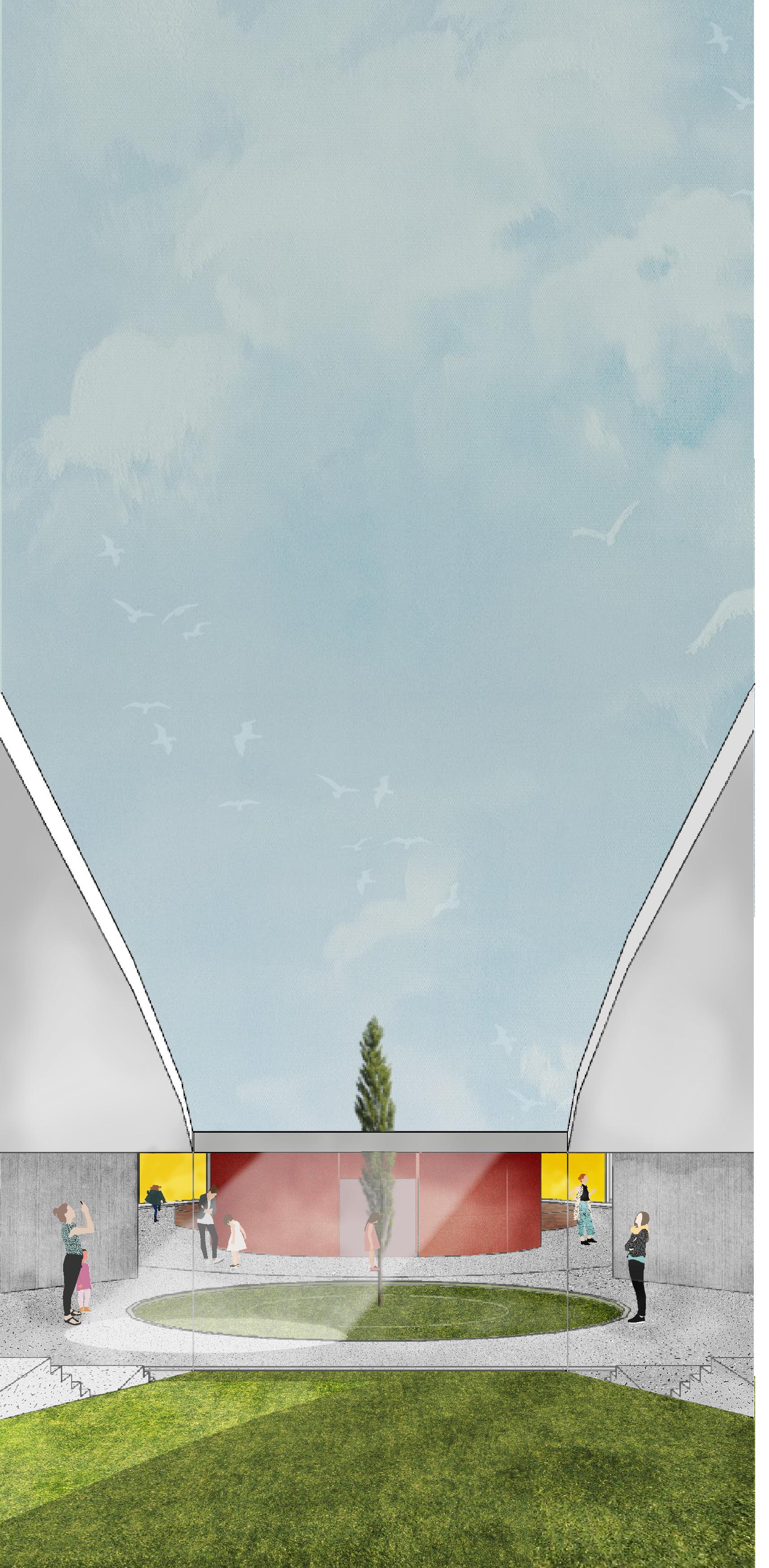

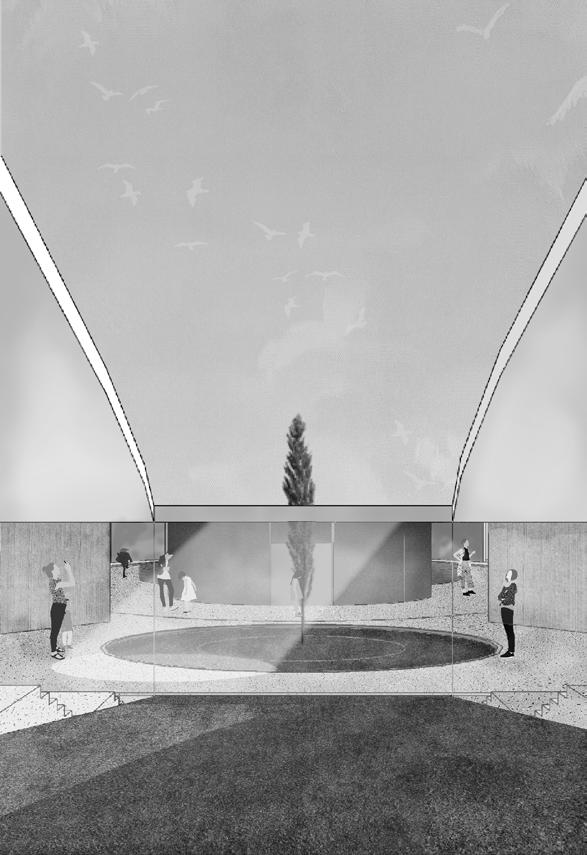

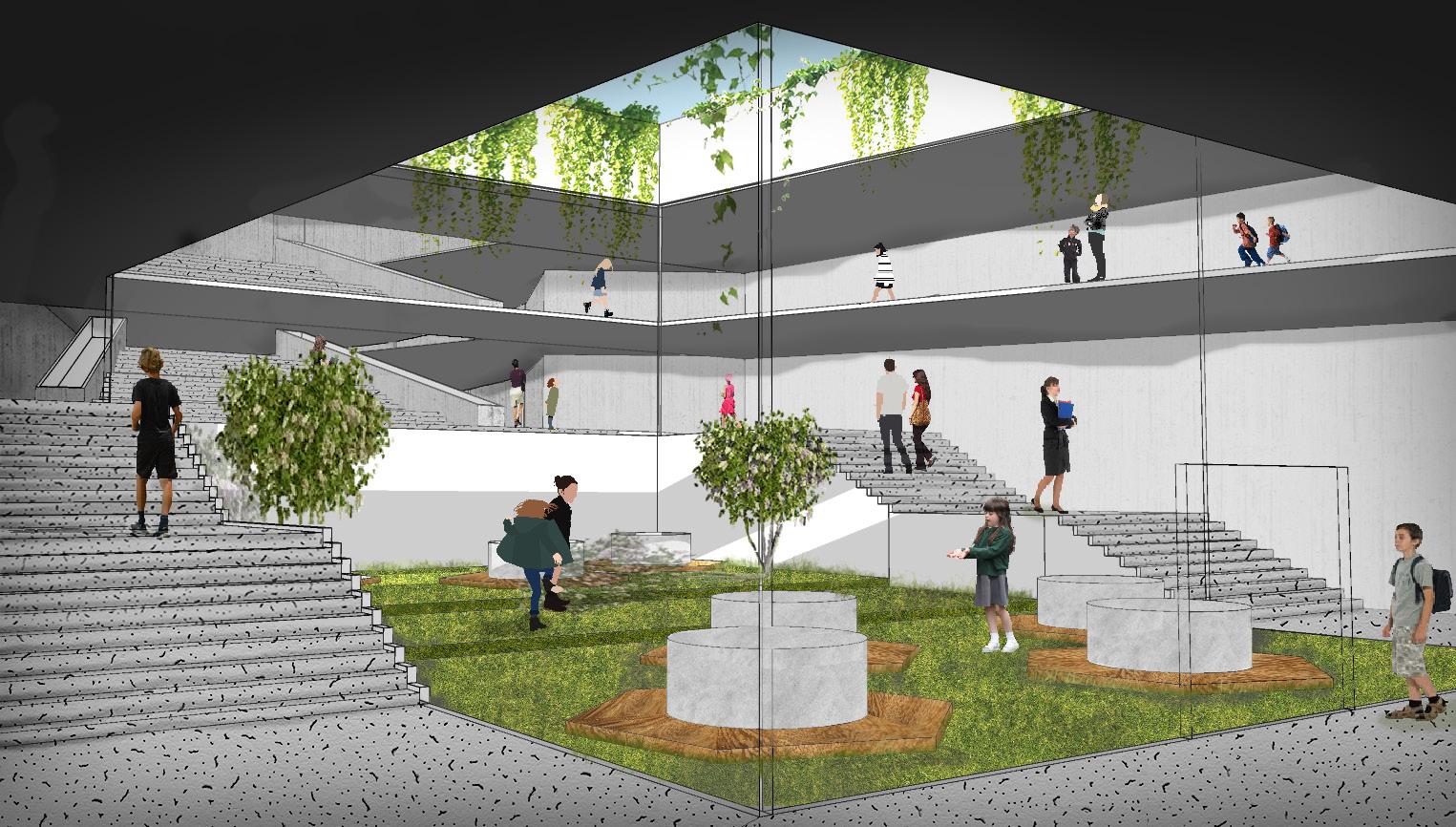

In the interior space the background colour designed to be gray, but all the volumes, such as the steps and stairs in the atrium, are made up of black and white terrazzo flooring finishing, strenthening the form-giving characteristics of public space. The center courtyard space deigned as a natural learing space, where students can sit over there and read. The courtyard has been covered with glass material that reflects light all over the interior space and brightens the space

B block-classrooms with workshop room (8), gymnastic and music instrument room, auditorium, girls and boys toilet.

The gorund floor consists of two divisions nursery and primary. A block-south main entrance, Office room, reception&cash counter, principal room, vice principal room, store room, courtyard, classrooms with playrooms (8), staff room, north kindergarten entrance, indoor play area, natural learning, toilet (boys and girls), staff toilet. B block-entrance, courtyard, classrooms with workshop room (12), staff room, girls and boys toilet

0 3 SACRED SPACE

COMPETITION DESIGN

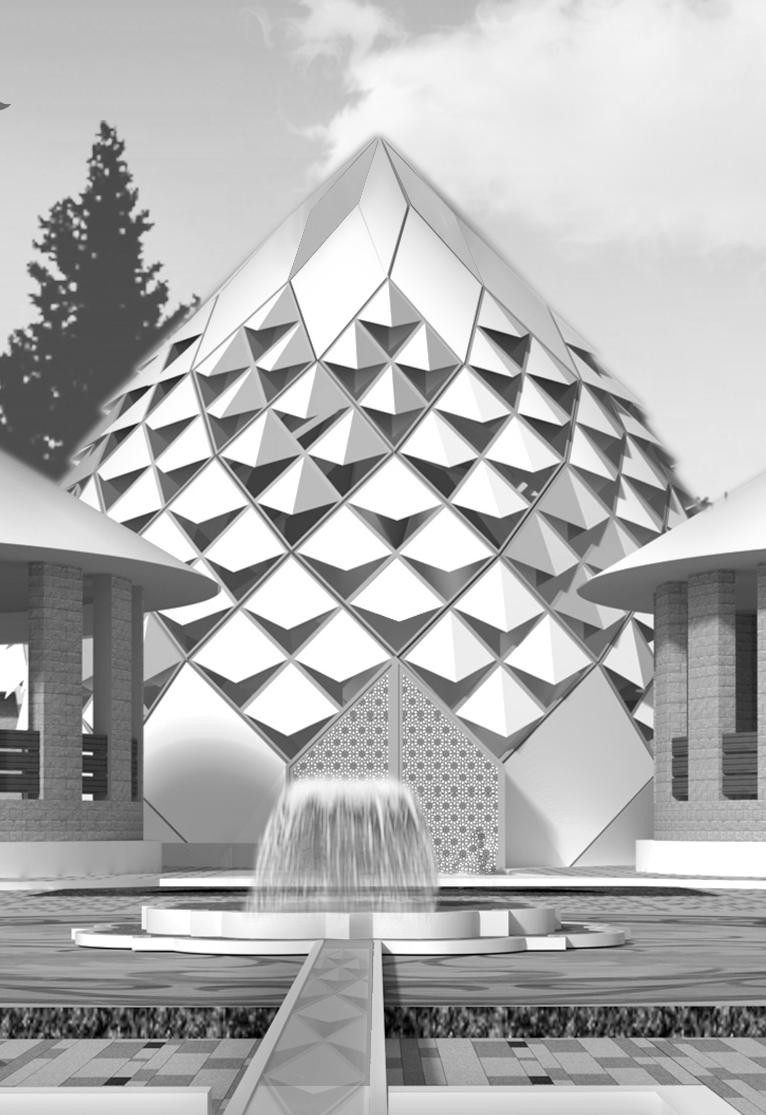

In pondicherry,india, as itself an union territory, it is designed facing the wide sea and with spritual symbol recognition. we are all born into this world with an overarching context. Willingly or unwillingly, we end up transitioning from this singular origin of all llives into our respective worlds, worlds characterized by plural determinants. This moment filled with contemplations of the past, awarness of the present and hopes for the future is when we shall really see a life full of possibilities. This moment in the t

CONCEPT :

Chakaras: the spiritual body is organized into seven primary chakaras, or energy centre which connect us it with physical body, which is why we often manifest physical symptoms from an emotional experience. This can range from feeling our heart expand with love to feeling punched in the stomach. Each and every chakra is responsible for different feelings and is affected by different external and internal factors.

Balance of all the chakras is important for the human wellbeing.

WATER CHANNEL:

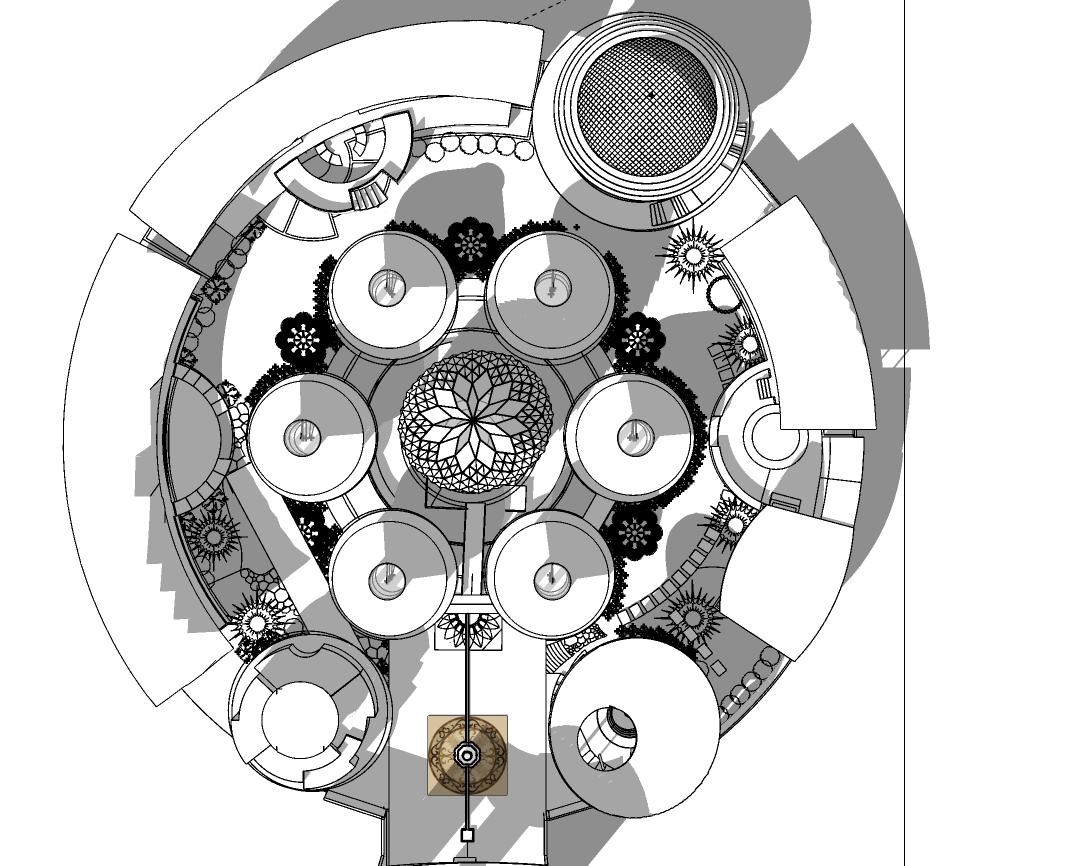

the central point of all the six circle which lie in the outdoor form where the water channel starts to flow throught the entire site and finally all the channels meets at the central core which is the focal point of the site (main meditation hall)

0 4 BONDED PARK REDEVELOPMENT PROJECT

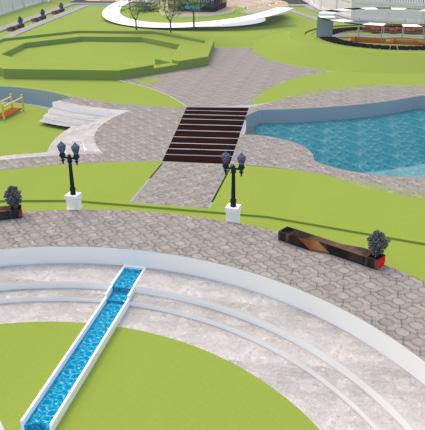

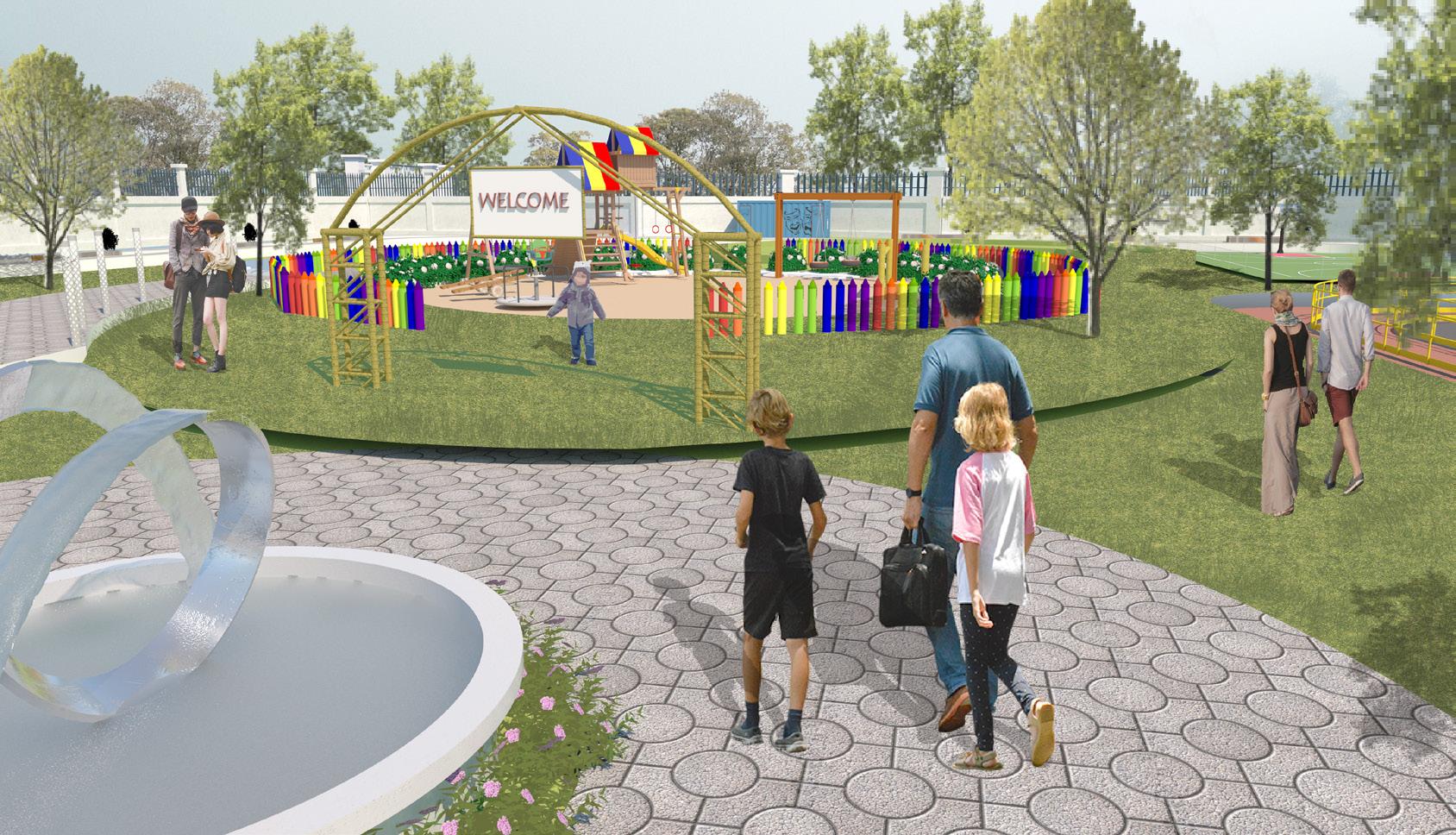

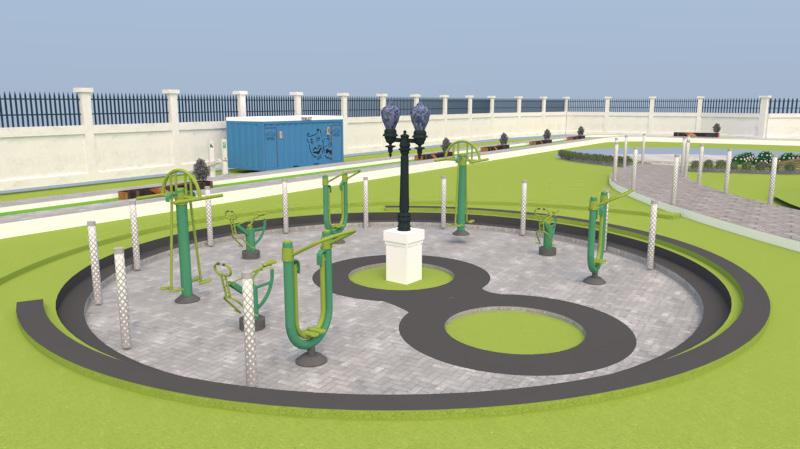

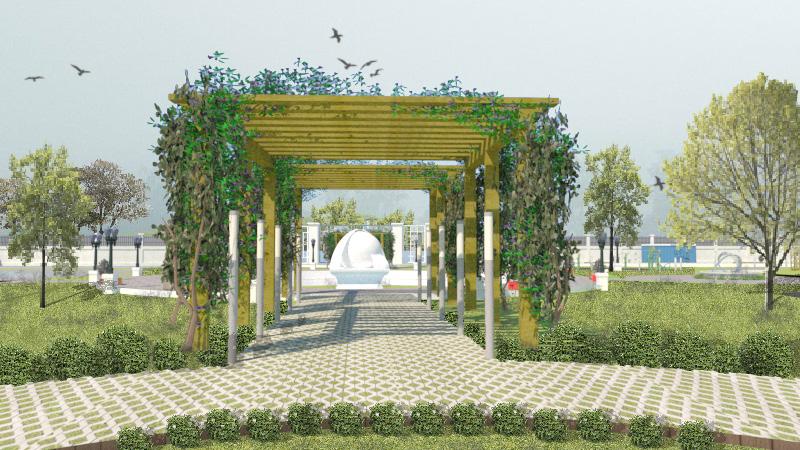

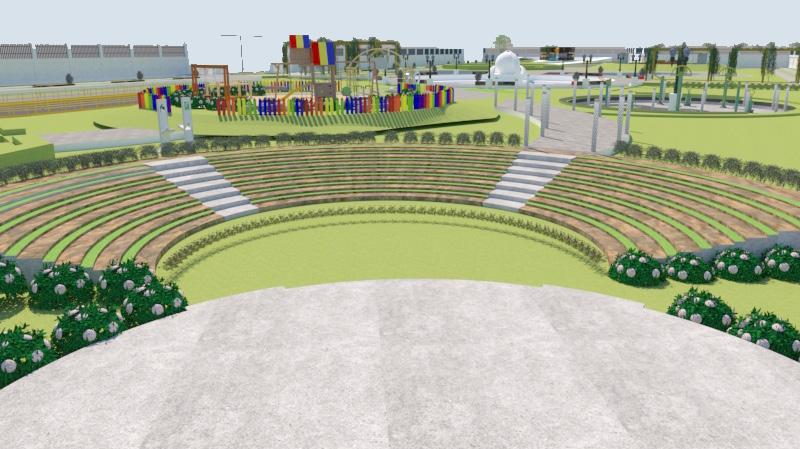

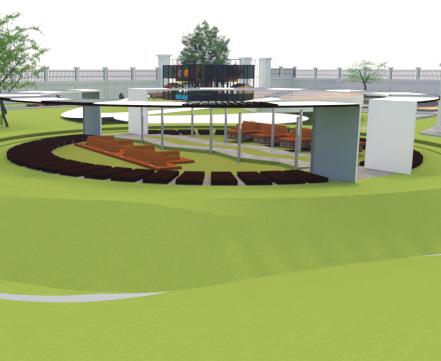

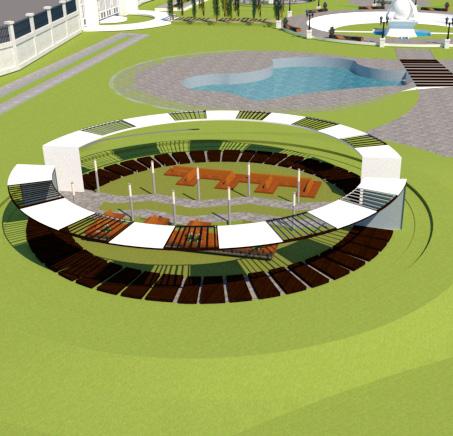

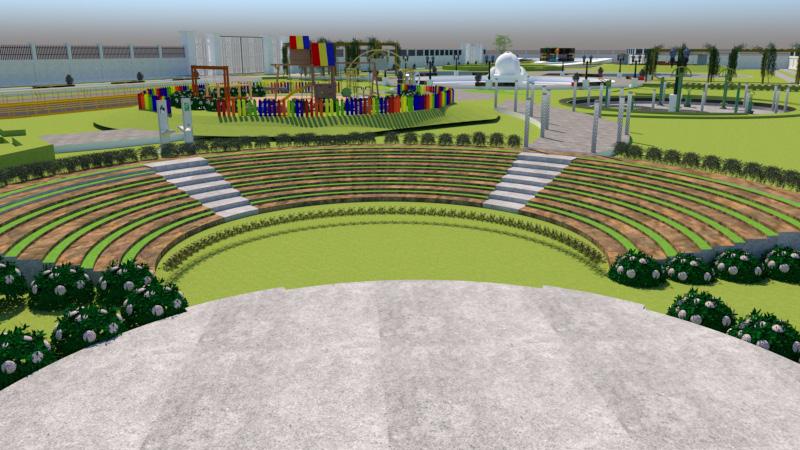

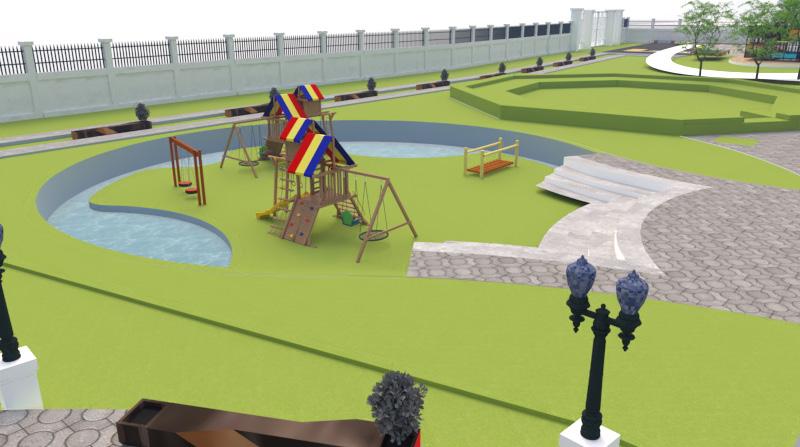

The main concept of this park based on the ecofriendly and usage of recyclable materials. The space been occupied by open landscape gathering area, active play area, passive play area, leisure areas, tree house for children open air theatre, basketball ground, cycling and skating area. We have given lots of trees to ensure birds habitation and flowering plants and trees for holometabolism

This concept evolved from early man life and their habitation process are been used in the park development project because we wanted to improve the people community area to be lively and with complete happiness in the surroundings.

GROOMING CLUSTER PLAYING

ELDER PEOPLE AREA KIDS PLAY AREA

AUDITORIUM ELDER PEOPLE AREA

NATURE LEARNING

ELDER PEOPLE AREA

TYRES, use them for children to go through, on top of or just for balance. Big and small climbing, balance and coordination challenges for little bodies.

WOOD- recycled wood grain lumber panel are been used in nature learning space for tree house construction and seating material in some areas.

FRUIT TREES

BIRDS HABITATION

PLANTING STRATEGY

ELDER PEOPLE AREA CYCLING & SKATING KIDS PLAY AREA ELDER PEOPLE AREA

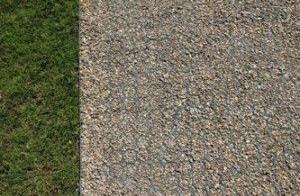

PERMEABLE PAVEMENT

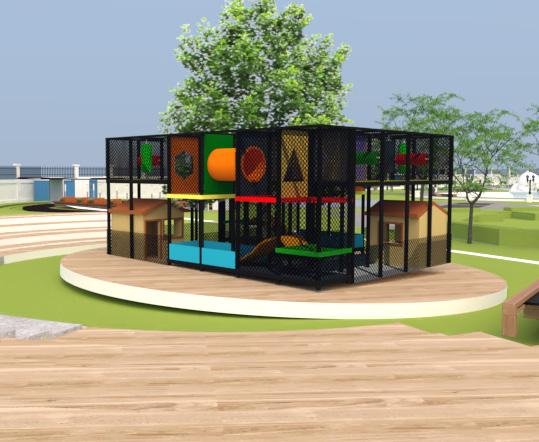

PLASTICS- LDPE plastics and Tube are used in Playground sliding equipment. The tube playground slide with or without curves maximizes the kids fun and excitement giving them the feeling of going through a tunnel.

CONTAINER Container toilets are designed to use in the site.

PERMEABLE PAVEMENT- PLASTIC GRIDS

Permeable paving is designed to use in pathways and platforms.

METAL SLIDES

Play area material ,used in slides also

AGRIFOLIA TAGETES MYRISTICA FRAGRANS PLUMERIA RUBRA LOTUS SCOPARIUS ASTERACEAEV

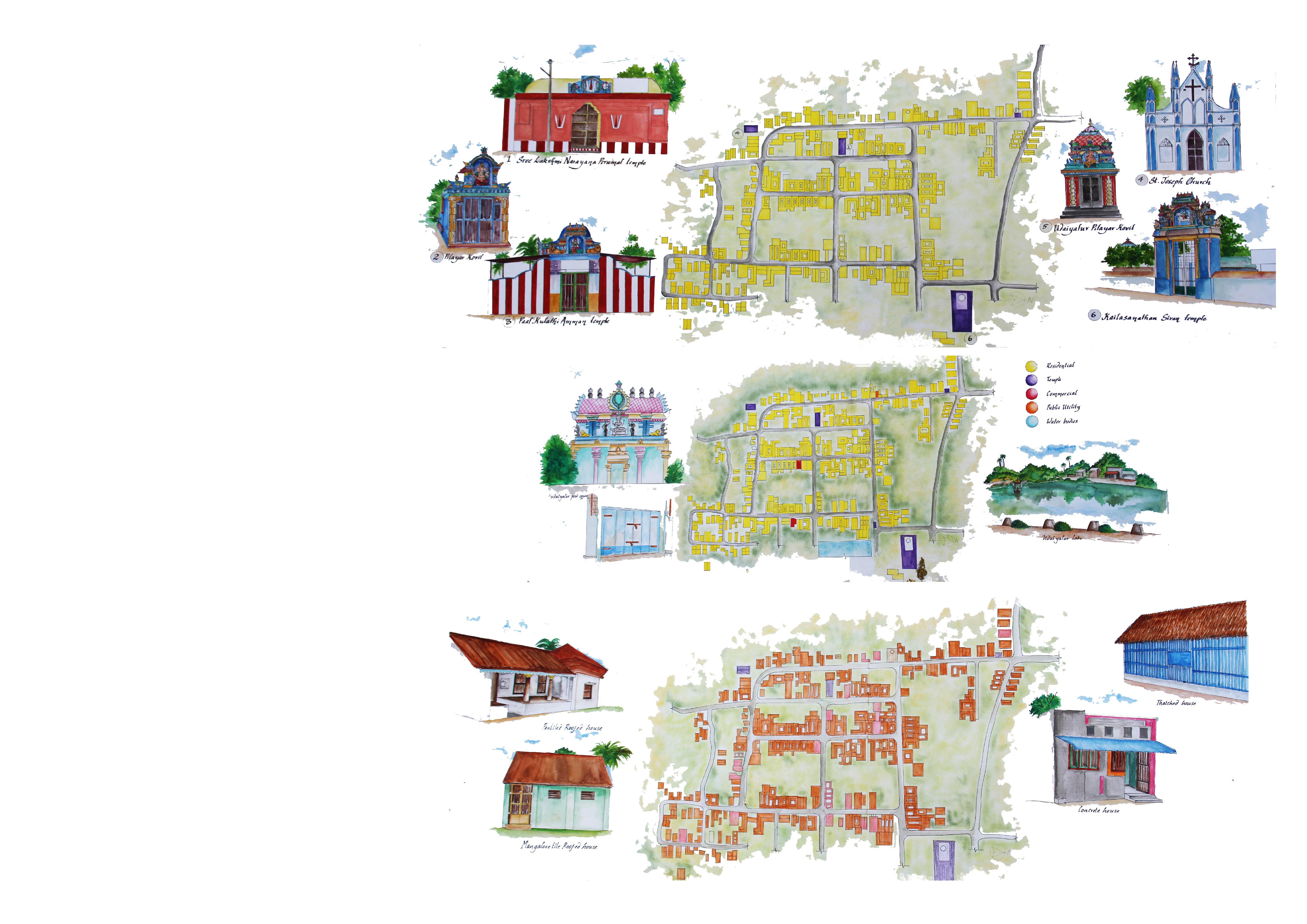

0 5 UDAIYALUR RURALS DOCUMENTATION STUDY

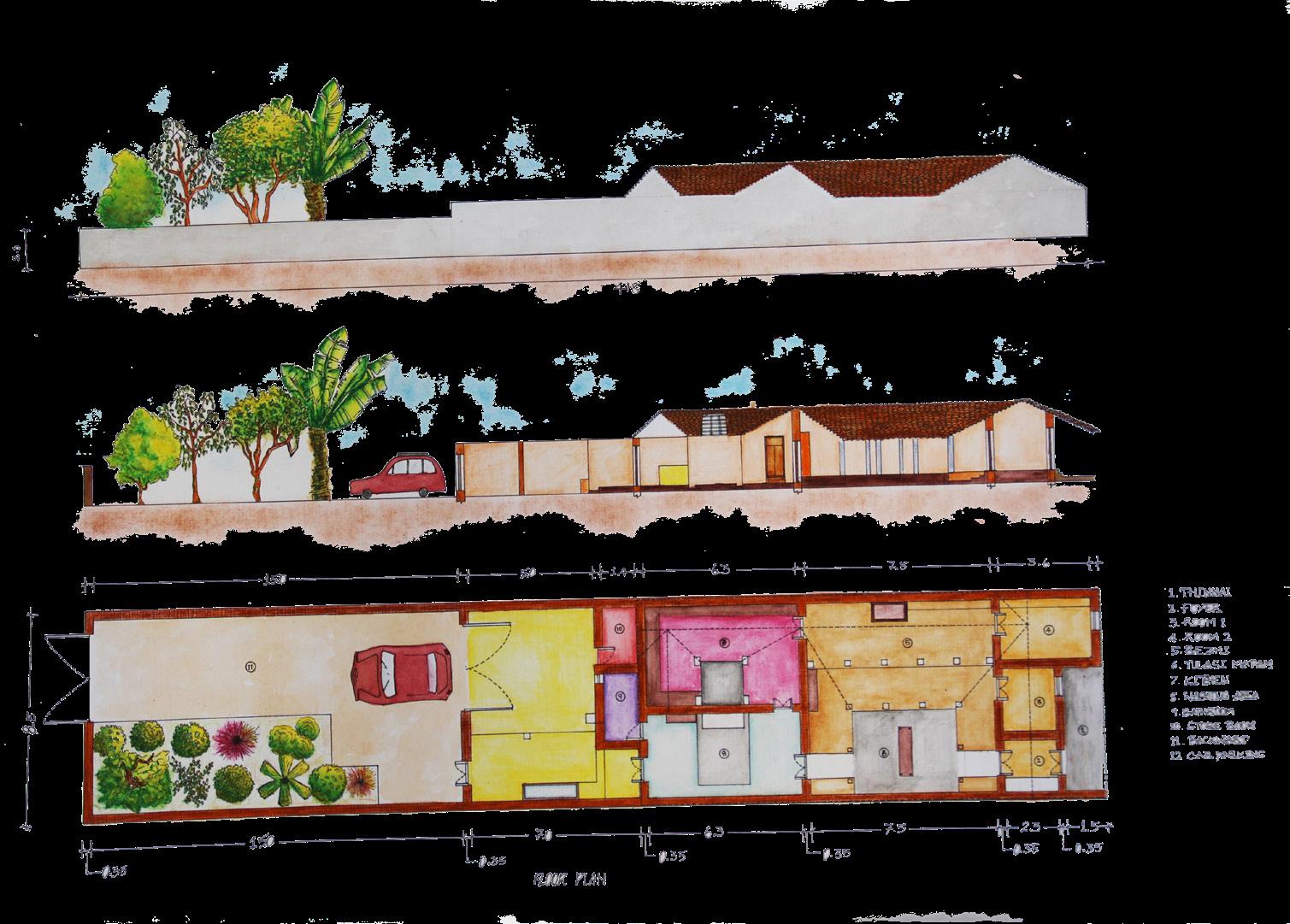

Udaiyalur is a Village located in the Taluka of Kumbakonam, in the district of Thanjavur district, in the state of Tamil Nadu state with a total population of 3156. There are 798 houses in the Village.

In Udaiyalur village population of children with age 0-6 is 340 which makes up 10.77 % of total population of village. Average Sex Ratio of Udaiyalur village is 995 which is lower than Tamil Nadu state average of 996. Child Sex Ratio for the Udaiyalur as per census is 910, lower than Tamil Nadu average of 943. Udaiyalur village has higher literacy rate compared to Tamil Nadu. In 2011, literacy rate of Udaiyalur village was 81.89 % compared to 80.09 % of Tamil Nadu. In Udaiyalur Male literacy stands at 88.25 % while female literacy rate was 75.57 %. As per constitution of India and Panchyati Raaj Act, Udaiyalur village is administrated by Sarpanch (Head of Village) who is elected representative of village

0

6

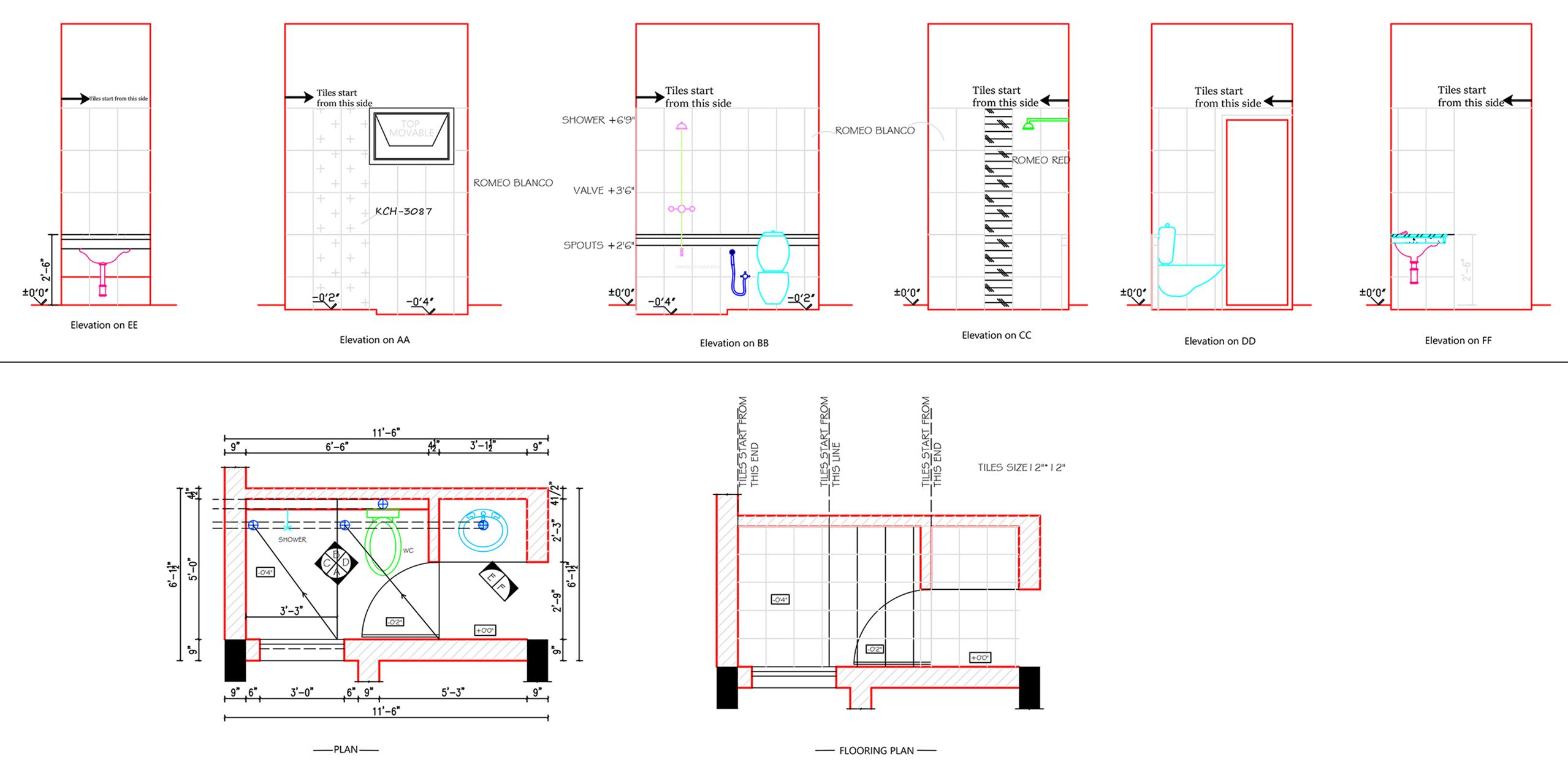

WORKING DRAWING ACADEMIC WORKS COMMON TOILET DETAILS

KITCHEN DETAILS

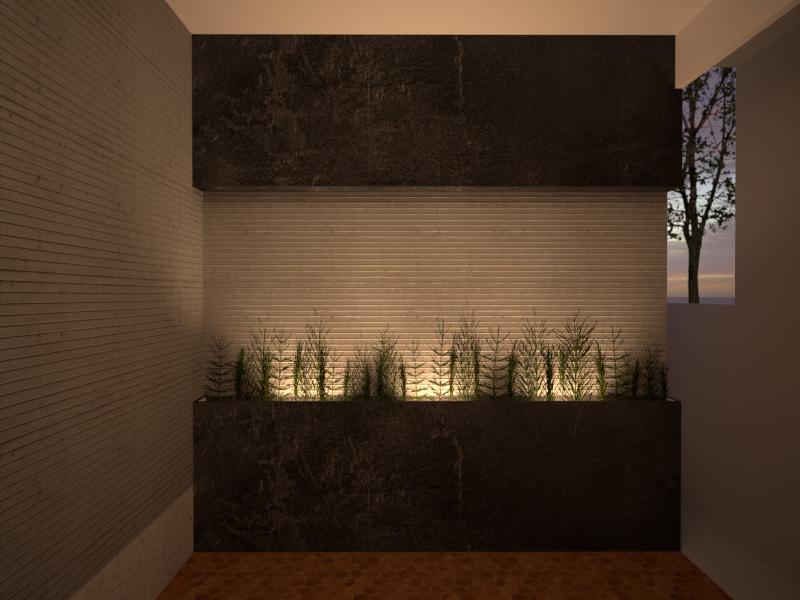

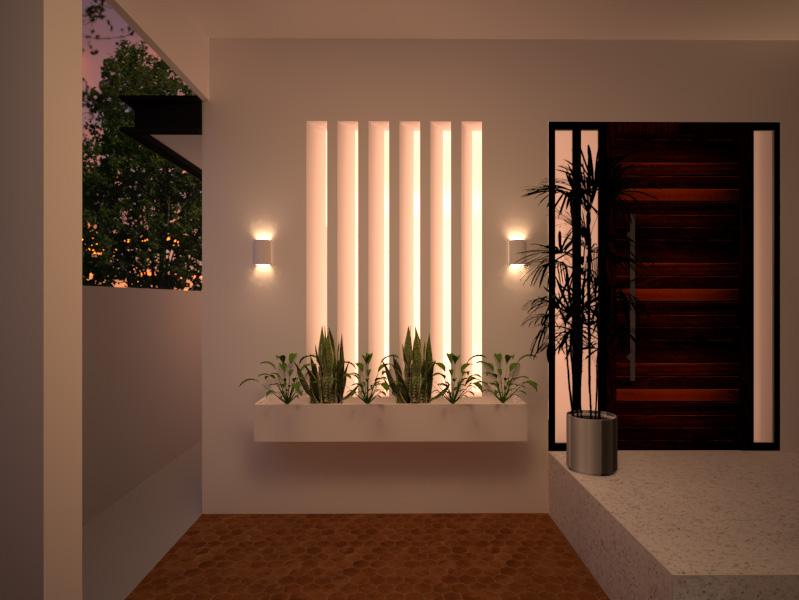

0 7 RENDERS extra WORKS
