SANDIP SINGH DESIGN
Blank Canvas - 1 - 11
Photography - 12 - 15
The
Architectural
The

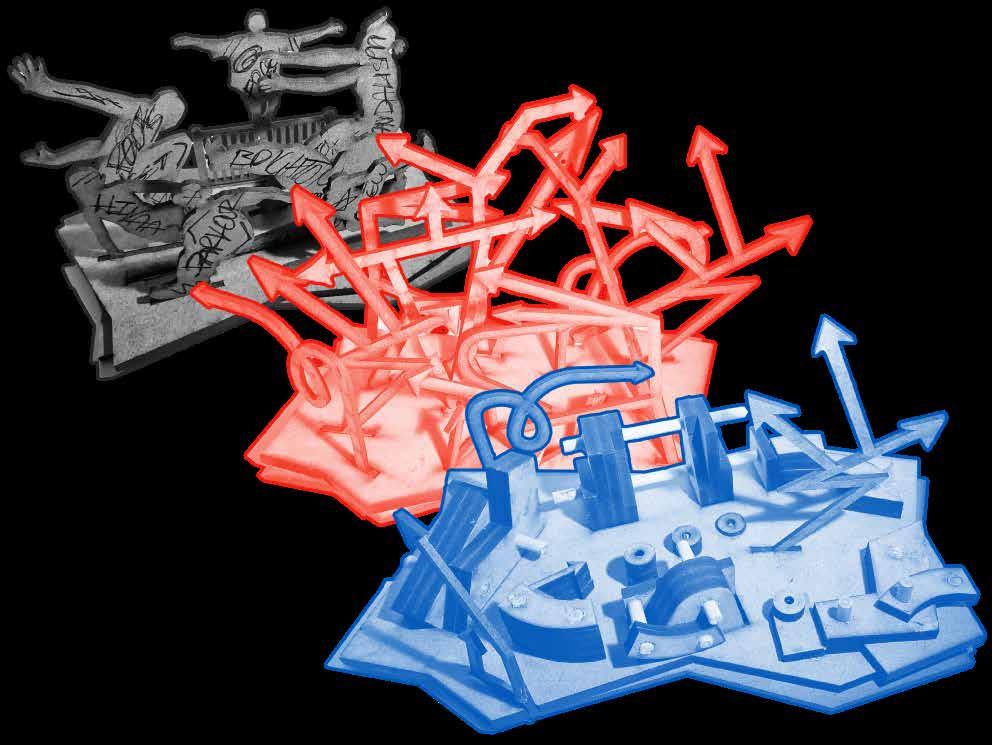

Translating Media - Diagrammatically
3. Interpreted spaces
1. Media source
2. Derived movement

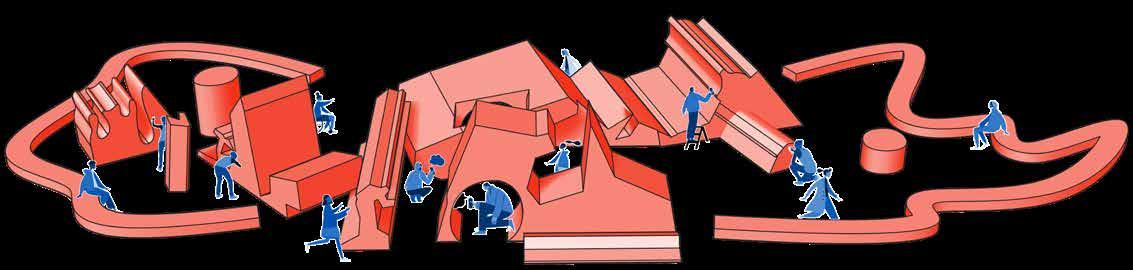

Parkour Park - Sketch
4. Assembled Media 5. Modelled Movement 1. Extruded Media (Parkour)
Extracted Movement 3. Hypothetical Space
6. Interpreted Space
1. Assembled Media 2. Modelled Movement
3. Interpreted Space

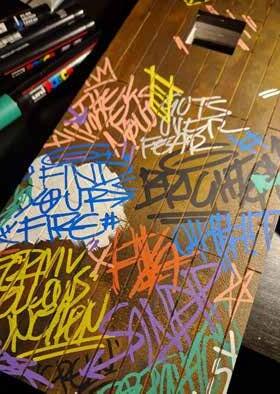

Deconstructed Fragments - Signage

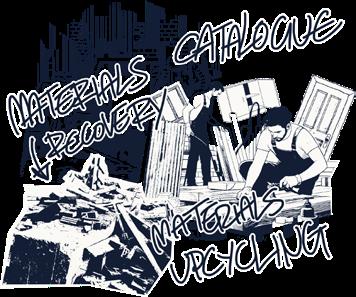

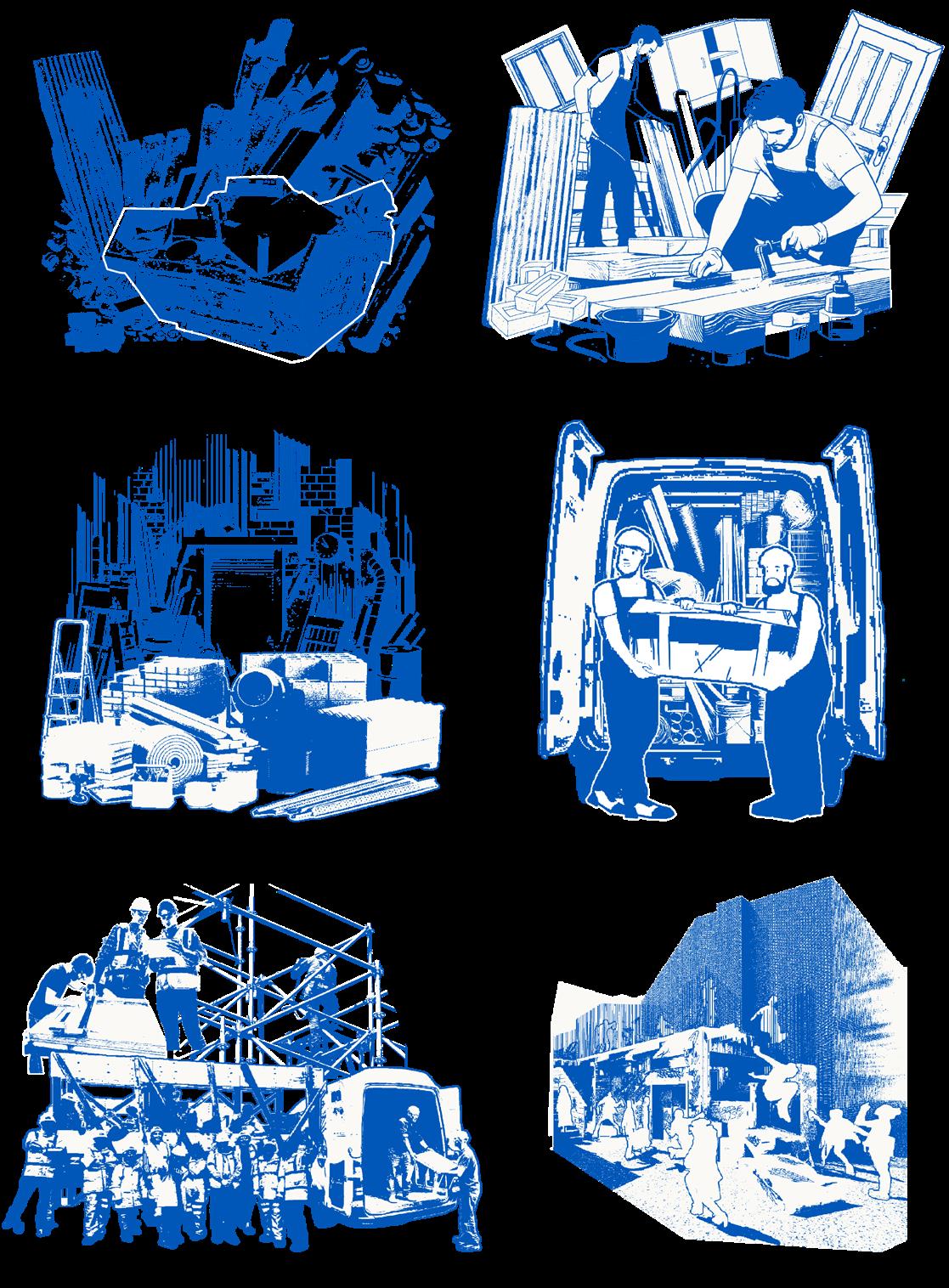

The Making of a Blank Canvas
1. Resource Recovery
2. Materials Upcycling
3. Catalogue and Inventory
4. Purchase and Delivery
5. Collaborative Contraction
6. Hosted and Managed
Providence Place - Blank Canvas
Components used
Assembled Canvas
Blank Canvas Isometric 1 to 50 at A2

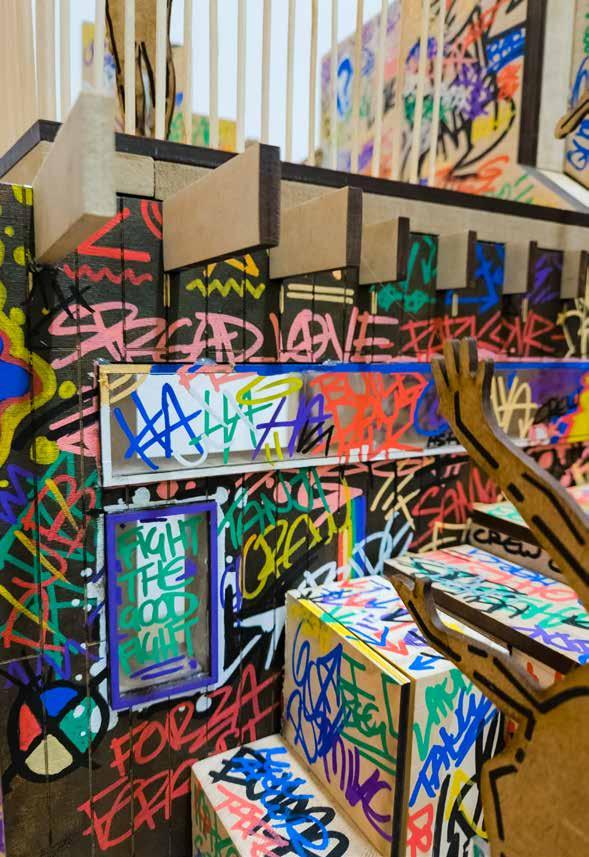

Pub X Parkour Blank Canvas
1:10

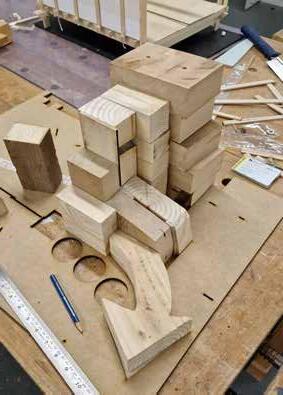

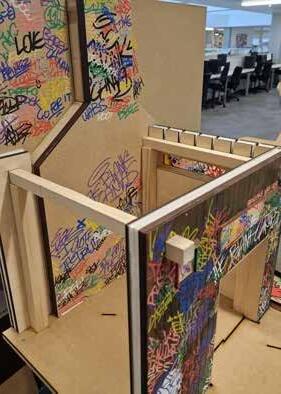

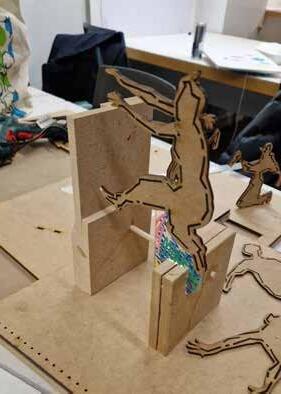

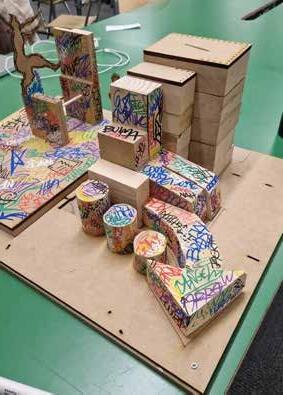

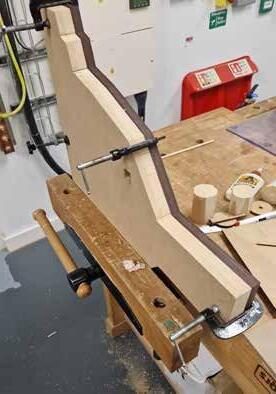

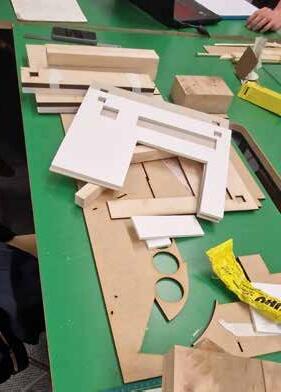

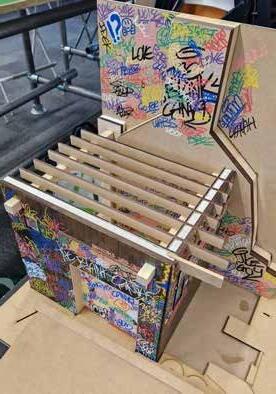

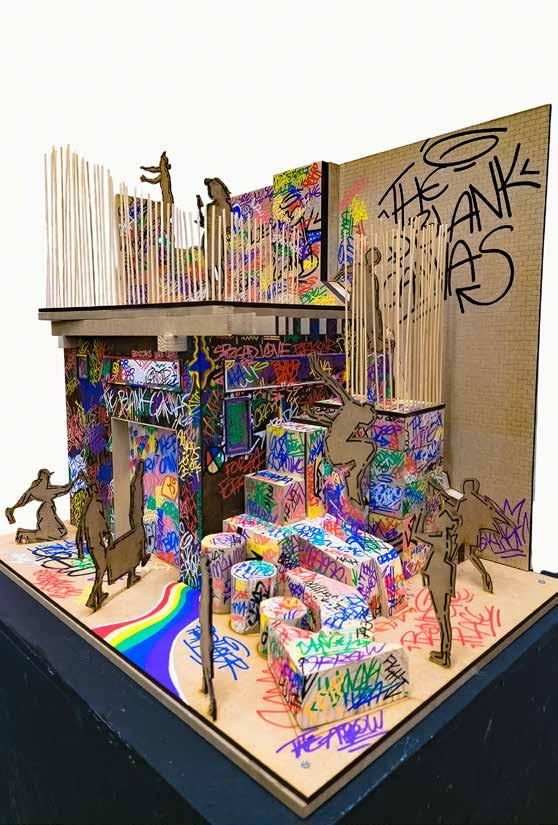

Physical Model

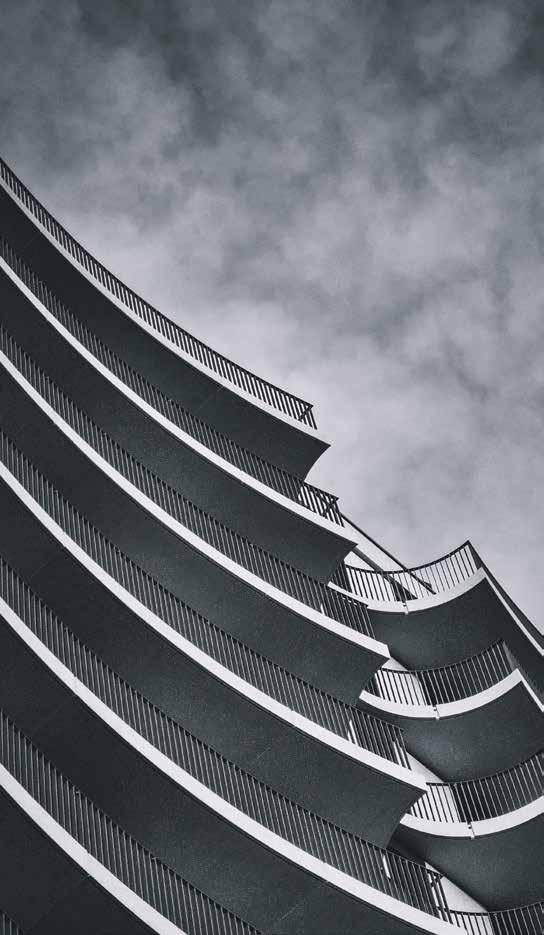

Architectural

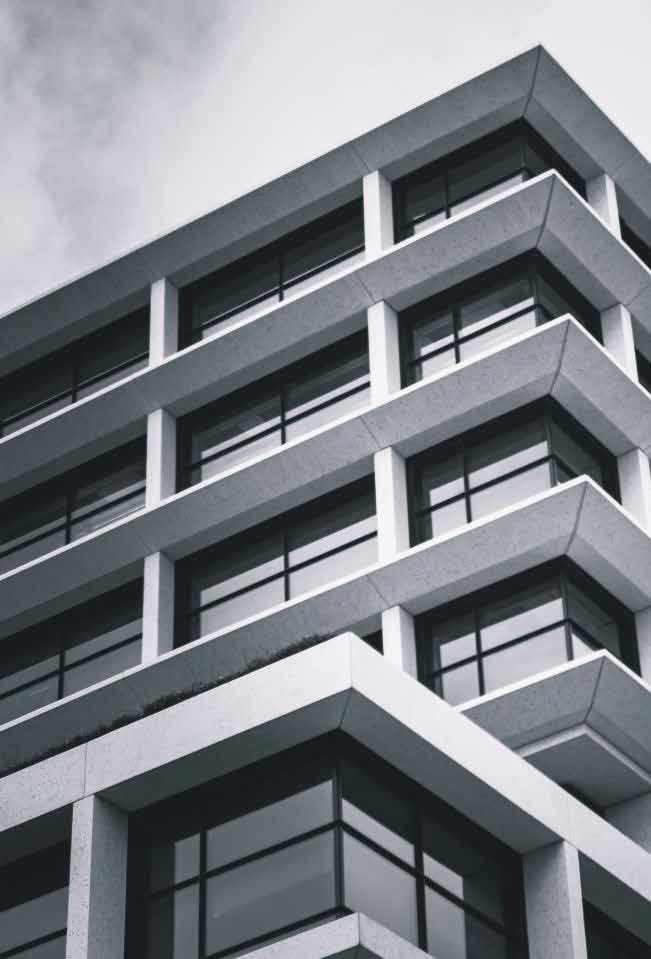

Photography

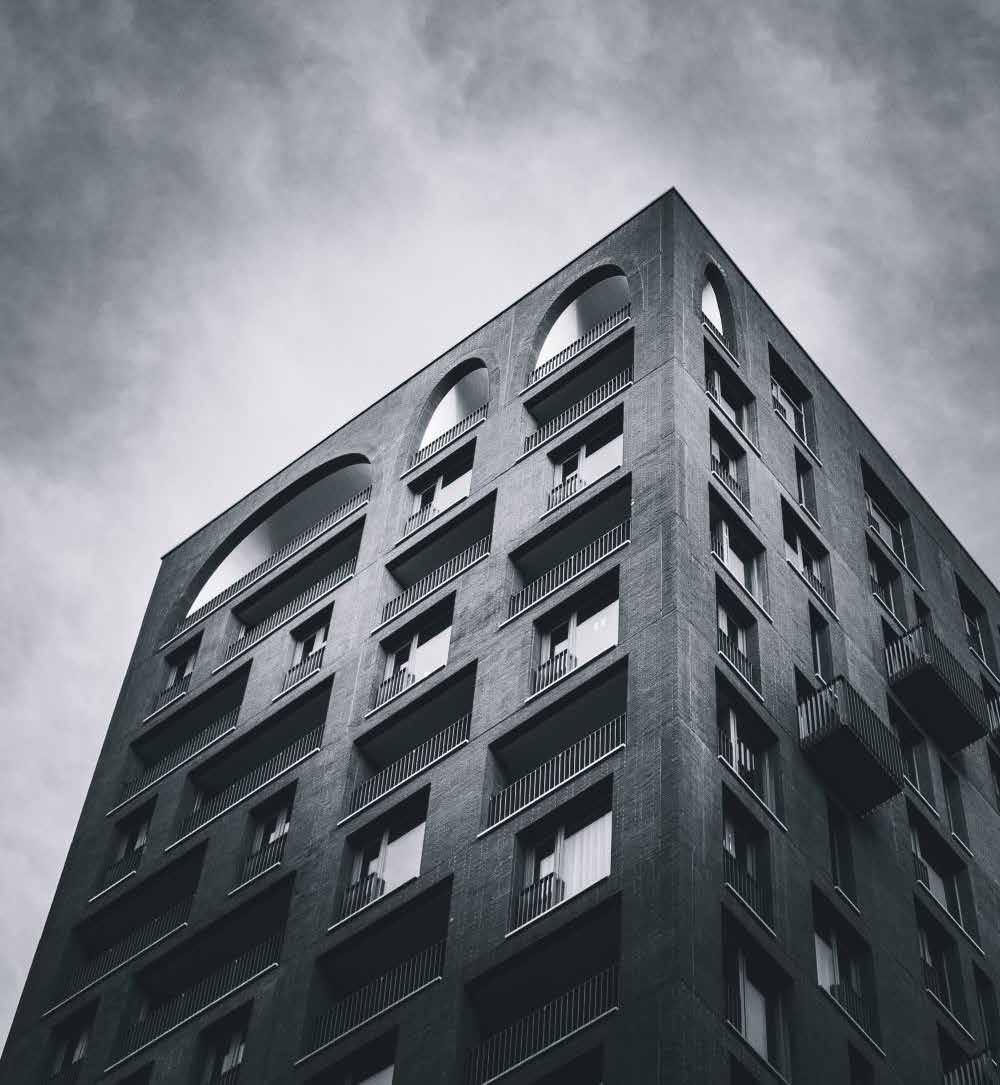

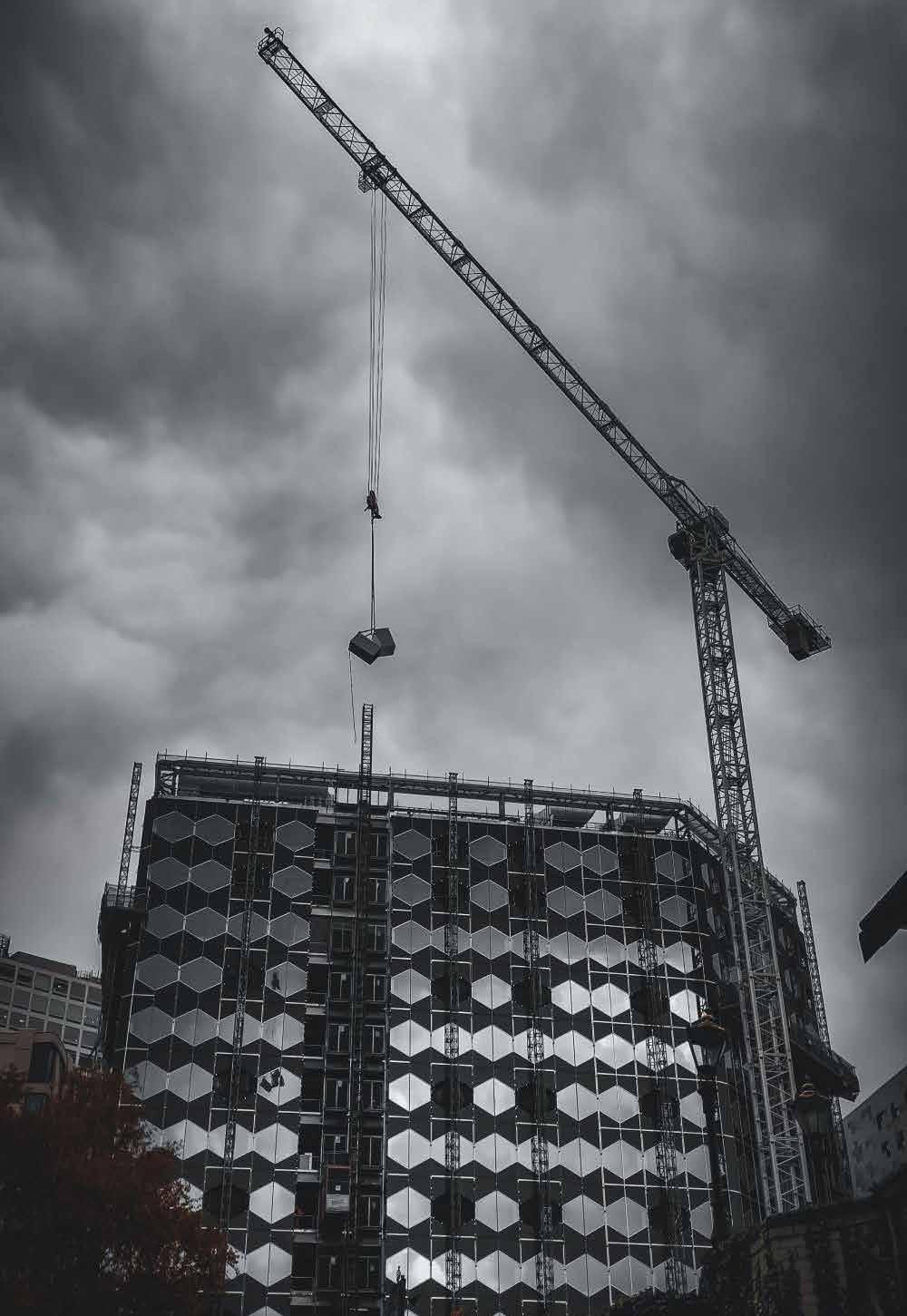

Cadence, King’s Cross
10 Lewis Cubitt Square, King’s Cross

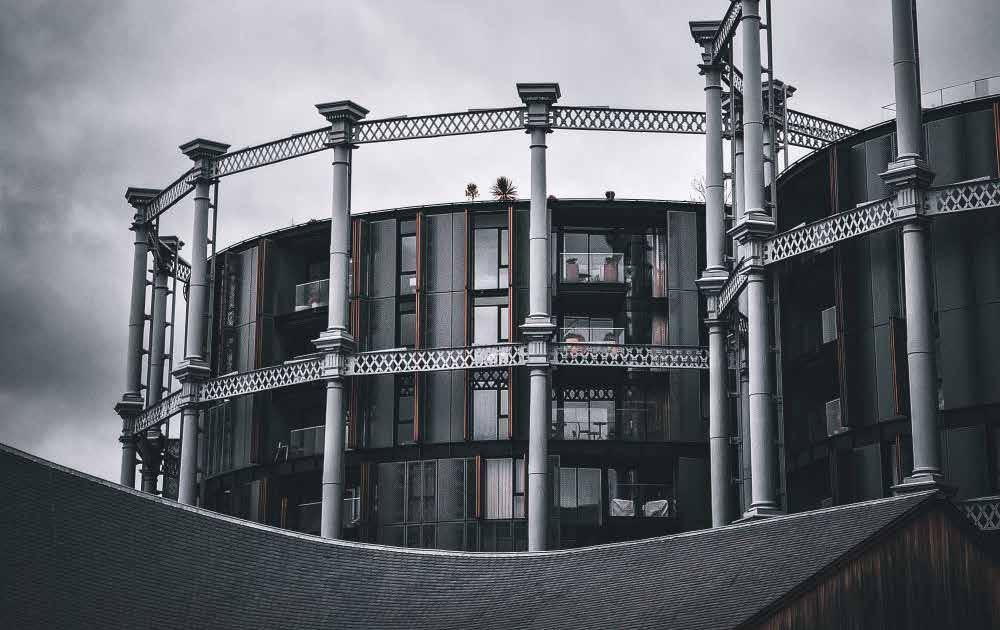

Gasholders, King’s Cross
Deltic House, King’s Cross
The

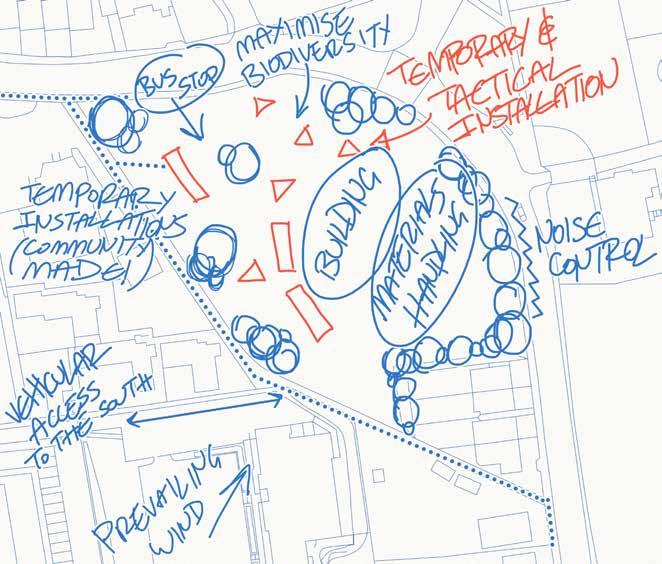

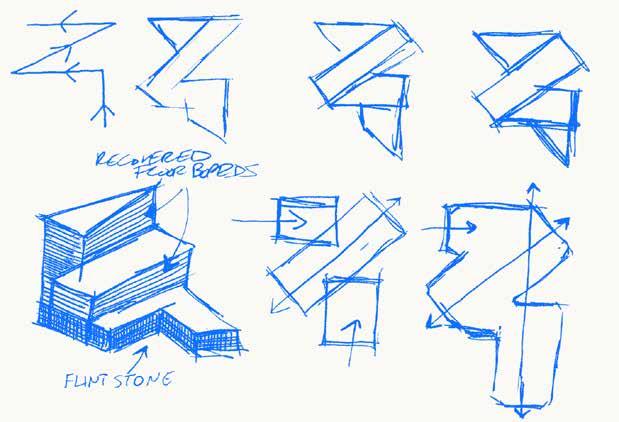

Conceptual Basis
CCH AND BLANK CANVASES SYNERGY

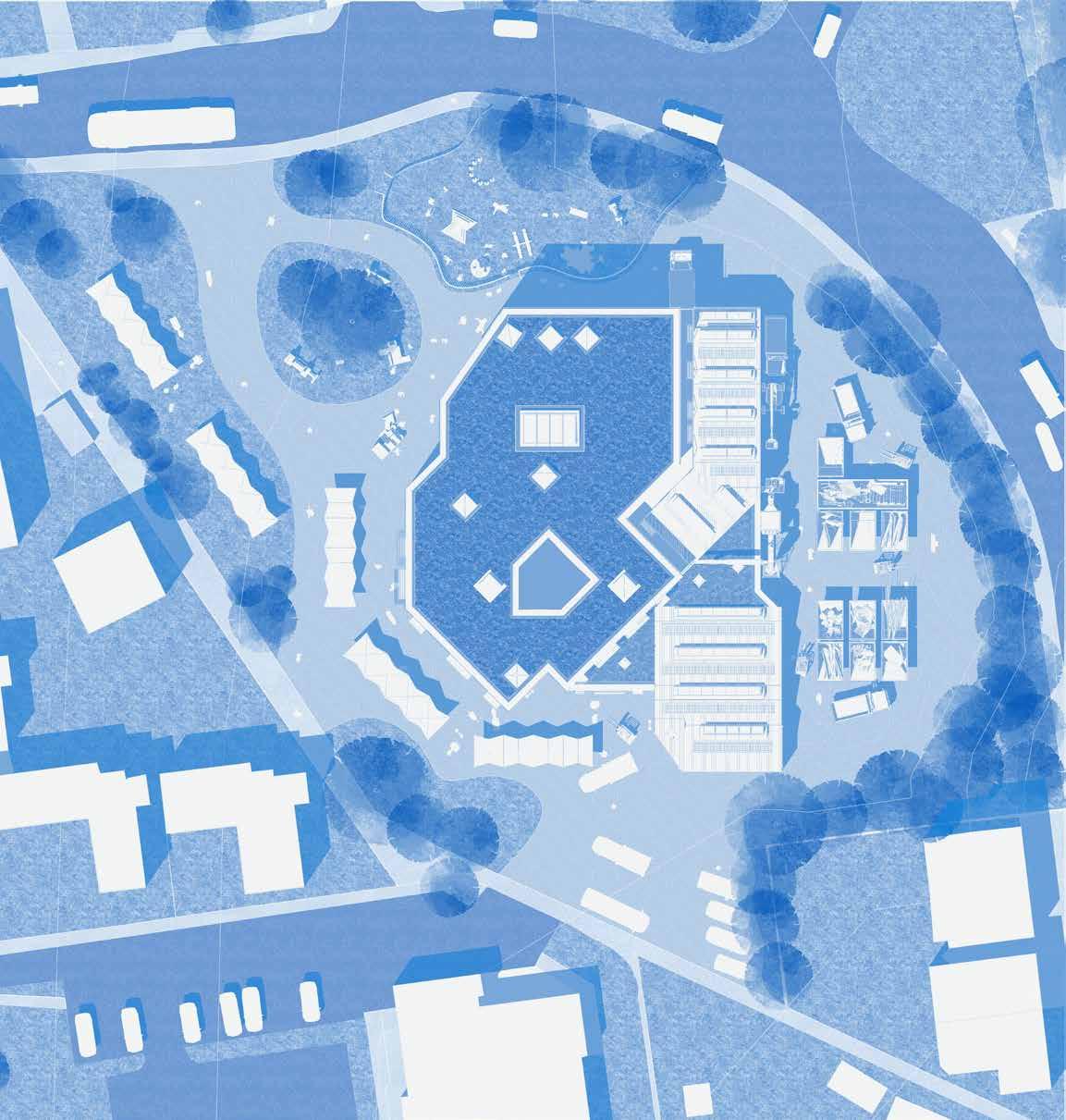

The Canvas Collective Hub, at the Village Green in Portslade

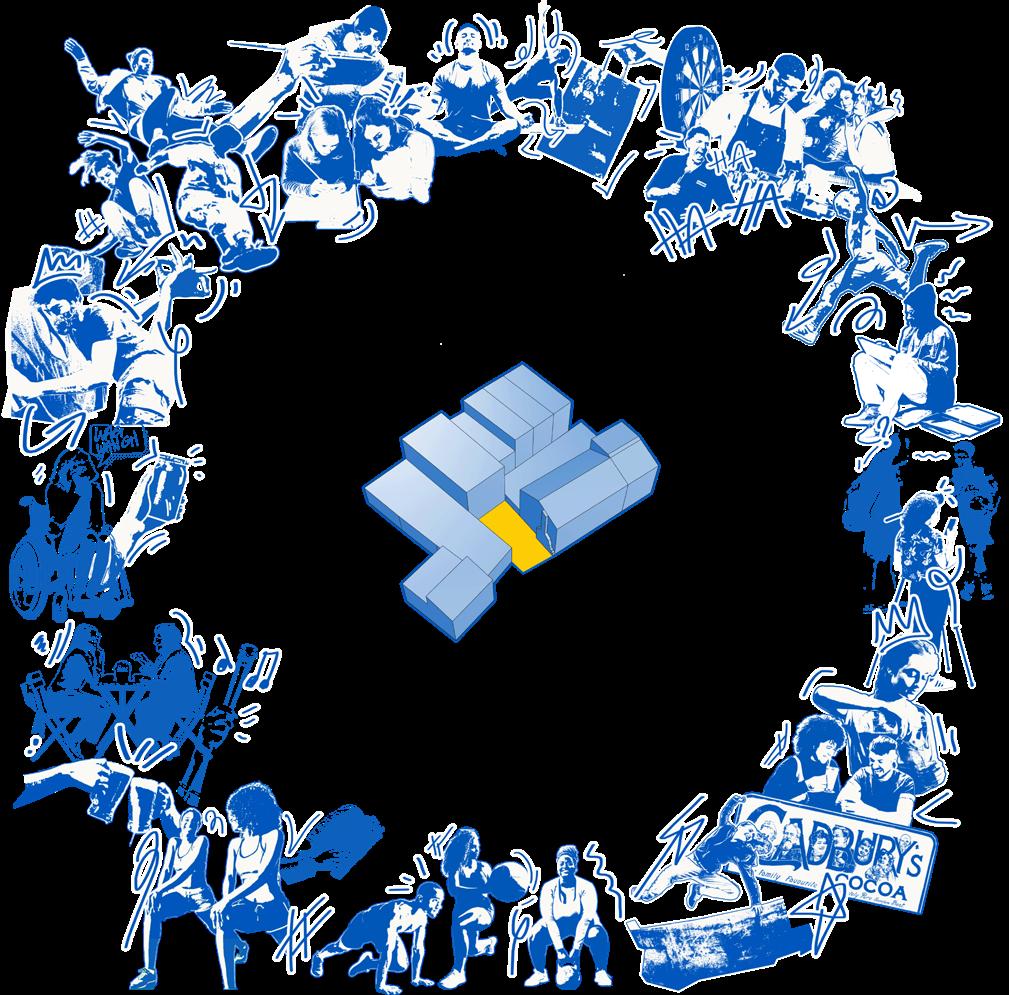

Local Integration with the Portslade communities

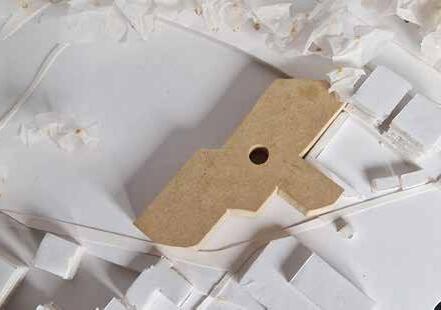

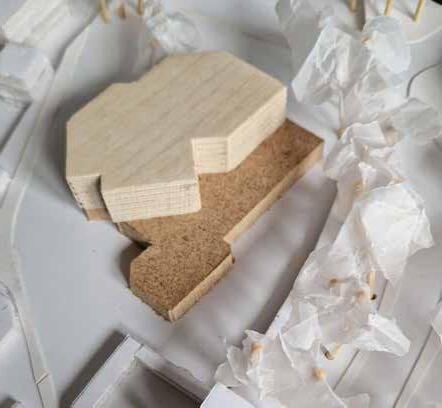

MASSING AND FORM
Distributing Blank Canvases in Greater Brighton & Hove

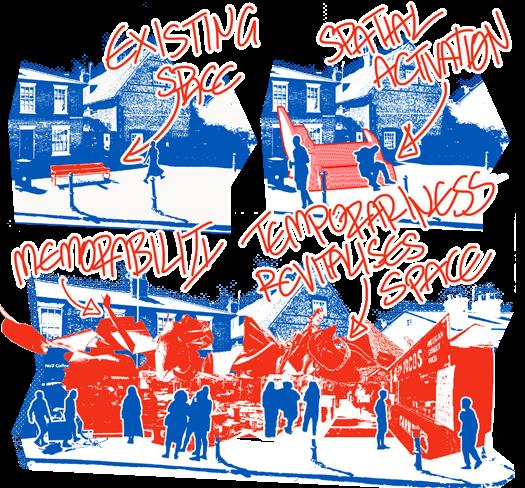

Temporary & Tactical Urbanism
1. CHILDREN’S PLAYGROUND
The playground on site targets younger demographics, offering a safe and creative setting for play and social interaction. By revitalising the site with interchangeable play structures; it lively demonstrates the versatility of upcycling practices, encouraging environmental awareness from a young age.
Playground in Elevation 1 to 50 at A1
2. BLANK CANVASES INSTALLATION
The implementation of temporary and tactical urbanism allows for the exhibition of a range of interventions that will later be distributed around Brighton as part of the Blank Canvases. This interchangeable exhibit enriches the immediate site, fosters engagement, and offers a sense of transparency which permeates from within the manufacturing facility.
Blank Canvases Parkour Furniture in Elevation 1 to 50 at A1
flat bars 5mmx40mm
Grade Plywood 5mm
The canopy market is a versatile space that can host farmers, artisans and fundraising events for dedicated social gatherings within Portslade.
The structure itself, made from reclaimed materials; is a testament to the possibilities of architectural reuse; facilitating engagement and opportunities for a diverse range of individuals and groups, leading to further enrichment and value on site. Exploded Axonometric Roof Structure 1 to 100 at A1 Timber columns 80x80x2200mm
10 3 12 11
Crafting Memorable Junctures
Locks
1. Collective Exhibition Space 2. Balcony 3. Overhead Crane
Saw Dust Collection 5. Sawtooth Roof
Windcatcher
Atrium
Void
Social Intent
MAKING THE COMMUNAL FACADE TEMPORARY & TACTICAL URBANISM
Aluminium Parapet Capping
PVC Gutter
Galvanised Steel Flashing
Gravel
Growing Medium - 80mm
Soil Substrate - 200mm
Filter Fleece - 1.6mm
Mineral Drain - 50mm
Drainage Mat - 40mm
Rubber Mat - 6mm
CLT - 250mm
Plaster Board - 12.5mm x 2
Recovered Floor Boards - 18mm
Vertical Batten - 25x25mm
Horizontal Batten - 25x25mm
Waterproof Membrane
Timber Joist - 70x150mm
Triple Glazed Window
OSB Sheathing - 8mm
Earthwool Insulation - 150mm
Vapour Membrane
CLT - 172mm
Vertical Batten - 25mm
Recovered Floor Boards - 18mm
Glulam Beam 200x200mm
Floor Finish 20mm
Impact rubber 30mm
GREEN ROOF & COMMUNAL CANVAS DETAILING
Technical & Environmental
FLINTSTONE DETAILING
Flint Stone Blocks 445x220x100mm
Mortar Joint 10mm
Ventilated Cavity 50mm
Wood Screws - 100mm
Ancon PPB Wall Tie - 120mm
Grass Pavers - 80mm
Sand Layer - 50 mm
Floor Finish - 20mm
Screed - 75mm
Concrete Slab - 100mm
Vapour Membrane
Rigid Insulation - 150mm
Waterproof Membrane
Gravel Subbase - 150mm
Concrete Footing
Compacted Soil
ENVIRONMENTAL STRATEGIES
Construction Phasing

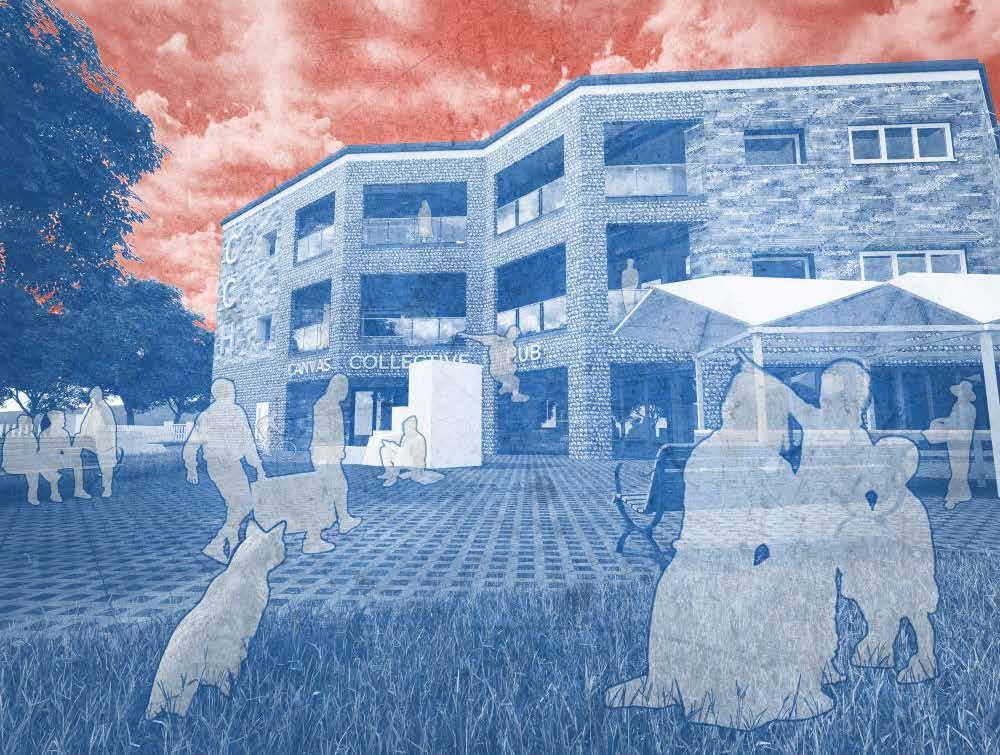

The Canvas Collective Hub
Gallery Space
Artisinal Market
Work in Practice:
Proposed Steps, Hartshorne
BOC Gases, Worsley

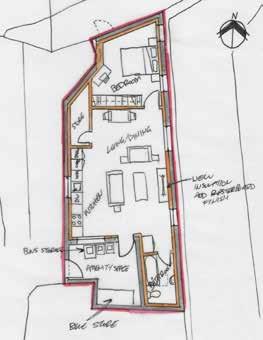

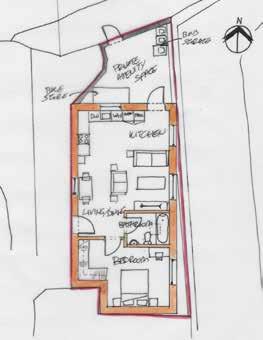

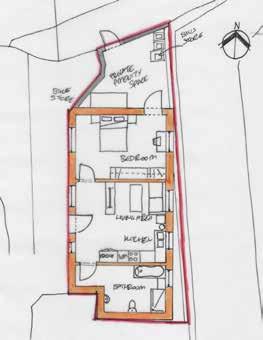

Iterative sketches exploring various layouts

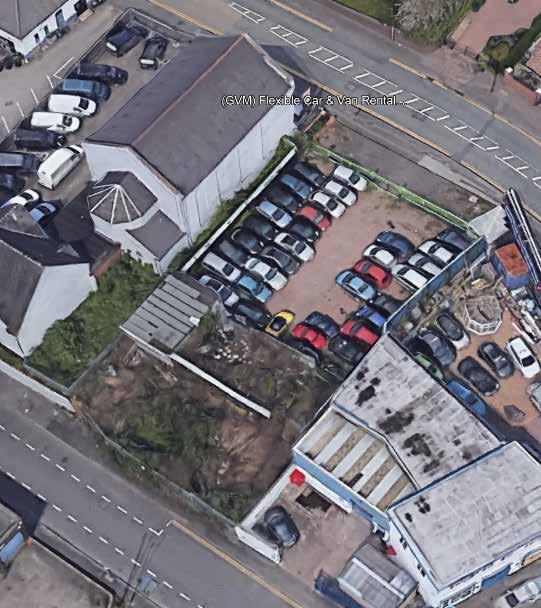

Located on the Canalside in Wolverhampton, the client wished to explore the possibility of converting their property into a residential dwelling for a 2 person 1 bed configuration.
An iterative process was used to maximise the site and achieve a 46m2 GIA and a suitable layout for living.
Proposed Flats, Pre-App, Wednesbury
The client requested to explore the feasibility of an apartment blocks proposal on their land.
As such, the Sandwell Metropolitan Borough Council design guides were used in laying out two apartment blocks with 4 flats each and to put together a site plan for the following preapplication:
• 8 no 2 bed 3 person apartments (60m2 each)
11 no car parking spaces
• 8 no Cycle parking spaces
• 3 no 1100 litre bins shelter
