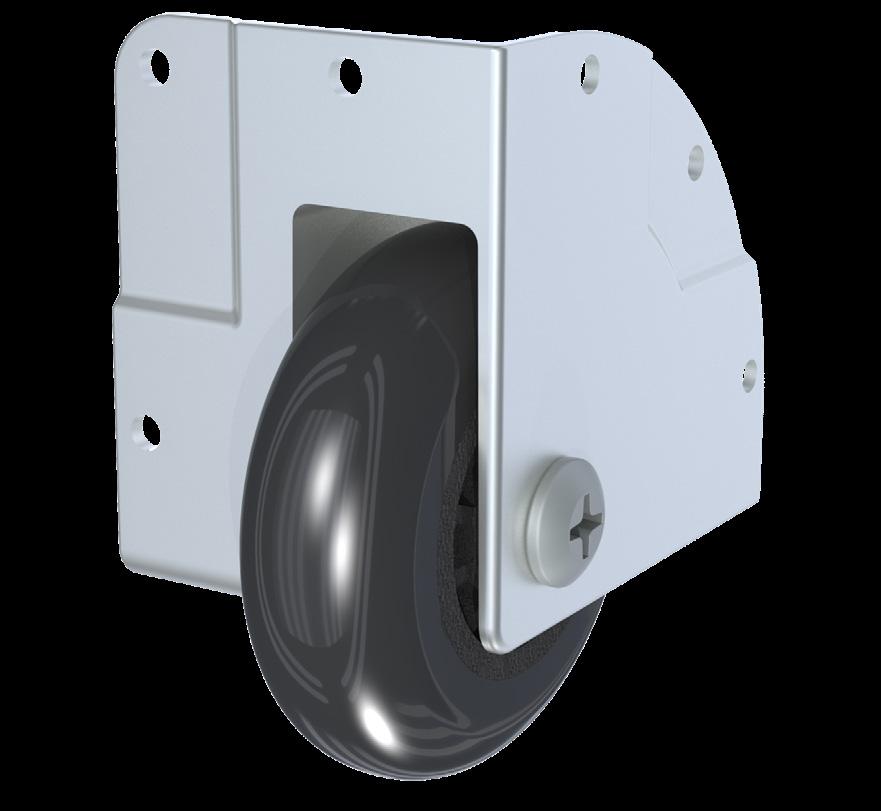

Offset Corner Mount Caster
SKU / Part Number
Benefits and Features
• Offset to fit over extrusions up to 1.375” wide.
• Heavy duty die cast zinc corner integrated with a 3” rigid caster.
• Only 9 mounting holes.

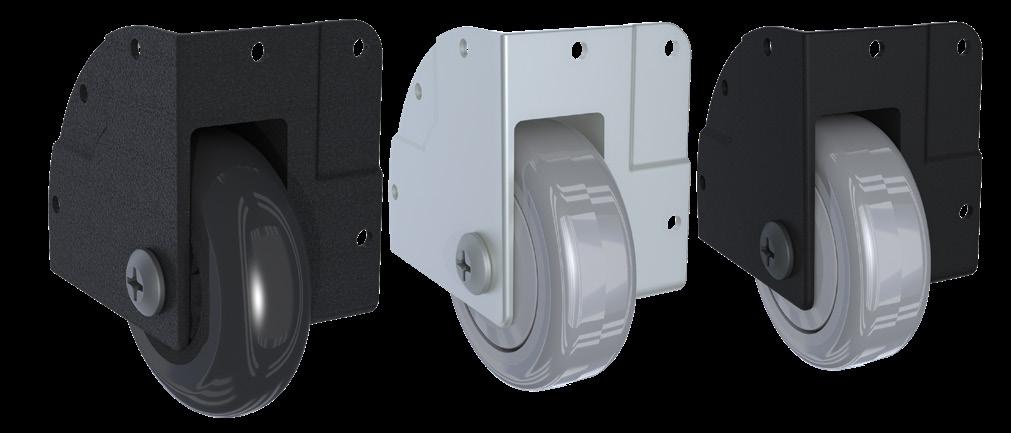

• Available in silver or black, with rugged 3” roller blade style wheel (with ball bearing) or 3” TCH gray wheel with integrated thread guards.
• Load capacity: 25kg/55lbs (roller blade wheel), 70kg/150lbs (TCH gray wheel).
Learn More
To learn more about TCH, please contact us toll-free at 1-800-465-6281 to speak to a qualified customer service representative.
Please visit our website for a full listing of TCH products at tchweb.com
Matching Products
Spec Drawing
www.tchweb.com info@tchweb.com 1.800.465.6281 Copyright 2020, TCH Sales Inc., Toronto, Ontario, Canada, All rights reserved R1 (01/20) Drawings and specifications are subject to change without notice. BUFFALO 1370 William Street Buffalo, NY U.S.A. 14206 CALGARY 1135-45th avenue NE Calgary, AB, Canada T2E 2P2 DALLAS 10552 King William Dr. Dallas, TX U.S.A. 75220 MONTRÉAL 16757 Boul. Hymus Kirkland, QC Canada H9H 3L4 TORONTO 40 Emblem Court Toronto, ON Canada M1S 1B1
511-22931854, 511-22931T800, 511-22931T854
511-22931800 31 1.22 60 2.37 49 1.94 5 .22 6 .22 25 .96 75 2.95 101 3.98 5 .20 TYP 34 1.35 22 .86 22 .86 101 3.98 79 3.10 37 1.47 OFFSET
•
