01 House Of Noor 04 Perspectives Library 03 Barn House 02 Stanley Stage House to a fashion designer Library and Teen space Agriculture research house performance space p. 6-13 p. 14- 23 p. 24- 33 p. 34-37

01 House of Noor

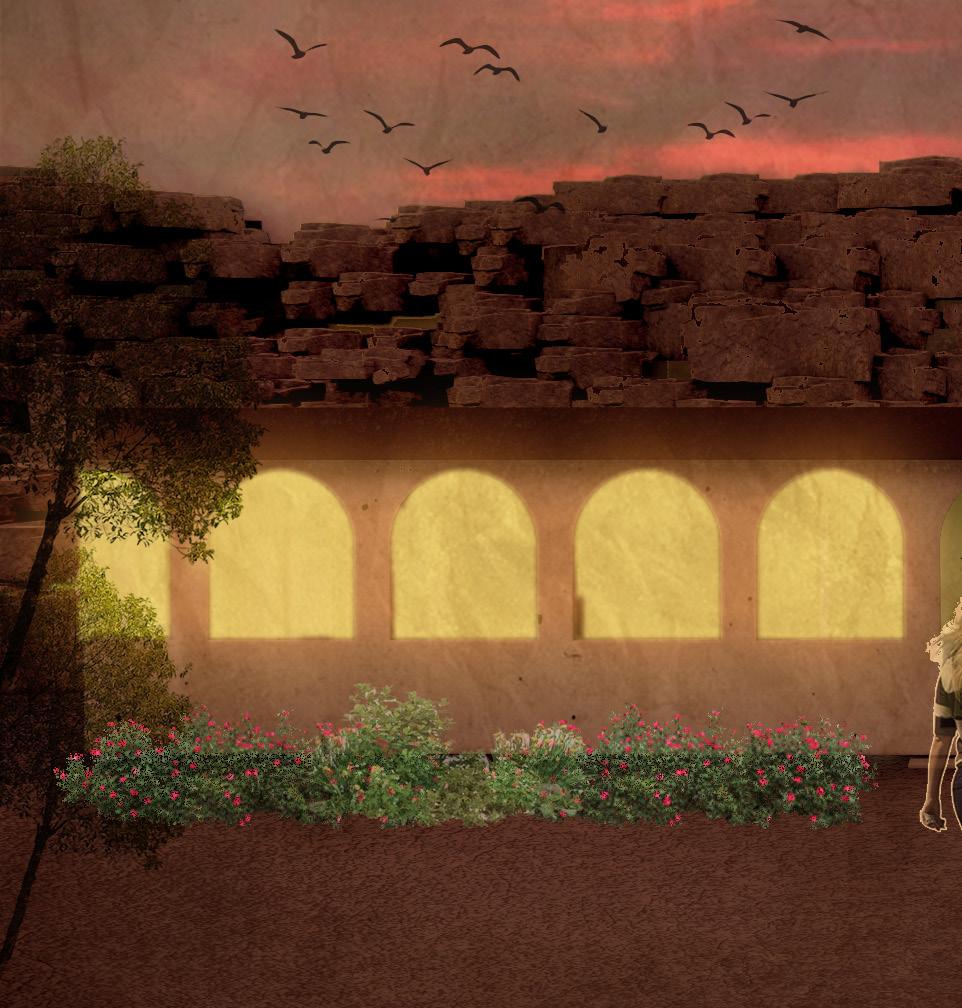

House of Noor is constructed at the quarry located in Cambridge, the user is a fashion designer that acquires that allows light to seep through every angle, however the way the arches are offset in a manner to create to create a dark work space so that the area where clothes are being designedis alienated and prevents

Course Studio 1

Type: Concrete house

Location: Cambridge, Waterloo, Ontario

Software: Rhino 7, Enscape, Illustrator, photoshop

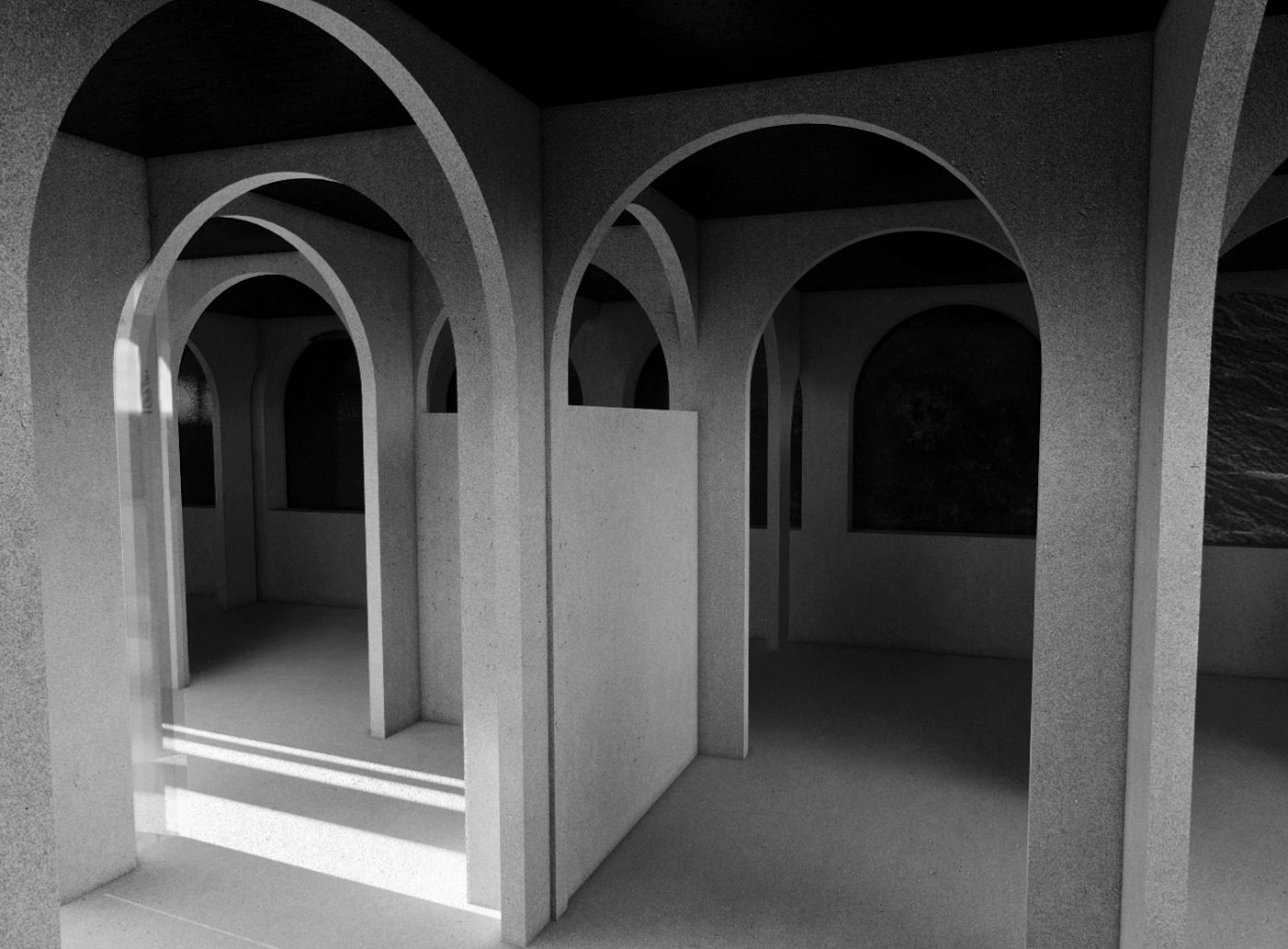

acquires peace and inspiration within the house, hence using the idea of repetitive arches is the style create privacy from the outside as one walks toward the house. The insertion of the house into the cliff prevents clothes bleaching from the natural sunlight.

plan
Floor
Right elevation Front section

Axonometric : site context and exploded roof

02 stanley stage

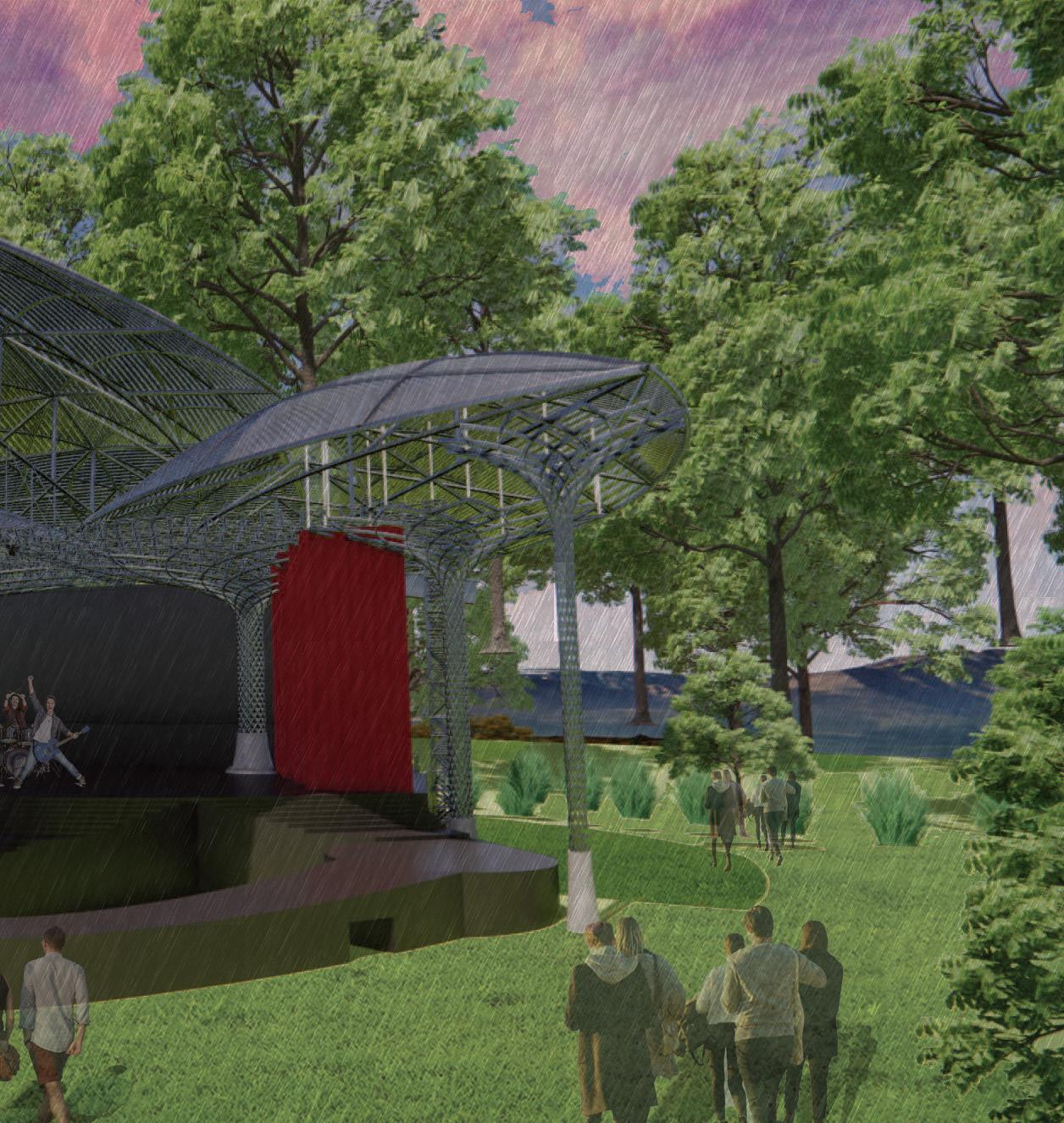

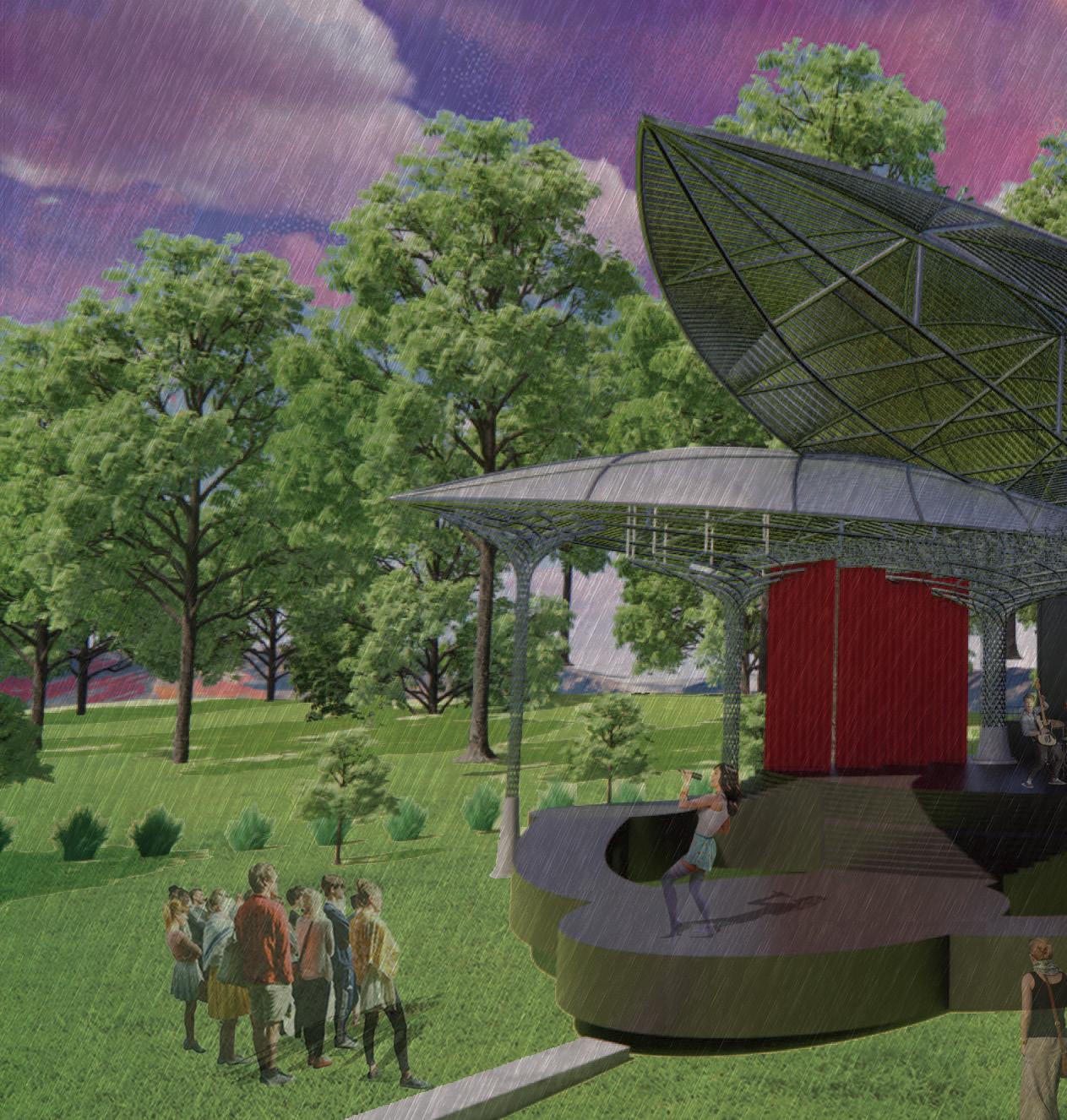

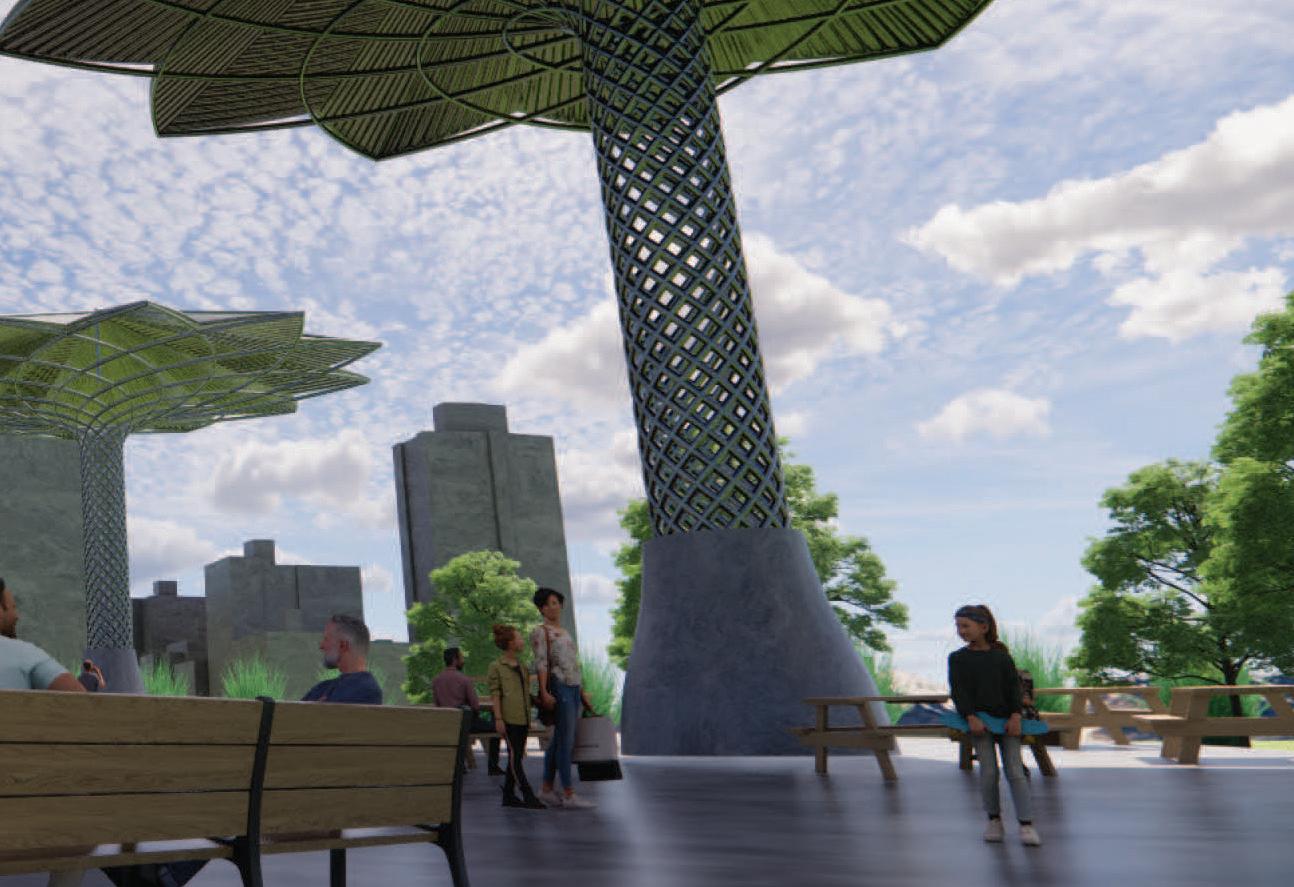

Located in Stanley Park, one of Canada’s most well renowned natural landscapes, the Stanley Stage acts a direct view onlooking English Bay surrounded by an endless sea of towering trees. The Stanley Stage leaf-life canopies in its steel structure and a pavilion covered by steel trees.

Course: CISC Steel competition with Angela Cai

Type: Steel Satge

Location: Vancouver,British Columbia

Software: Rhino 7, Enscape, Illustrator, Photoshop

acts as a final destination in a park that seems to never end. It sits in the pocket of BC’s mountains with Stage continues the park’s narrative of being protected by the nature around you, and Incorporates

1 10 2 7 8 14 15 4
Corrugated steel panel canopy Legend Canopy steel frame Steel cladding connection detail Truss support structure Truss ground connection detail LED screen Railing Elevated platform upstage Stairs Wings/curtain system Curtain motor system detail Canopy frame end support girders Spiral steel column supports Main stage Door to enter underneath stage Steel support system under stage
Performer/staff
Audience circulation 1 10 2 3 5 4 6 7 8 11 9 17 12 13 14 15 1

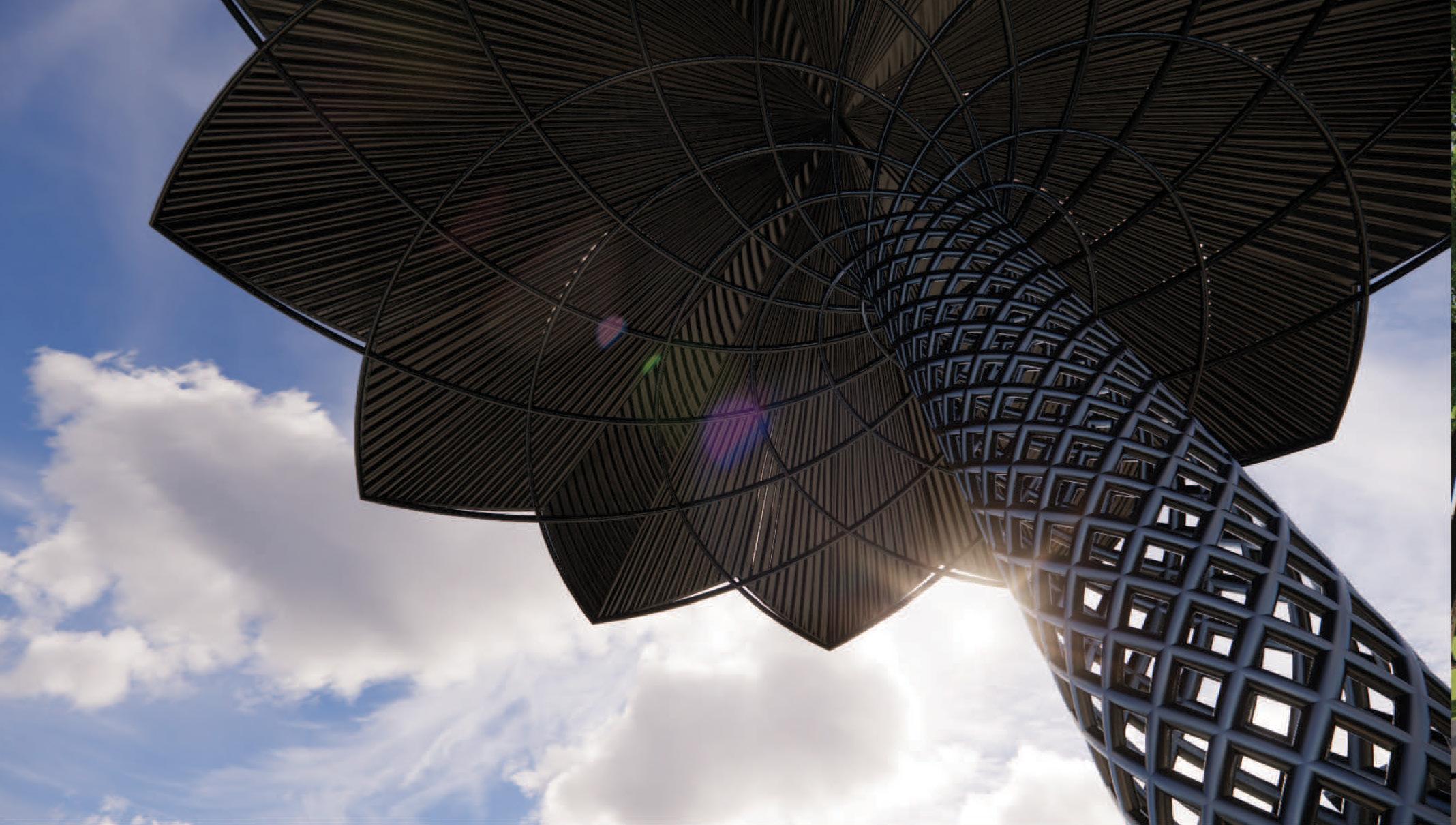

Spiral steel column foundation
circulation

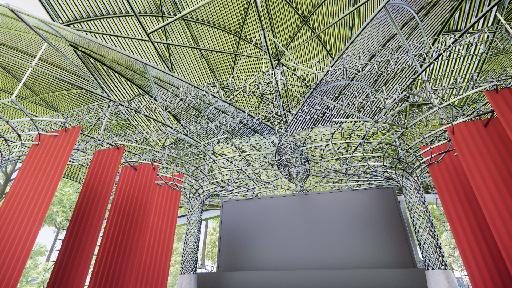

Steel pipes that are welded and bolted to create the truss, railing, and spiral support column structures Thick velvet curtain material suspended from mechanical motor system Marley sheets encovering entire stage area to allow versatile performance types Exploded axonometric of stage
3 5 4 6 11 9 17 12 13 16
ceiling brackets motor suspension cables steel bolted to ground steel cladding for frame pipe steel girder steel frame pipe small support girders bolts

Steel Finishes

316: STAINLESS STEEL BRUSHED FINISH AESS
FINISH TYPE AESS CATEGORY PART Canopy frame end support girders AESS 4 Truss support structure Base plate Canopy frame Canopy brace cladding connection 316: STAINLESS STEEL BRUSHED FINISH 316: STAINLESS STEEL BRUSHED FINISH 316: STAINLESS STEEL BRUSHED FINISH AESS 4 AESS 4 AESS 4 316: STAINLESS STEEL BRUSHED FINISH AESS 4
Cross
Section

Detailed section.

03 The Barn House

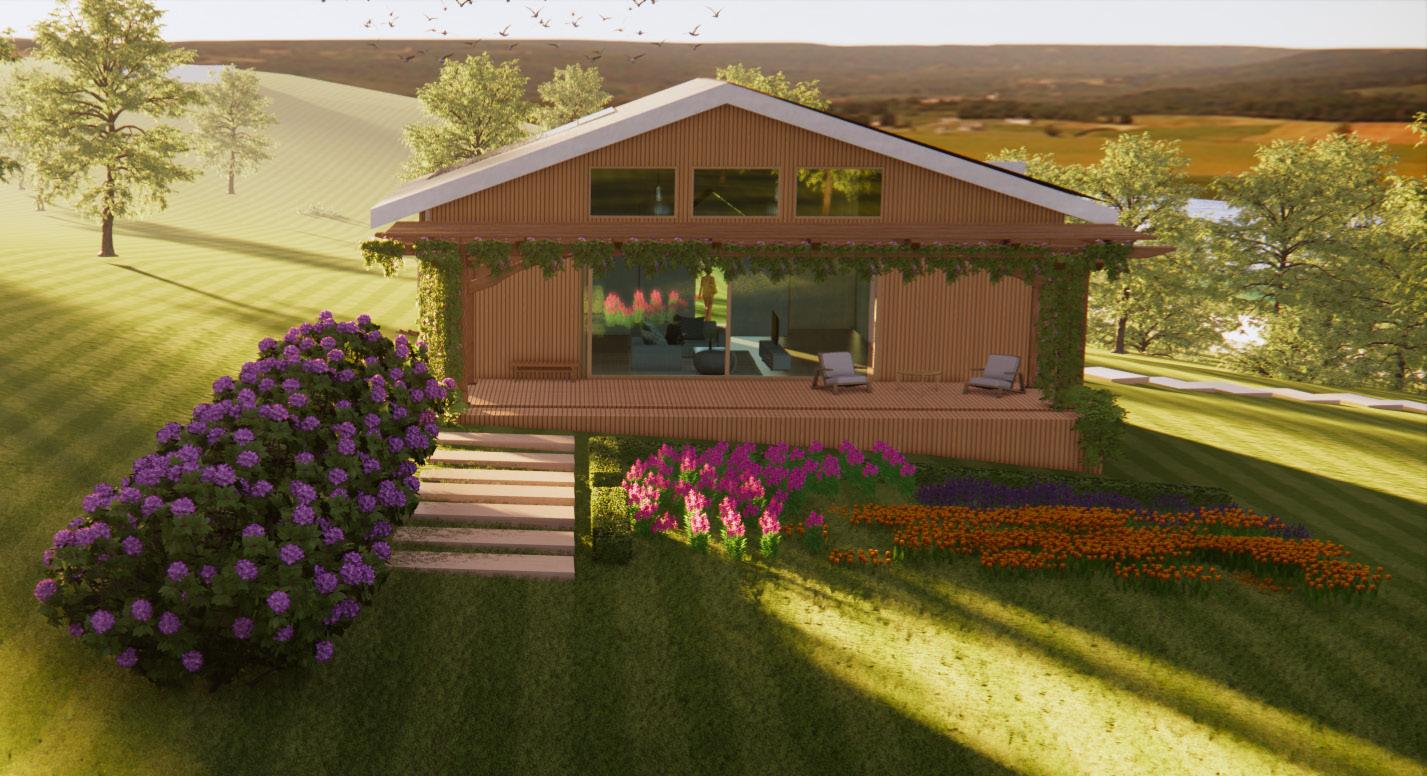

The Barn house is a research home that houses a married couple who are agriculture scientists. The site is located near daylight hours by relying soley on solar energy. the house retains its barn identity from and reuses the materials such frame of the house with and straw bale for insulation of the house which is fully natural and reudces the energy consumption.

Course: Environemtal Building Design with Hiabah Sadruddin

Type:Barn wooden house

Location: Cambridge, Waterloo, Ontario

Software: Rhino 7, Enscape, Illustrator,

near the grand river at the border of Kitchenr and Cambridge Ontario Canada. The Barn hoouse takes of the sites as the metal shingles and exsisting concrete foun- dation, in addition to locally sourced timber wood to create the consumption. Addi- tonly the interior is rendered with clay, due to its reusable qualities.

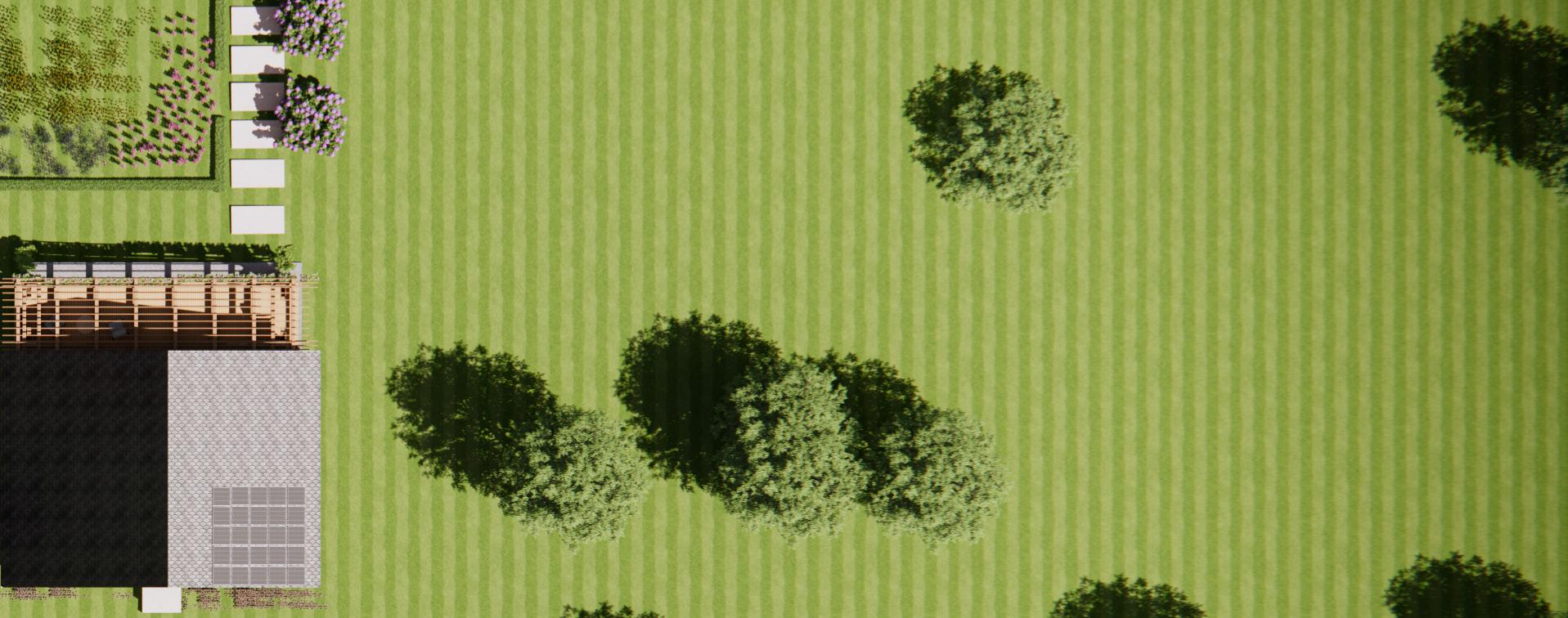

Site Plan

Roof plan

timber frame porc

Timber frame porch

metal shingles

Metal shingles

solar panels

Solar panels

porch Floor plan

Space nails 12’’ on center; 6’’ on center at ends of panels.

Roof material assembly.

Prevailing west winds allowing cool air to cirulate and maximise air flow

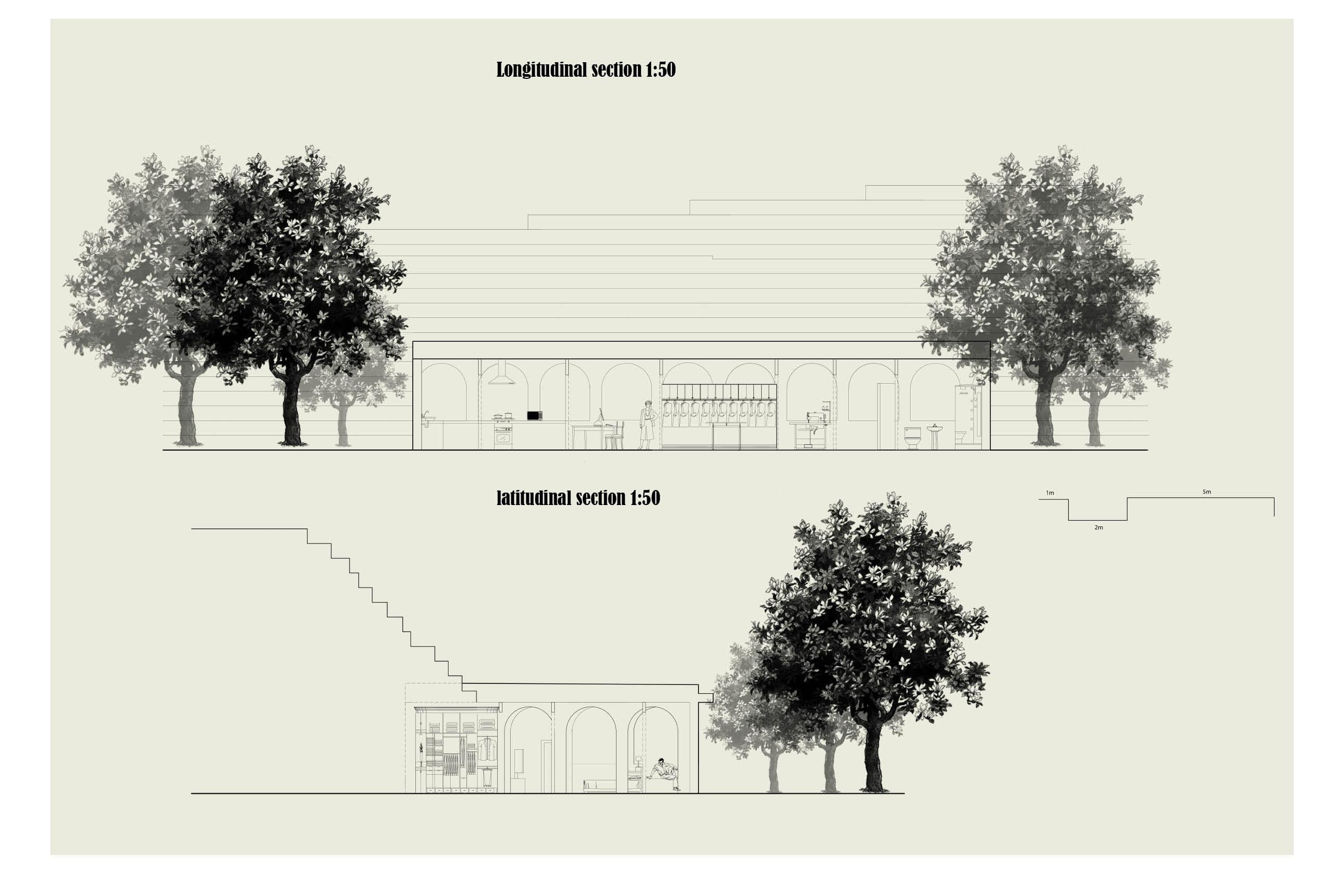

Latitudinal section

shingles on roofing felt.

Roofing felt underlayment.

Hot mopped layer of asphalt coating with adequate weatherbility beneath underlayment of no shingle placement

Roof trusses.

Detailed wall section

Stale, Warm air rises due to sun rays on exposed concrete floor that warms the rooms.

underlayment incase GRADE METAL SHINGLES WINDOW 4X4 TIMBER POST AND BEAM FRAMING WITH STRAWBAKE INFULL WOOD CLADDING TYPICAL TOE UP WITH CLEAN GRAVEL INFILL AT THE BASE RUN OF THE STRAWBALE INFILL WALL WALL VOIDS WITH STRAW FILL BOX TRUSS AND 2”x4” FRAMING EXPOSED CONCRETE SLAB RIGID INSULATION Metal shingles Window 4X4 Timber post and beam framing with strawbale infull. Wood cladding Typical toe up with clean gravle infill at the base run of the Wall voids with straw fill. Box truss and 2’’ x 4’’ framing Exposed concrete slab Rigid insulation Grade

1. Sun goes in to the panels. DC Electircity comes out.

Sun goes in to the panels DC electricty comes out.

Utility provides a new ‘importer exporter’ meter to make sure that your new system can export power when not in use.

An inverter takes the unwanted DC electricity and converts into 240W AC power that is compatable without appliances.

5. Utility provides a new “Import?export” meter to make sure that your new system can export power when not in use. KEY:

2. An inverter takes the unwanted DC electricity and converts it into 240V AC power that is compatible with out appliances

Energy systems

Solar electricity connects inot th homes wiring through exisitng fusebox.

4. Solar electricity connects into the home’s wiring through existing fusebox

AC electricty goes through a disconnect switch.

3. AC electricity goes through a disconnect switch

25 x 1 mm strap with 6/30 x 2.5 mm nails into each rafter when it supports ceiling lining.

25 x 1 mm strap with 6/30 x 2.5 mm nails into each rafter when it suppor ts ceiling lining

15mm deep housing .

15 mm deep housing

Plywood sheating

Plywood sheating

Wooden beam detail

Fixing each rafter to beam with skew nails (4/75 x 3.15 mm

internal house wiring electricity company wiring
ridge beam rafter
Internal house wiring Electricity company wiring . Ridge beam Rafter

04 Carving Perspectives Library

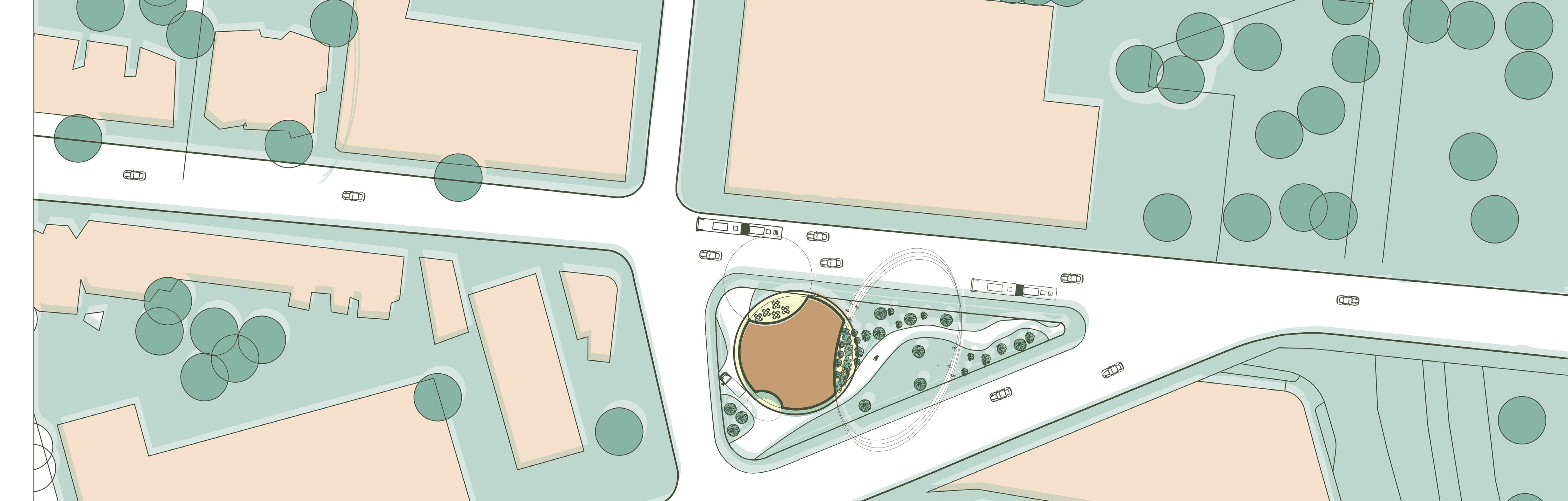

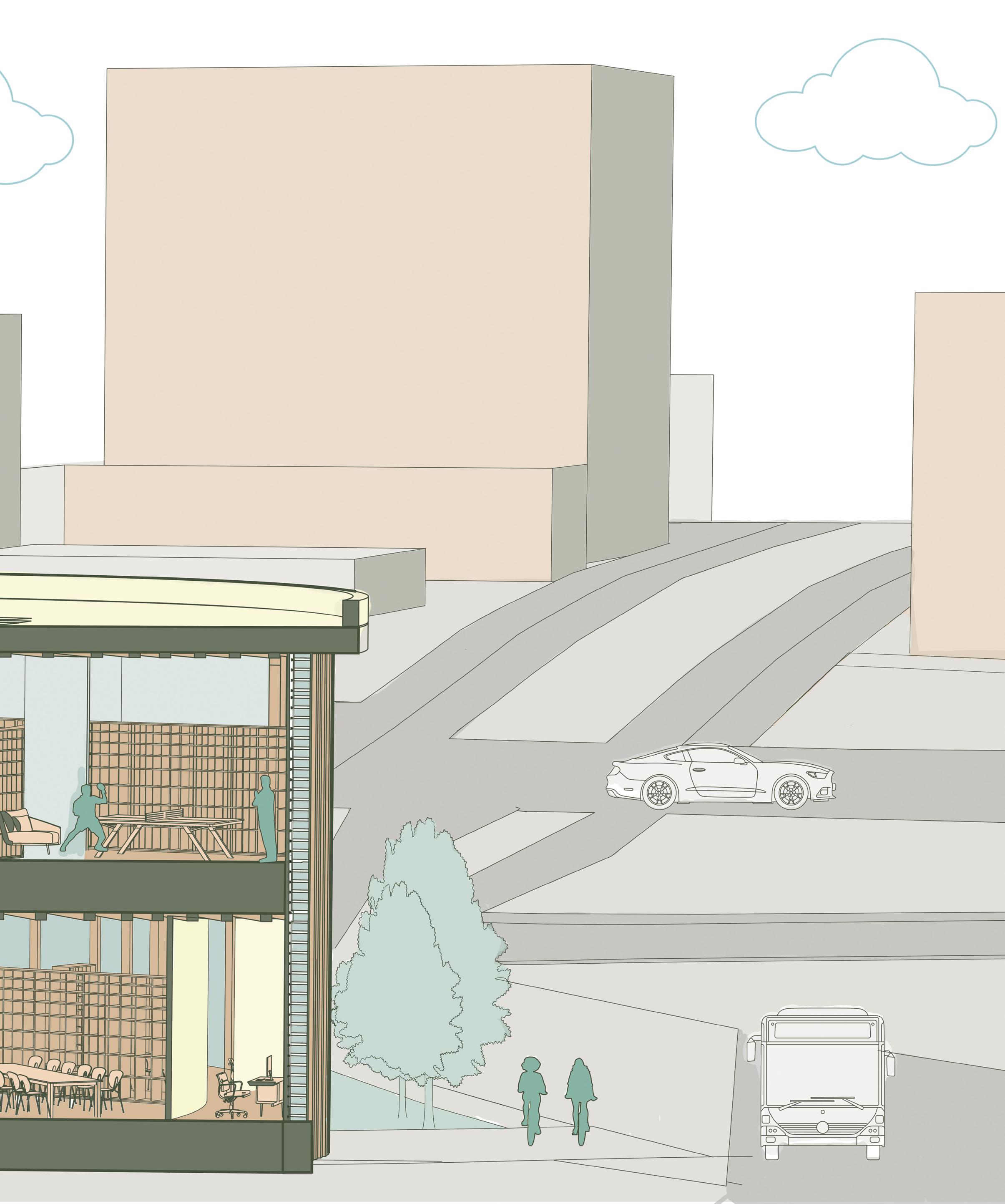

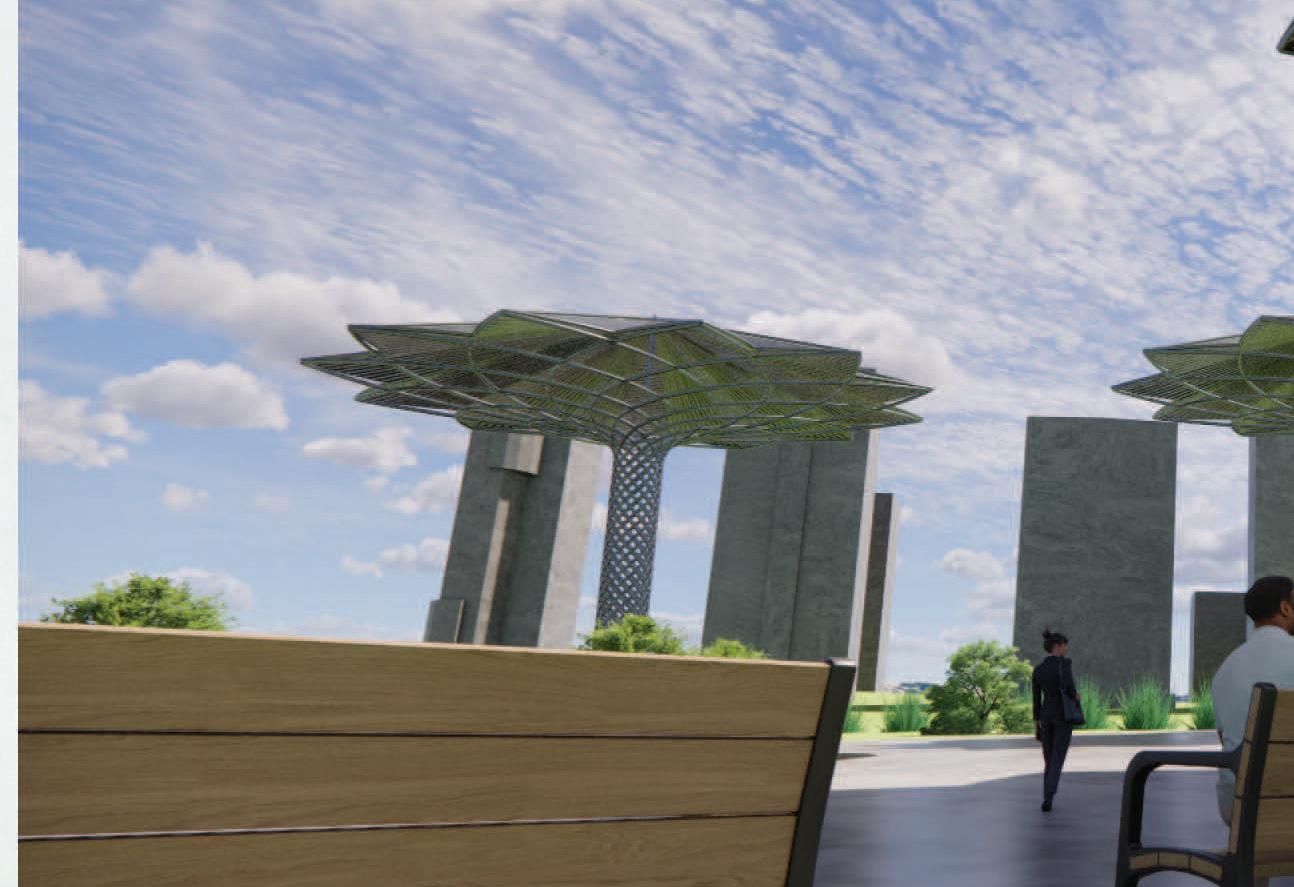

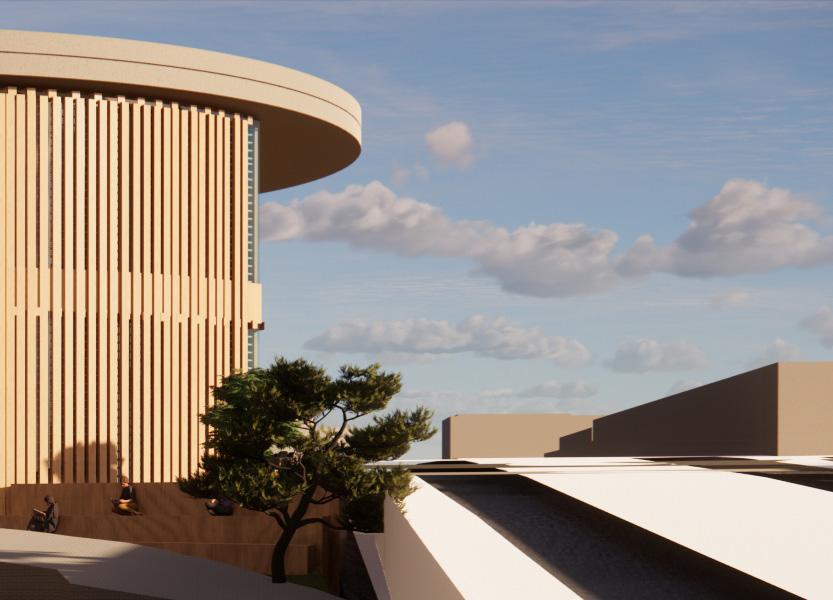

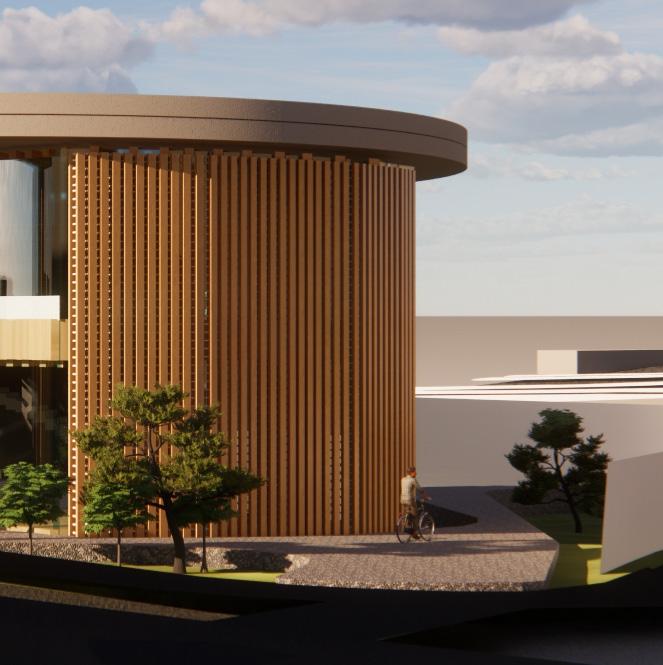

The library is located at the Heart of Toronto Ontario, located at the intersection where pubic transportation meets from circle to create a triangular shape that, sculpting outdoor seating spaces and interior reading room. The library The interior System of the library plays with creating open and closed spaces using only bookshelfs. As you go upstairs, the shelves show otherwise, where it opens up to meeting rooms, study pods and quite reading areas for the users.

Library

Course Studio :2

Type Concrete: base and wooden frame

Location: Downtown Toronto, Ontario

Software:Rhino 7, Enscape, Illustrator,

recreational spcaes allowing a great sense of mobilty to trnaspire in the area. The library extracts designated spaces is designed for students looking for a study space and recreational space includes a table tennis area and pool table. upstairs, the bookshelf’s act almost as a facade to express one only being surrounded by books but open hidden spaces in

14 6 2 7 8 8 9 SCALE 1: 500 CAFE/ OUTDOOR CAFE READING SPACE STAFF OFFICE CHECHOUT LOBBY AND INFO DESK WASHRROM WORKSPACE OUTDOOR READING AREA / AUDITORIUM FIRE EXIT ENTRANCE 1 2 3 4 5 6 7 8 9 10 1ST FLOOR PLAN 1 2 3 4 5 6 7 8 8 9 10 Floor plans Site plan
FLOOR PLAN 1 FLOOR PLAN
PLAN 2 11 12 13 15 9 COMPUTER LAB STUDY PODS TEENS SPACE QUITE STUDY SPACE MEETING ROOM
11 12 13 14 15 11 12 13 14 15 9 6
2ND FLOOR PLAN

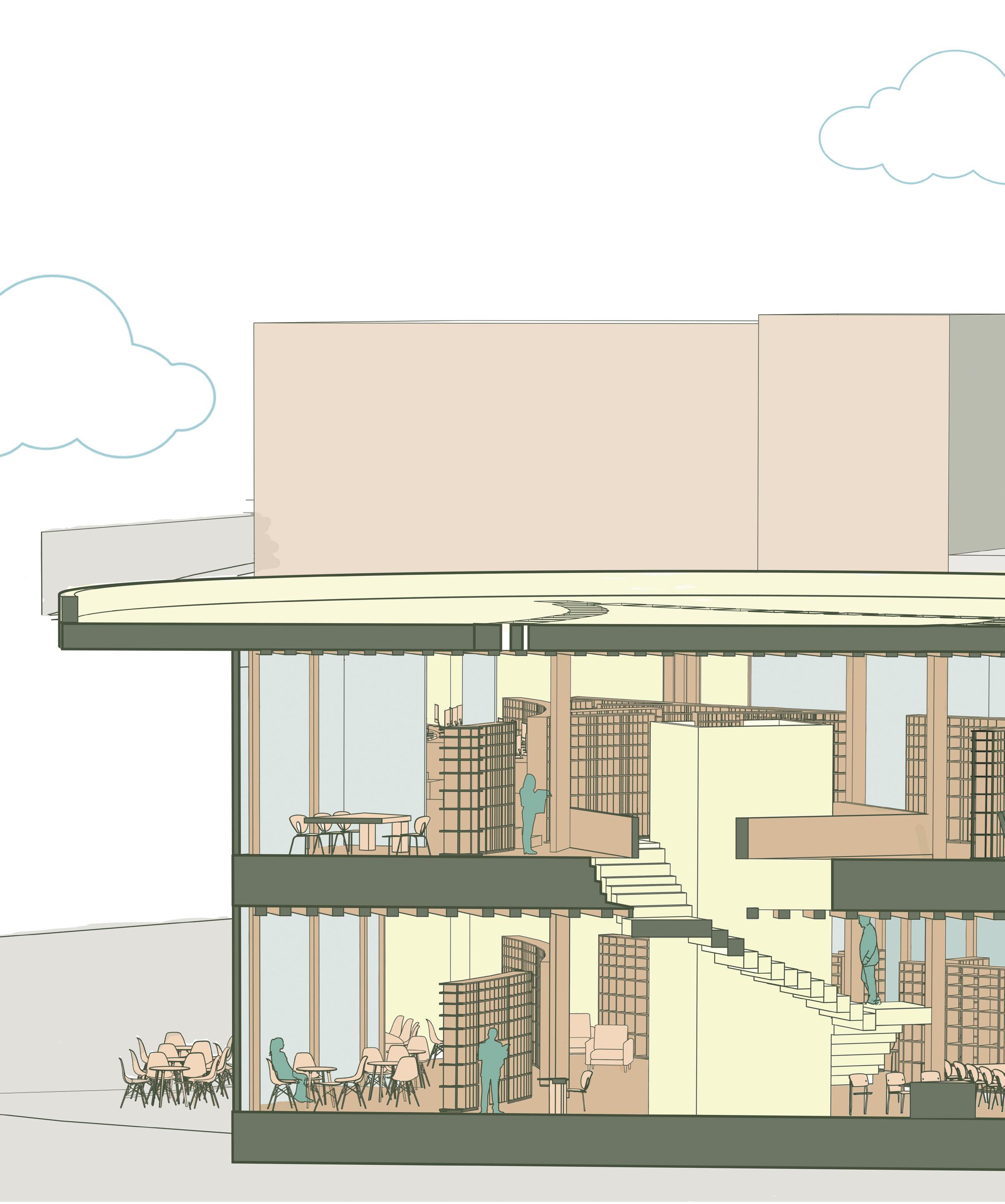

South Elevation East Elevation

Timber Wood

Reinforced Concrete

Tempered Glass

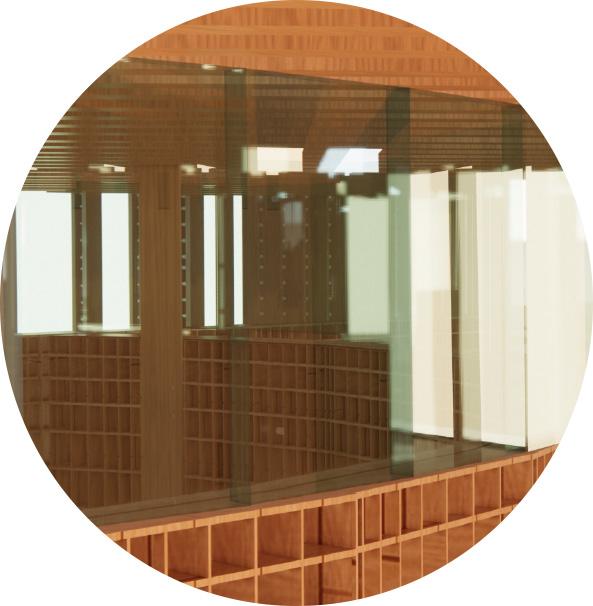

Multi Purpose beam: strucutre and facade. Wooden beam and coloumns connection with a concrete roof. Division created using glass windows and bookshelfs.

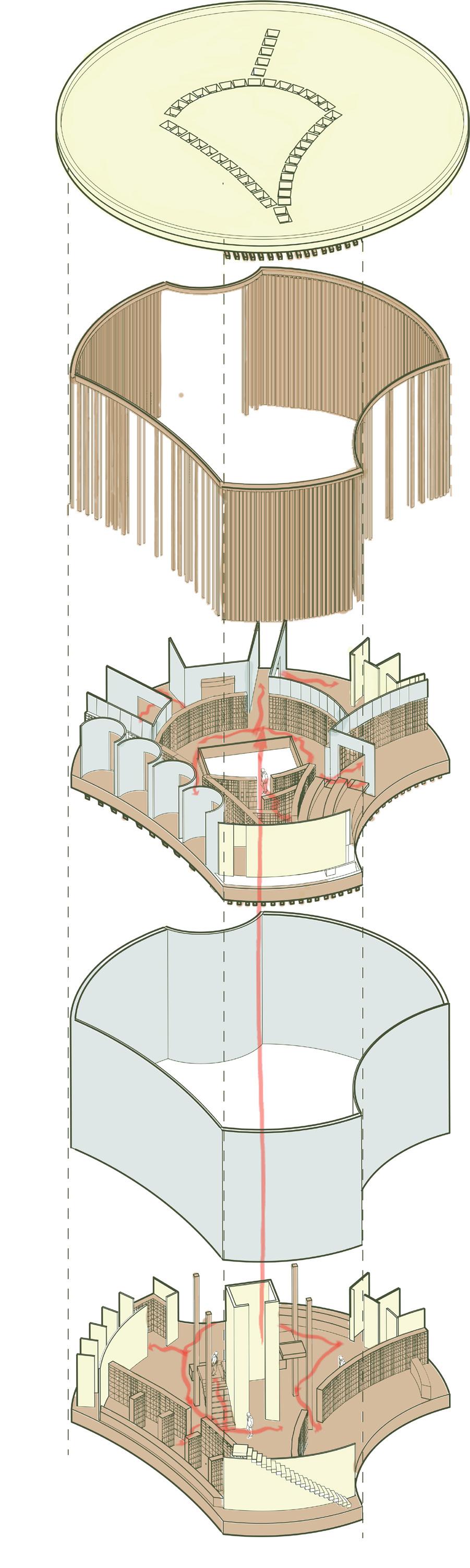

Exploded axonometric

Timber Wood

Reinforced Concrete

Tempered Glass
