Portfolio for year 1 & 2

Year 2022

School of Art and Design

First Name Surname i

Salwa Ali

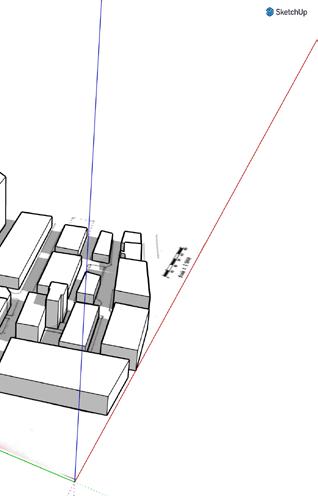

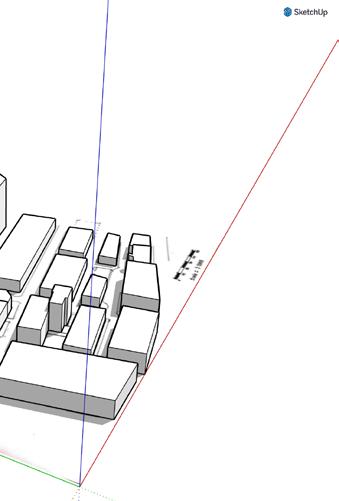

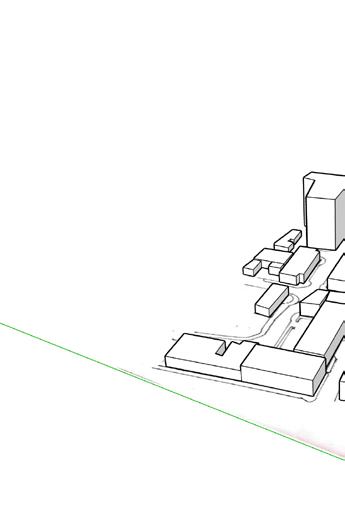

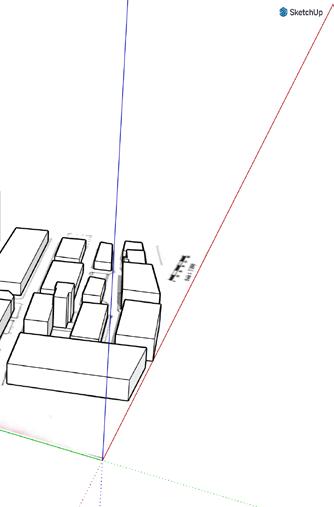

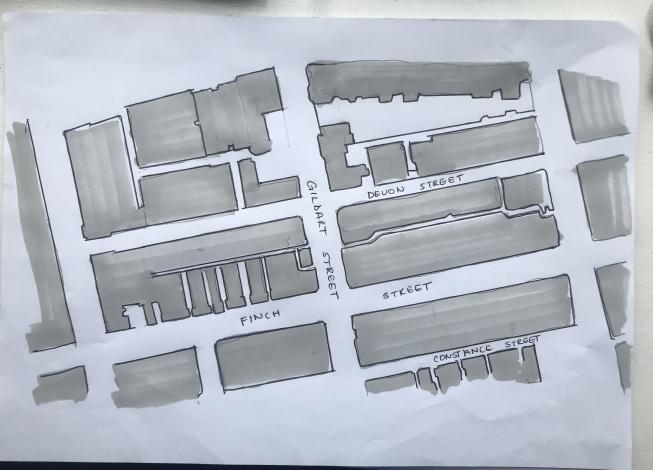

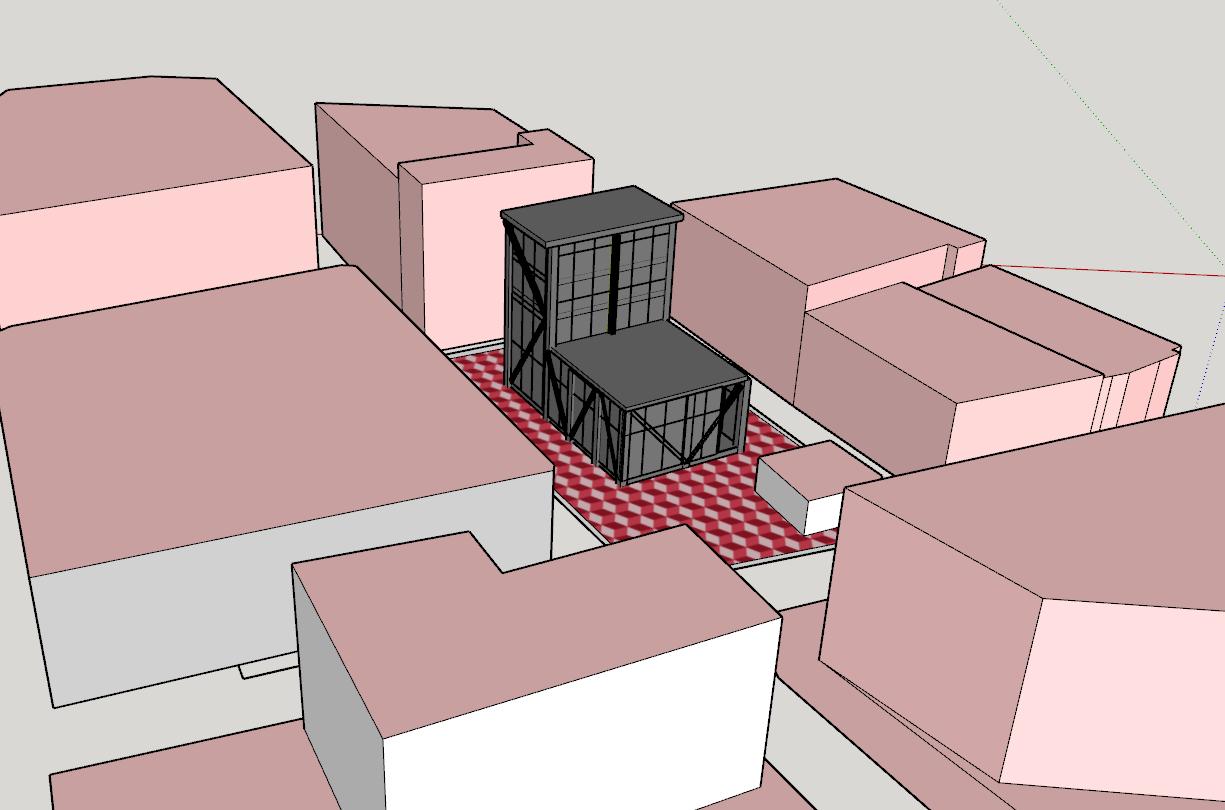

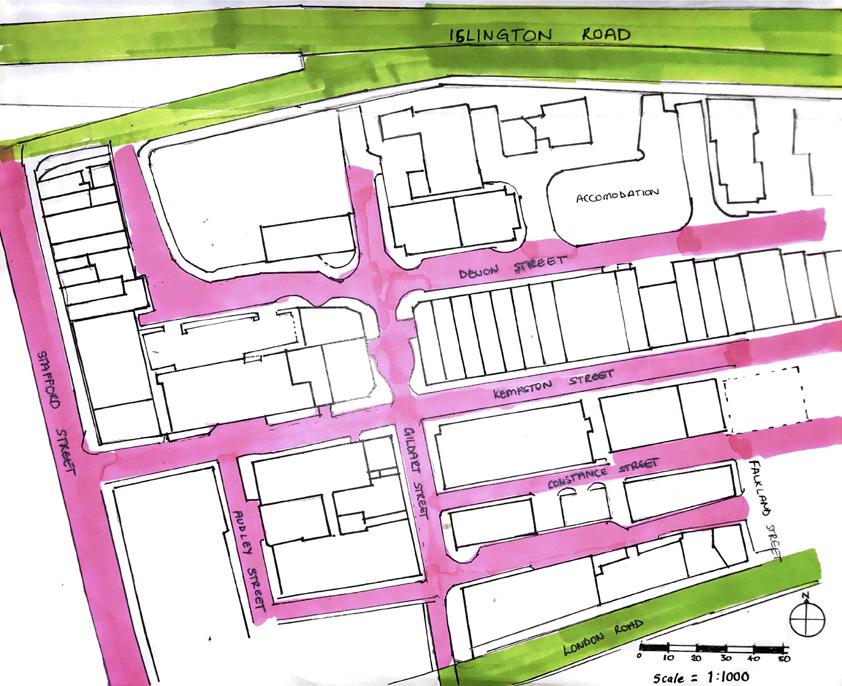

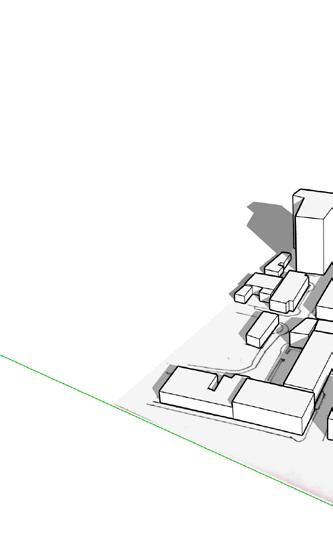

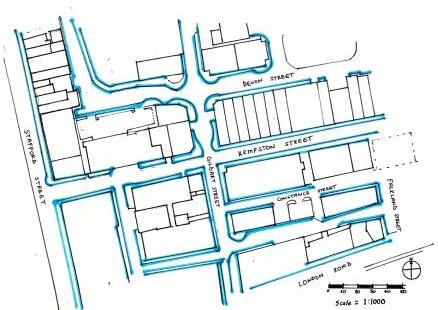

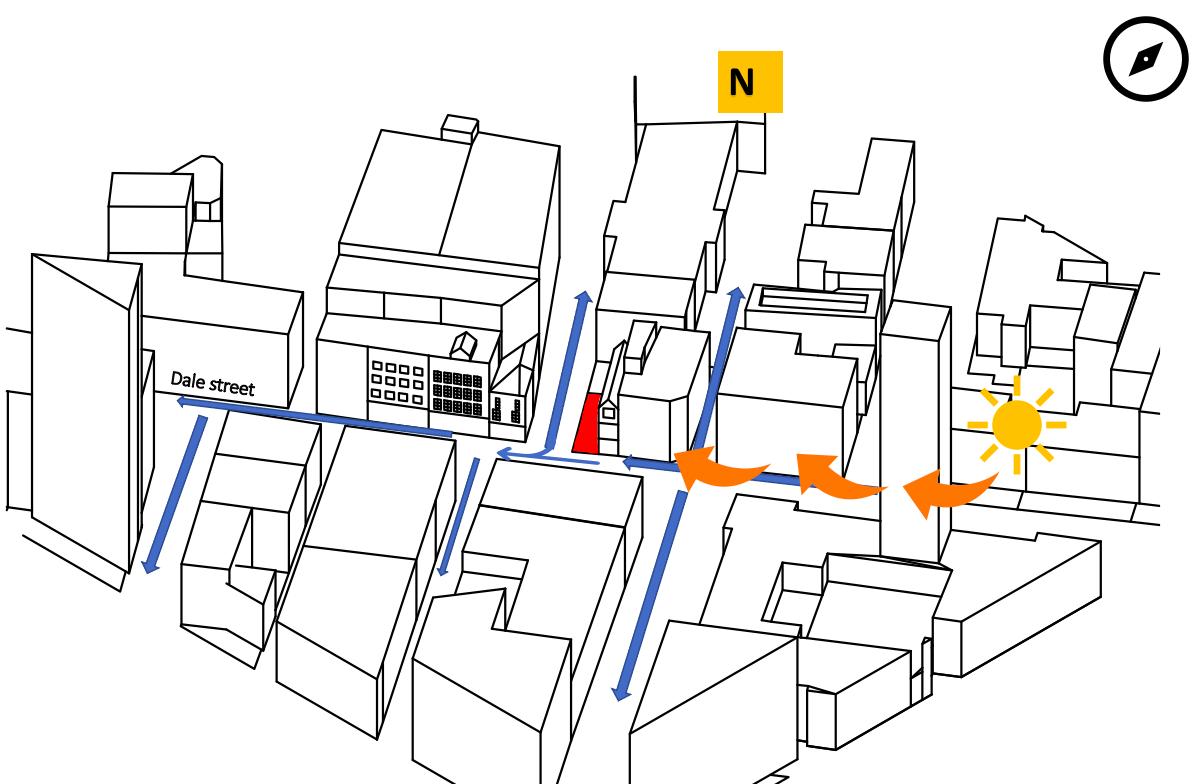

Context Plan

First Name Surname 5

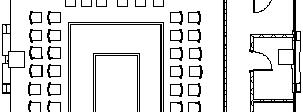

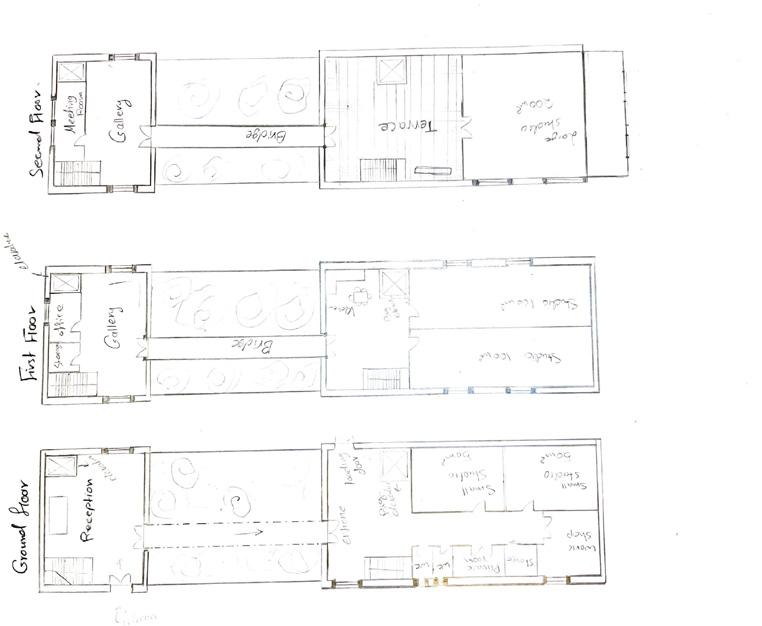

Ground oor plan 1:50

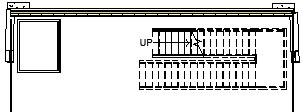

Second oor plan 1:50 Roof plan 1:50

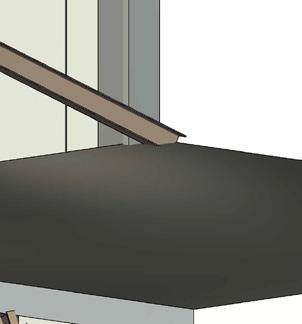

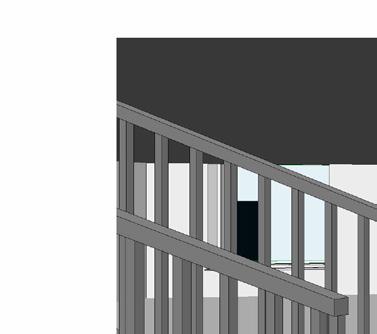

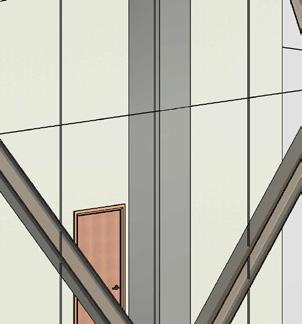

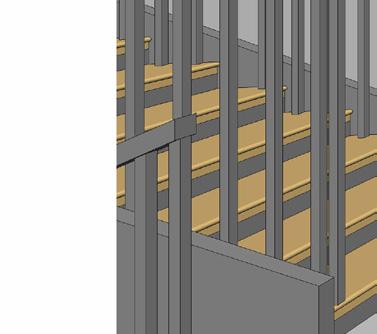

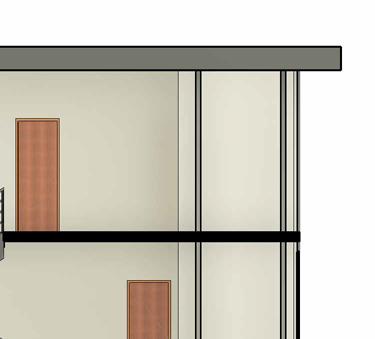

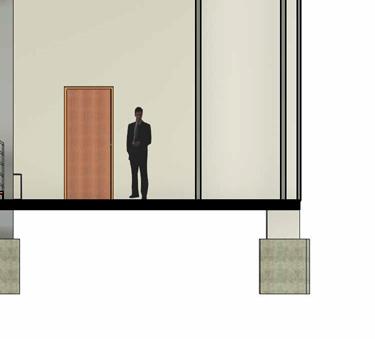

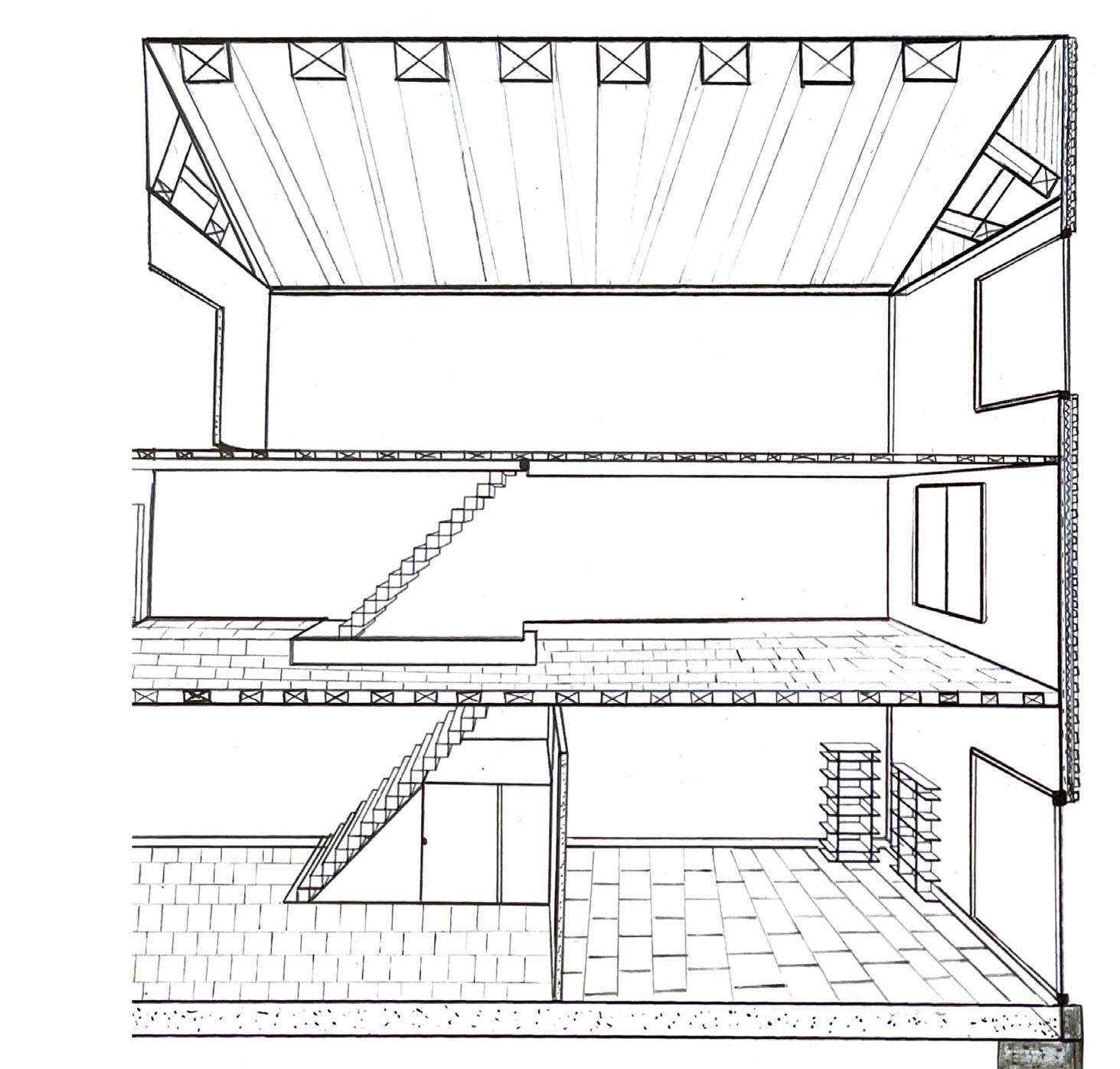

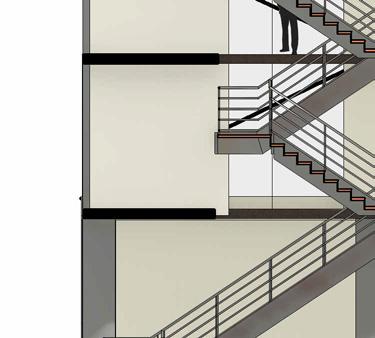

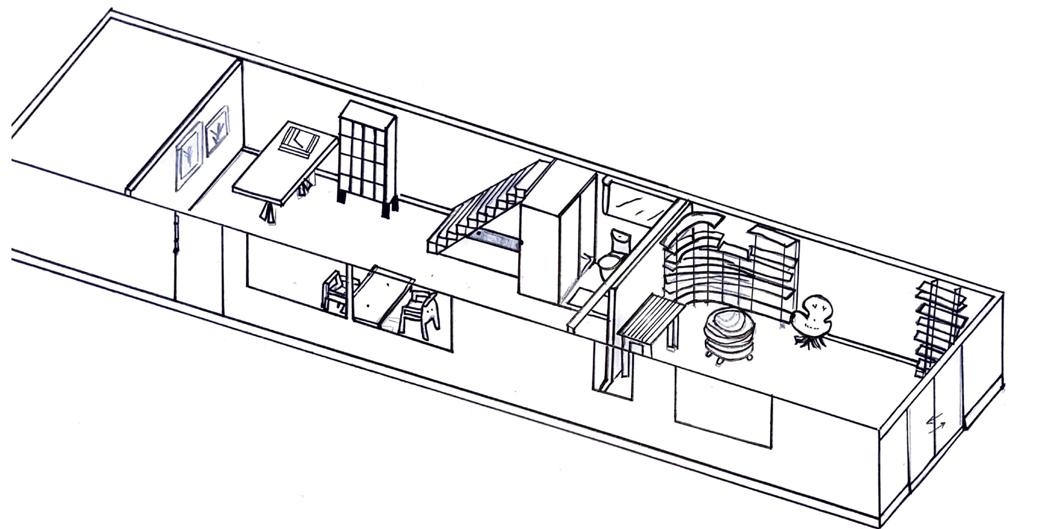

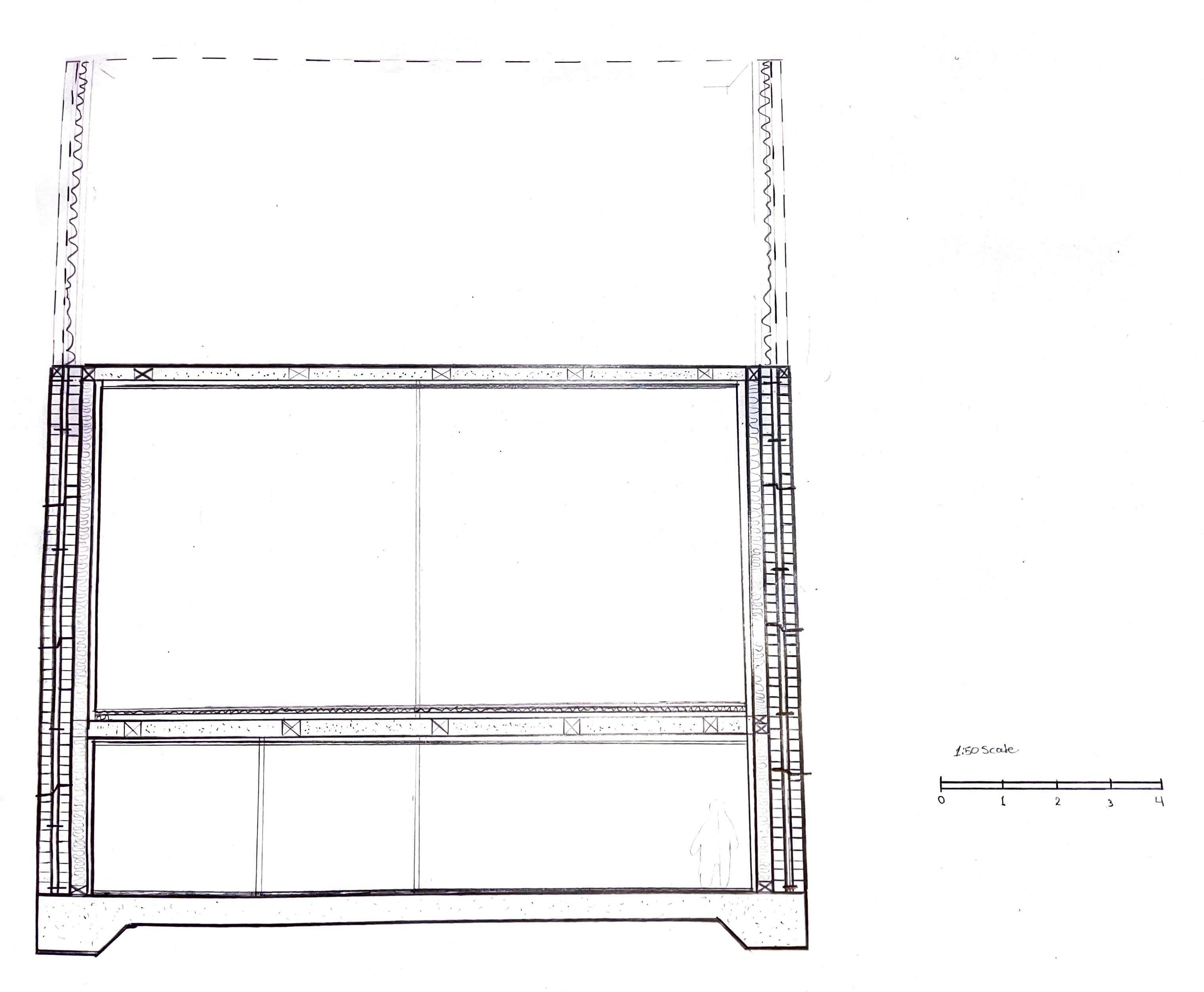

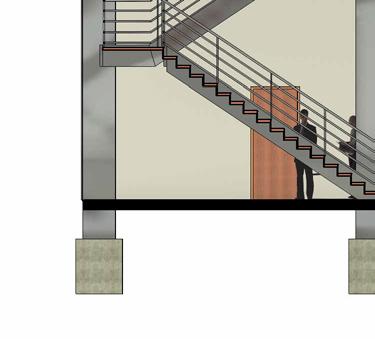

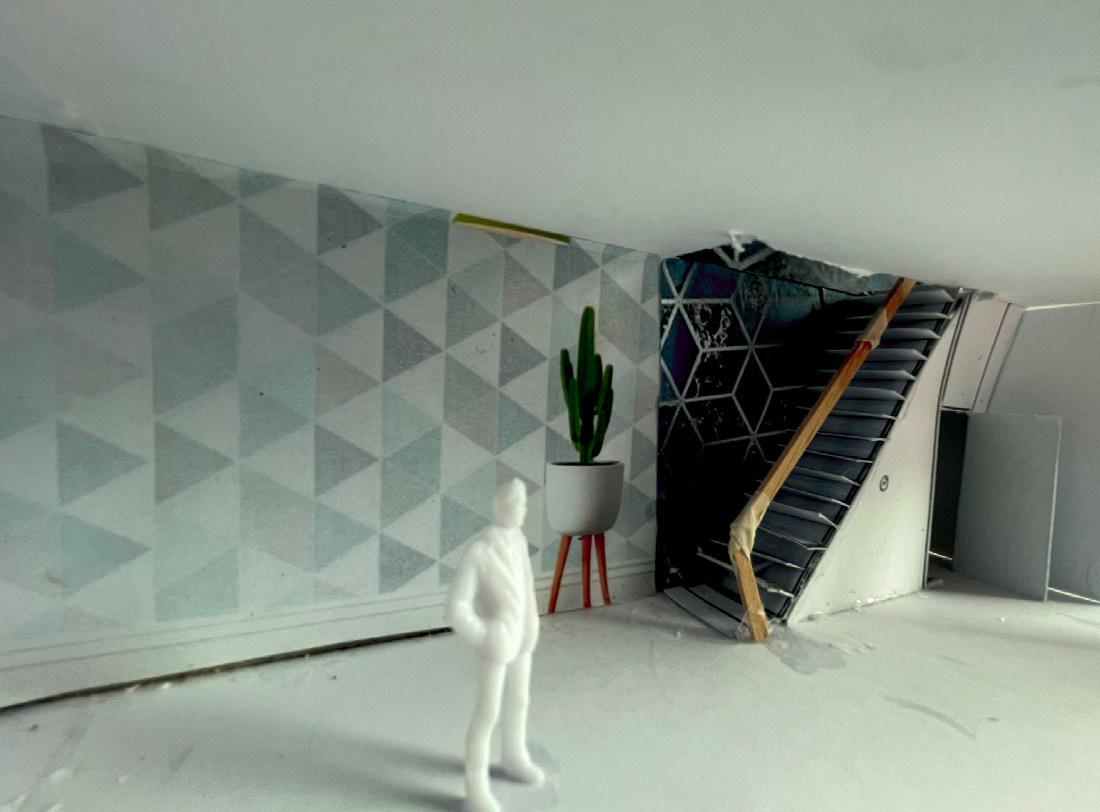

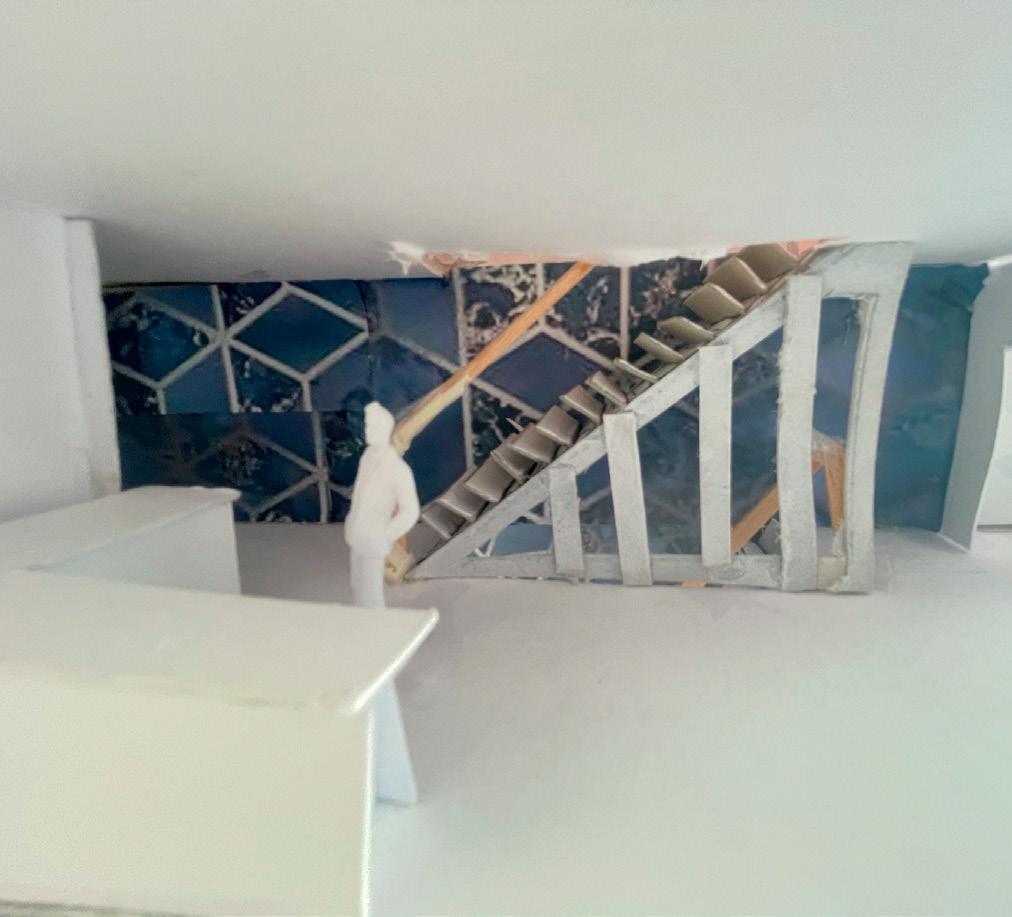

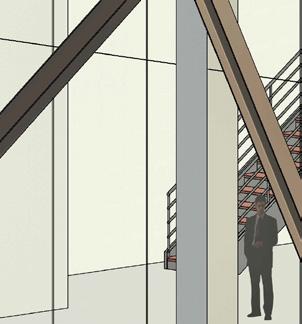

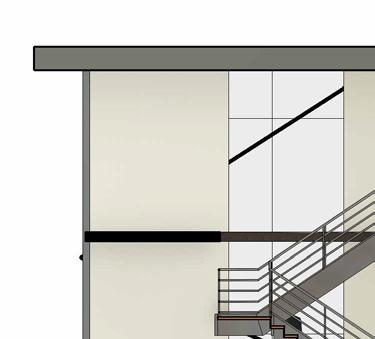

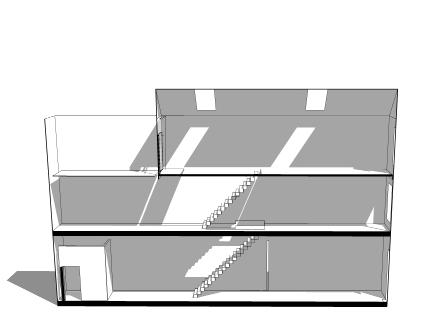

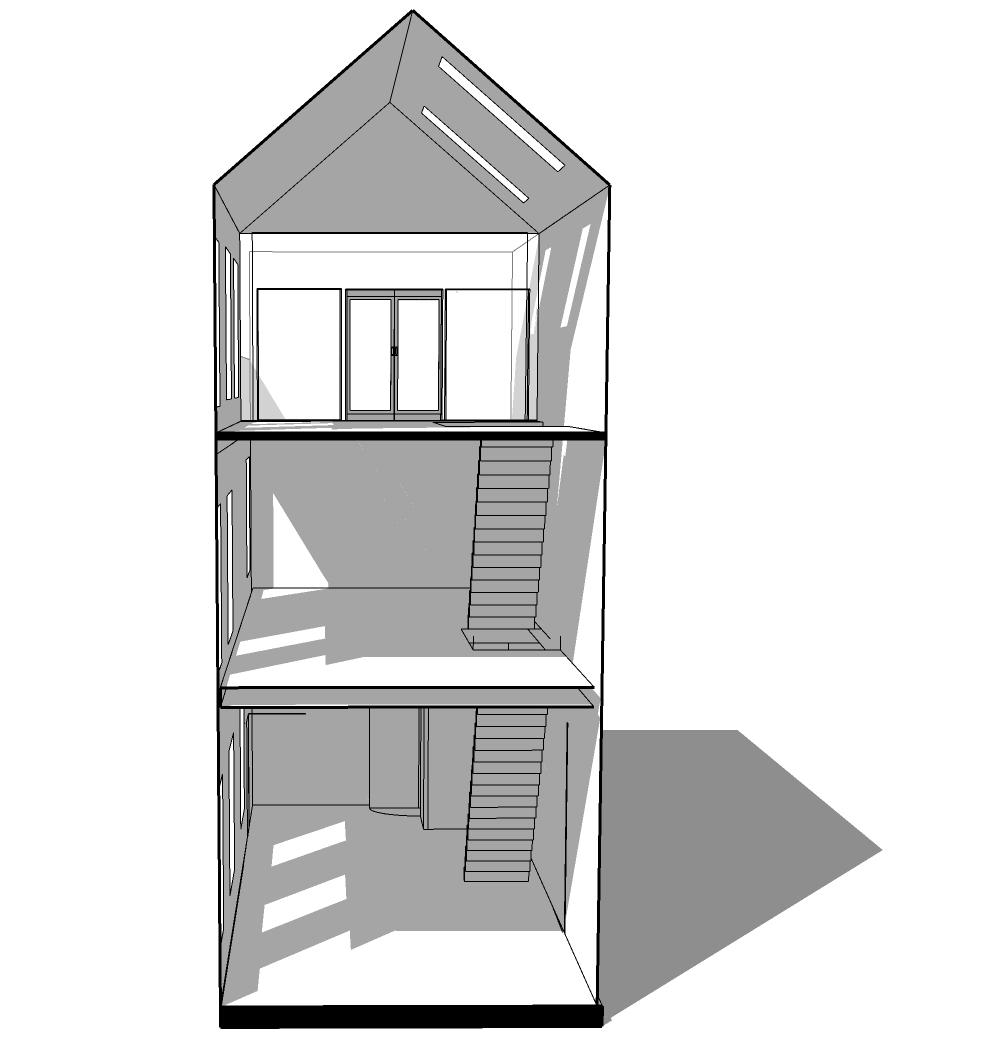

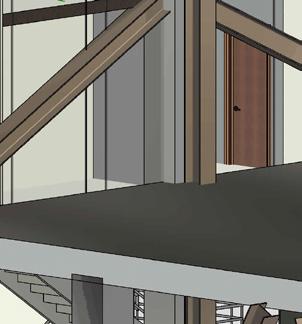

Section 1:50 Interior

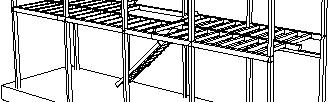

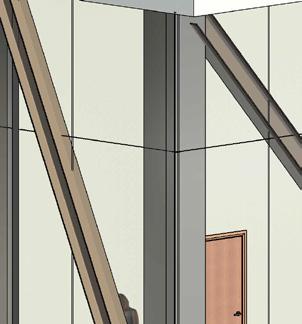

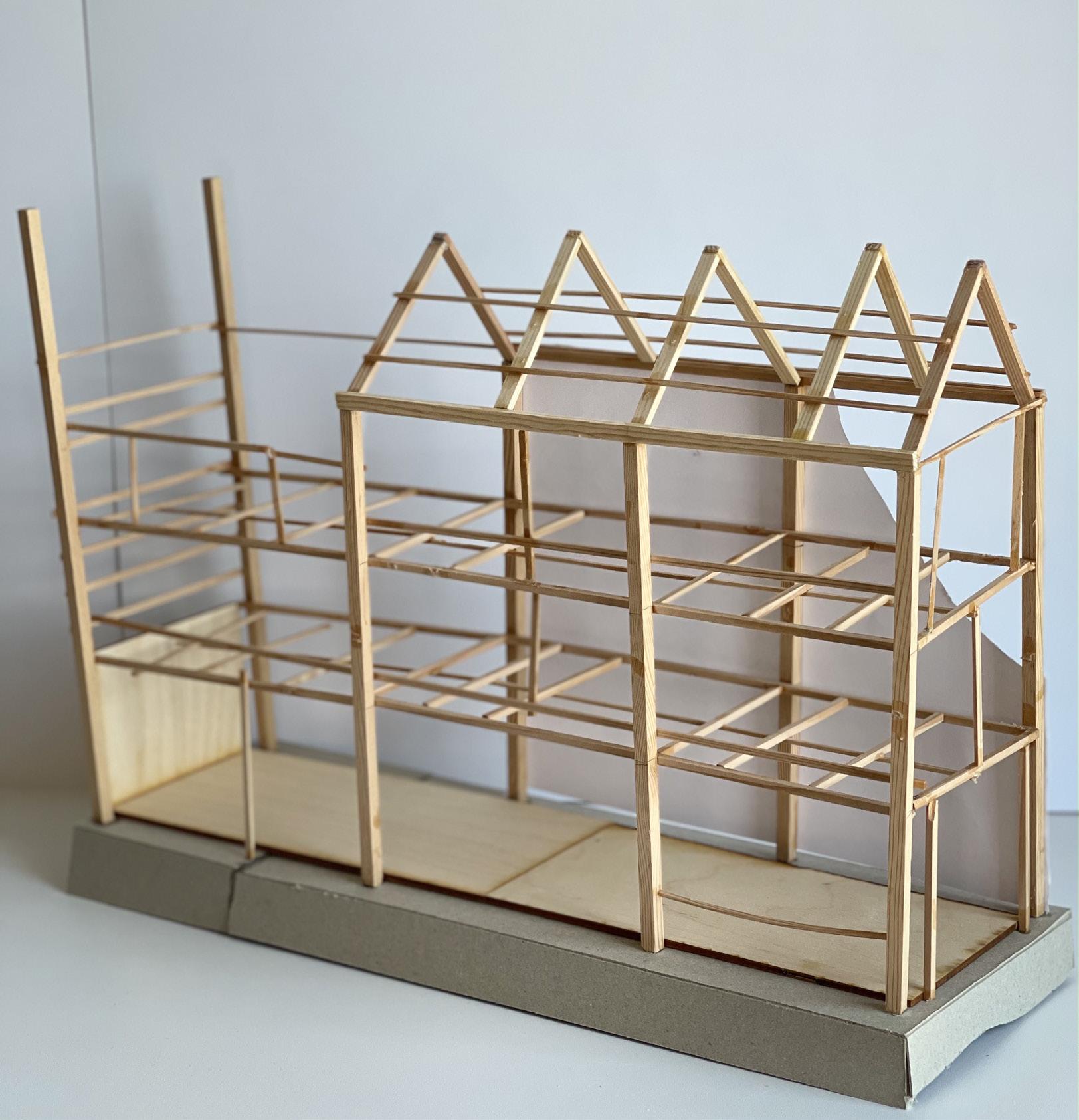

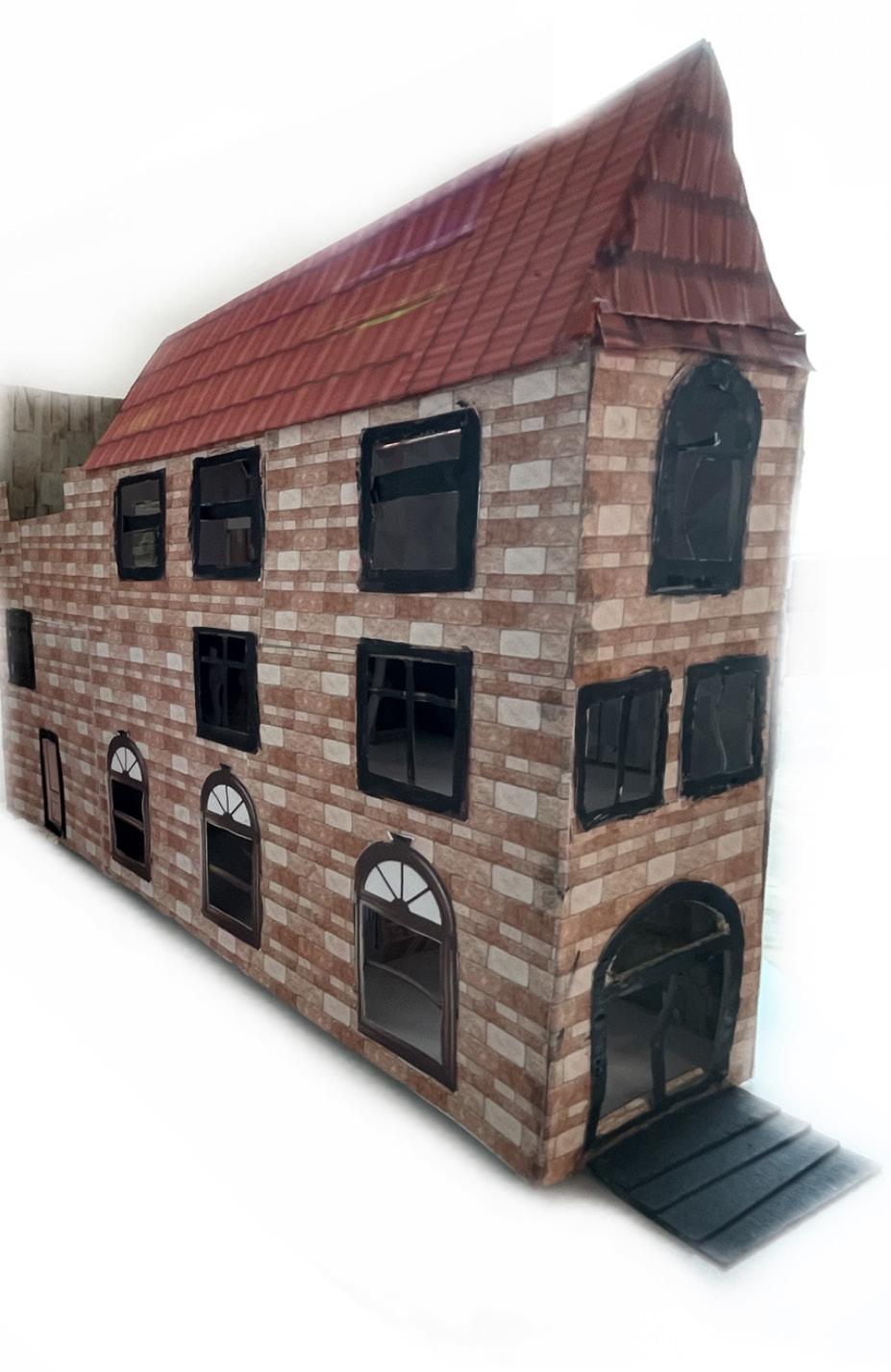

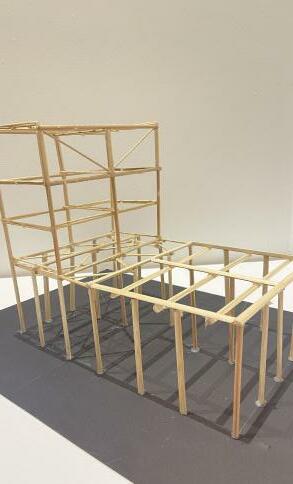

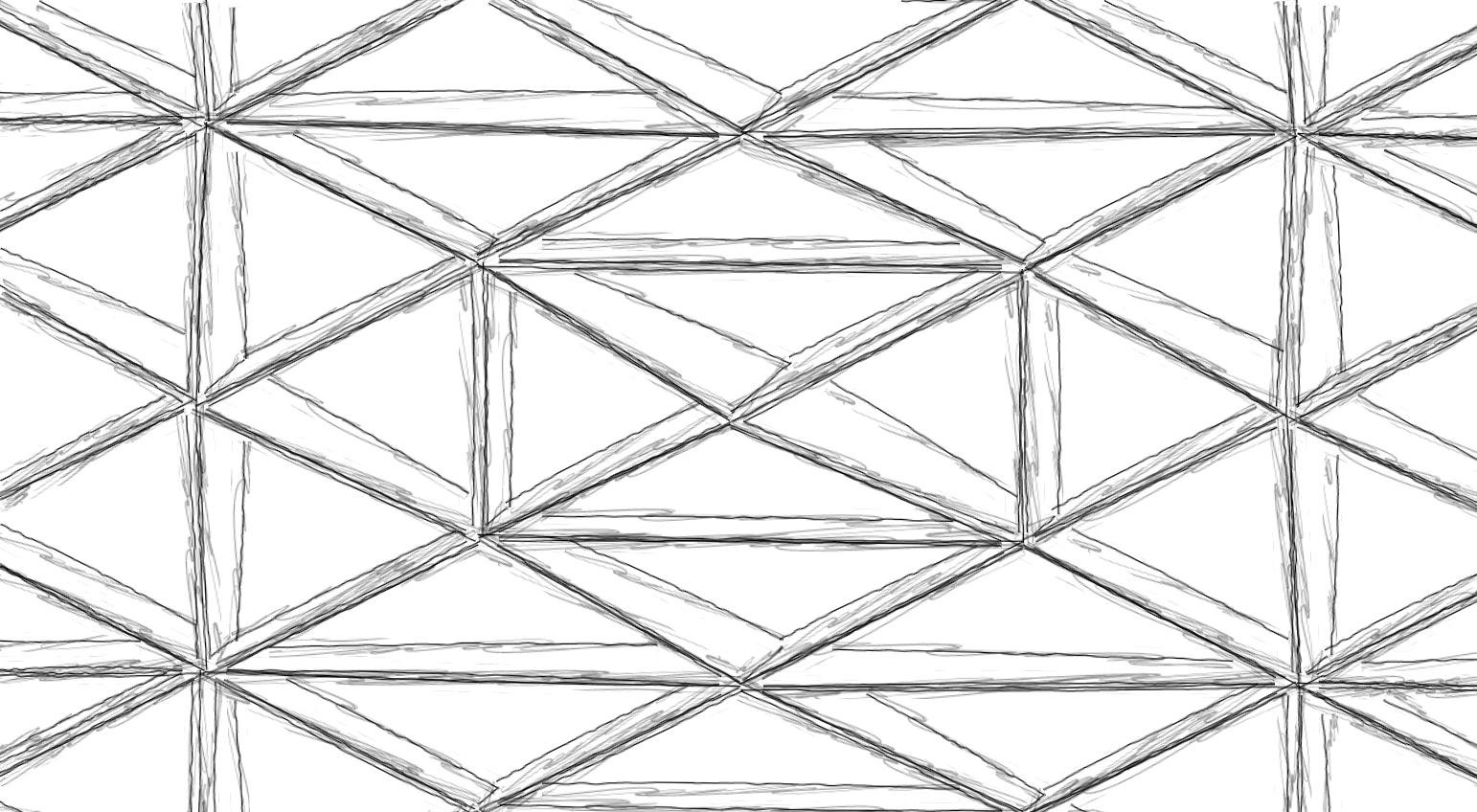

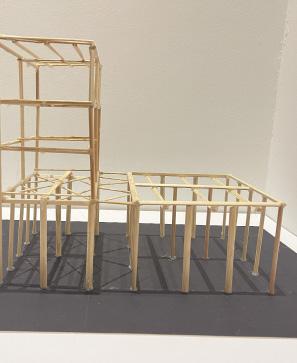

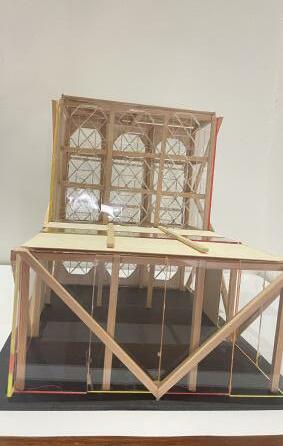

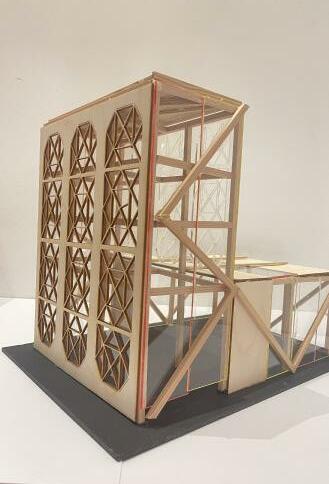

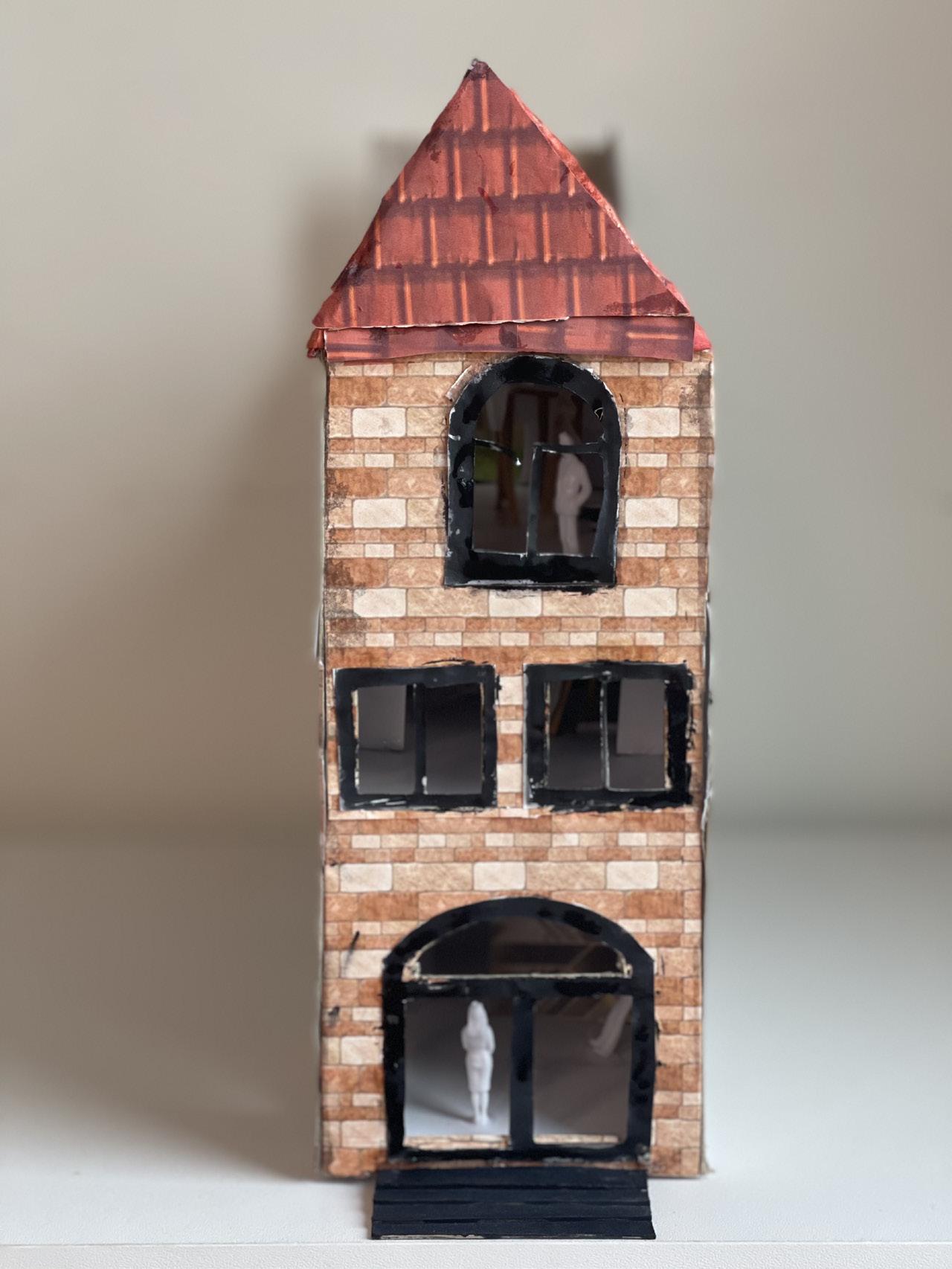

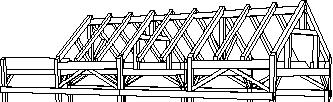

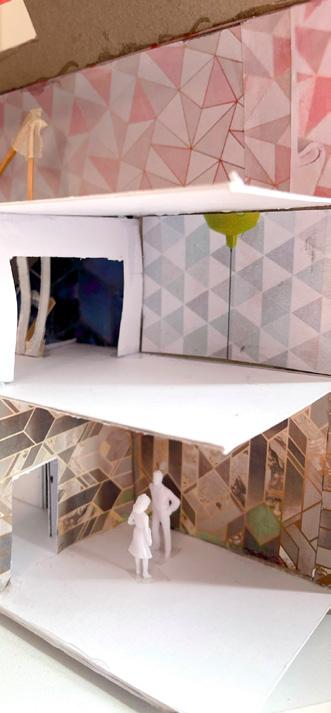

Old Structural Physical Model

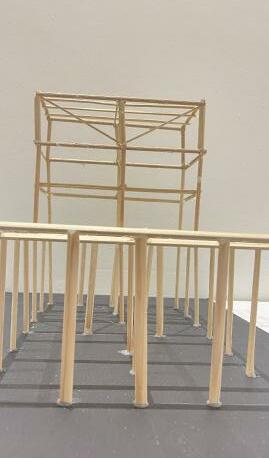

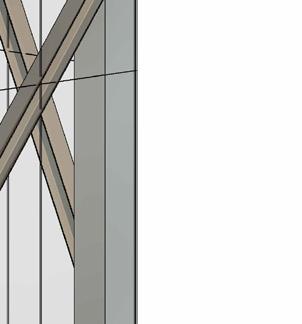

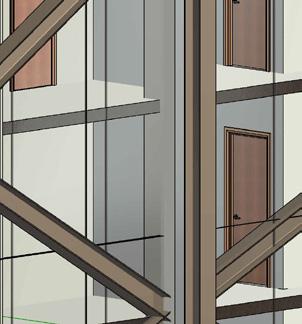

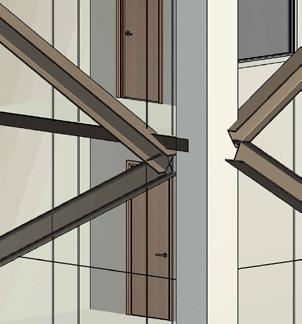

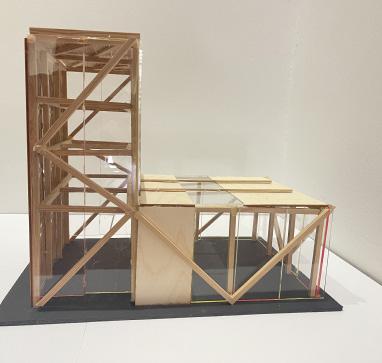

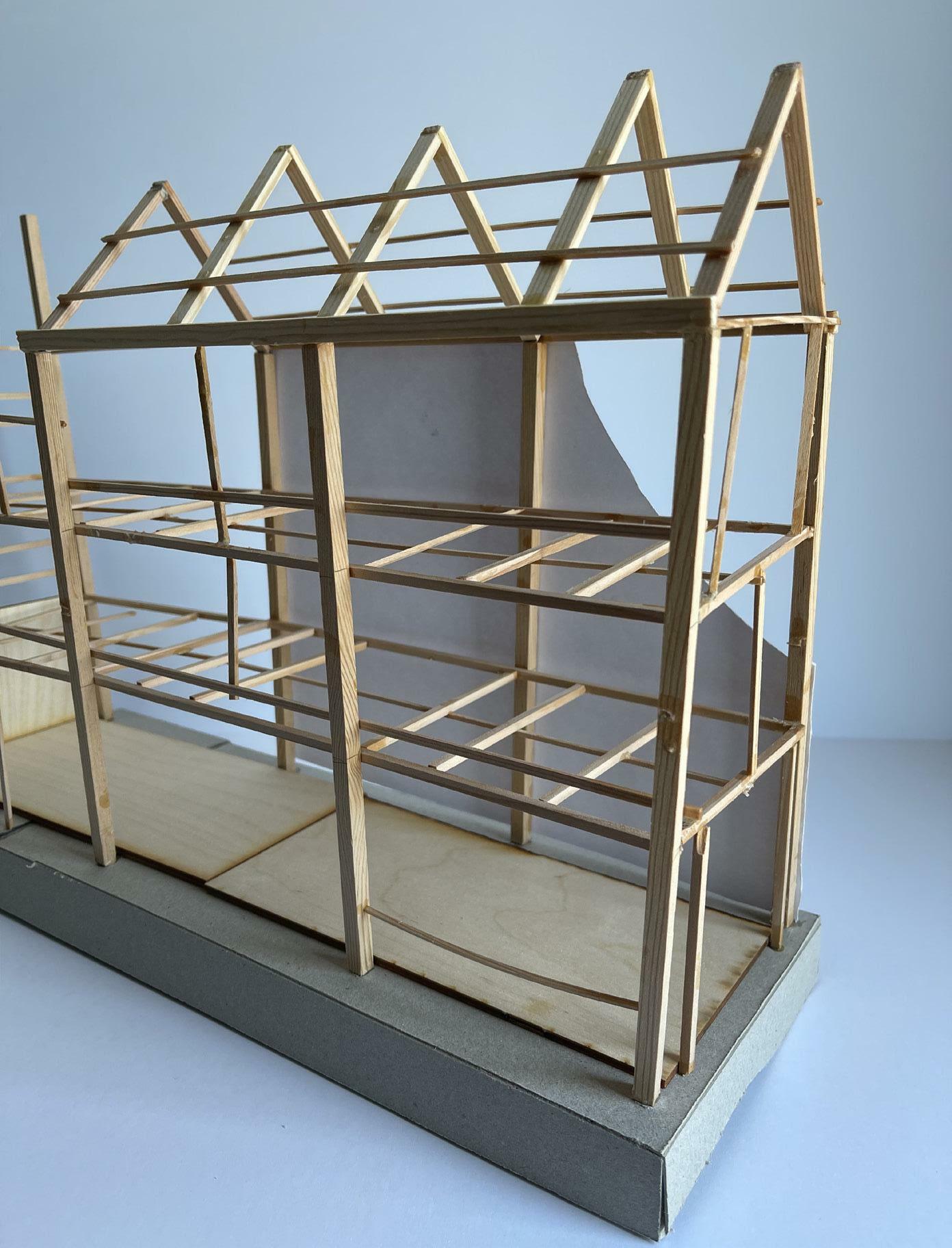

New Structural Physical Model

First Name Surname 7

8 First Name Surname Salwa Ali 2022 Portfoilo

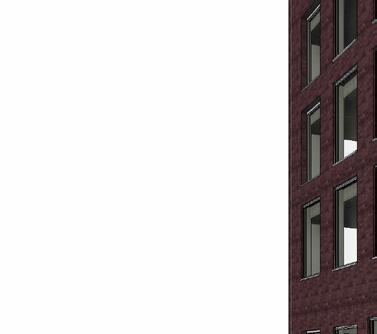

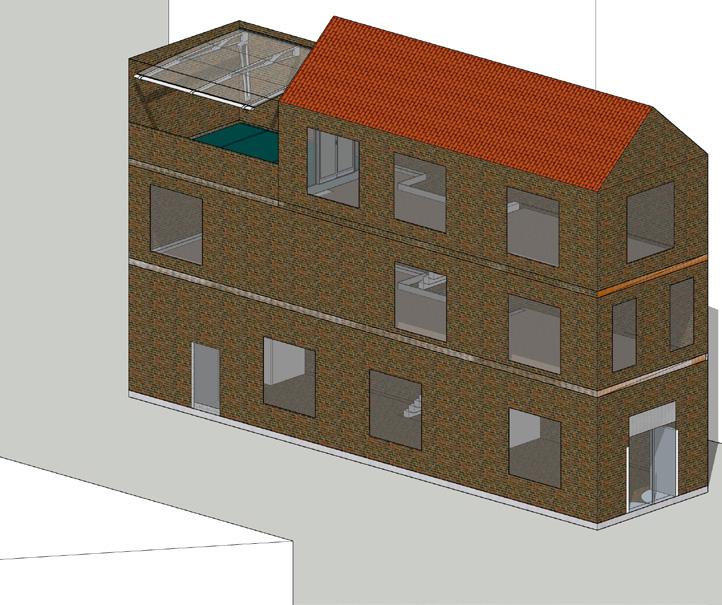

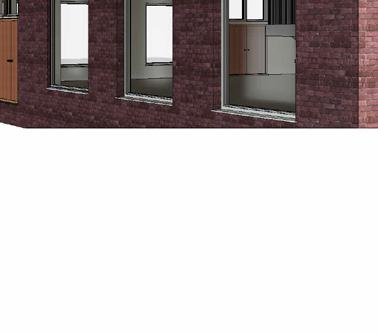

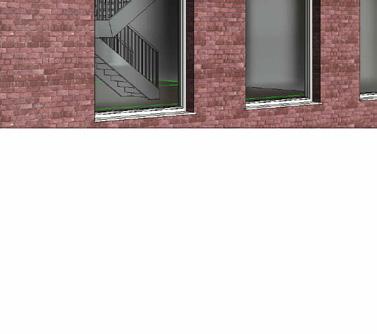

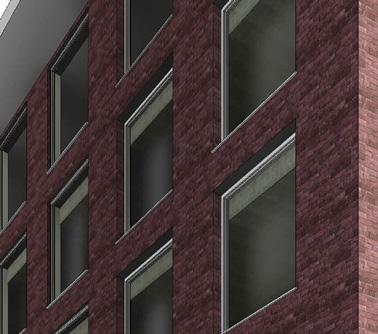

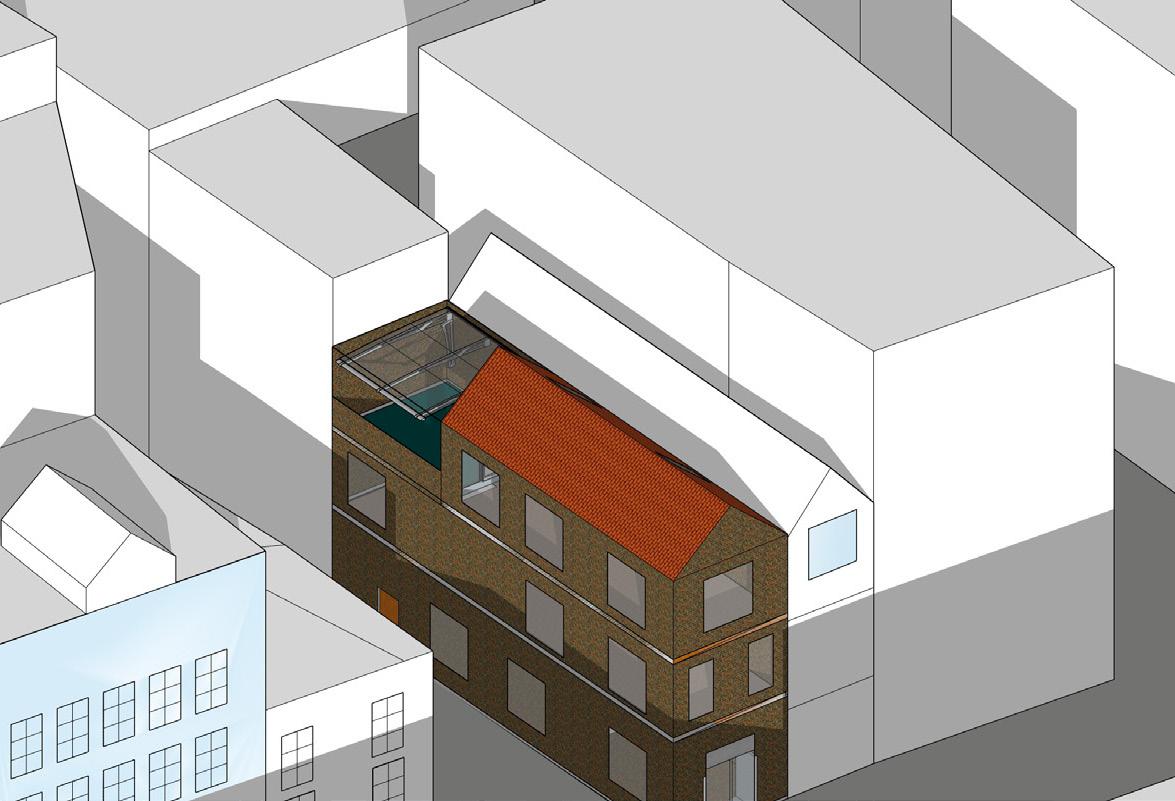

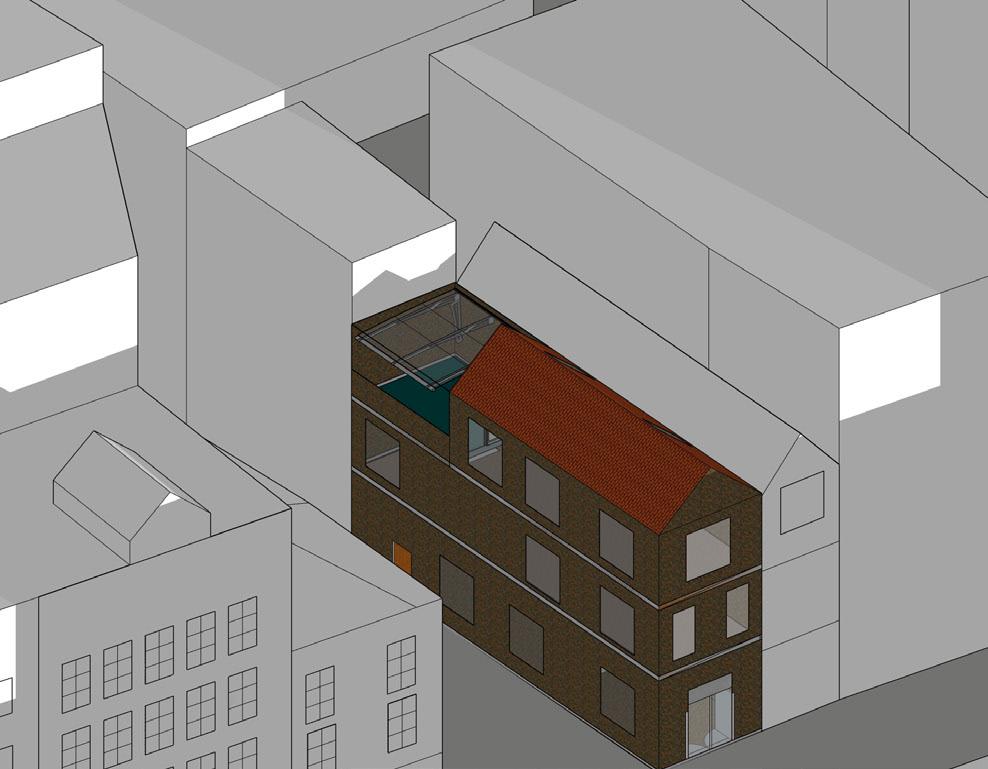

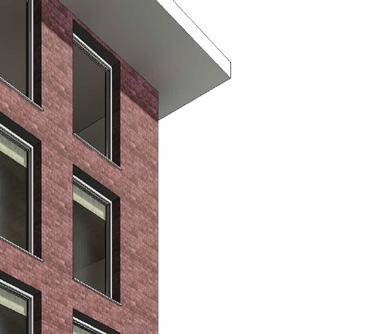

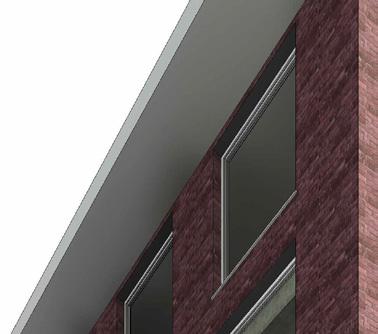

Changing to the Design

Few major changes to the deign occurred in order to increase the daylight in the building.

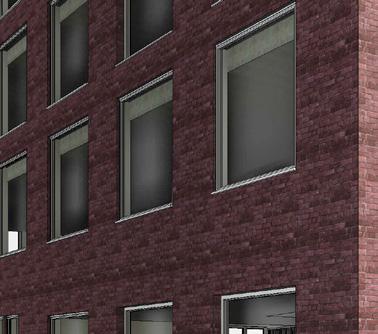

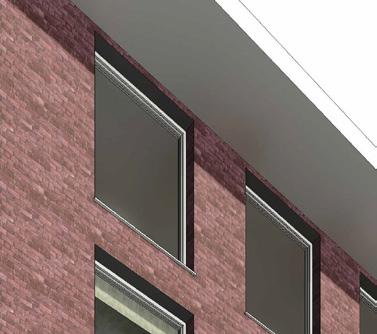

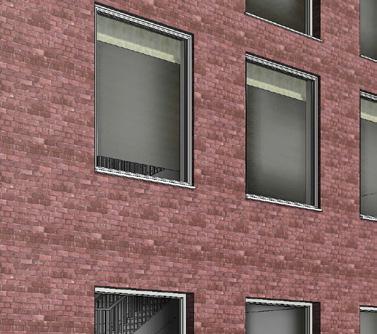

Firstly, the windows were widened to allow more lights in all oors. Secondly, the number of windows were increased, that allows more natural light in the o ces on a normal day.

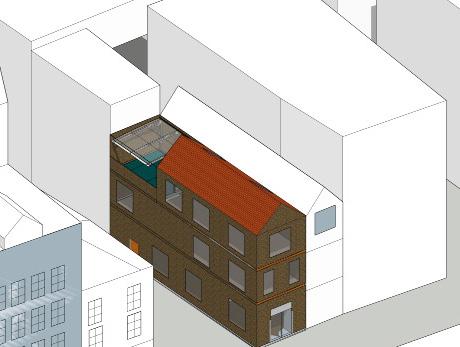

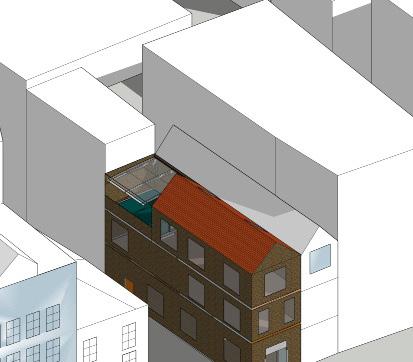

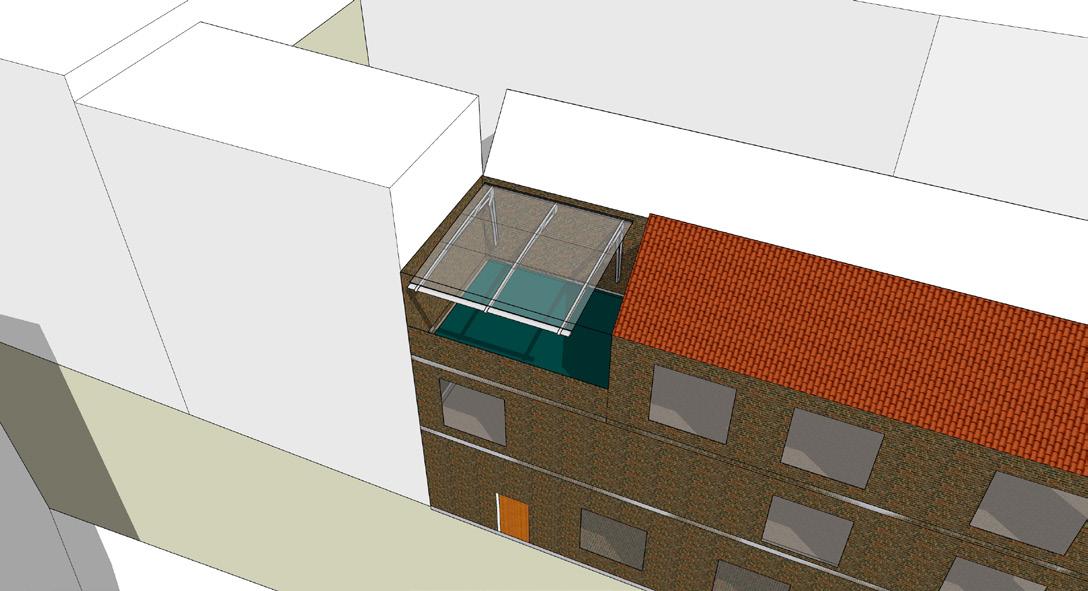

Finally, a panoramic skylight has been added to the roof of the fourth oor exactly in the area where had the least light right on the stairs, which then allows extra light to the fourth and third oors, as the light can pass through the stairs to the lower oors.

In the old design, no windows were added to the West side of the design as there is a 3- oor neighbouring building blocking all the sunlight, so a decision was made to add few windows starting from the third oor where the neighbouring building will then have no in uence, that adds extra lights to the o ces.

In the ground oor, an idea was to allocate the toilet in the dark (blue color) area where has the least light and use it for rest room, and same for other oors.

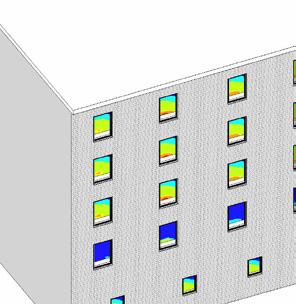

Light analysis

On a standard day in Liverpool, 60% of the light passes through. As per the results in the Daylight Factor diagrams, the rst three oors (from ground to second oor) have slightly similar amount of light varies from 0 to 27%, with some cold areas. while in the third and fourth oor having more light in, as extra windows were added to the West side of the building, as shown, no shades in the top two oors, that favour goes back to the sunroof and the extra windows.

e red colors represent the amount of heat, which consedered an overlit.

rough the use of Revit and its lighting analysis so ware, a live result of certain building and location can be obtained and discusssed. is so ware is developed to give an overall idea of how light can be distrbuted in spece c region and building based on the data inserted, which will then act as a key to develop the design further to get more or less lights using those obtained light results.

is is the initial design of the building, consists of medium sized windows which allows some of the natural sunlight in, however it is not that bright. Referring to the analysis in the gures on the right; results and images have been obtained to show the amount of light that can get in, in a normal day.

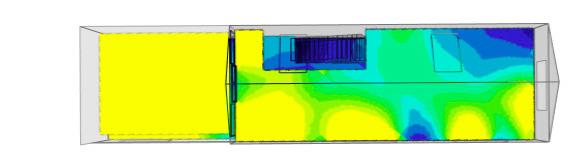

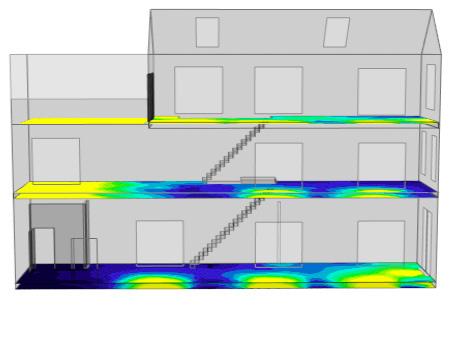

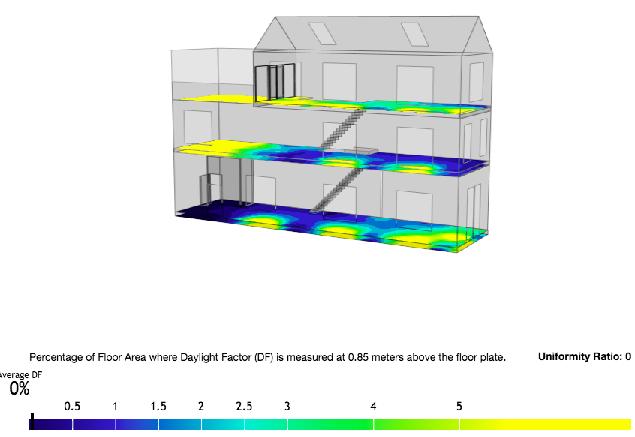

For the daylight factor, on a standard day, 7% of natural light passes, 0.7% building ADF and 92% below threshold. e dark areas (least light) are represented by the blue colour which means it is the coldest area and that has 0% of the light as labels on each oor, the yellow represents a higher sun light which goes from 2% to 10% of natural light, where orange and red represent the highest sun light which means more heat and the percentage goes up to 23%.

However, in the Illuminance analysis, for September 21 by 9am, 25% sunlight passes through the rooms, and 16% passes by 3pm in the a ernoon, that rely on the location of the building and the sun movement. Red as shown in the gure, represent the highest sunlight and that goes up to 6000 LUX.

For this design, in general, the light passing in this structure is so low, the majority of the oors are dark and have shades, therefore an upgrade is needed. Some upgrades were added to increase the sunlight. Please relate to the newest design of BIM.

Overlit

Illuminance

Daylight factor

diagrams

Analysis

A er Before Ground Floor 1st Floor 2nd Floor 3rd Floor 4th Floor Ground Floor 1st Floor 2nd Floor 3rd Floor 4th Floor Daylight

Overlit diagrams Illuminance Analysis 2022 Portfoilo

5131AR Technology & Practice BIM Study O ces on London Road Environmental Analysis response sheet

factor

13

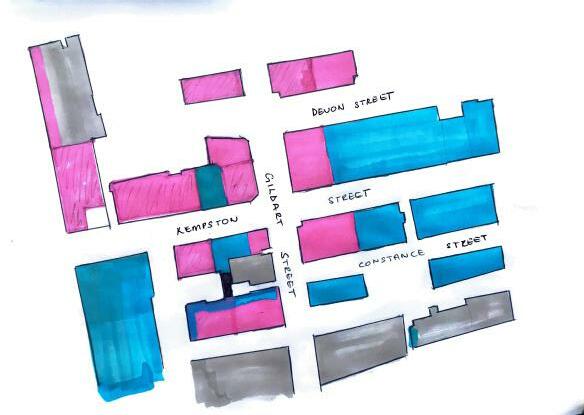

14 First Name Surname First Name Surname 15 5122ARC

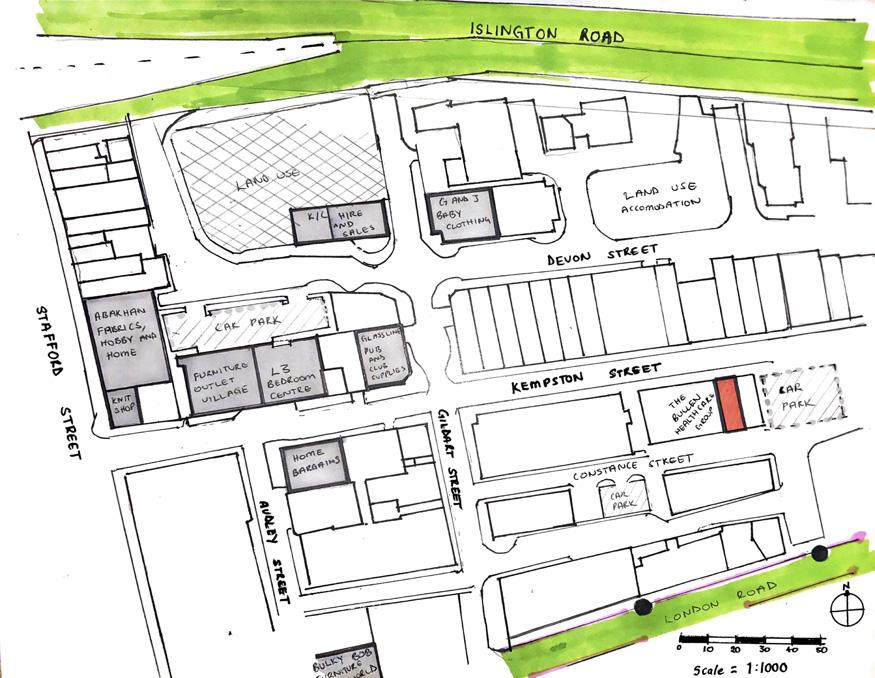

- Residential housing

- Factories and warehouses

- Shops

- Derelict/ unused buildings

Most provisional services in area are shops shown in grey but there is one private health care service which is not very busy.

Design 5: Urban Design Strategy.

e blue indicates pavement space for pedestrian movement around area.

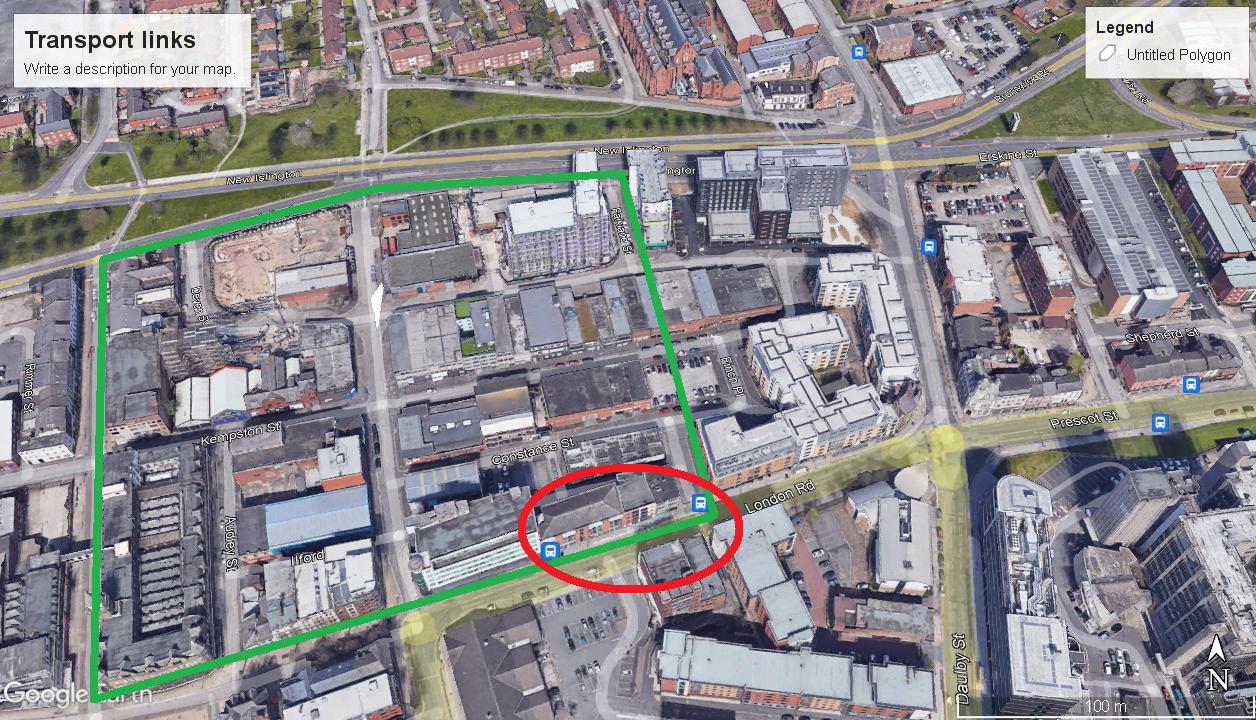

Only two bus stops in the area whilst others are scattered around.

5121ARC

First Name Surname 17 16 First Name Surname

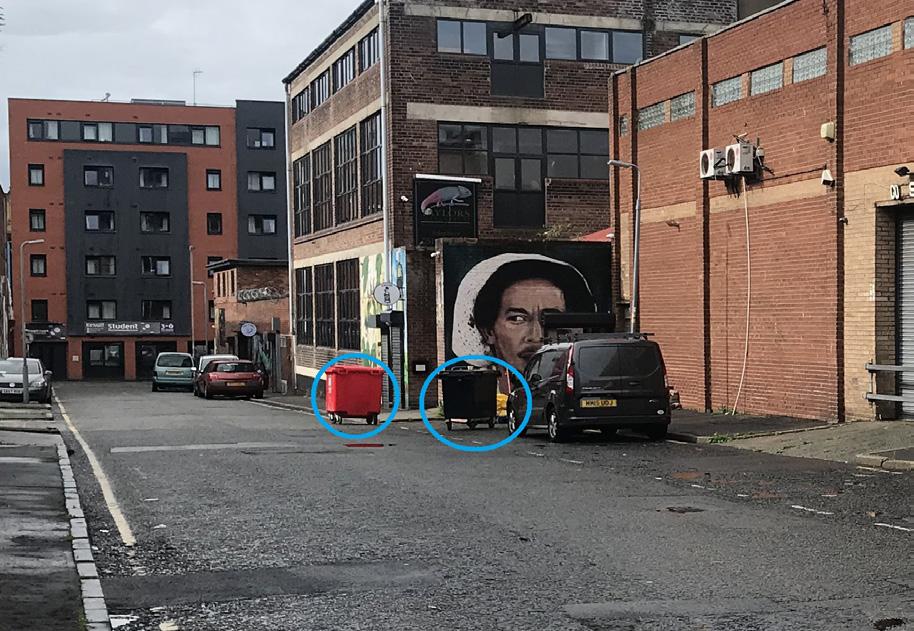

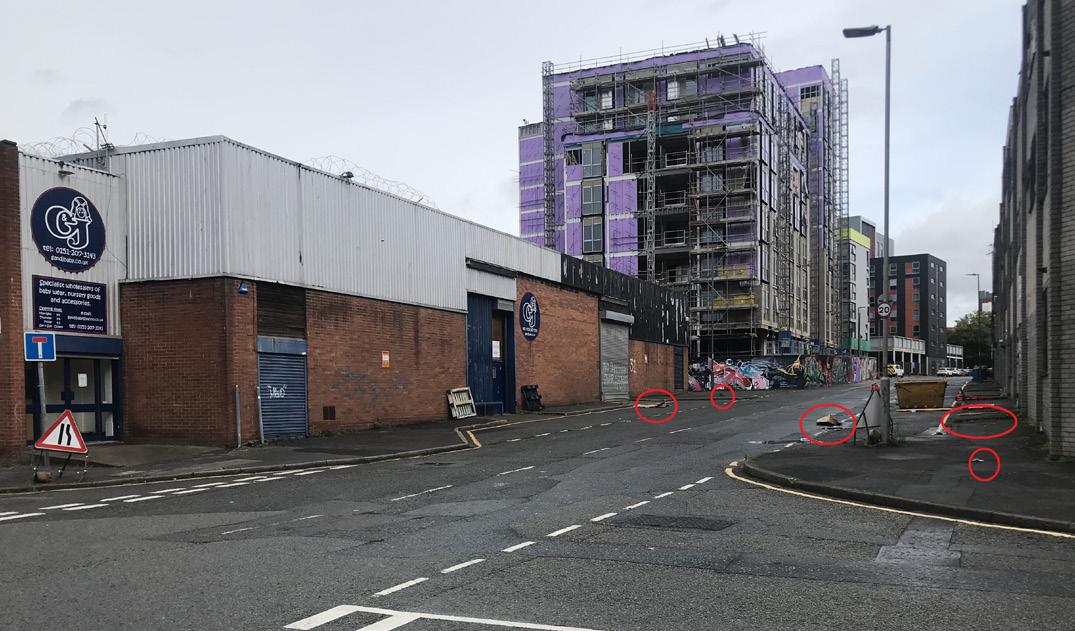

Area has a very limited amount of public bins so there was a few pieces of rubbish dumped around expecially on Devon street. Noticed only 2 bins walking around the area on Constance Street but they were for recycling not general waste.

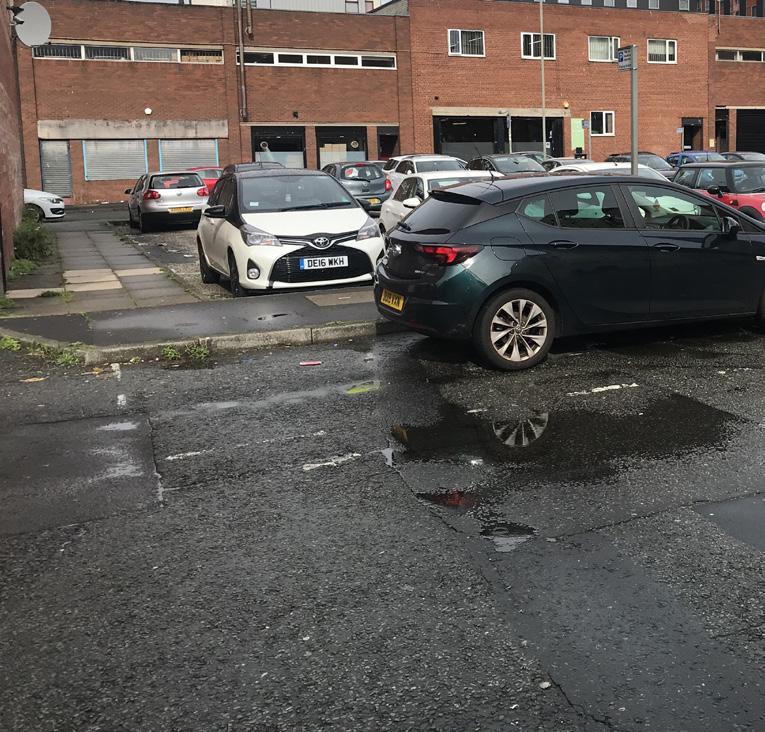

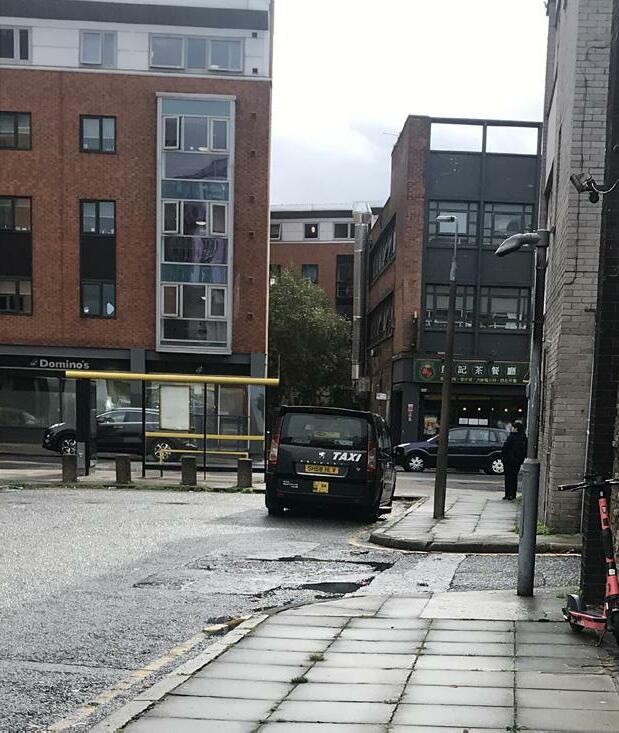

Parts of the roads in some streets held rain water due to pot holes and uneven surfaces. When it rains water ows down towards Sta ord Street so some builds up on the way. e area has not got a good drainage system in place.

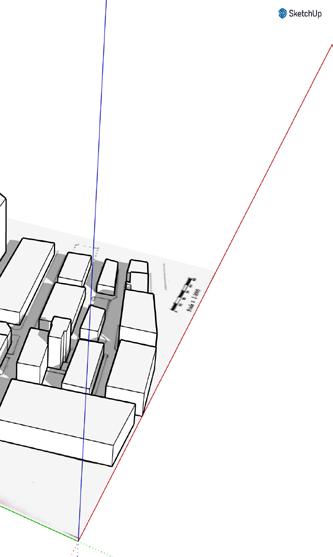

Because of a quite highly compact built up area, theres a lot of shadows cast from the buildings so this would get quite cold in the winter months. A solution to this would be to open the area up abit more especially kempston street around TJ Hughes to allow more light. is space would have to be shaded in the summer months when it gets too hot.

First Name Surname 19 18 First Name Surname

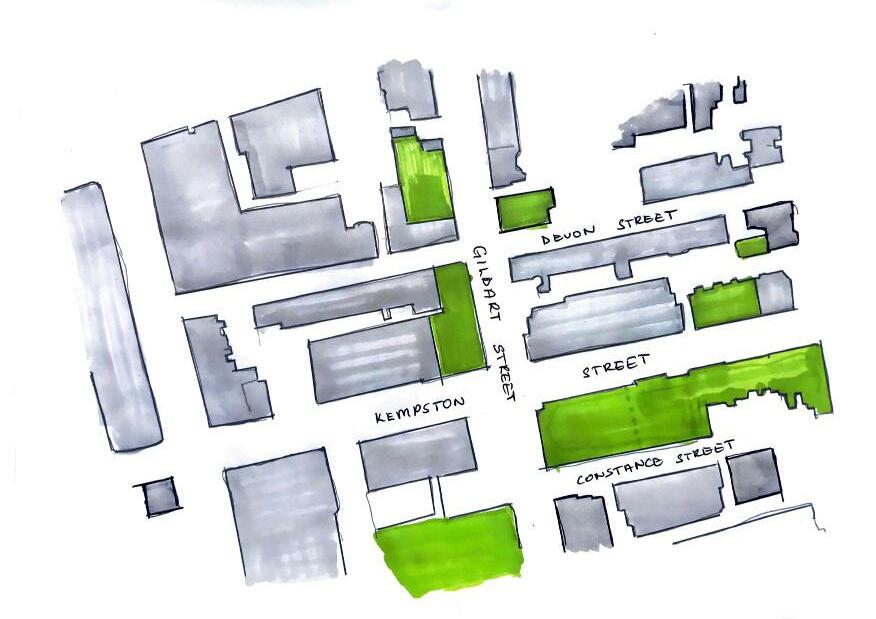

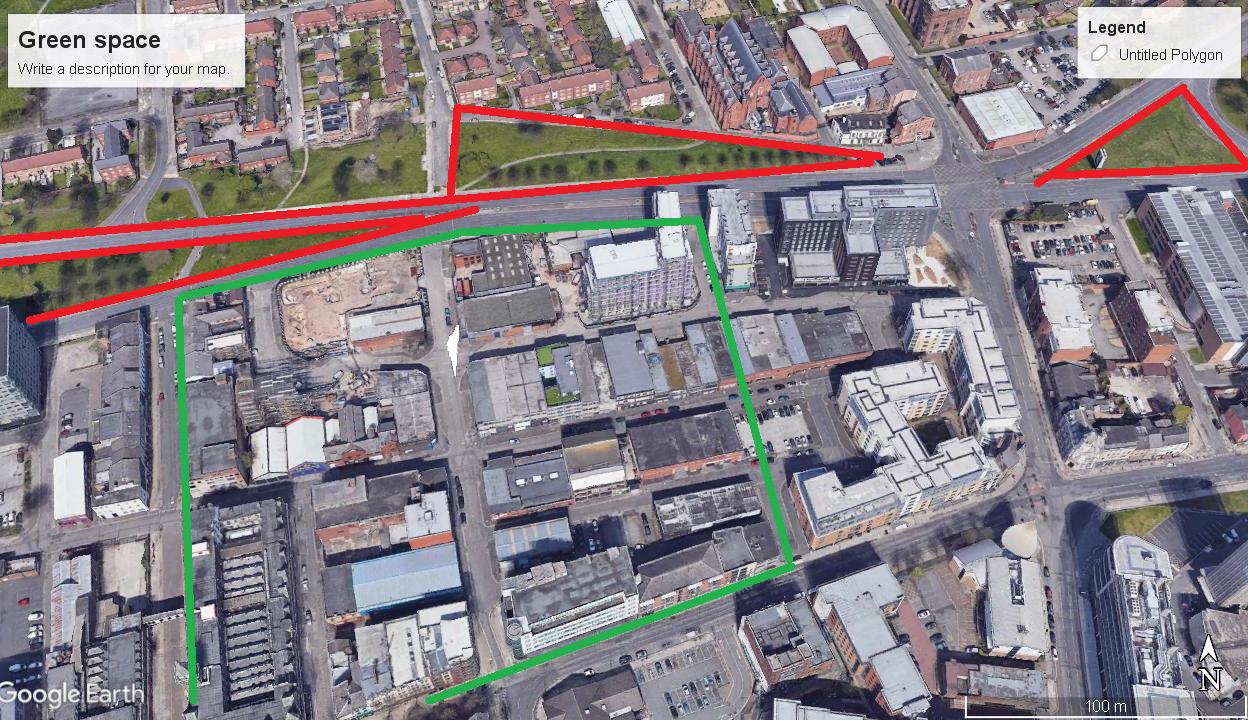

: e only green spaces within the area are located out on the outskirts of the Fabric district

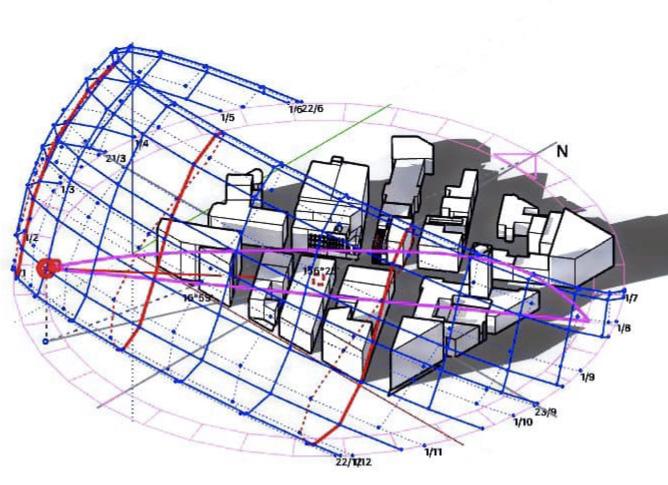

14th- 10:00am May 14th- 10:00am

14th- 2:00pm May 14th- 2:00pm August 14th- 10:00am August 14th- 2:00pm

Jan

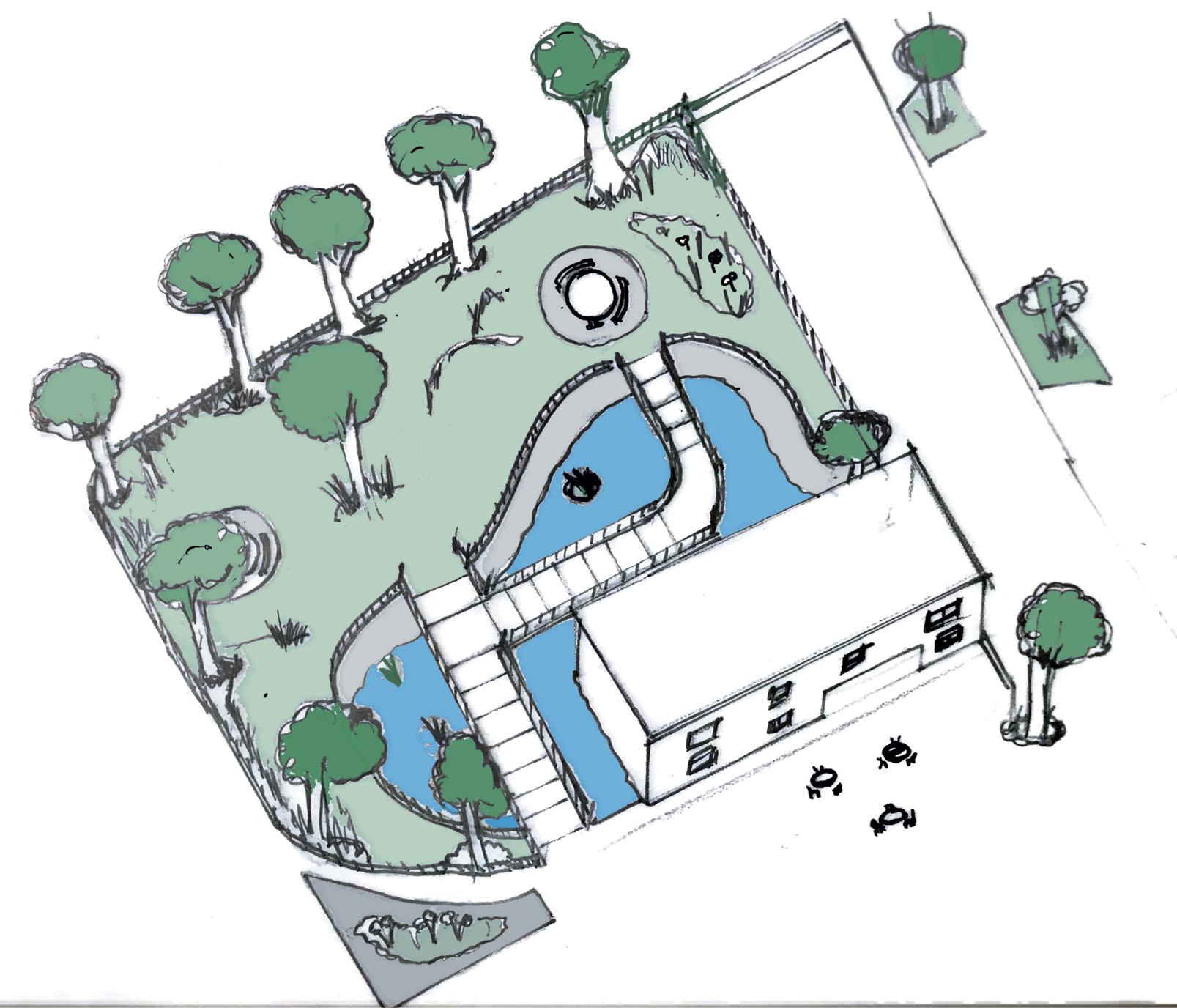

Area will be transformed with greenery and water to attract more animals such as birds and insects whilst remaining as a calm and peaceful area for people to relax.

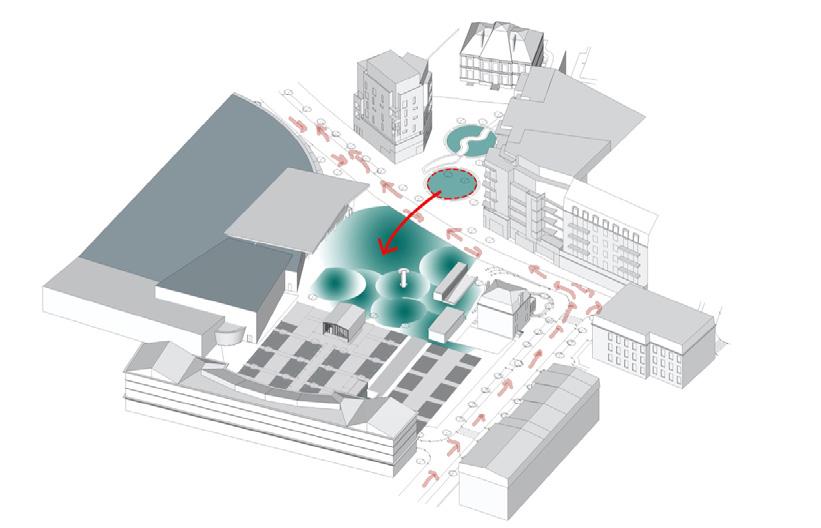

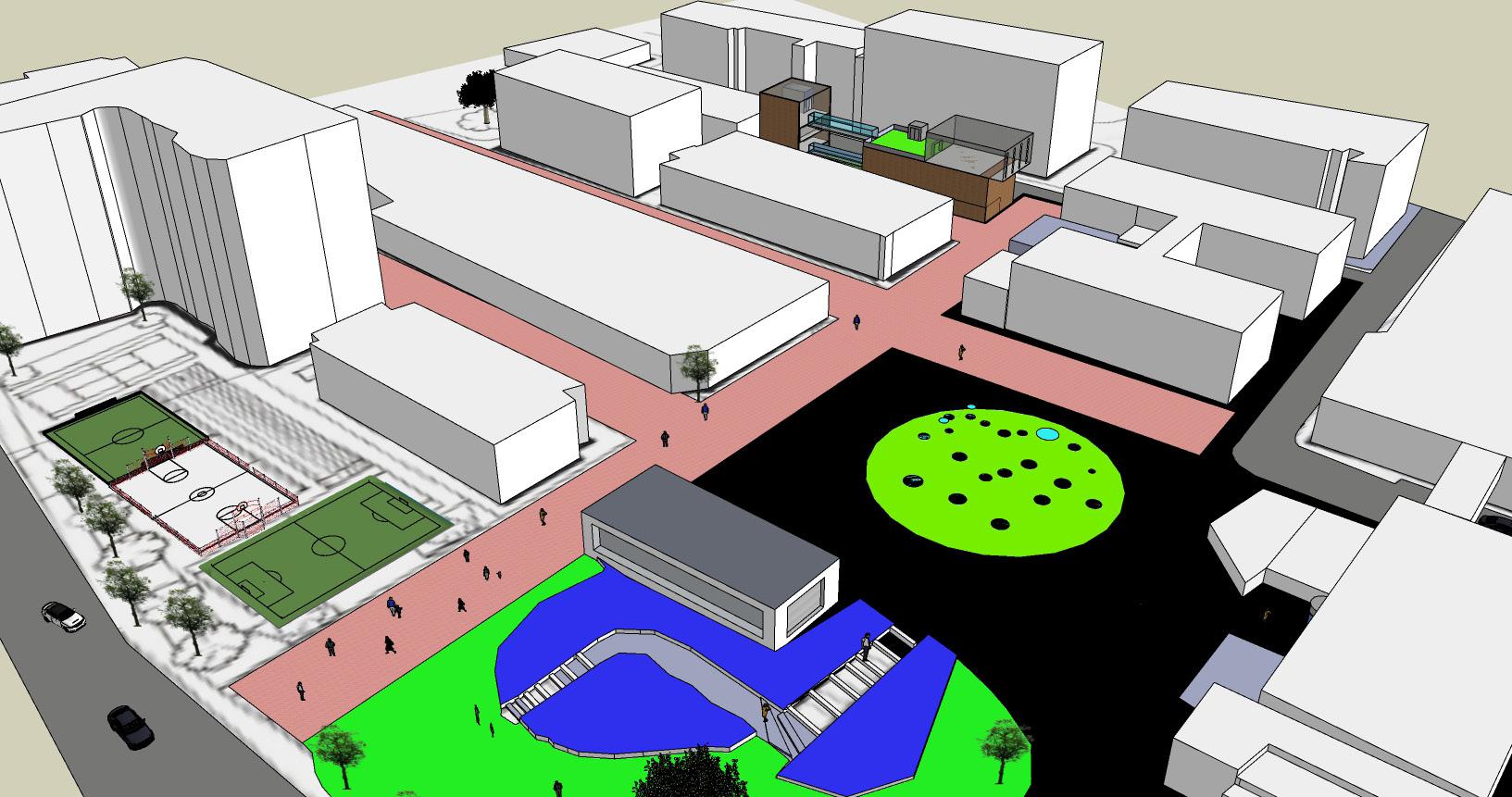

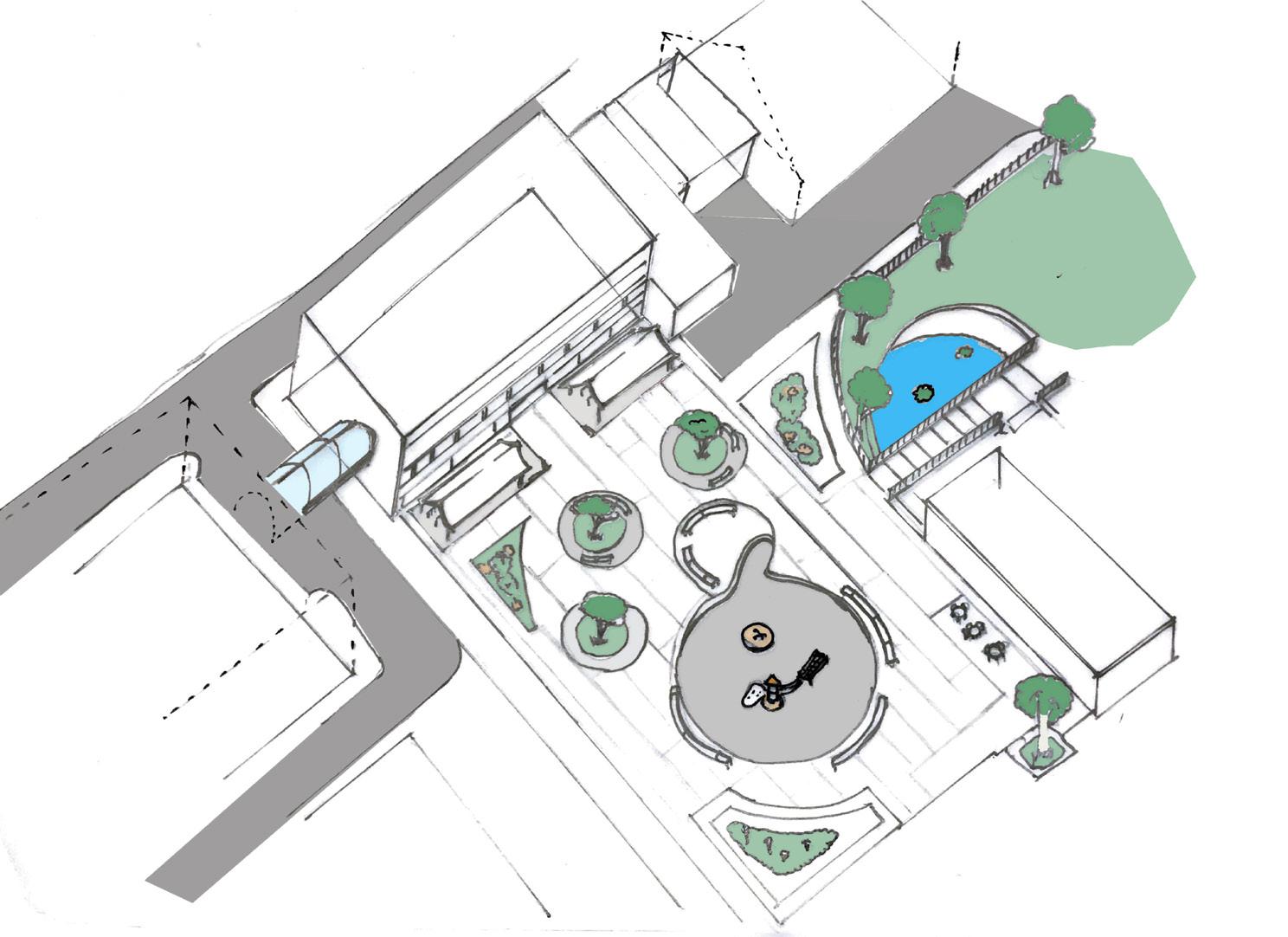

axonometric drawing of proposed green space in Fabric District to improve biodiversity

Trees acting as a natural barrier to separate space from another

Multi sports court area

Pathway connecting spaces

Wooden seating areas for students

20 First Name Surname First Name Surname 21

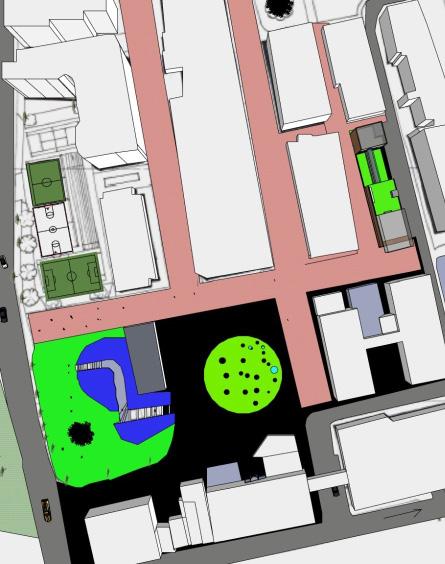

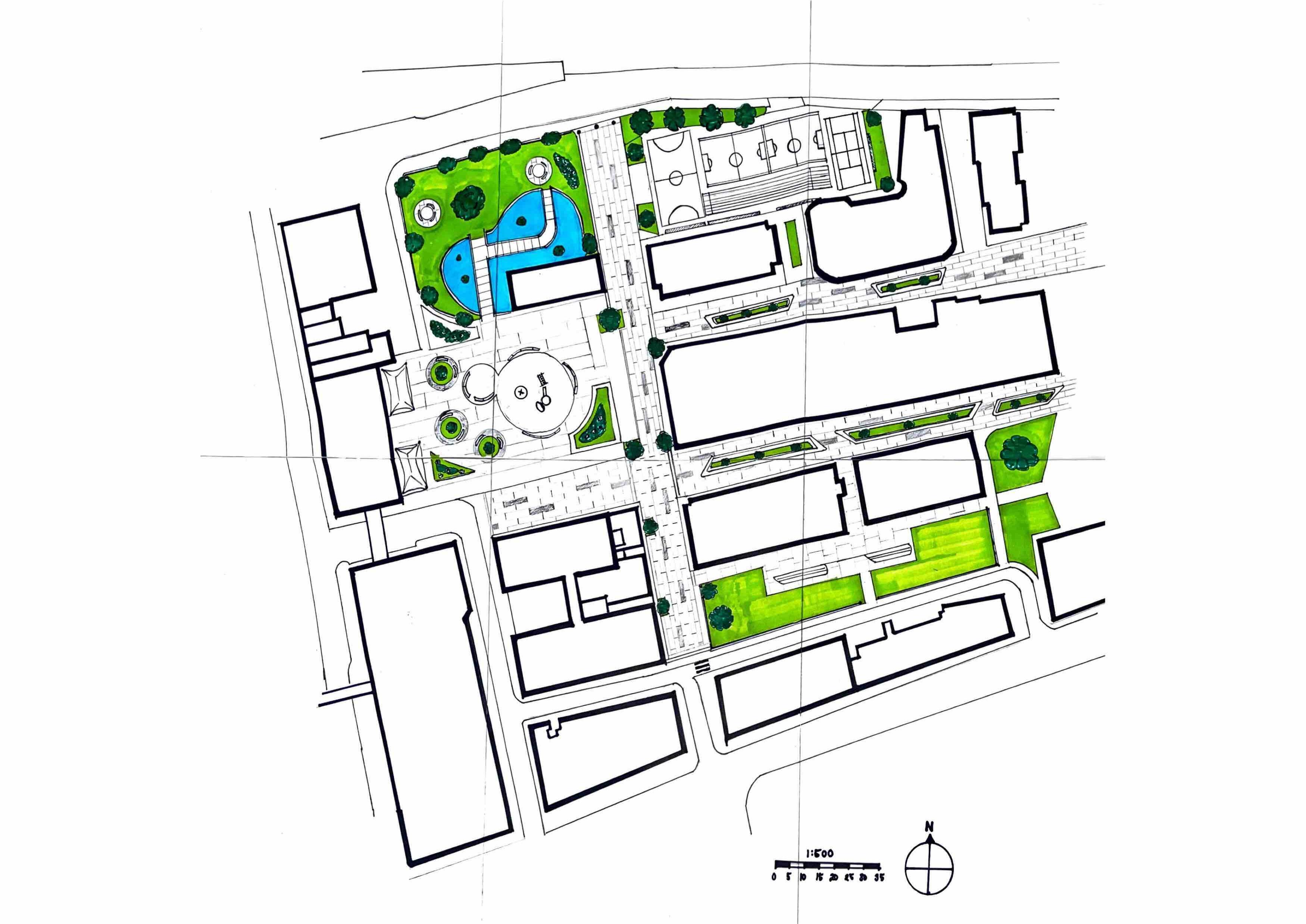

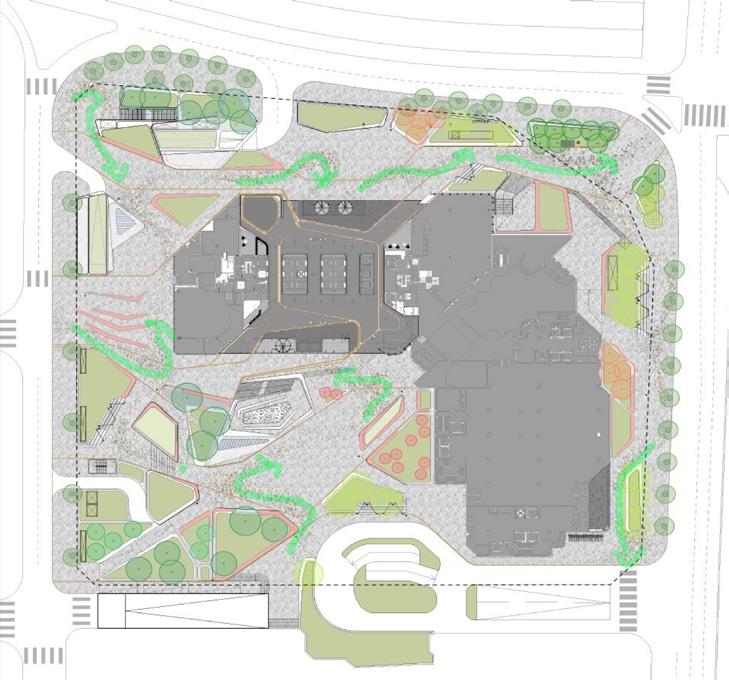

Green spaces that also function as seating areas in space (Highlighted red on plan). ese spaces also include ambient lighting which provides some light during the night.

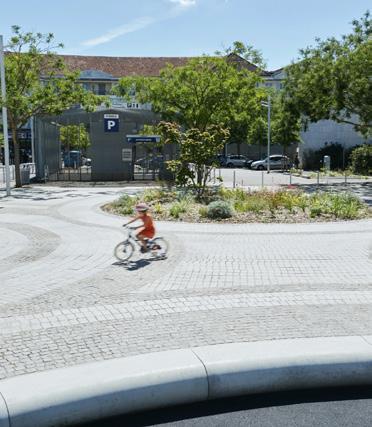

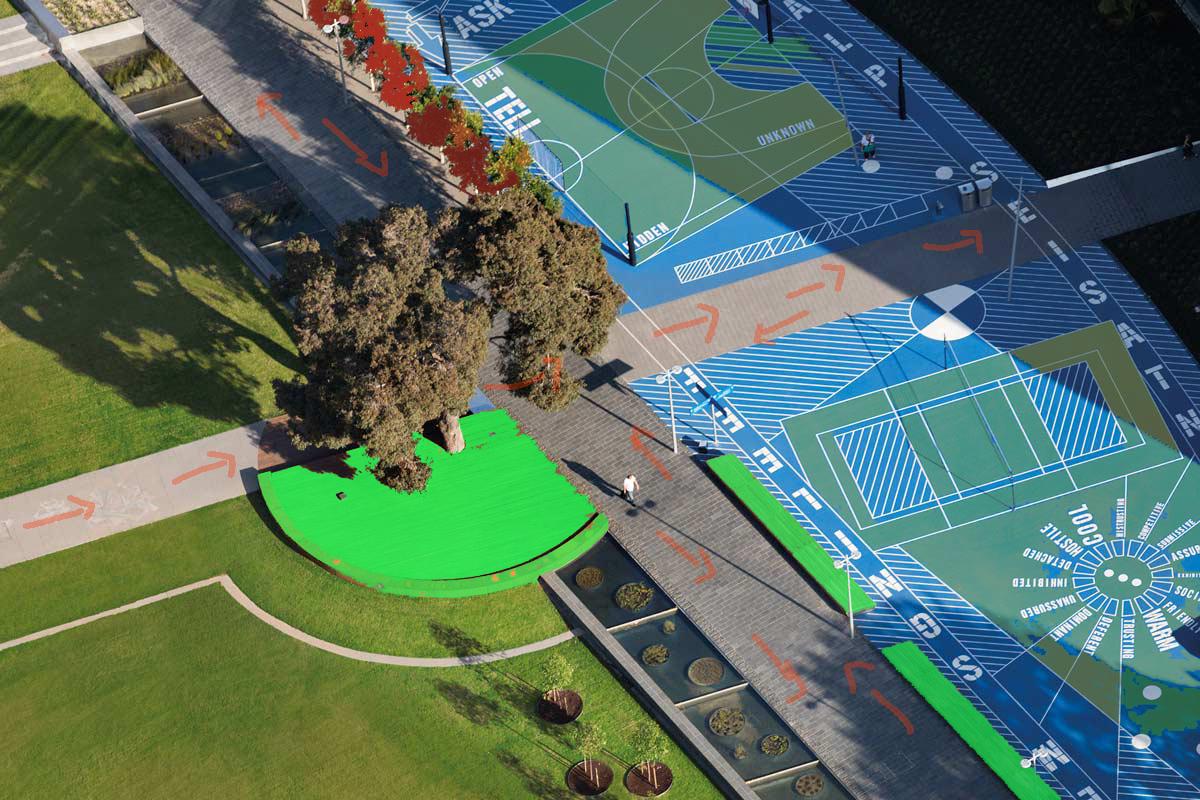

Central space with di erent colour paving designs indicating direction ( shown in green arrows on plan)

Using same idea as following a course adding a rope frame and a spinning wheel as part of the design. Seating on edges for parents watching their children playing.

Market stalls

overhead bridge connecting to TJ Hughes

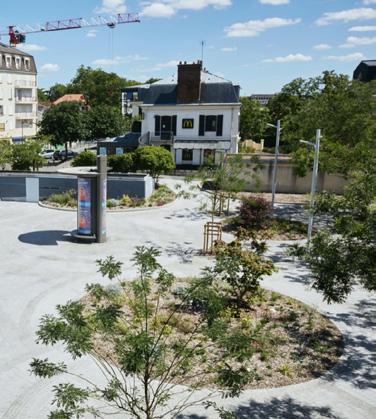

Circular green spaces with concrete seating. Trees provide shade

Multi sports court area

Student accomodation buildings

22 First Name Surname First Name Surname 23

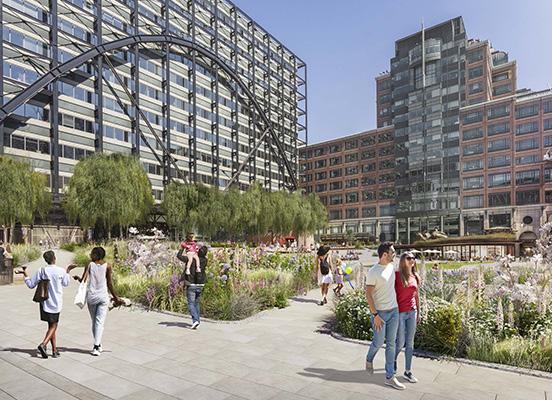

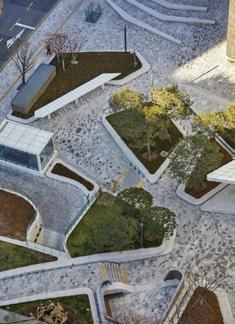

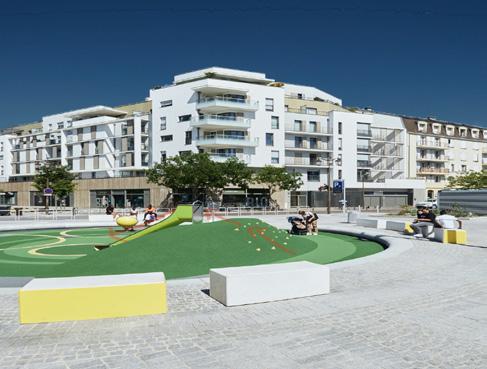

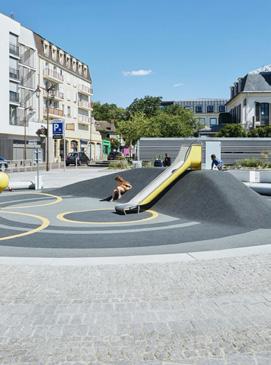

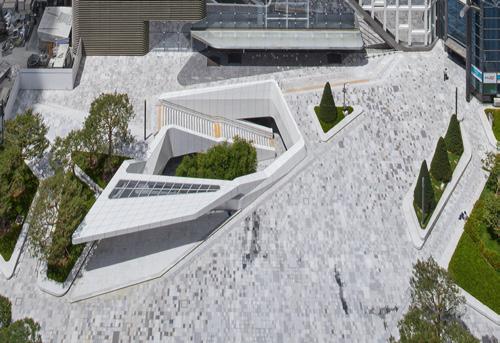

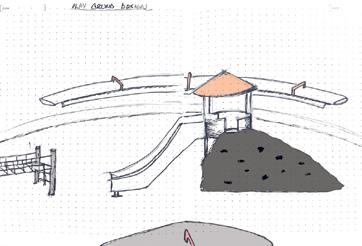

Trees ( Natural barrier) Hanwha Plaza HQ building Small circular green spaces with trees. Some trees provide shading in the space. Play ground area for children made with so rubber surfacing to prevent serious injuries. Imitates an ongoing path of di erent tasks ( climbing up small raised surface with handles to sliding down)

Sports courts

Concrete seating
