01
3d visualization render
Year: 2023
Used Softwares: 3Dmax, Corona, Photoshop (From Referance)
Year: 2023
Used Softwares: 3Dmax, Corona, Photoshop (From Referance)

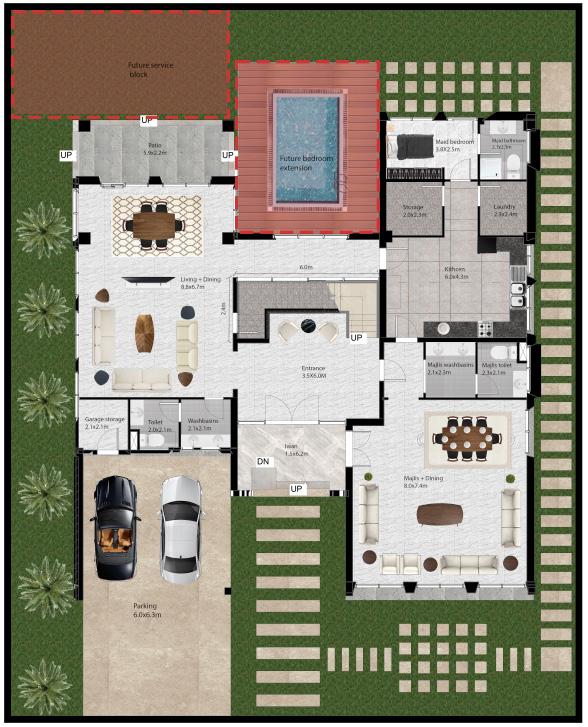

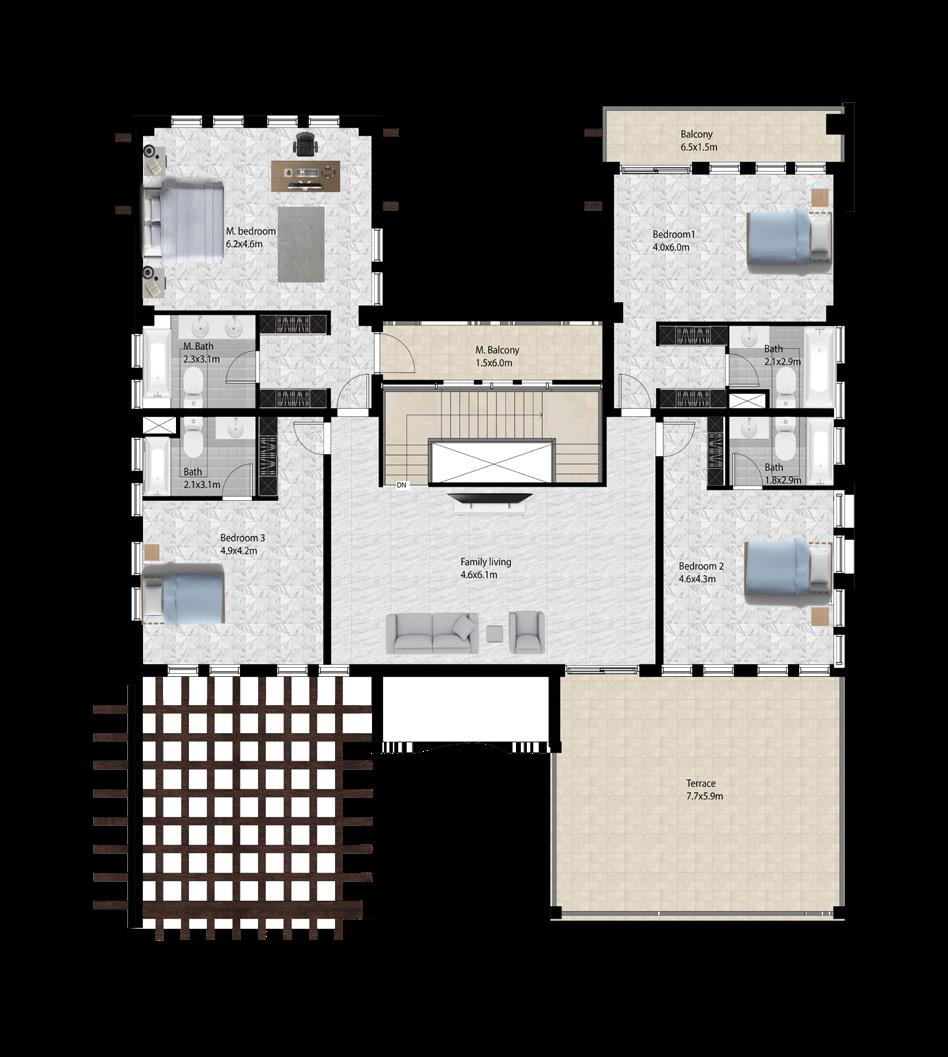

02 the villa
Location: Dubai, United Arab Emirates
Year: 2022
Team: Salwa Mohammed Almaghrabi +2
Used softwares:Revit, Photoshop, Twinmotion
Project breif:-

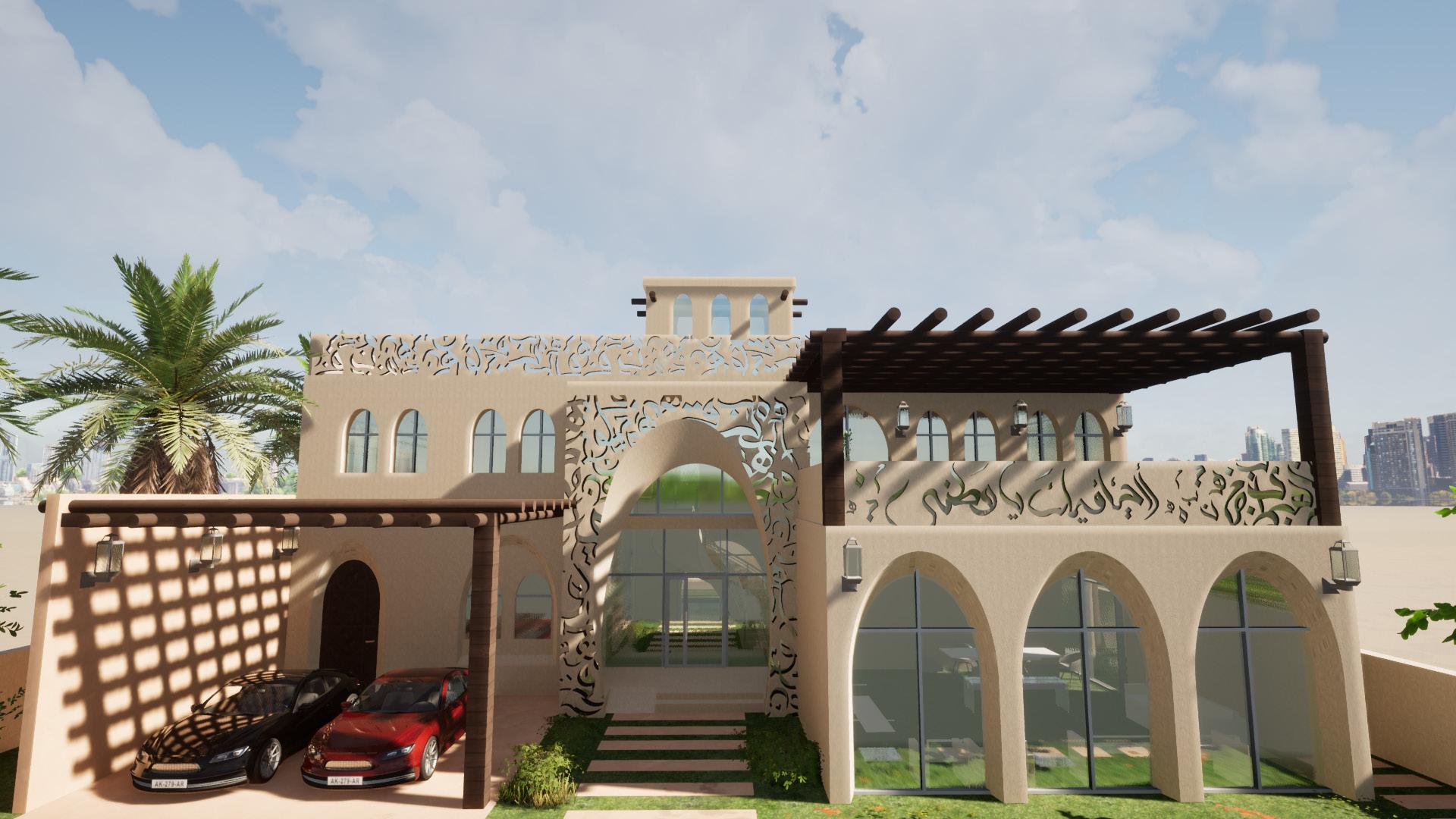

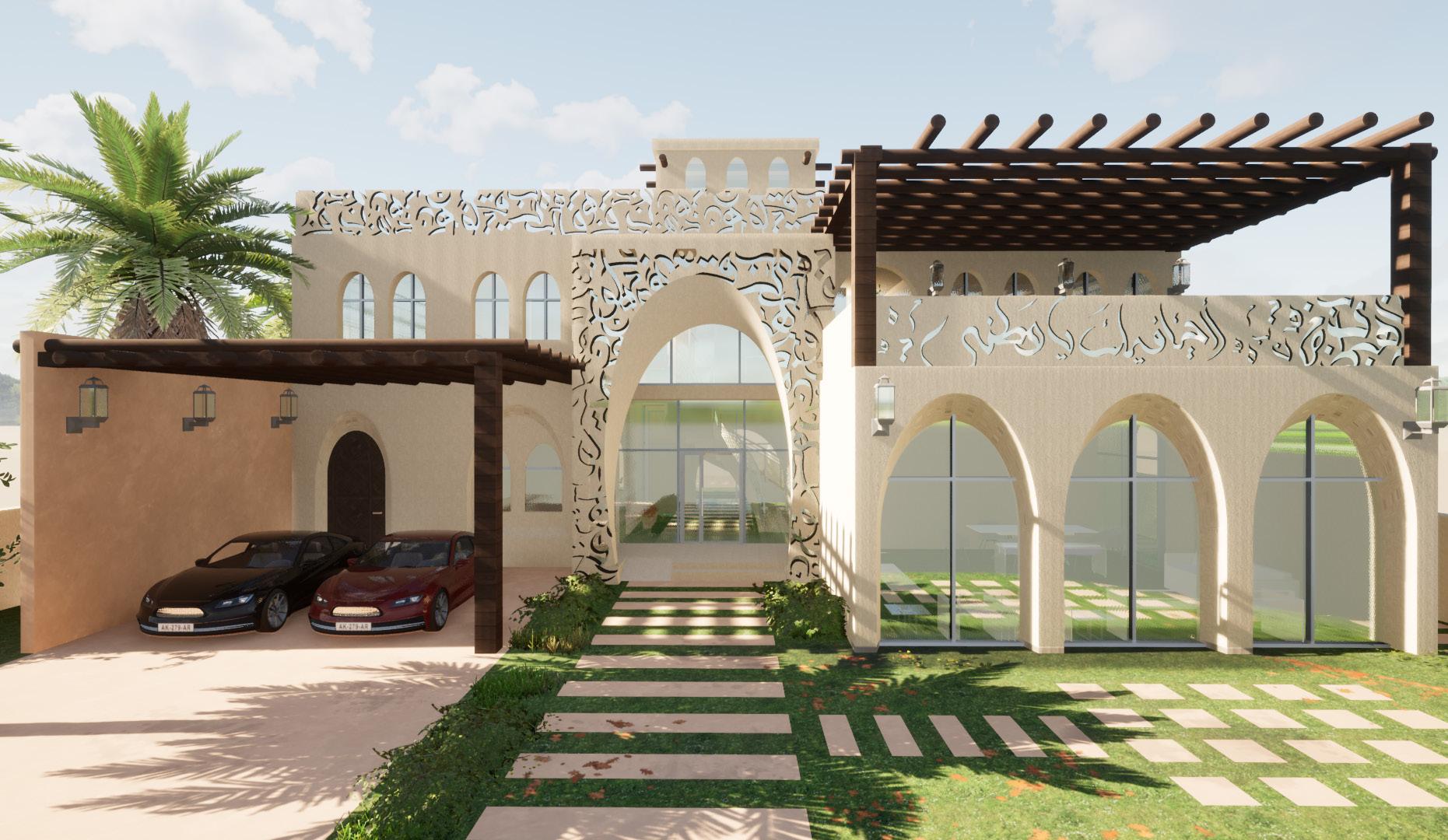

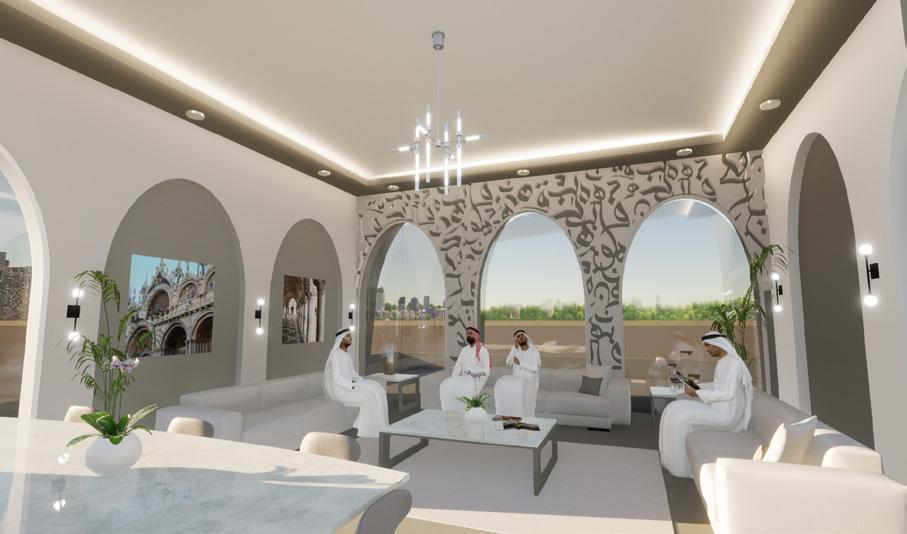

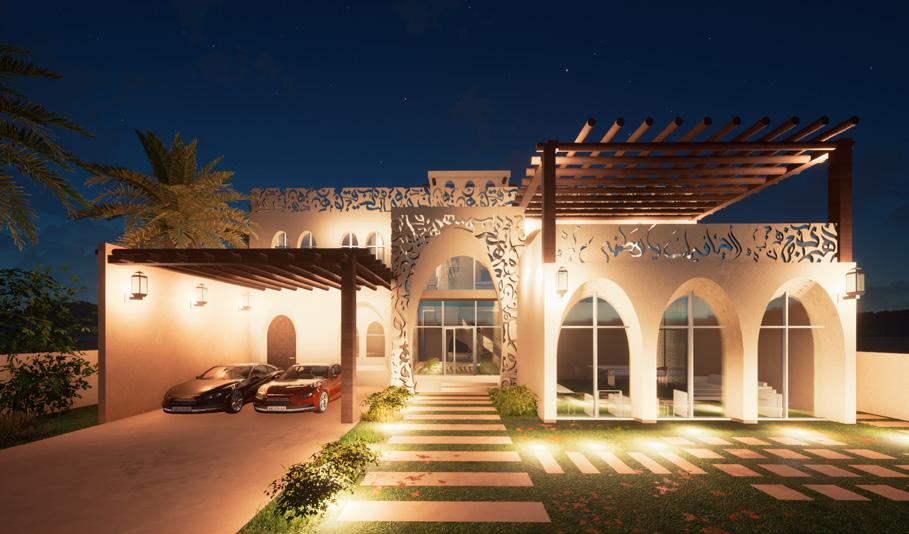

This project Won the first place in Mohammed Bin Rashid Housing Establishment for the Design of housing units Competition ; this villa has been designed to suit the Emarati family. This villa design’s main idea is to integrate the Emarati heritage by adding the Barajeel, the sand color, etc., and the Arabic calligraphy to merge the modern Arabic style with the Emarati traditional house.

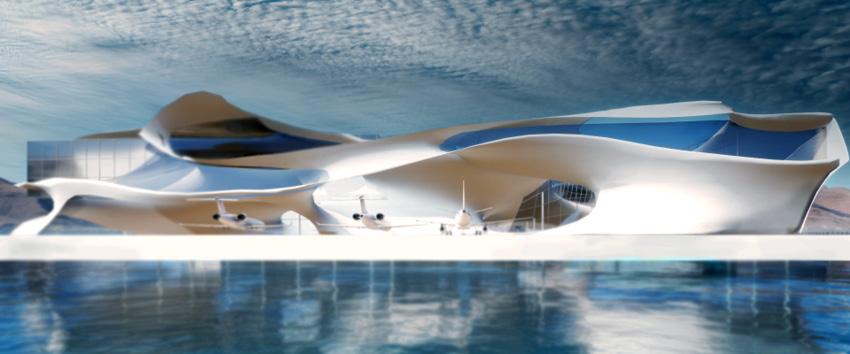

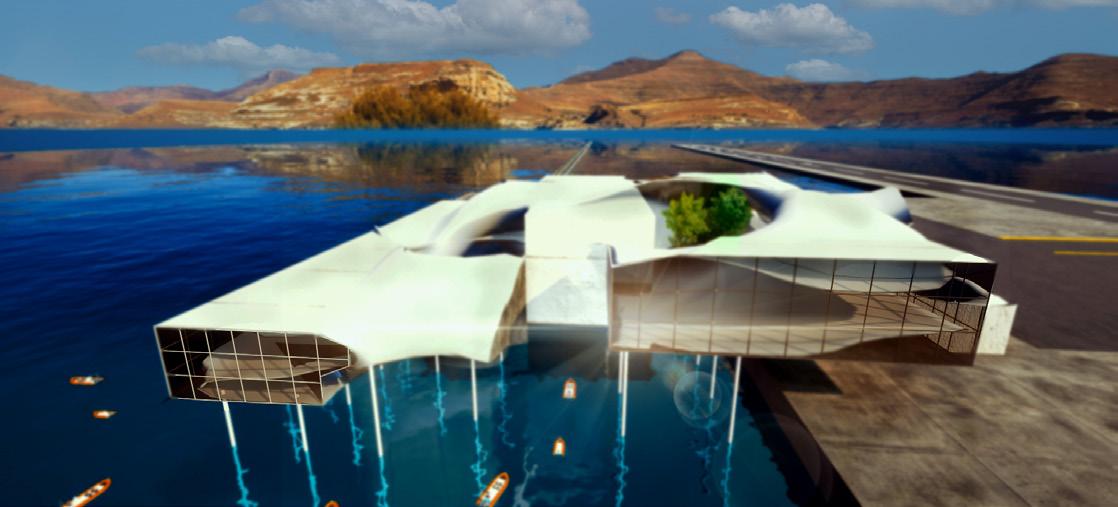

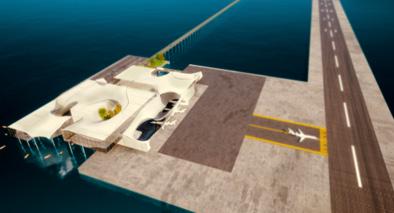

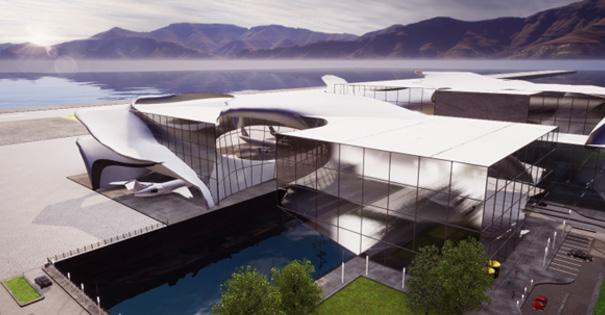

03 spaceport
Location: Khorfakkan, United Arab Emirates
Year: 2023
Team: Salwa Mohammed Almaghrabi +2
Used softwares: Rhino, Grasshopper, Revit, Autocad, Photoshop, Twinmotion
Project breif:-

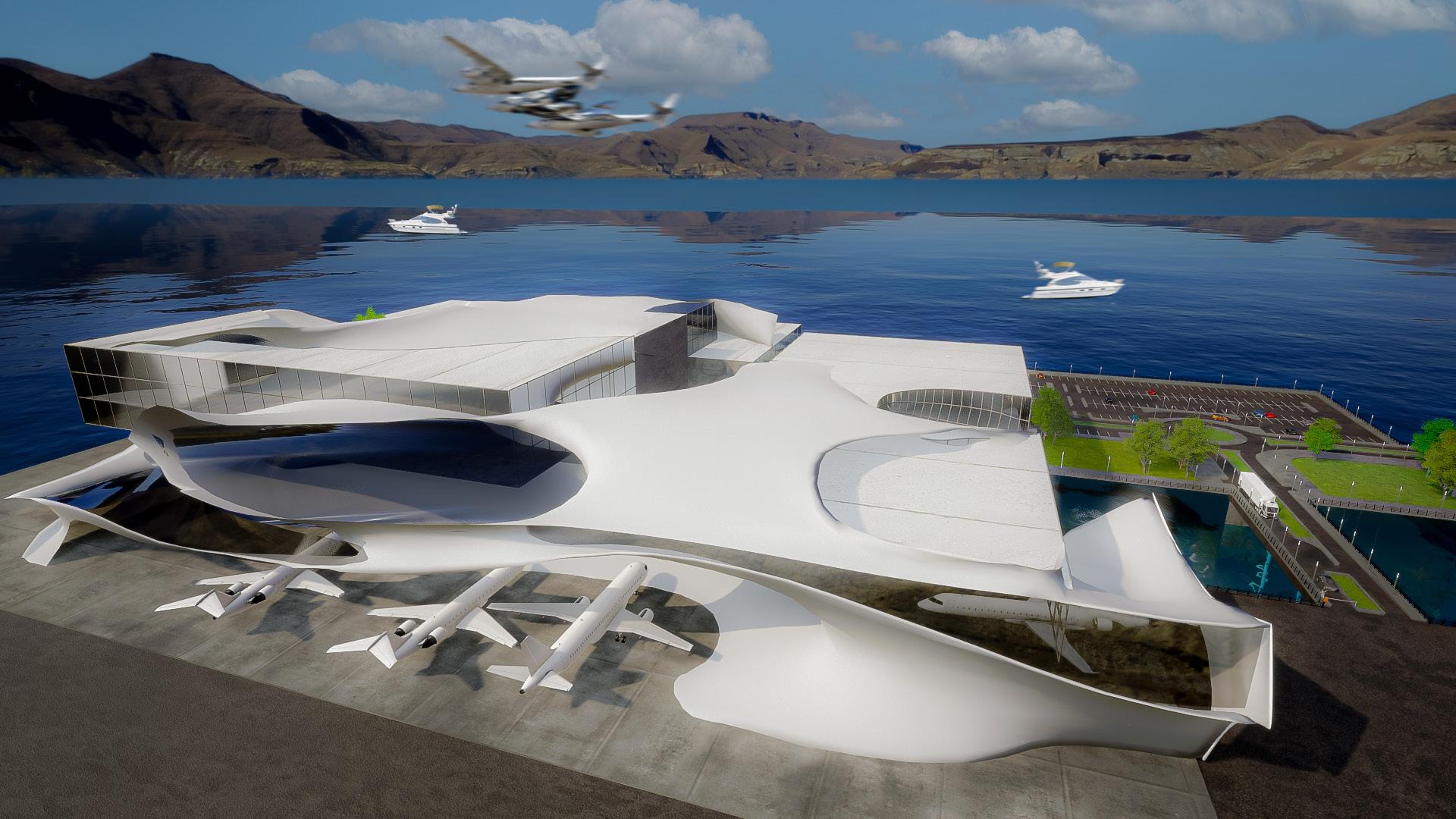

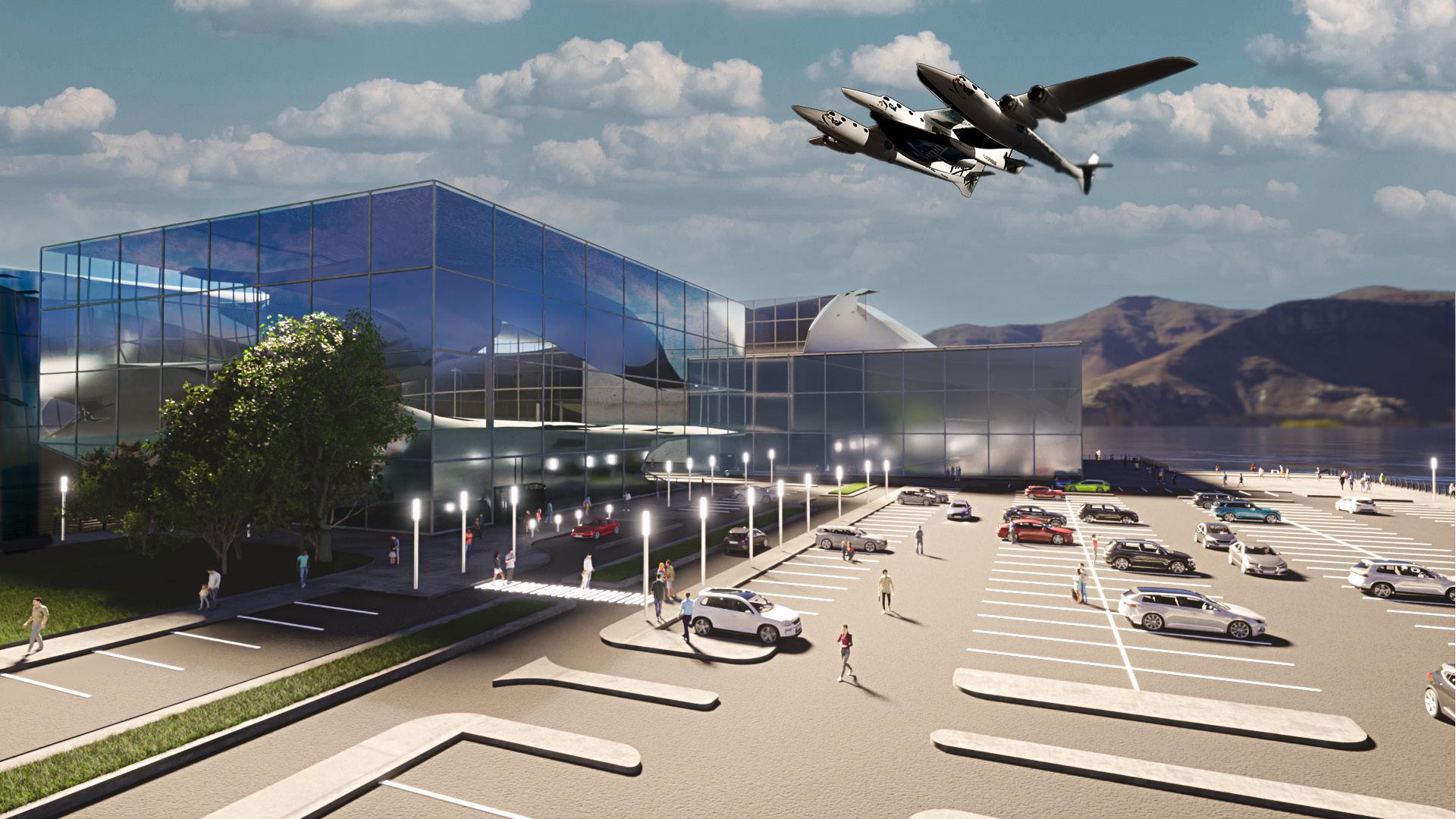

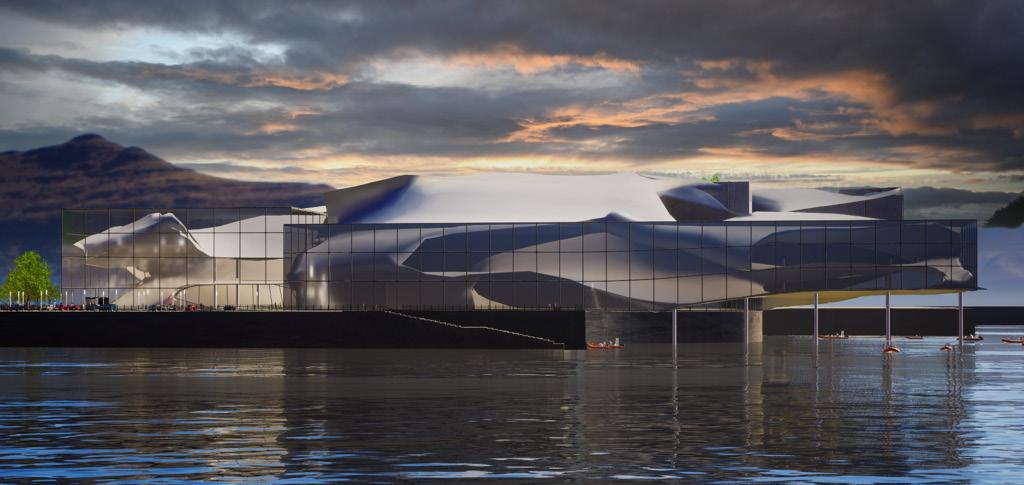

Spaceport is a site for launching spacecraft into space whether for tourism or research,we have chosen spaceport to establish the first spaceport in the UAE which will act as a transportation hub to emerging space projects like mars settlements and NASA space hotel. Moreover having a spaceport in the uae will bring forth a new landmark in the uae which will attract tourists and increase the economic growth of the UAE and based on the study we did we found that having our spaceport on the gulf of Oman in khorfakkan is the best site location.

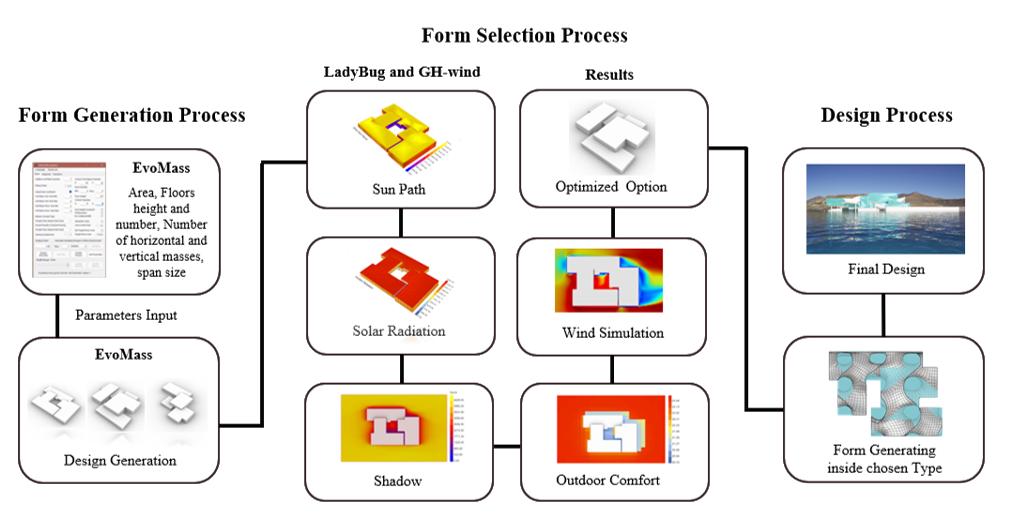

The concept behind this project is to generate a form based on some analysis. At the beginning of the design optimization process, we generated 30 3D masses using EvoMass. After that, we start analyzing the shadow,wind simulation, solar radiation, and thermal comfort for the masses, and we have chosen the most comfortable mass for people. The design process started by generating different Gyroid shapes inside the chosen optimized environmental mass. The Gyroid is a minimal surface that belongs to the Schwarz P and Schwarz D surface families. The gyroid has no straight lines or planar symmetry; it is a triply periodic minimal surface.

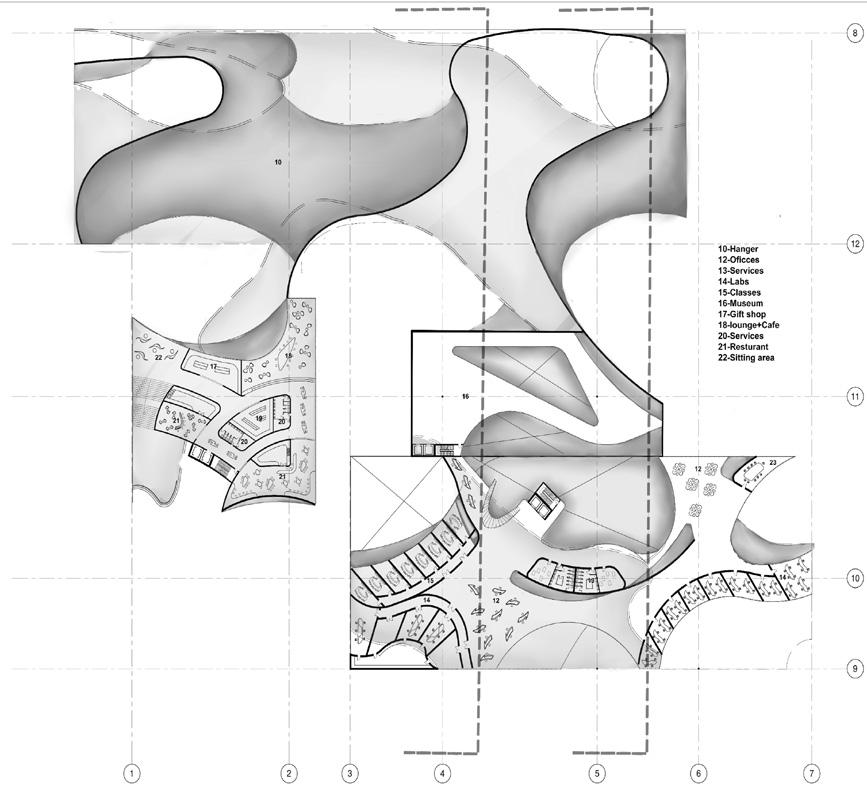

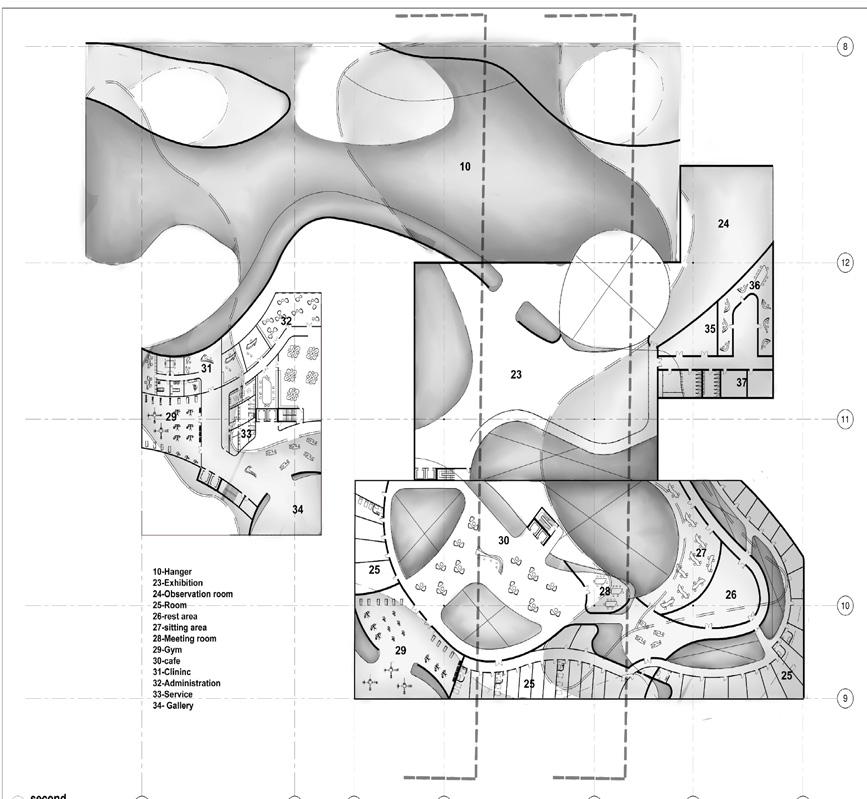

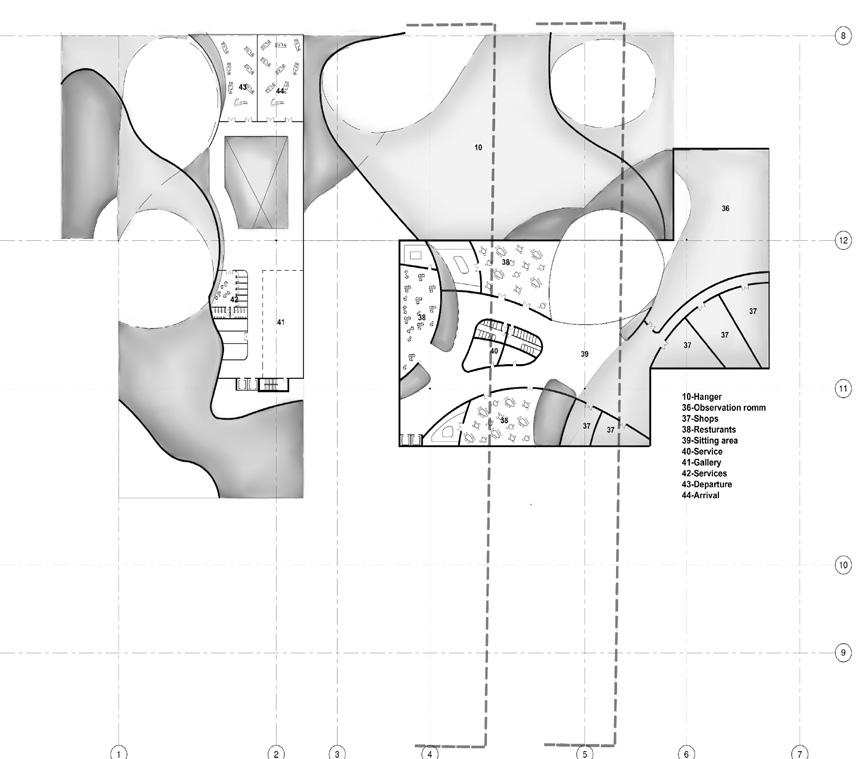

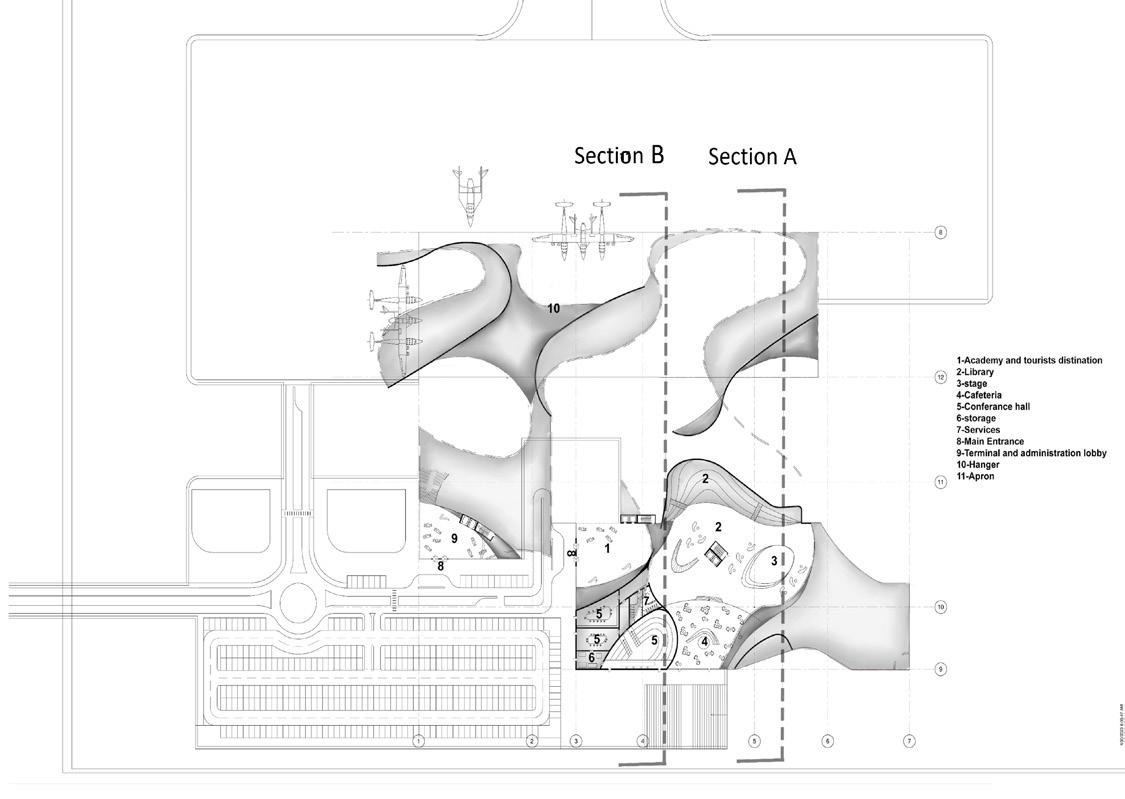

The project has been divided into five zones: Terminal, administration, tourist destination, academy, and exclusive area. The building consists of four floor plans. Different facilities were distributed in detail for each zone as shown in the plans.

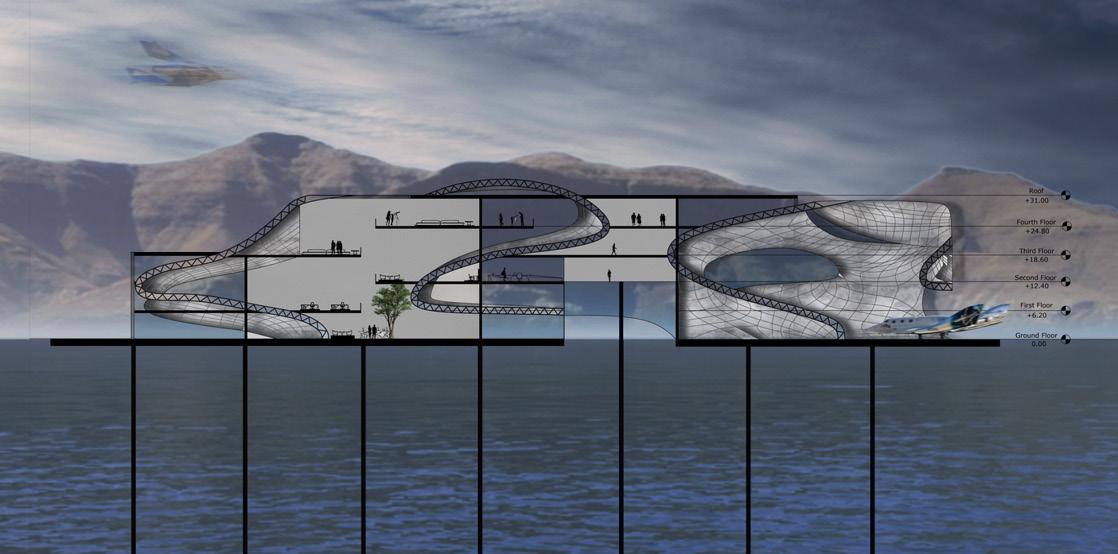

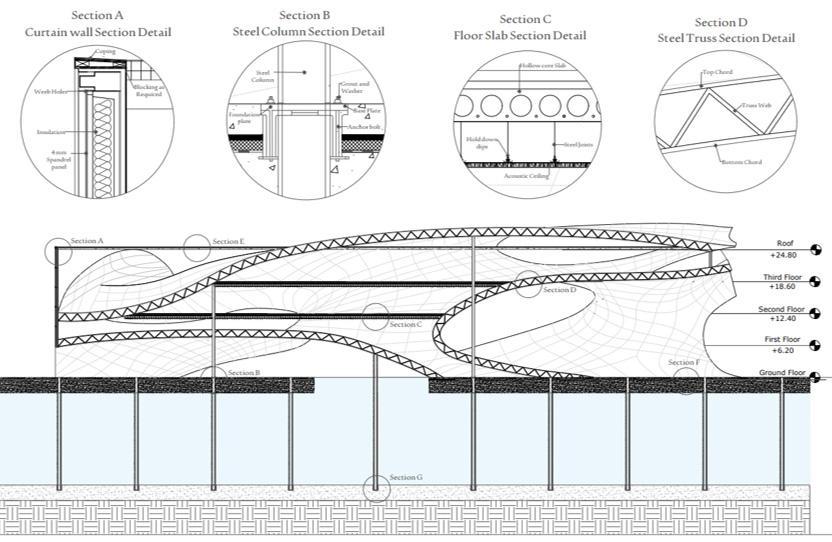

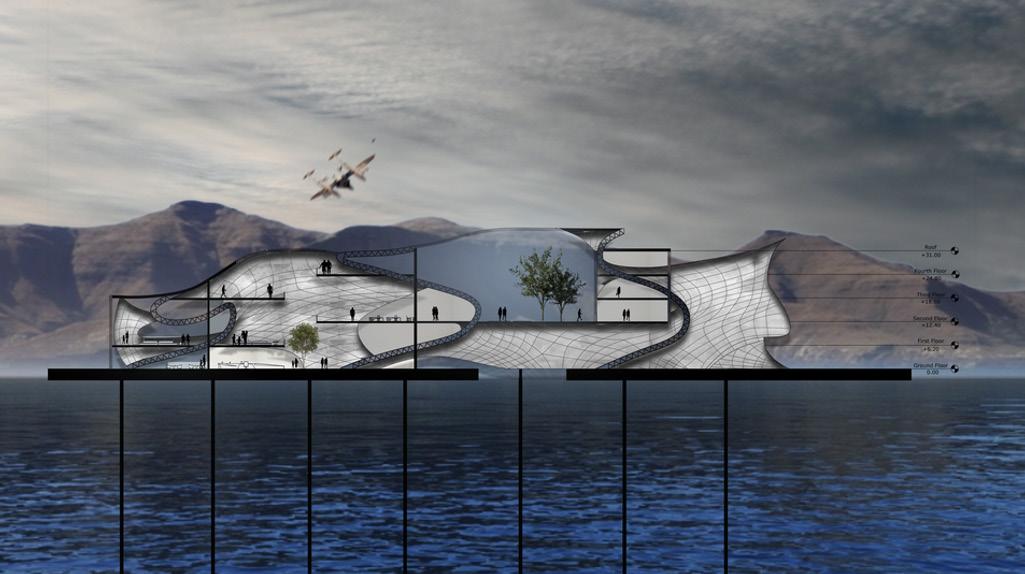

Sections shows the fluidity inside the building and how does the minimal surface disributed the zones and the areas inside the building. the structural section of the gyroid, including features of the curtain wall, hollow-core slab, and steel truss system used with the gyroid and steel columns underwater.
04 connectivity
Location: Sharjah, United Arab Emirates
Year: 2022
Team: Salwa Mohammed Almaghrabi +3
Used softwares:Revit, Autocad, Photoshop, Twinmotion
Project breif:-

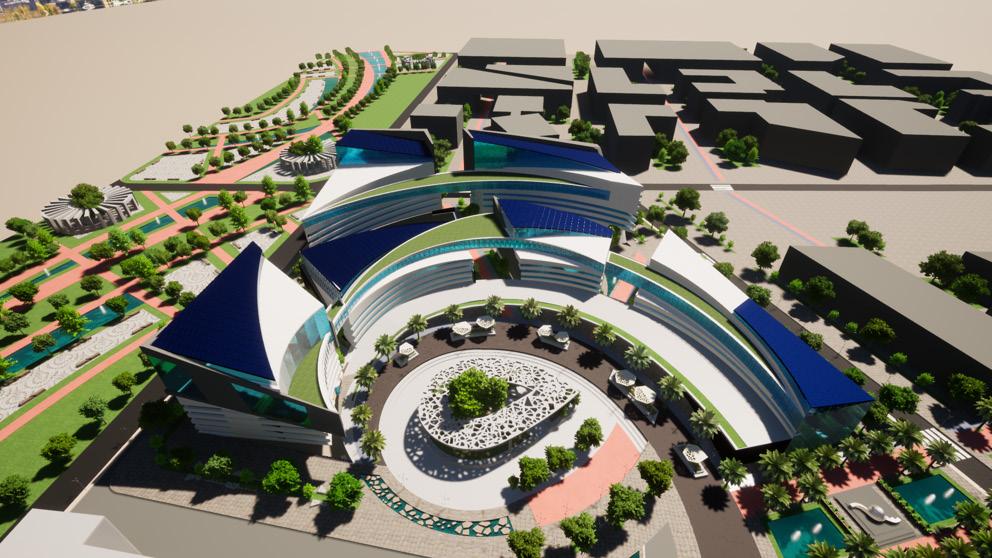

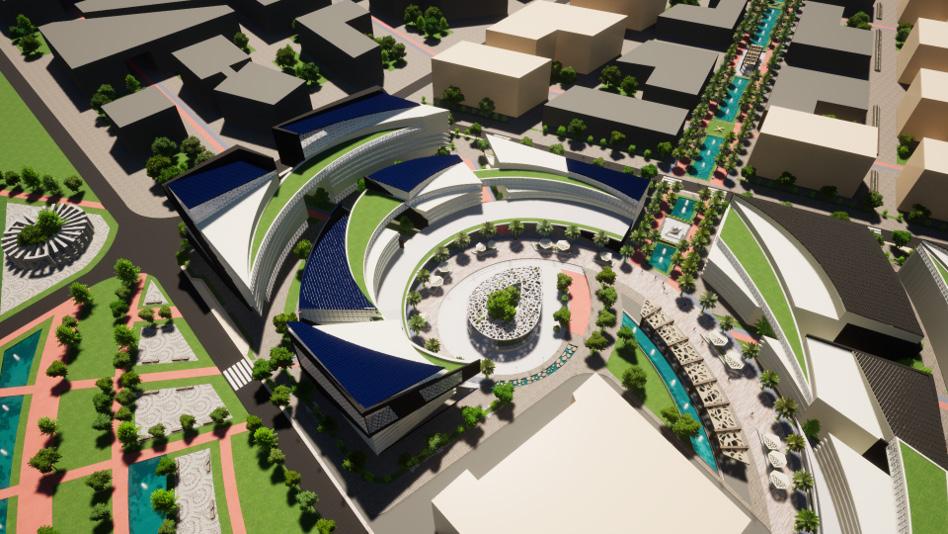

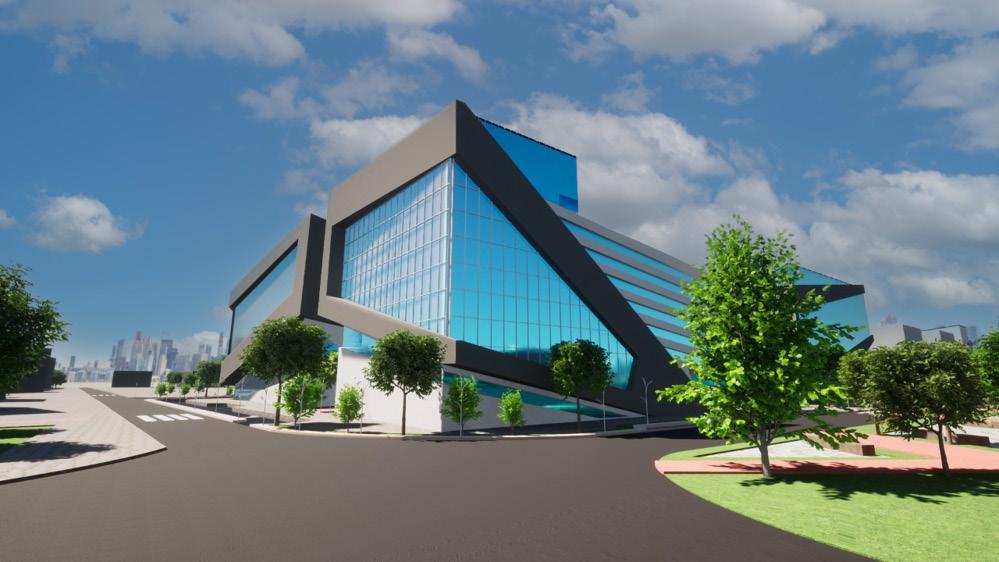

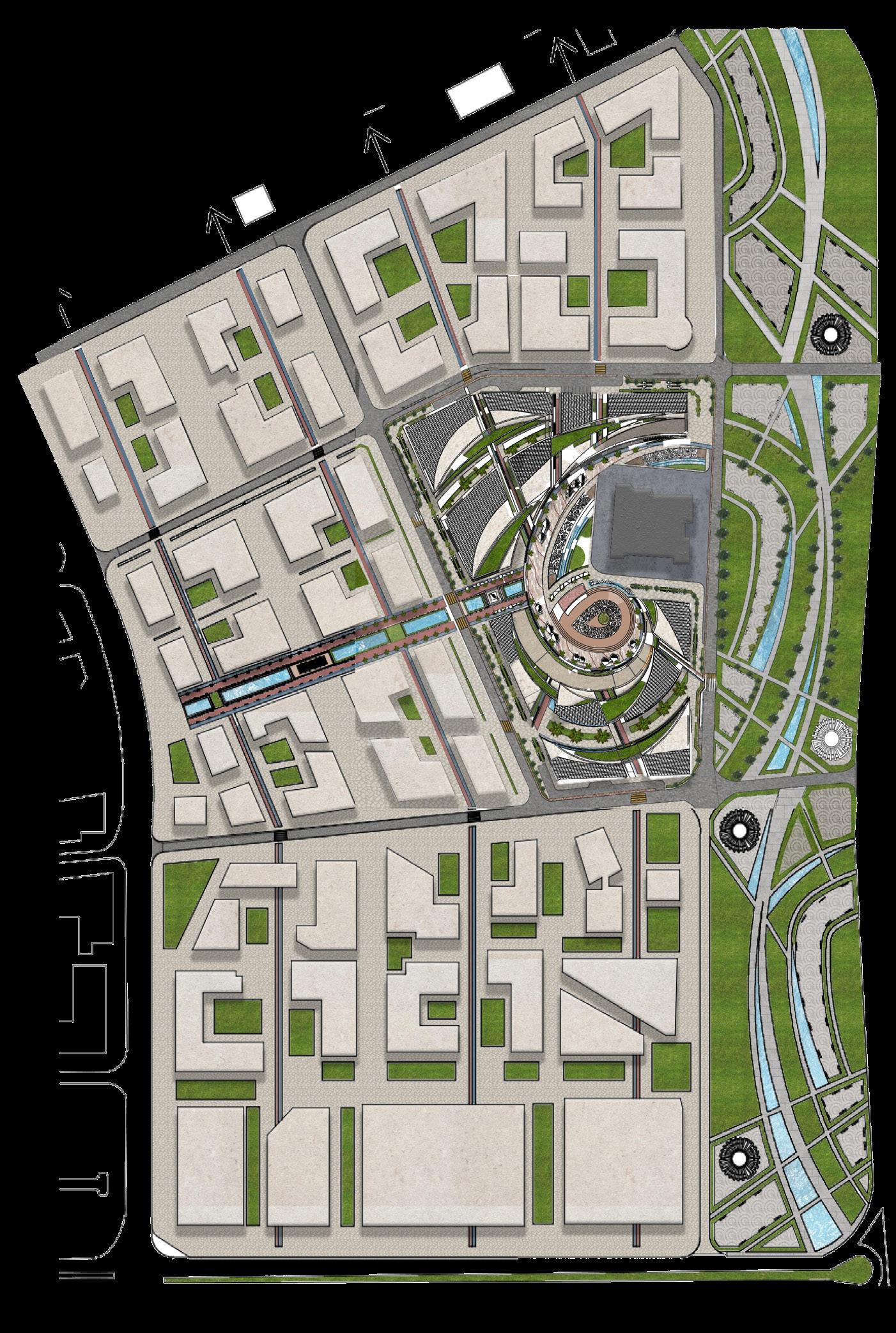

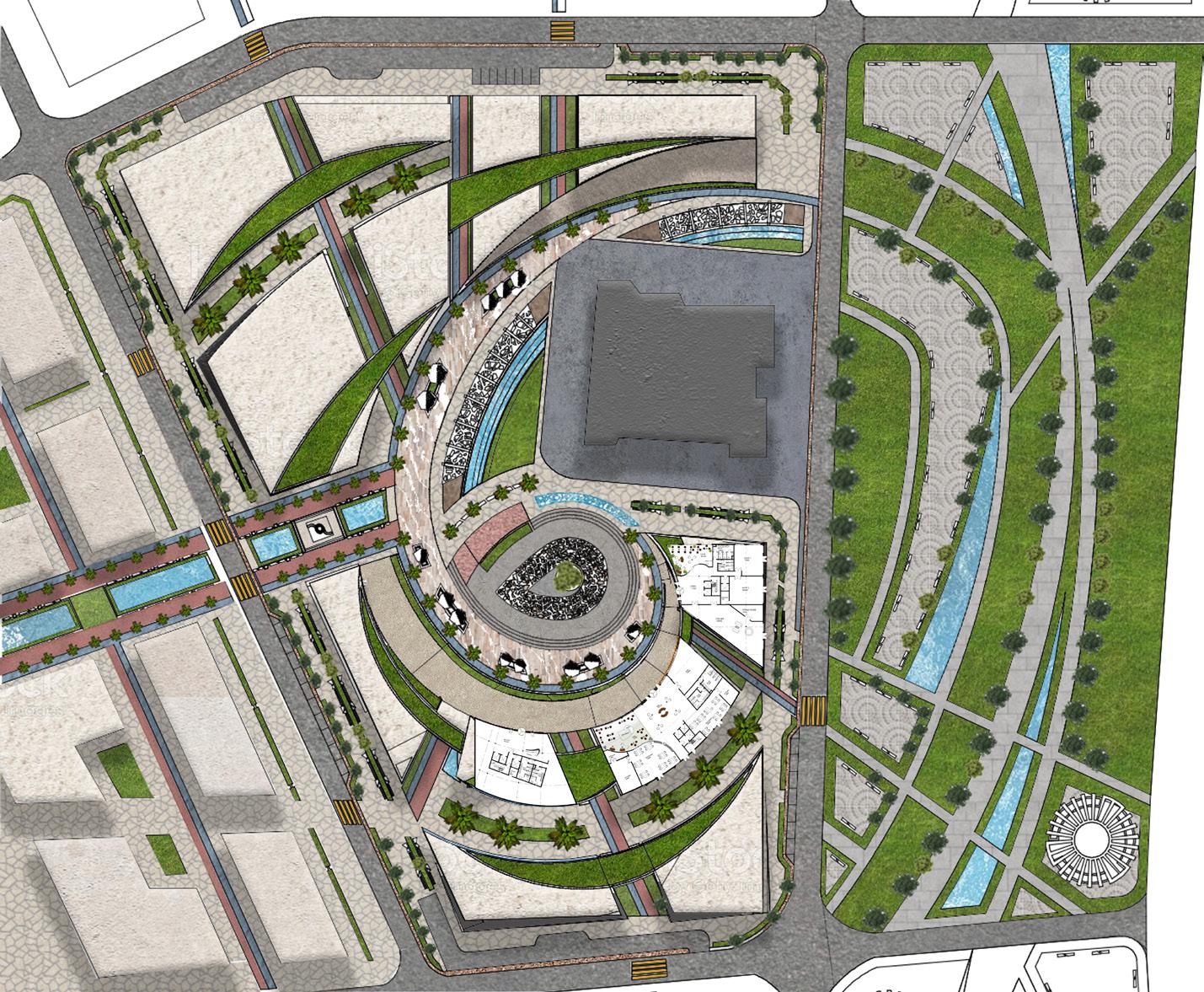

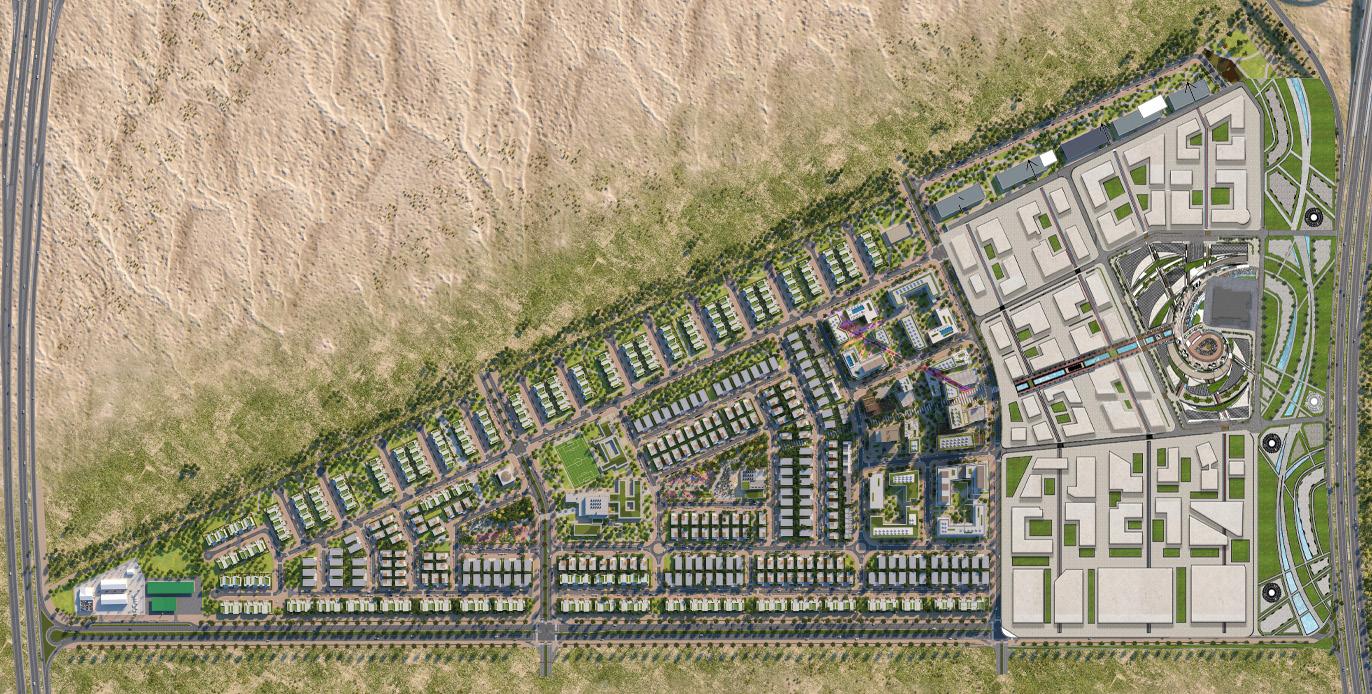

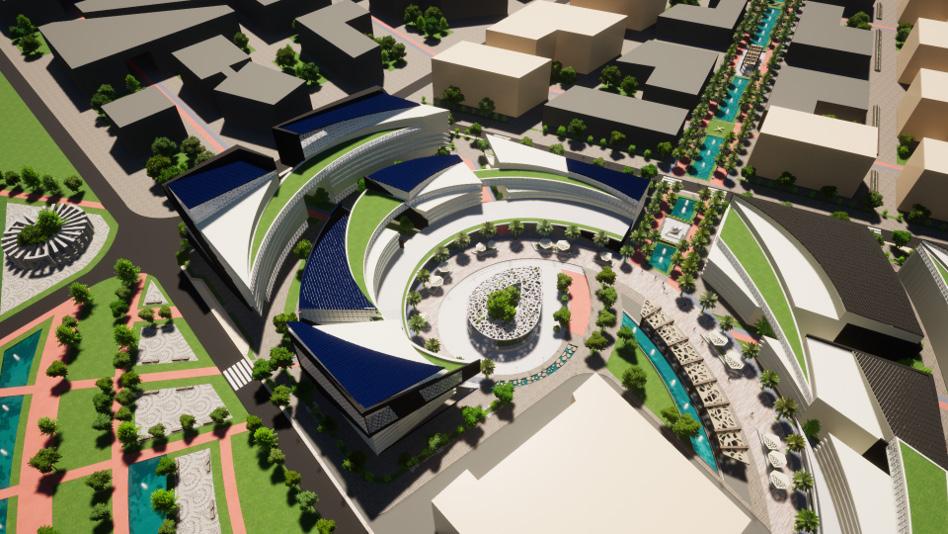

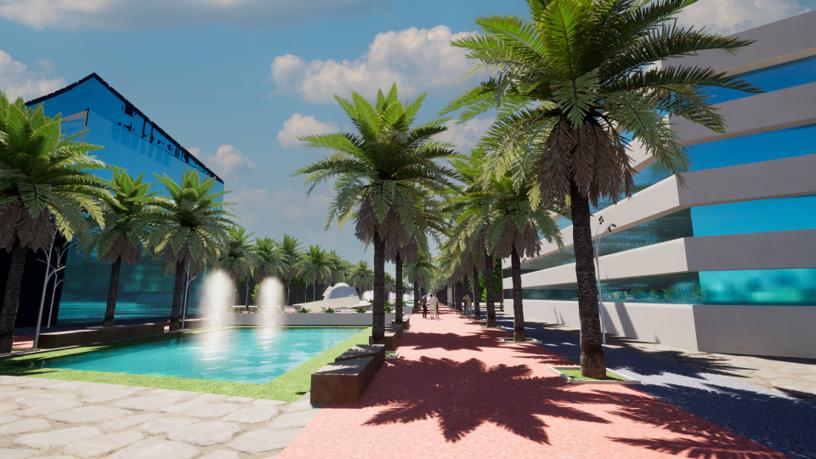

Connectivity is an urban planning project that is located in the Emirate of Sharjah, UAE, specifically in Sharjah Media City (Shams). The development is planned as mixed-use and will include a combination of residential, commercial, hospitality, and retail units. the boundry of Shams, which encompasses an area of about 100 hectares.

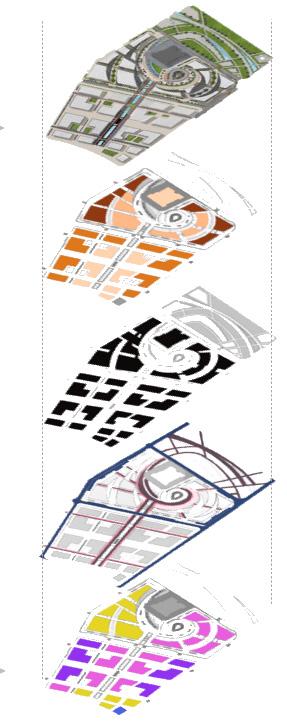

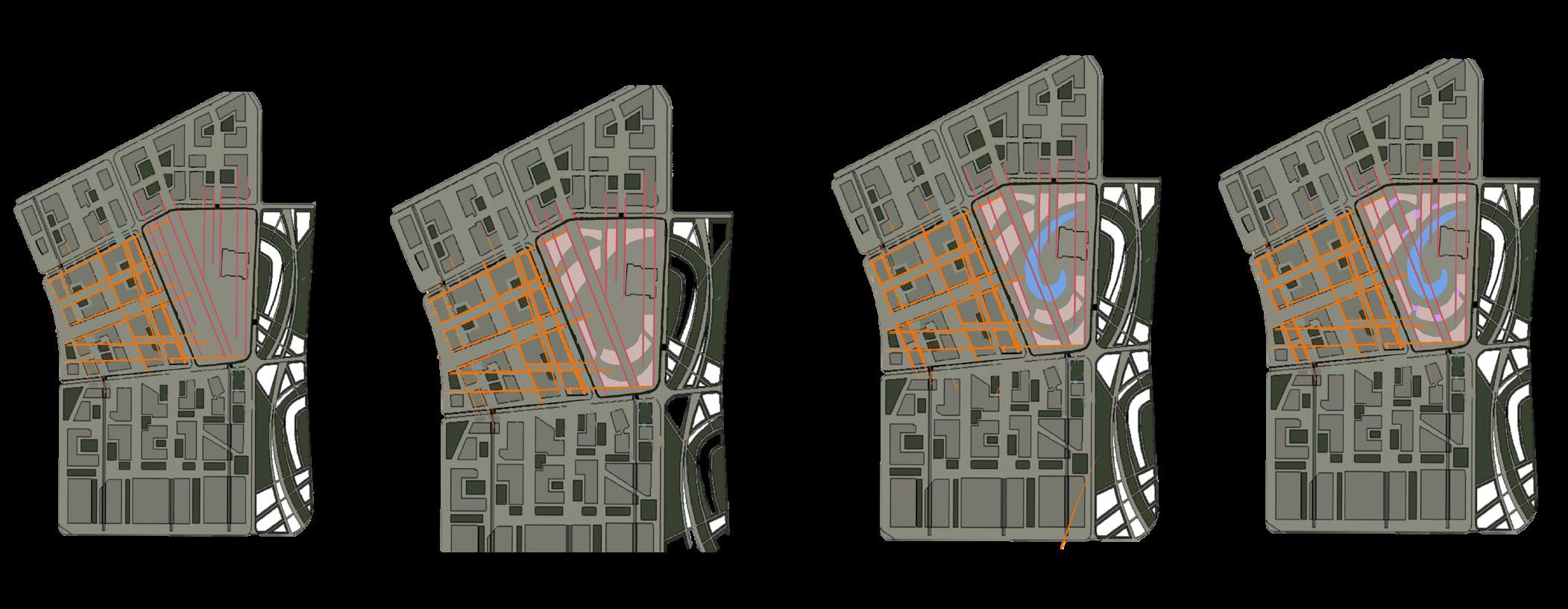

Design Process

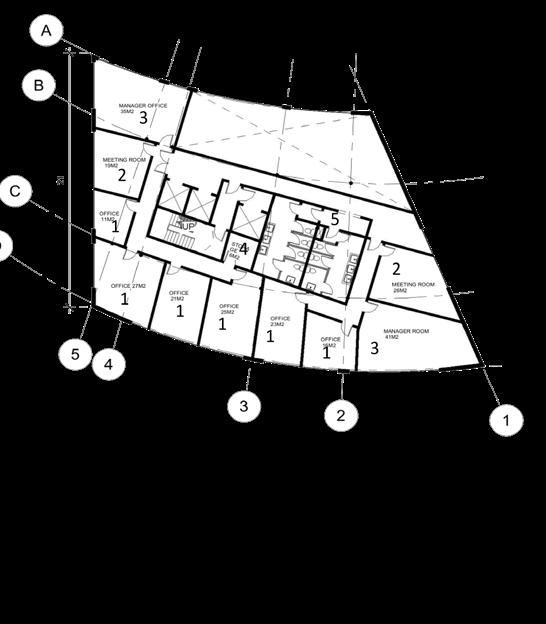

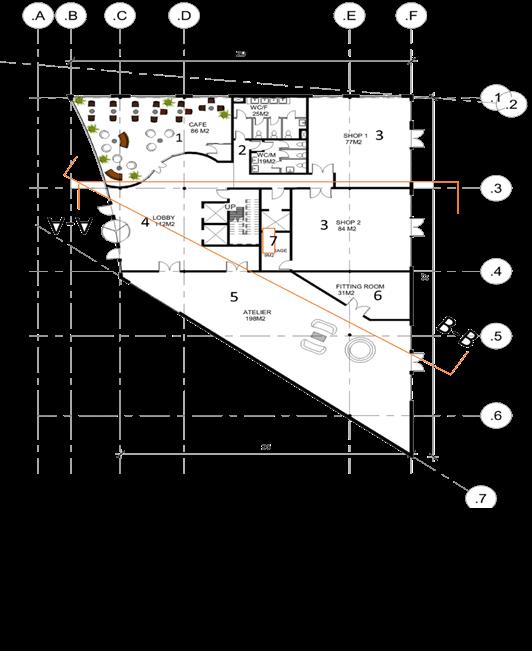

Buiding 1

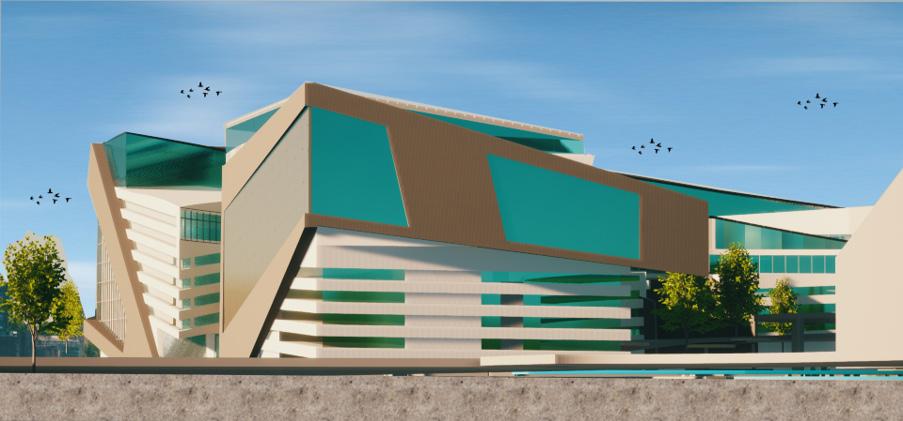

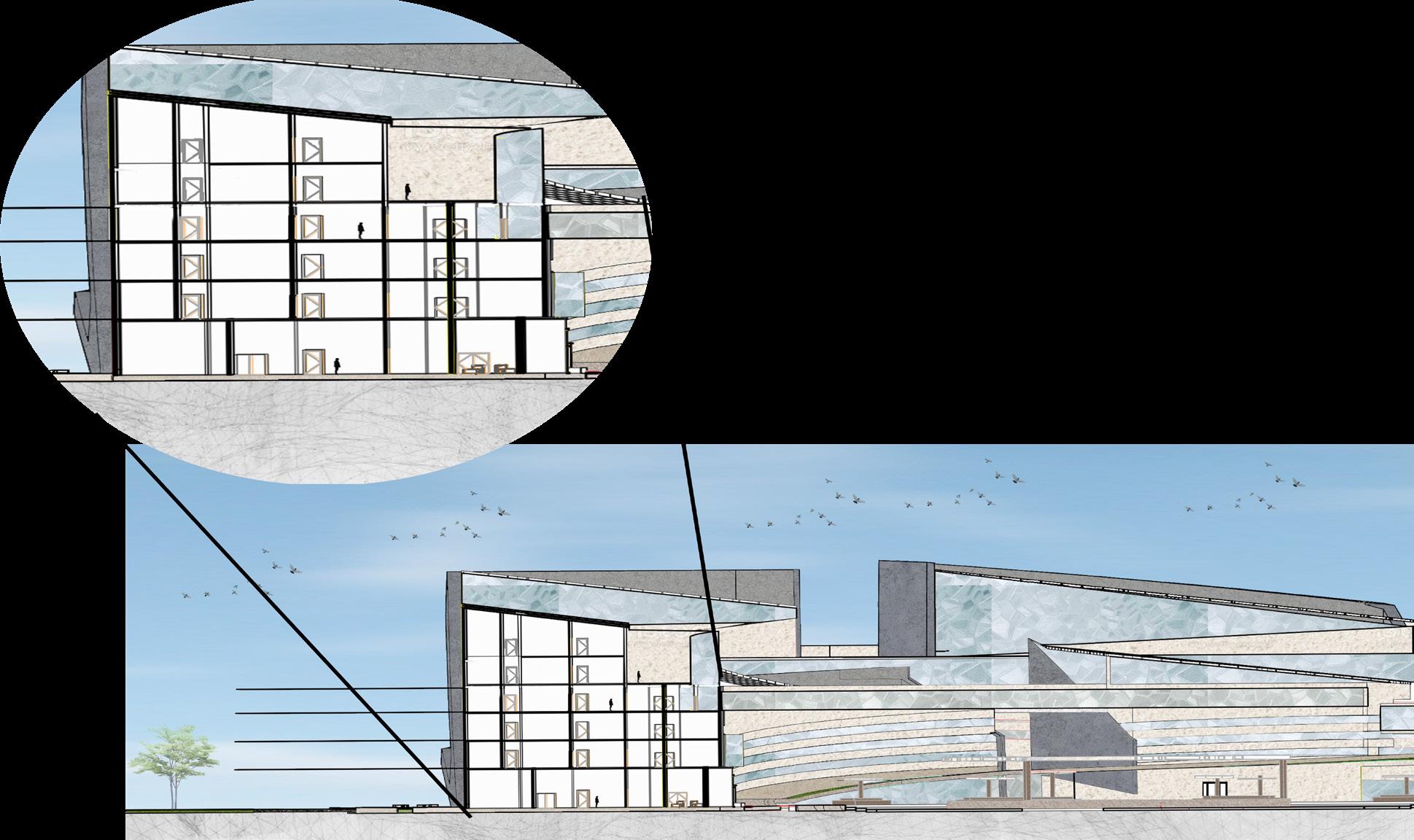

Architectural Section

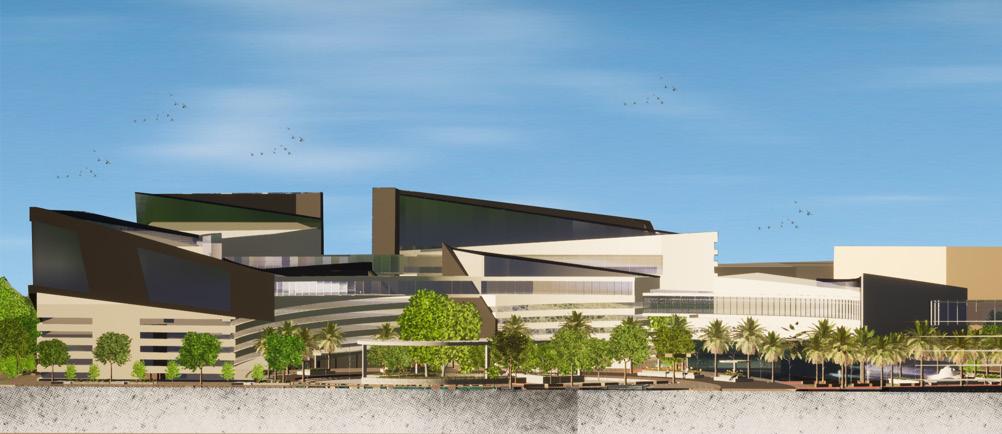

Urban Section
05 installations
Year: 2022
Team: Salwa Mohammed Almaghrabi
Used softwares:Rhino, Grasshopper, Lumion
Project breif:-

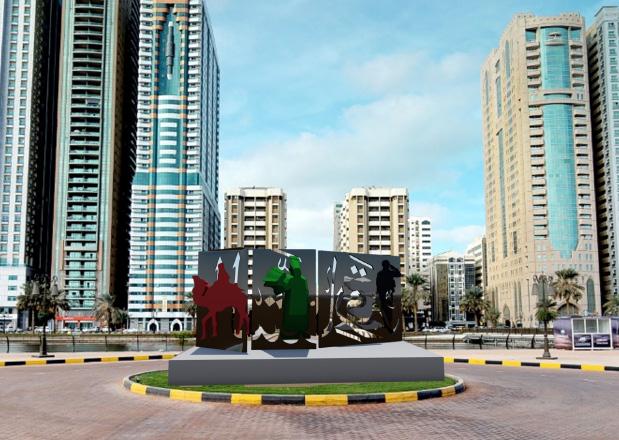

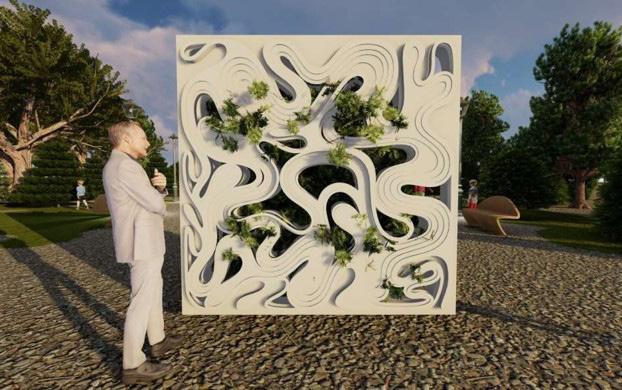

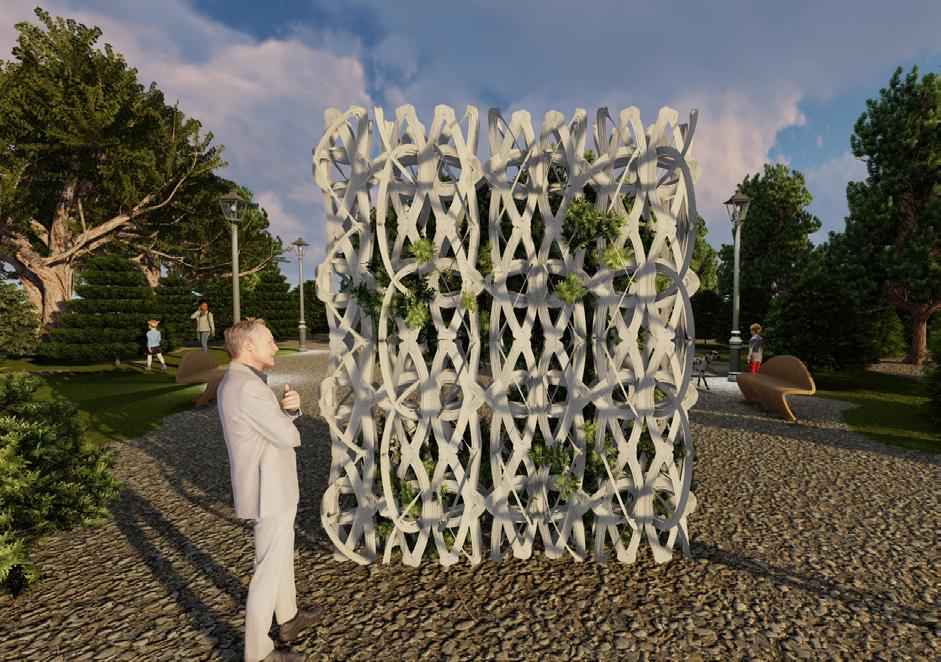

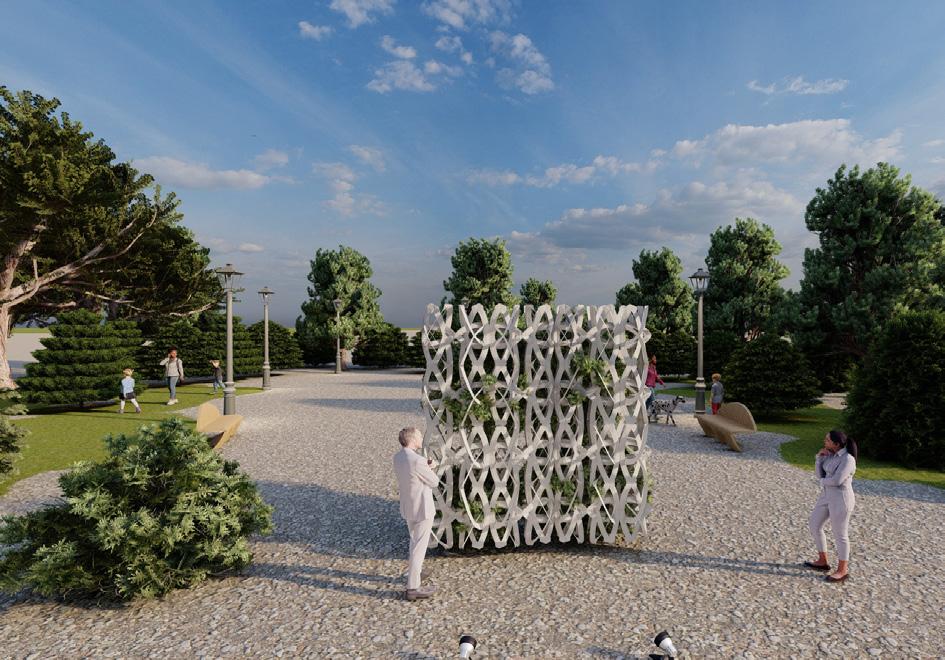

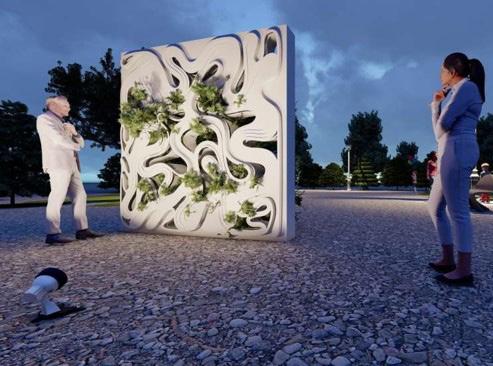

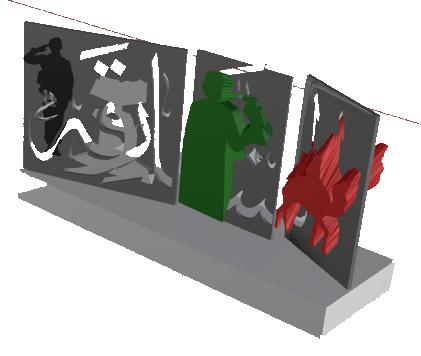

Multiple instullations have been done in a parametric course during my university study; in these instullations, Grasshopper has been used as the main design tool, as has Rhino. Gate insullation, Eco-Brick walls, and Brick insullation were computational projects to be participated in in Dubai Design Week 22 and a Sculpture for Almajaz Theater Roundabout competition.
