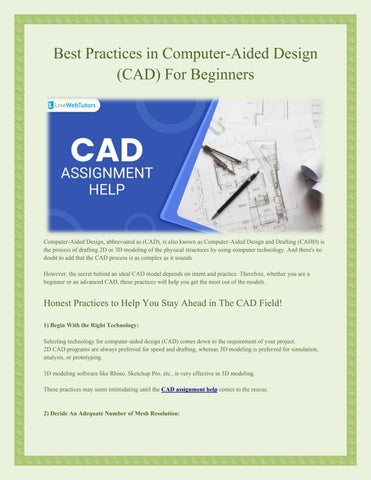

Best Practices in Computer-Aided Design (CAD) For Beginners

Best Practices in Computer-Aided Design (CAD) For Beginners

Computer-Aided Design, abbreviated as (CAD), is also known as Computer-Aided Design and Drafting (CADD) is the process of drafting 2D or 3D modeling of the physical structures by using computer technology. And there's no doubt to add that the CAD process is as complex as it sounds.

However, the secret behind an ideal CAD model depends on intent and practice. Therefore, whether you are a beginner or an advanced CAD, these practices will help you get the most out of the models.

Honest Practices to Help You Stay Ahead in The CAD Field!

1) Begin With the Right Technology: Selecting technology for computer-aided design (CAD) comes down to the requirement of your project.

2D CAD programs are always preferred for speed and drafting, whereas 3D modeling is preferred for simulation, analysis, or prototyping.

3D modeling software like Rhino, Sketchup Pro, etc., is very effective in 3D modeling.

These practices may seem intimidating until the CAD assignment help comes to the rescue.

2) Decide An Adequate Number of Mesh Resolution:

CAD Optimization is when you decide the correct number of mesh resolutions in your model. It is particularly significant for 3D printing. Thus, if the mesh resolution in your model design is too low or too high, the Design may have unnecessary facets and deviate from the original model design.

To avoid this, brainstorm the proper mush resolution be less conservation while incorporating details during the optimization process.

3) Use Appropriate File Size: Due to the rapid increase in technology, file sizes are proliferating, which sometimes does not save our project files.

In such difficult situations, use the appropriate file size for your Design to get it printed without any hassle.

4) Choose the best file format: The need to re-edit your Design varies significantly with the file format you are using. Consider the following points while choosing the best CAD file format for your Design. a) Use of Fillets & Chamfers: Fillets are more curvature-free, whereas chamfers have sharp edges. If you want to use fillets, save your file in DXF or STL formats. Whereas if you are using chamfer, save your file in DWG format. b) Level Of Details: The level of detail in a CAD model varies with the nature of the Design being created. Thus, if you are using fillets and chamfers in a design, opt for a high level of detail. Else, a medium or low degree would suffice effectively. c) Save your file in 3rd Party Software: If you are using Rhino, save your Design in .3DM format. If you want to use SketchUp, export it as an STL file.

5) Remove All the Unnecessary Details: Unnecessarily drafted details in a CAD design distract the authentic look and feel. Thus, if you want to get your "design model" precise and clean, remove unnecessary details.

6) Use Appropriate Units: The need for building an object depends on the unit of measurement. Hence, make sure you use the most common team for all your designs.

7) Keep A Check on Your Drawing's Scale: A CAD file usually measures in millimeters with a fixed scale of 1:1, which doesn't offer much variance to the Design. If you cannot use any other units, you must check on your Design scale. Simply you can do so by checking the measurement between two points, which should be as equal as possible if not identical.

CAD software is a powerful tool that can create anything from simple sketches to detailed 3D models. Thus, understand the basics and use best practices to get the most out of your CAD software designs. And having said that, if you're new to CAD, these best practices will help you get started on the right foot. Also, LiveWebTutors may help pave the way in the CAD business by providing you with consistent quality assignments in time!
