WARDEN MNC 13 BINDING

TO BE MOUNTED BY A SALOMON AUTHORIZED DEALER ONLY.

BINDINGS INTENDED TO BE USED ONLY WITH ALPINE BOOTS COMPLIANT WITH ISO 5355 STANDARD, TOURING BOOTS COMPLIANT WITH ISO 9523 STANDARD, SKI BOOTS EQUIPPED WITH “WTR TECHNOLOGY” PADS OR WITH “GRIPWALK” PADS

ISO 5355

ISO 23223 WTR ISO 9523

WARNING

THESE ALPINE BINDINGS ARE INTENDED TO BE USED ONLY WITH THE FOLLOWING SKI BOOTS: > Alpine ski boots compliant with ISO 5355 standard. > Touring boots compliant with ISO 9523 standard > Ski boots equipped with “WTR technology” pads or with “GRIPWALK” pads

Any use with other ski boots could cause the ski-binding-boot system to be faulty and affect release characteristics, which would increase the risk of serious injury while skiing. Therefore, skiers are warned not to use this product with any ski boots other than those meeting the standards indicated above. Skiers are advised to consult the dealer where this product was purchased, or an equipment specialist at any SALOMON authorized ski dealer of this product, for further information regarding which ski boots meet the standards listed above.

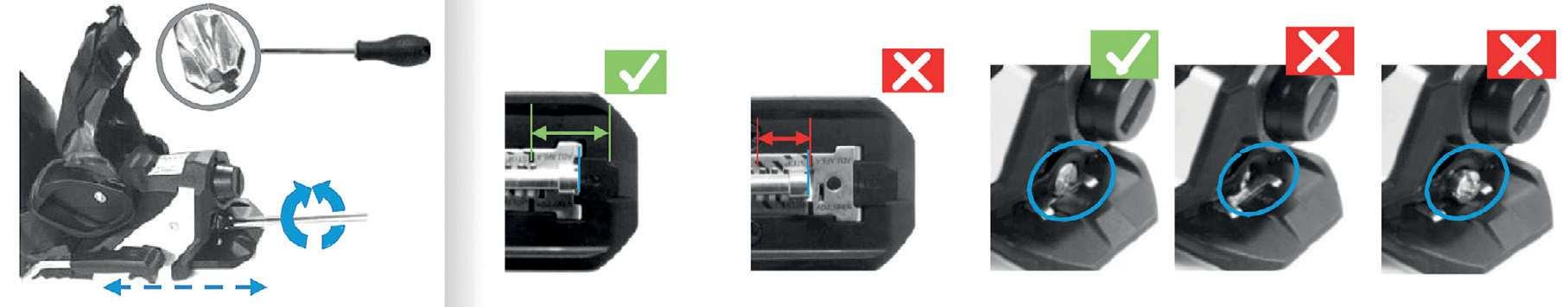

1. Use the Salomon mounting jig (ref 3298160001) to ensure a proper alignment of the binding. Drill the skis following the ski and binding manufacturer’s instructions. Mount the toe piece and the rear plate on the ski by tightening the screws at 4 N.m (check if rear plate is correctly mounted).

2. Assemble the ski brake with the heel piece

3. From the center of ski, insert the heel piece on the rear plate and adjust at the “mid” position with screwdriver.

4 Step in the ski boot in the binding. Check and adjust the forward pressure.

5. Select and adjust the setting release values for toe and heel pieces. 6.Adjust the toe height with adjustment screw until to create a gap of the thickness of the mounting instruction sheet between the boot sole and the binding. 7. In case of adjustment with touring boots compliant with ISO 9523 standard, paste sticker on each ski.

For lateral release testing, please check that the shell of the boot does not rub against the body of the toe.

No space between the shell of the boot and the body of the toe Space between the shell of the boot and the body of the toe
