Architecture is a fascinating blend of art and science, encompassing everything from the smallest residential home to the largest commercial building. It not only serves functional and aesthetic purposes, but also shapes our social and cultural landscape, and has the power to positively impact the environment. At its core, architecture is a testament to the human desire to create and innovate, and to build structures that are both practical and beautiful
01
Design of an IT Park
Location
Gurugram, Haryana
Academic Project
The project site is in Sector 74 of Gurugram, Haryana.

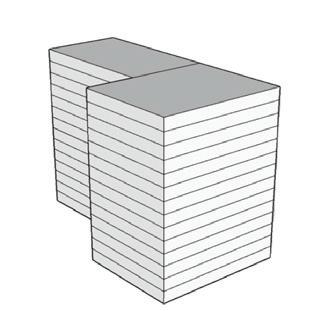

The project is to design an IT Park which has 16 Floors with multilevel parking basements. It has site area of 26,468 sqm
Total area- 26,468 sqm
Ground coverage permissible- 40%
FAR- 4

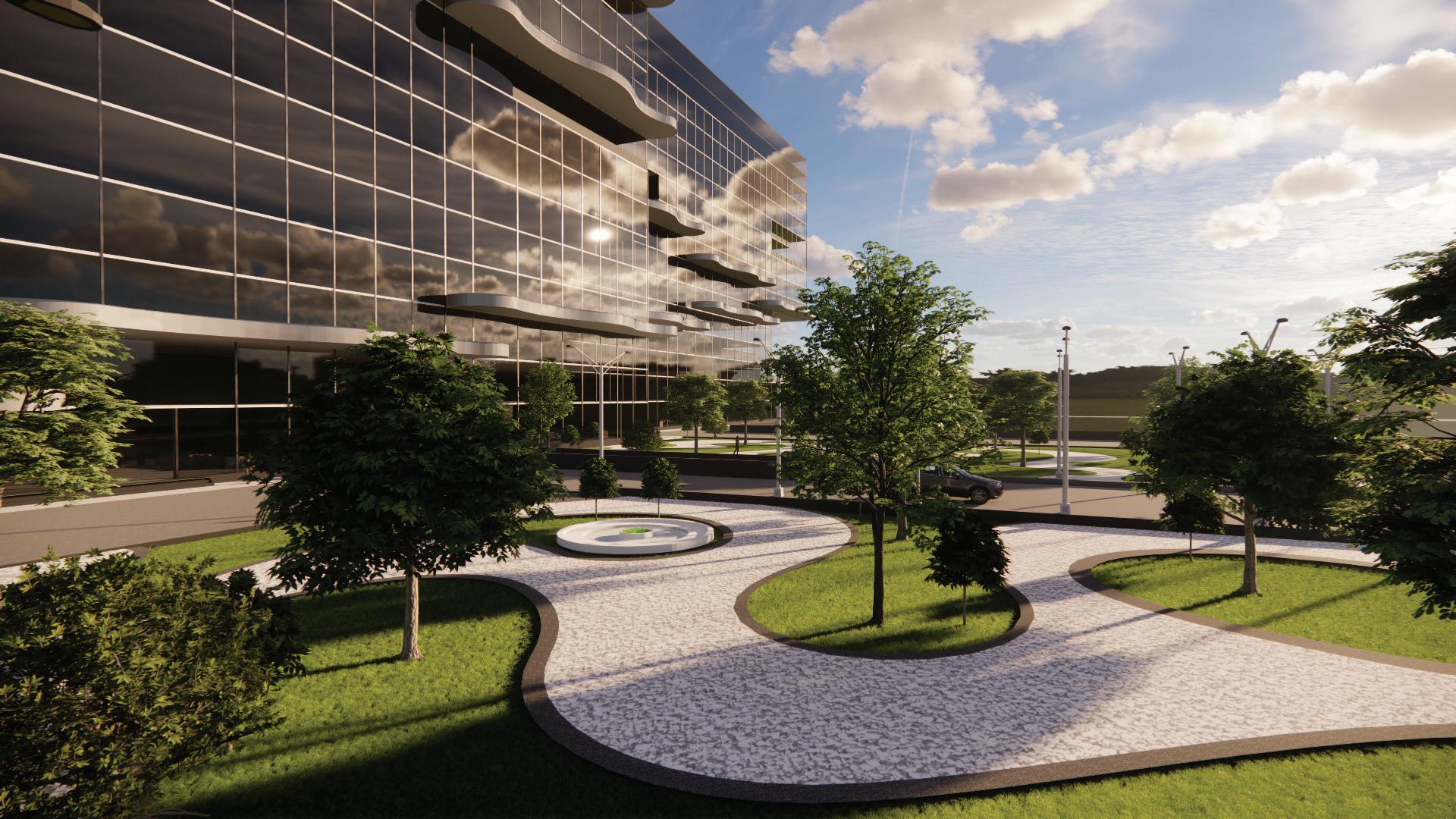

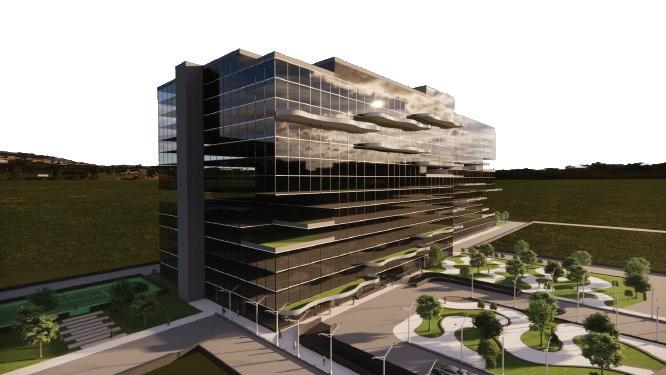

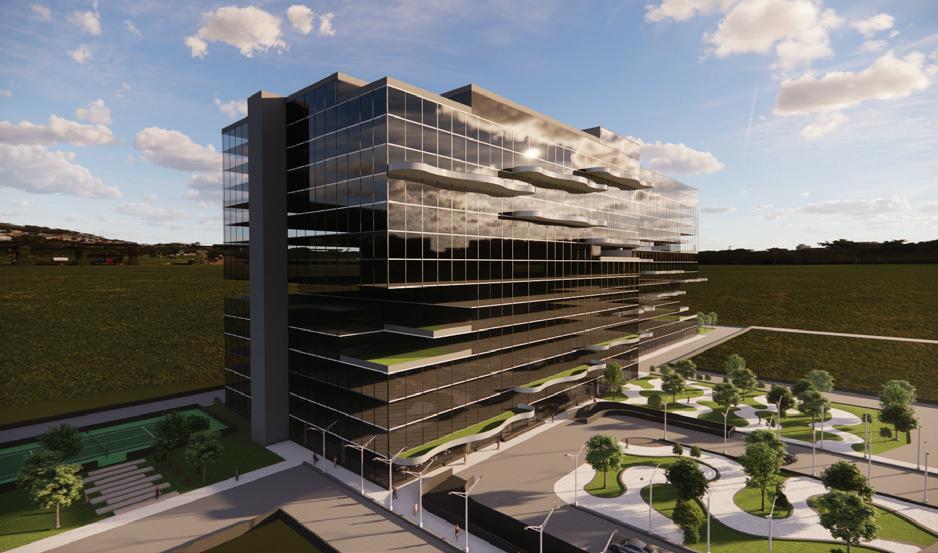

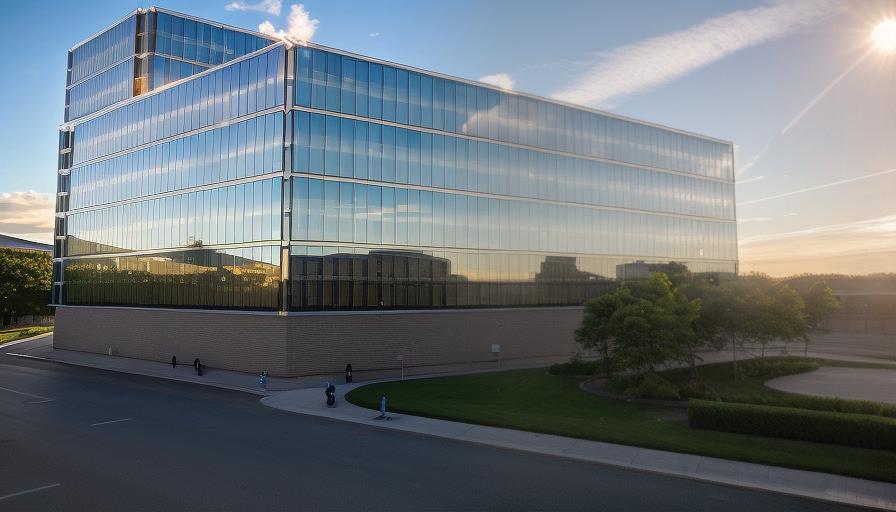

INNOVISTA TECH HUB
An IT Park is a dedicated area designed to support the growth of the information technology industry. It provides modern infrastructure, high-speed connectivity, reliable power, and advanced facilities tailored for IT and IT-enabled services companies. Objectives include fostering innovation, attracting investments, generating employment, and promoting sustainable development.
Components include scalable office spaces, data centers, comprehensive amenities, robust security, and well-planned transportation.

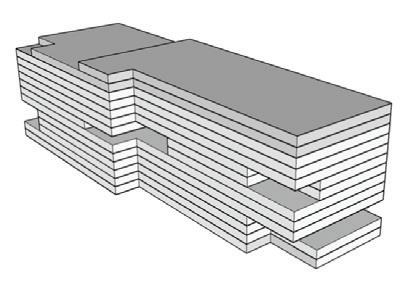

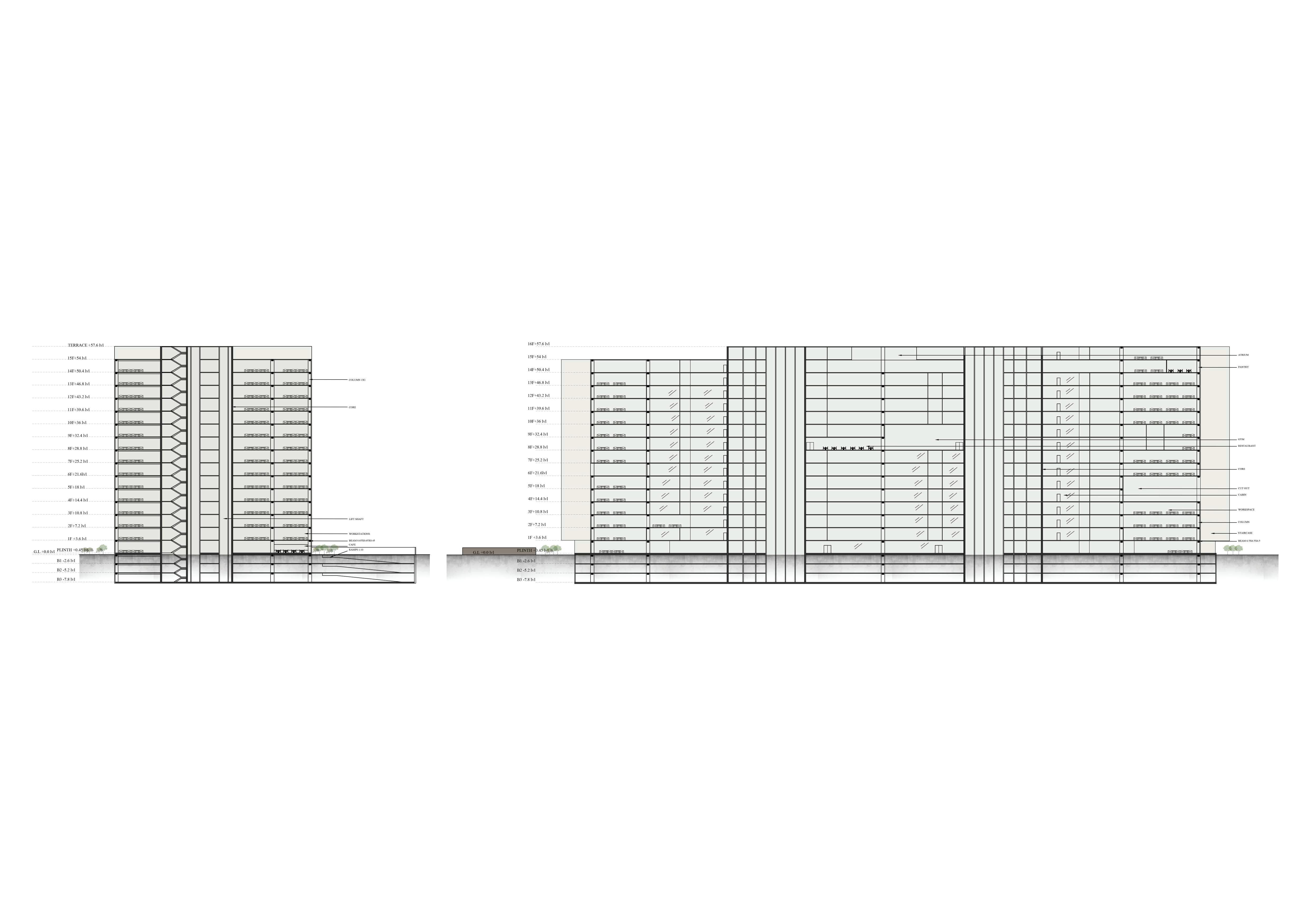

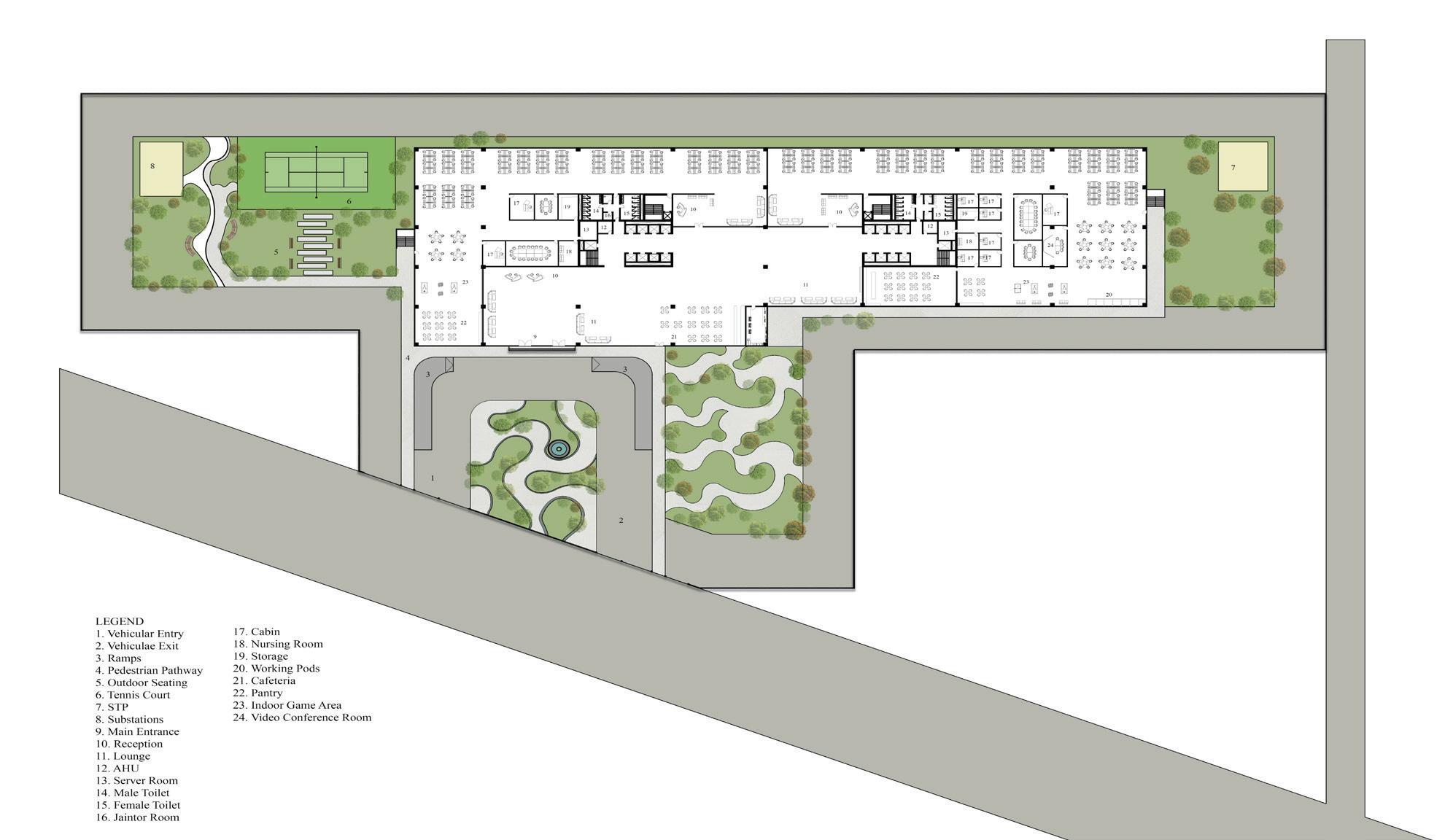

Eighth Floor Plan
Ninth Floor Plan
Service Floor Plan
Fifteenth Floor Plan
Sixteenth Floor Plan

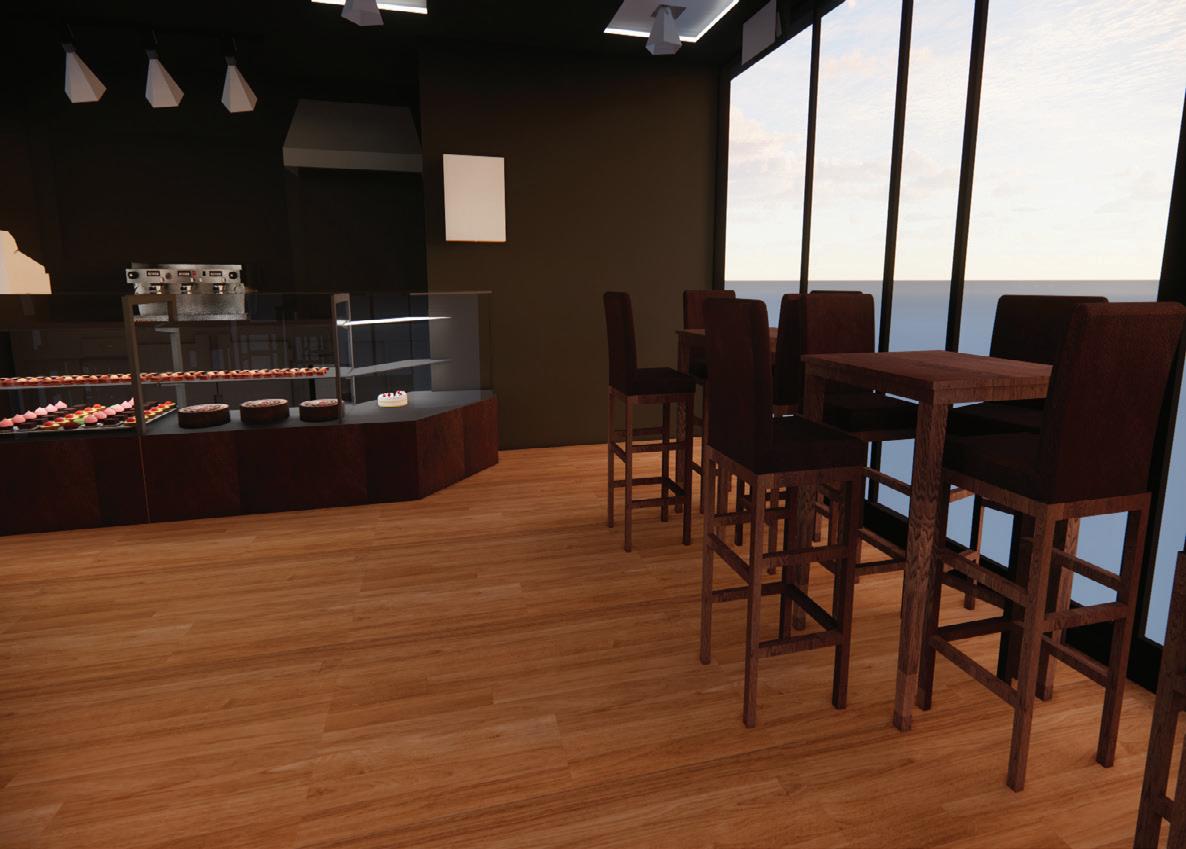

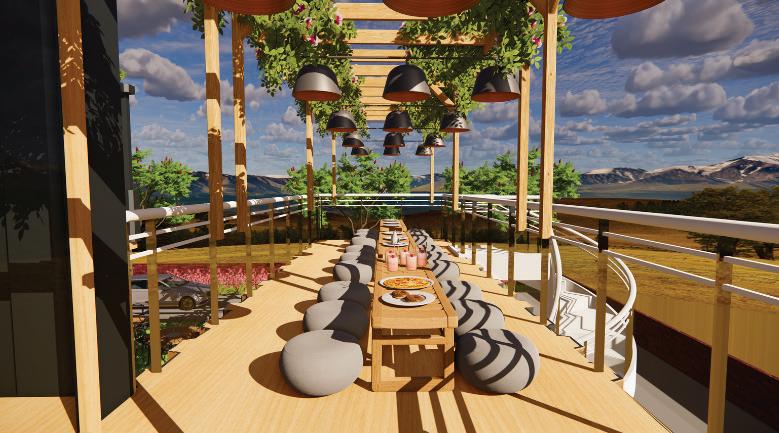

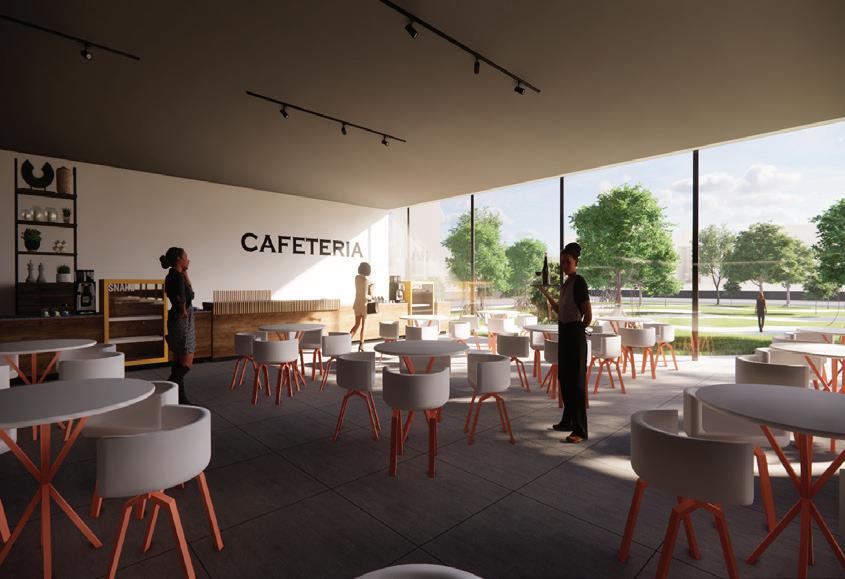

Cafeteria
Conference Room

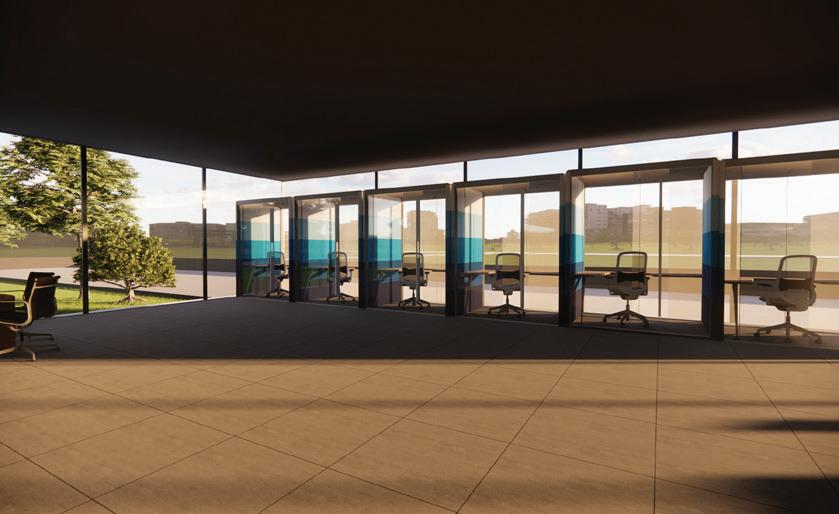

Working Pods
Cabin

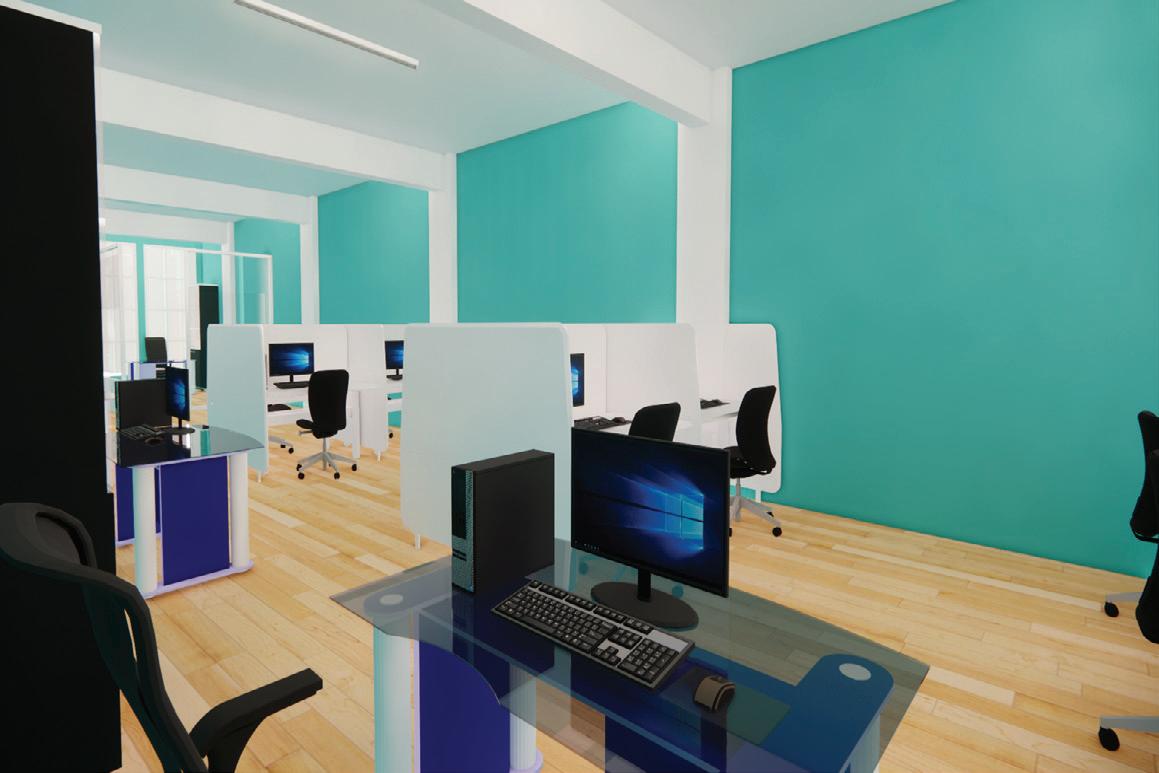

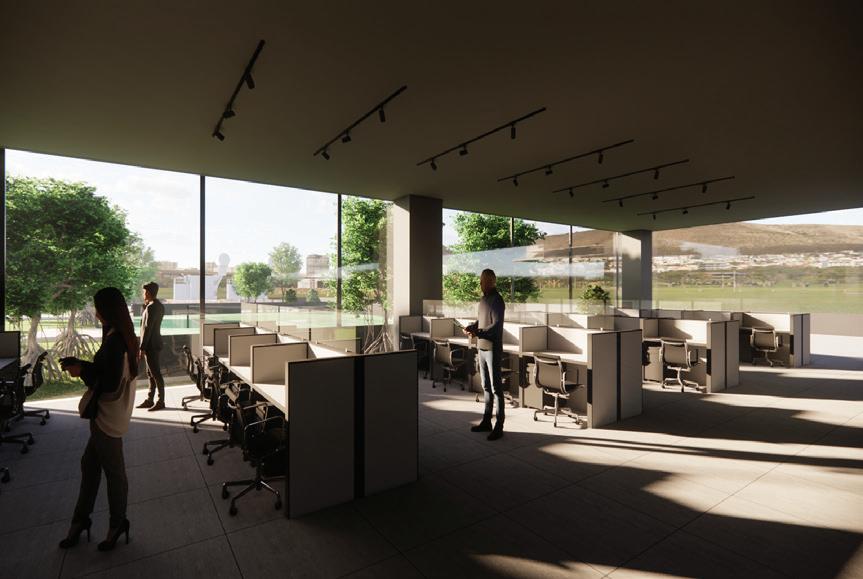

Work Space

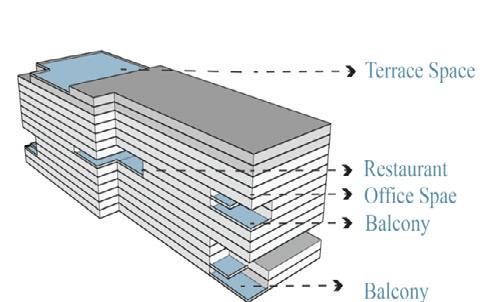

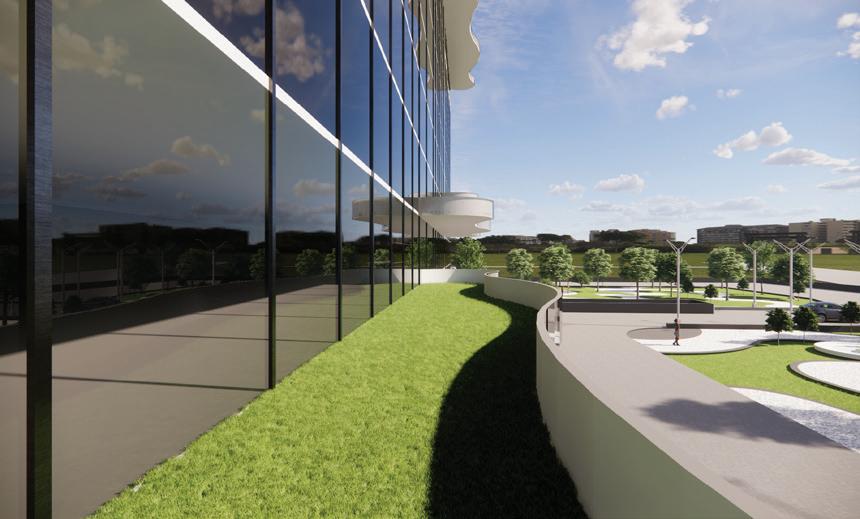

Green Balcony
02
HEBBAL BUS TERMINUS DESIGN
Location
Hebbal, Bengaluru
Academic Project
The project site is in Hebbal and is located next to the flyover. It is a traffic prone area which also has lake nearby.
The project is to design a Bus Terminus with Retail, Office and Hospitality on top with multilevel parking basements. It is a mixed use building design with site area of 33,386 sqm
Total area- 33,386 sqm
Ground coverage permissible- 45% FAR- 4

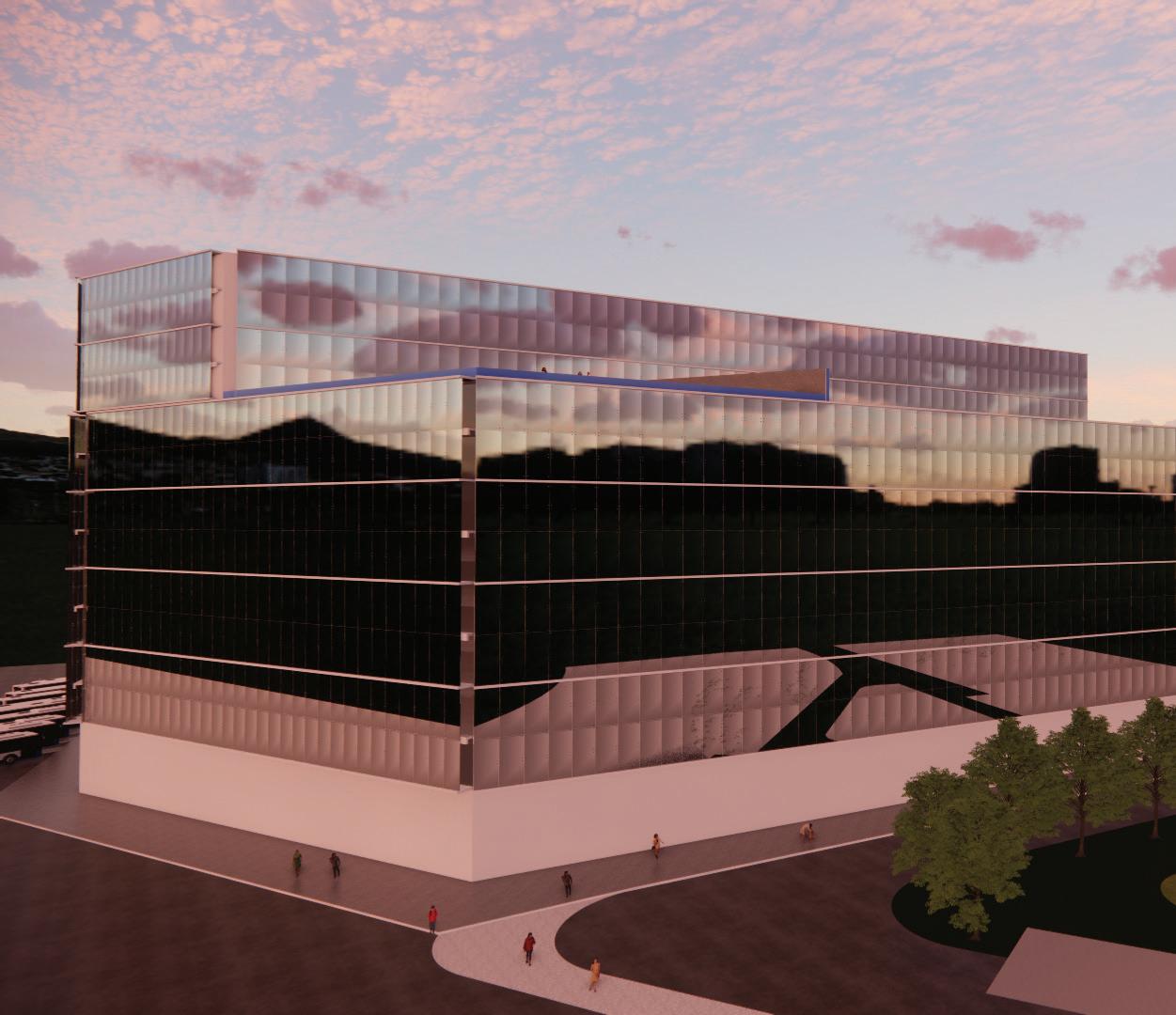

HEBBAL BUS TERMINUS- A MIXED USE PROJECT
A bus terminus, also known as a bus station, is a vital component of urban transportation infrastructure that serves as the central hub for bus operations. Designing an efficient bus terminus requires meticulous planning to meet the needs of passengers, bus operators, and the surrounding community. The primary objective is to ensure passenger convenience by providing easy access, comfortable waiting areas, and clear information systems. Operational efficiency is crucial, with the design facilitating smooth bus operations, including adequate parking, efficient boarding and alighting processes, and minimal congestion. Safety and security are paramount, necessitating the implementation of robust surveillance systems, emergency facilities, and well-lit areas to protect passengers and vehicles. Accessibility is a key consideration, with designs accommodating people with disabilities through ramps, tactile paving, and accessible restrooms. Additionally, integrating the bus terminus with other modes of transportation, such as rail, metro, and taxi services, is essential to create a seamless transit experience.
MASTER PLAN
PLANS- COMMERCIAL USE
FIRST FLOOR PLAN
SECOND FLOOR PLAN
THIRD FLOOR PLAN
TYPICAL OFFICE PLAN
HOSPITALITY FLOOR PLAN
HOSPITALITY FLOOR PLAN

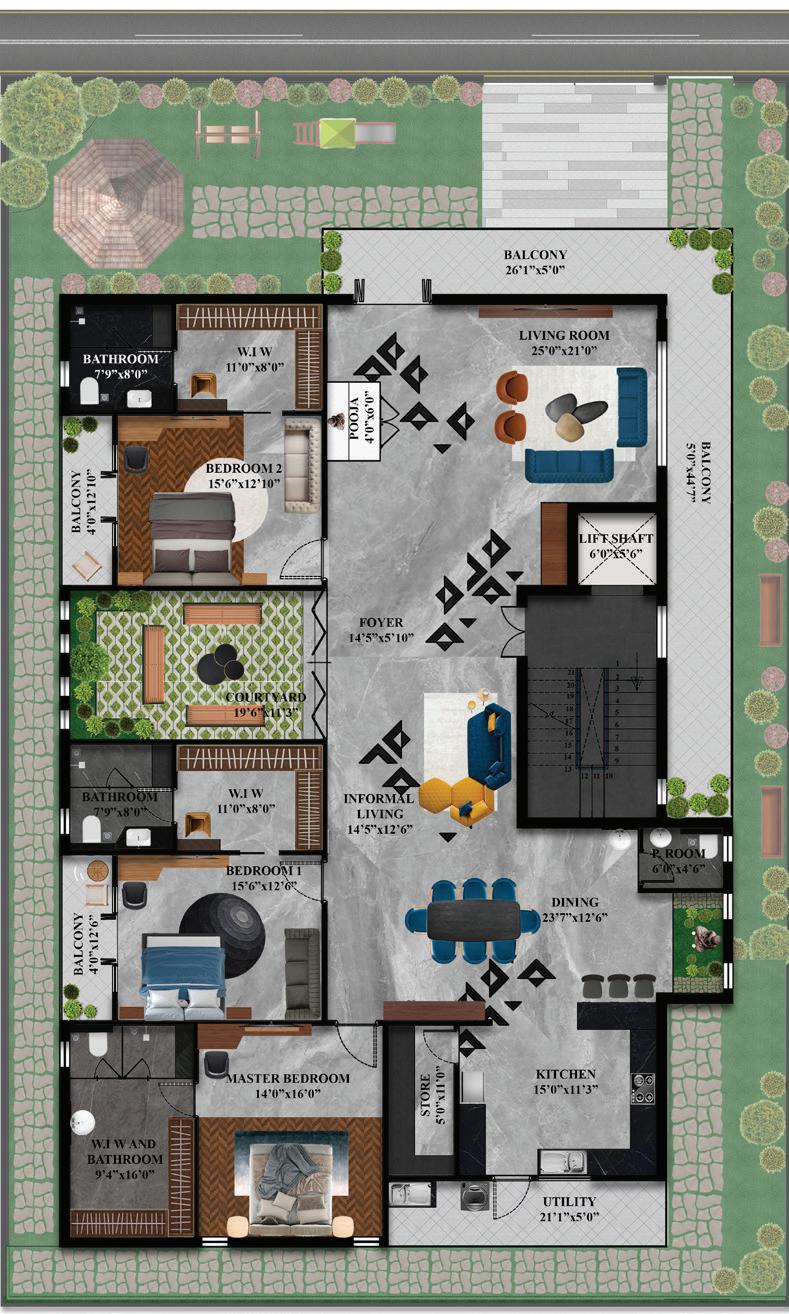

Residence Design- Render

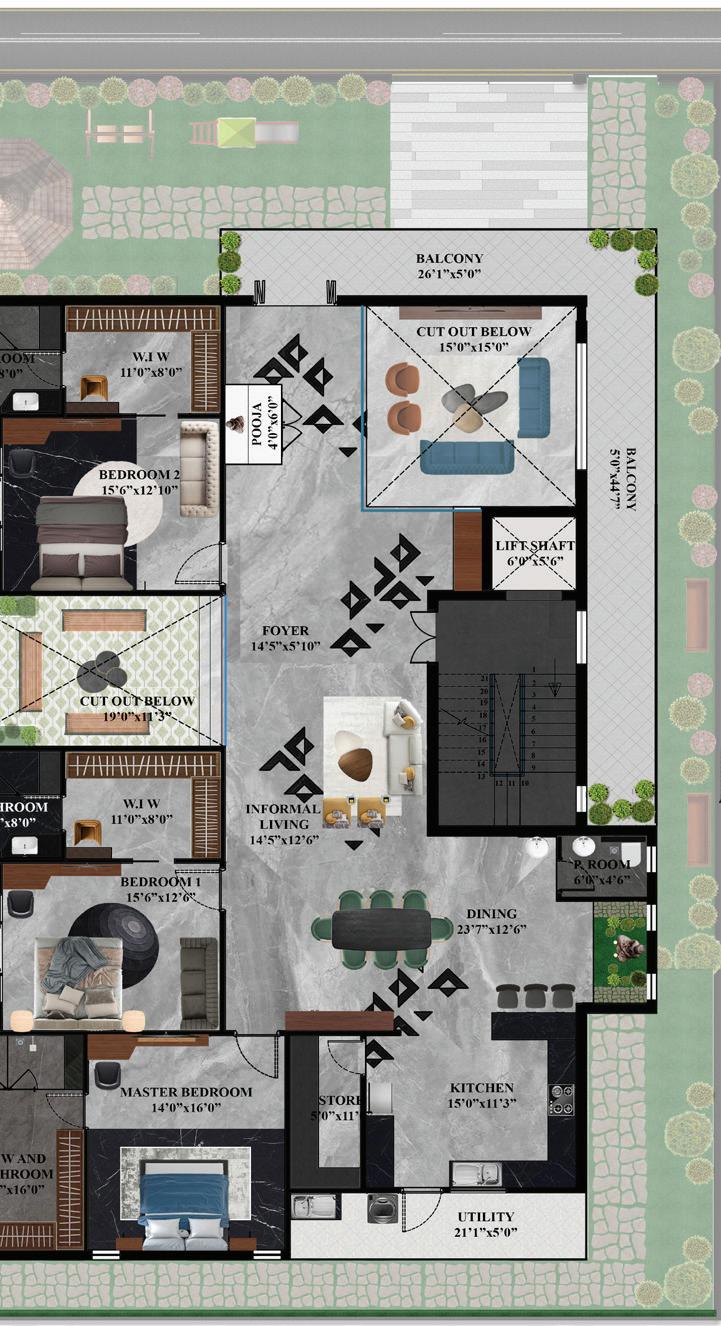

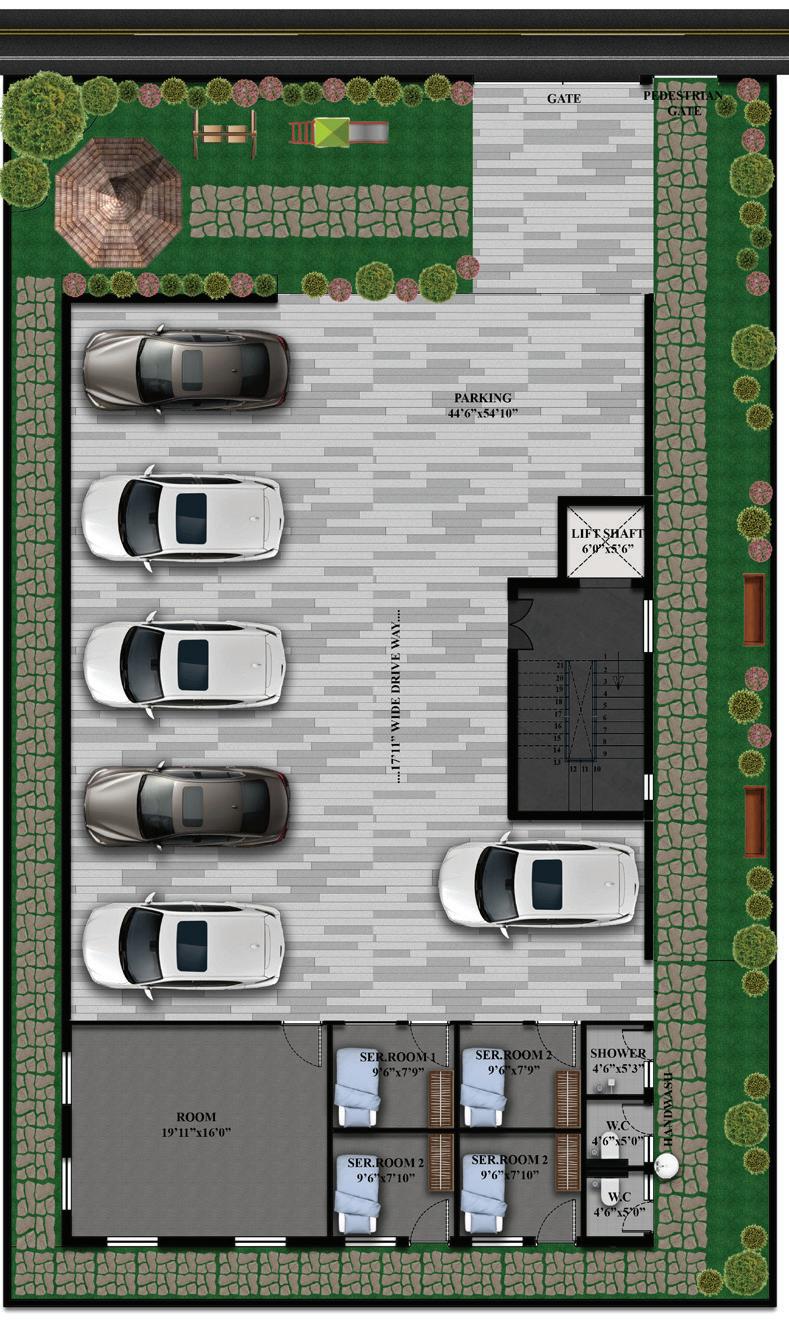

GROUND FLOOR
FIRST FLOOR
SECOND FLOOR

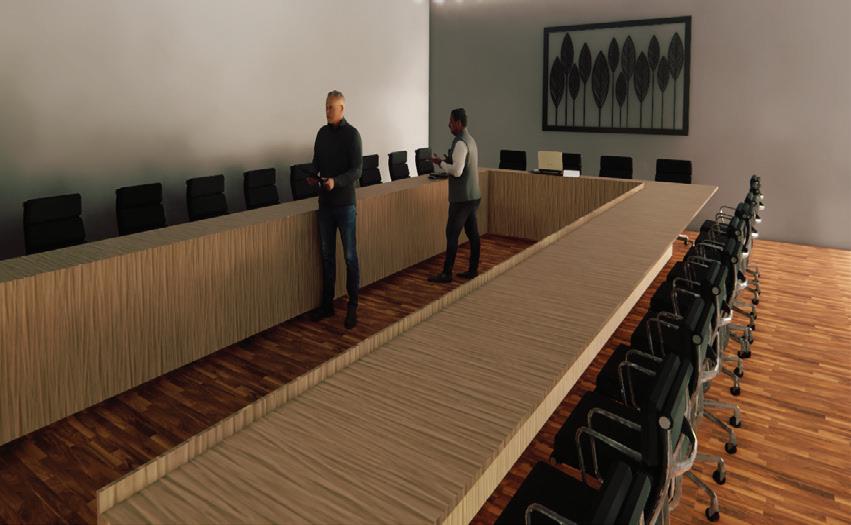

Seminar Hall Design-
Hindustan Unilever Limited

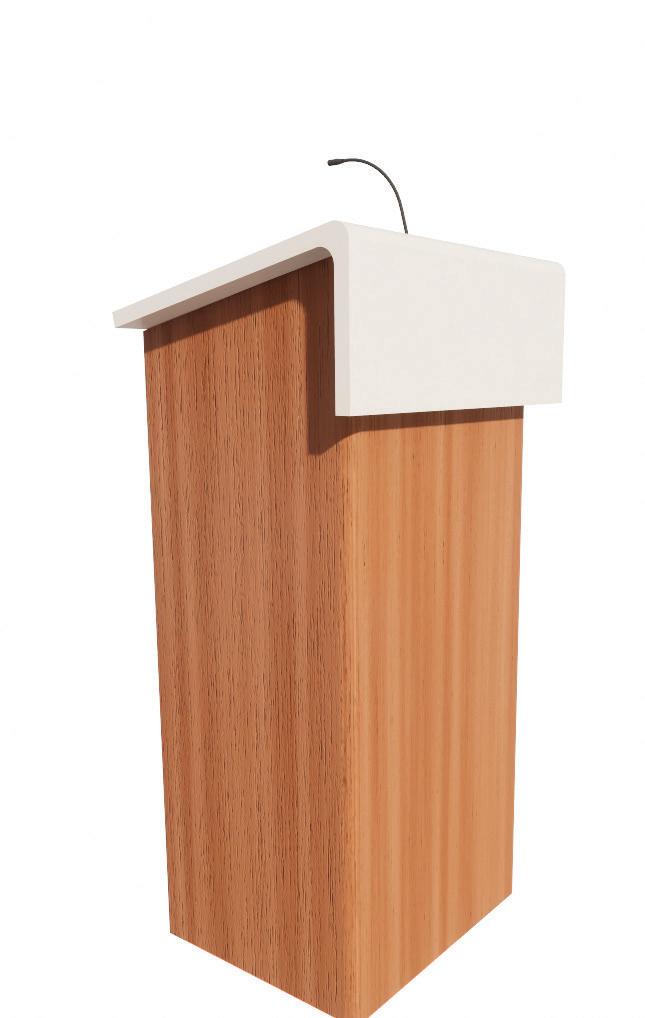

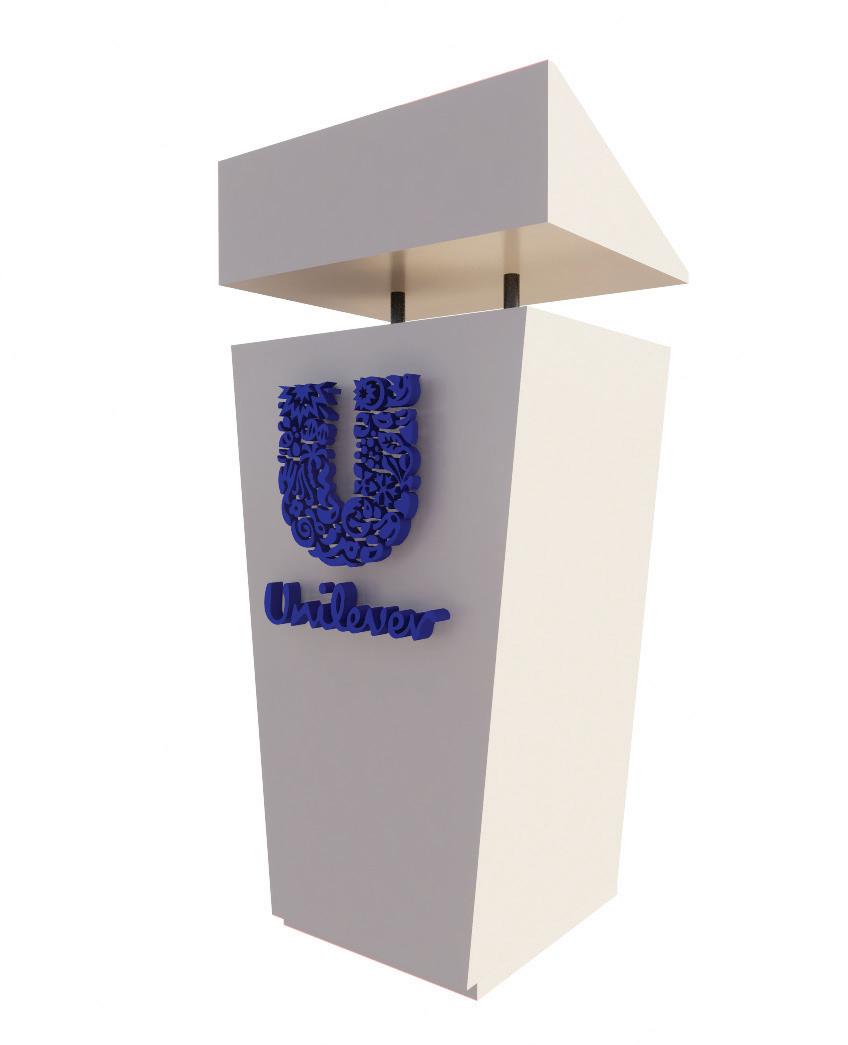

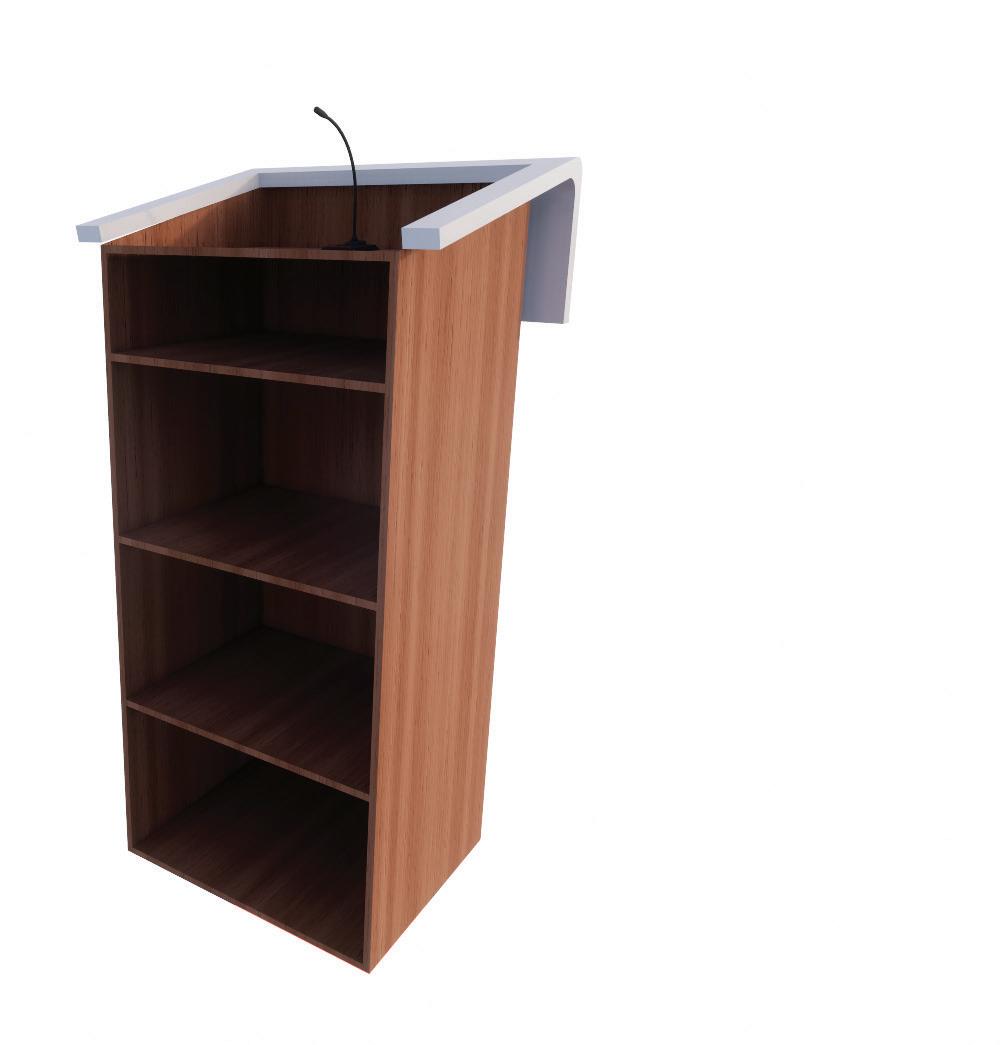

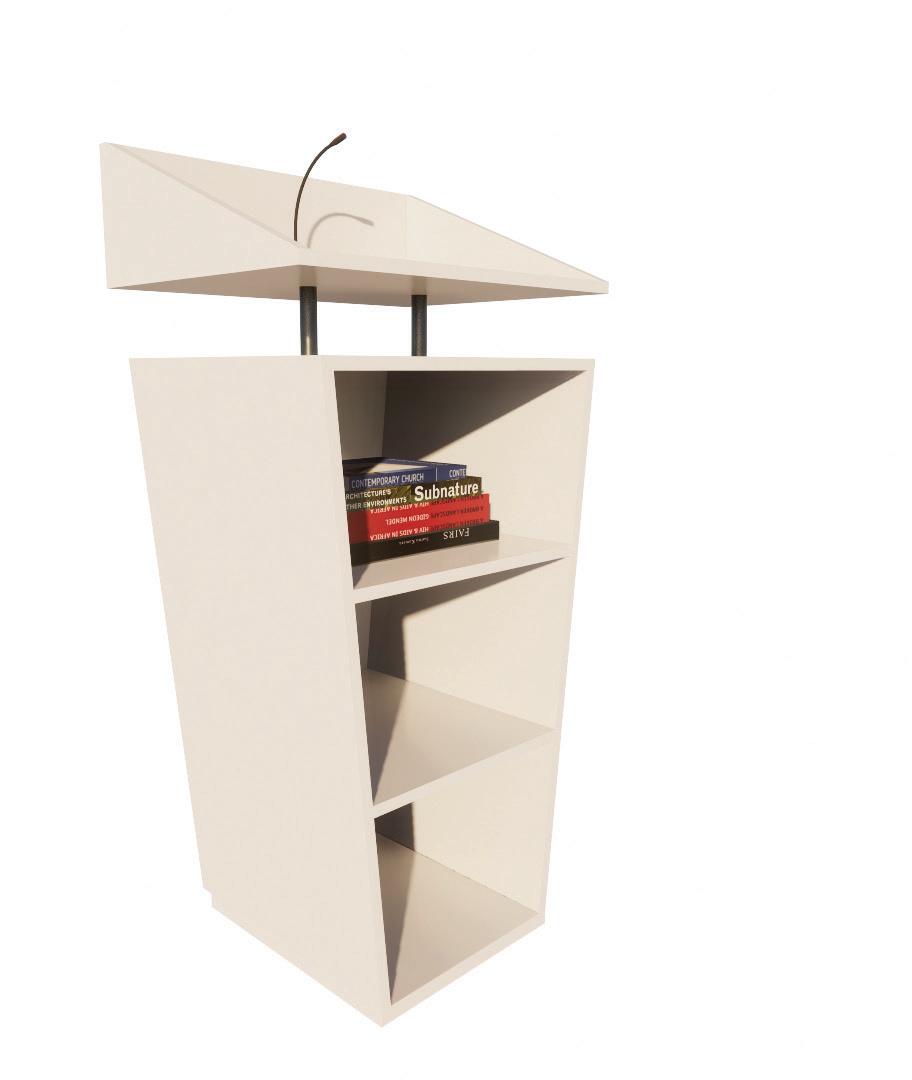

PODIUM DESIGNS
TOP FINISHED WITH PLY+ CORIAN
TOP FINISHED WITH PLY+ CORIAN
FRONT ELEVATION
PODIUM FINISHED WITH PLY+ VENEER
PODIUM FINISHED WITH PLY+ CORIAN
SIDE ELEVATION
PODIUM FINISHED WITH PLY+ VENEER
TOP FINISHED WITH PLY+ CORIAN
PODIUM FINISHED WITH PLY+ VENEER
WALL OF FAME
Residence- Working Drawings
Residence- Working Drawings
Electrical Drawings
GROUND FLOOR
NOTE ( MOUNTING HEIGHTS)
1. SL INDICATES SENSOR LIGHTS.
2. PARKING AREA SWITCH CONTROLS TO BE KEPT AT GROUND FLOOR AND SECOND FLOOR.
3. SWITCH CONTROLS AT HEIGHT OF 2'-6" FROM FFL.
4. WALL MOUNTED
FIRST FLOOR
FROM FFL
6. CHIMNEY SOCKET @ 8'0" FROM FFL.
7. TOILET AND KITCHEN SWITCH CONTROLS @ 3'3" FROM FFL.
8. WARDROBE WALL MOUNTED LIGHT FIXTURES @ 8'0" FROM FFL.
9. FRIDGE POWER SOCKET @ 4'2" FROM FFL.
10. STAIRCASE WALL MOUNTED LIGHT @ 8'0" FROM MID LANDING
11. CALLING BELL RECEIVER @ 9' FROM FFL
12. FOOT LIGHT @ 1'0" FROM FFL. 13. DISTRIBUTION BOARD @ 6'6" FROM FFL.
14. WALL MOUNTED LIGHT FIXTURES @ 8'0" FROM FFL.
15. DISHWASHER AND WASHING MACHINE SOCKET AT 2'0" FROM FFL. AND SWITCH CONTROLS AT 3'3"FROM FFL.
16. TOILET SWITCH CONTROLS AT 4'6" FROM FFL.
17. NOT MORE THAN 2NOS OF 15A 3 PIN SOCKET OUTLETS SHALL BE WIRED IN THE SAME CIRCUIT.
18. LIGHT POINTS, CEILING FAN & 5A POWER SOCKETS MAY BE WIRED IN COMMON CIRCUIT.
19. ALL CEILING POINT MEASUREMENTS ARE GIVEN FROM BEAM.
20. SL INDICATES SENSOR LIGHTS
SECOND FLOOR
THIRD FLOOR
Other Works

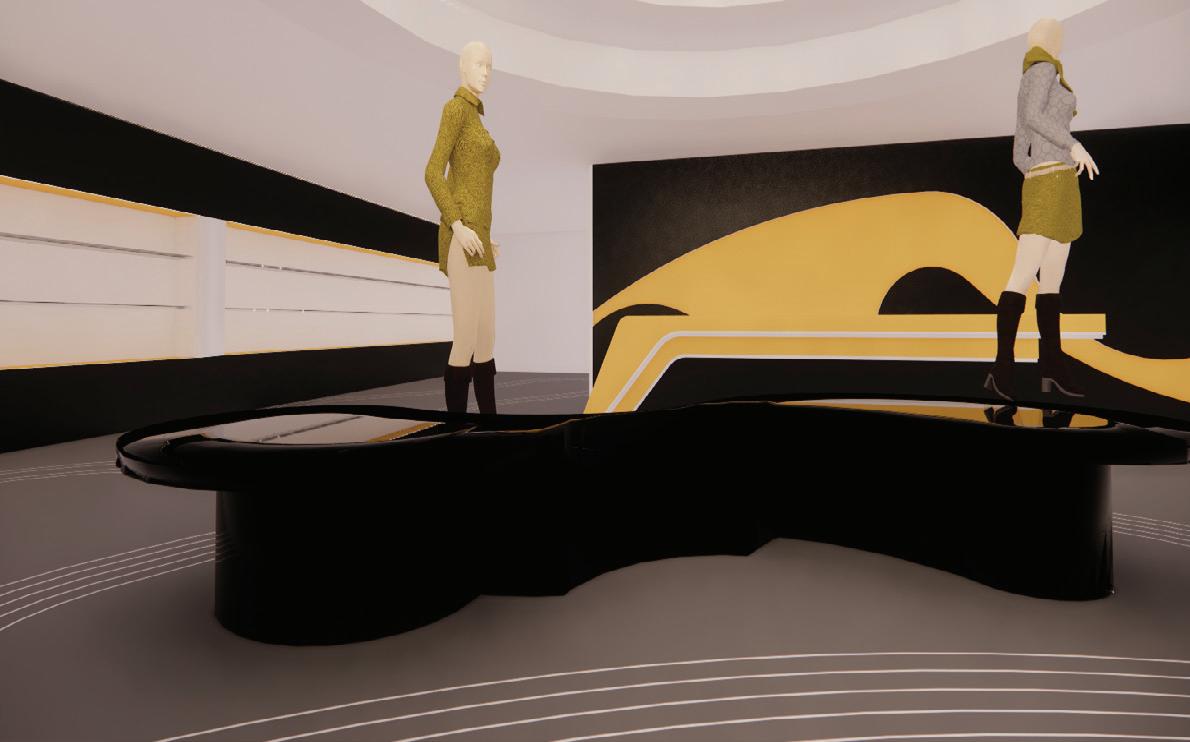

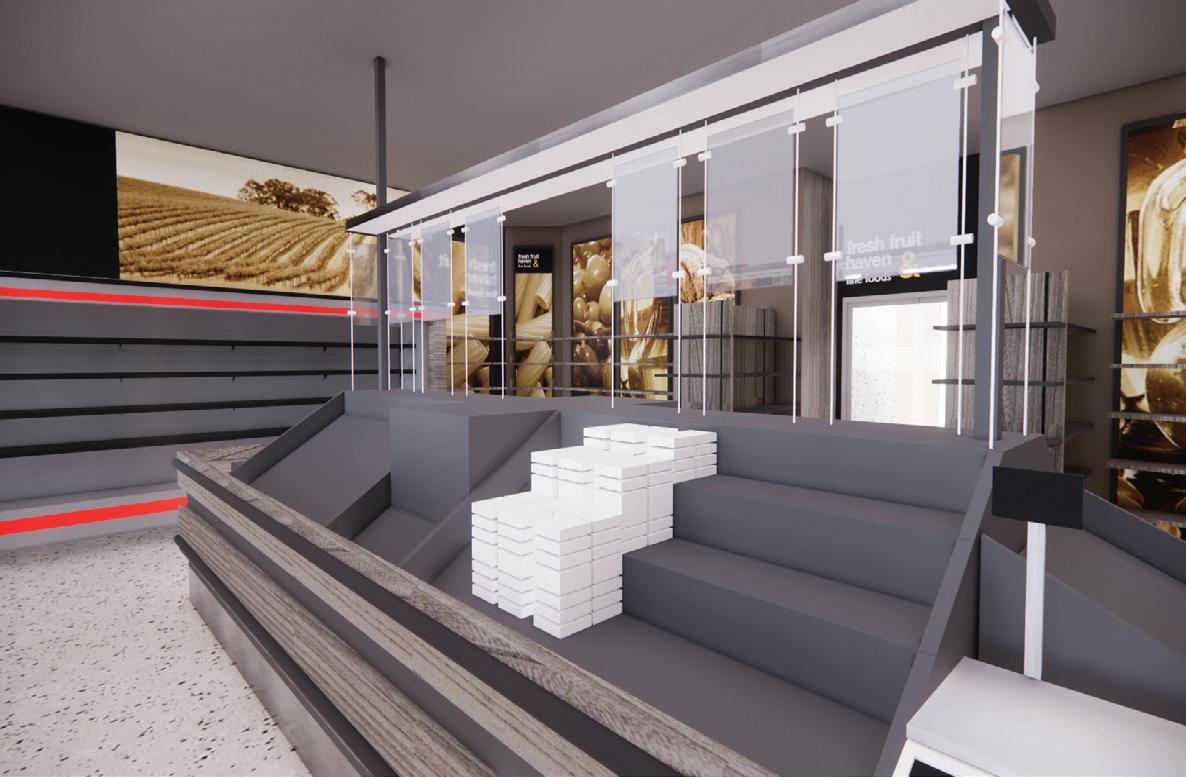

a. Furniture StoreDesign
x 3'-5"
SERVER ROOM 5'-11" x 3'-5"

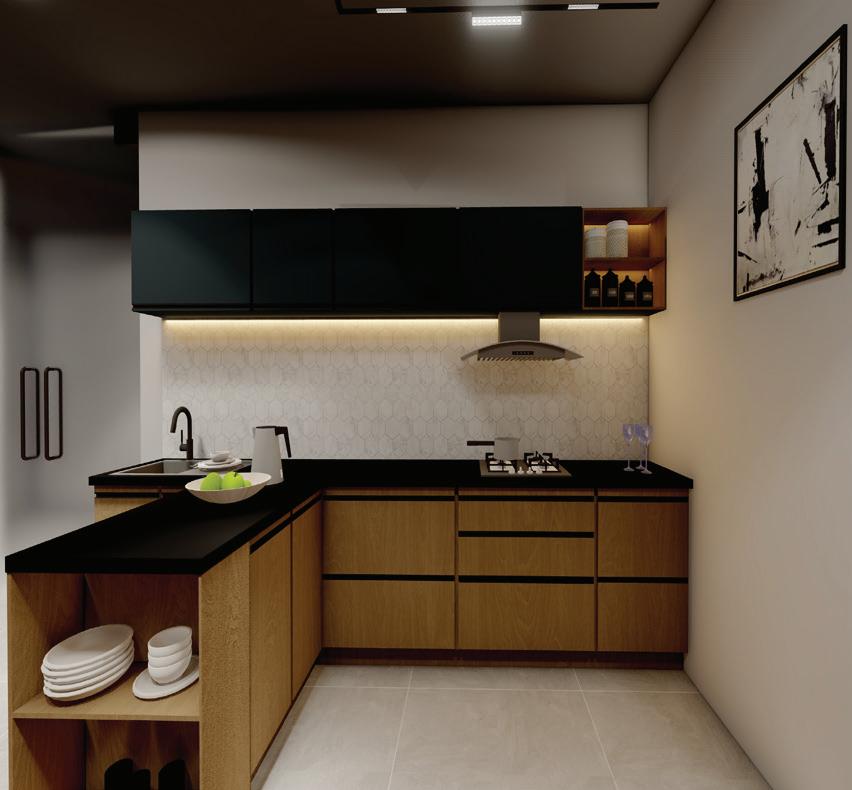

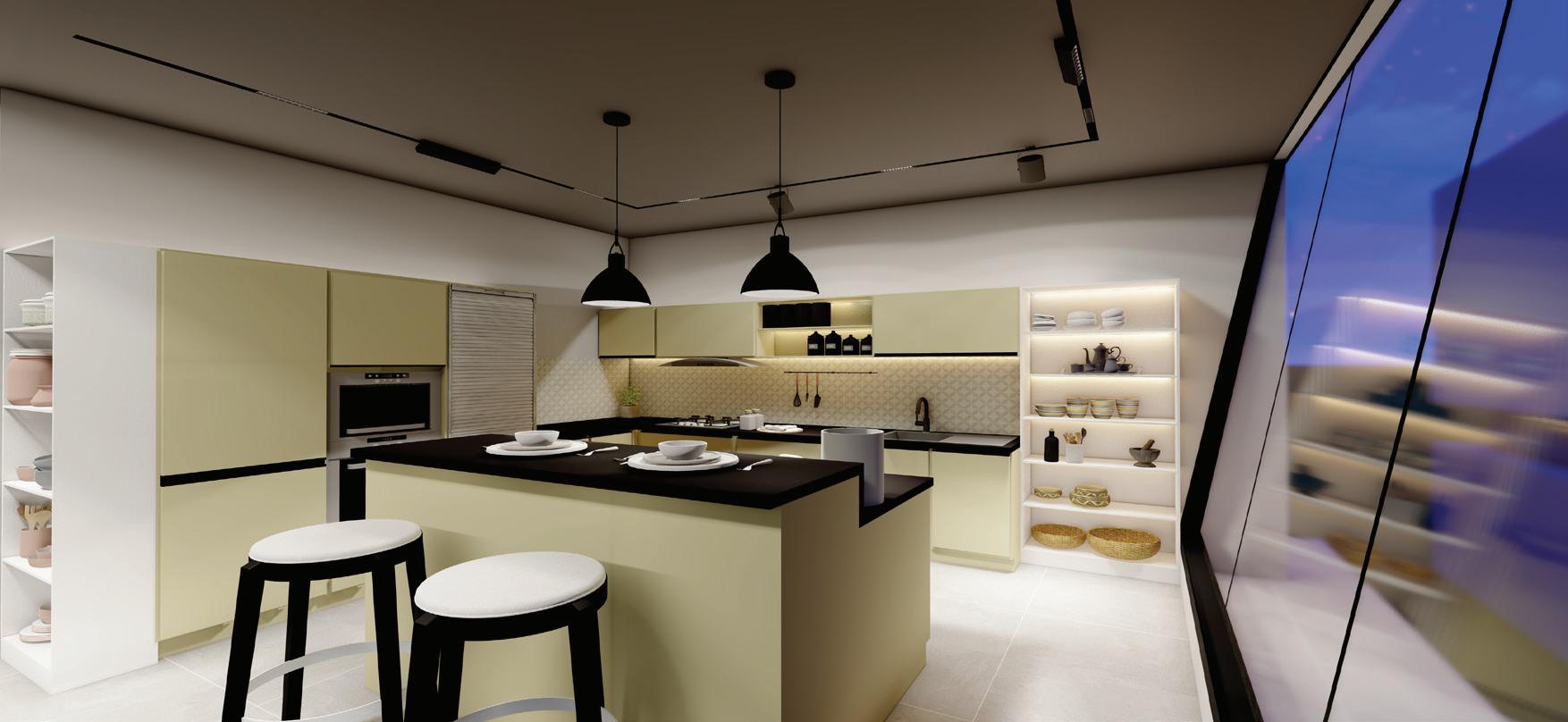

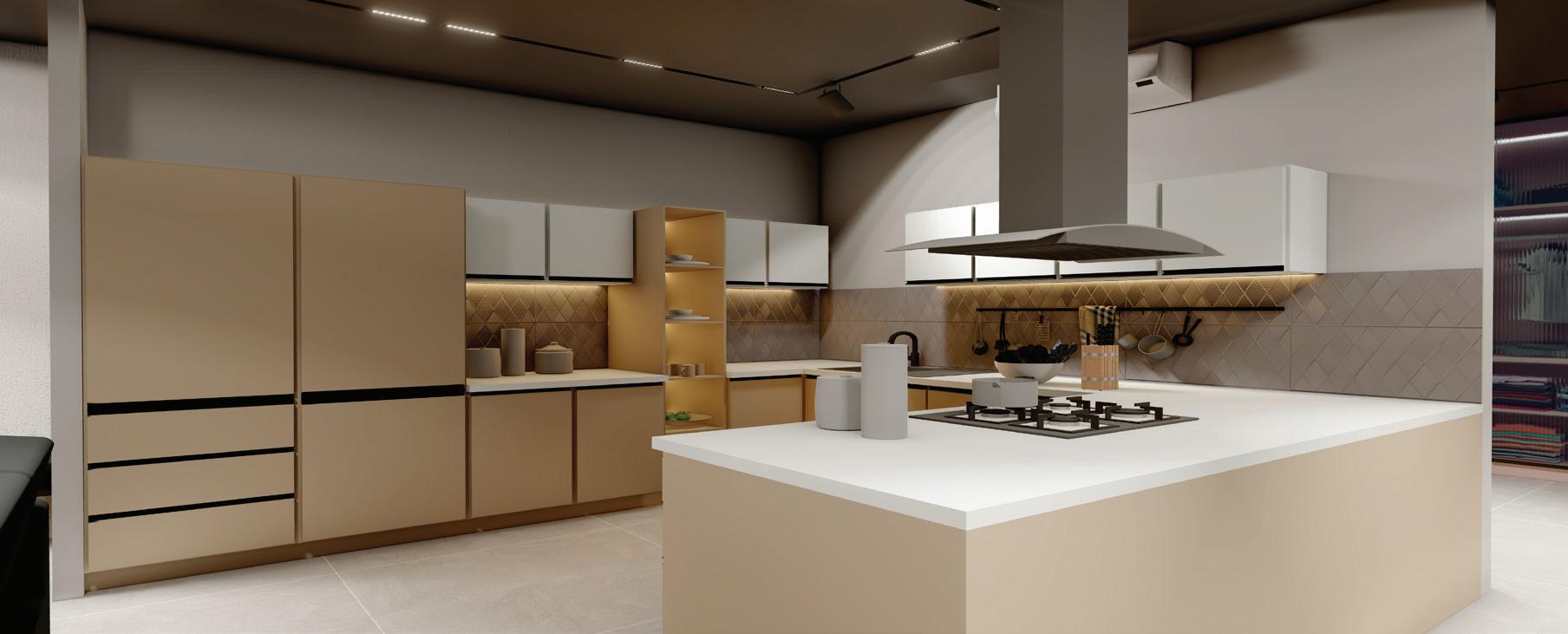

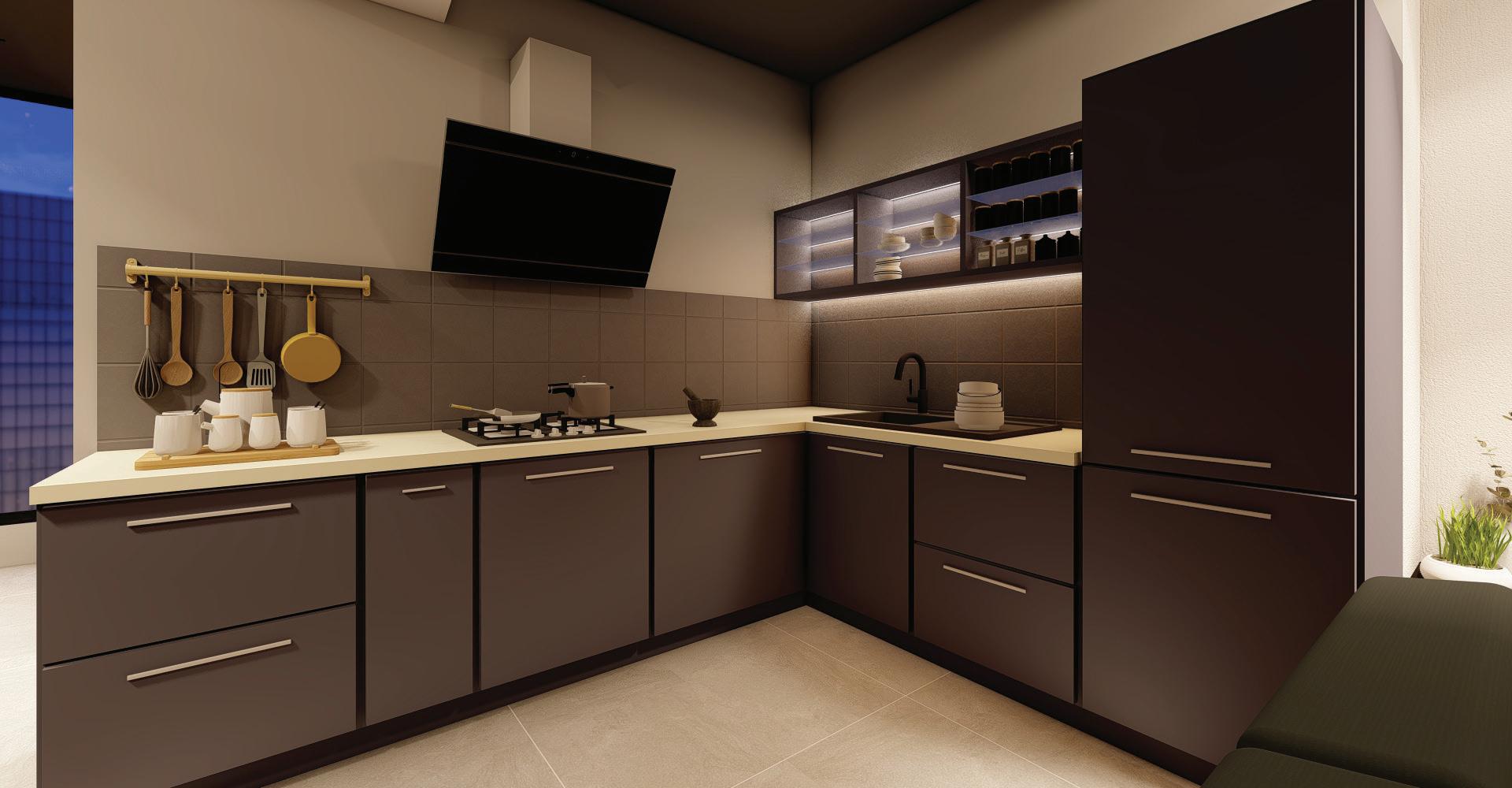

KITCHEN 01
KITCHEN 02
KITCHEN 03
KITCHEN 04
CONFERENCE ROOM
Kitchen 2
Kitchen 3
Waiting Area

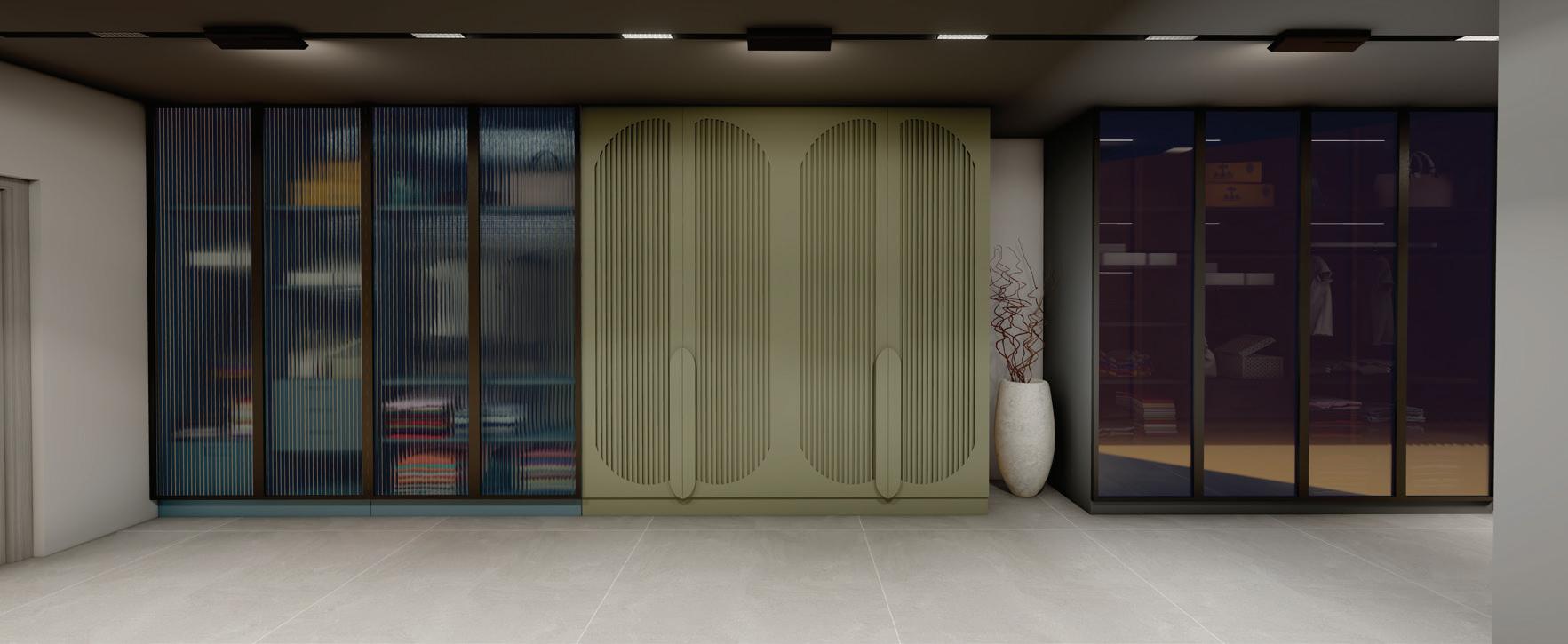

Wardrobe Display
Kitchen 4
Kitchen 1

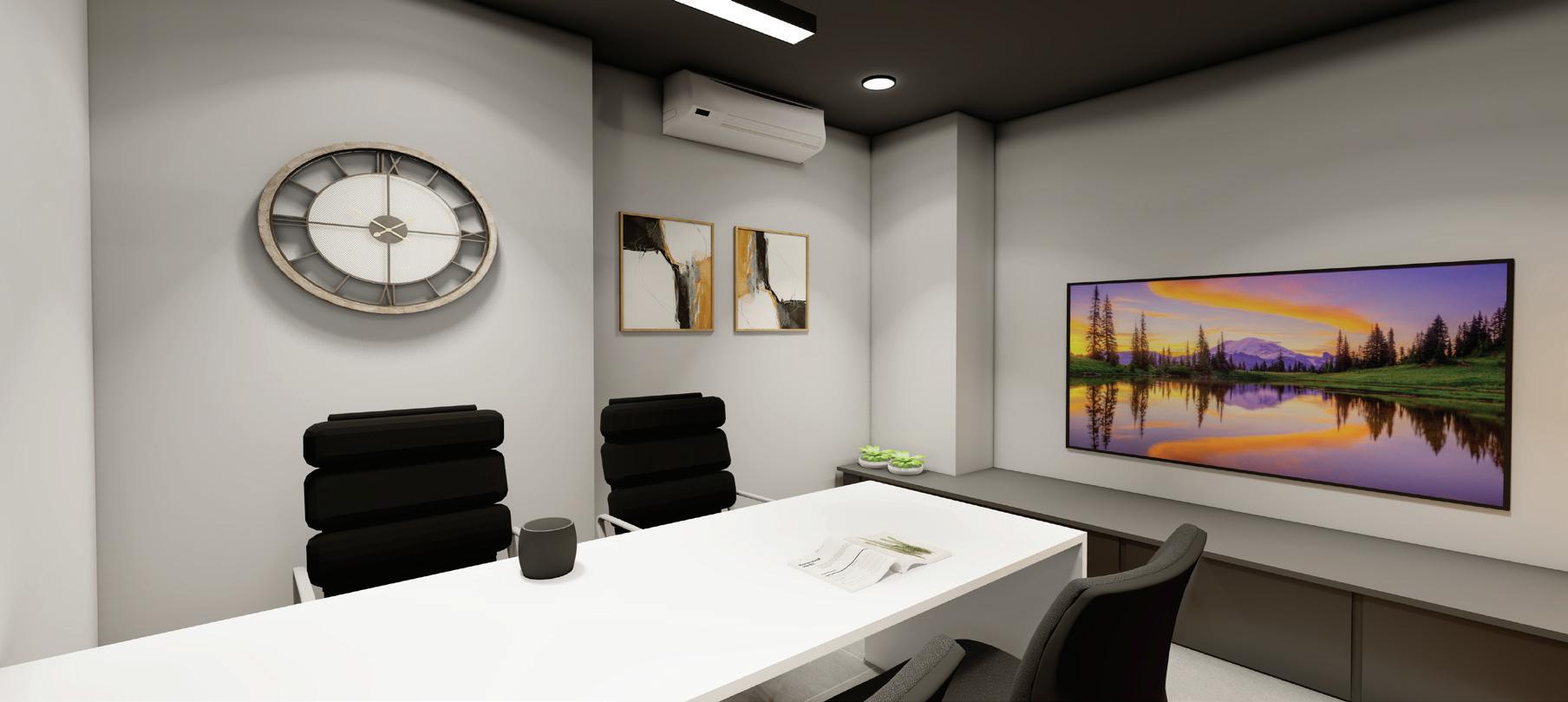

Conference Room
06

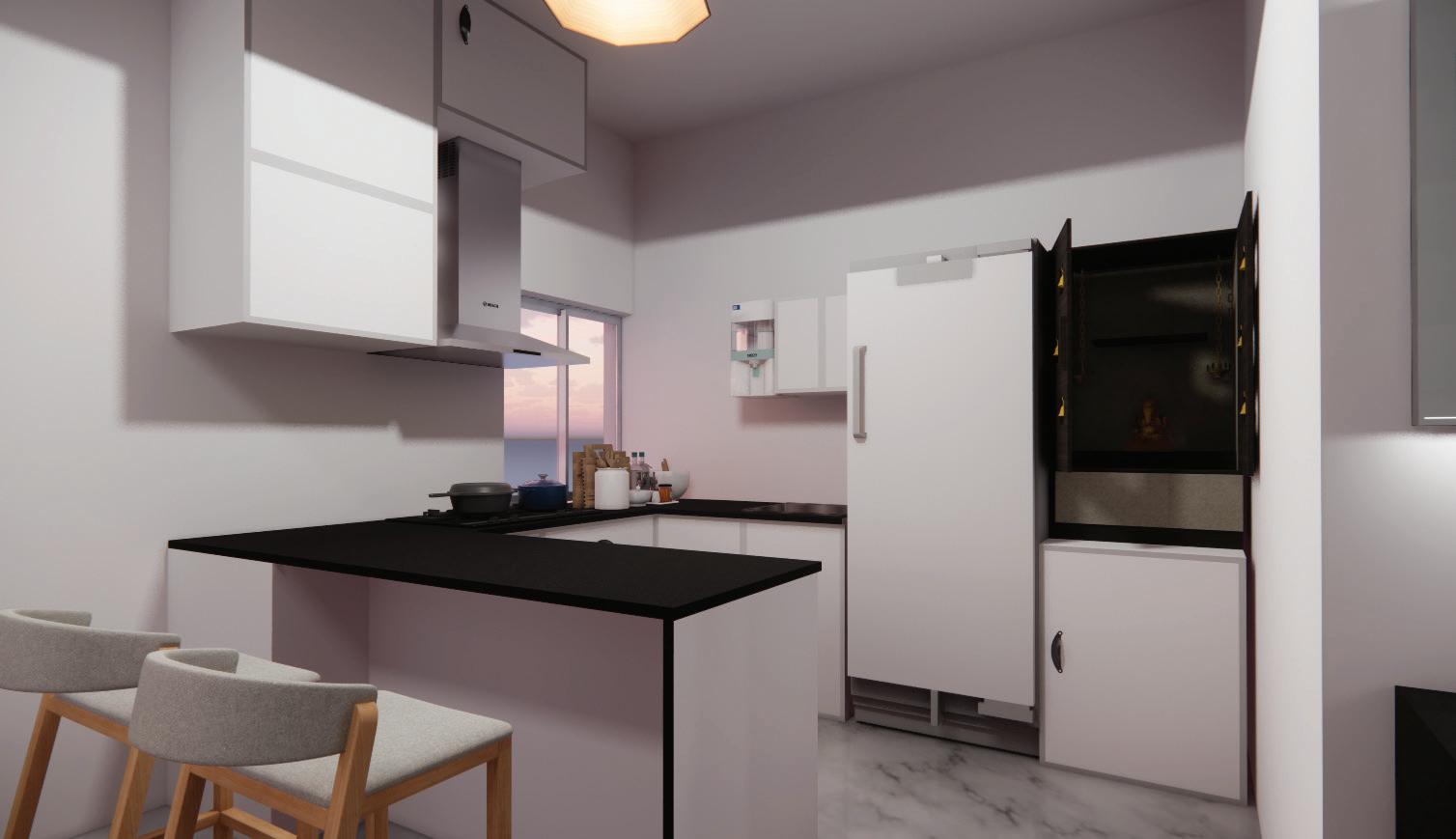

b. Renovation of 1 BHK House
Project of renovation of a 1 BHK house into something modern by replacing and old furnitures and making few changes.

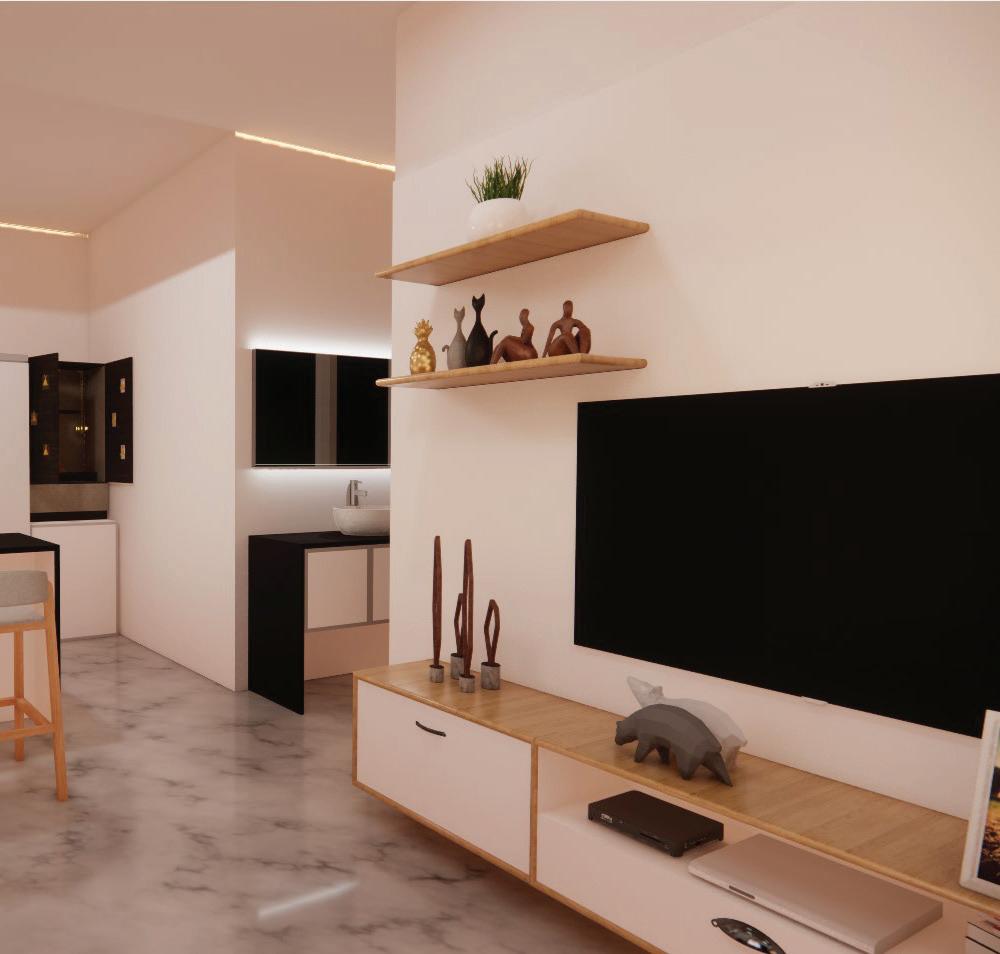

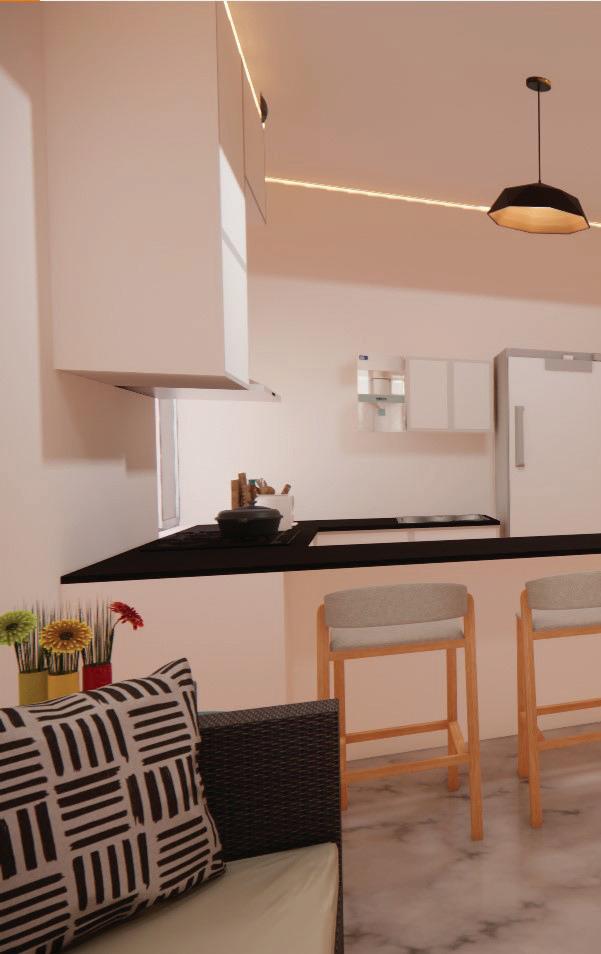

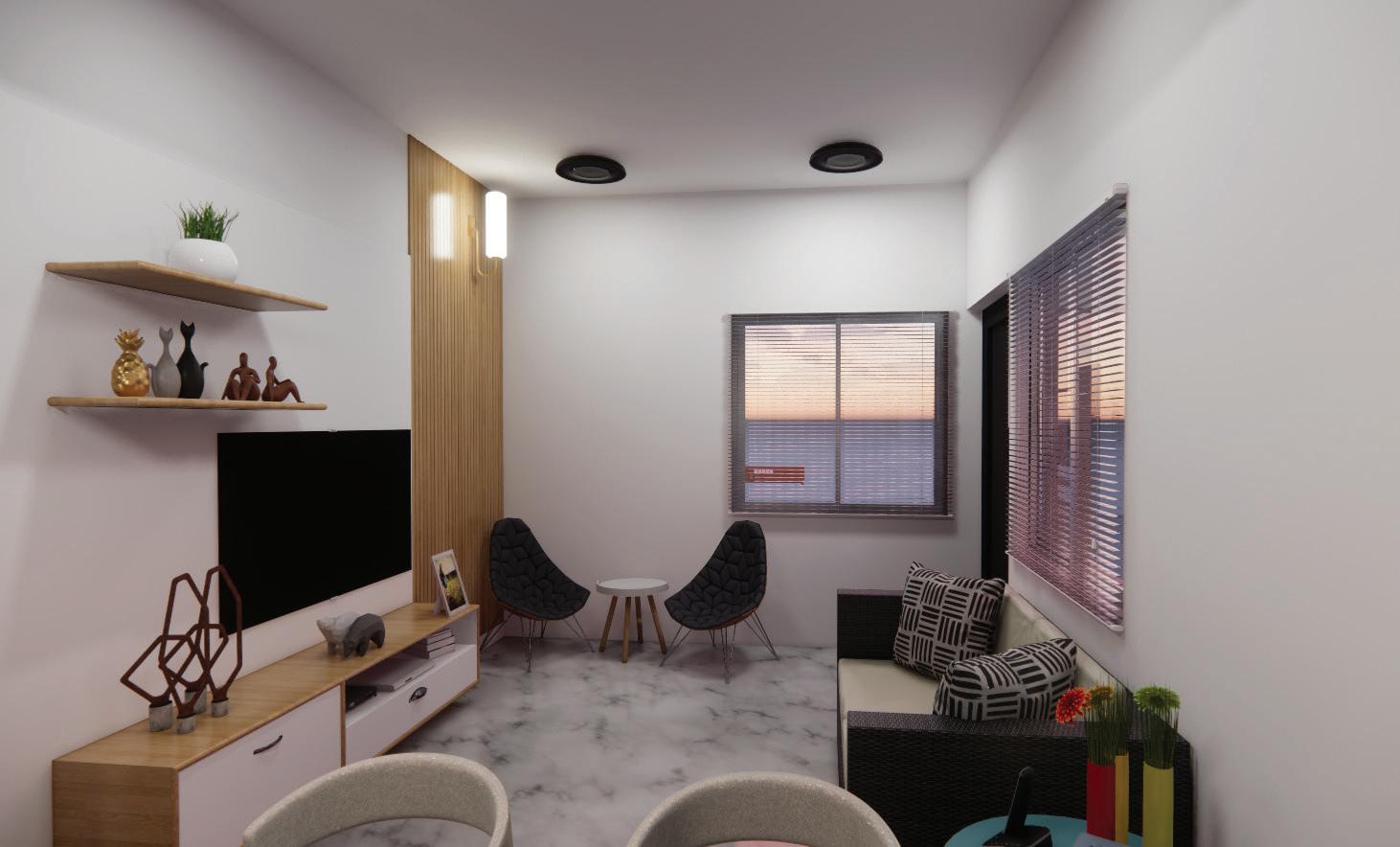

Living Room

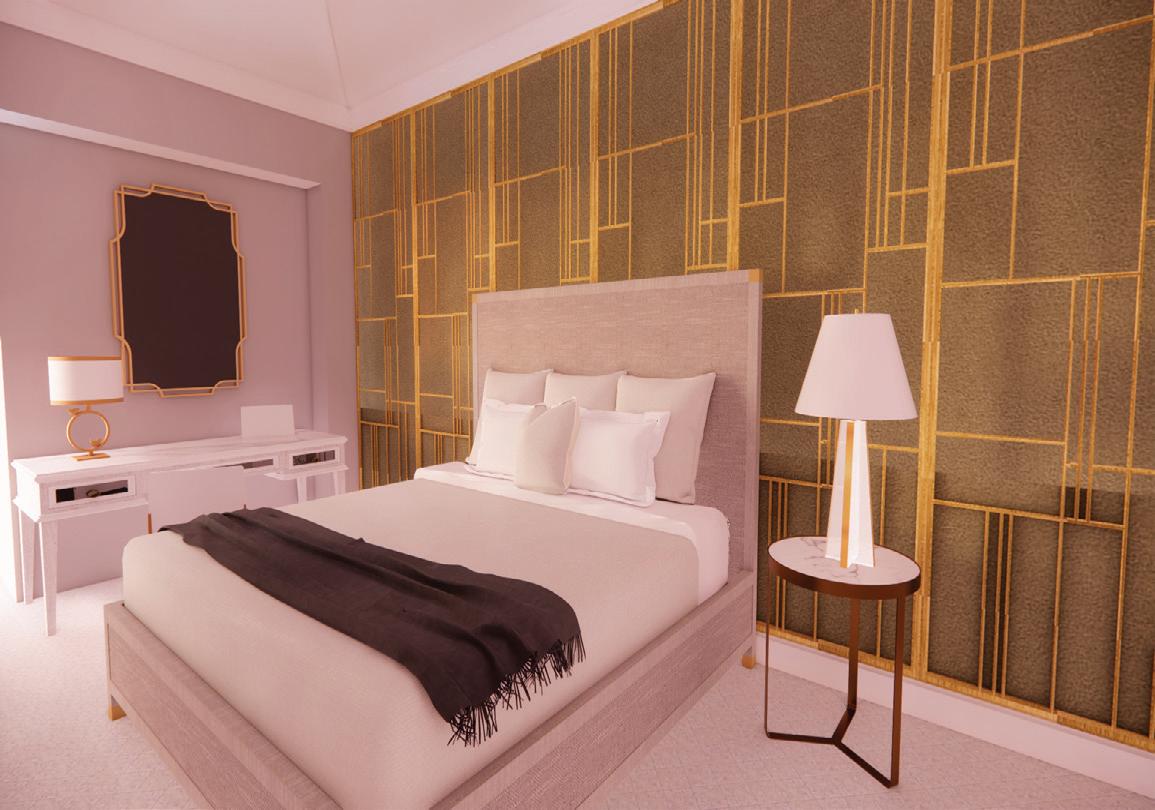

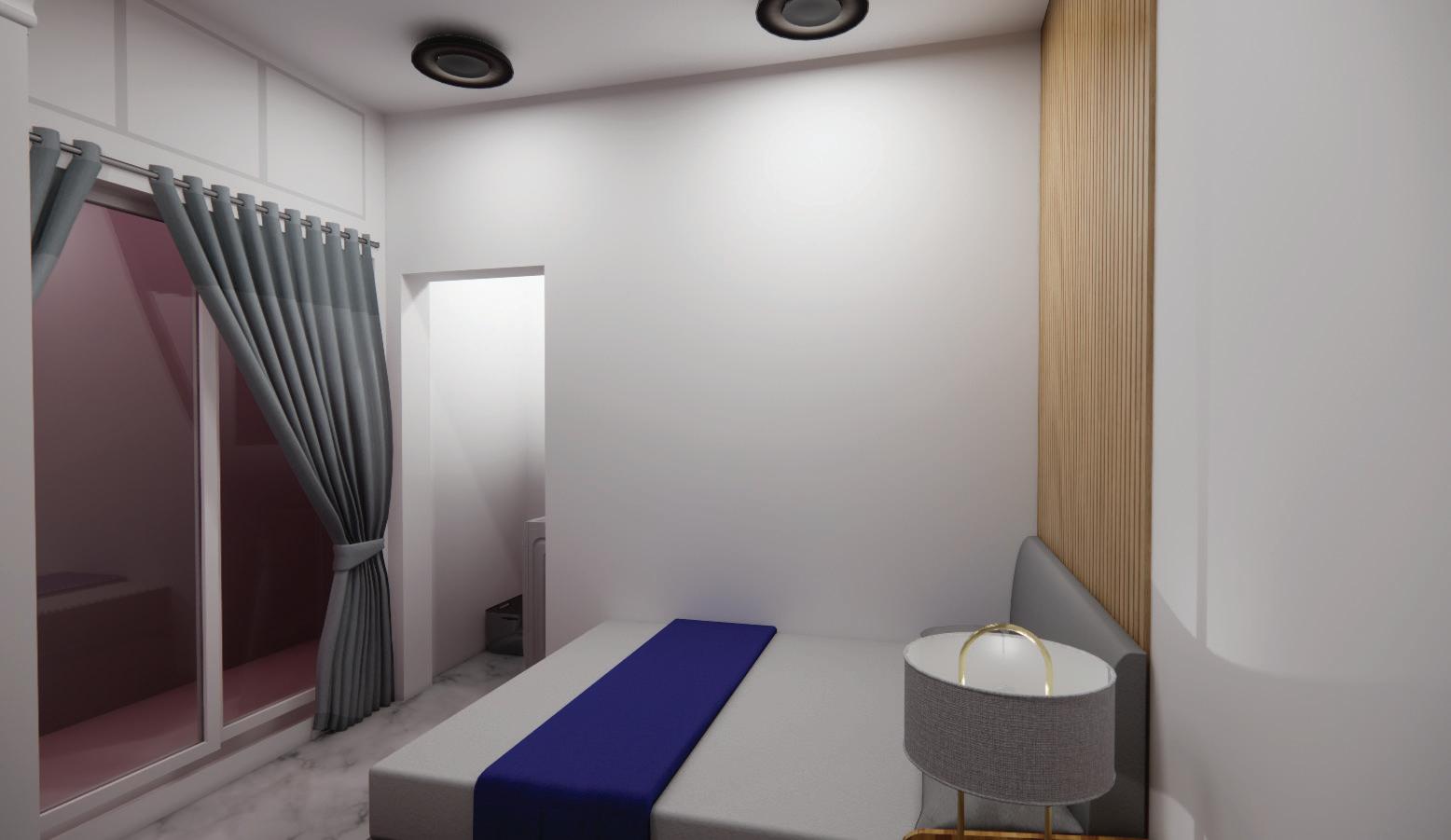

Bedroom
Bathroom
Miscelleneous

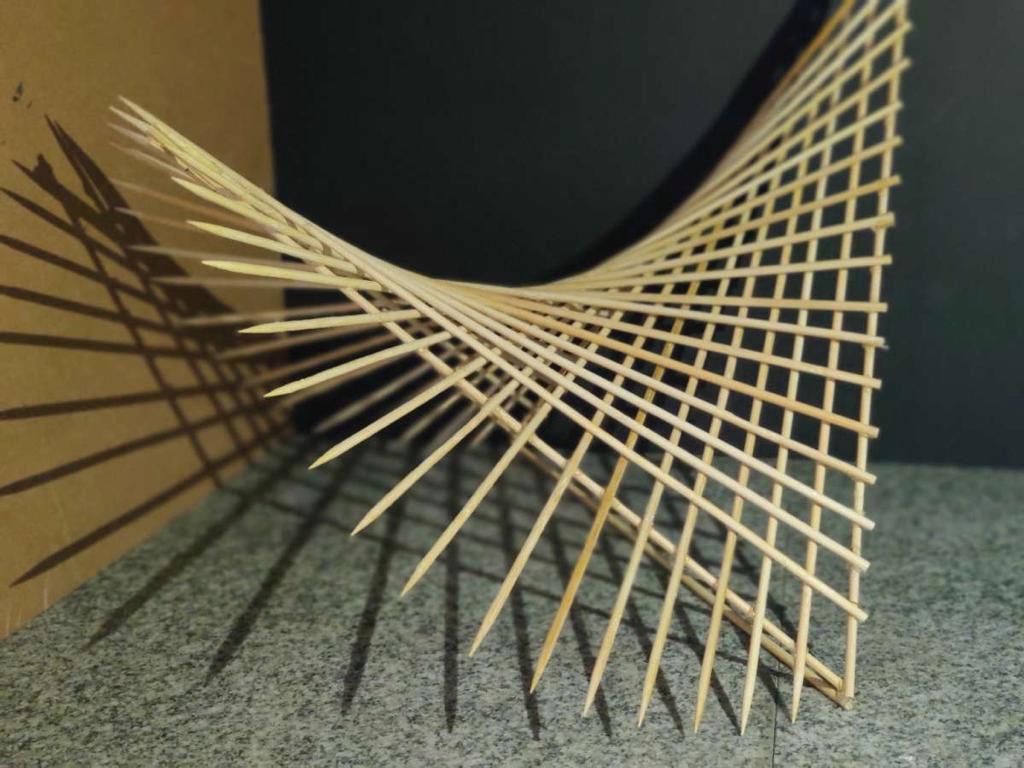

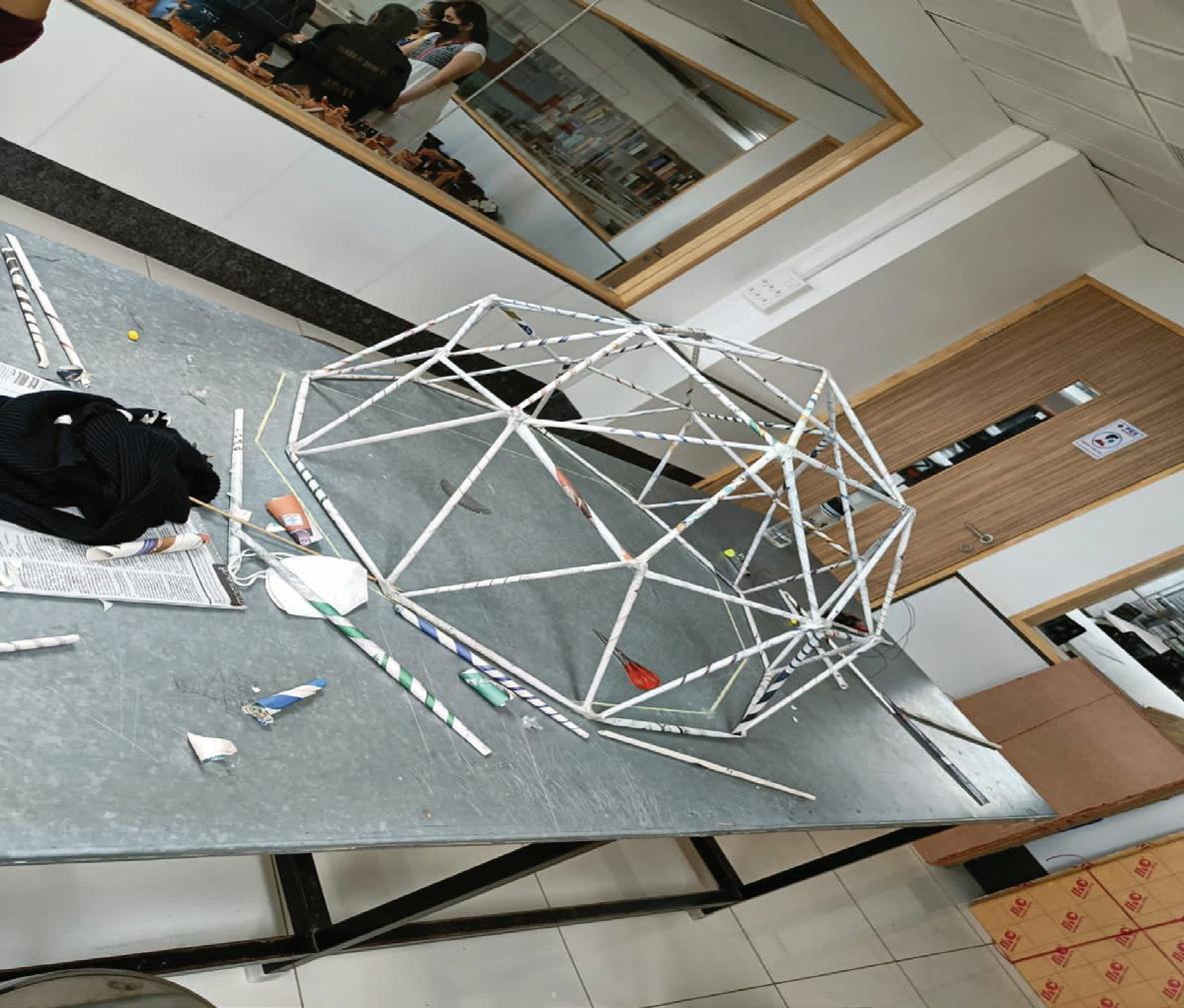

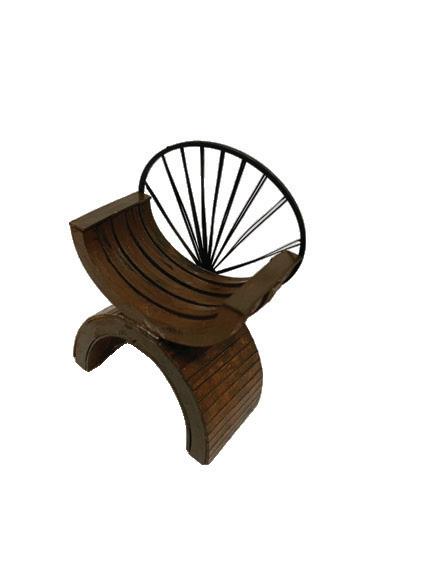

Model making

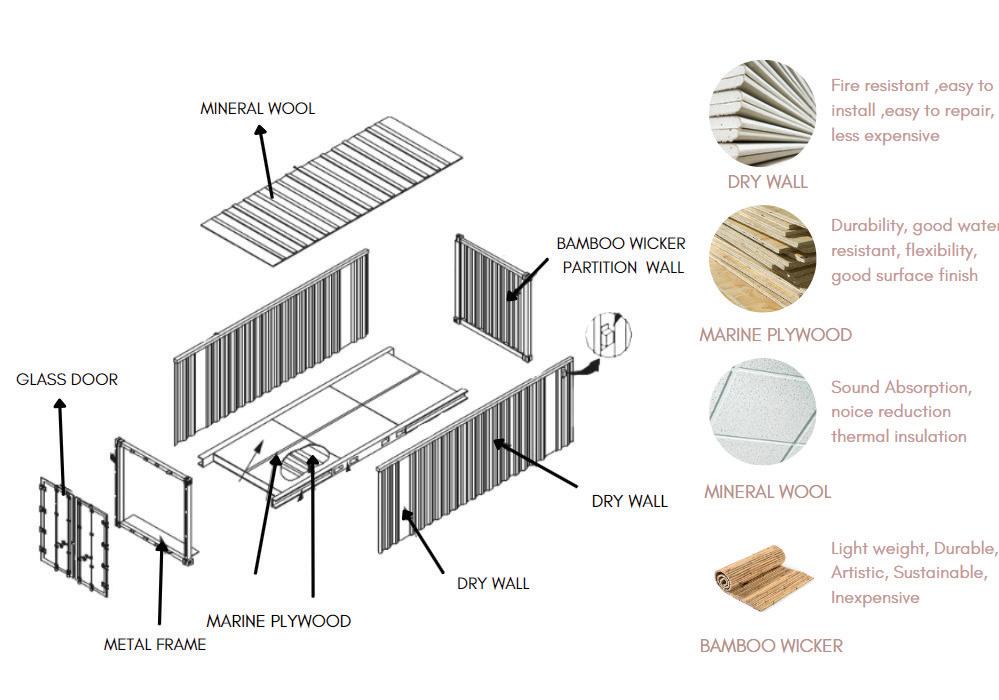

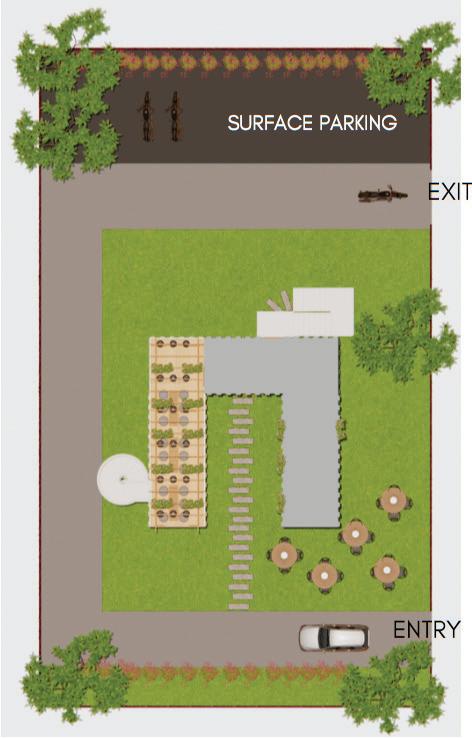

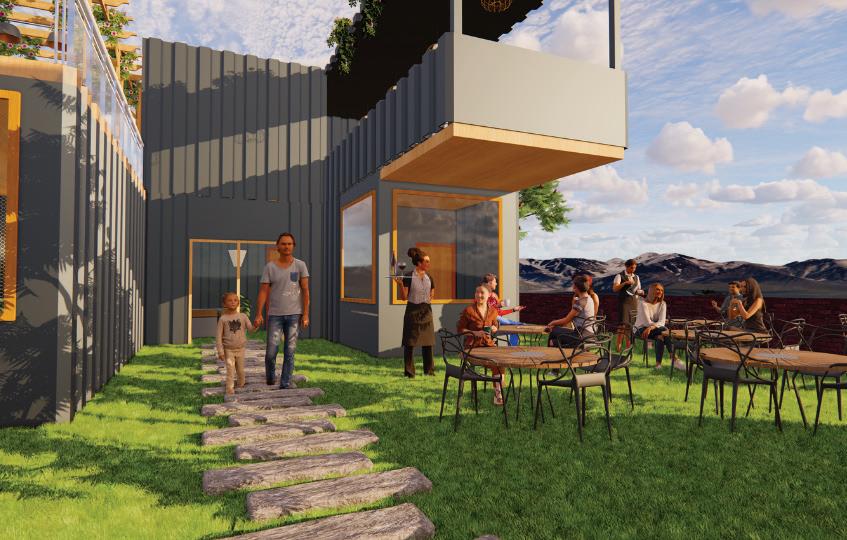

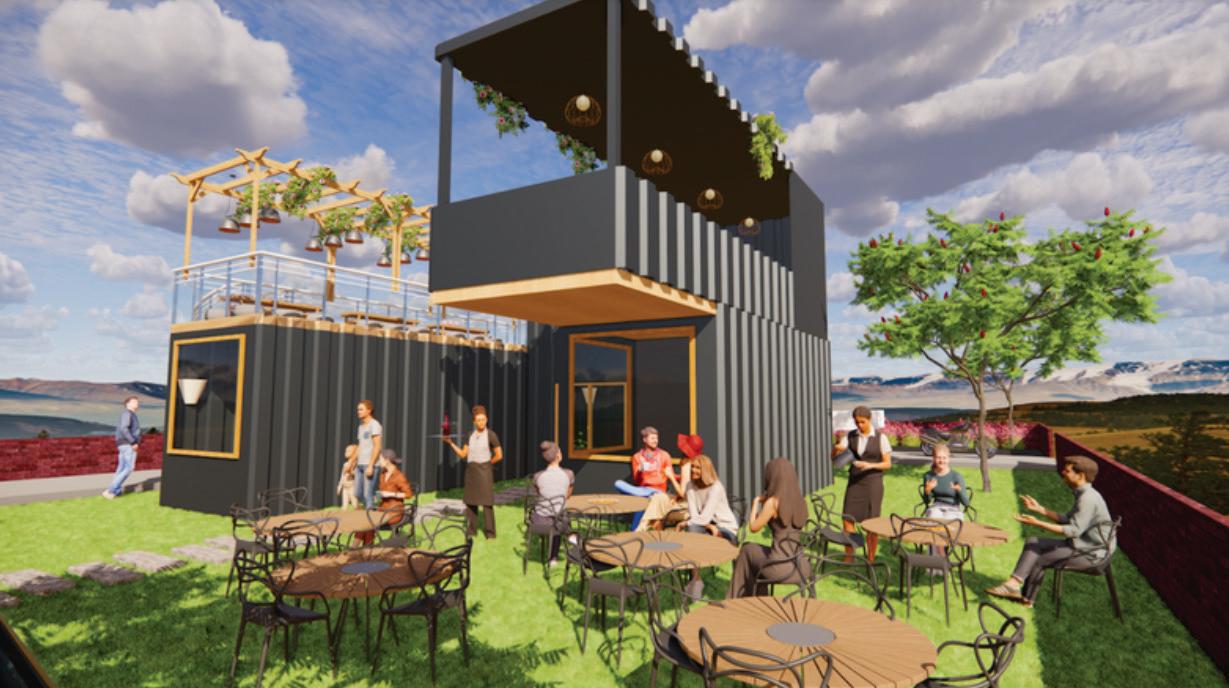

Cafe design using containers
