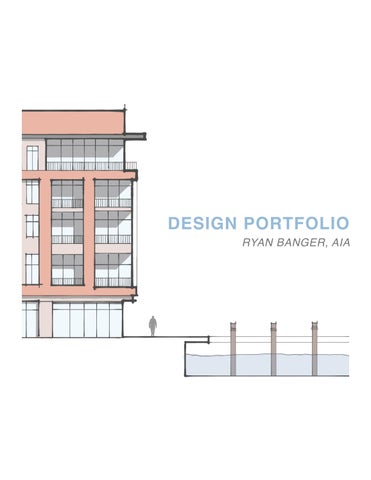

DESIGN PORTFOLIO

RYAN BANGER, AIA

CONTENTS SELECTED GRADUATE WORK THE ARCHITECTURE OF WHARVES Portland Working Waterfront

NEW COMMUNITY CONNECTIONS Bruce Monroe Community Center

PROFESSIONAL WORK 824 UPSHUR

Teass Warren Architects | Multi-Family Residential

4327 HARRISON

Teass Warren Architects | Multi-Family Residential

2717 TENNYSON

Teass Warren Architects | Single-Family Residential

Q STREET ROW

Teass Warren Architects | 2-Family Residential Flats

THE ARCHITECTURE OF WHARVES Re-imagining Portland’s Working Waterfront For The Future Master Thesis | Portland, Maine| Spring 2018

Portland is the largest city in Maine and credited with supporting the state with its working waterfront established back in the 1600s. The cultural identity of Portland is embedded in these working wharves, and represents a constant within an ever-changing city. This thesis is a comprehensive approach to urban planning, waterfront revitalization, and sustainability techniques that forms the revitalization of Center Street, creating a strong connection from the public of downtown Portland, down to the industrial Portland Fish Pier. This thesis is about reconnecting the city and the people with the working waterfront for the future of the city.

M EL R ST

PE AR L

EE T

LE EB PR ET RE ST

AR M

ET RE ST

T KE

ST

ET

ET RE

UN ION EE T

STR

T EE TR

T

S ER

E RE ST

NT CE

O SC

EE

FR

T

T EE TR

T EE

CA

R SP

ST

RE E

ET

R ST

ET

RE

G IN

ST RE

ST

RE ST

N

S GE AN CH EX

OW BR

R NG CO

S ES

SI LV ER

STR

ES

E MM CO

L IA RC

ST

ET

RE

CR

E

FR

RE FO

T EE TR

EE T

S OS S TR EET

K OA S ER

ET RE

NT CE

ST

T EE TR

E TR

ET

MAPL E

ST.

DA N

FO R

TH

ST

RE

S NT

.

ST

E PL

A AS

LE AP M

ST

ET

ET

RE

NG RI SP

RE ET

ST RE ET

COM ME RC

IAL

PA RK

ST

STR EET

HI GH

ST AT ES TR

EE T

DOWNTOWN

Place of public gatherings / interactions

CENTER STREET

“Main” street connecting neighborhoods

EXISTING CONTEXT

WORKING WHARVES

Central commercial fishing activities

How can architecture be reintroduced to connect the city with the working waterfront and create a community gateway for the people?

HOT SPOTS

STREET HIERARCHY

WHARF FUNCTIONS

WALK-ABILITY

WATER ACCESS

THE CONTEXT

Developing an analysis of downtown Portland and identifying the areas of disconnect that need to be addressed. The goal is to identify critical elements shown here that make a city functional for the people and the commercial industry and address the concerns through urban design.

MAJOR CORRIDOR COMPOSITION

CONGRESS STREET

FORE STREET

SITE ANALYSIS

COMMERCIAL STREET

THE USERS

M EL R ST

PE AR L

EE T

LE EB PR ET RE ST

AR M

ET RE ST

T KE

ST

ET

ET RE

UN ION EE T

STR

T EE TR

T

S ER

E RE ST

NT CE

O SC

EE

FR

T

T EE TR

T EE

CA

R SP

ST

RE E

ET

R ST

ET

RE

G IN

ST RE

ST

RE ST

N

S GE AN CH EX

OW BR

R NG CO

S ES

SI LV ER

ST

EE T

STR

CR

EE

FR

RE FO

ET RE

CO M

S ER

ET RE

NT CE

ST

M ER

EET

CI AL

S TR

ST RE ET

S OS

K OA T EE TR

E TR

ET

MAPL E

ST.

DA N

FO R

TH

ST

RE

S NT

.

ST

E PL

A AS

LE AP M

ST

ET

ET

RE

NG RI SP

RE ET

ST RE ET

COM ME RC

IAL

PA RK

ST

STR EET

HI GH

ST AT ES TR

EE T

DOWNTOWN

Revitalizing the central corridor zone

CENTER STREET

Creating a connection to the market

WORKING WHARVES

Central commercial fishing activities

PROPOSED SITE PLAN

THE CITY OF CONNECTIONS This exercise utilizes the site analysis of

downtown Portland and forms a city master plan that introduces a unified urban edge, celebrated nichesof public open spaces, and strong visual / physical connections down to the fishing wharf. The outcome is a re-imagined Center Street corridor that draws people from the central downtown area down to the proposed public Center Street Market waterfront neighborhood.

EXISTING URBAN EDGE

CITY / WHARF CONNECTION

PUBLIC OPEN SPACES

A CONNECTED CITY

Identify the urban fabric and pockets of void

PROPOSED URBAN EDGE Develop a cohesive urban fabric

Establish the primary access points of landmarks

Introduce public plazas for places of interaction

Merge the proposed ideas for the future city

Preserve commercial + private marine use.

Connect the public to the waterfront.

Revitalize the city life.

Create a strong connection to history.

Provide diverse housing types.

PROCESS

TIME + TEMPERATURE BUILDING / MONUMENT SQUARE PROPOSED DOWNTOWN MIXED-USE

CENTER STREET CORRIDOR COMMERCIAL STREET CORRIDOR PROPOSED MIXED-USE DEVELOPMENT PUBLIC PEDESTRIAN WHARF

PUBLIC WATERFRONT PLAZA PUBLIC MARKET COMMERCIAL SERVICE LOADING AREA SEAFOOD CATCH PREPARATION AREA SEAFOOD OFF-LOADING AREA PUBLIC MARINA

PUBLIC HARBOR PAVILION

THE URBAN REVITALIZATION

4

2 3

1 1

1 2

2

2

2

5

THIRD - FIFTH FLOORS 1. OPEN OFFICE SPACES 2. APARTMENTS

SECOND FLOOR

1. OPEN OFFICE SPACES 2. APARTMENTS 3. UPPER GALLERY 4. UPPER ARTIST SPACES/CLASSROOMS 5. UPPER PUBLIC MARKET

CENTER STREET MARKET

ER

MM

CO

L CIA

ET

RE

ST

2

3 9

3

PEDESTRIAN WHARF

1

8

5

4

3

7

WATERFRONT PLAZA

6

GROUND FLOOR PLAN

1. GALLERY SPACES 2. COMMUNITY ARTIST SPACES 3. FLEXIBLE RETAIL SPACES 4. PUBLIC MARKET HALL 5. AUCTION AREA 6. PREPARE AREA 7. RESTAURANT 8. TEACHING KITCHEN 9. SERVICE / LOADING AREA

FACADE STUDIES

M EL ST

PE A

ET

RE

TR ES

L EB PR T EE

T KE

CA ST

ST

ET RE

UN ION EE T

S TR

T EE TR

T

S ER

E RE ST

NT CE

O SC

EE

FR

NG

T EE TR

T EE

RE

RI SP

ET

R ST

ET

RE ST

N

S GE AN CH EX

SS

ET RE ST

AR M

OW BR

RE NG CO

SI LV ER

RE FO

ET RE

EE T

STR

CR

E

FR

T ES

CO M

S ER

ET RE

NT CE

ST

M ER

EET

CI AL

S TR

ST RE ET

S OS

K OA

T EE TR

ET

SA

S NT

E TR

ET

.

ST

EA PL

MAPLE ST.

DA N

FO R

TH

ST

RE

ST

LE AP M

NG

ET

RE

RI SP

CENTER STREET

ST RE ET

ST

RE ET

COM ME RC

IAL

PA RK

H

STR EET

HIG

ST AT ES TR

EE T

URBAN SUSTAINABILITY

RL

ST RE

ET

ST

RE E

T

SUSTAINABILITY OVERVIEW

The current sustainability efforts of downtown

Portland posed a challenge for mitigation of possible natural disaster events. The intent of this proposed urban street design is to introduce the following; bioswales for stormwater management, street trees for sun protection, and permeable pavers for water mitigation. The intent behind this is to minimize safe and visually appealing environment while enjoying the many experiences of the Center Street Trees

Permeable Pavers

Bioswales

vehicular traffic and provide pedestrians with a

COMMERCIAL STREET

Street Market waterfront neighborhood.

THE PEDESTRIAN WHARF

...TO PREPARATION

FROM CATCH ARRIVAL...

THE COMMERCIAL FISHING

MARKET

AUCTION

PREPARE

PUBLIC ARRIVAL

$721,197,482

COMMERCIAL LOADING

was generated in 2016 alone by the commercial Maine fishing industry.

CATCH ARRIVAL

.... THEN TO SELL / CONSUME

PUBLIC MARKET

FISHING BOAT ARRIVAL DOCK

HARBOR PAVILION

PUBLIC MARINA FISH PREPARE / AUCTION WATERFRONT PLAZA

THE PUBLIC MARKET

THE WATERFRONT PLAZA Utilizing the flexibility of the waterfront plaza as a place of memorable experiences for the people and the city year-round.

WATERFRONT PLAZA OVERLOOK AREA

FROM CITY.....

.....TO WATERFRONT

PROCESS

Create celebrated urban spaces to connect the people to the working industry through architecture.

Forming a re-imagined waterfront that is inclusive of all the crucial parts of a functional city.

NEW COMMUNITY CONNECTIONS Bruce Monroe Community Center Graduate Studio| Washington D.C.| Fall 2016

The proposed design aims to create “gateway” that forms a connection between the urban elements of this Washington D.C. neighborhood and the community garden. The garden design is terraced to follow the natural slope of the site. The intent is to incorporate visual connections between interior and exterior to form the natural movement throughout the site and encourage interactions between the garden and event spaces.

As part of the design, sustainability is addresses as a goal for the future of the building.

PROPOSED SITE PLAN COMMUNITY GARDEN SUPPORT BUILDING

TEACHING KITCHEN

SITE ORGANIZATION

Establishing connections through repetition

SPORTS COURTS

URBAN FABRIC

Connecting the existing broken urban edge

SITE PROCESS

PUBLIC EVENT / CAFE BUILDING

LINEAR URBAN PLAZA

SITE MOVEMENT

Defining paths of circulation throughout the site

8

9

10

7

6

7

6

7

5

11

12

9

8

4

1

13

MASSING PROCESS GROUND FLOOR PLAN 1. EVENT SPACE 2. PUBLIC CAFE 3. KITCHEN 4. MAIN LOBBY 5. SERVICE LOBBY 6. MEETING ROOM 7. OFFICES 8. STORAGE ROOM 9. MECHANICAL ROOM 10. LOADING / UNLOADING 11. BATHROOMS 12. ENTRY PLAZA 13. GARDEN SPACE

3

8 11 2

FLOOR PLAN

BUILDING + GARDEN CONNECTION One of the challenges of this site was how to introduce a community garden into an urban environment and establishing a cohesive connection to the proposed public building while maintaining an openness around the garden for vegetation. The outcome is a celebrated community space that blurs the lines between built and natural environments.

ELEVATIONS

STREET TREES

Provide trees as a form of shading for the building and users in the eastern morning sun and protect the building from overheating to minimize use of HVAC systems.

SHALLOW POOLS

Utilized as a buffer from the busy vehicular street, these pools can be used as a form of biorentention facility to mitigate storm-water and also a visual appeal for pedestrians walking along the sidewalk.

GREEN ROOF

Introduce an intensive green roof system at the event building as a form of storm-water/ roof drainage control technique. This also reduces the “heat island” effect and better regulates the interior environment temp.

MECHANICAL SYSTEMS

Provide a central air mechanical system with ducts located in the crawlspace area to minimize ceiling interruptions and take advantage of heating from the floor of the building.

BUILDING / SITE SYSTEMS

STRUCTURAL SYSTEM

Incorporate a moment frame system that includes vertical columns + roof trusses to maximize interior spaces and protect the building from unwanted lateral forces. This system is organized spacial as a strong visual connection to the gardens.

NATURAL VENTILATION

Introduce large openings along the east and west elevations of the building to promote natural ventilation and minimize use of the central air systems to save on costs.

SHADING DEVICE

Integrate angled vertical louvers into the west building facade design to control western afternoon sun into the building to protect the users inside and minimize overheating inside the building.

PUBLIC SPACES

The proposed community center building contains crucial public gathering spaces; including a flexible event room, cafe space, and teaching kitchen, that are beneficial to the local neighborhood.

These spaces provide a place of congregation where groups are able to rent and utilize for local functions that celebrate the garden space. By creating a connection to the garden, the cafe and kitchen are able to promote “farmto-table” concepts and introduce local cuisine to the city of Washington D.C. This building is an example of utilizing architecture for the benefit of the people and city for many future generations to come.

THE COMMUNITY BUILDING

Blurring the boundaries between built and natural environment to create an inviting space for the people to connect with the gardens. The outcome is a building that complements the neighborhood.

824 UPSHUR Multi-Family Residential Development Washington D.C.| Role: SD - DD

Teass Warren Architects is the Architect of Record for this 30-unit multifamily residential development, located in the Petworth neighborhood of Washington D.C. At approximately 30,000 SF, this building is an example of the missing middle and uses the tight site contains to its advantage by utilizing a center courtyard to maximize exterior openings for units.

The goal of this design is to maximize living spaces connected to the outdoors, address major site slopes, and connect a variety of different urban contexts together on the block.

Rendering by Teass Warren Architects

PROPOSED TYPICAL FLOOR

PROPOSED GROUND FLOOR

UNIT COUNT: 30 UNIT TYPES: 10 64% 1 BED 36% 2 BED 10% IZ UNITS 17% TYPE A UNITS 83% TYPE B UNITS

RESIDENTIAL DESIGN

LOBBY DESIGN

TYPICAL TYPE A UNIT

TYPICAL TYPE A BATHROOM

UNIT DESIGN

TYPICAL TYPE A KITCHEN

OTHER UNIT TYPES

DETAILS

BUILDING SECTION

DETAILING

Rendering by Teass Warren Architects

Elevations by Teass Warren Architects

4327 HARRISON Multi-Family Residential Development Washington D.C.| Role: SD - DD

Teass Warren Architects is the Architect of Record for this 30-unit multi-family residential development, located in the Friendship Heights neighborhood of Washington D.C. At approximately 28,000 SF, this building is designed with a diverse offerings of unit types to accommodate the various family types in this neighborhood. The goal of this design is to maximize living spaces connected to the outdoors, address major site slopes, and connect a variety of different urban contexts together on the block.

Rendering by Teass Warren Architects

PROPOSED TYPICAL FLOOR

PROPOSED STREET ELEVATION

Elevation by Teass Warren Architects

RESIDENTIAL DESIGN

TYPICAL 1-BED UNIT

UNIT COUNT: 30 UNIT TYPES: 10 30% 1 BED 63% 2 BED 7% 3 BED 7% IZ UNITS 20% TYPE A UNITS 80% TYPE B UNITS

TYPICAL TYPE A KITCHEN

UNIT DESIGN

2717 TENNYSON Single-Family Residential Development Washington D.C.| Role: SD - CCA

Teass Warren Architects is the Architect of Record for this single-family home, located in the Barnaby Woods neighborhood of Washington D.C., and commissioned by the client for themselves and their family. At approximately 10,000 SF, this home utilizes a variety of amenities for the family, including a home theater, gym, wine cellar, and roof decks, for them to enjoy and make this house a home. The goal of this design was to take advantage of the views to the surrounding nature, maximizing indoor/ outdoor connections, and incorporate various technological advances for the family to enjoy for many years in the future.

Rendering by Teass Warren Architects

Rendering by Teass Warren Architects

Rendering by Teass Warren Architects

SECOND LEVEL

THIRD LEVEL

CELLAR LEVEL

GROUND LEVEL

BUILDING SECTIONS

RESIDENTIAL DESIGN

DETAILING

Q STREET ROW 2-Family Flats Residential Development Washington D.C.| Role: SD - DD

Teass Warren Architects is the Architect of Record for this (4) 2-Family residential dwelling development, located in the Truxton Circle neighborhood of Washington D.C. At approximately 4,800 SF each, these flats are designed using the language of the traditional D.C. rowhouse while introducing a more modern approach the compliments the surrounding urban context. The goal of this design is to maximize living spaces with natural light for the users on these narrow lots and provide ample outdoor spaces for each of the units in these buildings.

Rendering by Teass Warren Architects

TYPICAL BEDROOM LEVEL

TYPICAL LIVING LEVEL
