RUST-OLEUM® 1-2-3 Maintenance catalogue

Page 1

INDUSTRIAL PAINTS AND RELATED PRODUCTS FOR QUICK & EASY DAILY MAINTENANCE

METAL PROTECTION FLOOR COATINGS INSTANT ROOF REPAIR REPAIR, LUBRICATION AND CLEANING
1-2-3 MAINTENANCE
KNOW-HOW TO PROTECT ™ WWW.RUST-OLEUM.EU NEW HARD HAT® ADVANCED PRIMER & TOPCOAT IN 1 See page 14

Rust-Oleum® products save time and money

Every RUST-OLEUM® product is designed to make your job easier and therefore meets at least one of the following requirements:

1. Less time spent on preparation

2. Less time spent on application

3. Less interruption of work

4. Longer lasting RUST-OLEUM®

Know-How to protect since 1921

In 1921 Captain Robert Fergusson perfected a paint based on fish oil that prevented rust and was capable of drying overnight without leaving any unpleasant odours.

® Corporation was born.

RUST-OLEUM
Introduction 2 Industrial paint aerosols: Hard Hat® Surface Preparation 9 Galvanising 13 Topcoats 19 Marking 31 Metal Protection: CombiColor® 38 Floor coatings 48 Waterproofing 64 Technical Sprays: X1 68 Anti-Graffiti: Graffiti-Shield™ 76 INDEX PAGE 2
RUST-OLEUM® 1-2-3 MAINTENANCE FOR ALL TRADESPEOPLE FIND YOUR PRODUCT WWW.RUST-OLEUM.EU 3 WWW.RUST-OLEUM.EU

FROM SUBSTRATE TO SOLUTION

BARE STEEL

RUSTED METAL PAINTED METAL (GOOD CONDITION)

PAINTED METAL (POOR CONDITION)

GALVANISED STEEL

ALUMINIUM

BARE WOOD

PAINTED WOOD (POOR CONDITION)

PAINTED WOOD (GOOD CONDITION)

PLASTIC / HARD PVC CONCRETE (>2 years old)

• HARD HAT® Rust Primer 2169/2182 • HARD HAT® Advanced • 6400 Shopprimer • HARD HAT® Rust Primer 2169/2182 • HARD HAT® Topcoat • HARD HAT® Advanced • CombiColor® Original • HARD HAT® Rust Primer 2169/2182 • 6400 shopprimer • HARD HAT® Rust Primer 2169/2182 • HARD HAT® Topcoat • HARD HAT® Advanced • CombiColor® Original, Aqua or Non-Zinc • HARD HAT® Topcoat • HARD HAT® Advanced • CombiColor® Original, Multi-Surface, Aqua or Non-Zinc • HARD HAT® Advanced • 2925 Paint Stripper • HARD HAT® Rust Primer 2169/2182 • HARD HAT® Topcoat • HARD HAT® Advanced • 2925 Paint Stripper • CombiColor® Original, Aqua or Non-Zinc • HARD HAT® 2180/2185 • Old galvanised: HARD HAT® 2185 • New galvanised: HARD HAT® 2117 or HARD HAT® 2120 • CombiPrimer® 3302 + CombiColor® Original or Non-Zinc • CombiPrimer Aqua (3369AQ/3380AQ) + CombiColor Aqua • HARD HAT® Adhesion primer 2102 • HARD HAT® Topcoat • HARD HAT® Advanced • CombiPrimer® 3302 + CombiColor® Multi-Surface • HARD HAT® Advanced • CombiColor® Multi-Surface • 2925 Paint Stripper • HARD HAT® Advanced • 2925 Paint Stripper • CombiColor® Multi-Surface • HARD HAT® Advanced • CombiColor® Multi-Surface • Adhesion primer 2102 • HARD HAT® Topcoat • HARD HAT® Advanced • CombiColor® Multi-Surface • HARD HAT® Topcoat • HARD HAT® Advanced • CombiColor® Multi-Surface • 7100/7200 floor coating • EpoxyShield® SEALER and ULTRA Temporary rust protection Daily touch-up maintenance (Aerosols) Regular maintenance (Brush/roller applied) Clean & Degrease Manually derust Remove loose paint Roughen surface 4

Extra protection (Brush/roller applied)

• CombiPrimer® 3369/3380

+ CombiColor® Original

• CombiPrimer® 3369/3380 + CombiColor® Original

SURFACE PREPARATION

GENERAL CLEANING/DEGREASING

Remove any grease, oil and any other contamination using a special cleaner or ammonia. For large areas high pressure steam cleaning is the ideal solution. Make sure that the surface is completely dry and free of residue before coating.

PAINTED SURFACES

Remove any loose paint by using a scraper. Check the adhesion of any fixed paint. If the paint is in good condition, clean/degrease, sand the surface, make it dust-free and make sure it’s dry before painting. Follow the surface preparation steps for the substrates below.

• CombiColor® Original, Multi-Surface, Aqua or Non-Zinc

• 2925 Paint Stripper

• CombiPrimer® 3369/3380

+ CombiColor® Original or Non-Zinc

• CombiPrimer Aqua (3369AQ/3380AQ)

+ CombiColor Aqua

• CombiPrimer® 3302

+ CombiColor® Original or Non-Zinc

• CombiPrimer Aqua (3369AQ/3380AQ) + CombiColor Aqua

• CombiPrimer® 3302

+ CombiColor® Original or Non-Zinc

• CombiPrimer Aqua (3369AQ/3380AQ) + CombiColor Aqua

• 2 coats of CombiColor® Original, Aqua or Non-Zinc. First coat 10% diluted

• 2925 Paint Stripper & 2 coats of CombiColor® Original, Aqua or Non-Zinc. First coat 10% diluted.

• 2 coats CombiColor® Original, Aqua or Non-Zinc

• CombiPrimer® 3302 + CombiColor® Original or Non-Zinc

• EpoxyShield® MAXX

BARE METAL Remove all surface contamination using a special cleaner or RUST-OLEUM® 2901. Rinse the surface thoroughly and let dry before applying the first paint layer. Although HARD HAT® and CombiColor® topcoats can be applied to bare metal, the use of a metal primer or HARD HAT® Advanced is always recommended for longer lasting results.

RUSTED METAL Remove any loose rust by using a scraper. Remove fixed rust using a wire brush. Derust until the rusted substrate is smooth and equal. Clean/ degrease the surface using a special cleaner or RUST-OLEUM® 2901. Make sure that the surface is complety dry before applying the first paint coat.

GALVANISED STEEL Remove any zinc oxide (white rust) from the surface using water and a Scotch-Brite to obtain a smooth surface. RUST-OLEUM® SurfaEtch solution 108 can be used to neutralise any alkaline residue. It produces a finely etched surface enhancing the adhesion of the coating. Then apply RUST-OLEUM® adhesion primers HARD HAT® 2102 or CombiColor® 3302 before topcoating. Note that it is not recommended to apply HARD HAT® and CombiColor® topcoats directly to galvanised steel, except HARD HAT® Advanced.

ALUMINIUM Use a Scotch-Brite® and water to remove any aluminium oxide and to roughen the surface for a better paint adhesion. Then apply RUST-OLEUM® adhesion primers HARD HAT® 2102 or CombiColor® 3302 before topcoating. Note that it is not recommended to apply HARD HAT® and CombiColor® topcoats directly to aluminium, except HARD HAT® Advanced.

BARE WOOD Make sure the wood is completely dry. Clean the surface and sand it to ensure good paint adhesion. Make the surface dust free to ensure that all sand dust is removed before applying the first paint layer.

PLASTICS Only hard plastic surfaces can be painted (such as PVC). First clean/ degrease the substrate using a special cleaner, then rough it up using a Scotch Brite® or sandpaper. Clean/Degrease the surface again and apply RUST-OLEUM® adhesion primers HARD HAT® 2102 or CombiColor® 3302 before topcoating or direcly CombiColor® Multi-Surface.

CONCRETE New concrete has to be left unpainted for the first 30 days. Make sure that the concrete is dry by taping a plastic sheet (1 x 1m) on the substrate for 24 hours. Check the underside of the sheet for any moisture, discoloration or condensation on the concrete. If so, do not paint the substrate. Clean the surface with RUST-OLEUM® 2901 premixed floor cleaner. Smooth and dense concrete should first be etched using RUST-OLEUM® Surfa-Etch 108. Note that CombiColor® and 7100 Floor coating can only be applied to concrete that is older than 2 years.

5 WWW.RUST-OLEUM.EU

MORE THAN EVER THE NO. 1 INDUSTRIAL PAINT AEROSOL

HARD HAT ® solves any maintenance touch-up and marking challenge, no matter what surface, condition, equipment or infrastructure. The recent product innovations confirm and enhance HARD HAT ® ’s No. 1 position in industrial paint aerosols.

COVER IT ALL TACKLE YOUR SURFACE PREPARATION, GALVANISING OR TOPCOAT CHALLENGES WITH OUR SELECTION OF COLOURS AND FINISHES.

WORK MORE EASILY ENJOY OUR EASY GRIP HANDLE AND GET THE JOB DONE IN ONE GO, THANKS TO OUR HIGH-OPACITY SPRAYS.

SPRAY MORE OUR AEROSOLS HAVE THE HIGHEST PAINT PERCENTAGE ON THE MARKET, SO YOU SPRAY MORE PAINT PER CAN AND CUT COSTS.

CONTINUALLY IMPROVING

ENJOY THE RESULT EXPECT COLOURS AND GLOSSY FINISHES THAT LAST A LONG TIME WITHOUT CHIPPING, CRACKING OR PEELING.

You know our HARD HAT® aerosols to be a top brand of spray paints for any maintenance job. HARD HAT® comes in many versions and colours, so you can use the right aerosol for any kind of challenge. Still, choosing the most compatible product isn’t always easy, so we made some interesting improvements to benefit our customers.

6

A

RESHUFFLED PRODUCT PORTFOLIO FOR A CRYSTAL-CLEAR VIEW ON WHAT PRODUCT TO USE

We analysed the many existing products and renamed some of them, to make it easier for customers to navigate the portfolio.

HARD HAT ® SURFACE PREPARATION

EASY PRE-TREATMENT THAT PAYS OFF

When surfaces are stained, slightly rusting, lack adhesion or need stripping, you need to prepare them before applying a new layer. HARD HAT ® Surface Preparation aerosols solve many issues, saving you time and money.

HARD HAT ® GALVANISING

FIGHT STEEL CORROSION WITH CATHODIC PROTECTION

Cathodic treatment of steel constructions and machinery is only effective when using high-quality components that give durable protection. All HARD HAT ® Galvanising coatings guarantee the best performance on the market.

HARD HAT ® TOPCOATS

TOUCH-UPS IN SECONDS, TOPCOATS FOR YEARS

Many surfaces need incidental or periodic repairs or touch-ups, to freshen up colours, protect metal base layers, repair glossy finishes… HARD HAT ® Topcoats offers various industrial aerosols solving these issues in seconds and last longer.

HARD HAT ® MARKING

MARK ANY SURFACE, IN ANY COLOUR

Need to mark a spot, demarcate traffic areas or apply symbols or messages on rough surfaces? Use HARD HAT ® Marking aerosols for writing, spraying and line marking paints in eye-catching shades. Perfect for last-minute signage on site.

7 WWW.RUST-OLEUM.EU

A HANDY PRODUCT SELECTOR TO FACILITATE THE SELECTION PROCESS

To guide our customers to the right solution, we developed a handy productselector. Customers can use it to find the best solution for their challenge in no time, for any indoor or outdoor application or substrate.

PRACTICAL GUIDANCE FOR:

• Specific substrates

steel, wood, plastic, etc.

• Particular conditions

heat, cold, chemical wear, UV resistance, heavy wear, etc.

• Type of maintenance indoor and outdoor

DON’T YOU HAVE A SPECIFIC APPLICATION IN MIND?

LOOK INTO A PRODUCT’S SPECIFIC FEATURES ON THE DIFFERENT PRODUCT PAGES.

THEY ALSO GIVE INFORMATION ON COMBINABLE AND ALTERNATIVE PRODUCTS, AND DIRECT YOU TO THE PREFERRED DISTRIBUTOR IMMEDIATELY.

8

PROPER SURFACE PREPARATION FOR

ANY SUBSTRATE

HARD HAT® Surface Preparation aerosols make high quality surface pretreatment a walk in the park. Thorough priming, covering or stripping has never been easier.

HARD HAT ® SURFACE PREPARATION

EASY PRE-TREATMENT THAT PAYS OFF

ANTI-RUST PRIMER ADHESION PRIMER
9 WWW.RUST-OLEUM.EU
PAINT STRIPPER STAIN BLOCKER

STAIN BLOCKER MAKE IT WHITE AGAIN

HARD HAT® STAIN BLOCKER

The effective solution to stains on ceilings, walls, wood, etc

• Matt white finish, best possible opacity (Non-yellowing)

• Touch dry (in 5-10 minutes), Tack-free time: 10 min

• Overcoat time: 30 min

• For application on concrete, plaster, particle board existing coatings, wall paper etc.

• Odourless. Recoatable with standard wall paints

Masks stains from: Nicotine, Soot, Moisture, Grease and Tar 2990 - 500 ml Matt white STAIN BLOCKING 10

QUICK PRIMERS A PERFECT BASIS

The quick anti-rust protection

Undercoat for difficult subtrates

1 2 3 2102 500 ml 2182 500 ml 2169 500 ml HARD HAT® ADHESION PRIMER
Ready to recoat after just 30 minutes
Unique coverage: 5.5 m2 per aerosol
To recoat with HARD HAT® topcoats (page 19)
Wide angle spray pattern for a large and even coverage
COVERAGE Can be used on: Galvanised, stainless steel, aluminium, copper, hard pvc, glass and ceramics Clear
GREAT
Ready to recoat after just 10 minutes, to handle after 30 min.
For new or slightly rusty surfaces
deeply
the surface
not
rust a
Penetrates
into
and does
give
chance
light coloured topcoats and red for dark coloured topcoats
HAT® ANTI-RUST PRIMER
• Grey for
HARD
Rusted steel Manually derusting and degreasing Apply primer For brushable metal primers see Combi-Primer® (page 41) and Shopprimers (page 59)
grey Red brown
Matt
Tack-free time: 30 min Overcoat time: 10 min 11 WWW.RUST-OLEUM.EU

NR.1 GREEN PAINT STRIPPER

2-4 m²/l 1 2 3 25.0.75 - 25.2.5 0.75 ml - 2.5 L 2925 500 ml
NR.1 GREEN PAINT STRIPPER Methylene Chloride Free! • Far more effective than other paint strippers on the market • Gel like paste • Works at low temperatures (< 0 °C) • Also effective as glue remover • Quick acting Apply product Allow to work Scrape off old paint 12

POWERFUL PROTECTIVE ZINC-BASED AEROSOLS

Zinc-based steel protection only works effectively with a high zinc content spray applied evenly at a constant high yield. Look for HARD HAT® Galvanising coatings, the top performer on the market.

HARD HAT ® GALVANISING

FIGHT STEEL CORROSION WITH CATHODIC PROTECTION

GALVA ZINC GALVA EXPRESSE GALVA ZINC-ALU GALVA PLUS
13 WWW.RUST-OLEUM.EU

HARD HAT® ZINCS WHY BETTER?

RUST-OLEUM® PRODUCES ZINC RICH PAINT ITSELF

That is how RUST-OLEUM® manages to keep the quality of its’ zinc rich paints so constant and at a high level. Many others buy it from various sources at varying qualities.

BETTER PERFORMANCE

• More paint per aerosol, more square metres

• Constant and high yield for direct results

• Usable down to 0º C

• Safer to use thanks to limited overspray

SPECIAL NOZZLE

All RUST-OLEUM® zinc sprays feature a special nozzle to limit overspray.

HARD HAT® GALVA ZINC

The nr.1 zinc coating

• Cathodic protection of bare and galvanised steel

• 90% pure zinc in dry paint film

• Resists 500 hours of salt spray testing (DIN 50021 SS)

• To recoat within one hour, brush version after 4 hours

• To recoat with HARD HAT® metallic sprays (page 26)

COLD GALVANISING

90% ZINC

Standard colours in
on
1085.1 1kg 500 ml
tabel
page XX
Galva zinc Competitor 90 HOURS SALT SPRAY TEST! (DIN 50021 SS)
Matt grey 14

HARD HAT® ZINCS PRODUCT OVERVIEW

HARD HAT® GALVA EXPRESSE

The super-fast zinc primer

• Protection and quick drying in one

• Tack free after just 5 minutes, to handle after 10 minutes

• Ideal for production and construction environments

• Resists 400 hours of salt spray testing (DIN 50021 SS) COLD

500 ml 5 min Technical information 2185 / 1085.1 GALVA ZINC 2180 GALVA EXPRESSE 2117 / 1017.1 GALVA ZINC-ALU 2120 GALVA PLUS Appearance Matt grey Matt grey Sparkling aluminium Aluminium gloss Zinc % 90% 68% 80% 54% Aluminium % 0% 1% 10% 23% Salt spray test 500 hrs. 400 hrs. 340 hrs. 310 hrs. Tack free 10 min / 15 min 5 min 20 min / 30 min 15 min To handle 30 min / 2 hrs. 10 min 60 min / 3 hrs. 60 min Heat-resistant 450°C / 300°C 350°C 450°C / 300°C 150°C Main advantage Best protection Quick drying Good protection + finish Finish like new galvanised
Matt grey 15 WWW.RUST-OLEUM.EU
GALVANISING

HARD HAT® ZINCS

GLOSS GALVANISING

GLOSS GALVANISING

GALVA ZINC-ALU

Protection and finish in one

• Zinc coating with sparkling aluminium particles

• Resists 340 hours of salt spray testing (DIN 50021 SS)

• The best compromise between a zinc spray and an aluminium spray

GALVA PLUS

Zinc gloss renewal

• Appearance similar to new galvanised

• For touching-up new galvanised

• Resists 310 hours of salt spray testing (DIN 50021 SS)

• Lower zinc contents, more aluminium

GLOSS GALVANISING

2120 500 ml 2117 500 ml 1017.1 1kg
Aluminium gloss Sparkling aluminium
16

THE TRUTH ABOUT LOW COST ZINC SPRAYS

BEST ZINC SPRAYS

100% PURE ZINC... DOES NOT MEAN ANYTHING

CONTAINS

87-90% ZINC

Only zinc that is 100% pure brings cathodic protection. But more important is the amount of pure zinc in the dry paint film. Cheaper zinc sprays often only contain up to 60% zinc. The best zinc sprays contain the maximum amount of 87-90% zinc in the dry paint layer.

WEIGHT OF THE CAN SAYS NOTHING

Many suppliers of cheap zinc aerosols use filling materials to make the can appear to be heavier.

GROSS CONTENTS SAYS NOTHING

An aerosol is made up of paint, solvents and propellent. The relation between these varies much from supplier to supplier. This results into the fact that one 500 ml can contains more paint than the other, affecting the coverage per aerosol.

solvents

propellent

paint

RUST-OLEUM SPRAY

BRAND X BRAND X 17 WWW.RUST-OLEUM.EU

A HANDY HARD HAT ® PRODUCT SELECTOR TO FACILITATE THE SELECTION PROCESS

To guide our customers to the right solution, we developed a handy productselector. Customers can use it to find the best solution for their challenge in no time, for any indoor or outdoor application or substrate.

FIND YOUR SOLUTION

We offer quick and easy solutions for daily maintenance in and around any plant or building. Our product selector helps you choose the right aerosol to solve your challenge. Find the right product by scanning the QR code.

THERE'S A HARD HAT® FOR EVERY PAINT JOB

Surface protection is a major challenge for any industrial maintenance team. Harsh conditions damage protective coatings, putting safety and operations at risk. HARD HAT ® offers a wide range of industrial aerosols for any kind of surface. Applied quickly and easily, it guarantees high quality protection that lasts longer.

We offer quick and easy solutions for daily maintenance in and around any plant or building. We’ve got you covered for small touch-ups, specific surface marking or larger maintenance work. No matter what you’re working on, we have a HARD HAT® aerosol that does the job. This product selector helps you choose the right aerosol to solve your challenge.

FIND YOUR IDEAL SOLUTION in mind? Check out our solutions by application category: Indoor maintenance > Outdoor maintenance > Finishing > Surface preparing > Galvanising > Marking > Surface protection is major challenge for any industrial maintenance team. Harsh conditions damage protective coatings, putting safety and operations at risk. HARD HAT offers wide range of industrial aerosols for any kind of surface. Applied quickly and easily, guarantees high quality protection that lasts longer. We offer quick and easy solutions for daily maintenance in and around any plant or building. We’ve got you covered for small touch-ups, specific surface marking or larger maintenance work. No matter what you’re working on, we have HARD HAT aerosol that does the job. This product selector helps you choose the right aerosol to solve your challenge. HARD HAT® COVERS IT ALL FIND YOUR SOLUTION > FIND DISTRIBUTOR ASK AN EXPERT SPOT MARKING > LINE MARKING > HORIZONTAL MARKING > COLOUR IDENTIFICATION > SAFETY MARKING > ANTI-CORROSION PROTECTION > UV-RESISTANT > OUTDOOR MAINTENANCE Welcome to the PRODUCT SELECTOR
Scan the code to select your HARD HAT® product.
18

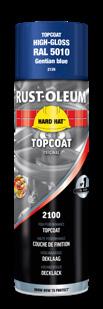

DURABLE TOPCOATS FOR ANY KIND OF CHALLENGE

Need to freshen up colour, fluorescent, metallic or transparent coatings? Want to protect metal from rust patches or heat? The HARD HAT® Topcoats provide a durable solution for all these challenges. Easy to apply and fast drying, with durable coverage from minimal product.

HARD HAT® ADVANCED

HARD HAT ® TOPCOATS

TOUCH-UPS IN SECONDS, TOPCOATS FOR YEARS

HIGH-PERFORMANCE TOPCOATS METALLIC TOPCOATS FLUORESCENT TOPCOATS TRANSPARENT TOPCOAT HEAT RESISTANT TOPCOATS
19 WWW.RUST-OLEUM.EU

A PREMIUM PRODUCT TO COMPLETE OUR RANGE

HARD HAT® ADVANCED

PRIMER & TOPCOAT IN 1

We saw the need for an ultra-performing aerosol that combines anti-corrosion with long-lasting protection, while being a primer and topcoat in one, and added this new kid on the block to our portfolio.

PRIMAIRE& FINITION•GRUNDIE R U N G THCIHCSKCED& &GAALDNORG ED K L A AG • PRIMER & TOPCOAT 2-IN-1
TO PERFORM NEW
MADE
COLOR RENTENTION 20
HIGH

PRIMER & TOPCOAT IN 1

No need to prime as the improved adhesion allows direct application on metal surfaces.

MORE RESILIENT FINISH

Stronger finish and highly elastic film without chips or cracks thanks to 10% more resin.

BETTER COLOUR RETENTION

UV-resistant qualities ensure excellent colour retention, both indoors and outdoors.

STRONG CORROSION PROTECTION

Unique zinc-free anticorrosive pigments keep surfaces rust-free much longer.

AVAILABLE IN 12 TOP-SELLING COLOURS ALL WITH ANTI-CORROSIVE PIGMENTS

SATIN GLOSS

JET BLACK

PURE WHITE

BLACK BLACK WHITE

TRANSPARENT

MATT TRANSPARENT

RAL 6005 RAL 7016 RAL 5010 RAL 7035 RAL 1018 RAL 3000 2700: 500 ml MADE TO PERFORM
21 WWW.RUST-OLEUM.EU

HARD HAT® ORIGINAL THE NR.1 INDUSTRIAL PAINT AEROSOL

AVAILABLE IN ANY COLOUR

(RAL, NCS, BS AND MORE)

- PAGE 25 -

1. Go further

More paint in the can, resulting in a higher coverage: 3-4 m2 One HARD HAT® aerosol equals up to 2-3 standard aerosols.

2. Work quicker

A higher film build without drips or runs, in one go twice the opacity of cheaper paint sprays (saving a cross layer). Normal coverage in one pass. Quicker drying: 10-15 minutes!

3. Last longer

Higher quality pigments for a longer gloss and colour retention. The tough flexible film resists chipping, cracking and peeling.

22
Available packsizes:
ml standard colours. 400 ml special colours on demand HARD HAT® TOPCOATS
500

HARD HAT® SPRAY FACTS

MORE

GREATER

PAINT IN THE CAN
OPACITY! Brand X RUST-OLEUM® VS NO RUNS, NO DRIPS! VS Brand X RUST-OLEUM® Propellant Solvent Solids Brand X RUST-OLEUM®

Agricultural and Machine Colours

Safety Colours

2126 Ford Blue, agricultural machinery 2133 Deutz Green, agricultural machinery 2136 John Deere Green, agricultural machinery 2143 John Deere Yellow, agricultural machinery 2145 Caterpillar Orange, excavators, dredging cranes 2148 JCB excavators 2152 Linde Orange, excavators 2154 STILL Orange, fork-lift trucks 2165 Massey Ferguson and New Holland Red, agricultural machinery 2186 Deutz Grey, agricultural machinery
2126 Fresh water 2134 Safe Place, escape routes, showers, exits 2143 Danger 2148 Take care/warning of danger, poison, explosion, radio-active radiation 2165 Stop/forbidden/fire extinguisher Identification Colours (See page 25) 2114 Steam 2123 Air 2138 Water 2149 Gas 2163 Acids and alkalis 2165 Fire fighting 2179 Other liquids RAL 9006 2114 RAL 5012 2123 RAL 5005 2124 National blue 2125 RAL 5010 2126/2726 RAL 5002 2127 RAL 5003 2128 RAL 6018 2133 RAL 6032 2134 RAL 6011 2135 RAL 6001 2136 RAL 6005 2137/2737 RAL 6010 2138 RAL 1013 2141 RAL 1015 2142 RAL 1018 2143/2743 RAL 1023 2144 RAL 1028 2145 RAL 1021 2146 RAL 1003 2147 RAL 1007 2148 RAL 1004 2149 RAL 2003 2151 RAL 2002 2152 RAL 2000 2154 RAL 4001 2163 RAL 3000 2165/2765 RAL 3020 2166 RAL 8002 2174 Satin black 2176/2776 Matt black 2178/2778 RAL 9005 2179/2779 RAL 7035 2181/2781 RAL 7001 2184 RAL 7005 2186 RAL 7032 2187 RAL 7016 2189/2789 Matt white 2190/2790 RAL 9010 2192/2792 Satin white 2193 RAL 9001 2194 Transparent 2500/2750 RAL 9016 2196
COLOURS HARD HAT® Advanced 2700 (See page 20) 24
HARD HAT® STANDARD
RAL 2143 RAL 9005 - HARD HAT® 2179 - CombiColor® 7379 Steam RAL 9006 - HARD HAT® 2114 - CombiColor® 7315 • Trusted HARD HAT® quality • 400 ml aerosol • Any colour • As of 9 pcs PIPELINE IDENTIFICATION COLOURS BRITISH STANDARD BS1710 (PART 1. 1980) Gas RAL 1004 - HARD HAT® 2149 - CombiColor® 7349 Fire fighting RAL 3000 - HARD HAT® 2165 - CombiColor® 7365 Air RAL 5012 - HARD HAT® 2123 - CombiColor® 7323 Acids and alkalis RAL 4001 - HARD HAT® 2163 Water RAL 6010 - HARD HAT® 2138 - CombiColor® 7334 Other liquids ANY COLOUR IN 400ML AEROSOL HARD HAT® SPECIAL COLOUR SERVICE 25 WWW.RUST-OLEUM.EU

HARD HAT® SPECIALIST TOPCOATS

Durable protection

• Gloss or sparkling metallic appearance

• To restore the metallic look of many different objects

• For use on bare metal, galvanised, zinc primers or anti-rust primers

HARD HAT® STAINLESS STEEL COATING

Double-acting protection (chemical & mechanical)

• Greater abrasion resistance

• Better anti-corrosion properties than other metallics

• Excellent UV resistance (does not discolour)

• Resists acids, chemicals and alkalis

2116 500 ml 2111 500 ml 2114 500 ml 2115 500 ml
HARD HAT® METALLIC TOPCOAT Finish with transparant topcoat 2500 for maximum gloss and durability METALLIC FINISH
STRONG
Application tips for different substrates: - On stainless steel: roughen the surface + 2116
On slightly rusty surfaces: 2169 + 2116
On zinc/galvanised: 2185/2180 + 2116
EXTRA
FINISH
-
-
White Alu Alu Spark ling Alu Stainless steel
26

safety markings and colour coding

HARD HAT® THE TRANSPARENT PROTECTION

Protects copper, chrome, silver bronze, nickel, aluminium

• Non-yellowing (UV-resistant) • Quick drying (10-15 min.)

Application areas:

• Protective layer for many metal surfaces

• Gloss repair of old coatings

• Provides extra durability to metallic and fluorescent coatings

TRANSPARENT PROTECTION

2500 500 ml 2200 500 ml HARD HAT® FLUORESCENT TOPCOATS
stencils,
For maximum efficiency of fluorescent colours, spray over HARD HAT® matt white (2190) and finish with HARD HAT® clear coat (2500), see below HIGH VISIBILITY
Ideal for
Clear 2233 Fluo green 2264 Fluo red 2242 Fluo yellow 2222 Fluo blue 2255 Fluo orange 27 WWW.RUST-OLEUM.EU

HEAT RESISTANT COATINGS

For temperatures up to 750oC

HARD HAT® 7715 and 7778 heat resistant coatings should be used on new, bare steel, blasted steel or light rusted steel surfaces or properly prepared painted substrates alike barbecue grills, fire place equipment, space heaters etc. Provides heat resistance up to 750°C dry heat (short term peak resistance) in sheltered or interior environments.

7715 500 ml 7778 500 ml 1015 / 1078 750 ml - 2,5 L
HARD HAT® HEAT RESISTANT Matt black Aluminium 28

Available sizes:

Spray 500 ml

Brush version 750 ml & 2,5 L

RESULTS AFTER 2 HOURS AT 600˚C

Competitor 1

Competitor 2

HARD HAT® 7778

For use on:

• Engines

• Heat cannons

• Steam pipes

• Boilers

• Vents

• Barbecues

• Stoves

29 WWW.RUST-OLEUM.EU

EASILY PREVENT SLIPS AND TRIPS

For foot traffic

• For foot traffic, interior and exterior

• Anti-slip additive is premixed in the coating

• For use on old concrete (>2yrs), metal and wood

• Touch dry after 6 hours

ALSO IDEAL FOR GRIPS & HANDLES

ANTI-SLIP SPRAY

Makes every surface non-skid in a second

• Light duty anti-slip finish

For a more durable anti-slip finish, see Rust-Oleum® 7100NS, Safe-T-Epoxy and Treadsafe anti-slip coating

RAL 1023 RAL 7001 RAL 7035 RAL 9005 8m2/L 2400 500 ml 7100NS 750 ml - 5 L SUPERGRIP™
Adheres to metal, wood, concrete, tile floors and parquet
Very quick drying (5-10 minutes)
2444 Safety yellow 2410 Transparent 2479 Black
ANTI-SLIP COATING Transparent 30
SUPERGRIP™

BRIGHT AND DURABLE MARKING SPRAYS

HARD HAT® Marking aerosols are bright-coloured sprays for line and spot marking, horizontal or vertical. Easily applied on diverse and uneven surfaces, with short drying times.

MULTI-MARKING

HARD HAT ® MARKING

MARK ANY SURFACE IN ANY COLOUR

LINE MARKING SPOT MARKING
31 WWW.RUST-OLEUM.EU
GROUND MARKING

LINE MARKING PAINT UP TO 120 METER PER CAN!

Durable line marking paint

Ideal for drawing lines in parking areas, plants, warehouses, sports fields, stadiums and all sites where traffic control is required. HARD HAT® lining paint should be used in light traffic exposure. The product is designed for use together with the RUST-OLEUM® Striping Machine. The products are based on lead- and chromate free pigments.

• For use with RUST-OLEUM® line applicators

• Adjustable line width from 5 to 10 cm

• Light traffic possible after just 4 hours

• Adheres to asphalt, concrete, grass, metal, wood, etc.

• Also available in 500 ml

RAL 9010 RAL 9017 RAL 5017 RAL 6024 RAL 3020 2300AE.0.75 500 ml - 750 ml
HARD HAT® PERMANENT LINE MAKER Yellow 32

WHY BETTER?

RUST-OLEUM® LINE APPLICATORS

Competitor Rust-Oleum®

• Sharper line edges

• Better opacity

Handle V2009

Handle + 2-wheels V2009+2005

Handle + 4-wheels V2009+V2029

A B C D

Handle + 4-wheels V2009 + V2029 (sideholder included with V2029)

33 WWW.RUST-OLEUM.EU

Best quality marking paint

Ideal for writing

2344 500 ml 2358 500 ml 2822HZ 500 ml 2864HZ 500 ml 2392 500 ml
PERFORMANCE MARKING PAINT UP TO 70 METER PER CAN! HIGHEST OPACITY
HARD HAT® MARKING PAINT • For marking difficult substrates • Best opacity, weather-resistant and watertight • For on metal, concrete, asphalt, gravel, soil, grass, wood, etc. • Even on slightly wet surfaces • Upside down spraying system Fluo red/ orange
Optimised for horizontal marking • Small line width for easier writing • Spray through cap for ease of use • For use on wood, concrete, metal, etc. ECONOMICAL MULTI-MARKER 360˚ rotating Fluo red Fluo blue Yellow White 34

ECONOMICAL MARKING PAINT SPRAYABLE IN ALL DIRECTIONS

360˚ rotating

ECONOMICAL GROUND MARKER

Fluorescent colours

• Optimised for ground marking

• Spray through cap for ease of use

• Easier writing

• Quick drying (5 - 10 minutes)

ECONOMICAL GROUND MARKER

RAL traffic colours

• Optimised for ground marking

• Extra large can for more linear metres

• Two finger nozzle for accurate writing

• Quick drying (5 - 10 minutes)

2822 500 ml 2833 500 ml 2864 500 ml 2842 500 ml 2862 500 ml 2855 500 ml 2824AE.0.75 750 ml 2866AE.0.75 750 ml 2844AE.0.75 750 ml 2896AE.0.75 750 ml
RAL 1023 RAL 3020 RAL 9016 RAL 5017
Fluo green Fluo pink Fluo red Fluo yellow Fluo blue Fluo orange
35 WWW.RUST-OLEUM.EU
360˚ rotating

SPRAY TOOLS FOR AN EASIER JOB

Spray

V241526
with ease! HARD HAT® SPRAY GRIP®
• Ergonomic design
• Large soft touch trigger
• Durable construction
by squeezing
two fingers Align spray tip
opening Purge aerosol to clean nozzle WATCH THE VIDEO 36
For all HARD HAT® aerosols Attach
with
through

THE SECRET TO SUCCESSFUL SPRAYING

Surface preparation

Degrease Dry surface Clean

2

Test before use!

Each aerosol paint performs differently due to the hardware, thickness of the paint inside, propellant, etc. Make sure to test spray the can to determine the optimal spraying distance, the speed of application, etc. before spraying the actual object.

1 20-25 cm

3 4

step 2 step 1

Always apply cross layers.

Movement and distance

The secret to achieving even coverage is keeping your wrist locked. Keep the can parallel from the object at 20-25 cm and move the can back and forth, creating equal passes.

Clean the nozzle

To clean the nozzle after use, always turn the can upside down and spray until transparent propellant comes out. It may look like a waste, but it prevents blocking of the aerosol, making it available for future use again.

OBJECT OBJECT
37 WWW.RUST-OLEUM.EU
COMBICOLOR® ORIGINAL DIRECT TO RUST! Available pack sizes: 250 ml, 750 ml, 2,5 L, 400 ml aerosol • Primer and topcoat in one • For application onto rust, bare metal • High coverage: 10.3 m² per litre • Sag resistant, no brush strokes • Usable down to 5°C Time saving paint for metal protection COMBICOLOR® ORIGINAL LIFEEXPECTANCY METALPROTECTION 38
® AVAILABLE IN ANY COLOUR (RAL, NCS, BS AND MORE) - PAGE 40CombiColor® Thinners CombiColor® coatings are ready for immediate use with brush or roller. For spray application however it is advised to use a CombiColor® thinner. COMBICOLOR® ADVANTAGES A PRIMER AND TOPCOAT IN ONE
LONGER LASTING FLEXIBILITY Standard 7301 For hammertones 7302
GREATER OPACITY! Brand X Brand X 39 WWW.RUST-OLEUM.EU
B
C
Gloss 7341 RAL 1013 7314 Gold 7315 RAL 9006 7323 RAL 5012 7324 RAL 5015 7326 RAL 5010 7328 RAL 5002 7329 RAL 5011 7333 RAL 6018 7344 RAL 1023 7389 RAL 7016 7396 RAL 9016 7334 RAL 6010 7335 RAL 6011 7336 RAL 6001 7337 RAL 6005 7339 RAL 6009 7342 RAL 1015 7343 RAL 1018 7346 RAL 1021 7348 RAL 1007 7349 RAL 1004 7354 RAL 2000 7365 RAL 3000 7366 RAL 3020 7373 RAL 8001 7377 RAL 8011 7379 RAL 9005 7381 RAL 7035 7382 RAL 7001 7383 Silver gray 7386 RAL 7005 7392 RAL 9010 7347 RAL 1003 7320 RAL 5017 7375 Black 7394 White Matt Wrought Iron Hammertones 7378 Black 7390 White 7319 Black 7321 Light blue 7332 Light green 7338 Dark green 7345 Gold 7362 Copper 7364 Red 7374 Dark brown 7376 Black 7384 Light grey 7388 Dark grey 7391 White 7315 Steam 7323 Air 7334 Water 7349 Gas 7365 Fire fighting 7373 Combustible liquids 7379 Other liquids Safety Colors Agricultural and Machine Colors 7326 Ford Blue, agricultural machinery 7333 Deutz Green, agricultural machinery 7336 John Deere Green, agricultural machinery 7343 John Deere Yellow, agricultural machinery 7348 JCB excavators 7354 STILL Orange, fork-lift trucks 7365 Massey Ferguson and New Holland Red, agricultural machinery 7386 Deutz Grey, agricultural machinery 7326 Fresh water 7343 Danger 7348 Take care/warning of danger, poison, explosion, radio-active radiation 7365 Stop/forbidden/fire extinguisher Identification Colors (See page 21) CombiColor® coatings can be supplied on special request, in more than 25.000 RAL, AFNOR, NCS, BS381C and BS4800 colours (gloss and satin). Satin There may be some slight variation from original manufacturer’s colours. COMBICOLOR® STANDARD COLORS CombiColor Aqua (See page 44) CombiColor Non-Zinc (See page 46) 40

FOR EXTRA ADHESION

COMBIPRIMER® ANTI-RUST PRIMER

For an even longer anti-rust protection

• Recoatable after 2 hours

• For new / slightly rusted surfaces

• Grey for light coloured topcoats

• Red for dark coloured topcoats

COMBIPRIMER® ADHESION PRIMER

Makes even the smoothest surface coatable

• Easy to apply

• Transparent blue finish

• Recoatable after just 30 minutes

• Very high coverage: 50 m2/l.

Clean & degrease surface Apply CombiPrimer® Apply CombiColor® topcoat

2 3
2 3
1
1
Remove loose rust with a wire brush Clean and degrease Apply CombiPrimer® (3369/3380) Available pack sizes: 250 ml, 750 ml, 2.5 L, 400 ml aerosol Grey
TO RUST
DIRECT
Available pack sizes: 250 ml, 750 ml, 400 ml aerosol Transparent blue Red brown 41 WWW.RUST-OLEUM.EU
RAL 1018 RAL 1015 RAL 1007 RAL 3000 RAL 5010 RAL 6005 RAL 9005 RAL 7035 RAL 7016 RAL 9001 RAL 9010 RAL 9016 RAL 7001 9m2/L RAL 7006 750 ml - 2,5 L COMBICOLOR® MULTI-SURFACE All-in-one paint (primer + finish) • Direct to surface • Paint & primer in one • Quick drying • Interior and exterior COMBICOLOR® MULTI-SURFACE RAL 9005 satin RAL 9010 satin RAL 9016 satin Matt black Matt white RAL 9001 satin ONE PAINT, MANY SURFACES AVAILABLE IN ANY COLOUR (RAL, NCS, BS AND MORE) - PAGE 4042

FOR DIRECT APPLICATION TO MANY SURFACES

Wood

For a full view of all application areas please refer to the technical data sheet (www.rust-oleum.eu).

Concrete
Tiles Inox Masonry PVC
And more...
43 WWW.RUST-OLEUM.EU

COMBICOLOR AQUA WATER-BASED FORMULA

An anti-corrosion metal paint that uses the very latest paint technology in a waterbased formula that is safer for the user and the environment whilst maintaining the same flexibility, flow, weather resistance and high performing metal protection as our CombiColor Original. Containing rust-inhibitive additives, the low VOC, waterbased formula is lead and chromate free. A 2-in-1 paint, it can be applied to any metal surface (including directly to rust) without the need for a primer.

The paint film is designed to resist cracking, peeling and blistering for up to 12 years before first maintenance. Apply directly to bare, previously painted or rusted ferrous metal.

For metal structures in a more aggressive industrial environment, prior application of CombiColor Aqua Primer is recommended.

• Water-based

• Direct to rust

• Interior & exterior use

• All-weather resistant

• Sag resistant

• Can be applied at low temperatures from 10°C

RAL 1015 RAL 1018 RAL 3000 RAL 5010 RAL 6005 RAL 7001 RAL 7005 RAL 5012 RAL 7016 RAL 7035 RAL 9005 RAL 9010 RAL 9005 RAL 9010 3369AQ. 0.75 3380AQ. 0.75 10 m²/L
Due to printing limitations, colours shown may differ from actual products.
GLOSS SATIN ANTI-RUST PRIMER Available in 750 ml 44
12 RAL COLOUR TOPCOATS AND 2 ANTI-RUST PRIMERS
AQUA ® PROTECTS METAL, THE PLANET AND YOU! WATER-BASED TECHNOLOGY EXCEPTIONAL COVERAGE & FLOW INTERIOR & EXTERIOR USE LOW ODOUR LOW VOC www.combicolor.eu or contact your local distributor DIRECT TO RUST AQUA WATER BASED 45 WWW.RUST-OLEUM.EU

Limiting the health and environmental impact whilst increasing metal protection from rust seems contradictory, however our revolutionary CombiColor formula now incorporates non zinc, anti corrosive additives that replace the traditional zinc phosphate additives. It is also lead and chromate free.

Combicolor Non-Zinc can be applied directly to rust. It offers outstanding anti-corrosive performance for up to 12 years*, as well as excellent flexibility, flow and weather resistanceall of the qualities that Rust-Oleum CombiColor is known for.

For metal structures in a more aggressive industrial environment, prior application of CombiColor Non-Zinc Primer is recommended.

*The paint film is designed to resist cracking, peeling and blistering for up to 12 years before first maintenance.

• Non-zinc anti-corrosive additives

• Interior & exterior use

• Sag resistant

• All-weather resistant

• Direct to rust

• No brush strokes

• Heat resistant up to 90°C

• Can be applied at low temperatures from 5°C

RAL 1007 RAL 3000 RAL 5010 RAL 6005 RAL 7005 RAL 7016 RAL 7035 RAL 7001 RAL 9005 RAL 9006 RAL 9010 RAL 9016 RAL 9005 RAL 9010 3369ZF. 0.75 3380ZF. 0.75 Available in 750 ml
Due to printing limitations, colours shown may differ from actual products
COMBICOLOR® NON-ZINC 12 RAL COLOUR TOPCOATS AND 2 ANTI-RUST PRIMERS SATIN ANTI-RUST PRIMER
46
GLOSS

EXCELLENT FLEXIBILITY

NON-ZINC ® DIRECT TO RUST EXCEPTIONAL COVERAGE & FLOW INTERIOR & EXTERIOR USE NON-ZINC ANTI-CORROSIVE ADDITIVES
www.combicolor.eu or contact your local distributor STRAIGHT FROM THE FUTURE ADVANCED FORMULA WITH NON ZINC ANTICORROSIVE ADDITIVES 47 WWW.RUST-OLEUM.EU

COVERS ALL AREAS

We offer quick & easy solutions for daily maintenance around any factory or building. From small touch-up repairs to full scale renovations.

Heavy duty floor coatings Page 55 Anti-slip paint Page 30 Metal paint Page 38 Asphalt restorer Page 63 Instant roof repair Page 64-65 Zinc sprays Page 13 48

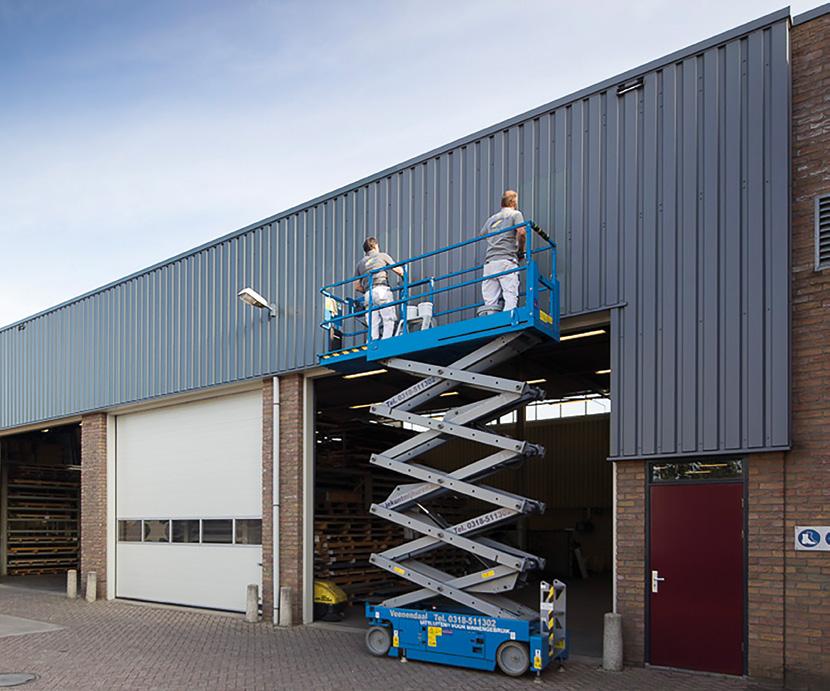

Large scale renovation?

We also offer a full range of products and solutions to cover your large scale maintenance and renovations works. From metal cladding rejuvenation, a new heavy-duty floor coat, full roof renovation or more challenging maintenance and renovation projectcs.

• From colour change to complete renovation

• Minimal downtime thanks to quick drying coatings

• Extensive network of approved coating contractors

• Free technical advice and on-site inspection

• Up to 10 years warranty possible

Anti-graffiti protection Page 76-77 Exterior floor paint Page 58 Instant leak seal Page 66 Fluo marking Page 35 Heat resistant Page 28 Floor coatings Page 54 Anti rust primer Page 59 Line marking Page 32 Technical sprays Page 68 Light duty floor coatings Page 52 Check our High Performance catalog
49 WWW.RUST-OLEUM.EU
Asphalt repair Page 62
RAL 1023 RAL 3020 RAL 5017 RAL 6010 RAL 7005 RAL 9016 RAL 7035 8m2/L 6100 5 L EXTERIOR FLOOR PAINT QUICK DRYING TARMACOAT™ Quick drying exterior floor paint • Rainproof and walkable after one hour! • Very easy to apply • Apply on slightly damp surface • Water-based formula • Single pack paint Asphalt Concrete Sport fields English Red 50
RETAW B A S ED • ENPHASEAQUEUSE WATERBASIS •WASSE R B A S S I TRE SHOPPRIMERS A
ANTI-CORROSION PROTECTION
BASIC
companies 6400 SHOPPRIMER • Excellent adhesion to metal • Water based and solvent based version • Ideal for spray application • Recoatable with CombiColor® and many other coating systems • Masks construction deficiencies • Not toxic 6400WB Water based Shopprimer 6400 Solvent based Shopprimer Red brown Grey Black Available pack sizes: 5 & 20 L 51 WWW.RUST-OLEUM.EU
Ideal for workshops and construction
RAL 7035 RAL 6011 RAL 6005 RAL 7001 RAL 9010 RAL 9005 1 2 3 8m2/L 0,75 - 2,5 - 5 L ECONOMICAL FLOOR PAINT EASY TO APPLY, HIGH GLOSS LOOKING FOR AN ANTI-SLIP FINISH? - SEE PAGE 307100 FLOORCOAT Easy to apply! • Single pack, solvent based • For foot traffic, interior and exterior • To apply to old concrete (>2 yrs), metal and wood • High film build in one coat • Easy to apply with brush and roller Clean the floor Apply 7100 floor coating Allow to dry Transparent Important: Not suitable for car traffic or for car park areas (see EpoxyShield® on page 55) 52
RAL 1023 RAL 7035 RAL 7001 RAL 9010 9m2/L 2,5 - 5 -10 L • Single pack floor coating hard wearing & easy to apply • Extra durable because of polyurethane addition • Excellent flow • Light to medium traffic, indoor/outdoor • High coverage: 9 m2/L coat Easy to apply, any colour 7200 FLOORCOAT PU English Red AVAILABLE IN ANY COLOUR GLOSS & SATIN (2,5 L) PU REINFORCED FLOOR PAINT BETTER WEAR RESISTANCE ANY COLOUR 53 WWW.RUST-OLEUM.EU
EPOXYSHIELD® WATER BASED INDUSTRIAL FLOOR COATINGS • Ease of choice • Ease of application • Water based formulas • Maximum durability EPOXYSHIELD® Quick & easy to use! Anti-Slip Standard Decorative 54
RETAW B A S ED • ENPHASEAQUEUSE • WATERBASIS •WASSE R B A S S I TRE CHOOSE YOUR PERFECT FLOOR ...IN 3 EASY STEPS! All EpoxyShield coatings are water-based. Ideal for interior applications. SEALER Dust proofing ULTRA Light-Medium traffic MAXX Medium-Heavy traffic EpoxyShield Maxx + Anti-Slip additive EpoxyShield Maxx + Decorative
Choose finish (optional)
Choose colour
Choose protection level ENGLISH RED RAL 1015 RAL 7035 RAL 7001 Decorative Anti-Slip 55 WWW.RUST-OLEUM.EU
3
2
1
5220 5 L RAL 7001 RAL 7035 9m2/L 9m2/L The excellent dust-proofer water based, cost effective EPOXYSHIELD® SEALER • Single pack, easy to apply • Non yellowing clear finish (gloss) • Protects against moisture and road salts • Touch dry after just 1 hour • Ideal primer for EpoxyShield® ULTRA coatings EPOXYSHIELD® ULTRA
pack, water
• For light to medium traffic • Easy to apply • Touch dry after just 2 hours • Satin matt finish • Good resistance to car tyres and various chemicals English Red DUST PROOFING LIGHT-MEDIUM TRAFFIC EPOXYSHIELD® WATER BASED INDUSTRIAL FLOOR COATINGS Clear 56
Quick drying floor coating Single
based
25 m2 RAL 1015 1 2 3 RAL 7001 RAL 7035 203005.3.78 3,55 L 25m²/L 7 m2/L • For medium to heavy traffic • Easy to apply, no primer required • Long-lasting gloss finish • Best possible car tyre resistance • Highly resistant against solvents and chemicals • Non-skid or decorative finish optional Maximum durability 2-pack water based Epoxy EPOXYSHIELD® MAXX ONE KIT FOR 25 m2 INCLUDES: • 2-part epoxy floor system • Concentrated cleaner • Decorative chips • Detailed instructions English Red MEDIUM-HEAVY TRAFFIC EPOXYSHIELD® MAXX
coating • 2-pack water based epoxy • Complete kit including instructions • Resists gasoline, antifreeze, motor oil, salt and hot tire pick-up Gray 57 WWW.RUST-OLEUM.EU
Garage floor

Decorative Chips

RAL 1015 RAL 7001 RAL 7035 RAL 7035 RAL 7001 200.0.7 RAL 1015 Anti-slip additive For use with EpoxyShield® MAXX only (page 55) EPOXYSHIELD® EPOXYSHIELD®
use with EpoxyShield® MAXX only (page 55) English Red English Red EPOXYSHIELD® SURFACE PREPARATION & FINISHES 58
For

FINE

Non

Simply

2901.5 5 L 203012.10 10 Kg
/ DEGREASER
CLEANER
Ready to use for floors
CRACK REPAIR MORTAR
shrink liquid epoxy filler
Solvent-free Epoxy (2-part)
For repairing fine cracks up to 3 mm wide
Dry in 3-4 hours
Coverage: 25 linear metres (2mm wide, 5mm deep)
REPAIR MORTAR
CONCRETE
water, stir
Traffic allowed after 24 hours
Recoatable after 48 hours
10 kg (1-component) – 0.4 m²
Sandable to a smooth finish Not to be recoated with 7100 Floor coating! FREE INCLUDED IN KIT FREE SPATULA INCLUDED IN PACKAGING
Removes grease, oil and other contaminations
Virtually odour free • Non-flammable
6-8 m²/l coverage 59 WWW.RUST-OLEUM.EU
add
and apply •

STRONG CONCRETE REPAIR

Stronger than concrete!

EPOXY REPAIR MORTAR

Quick & easy concrete repair

Very strong epoxy repair mortar for repairing damaged floors. Stronger than concrete!

• Stands up to heavy traffic and many chemicals

• For repairing eroded or damaged concrete, bay edges and broken steps

• Does not shrink or crack

• Easy all-in-1 packaging

• For indoor and outdoor use

• Quickly back into service

5180 Available in 2,5 - 5 - 25 Kg Dark grey 60

DEEP CONCRETE REPAIR

Suitable for

• Floors

• Steps

• Ramps

EPOXY REPAIR

Mortar Deep Fill

Very strong epoxy repair mortar for quick and economical repair of deep holes in concrete floors.

• Economical repair of holes of 15 - 100mm deep

• Resistant to oils and chemicals

• Does not shrink or crack

• Easy all-in-1 packaging

• For indoor and outdoor use

5190.25
Dark grey 61 WWW.RUST-OLEUM.EU

QUICK ASPHALT REPAIR FOR POT-HOLED ASPHALT AND CONCRETE

ASPHALT REPAIR

Immediate pot-hole repair

Rust-Oleum® Asphalt Repair is a durable bitumen-based patch repair product for use on exterior pot-holed asphalt and concrete. Ideal for potholes in roads, car parks, paths and other bituminous and concrete surfaces.

• Simple to use - no mixing required

• Repairs can be driven over immediately after application

• Ideal for repairs 10 mm – 70 mm

• Coverage approx. 0.5 m² per 25 kg at 24 mm thick

• Withstands heavy traffic

1 2 3
V5410 5410.25 25 kg
Apply primer Fill Compact Black 62

SINGLE PACK BITUMEN PAINT

FRESHENS UP DISCOLOURED ASPHALT

ASPHALT RESTORER

Makes asphalt look like new again

A single application, refurbishing coating for car parks, driveways and footpaths, bicycle paths and more.

• Upgrades drab, grey, stained asphalt and tarmac

• Provides an ‘as new’ appearance

• Covers old line markings and repairs

• Avoids disruptive and costly re-surfacing

Rust-Oleum® Asphalt Restorer is a one component high quality bitumen based coating with fillers and special flow additives. For refurbishing car parks, driveways and footpaths.

5478.5 5 L
Black
63 WWW.RUST-OLEUM.EU

INSTANT WATERPROOFING EVEN IN BAD WEATHER!

NEW FORMULA IMPROVED HYDROPHOBIC PROPERTIES

FILLCOAT® WATERPROOFING

Stops leaks instantly

• Better UV resistance

• Immediate waterproofing of roofs and gutters

• Even in cold, rainy weather

• For bitumen, PVC, metal, tiles and glass

• Remains flexible in hot and cold conditions

• Renovation of weathered roofs

WATCH THE VIDEO

CRACK BRIDGING
64

FILLCOAT®

Original formula without fibres

• Thick waterproof coating

• Excellent adhesion to various substrates

• Renovation of weathered roofs

• Smooth appearance

• Apply with brush, roller or airless

FILLCOAT®

FIBRES

With crack bridging fibres

• Repairs holes and cracks up to 2mm

• Stops leaks instantly

• Faster than calling the plumber or roofer

• Excellent adhesion

• Brush applied

FILLCOAT® FIBRES REPAIR KIT

Everthing you need in one kit

• Can of FILLCOAT® FIBRES

• Brush & Gloves

• Crack bridging fleece

• Sanding block

• Instruction sheet

1 m²/L 1 m²/L 1 m²/L 1 - 5 - 20 L 1 - 5 - 20 L
Dark grey Light grey Black Dark grey Light grey
65 WWW.RUST-OLEUM.EU
Dark grey

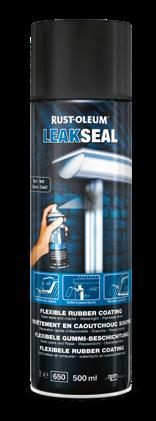

FLEXIBLE RUBBER COATING

Quickly seals leaks and cracks

• Watertight semi smooth finish

• Can be top-coated with latex or oil-based paints

• For use on metal, aluminum, PVC, concrete, masonry, asphalt roofing materials, etc.

500 ml LEAKSEAL™
Black Transparent Aluminium 66
LEAKSEAL™ White

Also ideal for creating a rubber-like impact resistant surface

LEAKSEAL™ WERE CAN IT BE USED?

1 Roof chimney stacks

2 Gutters pipes/ducts

3 Window joints etc.

67 WWW.RUST-OLEUM.EU

X1 COVERS IT ALL!

THE NEXT GENERATION TECHNICAL SPRAYS

For the best lubrication and preservation of machines, tools and workpieces

Rust-Oleum ® has revolutionised technical sprays with a special additive: ‘BoroTecX ™ ’ the ultimate in lubrication improving additives.

Pantone 8200 C Pantone 871 C
68

BoroTecX™

Bo o Nit ide Reinfor c ed with BoroTecX Boron Nitride Reinfor c ed w h BoroTecX BoroTecX BoroTecX ™ The ultimate equipment protection! No BoroTecX™ Lasts longer Better protection Extreme Loads Higher performance
is capable of withstanding extreme loads. Where others fail, BoroTecX™ continues and keeps reducing friction. No BoroTecX™
is capable of withstanding temperatures up to 900°C
BoroTecX™
BoroTecX™
is highly chemical
be
in chemical (aggressive) areas.
EN ISO-20623 / ASTM D2266 has proven that X1 white grease containing BoroTecX™ can outperform standard greases by up to 4 times. BoroTecX 900 ˚ C PTFE 250 ˚ C MoS2 400 ˚ C Grafite 450 ˚ C
packsize:
ml Boron Nitride Reinfor c e d with TM TM BoroTecX BoroTecX 69 WWW.RUST-OLEUM.EU
resistant. It therefore can
used
Test
Available
500
Pantone 8200 C Pantone 871 C For the best lubrication and preservation of machines, tools and workpieces Lubricates • • • • • • • • Penetrating • • • • • • • Grease • • Dry lubricant • Stops squeaking • • • • Adhesive • Creeping • • • Removing rust • Anticorrosive • • • • • Displaces water • Water-repellent • • • • • • Protecting • • • • • • Cleans • Cooling • High temperature • 1610 X1 Multi-Purpose spray 1611 X1 Cutting & Tapping spray 1612 X1 Chain & Drive spray 1614 X1 Freeze & Release spray 1615 X1 Silicone spray 1616 X1 Ceramic Anti Seize spray 1617 X1 White Grease spray 1618 X1 PTFE spray 70

MULTI-PURPOSE SPRAY

Lubricates, cleans and protects

• Stops squeaking

• Creeping properties

• Displaces water

• A film layer is left on the surface after cleaning

• Does not contain silicon

• Temperature range: -30 °C to 145 °C

• Dissolves grease, tar, oil and some adhesives

Reinfor c ed with BoroTecX BoroTecX

Boron Nitride
ANTI CORROSIVE PENETRATING LUBRICATING PROTECTING CLEAN NG 360 SYSTEM 71 WWW.RUST-OLEUM.EU

• Prolongs tool life

• Reduced friction leads to better surface finish

• Increases process speeds

CUTTING & TAPPING SPRAY CHAIN

Lubricates and cools all cutting tools Reduces friction, helps prevent wear

• Temperature range: -30 °C to 130 °C

• Good adhesion

• Resists detergent washing

• H1 compliant for incidental food contact

• Temperature range: - 35 °C to 180 °C

High quality rust releaser with shock effect

• Water repellent

• Temperature range: -50 °C to 170 °C

• Shocks components with rapid temperature reduction

Reinfor c ed with BoroTecX

1612 1611 Boron Nitride
c
TM BoroTecX BoroTecX Boron Nitride
1614
Reinfor
ed with
Boron Nitride
Reinfor c ed with BoroTecX
& RELEASE SPRAY PENETRATING LUBRICATING PROTECTING 360 SYSTEM LUBRICATING ANTI CORROSIVE PENETRATING LUBRICATING PROTECTING 360 SYSTEM 72
& DRIVE SPRAY FREEZE

SILICONE SPRAY

Odourless and colourless dry lubricant

• Dry lubricant

• Stops squeaking

• Water resistant and repellent

• Temperature range: –40 °C to 200 °C

CERAMIC ANTI SEIZE SPRAY

Protection of all threaded fasteners

• Prevents seizing and galling

• Withstands extreme temperatures: - 30 °C up to + 1100 °C

• Water, chemical and weather resistant

• Insulates, prevents seizure between dissimilar metals

Boron Nitride Reinfor c ed
BoroTecX BoroTecX Boron Nitride Reinfor c ed
BoroTecX BoroTecX 1615 Pantone 8200 C Pantone 871 C
with
with
ANTI CORROSIVE PENETRATING LUBR CATING PROTECTING 360 SYSTEM PENETRATING LUBR CATING PROTECTING 360 SYSTEM 73 WWW.RUST-OLEUM.EU

WHITE GREASE SPRAY

Withstands extreme loads and conditions

• Stops squeaking

• Water repellent

• Corrosion preventive

• Suitable for vertical surfaces, will not run

PTFE SPRAY Light lubricant containing PTFE

• High anti-wear characteristics

• Contains PTFE

• Water repellent

• Ultra low friction coefficient

• Temperature range: -40 °C to 120 °C

Reinfor c ed with BoroTecX BoroTecX

1618

1617 Boron Nitride Reinfor c ed with BoroTecX BoroTecX Boron Nitride
360 SYSTEM PROTECTING LUBR CATING PENETRATING ANTI CORROSIVE PENETRATING LUBR CATING PROTECTING 360 SYSTEM 74
Pantone 8200 C Pantone 871 C 75 WWW.RUST-OLEUM.EU

THE PERFECT ANTI-GRAFFITI PROTECTION

PERMANENT SYSTEMS

A permanent anti-graffiti barrier allows for multiple graffiti cleaning processes using a special cleaner before the layer itself should be renewed. In other words ideal for regularly attacked placed that require frequent cleaning. It normally consists of several layers to reach the required protection level. See GraffitiShield™ HYDRO for more information.

TEMPORARY SYSTEMS (SACRIFICIAL)

Depending of the surface and the conditions a temporary (sacrificial) or permanent protection layer can be chosen. Sacrificial means the layer itself will be completely removed together with the graffiti during every cleaning process using high pressure cleaning with hot water.

The protective layer should be re-applied after cleaning. RUST-OLEUM® uses a natural wax for this system, making it an environmentally friendlier alternative to permanent systems. Even more so because no special chemical cleaners are required. See GraffitiShield™ WAX for more information.

Anti-graffiti coating

Single pack solvent-free anti-graffiti protection for many indoor and outdoor substrates.

• Hard, smooth surface makes it easy to clean any graffiti on it

• Solvent-free, low odour

• Transparent protection

• Also useful as a colourless varnish for floors

57104 2,5 - 5 L
GRAFFITI SHIELD™ POLYCOAT
76

57101.10

1-Component Water-based

GRAFFITI SHIELD™ WAX

Sacrificial system

Sacrificial layer based on natural wax. Suitable for a single cleaning process

• Virtually invisible

• Biodegradable

• Low on solvents

• Water vapour permeable

• Immediately graffiti-proof

• UV-resistant

GRAFFITI SHIELD™ HYDRO

Permanent system

Water based permanent anti-graffiti coating with hydrophobic properties

• Virtually invisible

• No film-building

• Excellent UV-resistance

• Water vapour permeable

• Waterproof (Hydrophobic)

• Ideal for natural stone

MINERAL SUBSTRATES

MINERAL SUBSTRATES

57102.10

1-Component Water-based

TAW A D NPHASEAQUEUSE WATERBASS W SSE B S TR ETAW S ENPHASEAQUEUSE WATERBASIS WASS R B S TRE
77 WWW.RUST-OLEUM.EU

LARGER OR CHALLENGING PROJECT? WE CAN HELP!

INSPECTION ON-SITE

Metal protection in harsh environments Metal cladding rejuvenation & renovation Large scale heavy-duty floor protection Full roof renovation Specialist coatings for hygienic environments
FREE ADVICE OR SITE VISIT!
Waterproofing of exterior walls
also offer a full range of products and solutions to cover your large scale maintenance and renovations works. From metal cladding renovations or more challenging maintenance or renovation projects, applying a new floor coat, full roof renovation, etc. • From colour change to complete renovation • Minimal downtime thanks to quick drying coatings • Extensive network of approved coating contractors • Free technical advice and on-site inspection • Up to 10 years warranty possible 78
We
OUR NEWSLETTER Also check our other news channels: • Get exclusive tips • View application videos • Win great gadgets • Keep up-to-date on new products and services REGISTER NOW! 79 WWW.RUST-OLEUM.EU
@RustOleumEU /RustOleumEU /RustOleumEU SUBSCRIBE TO
WWW.RUST-OLEUM.EU RUST-OLEUM® products are manufactured by Rust-Oleum Europe under license from Rust-Oleum International Corporation, USA. RUST-OLEUM® is a registered trademark of Rust-Oleum International Corporation, USA. The guidelines in this brochure are provided for information purposes only. Since the manufacturer is unable to exercise any control over the correct application and processing of the products, he cannot accept any responsibility for this. For more product information, like Product Data Sheets & Safety Data Sheets, view our online information on our website www.rust-oleum.eu. © Copyright 2023 Rust-Oleum Europe. All rights reserved. The images shown in this catalogue may differ from the actual product. KNOW-HOW TO PROTECT ™ 5 413436 074975 Find your nearest Rust-Oleum distributor: www.rust-oleum.eu/distributors or contact our customer service team. @RustOleumEU
Tor Coatings Ltd (Rust-Oleum Industrial) UK +44 (0) 191 411 3146 info.uk@rustoleum.eu Rust-Oleum Europe +32 (0) 13 460 200 info@rustoleum.eu V350.GB07.2023
/RustOleumEU /RustOleumEU
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
