SHARANYA A WORK RETREAT

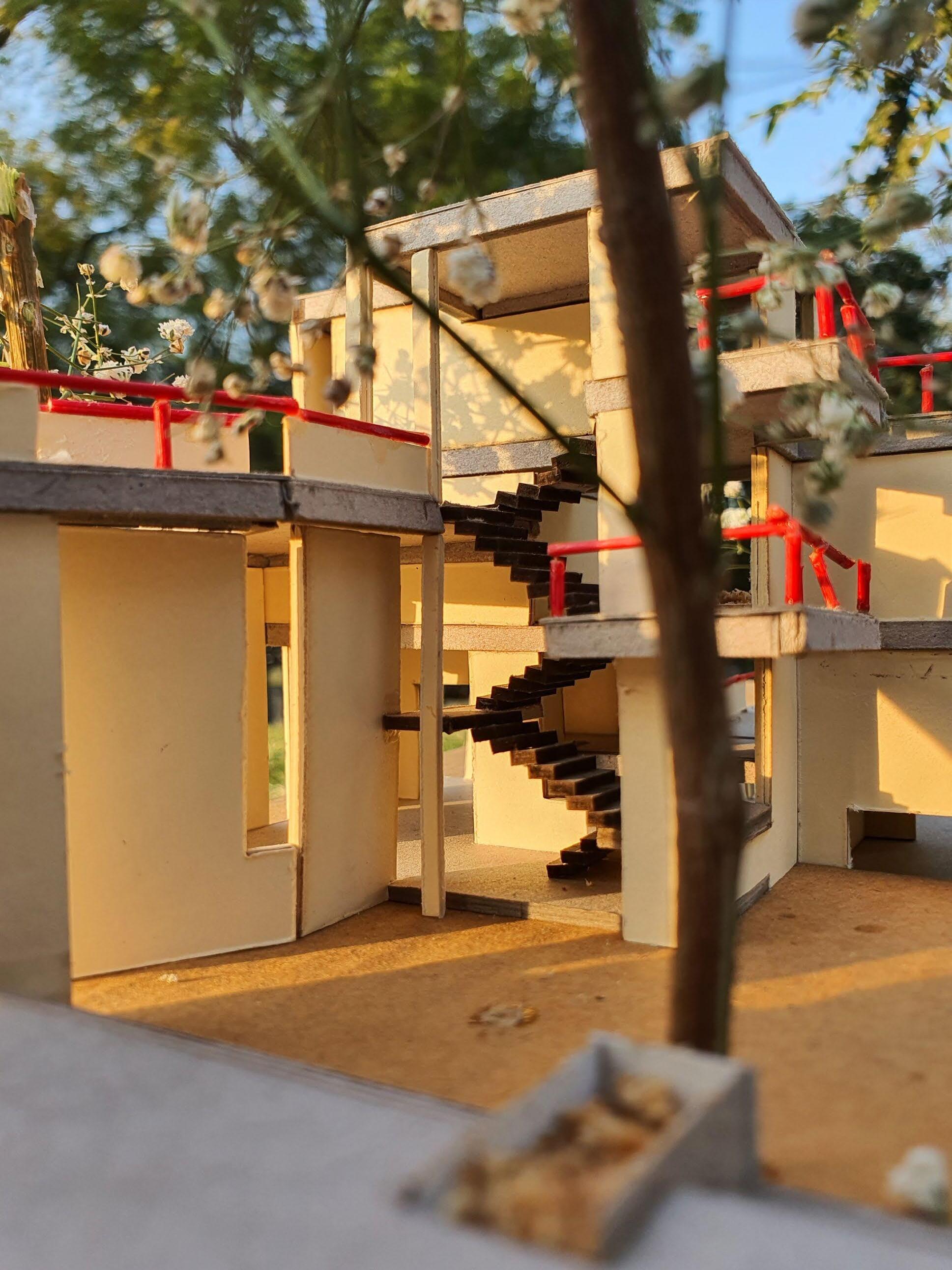

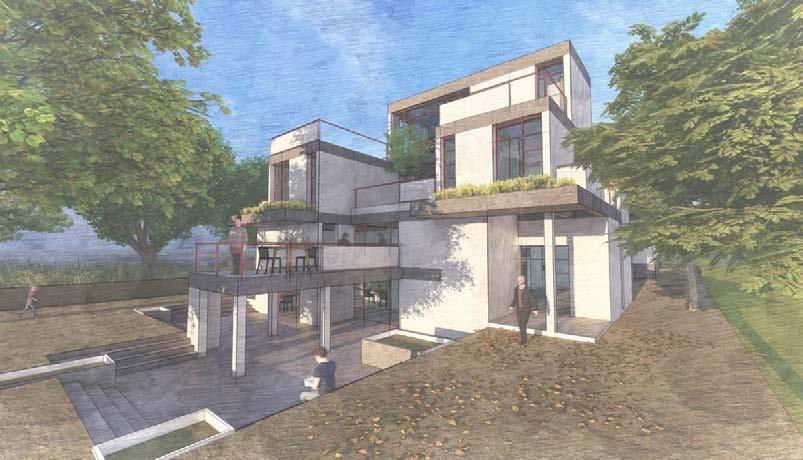

The site is located on the edge of Pariej Lake in Gujarat. The program provides an opportunity to design a work retreat nestled in nature, providing sufficient working space for ten guests Therefore, the work retreat design is based on the concept of connecting spaces as a whole and maximizing the interaction of people through various design strategies.

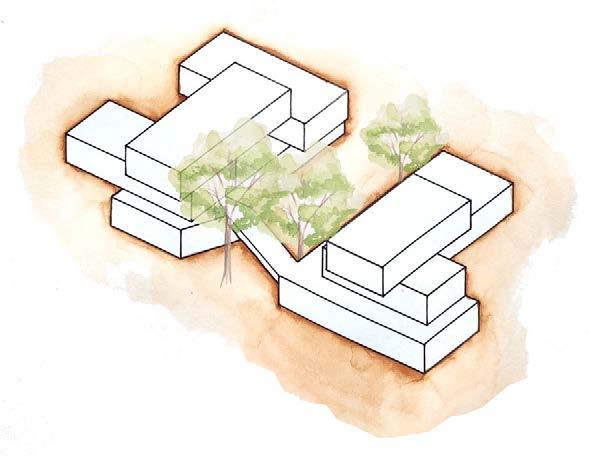

The design was visualised revolving around the three central trees of the site. These trees create a space of their own providing with a natural courtyard for gathering and seating.

Therefore, the open dining is also placed below these trees. The plinth is raised to such a level that it provides a view of the lake which is blocked by the wild grass from the ground level.

Even the staircase is made open such that it in itself becomes a viewing deck and makes climbing up the stairs an experience in itself.

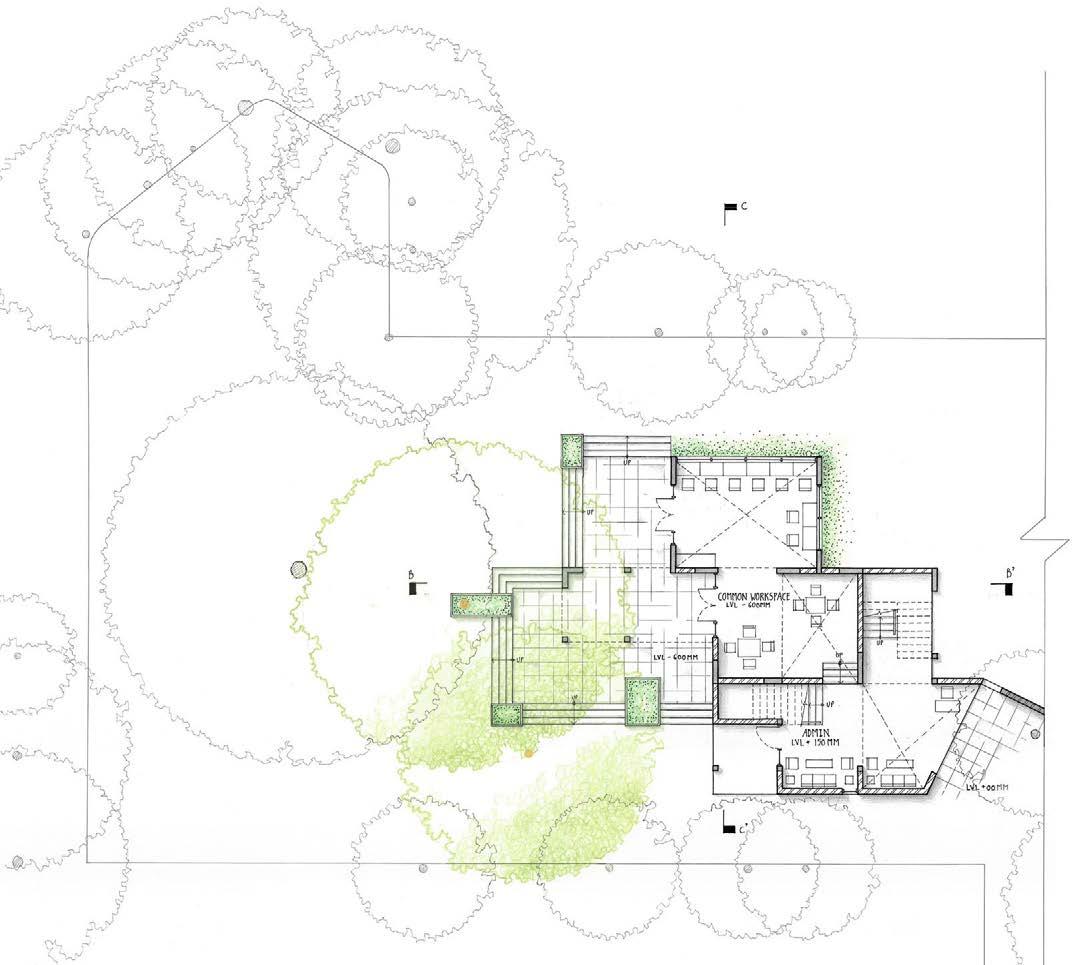

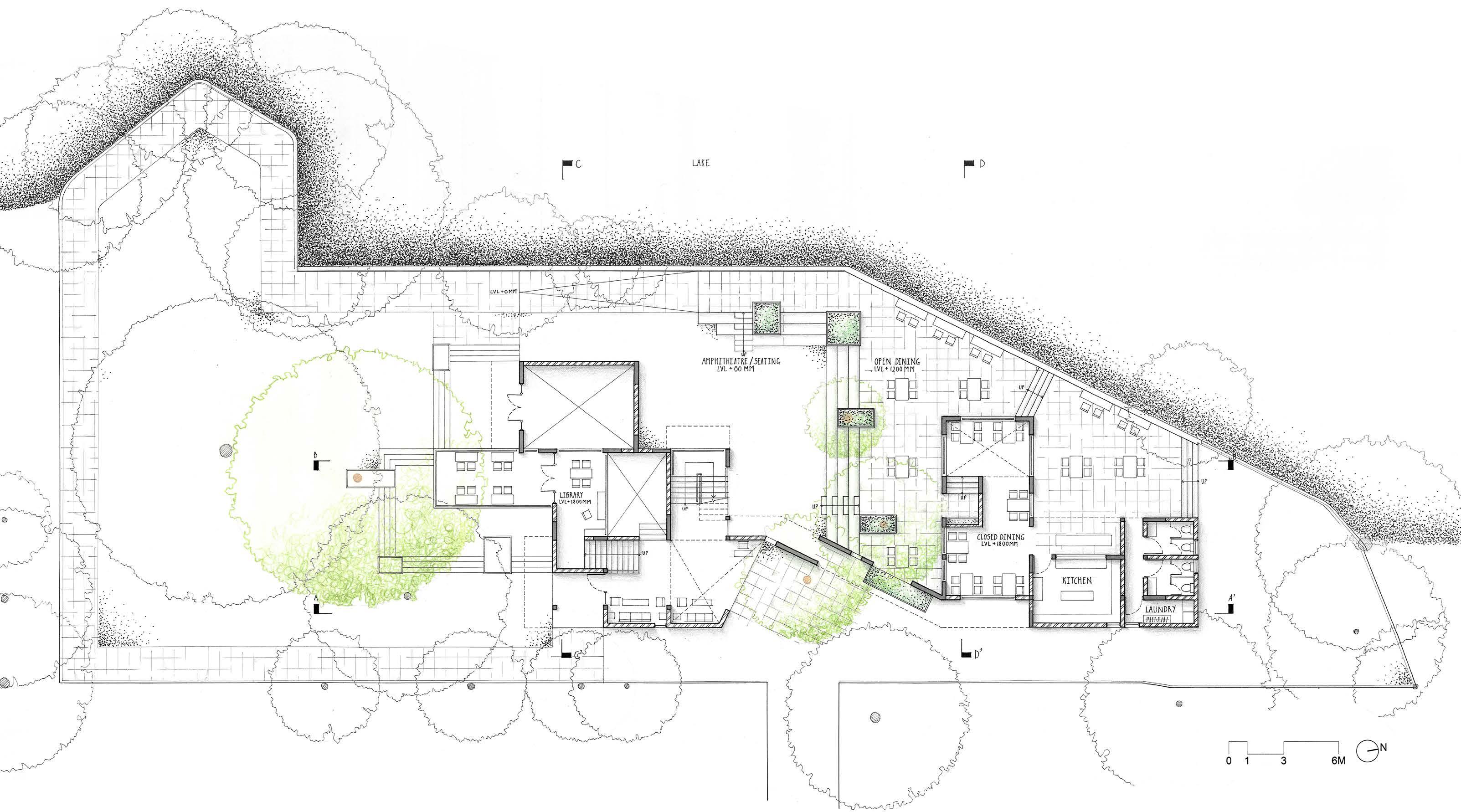

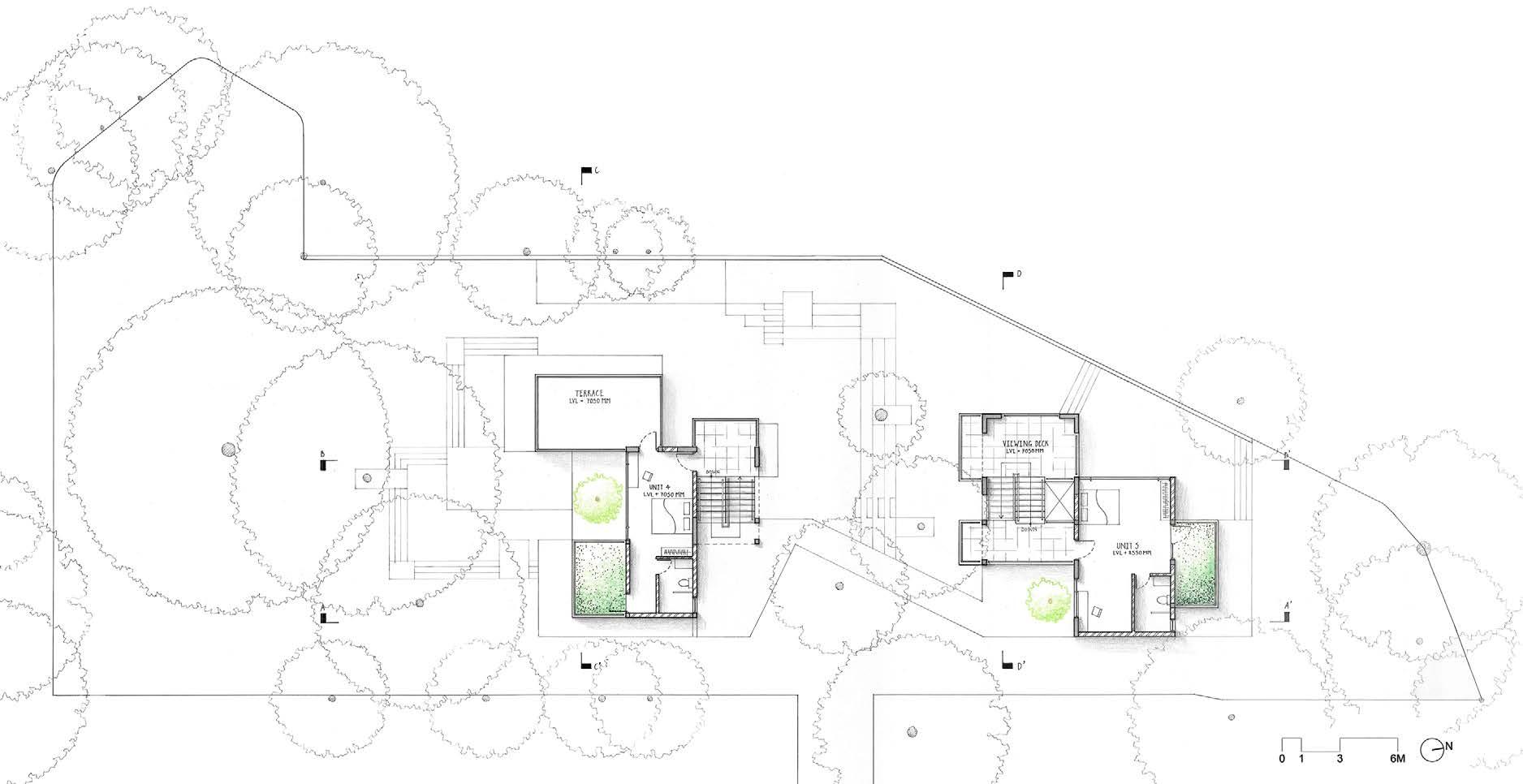

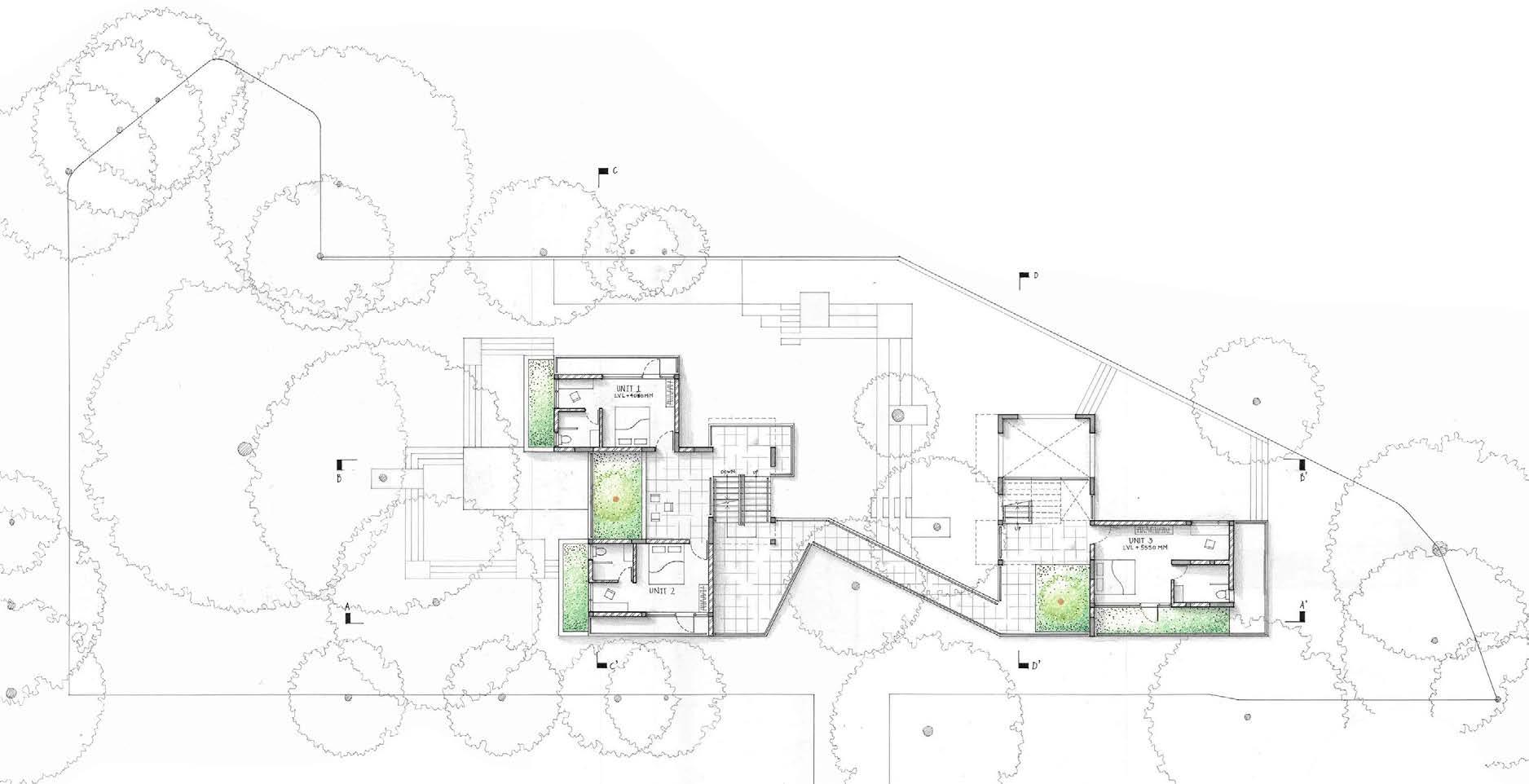

SHARANYA-A WORK RETREAT 5 HAND DRAFTED FINAL DRAWINGS Plan at +2000mm

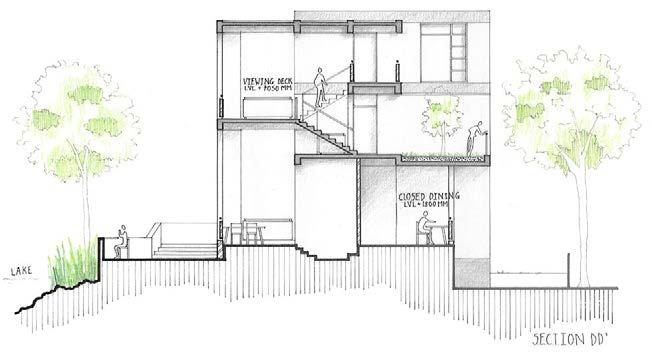

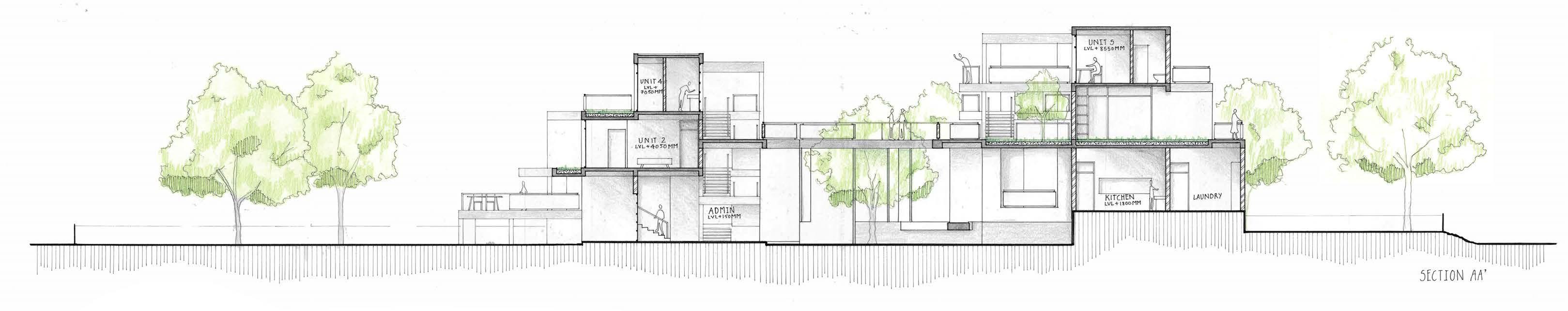

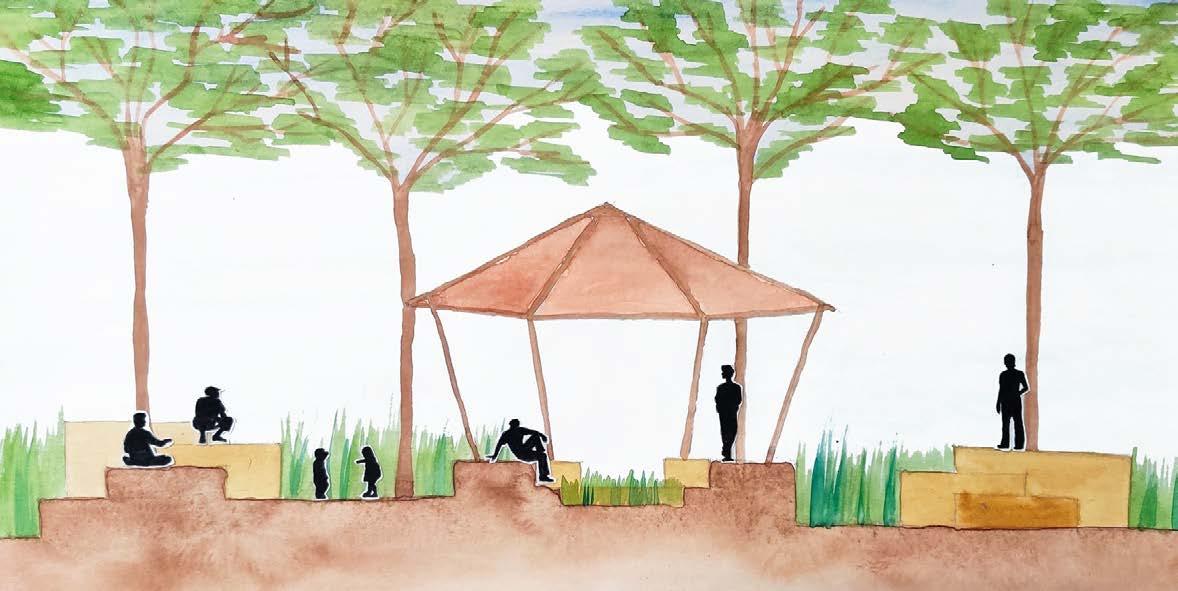

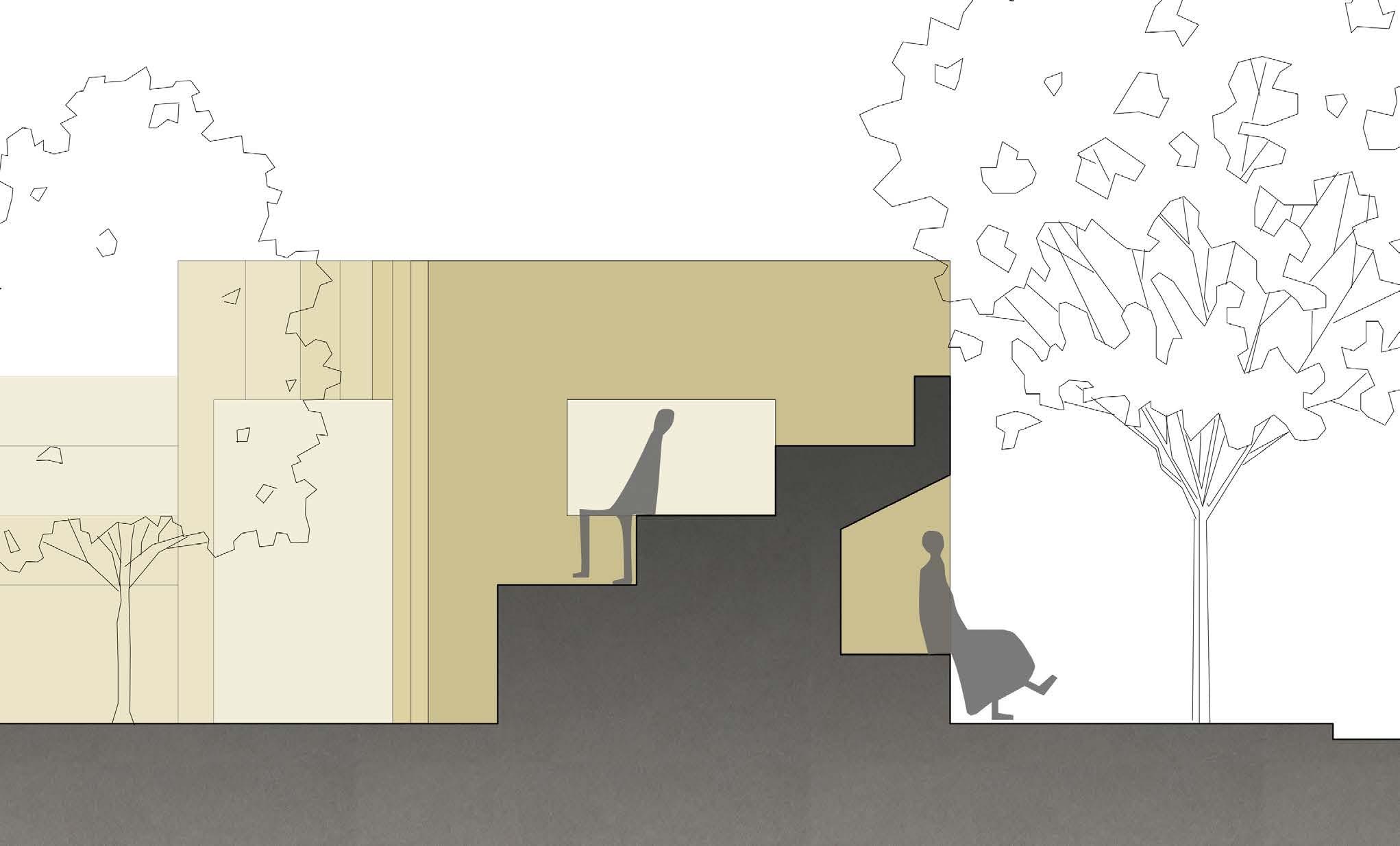

Vegetation on the site Wild grass on the site Section AA’ Section BB’

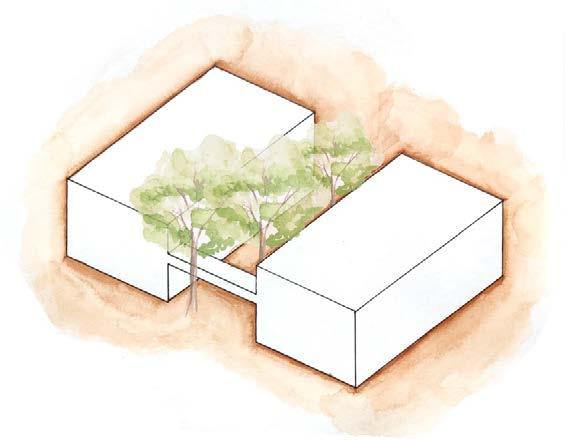

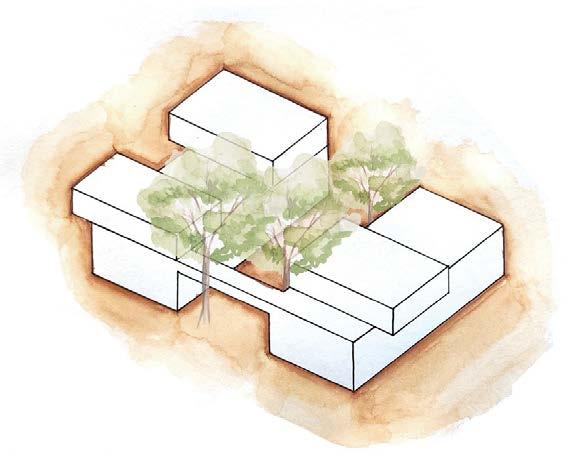

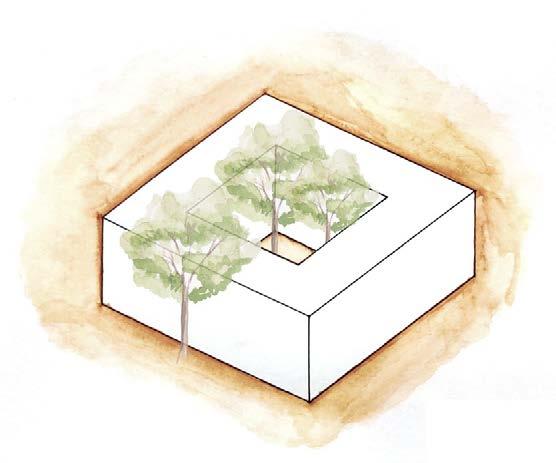

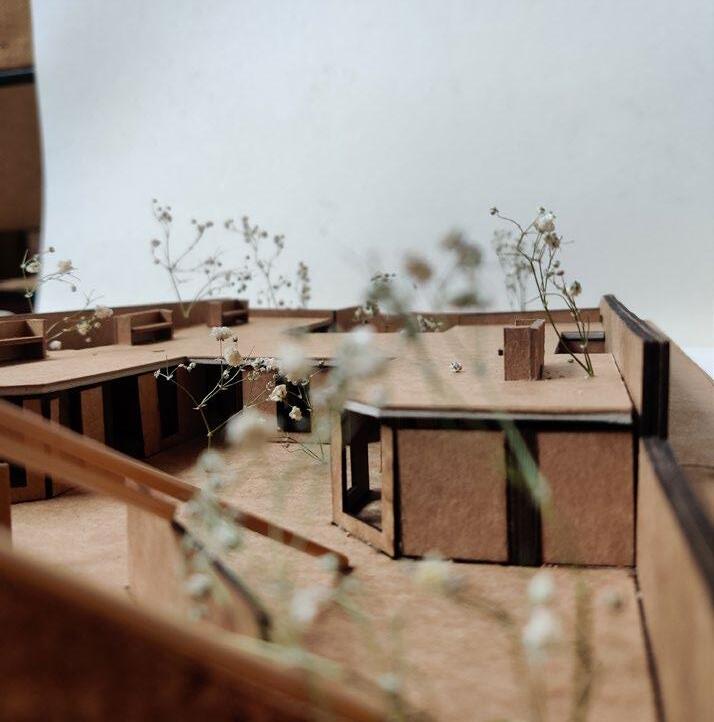

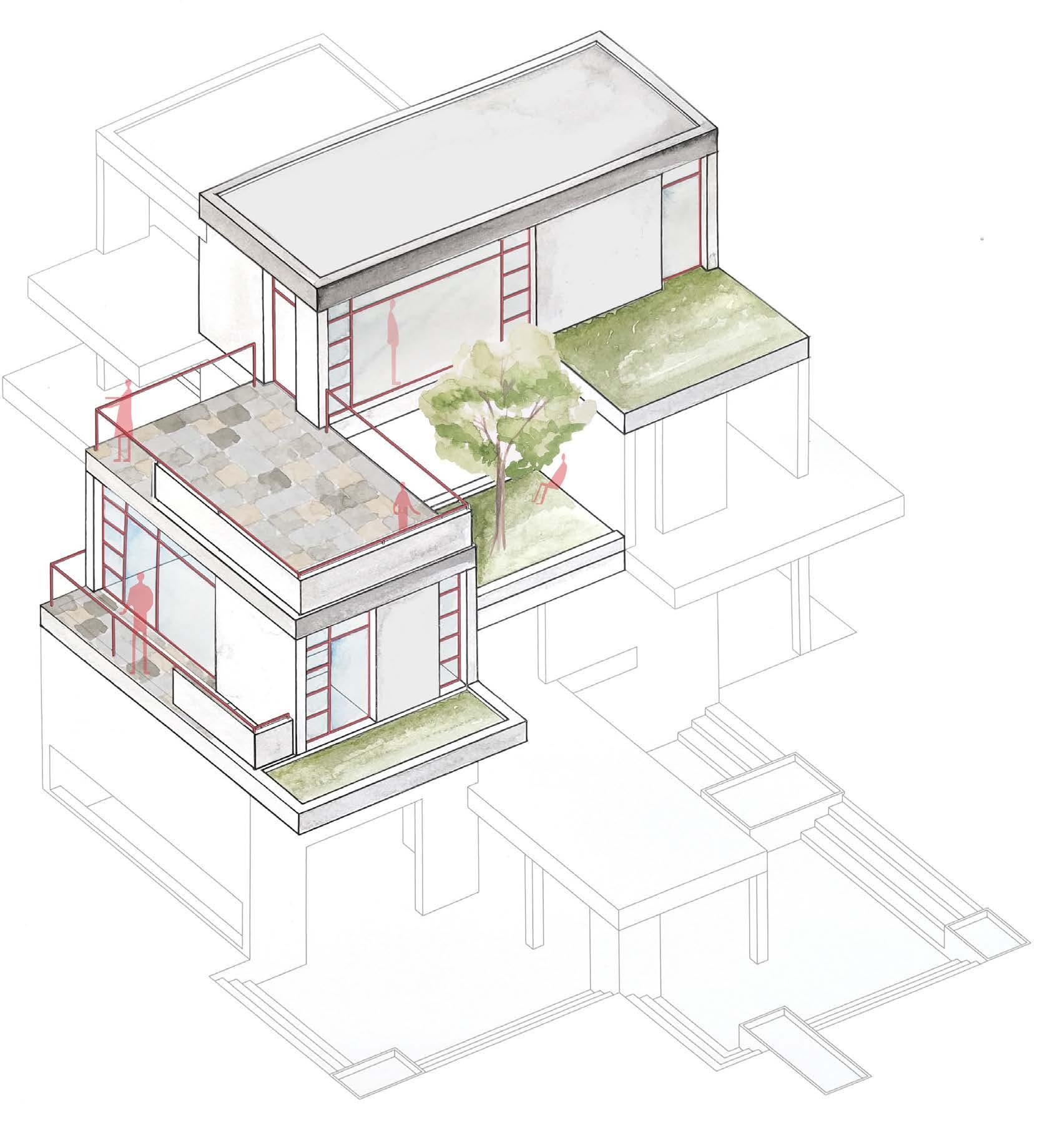

FORM DEVELOPMENT

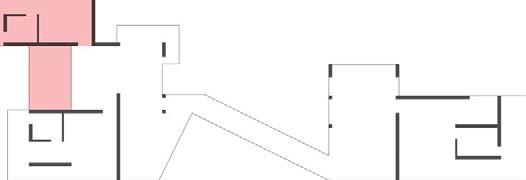

Recessing the walls and creating open spaces

Creating large openings for view towards lake

Balconies are open towards interactive spaces

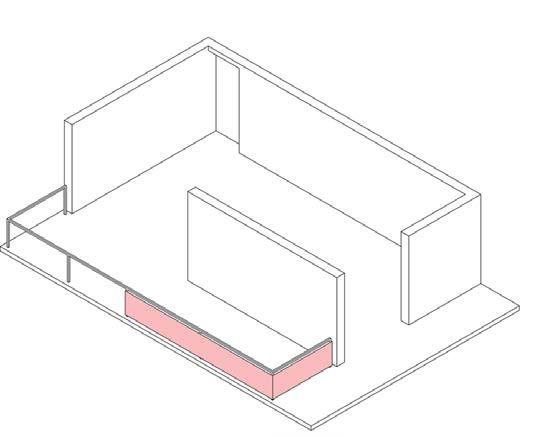

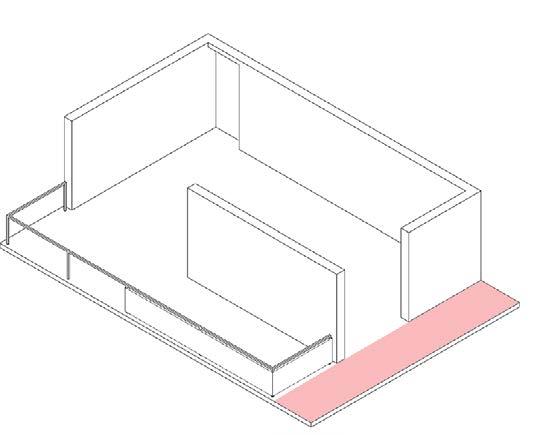

Part of balcony next to workspace acts as plantation bed

Exposed RCC beams

Stucco white plastered walls

Large openings providing view from each unit

Courtyard on the first level connecting the three units surrounding it

Kota stone flooring in the balcony

Opening next to individual workspace looking towards the green space

Part of balcony has vegetation

MATERIAL PALETTE

SHARANYA-A WORK RETREAT 6

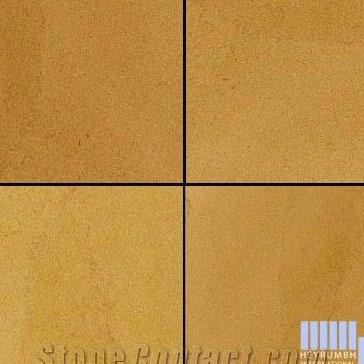

Metal used for frames and railings Rough concrete finish used for exposed beams Stucco white plaster used for exterior walls Polished jaisalmeri sandstone flooring used in rooms Polished concrete finish used for stairs Leather polished kota flooring used in public spaces
FINAL DRAWINGS EXPERIENCE OF ROOMS

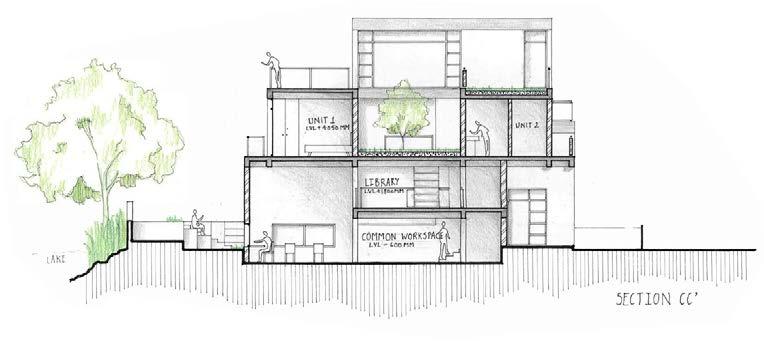

Plan at +500mm Section CC’ Plan at +6000mm Plan at +9000mm Section DD’

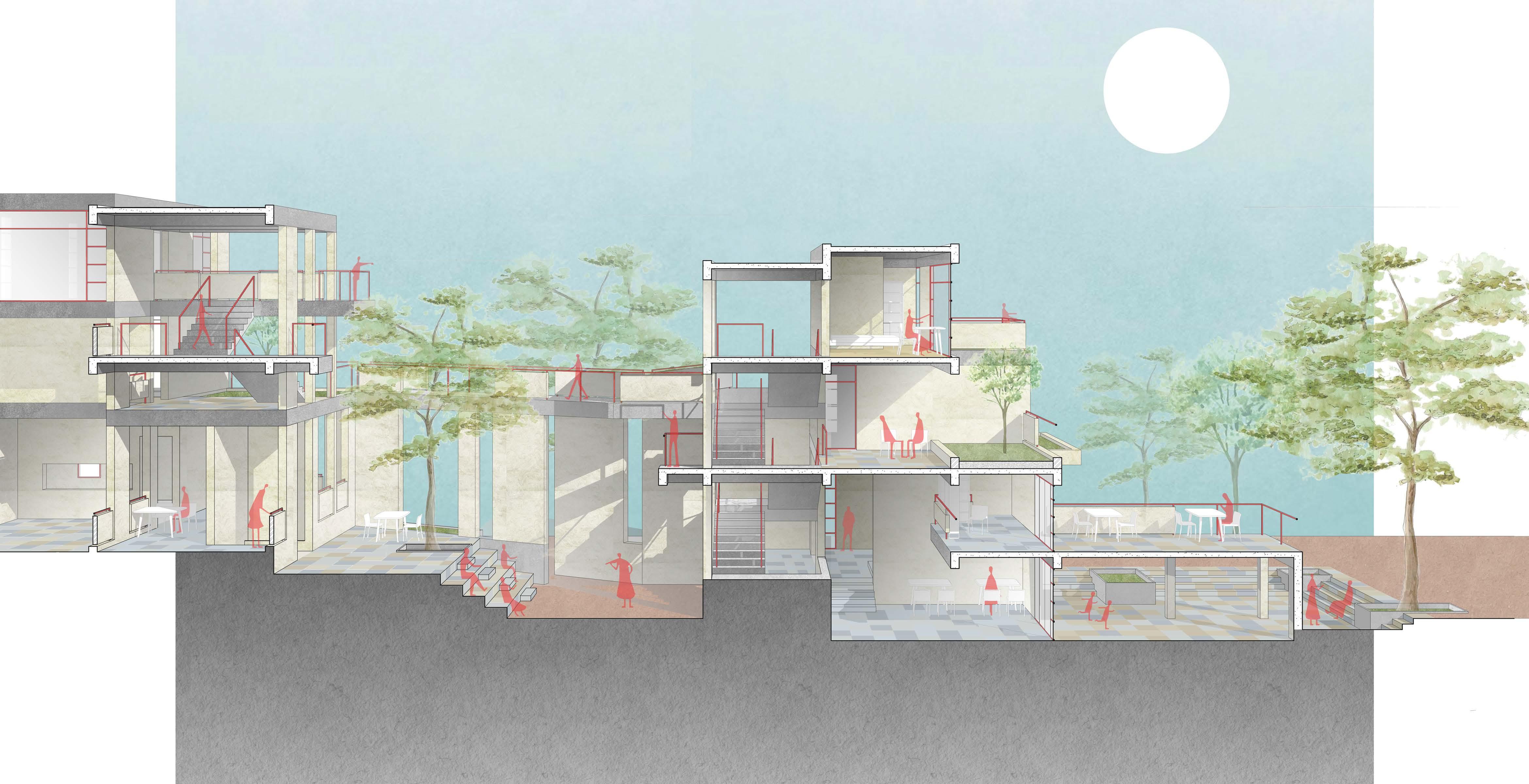

SHARANYA-A WORK RETREAT 7 RENDERED VIEWS AND PERSPECTIVE SECTION

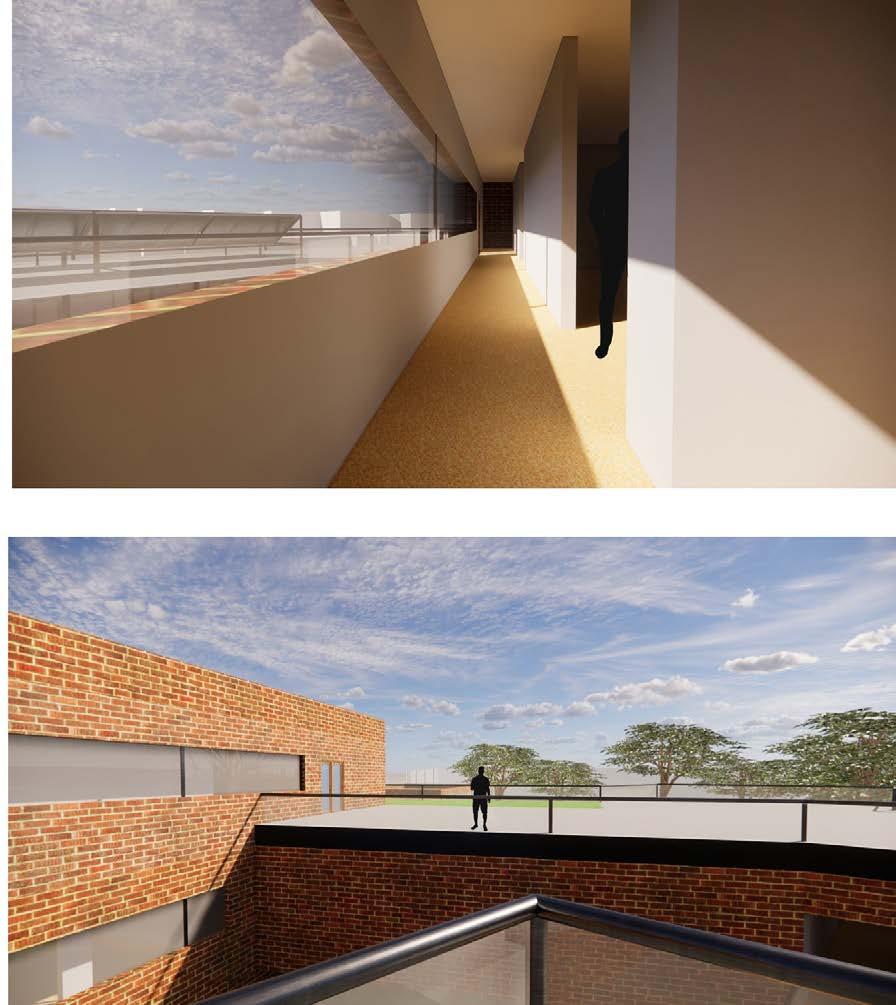

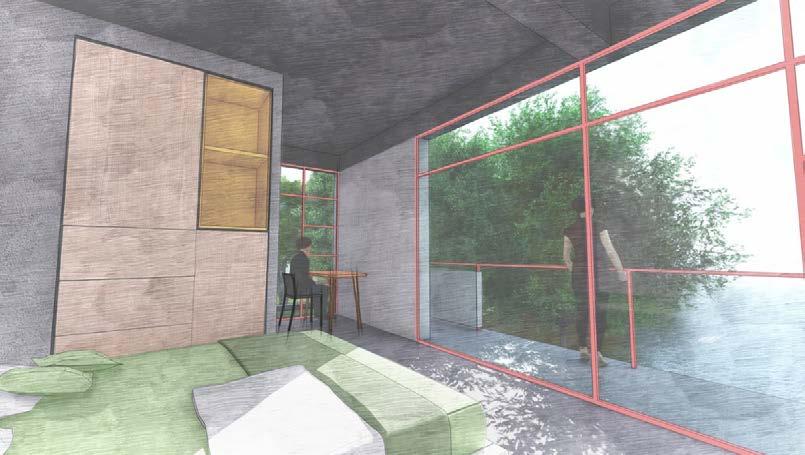

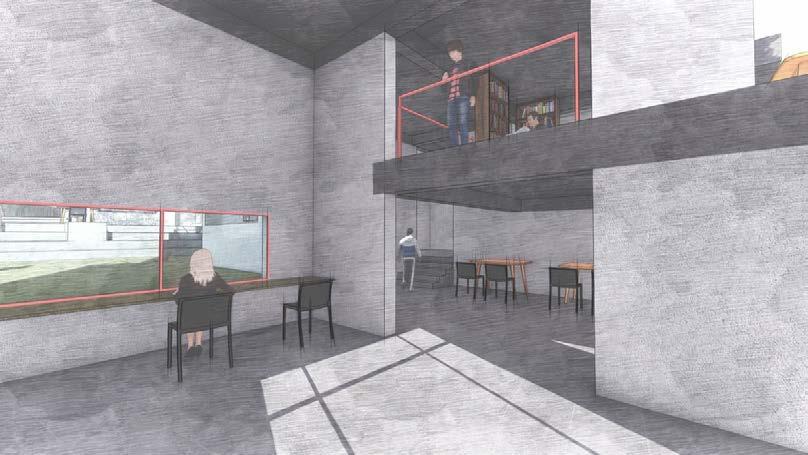

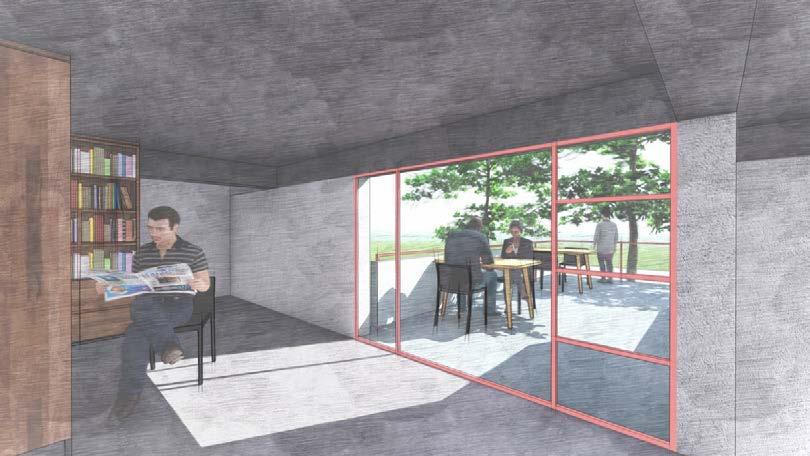

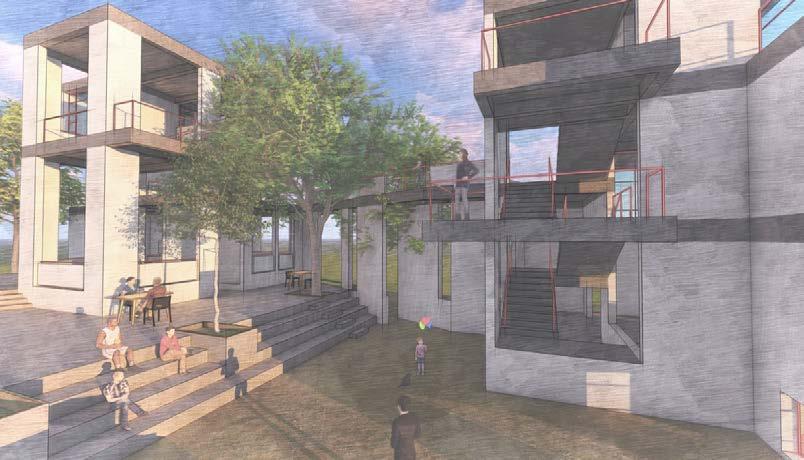

View showing the open dining and amphitheatre seating View showing the mezzanine library and the common workspace View showing closed and open seating of the library View showing the experience of individual workspace inside each unit View looking towards the courtyard spilling out of the workspace

PRAVAAH

A GRAM UDHYOG KENDRA

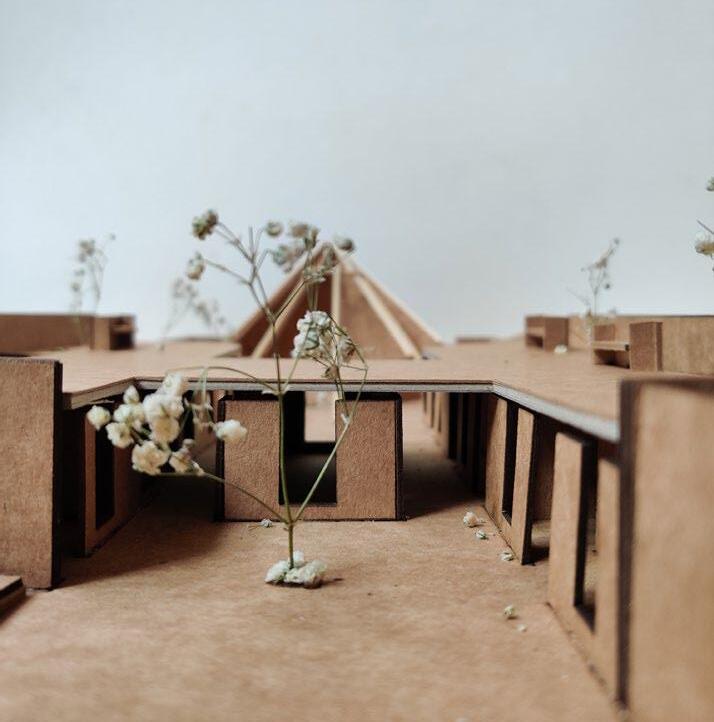

The project aims at accommodating local artisans by providing them with spaces to work as well as display their art. Hence the spaces are thought as a working place for the artisans with interconnected chowks or courtyards to interact with the customers as well as to rest.

The exhibition space structure is seen from the amphitheatre through the underground shops

The courtyard formed can be used by the artisans as well as the users to interact

The solid fort like entance wall gives a feeling of entering into a solid mass

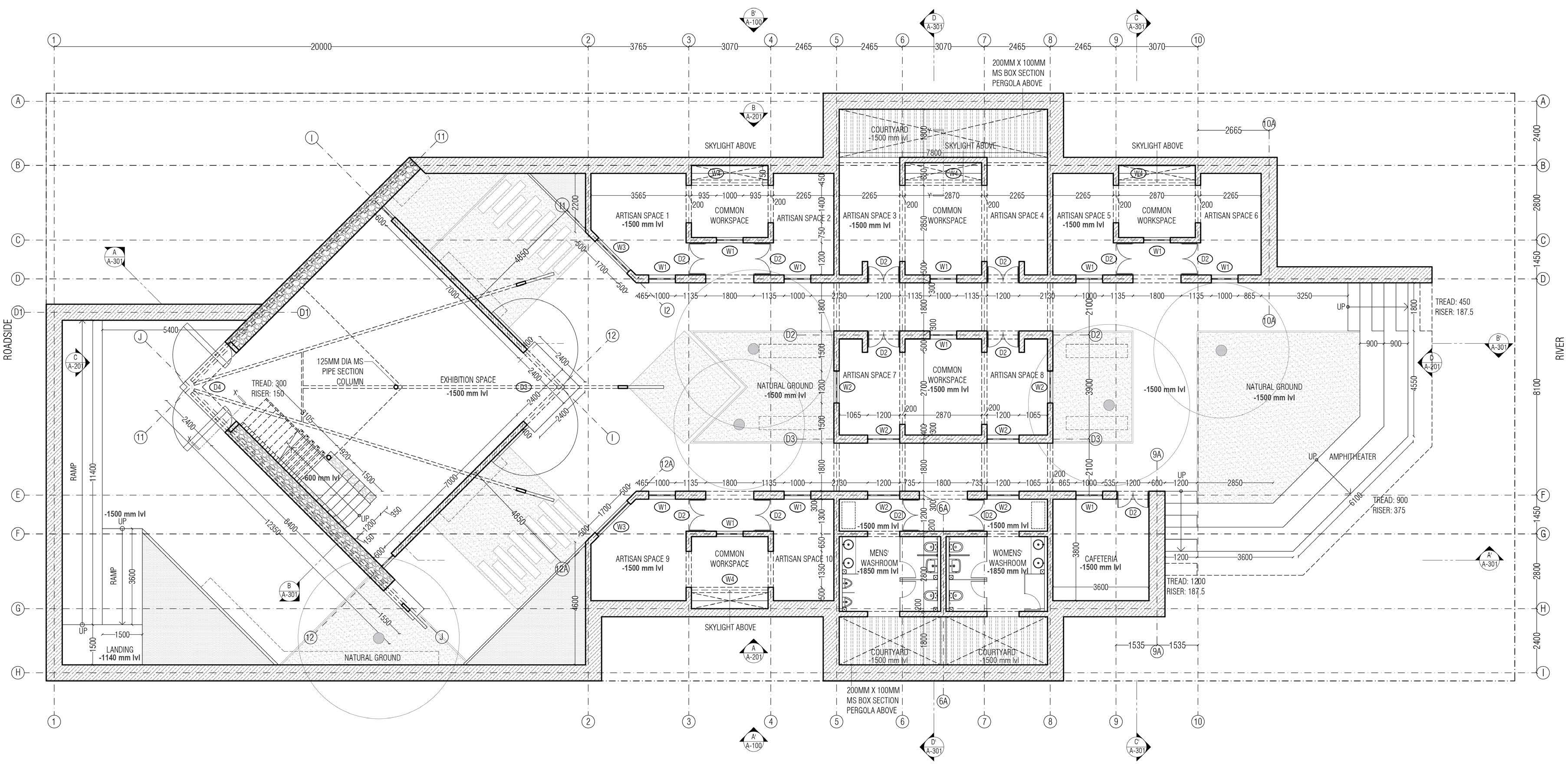

PRAVAAH-A GRAM UDHYOG KENDRA 9 FINAL DRAWINGS 1500 1500 1500 1500 14050 13400 4400 5150 4800 1600 1600 1600 1400 1700 2000MM X 1000MM X 600MM EXPOSED GABION CAGE WALL 200MM THICK EXPOSED RANDOM ASHLAR DHANGADHRA SANDSTONE MASONRY WALL 50MM THICK PUF CORRUGATED SHEET 100MM X 200MM MS BOX SECTION RAFTERS 40MM X 40MM MS BOX SECTION PURLINS Y X J J 11 12 12 J J 11 11 12 12 TOP OF ROOF LVL +7500MM LINTEL LVL LVL +0MM TOP OF GRADE SLAB LVL -1500MM EXPOSED PUF SHEET ROOFING EXPOSED RANDOM ASHLAR MASONRY DHANGADHRA SANDSTONE WALL EXPOSED RCC LINTEL MS BOX SECTION TOP OF ROOF LVL +7500MM TOP OF GRADE SLAB LVL -1500MM EXPOSED GABION AND CAGE WALL ELEVATION X AT 1:100 SCALE ELEVATION Y AT 1:100 SCALE DETAIL 'A' AT 1:20 SCALE 100MM X 200MM MS BOX SECTION RAFTERS 40MM X 40MM MS BOX SECTION PURLINS 40MM NOMINAL BORE MS PIPE SECTION VERTICAL MEMBER WELDING 4MM THICK WELDED MS PLATE 40MM X 40MM MS BOX SECTION VERTICAL MEMBER 200MM X 100MM MS BOX SECTION RAFTERS MS PLATE WELDED PIN JOINT ANCHOR BOLTS RCC FOUNDATION RUSHIT SHAH GENERAL NOTES: LEGEND: LAWN RCC GABION AND CAGE A-100 NILANG PANDYA 0 N SHIRISHKUMAR PATEL KHUSHI SHAH AR2036 SPRING 2023 DESIGN IN DETAIL REFLECTED CEILING PLAN UAR20121 DATE: 26/04/2023 1. ALL DIMENSIONS ARE IN MM. 2.UNLESS SPECIFIED ALL DIMENSIONS ARE FROM UNFINISHED SURFACES. 3.DRAWINGS ARE TO BE READ, NOT MEASURED. 5.IN CASE OF ANY AMBIGUITY PLEASE CONTACT ARCHITECT'S OFFICE. PLANTER NATURAL GROUND STONE 4.ALL LEVELS ARE TO THE FINISHED FLOOR LEVELS. SCALE - 1:50 0.51.5 3 M COMPACTED EARTH BBCC 40MMX40MM MS BOX SECTION VERTICAL MEMBER 4MM THK WELDED MS PLATE WELDING 100MMX200MM MS BOX SECTION RAFTERS 40MMX40MM MS BOX SECTION PURLINS 40MM NOMINAL BORE MS PIPE SECTION VERTICAL MEMBER Joinery detail at top 1500 1500 1500 1500 1500 1500 880 14050 13400 4400 5150 4800 1600 1600 1600 1400 1700 50MM THICK PUF CORRUGATED SHEET 100MM X 200MM MS BOX SECTION RAFTERS 40MM X 40MM MS BOX SECTION PURLINS J J 11 12 12 J J 11 12 TOP OF ROOF LVL +7500MM LINTEL LVL LVL +0MM TOP OF GRADE SLAB LVL -1500MM EXPOSED PUF SHEET ROOFING EXPOSED RANDOM ASHLAR MASONRY DHANGADHRA SANDSTONE WALL EXPOSED RCC LINTEL MS BOX SECTION ELEVATION AT 1:100 SCALE ELEVATION Y AT 1:100 SCALE 200MM X 100MM MS BOX SECTION RAFTERS MS PLATE WELDED PIN JOINT ANCHOR BOLTS RCC FOUNDATION PIN JOINT DETAIL AT 1:5 SCALE RUSHIT SHAH GENERAL NOTES: LEGEND: LAWN RCC GABION AND CAGE
NILANG PANDYA 0 N PROJECT: SHIRISHKUMAR PATEL KHUSHI SHAH AR2036 SPRING 2023 DESIGN IN DETAIL REFLECTED CEILING PLAN UAR20121 DATE: 26/04/2023 1. ALL DIMENSIONS ARE IN MM. 2.UNLESS SPECIFIED ALL DIMENSIONS ARE FROM UNFINISHED SURFACES. 3.DRAWINGS ARE TO BE READ, NOT MEASURED. 5.IN CASE OF ANY AMBIGUITY PLEASE CONTACT ARCHITECT'S OFFICE. PLANTER NATURAL GROUND STONE 4.ALL LEVELS ARE TO THE FINISHED FLOOR LEVELS. SCALE - 1:50 0.51.5 3 M COMPACTED EARTH BBCC Pin joint detail 200MMX200MM MS BOX SECTION RAFTERS MS PLATE WELDED PIN JOINT ANCHOR BOLTS RCC FOUNDATION PLAN AT -1000MM LVL
A-100

THE SPACE

Site and Area: Riverfront, besides Gandhi Ashram with an area of 1188 sq.m.

The project aims at accomodating local artisans by providing them with spaces to work as well as display their art. Hence the spaces are thought as a working place for the artisans with interconnected chowks or courtyards to interact with the customers as well as to rest. Also, there are private courtyards for artisans where they can sit and relax. The amphitheatre opening up towards to the river, proves to be a point for social gatherings as well as normal day to day interaction between the people.

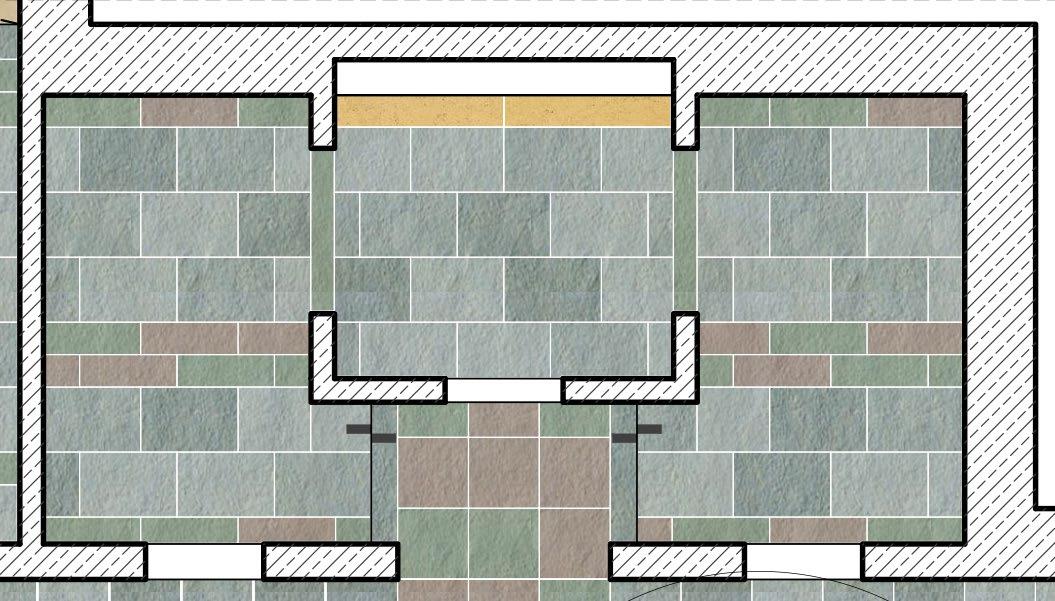

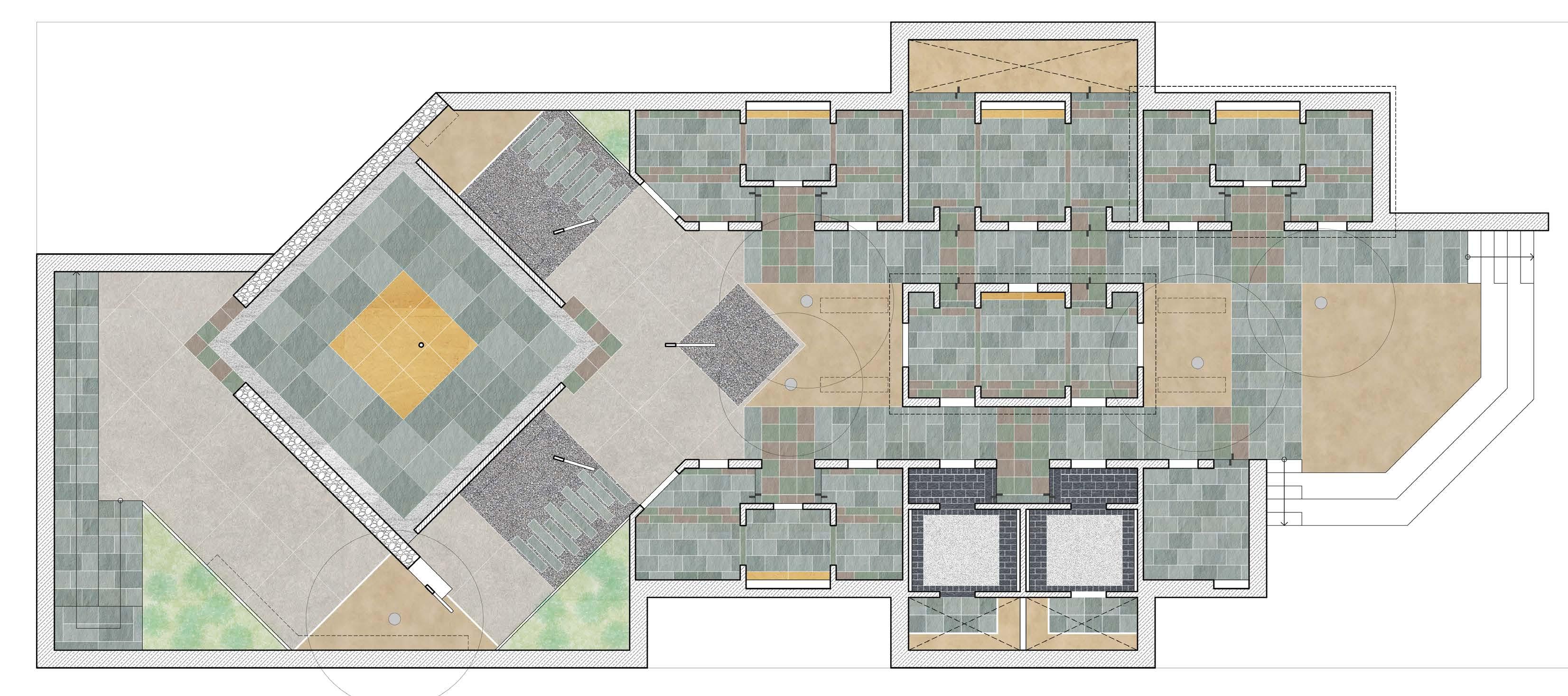

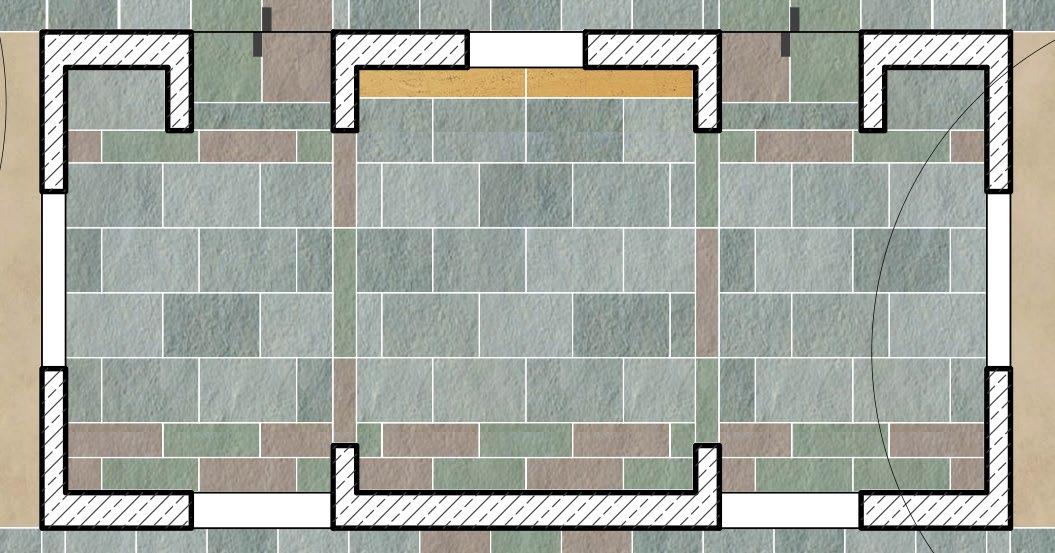

FLOORING DRAWINGS

PRAVAAH-A GRAM UDHYOG KENDRA 10

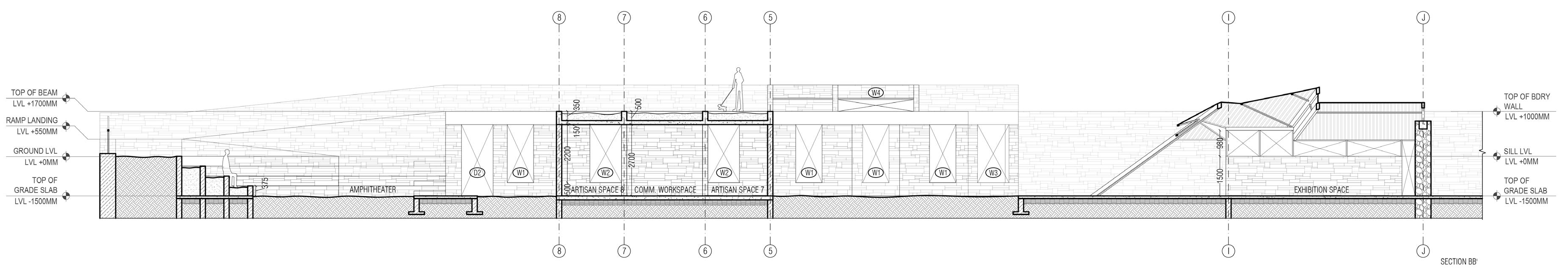

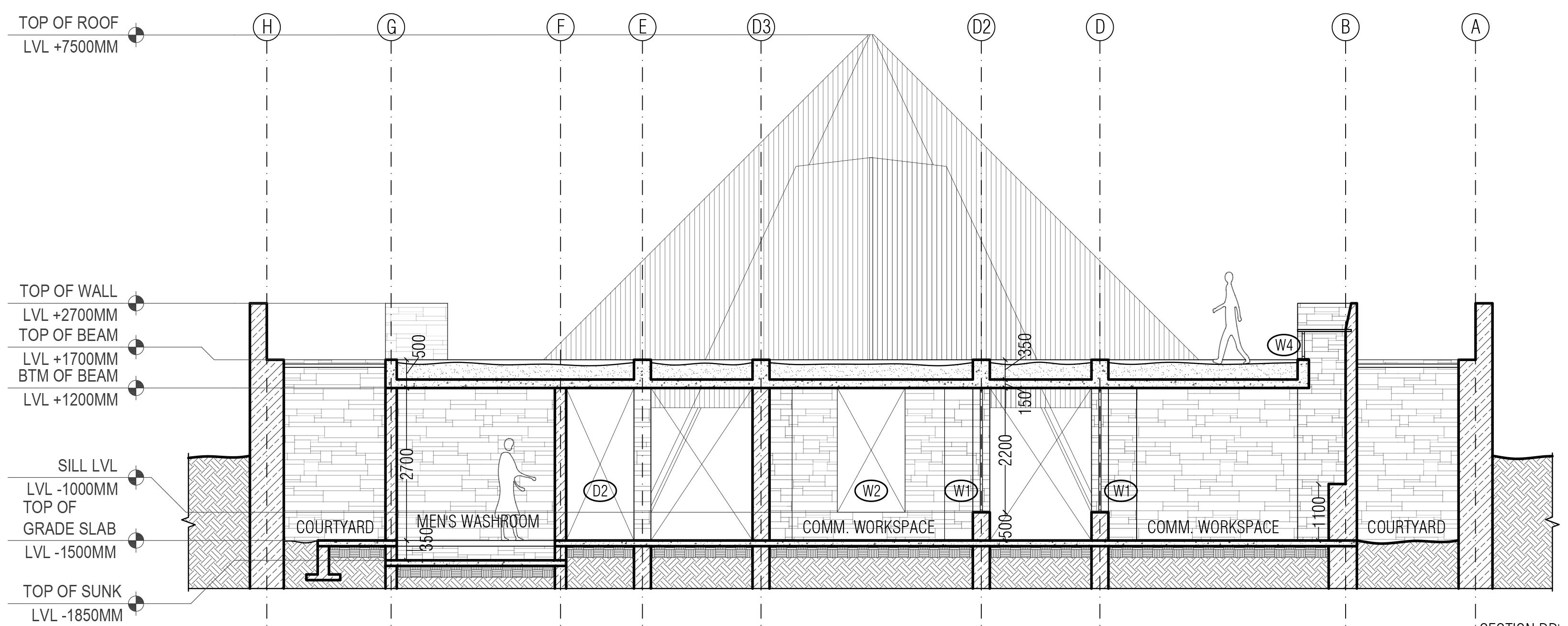

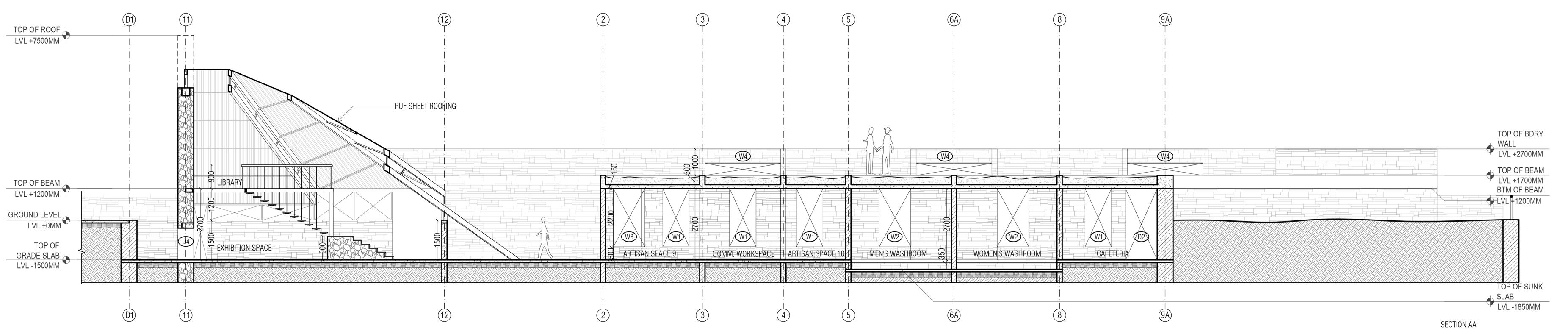

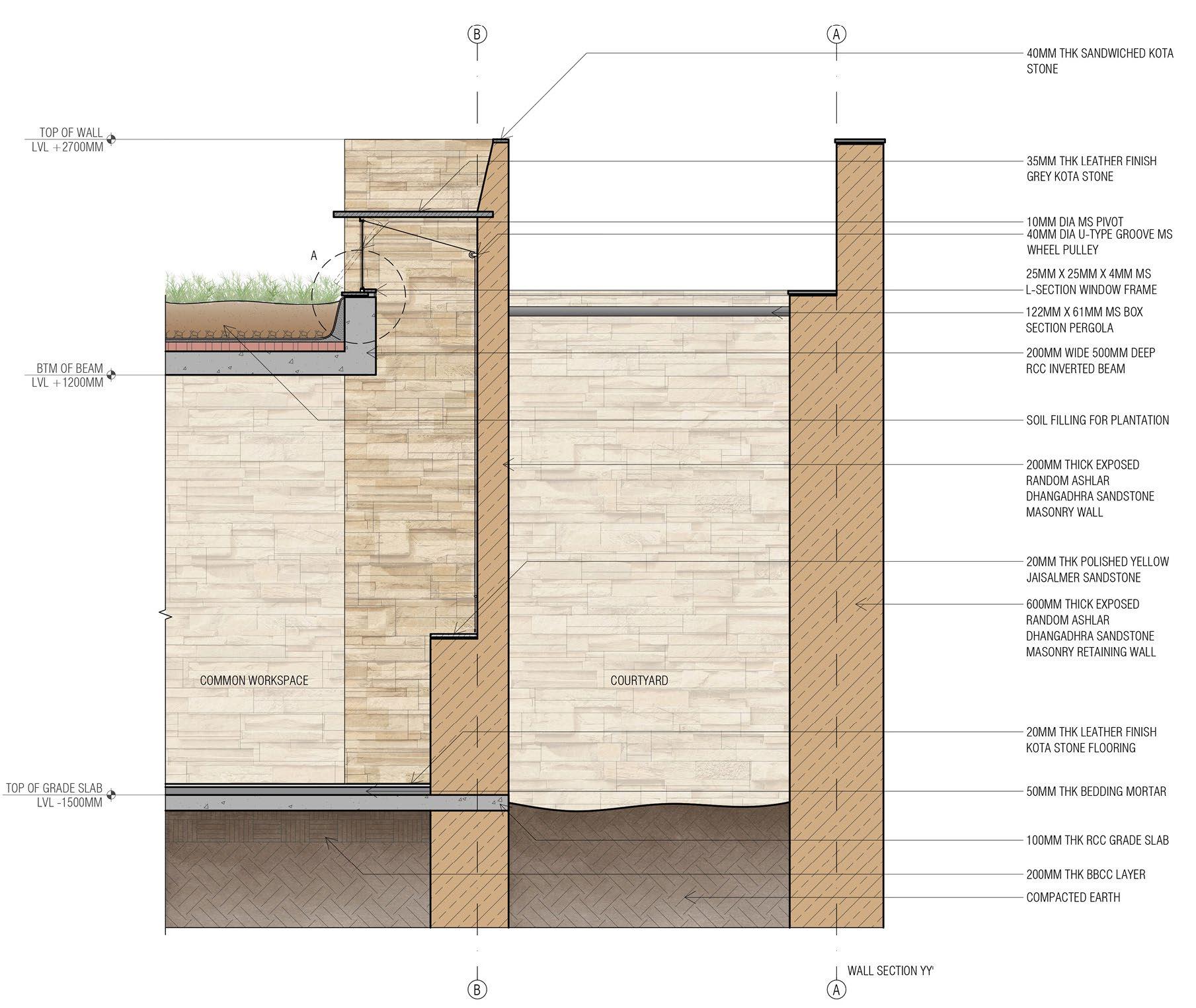

SECTION DD’
REFLECTED CEILING PLAN FLOORING PLAN TYPICAL LAYOUT ‘B’ TYPICAL LAYOUT ‘A’ 200MMX1000MMX600MM EXPOSED GABION CAGE WALL 200MM THK EXPOSED RANDOM ASHLAR DHANGADHRA SANDSTONE MASONRY WALL 500MM THK PUF CORRUGATED SHEET 100MMX200MM BOX SECTION RAFTERS 40MMX40MM MS BOX SECTION PURLINS

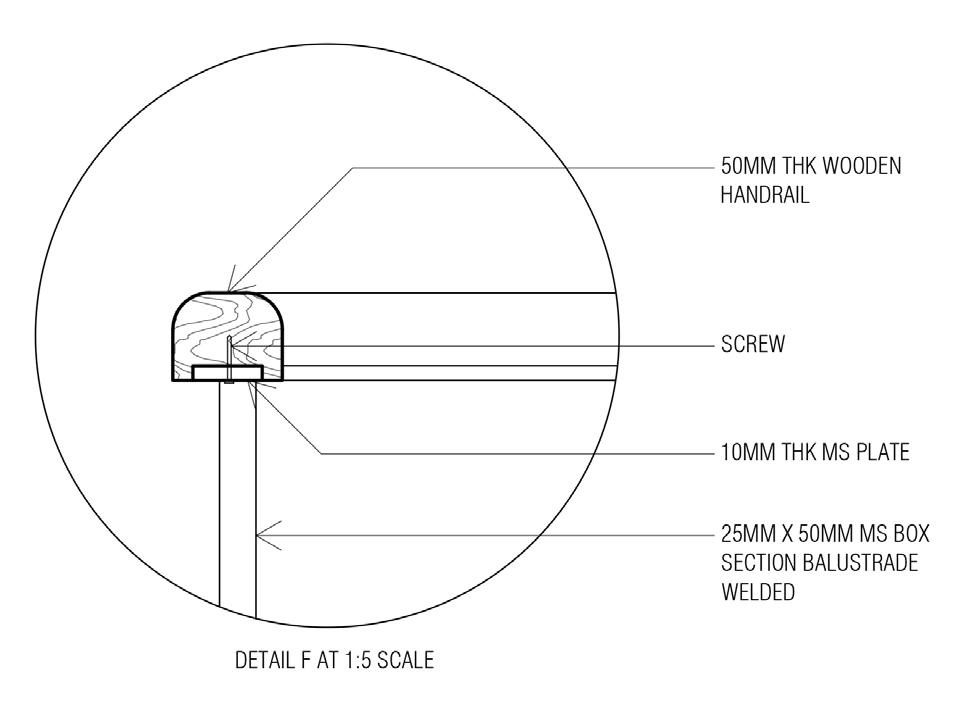

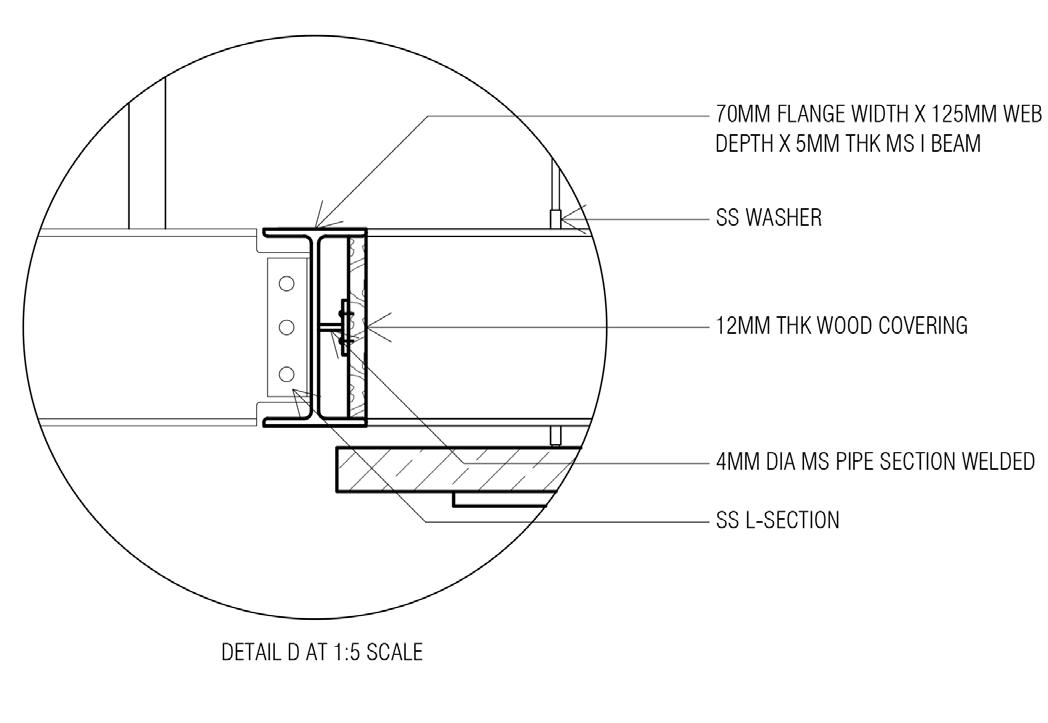

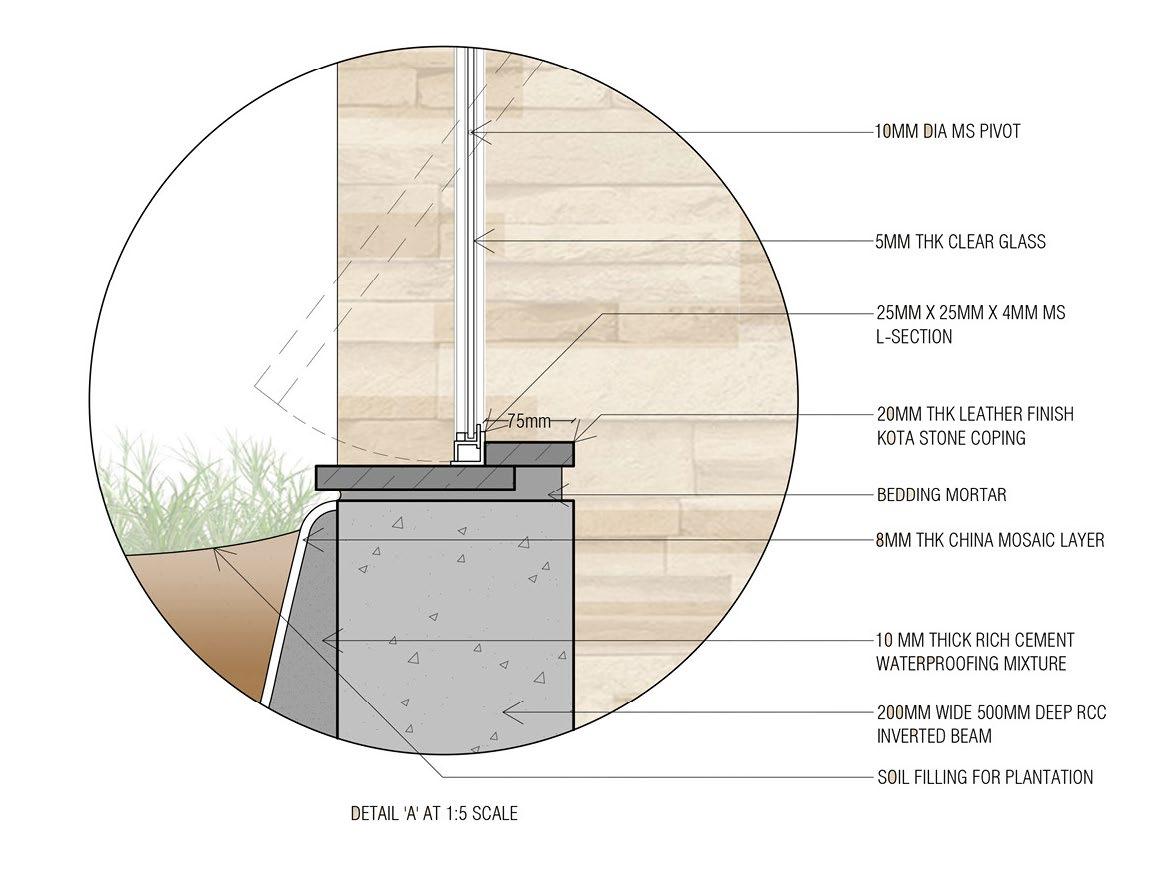

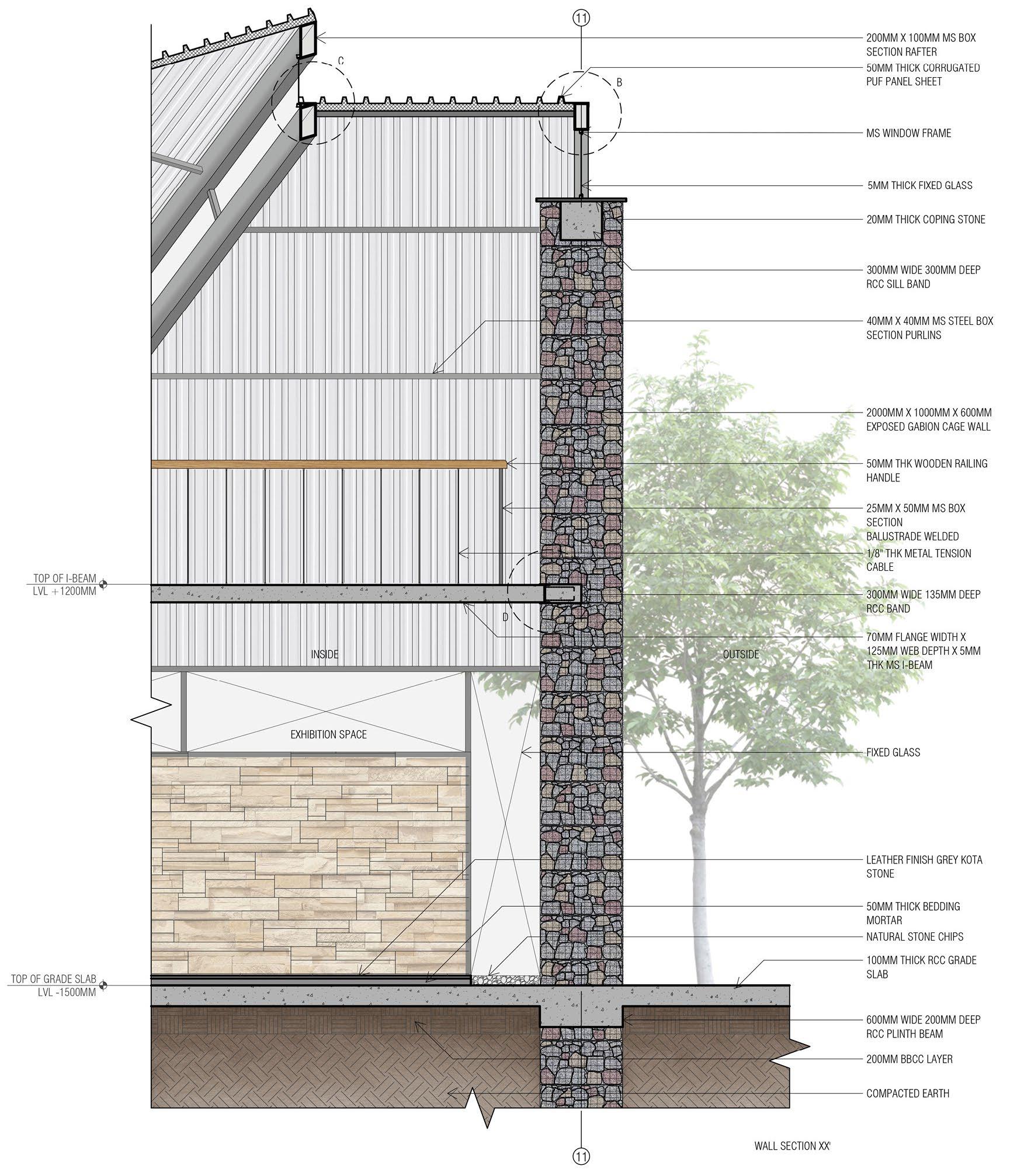

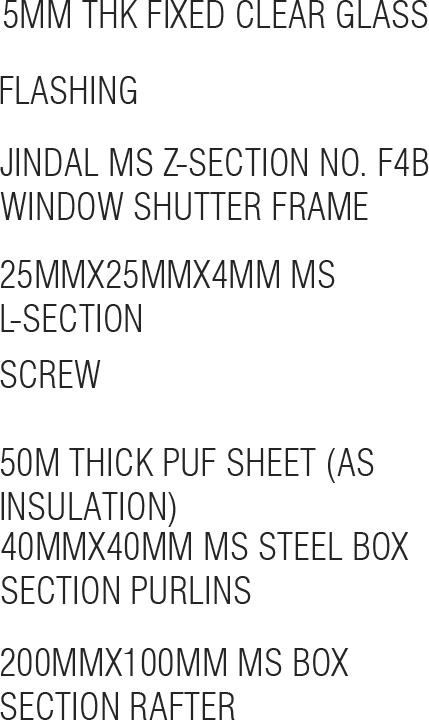

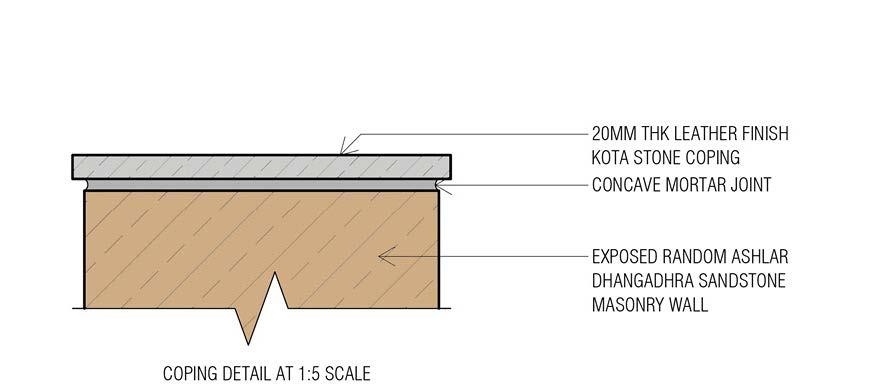

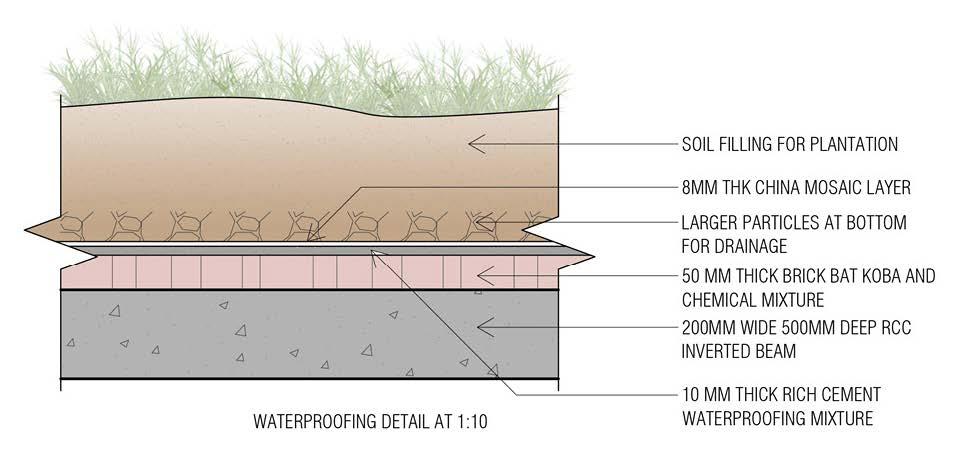

PRAVAAH-A GRAM UDHYOG KENDRA 11 WALL SECTIONS 10MM DIA MS PIVOT 5MM THK CLEAR GLASS 25MMX25MMX4MM MS L-SECTION 20MM THK LEATHER FINISH KOTA STONE COPING BEDDING MORTAR 8MM THK CHINA MOSAIC LAYER 10MM THK RICH CEMENT WATERPROOFING MIXTURE 200MM WIDE 500MM DEEP RCC INVERTED BEAM SOIL FILLING FOR PLANTATION DETAIL ‘A’ AT 1:5 SCALE WATERPROOFING DETAIL AT 1:10 WALL SECTION YY’ WALL SECTION XX’ DETAIL ‘B’ AT 1:5 SCALE DETAIL ‘D’ AT 1:5 SCALE DETAIL ‘C’ AT 1:5 SCALE
PRAVAAH-A GRAM UDHYOG KENDRA 12

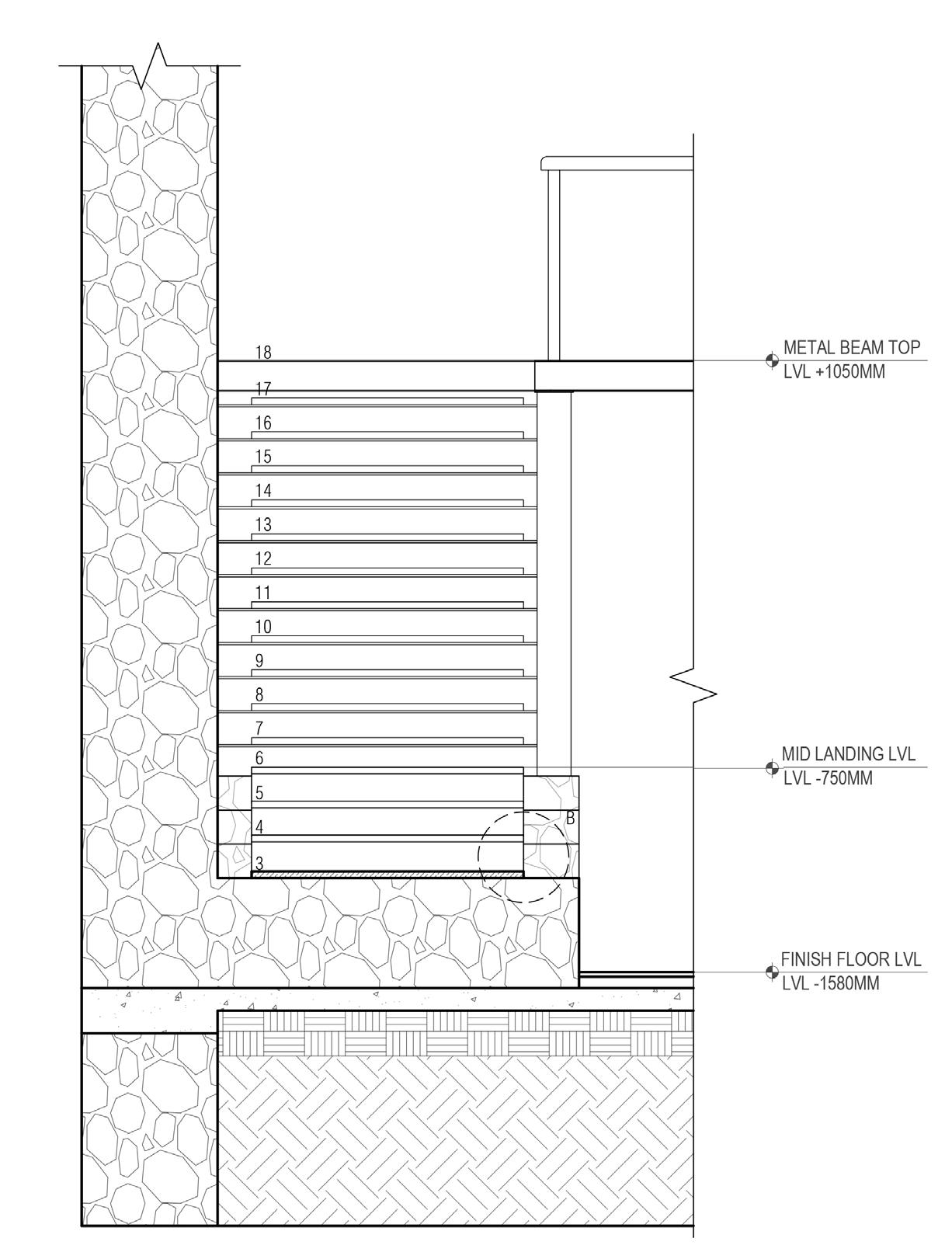

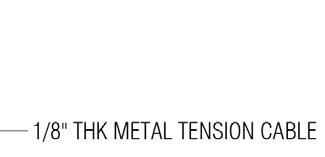

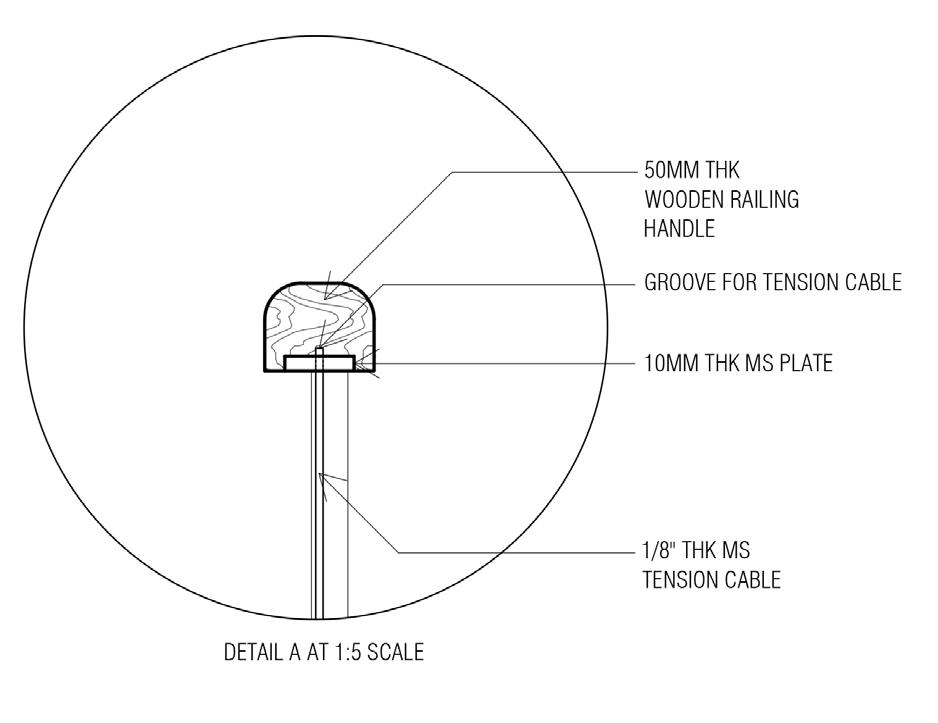

SECTION BB’ There are tension cables which support the tread from one side They are designed to give the viewer the effect as if they are floating in the air

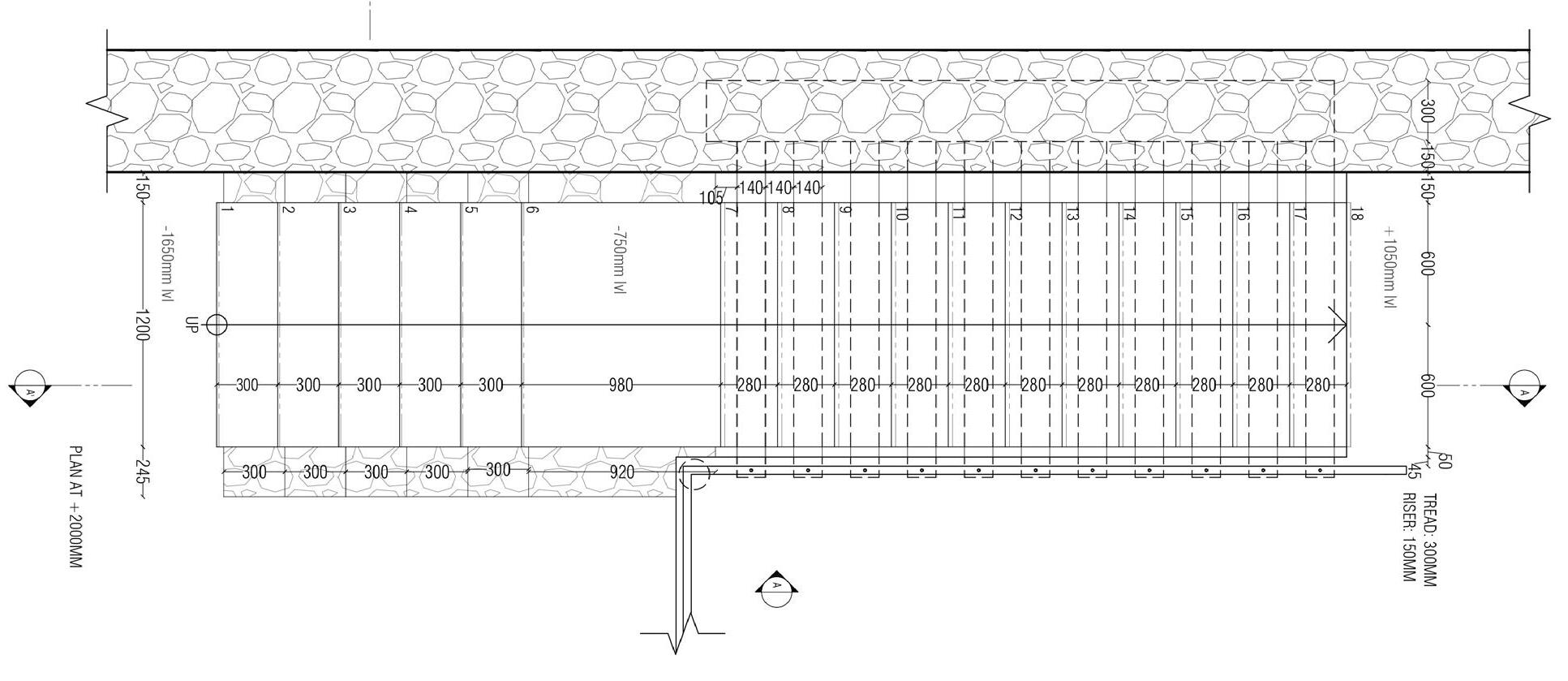

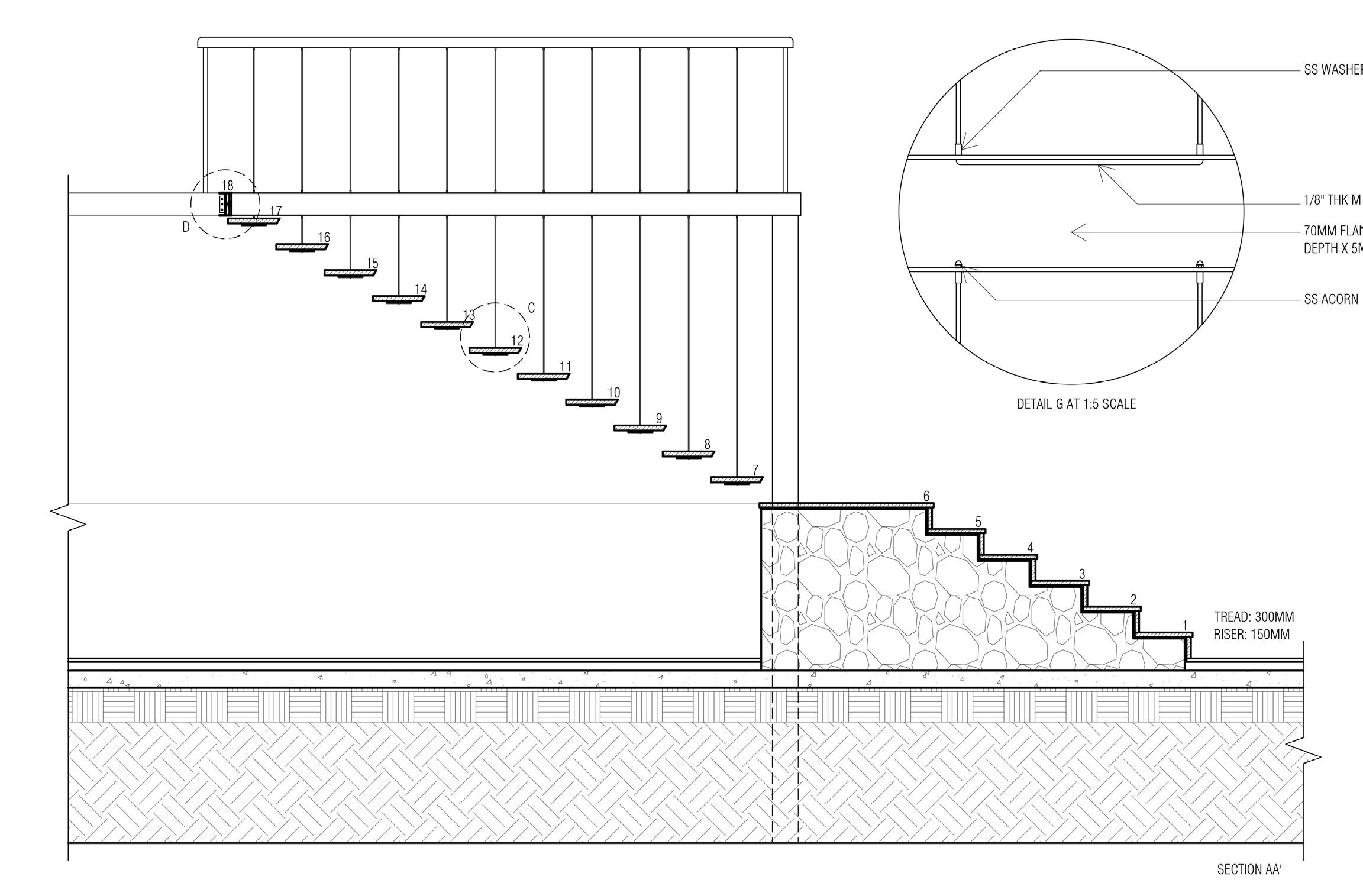

STAIRCASE DETAILS

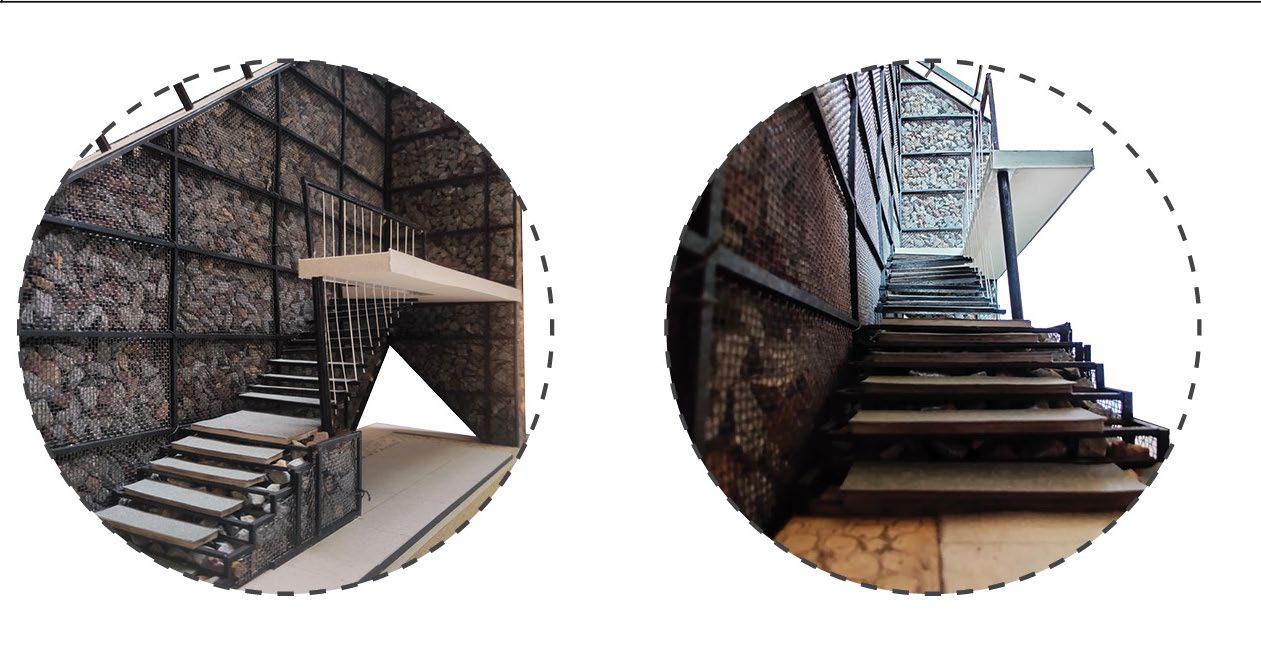

The stairs act as a connection between the exhibition space and the mezzanine library

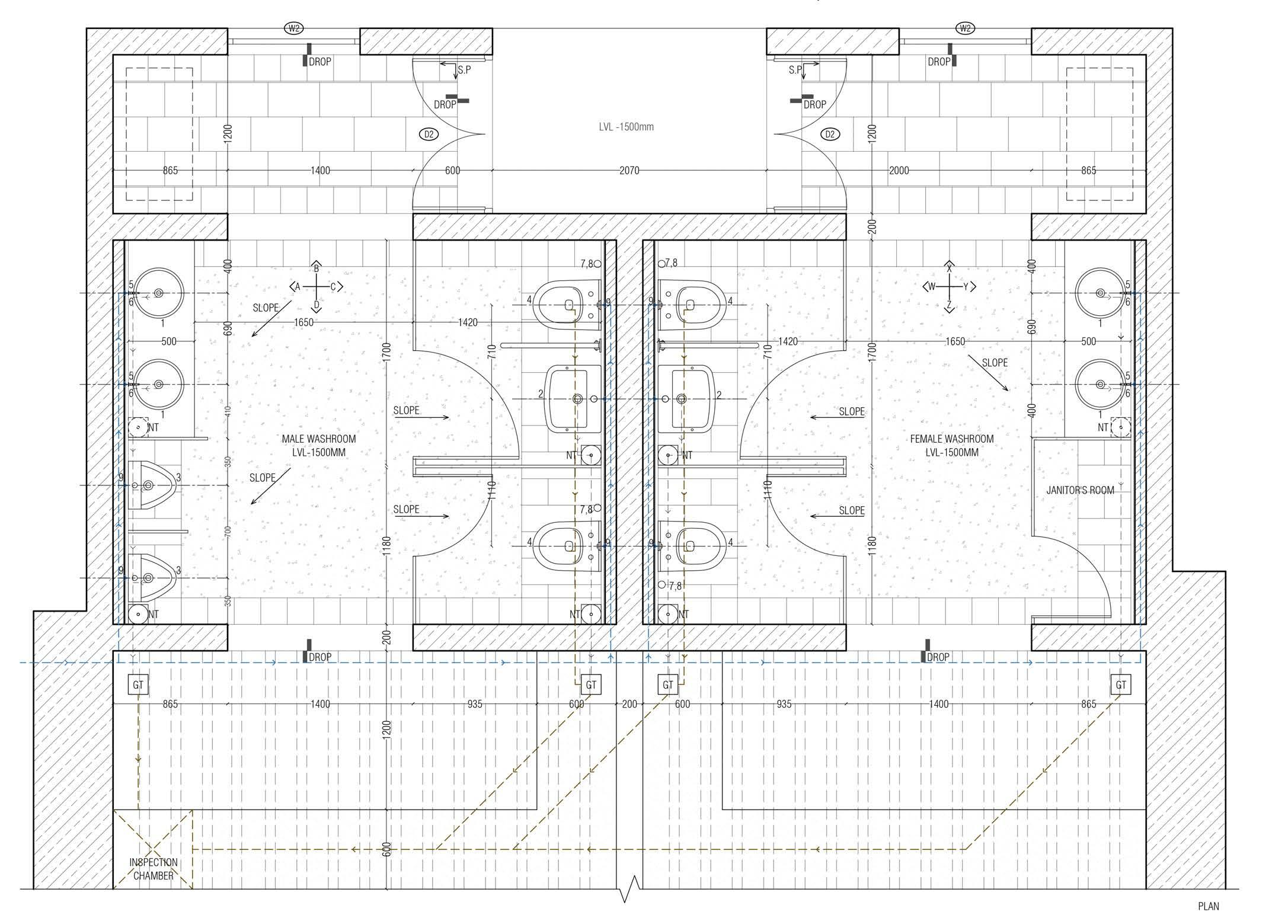

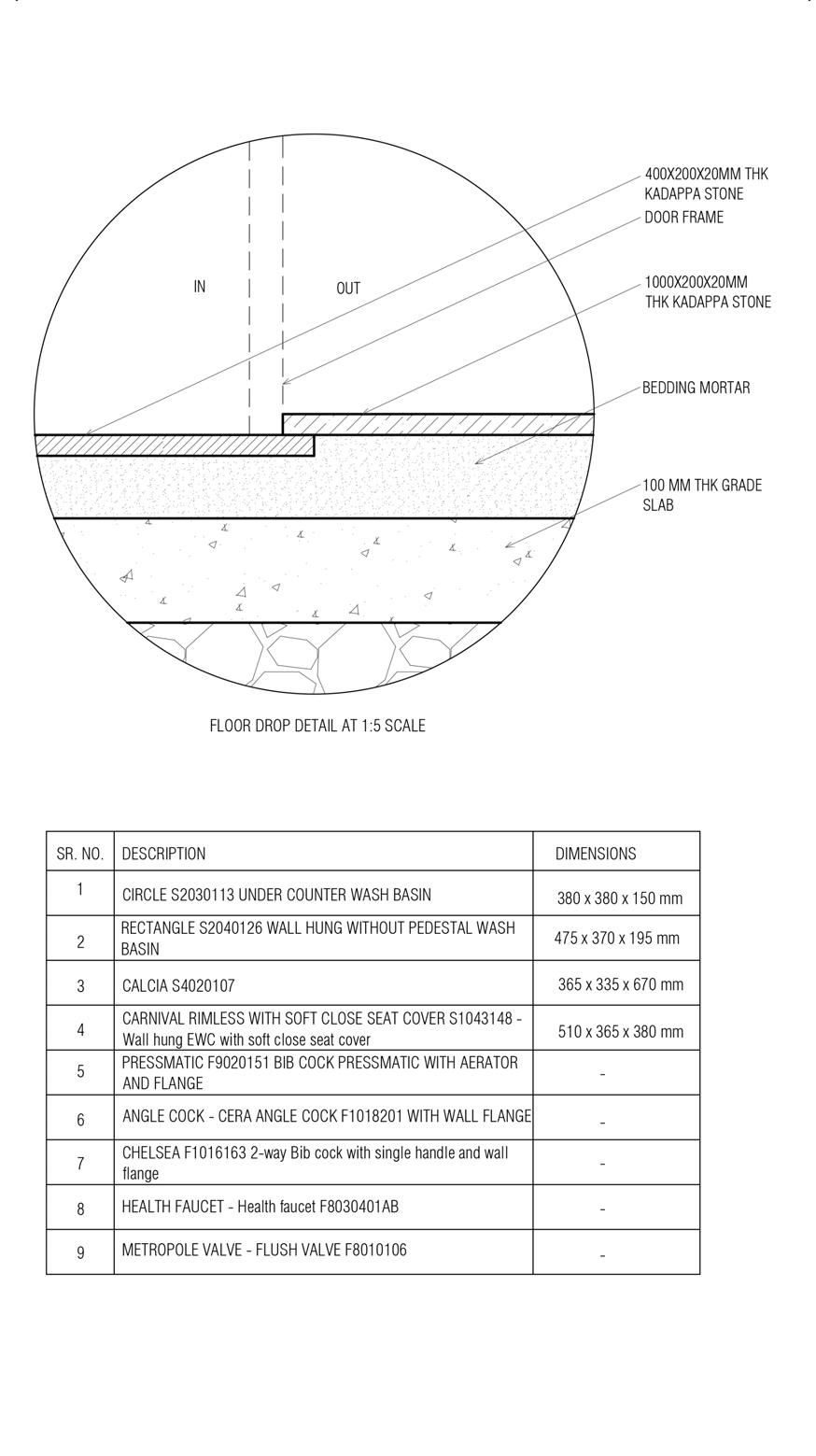

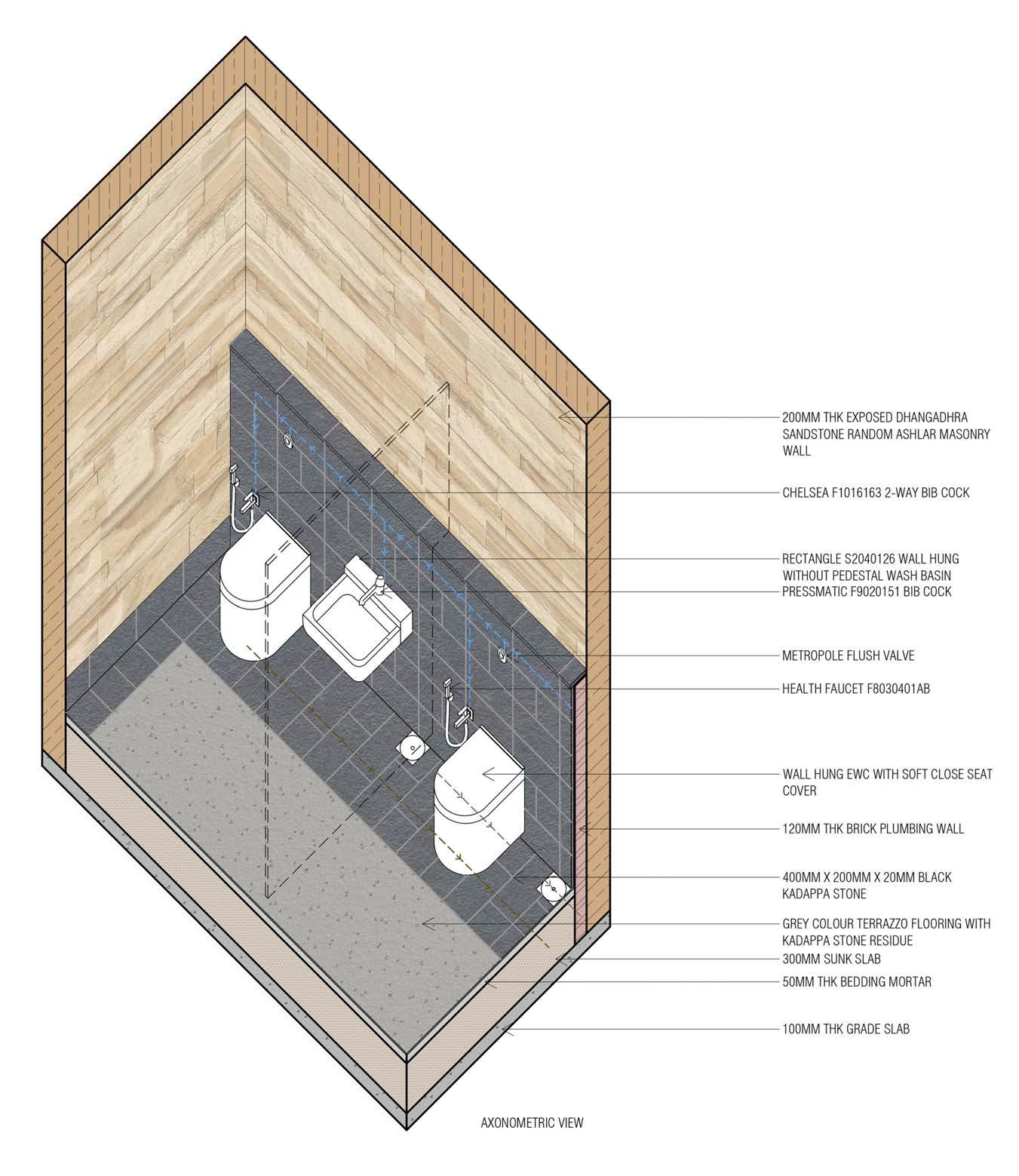

TOILET DETAILS

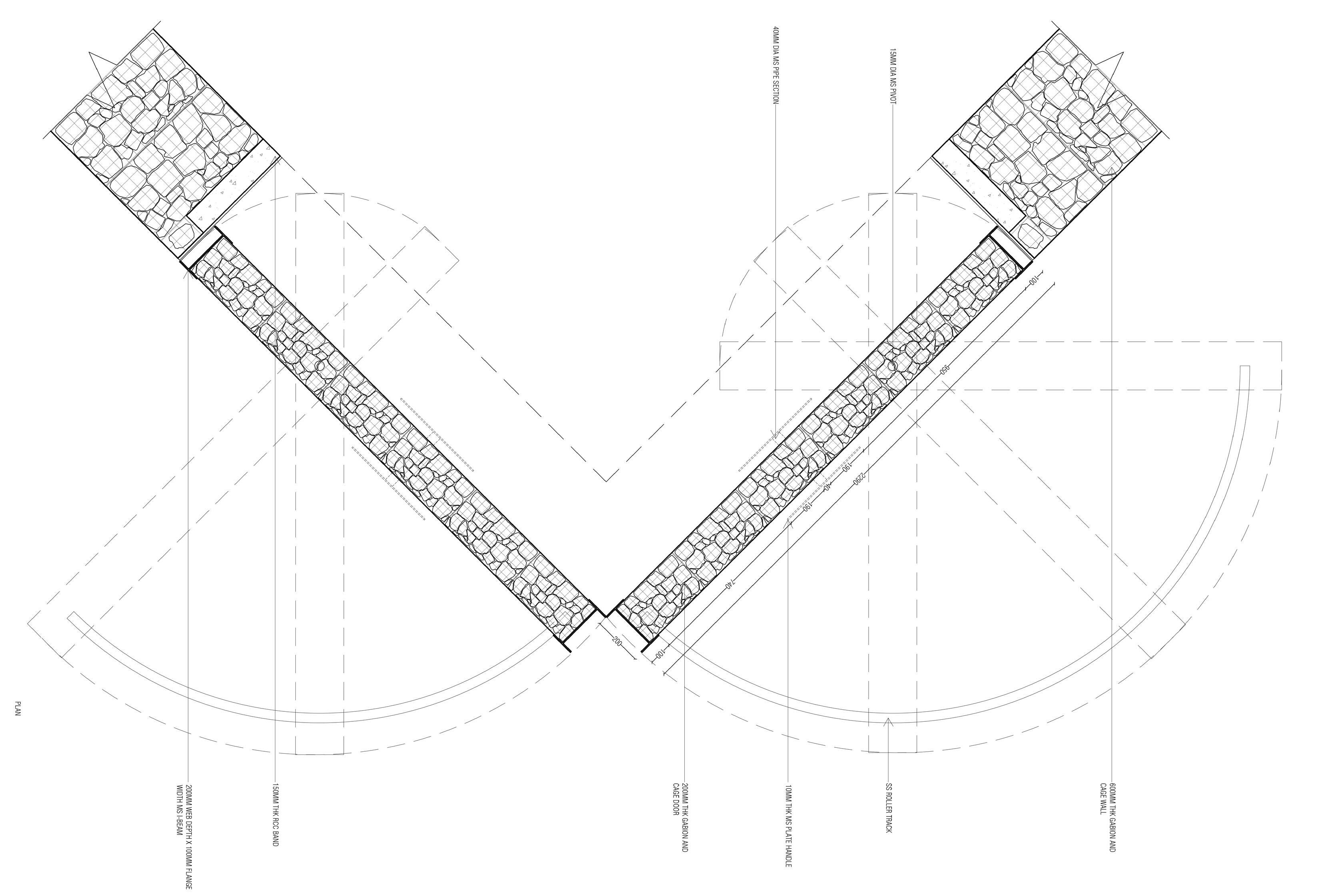

1:20 SCALE MODEL DOOR DETAILS

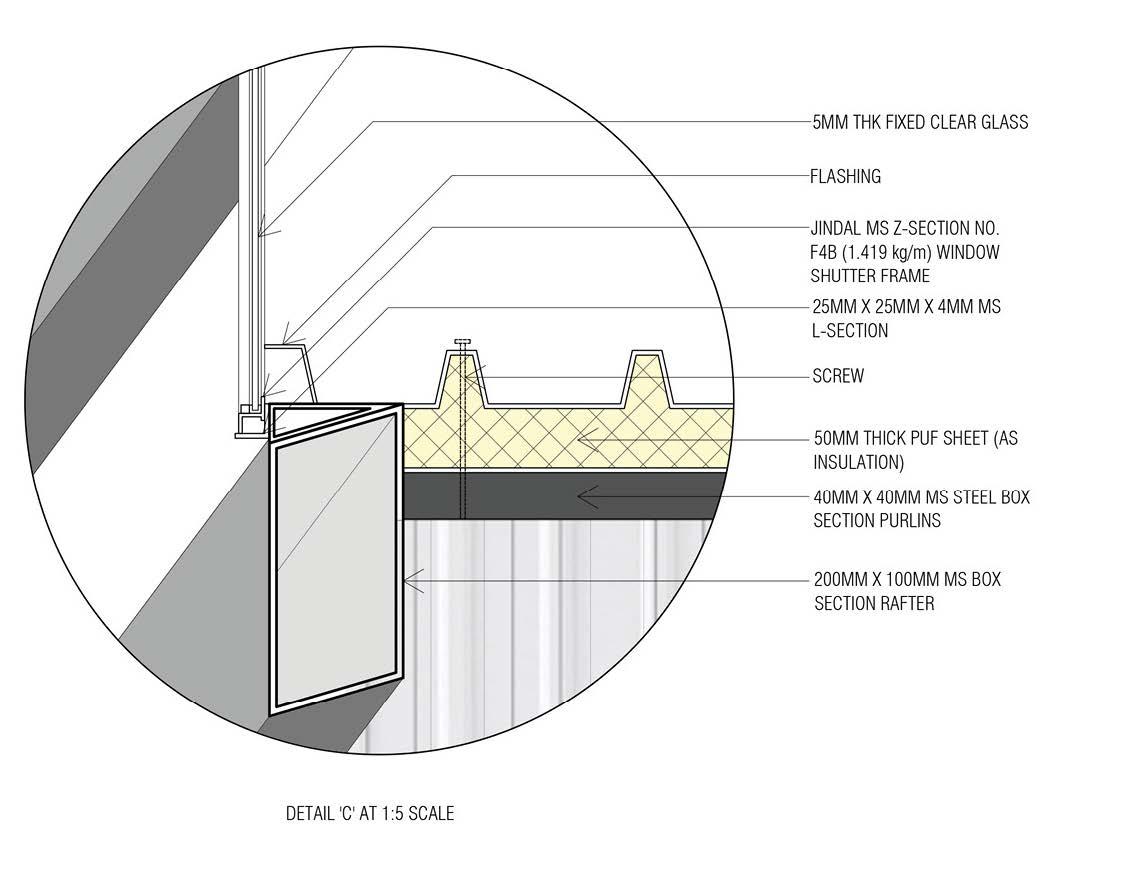

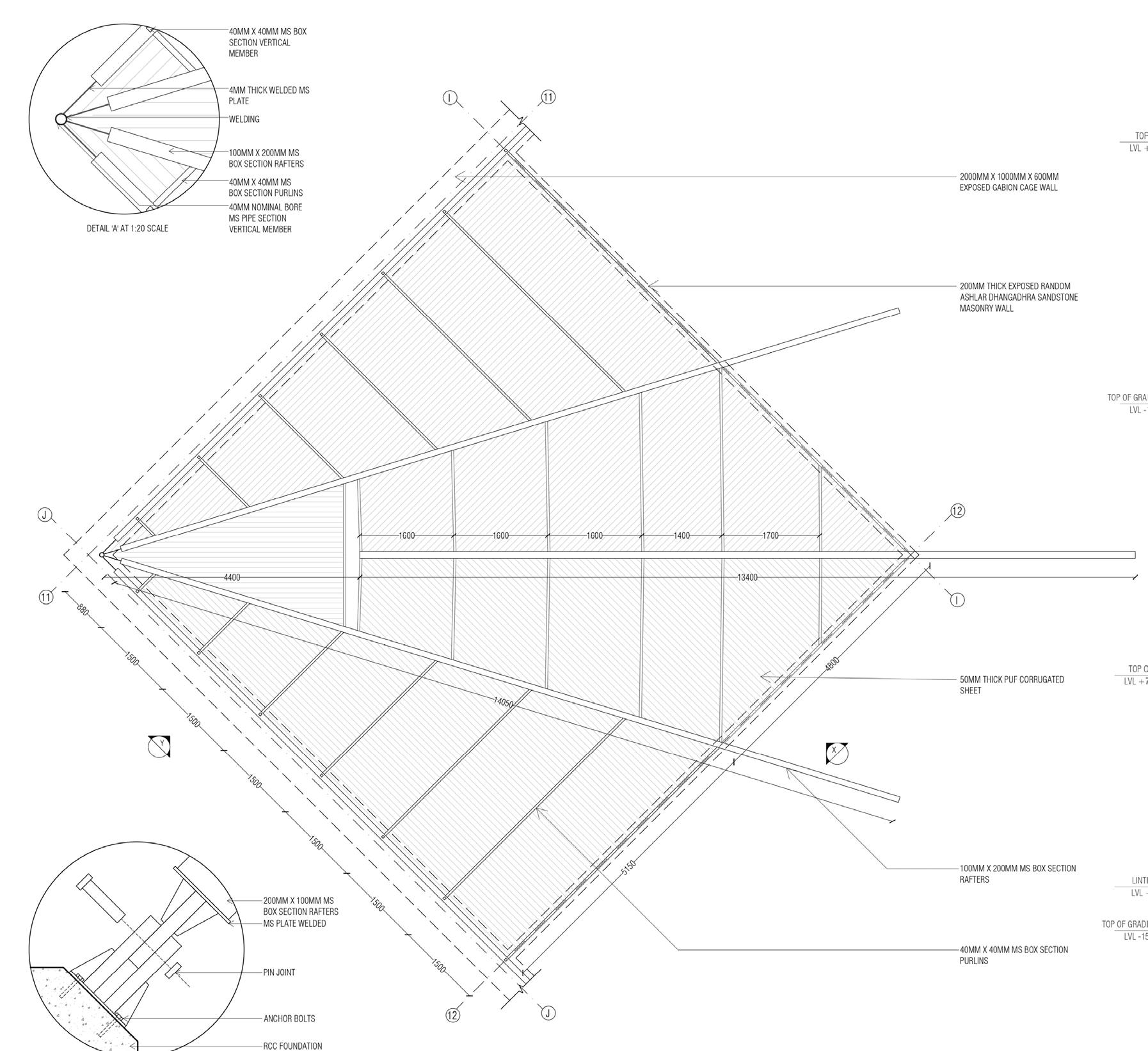

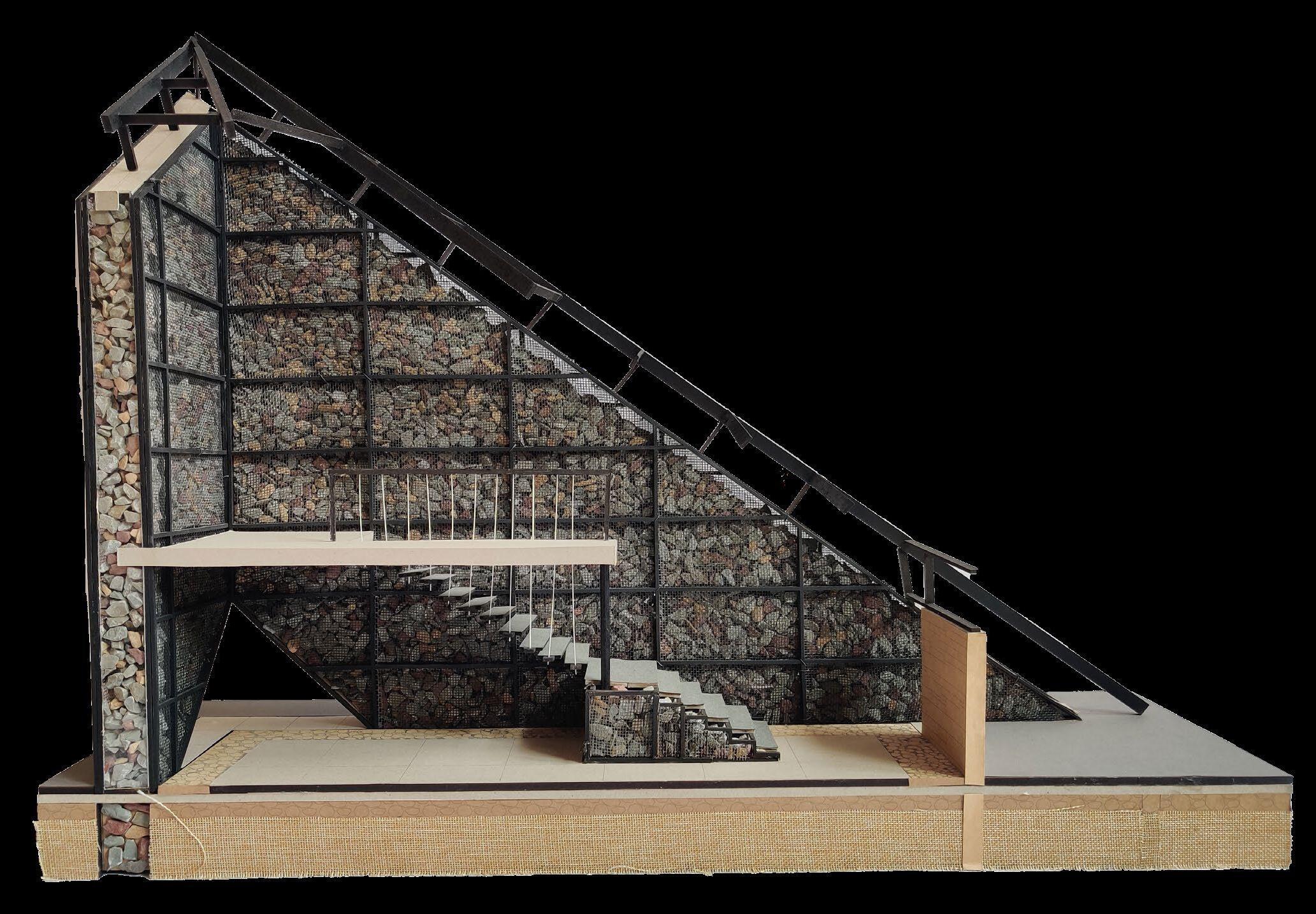

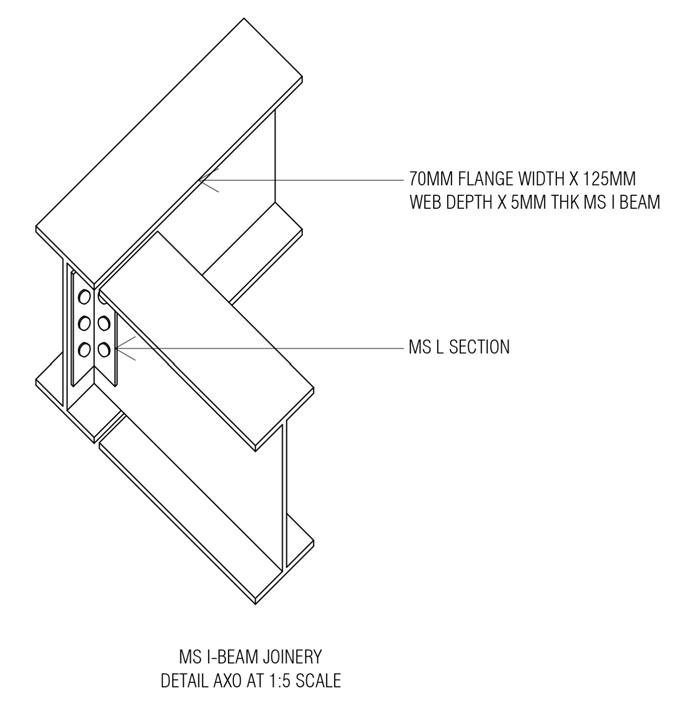

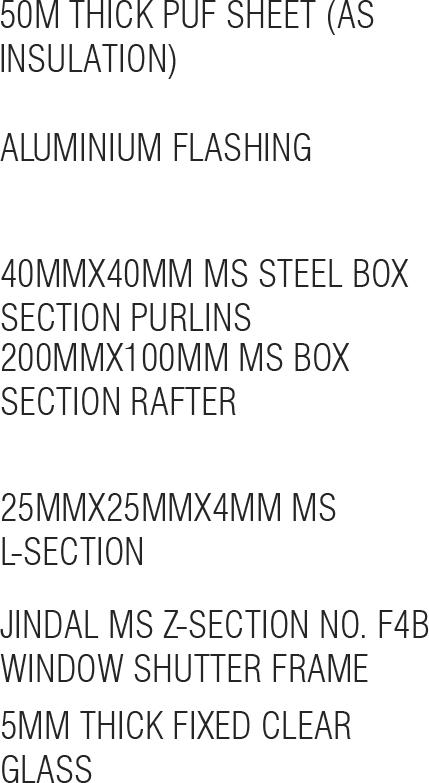

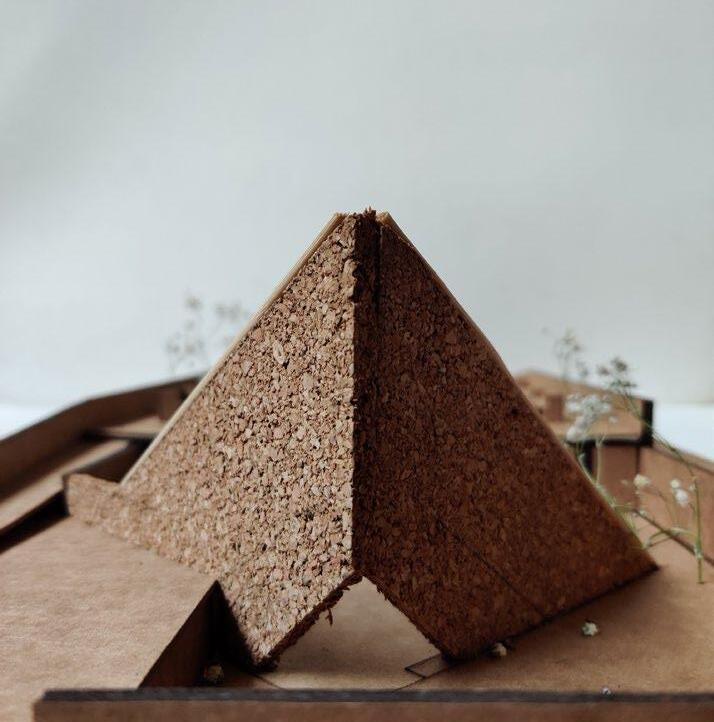

The structure of the roof is made up of MS box section rafters and purlins. The rafters touch the ground and portray the idea of the roof as connection between the sky and the ground.

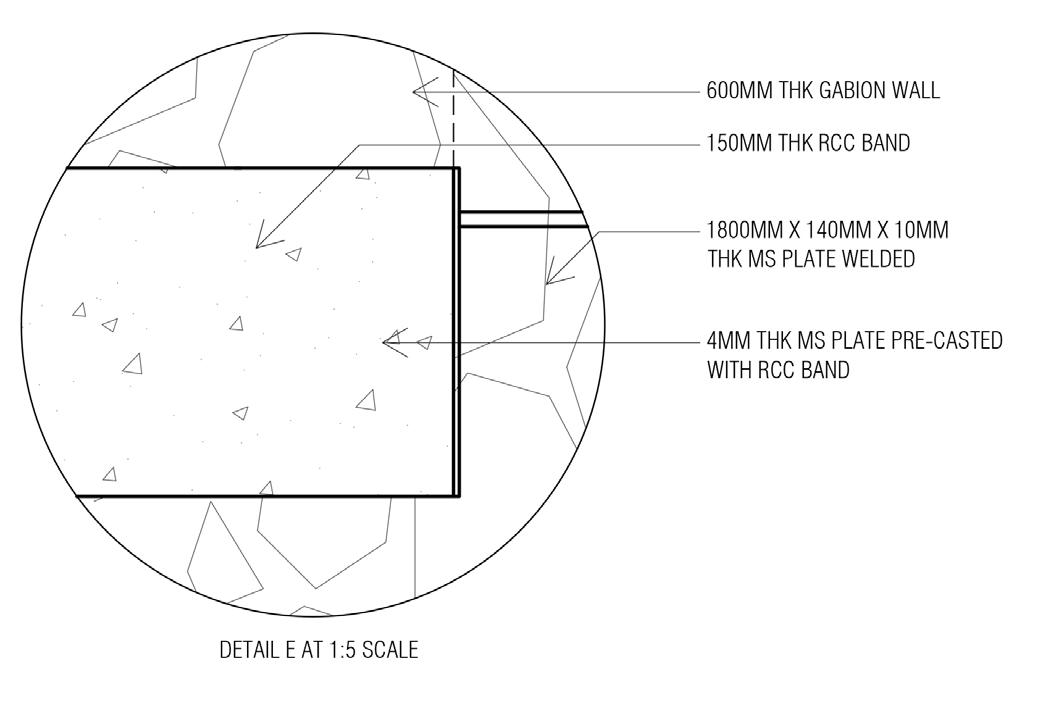

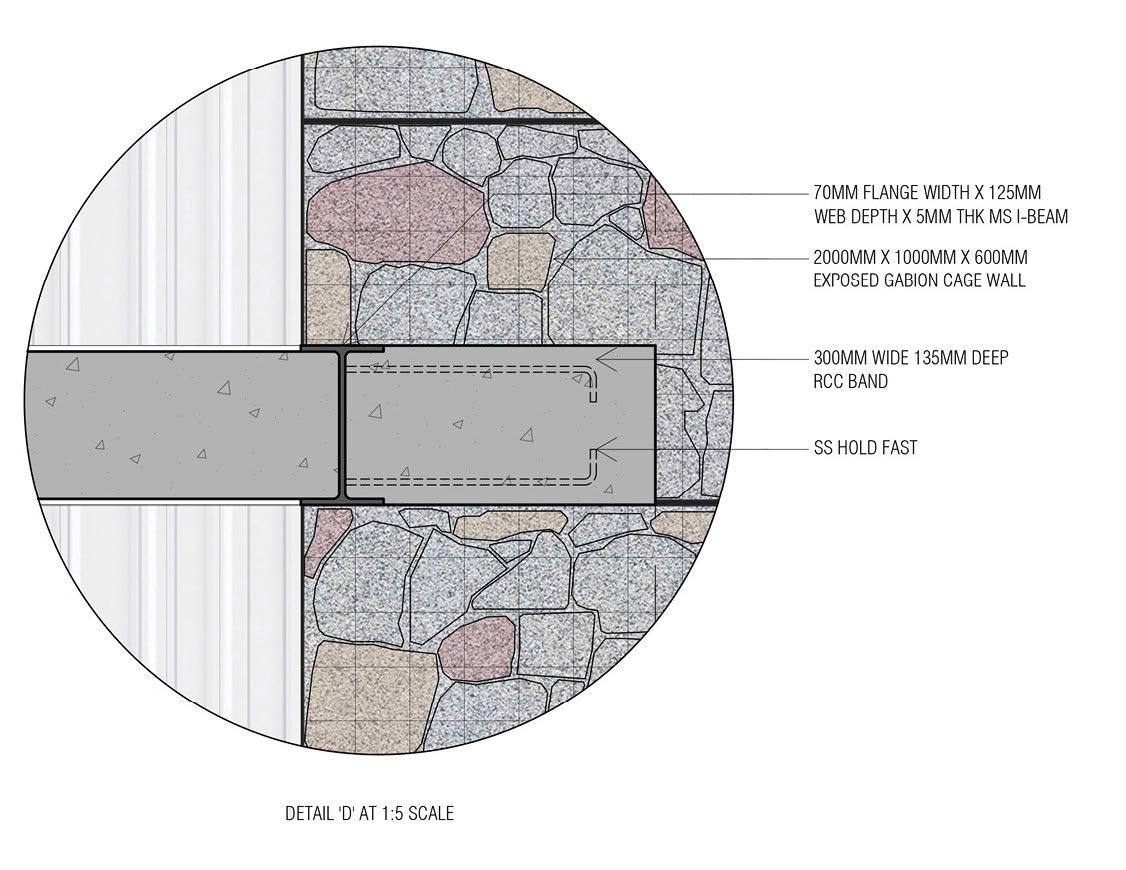

The gabion wall structure is made by filling unfinished stones into a cage made up of MS box sections. The size of sections depend upon the height as well as the type of stones used to make the wall.

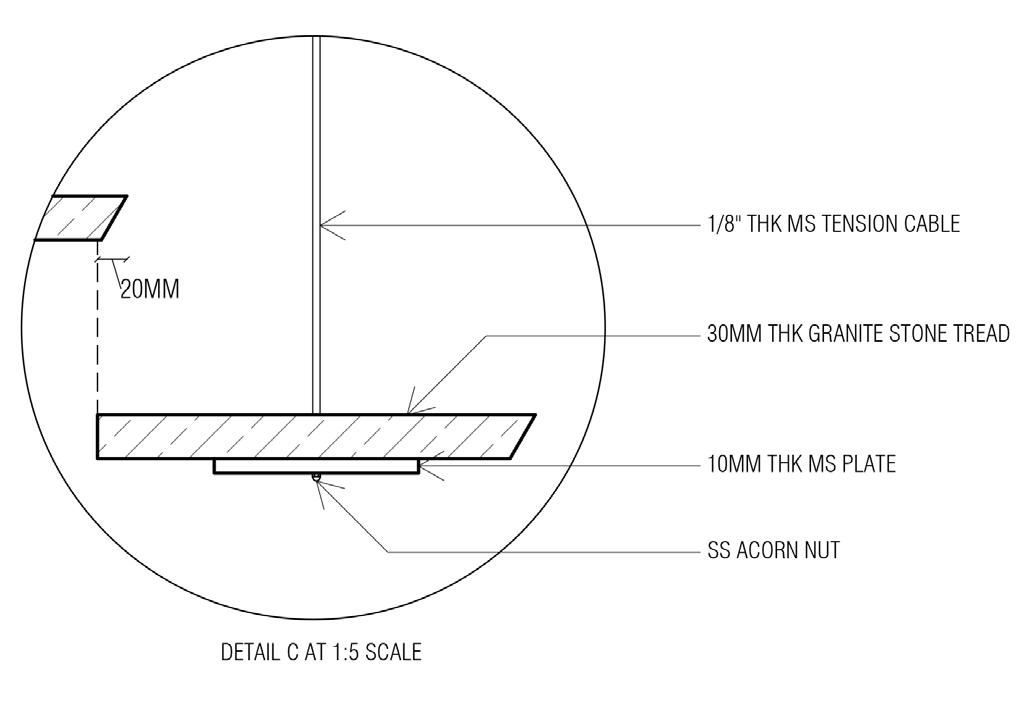

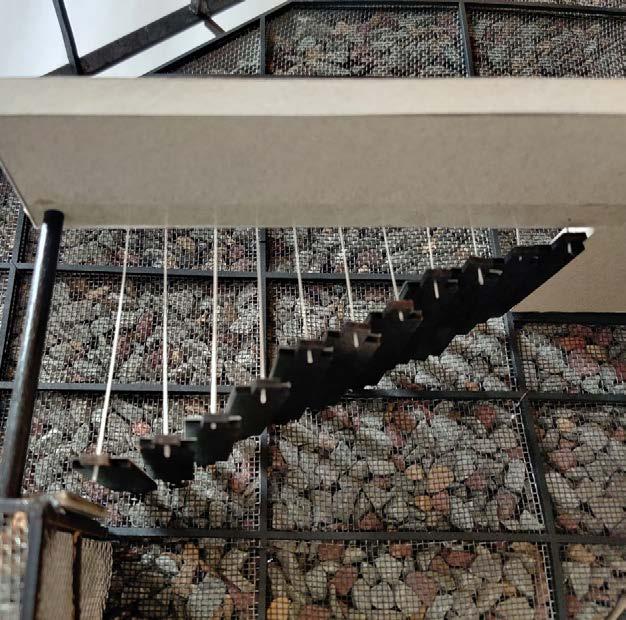

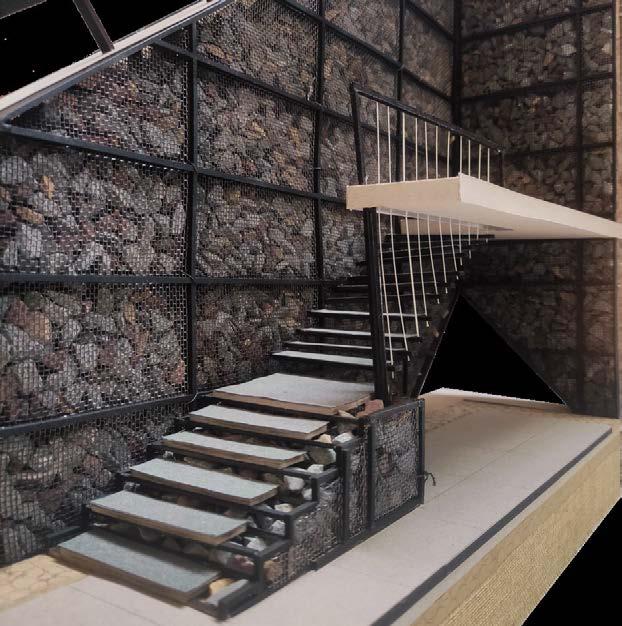

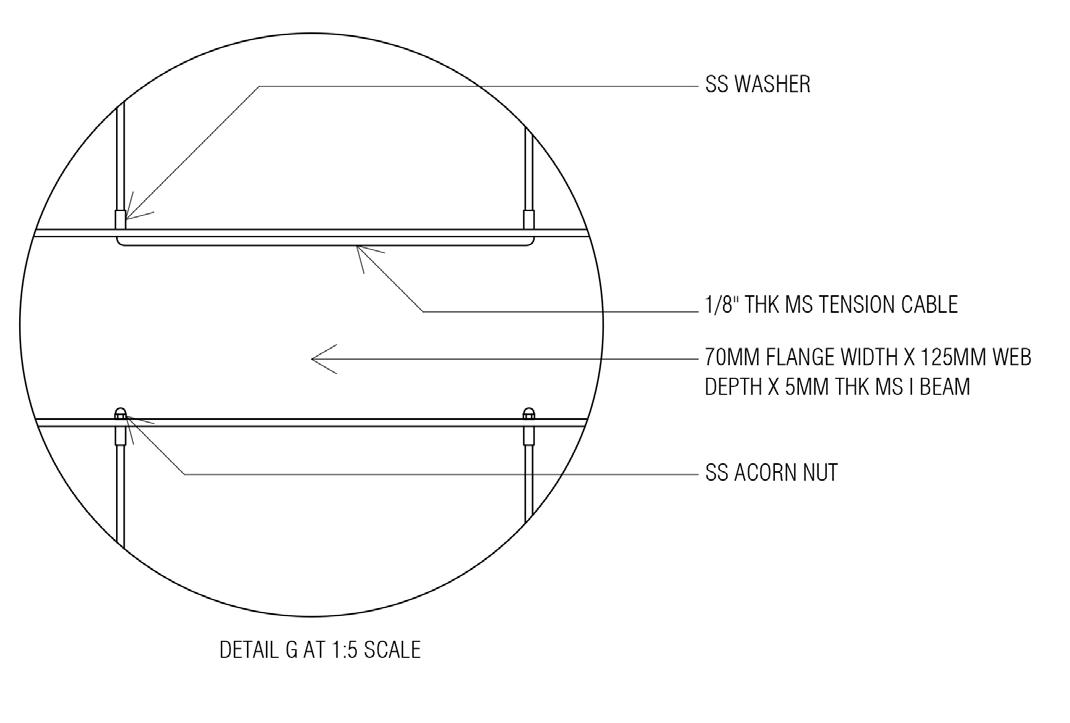

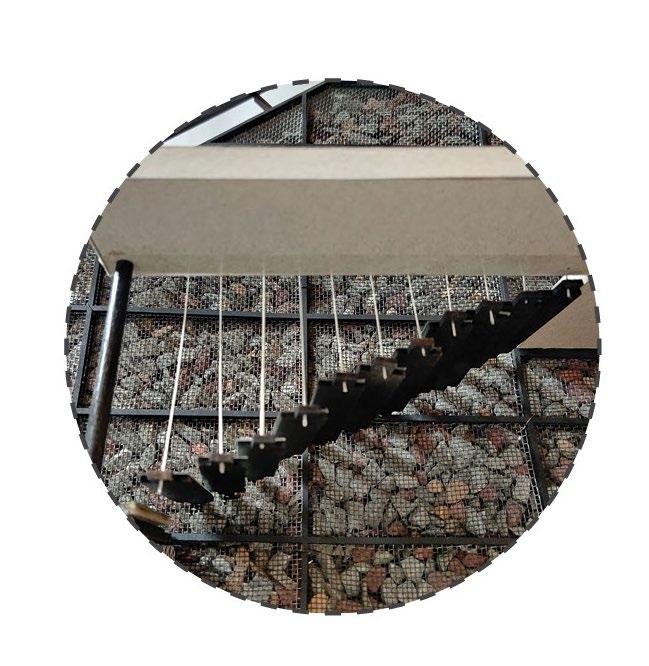

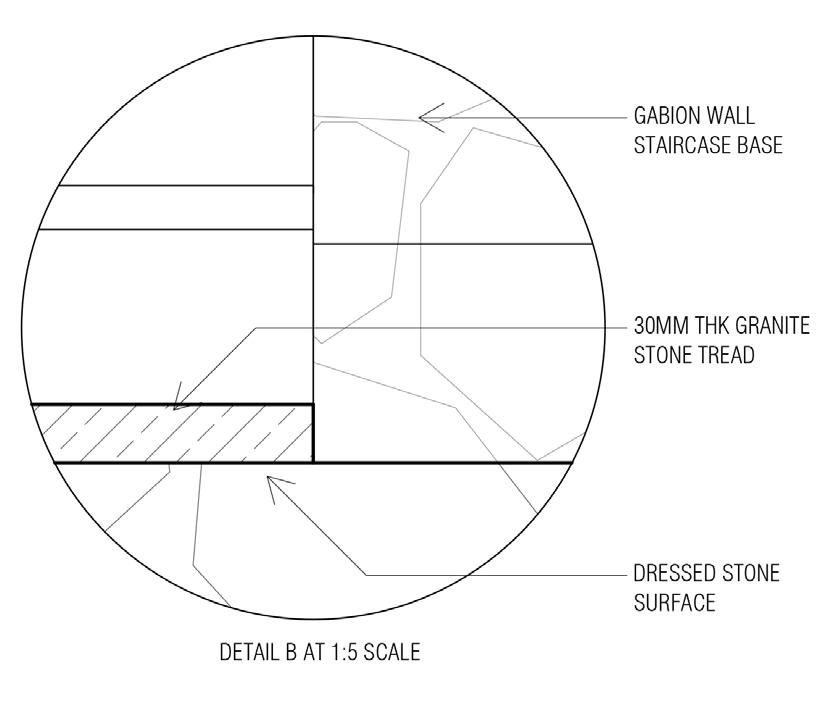

The stairs have granite tread which are supported by tension cables to give a floating perspective to the staircase.

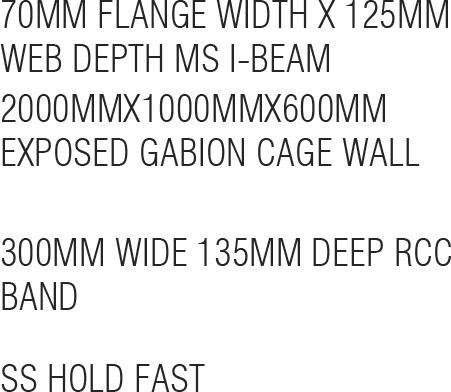

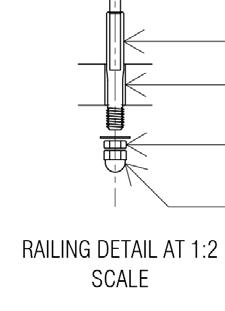

PRAVAAH-A GRAM UDHYOG KENDRA 13 GABION AND CAGE WALL 150MM RCC LINTEL BAND 12MM THK MS PLATE LINTEL 5MM THK MS PLATE DOOR FRAME 15MM DIA MS PIVOT 200MM WEB DEPTH X 100MM FLANGE WIDTH MS I-BEAM 200MM THK GABION AND CAGE DOOR 50MM DIA SS U-SHAPED ROLLER SS ROLLER TRACK 20MM THK KOTA STONE FLOORING 200MM THK GABION AND CAGE DOOR SS PIVOT 200MM WEB DEPTH X 100MM FLANGE WIDTH MS I-BEAM 5MM THK MS PLATE HANDLE 40MM DIA MS PIPE SECTION COPING DETAIL AT 1:2 SCALE 25 THK LEATHER FINISH GREY KOTA STONE RANDOM ASHLAR MASONRY DHANGADHRA SANDSTONE WALL (ACTING AS BACKREST) CONCAVE MORTAR JOINT GABION AND CAGE WALL 150MM RCC LINTEL BAND 12MM THK MS PLATE LINTEL 5MM THK MS PLATE DOOR FRAME 15MM DIA MS PIVOT 200MM WEB DEPTH X 100MM FLANGE WIDTH MS I-BEAM 200MM THK GABION AND CAGE DOOR 50MM DIA SS U-SHAPED ROLLER SS ROLLER TRACK 20MM THK KOTA STONE FLOORING 200MM THK GABION AND CAGE DOOR SS PIVOT 200MM WEB DEPTH X 100MM FLANGE WIDTH MS I-BEAM 5MM THK MS PLATE HANDLE 40MM DIA MS PIPE SECTION COPING DETAIL AT 1:2 SCALE 25 THK LEATHER FINISH GREY KOTA STONE RANDOM ASHLAR MASONRY DHANGADHRA SANDSTONE WALL (ACTING AS BACKREST) CONCAVE MORTAR JOINT
RIVER POLISHED BLACK KADAPPA STONE MIRROR POLISH YELLOW JAISALMER SANDSTONE LEATHER FINISHED KOTA STONE TOILET AXONOMETRIC PLAN DOOR DETAIL 15MM DIA MS PIVOT 600MM THK GABION AND CAGE WALL 600MM THK GABION AND CAGE WALL 40MM DIA MS PIPE SECTION DHANGADHRA SANDSTONE RANDOM ASHLAR MASONRY GREY TERAZZO WITH BLACK KADAPPA STONE CHIPS 1400 865 2000 865 1180 1700 200 1200 1420 1650 500 400 690400 FEMALE WASHROOM LVL-1500MM JANITOR'S ROOM W DROP SLOPE DROP GT 5 6 5 6 DROP SLOPE S.P NT 1 CIRCLE S2030113 UNDER COUNTER WASH BASIN 380 x 380 150 mm RECTANGLE S2040126 WALL HUNG WITHOUT PEDESTAL WASH BASIN 475 370 195 mm CALCIA S4020107 CARNIVAL RIMLESS WITH SOFT CLOSE SEAT COVER S1043148 Wall hung EWC with soft close seat cover PRESSMATIC F9020151 BIB COCK PRESSMATIC WITH AERATOR AND FLANGE HEALTH FAUCET Health faucet F8030401AB CHELSEA F1016163 2-way Bib cock with single handle and wall flange ANGLE COCK - CERA ANGLE COCK F1018201 WITH WALL FLANGE METROPOLE VALVE FLUSH VALVE F8010106 365 335 670 mm 510 365 380 mm--DESCRIPTION SR. NO. DIMENSIONS D2 SLOPE 1 1 200MM THK EXPOSED DHANGADHRA SANDSTONE RANDOM ASHLAR MASONRY WALL CHELSEA F1016163 2-WAY BIB COCK RECTANGLE S2040126 WALL HUNG WITHOUT PEDESTAL WASH BASIN PRESSMATIC F9020151 BIB COCK METROPOLE FLUSH VALVE HEALTH FAUCET F8030401AB WALL HUNG EWC WITH SOFT CLOSE SEAT COVER 120MM THK BRICK PLUMBING WALL 400MM X 200MM X 20MM BLACK KADAPPA STONE GREY COLOUR TERRAZZO FLOORING WITH KADAPPA STONE RESIDUE 300MM SUNK SLAB 50MM THK BEDDING MORTAR 100MM THK GRADE SLAB AXONOMETRIC VIEW PLAN IN OUT BEDDING MORTAR 100 MM THK GRADE SLAB 400X200X20MM THK KADAPPA STONE DOOR FRAME 1000X200X20MM THK KADAPPA STONE FLOOR DROP DETAIL AT 1:5 SCALE COMPACTED EARTH RUSHIT SHAH A-502 NILANG PANDYA 0 N SHIRISHKUMAR PATEL KHUSHI SHAH AR2036 SPRING 2023 DESIGN IN DETAIL TOILET DRAWINGS UAR20121 DATE: 26/04/2023 SCALE 1:25 0.5 1.5 M GREY WATER LINE DIA-75MM BLACK WATER LINE DIA-110MM FRESH WATER LINE DIA-50MM SS ROLLER TRACK 150MM THK RCC LINTEL BAND 200MM WEB DEPTH X 100MM FLANGE WIDTH MS I-BEAM 10MM THK MS PLATE HANDLE

URBAN TRANSIT CENTER ON-GOING

SEMESTER WORK

Studio aims to reimagine typologies of civic/infrastructure projects in Indian cities which do not respond to their immediate context due to conventional architectural approaches and end up becoming inaccessible parts of the city.

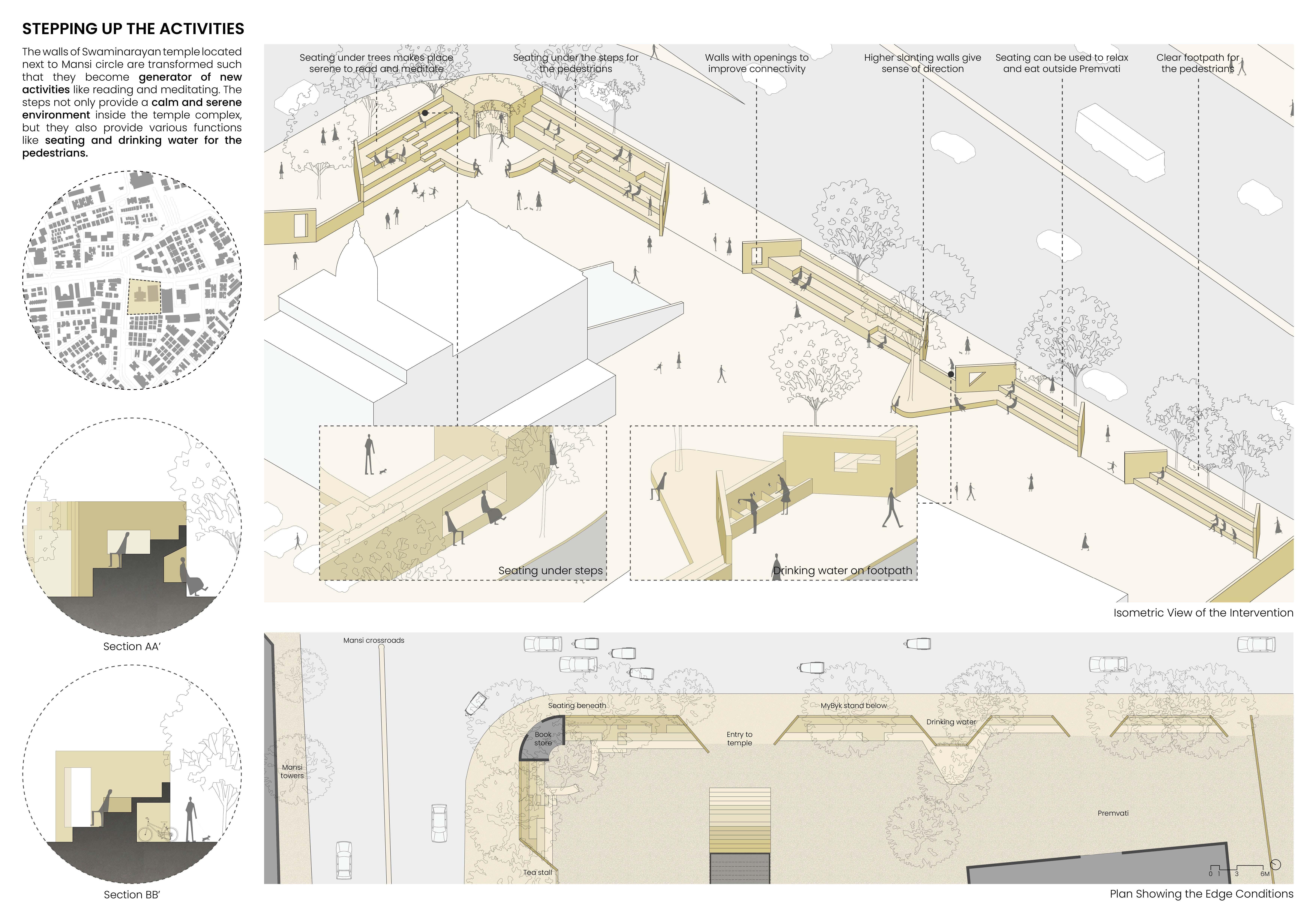

URBAN TRANSIT CENTER (ONGOING SEMESTER) 15 REDESIGNING AN URBAN WALL

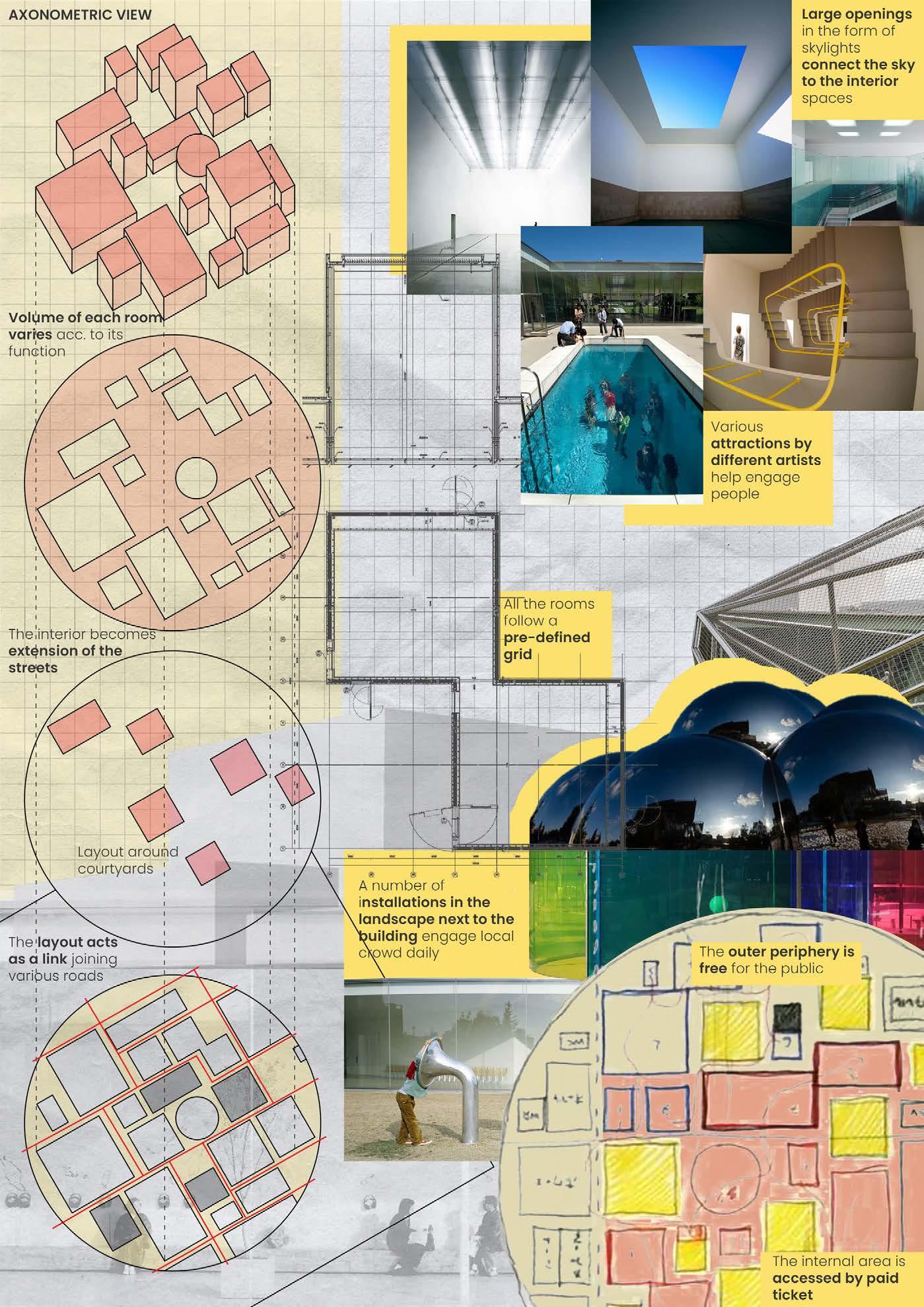

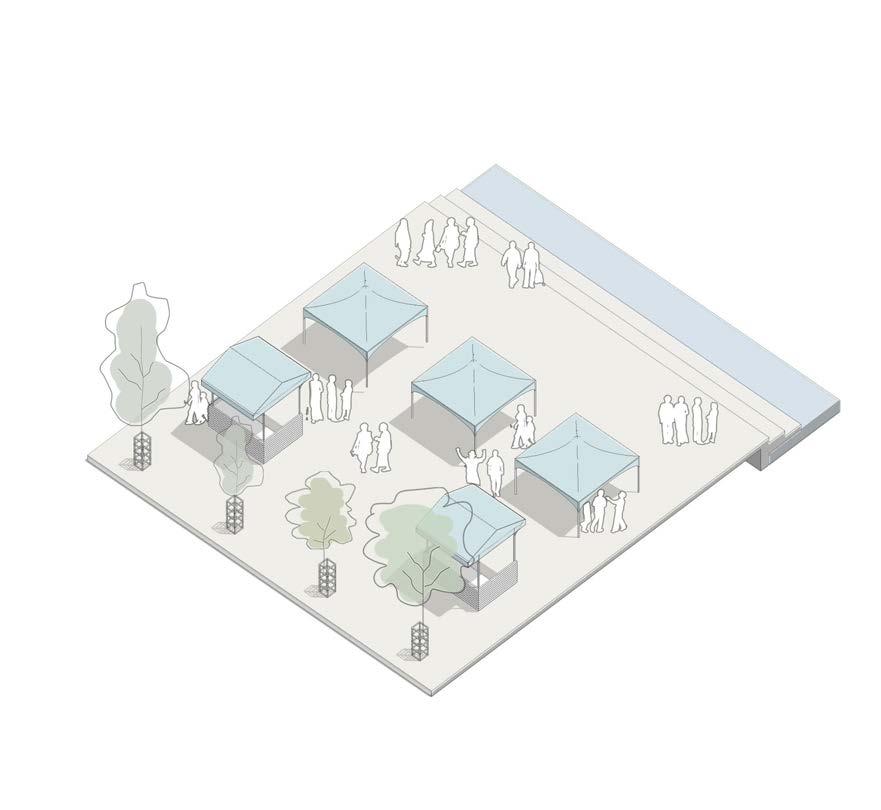

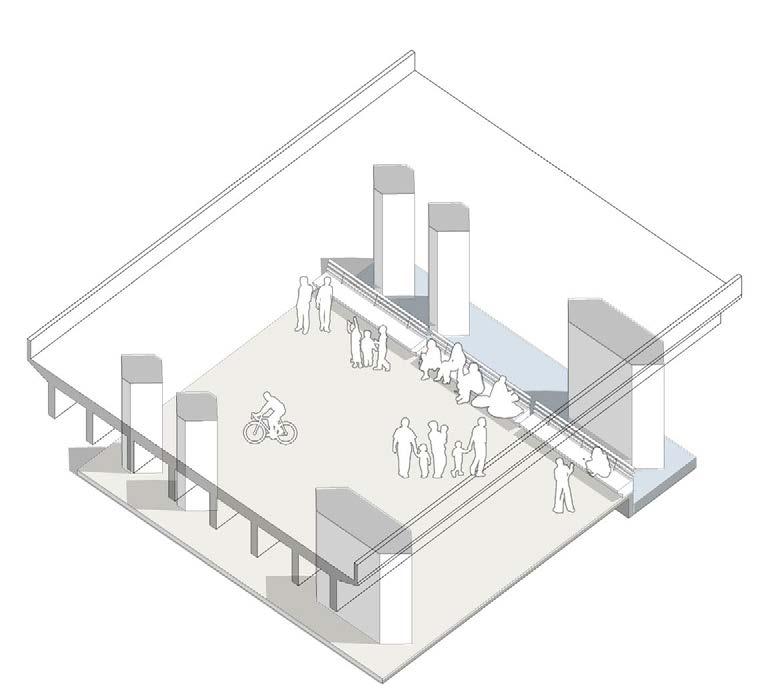

DECODING PUBLIC SPACES: RIVERFRONT, AHMEDABAD

Vastrapur Lake provides a opportunity to analyse which areas of a highly commercial area are accessible by lense of not only a common man but also from the perspective of a single lady at night and a street hawker. The black areas indicate parts completely not accessible, grey areas show parts partially accessible and white shows fully accessible.

URBAN TRANSIT CENTER (ONGOING SEMESTER) 16
NOLLI’S MAP: VASTRAPUR LAKE
1. STALLS 1. Nolli’s Map 2. Accessibilty of Street Hawker 3. Accessibilty for Woman at night 2. MYBYK (CYCLE) STAND

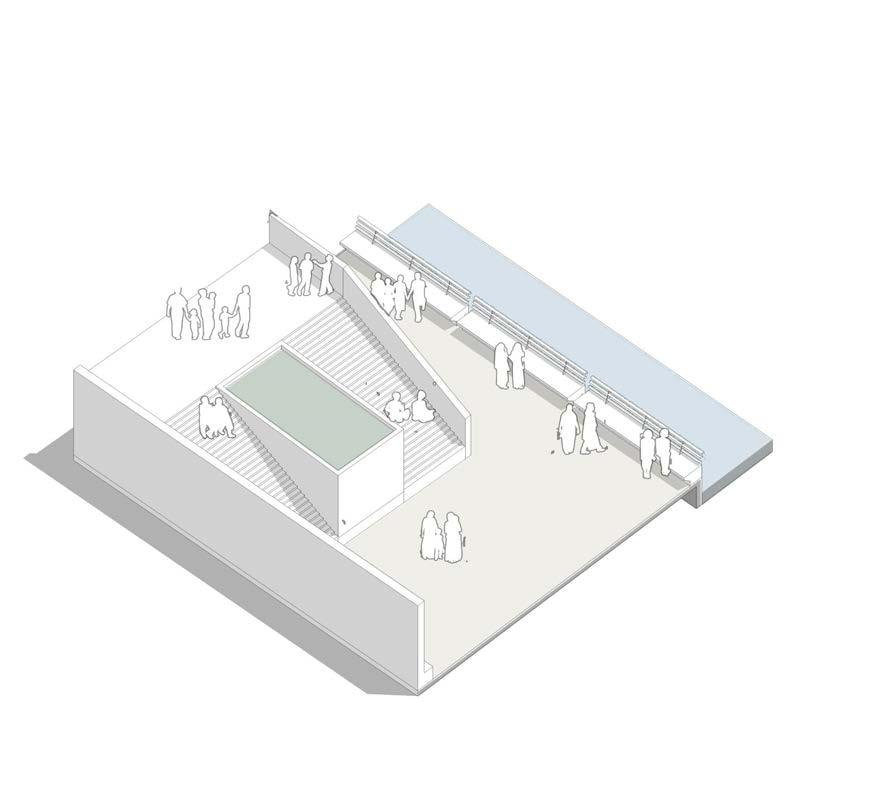

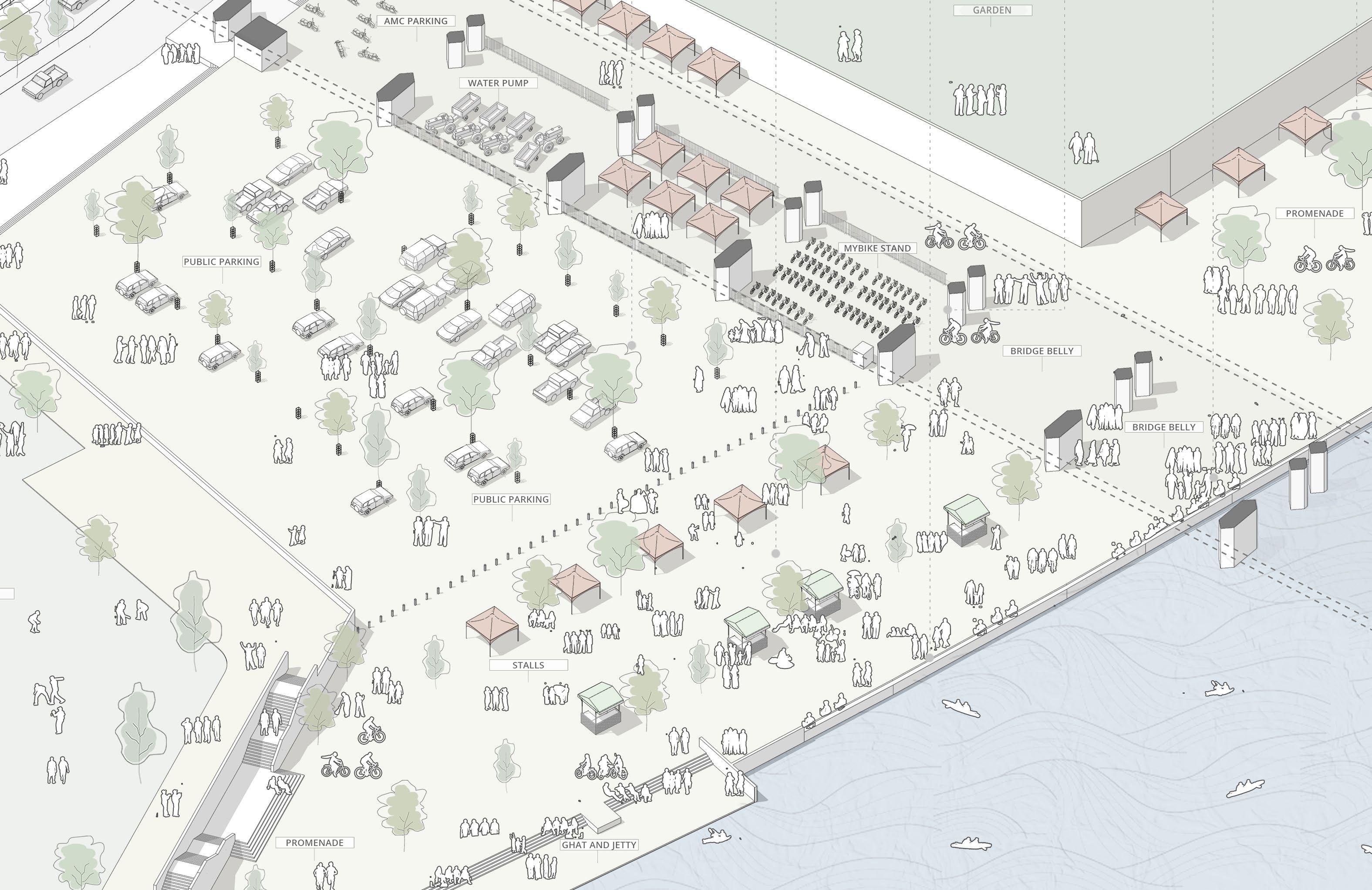

AXONOMETRIC VIEW 050 100 200M Built Unbuilt Figure Ground Map Ahmedabad
4. STAIRCASE 3. RIVER GHATS
URBAN TRANSIT CENTER (ONGOING SEMESTER) 17

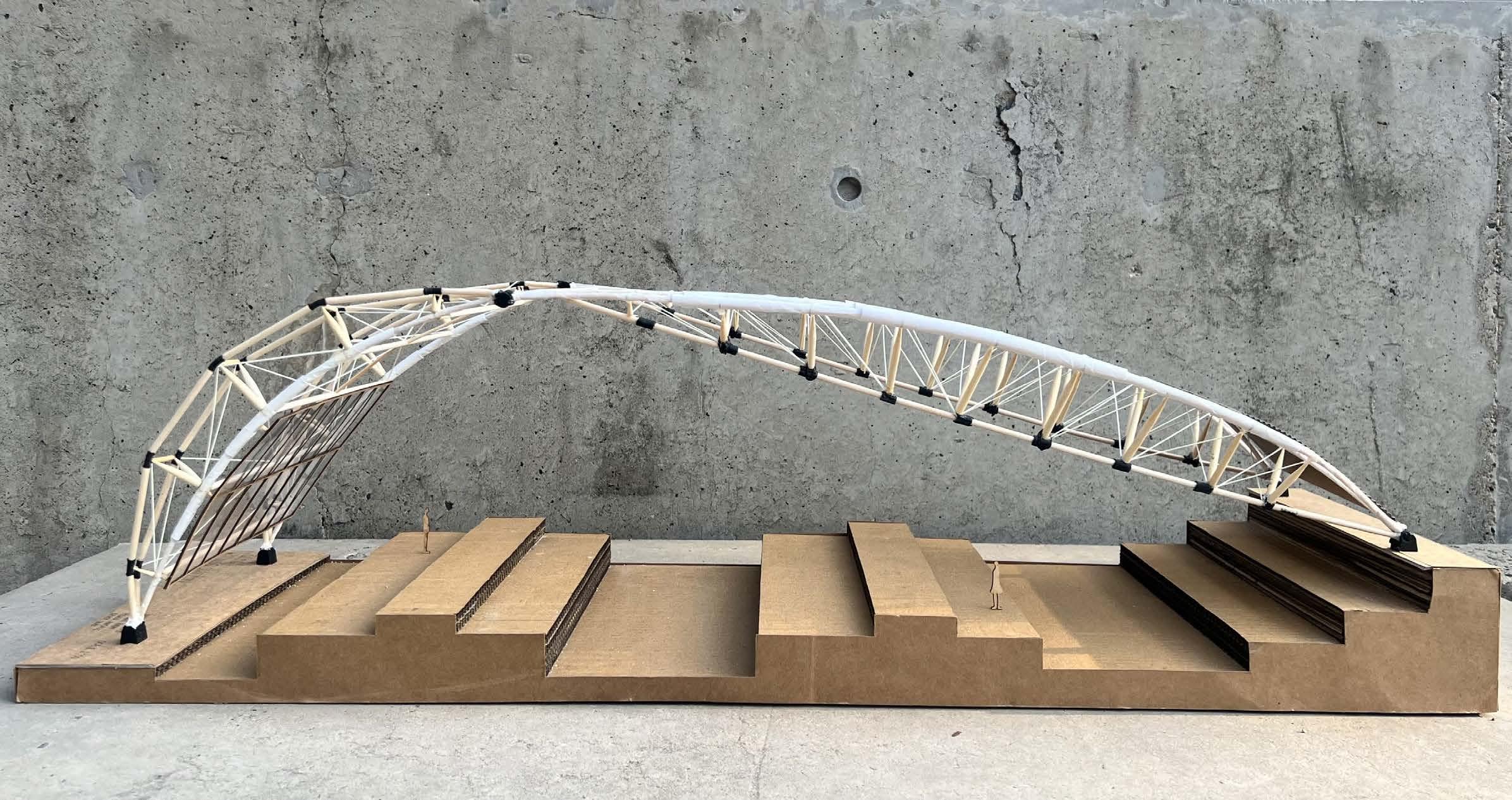

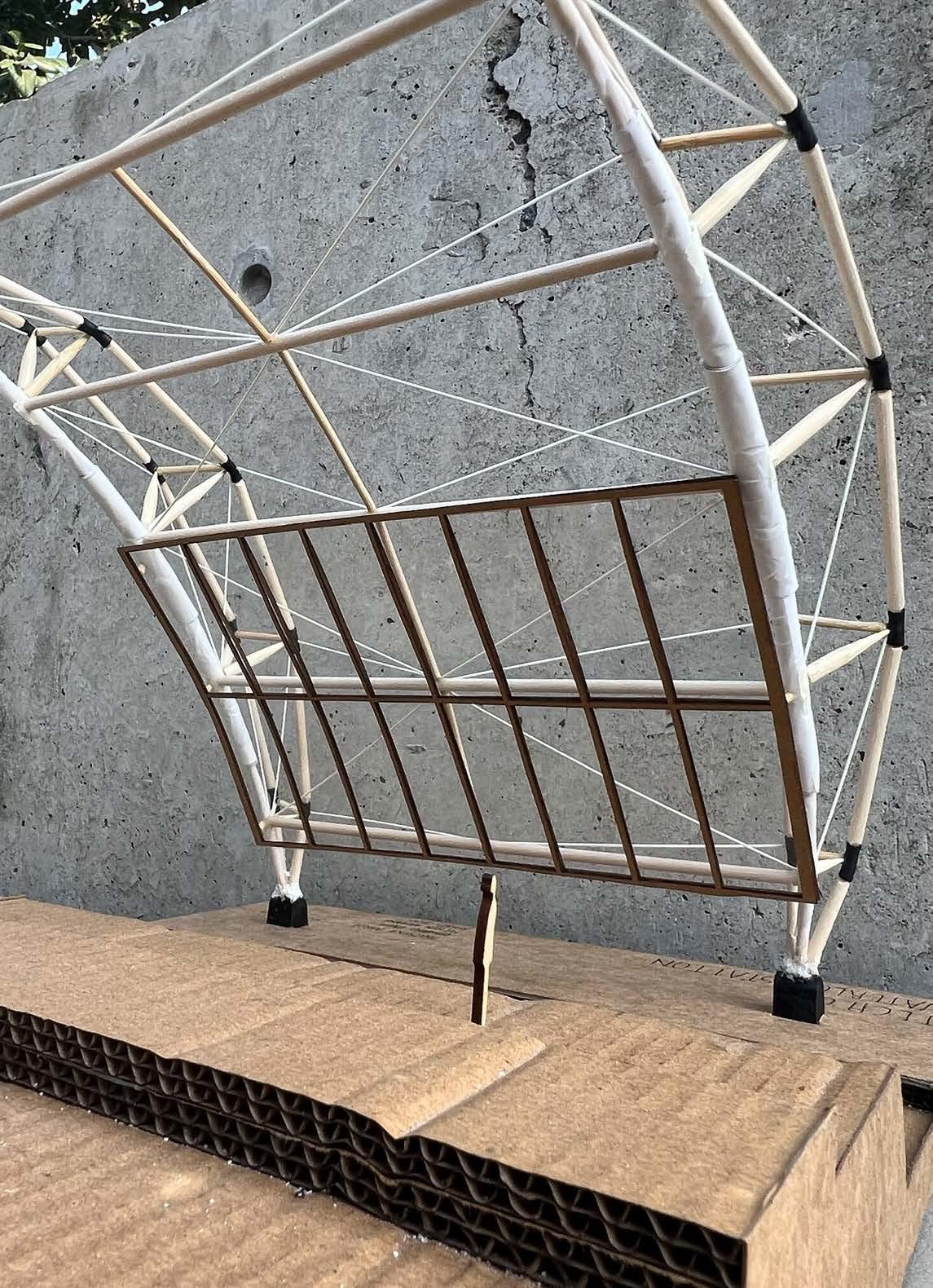

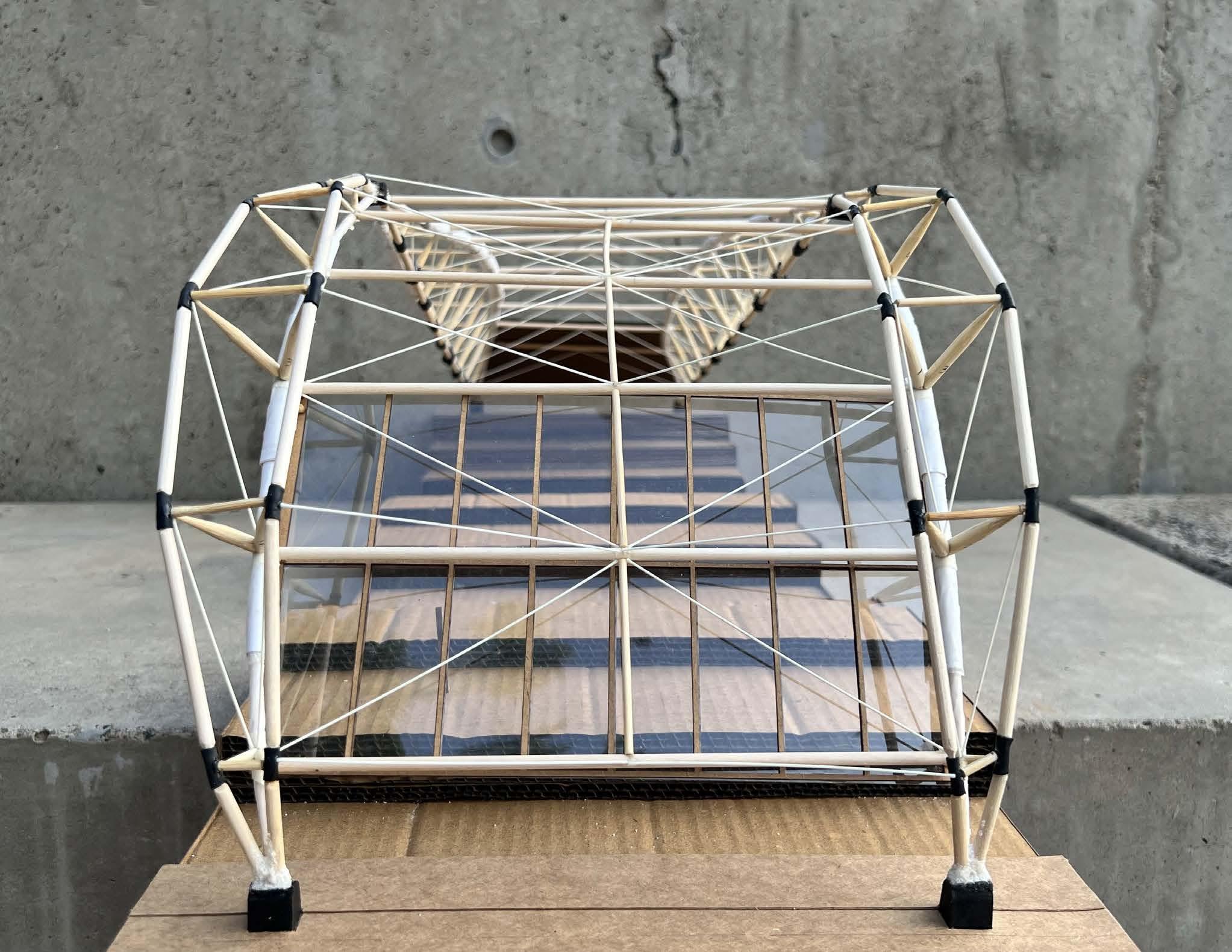

DECODING TRANSIT STATIONS THROUGH STRUCTURE: WATERLOO STATION, ENGLAND

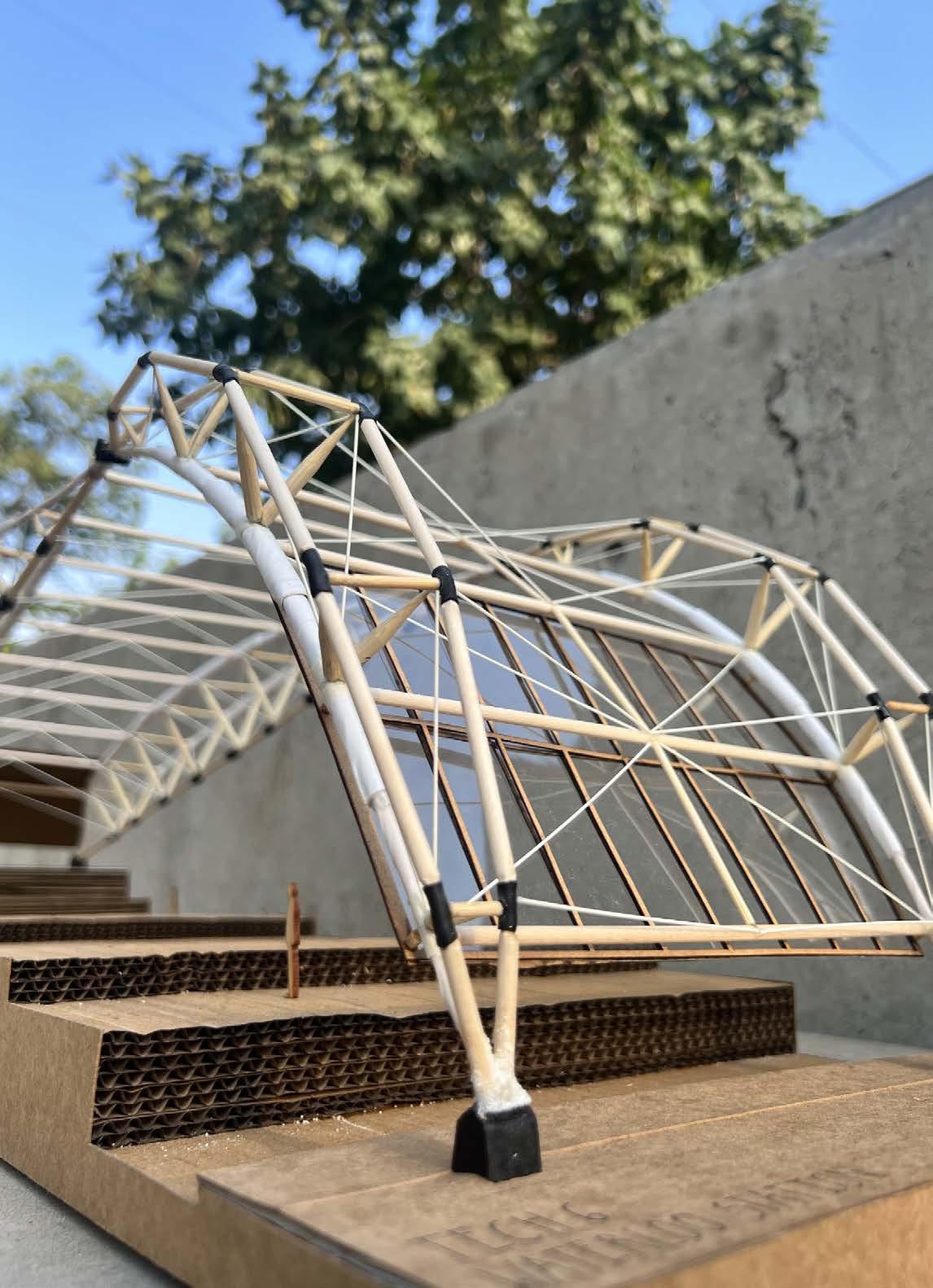

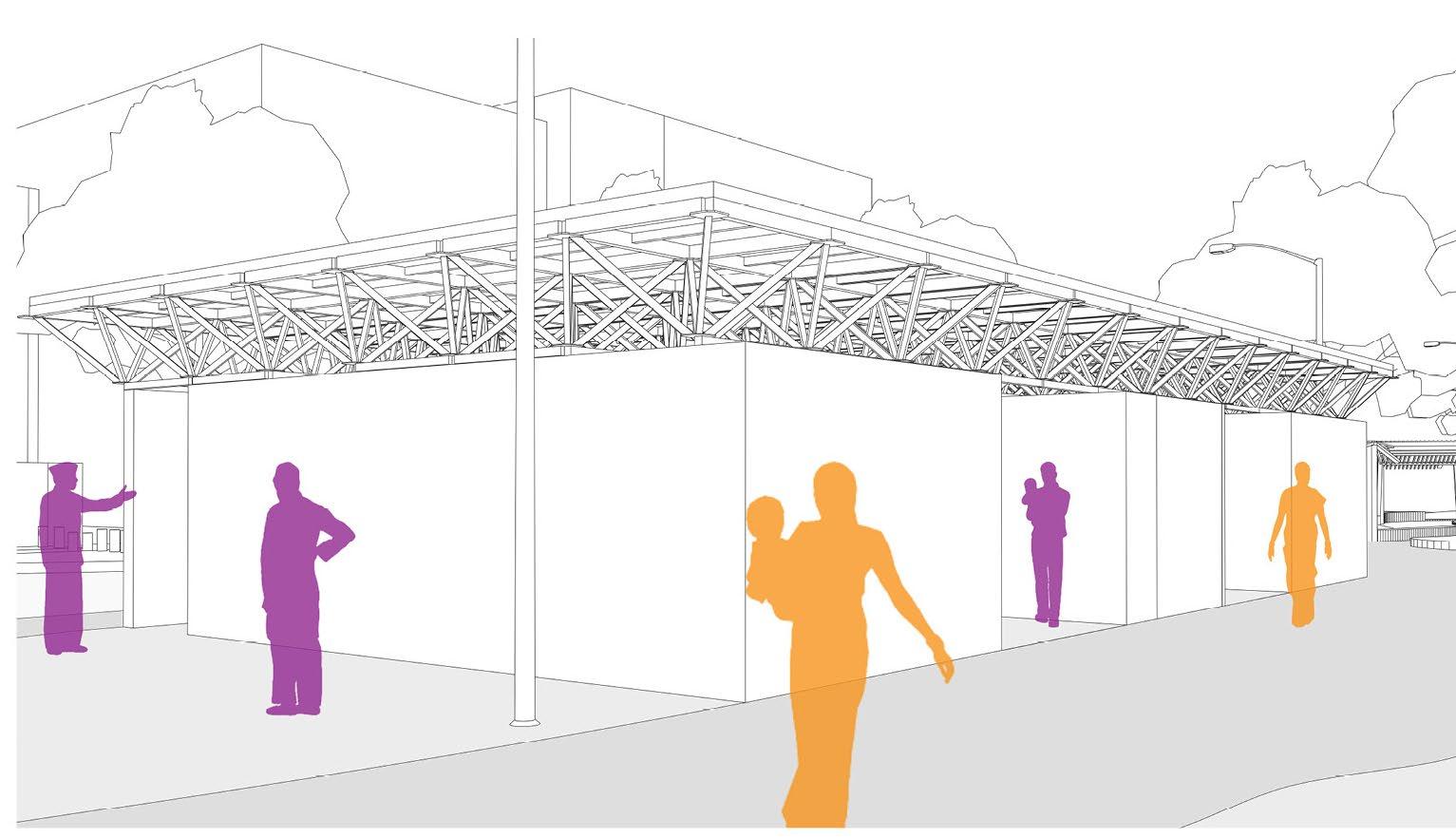

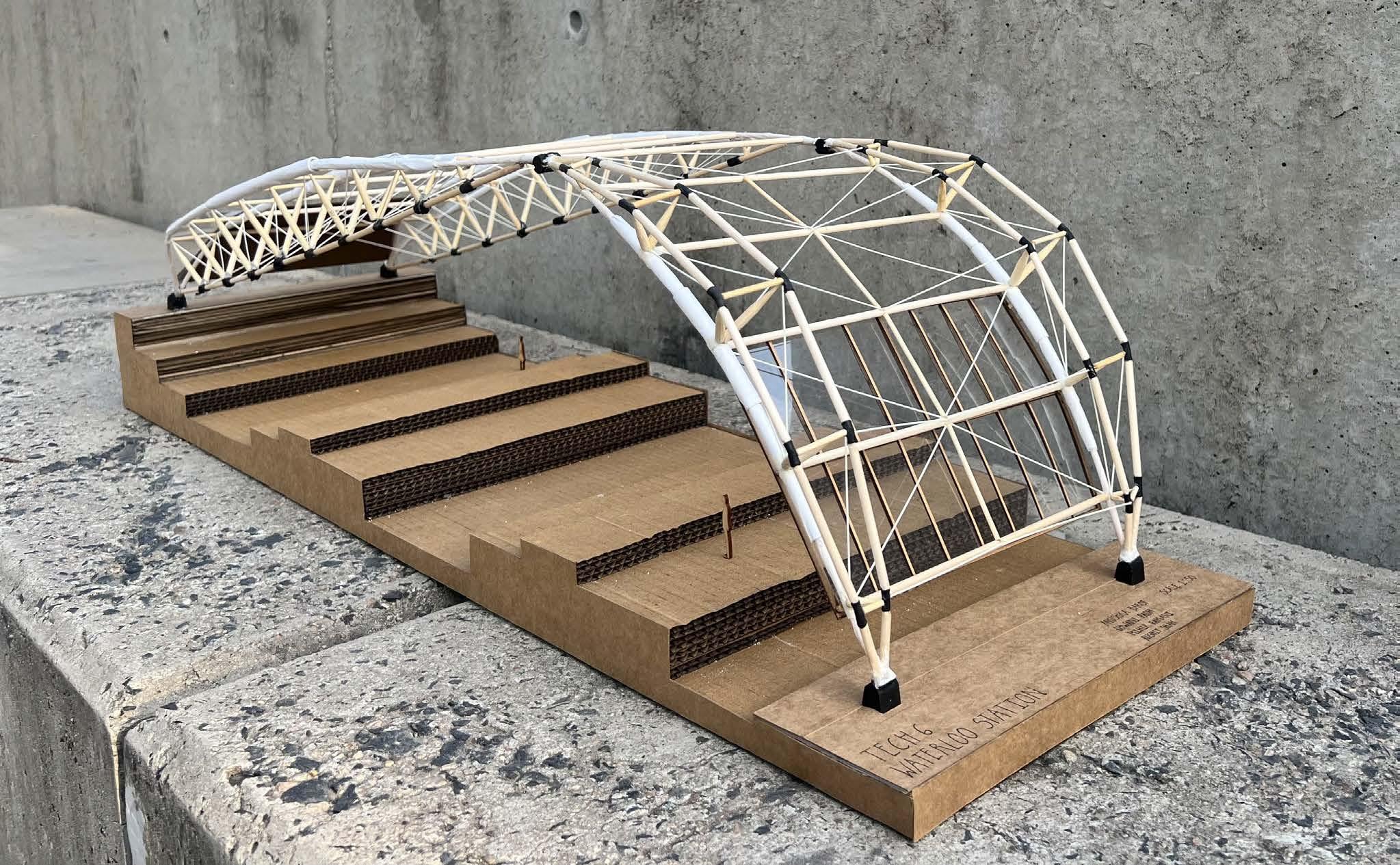

End Junction Detail 1 End Junction Detail 2 Roofing Detail
Side Elevation of the Truss Side View

THE PUBLIC LINK UNGENDERING THE LOCAL STEREET

In our city, it is generally observed that while men have the ability to create leisure spaces for them, lack of opportunity for leisure in public spaces, especially for women, compels them to legitimize their presence in public spaces through purpose. The vision of the project and the studio is to create more opportunities of leisure for women and to increase and enhance their stay in public spaces especially after working hours.

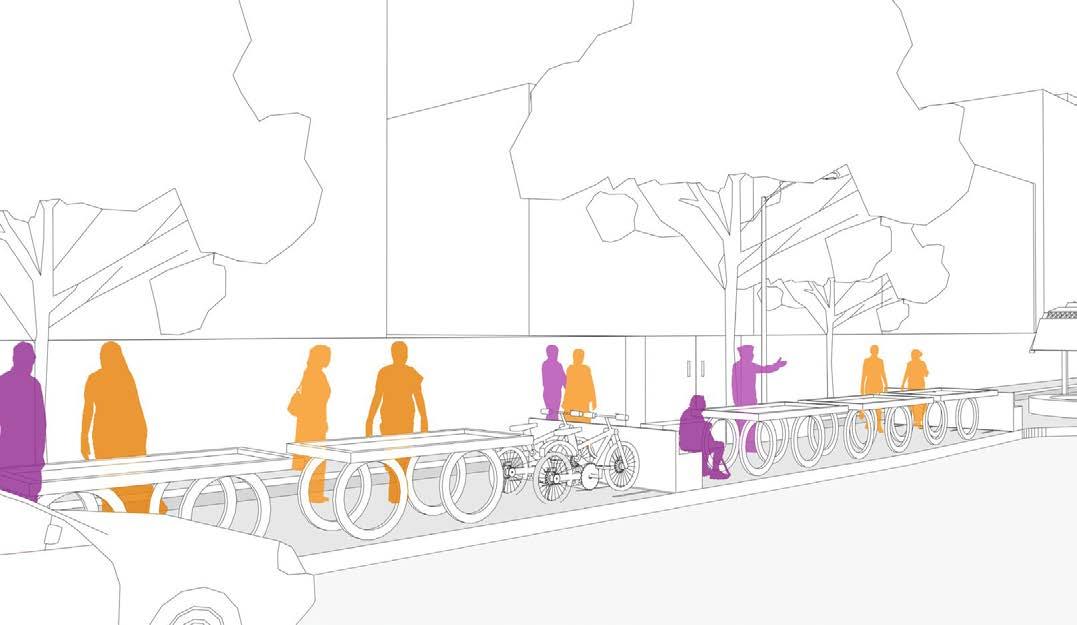

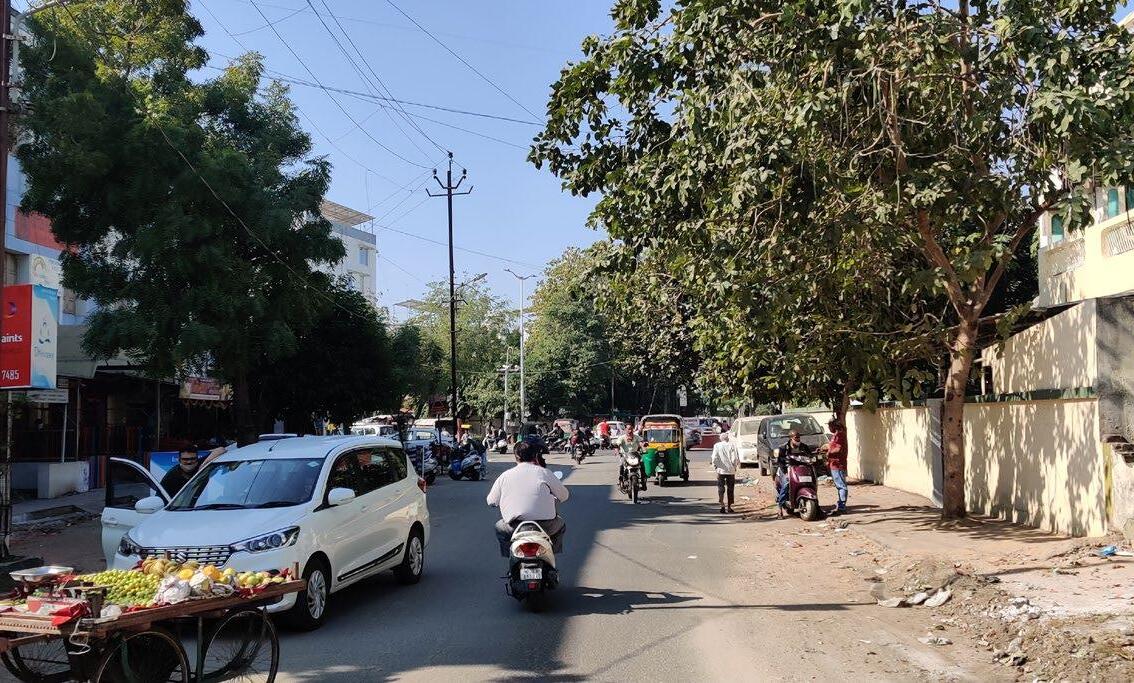

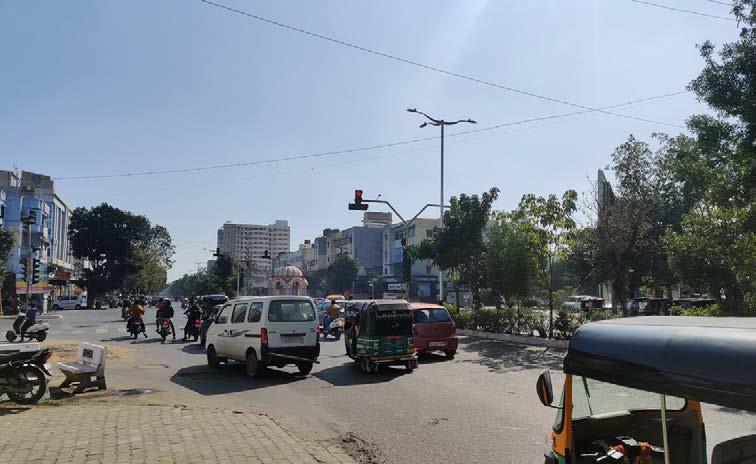

STREET VIEWS

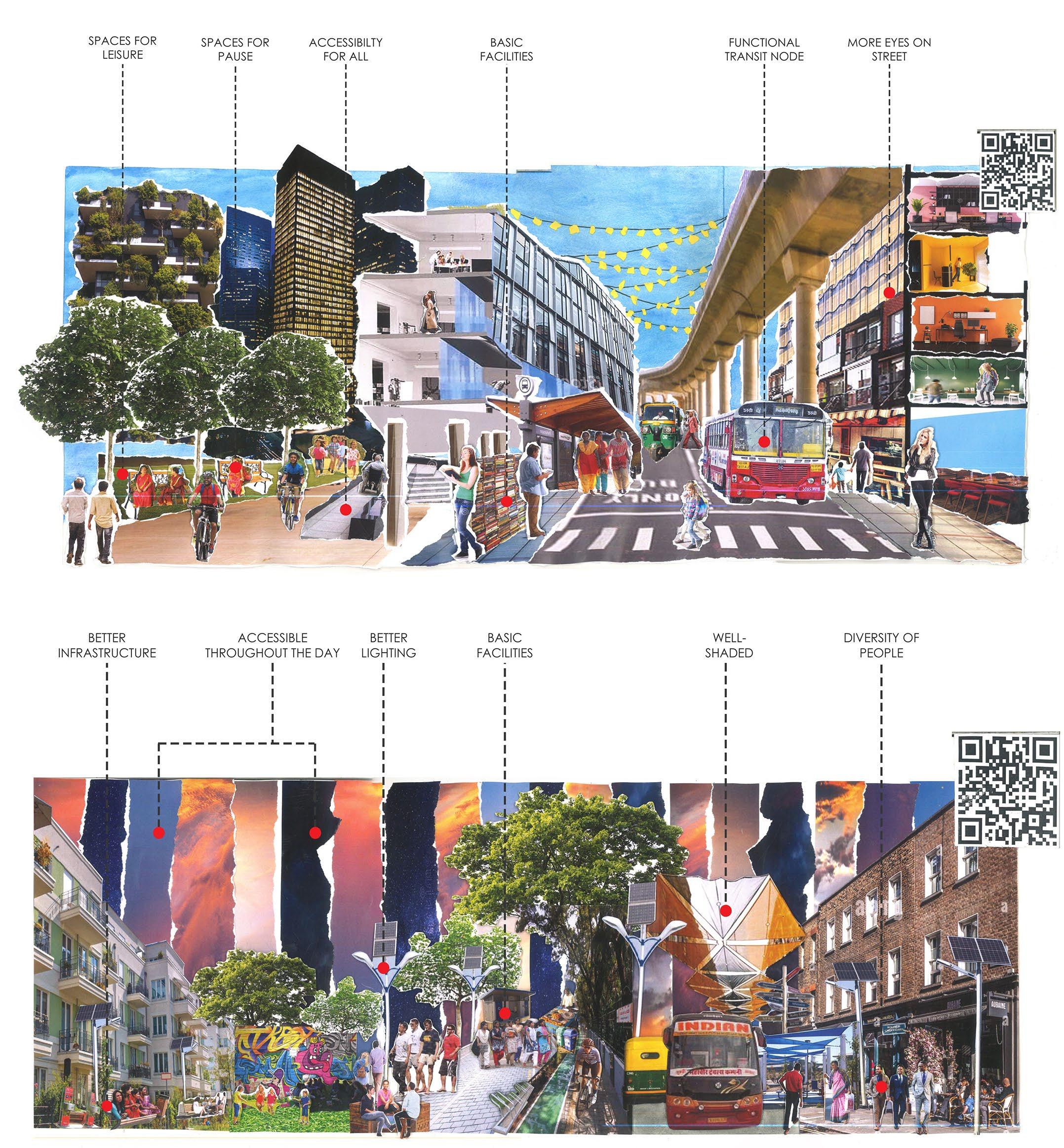

ANALYSIS OF TIME SPENT OUTSIDE THE HOUSE UTOPIAN IDEA OF A STREET Compiled Map

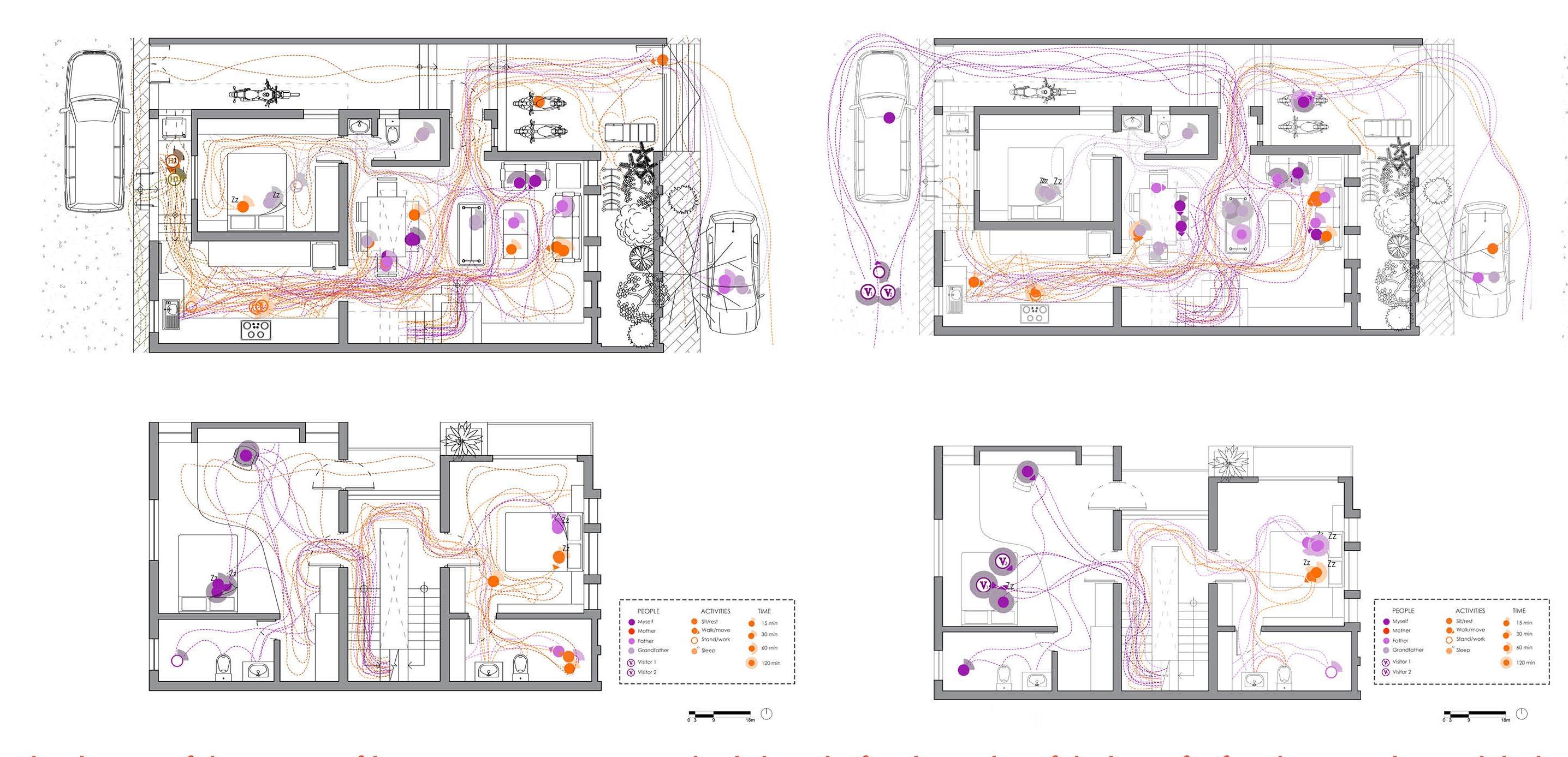

The objective of the exercise of house mapping was to map the daily path of each member of the house for five days in and around the house on an hourly basis.

Here the house selected is in Manjalpur, an area of Vdodara. The orange circle is mother and the purple ones are me, my father and my grandfather respectively.

THE PUBLIC LINK-UNGENDERING THE LOCAL STREET 19 ANALYSING SPACE AS AN EMBODIED EXPERIENCE- MAPPING ASSOCIATIONS
PUBLIC AND PRIVATE BODEIS IN THE DOMESTIC SHPERE

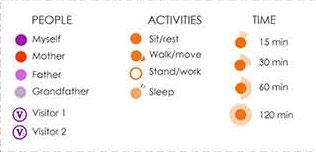

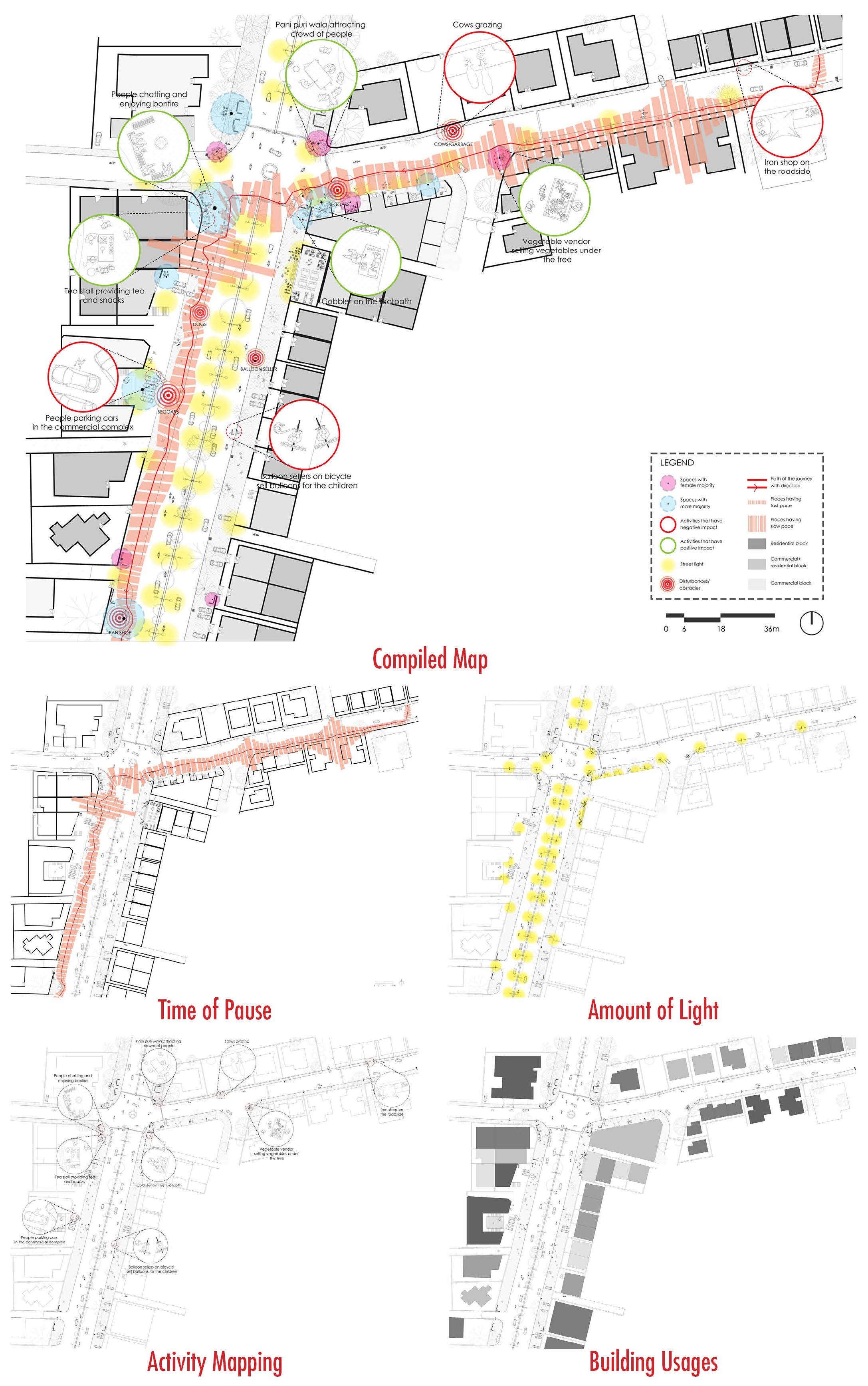

Time of Pause Activity Mapping Amount of light Building Usages

ANCHOR POINTS MAPPING

THE PUBLIC LINK-UNGENDERING THE LOCAL STREET 20

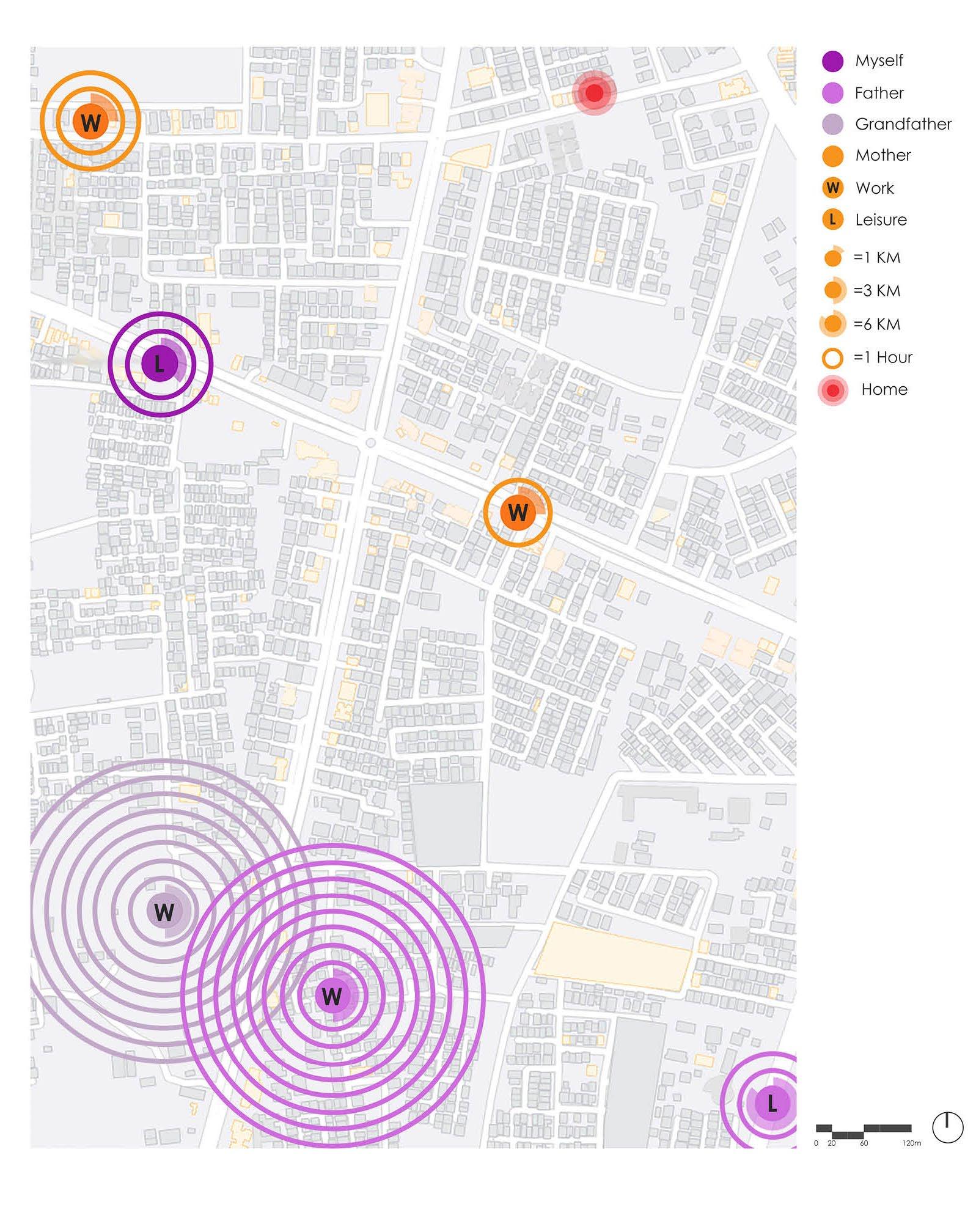

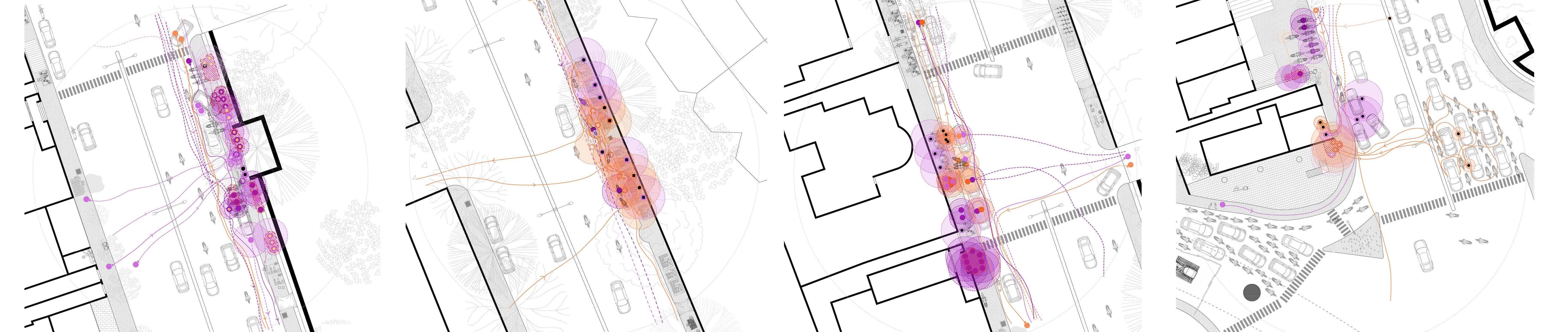

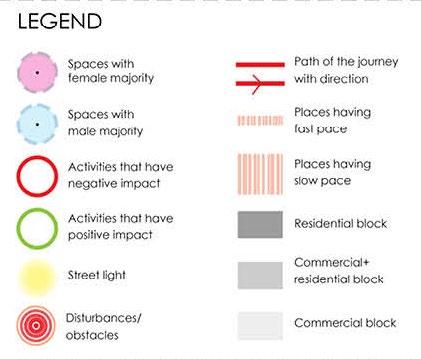

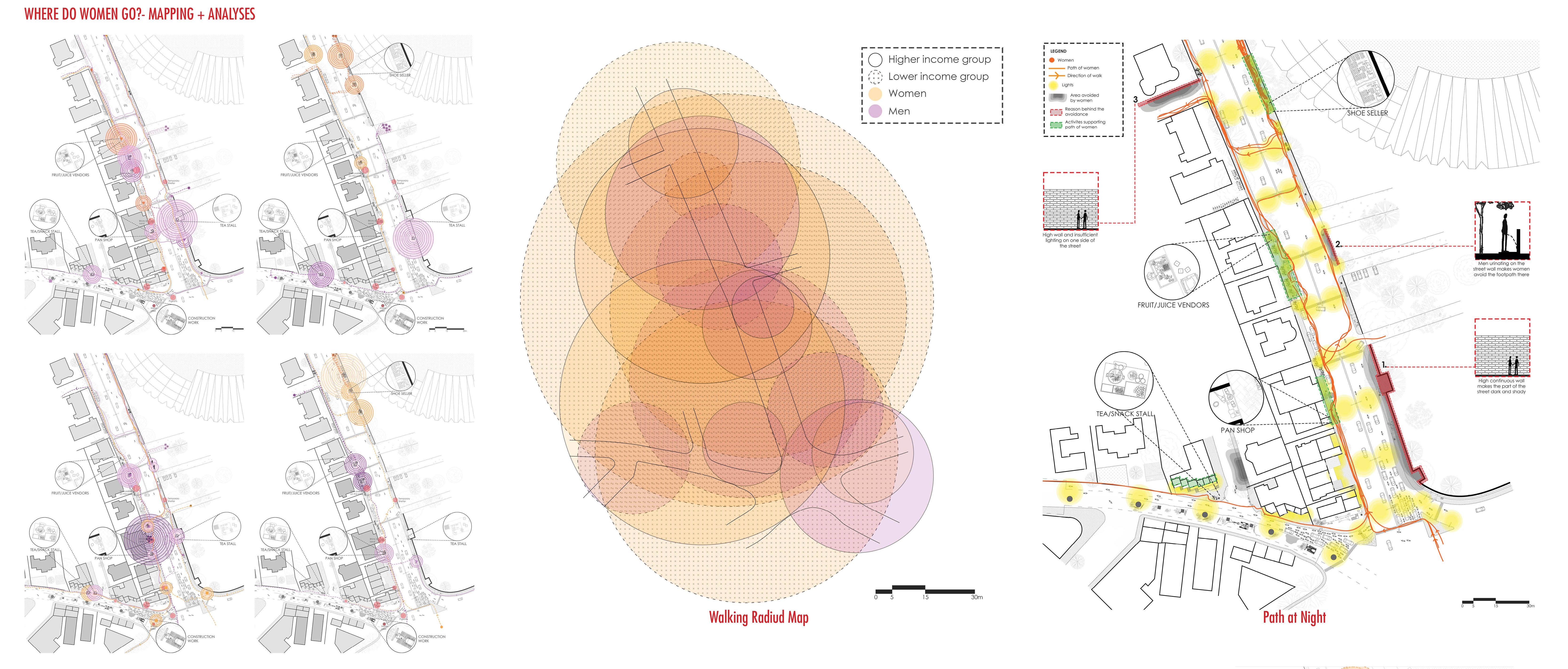

WHERE DO WOMEN GO?: MAPPING + ANALYSIS

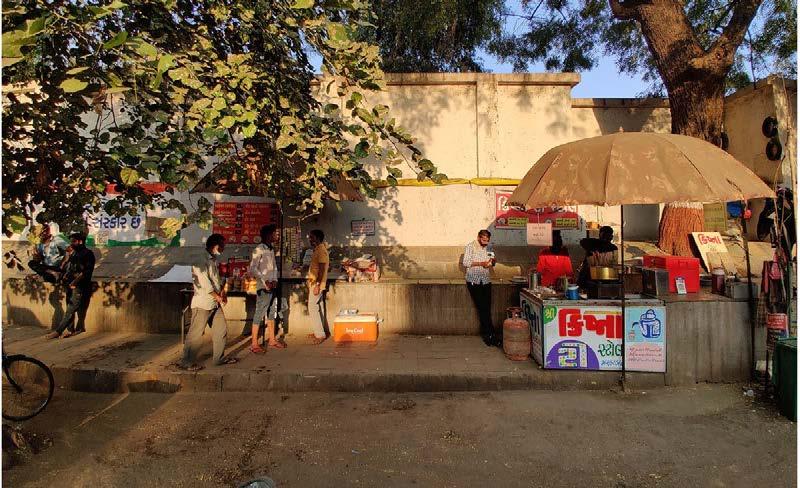

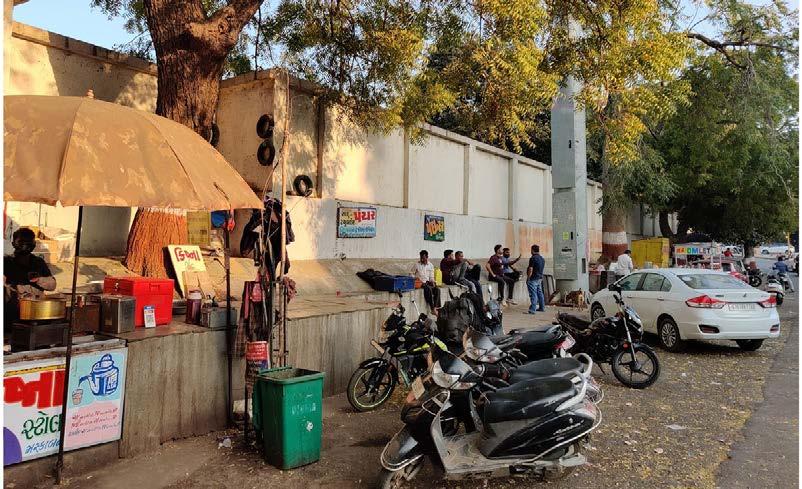

ANCHOR 1: TEA STALL ANCHOR 2: SHOE MARKET ANCHOR 3: JUICE VENDORS ANCHOR 4:
SELLERS
BALLOON

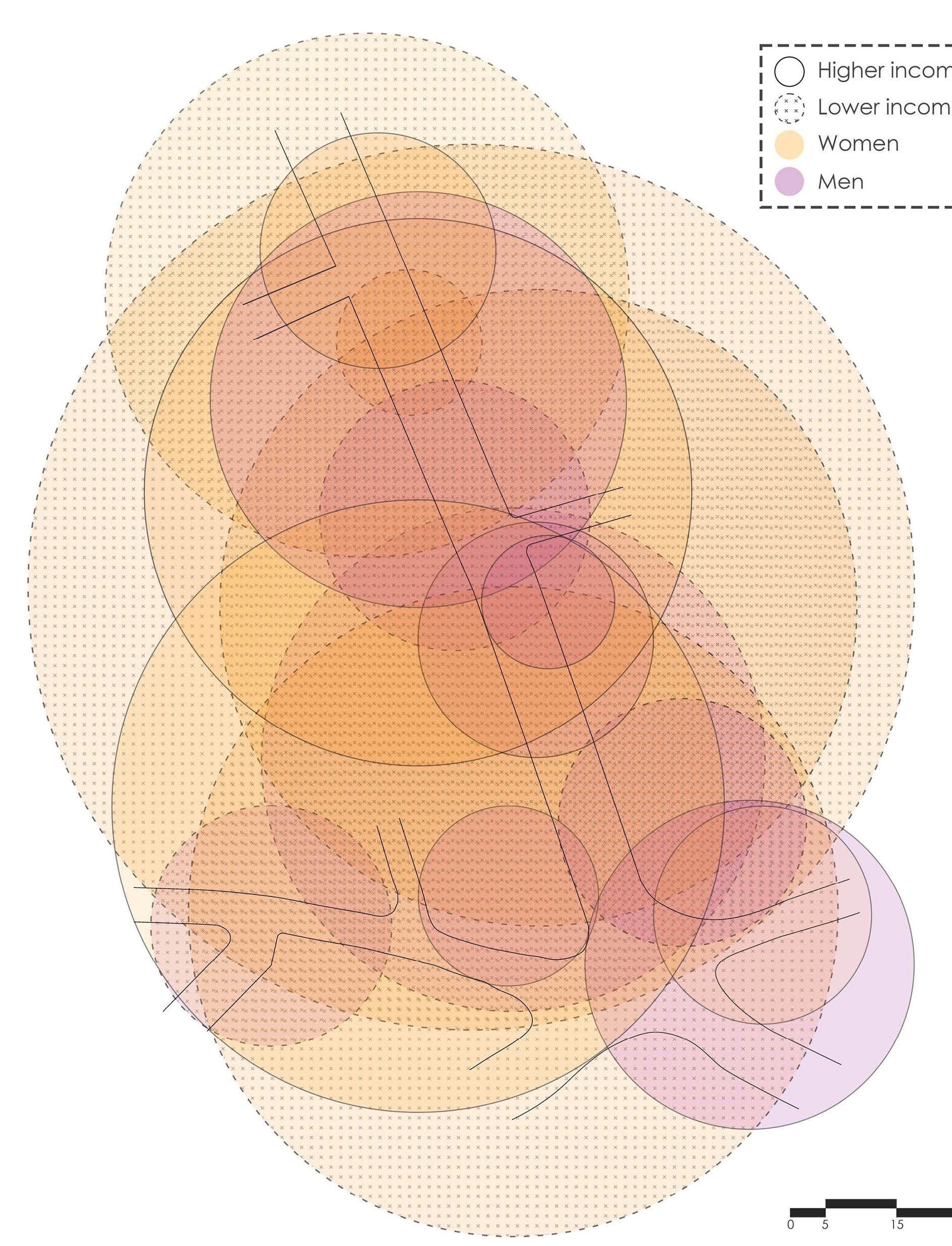

WALKING RADIUS MAP
PATH AT NIGHT

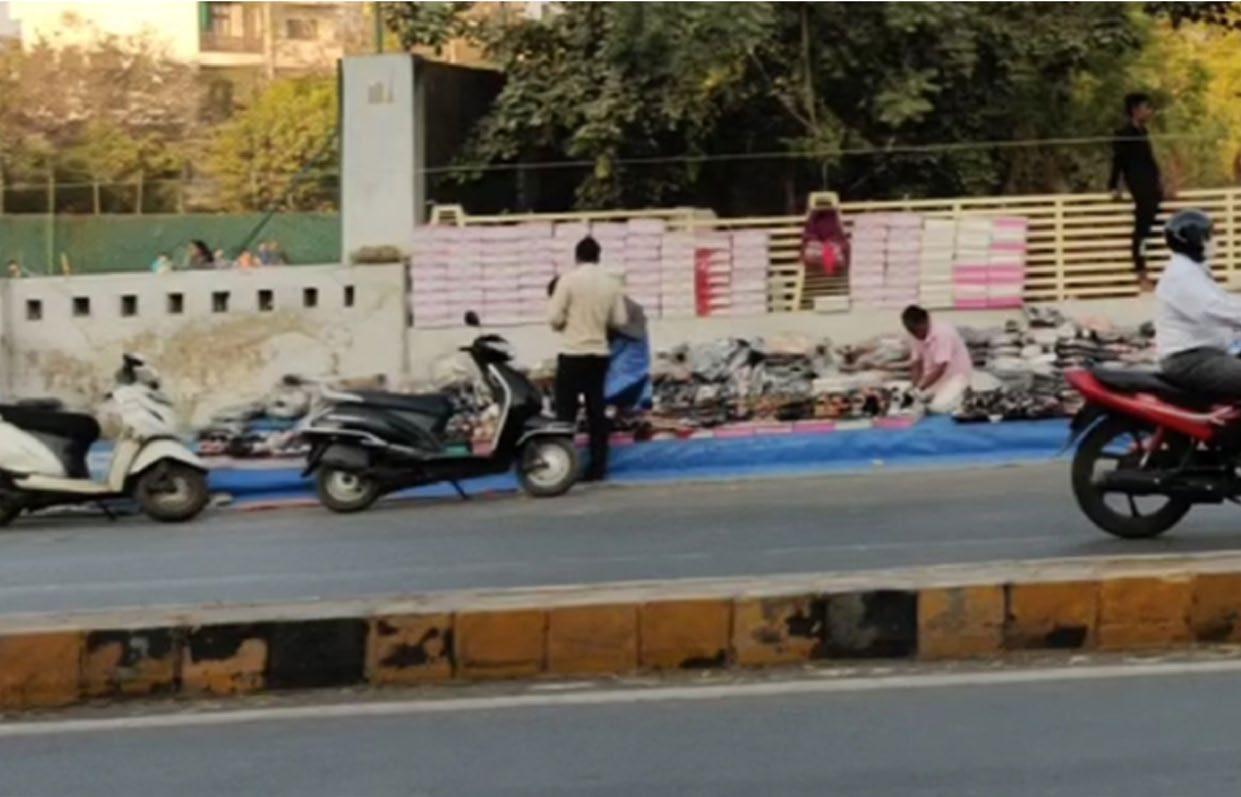

ACTUAL STREET IMAGES

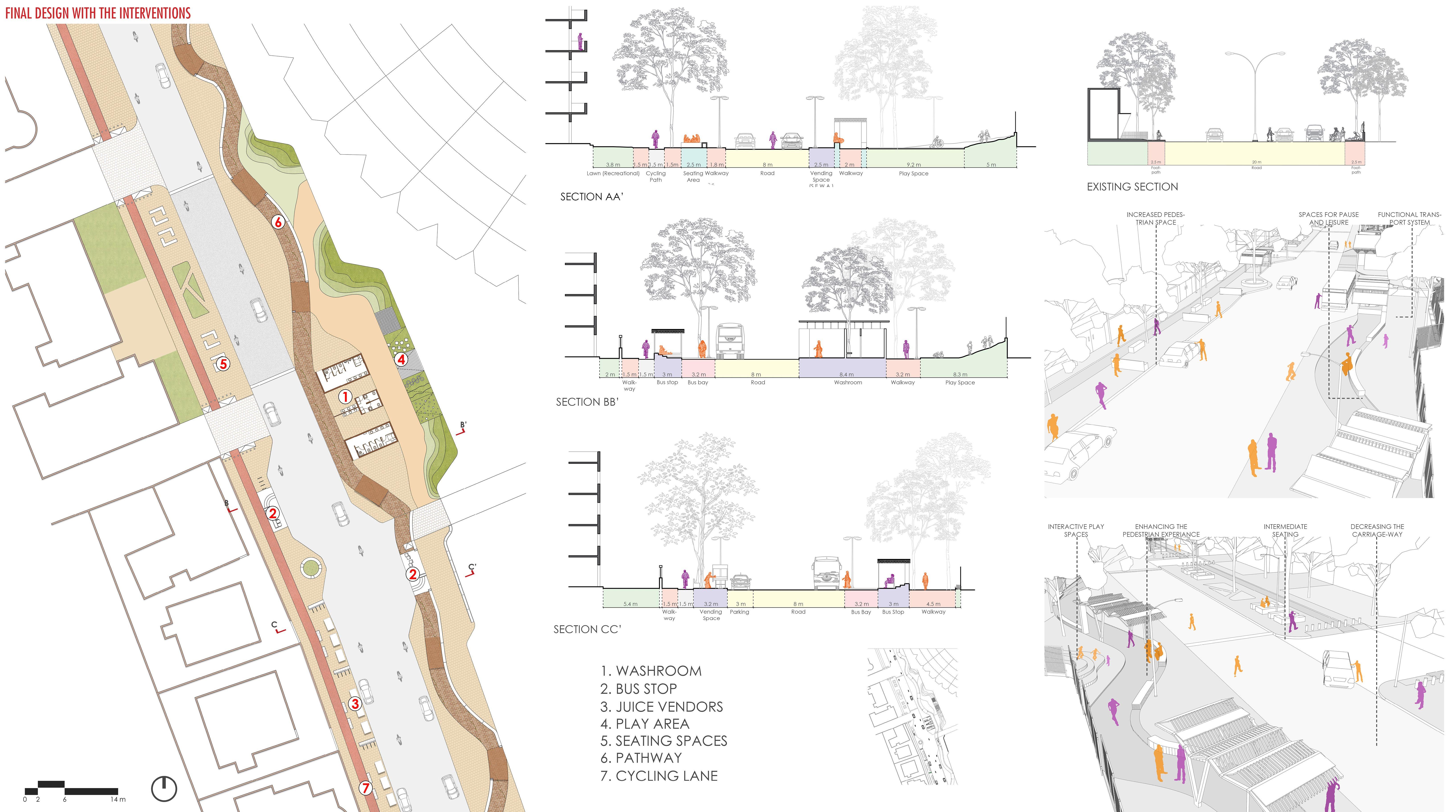

THE PUBLIC LINK-UNGENDERING THE LOCAL STREET 21 FINAL DESIGN WITH INTERVENTIONS

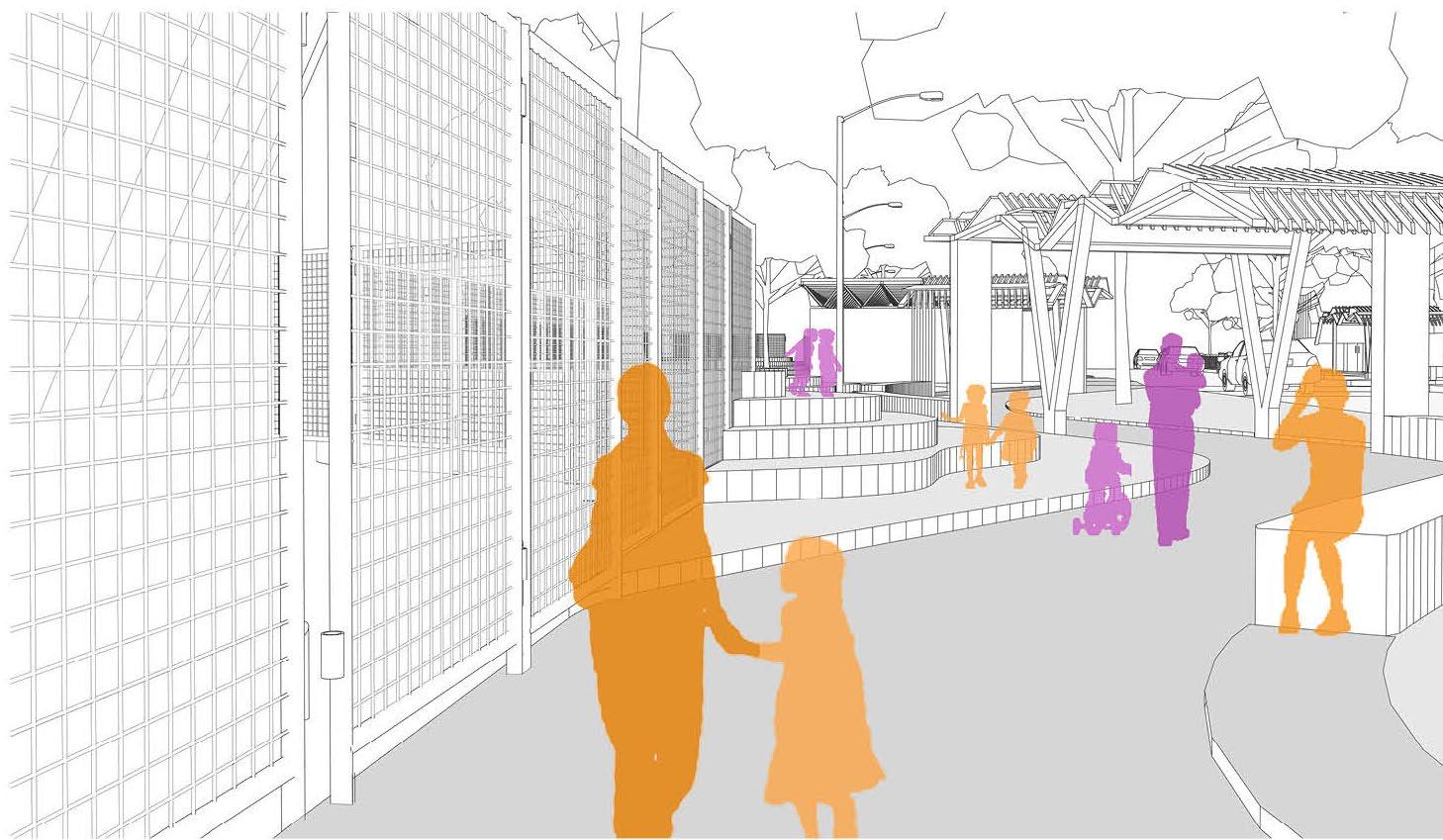

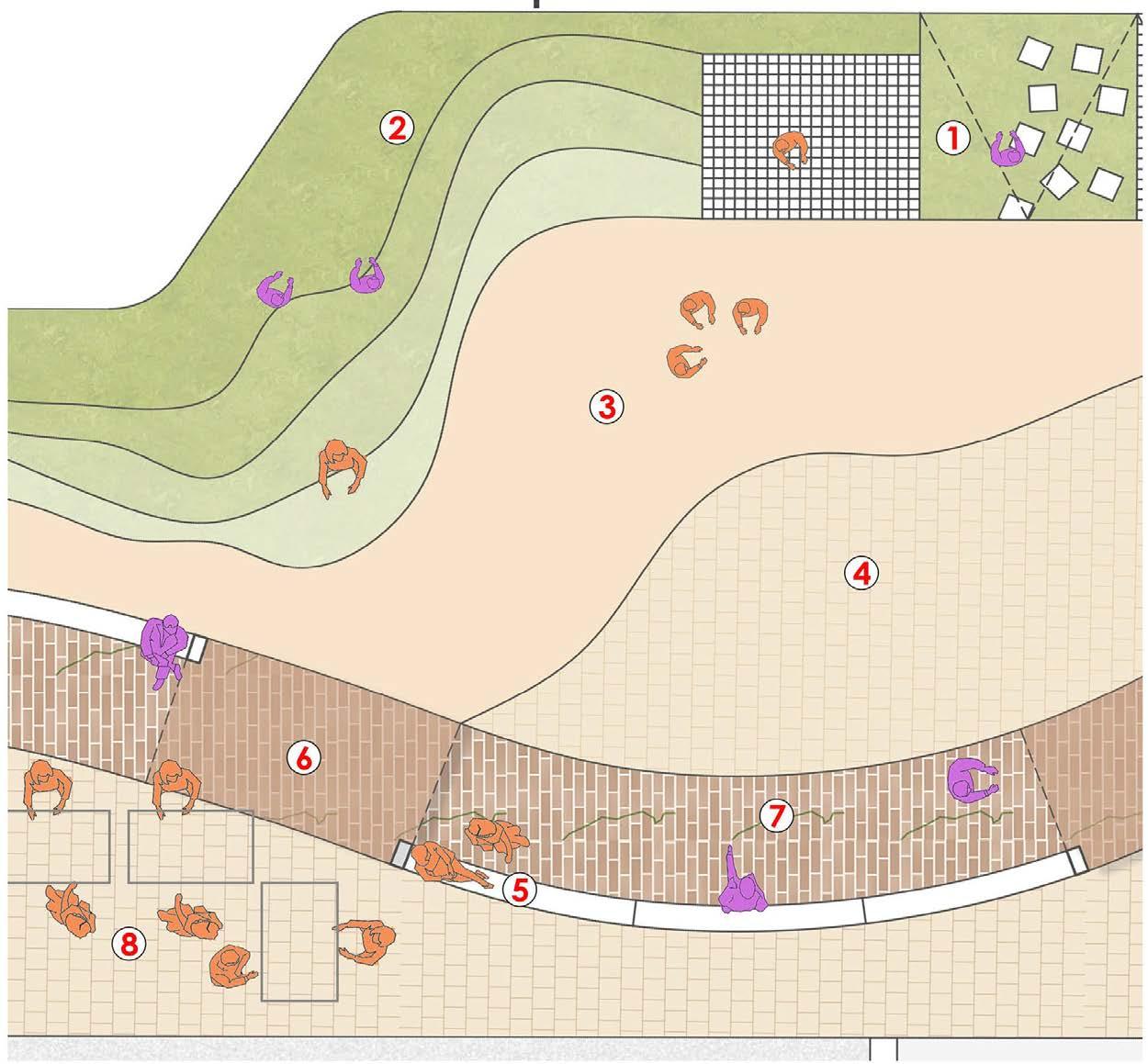

1. WASHROOM 2. BUS STOP 3. JUICE VENDORS 4. PLAYING AREA 5. SEATING SPACES 6. PATHWAY 7. CYCLING LANE

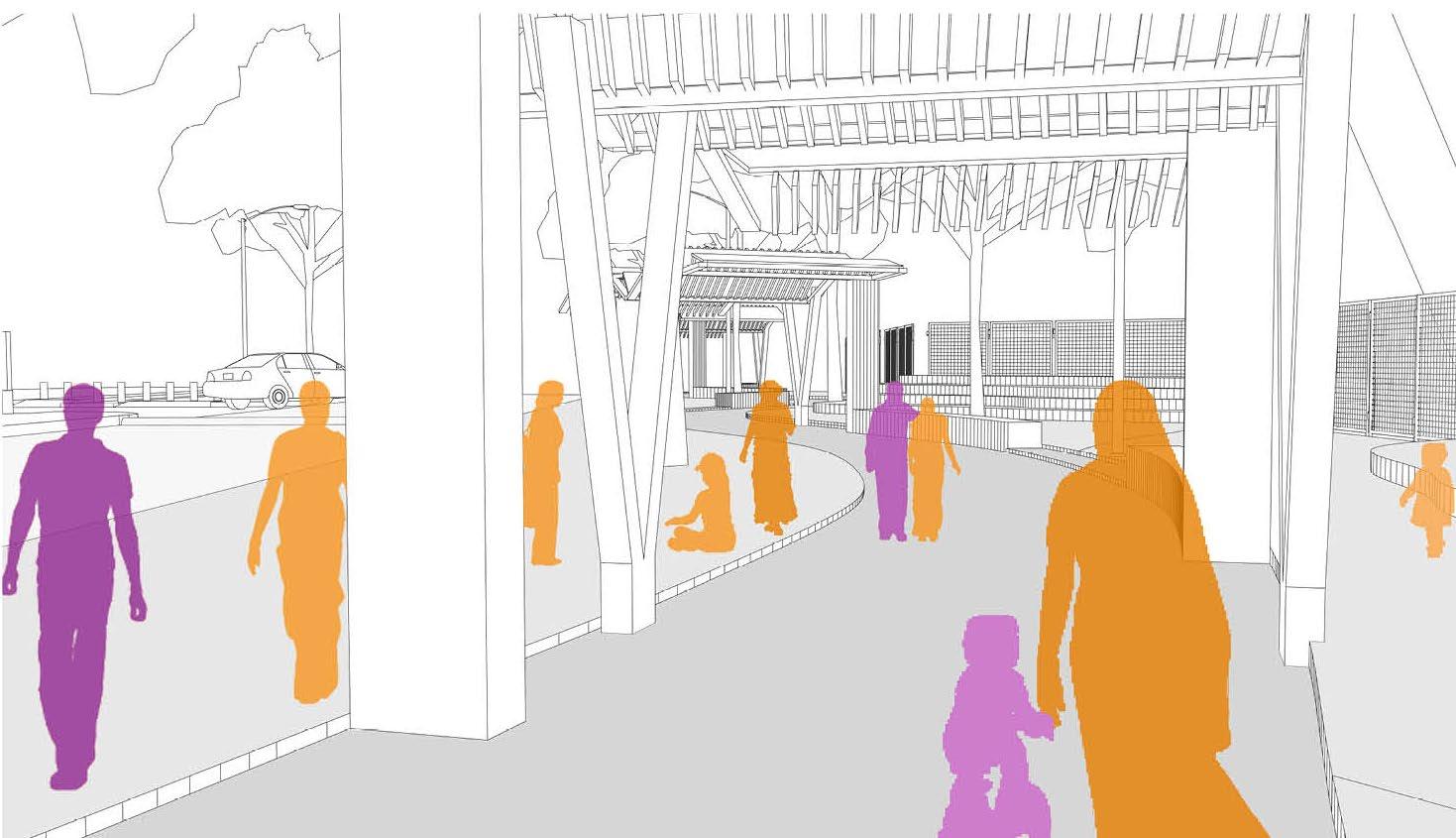

This pathway is designed such that it follows an organic and free flowing form which connects children play spaces, the public washroom, the bus stop and the vending areas while also providing proper shade.

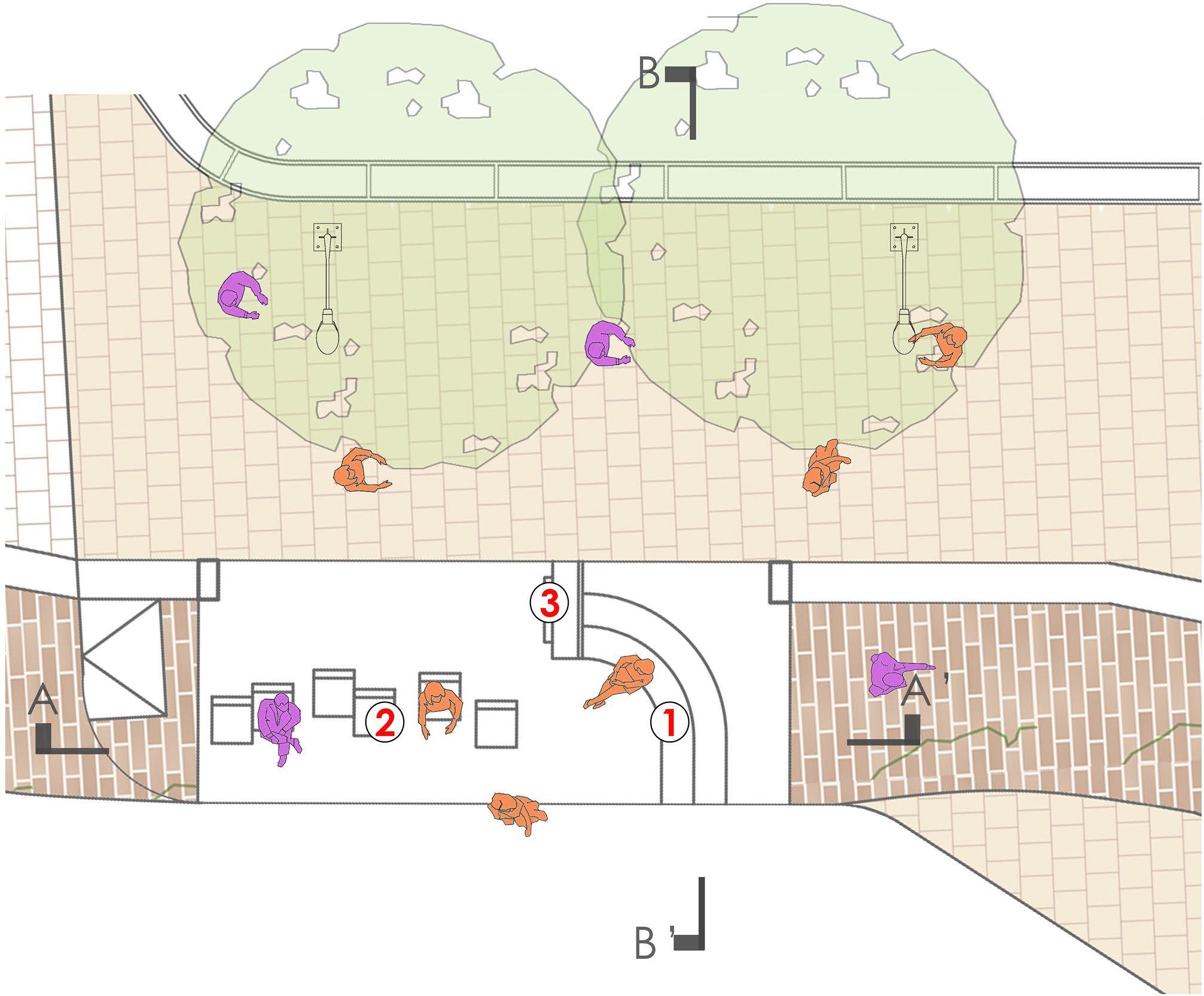

BUS STOP

It is observed that children accompany women vendors and as the vending space becomes a hostile environment, play spaces adjoining ensures child’s safety.

The seating provided is such that it provides space for storage of goods for the fruit sellers and they also become spots for them to rest during the afternoon.

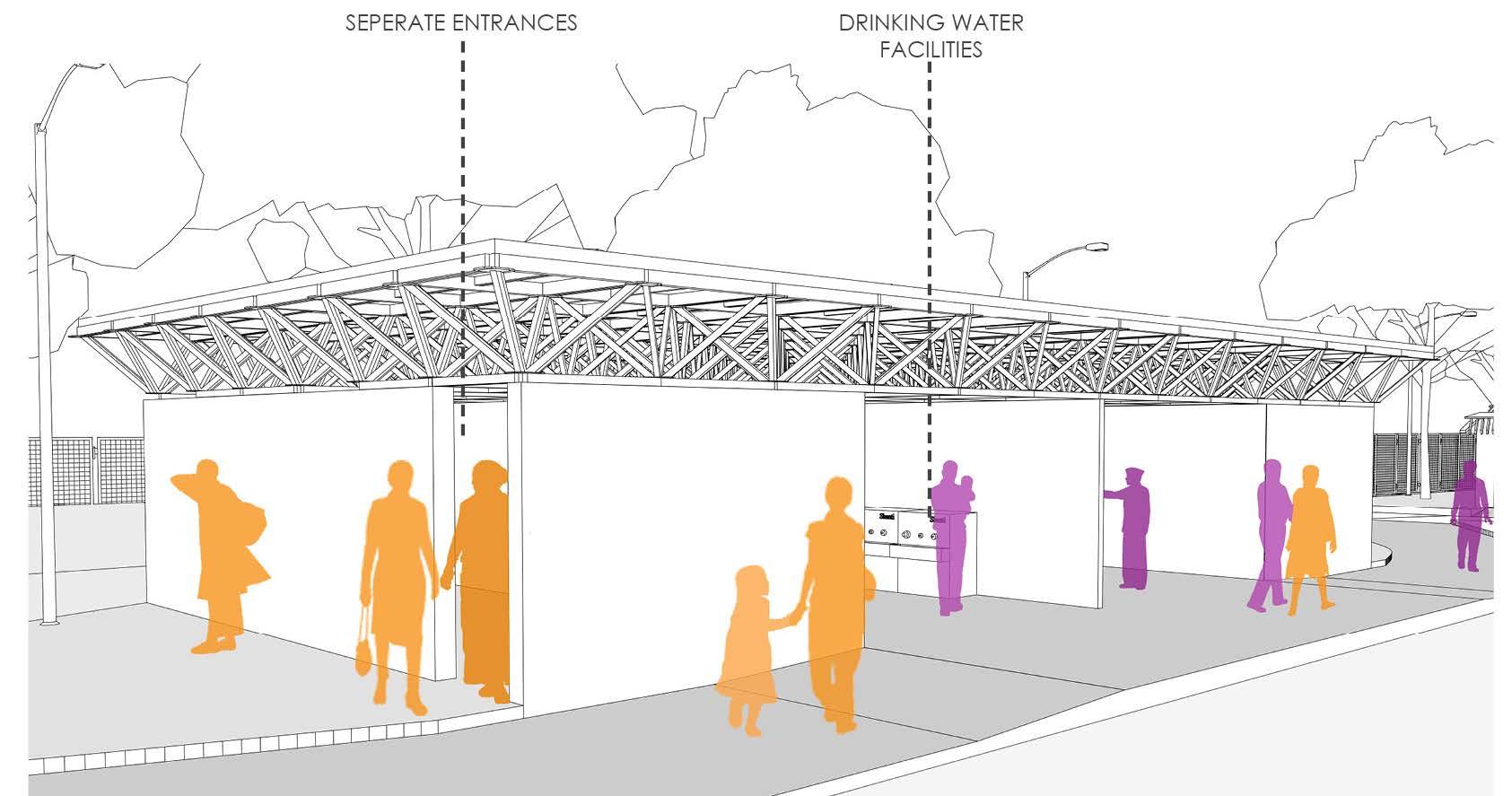

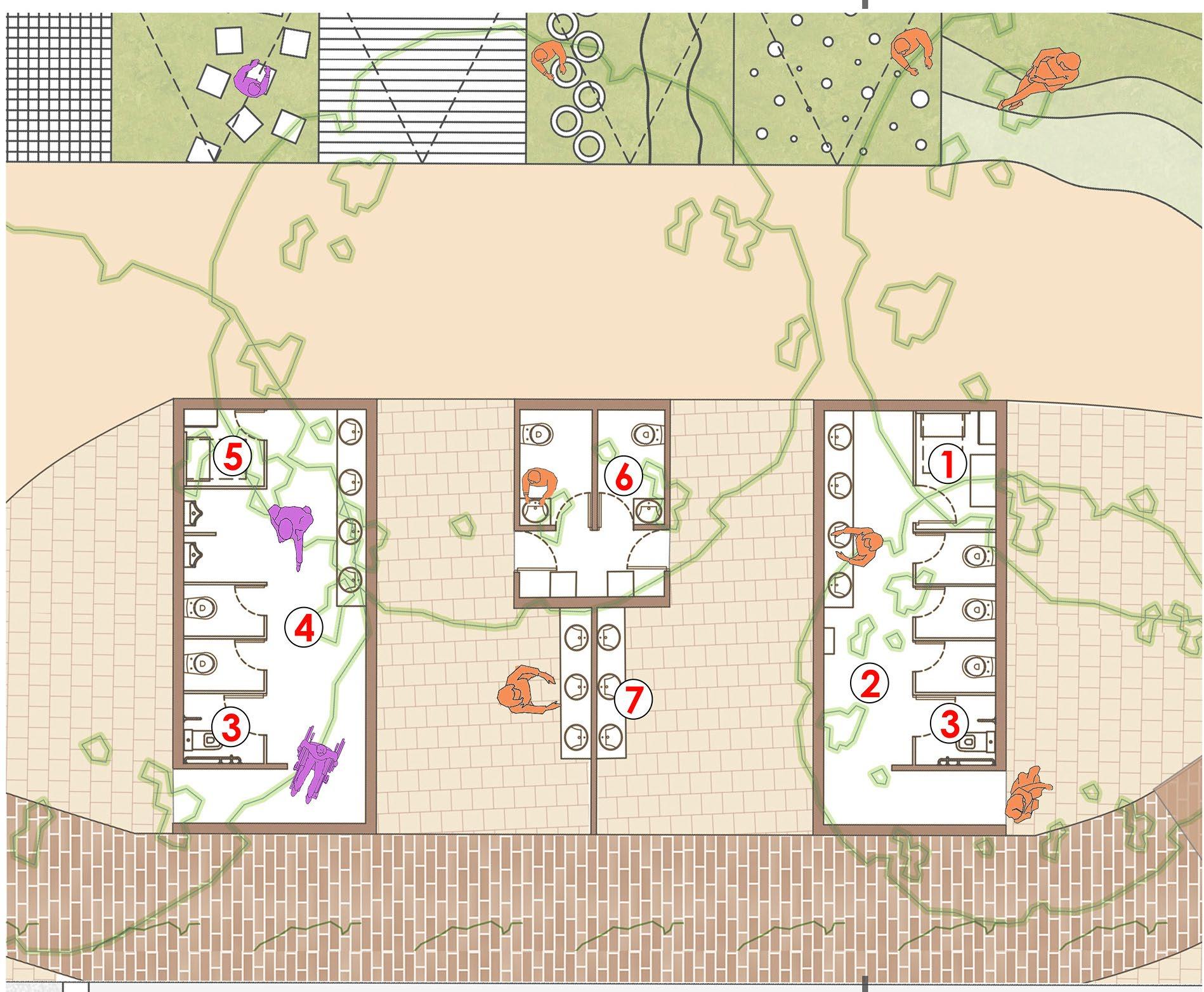

The washroom is also strategically placed in such a manner that it is near to the bus stops, the pathway, the play area and the vending spaces. This will also increase its use by a diversity of users.

WASHROOM RECREATIONAL AREA

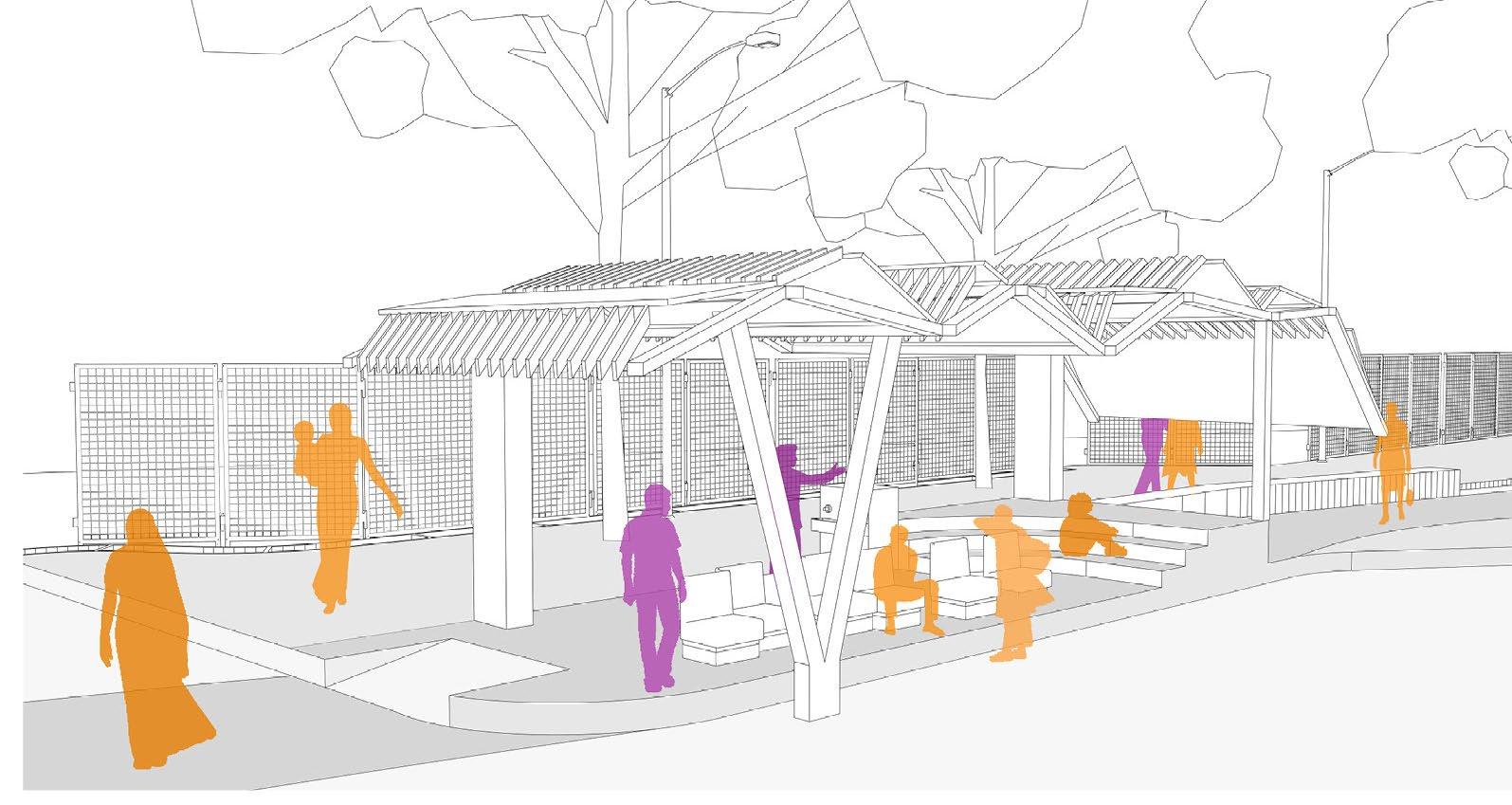

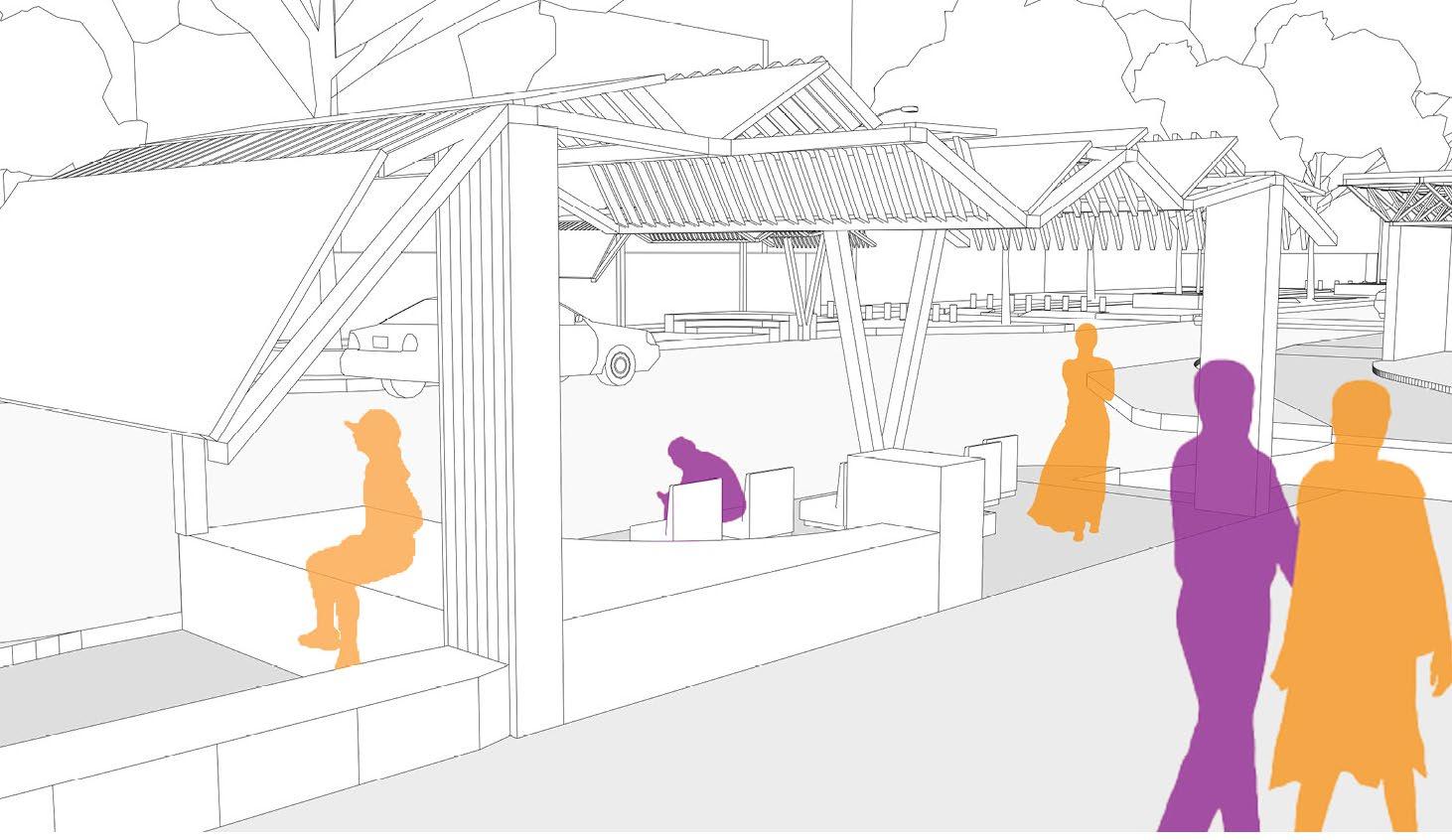

THE PUBLIC LINK-UNGENDERING THE LOCAL STREET 22 RE-IMAGINED STREET
THE PUBLIC LINK-UNGENDERING THE LOCAL STREET 23

THE CANTILEVERED ACADEMY INTEGRATING PUBLIC SPACES WITH SCHOOLING

The learning space lays amidst a dense neighbourhood of Amsterdam. It very cleverly and creatively combines the learning aspect of education with the social aspect required for a child’s growth. The school has been opened up to the public, various spots like the terrace garden, the plaza, the cafeteria and the library become places of gathering and also help in achieving the goal of creating a space where students can not only learn but also enjoy the learning process

.

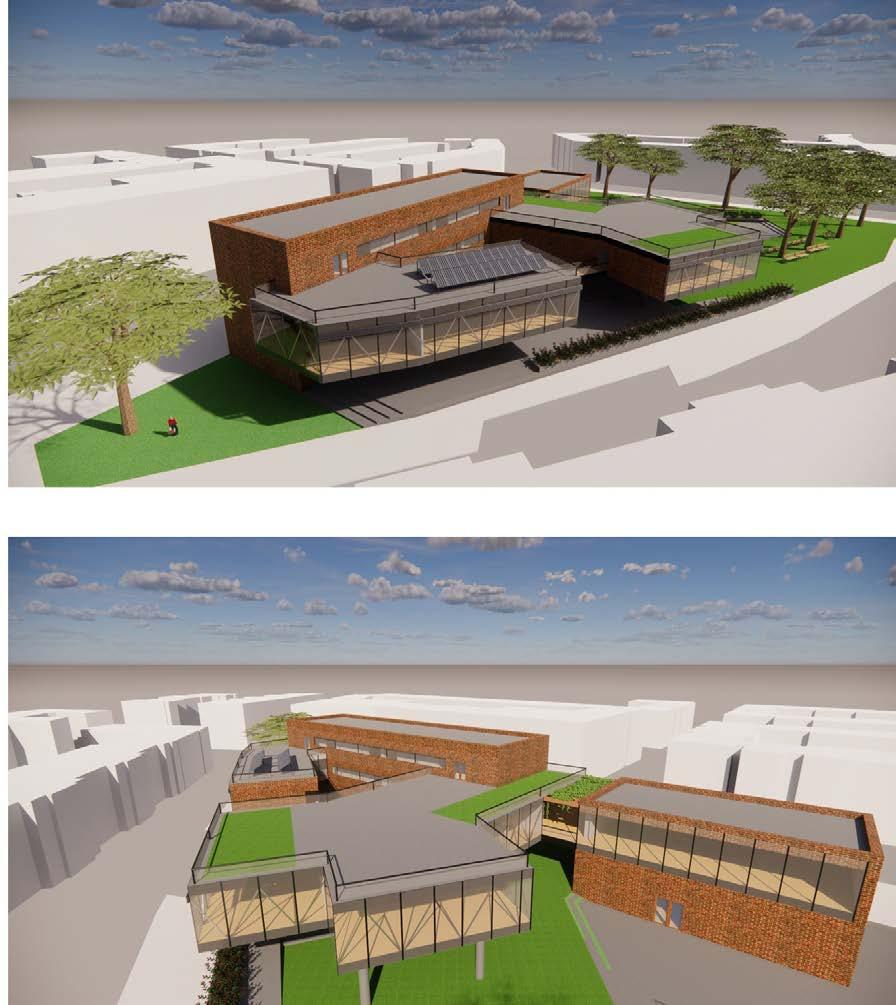

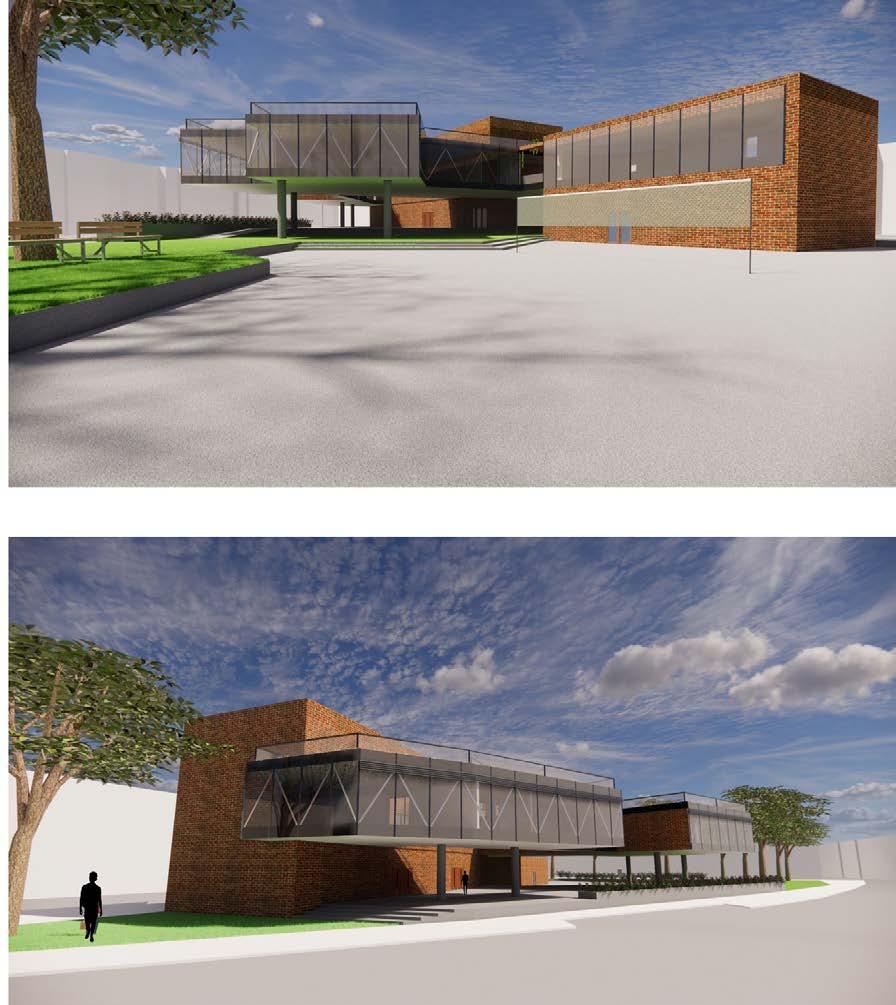

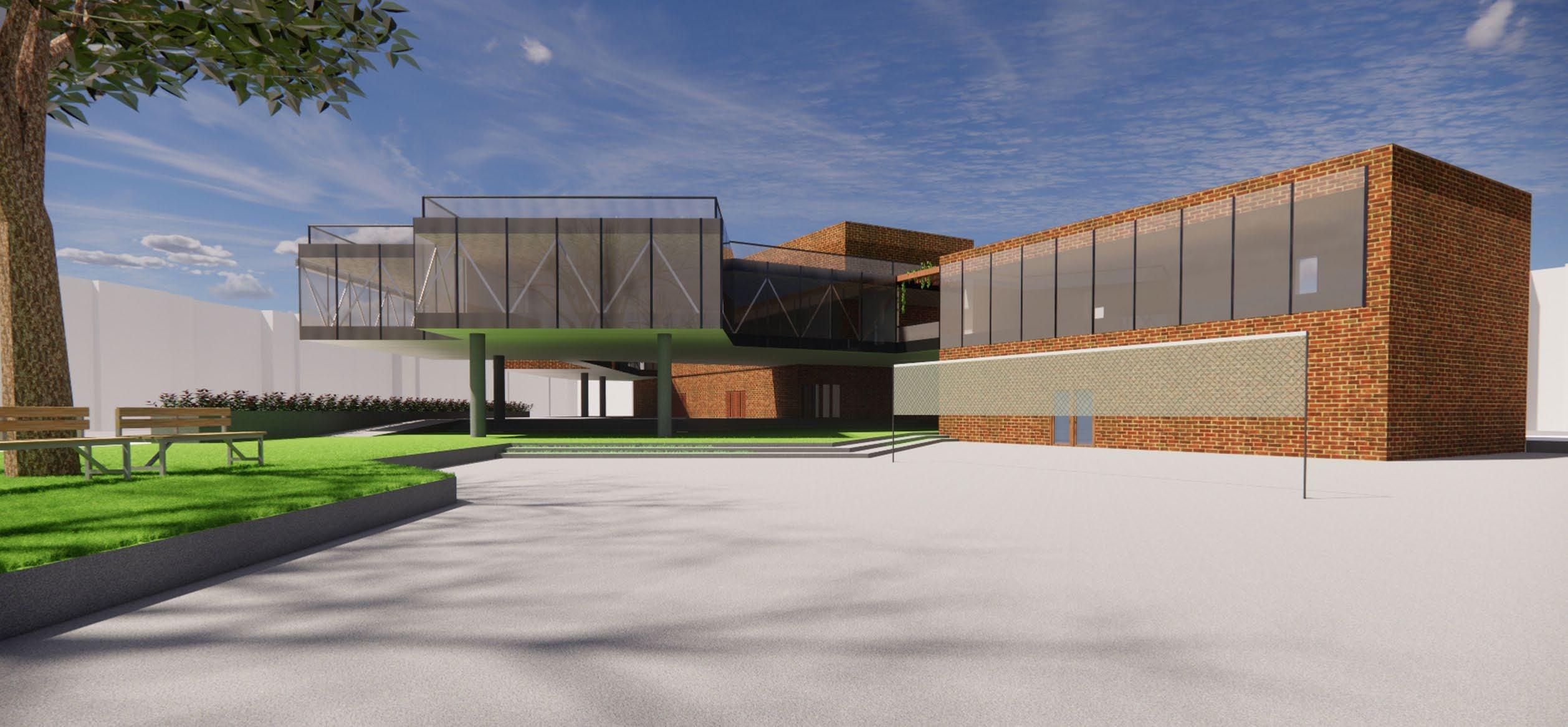

RENDERED DRAWINGS

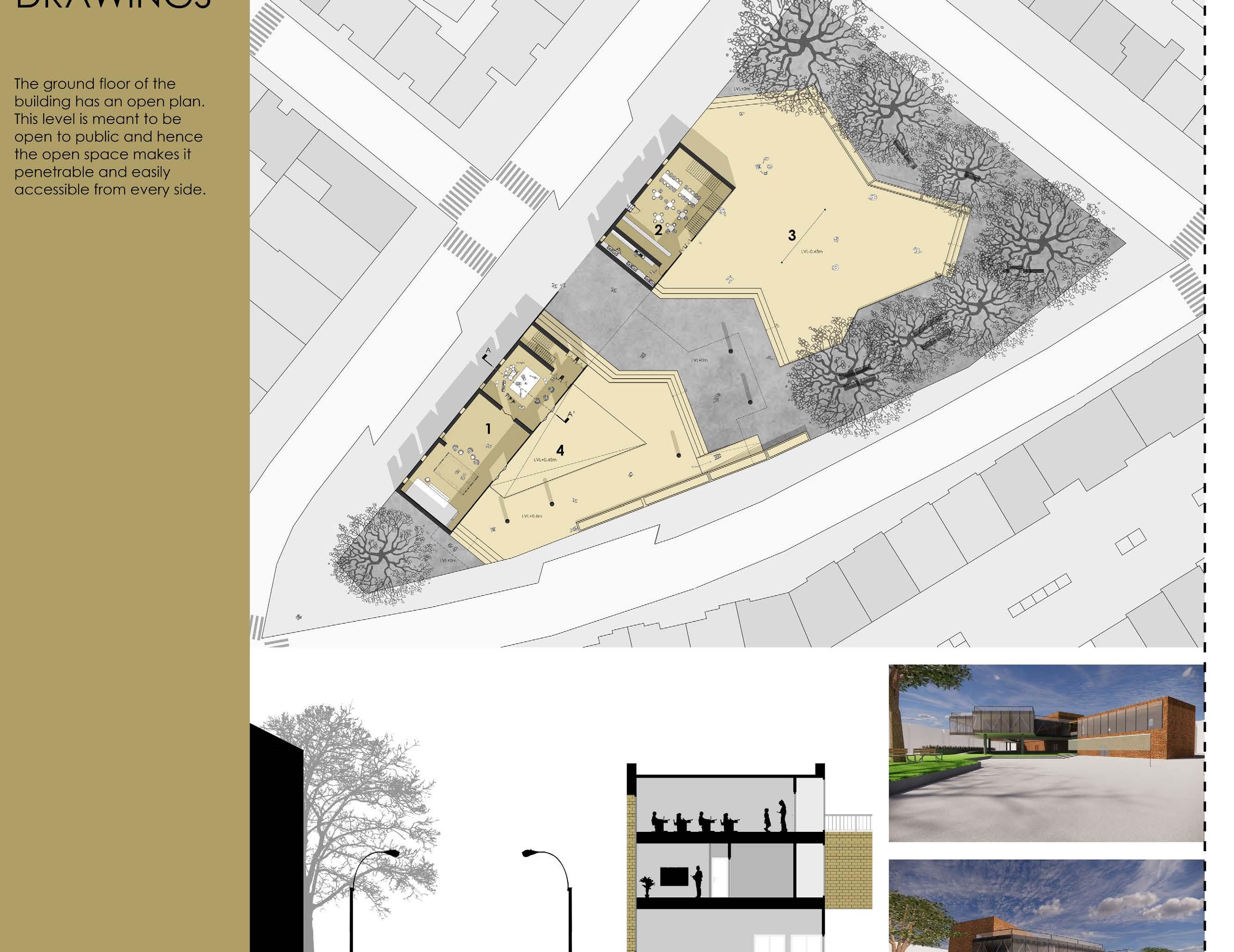

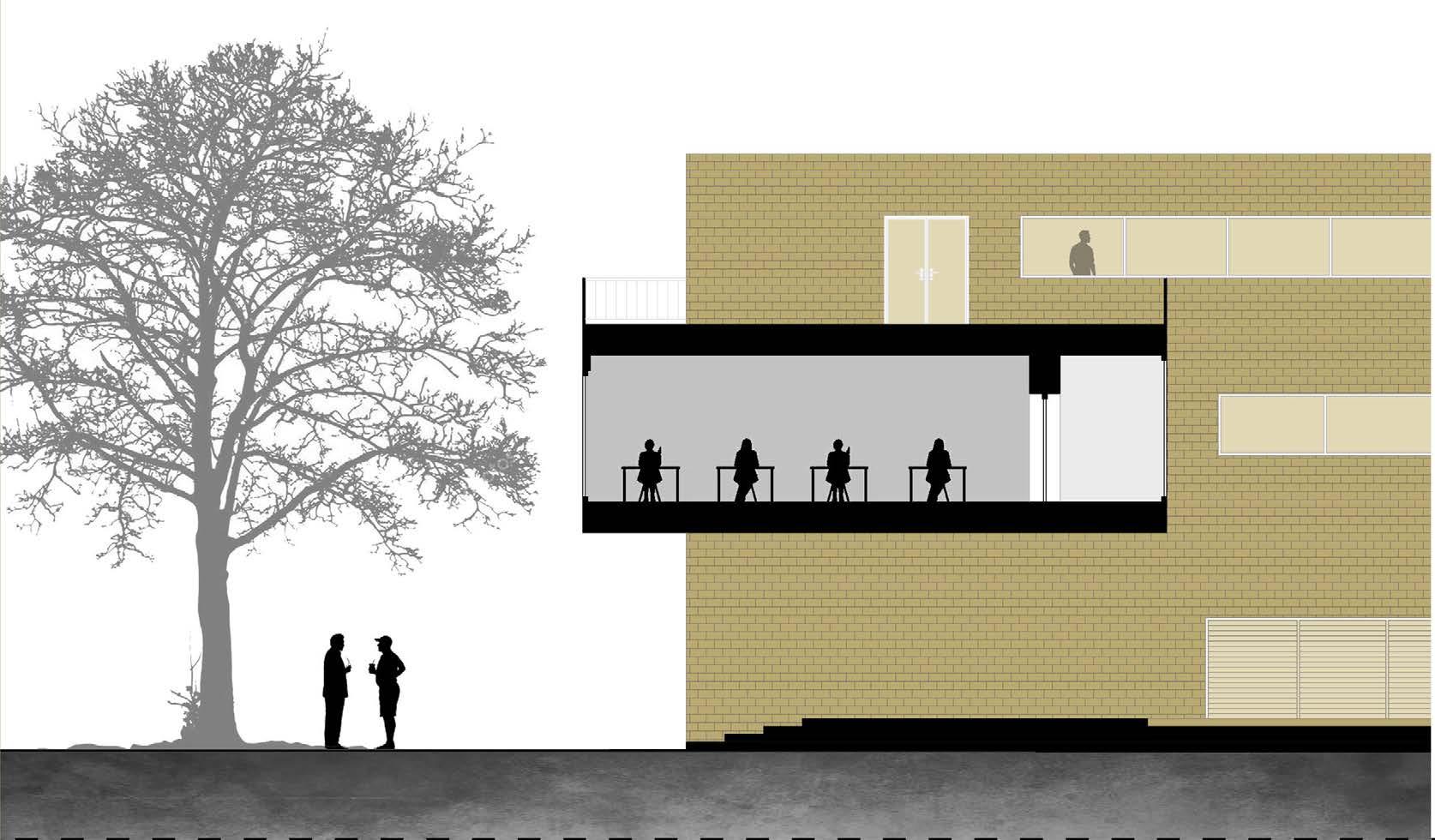

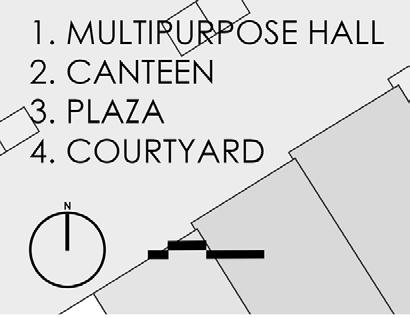

The ground floor of the building has an open plan. This level is meant to be open to public and hence the open space makes it penetrable and easily accessible from every side.

The first floor of the building is solely amde for learning spaces. Except the library which is accessible by local public, the whole first floor is only for students and contains classrooms, workshops, offices and staff rooms.

THE CANTILEVERED ACADEMY-INTEGRATING PUBLIC SPACES WITH SCHOOLING 25 FINAL

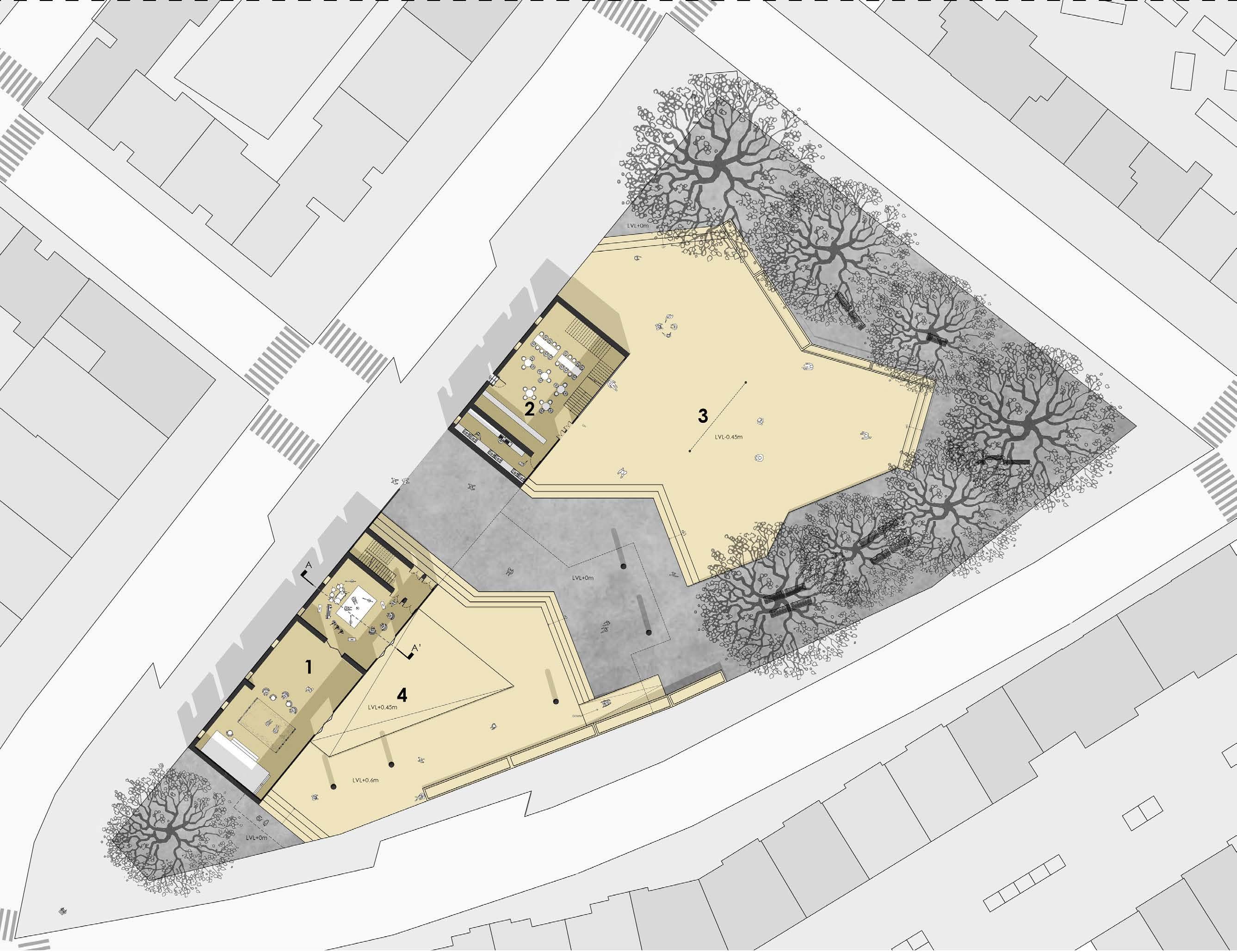

1. CANTEEN SEATING 2. TOILETS 3. RECEPTION 4. PRINC. OFFICE 5. PRINTING ROOM 6. STAFF ROOM 7. CLASSROOM 8. WORKSHOP 9. LIBRARY SECTION AA’ SECTION BB’

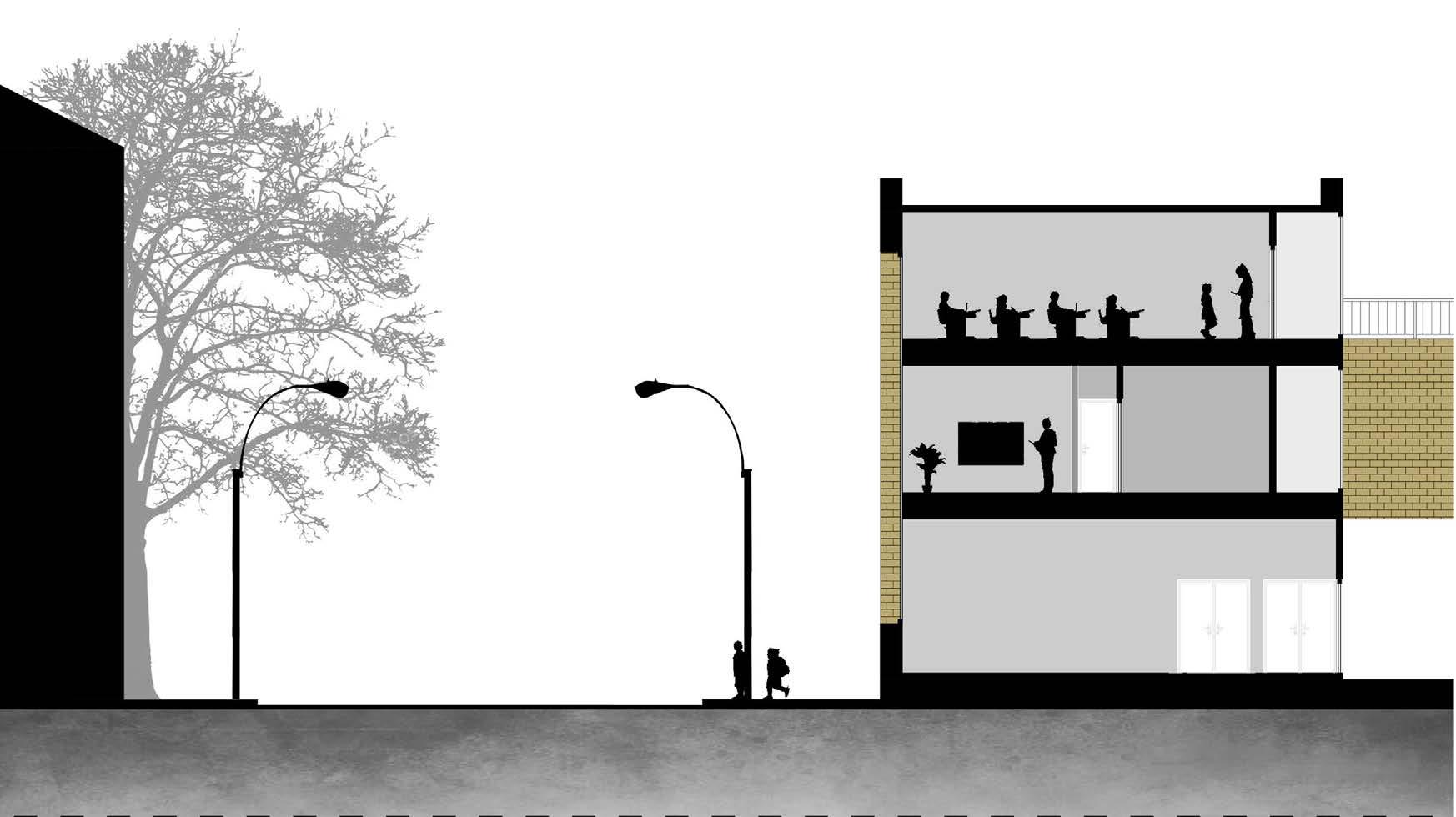

THE CANTILEVERED ACADEMY-INTEGRATING PUBLIC SPACES WITH SCHOOLING 26 SECTION CC’ SCHOOL AT THE TIME OF A CELEBRATION/GATHERING

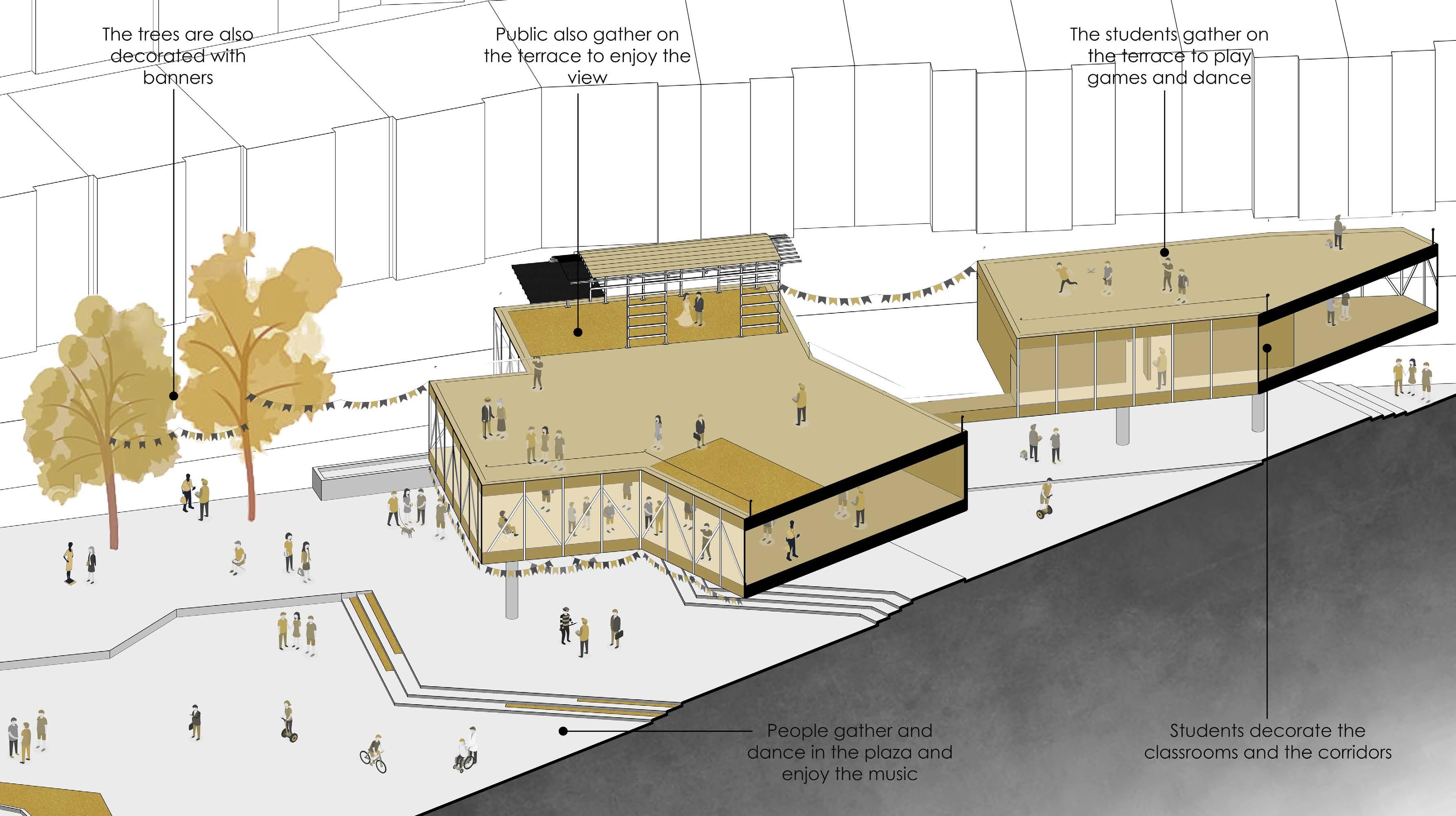

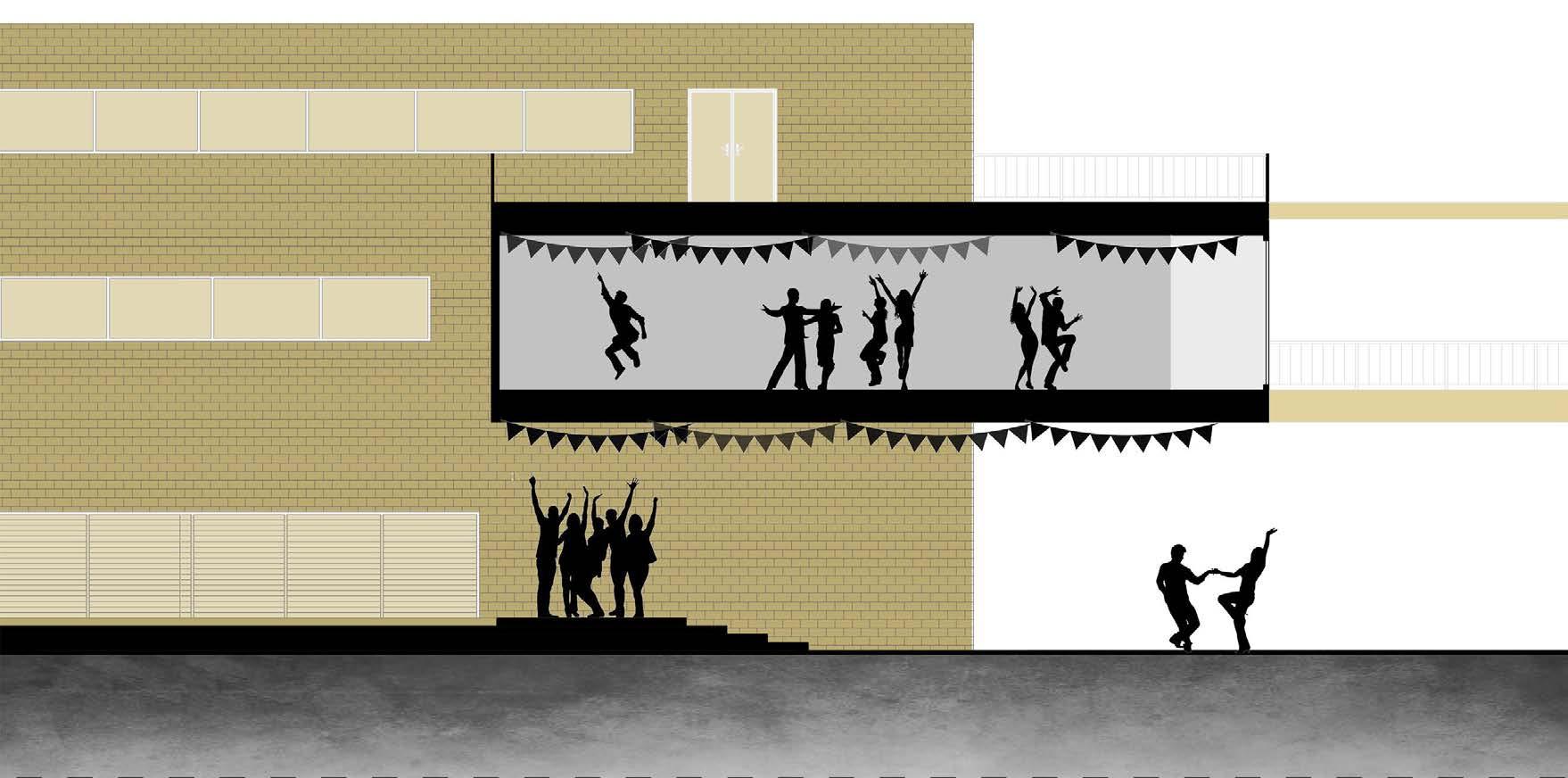

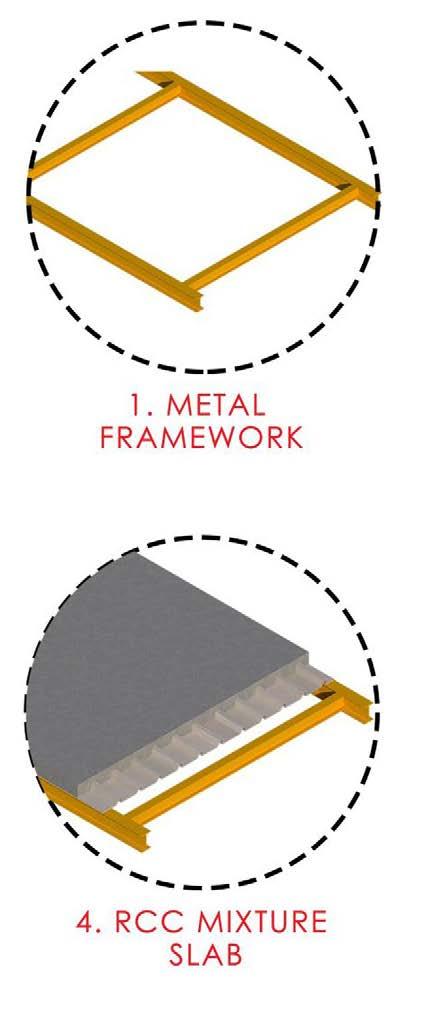

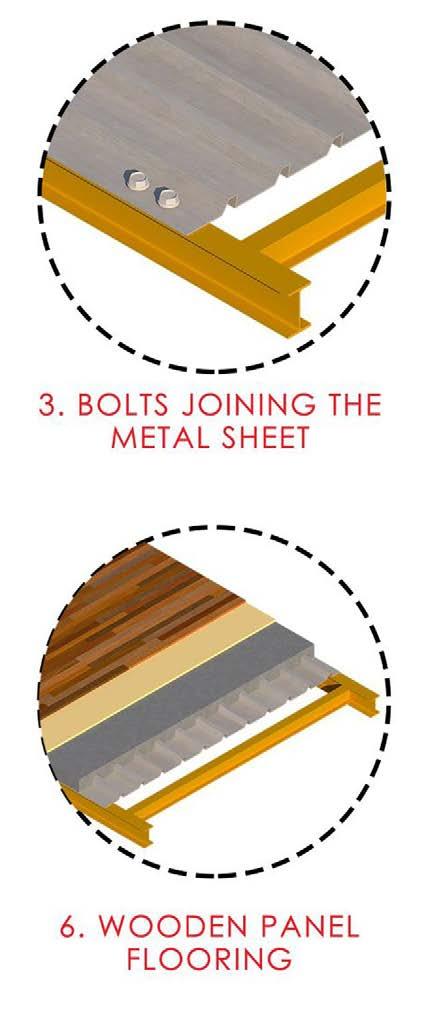

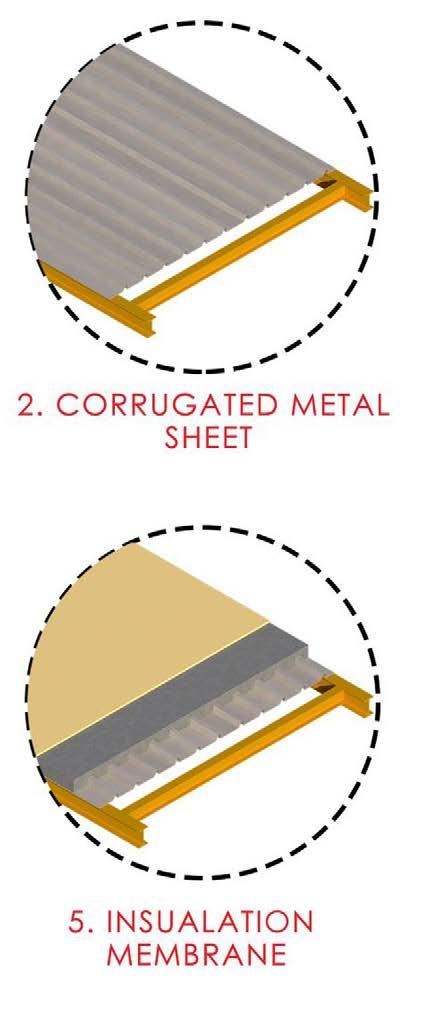

SECTION The section shows how the spaces might be used during a festival. STRUCTURAL SYSTEM: 1. Metal Framework 2. Corrugated Metal Sheet 4. RCC Mixture Slab 5. Insulation Membrane 6. Wooden Panel Flooring 3. Bolts Joining the Metal Sheet
THE CANTILEVERED ACADEMY-INTEGRATING PUBLIC SPACES WITH SCHOOLING 27

MISCELLANEOUS WORK

The works try to portray the various skilled developed throughout the learning process like dyeing and weaving, welding, casting of RCC and POP along with sketching and rendering using softwares such as lumion and photoshop.

DYEING

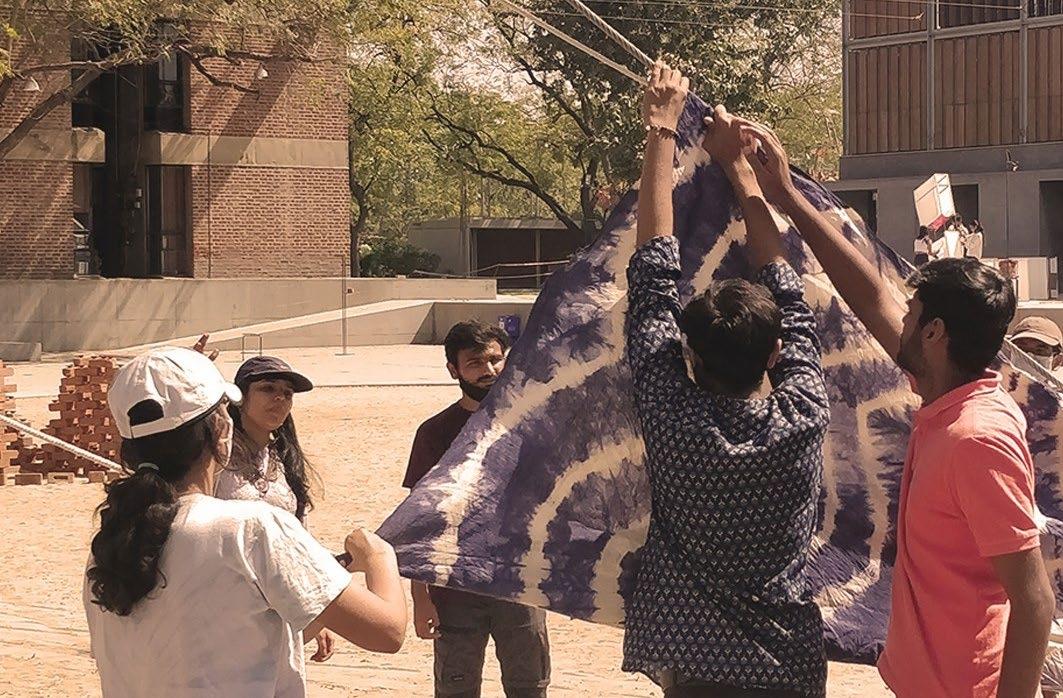

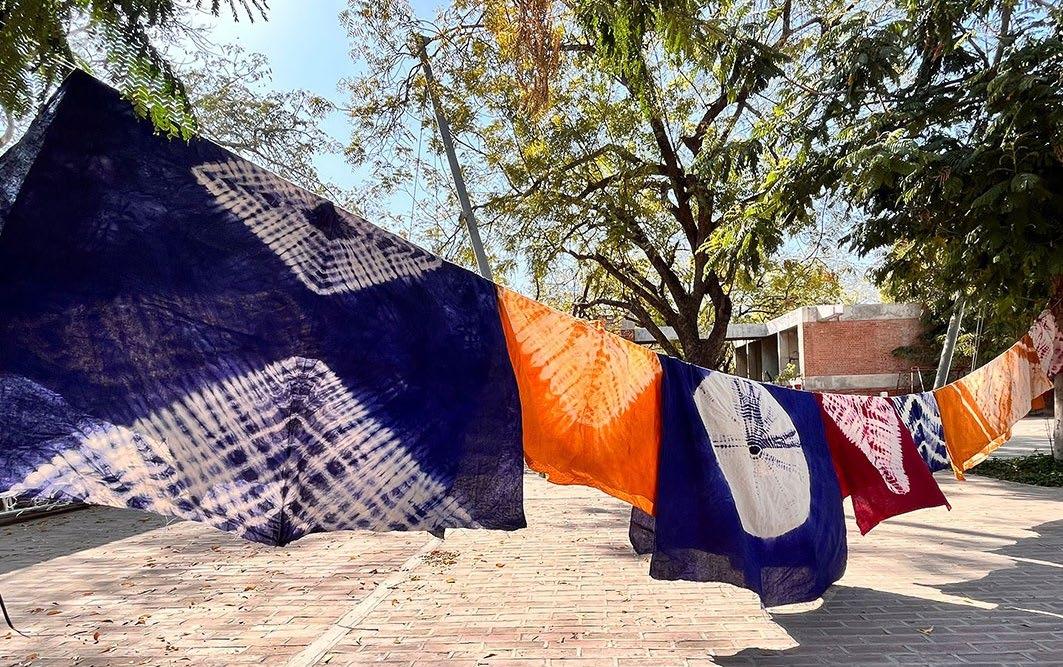

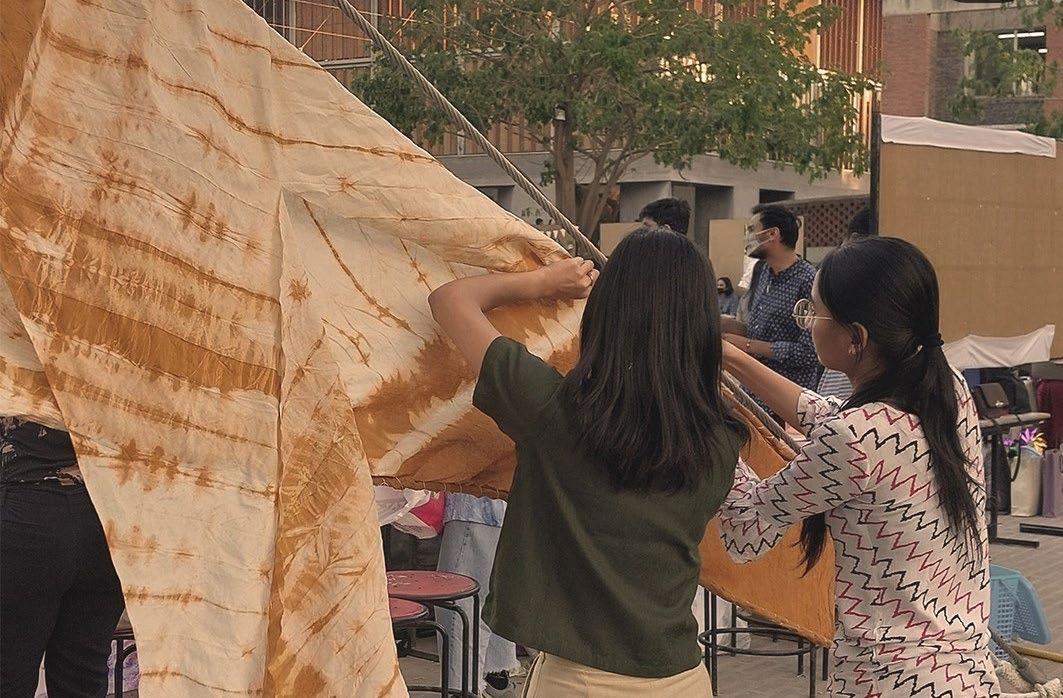

The fabric first requires dyeing with selected colour. Then the cloth must be dried completely for the natural dye to give the perfect colour.

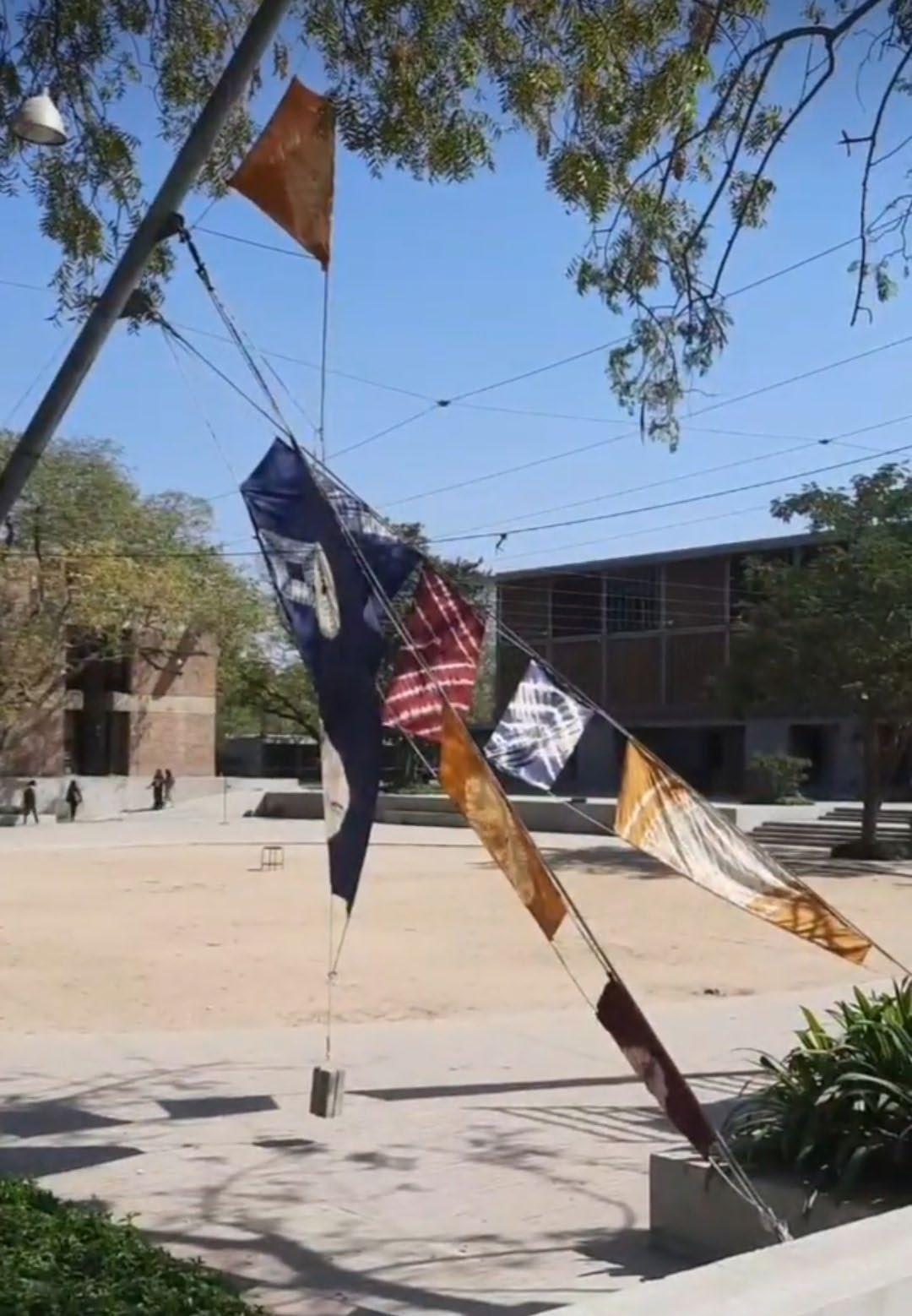

This installation used both tie-dye skills as well as basic working knowledge of dynamics. The basic structure of the installation is made by tying ropes together and then weaving the tie-dyes cloth with these ropes.

The interesting part of the installation is such that a concrete cube carries all the weight of the installation and keeps all the ropes tied while it is hanging in the air.

One can see the use of various colours like blue, orange and red with various types of patterns on each one of them. These patterns are achieved through different methods of knotting.

KNOTS

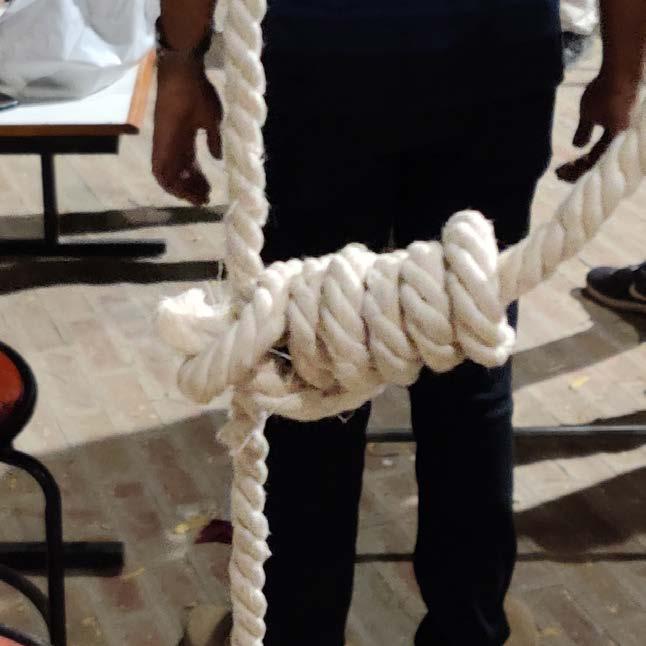

The ropes are tied together using various types of knots as seen in the picture. The cloth is then knitted along with rope to form the installation.

Kinetic wave installation, as the name suggests, is a working project where the lamps are arranged in such a manner that when rotated with a handle attached to a pulley, the lamps move such that they are forming a wave.

This project was part of a team which participated in the ROOTS’23 event organised in the CEPT University campus.

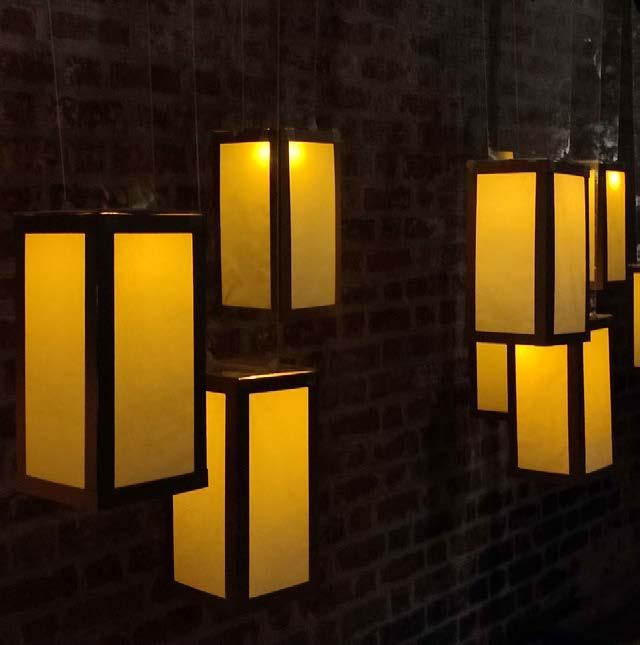

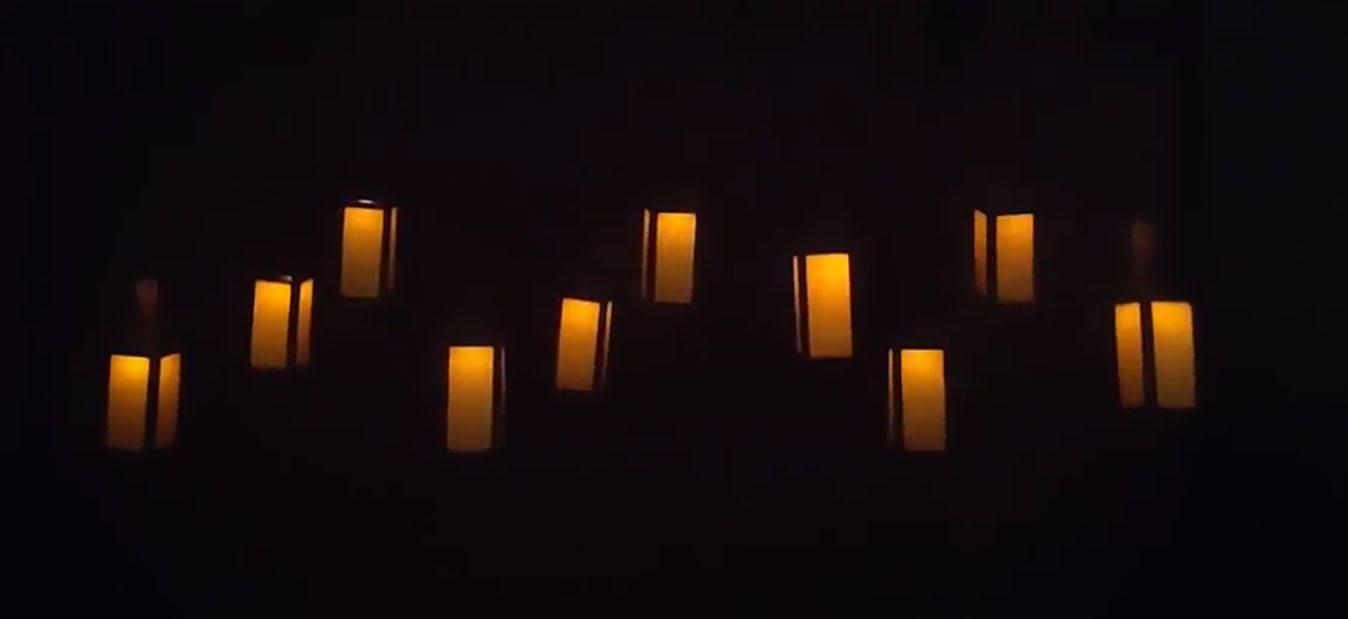

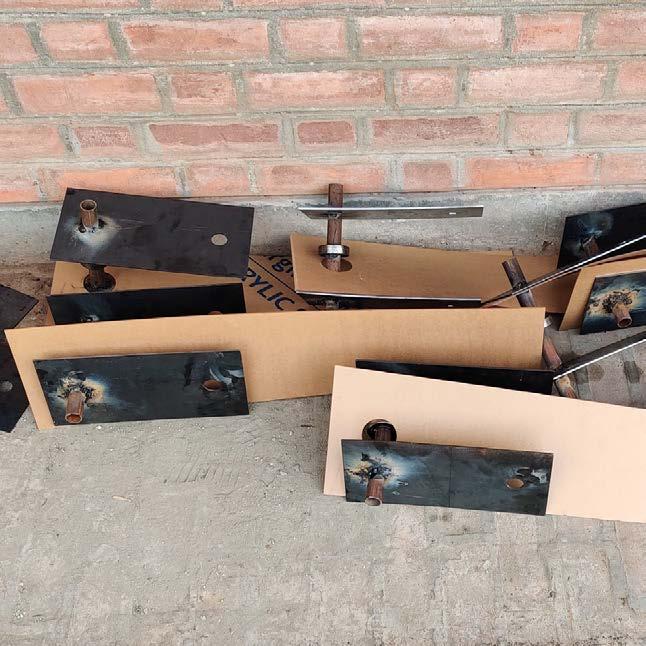

The process of making the lamps involved cutting and pasting of tracing sheets with craft paper. Further, it involved welding and installing electric connection to the installation. The toughest part was to make the pulley system work and make the installation rotate giving an effect of a wave moving.

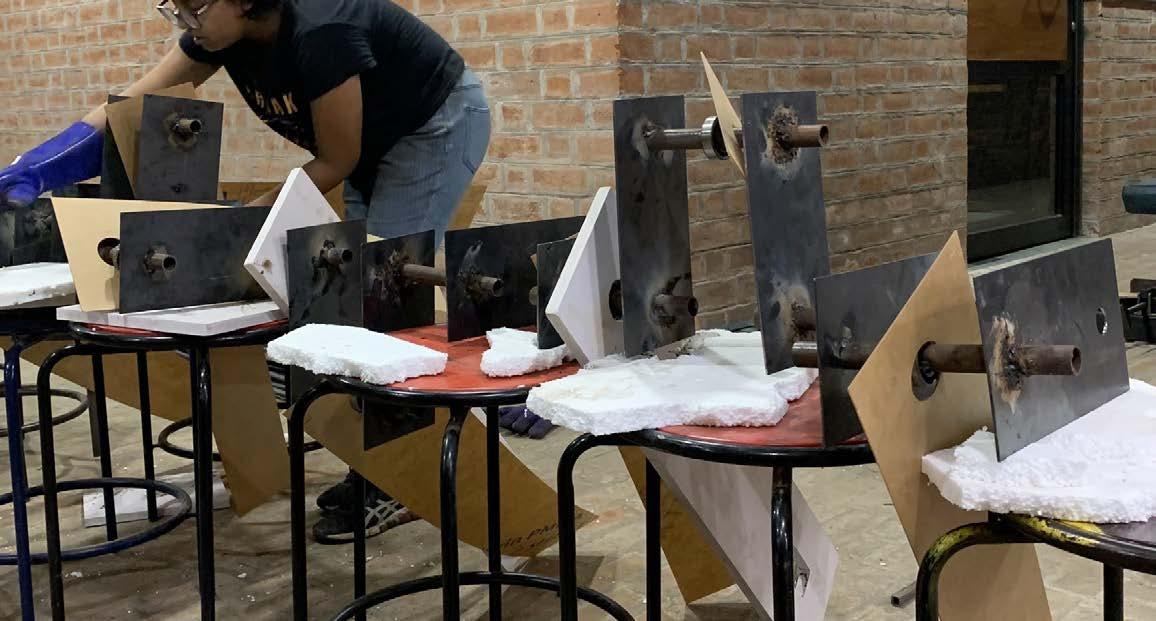

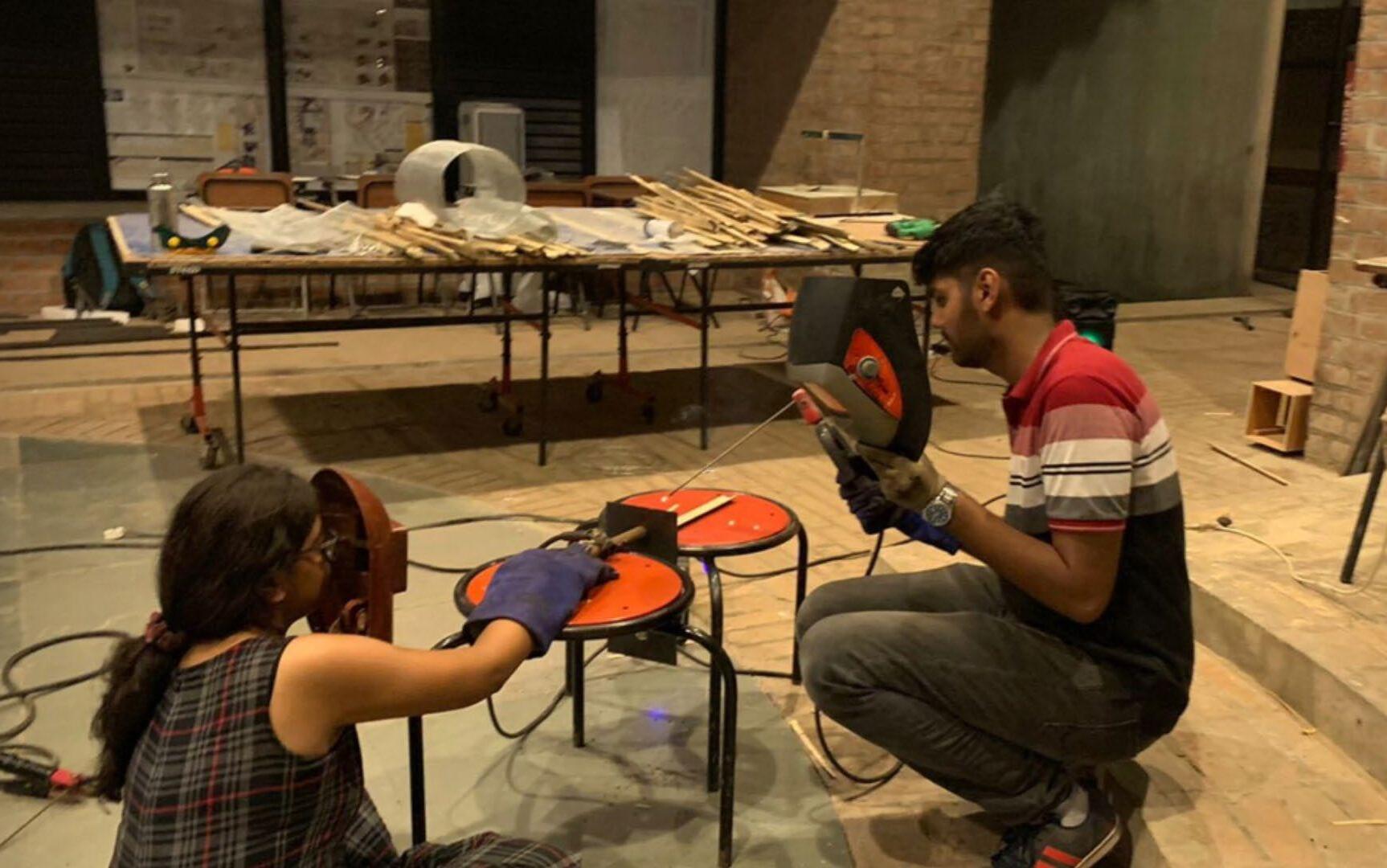

The learning outcomes of the whole process involved welding and working with a large team. It helped to understand how to tackle problems while working actually on site.

MISCELLANEOUS WORK 29 TIE & DYE INSTALLATION KINETIC WAVE INSTALLATION

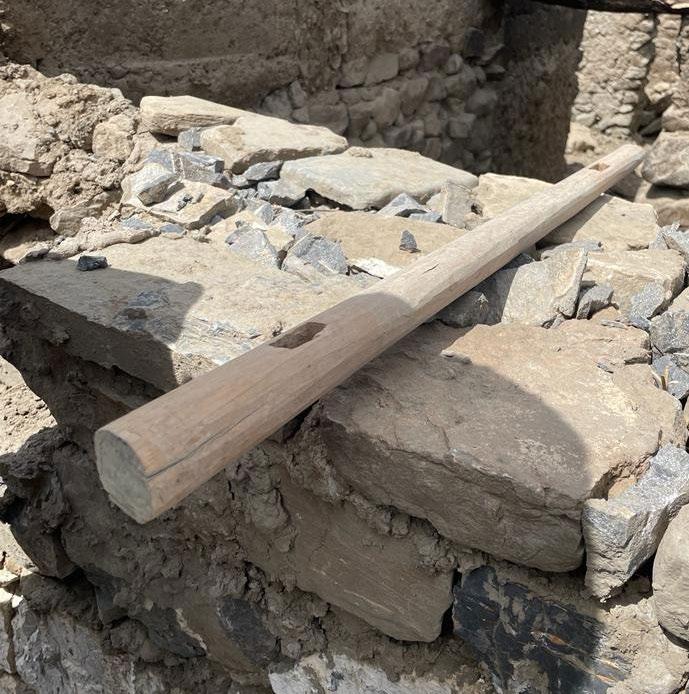

HANDS-ON RAMMED EARTH ADOBE BLOCKS

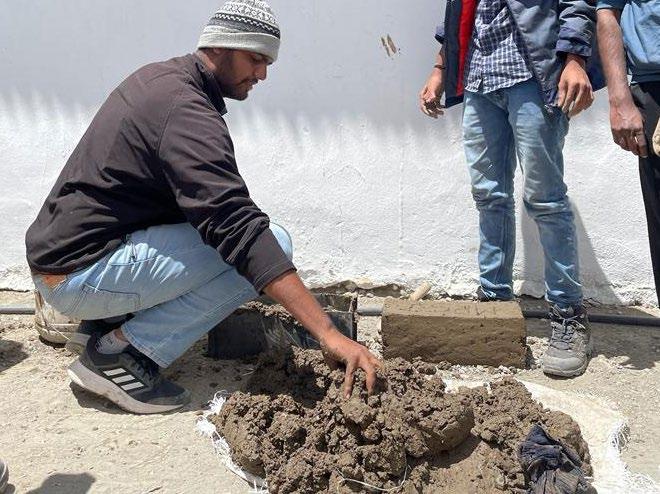

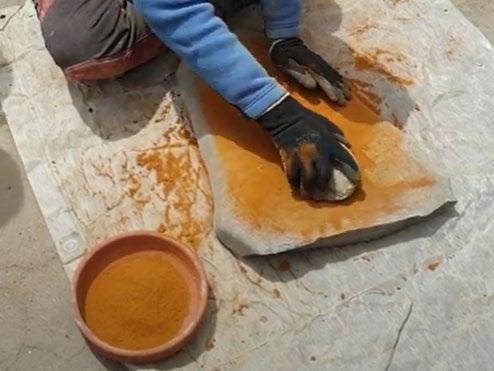

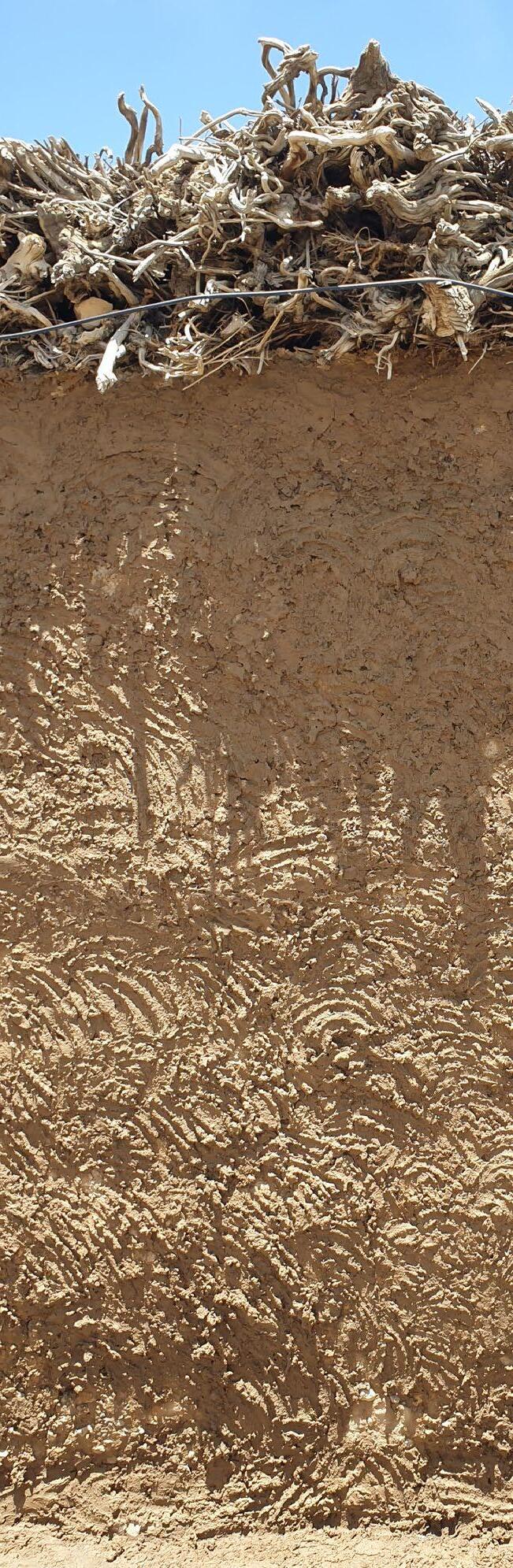

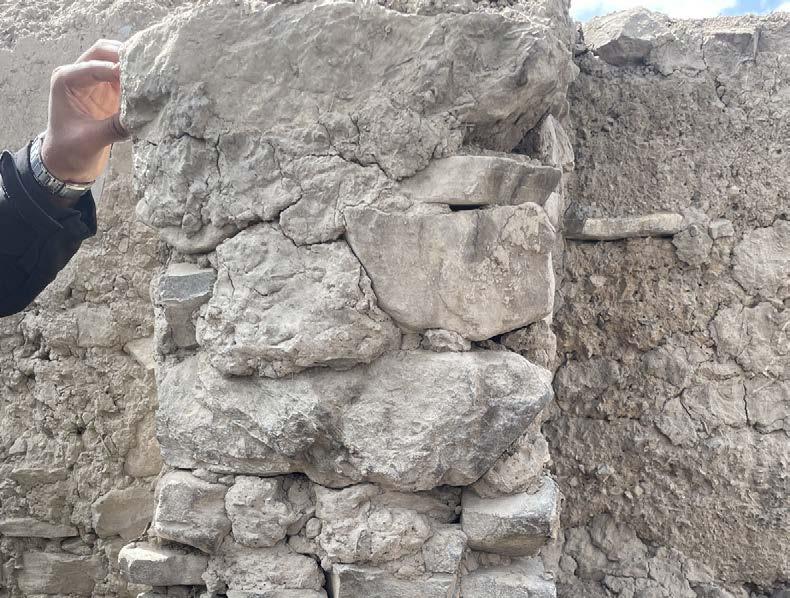

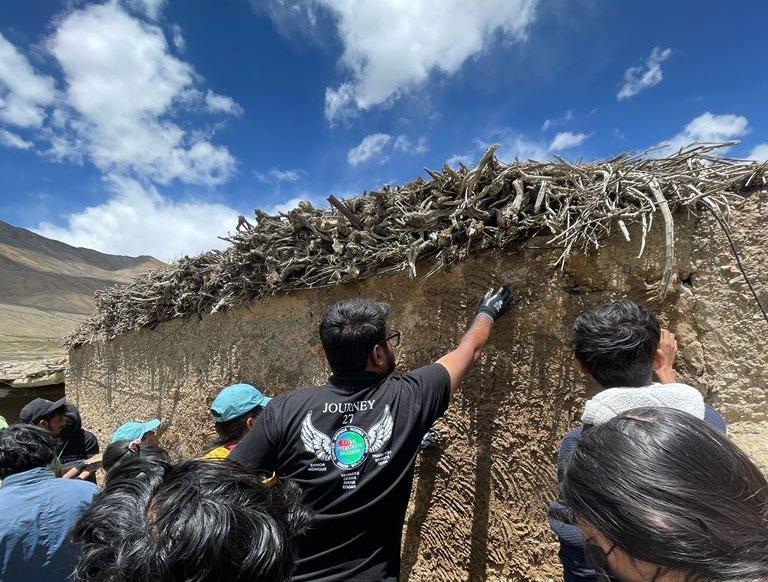

Both rammed earth and adobe blocks, although made out of the same materials, act differently when used to make a load bearing wall.

The wall made out of rammed earth is more stronger as the mortar used to join the adobe blocks often show cracks. On the other hand, it is more time consuming and requires high labour skills to work with rammed earth whereas the blocks require lesser time as they can also be pre cast saving a lot of time.

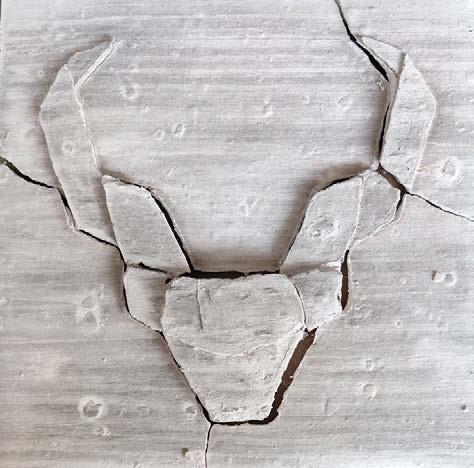

CONCRETE CASTING POP CASTING

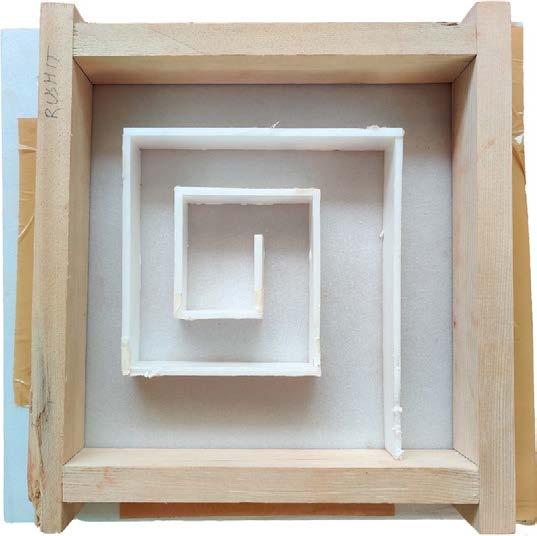

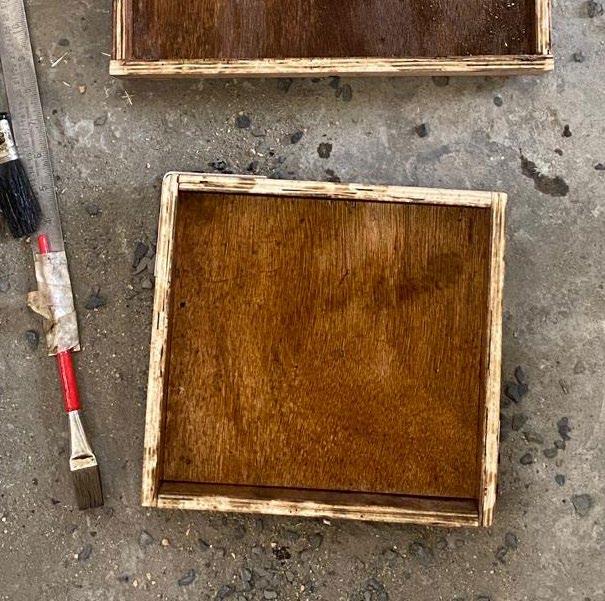

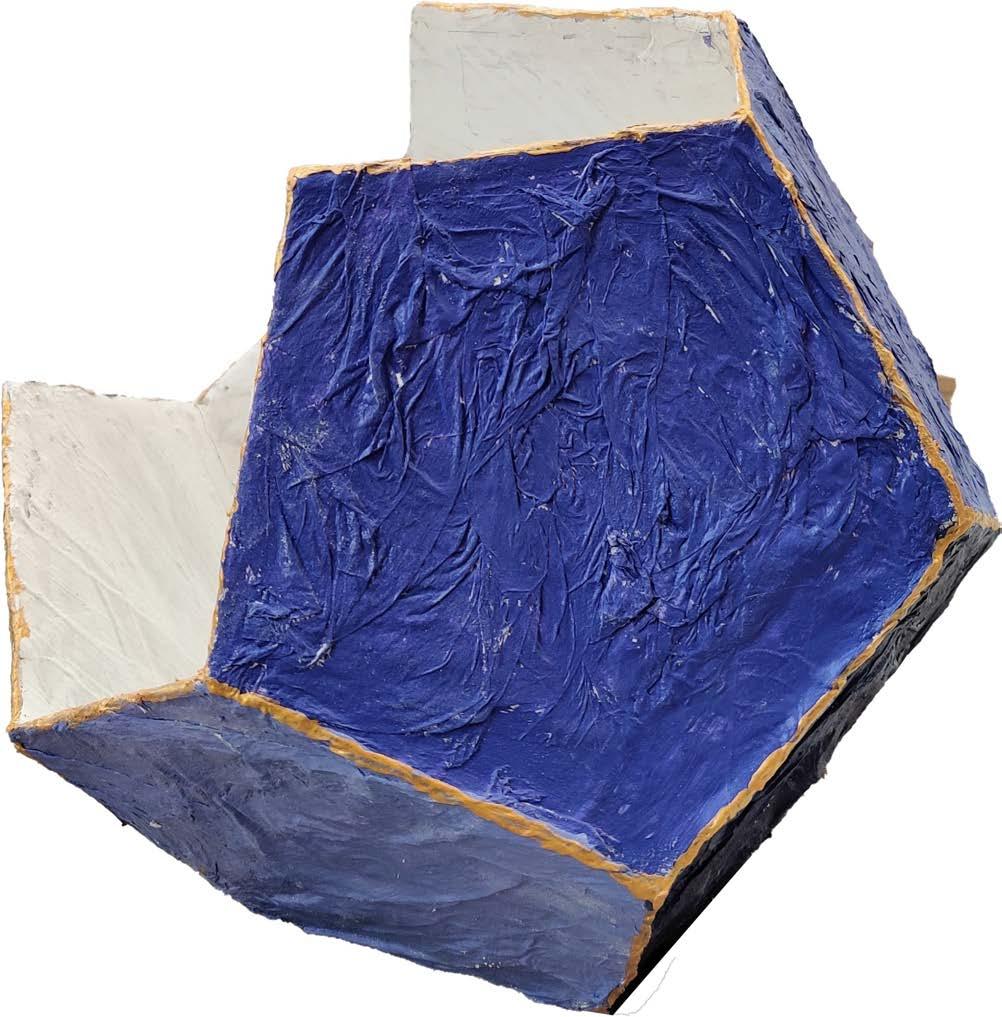

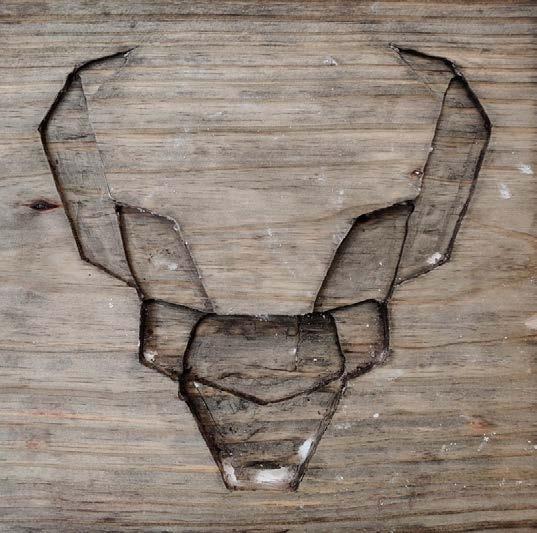

The initial step to cast POP is the making of a formwork which one wants as the final product. Here the material used is wood.

To create a perfect mixture to cast POP one needs to keep in mind the amount of water added. Even after making the mixture, it needs to be continously stirred in order to avoid lumps of POP forming. Later, after it has dried, one can articulate it by painting.

MISCELLANEOUS WORK 30 MUD

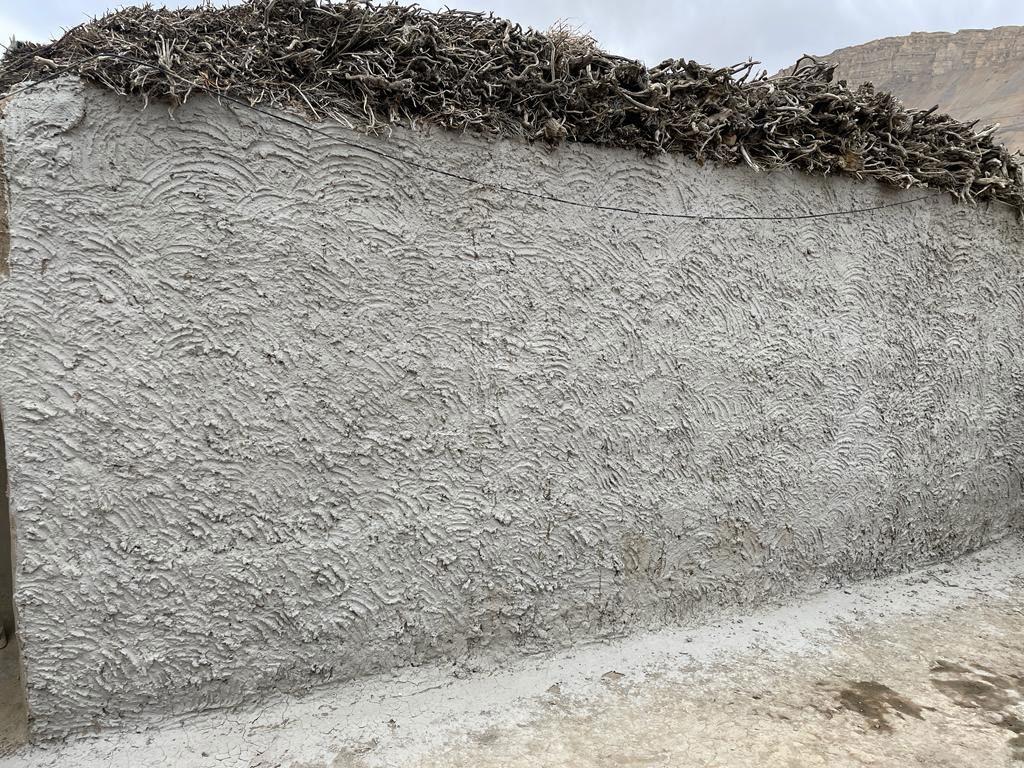

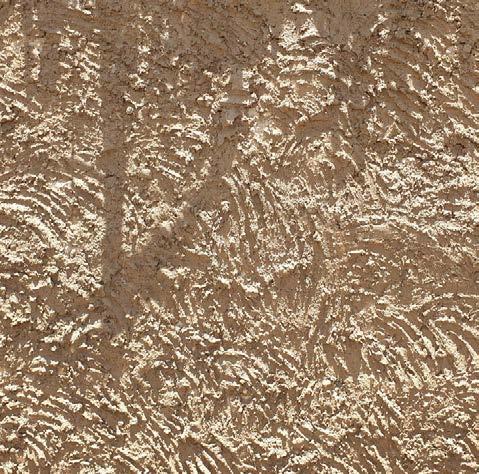

PLASTERING ON THE WALL

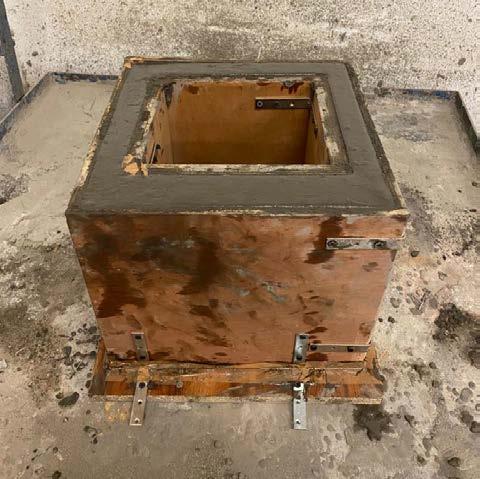

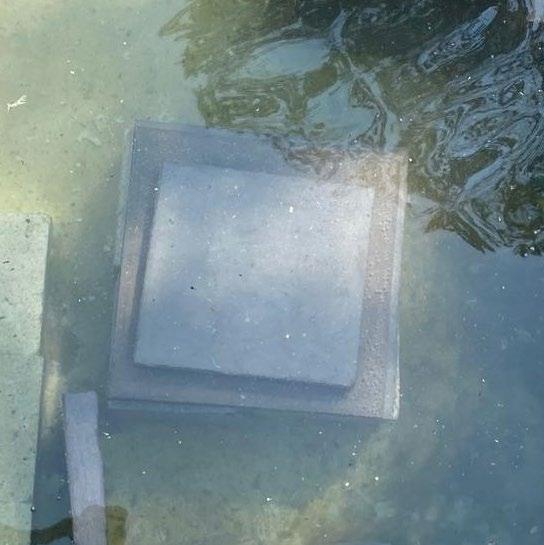

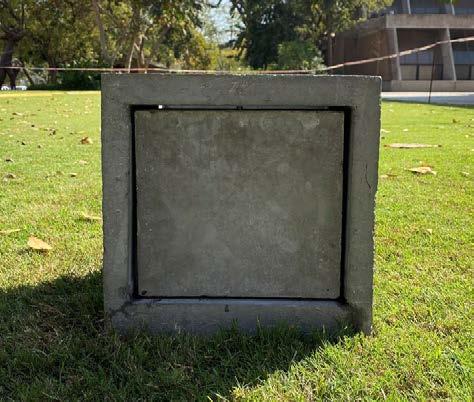

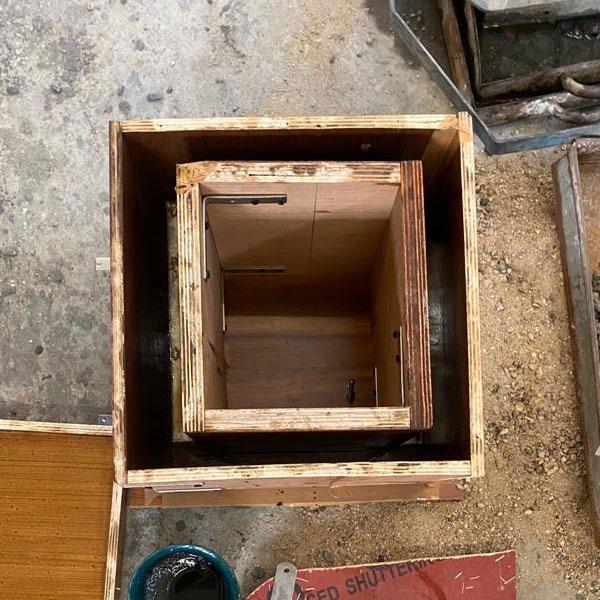

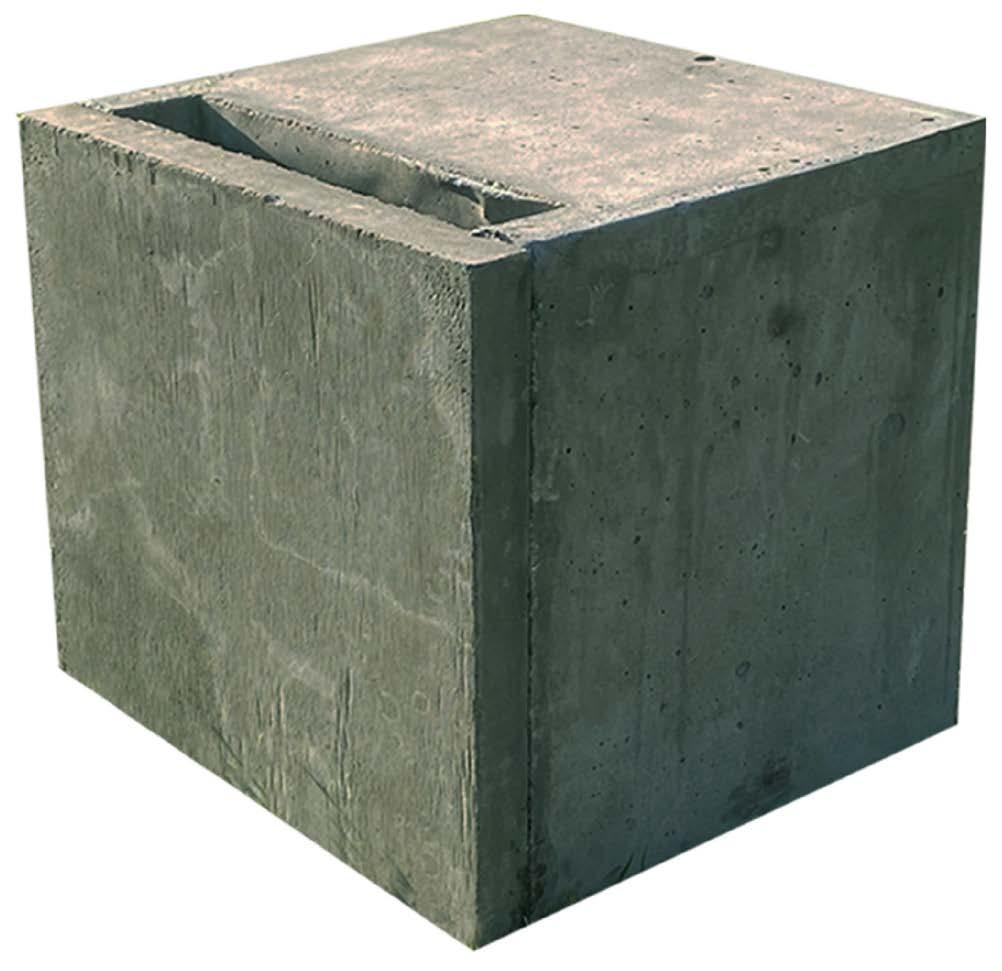

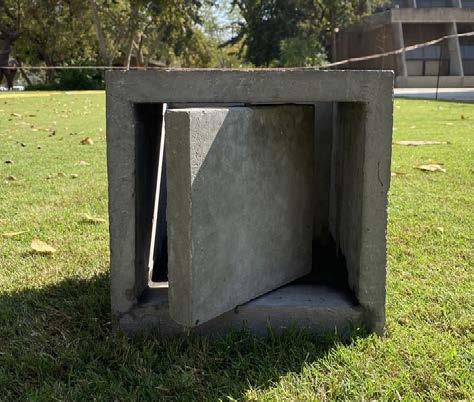

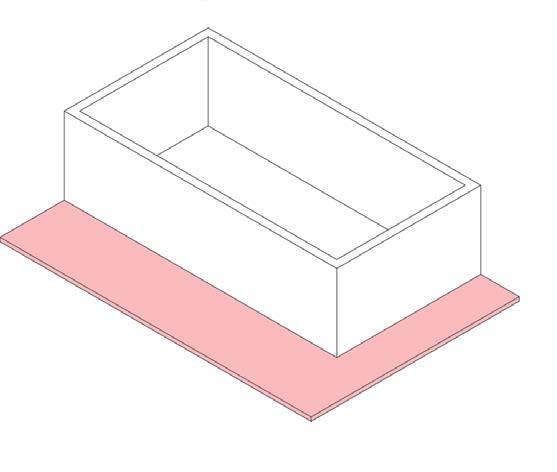

The concrete cube casted is of 300mm by 300mm by 300mm with a rotating door joined by a pivot. The plywood used to make the formwork of the cube was 12mm thick. Selecting the proper mud required Making of the paste to add colour Applying the plaster on the wall Rammed earth and masonry joinery The hand texture Mixing the mud with cow dung & water Making adobe blocks out of mud Finishing it with lime plaster

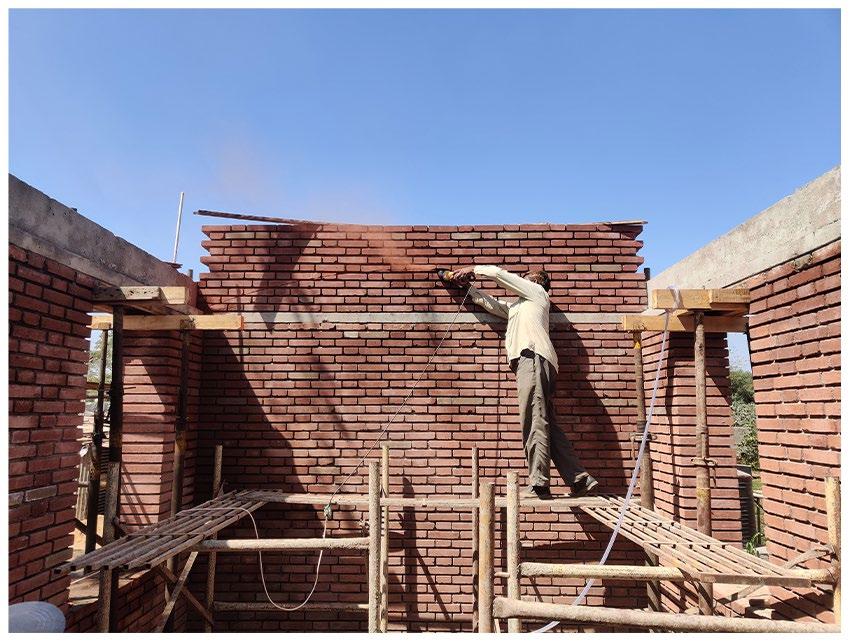

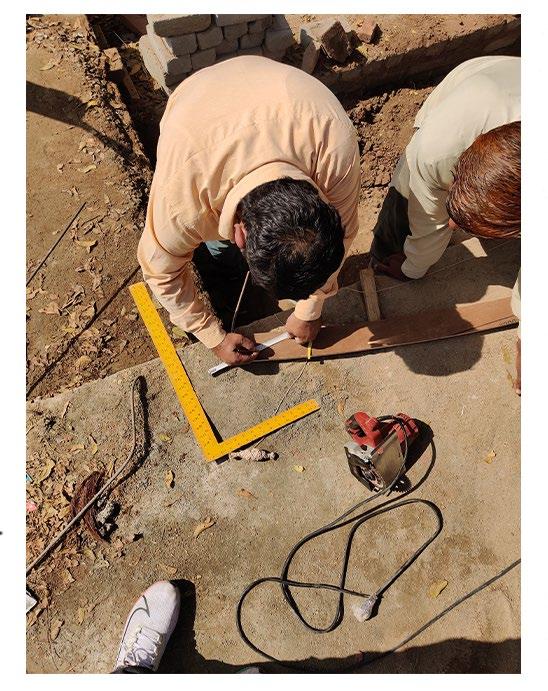

CONSTRUCTION SITE VISIT- KAKANI ASSOCIATES

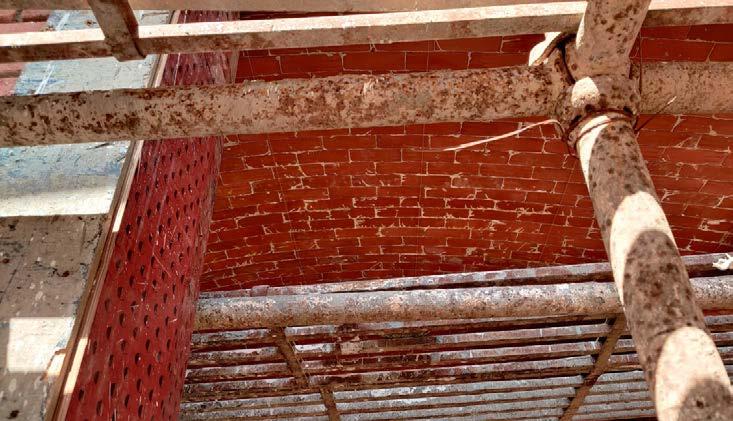

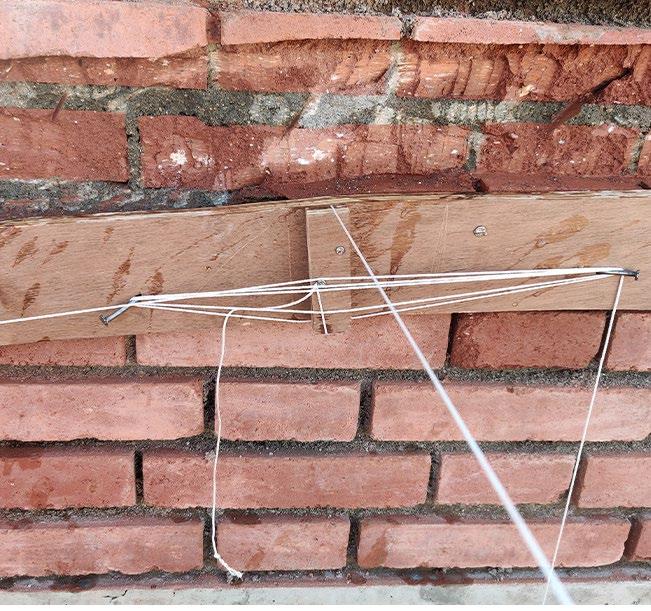

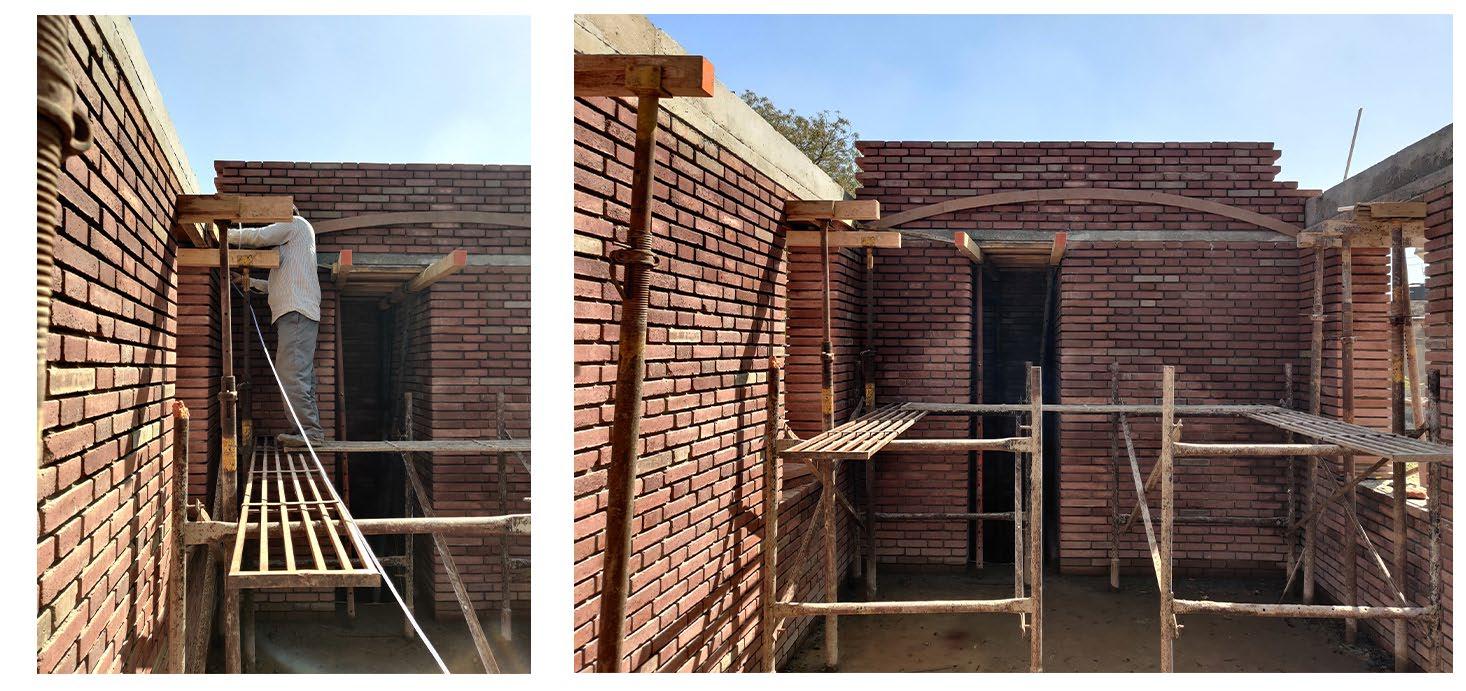

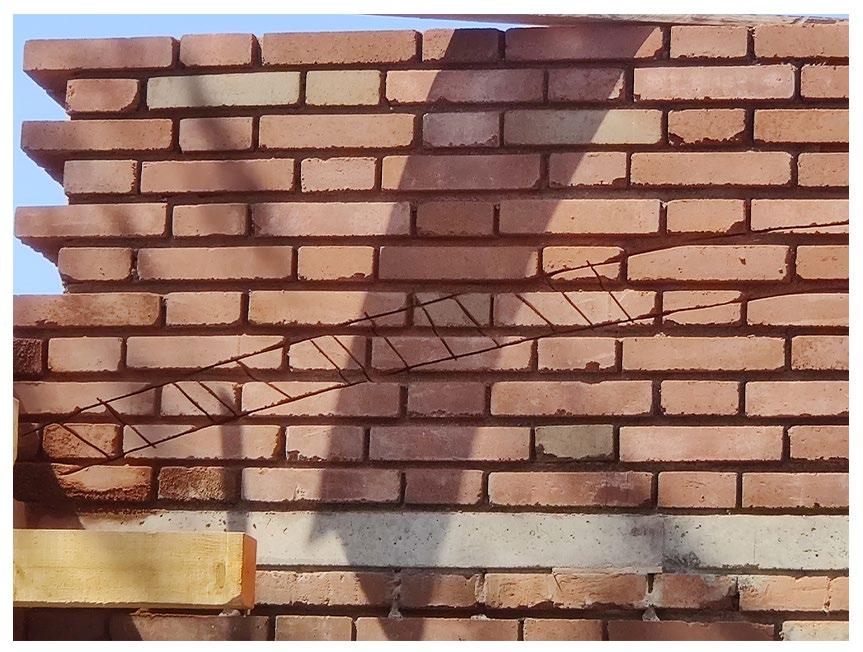

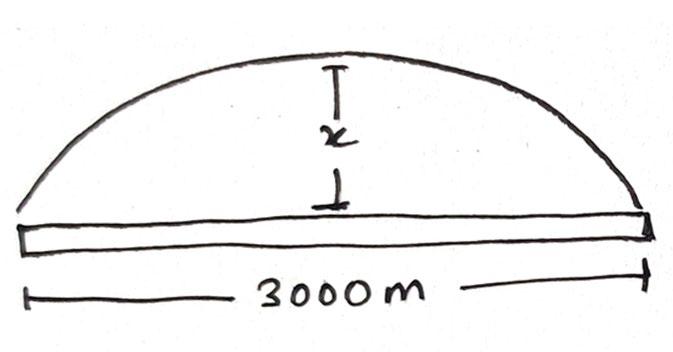

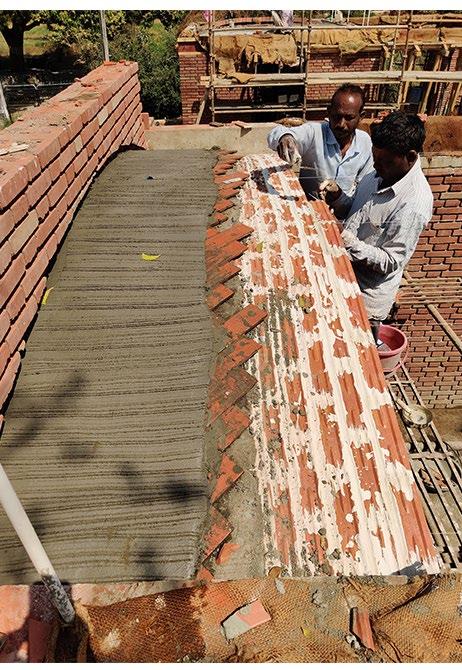

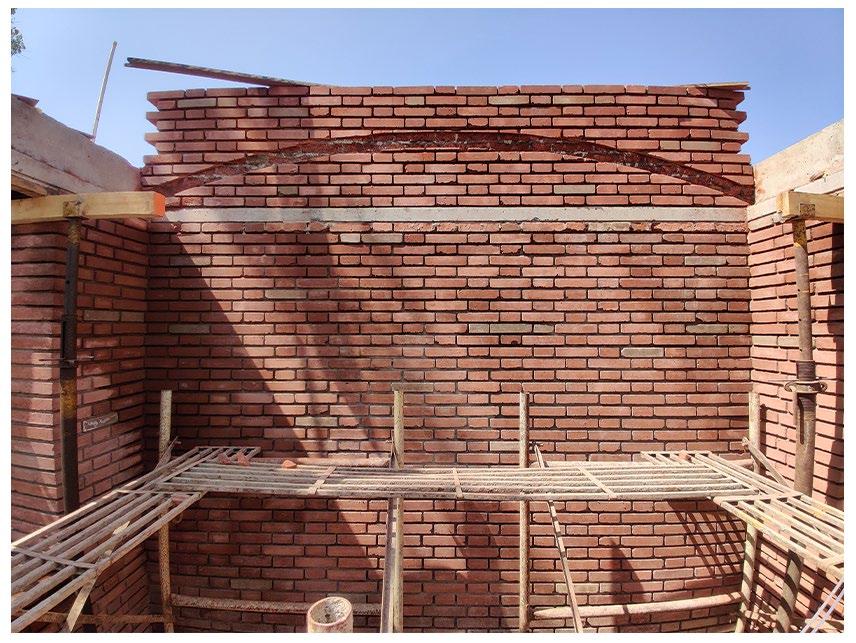

STEP 1: The formwork in the shape of vault is created on both ends of the vault and is the precision of it is checked using water tube.

STEP 2: After setting the formwork, they make the outline of the formwork using the chisel on the wall. After that, they chisel out that portion. This creates the base for the tiles to be set upon.

STEP 3: Using strings they make guidelines running paralell to the opposite end of the wall. The string is attached to the formwork using nails.

MISCELLANEOUS WORK 31

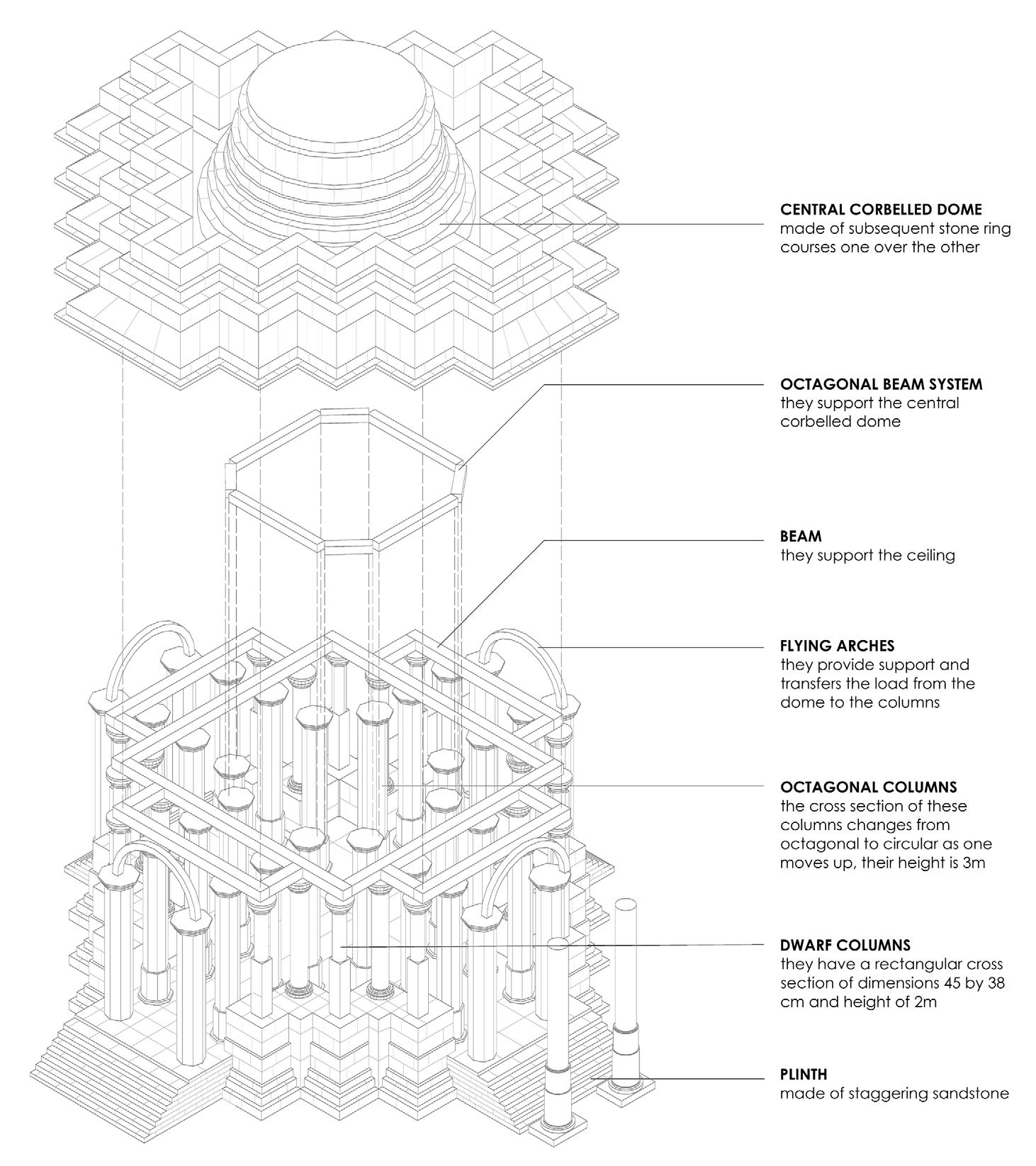

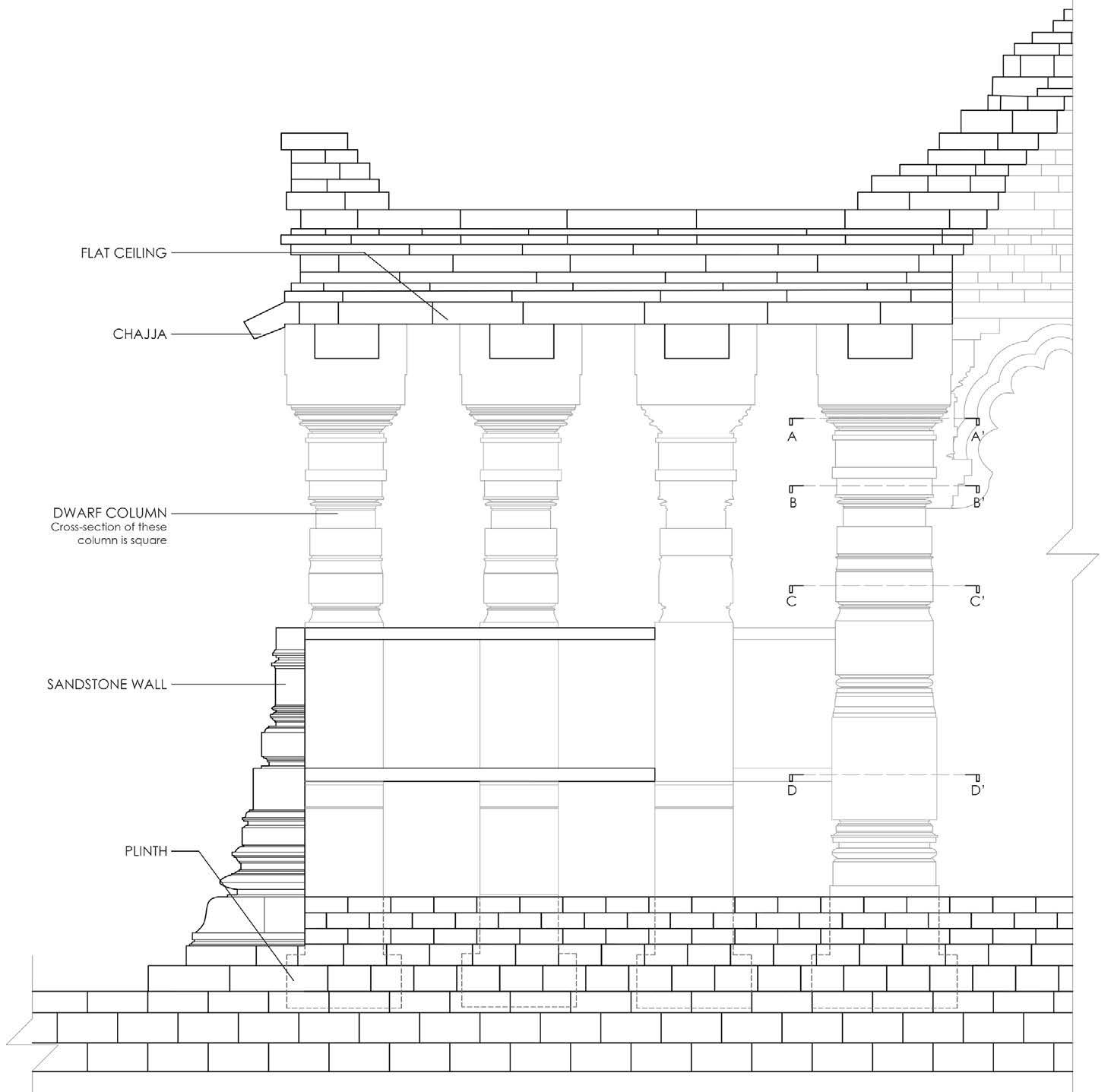

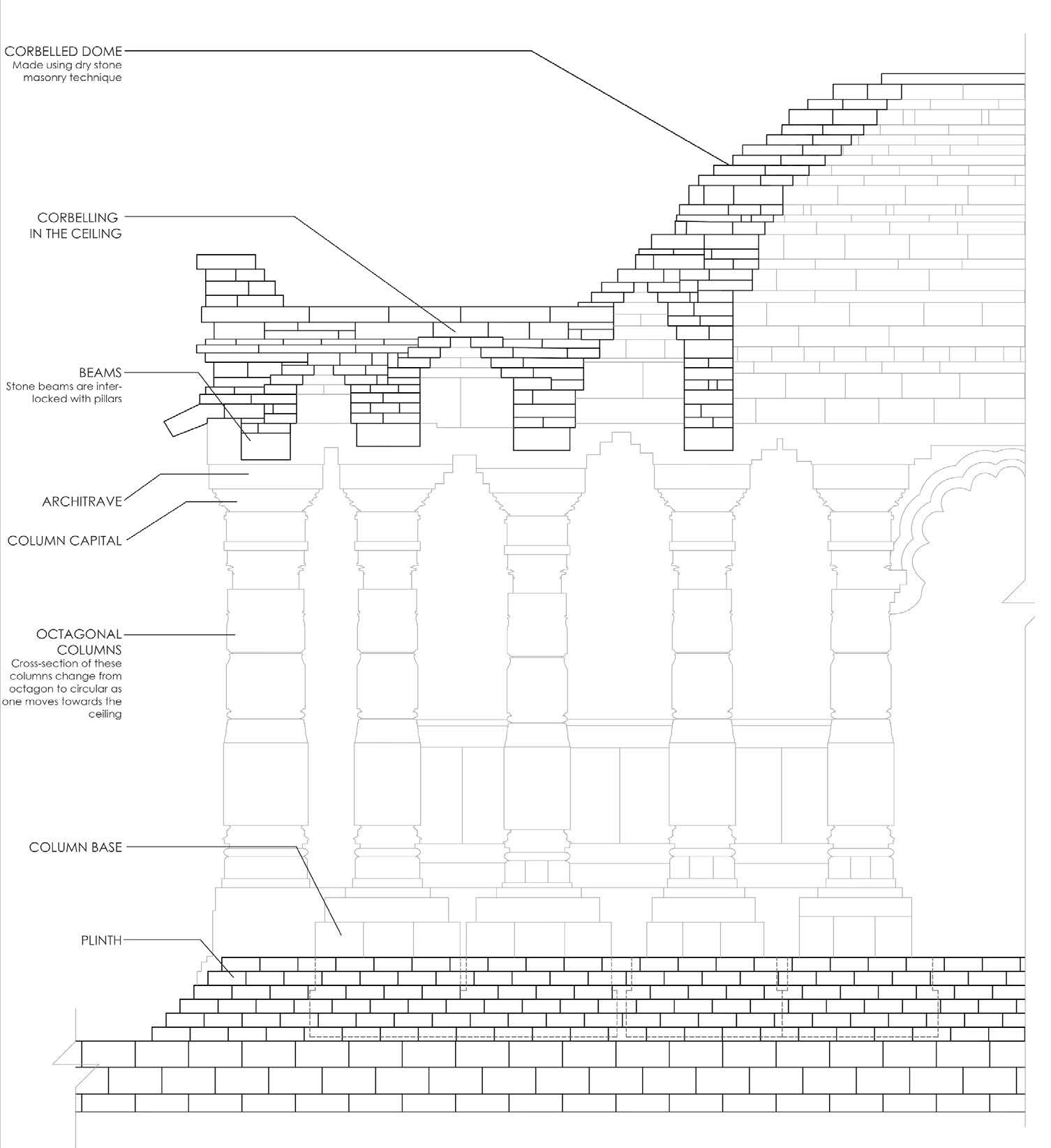

DOCUMENTING MODHERA SUN TEMPLE

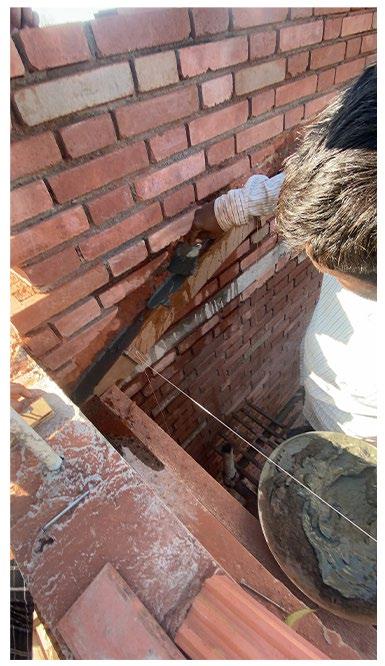

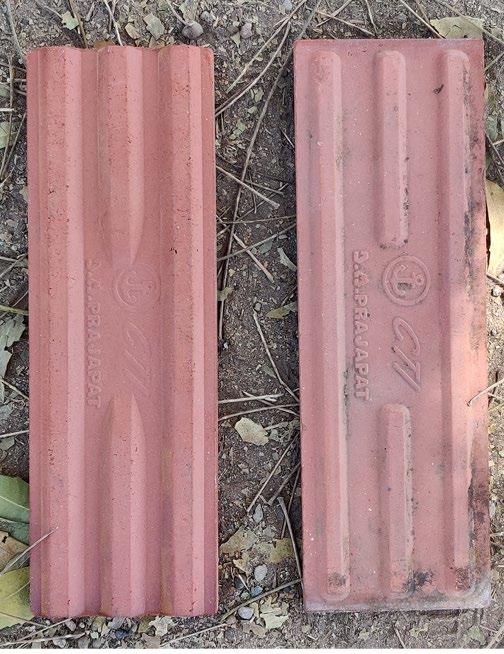

STEP 4: Layer by layer tiles are arranged to form vault
STEPS TO CONSTRUCT A TIMBREL VAULT

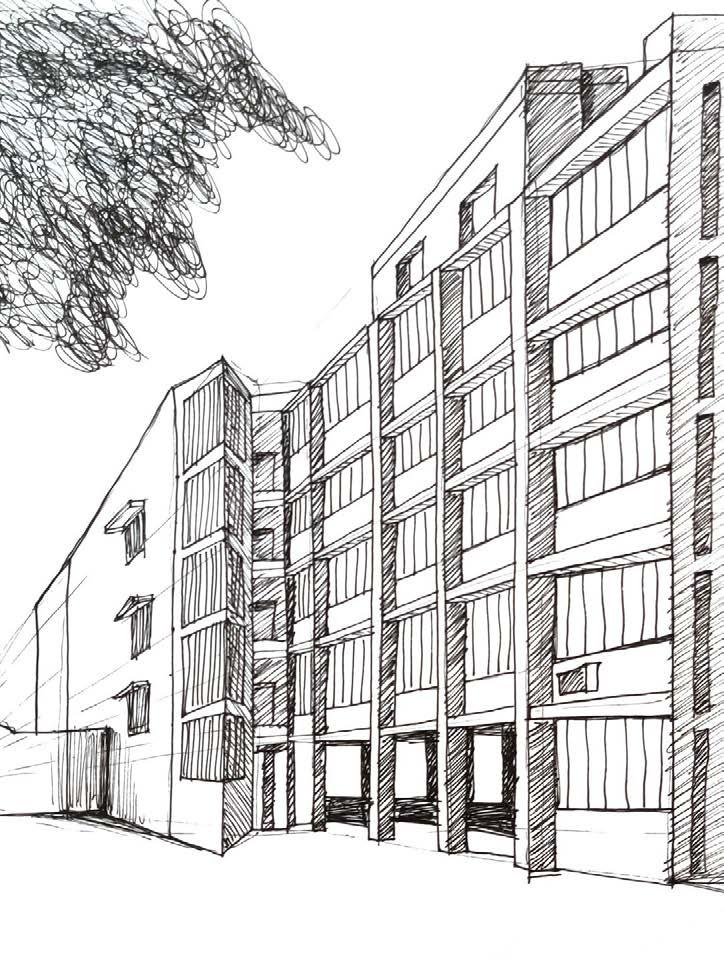

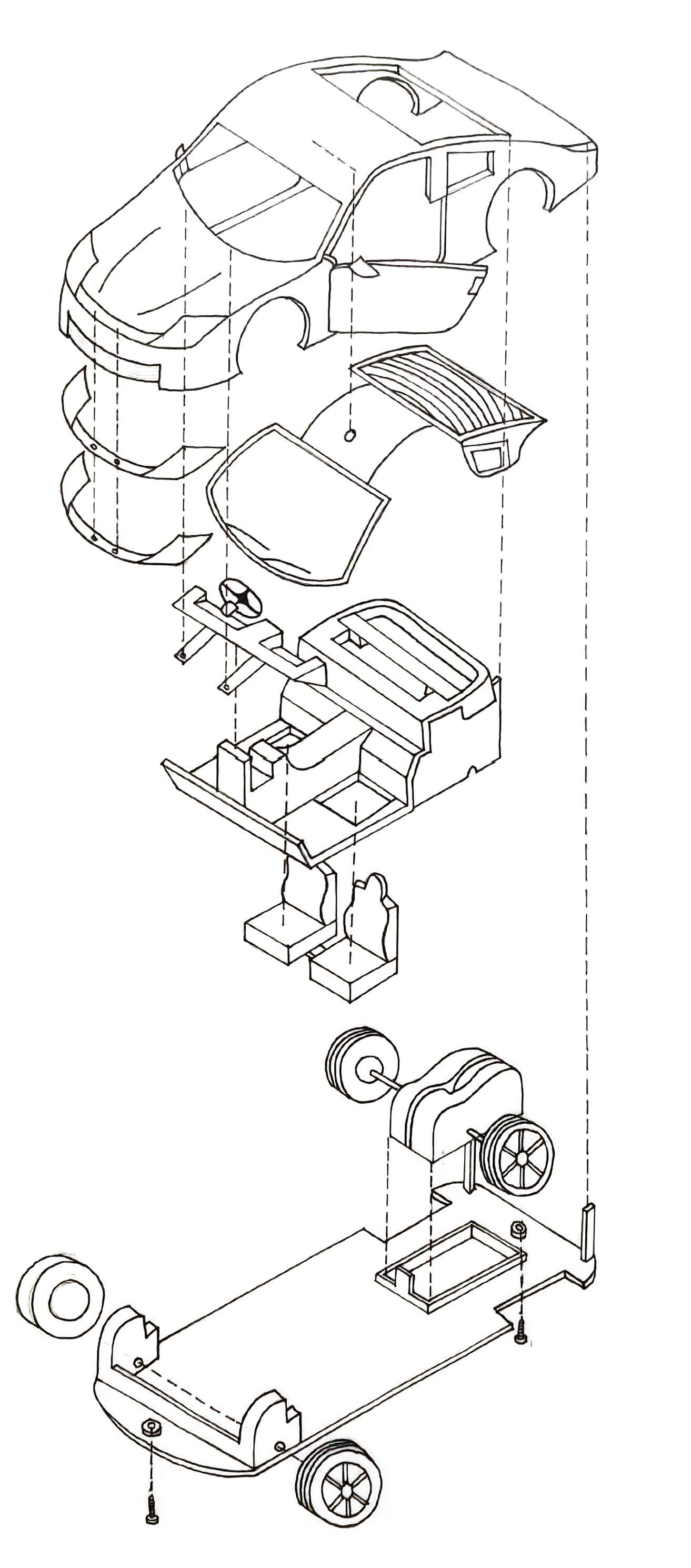

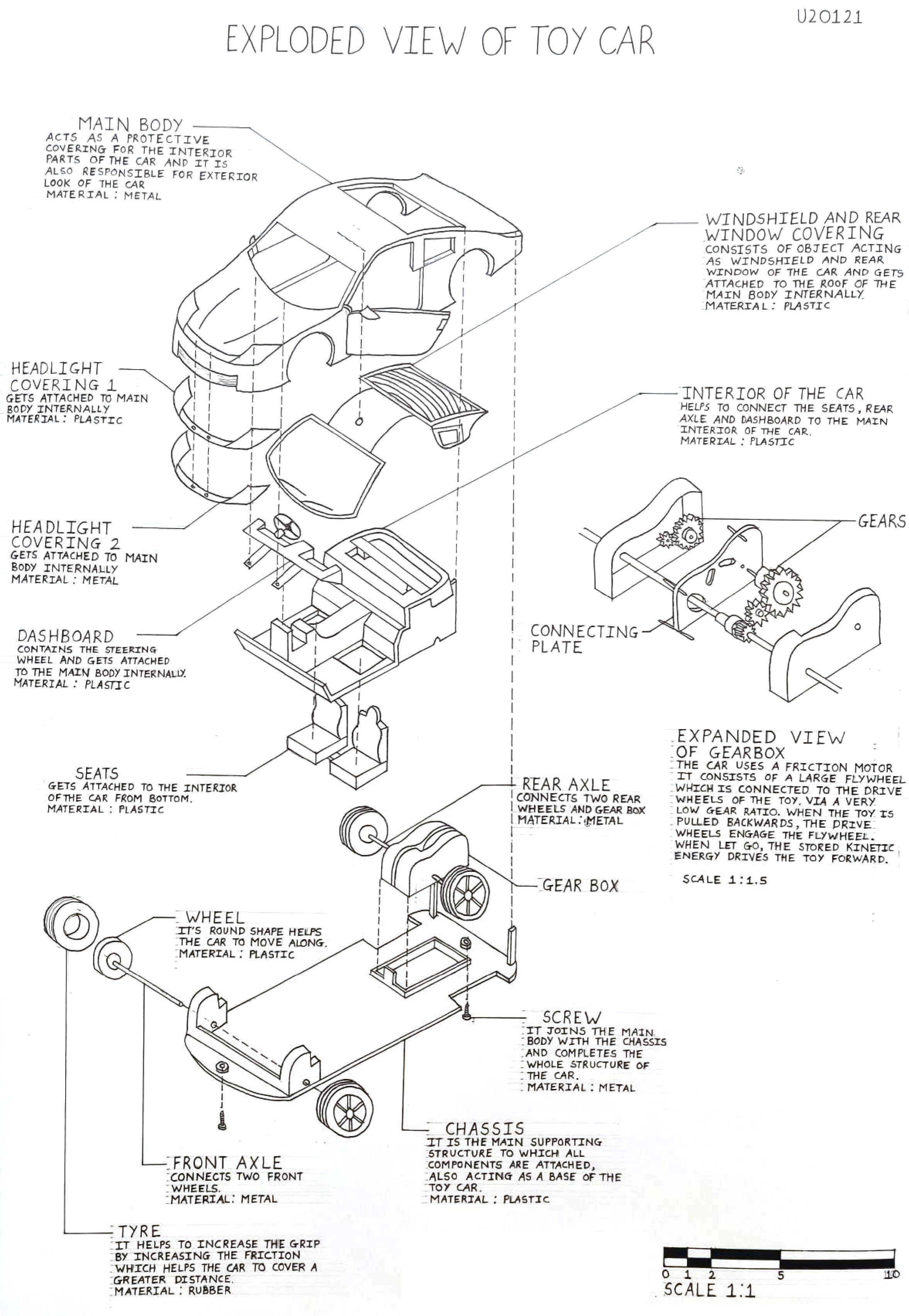

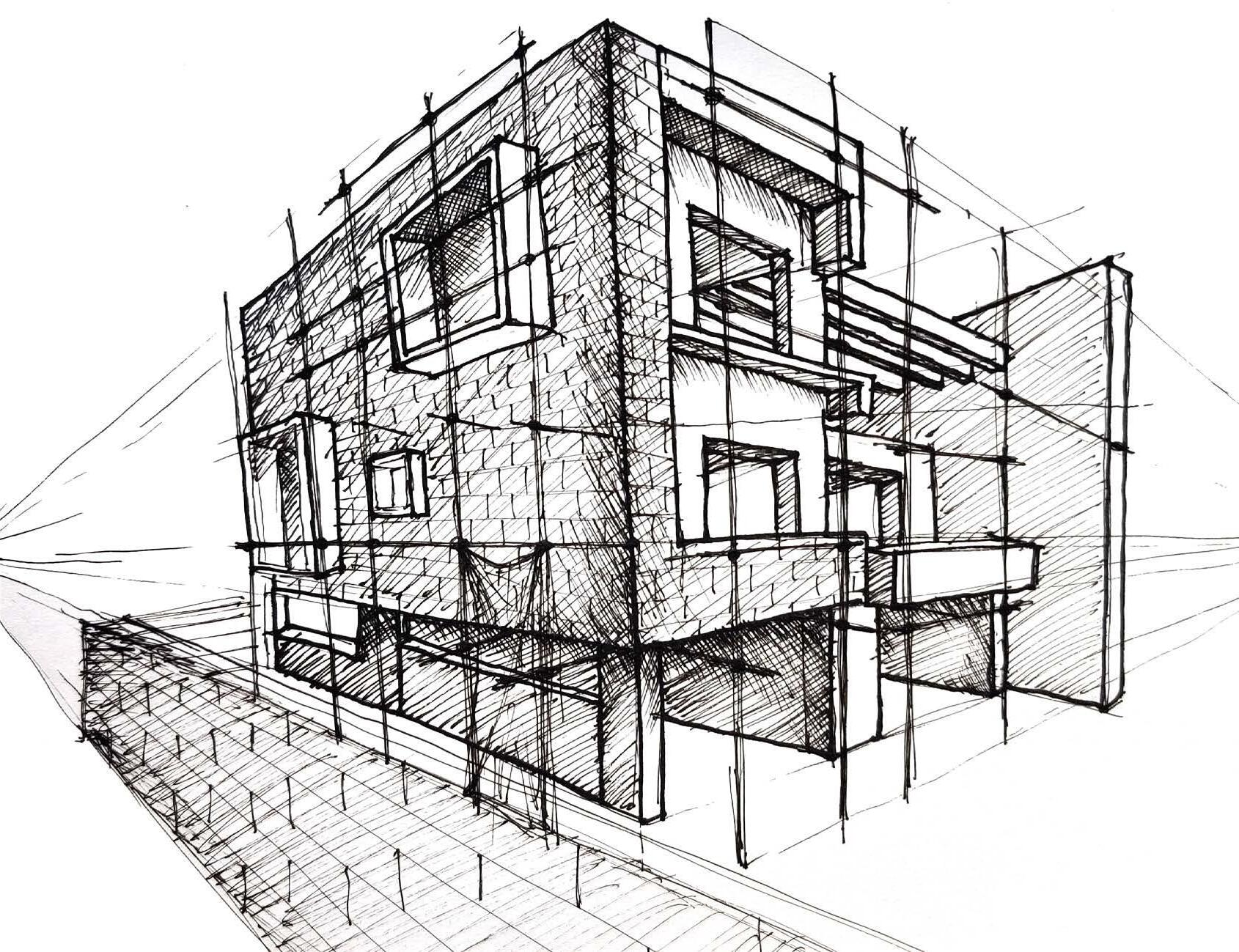

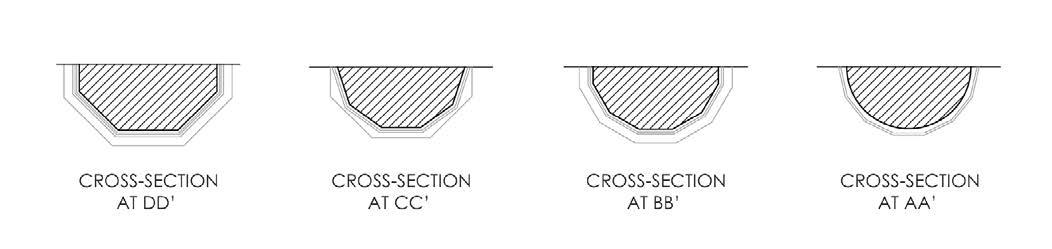

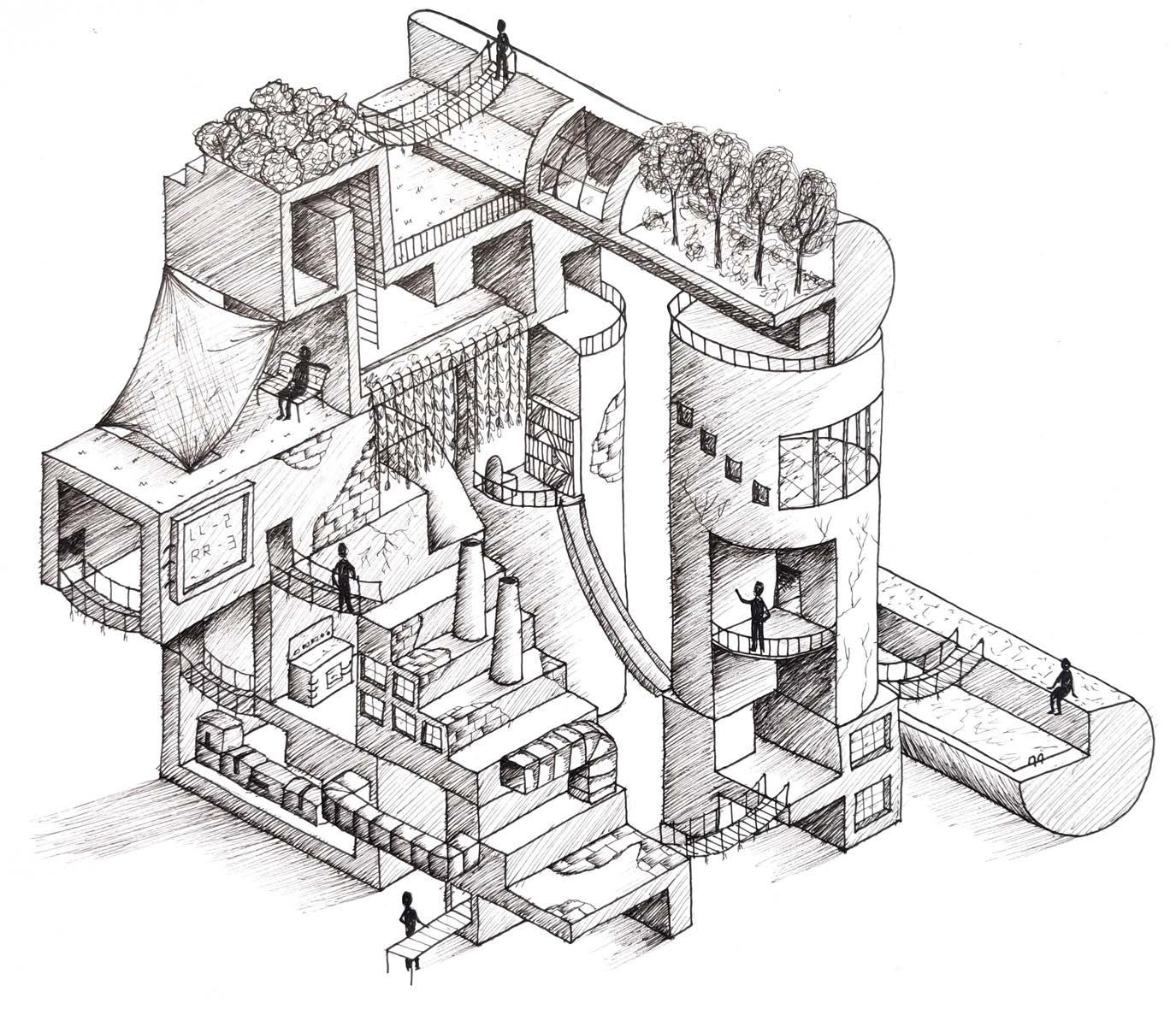

MISCELLANEOUS WORK 32 EXPLODING AN OBJECT SKETCHES

ILLUSTRATIONS OF SANAA ARCHITECTS

SANAA Architects tend to achieve the thinnest of the columns, the thinnest of the walls and effectively the thinnest of each structural element possible. But the question arises why and the answer lies in the core idea of their design. By keeping the structure minimal, they are able to maximize the transparency of the design not only internally but also externally with the surroundings.

Their core concern is with the space’s social use, and hence they do not consider a project to be finished unless it is inhabited. Their ideology lies in clean shapes and precise geometry.

By combining these with large openings, they try to bring in the environment and merge the interior and the exterior. Moreover, their material palette includes glass and the color white, which helps to bring natural diffused light into the space and make the space feel more open. These materials help to take their idea of merging the inside and outside a step further.

Not only the openings and the materials, but the type of the form which SANAA designs around is also free-flowing and clean. This strongly resonates with both the founders of SANAA (Sejima And Nishizawa And Associates) Architects, Kazuyo Sejima and Ryue Nishizawa.

MISCELLANEOUS WORK
