AGRO-PARK Reimagining the city and its open spaces Mumbai, Maharashtra

Academic | Undergraduate Design Thesis Semester X | 2022 Location| Andheri-West, Mumbai Team | Individual

Far away farms

Bridging the gap

Urban city

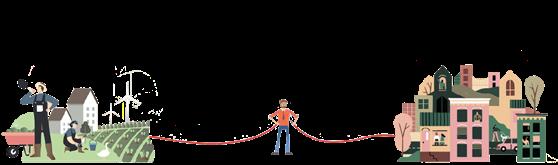

The thesis began by considering how food is linked with people, the gap between consumers and producers, and the architect’s role to bridge that gap.

The research focused on the slow food movement, diverse agricultural practices, and the typology of vertical farming systems.

The purpose was to develop a new paradigm that fosters community, improves wellbeing, and boosts economic growth by localizing the food system. Allowing cities to take responsibility for their residents’ food security creates some early opportunities to reunite the producer and consumer.

The design idea is centered on the integration of many activities engaged in farming to provide experiences and a “place” to visit. The program is designed to provide a boost to urban agriculture in an effort to raise awareness as well as provide a space for communities to come together and celebrate.

To view the Thesis Research Book, please scan the QR Code

6

The site guidelines are used to define the building form.

The built volume is developed with the minimal possible of ground floor area possible in order to optimize ground cover for farming and gardening.

The cluster is further subdivided by the addition of a central circulation zone, resulting in the formation of two green pockets.

The built form is further split up to break the monotony of the built and to provide access.

The height is modified to fit the needs of the users, and the program is segregated into three floors based on the amenities.

Parking

Logistics department

Education

Admin

Restaurant

Cafe

Market

Indoor farming

Research Lab

Supermarket

Game zone

Garden

The green pockets are further subdivided into zones.The proposed amenities are designed for three floors.

To make the project economically viable, the structure is elevated to lease for multiple purpose.

Proposed amenities

Area for lease

Agriculture zone

Design process and conceptualisation

Garden

Pathways

7

LEGEND 1. Entrance 2. Food stalls 3. Ramp 4. Plaza 5. Supermarket 6. Nursery 7. Market 8. Flower garden 9. Packaging unit 10. Garden pavilions 11. Orchards 12. Farmland 13. Recycling 14. Service entry

GROUND FLOOR PLAN

SECTION AA

8

LEGEND 1. Reception and waiting room 2. Manager’s room 3. Office 4. Office 5. Staff lounge 6. Conference room 7. Washrooms 8. Storage 9. Consulting room 10.Staff room 11. Lecture room 12. Workshop 13. Exhibition space 14. Roof top gardening 15. Indoor farming 16. Cold Storage 17. System control room 18. Pump and filter room 19. Electrical room 20. Changing room

FIRST FLOOR PLAN

SECOND FLOOR PLAN

9

LEGEND 1. Gaming zone 2. Cafe 3. Food court 4. Washroom 5. Indoor farming 6. Mechanical room 7. Research lab 8. Changing room

THIRD FLOOR PLAN

WEST ELEVATION

10

Farmland

Roop top garden

Market

Garden pavilions

Workshop Area

Exhibition Space

11

PARK AND PLAY

Academic | Urban Design Studio Semester IX | 2021 Location| Vadodara, Gujarat Team | Individual

The primary objective of the urban design studio was to learn about the city’s history, socioeconomic characteristics, physical infrastructure, ecological factors, and activity mapping at different times of day. Finally, future development concepts were developed by overlaying the smart city plan with the development plan.

The research area was chosen to be in the centre heart of Vadodara, between the railway station and the Alakpuri region. The research began as a group project and was followed by numerous individual initiatives for the neighborhood, providing needed facilities such as break squares and leisure spaces.

The main aim for individual proposal was to design a multi level parking along with recreational zone which increases social interaction, appealing to kids, youngsters and adults.

The proposal is intended to have upto four floors, however further floors may be added in the future.

Kindly scan the QR code to access my compilation of Urban deisgn group work Please review pages 10,37, 38, 40,54,55, 57, and the final compilation to evaluate my contribution to the group work.

12

• • • •

The city of Vadodara is divided into 13 wards. The site falls under ward 10.

The site is opposite to railway station. Surrounded by residential areas and commercial complexes.

The area opposite the site is used for railway parking.

The front of the site is used for parking.

Site

Commercial

Residential

ISSUES: • • •

Due to insufficient area for railway parking illegal parking is done on the site On street parking leads to haphazard traffic at times.

No recreational zone present in Alkapuri area.

SITE ANALYSIS

Reference is taken from the guidelines of the site.

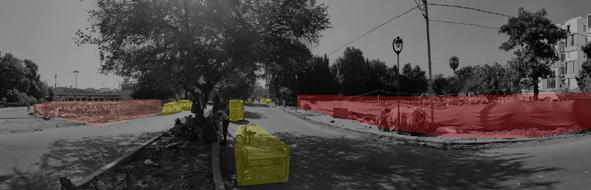

Railway Parking

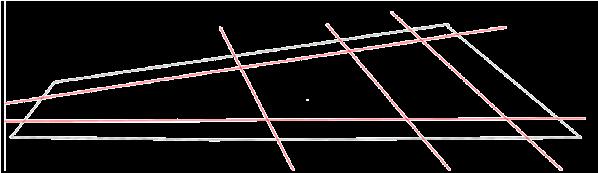

Following the guidelines from the site, various pockets are formed.

On- street Parking

The activities are divided into two categories: Built form: Multi-level parking Ground floor: Other activities

Illegal Parking on site

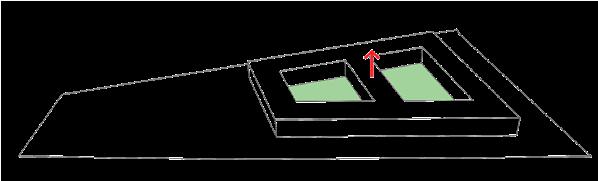

The ground floor is elevated for recreational activities.

CONCEPTUAL DIAGRAM

13

2 1 5 3

4 6

A’ 5

7 8 A

FIRST FLOOR PLAN LEGEND

9

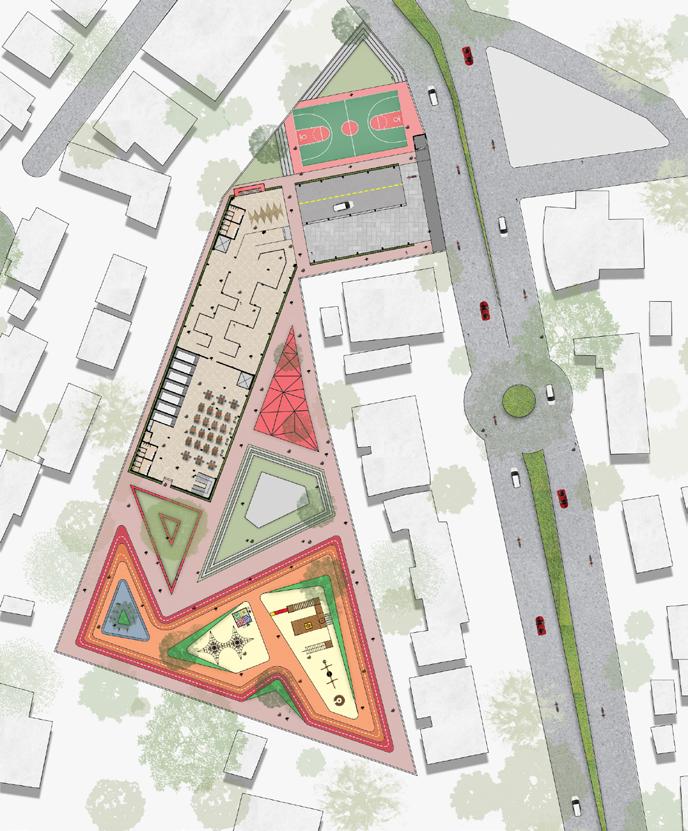

GROUND FLOOR PLAN

SECTION AA’

14

1.

2.

3.

4.

5.

6.

7.

8.

9.

Entrance Basketball court Exhibition Food court Washrooms Triangular seating Stepped seating Playful ribbon Playscape and outdoor gym 10. Parking for 2 wheelers 11. Fire exit

Triangular seating Baketball court Playful ribbon

Stepped seating

Playscape

SITE ACTIVITIES

15

STUDENT HOUSING

Academic | Housing Design Studio Semester VIII | 2020 Location | Vidhyanagar, Gujarat Team| Jumana Parwala My Role | Site Analysis, Conceptual design, Drawings and Graphical representation

The primary objective was to analyze the diverse requirements of architecture studnets and faculty,and then deisgn a residence with shared amenities and green spaces.

The idea was to investigate socio-cultural and architectural factors that influence student satisfaction by offering basic as well as lesuire amenities to student along with faculty members.

The design‘s primary concept was to zone the site in such a way that basic facilities are located at the core, acting as a bridge for undergrads and experimenting with solid and void throughout the structure.

16

LOCATION: Opposite to A.P.I.E.D campus , Vallabh Vidhyanagar USER GROUP: A.P.I.E.D students (650) and nearly 32 full time faculty and Visiting Faculty members.

SITE A.P.I.E.D CAMPUS SHASTRI MAIDAN

SITE ANALYSIS

Selecting a single volume.

Dividing the volumes in 3 parts center for circulation.

Reduction of volumes resulting into voids.

BVM CAMPUS

PRIMARY ROAD

ISCON BUILDING

SECONDARY ROAD

GARDENS

TERTIARY ROAD

Placement of vertical circulation are decided.

Converting voids into communal spaces.

Stacking of modules

Sky bridges acting as common space and connection between two buildings.

CONCEPTUAL DIAGARM

STUDENT CLUSTER

17

LEGEND Site entry

3

Primary road Main node Basic amenities

1

Stepped sitting 1.

2.

2

3.

4.

Student cluster (g+4) Student cluster (g+5) Common gathering Common gathering (faculties) Multipurpose + AV room Library

4 1

Gym + indoor game Play ground Faculty housing N

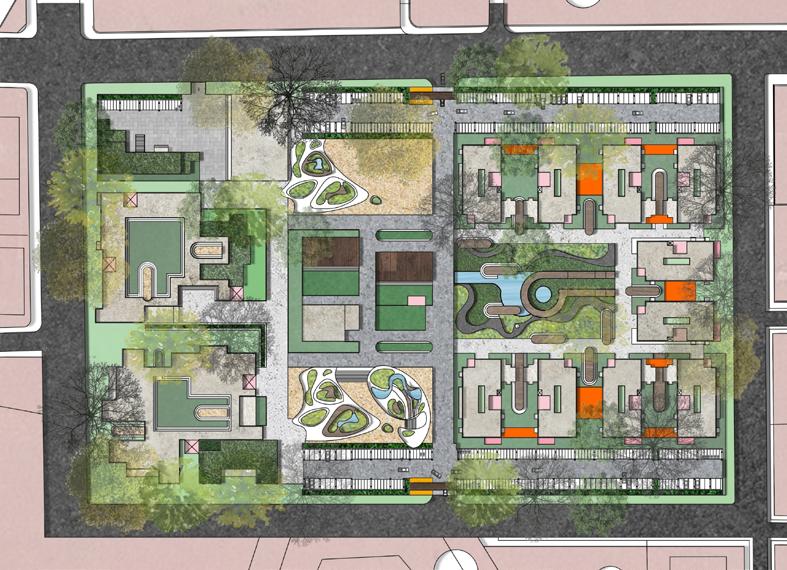

SITE LAYOUT

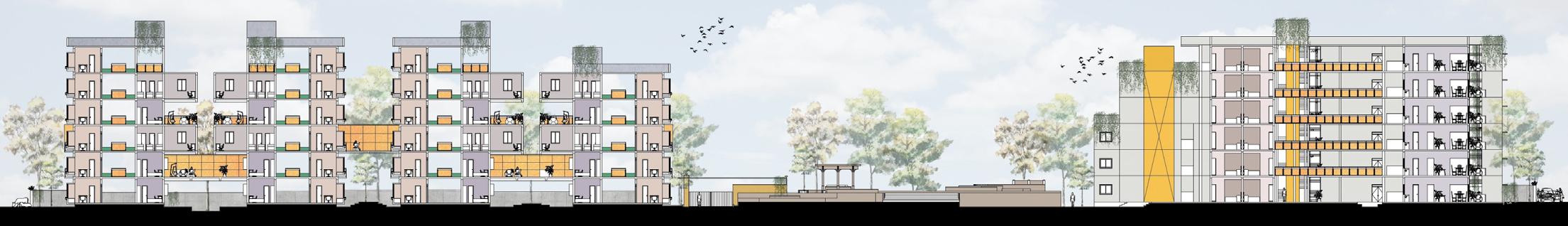

SECTION AA’

18

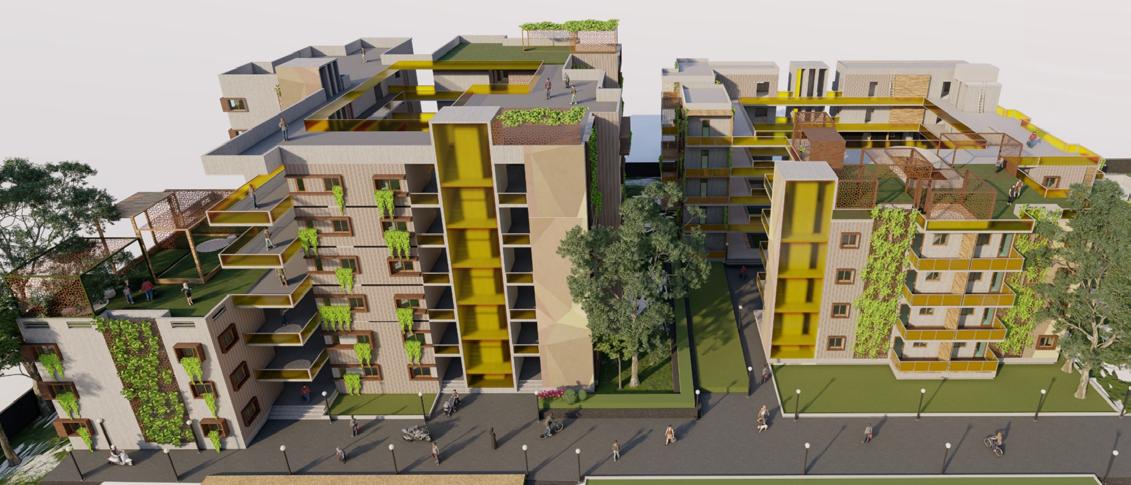

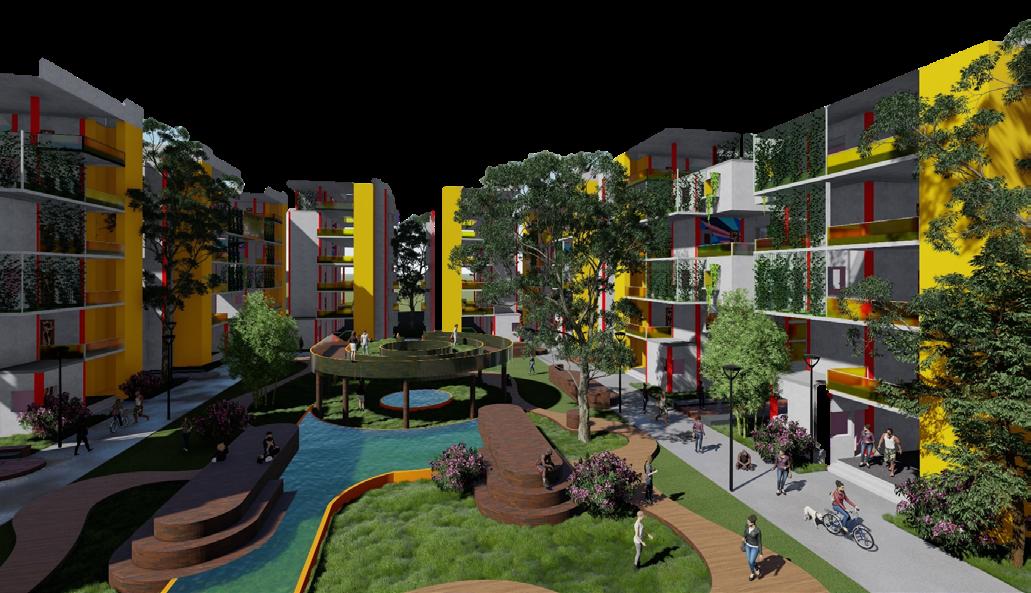

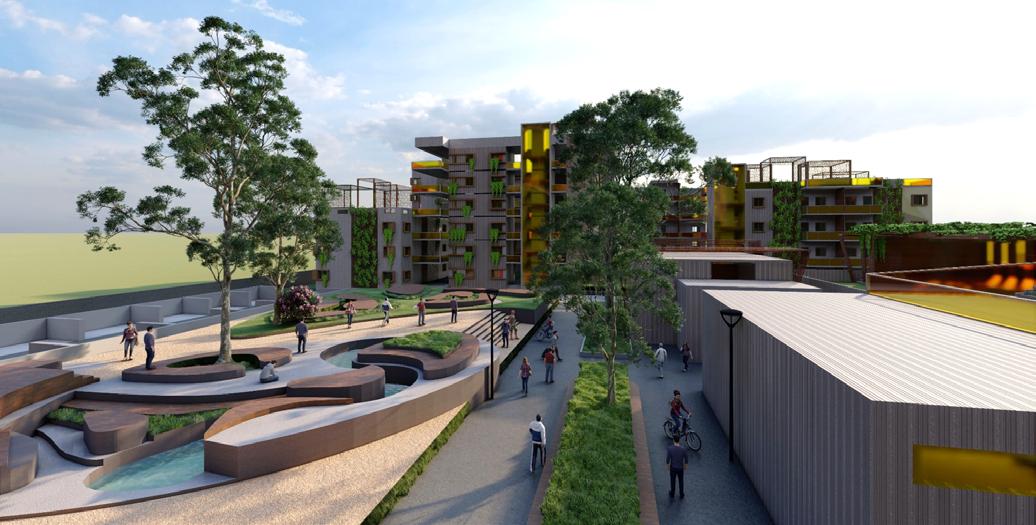

VIEW FROM STUDENT CLUSTER

Faculty and guest cluster

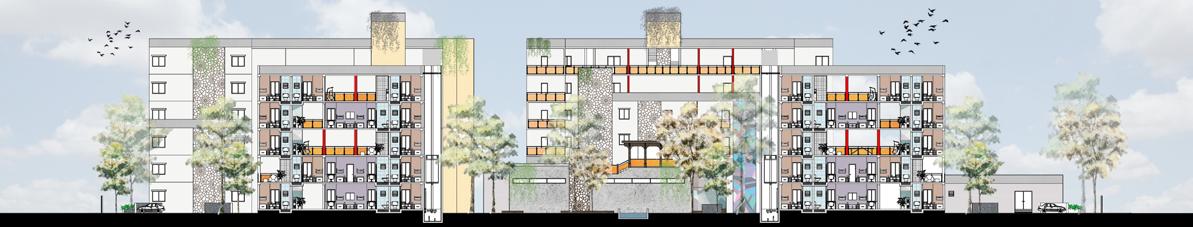

SECTION BB’

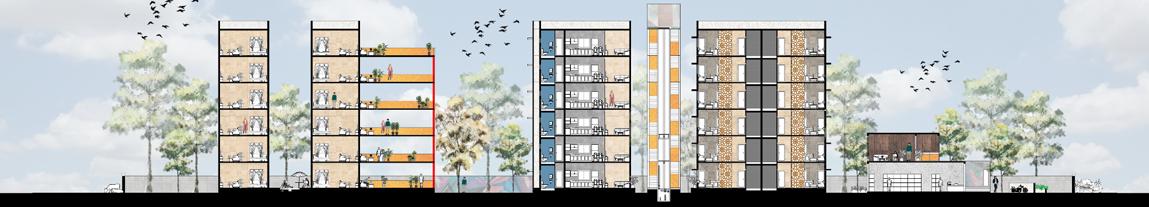

SECTION CC’

FACULTY CLUSTER

19

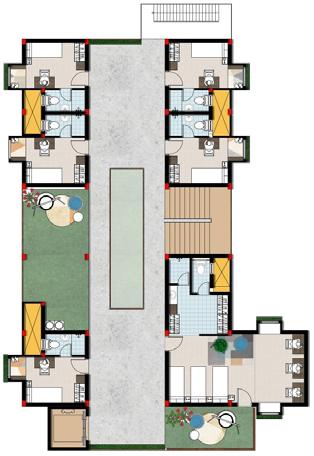

GROUND FLOOR PLAN

FIRST FLOOR PLAN

SECOND FLOOR PLAN

THIRD FLOOR PLAN

FORTH FLOOR PLAN

FIFTH FLOOR PLAN

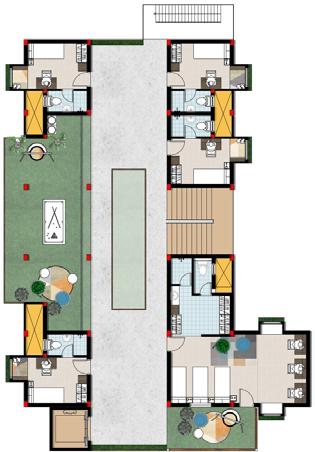

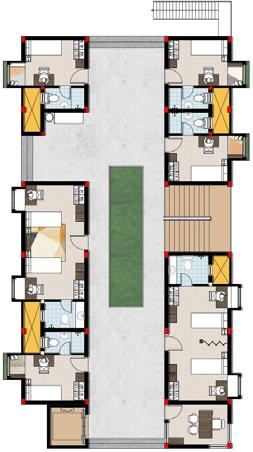

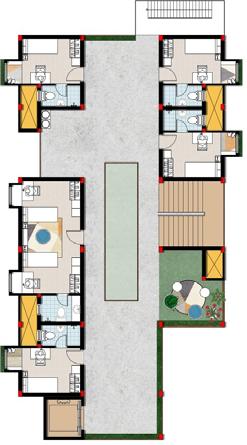

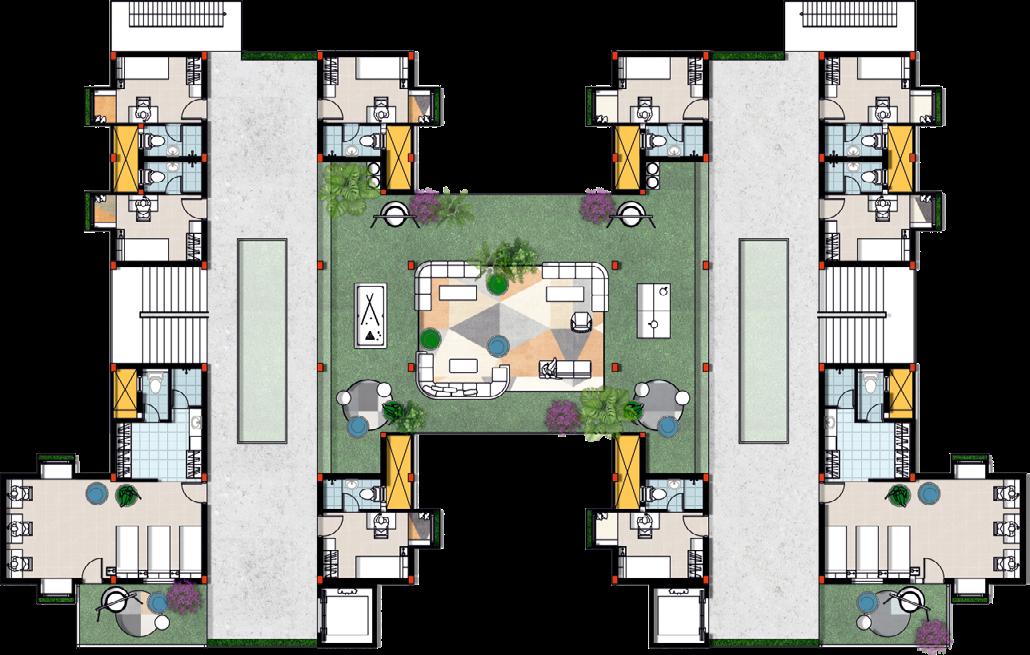

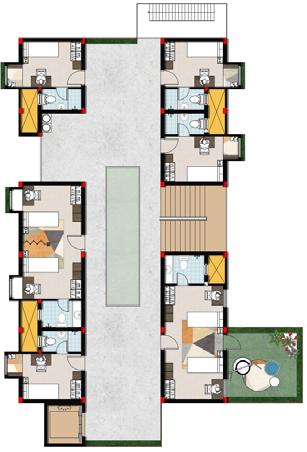

STUDENT CLUSTER PLAN • • • •

20

The relationship between solid and void throughout the built in turn creates permeable, extroverted and introverted scenarios.

The voids are strategically located to allow for increased air movement through building mass which promotes natural ventilation through housing unit.

The voids in the design approach acts as collaborative spaces along the common corridors of hostel blocksas an orchestration of multi-use spaces.

There are total 10 student clusters on the site , in which 3 cluster has warden room and office on the ground floor and remaining clusters has laundry rooms.

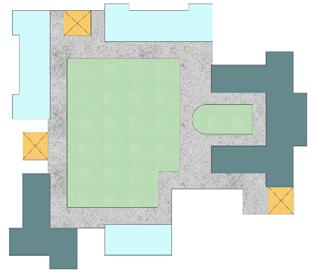

BRIDGE PLAN

SECTION

SHOWING THE RELATIONSHIP BETWEEN 2 CONSECUTIVE BUILDINGS

21

FOLD-UP WINDOW

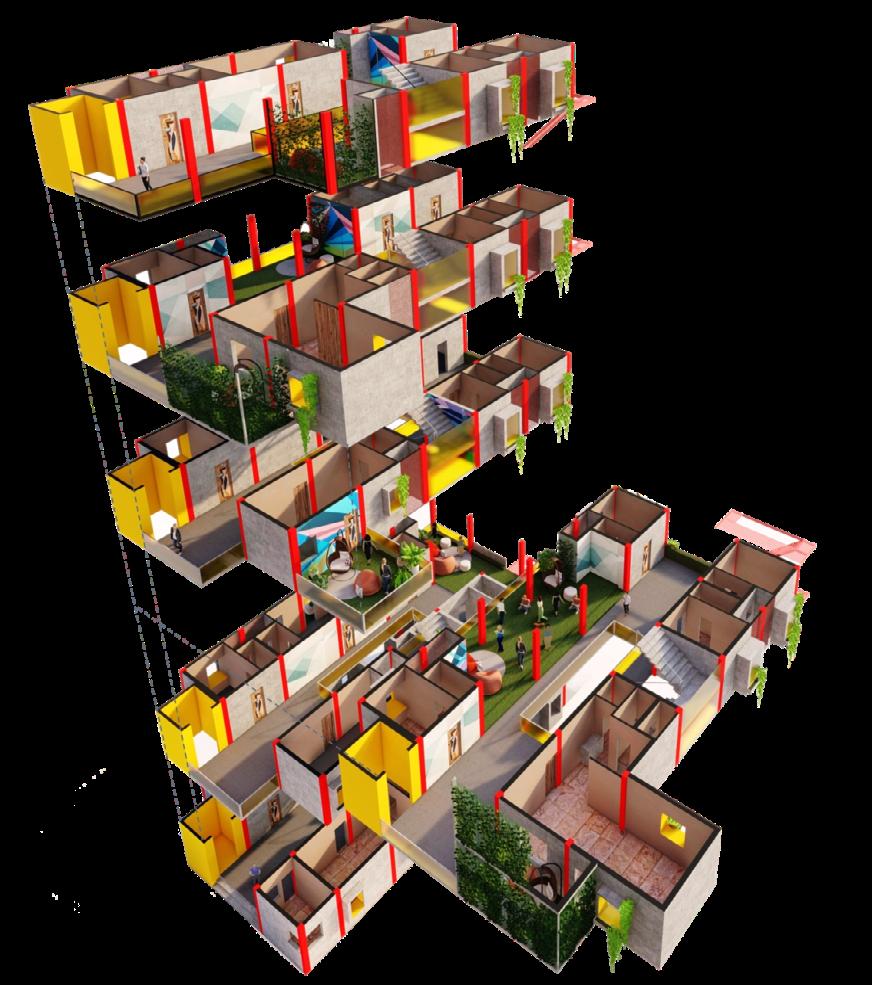

EXPLODED ISOMETRIC VIEW OF STUDENT ACCOMODATION

22

Sleeping space

Bathroom

Study

Window seat

Study

Common space

Study

Balcony

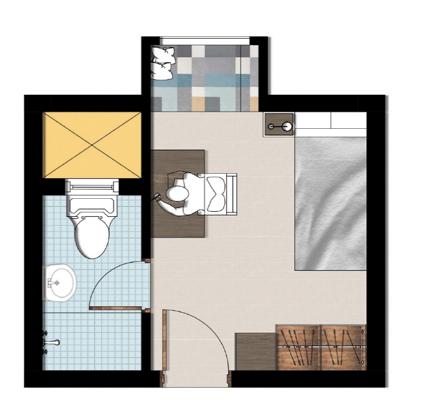

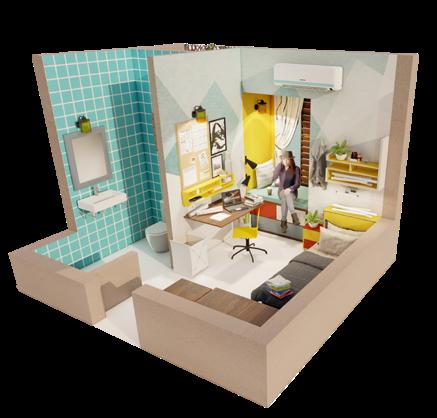

SINGLE OCCUPANCY

Sleeping space

Bathroom

Box window

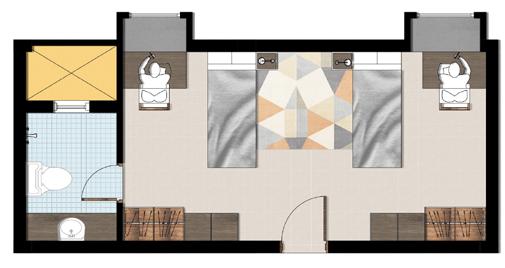

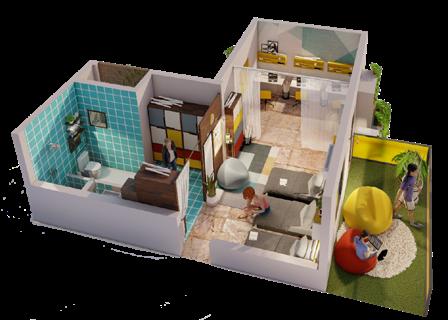

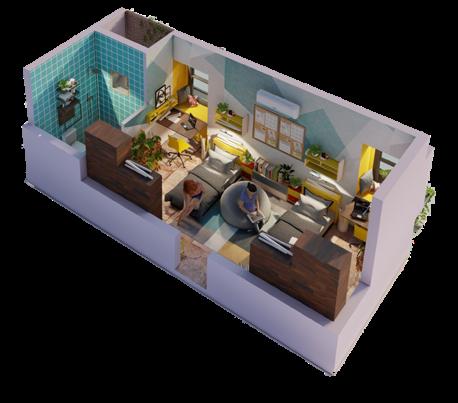

DOUBLE OCCUPANCY

Sleeping space

Bathroom

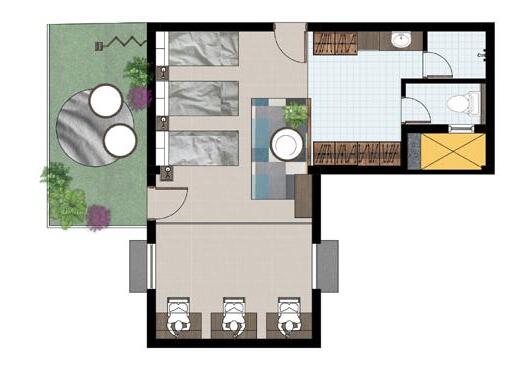

TRIPLE OCCUPANCY

INDIVIDUAL STUDENT UNITS

23

Studio apartments 2BHK 3BHK 3.5 BHK Common green space Studio apartments

• •

The Cluster 1 comprises of 2BHK (assistant professor), 3BHK (associate professor), 3.5BHK (HOD and principal) and studio apartments(1BHK).

The 3.5BHK goes up to G+2 floors, while other apartments goes

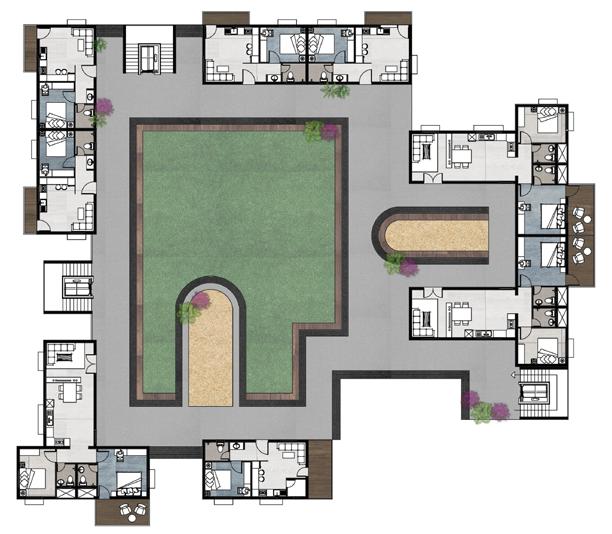

Stair well 2BHK 1BHK Circulation Green space Faculty apartments Guest apartments

• •

The Cluster 2 is provided for faculty and guest housing.

The cluster 2 comprises of 1bhk and 2hk, where faculty apartments goes up to G+4 floors while guest apartments goes up to G+3 floors.

FACULTY CLUSTER

24

N

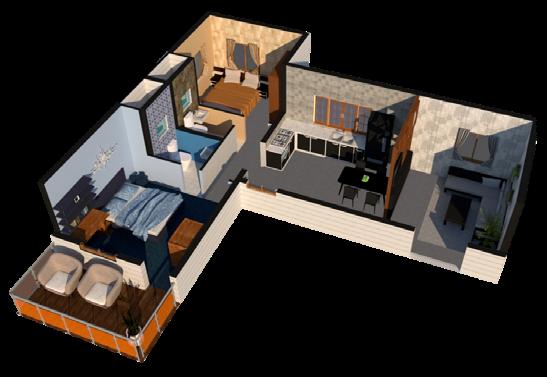

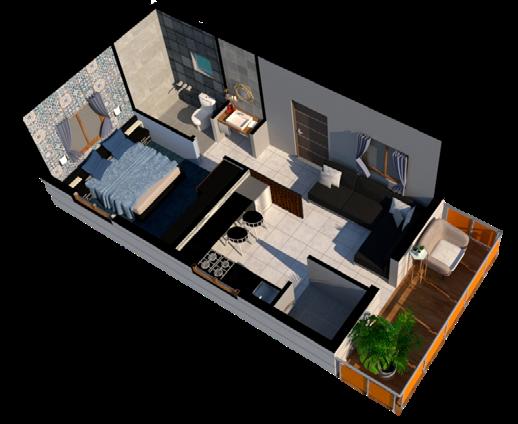

1BHK

2BHK

3 BHK

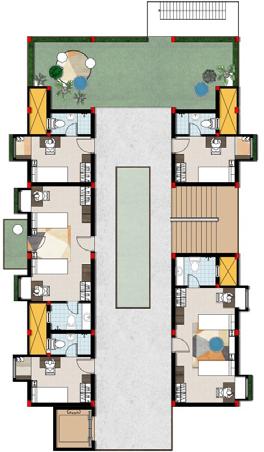

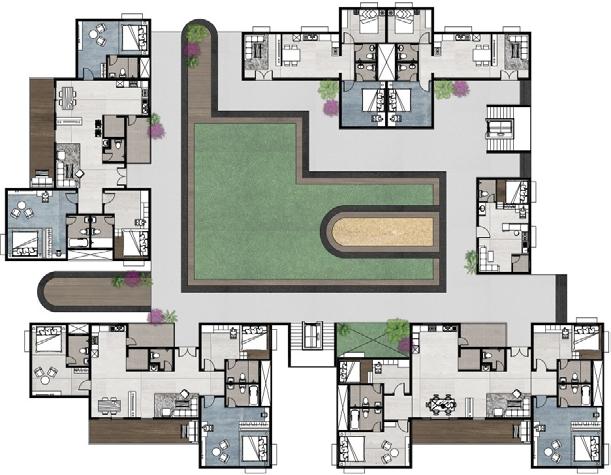

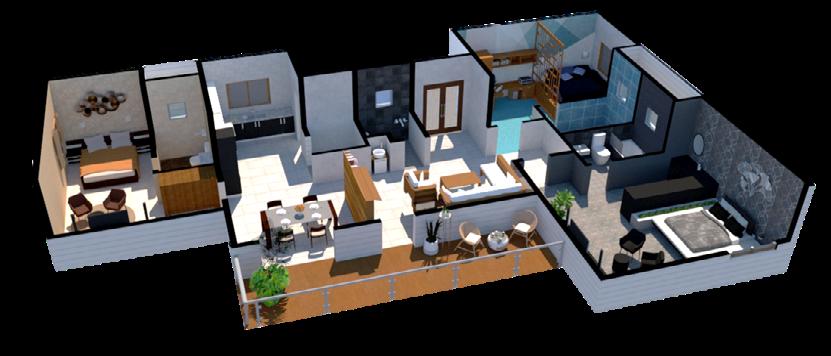

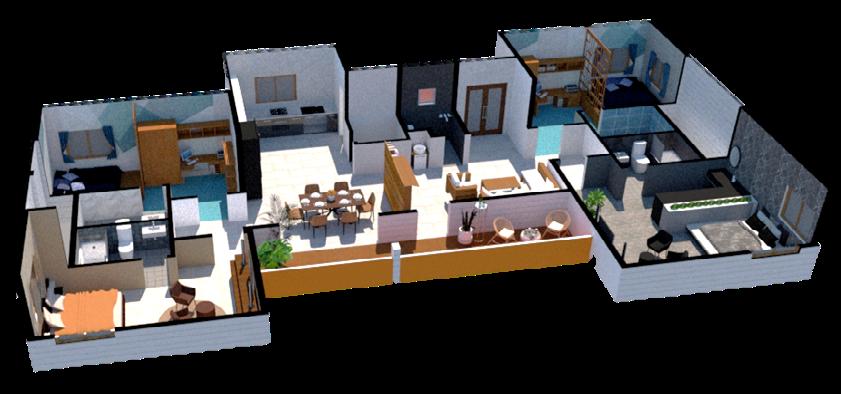

3.5 BHK FACULTY APARTMENTS

25

INTERNSHIP

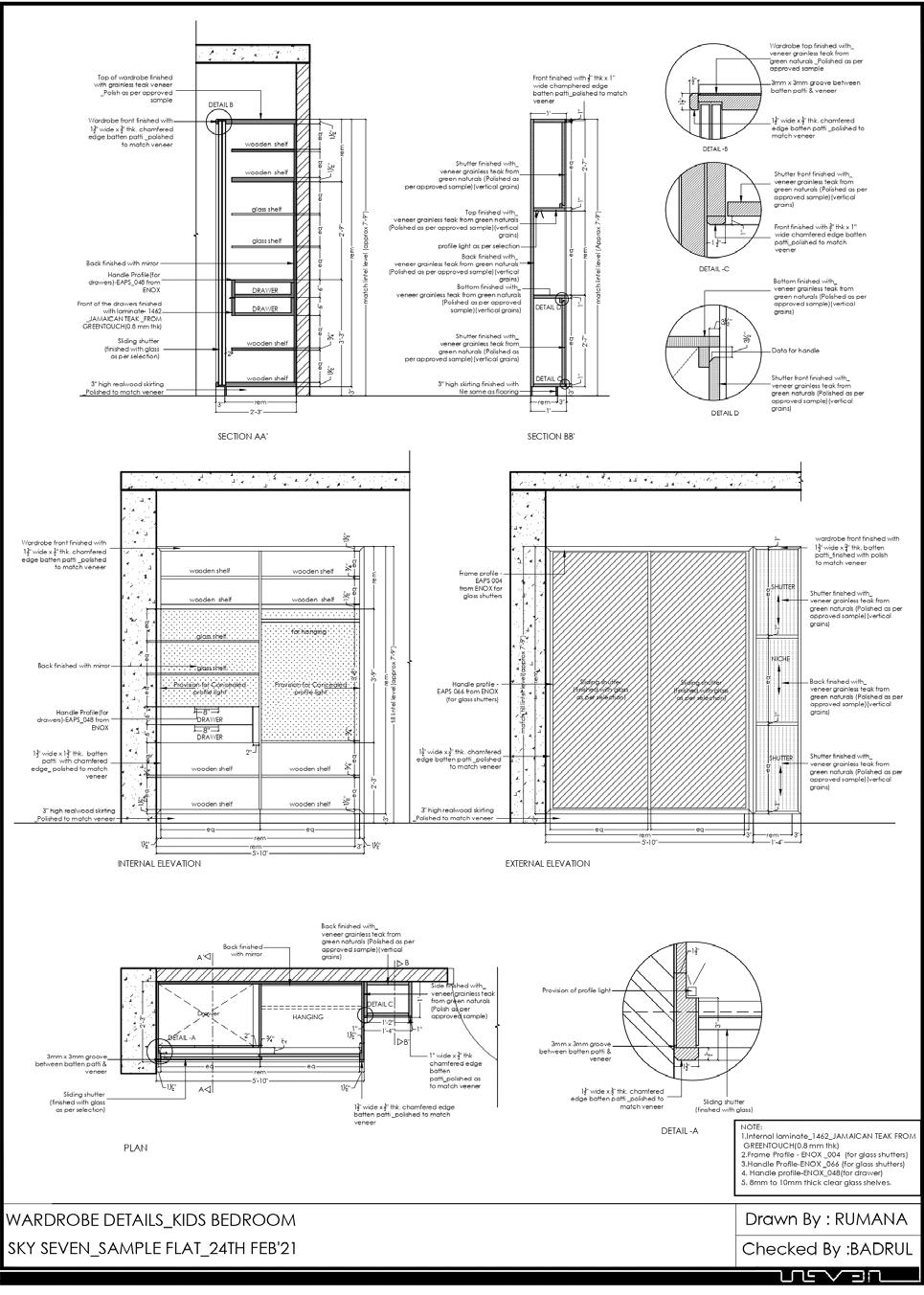

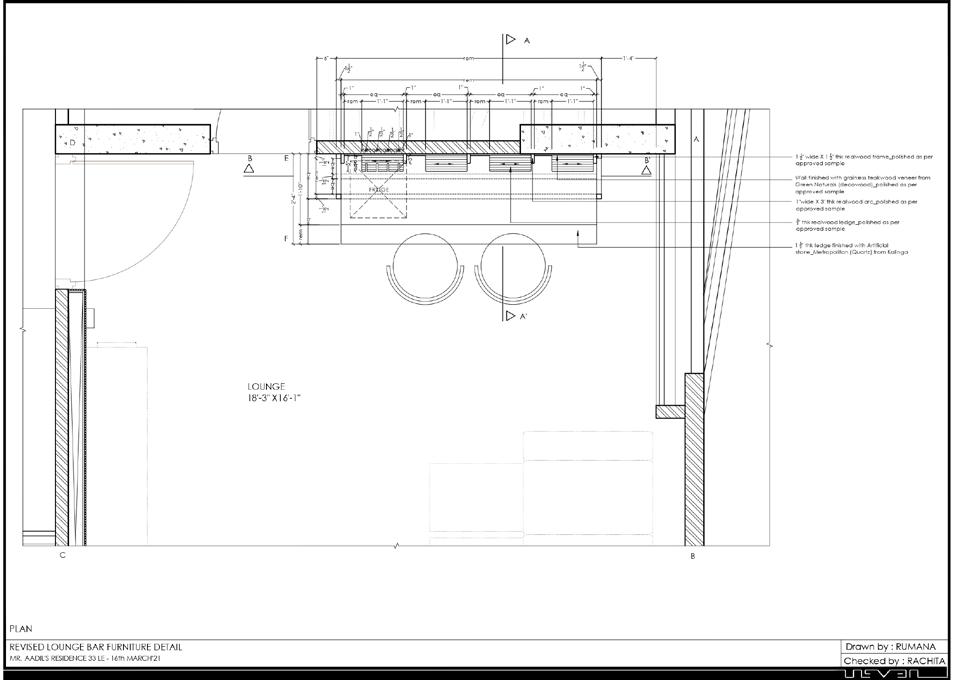

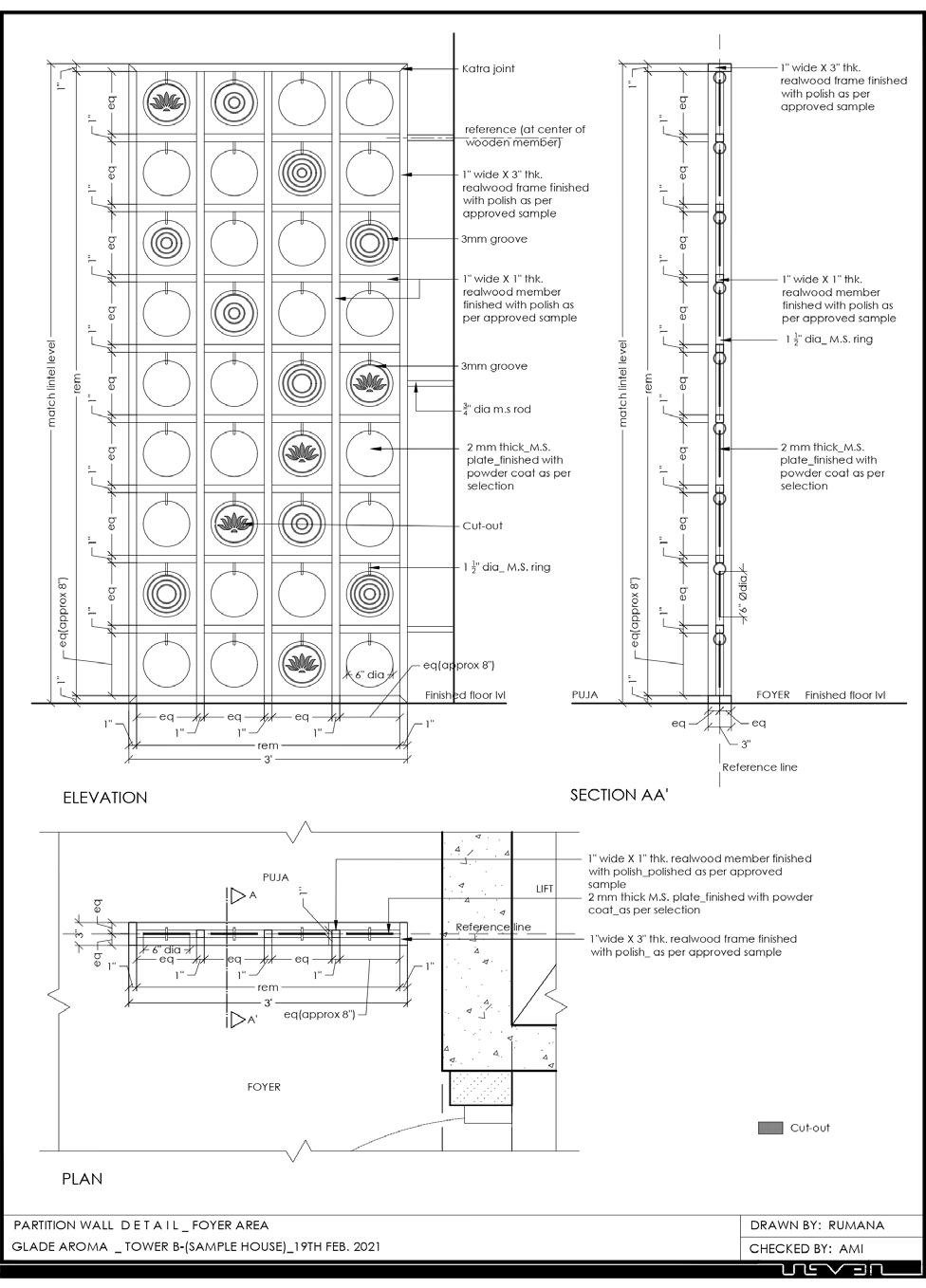

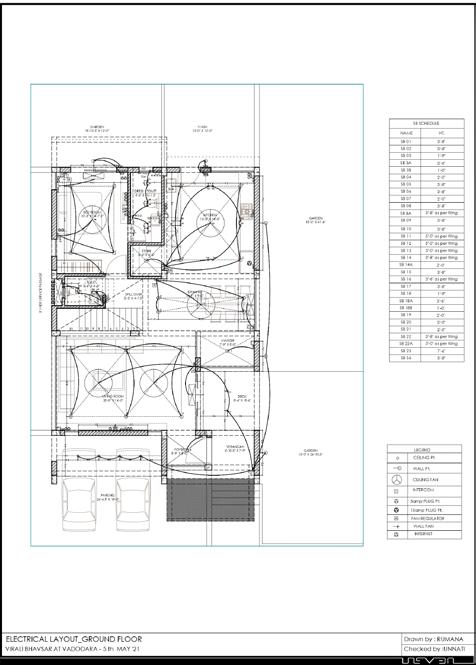

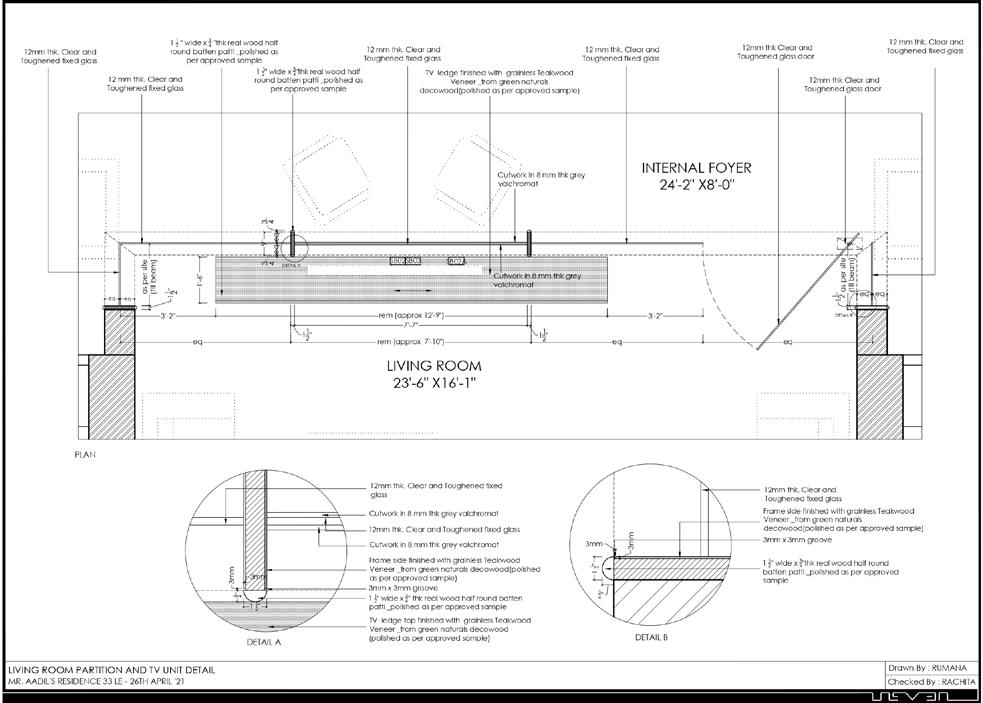

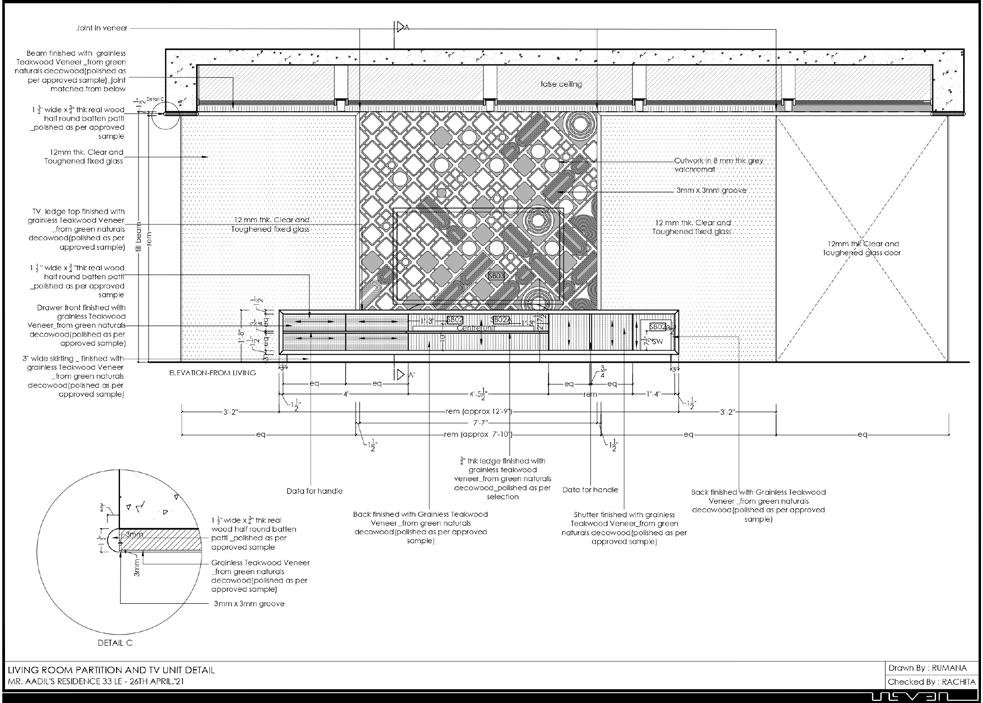

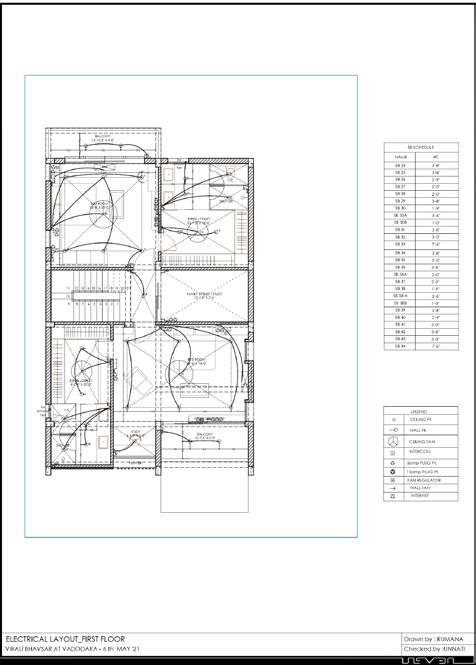

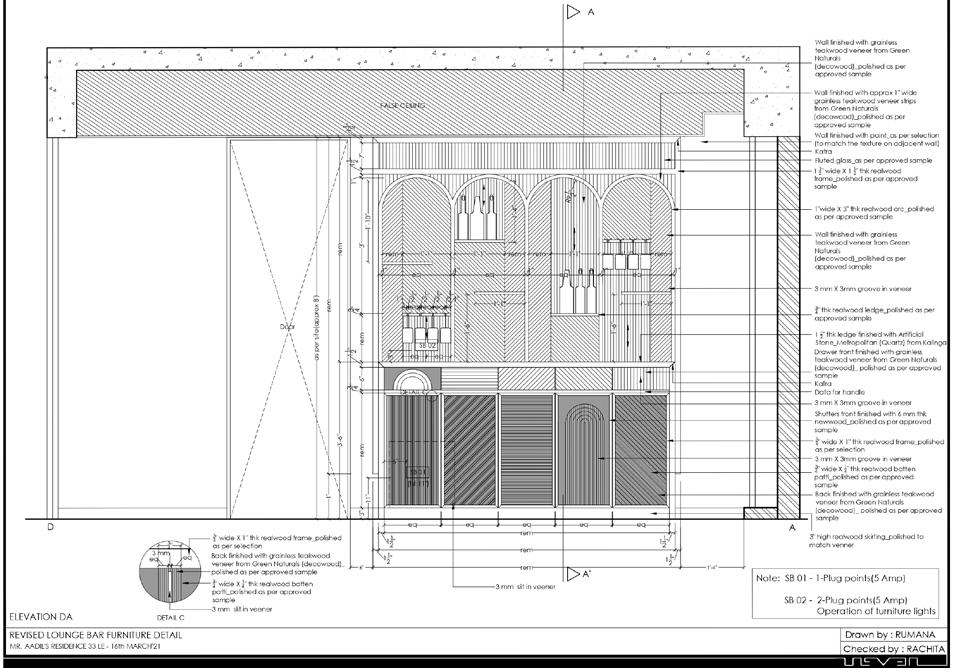

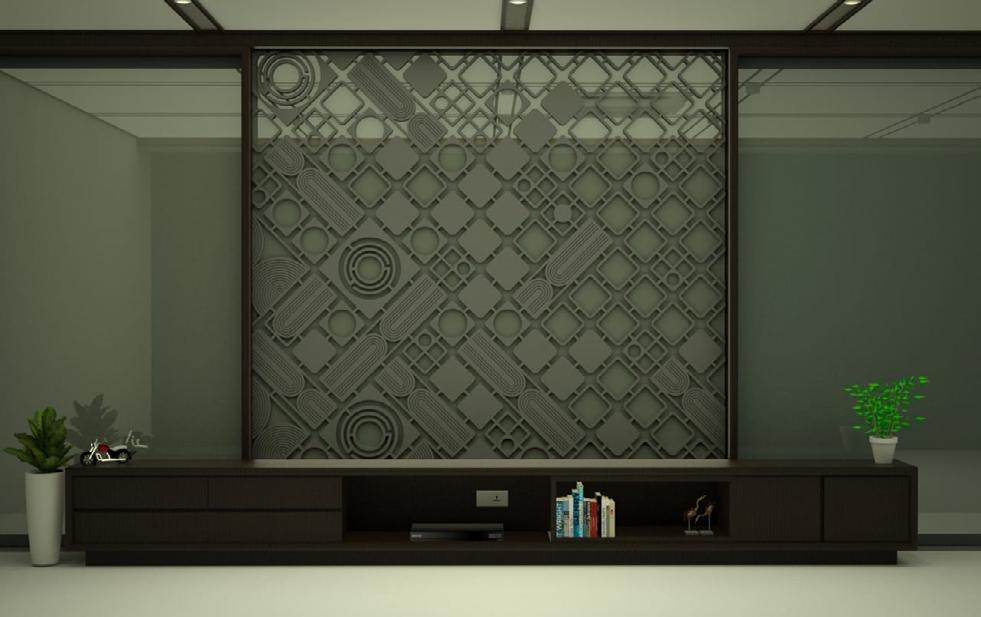

Professional Semester VII | 2021 Location | “UNEVEN” Vadodara, Gujarat My Role | Working drawings, 3d visualization and Site visits

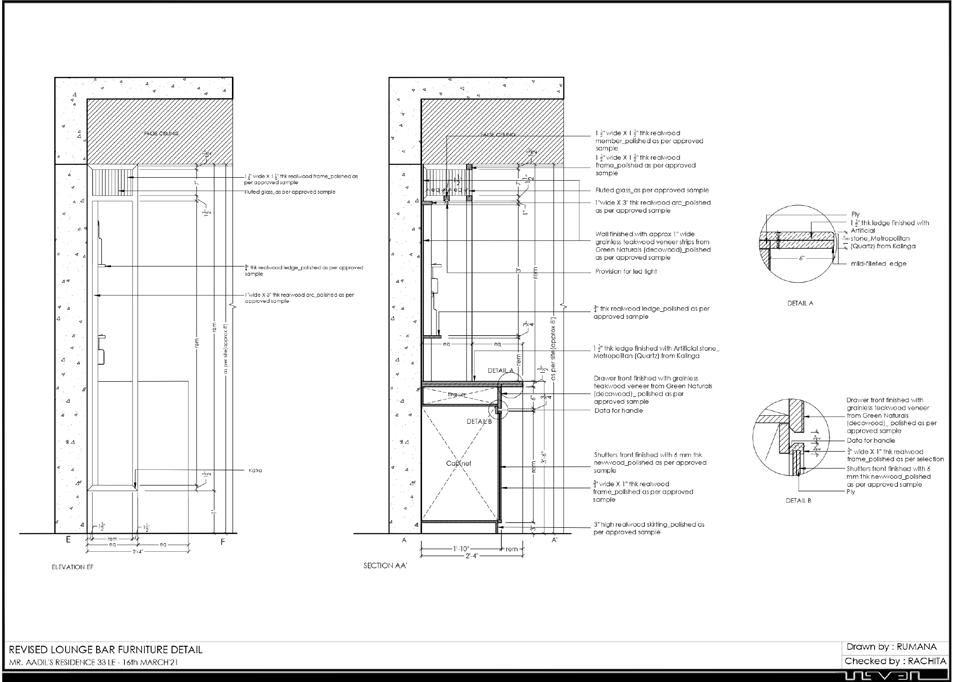

PROJECT : MR. AADIL’S RESIDENCE- 33LE 26

27

28

29

30

31

RSP DOCUMENTAION+CONTEXTUAL STUDIO Academic Semester IV | 2019 Location | Jodhpur, Rajasthan and Karamsad, Gujarat Team| Group Work My Role | Research, Site Drawings

The primary objective was to investiagte the designated area, paying special attention to the contextural and architectural aspects.

The and

idea was to throughly research the choosen loaction then provide an intervention for the region’s inhabitants.

The selected loaction was old housing complexes in Karamsad, Gujarat and later, Jodhpur was considered to study diverse styles for future comparision, with the chosen region near Ghanta Ghar(Clock Tower).

My contribution to the documentation of the places during group work is summarized below.

32

The Ghanta Ghar in Jodhpur is a magnificient clock tower in the centre of the city, built by Maharaja Sardar Singh about 200 years ago.It is surrounded by street markets, with the most famous amongst them being Sardar Market.

Ghanta Ghar is a good example of 19th Century stone maso-

ELEVATION OF CLOCK TOWER

ELEMENTS OF JODHPUR

33

34

MISCELLANEOUS WORK “For me, the camera is a sketch book, an instrument of intuition and spontaneity.”-Henri Cartier-Bresson

35
