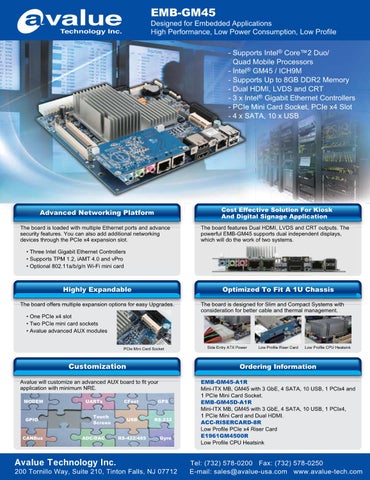

EMB-GM45
Designed for Embedded Applications High Performance, Low Power Consumption, Low Profile - Supports Intel® Core™2 Duo/ Quad Mobile Processors - Intel® G GM45 / ICH9M - Suppor rts Up to 8GB DDR2 Memory Supports - Dual HD DMI, LVDS and CRT HDMI, - 3 x Inte el® Gigabit Ethernet Controllers Intel - PCIe M Mini Card Socket, PCIe x4 Slot - 4 x SAT SATA, TA, 10 x USB
Costt Effective C Effec Eff ffectti tive e Solution S Solutti Sol tion o For Fo Kiosk Kiosk A d Digital And Di it l Signage Si S A li ti Application
Advanc Advanced A Ad d anced anced ed d Networking Net N ett o orking ki g Platfor Plattffo m The board is loaded with multiple Ethernet ports and advance security features. You can also add additional networking devices through the PCIe x4 expansion slot.
The board features Dual HDMI, HDMI LVDS and CRT outputs. outputs The powerful EMB-GM45 supports dual independent displays, which will do the work of two systems.
• Three Intel Gigabit Ethernet Controllers • Supports TPM 1 2 iAMT 4 0 and vPro 1.2, 4.0 • Optional 802.11a/b/g/n Wi-Fi mini card
Highly Expandable
Opt Optimized Optimi O pti i ed d To To Fitt A 1U 1U Chassis Chassiis C s
The board offers multiple expansion options for easy Upgrades. • One PCIe x4 slot • Two PCIe mini card sockets • Avalue advanced AUX modules PCIe Mini Card Socket
Customization
GPIO
CANBus
UARTs Touch Screen ADC/DAC
Avalue Technology Inc.
Side Entry ATX Power
Low Profile Riser Card
Low Profile CPU Heatsink
Ordering Information
Avalue will customize an advanced AUX board to fit your application with minimum NRE. MODEM
The board is designed for Slim and Compact Systems with consideration for better cable and thermal management.
CFast
GPS
USB
RS-232
RS-422/485
Gyro
200 Tornillo Way, Suite 210, Tinton Falls, NJ 07712
EMB-GM45-A1R Mini-ITX MB, GM45 with 3 GbE, 4 SATA, 10 USB, 1 PCIx4 and 1 PCIe Mini Card Socket. EMB-GM45D-A1R Mini-ITX MB, GM45 with 3 GbE, 4 SATA, 10 USB, 1 PCIx4, 1 PCIe Mini Card and Dual HDMI. ACC-RISERCARD-8R Low Profile PCIe x4 Riser Card E1961GM4500R Low Profile CPU Heatsink
Tel: (732) 578-0200 Fax: (732) 578-0250 E-mail: sales@avalue-usa.com www.avalue-tech.com
