Portfolio 2022 Small Screen Mode

PORTFOLIO

2020-2022

Chenyi Luo

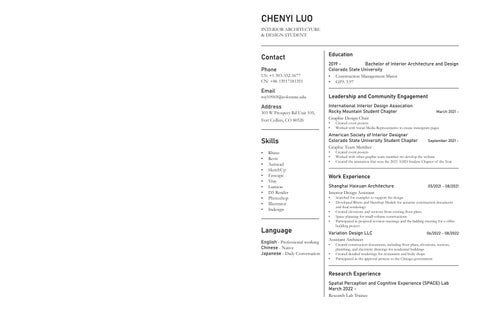

CHENYI LUO

INTERIOR ARCHITECTURE & DESIGN STUDENT

Contact

Phone US: +1 303-332-1677

CN: +86 13917181351

Email roy10969@colostate.edu

Address

303 W Prospect Rd Unit 105, Fort Collins, CO 80526

Skills

• Rhino

• Revit

• Autocad

• SketchUp

• Enscape

• Vray

• Lumion

• D5 Render

• Photoshop

• Illustrator

• Indesign Language

English - Professional working Chinese - Native Japanese - Daily Conversation

Education

2019 - Bachelor of Interior Architecture and Design

Colorado State University

• Construction Management Minor

• GPA 3.97

Leadership and Community Engagement

International Interior Design Assocation

Rocky Mountain Student Chapter March 2021 -

Graphic Design Chair

• Created event posters

• Worked with Social Media Representative to create instergram pages

American Society of Interior Designer

Colorado State University Student Chapter September 2021 -

Graphic Team Member

• Created event posters

• Worked with other graphic team member sto develop the website

• Created the animation that won the 2021 ASID Student Chapter of the Year

Work Experience

Shanghai Haixuan Architecture

Interior Design Assistant

• Searched for examples to support the design

05/2021 - 08/2021

• Developed Rhino and Sketchup Models for accurate construction documents and final renderings

• Created elevations and sections from existing floor plans

• Space planning for small-volume constructions

• Participated in proposal revision meetings and the bidding meeting for a office building project

Variation Design LLC

Assistant Architect

06/2022 - 08/2022

• Created construction documents, including floor plans, elevations, sections, plumbing, and electricity drawings for residential buildings

• Created detailed renderings for restaurants and body shops

• Participated in the approval process to the Chicago government

Research Experience

Spatial Perception and Cognitive Experience (SPACE) Lab

March 2022 -

Research Lab Trainee

TABLE OF CONTENT

Concorde World Plaza

[culture center in Shanghai with a commercial approach]

[06-15]

Blacksmith’s House

[create, collect, and promote the Japanese swords]

[16-25]

Ubud Resort

[hidden in the rice terraces of Bali]

[26-35]

NEXT Office

[office space in New York high above]

[36-41]

Concorde World Plaza COMMERCIAL

LOCATION: Shanghai, China

DATE: Autumn 2022

The project entails the establishment of a cultural center with a commercial approach to promoting historical residential architecture as well as culture to tourists and locals. The structure also serves as a starting point for a historical tour of Shanghai, as it is situated in the city center and has exceptionally easy public transit. A city culture center, a theater, galleries or exhibiting places, and retail malls should be included in the interior space. As a recently constructed building in a historical residential district, it should be able to accommodate both the international and historical aspects of Shanghai. The development model analyzes distinct industrial ideas based on local historical foundations.

Shanghai’s antique architectural structure is quite diverse due to historical causes for contemporary Shanghai. The architectural format expresses both the softness of southern modest family-style residences and the modern sea-embracing mind. It is a hybrid of ancient Chinese and contemporary Western architectural styles. The structure should also depict Shanghai Longtang culture. Longtang is a community-centered lane or a network of interconnecting lanes that serves as the cornerstone of the city system upon which modern Shanghai was created. Longtang architecture is generally residential, with twoor three-story terrace homes encircled by a wall and a large gate in front of each property. The living system is no longer suited for city life due to the little space within each room and the ergonomically incompatible design, but the traditional external shape of the building should be maintained for historical sake.

The building was developed based on a modular system. The form of each modular cube was derived from two significant cultural symbols: corridors in Longtang (three distinct arch types) and coffee shops under varying conditions (full or semi surrounded, or fully opened). The initial abstracted cubes in the first column are removed, sliced, or restructured to permit further permutations. The modular concept is represented in the two primary circulation spaces, the great exhibition stair in the west building and the high-ceiling hallway in the east building. The modular stacking is also reflected on the building facades.

The primary movement of the parti diagram is two crossing blocks converting from classic Shanghai residential structures and honoring the city’s integrated culture. Additionally, the higher block is inserted into the lower block, demonstrating that contemporary Shanghai was founded on the Longtang pattern. Instead of solid blocks with straight edges, both blocks in Shanghai have curved edges, emphasizing the adaptability and inclusive nature of the idea.

CULTURAL CENTER STAFFS LOCAL RESIDENTS PRIMARY TO HIGH SCHOOL STUDENTS COLLEGE STUDENTS DOMESTIC TOURISTS INTERNATIONAL TOURISTS

GREEN SPACES COMMUNICATIOIN SPACES

VIEWING SPACES EXHIBITION SPACES DINING SPACES LEISURE SPACES

SECOND FLOOR 21’ 1’=1/72”

FOURTH FLOOR 45’ 1’=1/72”

FIRST FLOOR 6’ 1’=1/72”

THEATER GIFT SHOP

The theater occupies half of the west building from the 3rd to the 5th floor. The slope at the audience seats follows the roof of the historic structure in the exhibition area, maximizing the building’s available space. Pre-cast modular ceiling tiles, customized wall cladding systems, and customized drop ceiling boards were used in the theater. Light stripes were concealed below the ceiling tiles to provide indirect illumination. Both customized systems had a trapezoid section in which the beveled side faced the stage for sound bouncing, resulting in a better sound effect. As an extra fire barrier in a wide-open area, a water curtain system is concealed beneath ceiling panels to satisfy the fire code.

The gift shop is located on the first floor of the west building, next to the exhibition space. The space can be defined as the conclusion of the journey, selling derivative products including paintings, pins, keychains, and refrigerator stickers. It would also sell artists’ goods for a brief period if they had a temporary exhibition, therefore the shelves in the space would be a mix of permanent and mobile shelves for flexibility. The facade’s wood stripes (the product of the modular stacking system) would operate as a solar screen. Due to the site’s proximity to a big green area, the high-density sycamore tree on the street would also generate the light shelf effect, which serves to block the sunlight during the summer and let it during the winter.

SECTION PERSPECTIVE

LOCAL GOODS RETAIL STORE ELEVATOR & CIRCULATION SPACE

The design of the local goods shop reflects the values of this historic neighborhood and its residents. Bricks and wood, as well as the overall color scheme, represent the local culture, showcasing the community’s distinctive products and offerings to attract tourists and support local businesses. Abundant natural and artificial lighting is used to create a warm and inviting environment that encourages customers to explore the store’s items. The placement of shelves has been meticulously arranged to optimize space and facilitate guests’ movement around the shop. By maximizing the customer’s connection to nature, the staircase next to the curtain wall creates an engaging experience.

The modular stacking system is also responsible for the shape of the wood partitions. Escalators weave in and out, providing guests with a unique experience as the sun rises and sets. All custom millwork and partitions employ local beech wood, local manufacturers, and China-origin materials to save transportation costs. Each elevator in the retail center has a touch-screen display for floor overview and searches. To facilitate navigation, each retail and restaurant has a door sign with a unique number denoting the building wing and floor. The Fresh Air System will offer both heat and moisture management.

BLACKSMITH’S HOUSE LIVE-WORK RESIDENTIAL

LOCATION: Longmont, CO

DATE: Spring 2021

The customers of this project are elderly couples. The wife possesses a collection of Japanese traditional swords, while the husband is a blacksmith who manufactures ironwork including, swords, knives, scissors, and other daily essentials. The clients arrived from Kyoto, Japan, where the couple owns a Japanese sword store and serves traditional Japanese cuisine by reservation.

The construction site at 244 Main Street, Longmont, Colorado, was jammed between two existing structures, therefore the design begins with rotating rectangles. The 10-degree rotation angle and the shape of the main building were inspired by Nakago, which is the section where the handle of the sword is attached. Nakago is also the area where bladesmiths would inscribe their names, giving it commemorative and historical significance. Additionally, the rotated angle forms a separate outer wall, providing privacy. As a reaction to its neighbor, 244 building shifts in the south-middle portion, as does the building to the south. The space between the two buildings forms a garden in the center, allowing both people and the structure to breathe.

In Japanese residential architecture, there is a distinction between traditional and modern interior arrangements. The current ratio of traditional rooms to contemporary rooms in residential dwellings is 1:5 to 2:3. The third story of this structure is created in a traditional manner for the master and guest suites to accommodate the elderly couples’ living patterns while also providing a unique experience for guests.

HALLWAY & TRADITIONAL PATTERNED WALL

MASTER BEDROOM

LIVING ROOM

KITCHEN & DINNING

EXHIBITION RAMP

EXHIBITION (PROCTED FORM LIGHT)

EXHIBITION & RETAIL

ROOF

GUEST BEDROOM

THIRD FLOOR

SECOND FLOOR STAIR

SECOND FLOOR

STORAGE & REFERENCES

EXHIBITION & WORKSHOP VISIT

+15 FEET INTERLAYER

BLACKSMITH’S WORKSHOP

FIRST FLOOR

BAMBOO GARDEN

EXHIBITION & RETAIL

This is the first space that customers will encounter. The room has been meticulously designed to showcase the product and collections. From the street and via the huge, curving picture window in the center, natural light enters the room, creating a warm and welcoming setting for guests. The exhibition shelves were repurposed from standard blacksmithing equipment and used as both product displays and seating. Tracking lights are aimed toward shelves to elevate the items.

The building in the center has a twostory exhibition hall. The high, curving window brings light into the area while shielding the collection from direct sunlight.

WORKSHOP

The workshop is built to accommodate the physical and creative constraints of the blacksmith’s trade. To accommodate the specific tools and equipment essential for the metalworking, the arrangement is linear, with the forge and anvil at one end and the storage and finishing spaces at the other. This configuration facilitates efficient mobility and material transfer from one region to another. An interlayer is inserted at the end of the space so that visitors can observe the workshop’s structure and operation. To guarantee fire safety, the floor is made of concrete and the walls are covered with metal sheeting to withstand the intense heat and pressure created during the forging process.

The 2nd and 3rd floors are private areas for the couple, in contrast to the store and exhibition space on the first floor. In accordance with the typical Japanese home arrangement, the living room is in the contemporary style known as yoshitsu (westernstyle room), and the bedroom is in the traditional style known as washitsu. The bedroom contains low furnishings and a platform bed, which can be easily turned into a lounge area throughout the day. The kitchen and living room are designed to accommodate contemporary household equipment, which does not function well with traditional rooms. The bedroom is surrounded by a long corridor with a traditional Asanoha design symbolizing health, riches, and fortune. With completely openable barriers, the rooms also promote the use of natural materials and ecological design principles.

WEST ELEVATION 1’=1/24

SOUTH ELEVATION 1’=1/24”

SECTION 1-1 1’=1/24”

BEDROOM LIVING ROOM

UBUD RESORT HOSPITALITY

COURSE: CSU INTD 376 Interior architecture and design studio IV

INSTRUCTOR: Ryadi Adityavarman

DATE: Spring 2022

As the location where vacationers spend most of their time, the hotel should be a cultural experience in and of itself. The cultural elements do not need to be as powerful as a realistic three-dimensional sculpture inside a room, but they should be gentle and soft, employing elements such as materials, patterns, and distinctive Balinese bamboo products to subtly influence the traveler’s feelings, thoughts, and perceptions of the local culture. Spaces may not be visually united subjectively, with varying colors and lighting, yet they indicate a current aesthetic culture when juxtaposed.

Because the hotel is located on the rice terrace and within a forest, the entire building form reaches out and extends into nature with the connection of the bridge. Local architecture was used to transform stepped shapes. Also, because Generation Xers seeking a pleasant family or group vacation are the hotel’s primary service demographic, the setting and service must be sufficiently calming. The villa’s family-friendly apartments may be combined to accommodate many families traveling together.

Despite the fact that humans created the gods, their tales have been written down orally and have remained an integral part of Balinese culture. At this level, the gods are everlasting, but human life is fleeting. As with the relationship between the hotel and the traveler, the hotel is designed and constructed by humans, but it stands permanently as part of the promotion and expression of the local culture, whereas the traveler’s stay is brief and their temporary residence, the hotel, should serve as a launching point for them to quickly understand and respect the local culture.

umah meten - MASTER BED

Ventilation Required Roof

bale sakenam - STUDIO bale sakepat - BEDROOM

bale tiang sanga - GUEST ROOM

paon - KITCHEN lumbung - RICE BARN

SIMPLIFIED BUILDING FORMS

COMBINED FORMS

ABSTRACTED FORMS

‘Movement to the Right’

ROOF PLAN & SITE39’ 1’=1/32”

NEXT OFFICE

COMMERCIAL

LOCATION: New York, NY

DATE: Autumn 2021

Since the project is located in downtown New York, the concept was inspired by the local region’s towering high-rise buildings, resulting in the contrast between concrete forests in cities and genuine nature, which is expressed in the materials, colors, and biophilia design in this project.

The project is placed on the seventh and eighth floors, which are the top two levels of the structure, enabling a panoramic view of the city on the north and east sides. Private and open office areas are positioned on those two sides for maximum sunlight and interaction with nature, as this is where employees spend the majority of their time. The organization evolved spontaneously with a diagonal dividing each floor into office areas and working, gathering, or leisure spaces. Meeting rooms are evenly spread in the space to represent the collaborative and team-based company culture.

WORK AREAS

The working spaces include open and private office spaces, meeting rooms of various sizes, and video and photography studios for product advocacy. Since a hybrid workplace strategy has been implemented, acoustic panels and ceilings have been installed in all rooms, and workstations are equipped with acoustic partitions that enable workers to communicate with their renovation counterparts without feeling compelled.

COMMON AREAS

The Work Cafe is flexible and accessible enough to accommodate roll-in seating since 51 NEXT employees will be using the space simultaneously for company-wide meetings and/or Town Hall events. There are also completely enclosed, lockable chambers for health, rest, and rehabilitation.
