Transparency in Tribute: A Journey Through Cincinnati's Memorial

Transparenc y in Tr ibute: A Jour ney Through Cincinnati ’s M emor ial M L A

C A P S T O N E

S T U D I O

L A N D

BY ROOZBEH KHOLDANI

B O O K L E T

L A ND 7010 C A PSTONE STU D IO

C A P S TO N E S TUD I O L A N D B O O K L E T STUDENT ROOZBEH KHOLDANI

INSTRUCTOR BARRY KEW SPRING 2024 CONTENT INTRODUCTION 2 MODULE I ARTISTRY AND CRAFT 4 MODULE II DESIGN INTENT 10 MODULE III PRELIMINARY DESIGN 20 MODULE IV DESIGN DEVELOPMENT DETAILS 26 APPENDIX 33

INTR ODUC TIO N The project aims to design a memorial for the Cincinnati Radiation Experiment, paying homage to victims and their families while shaping a physical representation of their involvement.

Rooted in respect for the past and community engagement, it envisions a timeless space commemorating the event and its impact. Prominently visible and easily accessible, the memorial seeks to dignify each victim through individual recognition. Employing symbolism in its visual language, architectural elements, landscaping, and artistry will craft a cohesive narrative. Transparent materials like colored glass panels facilitate engagement with informational displays, while water features symbolize transparency and understanding. Dynamic pathways and landscape features encourage exploration and vitality within the site.

2

SPR ING 2024

“In all things, it is better to hope than to despair.”

Johann Wolfgang von Goethe “Life is too short to be anything but happy. Falling down is a part of life, getting back up is living.”

Egle K. Rahne E. “Salvation lies within.”

Buddha

Dedicated to The resilient souls of the Cincinnati Radiation Test victims and their families may this memorial stand as a symbol of rememberance, healing, and solidarity.

3

L A ND 7010 C A PSTONE STU D IO

MODULE I ARTISTRY AND CRAFT

“QUILT” PATTERN MAKING AND CRAFTING Quilting is an enriching practice that combines artistry and craftsmanship to create a beautiful blend where imagination meets meticulousness. Each quilt that is crafted showcases the fusion of creative vision and technical precision, resulting in a tapestry of unparalleled beauty and individuality.

At the heart of the quilting process lies the intricate dance of design, where meticulous planning and thoughtful selection of textures come together to weave a narrative that is both cohesive and profoundly meaningful. It is not just about arranging fabric pieces together; it is about curating a visual symphony that tells stories of tradition, heritage, and personal journeys.

While the artistry of quilting is awe-inspiring, its essence goes beyond mere aesthetic appeal. Quilts serve a noble purpose beyond their visual allure – they are beacons of warmth and solace, especially for those navigating through life’s hardships. Every stitch sewn with care is imbued with a sense of compassion, creating a tangible expression of empathy that envelops both the creators and the recipients in a cocoon of comfort.

In the rhythm of each stitch lies a whisper of hope, a promise of resilience, and a gesture of solidarity.

Through the act of quilting, communities are woven together, bonds are strengthened, and moments of shared humanity are celebrated. It is not just about the finished product; it is about the journey of creation – a journey that fosters connection, healing, and the profound joy of giving and receiving warmth in its purest form. Quilting is a deeply enriching practice that merges the realms of artistry and craftsmanship, forging a harmonious blend where imagination meets meticulousness. Each quilt crafted is a testament to the fusion of creative vision and technical precision, resulting in a tapestry of unparalleled beauty and individuality.

At the heart of the quilting process lies the intricate dance of design, where meticulous planning and thoughtful selection of textures intertwine to weave a narrative that is both cohesive and profoundly meaningful. It’s not merely about arranging fabric pieces together; it’s about curating a visual symphony that speaks volumes, telling stories of tradition, heritage, and personal journeys.

4

SPR ING 2024

Creating a quilt in empathy with the victims and families of the Cincinnati Radiation Tests is a poignant act of solidarity and compassion. As each square of fabric is carefully selected and sewn together, it becomes more than just a patchwork; it becomes a tangible expression of understanding and support.

In the intricate patterns and delicate stitches, we weave together not only threads of fabric but also threads of empathy, acknowledging the pain and suffering endured by those affected. With every quilted layer, we envelop them in warmth and comfort, offering a tangible symbol of our shared humanity and collective care.

Through the act of quilting, we honor the stories of resilience and perseverance, acknowledging the strength it takes to navigate through adversity. Each piece of fabric represents a voice, a memory, a moment of solidarity with those who have been impacted by the tragic events.

CO N C E P T Sketches by using three words: STAT M ENT Hope, Falling, Salvation

5

Ultimately, the quilt serves as a testament to our capacity for empathy and our commitment to stand alongside those in need. It is a reminder that even in the face of hardship, we can find solace and support in the embrace of a community that cares.

L A ND 7010 C A PSTONE STU D IO

This quilt pattern is inspired by a fusion of geometric Art Deco patterns and abstract representations of natural elements such as plants, trees, and flowers. The design is influenced by the intricate beauty of stained glass and light screens. It includes elements that shift colors dynamically depending on the time of day, creating a nostalgic atmosphere reminiscent of old neighborhoods. By blending geometric precision and organic abstraction harmoniously, this quilt pattern captures the essence of both urban sophistication and natural tranquility. It offers a timeless piece of textile art that evokes a sense of nostalgia and wonder.

Ar t D e co patte r n s

Sta i n e d g l a s s w i nd ows

by Fra n k L l oyd Wr i g ht

PAT T E RN MA K I NG

STEP 1

STEP 2

The grid serves as the foundation for designing a pattern. Life can be visualized as a grid consisting of various events with different sizes and colors.

The design demands can be met by changing the grid size and shape, which forms the base map for patterns.

6

SPR ING 2024

STEP 3

Art Deco-Style with geometric shapes combined with stained glass-inspired colors.

STEP 4

A pattern with the shapes inspired by curvy and geometric forms.

STEP 5

The final pattern for quilt is a combination of geometric shapes with different colors. Curvy lines can present natural elements, such as trees, all reaching a certain point.

7

L A ND 7010 C A PSTONE STU D IO

C R AFTI NG T HE Q U I LT

Once the pattern for the quilt has been designed, the first step in creating it is to choose the fabrics. Then, each selected fabric should be cut according to the shape and size of each piece in the pattern. This can be considered the starting point for making the quilt.

8

SPR ING 2024

Arranging fabric pieces based on the design and sewing them together by hand. This step involves piecing blocks or panels to create the top layer of the quilt.

9

L A ND 7010 C A PSTONE STU D IO

Final step, Quilting the layers together creates texture and secures them. This can be done by hand or with a sewing machine, using a quilting design and following the lines of the piecing or creating a unique pattern.

10

SPR ING 2024

MODULE II DESIGN INTENT

Over the years, there have been specific moments that have had a profound influence on societies, leading to an enduring impression on the collective memory. The Radiation Experiment Test in Cincinnati is one of those periods that dehumanized a community. The design of a memorial for the experiment aims to honor the victims and their families, and it will shape the physical form of people who got involved in that event and influence the narrative and ambition of remembrance. In this way, the design intent is rooted in a deep respect for the past, a dedication to community engagement, and a vision for a space that is a timeless tribute to the victims and their families. This memorial in Cincinnati desires to honor and commemorate the noteworthy historical event and its effect on the local community and above. In other words, the memorial aims to be prominently visible and easily accessible, serving as a tribute to memorialize each victim with dignity, restoring their humanity through individual recognition. Further, it will present aspiring medical professionals with a dedicated area for reflection, promoting thought on the ethical obligations inherent in their profession.

11

L A ND 7010 C A PSTONE STU D IO

E X I S T I N G S ITE CON DITION S Health Professions Building UC Health Holmes Building Cincinnati Children’s Clinical Sciences Pavilion Cincinnati Children’s Hospital Medical Center

University Hospital Sabin Way Garage Eden Avenue Garage

University of Cincinnati College of Medicine

A site can provide meaningful opportunities for designing a memorial that honors the victims of the Experiment and preserves their memory for future generations. It is critical to consider facets such as accessibility, visibility, and significance to the involved community when evaluating the potential of a site for a memorial. Ensuring that the selected site provides a peaceful environment that helps reflection and remembrance is essential.

Moreover, making the memorial accessible to everyone, including those with disabilities, is fundamental to promoting inclusivity within the community. Considering the involvement of the local community, especially families of victims, survivors, historians, medical professionals, and relevant organizations, in the design of the memorial is another major fact. Their input is crucial to ensure that the memorial accurately remembers the experiences of those affected and blends in seamlessly with the surrounding community.

12

SPR ING 2024

SOCIAL CONTEXT The project site is located amidst a busy landscape of UC Health buildings and offices that are constantly buzzing with activity. It has the potential to be a significant platform for the community. Surrounded by a diverse range of organizations and initiatives, it can not only pay tribute to the past but also create connections that resonate within the local and broader communities.

As we look ahead to the future of this site, we acknowledge that it can serve as much more than a simple memorial. It can be a symbol of remembrance and renewal, where collective memory blends with the pulse of contemporary life. By drawing upon the dynamic energy of its surroundings, the project has a unique opportunity to carve out its identity as a space where history meets innovation and tradition meets transformation.

The project site can emerge as a hub of connectivity and collaboration by weaving together the fabric of social gatherings and community projects. A canvas where stories are shared, relationships are built, and new narratives of resilience and solidarity are established. From commemorative events to interactive installations, from educational workshops to cultural celebrations, there are boundless possibilities for engagement.

Through these endeavors, the project site not only honors the past but also becomes a living testament to the enduring spirit of unity and progress. It becomes a place where the threads of the past are woven seamlessly into the fabric of the present, creating a tapestry of shared experiences and collective aspirations.

Ultimately, the project site is not just a physical space but a living, breathing testament to the power of community and the resilience of the human spirit. A place where memories are cherished, connections are made, and hope is renewed—a place where the past, present, and future converge in a symphony of remembrance and renewal.

F O C U S A RE A USER GR OUP S

Local Community

Victim’s Families

13

Tourists

L A ND 7010 C A PSTONE STU D IO

PRECEDENTS The process of designing this memorial will be a thoughtful and intentional endeavor. It will intertwine artistic elements and symbolism to convey the profound significance of the space. Every aspect of the design will be meticulously crafted to evoke a range of emotions and thoughts, inviting visitors to engage with the memorial on a deeply personal level.

The design intent will draw inspiration from themes of remembrance, resilience, and reconciliation. It will serve as a guiding light, illuminating the path towards a space that resonates with meaning and purpose. The collective ideas generated in the quilt exercise during Module I will be used as a source of inspiration. Each thread of thought will contribute to the rich tapestry of the memorial’s narrative.

As we delve into the design process, four key elements will serve as cornerstones: movement, focal space, color, and transparency. They will guide our decisions and shape the overall aesthetic and experiential qualities of the memorial. Movement will be infused into the design, inviting visitors on a journey of exploration and discovery. A carefully curated focal space will serve as a poignant anchor, drawing attention to the heart of the memorial’s message.

Color will be wielded with purpose, as each hue will be imbued with its own symbolic significance.

It will evoke emotions and memories that resonate deeply with visitors. Through the strategic use of transparency, layers of meaning will be unveiled, inviting reflection and contemplation as visitors navigate the space.

By integrating these key design elements with the themes of remembrance, resilience, and reconciliation, the resulting memorial will be more than just a physical structure. It will be a living, breathing testament to the human experience.

A space where stories are honored, wounds are healed, and hope is renewed.The process of design for this memorial will be a deeply thoughtful and intentional endeavor, weaving together artistic elements and symbolism to convey the profound significance of the space. Each aspect of the design will be meticulously crafted to evoke a range of emotions and thoughts, inviting visitors to engage with the memorial on a deeply personal level.

Drawing inspiration from themes of remembrance, resilience, and reconciliation, the design intent will serve as a guiding light, illuminating the path towards a space that resonates with meaning and purpose. By harnessing the collective ideas generated in the quilt exercise during Module I, we have a wealth of inspiration to draw upon, each thread of thought contributing to the rich tapestry of the memorial’s narrative.

As we delve into the design process, four key elements—movement, focal space, color, and transparency—will serve as cornerstones, guiding our decisions and shaping the overall aesthetic and experiential qualities of the memorial. Movement will be infused into the design, inviting visitors on a journey of exploration and discovery, while a carefully curated focal space will serve as a poignant anchor, drawing attention to the heart of the memorial’s message.

Color will be wielded with purpose, each hue imbued with its own symbolic significance, evoking emotions and memories that resonate deeply with visitors. And through the strategic use of transparency, layers of meaning will be unveiled, inviting reflection and contemplation as visitors navigate the space.

By integrating these key design elements with the themes of remembrance, resilience, and reconciliation, the resulting memorial will be more than just a physical structure—it will be a living, breathing testament to the human experience, a space where stories are honored, wounds are healed, and hope is renewed.

14

SPR ING 2024

MOVEMENT CONCEPTS

Movement is a key element in the design of this memorial, representing progress, resilience, and transformation. The layout of the memorial incorporates pathways that will guide visitors through the landscape, creating a journey of exploration and introspection. These pathways are designed with dynamic forms and smooth transitions, allowing for both physical and emotional movement and inviting visitors to engage with the space.

Visitors to the memorial are not passive spectators, but active participants in a journey of discovery and healing. Each step forward represents a step toward understanding, reconciliation, and healing.

The design encourages visitors to move not only through physical space but also through layers of history and memory, inviting them to engage with the past in a meaningful and transformative way.

Through movement, the memorial becomes more than just a static structure, it becomes a living, breathing testament to the resilience of the human spirit. The space evolves with each footfall and each moment of reflection, offering visitors the chance to encounter the stories of those who came before and engage with them in a way that brings new understanding and healing.

By embracing movement, the memorial becomes a metaphor for renewal, symbolizing the perpetual journey toward understanding, healing, and reconciliation. Ultimately, the memorial provides a reflective space, a sanctuary for the soul, where visitors are invited to embark on a journey of discovery and renewal, where the echoes of the past mingle with the hopes for the future, and where the transformative power of movement paves the way for a brighter tomorrow.

15

L A ND 7010 C A PSTONE STU D IO

COLOR CONCEPTS Colors serve as powerful conduits of emotion, imbuing any design with a distinct visual language that speaks directly to the soul. In the context of this memorial design, the careful selection of a color palette inspired by the ethereal beauty of stained glass imparts a profound depth and richness to the overall aesthetic. Each hue is chosen with deliberate Colors are powerful tools that can evoke emotions.

They can give a design a certain look that can touch the soul. In the context of a memorial design, the choice of colors is very important. The designer has chosen a palette that was inspired by the beauty of stained glass. This gives the memorial a deep and rich look. Each color was chosen carefully to reflect the themes of remembrance, healing, hope, tranquility, resilience, and introspection that are important to the memorial’s purpose.

As visitors walk around the memorial, they will see many colors. Each color represents a different feeling. For example, blue represents tranquility, green represents renewal, and purple represents introspection. The colors are not just there to make things look pretty. They are an important part of the memorial’s design. The colors are used in the materials and landscaping. This makes the memorial look like it belongs in the environment.

The colors change with the seasons. This reflects the different moods and feelings that people have about the memorial. The colors are not just there to look nice. They are meant to help people connect with the stories of the people who the memorial is for.

Colors can help people heal. They can also represent resilience and hope. The colors in the memorial remind people that memories are important. They also remind people that they are not alone.

The memorial is there to help people remember and to help people heal. intent, reflecting the core themes of remembrance, healing, hope, tranquility, resilience, and introspection that lie at the heart of the memorial’s purpose.

As visitors traverse the landscape, they are enveloped in a symphony of colors, each shade evoking a different facet of the human experience. From the soothing blues of tranquility to the vibrant greens of renewal, from the warm hues of hope to the deep purples of introspection, the color palette creates a tapestry of emotions that mirrors the complexity of the experiment’s legacy.

This carefully curated color template extends beyond mere surface decoration; it is woven into the very fabric of the memorial’s materials and landscaping, creating a seamless integration that harmonizes with the natural rhythms of the surrounding environment. Throughout the seasons, the landscape undergoes a transformation, each change in color palette reflecting the shifting moods and experiences associated with the memorial.

The strategic use of colors is not merely aesthetic; it is a conscious effort to make the memorial a visual representation of the emotions and experiences that define the experiment’s legacy. By engaging with the narrative on an emotional level, visitors are invited to connect more deeply with the stories of those affected, forging a bond of empathy and understanding that transcends words alone.

In this way, colors become more than just pigments on a canvas; they become conduits for healing, symbols of resilience, and beacons of hope. Through their vibrant hues and subtle nuances, they speak to the soul, reminding us of the enduring power of memory, the healing embrace of community, and the transformative journey toward reconciliation.

16

SPR ING 2024

FOCAL SPACE CONCEPTS

The design of this memorial goes beyond just being aesthetically pleasing; it embodies a profound sense of purpose. The focal space is meticulously crafted to serve as the heart of remembrance and reverence. As visitors approach, they are drawn towards this central point, which is a sanctuary of solemnity and introspection. Here, visitors are enveloped in a cloak of contemplation, encouraged to pause and pay homage to the memories of those whose lives were forever altered by the Radiation Test Experiment.

The design of the focal space is imbued with intention, with each element curated to evoke a sense of reverence and respect. Through the strategic placement of architectural features and landscaping elements, the focal space becomes a visual anchor—a beacon of remembrance that guides visitors on a journey of reflection and tribute. It is a place where time seems to stand still, where the weight of history hangs heavy in the air, urging us to bear witness to the stories of courage and resilience that define our shared humanity.

In this sacred space of empathy and reverence, the boundaries between past and present blur, allowing visitors to connect deeply with the memories of those who came before. It is a testament to the enduring power of remembrance—a power that transcends generations, binding us together in a tapestry of shared experience and collective mourning.

As visitors linger in quiet contemplation within the embrace of the focal space, they are reminded of the importance of bearing witness to history, honoring the sacrifices of the past, and embracing the imperative to strive for a future defined by compassion, understanding, and empathy. In this way, the design of the memorial becomes not only a physical structure but a living testament to the resilience of the human spirit—a space where the echoes of the past reverberate with timeless significance, inspiring us to chart a course toward a more just and compassionate world.

17

L A ND 7010 C A PSTONE STU D IO

TRANSPERANCY CONCEPTS

Transparency is a significant symbol in the design of the memorial, representing the values of openness and honesty that lie at the heart of its story. Incorporating transparent surfaces into the design, not only welcomes but also encourages visitors to look beyond the surface to explore the depths of history and uncover truths that may have been hidden for a long time.

This act of peering through transparent surfaces becomes a metaphorical journey, a journey of discovery and enlightenment where hidden truths are revealed and the complexities of the past are confronted with complete honesty. It acknowledges the multi-layered nature of history, where different narratives interweave and diverge, and where we are challenged to embrace the nuances and contradictions that shape our collective experience.

As visitors engage with the memorial, they are invited to participate in this process of exploration and introspection, to confront the truths of the past with courage and humility. It becomes a place for honest reflection, where the shadows of history are illuminated by the light of truth, fostering a culture of openness and dialogue that transcends barriers and fosters understanding.

In this space of transparency, walls of silence are broken, and voices that were once silenced are allowed to be heard. It is a testament to the power of transparency not only as a design element but also as a guiding principle - a principle that reaffirms our commitment to truth, accountability, and the pursuit of a more just and equitable future. Transparency serves as a potent symbol within the design, embodying the principles of openness and honesty that lie at the core

of the memorial’s narrative. Through the deliberate use of transparent surfaces, the design not only invites but encourages visitors to peer beyond the veneer of the present, delving into the depths of history to uncover truths that may have long been obscured.

This act of looking through transparent surfaces becomes a metaphorical journey of discovery and enlightenment, where hidden truths are unearthed, and complexities of the past are confronted with unwavering honesty. It is an acknowledgment of the multifaceted nature of history, where narratives intertwine and perspectives diverge, challenging us to embrace the nuances and contradictions that define our collective experience.

As visitors engage with the memorial, they are invited to participate in this process of exploration and introspection, to confront the truths of the past with courage and humility. It becomes a place for honest reflection, where the shadows of history are illuminated by the light of truth, fostering a culture of openness and dialogue that transcends barriers and fosters understanding.

In this space of transparency, walls of silence are broken, and voices long silenced are allowed to be heard. It is a testament to the power of transparency not only as a design element but as a guiding principle that reaffirms our commitment to truth, accountability, and the pursuit of a more just and equitable future.

18

SPR ING 2024

DESIGN APPR OACHES The memorial’s visual language transcends mere aesthetics and delves deep into the realm of symbolism to craft a narrative that resonates with the heart of the historical events it commemorates. All architectural elements, landscaping features, and artistic expressions converge to form a cohesive and profoundly evocative design, inviting visitors to immerse themselves in a journey of remembrance and reflection.

Transparent materials such as glass panels adorned with a spectrum of colors play a pivotal role in the design, serving as vessels for informational displays and interpretive elements. This approach not only imparts knowledge but also fosters a sense of transparency, allowing visitors to engage with the content while maintaining a clear view of their surroundings. Moreover, the inclusion of transparent water features, such as serene ponds or cascading fountains, serves as a symbolic representation of clarity and understanding, mirroring the memorial’s themes and inviting contemplation.

Pathways meandering through the memorial site, lined with a diverse array of plant life, beckon visitors to traverse the landscape with a sense of fluidity and purpose. Each step unveils new vistas, encouraging exploration and discovery while enhancing the overall sense of movement and vitality within the design. These landscape features serve as aesthetic enhancements and practical elements that facilitate wayfinding and form visual continuity throughout the space.

At the heart of the memorial, gathering areas emerge as sanctuaries for remembrance and contemplation. Whether adorned with architectural marvels or sculptural masterpieces, these focal points command attention, drawing visitors inward and providing a sense of direction amid the sprawling landscape. Meanwhile, carefully curated plant selections contribute to a specific color scheme that mirrors the memorial’s themes, evoking a range of emotions and responses as visitors traverse the site.

In essence, this design approach harmoniously blends form and function, intertwining architectural ingenuity with the beauty of nature to create a space that is as visually captivating as it is emotionally stirring. It is a testament to the power of design to transcend boundaries and forge connections, inviting visitors to embark on a profound journey of remembrance, reflection, and renewal.

19

L A ND 7010 C A PSTONE STU D IO

MODULE III PRELIMINARY DESIGN The following is a passage describing a memorial that was designed with great care and thoughtfulness, inspired by the foundational concepts presented in module 2. The overarching goal of the memorial is to create an immersive experience for visitors, allowing them to reflect on history and gain new insights.

The design of the memorial is rich in symbolism, with each element carefully selected to reflect the historical events it commemorates. Transparency is a key theme, both literal and metaphorical, represented by the glass panels that adorn the memorial. These panels are tinted with a spectrum of hues that symbolize the clarity we seek in understanding the past. They also serve as a way to connect visitors with the surrounding landscape and facilitate a nuanced exploration of the memorial’s narratives.

Water features, in the form of tranquil ponds and cascading fountains, echo the theme of transparency and serve as a source of introspection. The pathways that wind through the site lead visitors on a journey of discovery, with a rich tapestry of flora providing a visually stunning backdrop. The memorial also features strategic gathering areas, where visitors can come together to reflect on history and honor those who have come before them.

Architectural and sculptural elements punctuate the landscape, guiding visitors on their journey and imbuing the space with a sense of purpose and direction. The carefully curated palette of colorful foliage and architectural materials further reinforces the visual harmony of the memorial, creating a cohesive experience that honors the past while inspiring future generations to reflect on its lessons.

20

Resilient Design

Sensory Experience

Educational Opportunities

What design elements and symbolism could be incorporated to evoke the significance of the Radia�on Test and its impact on the community?

Design goal

Design goal

Design goal

Ecological Planning

Ecosystem Service Integra�on

Human Habitat Enhancement

SPR ING 2024

Implement resilient design strategies to mi�gate the impacts of climate change and ensure the long-term viability of the memorial.

PROGRAMMING THE SITE

Implement sus- Integrate landDesign spaces Integrate inter- Design landtainable design scape features that priori�ze pre�ve signage scapes that prac�ces to mini- that contribute to the well-being and educa�onal engage visitors and interac�on displays through sensomize environmen- ecosystem tal impact and services such as of visitors with throughout the ry experiences. promote ecologi- biodiversity sup- the natural memorial to cal resilience. port, water purifi- environment. inform visitors. ca�on, and carbon sequestra�on.

CREATING GATHERING SPACE FOR VISITORS

INSTALLING TRANSPARENCE ELEMENTS IN THE SITE

21

22 Encouraging contemplation and remembrance

Plant species to support local ecosystems

Managing stormwater and promoting groundwater recharge

VISUAL AND SPATIAL CONNECTION WITH NATURE

Educational displays

Evoking themes of remembrance, resilience, and healing.

Creating habitats such as birdhouses, or pollinator gardens to support local wildlife populations.

Designing areas for quiet reflection, meditation, or prayer

Using eco-friendly materials for construction and furnishings to minimize environmental impact.

Green Infrastructure

Community Engagement

Eco System Services

PROGRAMMING THE SITE

L A ND 7010 C A PSTONE STU D IO

CREATING DIFFERNT PATHWAYS BY USING THE TOPOGRAPHY

Focal Point

Plaza

Ponds

Glass Panels

Linear Pathways

Curvy Walking Path

Seating Areas

Reflective Gardens

SPR ING 2024

MA S T ER PL A N

The design idea for the masterplan was inspired by the grid pattern used in quilting. To achieve this, a general grid system was initially considered for the design. Then, certain parts of the grid were removed to create modules, akin to the approach used in quilting practice.

23

L A ND 7010 C A PSTONE STU D IO

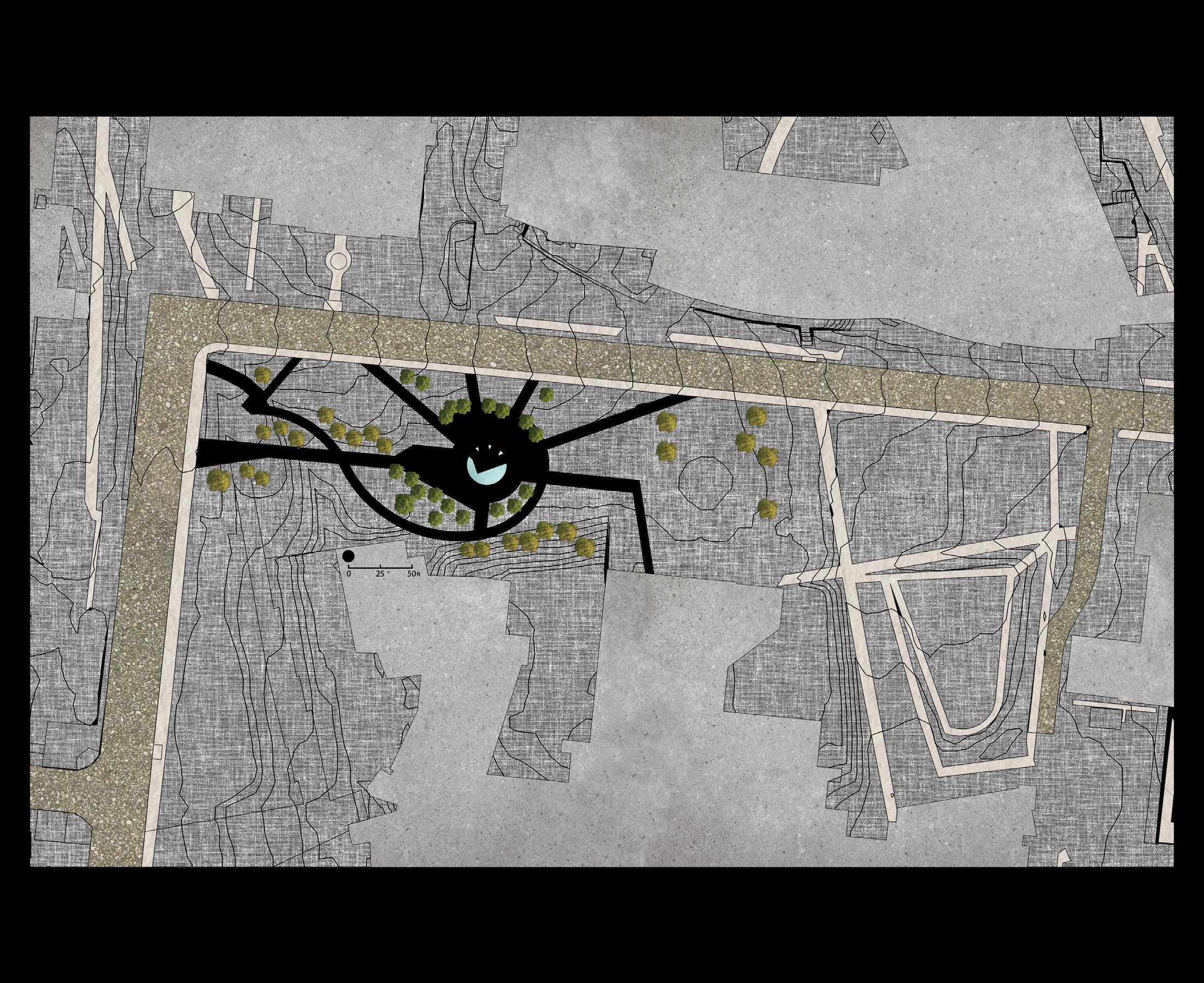

SI T E PL A N

24

SPR ING 2024

25

L A ND 7010 C A PSTONE STU D IO

MODULE IV DESIGN DEVELOPMENT DETAILS In this final module, the research reaches its culmination in its representation. The design intricacies are explored to develop a unique ‘signature approach’ that demands a profound understanding of materials, their interconnections and the narrative potential across various scales. The students will focus on the Design Development phase, elevating their comprehension of site design to the level of construction documentation, by concentrating on a specific area within the memorial.

This meticulous scale resolution will furnish vivid graphic illustrations showcasing how the project addresses the design challenges at the human scale, delving into intricate details. This phase will serve as a prototype, exemplifying the embodiment of this unique design approach.

Through rich graphic depictions of design resolution, students will showcase their grasp of materiality, construction techniques, and the design’s influence on urban ecology and the public realm. The focal point of this phase revolves around crafting an entry sequence, guiding visitors from the site’s entrances to its featured areas. This sequence must eloquently convey the memorial’s design language while illustrating its transformative impact on the landscape. Both the functionality of the design and the experiential aspect must be vividly articulated in these representations.

26

SPR ING 2024

27

L A ND 7010 C A PSTONE STU D IO

28

SPR ING 2024

SPRING

SUMMER

FALL

WINTER

29

L A ND 7010 C A PSTONE STU D IO

STAINED GLASS

1/2” GALVANIZED STEEL UNIT PAVING ON CONCRETE BASE

CONCRETE SLABS AGGREGATE BASE

COMPACTED SUBGRADE

THREADED ROD X4 WITH BOLTS

CONCRETE FOOTING

STAINED GLASS SECTION

PAVER RESTRAINT REINFORCED TURF

UNIT PAVING ON CONCRETE BASE

E OP

SL

COMPACTED SUBGRADE LANDFORM FILL MATERIAL

UNIT PAVERS AT LANDSCAPED EDGE

30

SPR ING 2024

P HYS I C AL MODEL

31

L A ND 7010 C A PSTONE STU D IO

32

SPR ING 2024

appendix presents a comprehensive site imagery APPENDIX This analysis for the proposed memorial project. Through a

combination of visual imagery, various aspects of the site have been thoroughly examined and documented to inform the design process.

33
