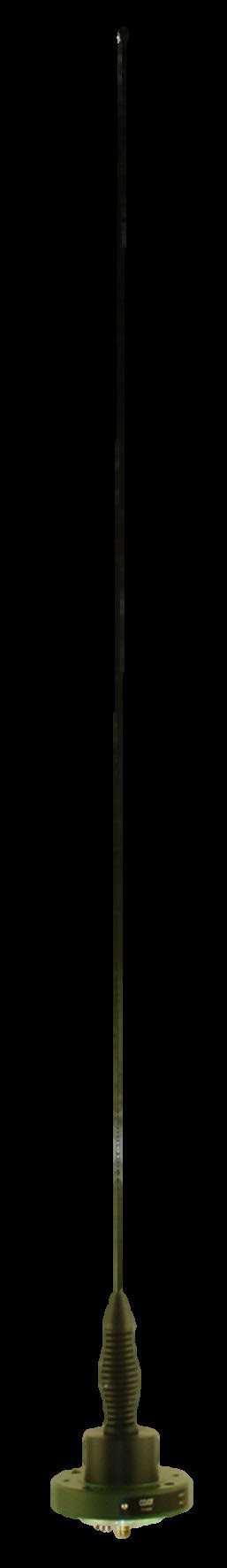

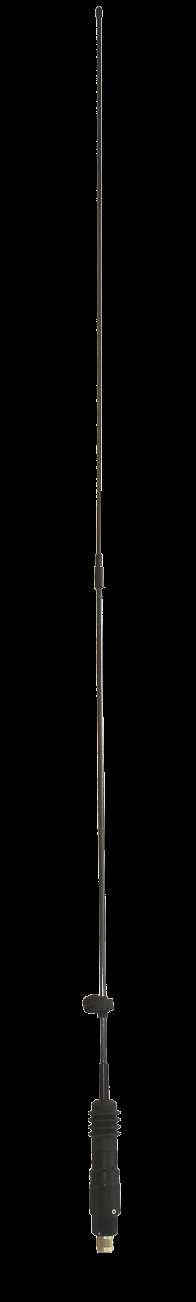

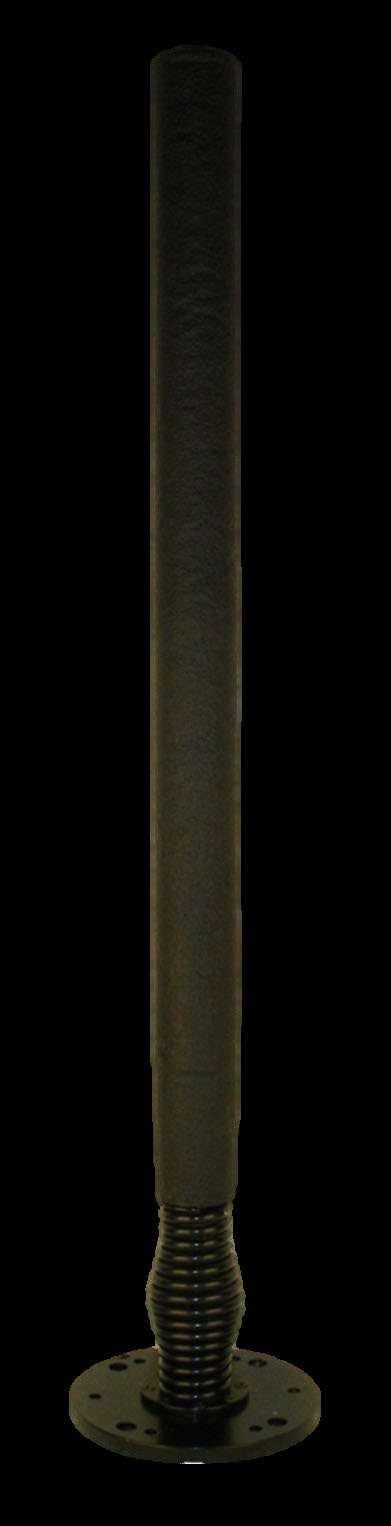

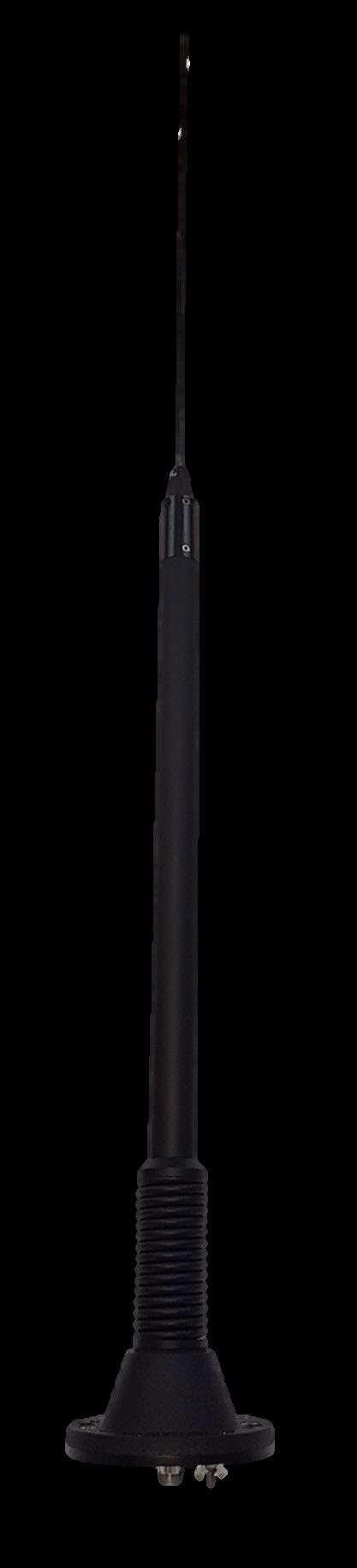

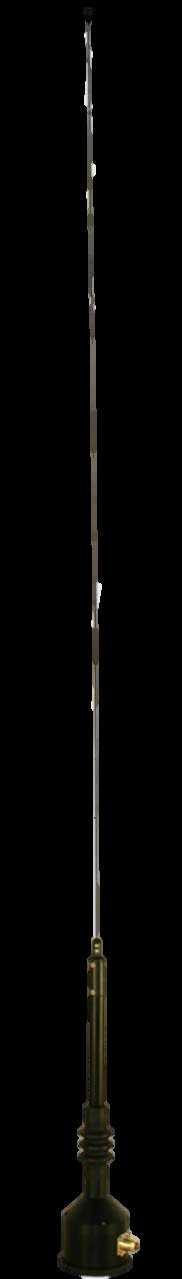

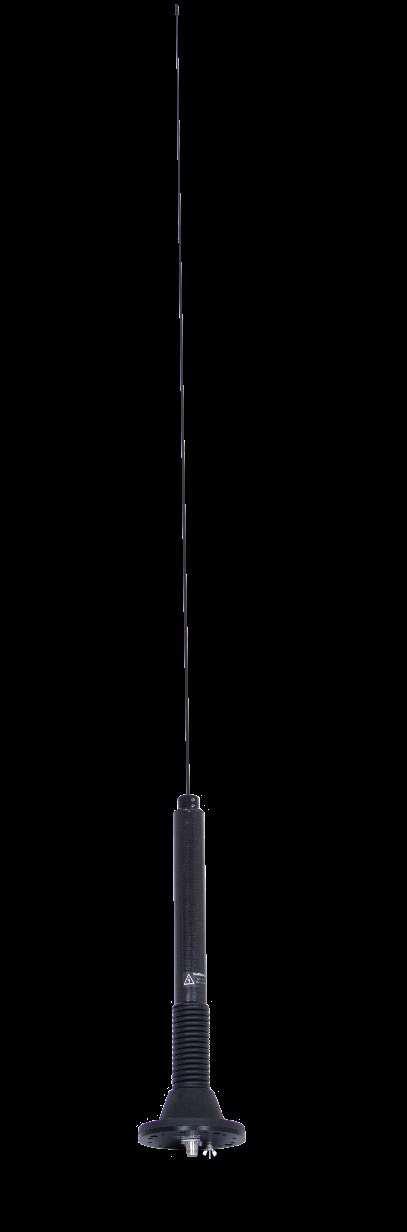

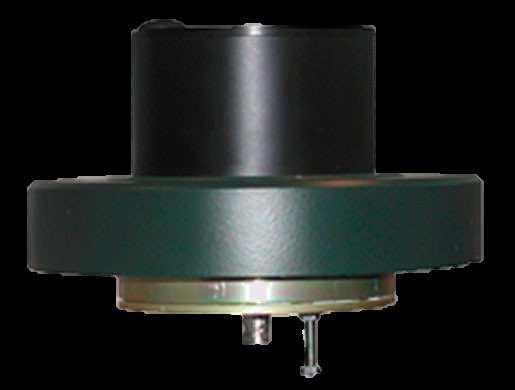

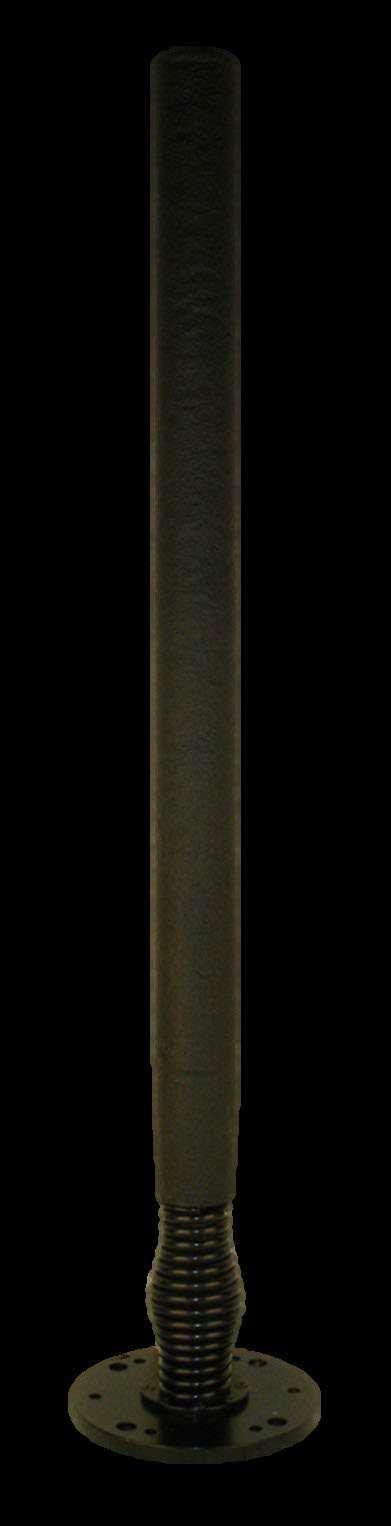

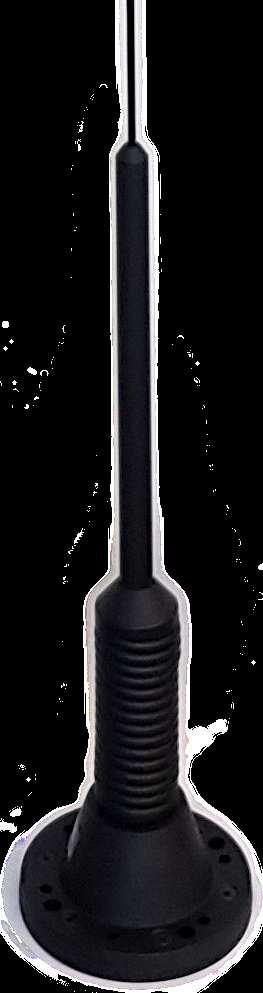

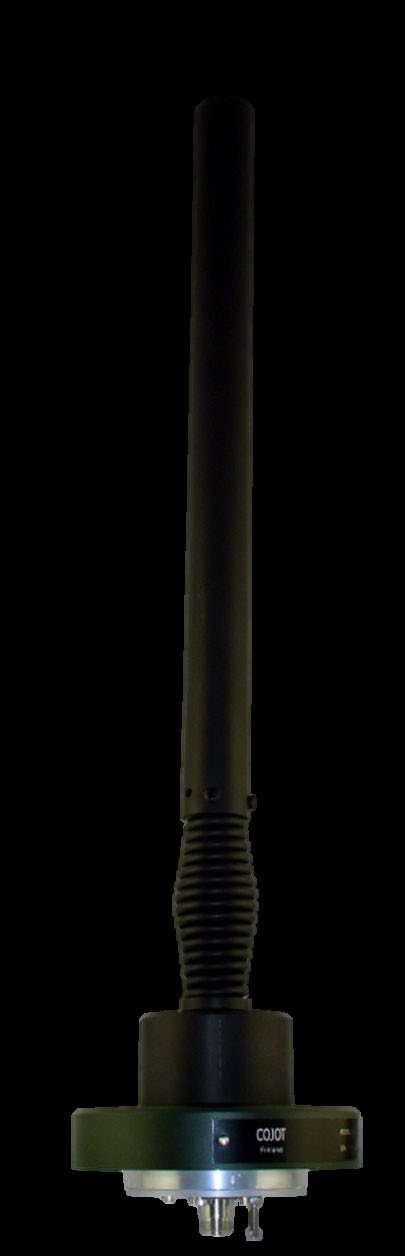

Tactical VHF Vehicle Antenna WB3090M
The WB3090M is a rugged, low profile vehicle antenna that is ideally suited for mobile C3i applications in the 30 – 110 MHz frequency range – to be used on numerous kinds of vehicles. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.
• Low profile whip antenna
• Optimized horizontal radiation
• Complete radiator and whip separately detachable without tools
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
30 – 110 MHz
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.5
Nominal Impedance
Power rating
50 Ω
75 W (RMS)
Standard color Black
Radiator
Steel whip with shock absorption spring
Height 1980 mm
Weight 1.4 kg
Installation*
RF connection
Female BNC-type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
NSN
WB3090M 5985-58-000-1002
WB3090M-C0
Product
Antenna as described above
- Antenna with female N -type connector
WB3090M-GPS - Antenna with active L1 GPS antenna inside the antenna base **
** Contact COJOT for details
V3.0w
Date 15.07.2021
Accessory: The optional available FJ5 is a handy tilting mechanism for vehicle whip antennas that enables the user to conveniently tilt down the whip, for instance when having to drive into halls and garages.
Page 1/1

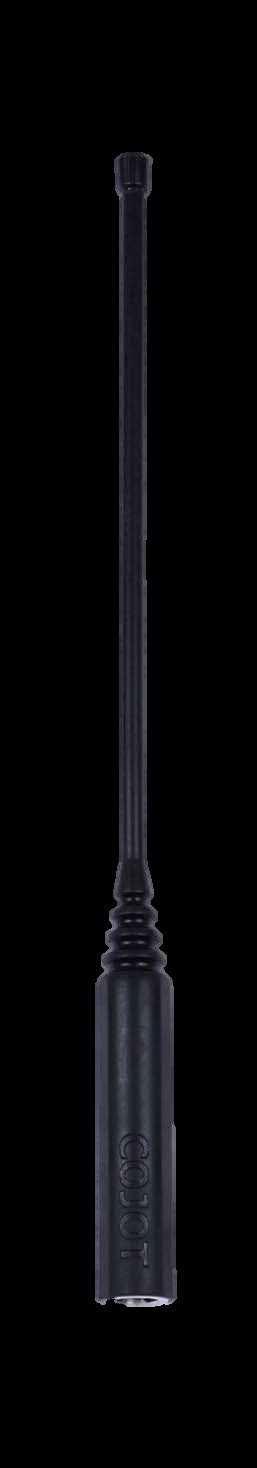

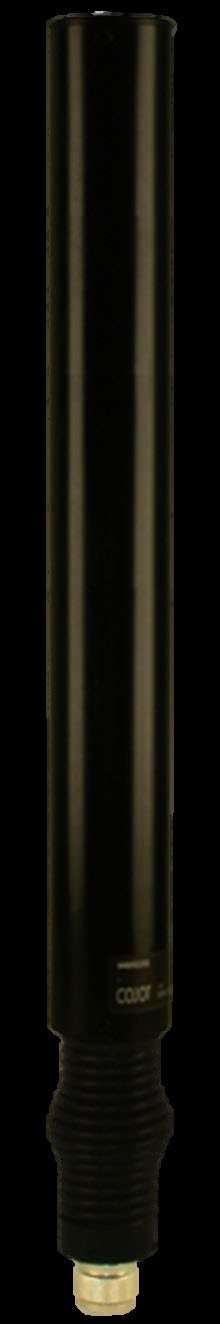

Wideband VHF Manpack Antenna WB25175E
The WB25175E is a remarkably lightweight and handy wideband antenna which is particularly suited for portable radio and jamming applications in the 25 – 175 MHz frequency range.
• Lightweight carbon fibre whip antenna
• Foldable radiator for handy transportation and easy installation
• Short height antenna construction
Frequency range
Matching Passive
Polarization
Nominally vertical
Antenna type Monopole (ground plane required)
Radiation pattern
Gain
Omnidirectional
Measured patterns on request VSWR
3.5 Nominal Impedance
Standard color
Radiator
Carbon fibre whip with shock absorption spring

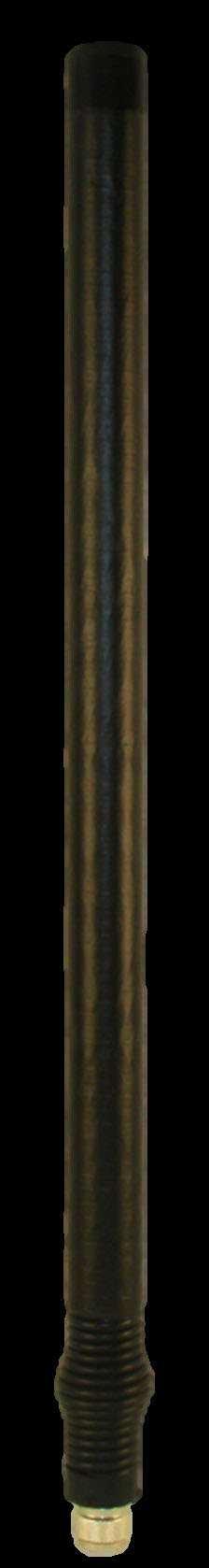

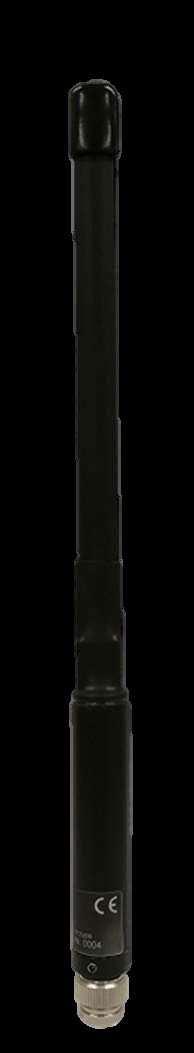

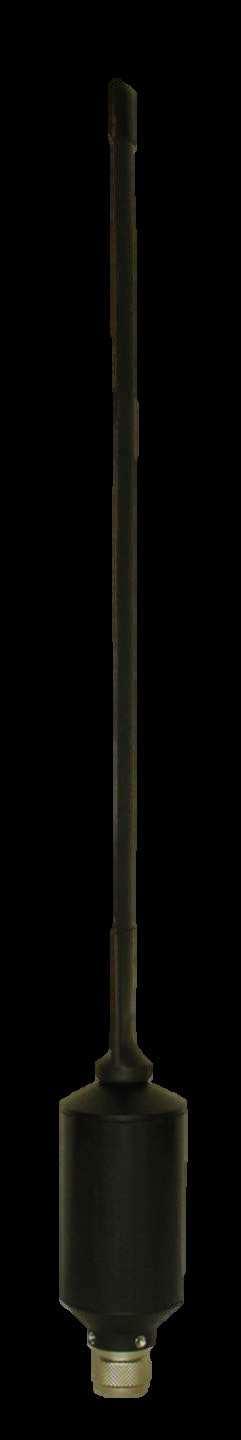

Wideband VHF Manpack Antenna WB20220A
The WB20220A is a short and lightweight wideband antenna for portable radio and jamming applications in the 20 – 220 MHz frequency range.
• Foldable radiator for handy transportation and easy installation
• Short height and lightweight antenna construction
Product details*
Frequency range
Matching
Polarization
20-220 MHz
Passive
Nominally vertical
Antenna type Monopole (ground plane required)
Radiation pattern Omnidirectional
Gain Measured patterns on request
VSWR
Nominal Impedance
20-27 MHz: ≤ 3.8
28-220 MHz: ≤ 3.5
50 Ω
Power rating 20 W (RMS)
Standard color Black
Radiator
Steel whip with shock absorption spring
Base Ø 36 mm max
Height
1000 mm (operational), 520 mm (folded)
Weight 335 g
Installation*
RF connection
Mounting
*Specific adjustments on request
Male N-type
Directly to a matching connector
as described above
V1.1w
Date 05.05.2021
Page 1/1

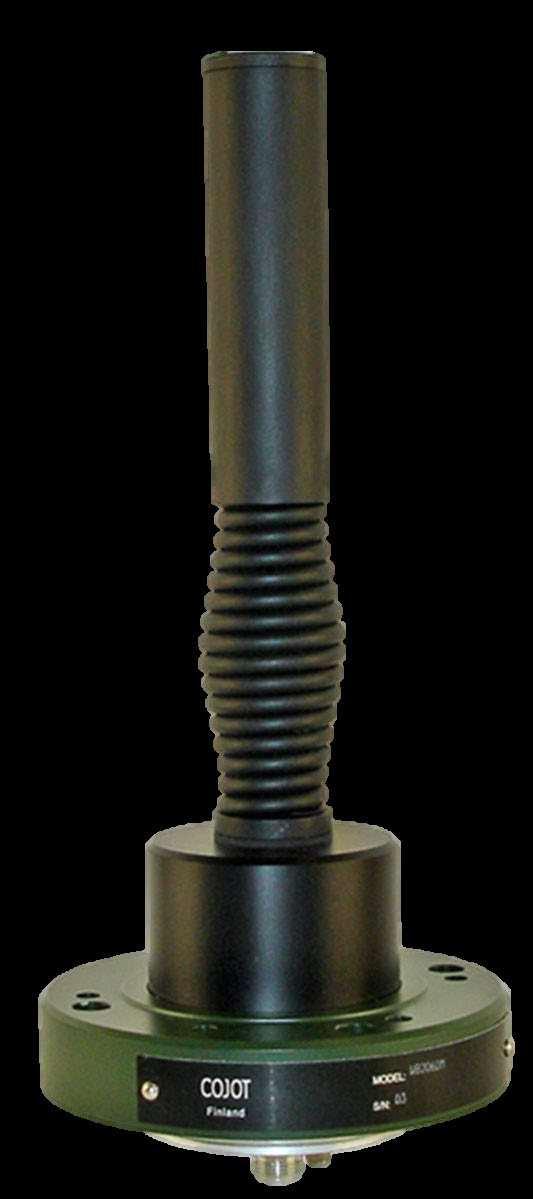

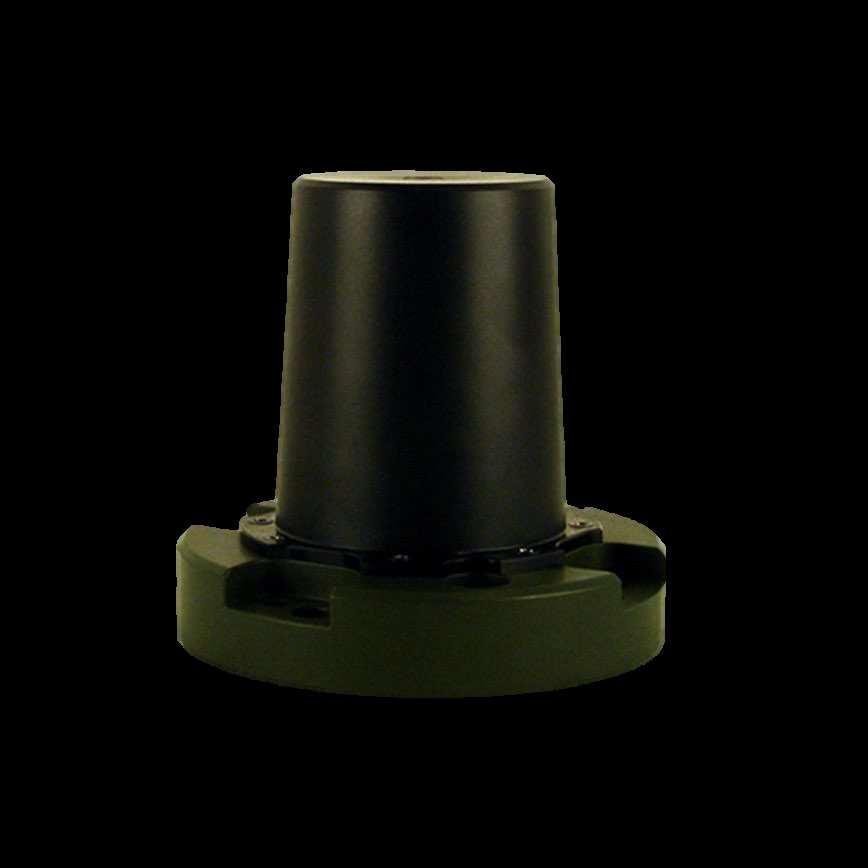

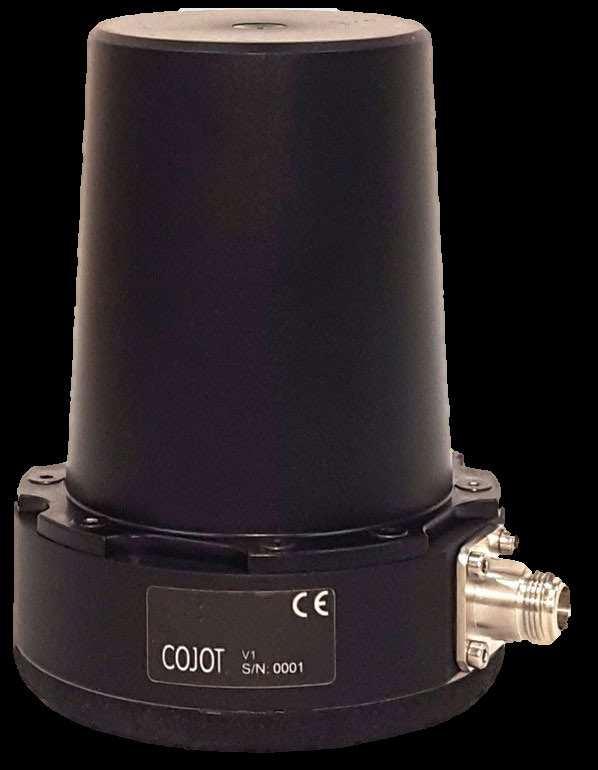

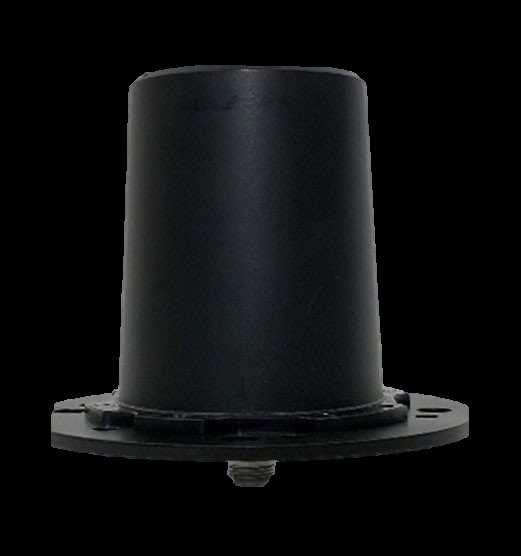

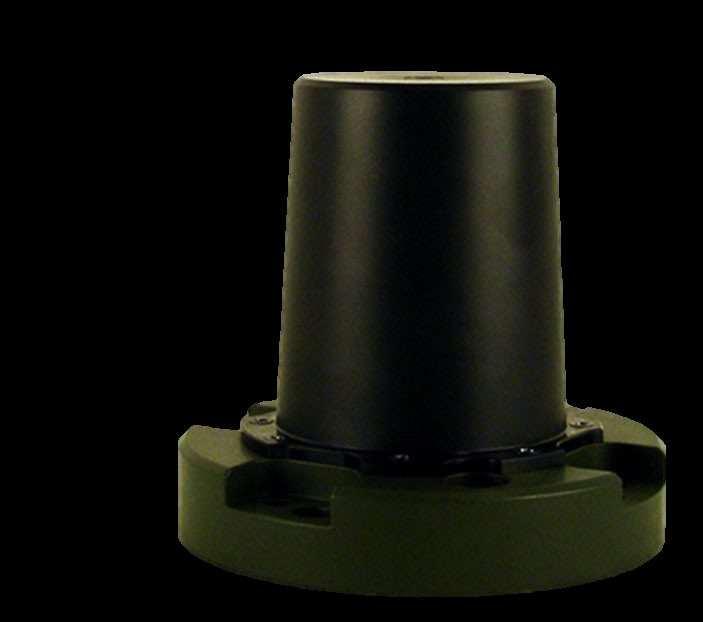

Wideband High-Power Vehicle Antenna WB425XM
The WB425XM is a high power, ultra wideband, compact and low-profile vehicle antenna that is well suited for communication, monitoring and jamming applications within the 400 – 6000 MHz frequency range.
Frequency range
Polarization
Radiation pattern
Gain
• Excellent performance over the entire frequency range
• High power rating, 400 W at 100% duty cycle
Product details*
800 - 6000 MHz (without a ground plane)
400 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)
Nominally vertical
Omnidirectional (max. ± 1.5 dB ripple)
Measured patterns on request VSWR ≤ 3.0
Nominal Impedance 50 Ω
Power rating 400 W (RMS)
Standard color Black
Radiator
Radome protected
Height 130 mm
Weight 1.0 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female 7/16 -type
4 -hole US and 3/6 -hole NATO pattern mount
Order number
V1.2w
Date 11.01.2023
Page 1/1
WB425XM Antenna as described above

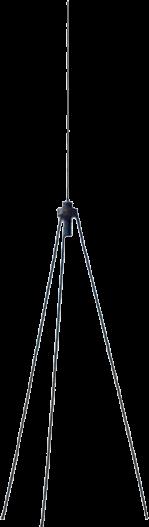

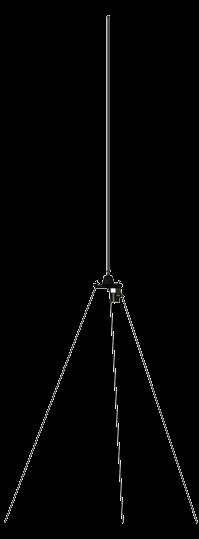

Stationary Tactical VHF Antenna WB3090B
The WB3090B is a highly efficient tactical VHF antenna that can be mounted onto a mast or be used as a self-standing antenna on the ground or on fixed installations like containers or shelters. Its excellent performance in the 30 – 110 MHz frequency range makes it ideally suited for use with the latest tactical radios.
• High performance, 75W at 100% duty-cycle and typical gain of 0 dBi
• Multiple mounting options
Product details*
Frequency range
30 - 110 MHz
Matching Passive
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Standard color
V1.2w
Nominally vertical
Ground plane antenna
Omnidirectional
Measured patterns on request
≤ 3.0
50 Ω
75 W (RMS)
Black/olive green Radiator and ground plane radials
Height
Aluminium alloy
4000 mm (operational), 2600 mm (disassembled in carry-on bag)
Weight 4.0 kg
Installation*
RF connection
Female BNC-type connector
Mounting Self-standing or mast top mounting on ø 40 –50 mm tubular mast
*Specific adjustments on request Order number
Antenna as described above
WB3090B-C0 - Same antenna with female Ntype connector
Date 30.04.2021 Page 1/1

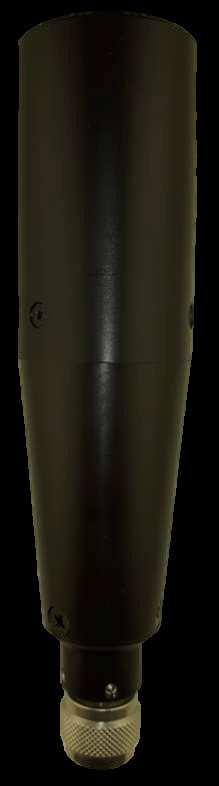

Wideband UHF/SHF Manpack Antenna WB26-QE
The WB26-QE is a high performance manpack antenna featuring a shock absorption spring and an extension to raise the antenna radiation point thus allowing better coverage. The antenna is particularly suited for jamming-applications in the 1.8 – 6 GHz frequency range.
• Effective omnidirectional radiation over the entire frequency range
• Dipole antenna type - no ground plane required
• Rugged radome protected construction, also available as a compact version without extension and shock absorption spring.
Antenna type Wideband dipole
Radiation pattern
Gain
Nominal Impedance
Standard colour
adjustments on request
Omnidirectional

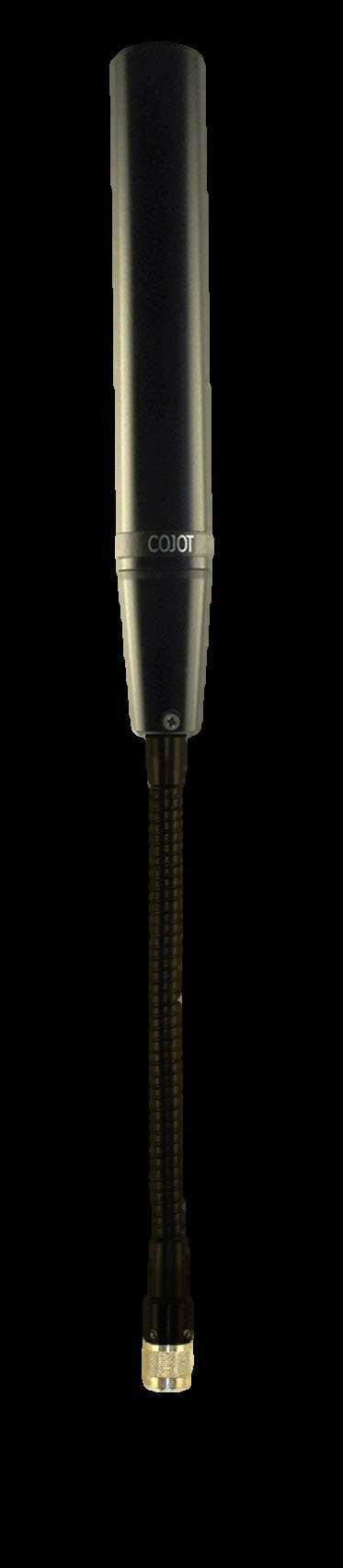

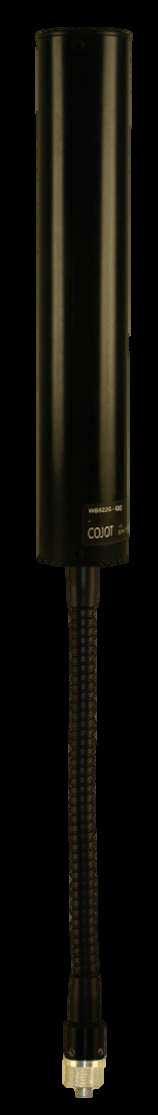

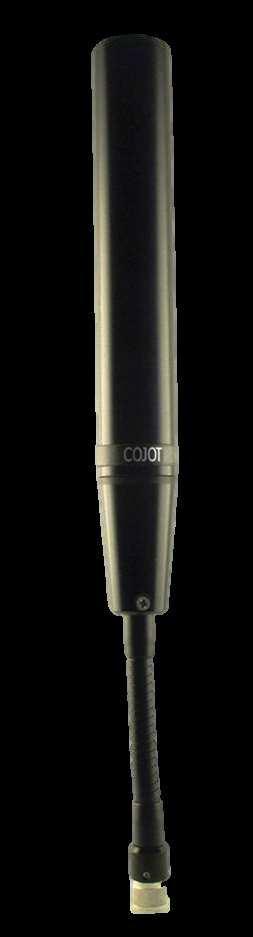

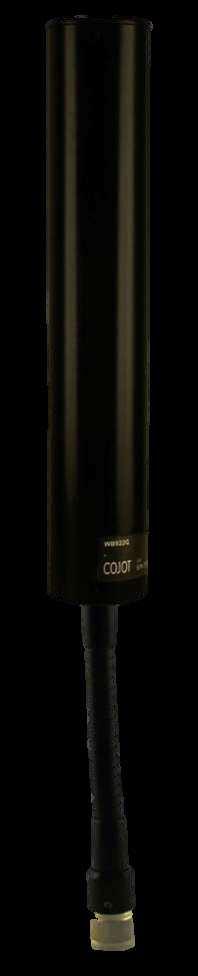

Wideband UHF Manpack Antenna WB922G-GE
The WB922G-GE is a rugged, high performance manpack antenna featuring an extra long gooseneck. The antenna is well suited for portable communication and jamming applications where a quick adjustment of the antenna’s angle is needed.
• Effective coverage of the entire 800 – 2500 MHz frequency range
• Optimized performance for the GSM, 3G and WLAN bands
• Extra long gooseneck (220 mm)
• Rugged antenna construction with flexible gooseneck or shock absorption spring
Radiation pattern
Nominal Impedance 50 Ω Power rating 50 W (RMS)
Standard color
Radiator Radome protected
mm (incl. 220 mm gooseneck)
*Specific adjustments on request
a matching connector
Antenna as described above
with 12 cm gooseneck (Height: 400 mm / Weight: 350 g)
with shock absorption spring (Height: 340 mm / Weight: 370 g)
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.
V2.1w
Date 13.03.2019 Page 1/1

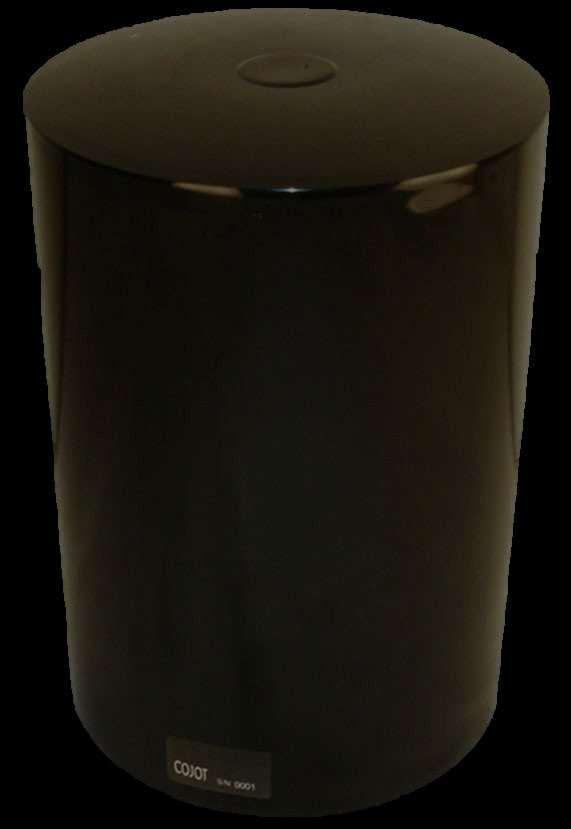

Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB280M
The WB280M is a rugged, high power vehicle antenna that is effectively covering the 200 – 8000 MHz frequency range. The antenna is highly suited for modern and upcoming SDRs and can be ideally used in multiple applications like mobile communication, countermeasure and monitoring.
• Ideal operation over a very wide bandwidth including WiFi 6E band
• High power rating, 200W at 200–6000 MHz and 100W at 6000– 8000 MHz with 100% duty cycle
• Easy to install to different kind of environments
Polarization
500 – 8000 MHz (without a ground plane)
Nominally vertical
Radiation pattern Omnidirectional (typ. ± 2.0dB)
Gain
Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance 50 Ω
Power rating
200 – 6000 MHz 200 W (RMS)
6000 – 8000 MHz 100 W (RMS)
Standard color Black
Radiator Radome protected
Height 220 mm
Width 150 mm
Weight 2.3 kg
Installation*
RF connection
Female N-type
Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna
*Specific adjustments on request
Order
V0.2w
Date 16.06.2023

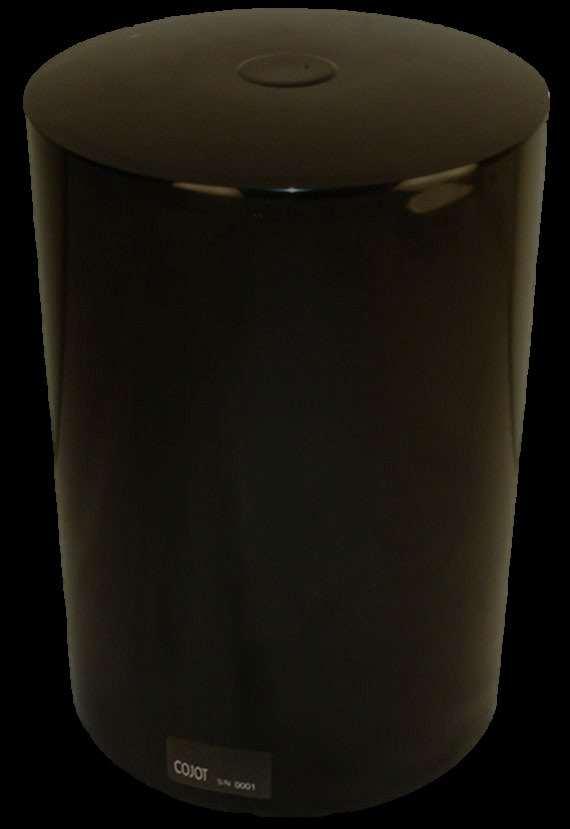

Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB225XM
The WB225XM is a rugged vehicle antenna with extremely high-power rating covering the 200 –6000 MHz frequency range. The antenna is highly suited for electronic countermeasure applications like high power RCIED jamming.
• Extremely high-power rating, 400 W at 100% duty cycle
• Ideal operation over a very wide bandwidth
• Good horizontal gain starting from 200 MHz onwards
• Easy to install to different kind of environments
Frequency range
Polarization
Product details*
200 – 6000 MHz (on a ground plane ≥ 1 x 1 m2)
500 – 6000 MHz (without a ground plane)
Nominally vertical
Radiation pattern Omnidirectional
Gain Measured patterns on request
VSWR
≤ 2.5
Nominal Impedance 50 Ω
Power rating
400 W (RMS)
Standard color Black
Radiator Radome protected Height
mm
RF connection
Installation*
Female 7/16 -type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
Product WB225XM Antenna as described above
V1.1w
Date 21.04.2021
Page 1/1

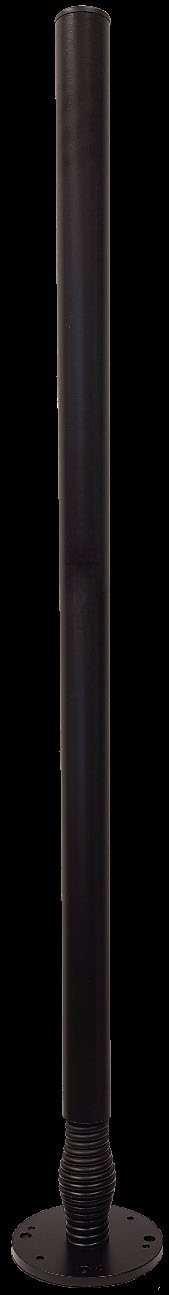

Wideband VHF Vehicle Antenna WB13CCM
The WB13CCM is a highly effective vehicle antenna that is especially suited for jamming applications in the 130 - 180 MHz frequency range.
• High performance, 200 W at 100% duty-cycle
• Specifically optimized for the 130 – 180 MHz frequency range
• Rugged antenna construction with shock absorption spring
Product details*
Frequency range
Matching
Polarization
Antenna type
130 - 180 MHz
Passive
Nominally vertical
Monopole, ground plane required
Radiation pattern Omnidirectional
Gain
Measured patterns on request
VSWR < 2.5
Nominal Impedance
Power rating
50 Ω
200 W (RMS)
Standard color Black/olive green
Radiator Aluminium alloy with shock absorption spring
Height 475 mm
Weight 2.1 kg
Installation*
RF connection
Female N-type connector
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
NSN
WB13CCM 5985 - 58 - 000 - 3360
Product
Antenna as described above
V1.4w
Date 30.09.2021
Page 1/1

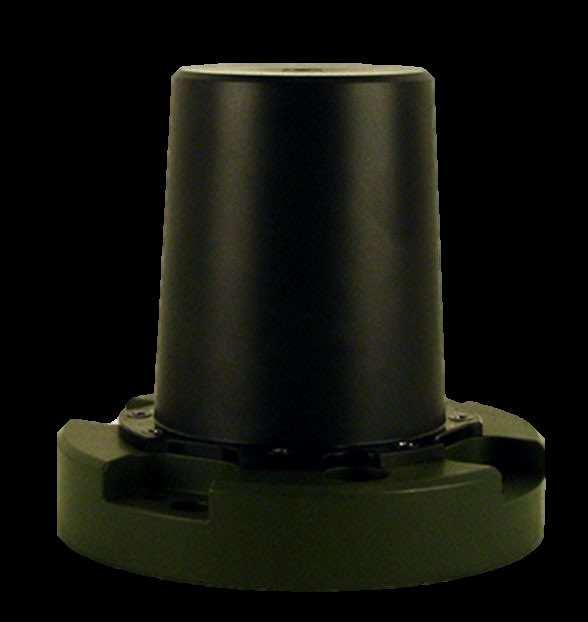

Wideband UHF/SHF Vehicle Antenna WB425M
The WB425M is an ultra wideband, compact and low-profile vehicle antenna that is well suited for communication, monitoring and jamming applications within the 400 – 6000 MHz frequency range.
Frequency range
Polarization
• Excellent performance over the entire frequency range
• High power rating, 200 W at 100% duty cycle
Product details*
800 - 6000 MHz (without a ground plane)
400 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)
Nominally vertical Radiation pattern Omnidirectional (max. ± 1.5 dB ripple) Gain
*Specific adjustments on request
WB425M-F6 Antenna with sand yellow color (RAL 1002)
WB425M-F11
Antenna with olive drab camo color FS33070 (FED-STD-595)
WB425M-F12 Antenna with sand camo color FS33303 (FED-STD-595)
WB425M-F16 Antenna with olive drab camo color tone FS33070, MIPA paint
V1.6w Date 16.04.2024 Page 1/1
Wideband VHF Vehicular Antenna WB20200M
The WB20200M is a rugged, high-performance vehicle antenna for use in communications and jamming applications within the 20 - 200 MHz frequency range.
• Optimized for the frequency bands 25 – 30 MHz and 130 – 180 MHz
• Excellent horizontal radiation in those frequency bands
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
VSWR ≤ 3.5 **
Nominal Impedance 50 Ω
Power rating
100 W (RMS)
Standard color Black
Radiator Steel whip upper section, aluminium / synthetic lower section and shock absorption spring
Height 2270 mm
Weight
** Subject to size and shape of ground plane
adjustments on request
2.8 kg
High Gain Vehicle Antenna HD4050M
The HD4050M is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 400 – 500 MHz frequency range and high power rating make it very well suited for jamming applications.
• High performance in the 400 – 500 MHz frequency range
• Easily installed onto vehicles, shelters and masts
• Compact and robust antenna design for rough environmental conditions
• No ground plane nor additional tuning required
Product
adjustments on request

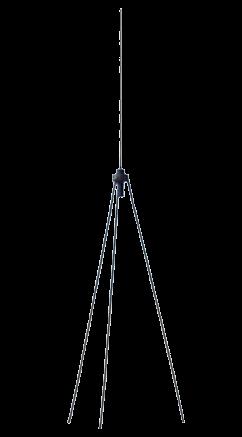

Stationary Tactical VHF Antenna WB3090B-S
The WB3090B-S is a shorter version of the WB3090B – a highly efficient tactical VHF antenna. The antenna can be mounted onto a mast or be used as a self-standing antenna on the ground or on fixed installations like containers or shelters. Its excellent performance in the 30 – 110 MHz frequency range makes it ideally suited for use with the latest tactical radios.
• High performance, 75W at 100% duty-cycle and typical gain of 0 dBi
• Multiple mounting options
V1.2w Date 28.05.2020
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Standard color
Radiator and ground plane radials
Product details*
30 - 110 MHz
Passive
Nominally vertical
Ground plane antenna
Omnidirectional
Measured patterns on request
≤ 3.0
50 Ω
75 W (RMS)
Black/olive green
Aluminium alloy
Height 3500 mm (operational), 2000 mm (disassembled in carry-on bag)
Weight
RF connection
Mounting
*Specific adjustments on request
WB3090B-S
WB3090B-S-C0
4.0 kg
Installation*
Female BNC-type connector
Self-standing or mast top mounting on ø 40 –50 mm tubular mast
Order number
Antenna as described above
Same antenna with female N-type connector

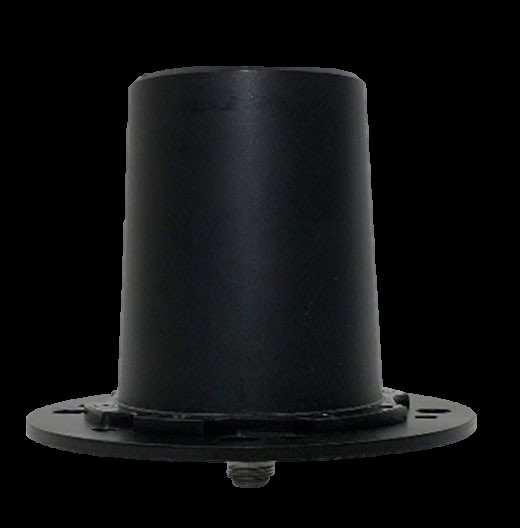

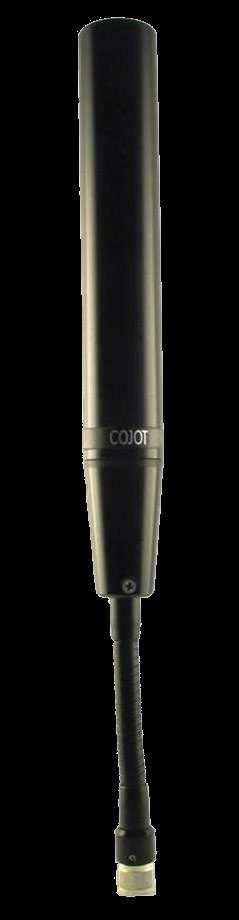

Wideband UHF Vehicle Antenna WB922M
The WB922M is a low-profile vehicle antenna that is particularly suited for communication and jamming applications within the 500 – 2500 MHz frequency range.
• High performance, 200 W at 100% duty-cycle
• Compact, low-profile vehicle antenna
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Product details*
870 - 2500 MHz (without a ground plane)
500 – 2500 MHz on a ground plane (≥ 0.5 x 0.5 m2)
Nominally vertical
Omnidirectional
Measured patterns on request
≤ 2.5 (870-2500 MHz); ≤ 3.0 (500-870 MHz)
Nominal Impedance 50 Ω
Power rating
Standard color
Radiator
200 W (RMS)
Black/olive green
Radome protected
Height 130 mm
Weight 1.0 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female N-type
4-hole US and 3/6-hole NATO pattern mount
V2.1w
Date 04.05.2021 Page 1/1

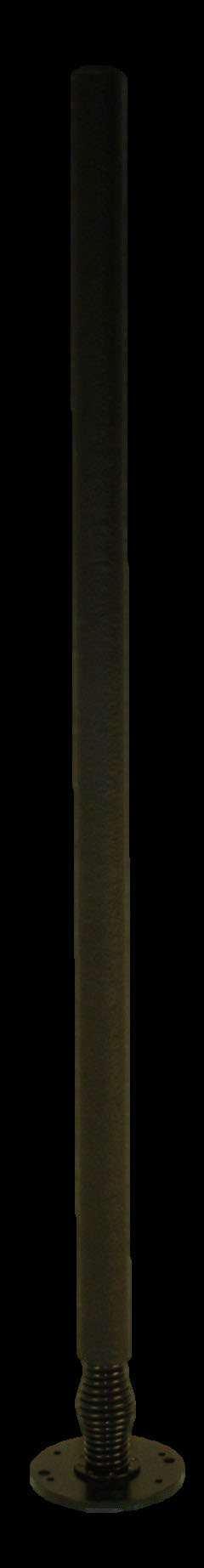

Extended VHF Band Vehicular Antenna WB25C0M
The WB25C0M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.
• Superior performance starting from as low as 25 MHz
• High power rating, 100 W at 100 % duty-cycle
Frequency range 25 – 175 MHz
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
V2.0w
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
≤ 3.5
50 Ω
100 W (RMS)
Standard color Black/olive green
Radiator
Steel whip with shock absorption spring
Height 2240 mm
Weight 2.75 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female N-Type connector
US and 3/6-hole NATO pattern mount
Date 08.07.2021 Page 1/1
Wideband VHF Vehicle Antenna WB20140M
The WB20140M is a rugged low-profile wideband antenna for communication and jamming applications in the 20 – 140 MHz frequency range – to be used on numerous kinds of vehicles. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.
Date 20.07.2021
• High power rating, 100 W at 100 % duty-cycle
• Rugged and low-profile antenna construction
• Superior performance starting from as low as 20 MHz
• Complete radiator and whip separately detachable without tools
Frequency
Matching
Polarization
Passive
Nominally vertical
Antenna type Monopole, ground plane required
Radiation pattern Omnidirectional
Gain
VSWR
Nominal Impedance
Power rating
Measured patterns on request
≤ 3.8
50 Ω
100 W (RMS)
Standard color Black/olive green
Radiator Steel whip with shock absorption spring
Height 1980 mm
Weight 2.2 kg
*Specific adjustments on request
1/1

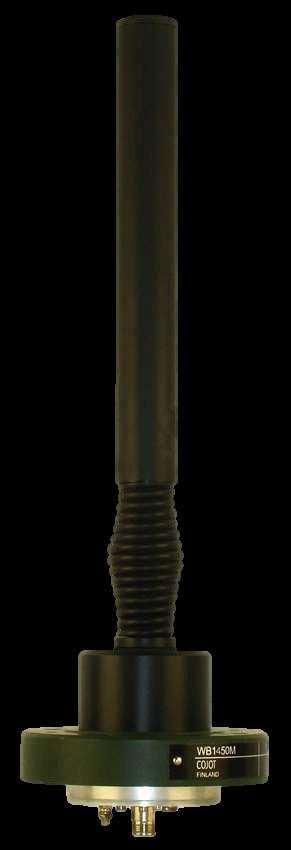

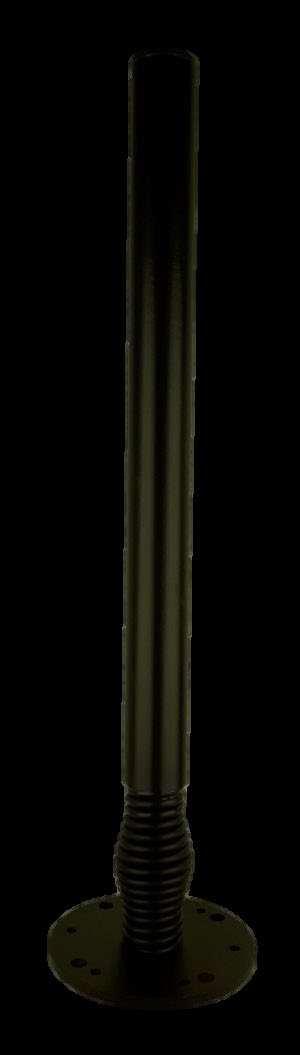

Wideband VHF/UHF Vehicle Antenna WB1048M
The WB1048M is a rugged VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 100 - 520 MHz frequency range – to be used on numerous kinds of vehicles.
• Rugged antenna construction with shock absorption spring
• High performance, 100 W at 100% duty cycle Product
Frequency range
Matching Passive
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.5
Nominal Impedance
Power rating
50 Ω
100 W (RMS)
Standard color Black/olive green
Radiator Aluminium alloy with shock absorption spring
Height 600 mm
Weight
RF
Mounting
*Specific adjustments on request
Installation*
V2.4w
Date 10.05.2021 Page 1/1

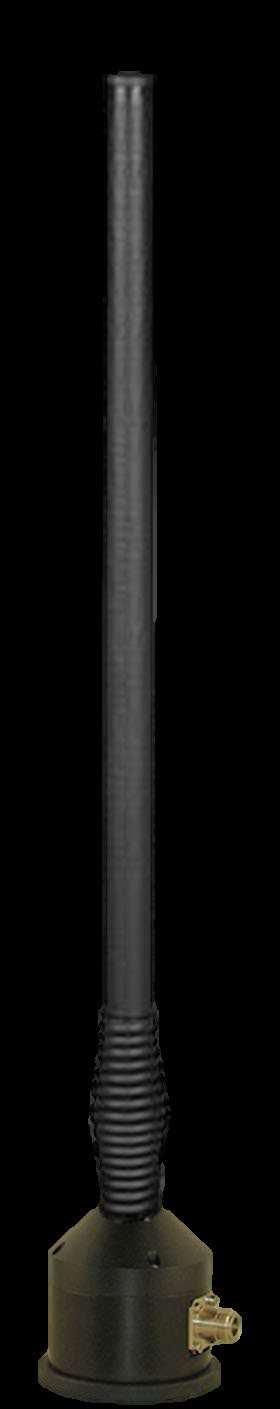

High Gain GSM/3G/LTE Vehicle Antenna HD827W
The HD827W is a high gain magnet mount omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for communication and jamming applications.
• Highly compact and unique electrical design
• Optimised performance for GSM, 3G and 4G LTE frequency bands
• Rugged antenna construction with shock absorption spring
• No ground plane required Product
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain (typical)
790 - 2700 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional
Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance
Power rating (RMS)**
Standard color
Radiator
50 Ω
790 - 1000 MHz : 85 W (Pmax1)
1000 - 1700 MHz: 65 W (Pmax2)
1700 - 2200 MHz: 60 W (Pmax3)
2200 - 2700 MHz: 55 W (Pmax4)
Black
Radome protected (radome diameter 28 mm, spring 43 mm)
Installation*
RF connection
V0.3w
Date 29.09.2022
Female N-type
Mounting Ø 88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)
*Specific adjustments on request
** Sum of input powers (P) should not exceed the limit
Order number
HD827W
Product
Antenna as described above
Page 1/1

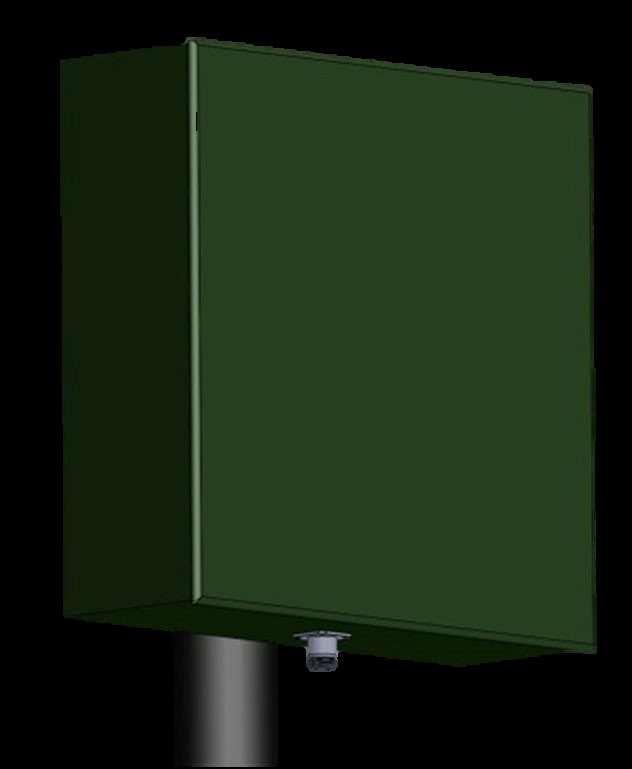

VERSION: 1.0
Tri Port High-Power LPDA Antenna
400 – 6000 MHz Product Code: LPDA-A0167
SPECIFICATIONS:
Electrical:
Frequency range
Band A
400 – 6000 MHz
400 – 930 MHz
Band B 1160 – 1610 MHz
Band C
2400 – 6000 MHz
VSWR < 2.0:1
Nominal input impedance 50 Ω
Connector 3x N-type female
Feed power handling 100W CW
Gain (typical) See graph below
E-plane 3 dB beamwidth
Band A
Band B
Band C
H-plane 3 dB beamwidth
Band A
Band B
Band C
PRODUCT FEATURES:
• Wideband frequency 400 to 6000 MHz
• VSWR < 2.0:1
• High gain: > 7 dBi
• Rugged construction
• Ice resistant
PRODUCT APPLICATIONS:
• Wideband
• High-Power
95º - 105°
65° - 75°
65° - 75°
55º - 65°
45° - 55°
45° - 55°
Polarisation Linear
Front-to-back ratio ≥ 19 dB
Mechanical: Dimensions (l x h x w)
600 mm x 880 mm x 160 mm (incl. bracket)
Material Aluminium, stainless steel, fibreglass
Total mass < 6 kg (incl. mounting bracket)
Mounting method 4 x M8 Bolts
MTBF 500,000 h
Environmental: designed to meet the following specifications Wind survival 160 km/h calculated
Operating Temperature -30ºC to +65º (no icing)
Storage Temperature -40ºC to +85º
PRODUCT DESCRIPTION:
The LPDA-A0167 tri port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.
The antenna provides three separate ports for simultaneous transmission in all bands with good isolation between bands.
The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.
Tri Port High-Power LPDA Antenna

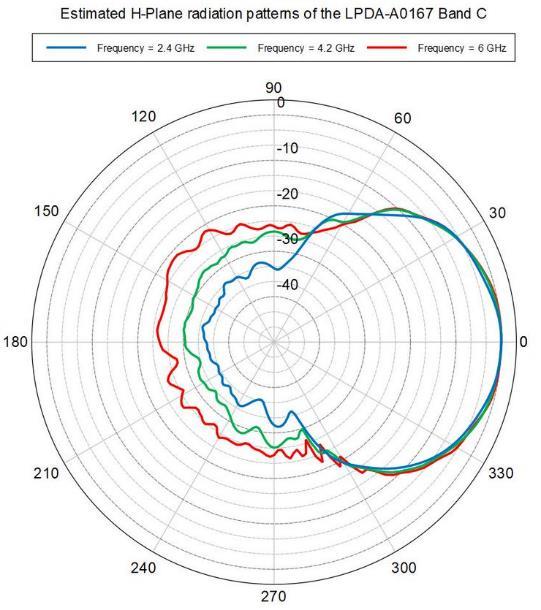

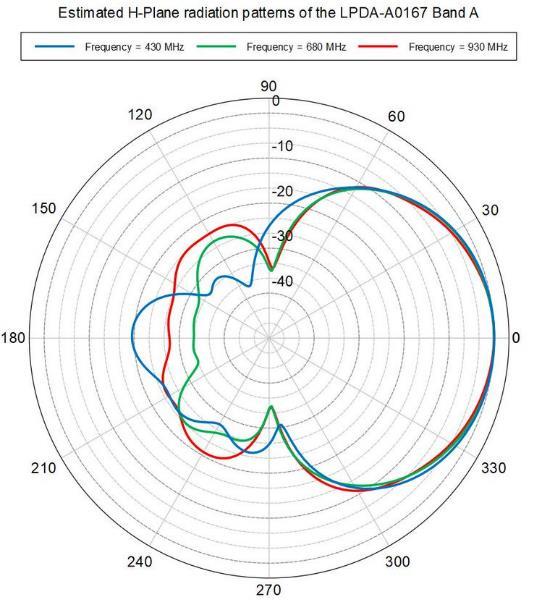

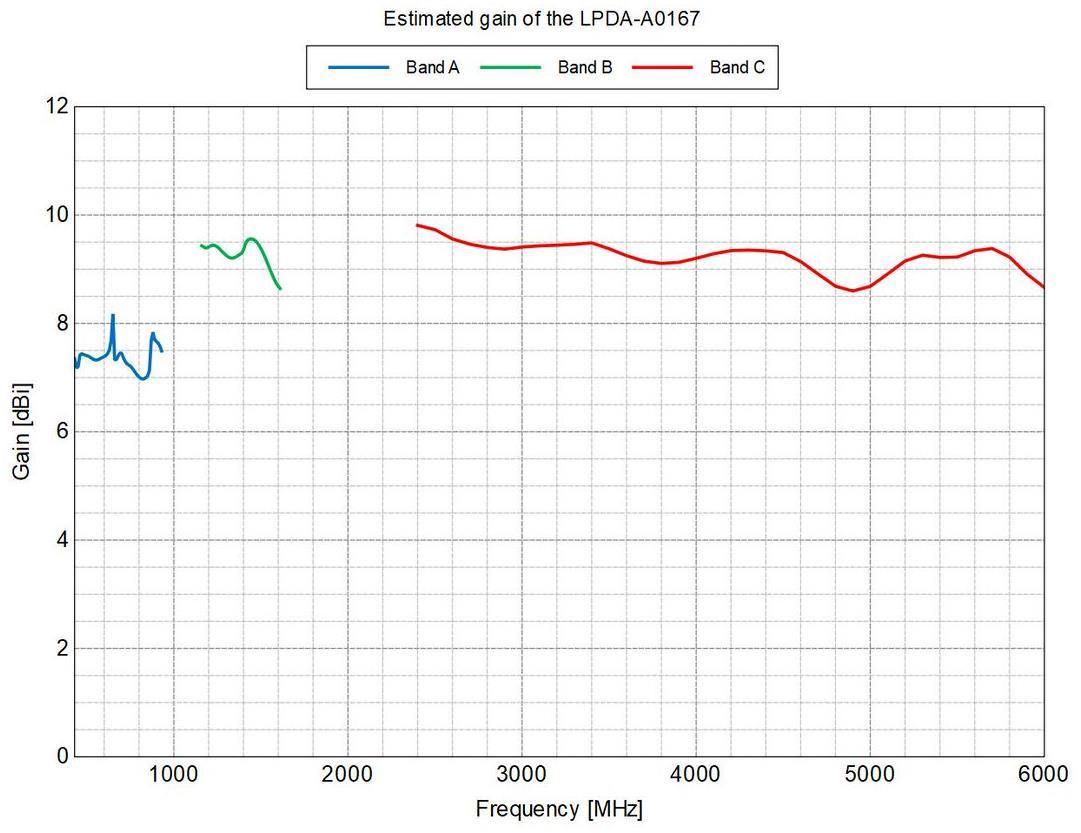

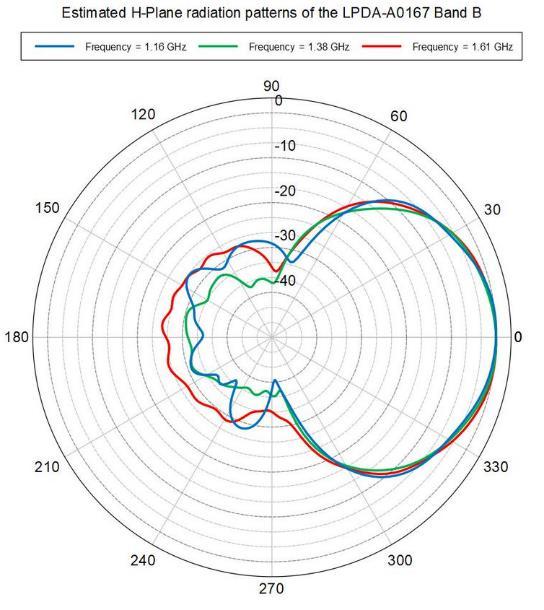

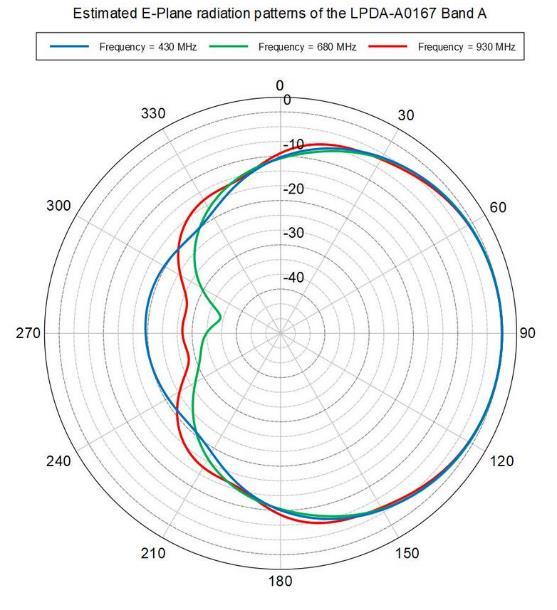

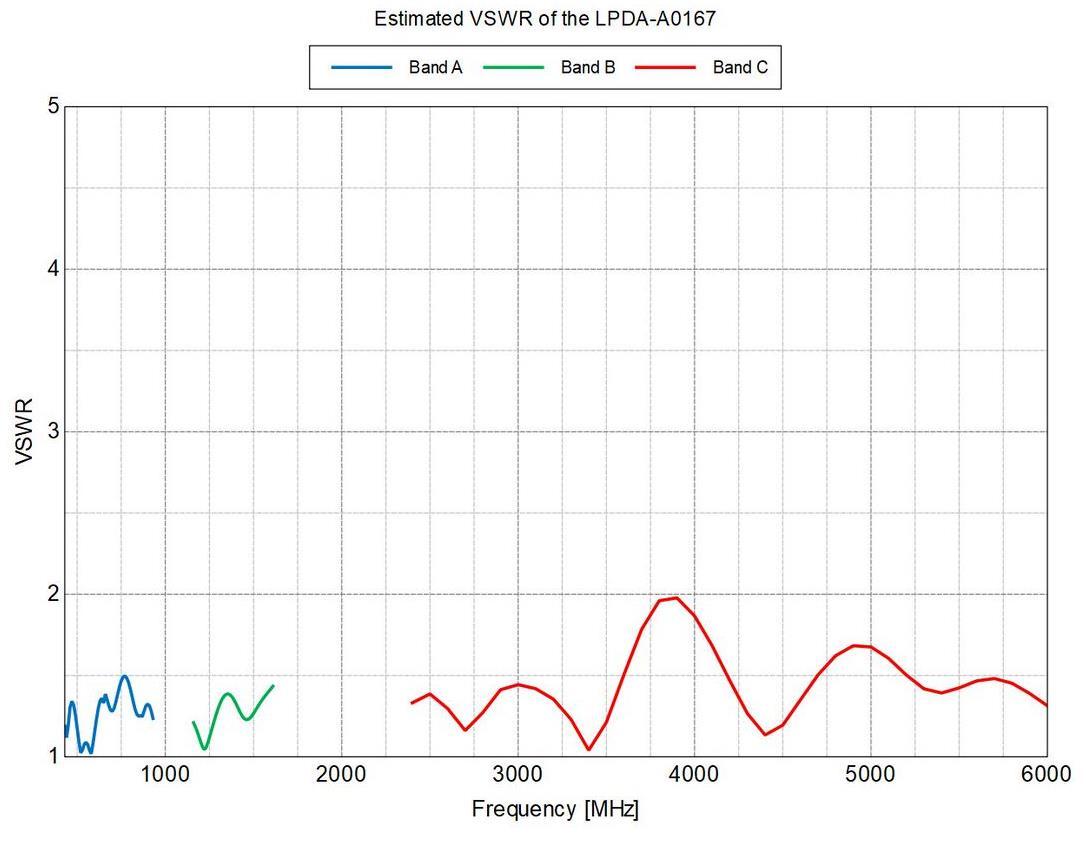

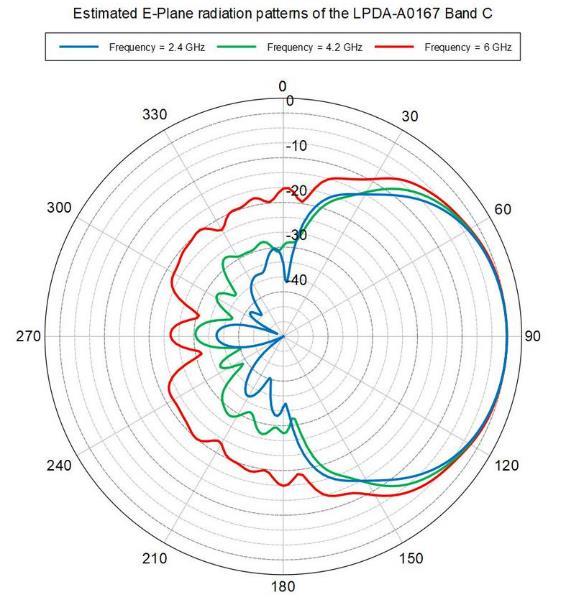

VSWR AND GAIN GRAPHS:
Typical VSWR: GAIN:
Tri Port High-Power LPDA Antenna
Ultra Wideband VHF/UHF/SHF Vehicle Antenna WB225M
The WB225M is a rugged, high power vehicle antenna that is effectively covering the 200 – 6000 MHz frequency range. The antenna is highly suited for modern and upcoming SDRs and can be ideally used in multiple applications like mobile communication, countermeasure and monitoring.
• Ideal operation over a very wide bandwidth
• Good horizontal gain starting from 200 MHz onwards
• High performance, 200 W at 100% duty cycle
• Easy to install to different kind of environments
Product details*
Frequency range 200 – 6000 MHz (on a ground plane ≥ 1 x 1 m2) 500 – 6000 MHz (without a ground plane)
Polarization
Radiation pattern
Nominally vertical
Omnidirectional Gain
Typical Horizontal Gain -1 ... +3 dBi
Measured patterns on request
Nominal Impedance 50 Ω Power rating 200 W (RMS)
Standard color Black Radiator Radome protected
RF connection
Installation*
Female N-type
Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna
*Specific adjustments on request
V2.3w
Date 10.05.2021

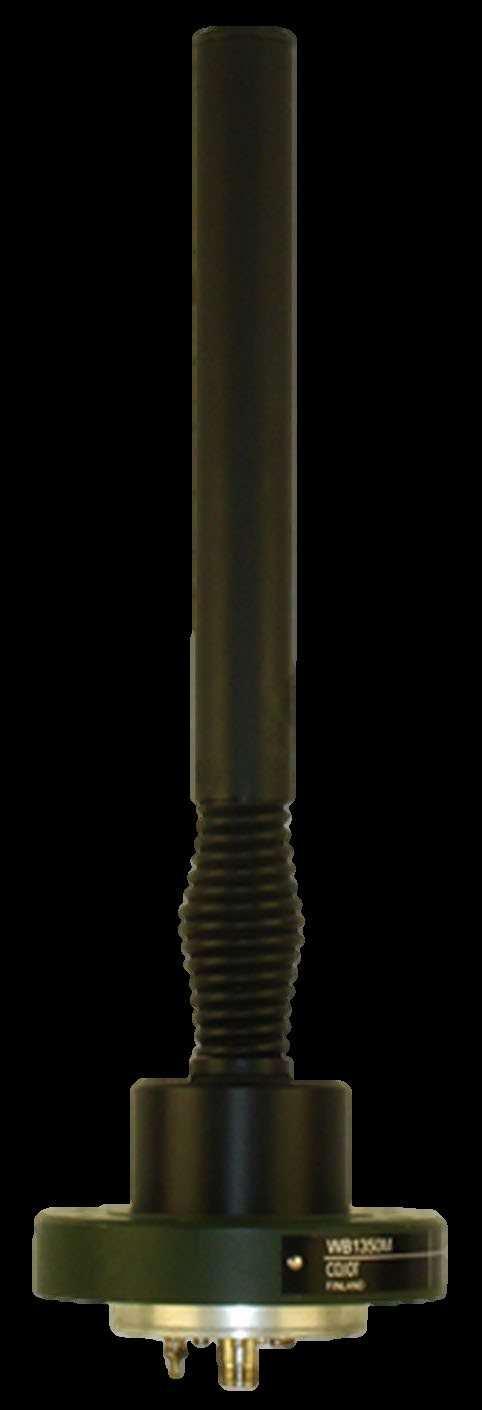

Wideband VHF/UHF Vehicle Antenna WB1350M
The WB1350M is a rugged VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 135 – 512 MHz frequency range – to be used on numerous kinds of vehicles
• Rugged antenna construction with shock absorption spring
• High performance, 100 W at 100 % duty cycle
Polarization
range
Nominally vertical
Antenna type Monopole, ground plane required
Radiation pattern
Gain
VSWR
Nominal Impedance
Omnidirectional
Available on request
3.5
Ω
Power rating 100 W (RMS)
Standard color Black
Radiator Aluminium alloy with shock absorption spring
Height (above mounting surface)
adjustments on request

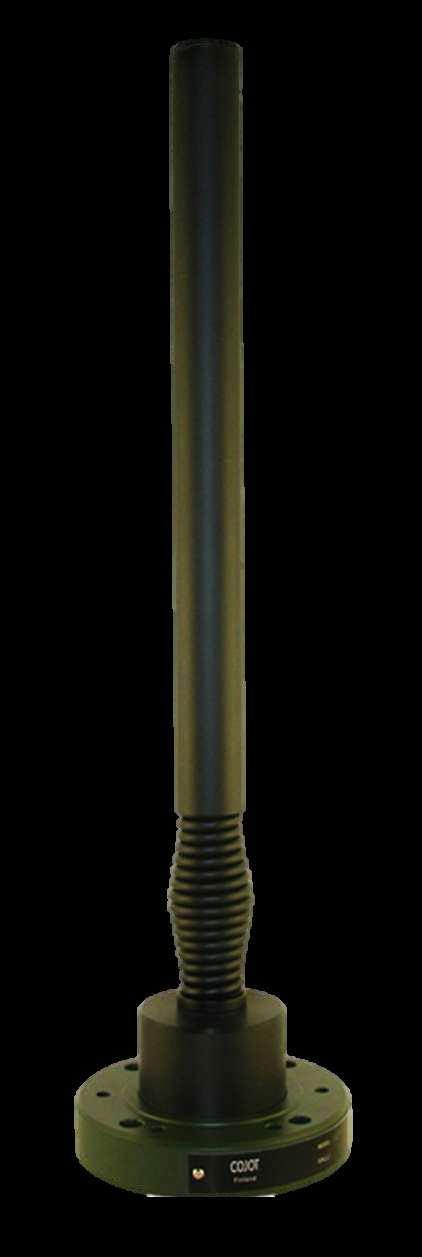

High Gain GSM/3G/LTE Vehicle Antenna HD827M
The HD827M is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for communication and jamming applications.
• Highly compact and unique electrical design
• Optimised performance for GSM, 3G and 4G LTE frequency bands
• Rugged antenna construction with shock absorption spring
• No ground plane required
Frequency range
790 - 2700 MHz
Matching Passive
Polarization
Antenna type
Radiation pattern
Nominally vertical
Wideband dipole array
Omnidirectional
Gain (typical) 4dBi(Measured patterns on request) VSWR ≤ 3.0
Nominal Impedance 50 Ω
Power rating (RMS)**
790 - 1000 MHz : 85 W (Pmax1)
1000 - 1700 MHz: 65 W (Pmax2)
1700 - 2200 MHz: 60 W (Pmax3)
2200 - 2700 MHz: 55 W (Pmax4)
Standard color Black
Radiator
Radome protected (radome diameter 28 mm, spring 43 mm) Height 560 mm
Installation*
RF connection
Female N-type
Mounting 4 hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2.....
V2.1w
Date 12.05.2021
HD827M 59855-80-00-8338 Antenna as described above
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Product details*

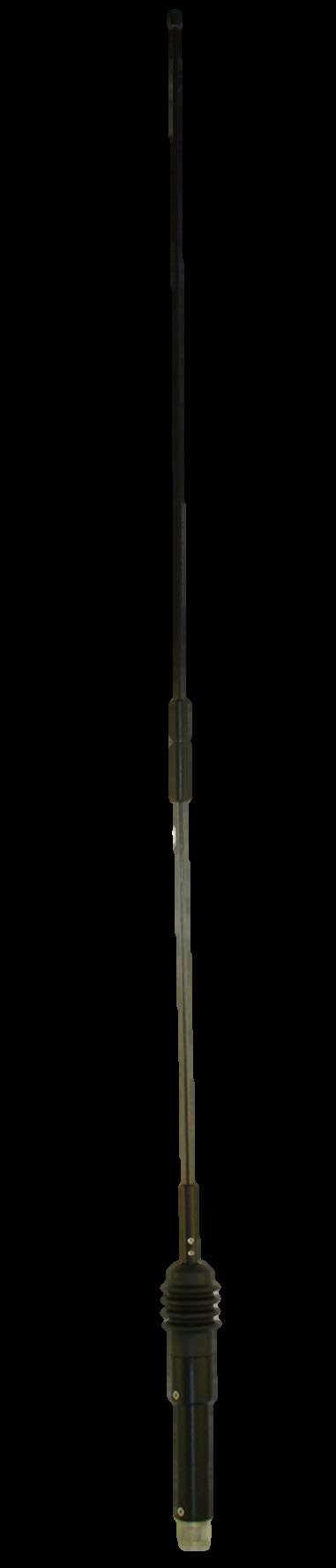

Wideband VHF Band Vehicular Antenna WB20CM
The WB20CM is a low-profile wideband antenna for communication and jamming applications in the 20 – 140 MHz frequency range. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.
V3.1w
• Maximum performance out of low height radiator
• High power rating, 100 W at 100 % duty-cycle
• Complete radiator and whip separately detachable without tools
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
20 – 140 MHz
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
≤ 3.8
50 Ω
100 W (RMS)
Standard color Black
Radiator
Glass fibre coated steel whip with shock absorption spring
Height 1620 mm
Weight
RF connection
1.5 kg
Installation*
Female N-Type connector
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number NSN
Product
WB20CM 5985 - 58 - 000 - 1021 Antenna as described above
WB20CM-R1 - WB20CM with a steel whip radiator without glass fiber coating
Date 18.08.2022 Page 1/1
VERSION: 1.7

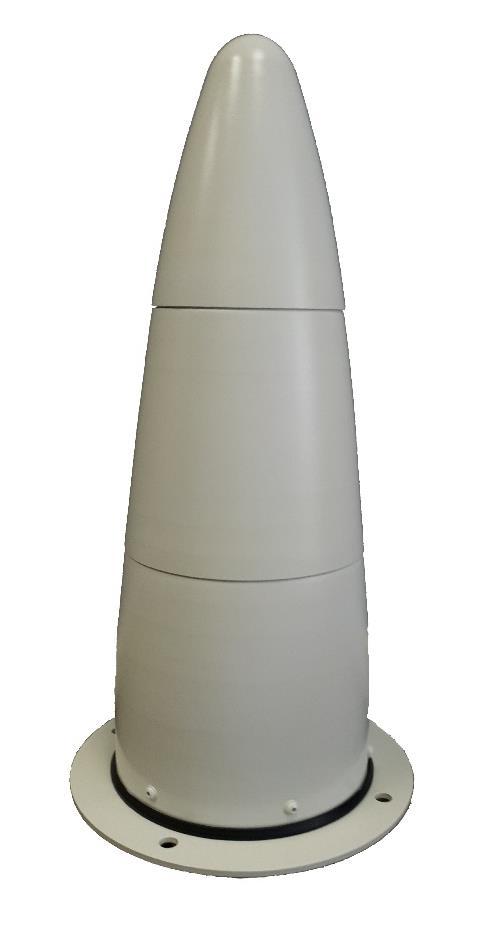

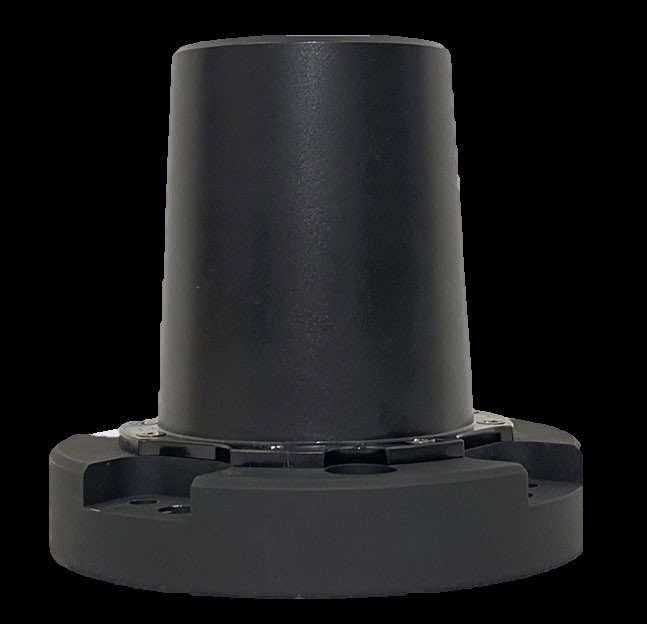

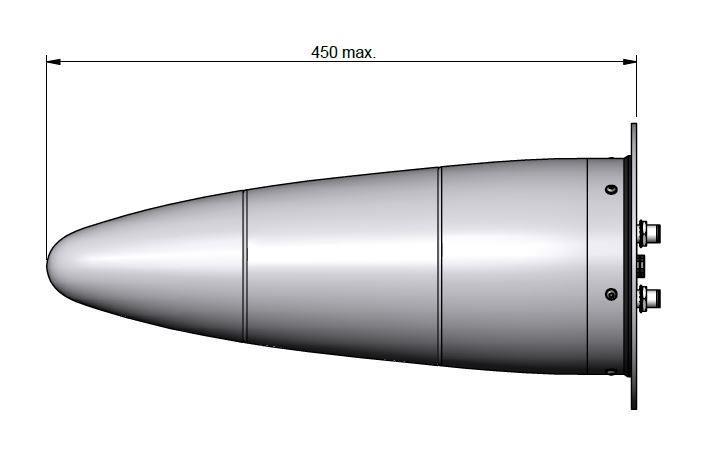

Dual port Circular Polarised Antenna
900 – 6000 MHz
Product Code: SPRL-A0010
SPECIFICATIONS:
Product Codes:
SPRL-A0010-01
SPRL-A0010-02
Electrical:
Frequency range:
Band A
RHCP (Band A) and LHCP (Band B) antenna
LHCP (Band A) and RHCP (Band B) antenna
Band B 900 – 2500 MHz 2500 – 6000 MHz
Gain: >6 dBic (typical)
Beamwidth: 55° (typical)
Feed power handling:
Band A
Band B 100 W CW 50 W CW
SPRL-A0010-01
SPRL-A0010-02
Polarisation:
Band A Band B RHCP LHCP LHCP RHCP
Nominal impedance: 50 Ω VSWR: < 2.0:1
Connector: 2 x N-type female
Mechanical:
Overall height: 450 mm

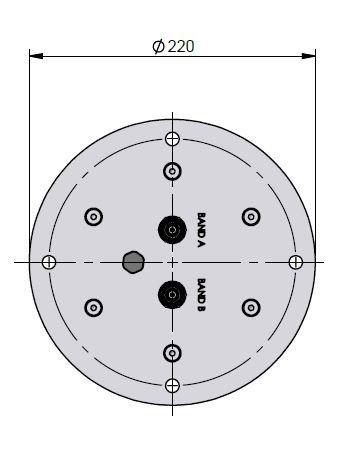

Diameter: 165 mm (Radome) 220 mm (Mounting flange)
Weight: < 2 kg including bracket
Material: Aluminium, Stainless steel, Acetal, PTFE, Nylon, ABS, copper, brass
Colour Painted on request
Environmental: designed to meet the following specifications
Temperature range
Storage: -41 °C to +71 °C.
Operation -31 °C to +55 °C
Weatherproofing IP 66
PRODUCT OVERVIEW:
SPRL-A0010 is a dual port conical spiral, right-hand circularly polarised antenna designed to operate in the 900 to 2500 MHz and 2500 to 6000 MHz bands. The antenna provides broad beam coverage without nulls or reduction in performance.
The antenna features a low VSWR and high gain over the both operating bands with a light weight, yet robust radome to protect the radiator.
PRODUCT FEATURES:
• LHCP and RHCP antenna
• High gain
• High power
• Low VSWR
Dual port Circular Polarised Antenna
900 – 6000 MHz

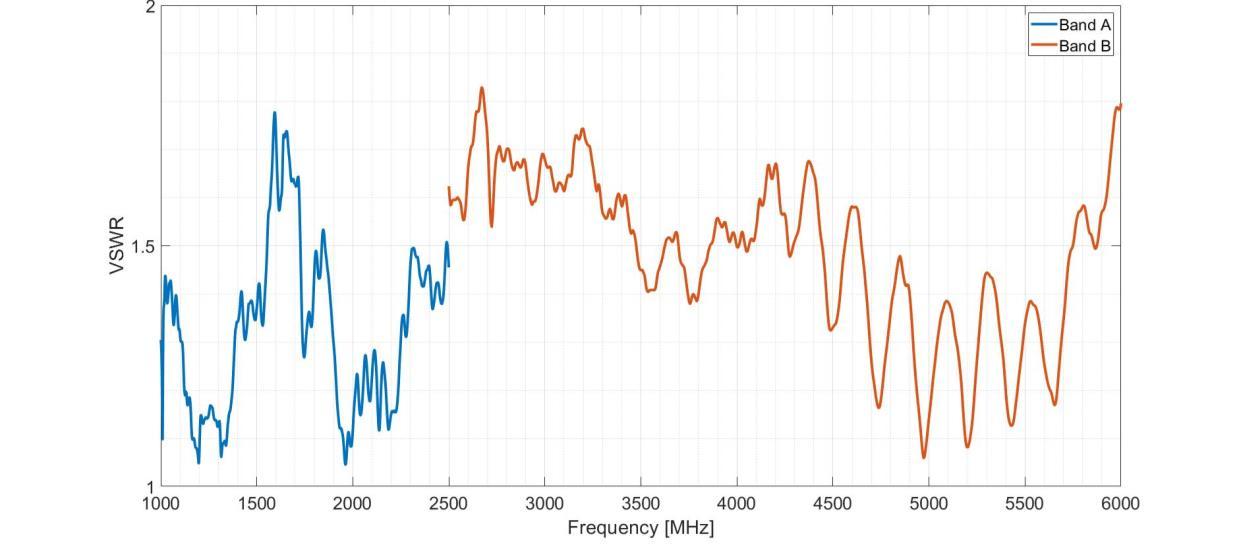

Typical VSWR of the SPRL-A0010

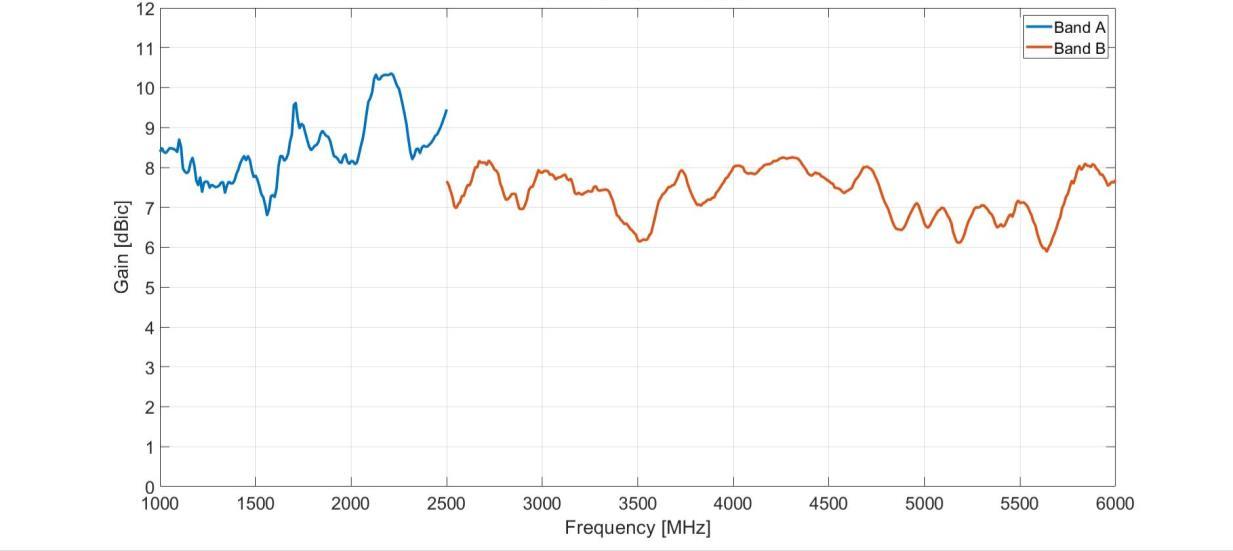

Typical Gain of the SPRL-A0010
Dual port Circular Polarised Antenna
900 – 6000 MHz Product Code: SPRL-A0010 VERSION: 1 7
Normalised band A radiation patterns of the SPRL-A0010

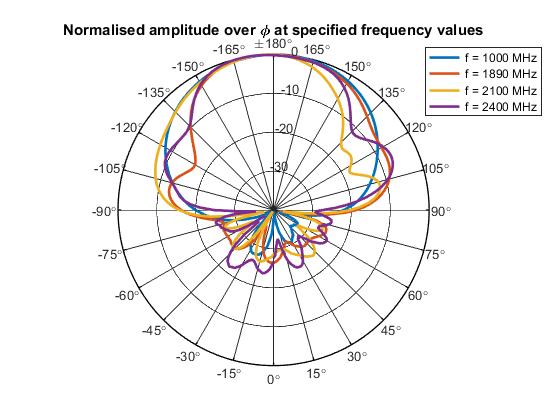

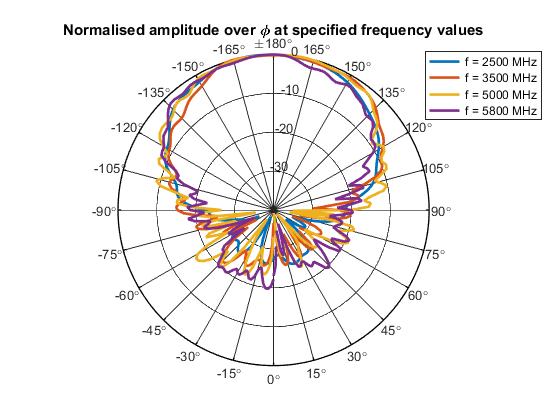

Normalised band B radiation patterns of the SPRL-A0010

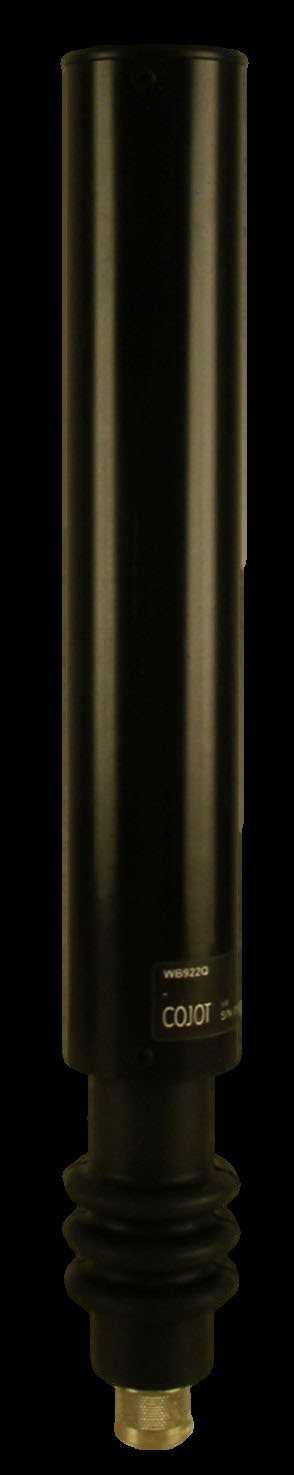

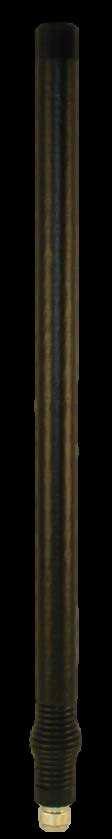

Wideband UHF Manpack Antenna WB922Q
The WB922Q is a rugged, high performance manpack antenna that is particularly suited for portable communication and jamming applications.
• Effective coverage of the entire 800 – 2500 MHz frequency range
• Optimized performance for GSM, 3G and WLAN frequency bands
• Rugged antenna construction with shock absorption spring or flexible gooseneck
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Standard color
Radiator
Height
Weight
800 - 2500 MHz
Passive
Nominally vertical
Wideband dipole
Omnidirectional
Measured patterns on request
< 3.0
50 Ω
50 W (RMS)
Black
Radome protected
RF connection Male N-type connector
Mounting
*Specific adjustments on request
Directly to a matching connector
WB922Q 5985 - 58 - 000 - 1012
WB922G 5985 - 58 - 000 – 3112
Antenna with shock absorption spring, as described above
Antenna with 12 cm gooseneck (Height: 400 mm / Weight: 350 g)
WB922G-GE - Antenna with 22 cm gooseneck (Height: 500 mm / Weight: 470 g)
V4.4w
Date 04.05.2021 Page 1/1

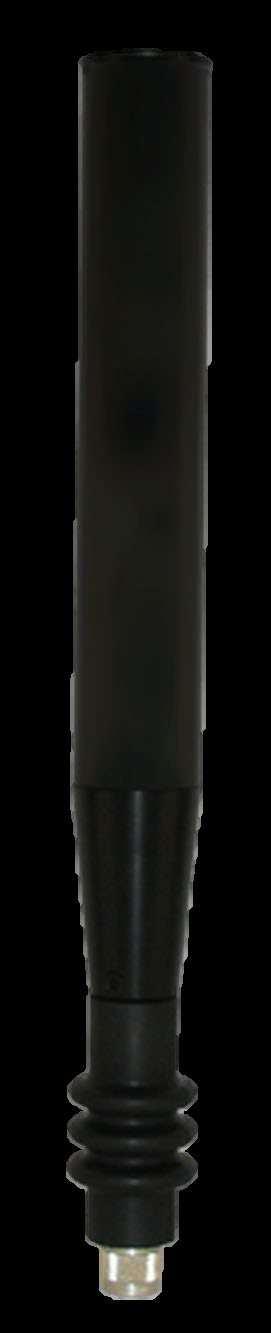

Wideband UHF/SHF Manpack Antenna WB26
The WB26 is a high performance omnidirectional manpack antenna which provides excellent performance over the entire 2 – 6 GHz frequency range. The antenna is particularly suited for jamming and high power communication applications
• Effective omnidirectional radiation over the entire frequency range
• Rugged radome protected construction
• High power rating
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Wideband dipole
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance
50 Ω
Power rating 50 W (RMS)
Standard color Black
Wideband VHF/UHF Dipole Antenna for Mast Mount WD1350M-B
The WD1350M-B is a wideband dipole antenna for fixed radio systems working in the 118 - 512 MHz frequency range. This easy to use set consists of a dipole radiator and a mast mount device (MASTMO) that can be quickly fitted to masts of 50 - 60 mm diameter. Its field proven rugged composite construction in combination with a high power handling makes the antenna well suited for electronic warfare and high power communication applications.
V1.0w
• Quick and easy installation to mast environments – no additional tools required
• Compact and robust antenna design for rough environmental conditions
Product
Polarization
Nominally vertical
Radiation pattern Omnidirectional
Nominal Impedance
Standard color
*Specific adjustments on request
WD1350M-B Antenna as described above WD1350M Vehicular antenna. See separate data sheet for more details.
Accessory: The mast mount module MASTMO is also available as a stand- alone unit
Wideband UHF/SHF Vehicle Antenna WB860M
The WB860M is a compact, light and low-profile vehicle antenna that is ideally suited for various applications within the 870 – 6000 MHz frequency range. The radiation performance is especially optimal for ground to air applications such as LINK-16.
Frequency range
Polarization
• Ideal operation in the UHF / SHF bands up to 6 GHz
• Suitable for applications such as: LINK-16, GSM / PCS, 3G, Soldier Radio Waveform, WLAN & ISM 2.4 & 5 GHz, WiMAX
• No ground plane required
Product details*
870 - 6000 MHz
Nominally vertical
Radiation pattern Omnidirectional (max. ± 1.5 dB ripple)
Gain Measured patterns on request
VSWR < 2.5
Nominal Impedance
Power rating
50 Ω
100 W (RMS)
Standard color Black
Radiator Radome protected
Height
110 mm
Weight 0.4 kg Installation*
Mounting
*Specific adjustments on request
V1.4w
Date 11.01.2023
4-hole US and 3/6-hole NATO pattern mount
5985-58-000-5332 Antenna as described above
In combination with a mounting accessory the antenna can be easily used for mast mounting and other fixed installations.
Page 1/1
Wideband Manpack VHF Antenna WB25175C
The WB25175C is a high performance manpack antenna which is particularly suited for portable radio and jamming applications in the 25 – 175 MHz frequency range.
• Rugged antenna construction with shock absorption spring and lightweight carbon fibre whip or robust aluminium / steel whip
• High power, 20 W at 100% duty-cycle
• Foldable radiator for handy transportation and easy installation
Product details*
Frequency range 25 – 175 MHz
Matching Passive
Polarization
Nominally vertical
Antenna type Monopole (ground plane required)
Radiation pattern
Omnidirectional
Gain Measured patterns on request
VSWR < 3.5
Nominal Impedance 50 Ω
Power rating 20 W (RMS)
Standard color Black
Radiator
Foldable carbon fibre whip with shock absorption spring Or alternatively: Foldable aluminium / steel whip with shock absorption spring (use –R2 option when ordering)
Base Ø 36 mm
Height 1610 mm (operational), 820 mm (folded)
Weight 340 g (antenna with carbon fibre whip) 460 g (antenna with aluminium / steel whip)
Installation* RF connection Male N-type
Mounting Directly to a matching connector
*Specific adjustments on request

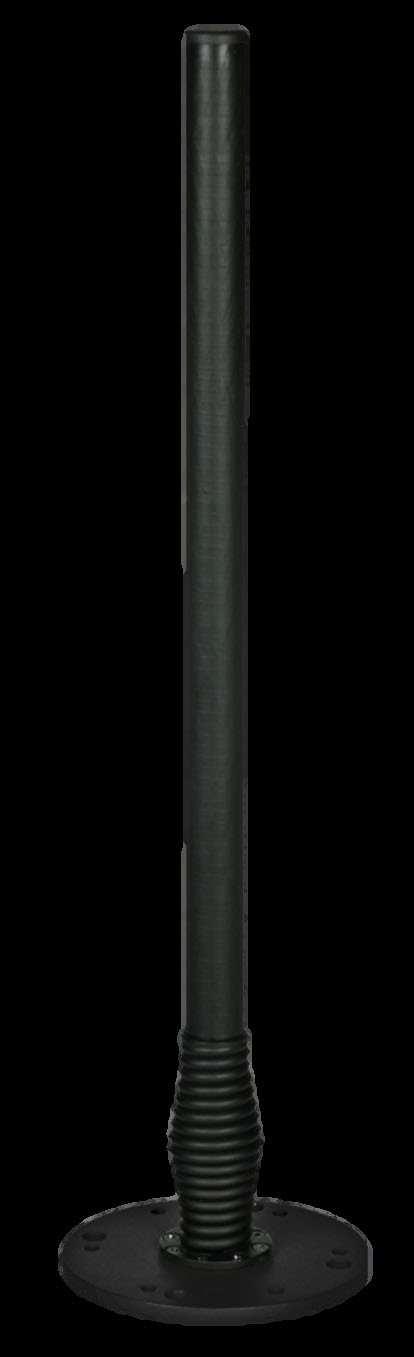

High Gain Tactical UHF III+ Vehicle Antenna HD1327M
The HD1327M is a high gain omni antenna for mobile tactical applications working in the frequency range from 1300 – 2700 MHz. Its compact dipole design provides an ideal coverage across the UHF band III+ and offers an ideal solution for use with all kind of vehicles.
• Highly compact and unique electrical design
• Optimised performance for the UHF band III+
• Rugged antenna construction with shock absorption spring
• No ground plane required
Product details*
Frequency range
1300 - 2700 MHz
Matching Passive
Polarization
Antenna type
Nominally vertical
Wideband dipole array
Nominal Impedance 50 Ω
Power rating (RMS)**
1300 - 1700 MHz: 65 W (Pmax1)
1700 - 2200 MHz: 60 W (Pmax2)
2200 - 2700 MHz: 55 W (Pmax3)
Standard color Black
Radiator
Height
Radome protected (radome diameter 28 mm, spring 43 mm)
560 mm
Weight 1.1 kg
Mounting 4 hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
**Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2
V1.1w
Date 26.04.2021
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Wideband VHF/UHF Magnetic Mount Antenna WB25512W
The WB25512W is a magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.
Safety Warning:
• Effective coverage of the complete 25 - 512 MHz range
• Compact magnetic mount for easy-to-setup temporary installations
Product
Frequency range 25 – 512 MHz
Matching Passive
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
3.5
Ω
Power rating 50 W (RMS)
Standard color Black
Radiator Steel whip with shock absorption spring
Footprint Ø 88 mm
Height
*Specific adjustments on request
as described above
Additional wire loop (Ø ~5 cm) attached to antenna base for safety tether connection
Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose).
For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device. V1.2w
Date 05.08.2013
Tunable Vehicular VHF/UHF Antenna TA3925M
The TA3925M is a tunable antenna with a steel whip radiator for the 30 to 512 MHz frequency band with optimized performance for the 30-90 MHz and 225-450 MHz bands. This low-profile antenna can be tuned by remote control to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. The extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.
• Low profile steel whip antenna with superior gain performance - optimized for the 30-90 MHz and 225-450 MHz bands
• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications
• Supports also very wide transmission bandwidths
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Power supply
30 - 512 MHz
PIN diode based active matching
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Available on request
≤ 3.5 (on optimized bands)
50 Ω
50 W (RMS)
24 VDC, 5 W average
Tuning speed < 30 µs
Standard color
Radiator
Black
Upper part: Steel whip (1500 mm)
Lower part: Aluminium alloy with shock absorption spring
Height 1930 mm
Weight 3.3 kg
Installation*
RF connection
Power and control
Female N-type connector
Circular MIL connector
Mounting 4-hole US pattern mount
* Specific adjustments on request
Order number
TA3925M Antenna as described above
V1.0w
Date18.04.2019 Page 1/1
Wideband UHF Manpack Antenna WB525G-E
The WB525G-E is a high performance manpack antenna that has been designed to cover an extended frequency range of up to 6 GHz. The antenna is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.
• Effective coverage of the complete 480 - 6000 MHz frequency range
• Flexible gooseneck for perfect operation, even in extreme positions
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
Product details*
480 - 6000 MHz
Passive
Nominally vertical
Wideband dipole
Omnidirectional
Measured patterns on request
VSWR ≤ 3.0 (except ≤ 3.7 at 930-1070 MHz)
Nominal Impedance
Power rating
Standard color
50 Ω
35 W (RMS)
Black
Radiator Radome protected
Height
Weight
RF connection
Mounting
*Specific adjustments on request
Order number
WB525G-E
465 mm
540 g (incl. 12 cm gooseneck)
Installation*
Male N-type connector
Directly to a matching connector
Product
Antenna as described above
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.
V2.0w
Date 29.03.2017
1/1

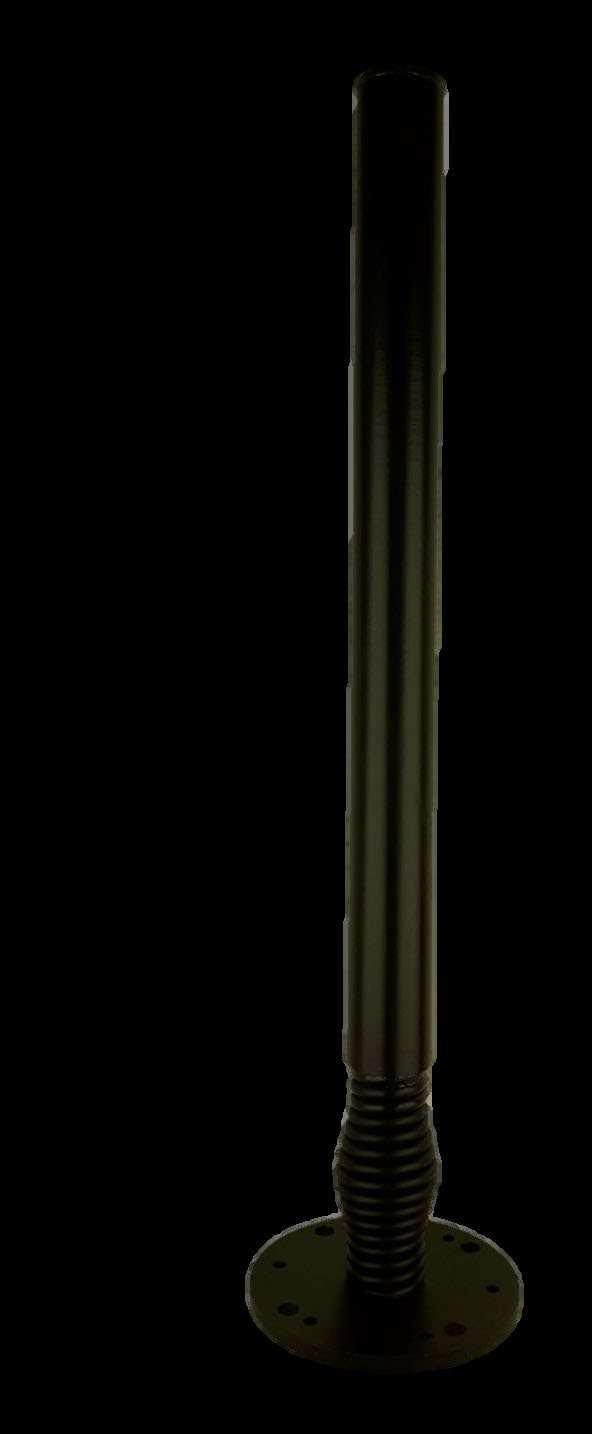

High Gain Vehicle Antenna HD2400M
The HD2400M is a rugged, high gain vehicle antenna that is particularly suited for communication and jamming applications in the UMTS and WLAN frequency bands.
• Effective coverage of the entire 2000 – 2500 MHz frequency range
• Optimized performance for UMTS and WLAN frequency bands
• Rugged antenna construction with shock absorption spring
Polarization Nominally vertical Antenna type Wideband dipole array
Radiation pattern Omnidirectional, (typ.±1.5dB ripple) Gain
to +8 dBi (Measured patterns on request)
adjustments on request
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.

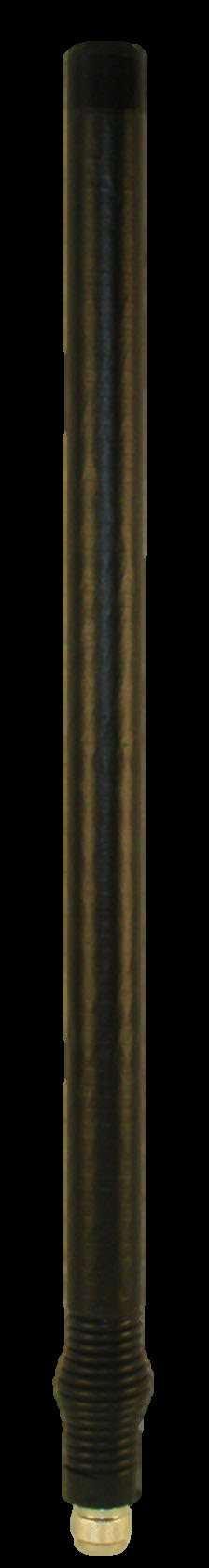

High Gain Triband Manpack Antenna HD921Q
The HD921Q is a high gain triband GSM/3G manpack antenna that is particularly suited for portable communication and jamming applications.
Date 12.05.2021
• Unique electrical design
• Optimized performance for GSM and 3G frequency bands
• Rugged antenna construction with shock absorption spring
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain (typical)
870 - 960 MHz 1710 - 1990 MHz 2110 - 2170 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional (± 1.5 dB)
3 dBi @ 870 - 960 MHz
4 dBi @ 1710 - 1990 MHz
4 dBi @ 2110 - 2170 MHz
(More details on request)
VSWR ≤ 2.5
Nominal Impedance 50 Ω
Power rating (RMS)**
90 W @ 870 - 960 MHz (Pmax1)
65 W @ 1710 - 1990 MHz (Pmax2)
60 W @ 2110 - 2170 MHz (Pmax3)
Standard color Black
Radiator
Radome protected Height 540 mm
Weight 440 g
Installation*
RF connection Male N-type connector
Mounting
*Specific adjustments on request ** Sum of input powers (P)
Directly to a matching connector
VHF/UHF High Gain Dipole Antenna for Mast Mount HD2245M-B
The HD2245M-B is a high gain dipole antenna for fixed radio communication systems working in the 225 - 512 MHz frequency range. This easy to use set consists of a dipole radiator and a mast mount device (MASTMO) that can be quickly fitted to masts of 50 - 60 mm diameter.
• High performance in the 225 – 512 MHz frequency range
V3.0w
Date 30.05.2023
• Quick and easy installation to mast environments – no additional tools required
• Compact and robust antenna design for rough environmental conditions
Product
Frequency
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Dipole, no ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance 50 Ω Power rating 75 W
Standard color Black
Radiator Radome protected
Height, Width & Depth 1260 x 120 x 150 mm
Weight 2.4 kg
*Specific adjustments on request
HD2245M-B Antenna as described above
HD2245XM-B Antenna as described above with 100 W power rating
HD2245M Vehicular antenna. See separate data sheet for more details.
Accessory: The mast mount module MASTMO is also available as a stand- alone unit.
1/1
Wideband High-power Manpack VHF Antenna WB25175XT
The WB25175XT is a high performance manpack antenna supporting high-power transmission. The antenna is particularly suited for portable jamming applications in the 25 – 175 MHz frequency range.
• High power rating, 50 W at 100% duty-cycle
• Rugged antenna construction with shock absorption spring and lightweight carbon fibre whip or robust aluminium / steel whip
• Foldable radiator for handy transportation and easy installation
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
25 – 175 MHz
Passive
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Available on request
≤ 3.5
50 Ω
50 W (RMS)
Standard color Black
Radiator
Foldable carbon fibre whip with shock absorption spring
Or alternatively: Foldable aluminium / steel whip with shock absorption spring (use –R2 option when ordering)
Base Ø 60 mm
Height
Weight
RF connection
Mounting
*Specific adjustments on request Order
1620 mm (operational), 830 mm (folded)
510 g (antenna with carbon fibre whip)
630 g (antenna with aluminium / steel whip)
Installation*
Male N-type
Directly to a matching connector
15.11.2018
1/1
VERSION: 1.0

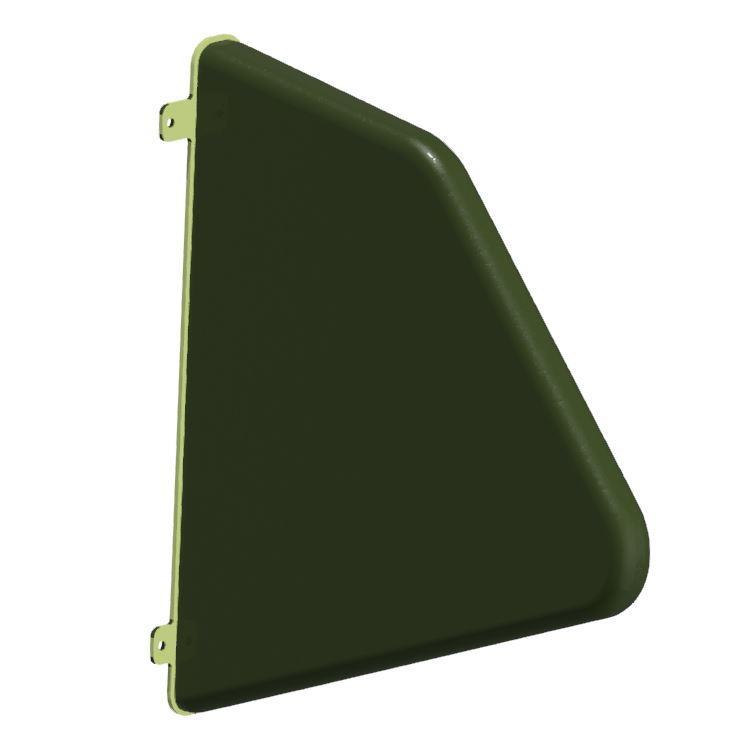

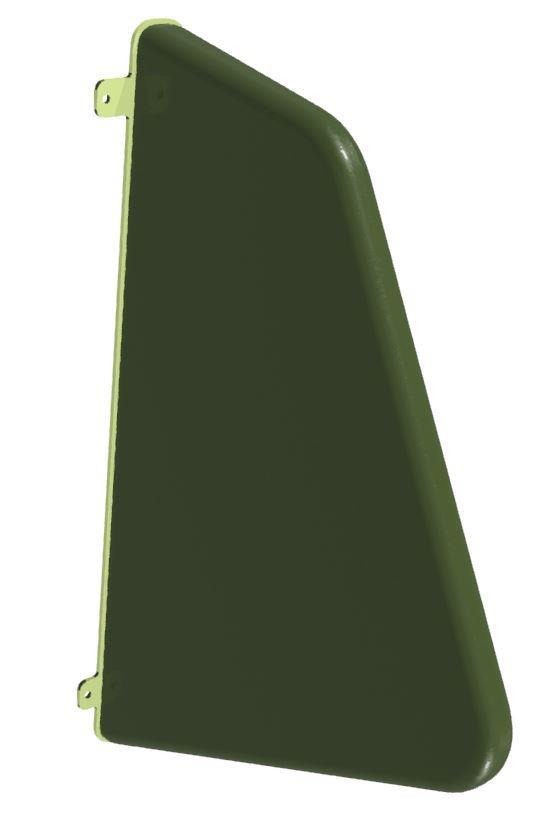

Dual Port High-Power LPDA Antenna
400 – 6000 MHz
Product Code: LPDA-A0162
SPECIFICATIONS:
Electrical:
Frequency range 400 – 6000 MHz
Band A 400 – 1600 MHz
Band B 2400 – 6000 MHz
VSWR < 2.0:1
Nominal input impedance 50 Ω
Connector 2x N-type female
Feed power handling 100W CW
Gain (typical) See graph below
E-plane 3 dB beamwidth
Band A
Band B 70º - 100° 90° - 105°
H-plane 3 dB beamwidth
Band A
Band B
PRODUCT FEATURES:
• Wideband frequency 400 to 6000 MHz
• VSWR < 2.0:1
• High gain: > 7 dBi
• Rugged construction
• Ice resistant
PRODUCT APPLICATIONS:
• Wideband
• High-Power
45º - 60° 50° - 60°
Polarisation Linear
Front-to-back ratio ≥ 22 dB
Mechanical:
Dimensions (l x h x w) 625 mm x 710 mm x 160 mm (incl. bracket)
Material Aluminium, stainless steel, fibreglass
Total mass < 5 kg (incl. mounting bracket)
Mounting method 4 x M8 Bolts
MTBF 500,000 h
Environmental: designed to meet the following specifications Wind survival 160 km/h calculated
Operating Temperature -30ºC to +65º (no icing)
Storage Temperature -40ºC to +85º
PRODUCT DESCRIPTION:
The LPDA-A0162 dual port directional log-periodic dipole array (LPDA) is primarily designed for high-power applications. It covers a frequency band of 400 to 6000 MHz with a gain of greater than 7 dBi.
The antenna provides two separate ports for simultaneous transmission in both bands with good isolation between bands.
The antenna is completely encapsulated in a radome. The antenna is provided with a mounting bracket.
Dual Port High-Power LPDA

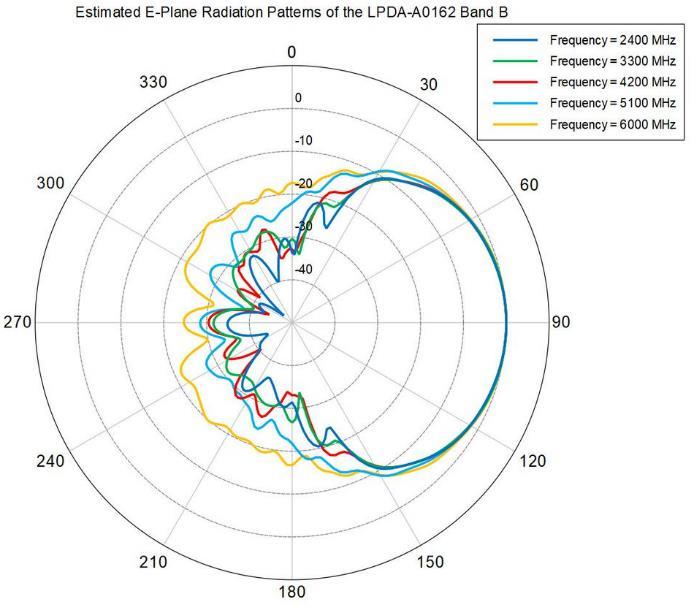

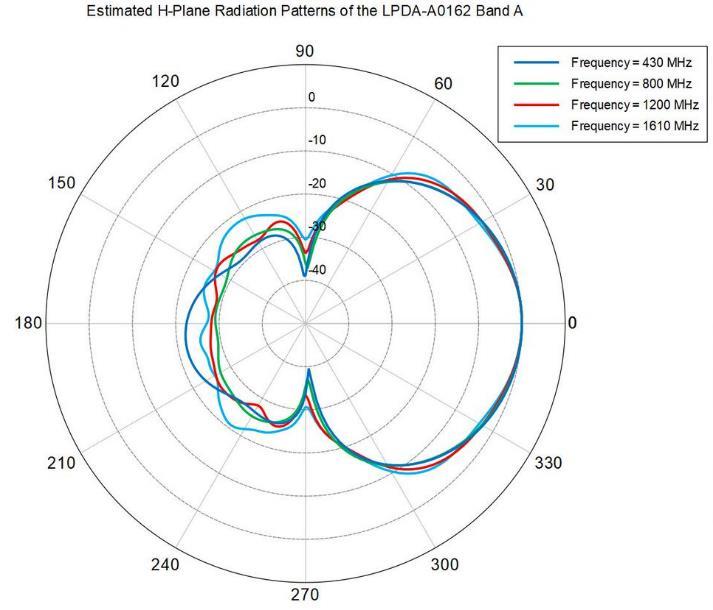

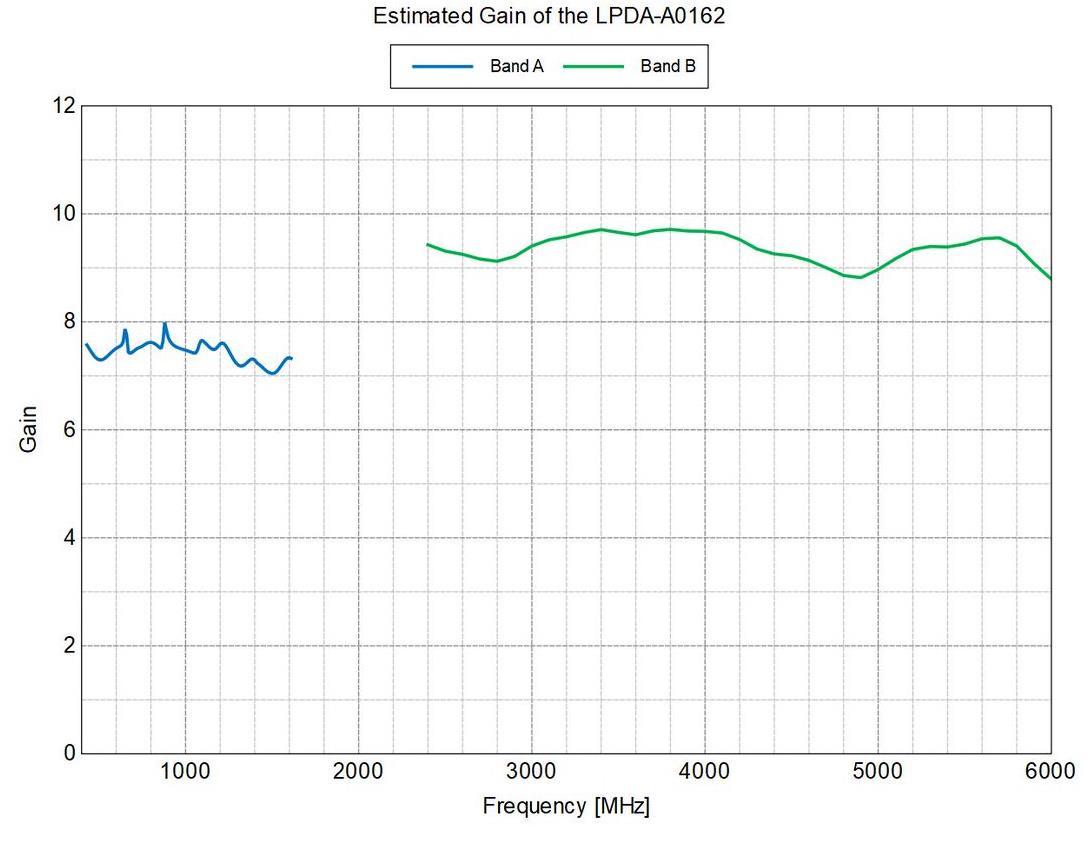

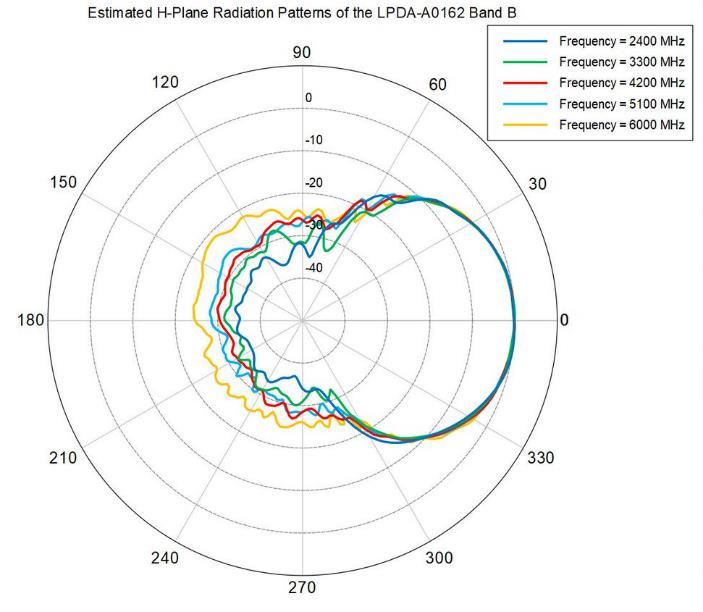

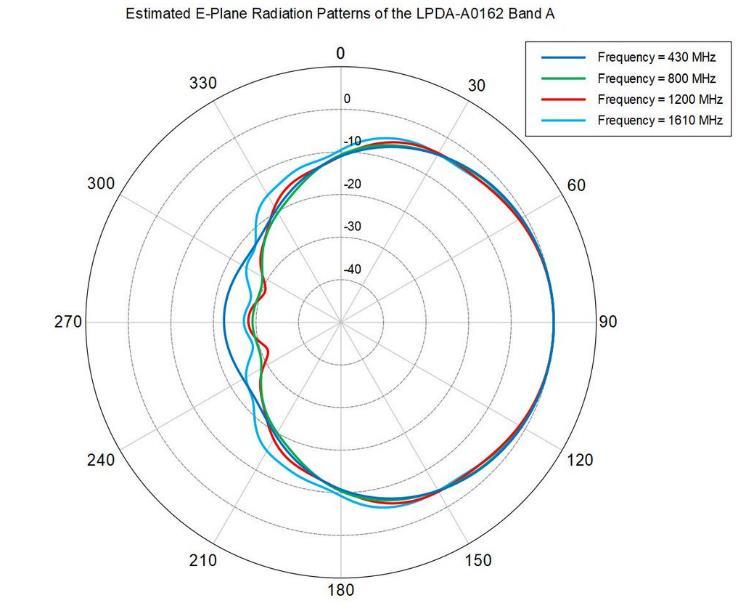

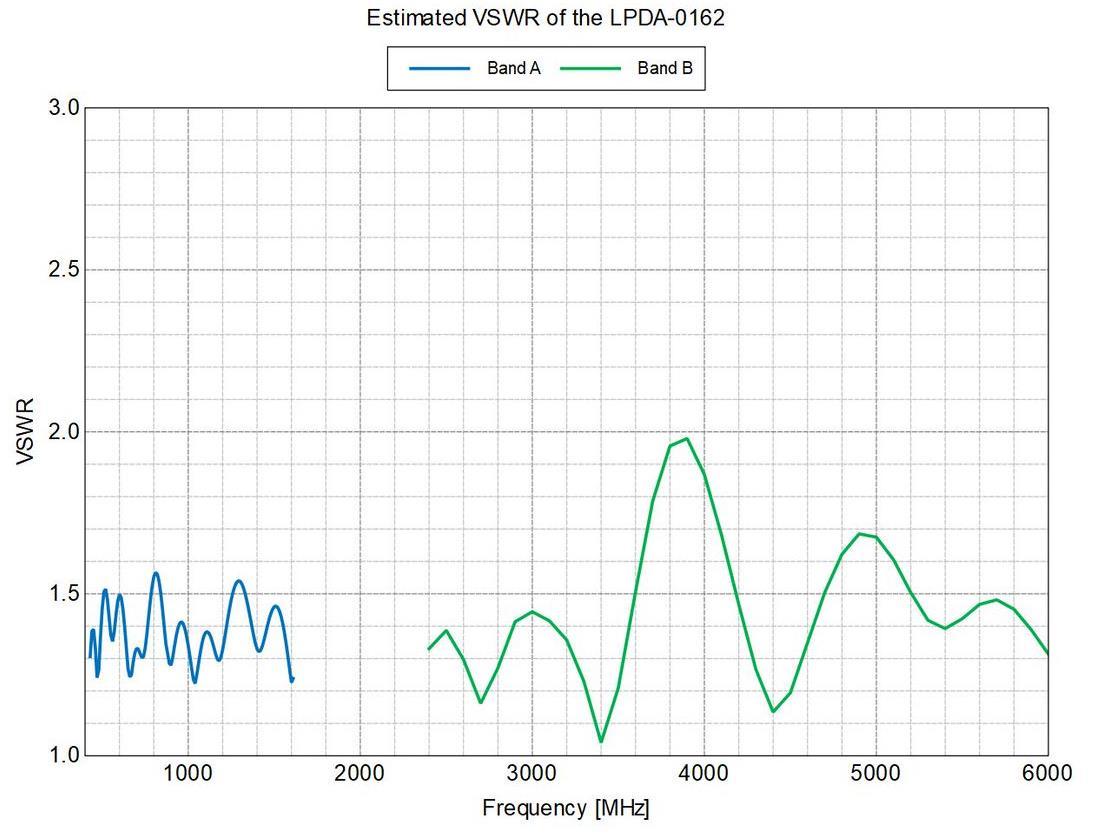

VSWR AND GAIN GRAPHS:
Dual Port High-Power LPDA Antenna

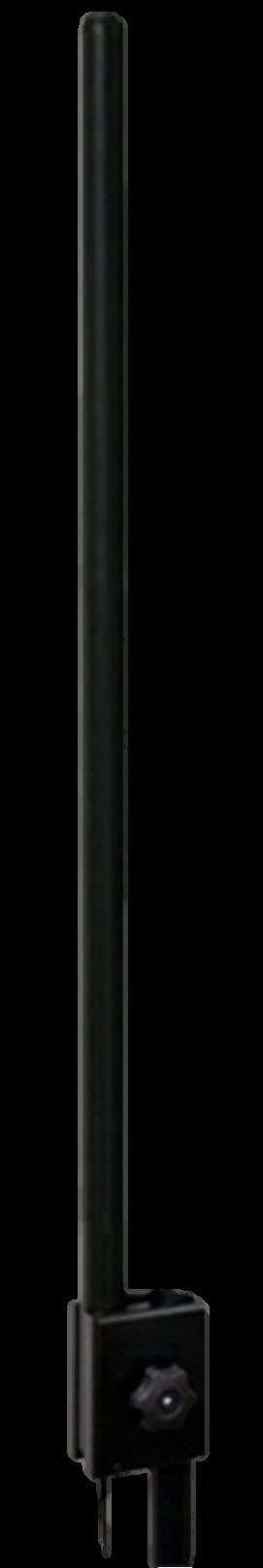

High Gain 4G LTE Manpack Antenna HD730Q
The HD730Q is a high gain manpack antenna covering the 4G LTE bands and the 5G lowband. The antenna is particularly suited for portable communication and jamming applications. Its centre fed design minimizes interference of the human body on the radiation performance of the antenna.
V1.1w
• Compact and unique electrical design
• Optimised performance for 4G LTE and 5G low-band
• Rugged antenna construction with shock absorption spring
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
690 - 3000 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional
Gain (typical) 4 dBi (Measured patterns on request)
VSWR ≤ 3.5
Nominal Impedance
Power rating (RMS)**
50 Ω
690 - 1000 MHz : 75 W (Pmax1)
1000 - 1700 MHz: 65 W (Pmax2)
1700 - 2200 MHz: 60 W (Pmax3)
2200 - 3000 MHz: 50 W (Pmax4)
Standard color Black
Radiator
Radome protected (diameter 30 mm)
Height 545 mm
Weight 430 g
Installation*
RF connection
Mounting
*Specific adjustments on request
Male N-type connector
Directly to a matching connector
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2
Order number
HD730Q
Product
Antenna as described above
Date 11.03.2022 Page 1/1

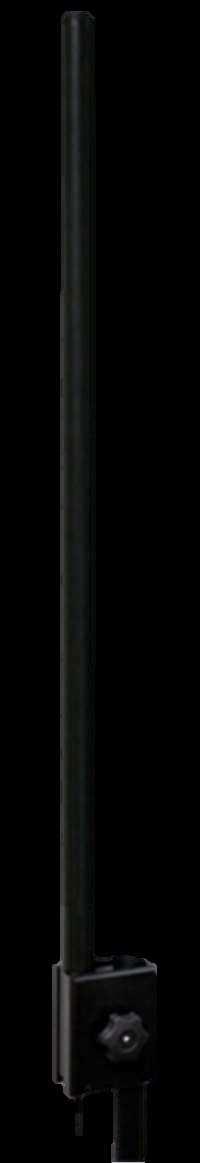

High Gain VHF/UHF Vehicle Antenna HD2245M
The HD2245M is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 225 – 450 MHz frequency range makes it very well suited for use with modern SDRs, providing an excellent coverage for a range of voice and data communications including Have Quick II and SATURN.
V3.0w
Date 18.05.2021
• High performance in the 225 – 450 MHz frequency range
• Easily installed onto vehicles, shelters and masts
•No ground plane nor additional tuning required
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
225 – 512 MHz
Nominally vertical
Dipole, no ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance
Power rating
50 Ω
75 W or 100 W (RMS) See order number below
Standard color Black
Radiator Radome protected
Height 1365 mm
Weight 2.2 kg
Installation*
RF connection
Female N-type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request Order number NSN Product
as described above with 75 W power
HD2245XM - Antenna as described above with 100 W power rating
HD2245M-C1 - Antenna with Female BNC connector
HD2245M-R - Antenna with removable radiator
HD2245M-B - Antenna radiator with mast mount adapter (MASTMO). See separate data sheet for more details
Accessory: In combination with the MASTMO (mast mount for dipole radiator) the antenna radiator (HD2245M-R model) can also be used for mast mounting.
Page 1/1

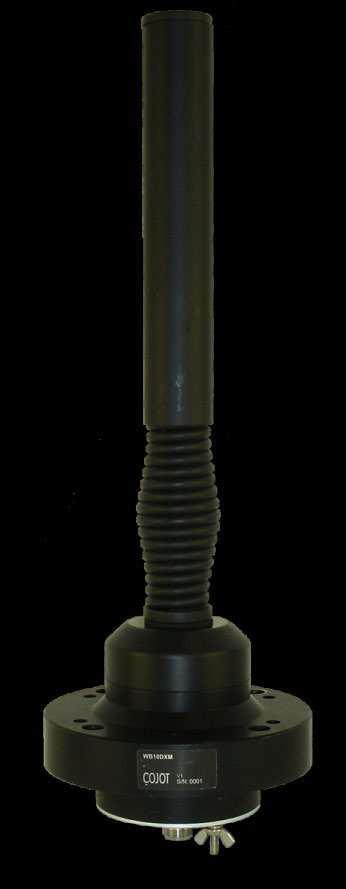

Wideband VHF Vehicle Antenna WB10CCM
The WB10CCM is a compact and effective vehicle antenna for communication and countermeasure applications in the 110 - 200 MHz frequency range.
V1.1w
Date 15.10.2018
• High power rating (up to 250 W)
• Rugged antenna construction with shock absorption spring
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
110 - 200 MHz
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Available on request
VSWR < 3.0
Nominal Impedance
Power rating
Standard color
50 Ω
250 W (RMS)
Black/olive green
Radiator Aluminium alloy with shock absorption spring
Height
RF connection
Installation*
Female N-type connector
Mounting 4 hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
Order number
WB10CCM
Antenna as described above
Page 1/1

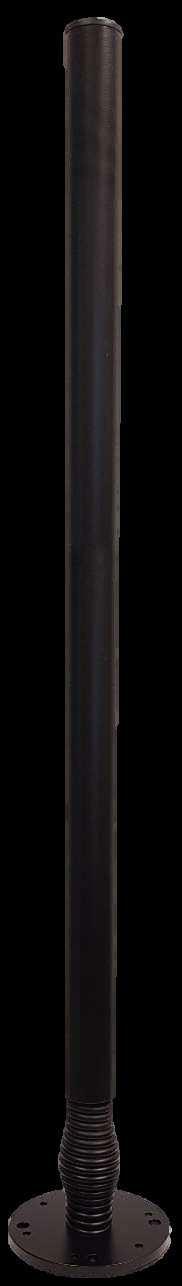

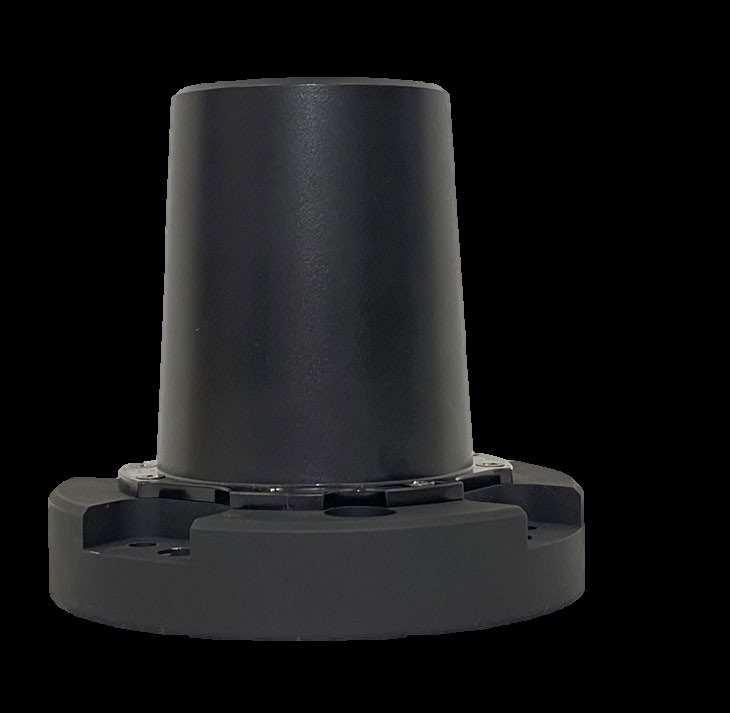

Wideband UHF/SHF Vehicle Antenna WB525M
profile vehicle antenna that is well suited for and jamming applications within the 500 – 6000 MHz frequency range.
Frequency range
Polarization
Radiation pattern
Gain
Ideal operation in the UHF/SHF bands up to 6 GHz
High performance, 200 W at 100% duty cycle
Product details*
800 - 6000 MHz (without a ground plane)
500 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)
Nominally vertical
Omnidirectional (max. ± 1.5 dB ripple)
Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance 50 Ω
Power rating
Standard color
Radiator
200 W (RMS)
Black/olive green
Radome protected
Height 130 mm
Weight 1.0 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female N-type
4-hole US and 3/6-hole NATO pattern mount
V2.4w
Date 11.01.2023
Page 1/1
High Gain GSM/3G/LTE Manpack Antenna HD827XQ
The HD827XQ is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for high power jamming applications.
• High power rating
• Optimised performance for GSM, 3G and 4G LTE frequency bands
• Rugged antenna construction with shock absorption spring
• No ground plane required
Frequency range
Matching
Polarization
Antenna type
790 - 2700 MHz
Passive
Nominally vertical
Wideband dipole array
Radiation pattern Omnidirectional
Gain (typical) 3 dBi VSWR
Nominal Impedance 50 Ω
Power rating (RMS)**
790 - 1000 MHz : 175 W (Pmax1)
1000 - 2200 MHz: 135 W (Pmax2)
2200 - 2400 MHz: 100 W (Pmax3)
2400 - 2700 MHz: 80 W (Pmax4)
Standard color Black
Radiator Radome protected
Height 565 mm
Weight 620 g
Installation*
RF connection
Mounting
*Specific adjustments on request
Male N-type connector
Directly to a matching connector
** Sum of input powers (P) should not exceed the limit of 1
V1.1w
Date 03.05.2021 Page 1/1
Product details*
Wideband VHF/UHF Manpack Antenna WB25512R
The WB25512R is a high performance manpack antenna for use in portable communications and jamming applications within the complete 25 – 512 MHz frequency range.
• Adequate horizontal radiation performance over the complete frequency range
• Foldable radiator for handy transportation and easy installation
• Rugged antenna construction with shock absorption spring
available on request
Standard
Specific adjustments on request
Ground
as described above
with 50 W power rating (see seperate data sheet)

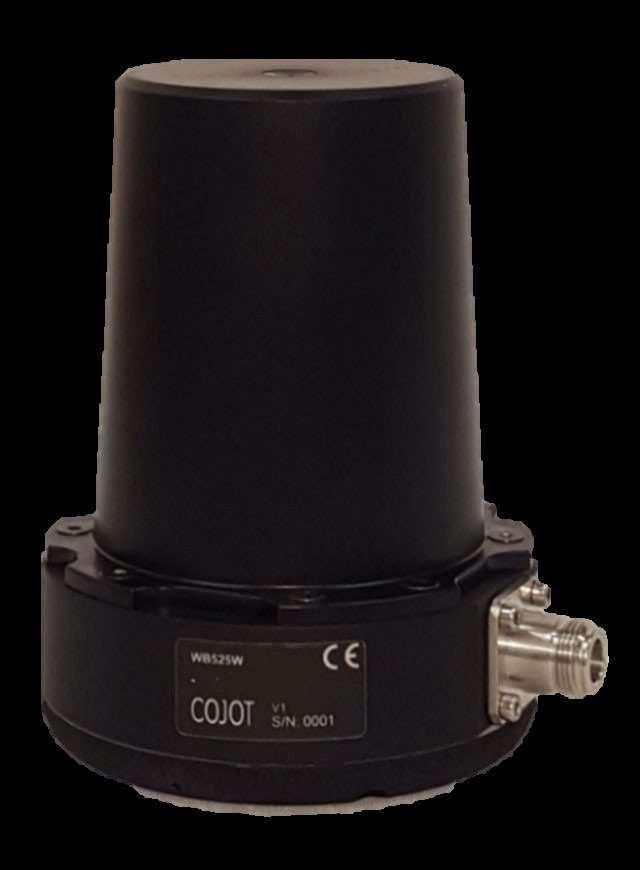

Wideband UHF/SHF Magnetic Mount Antenna WB525W
The WB525W is a a compact, low-profile magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.
• Ideal operation in the UHF/SHF bands up to 6 GHz
• High performance, 200 W at 100% duty cycle
• Compact magnetic mount for easy-to-setup temporary installations
Gain Measured patterns on request
Nominal Impedance
Ω
Power rating (CW) 500-2500 MHz: 200 W
2500-4000 MHz: 160 W 4000-6000 MHz: 130 W
Standard color Black
Radiator Radome protected Footprint Ø 88 mm
kg
RF connection
Installation*
Female N-type
Mounting Ø 88 mm magnet (vertical holding force typically 280 N when mounted on 0.8 mm steel sheet)
Surface protection
*Specific adjustments on request
WB525W
Rubber coating
Order number
Antenna as described above
Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.
V2.1w
Date 11.01.2023 Page 1/1
Wideband UHF Manpack Antenna WB525G-GE
The WB525G-GE is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.
• Effective coverage of the complete 480 - 2800 MHz frequency range
• Flexible gooseneck for perfect operation, even in extreme positions Product
Frequency range
Matching Passive
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Wideband dipole
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance
Power rating
50 Ω
40 W (RMS)
Standard color Black
Radiator
Radome protected
Height 570 mm
Weight
RF connection
Mounting
*Specific adjustments on request
620 g (incl. 220 mm gooseneck)
Installation*
Male N-type connector
Directly to a matching connector
as described above
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 90⁰ shall not be exceeded.
V1.0w
Date 27.01.2023 Page 1/1
High Gain Manpack Antenna HD2400Q
The HD2400Q is a high performance manpack antenna that is particularly suited for portable communication and jamming systems used in the S-band. It provides high gain over the entire 2100 – 2500 MHz frequency range.
V1.2w
Date 31.05.2023
• High performance, typical gain of +6 dBi
• Rugged antenna construction with shock absorption spring
• Effective coverage over the 2100 – 2500 MHz frequency range
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
2100 - 2500 MHz
Passive
Nominally vertical
Dipole array
Omnidirectional (typ.±1.5dB ripple)
Gain +3 to +8 dBi (Measured patterns on request)
VSWR
Nominal Impedance
Power rating
< 2.5
50 Ω
20 W (RMS)
Standard color Black
Radiator
Height
Weight
RF connection
Mounting
*Specific adjustments on request
Order number
Radome protected
545 mm
460 g
Installation*
Male N-type connector
Directly to a matching connector
Product
HD2400Q Antenna as described above
Page 1/1
Extended VHF Band Vehicular Antenna WB25C0M
The WB25C0M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.
• Superior performance starting from as low as 25 MHz
• High power rating, 100 W at 100 % duty-cycle
Frequency range 25 – 175 MHz
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
V2.0w
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
≤ 3.5
50 Ω
100 W (RMS)
Standard color Black/olive green
Radiator
Steel whip with shock absorption spring
Height 2240 mm
Weight 2.75 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female N-Type connector
US and 3/6-hole NATO pattern mount
Date 08.07.2021 Page 1/1
Wideband VHF/UHF Manpack Blade Antenna WB25512B
The WB25512B is an all-round manpack antenna with a flexible tape radiator and a gooseneck that provides an effective coverage of the 25 – 512 MHz frequency range. Its ideal radiation performance in combination with a versatile mechanical design makes it especially suited for use with the latest portable tactical communication and software defined radio systems (SDRs).
• Flexible gooseneck allows quick adjustment of the antenna’s angle
• Robust and flexible tape radiator for fast deployment and handy transportation
• High power rating, 30 W at 100 % duty-cycle
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Standard color
V1.1w
Date 25.03.2015
25 - 512 MHz
Passive
Nominally vertical
Monopole **
Omnidirectional
Measured patterns on request
≤ 3.5
50 Ω
30 W (RMS) **
Black
Radiator Foldable tape radiator with gooseneck
Base Ø 36 mm
Height
Weight
RF connection
Mounting
* Specific adjustments on request
** Ground plane required (see Page 2)
WB25512B
WB25512B-E
Installation*
1520 mm
500 g
Male N-type
Directly to a matching connector
Order number
Antenna as described above
Antenna as described above with 20 W power rating
1/1
Autonomous Tunable Vehicular VHF Antenna ATA3090M
The ATA3090M is an autonomous tunable antenna for the 30 to 90 MHz frequency band that does not require any external control. It therefore offers a perfect solution to easily enhance existing radio systems. This low profile antenna tunes automatically to use the optimum matching circuitry at the required frequency. The ATA3090M provides superior gain performance over traditional wideband antennas.
• No external control required - Easy upgrade for current radio systems
• Low profile antenna with superior gain performance - Gives up to 6dB better gain compared to a traditional passively matched antenna of same size
• Easy installation – Mechanically compatible with NATO / US pattern mounts
• Link budget improvement – Better gain and signal-to-noise ratio
Frequency range 30 - 90 MHz
Matching PIN diode based active matching
Polarization
Antenna type
Radiation pattern
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Gain Measured patterns on request
VSWR ≤ 3.5 (on tuned band)
Nominal Impedance
Power rating
50 Ω
50 W
Power supply 24 VDC, 5 W (average)
Tuning speed Max. < 150 µs, average < 50 µs (more details on request)
Standard color Black
Radiator Steel whip with shock absorption spring Height 2000 mm
Weight
Installation*
RF connection Female N-type connector
Power supply Via 2-pin DC connector (C90-3102R10SL-4P)
Mounting 4 hole NATO / US pattern mount
* Specific adjustments on request Order number ATA3090M
with external control (see separate data sheet) V0.3w
Date 29.03.2017
1/1
Wideband VHF/UHF Vehicle Antenna WB2060M
The WB2060M is a highly compact and effective vehicle antenna that is ideally suited for communication and countermeasure applications in the 200 - 600 MHz frequency range.
• Ideal coverage of the entire 200 – 600 MHz range
• Short-height and rugged antenna construction
Product details*
Frequency range
200 - 600 MHz
Matching Passive Polarization
Nominally vertical
Antenna type Monopole, ground plane required Radiation pattern Omnidirectional Gain
VSWR
Measured patterns on request
< 3.0
Nominal Impedance 50 Ω Power rating 100 W (RMS)
Standard color Black/olive green Radiator Aluminium alloy with shock absorption spring Height
Installation*
RF connection
Female N-type connector
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number NSN
Product WB2060M 5985 - 58 - 000 - 1025 Antenna as described above
V1.3w
Date 10.05.2021
Page 1/1
Wideband UHF Manpack Antenna WB922G
The WB922G is a rugged, high performance manpack antenna that is well suited for portable communication and jamming applications where a quick adjustment of the antenna’s angle is needed.
• Effective coverage of the entire 800 – 2500 MHz frequency range
• Optimized performance for the GSM, 3G and WLAN bands
• Rugged antenna construction with flexible gooseneck or shock absorption spring
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
Product details*
800 - 2500 MHz
Passive
Nominally vertical
Wideband dipole
Omnidirectional
Available on request
VSWR < 3.0
Nominal Impedance
Power rating
50 Ω
50 W (RMS)
Standard color Black
Radiator
Height
Weight
RF connection
Mounting
*Specific adjustments on request Order
Radome protected
400 mm (incl. 120 mm gooseneck)
350 g
Installation*
Male N-type connector
Directly to a matching connector
WB922G 5985 – 58 – 000 – 3112
Antenna as described above
WB922G-GE - Antenna with 22 cm gooseneck (Height: 500 mm / Weight: 470 g)
WB922Q 5985 - 58 - 000 - 1012
Antenna with shock absorption spring (Height: 340 mm / Weight: 370 g)
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.
V2.1
Date 15.10.2018
1/1
Wideband UHF/SHF Vehicle Antenna WB460M
The WB460M is a compact, light and low-profile vehicle antenna that is ideally suited for various applications within the 430 – 6000 MHz frequency range. The radiation performance is especially optimal for ground to air applications such as LINK-16.
Frequency range
Polarization
Radiation pattern
• Ideal operation in the UHF / SHF bands up to 6 GHz
• Suitable for applications such as: 5G, LTE, LINK-16, Soldier Radio Waveform, WLAN & ISM 2.4 & 5 GHz, WiMAX
Product details*
430 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)
800 - 6000 MHz (without a ground plane)
Nominally vertical
Omnidirectional (max. ± 1.5 dB ripple)
Gain Measured patterns on request VSWR
Nominal Impedance
Power rating
≤ 3.0
50 Ω
100 W (RMS)
Standard color Black
Radiator Radome protected
Height 110 mm
Weight 0.4 kg Installation* RF
Mounting
*Specific adjustments on request
V1.3w
Date 11.01.2023
4-hole US and 3/6-hole NATO pattern mount
as described above, color desert tan FS33446
In combination with a mounting accessory the antenna can be easily used for mast mounting and other fixed installations.
Page 1/1
High Gain GSM/3G/LTE Vehicle Antenna HD827XM
The HD827XM is a high gain omni antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for high power jamming applications.
• High power rating
• Optimised performance for GSM, 3G and 4G LTE frequency bands
• Rugged antenna construction with shock absorption spring
• No ground plane required
Frequency range
Product details*
790 - 2700 MHz
Matching Passive
Polarization
Antenna type
Radiation pattern
V2.1w
Date 27.09.2021
Nominally vertical
Wideband dipole array
Omnidirectional
Gain 3 dBi (Measured patterns on request)
VSWR ≤ 3.5
Nominal Impedance 50 Ω
Power rating (RMS)**
790 - 1000 MHz : 175 W (Pmax1)
1000 - 2200 MHz: 135 W (Pmax2)
2200 - 2400 MHz: 100 W (Pmax3)
2400 - 2700 MHz: 80 W (Pmax4)
Standard color Black
Radiator Radome protected Height 605 mm
kg
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2
HD827XM 5985-58-001-4292
HD827XM-F13 5985-58-001-4292
Antenna as described above
Antenna as described above, color RAL6003
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Low Profile Vehicular TETRA Antenna MB400
The MB400 is a very low-profile TETRA antenna for vehicular applications. The antenna provides excellent performance in the 385-420 MHz frequency range while featuring a height of less than 10 cm.
• Ideal operation in the 385 – 420 MHz frequency range
• Especially designed for applications where low antenna height is of utmost importance
• Easily installed onto vehicles and shelters
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
385 – 420 MHz
Nominally vertical
Monopole, ground plane required
Omnidirectional
Available on request
≤ 3.0
50 Ω
Power rating 10 W (RMS)
Standard color
Radiator
Height
Weight
Mounting
*Specific adjustments on request
Black/Olive green
Radome protected
Wideband UHF/SHF Magnetic Mount Antenna WB460W
The WB460W is an extremely wideband and compact magnetic mount antenna of low profile that supports multiple applications. The antenna is ideally suited for applications where a quick setup and removal is required or where a permanent installation of the antenna on a vehicle is not possible.
• Ideal operation in the UHF/SHF bands up to 6 GHz
• High performance, 200 W at 100% duty cycle
• Compact magnetic mount for easy-to-setup temporary installations Product
Impedance
rating (CW)
MHz: 200 W
MHz: 160 W
MHz: 130 W
Standard color Black Radiator Radome protected Footprint
88 mm
N-type Mounting Ø
(vertical holding force typically 280 N when mounted on 0.8 mm steel sheet) Surface protection
*Specific adjustments on request Order
Antenna as described above
Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.
V1.3w
Date 11.01.2023 Page 1/1
Wideband VHF/UHF Handheld Monopole Antenna WB2250H
The WB2250H is an extremely lightweight wideband monopole antenna with a small visual signature for handheld applications. The antenna provides ideal performance in the 225512 MHz NATO I frequency band which makes it very well suited for use with modern SDRs, providing effective coverage for a range of voice and data communications.
• Excellent performance over the entire 225 – 512 MHz frequency range
• Extremely low weight antenna
• The antenna is available with TNC or SMA connectors
Product details*
Frequency range
Matching
Polarization
225 - 512 MHz
Passive
Nominally vertical
Antenna type Wideband monopole
Radiation pattern Omnidirectional
Gain (typical)
VSWR
Nominal Impedance
Power rating
Standard color
-1 to +1 dBi (Measured patterns on request)
≤ 3.0
50 Ω
10 W (RMS)
Black
Radiator Flexible tape radiator
Diameter (max.) Ø 18 mm
Height
Weight
RF connection
Mounting
*Specific adjustments on request
Order number
WB2250H-C3
280 mm
70 g
Installation*
Male TNC -type connector
Directly to a matching connector
Product
Antenna as described above
WB2250H-C2 Antenna with female SMA -type connector with shroud (details on request)
V1.0w
Date 25.08.2017
1/1
High-power VHF/UHF Manpack Antenna WB25512XR
The WB25512XR is a high-power manpack antenna for use in portable jamming applications within the complete 25 – 512 MHz frequency range.
• High power rating, 50 W at 100% duty-cycle
• Foldable radiator for handy transportation and easy installation
• Rugged antenna construction with shock absorption spring
Standard
Specific adjustments
High Gain Tactical UHF III+ Manpack Antenna HD1327Q
The HD1327Q is a high gain manpack antenna effectively covering the UHF III+ band. The antenna is particularly suited for portable tactical communication applications. Its centre fed design minimises interference of the human body on the radiation performance of the antenna.
V1.0w
• Compact and unique electrical design
• Excellent performance over the entire UHF III+ band
• Rugged antenna construction with shock absorption spring (also available as lightweight version without a spring or with a rubber spring)
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain (typical)
VSWR
Nominal Impedance
Power rating (RMS)**
1300 - 2700 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional
4 dBi
≤ 3.0
50 Ω
1300 - 1700 MHz: 65 W (Pmax1)
1700 - 2200 MHz: 60 W (Pmax2)
2200 - 2700 MHz: 55 W (Pmax3)
Standard color Black
Radiator
Height
Weight
RF connection
Mounting
*Specific adjustments on request
Radome protected (diameter 30 mm)
535 mm
410 g
Installation*
Male N-type connector
Directly to a matching connector
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2.....
HD1327Q
HD1327RQ
HD1327P
Product
Antenna as described above
Antenna with rubber spring (Height: 545 mm / Weight: 310 g)
Antenna without a spring (Height: 475 mm / Weight: 290 g)
Date 26.03.2020 Page 1/1
Adaptive Handheld VHF/UHF Antenna TA30512H
The TA30512H is an active wideband handheld antenna for the 30 to 520 MHz frequency band. This lowprofile antenna can be tuned via RF connector to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability and high power rating makes the antenna suitable for most of the modern SDRs.
• Low profile antenna with superior gain performance
• Fast tuning with high power rating supports modern waveforms
• Supports also very wide transmission bandwidths
• Control integrated to the TNC-type connector
Product
Frequency
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Supply voltage & current
Active matching
Nominally vertical
Flexible whip monopole (ground plane required)
Omnidirectional
Up to 10 dB better than similar passive antenna*
≤ 3.5 (on tuned band)*
50 Ω
5 W
3.3 VDC (max 3.6V)
0.5 mA (maximum <2.5 mA during antenna control)
Tuning speed <50 µs (including control, ACK and switching)*
Standard color Black
Radiator
Wideband VHF/UHF Vehicular C3I Antenna WD30512M
The C30512M is a rugged, low profile and high-performance vehicle antenna providing maximum performance for today’s tactical radios. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The radiator of the antenna can be easily detached temporarily by rotating it at its spring and the whip part separately using the thumb screw.
• Unique electrical design enables optimal performance over the entire 30 - 512 MHz frequency range
• Covert and rugged mechanical design with flexible steel whip
• Complete radiator and whip separately detachable without tools
V3.0w
Date 08.10.2021
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Standard color
Radiator
Height
Weight
RF connection
Product details*
30 - 512 MHz
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Radiation patterns on request
≤ 3.5 (for 95% of the specified frequency range)
50 Ω
75 W (RMS)
Black
Steel whip with shock absorption spring
1920 mm
2.5 kg
Installation*
Female N -type connector
Mounting 4-hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
Order number
C30512M
C30512M-C1
Product
Antenna as described above
Antenna with BNC (f) -type connector
C30512M-GPS Antenna with integrated L1 GPS antenna (SMA (f)).
Power rating: 50W (RMS.)
The optional available antenna whip tilt adapter FJ5 allows the user to conveniently tilt down the antenna’s whip in 45 degree angles, for instance when having to drive into halls and garages.
Page 1/1
Tunable Vehicular VHF/UHF Antenna TA30512M
The TA30512M is a tunable antenna for the 30 to 520 MHz frequency band. This low profile antenna can be tuned by remote control to use the optimum matching circuitry and electrical length at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. The extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.
• Low profile antenna with superior gain performance
• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications
• Supports also very wide transmission bandwidths
• Electrical length tuning allows selecting the most suitable elevation pattern for a particular situation
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Power supply
Tuning speed
Standard color
Radiator
Product details*
30 - 520 MHz
PIN diode based active matching
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Measured patterns on request
≤ 3.5 (on tuned band)
50 Ω
50 W (RMS)
24 VDC, 5 W average
< 30 µs (see Page 3)
Black
Upper part: Glass fiber coated whip
Lower part: Aluminium alloy with shock absorption spring
Height 1920 mm
Weight
RF connection
Power and control
Mounting
* Specific adjustments on request
3.0 kg
Installation*
Female N-type connector
Circular MIL connector (See Page 3)
4 hole US pattern mount, see diagram on Page 3
Order number
TA30512M Antenna as described above
V2.1w
Date 21.01.2015
Page 1/1
Wideband VHF/UHF Vehicle Antenna WB10DXM
The WB10DXM is a compact VHF/UHF vehicle antenna that is ideally suited for high-power mobile applications in the 100 – 520 MHz frequency range – to be used on numerous kinds of vehicles.
• High performance, 200 W at 100% duty cycle
• Rugged antenna construction with shock absorption spring
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
Standard color Black
Radiator Aluminium alloy with shock absorption spring
High Gain Triband Vehicle Antenna HD921M
The HD921M is a high gain triband vehicle antenna that is particularly suited for communication and jamming applications in the GSM and 3G frequency bands.
• Unique electrical design
• Optimized performance for GSM and 3G frequency bands
• Rugged antenna construction with shock absorption spring
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain (typical)
800 - 960 MHz 1710 - 1990 MHz 2110 - 2170 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional (± 1.5 dB)
3 dBi @ 800 - 960 MHz
4 dBi @ 1710 - 1990 MHz
4 dBi @ 2110 - 2170 MHz
VSWR ≤ 2.5
Nominal Impedance
Power rating (RMS) **
50 Ω
115 W @ 800 - 960 MHz (Pmax1)
80 W @ 1710 - 1990 MHz (Pmax2)
75 W @ 2110 - 2170 MHz (Pmax3)
Standard color Black
Radiator
Radome protected
Height 605 mm
Weight 1.8 kg
Installation*
RF connection
Female N-type
Mounting 4 hole US and 3/6 hole NATO pattern mount
* Specific adjustments on request
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2+P3/Pmax3
Order number NSN
Product
HD921M 5985 - 58 - 000 - 8334 Antenna as described above
V5.0w
Date 24.08.2021
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Stationary Tactical VHF Antenna WB30108BS
The WB30108BS is a highly efficient tactical VHF antenna. The antenna can be quickly and easily mounted onto a mast with out any additional tools. Its excellent performance in the 30 – 108 MHz frequency range makes it ideally suited for use with the latest tactical radios.
• High performance, 80W at 100% duty-cycle and typical gain of 0 dBi
• Quick and easy installation – no additional tools required
Product details*
Frequency range 30 - 108 MHz
Matching Passive
Polarization
Nominally vertical
Antenna type Monopole
Radiation pattern
Gain
Omnidirectional
Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance
Power rating
50 Ω
80 W (RMS)
Standard color Black
Radiator and ground plane radials
Stainless steel/ aluminium alloy
Height 2750 mm (operational), 1600 mm (disassembled in carry-on bag) Weight
*Specific adjustments on request
High Gain GSM/3G/LTE Vehicle Antenna HD727XM
The HD727XM is a high gain omni antenna covering GSM, 3G, 4G LTE and 5G bands. The antenna is particularly suited for high power jamming applications.
• High power rating
• Optimised performance for GSM, 3G , 4G and 5G frequency bands
• Rugged antenna construction with shock absorption spring
• No ground plane required
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain (typical)
VSWR
Nominal Impedance
Power rating (RMS)**
Product details*
700 - 2700 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional
Measured patterns on request
≤ 3.5
50 Ω
700 - 1000 MHz : 175 W (Pmax1)
1000 - 2200 MHz: 135 W (Pmax2)
2200 - 2400 MHz: 100 W (Pmax3)
2400 - 2700 MHz: 80 W (Pmax4)
Standard color Black
Radiator
Radome protected
Height 605 mm
Weight 1.8 kg
Installation*
RF connection
Mounting
*Specific adjustments on request
Female N-type
4-hole US and 3/6-hole NATO pattern mount
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2
Order number
Product HD727XM
Antenna as described above
V1.0w
Date 16.09.2022
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Wideband UHF Manpack Antenna WB525Q
The WB525Q is a rugged, high performance manpack antenna that is particularly suited for portable communication and jamming applications.
• Effective coverage of the complete 480 - 2800 MHz frequency range
• Rugged antenna construction with shock absorption spring
vertical
type
pattern
on request VSWR
Nominal Impedance
3.0
Ω
(RMS)
Adaptive Manpack VHF / UHF Antenna TA30512B
The TA30512B is an active wideband manportable antenna for the 30 to 520 MHz frequency band. This low profile antenna can be tuned via RF connector to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the modern SDRs.
V0.3w
Date 06.09.2016
• Low profile antenna with superior gain performance - Gives up to 10dB better gain compared to a traditional passively matched antenna of same size
• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications
• Supports also very wide transmission bandwidths
• Control integrated to the N-type connector
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
30 - 520 MHz
PIN diode based active matching
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Measured patterns on request
≤ 3.5 (on tuned band)
50 Ω
Power rating 10 W (RMS)
Power supply 10-12 VDC
Maximum <1W (transmit mode), <<0.1W (receiving mode)
Tuning speed < 30 µs
Standard color
Radiator
Height
Weight
RF connection
Power and control
* More information on request
TA30512B
Black
Upper part: Foldable tape
Lower part: Aluminium alloy with fibre glass
450 mm
200g
Installation*
Male N-type connector
Via N-type connector*
Order number
Antenna as described above
TA30512B-CE Antenna with external control interface (see separate data sheet)
Page 1/1
High Gain Directional UHF Antenna DA4348B
The DA4348B is a high gain directive loop antenna that does not require a ground plane for proper operation. Its ideal performance in the 430 – 480 MHz frequency range makes it very well suited for RCIED, drone or communication jamming applications.
• High performance in the 430 – 480 MHz frequency range
• Easily installed onto vehicles, shelters and masts
• Compact and robust antenna design for rough environmental conditions
• No ground plane nor additional tuning required
Product
Frequency range 430 – 480 MHz
Polarization
Nominally vertical
Antenna type Loop with reflector, no ground plane required
Nominal Impedance
*Specific adjustments on request
High-Power UHF/SHF Vehicle Antenna WB525XM
The WB525XM is a compact, high-power and low-profile vehicle antenna that is well suited for communication and jamming applications within the 500 – 6000 MHz frequency range.
Frequency range
Polarization
• Ideal operation in the UHF/SHF bands up to 6 GHz
• High performance, 400 W at 100% duty cycle
Product details*
800 - 6000 MHz (without a ground plane)
500 – 6000 MHz on a ground plane (≥ 0.5 x 0.5 m2)
Nominally vertical
Radiation pattern Omnidirectional (max. ± 1.5 dB ripple)
Gain Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance
Power rating
50 Ω
400 W (RMS)
Standard color Black
Radiator Radome protected
Height 130 mm
Weight 1.0 kg
Installation*
RF connection
Female 7/16 -type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
Product
WB525XM Antenna as described above
V1.2w
Date 11.01.2023
Page 1/1
Wideband VHF/UHF Vehicle Antenna WB1450M
The WB1450M is a compact VHF/UHF vehicle antenna that is ideally suited for mobile applications in the 140 - 512 MHz frequency range – to be used on numerous kinds of vehicles
• Rugged antenna construction with shock absorption spring
• High performance, 100 W at 100% duty cycle
Polarization
Nominally vertical
Antenna type Monopole, ground plane required
Radiation pattern
Gain
Omnidirectional
Available on request
VSWR ≤ 3.5
Nominal Impedance 50 Ω
Power rating 100 W (RMS)
Standard color
Black/olive green
Radiator Aluminium alloy with shock absorption spring
*Specific adjustments on request
High Gain GSM/3G/LTE Manpack Antenna HD827Q
The HD827Q is a high gain manpack antenna covering the GSM, 3G and 4G LTE bands. The antenna is particularly suited for portable communication and jamming applications. Its centre fed design minimises interference of the human body on the radiation performance of the antenna.
V1.4w
Date 01.11.2021
• Compact and unique electrical design
• Optimised performance for GSM, 3G and 4G LTE frequency bands
• Rugged antenna construction with shock absorption spring (also available as lightweight version with rubber spring)
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
790 - 2700 MHz
Passive
Nominally vertical
Wideband dipole array
Omnidirectional
Gain (typical) +2 to +5 dBi (Measured patterns on request)
VSWR ≤ 3.0
Nominal Impedance
Power rating (RMS)**
50 Ω
790 - 1000 MHz : 85 W (Pmax1)
1000 - 1700 MHz: 65 W (Pmax2)
1700 - 2200 MHz: 60 W (Pmax3)
2200 - 2700 MHz: 55 W (Pmax4)
Standard color Black
Radiator
Radome protected (diameter 30 mm)
Height 535 mm
Weight 410 g Installation*
Mounting
*Specific adjustments on request
Directly to a matching connector
** Sum of input powers (P) should not exceed the limit of 1 ≥ P1/Pmax1+P2/Pmax2
HD827Q 5985-58-000-8339
HD827RQ 5985-58-000-9607
Antenna as described above
Antenna with rubber spring (Height: 545 mm / Weight: 310 g)
HD827 - Antenna without a spring (Height: 475 mm / Weight: 290 g)
HD827Q-F8 5985-58-000-8339
Antenna as described above, color desert tan FS33446
1/1
Wideband UHF Manpack Antenna WB525G
The WB525G is a high performance manpack antenna that is particularly suited for applications where a quick adjustment of the antenna’s angle is needed.
• Effective coverage of the complete 480 - 2800 MHz frequency range
• Flexible gooseneck for perfect operation, even in extreme positions
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
Nominally vertical
Wideband dipole
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance
Power rating
50 Ω
40 W (RMS)
Standard color Black
Radiator
Height
Weight
Mounting
*Specific adjustments on request
Radome protected
465 mm
500 g (incl. 12 cm gooseneck)
Installation*
Directly to a matching connector
- 58 - 000 - 1015
as described above
Instructions for use: To avoid the connector from being damaged, do not rotate the antenna when the gooseneck is in a bent position. Always straighten the gooseneck first, before changing the bending direction. The maximum bending angle of 60⁰ shall not be exceeded.
V2.1w
Date 22.05.2019
1/1
High Gain VHF/UHF Vehicle Antenna HD2245XM
The HD2245XM is a high gain dipole antenna that does not require a ground plane for proper operation. Its ideal performance and high-power rating in the 225 – 450 MHz frequency range makes it very well suited for applications such as jamming and high-power communication.
• Excellent gain and high-power rating
• Easily installed onto vehicles, shelters and masts
• Compact and robust antenna design for rough environmental conditions
• No ground plane nor additional tuning required
adjustments on request
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Tunable Vehicular VHF Antenna TA3090M
The TA3090M is a tunable antenna for the 30 to 90 MHz frequency band. This low-profile antenna can be tuned by remote control to use the optimum matching circuitry at the required frequency. It thus provides superior gain performance over traditionally matched wideband antennas. Its extremely fast tuning ability (based on PIN diode switching technology) makes the antenna suitable for most of the conventional modulation types.
• Low profile antenna with superior gain performance. Gives up to 6 dB better gain compared to a traditional passively matched antenna of same size
• Fast tuning to a new frequency band allows the antenna to be used in different kind of applications
• Supports also wide transmission bandwidths
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Power supply
Product details*
30 - 90 MHz
PIN diode based active matching
Nominally vertical
Monopole (ground plane required)
Omnidirectional
Measured patterns on request
≤ 3.5 (on tuned band)
50 Ω
50 W
24 VDC, 5 W (average)
Tuning speed < 30 µs (more details on request)
Standard color Black
Radiator
Steel whip with shock absorption spring
Height 2000 mm
Weight 3.0 kg
Installation*
RF connection
Power and control
Mounting
* Specific adjustments on request
Female N-type connector
Circular MIL connector (more details on request)
3/6-hole mounting pattern (more details on request)
Order
with autonomous tuning (see separate data sheet)
V1.1w
Date 10.05.2021
Page 1/1
Wideband Manpack VHF Antenna WB2CC
The WB2CC is a high performance manpack antenna which is particularly suited for portable radio and jamming applications in the 20 – 108 MHz frequency range.
• Lightweight carbon fibre whip antenna
• Power rating 20 W at 100% duty-cycle
• Foldable radiator for handy transportation and easy installation

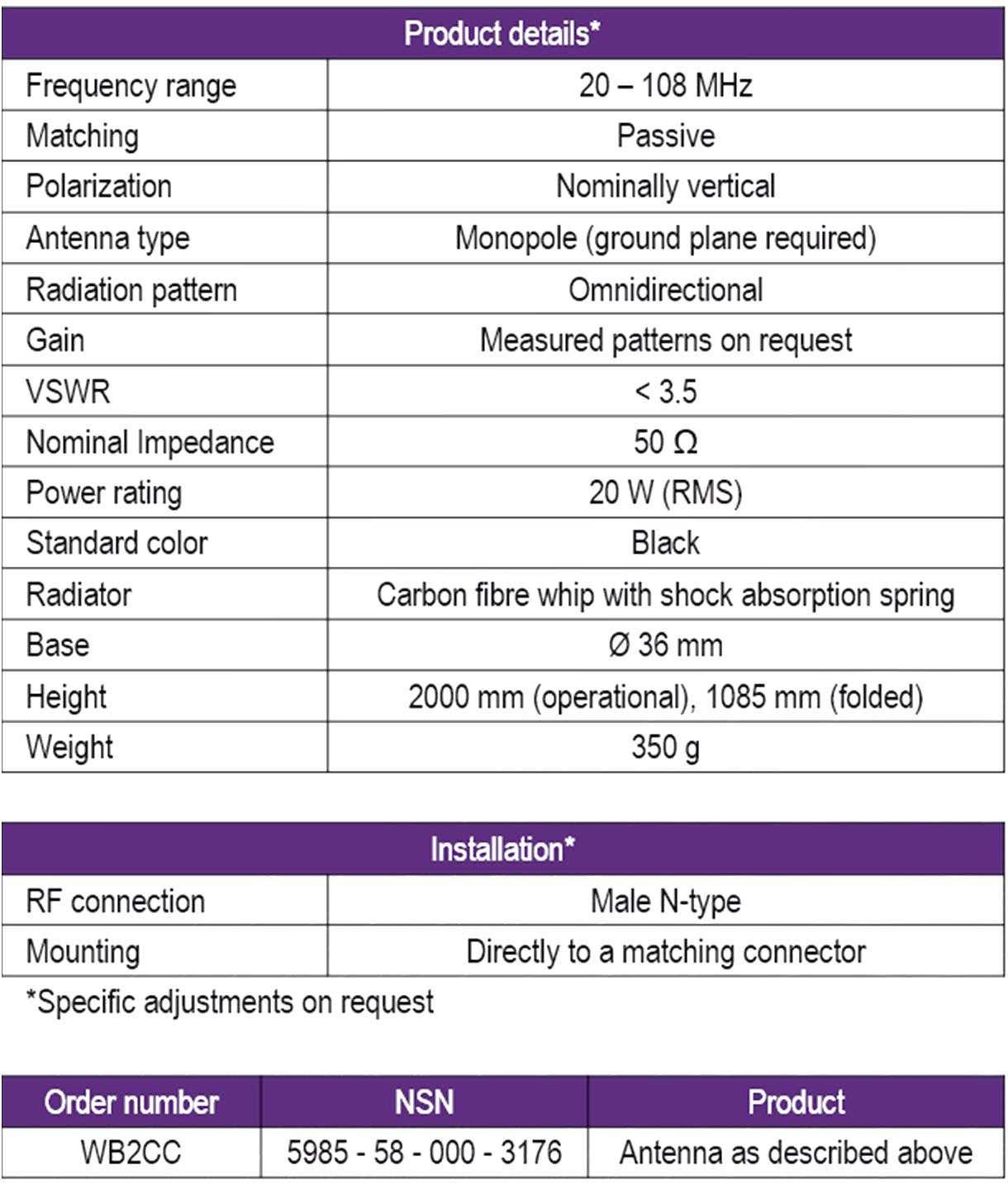

V1.3w
Date 04.05.2021
Page 1/1
Extended VHF Band Vehicular Antenna WB25175M
The WB25175M is a rugged wideband antenna for high-performance communication and jamming applications in the 25 – 175 MHz frequency range.
Safety advice:
• Effective coverage of the entire 25 - 175 MHz frequency range
• High power rating, 100 W at 100 % duty-cycle
Product
Frequency range
Matching
Polarization
25 – 175 MHz
Passive
Nominally vertical
Antenna type Monopole, ground plane required Radiation pattern
Gain
VSWR
Nominal Impedance
Omnidirectional
Available on request
≤ 3.5
50 Ω Power rating
100 W (RMS)
Standard color Black/olive green Radiator Steel whip with shock absorption spring
Height 2250 mm
Weight
RF connection
3.3 kg
Installation*
Female BNC-Type connector
Mounting 4-hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
V1.3w
Date 15.03.2019 Page 1/1
