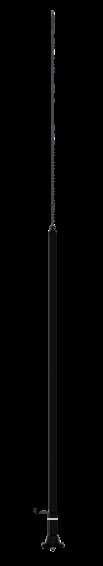

Wideband VHF/UHF Vehicular C3I Antenna WD30512XM
The WD30512XM is a rugged and high-performance dipole antenna supporting vehicle mountings. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The steel whip is glass fibre insulated to provide protection against high voltage overhead transmission lines. The radiator and the whip can be easily detached temporarily without any tools.
• Excellent performance with center fed design
• Covert and rugged mechanical design with flexible steel whip
• Radiator and whip detachable without any tools
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
30 - 512 MHz
Passive
Nominally vertical
Dipole
Omnidirectional
Measured radiation patterns on request
VSWR ≤ 3.5 (for 95% of the specified frequency range)
Nominal Impedance
Power rating
Standard color
Radiator
Height
Weight
RF connection
Mounting
50 Ω
80 W
Black
Glass fibre insulated steel whip with shock absorption spring
2970 mm
3.7 kg
Installation*
Female N -type connector
4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Date 10.05.2024

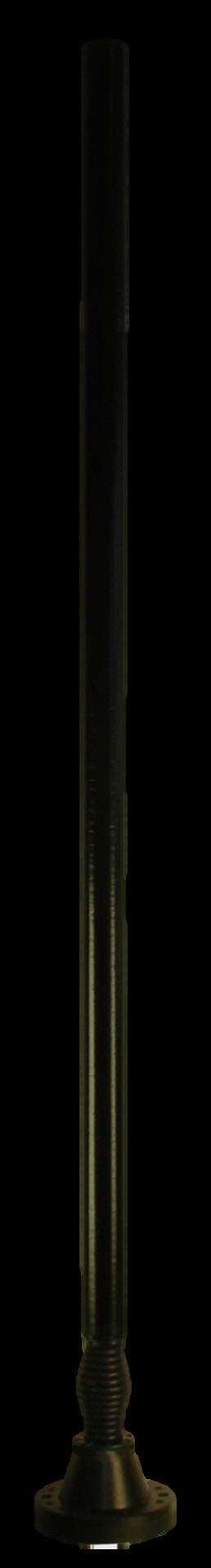

Wideband VHF Vehicle Antenna
The WB30150M1 is a rugged VHF vehicle antenna that is particularly suited for communication and jamming applications in the 30 – 150 MHz range – to be used on numerous kinds of vehicles.
V1.6w
Date 05.05.2021
• Excellent performance starting from 30 MHz onwards
• High performance, 100 W at 100% duty cycle
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
30 - 150 MHz
Passive
Nominally vertical
Monopole, ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.5
Nominal Impedance
Power rating
50 Ω
100 W (RMS)
Standard color Black/olive green
Radiator Steel whip with shock absorption spring
Height 1990 mm
Weight 2.1 kg
Installation*
RF connection
Female N-type connector
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order
WB30150M1 5985 - 58 - 000 - 1009 Antenna as described above
WB30150M 5985 - 58 - 000 - 1004
Same antenna with female BNCtype connector
WB30150M11 5985 - 58 - 000 - 1010 Same antenna with glass fibre insulated whip
Page 1/1

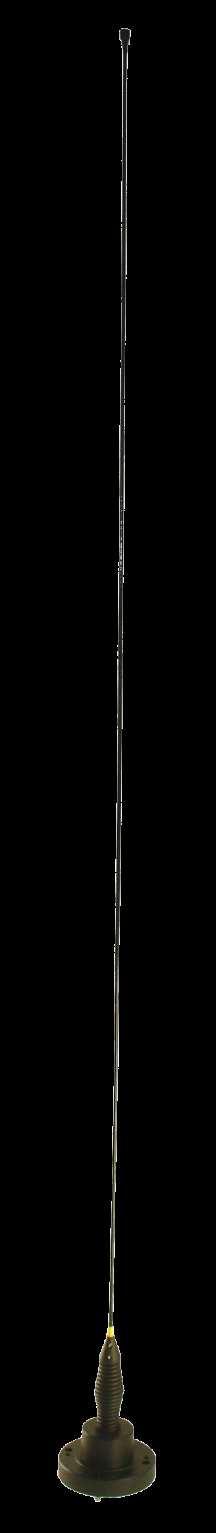

VHF Band Magnetic Mount Antenna WB30108W
The WB30108W is a magnetic mount antenna for applications where a quick setup and removal of the antenna is required or where a permanent installation of the antenna on a vehicle is not possible.
• Excellent performance over wide bandwidth
• Compact magnetic mount for easy-to-setup temporary installations
Frequency range
– 108 MHz
Matching Passive
Polarization
Nominally vertical Antenna type
Monopole, ground plane required
Radiation pattern
(See typical patterns on Page 2) VSWR
3.5 Nominal Impedance
Standard color
Radiator
Footprint
adjustments on request Safety Warning:
described above
Additional wire loop (Ø ~5 cm) attached to
base for safety tether connection
care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.

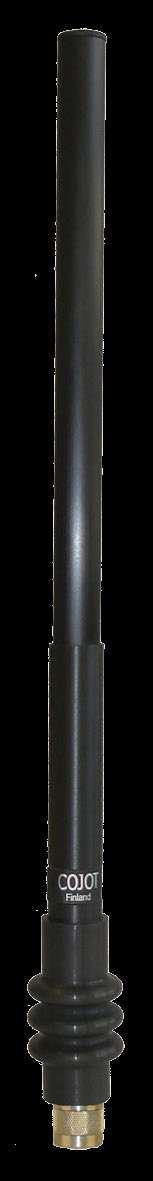

Wideband Manpack Antenna WBCX512Q
The WBCX512Q is a rugged manpack antenna which is particularly suited for portable communication and jamming applications within the 118 - 512 MHz frequency range.
• Effective horizontal coverage over the entire frequency range
• Rugged antenna construction with shock absorption spring
Antenna type Monopole (ground plane required)
Radiation pattern Omnidirectional
Gain Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance 50 Ω
Power rating 15 W (RMS)
Standard color Black

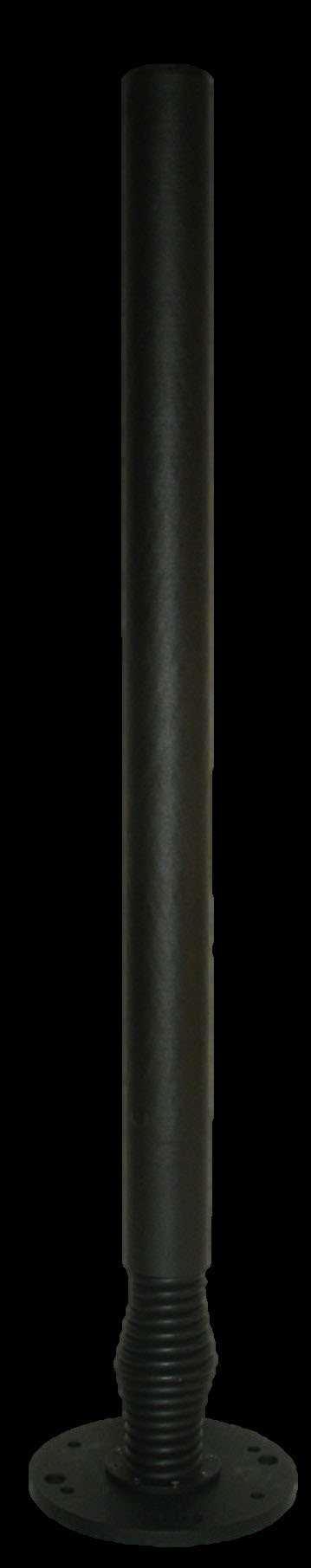

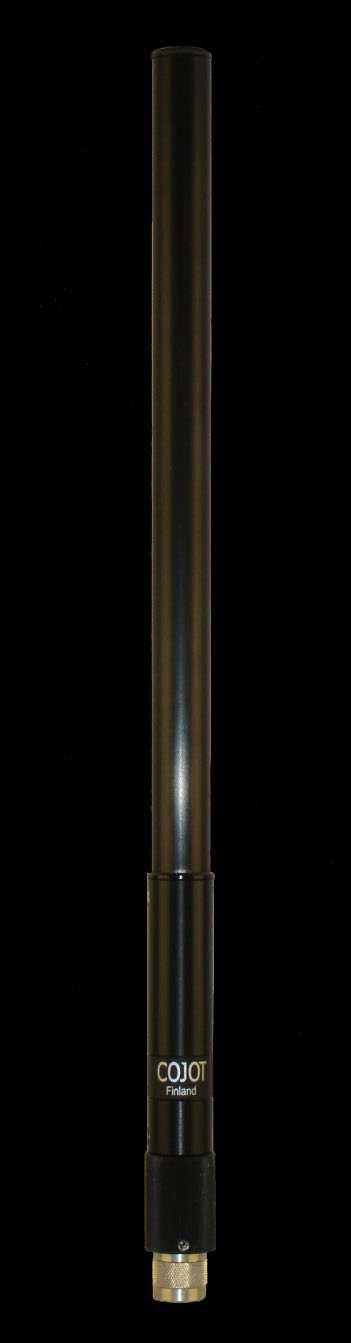

Wideband VHF/UHF Vehicle Antenna WD2245M
The WD2245M is a wideband dipole antenna that does not require a ground plane for proper operation. Its ideal performance in the 225 – 450 MHz frequency range makes it very well suited for use with modern SDRs, providing an effective coverage for a range of voice and data communications including Have Quick II and SATURN.
V2.0w
Date 03.05.2021
• Ideal operation in the 225 – 450 MHz frequency range
• Easily installed onto vehicles, shelters and masts
• Compact and robust antenna design for rough environmental conditions
• No ground plane nor additional tuning required
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
225 – 500 MHz
Nominally vertical
Dipole, no ground plane required
Omnidirectional
Measured patterns on request
< 3.0
50 Ω
100 W (RMS)
Standard color Black
Radiator Fiberglass radome coated with protective film
Height 720 mm
Weight 2.4 kg
Installation*
RF connection
Female N-type
Mounting 4 hole US and 3/6 hole NATO pattern mount
*Specific adjustments on request
Order number
NSN
Product
WD2245M 5985 - 58 - 000 - 5330 Antenna as described above
Accessory: In combination with the MS1 (antenna mast mount) the antenna can also be used for mast mounting and other fixed installations.
Page 1/1
Dual Port VHF/UHF Vehicle Antenna WBC3924
The WBC3924 is a tactical dual port antenna effectively covering the VHF and UHF bands. It is ideally suited for mobile C3I applications, especially where a multiple antenna set-up is not possible or antenna co-location problems may occur.
V1.2w Date 04.05.2021
• Two antennas integrated into the same mechanics:
• Ideal operation in the 30 - 108 and 225 – 512 MHz frequency ranges
• High band, ground plane independent antenna positioned at the top for optimum coverage
• Easily installed onto vehicles or shelters
Product details*
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating
Port to port isolation (typical)
Standard color
Radiator
Port 1: 30 – 108 MHz
Port 2: 225 – 512 MHz
Nominally vertical
VHF: Monopole
UHF: Dipole
Omnidirectional
Measured patterns on request
Port 1: ≤ 3.5
Port 2: < 2.5
50 Ω
Port 1: 50 W
Port 2: 50 W
20 dB
Black
Radome protected, diameter 44 mm
Height 1540 mm
Weight 4.5 kg Installation*
*Specific adjustments on request
1/1

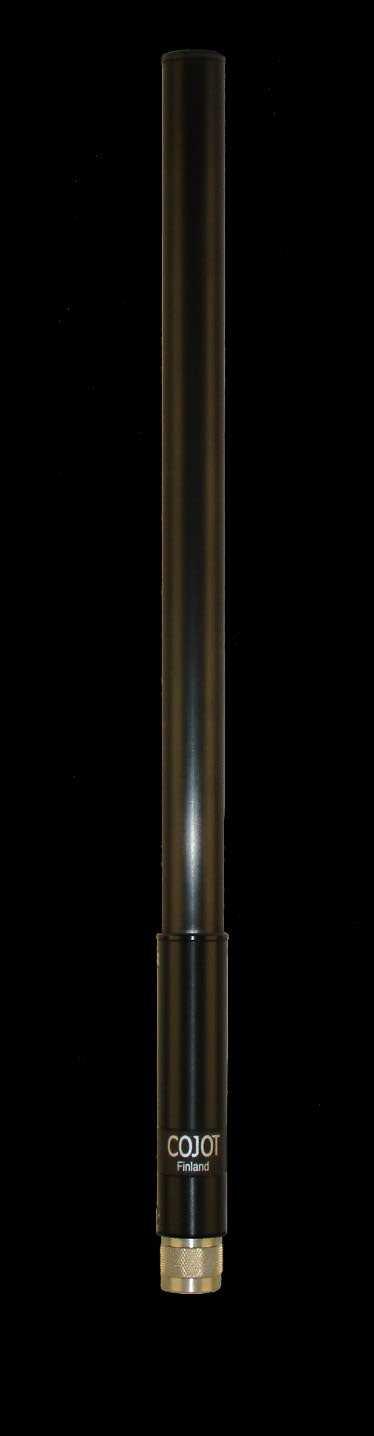

Wideband VHF/UHF Dipole Manpack Antenna WD1350Q
The WD1350Q is a rugged, high performance manpack antenna that is particularly suited for jamming applications. Due to its centre-fed design the antenna does not require a ground plane for proper operation.
• Effective coverage of the complete 118 - 512 MHz frequency range
• Rugged antenna construction with shock absorption spring
• No ground plane required Product
Frequency range 118 - 512 MHz
Polarization
Antenna type
Radiation pattern
Nominally vertical
Wideband dipole
Omnidirectional Gain
Measured patterns on request VSWR
Nominal Impedance
Power rating
Standard color
Radiator

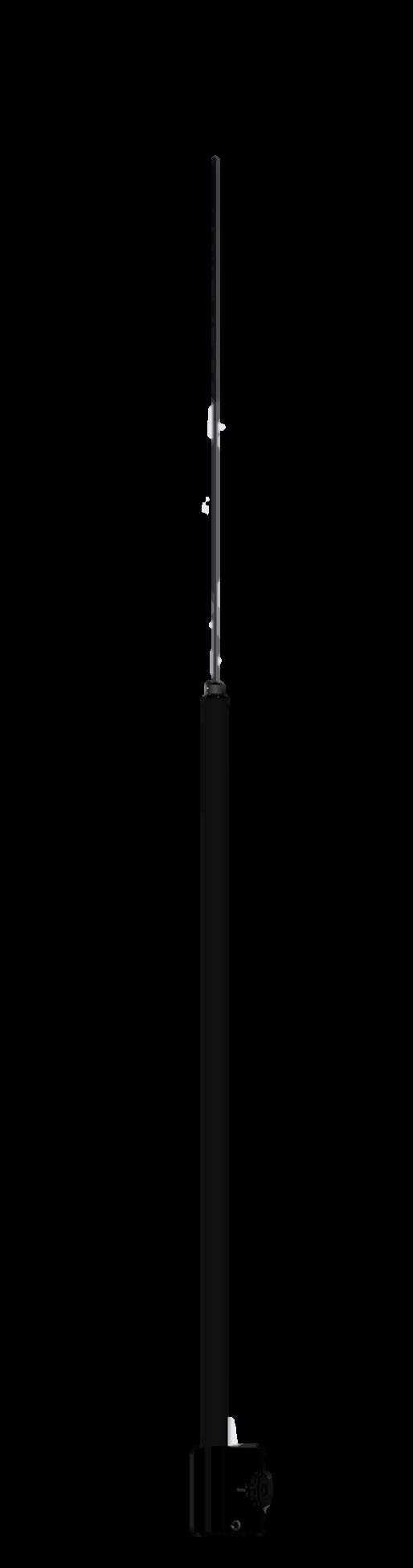

VHF/UHF Dipole Antenna for Mast Mount WD30512M-B
The WD30512M-B is a rugged and high-performance dipole antenna with an easy to use mast mount adapter. Its effective coverage over the complete 30 – 512 MHz frequency range makes it the ideal choice for latest JTRS and modern SDRs. The antenna supports COJOT multiuse concept: the same radiator can be used for vehicle and mast mounting. The steel whip can be easily detached temporarily without any tools.
V1.4w
Date 04 03.2024
• Excellent performance with center fed design
• Covert and rugged mechanical design
• Quick and easy installation - no additional tools required
Product details*
Frequency range
Matching
Polarization
Antenna type
Radiation pattern
Gain
30 - 512 MHz
Passive
Nominally vertical
Dipole
Omnidirectional
Measured patterns on request
VSWR ≤ 3.5 (for 95% of the specified frequency range)
Nominal Impedance
Power rating
Standard color
Radiator
Height
Weight
RF connection
Mounting
*Specific adjustments on request
Order number
WD30512M-B
WD30512M
50 Ω
50 W
Black
Upper part: Steel whip
Lower part: Radome protected
2990 mm
3.7 kg
Installation*
Female N -type connector
Onto a ∅ 40 - 60 mm mast
Product
Antenna as described above
Antenna for vehicle mounting (see separate data sheet)
1/1

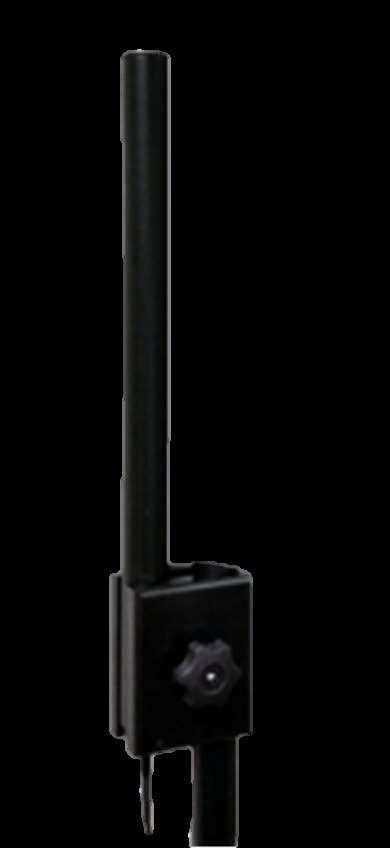

VHF/UHF Dipole Antenna for Mast Mount WD2250M-B
The WD2250M-B is a highly efficient antenna with an easy to use mast mount adapter. It is very well suited for use with modern SDRs, providing an effective coverage for a range of voice and data communication systems including Have Quick II and SATURN.
• Excellent performance over the entire 225 – 512 MHz frequency range
• Quick and easy installation to mast environments – no additional tools required
• Compact and robust antenna design for rough environmental conditions
Frequency range
Polarization
Antenna type
Radiation pattern
Gain
225 – 512 MHz
Nominally vertical
Dipole, no ground plane required
Omnidirectional
Measured patterns on request
VSWR < 3.0
Nominal Impedance
Power rating
50 Ω
100 W (RMS)
Standard color Black
Radiator
Height, Width & Depth
Radome protected
x 120 x 150 mm Weight
adjustments on request
Accessory: Mast mount module MASTMO available also as a
Wideband Manpack Antenna WBCX512P
The WBCX512P is a rugged and lightweight manpack antenna which is particularly suited for portable communication and jamming applications within the 118 - 512 MHz frequency range.
V2.2w
• Small sized and lightweight antenna design
• Rugged antenna construction
Product details*
Frequency range
Matching
Polarization
Antenna type
118 – 512 MHz
Passive
Nominally vertical
Monopole (ground plane required)
Radiation pattern Omnidirectional
Gain
Measured patterns on request
VSWR ≤ 3.0
Nominal Impedance
50 Ω
Power rating 16 W (RMS)
Standard color Black
Radiator Radome protected
Weight
Mounting
*Specific adjustments on request
Installation*
Directly to a matching
Date 03.05.2021 Page 1/1
Wideband Manpack Antenna WBCX512RP
The WBCX512RP is a compact and lightweight manpack antenna with a 20 W power rating. The antenna is particularly suited for portable jamming applications within the 100512 MHz frequency range.
• Small sized and lightweight antenna design
• Rugged antenna construction
Frequency range
Polarization
Nominally vertical
Antenna type Monopole (ground plane required)
Radiation pattern Omnidirectional
Gain
VSWR
Nominal Impedance
Available on request
3.5
Ω Power rating
W (RMS)
Standard color
Wideband VHF/UHF Handheld Dipole Antenna WD2250GH
The WD2250GH is an extremely lightweight wideband dipole antenna with a small visual signature. Its center fed antenna design combined with a flexible mechanical structure make the antenna well suited for vest mounting. The antenna provides effective coverage for a range of voice and data communications used in modern SDRs.
• Excellent performance over the entire 225 – 512 MHz frequency range
• Extremely low weight antenna with flexible gooseneck and tape radiator allowing easy vest integration
• Available also with other connector options like TNC
Product details*
Frequency range
Matching
Polarization
225 - 512 MHz
Passive
Nominally vertical
Antenna type Wideband dipole
Radiation pattern Omnidirectional
Gain
VSWR
Nominal Impedance
Power rating
Standard color
Radiator
Height
Weight
RF connection
Mounting
Measured patterns on request
≤ 3.0
50 Ω
10 W (RMS)
Black
Flexible gooseneck and tape radiator (Ø 18 mm)
640 mm
150 g
Installation*
Female SMA-type connector
Directly to a matching connector
*Specific adjustments on request
Order number
WD2250GH
Product
Antenna as described above
WD2250G Antenna with 20W power rating and male TNC-type connector
V0.4w
Date 11.09.2020 Page 1/1

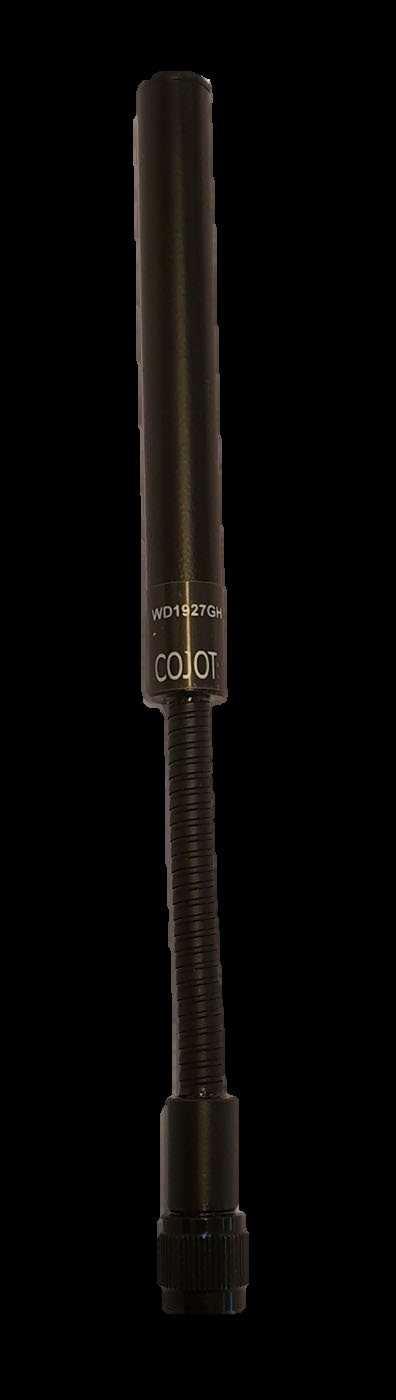

Wideband Handheld Dipole Antenna WD1927GH
The WD1927GH is an extremely lightweight wideband dipole antenna with a small visual signature for the L and S bands. Its center fed antenna design combined with a flexible mechanical structure make the antenna well suited for vest mounting. The antenna provides effective coverage for a range of voice and data communications used in modern SDRs.
• Excellent performance over the entire frequency range
• Extremely low weight antenna with flexible gooseneck allowing easy vest integration and support for polarization diversity for MIMO usage
• Non-Rotating RF connector (TNC) allowing easy usage
Polarization Nominally vertical Antenna type Wideband dipole – no ground plane required Radiation pattern
dBi (More details on request)
2.0 Nominal Impedance
Ω Power rating 24 W (RMS)
Standard color Black
Radiator
Flexible gooseneck and fiberglass radome protected radiator (Ø 15 mm)
