Wideband UHF Manpack Antenna WD528Q
The WD528Q is a compact manpack antenna that provides ideal performance over the entire frequency band. The antenna comes with a steel shock absorption spring by default, but is also optionally available with a flexible gooseneck, lightweight rubber spring or without a spring. High power handling capabilities make the WD528Q well suited for Counter-RCIED and jamming applications.
• Excellent performance over the entire 480 - 2800 MHz frequency range
• Low weight and small visual signature
• Rugged antenna construction with shock absorption spring Product
Polarization
Antenna type Wideband dipole
Radiation pattern Omnidirectional
Gain
VSWR
Nominal Impedance
Measured patterns on request
≤ 3.5
50 Ω
Power rating 50 W (RMS)
Standard color
(Ø 28 mm)
*Specific adjustments on request
WD528Q
WD528RQ
WD528G
WD528
V1.5w
Date 03.05.2021
Antenna as described above (with Ø 36 mm steel spring)
Antenna with rubber spring (Height: 410 mm / Weight: 270 g)
Antenna with 12 cm gooseneck (Height: 460 mm / Weight: 340 g)
Antenna without a spring (Height: 345 mm / Weight: 260 g)
1/1

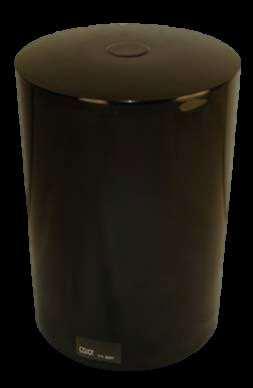

Active Wideband VHF/UHF/SHF Monitoring Antenna WBM5600M
The WBM5600M is an active wideband antenna with high input power tolerance for receive only applications such as spectrum monitoring within the 50 – 6000 MHz frequency range.
• High input power tolerance
• Built-in Low Noise Amplifier (LNA) with low noise figure
• Small size and robust mechanical design
Product details*
Frequency range 50 – 6000 MHz (on a ground plane ≥ 1 x 1 m2)
Polarization
Nominally vertical
Radiation pattern
Omnidirectional Gain -4 to 24 dB (Measured patterns on request)
Noise Figure (typical) 1.0 to 3.4 dB
Nominal Impedance
P1dB (typical)
OIP3 (typical)
Max. Input Power
V2.2w
Date 15.05.2024
(33 dBm)
LNA power supply (fed through signal cable) 12-24 VDC, 70 mA
Standard color
mm
Installation*
RF connection Female N-type
Mounting 4 x M10 female threads in a 114.3 mm diameter circular pattern on the bottom side of the antenna
*Specific adjustments on request
as described above WBM5600M-B
Antenna as described above, suitable with MS256-NT mast mount WB225M 5985 - 58 - 000 - 5333 Antenna without LNA module (passive). See monitoring performance on Page 2 and other details from the WB225M data sheet.
