L-BAND ANTENNAS

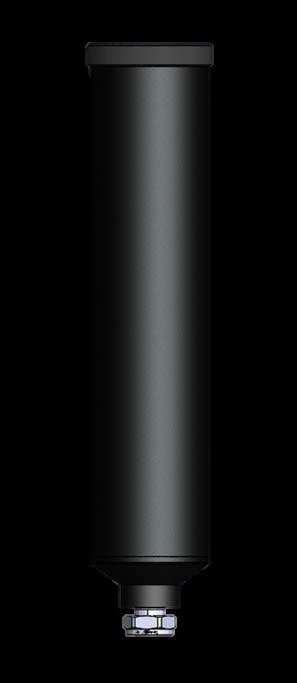

Wideband UHF/SHF Portable Antenna
WD560P
The WD560P is a lightweight wideband portable antenna that does not require a ground plane for proper operation. It is well suited for communication, Counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.
• Effective operation in the UHF/SHF bands up to 6 GHz
• Ideal radiation performance for jamming applications
• High power rating, up to 250 W
• No ground plane required
Product details*
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating (RMS)
500 – 6000 MHz
Nominally vertical
Omnidirectional
Measured patterns on request
≤ 3.0
50 Ω
500-1000 MHz: 250 W
1000-2700 MHz: 170 W
2700-4000 MHz: 130 W
4000-6000 MHz: 100 W
Standard color Black
Radiator
Radome protected (diameter 80 mm)
Height (above mounting surface) 380 mm
Weight 0.9 kg
Installation*
RF connection 7/16 Male
*Specific adjustments on request
Order number
Product
Antenna as described above
V1.1w
Date 25.01.2021
Page 1/1

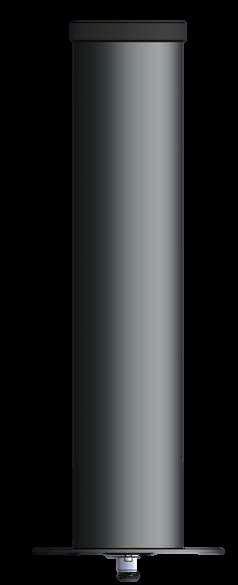

Wideband UHF/SHF Vehicle Antenna WD560M
The WD560M is a light weight wideband vehicle antenna that does not require a ground plane for proper operation. It is well suited for communication, counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.
• Effective operation in the UHF/SHF bands up to 6 GHz
• Ideal radiation performance for jamming applications
• High power rating, up to 250 W
• No ground plane required
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Product details*
500 – 6000 MHz
Nominally vertical
Omnidirectional
Patterns available on request
≤ 3.0
Nominal Impedance 50 Ω
Power rating (RMS)
500-1000 MHz: 250 W
1000-2700 MHz: 170 W
2700-4000 MHz: 130 W
4000-6000 MHz: 100 W
Standard color Black
Radiator Radome protected (diameter 80 mm)
Height (above mounting surface)
Weight
RF connection
400 mm
1.0 kg
Installation*
Female N-type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
Product
described above
V1.1w
Date 01.07.2020 Page 1/1
