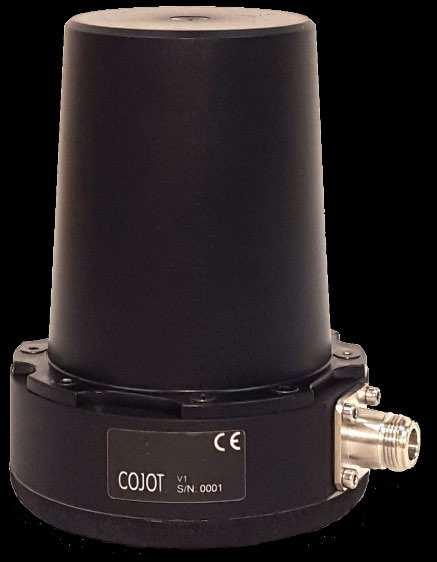

Wideband UHF/SHF Magnetic Mount Antenna WB480W
The WB480W is an extremely wideband and compact magnetic mount antenna of low profile that supports multiple applications. The antenna is ideally suited for applications where a quick setup and removal is required or where a permanent installation of the antenna on a vehicle is not possible.
• Ideal operation in the UHF/SHF bands up to 8 GHz
• High performance, 200 W at 100% duty cycle
• Compact magnetic mount for easy-to-setup temporary installations
MHz: 160 W
MHz: 130 W
MHz: 60 W Standard color
Safety Warning: Great care should be taken when handling strong magnetic products. Magnetic mounts may cause painful pinching injuries. When using a magnetically mounted device on a moving vehicle the device may lift off from the vehicle even at moderate speeds in case of collision. Therefore a secondary retention system should always be used to prevent unintentional detachment or loss of the device (the properly tightened feeder cable could possibly be used for this purpose). For maximum grip the surface of the vehicle and the bottom of the magnet should be dry and clean of dirt, snow and ice prior to attaching the device.
V0.1w
Date 05.04.2023

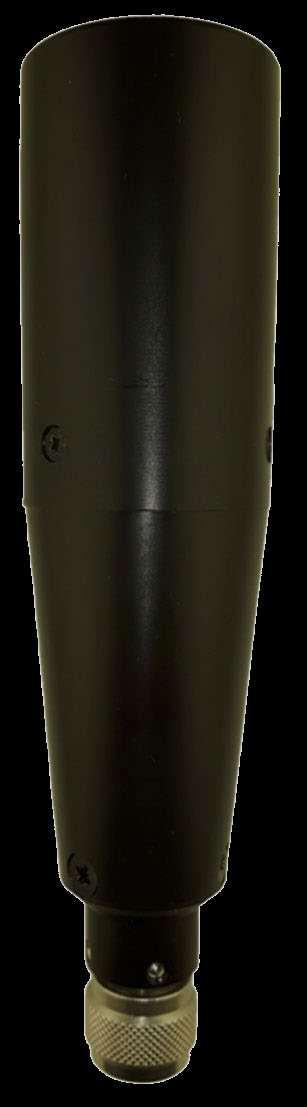

Wideband UHF/SHF Portable Antenna WD28P
The WD28P is a high performance omnidirectional portable antenna which provides excellent performance over the entire 2 – 8 GHz frequency range. The antenna is particularly suited for tactical communication applications.
• Effective omnidirectional radiation over the entire frequency range
• Rugged radome protected construction
• No ground plane required
dipole
pattern
Gain (Measured patterns on request) VSWR
Nominal Impedance
Standard color
RF connection
N-type connector Mounting Directly to a matching connector
*Specific adjustments on request

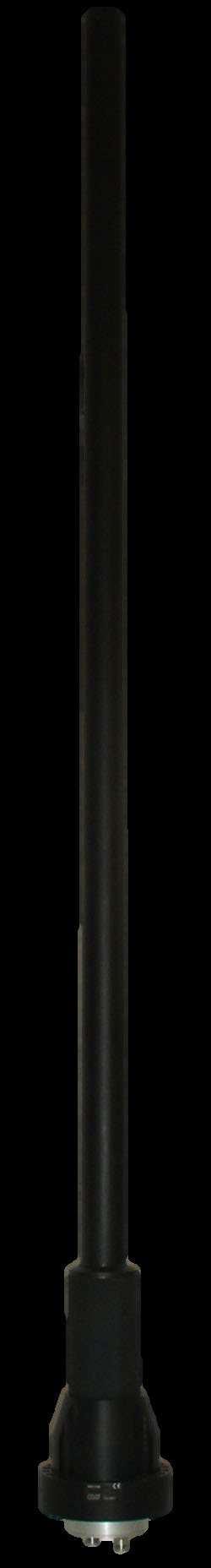

Ultra-Wideband Dual Port Vehicular Antenna WBC2800M
The WBC2800M is a robust ultra-wideband dual port antenna effectively covering the VHF, UHF and SHF bands. It is well suited for high power ECM and tactical communication applications, especially where a multiple antenna set-up is not possible, or antenna co-location problems may occur.
V0.1w
Date 12.06.2023
• Two antennas integrated in the same mechanics, combining the advantage of a low visual signature with the capability for an extended frequency range
• High band, ground plane independent antenna positioned at the top for optimum coverage
• High power rating, more than 300 W in total
Product details*
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating (RMS)
Port 1: 20 – 512 MHz
Port 2: 500 – 7500 MHz
Nominally vertical
Omnidirectional (typ. ± 1.5 dB)
Measured patterns on request
Port 1: ≤ 3.5 / Port 2: < 3.5
50 Ω
Port 1: 140 W
Port 2: 500-1000 MHz: 200 W
1000-2000 MHz: 150 W
2000-4000 MHz: 100 W
4000-6000 MHz: 80 W
6000-7500 MHz: 40 W
Standard color Black
Radiator
Aluminium enclosed in fibreglass radome with rubber coated shock absorption spring
Height 1750 mm
Weight 6.1 kg
Installation*
RF connection Two Female N-type connectors
Mounting 4-hole US pattern mount
*Specific adjustments on request
Order number
WBC2800M Antenna as described above
Page 1/1

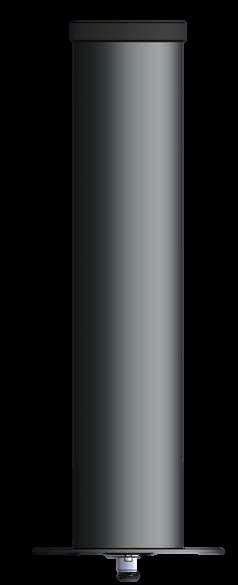

Wideband UHF/SHF Portable Antenna
WD560P
The WD560P is a lightweight wideband portable antenna that does not require a ground plane for proper operation. It is well suited for communication, Counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.
• Effective operation in the UHF/SHF bands up to 6 GHz
• Ideal radiation performance for jamming applications
• High power rating, up to 250 W
• No ground plane required
Product details*
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Nominal Impedance
Power rating (RMS)
500 – 6000 MHz
Nominally vertical
Omnidirectional
Measured patterns on request
≤ 3.0
50 Ω
500-1000 MHz: 250 W
1000-2700 MHz: 170 W
2700-4000 MHz: 130 W
4000-6000 MHz: 100 W
Standard color Black
Radiator
Radome protected (diameter 80 mm)
Height (above mounting surface) 380 mm
Weight 0.9 kg
Installation*
RF connection 7/16 Male
*Specific adjustments on request
Order number
Product
Antenna as described above
V1.1w
Date 25.01.2021
Page 1/1

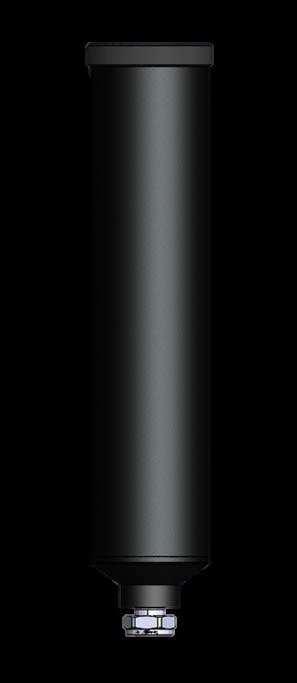

Wideband UHF/SHF Vehicle Antenna WD560M
The WD560M is a light weight wideband vehicle antenna that does not require a ground plane for proper operation. It is well suited for communication, counter-RCIED and jamming applications within the 500 – 6000 MHz frequency range.
• Effective operation in the UHF/SHF bands up to 6 GHz
• Ideal radiation performance for jamming applications
• High power rating, up to 250 W
• No ground plane required
Frequency range
Polarization
Radiation pattern
Gain
VSWR
Product details*
500 – 6000 MHz
Nominally vertical
Omnidirectional
Patterns available on request
≤ 3.0
Nominal Impedance 50 Ω
Power rating (RMS)
500-1000 MHz: 250 W
1000-2700 MHz: 170 W
2700-4000 MHz: 130 W
4000-6000 MHz: 100 W
Standard color Black
Radiator Radome protected (diameter 80 mm)
Height (above mounting surface)
Weight
RF connection
400 mm
1.0 kg
Installation*
Female N-type
Mounting 4-hole US and 3/6-hole NATO pattern mount
*Specific adjustments on request
Order number
Product
described above
V1.1w
Date 01.07.2020 Page 1/1
