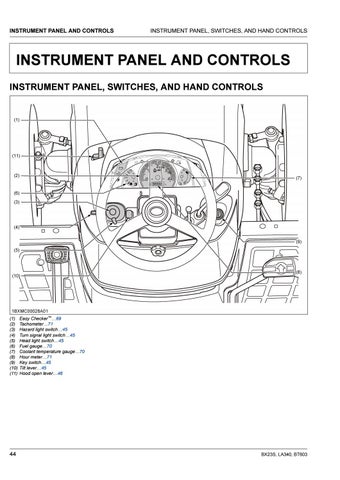

INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES, AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS INSTRUMENT PANEL, SWITCHES, AND HAND CONTROLS
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
44
Easy Checker™…69 Tachometer…71 Hazard light switch…45 Turn signal light switch…45 Head light switch…45 Fuel gauge…70 Coolant temperature gauge…70 Hour meter…71 Key switch…45 Tilt lever…45 Hood open lever…46
BX23S, LA340, BT603
